Bridges and Tunnels: A Drive Through OpenStack Networking
- 1. Bridges and Tunnels:A Drive Through OpenStack Networking Mark McClain twitter: @gtwmm
- 2. Why Create Neutron? •New Technology • Tenant Isolation • Rich Topologies • Advance Services Support • Load Balancing, VPN, Firewall
- 3.
- 4. What does theuser see? Compute API Network API Storage APIGUI, CLI, API Libs KVM ML2 Plugin Ceph
- 5. Abstractions Net1 10.0.0.0/24 Nova Neutron L2 virtual network virtualport virtual server virtual interface (VIF) virtual subnet VM1 10.0.0.2 VM2 10.0.0.2
- 6.
- 7. Design Goals Open vSwitch/ Linux Bridge Ryu OpenFlow Controller • Unified API • Small Core • Pluggable Open Architecture • Multiple Vendor Support • Extensible
- 8.
- 9. Basic Deployment neutron-server L2 AgentL2AgentL2 AgentL2 AgentL2 AgentL2 Agent L3 AgentL3 Agent L3 AgentL3 Agent Database L3 Agent DHCP Agent L2 Agent Message Queue Adv Services neutron-server
- 10. neutron-server REST API SERVICE RPC SERVICE PLUGIN RESTAPI SERVICE RPC SERVICE • REST API • HTTP(S) Python WSGI Application • Customary TCP port is 9696 • Exposes logical resources • networks, subnets, ports, etc • Request/Response Serialization • RPC Service • AMQP via Oslo messaging modules • Enables bidirectional agent communication • Optional neutron-server
- 11. neutron-server REST API SERVICE RPC SERVICE PLUGIN •PLUGIN • Written in Python • Only one active • Must implement V2 API calls • Optional database access • Optional extension support
- 12. The Plugin ML2Plugin core_plugin =neutron.plugins.ml2.plugin.Ml2Plugin
- 13. The Plugin NeutronPluginBaseV2 NeutronDbPluginV2 ML2Plugin core_plugin =neutron.plugins.ml2.plugin.Ml2Plugin
- 14. Plugin Extensions • Addlogical resources to the REST API • Discovered by server at startup • REST: /v2.0/extensions • Common Extensions • Binding, DHCP, L3, Provider, Quota, Security Group • Other Extensions • Allowed Addresses, Extra Routes, Metering
- 15. Monolithic Plugin • Fullimplementation of core resources • Two types: • Proxy • Direct control PLUGIN
- 16. ML2: Modular Layer2 Plugin • Full V2 Plugin Implementation • Delegates calls to proper L2 drivers • Two kinds of drivers • Type Driver • Mechanism Driver Mech Mgr PLUGIN Type Mgr PLUGIN
- 17. Basic Deployment neutron-server L2 AgentL2AgentL2 AgentL2 AgentL2 AgentL2 Agent L3 AgentL3 Agent L3 AgentL3 Agent Database L3 Agent DHCP Agent L2 Agent Message Queue Adv Services

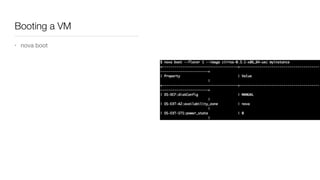

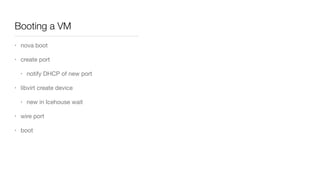

- 18.

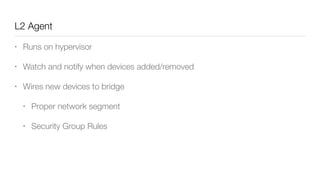

- 19. L2 Agent • Runson hypervisor • Watch and notify when devices added/removed • Wires new devices to bridge • Proper network segment • Security Group Rules

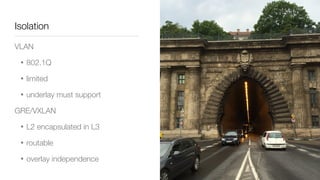

- 20. Isolation VLAN • 802.1Q • limited •underlay must support GRE/VXLAN • L2 encapsulated in L3 • routable • overlay independence
- 21.

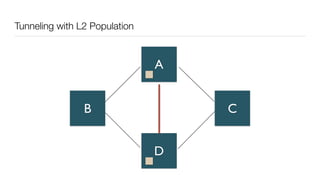

- 22. Tunneling with L2Population A D CB

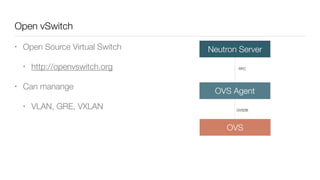

- 23. • Open SourceVirtual Switch • http://openvswitch.org • Can manage • VLAN, GRE, VXLAN OVSDB Open vSwitch Neutron Server OVS Agent OVS RPC
- 24. Basic Deployment neutron-server L2 AgentL2AgentL2 AgentL2 AgentL2 AgentL2 Agent L3 AgentL3 Agent L3 AgentL3 Agent Database L3 Agent DHCP Agent L2 Agent Message Queue Adv Services

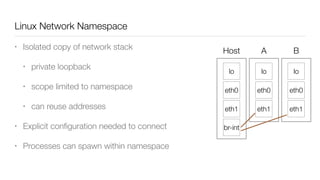

- 25. Linux Network Namespace •Isolated copy of network stack • private loopback • scope limited to namespace • can reuse addresses • Explicit configuration needed to connect • Processes can spawn within namespace lo eth1 eth0 lo eth1 eth0 lo eth1 eth0 Host A B br-int
- 26. Network Node L3 Agent • Runon Network Node • Uses Namespaces • Metadata Agent (if enabled) Network Node Core Hypervisor Hypervisor Hypervisor
- 27. L3 Agent Howit’s implemented • Manages Collection of Network Namespaces • Isolated IP Stacks • Forwarding Enabled • net.ipv4.ip_forward=1 • Static Routing • Metadata Proxy lo eth1 eth0 lo qg-2 qr-1 lo qg-b qr-e Host A B br-ex

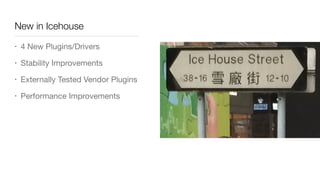

- 28. New in Icehouse •4 New Plugins/Drivers • Stability Improvements • Externally Tested Vendor Plugins • Performance Improvements

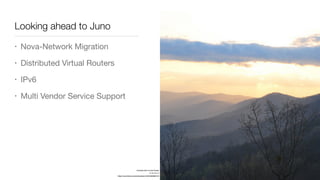

- 29. Looking ahead toJuno • Nova-Network Migration • Distributed Virtual Routers • IPv6 • Multi Vendor Service Support
- 30. More Information • CloudAdministrator Guide • http://docs.openstack.org/admin-guide-cloud/content/ch_networking.html • Network v2.0 API • http://developer.openstack.org/api-ref-networking-v2.html
- 31.
- 32.

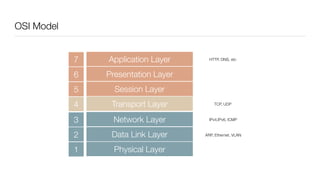

- 33. OSI Model Physical Layer DataLink Layer Network Layer Transport Layer Session Layer Presentation Layer Application Layer 1 2 3 4 5 6 7 TCP, UDP IPv4,IPv6, ICMP HTTP, DNS, etc ARP, Ethernet, VLAN
- 34.

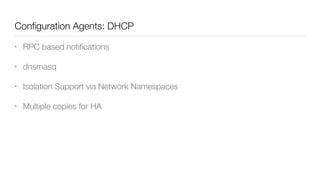

- 35. Configuration Agents: DHCP •RPC based notifications • dnsmasq • Isolation Support via Network Namespaces • Multiple copies for HA

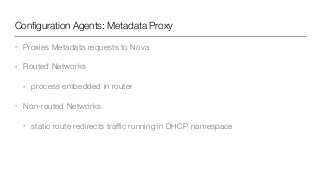

- 36. Configuration Agents: MetadataProxy • Proxies Metadata requests to Nova • Routed Networks • process embedded in router • Non-routed Networks • static route redirects traffic running in DHCP namespace

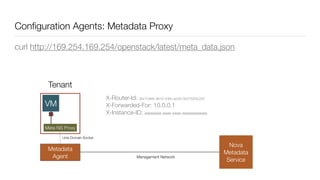

- 37. Configuration Agents: MetadataProxy curl http://169.254.169.254/openstack/latest/meta_data.json Tenant VM Nova Metadata Service Meta NS Proxy Metadata Agent Unix Domain Socket Management Network X-Router-Id: 2bc7c882-d612-438c-a334-0047f2b5c2d7 X-Forwarded-For: 10.0.0.1 X-Instance-ID: aaaaaaaa-aaaa-aaaa-aaaaaaaaaaaa
