OpenStack in Action 4! Nick Barcet & Julien Danjou - From ceilometer to telemetry not so alarming!
The presentation discusses the evolution of OpenStack Telemetry, initially known as Ceilometer, detailing its development and features introduced in the Havana release. Key topics include improvements in API functionality, new storage solutions for handling data, the architecture of alarm mechanisms, and future enhancements planned for the Icehouse release. The document highlights community growth, use cases for metrics gathering, and the importance of alarming based on statistical thresholds.
More Related Content
Similar to OpenStack in Action 4! Nick Barcet & Julien Danjou - From ceilometer to telemetry not so alarming!
OpenStack in Action 4! Nick Barcet & Julien Danjou - From ceilometer to telemetry not so alarming!
- 1. From Ceilometer to Telemetry Not soalarming! A Julien Danjou & Nick Barcet presentation for OpenStack in action! 4 on the 5th December 2013
- 2. Speakers Nick Barcet VP Products@ eNovance Co-founded the Ceilometer project at the Folsom summit and led the project through incubation Julien Danjou Ceilometer Lead Dev @ eNovance Has been a core Ceilometer contributor from the outset, taking over the PTL reins for Havana

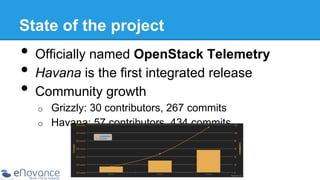

- 3. State of theproject • Officially named OpenStack Telemetry • Havana is the first integrated release • Community growth o o Grizzly: 30 contributors, 267 commits Havana: 57 contributors, 434 commits
- 4. What was doneduring the Havana cycle?
- 5. UDP transport • Faster,stateless • Lighter (msgpack encoding) but… • No delivery guaranteed • Not signed ▶ Use case: gathering metrics for alarms

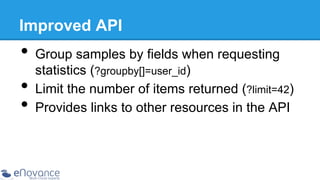

- 6. Improved API • Groupsamples by fields when requesting • • statistics (?groupby[]=user_id) Limit the number of items returned (?limit=42) Provides links to other resources in the API

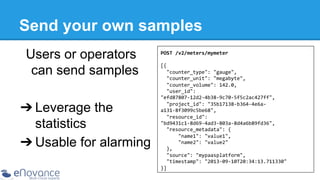

- 7. Send your ownsamples Users or operators can send samples ➔ Leverage the statistics ➔ Usable for alarming POST /v2/meters/mymeter [{ "counter_type": "gauge", "counter_unit": "megabyte", "counter_volume": 142.0, "user_id": "efd87807-‐12d2-‐4b38-‐9c70-‐5f5c2ac427ff", "project_id": "35b17138-‐b364-‐4e6a-‐ a131-‐8f3099c5be68", "resource_id": "bd9431c1-‐8d69-‐4ad3-‐803a-‐8d4a6b89fd36", "resource_metadata": { "name1": "value1", "name2": "value2" }, "source": "mypaasplatform", "timestamp": "2013-‐09-‐10T20:34:13.711330" }]
- 8.
- 9. Database TTL Previously: No wayto purge data. Ceilometer produces a lot of data (gigabytes per day) Now: ceilometer-expirer will drop data older than the configured time-to-live delay
- 10. Hyper-V ➔ Disk, networkand CPU usage

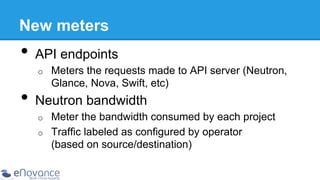

- 11. New meters • APIendpoints o Meters the requests made to API server (Neutron, Glance, Nova, Swift, etc) • Neutron bandwidth o o Meter the bandwidth consumed by each project Traffic labeled as configured by operator (based on source/destination)

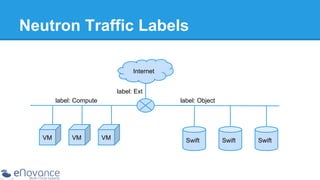

- 12. Neutron Traffic Labels Internet label:Ext label: Compute VM VM label: Object VM Swift Swift Swift
- 13. Alarms Regularly watch formeters statistics values and triggers actions based on threshold crossings.

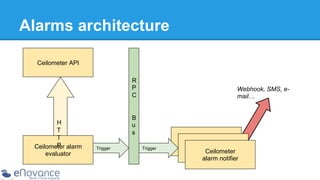

- 14. Alarms architecture Ceilometer API R P C H T T P Ceilometeralarm evaluator Webhook, SMS, email… B u s Trigger Trigger Ceilometer Ceilometer alarm notifier Ceilometer alarm notifier alarm notifier

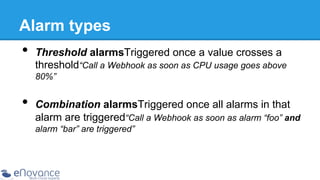

- 15. Alarm types • ThresholdalarmsTriggered once a value crosses a threshold“Call a Webhook as soon as CPU usage goes above 80%” • Combination alarmsTriggered once all alarms in that alarm are triggered“Call a Webhook as soon as alarm “foo” and alarm “bar” are triggered”

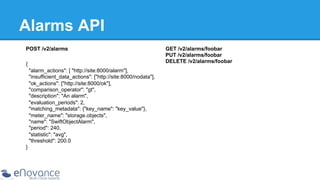

- 16. Alarms API POST /v2/alarms { "alarm_actions":[ "http://site:8000/alarm"], "insufficient_data_actions": ["http://site:8000/nodata"], "ok_actions": ["http://site:8000/ok"], "comparison_operator": "gt", "description": "An alarm", "evaluation_periods": 2, "matching_metadata": {"key_name": "key_value"}, "meter_name": "storage.objects", "name": "SwiftObjectAlarm", "period": 240, "statistic": "avg", "threshold": 200.0 } GET /v2/alarms/foobar PUT /v2/alarms/foobar DELETE /v2/alarms/foobar

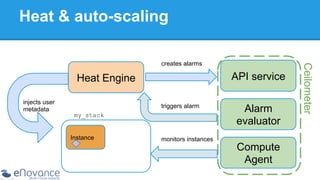

- 17. Heat & auto-scaling APIservice Heat Engine injects user metadata triggers alarm my_stack Instance monitors instances Alarm evaluator Compute Agent Ceilometer creates alarms

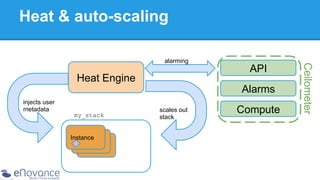

- 18. Heat & auto-scaling HeatEngine injects user metadata my_stack Instance Instance Instance API Alarms scales out stack Compute Ceilometer alarming

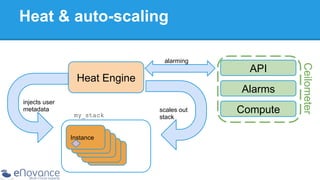

- 19. Heat & auto-scaling HeatEngine injects user metadata my_stack Instance Instance Instance Instance Instance API Alarms scales out stack Compute Ceilometer alarming
- 20. Events storage (Almost) allOpenStack components send notifications on events: let’s store them. ➔ Useful to be able to re-generate samples ➔ Useful to generate new sample we did not think about ➔ Allow to have a double-entry accounting ➔ Audit ability Not yet complete, to be continued in Icehouse
- 21. Exciting ideas for Icehousewe’re going to hack on.
- 22. General improvements • Splitthe collector in two logical pieces • Rely on notification for samples rather than • • • RPC Bring SQLAlchemy and MongoDB driver almost on parity Support for hardware polling Support Ironic

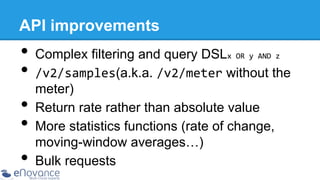

- 23. API improvements • Complexfiltering and query DSL • /v2/samples(a.k.a. /v2/meter without the x OR y AND z • • • meter) Return rate rather than absolute value More statistics functions (rate of change, moving-window averages…) Bulk requests
- 24. Alarming • Exclude lowsample counts Allow time constrained alarms •
- 25. Distributed polling Leveraging Toozand Taskflow to distribute tasks among workers (agents). ★ Ability to distribute the polling ★ Replace alarm evaluator custom distributor
- 26.
- 27.

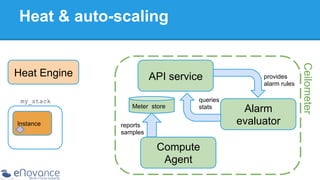

- 28. Heat & auto-scaling my_stack Instance APIservice Meter store queries stats reports samples Compute Agent provides alarm rules Alarm evaluator Ceilometer Heat Engine
