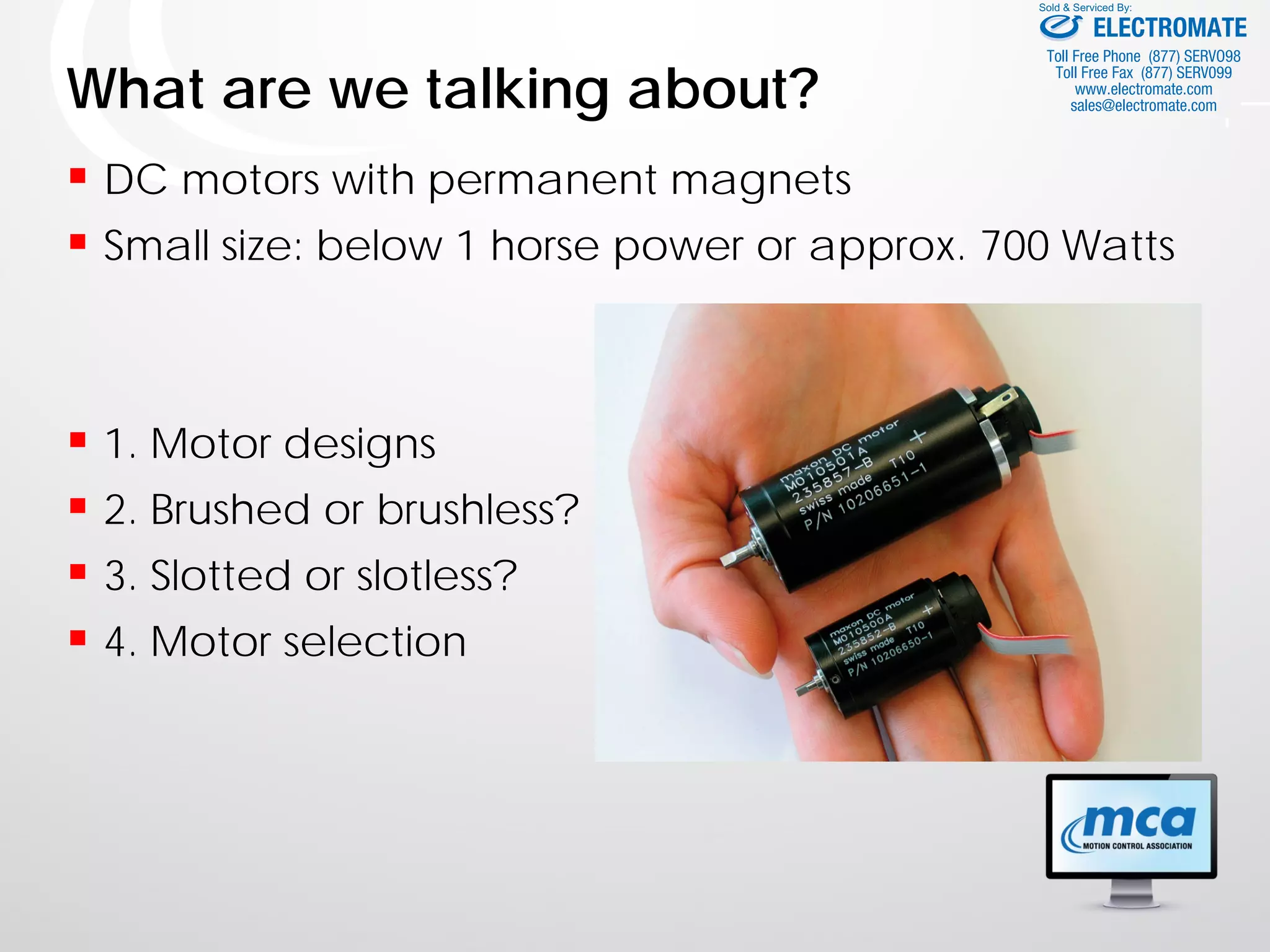

6. What are we talking about?
DC motors with permanent magnets
Small size: below 1 horse power or approx. 700 Watts
1. Motor designs
2. Brushed or brushless?
3. Slotted or slotless?
4. Motor selection
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

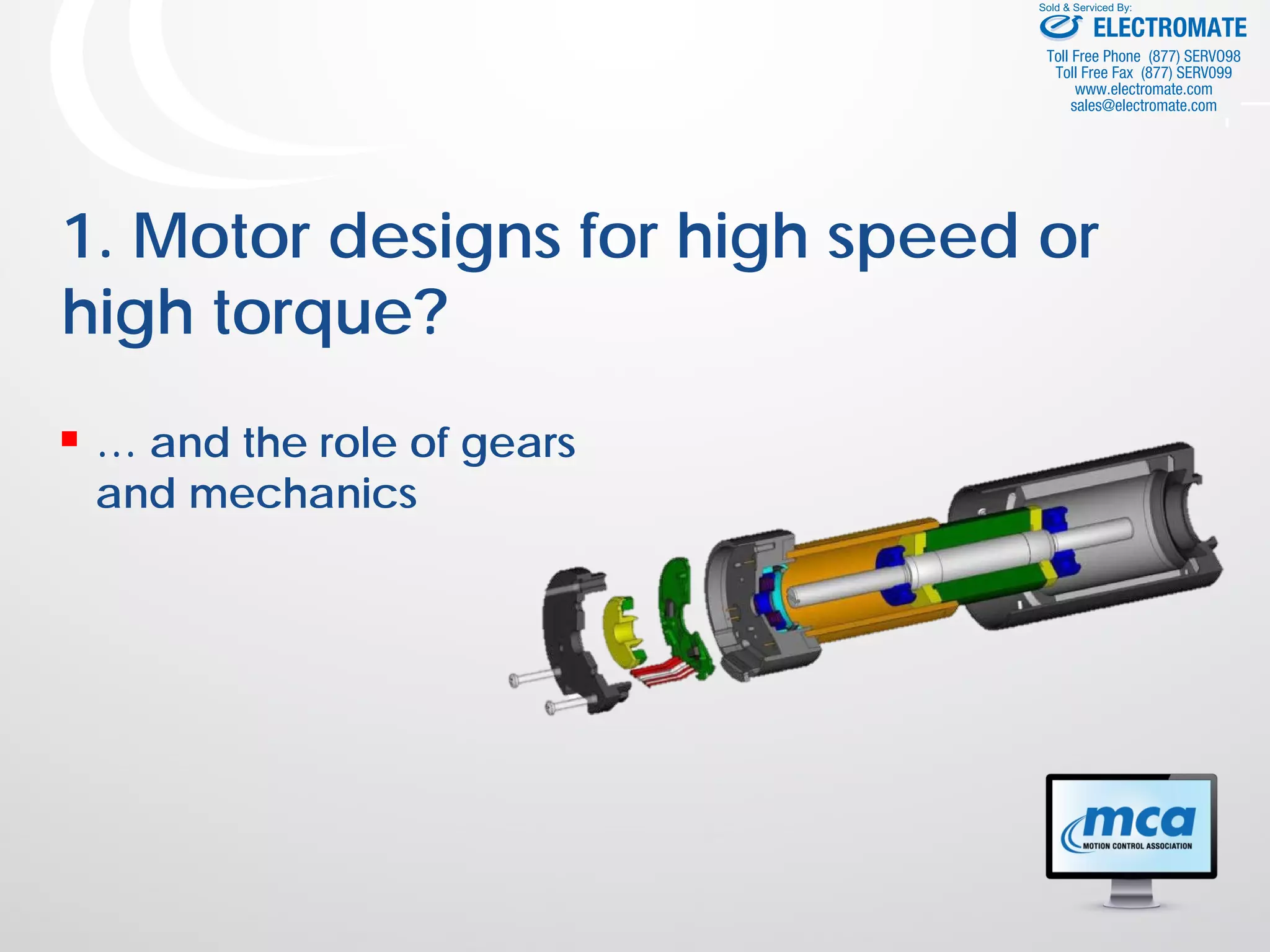

7. 1. Motor designs for high speed or
high torque?
… and the role of gears
and mechanics
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

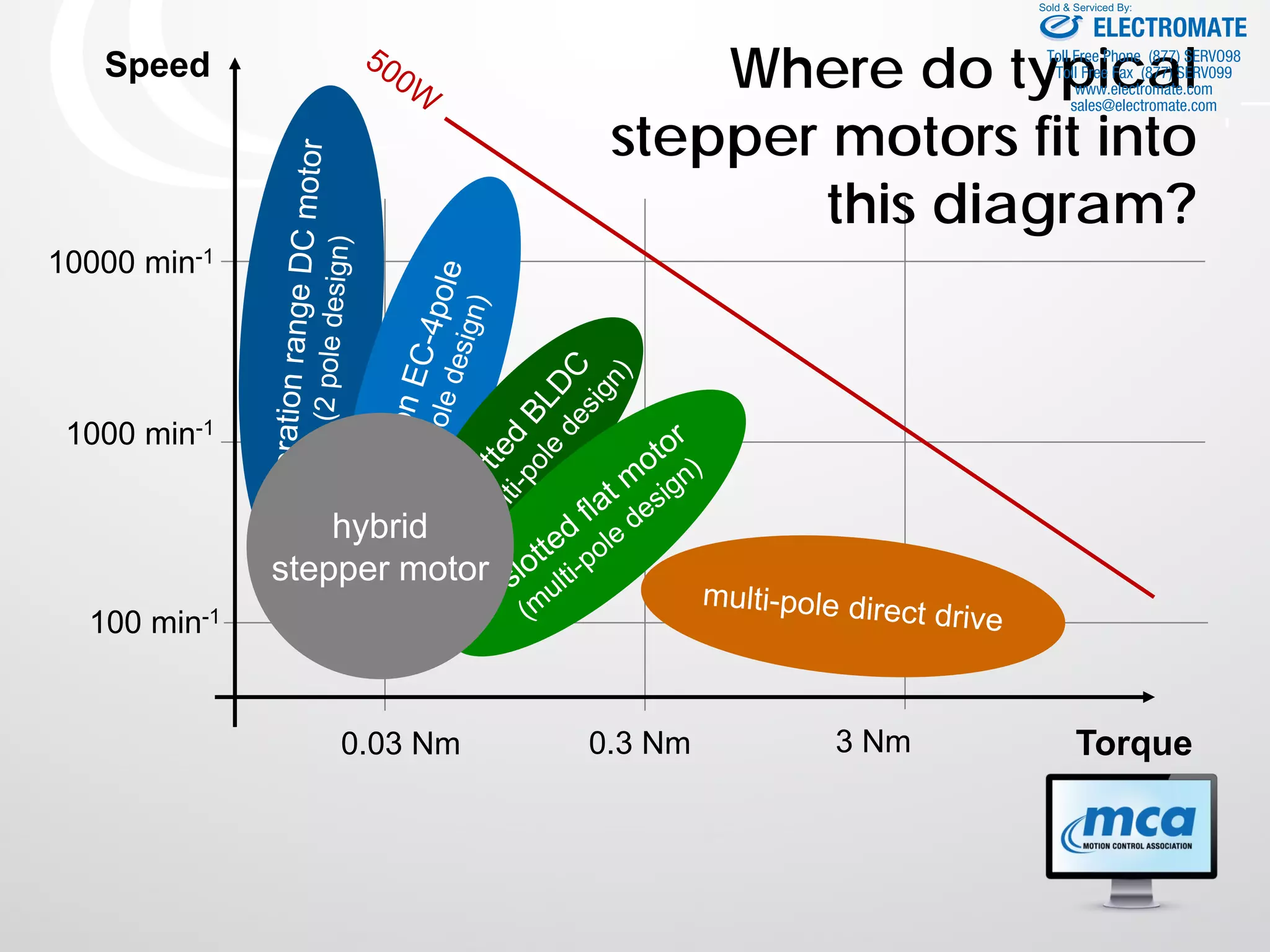

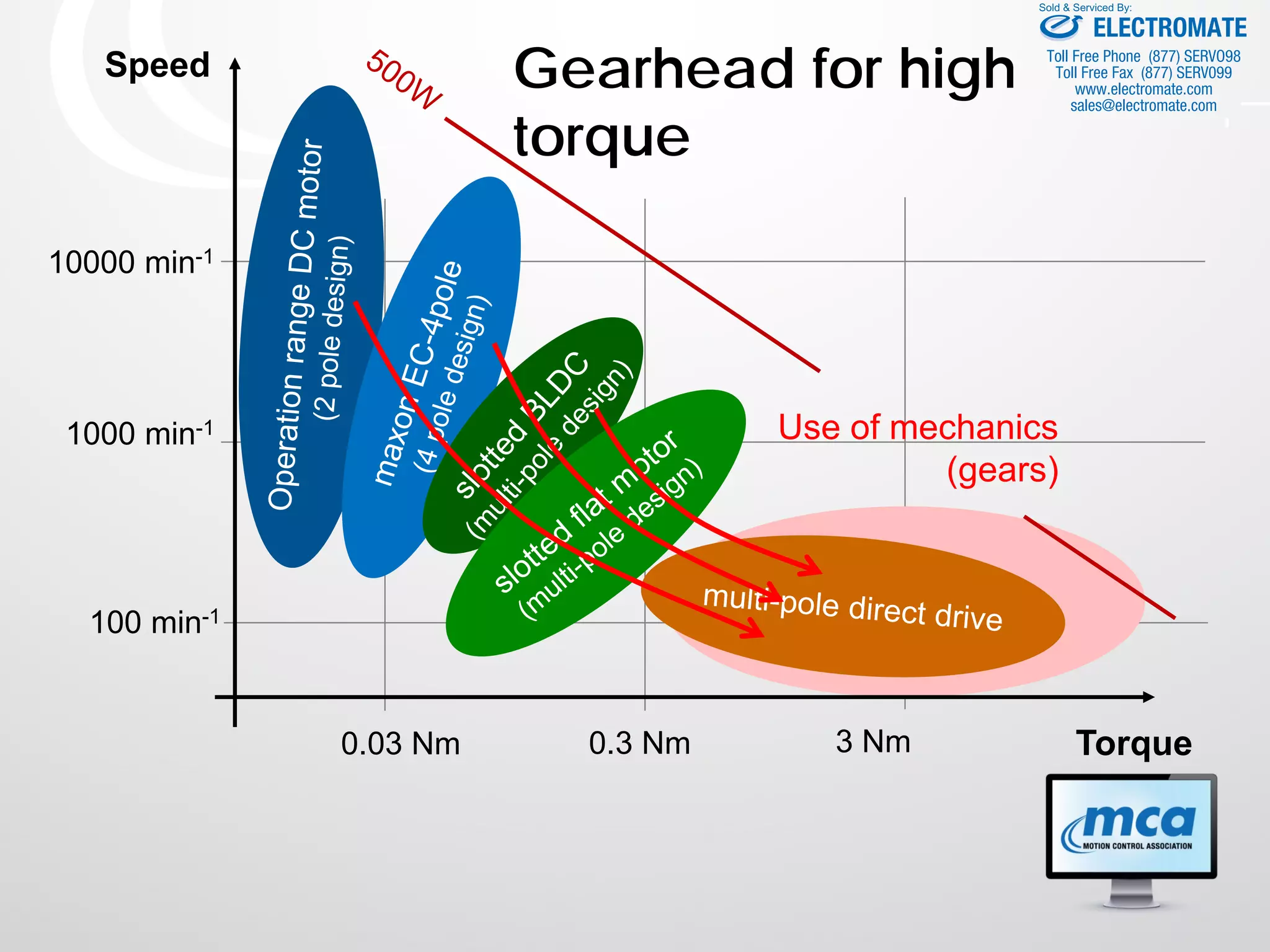

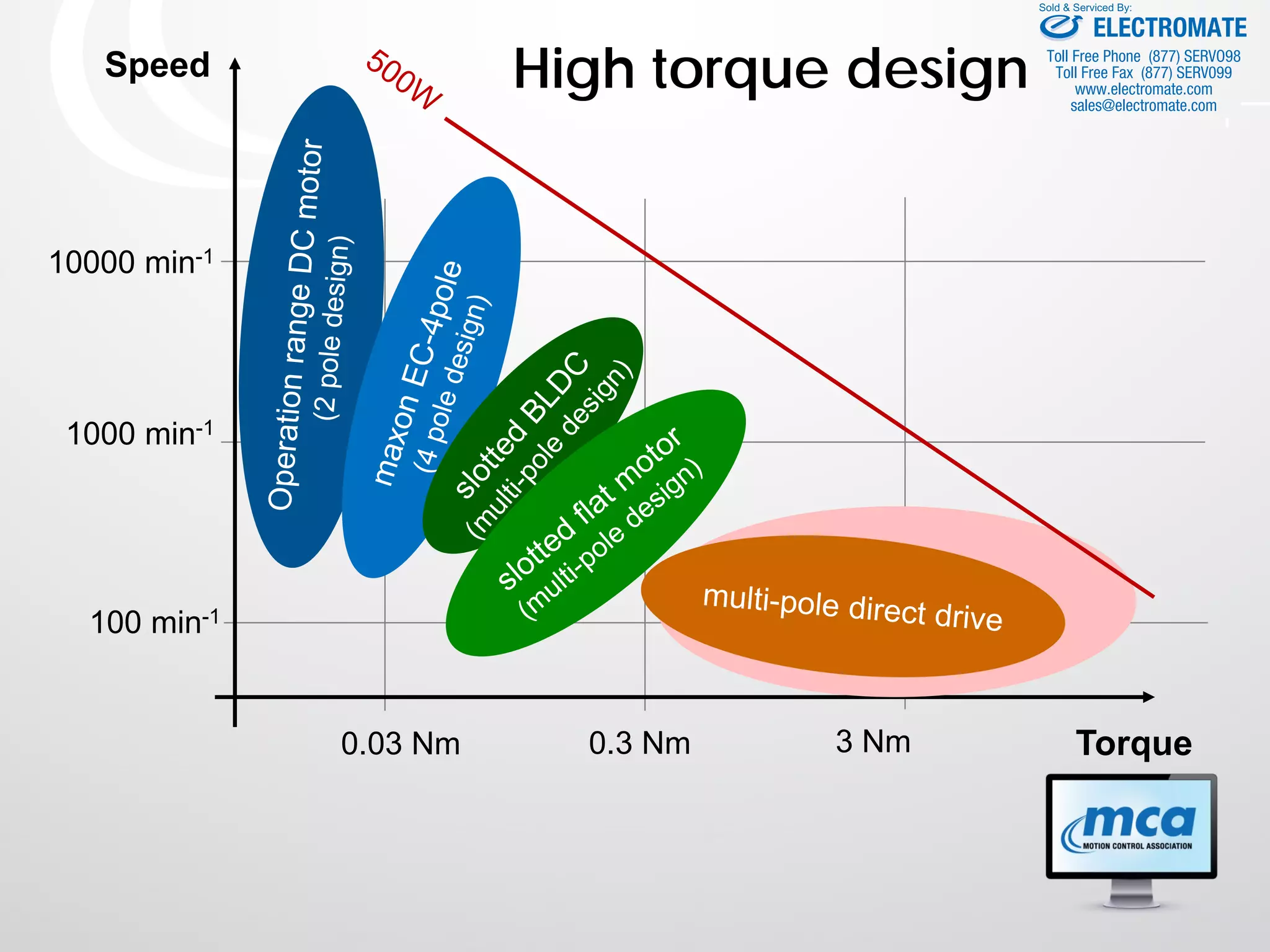

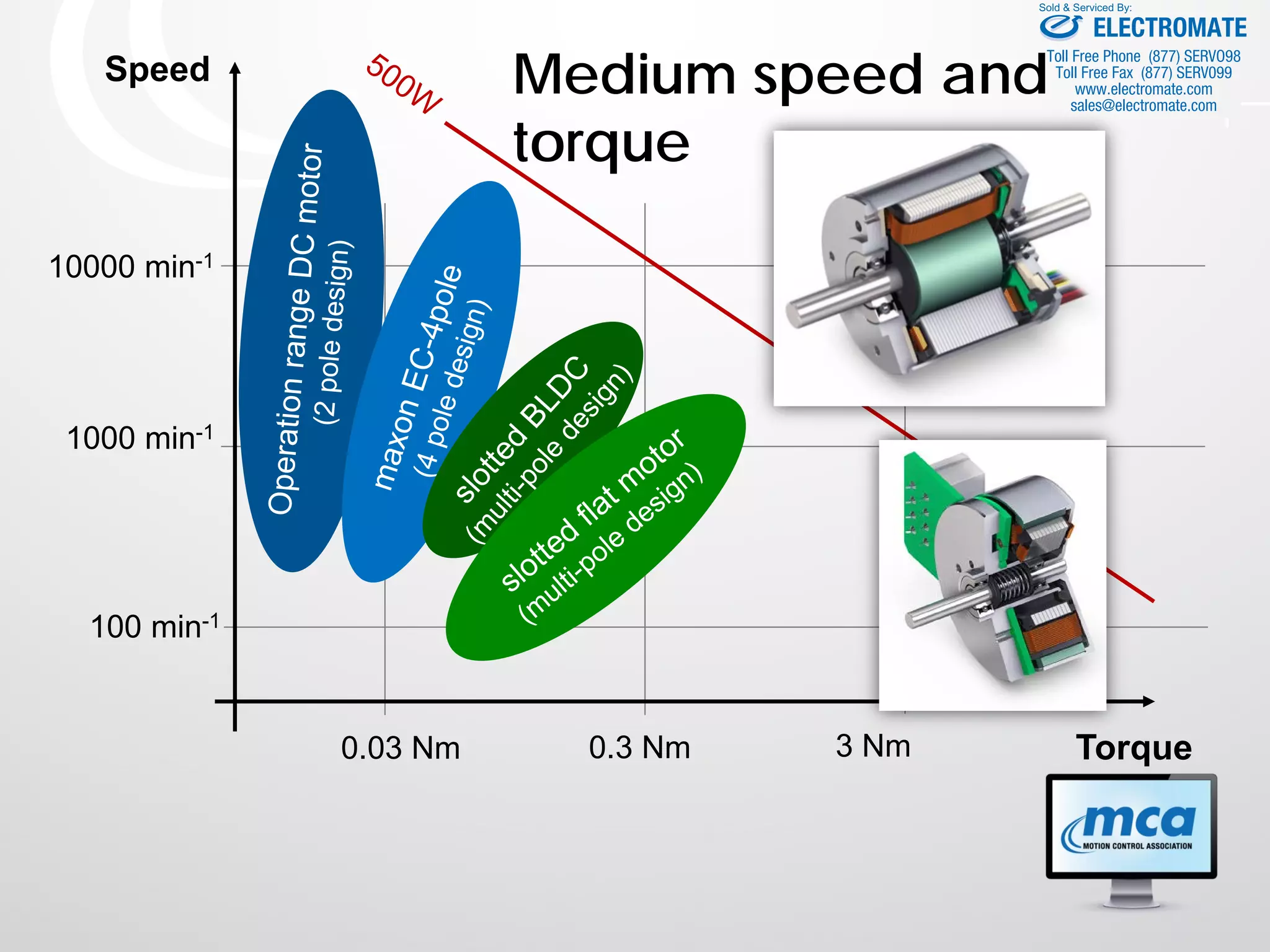

19. 0.3 Nm 3 Nm
10000 min-1
0.03 Nm
1000 min-1
100 min-1

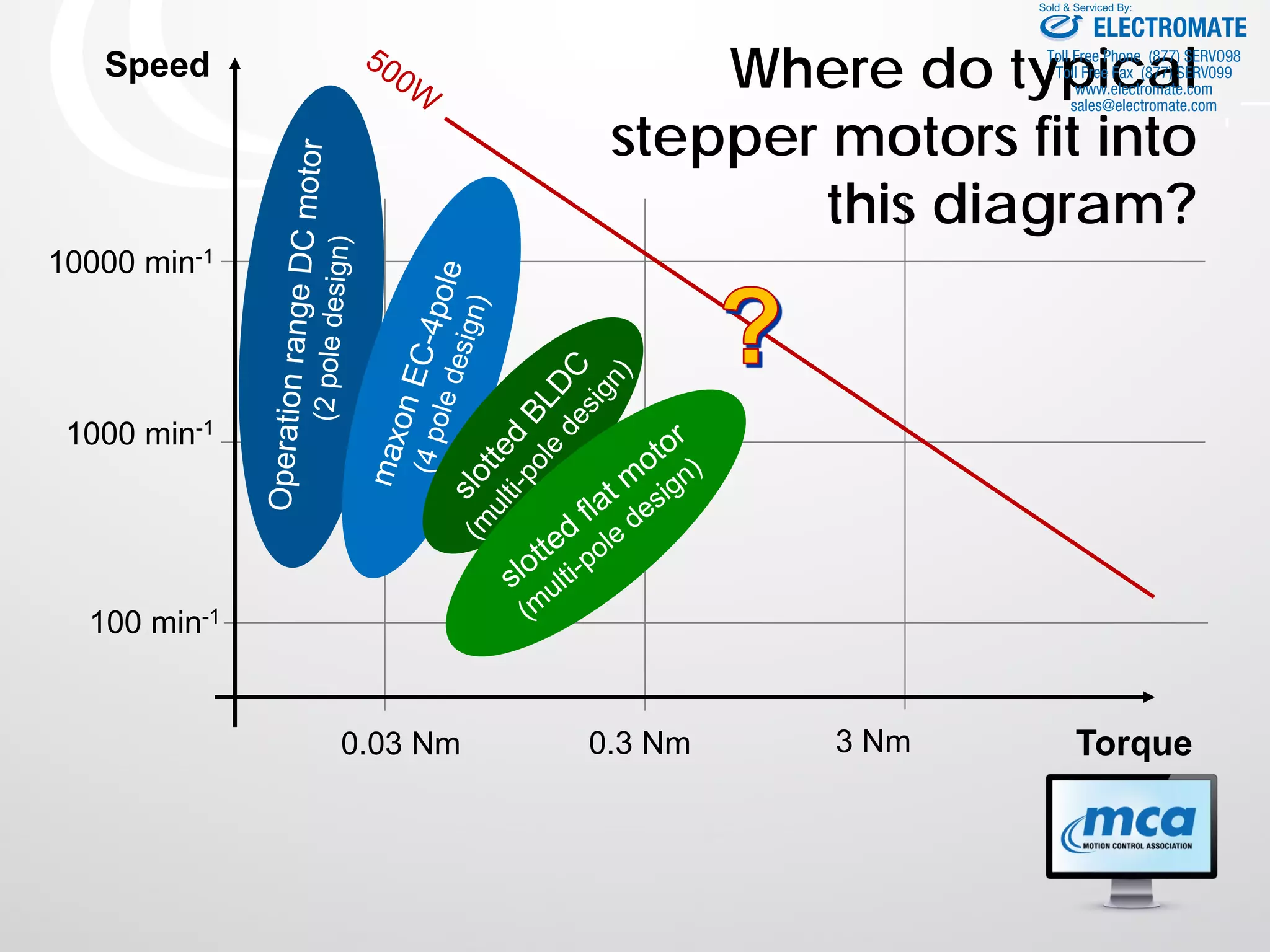

Where do typical
stepper motors fit into
this diagram?
Speed
Torque
hybrid
stepper motor
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

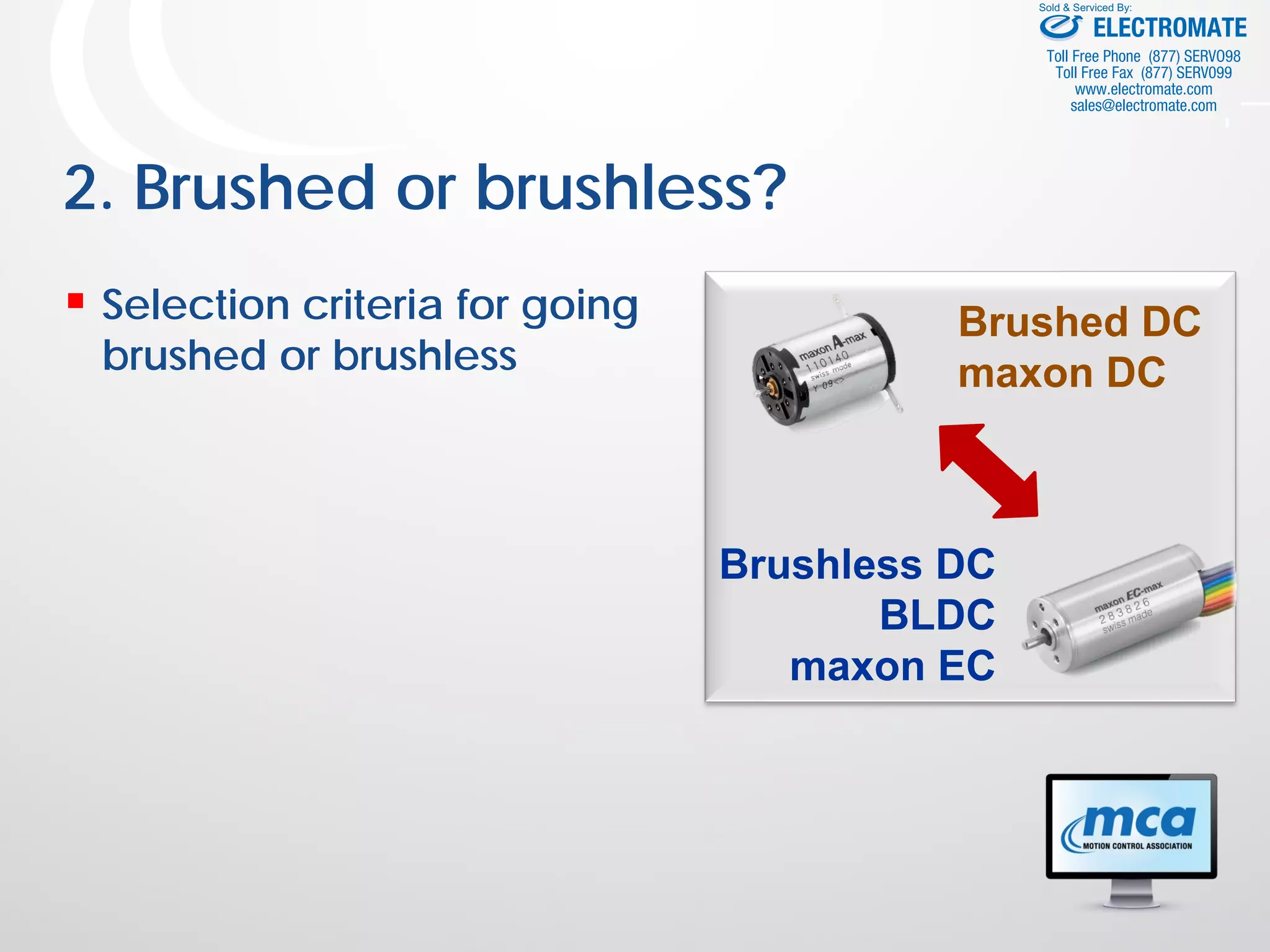

20. 2. Brushed or brushless?
Selection criteria for going
brushed or brushless
Brushed DC
maxon DC
Brushless DC
BLDC
maxon EC
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

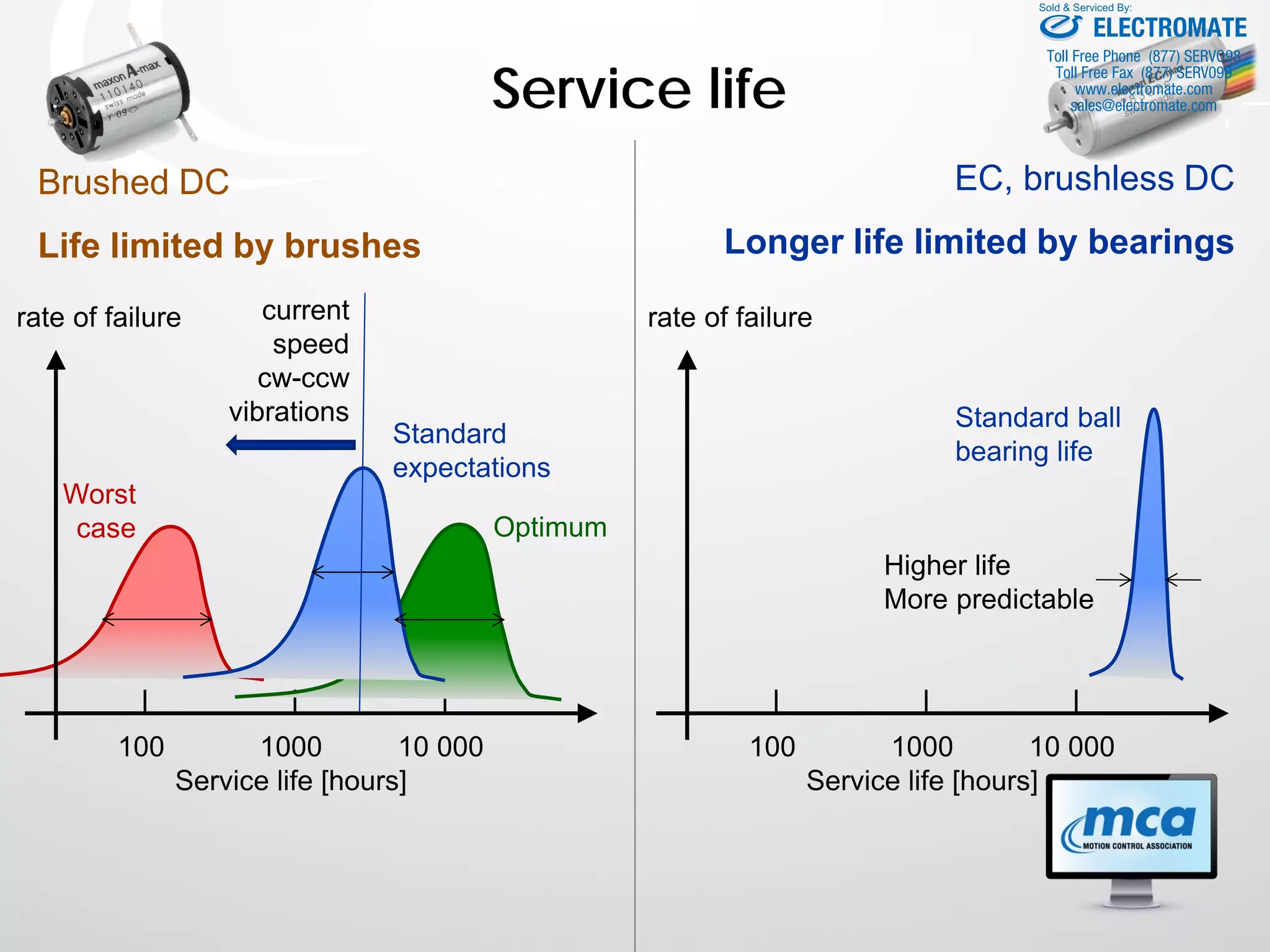

21. Service life
100 1000 10 000
Service life [hours]
rate of failure
Standard
expectations
Worst
case Optimum
100 1000 10 000
Service life [hours]
rate of failure
Standard ball
bearing life
Higher life
More predictable
current
speed
cw-ccw
vibrations
Brushed DC
Life limited by brushes
EC, brushless DC
Longer life limited by bearings
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

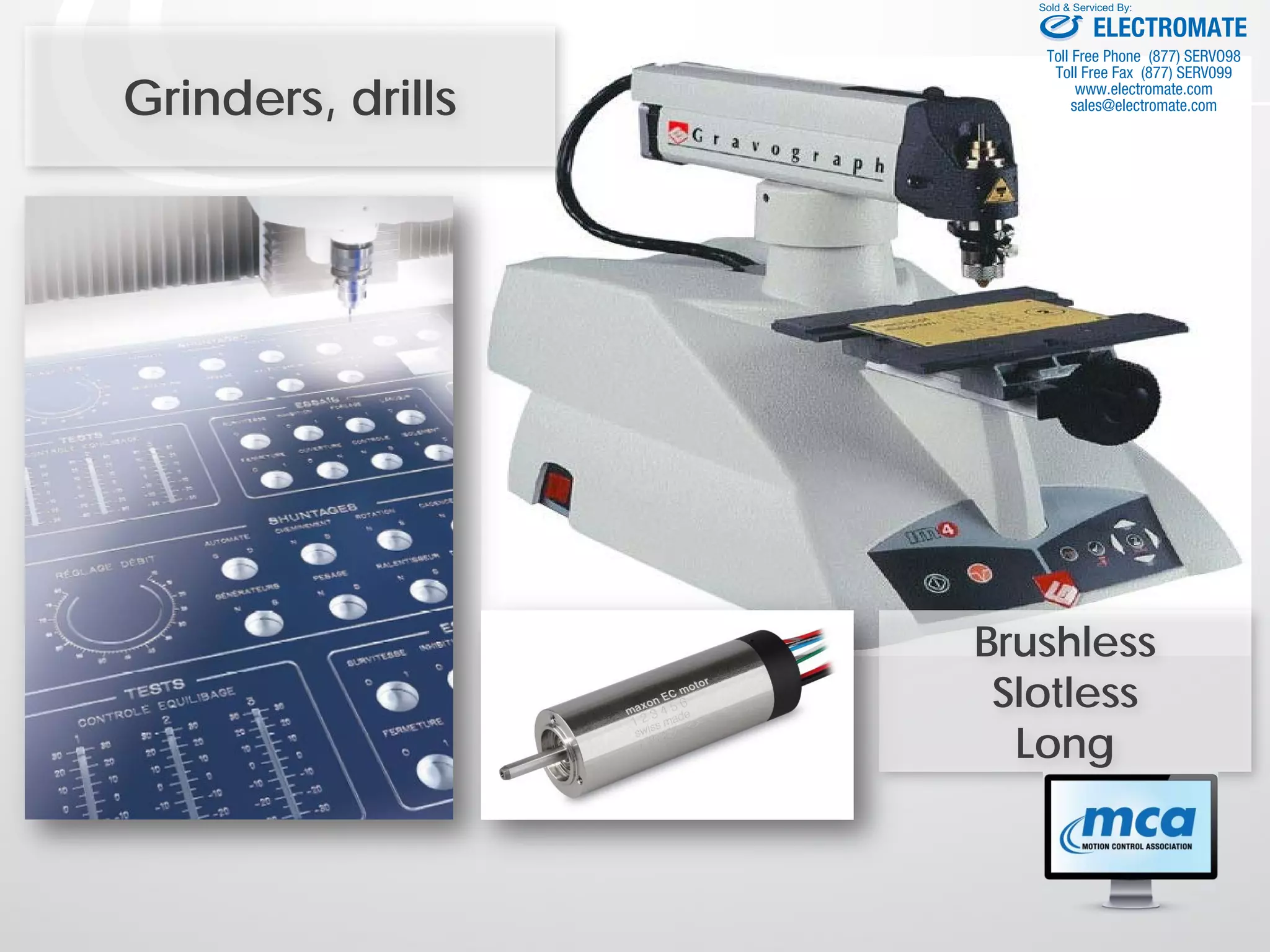

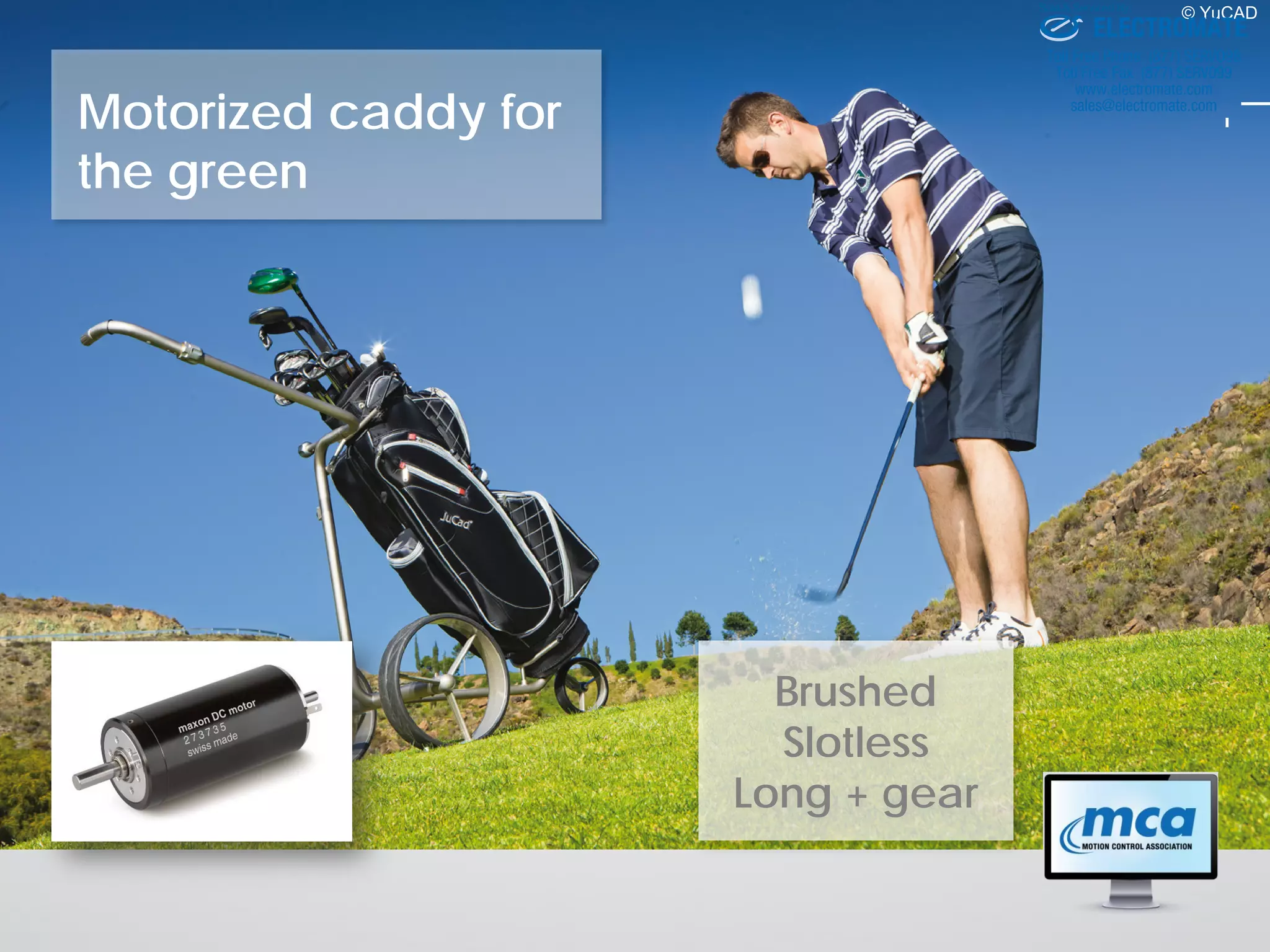

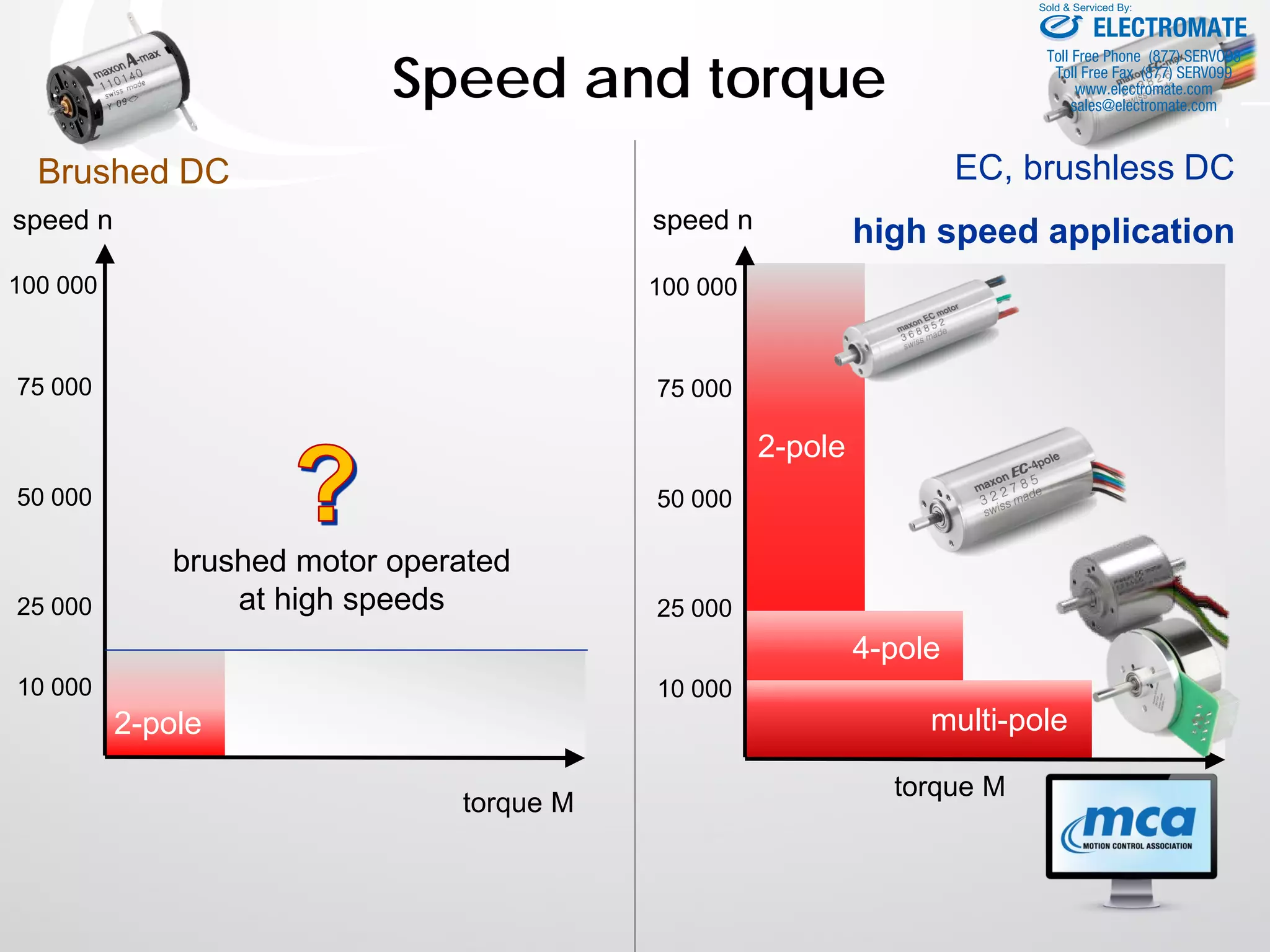

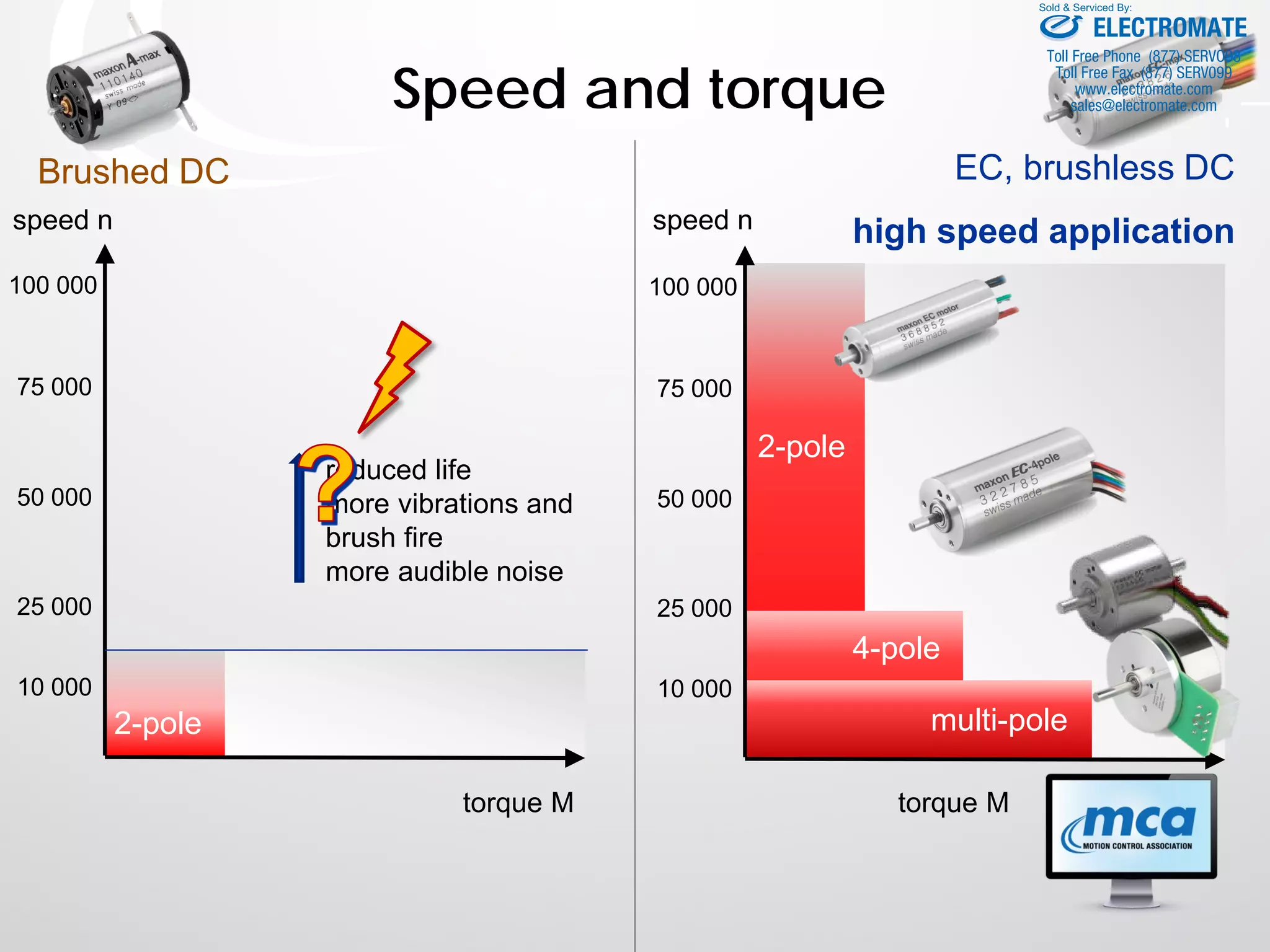

27. Speed and torque
torque M
speed n
100 000
50 000
25 000
10 000
75 000
torque M
speed n
100 000
50 000
25 000
10 000
75 000
2-pole
4-pole
multi-pole2-pole
Brushed DC EC, brushless DC
high speed application
reduced life
more vibrations and
brush fire
more audible noise
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

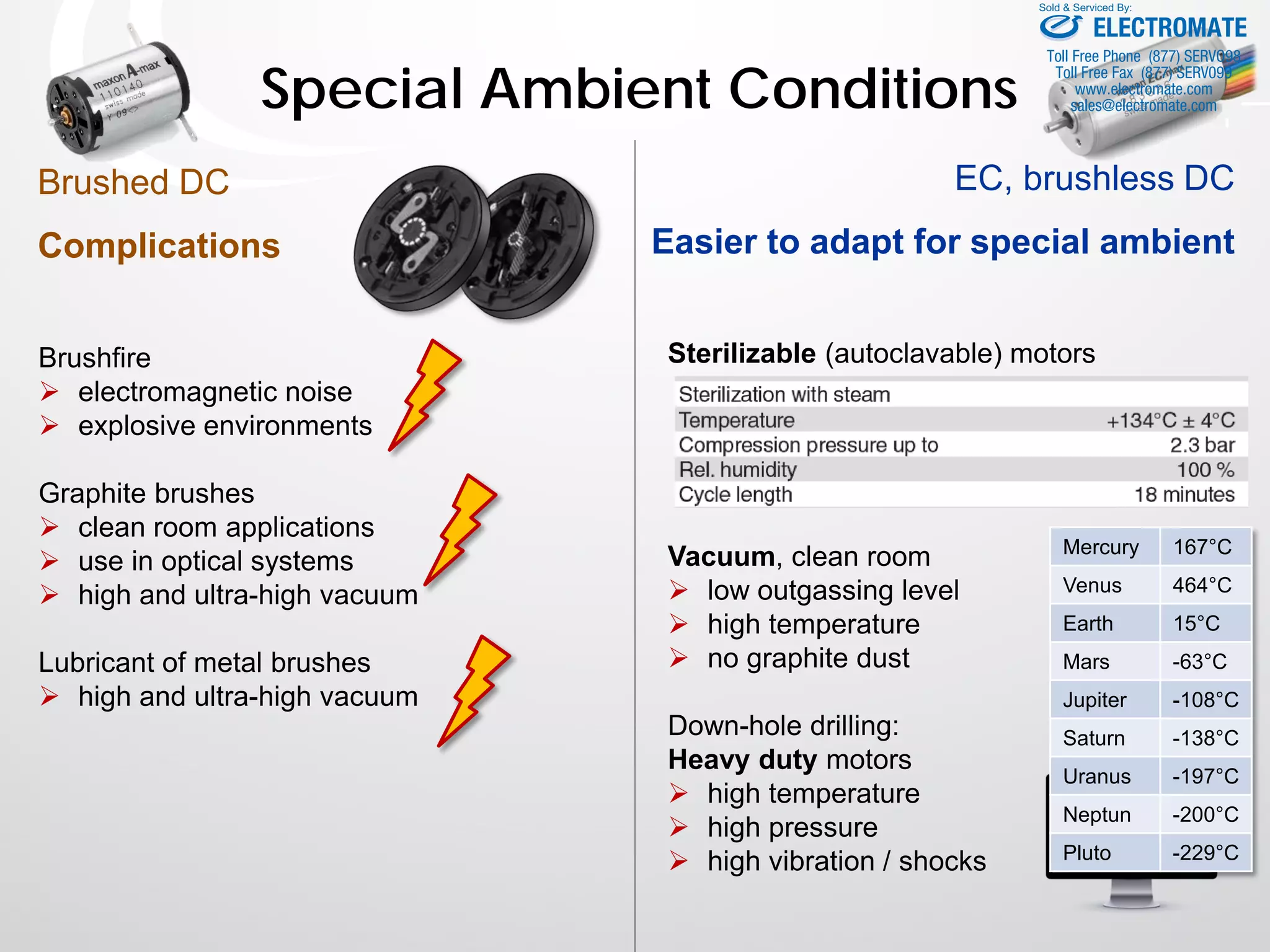

28. Special Ambient Conditions
Brushed DC
Complications
EC, brushless DC
Easier to adapt for special ambient
Brushfire
electromagnetic noise
explosive environments
Graphite brushes
clean room applications
use in optical systems
high and ultra-high vacuum
Lubricant of metal brushes
high and ultra-high vacuum
Sterilizable (autoclavable) motors
Vacuum, clean room
low outgassing level
high temperature
no graphite dust
Down-hole drilling:
Heavy duty motors
high temperature
high pressure
high vibration / shocks
Mercury 167°C
Venus 464°C
Earth 15°C
Mars -63°C
Jupiter -108°C
Saturn -138°C
Uranus -197°C
Neptun -200°C
Pluto -229°C
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

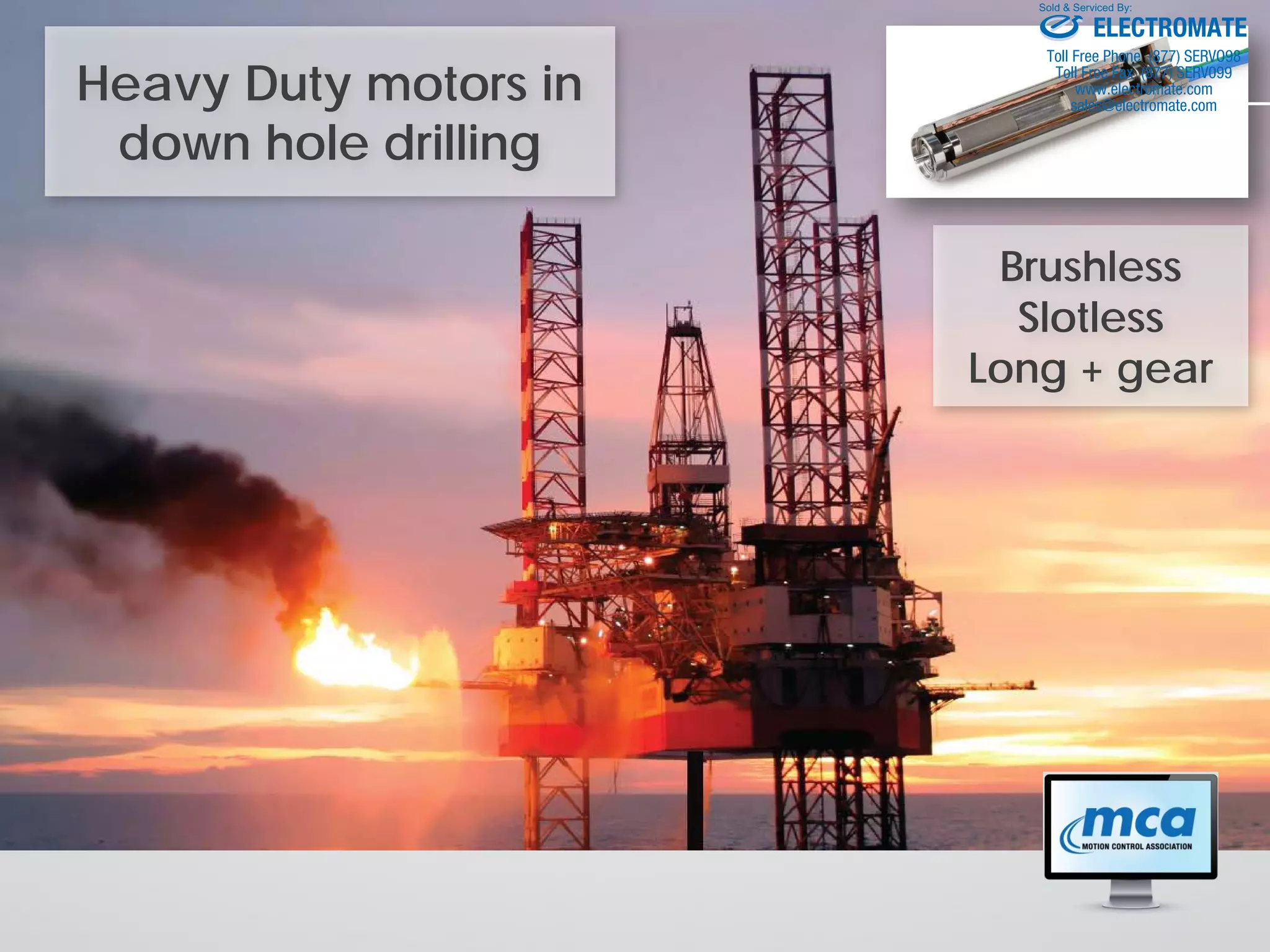

29. Heavy Duty motors in
down hole drilling

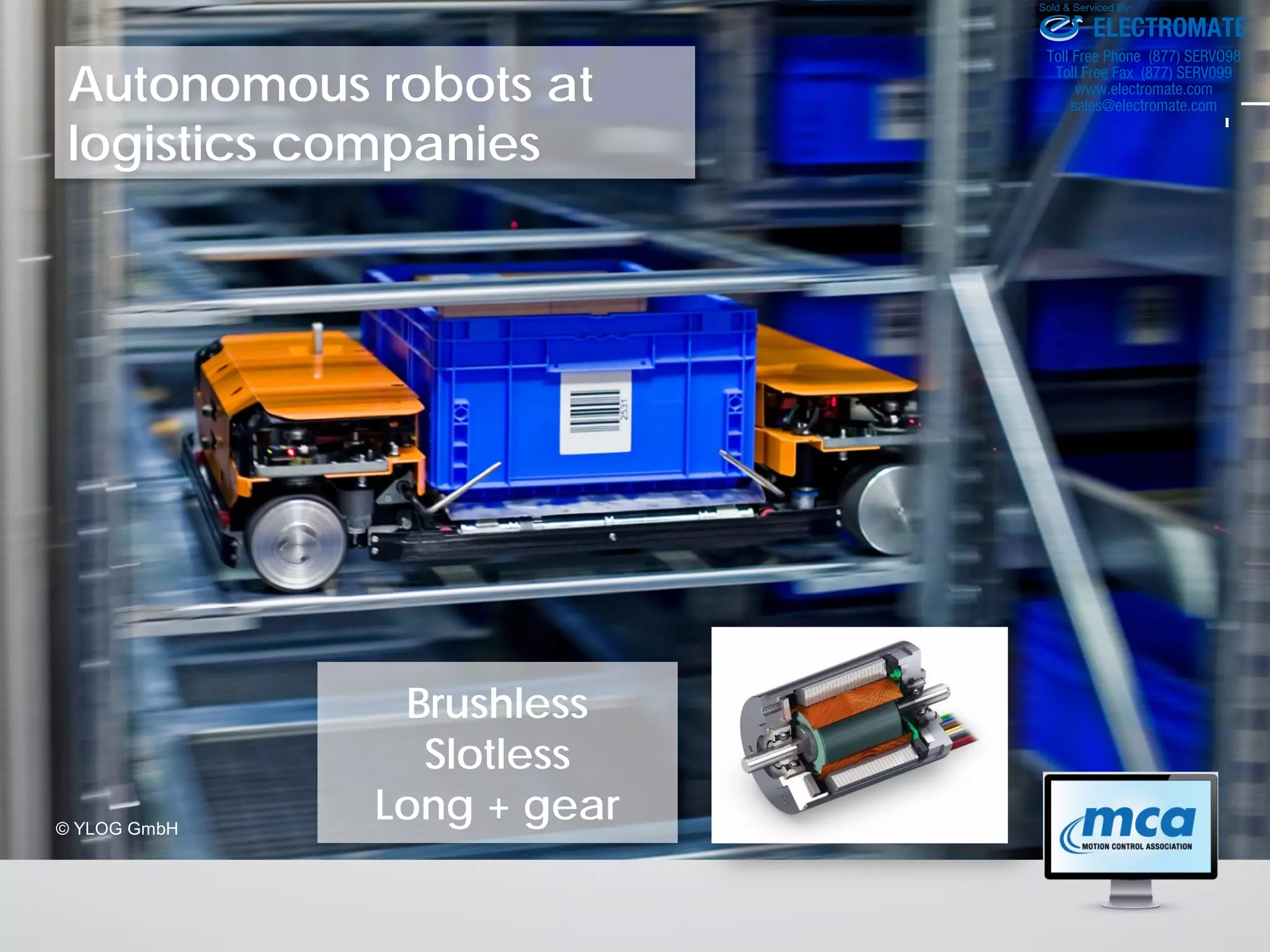

Brushless
Slotless
Long + gear
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

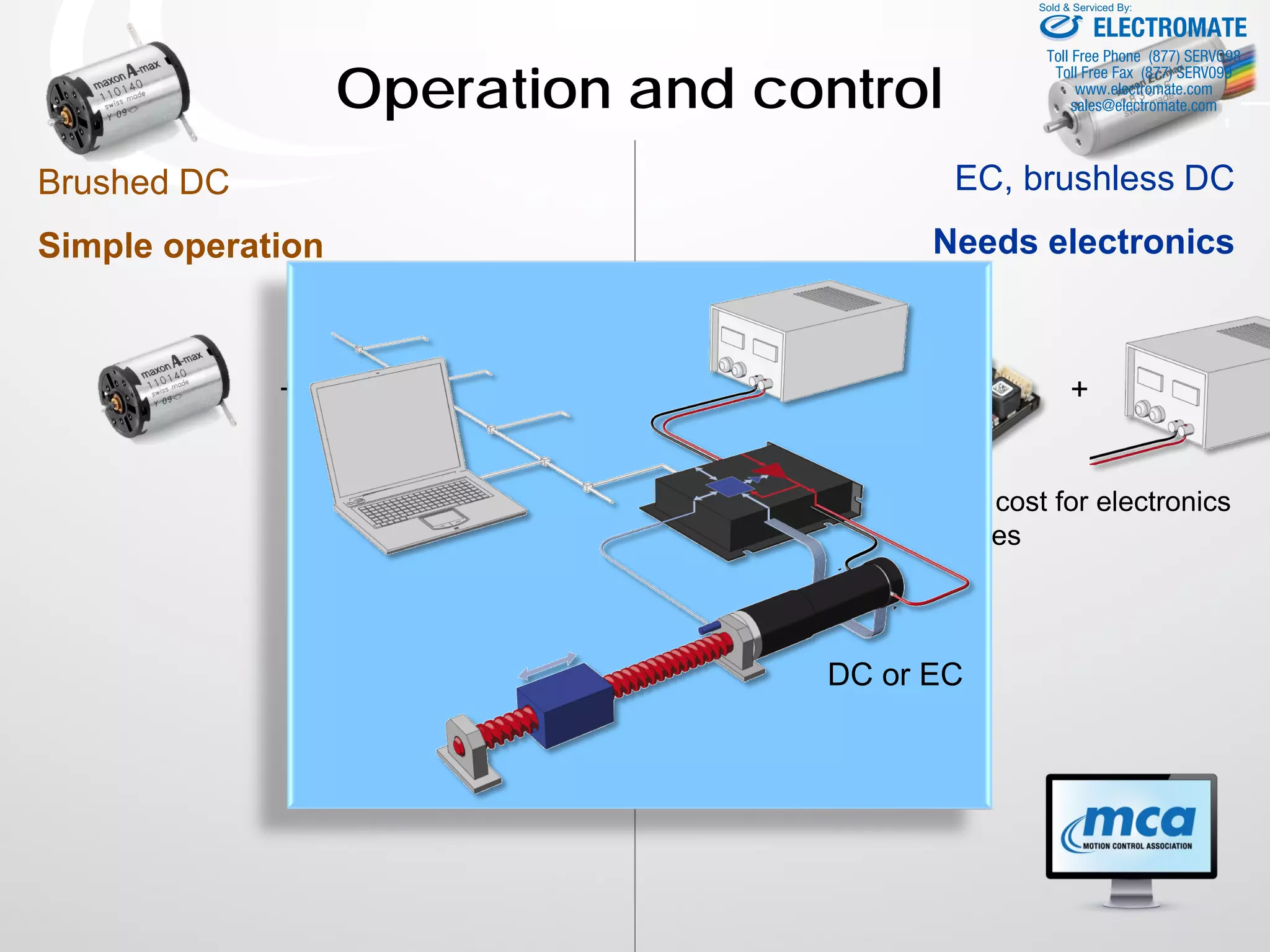

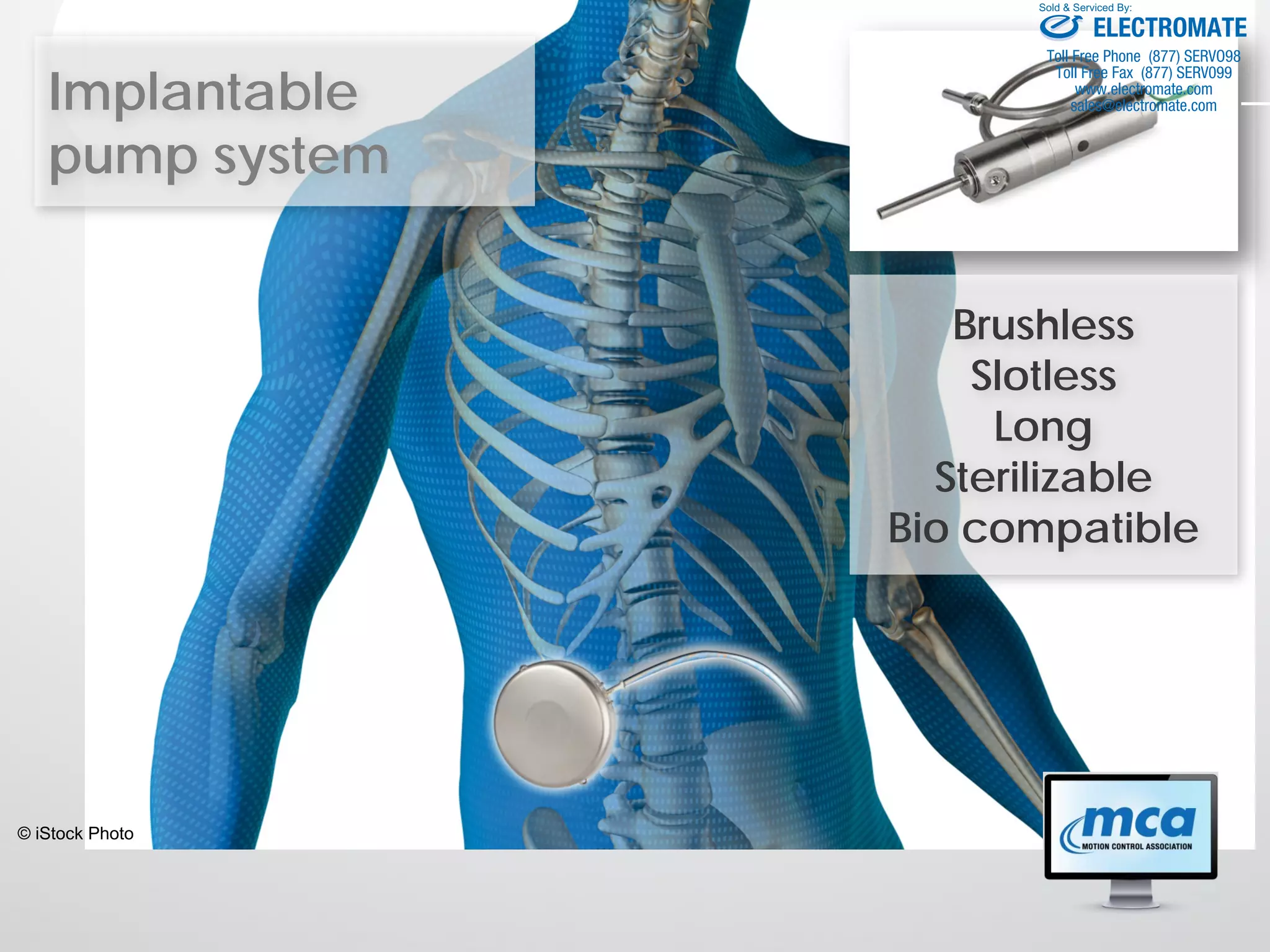

32. Operation and control
Brushed DC
Simple operation
EC, brushless DC
Needs electronics
additional cost for electronics
more cables
+ +
or
or
…
+
DC or EC
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:
34. 3. Windings with and without iron core
Slotted and slottless
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

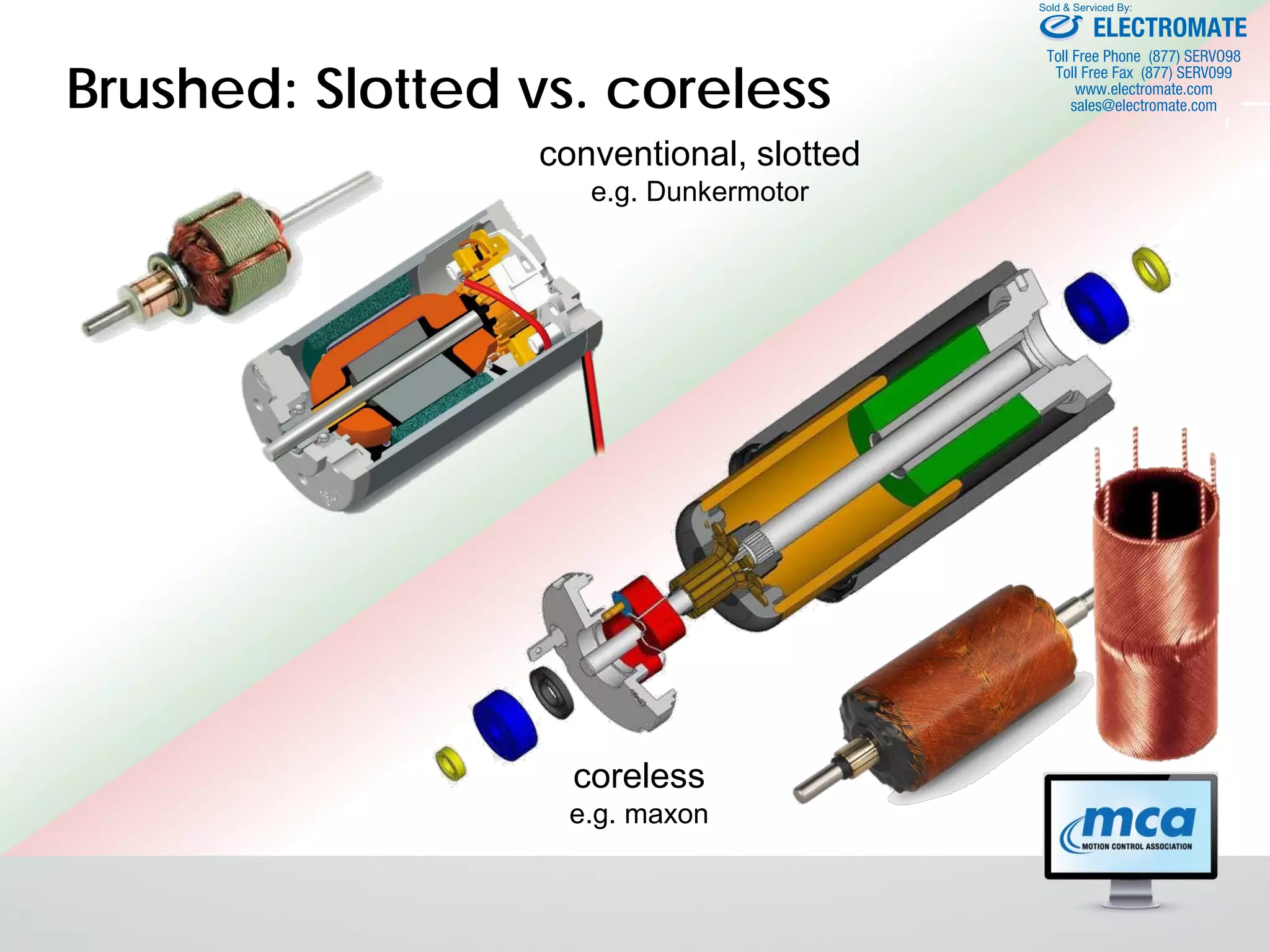

35. Brushed: Slotted vs. coreless
conventional, slotted
e.g. Dunkermotor
coreless
e.g. maxon
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

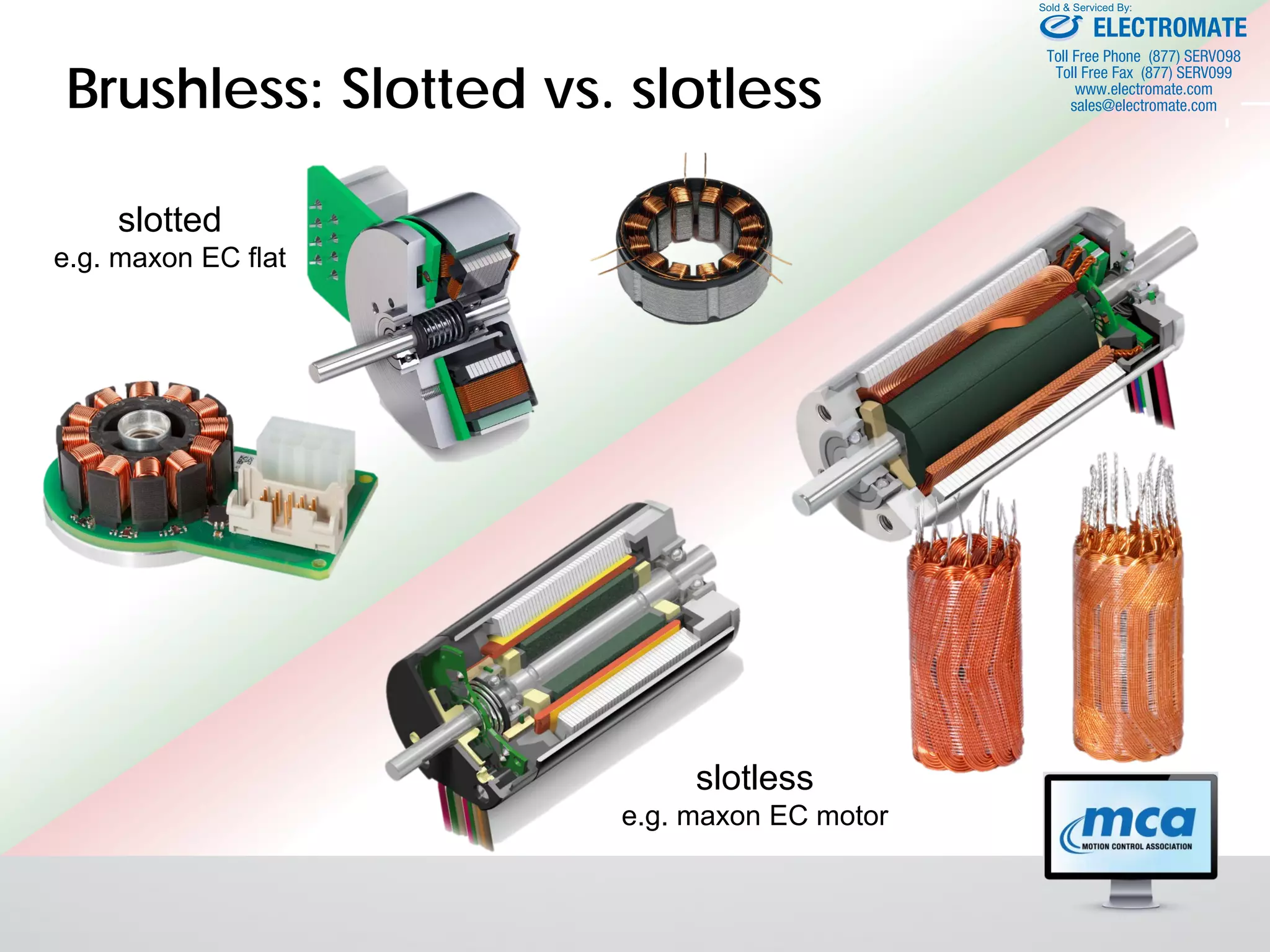

36. Brushless: Slotted vs. slotless
slotted
e.g. maxon EC flat
slotless
e.g. maxon EC motor
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

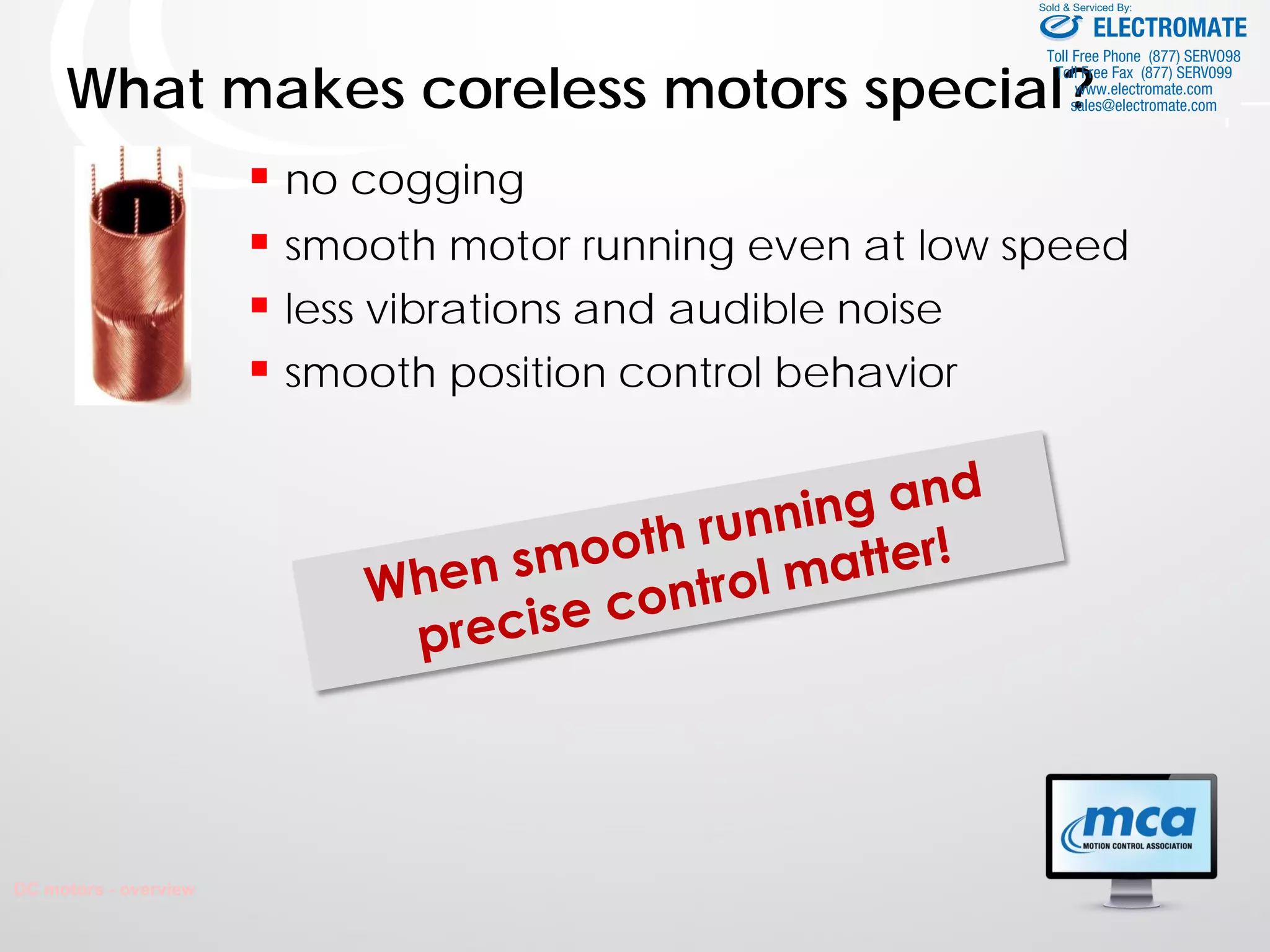

37. What makes coreless motors special?
no cogging
smooth motor running even at low speed
less vibrations and audible noise
smooth position control behavior
DC motors - overview
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

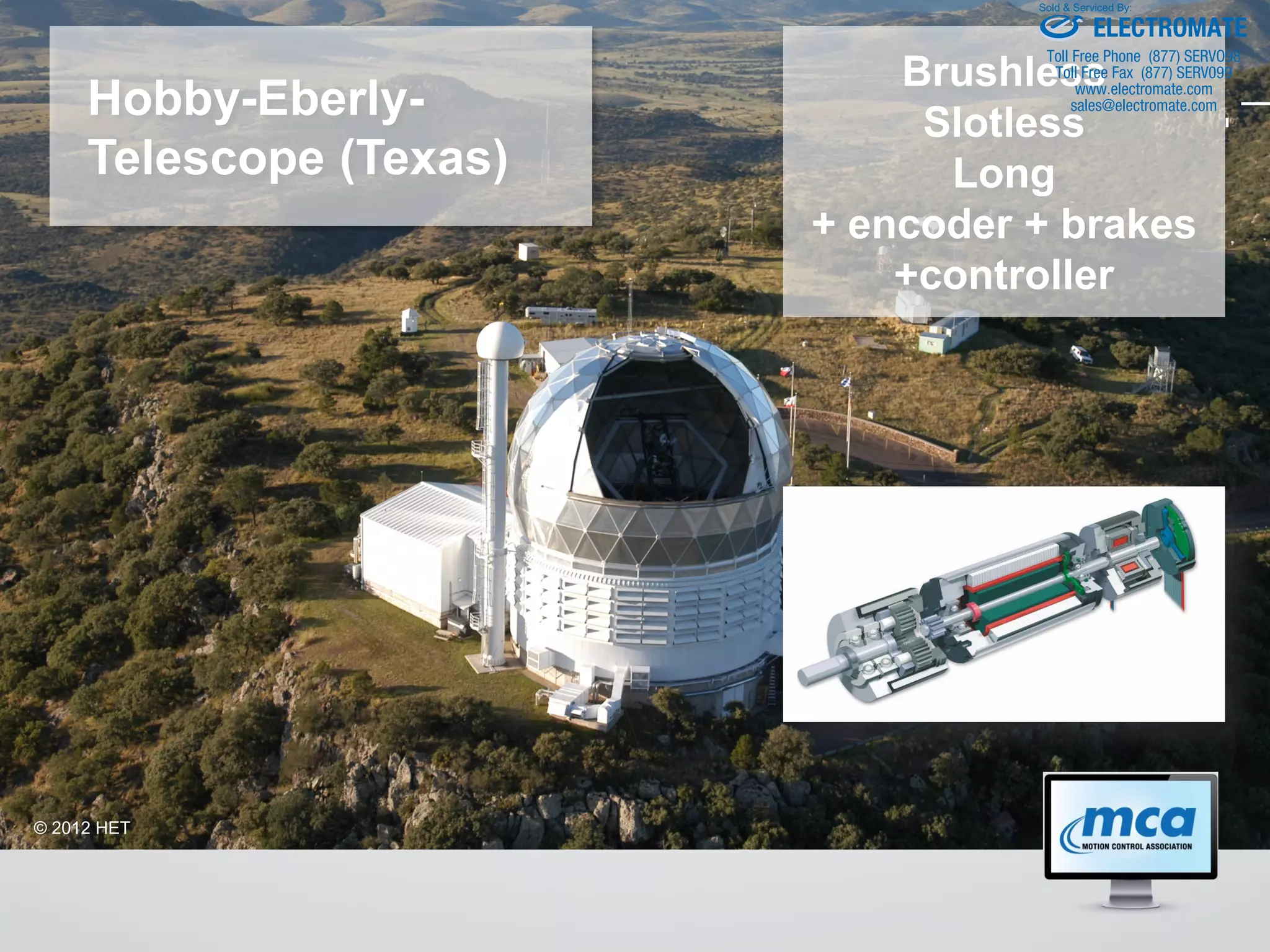

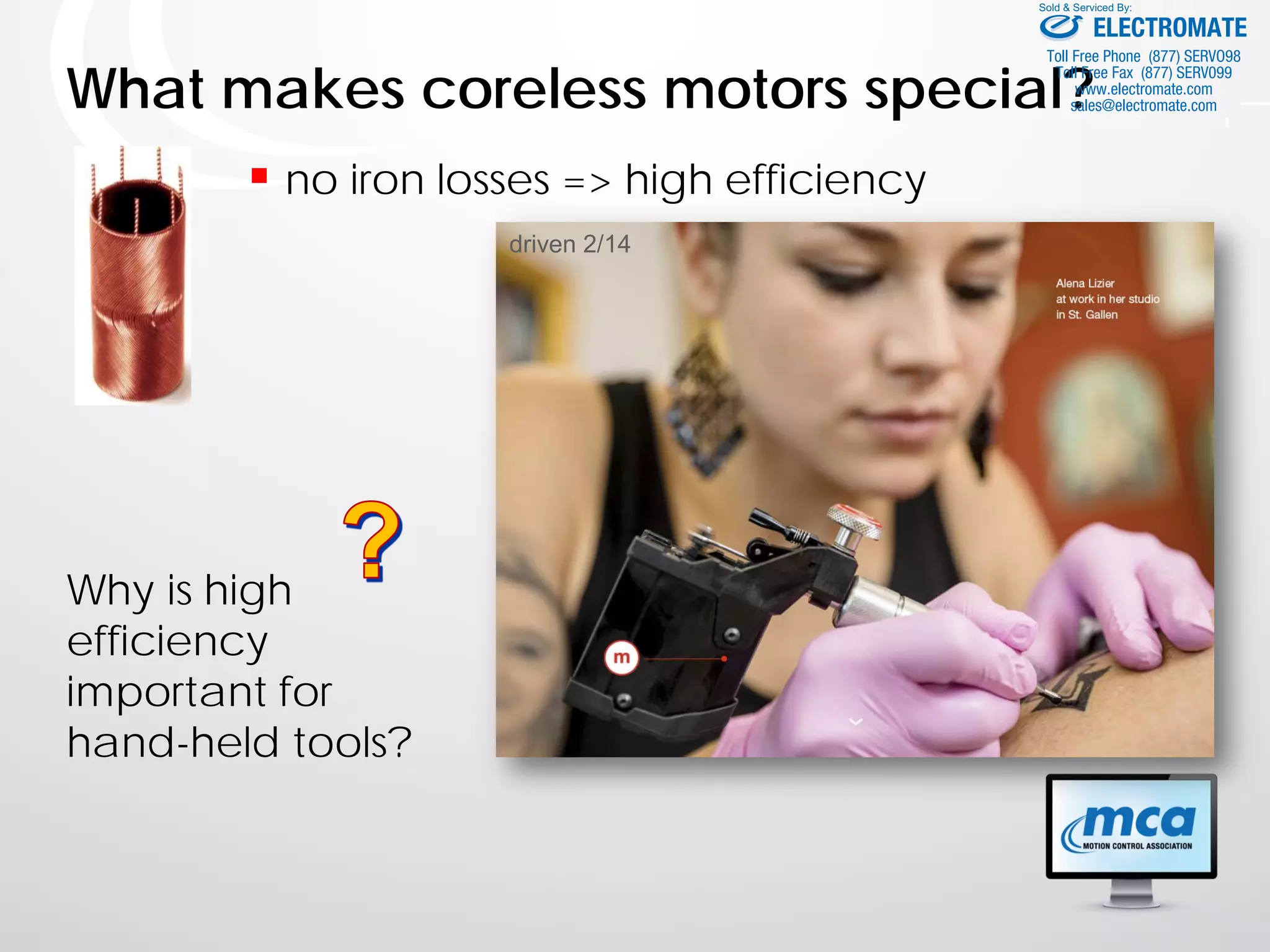

40. What makes coreless motors special?
no iron losses => high efficiency
Why is high
efficiency
important for
hand-held tools?
Bild Handgerät
driven 2/14
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

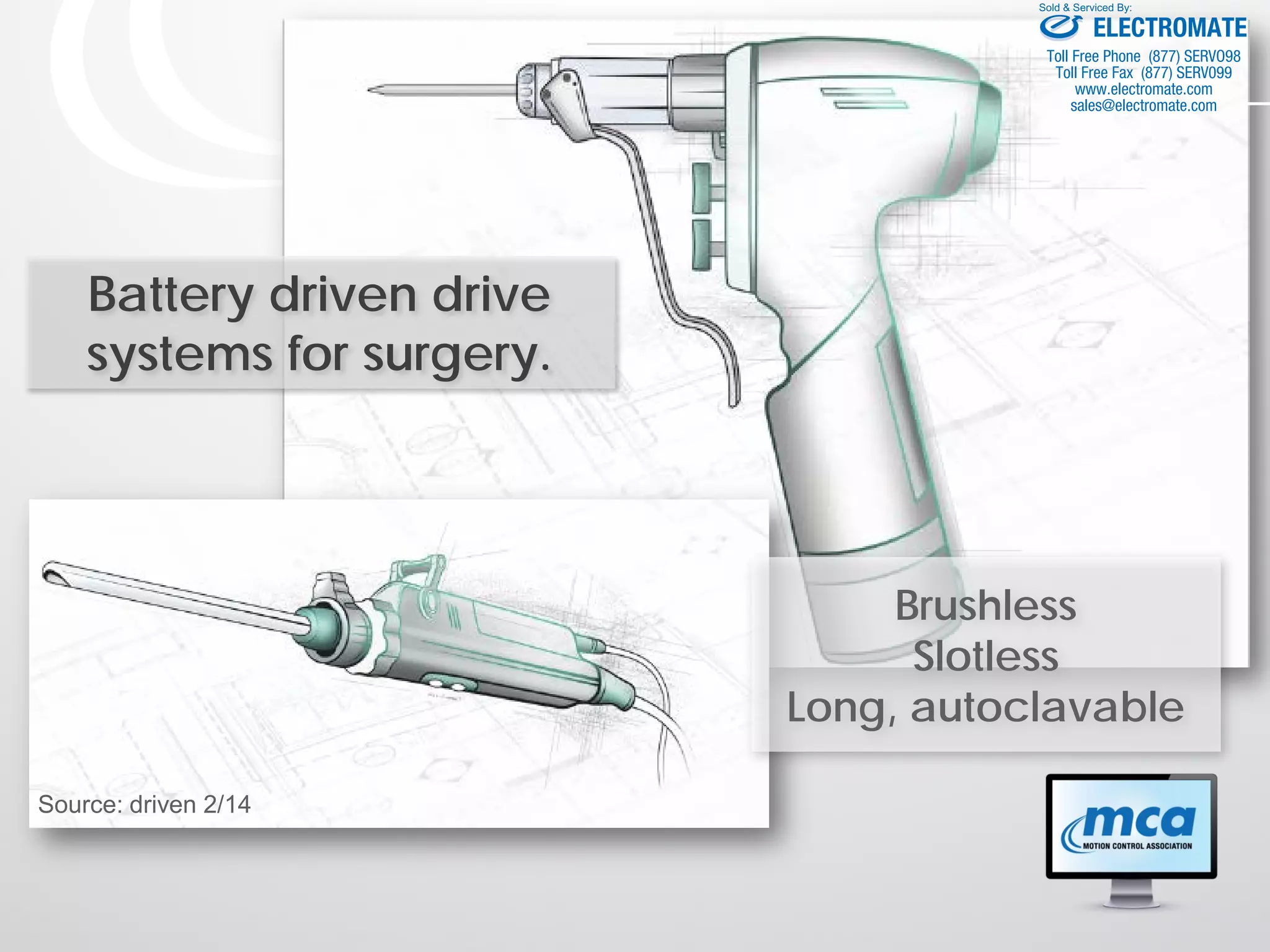

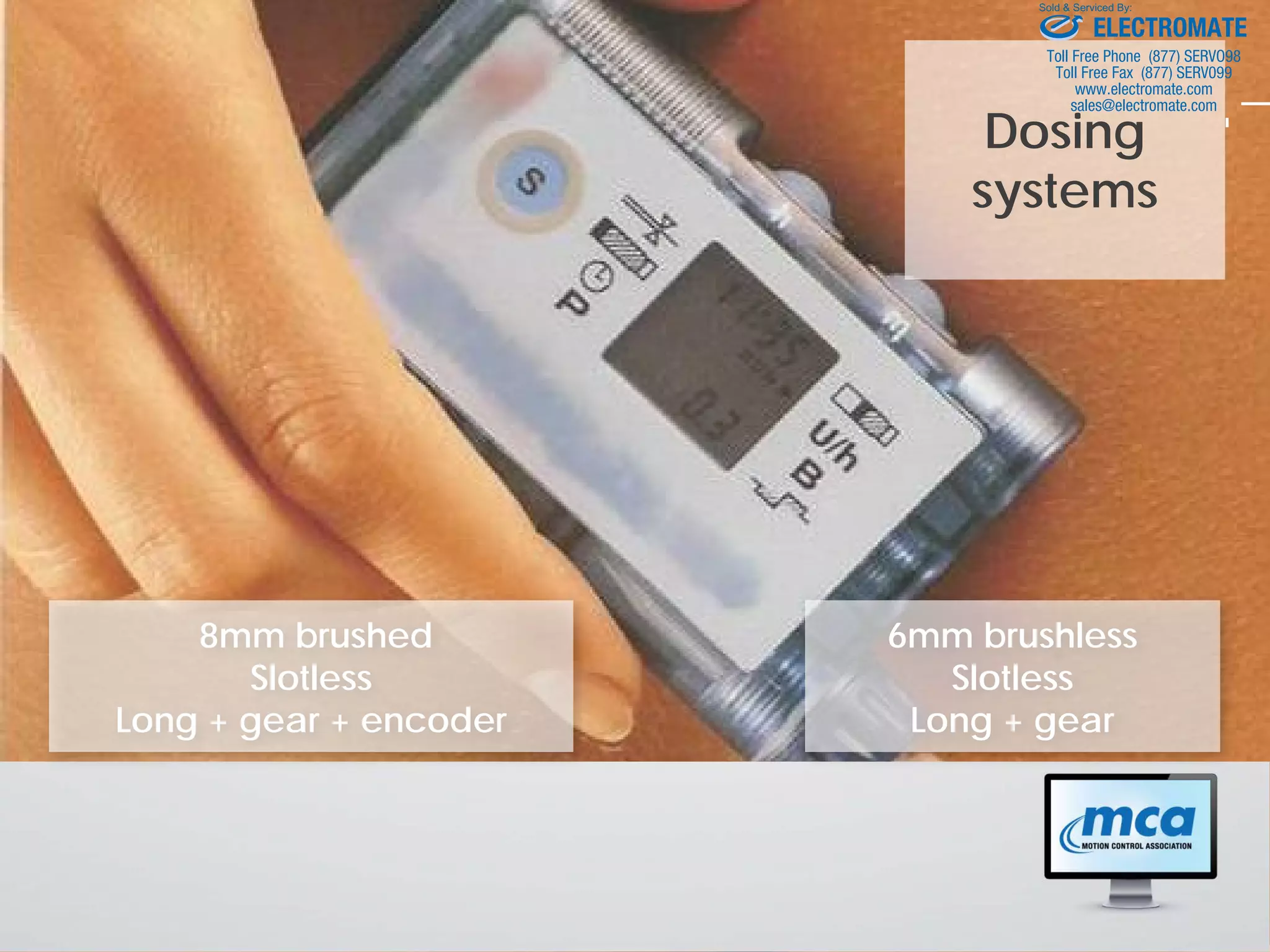

42. Dosing
systems
8mm brushed
Slotless
Long + gear + encoder
6mm brushless
Slotless
Long + gear
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

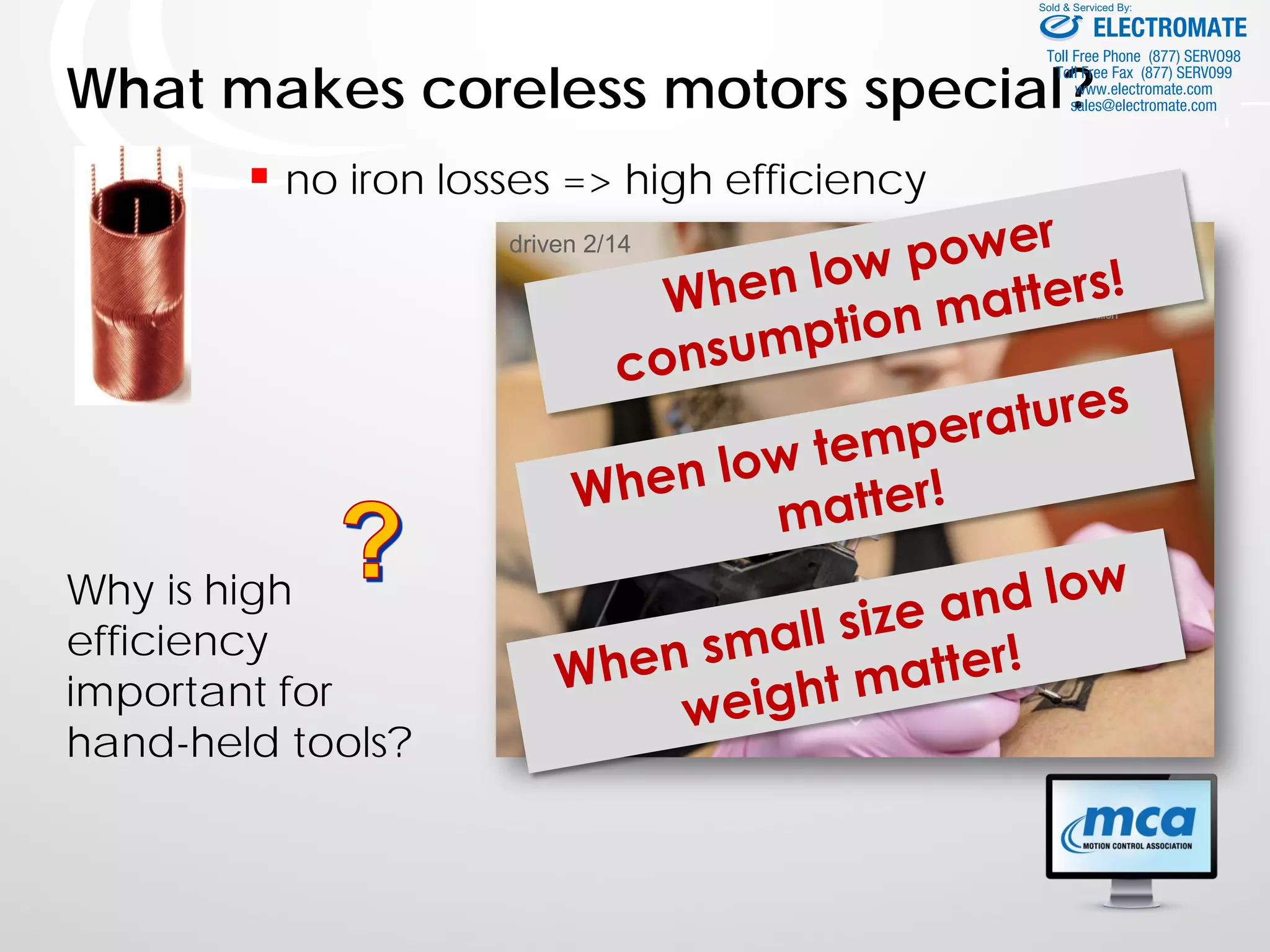

43. driven 2/14
What makes coreless motors special?
no iron losses => high efficiency
Why is high
efficiency
important for
hand-held tools?
Bild Handgerät
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

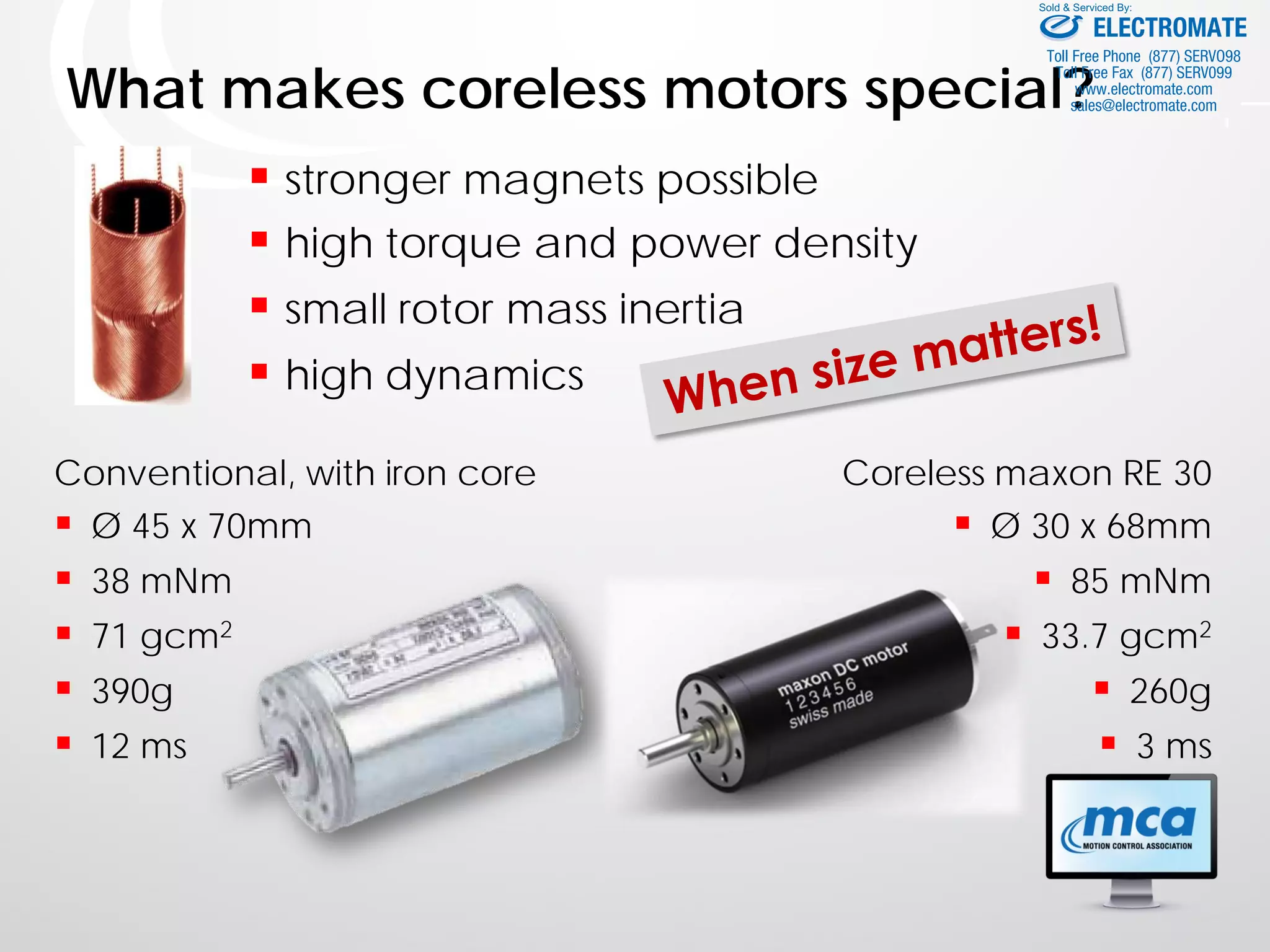

44. What makes coreless motors special?
stronger magnets possible
high torque and power density
small rotor mass inertia
high dynamics
Coreless maxon RE 30
Ø 30 x 68mm
85 mNm
33.7 gcm2
260g
3 ms
Conventional, with iron core
Ø 45 x 70mm
38 mNm
71 gcm2
390g
12 ms
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

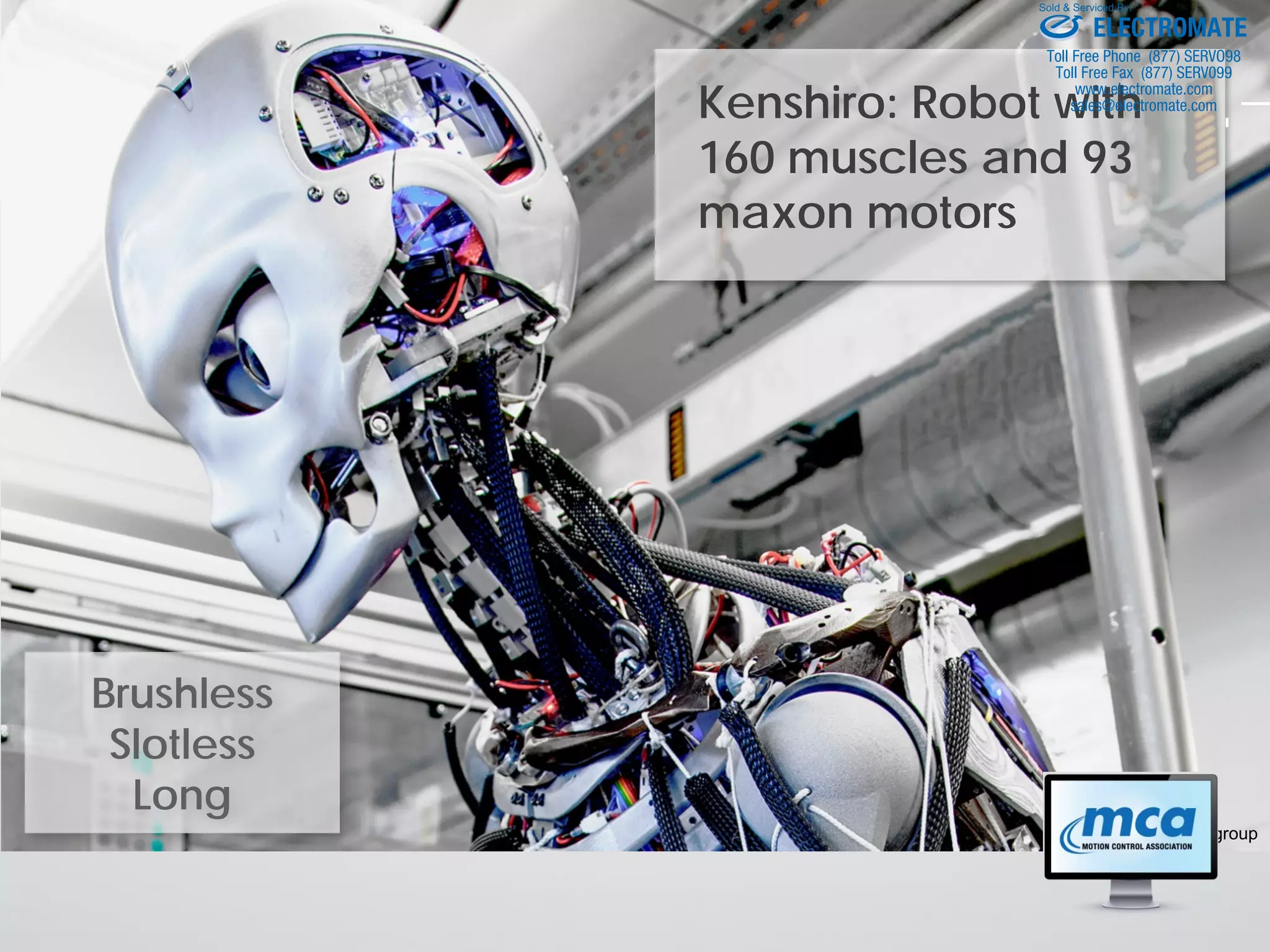

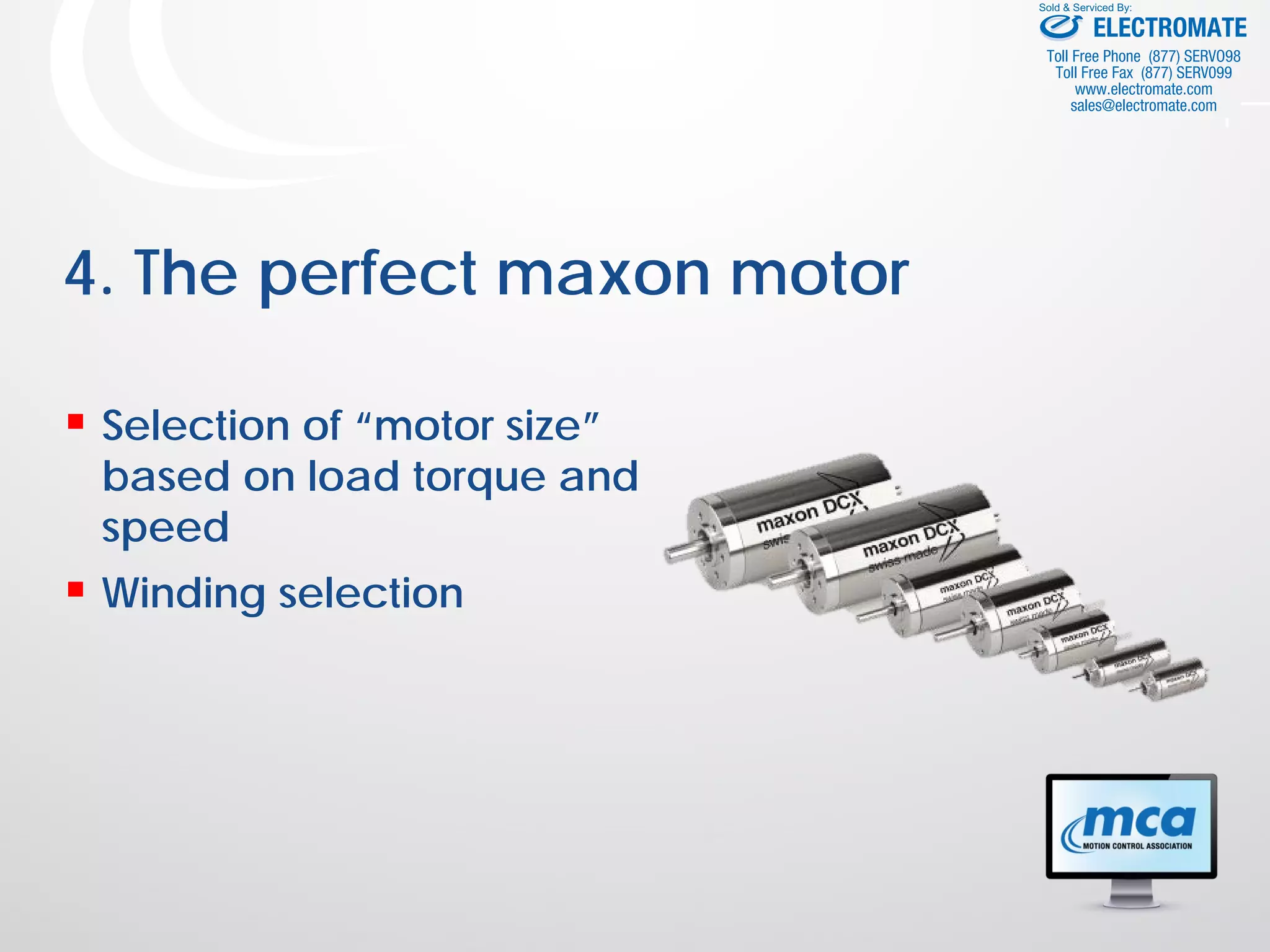

47. 4. The perfect maxon motor
Selection of “motor size”
based on load torque and
speed

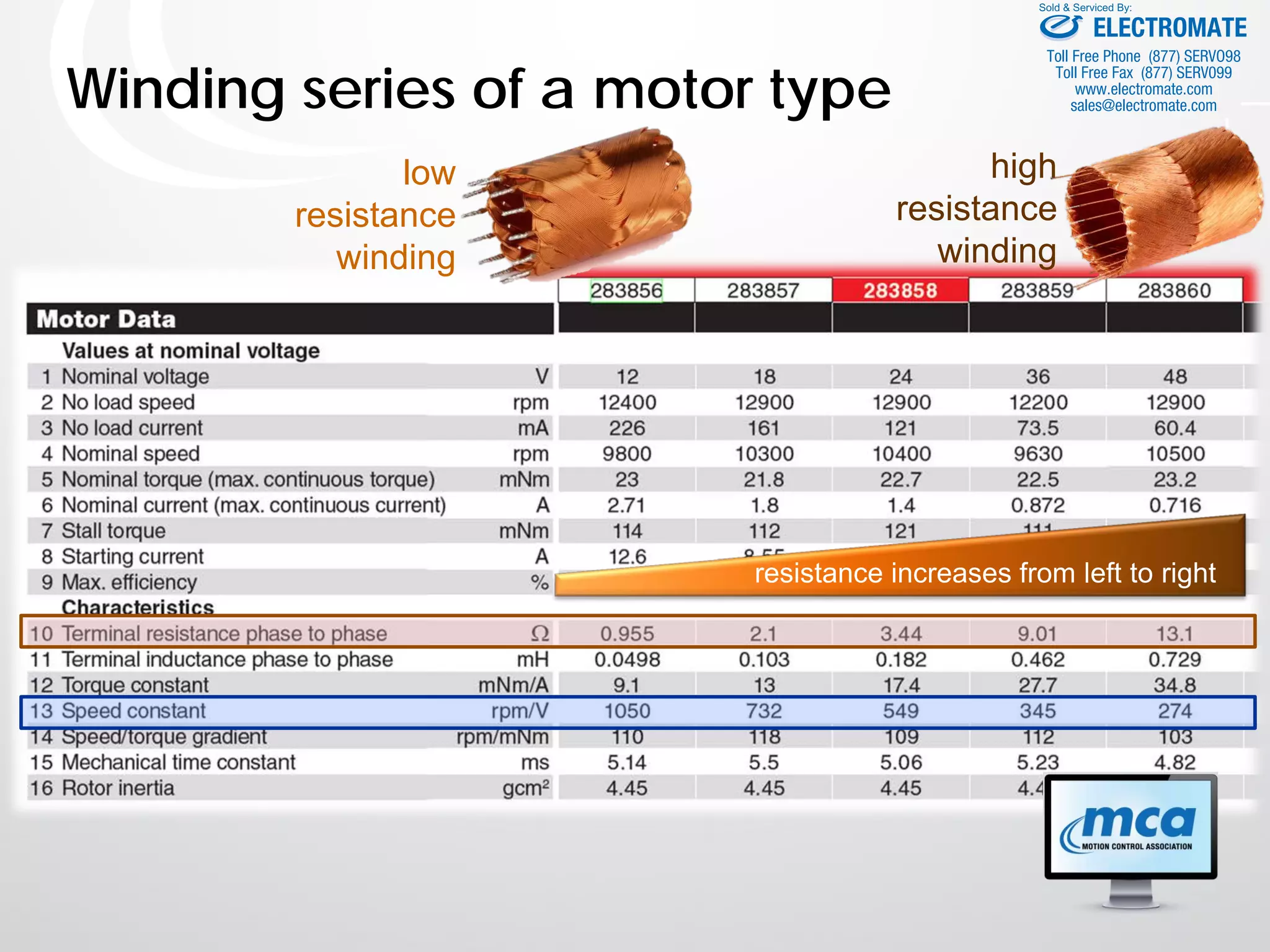

Winding selection
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

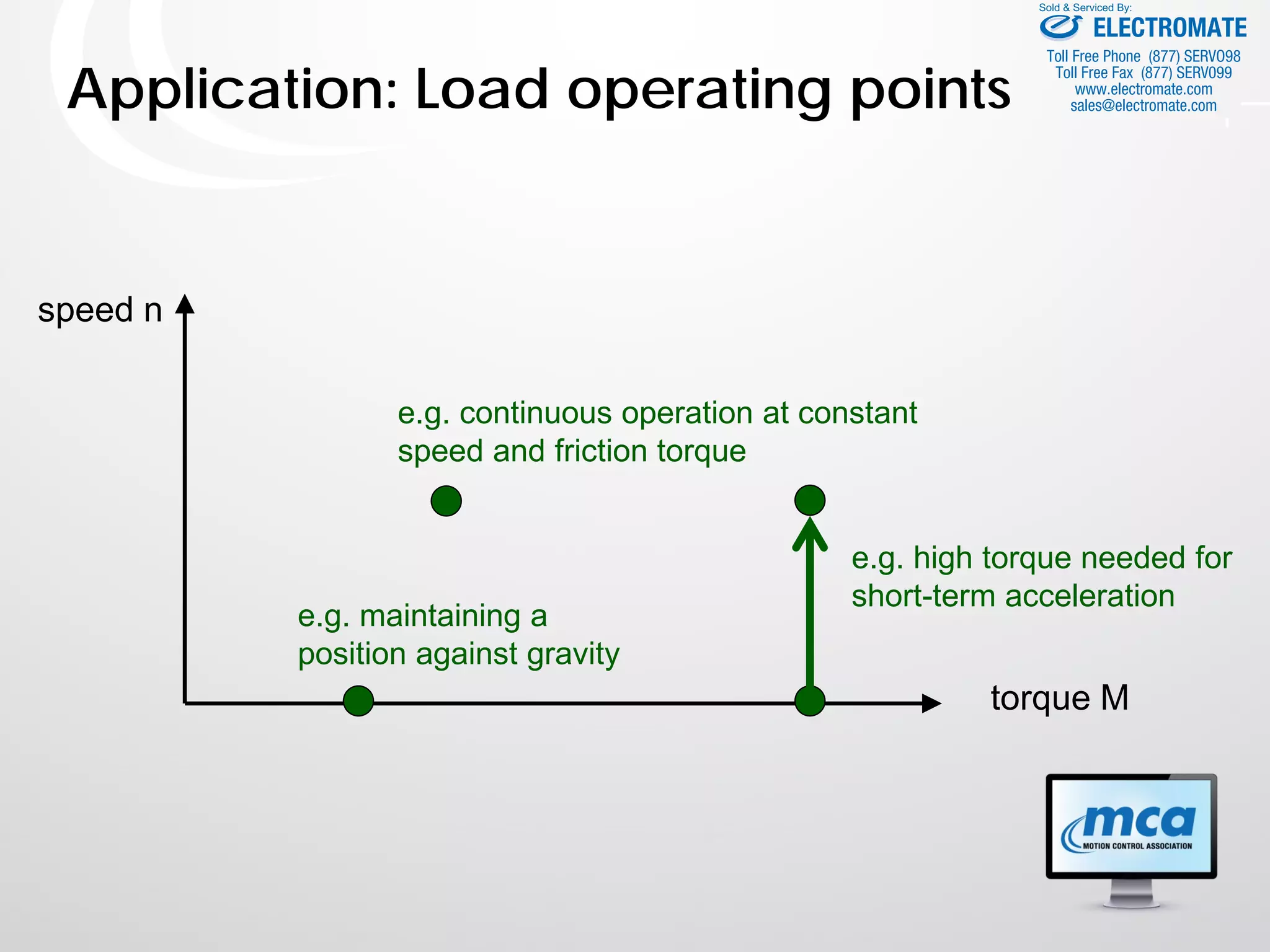

48. Application: Load operating points
torque M
e.g. continuous operation at constant
speed and friction torque
e.g. high torque needed for
short-term acceleration
e.g. maintaining a
position against gravity
speed n
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

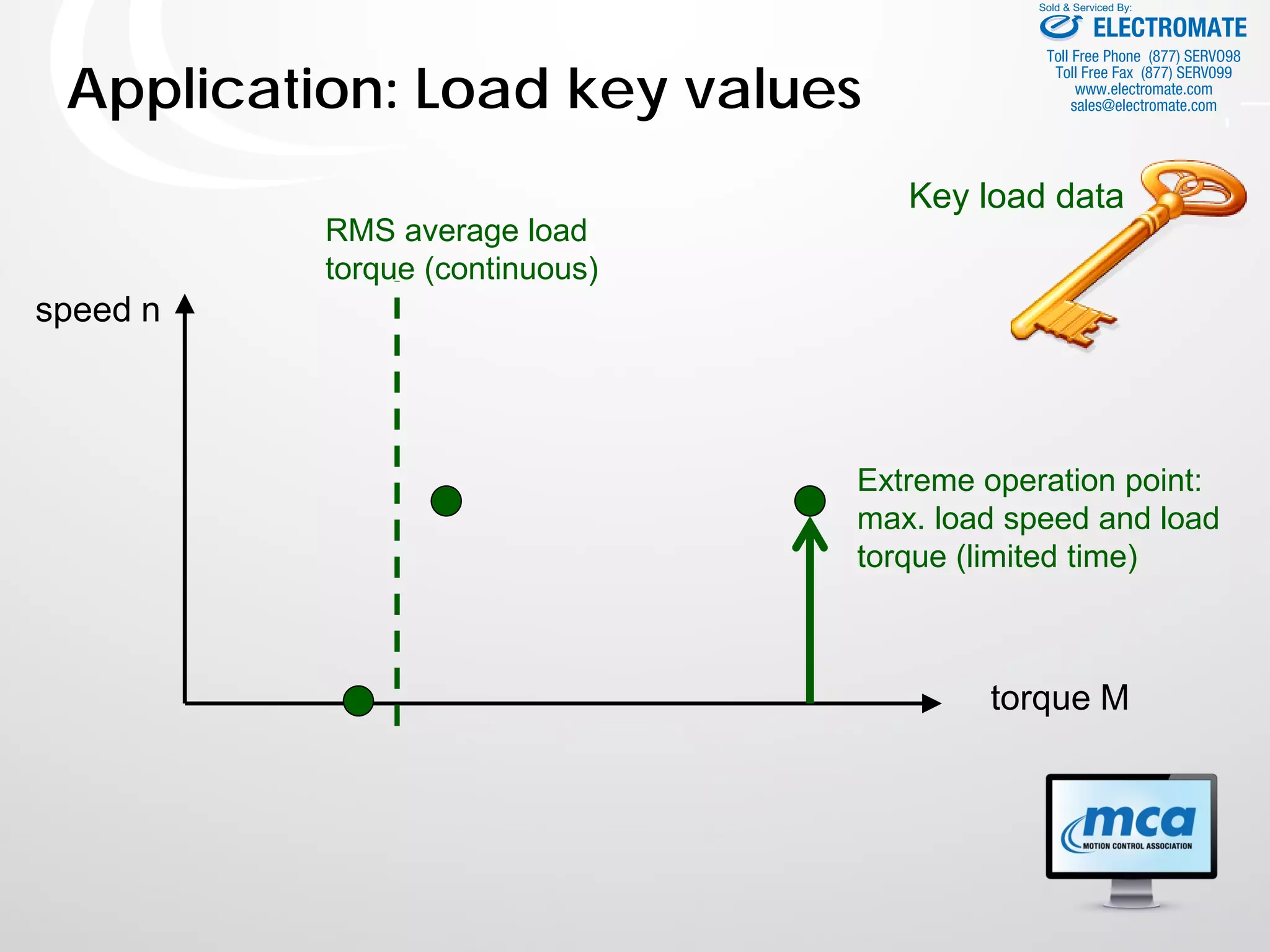

49. Application: Load key values
torque M
Extreme operation point:
max. load speed and load
torque (limited time)
Key load data
speed n
RMS average load
torque (continuous)
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

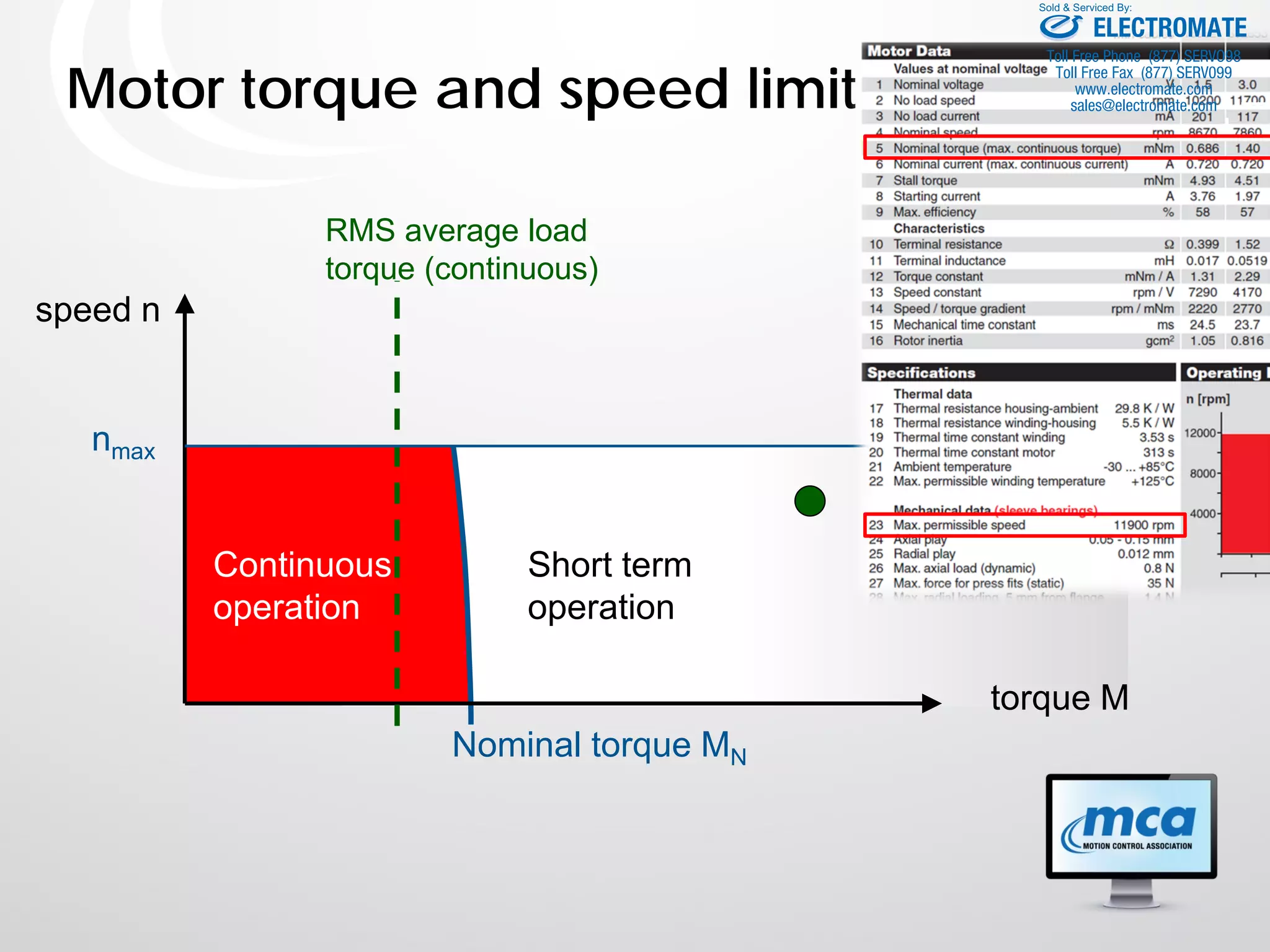

50. Motor torque and speed limit
torque M
RMS average load
torque (continuous)
Nominal torque MN
nmax
Continuous
operation
Short term
operation
speed n
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

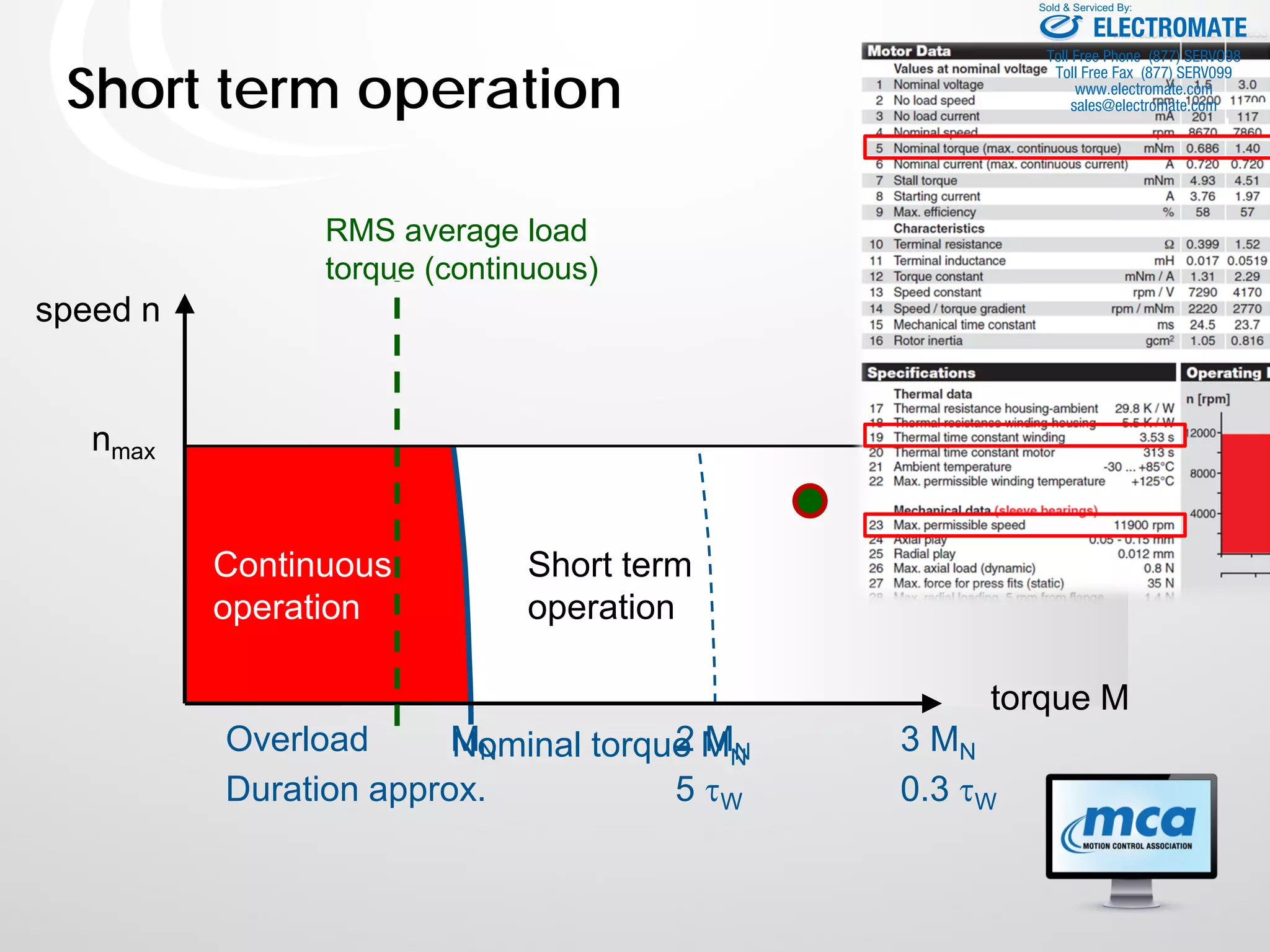

51. Overload MN 2 MN 3 MN
Short term operation
torque M
RMS average load
torque (continuous)
Nominal torque MN
nmax
Continuous
operation
Short term
operation
speed n
Duration approx. 5 τW 0.3 τW
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:
52. Winding series of a motor type
resistance increases from left to right
low
resistance
winding
high
resistance
winding
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

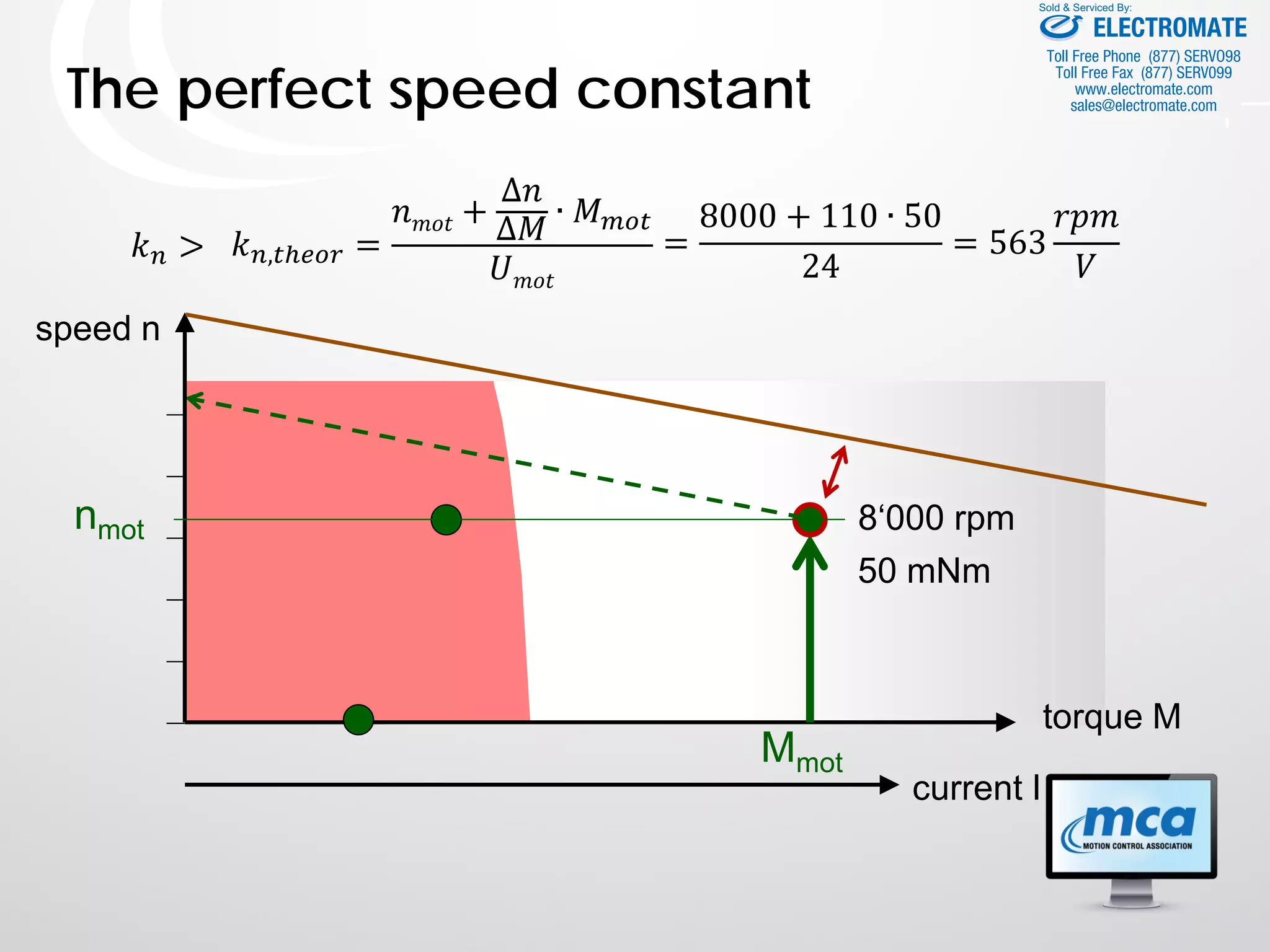

53. The perfect speed constant
torque M
speed n
current I
Mmot
nmot
𝑘𝑘𝑛𝑛 > 𝑘𝑘𝑛𝑛,𝑡𝑡𝑡𝑡𝑡𝑡𝑡𝑡𝑡 =
𝑛𝑛𝑚𝑚𝑚𝑚𝑚𝑚 +
∆𝑛𝑛
∆𝑀𝑀
∙ 𝑀𝑀𝑚𝑚𝑚𝑚𝑚𝑚
𝑈𝑈𝑚𝑚𝑚𝑚𝑚𝑚
=
8000 + 110 ∙ 50
24
= 563
𝑟𝑟𝑟𝑟𝑟𝑟
𝑉𝑉
8‘000 rpm
50 mNm
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:
