2. Page 2 | VIsion
» We design and deliver
precision motion control
and dynamic fluid solutions
that differentiate
our customers´ products «
Page 3 | Technology in motion
Technology in motion
» Advanced motion control systems solutions for a
wide range of industrial automation applications.
System solutions are based on brushless DC servo
motors / brush-type DC motors, integrated power
and logic controllers, planetary and worm gearboxes,
and encoders and brakes.
» High precision linear motion control products and
customized linear motion solutions, including
precision acme lead screw and anti-backlash nut
assemblies, hybrid and can-stack stepper motor
based linear actuators, and linear rail and
guide systems.
» Brush and brushless DC motors covering a wide
variety of sizes and technologies ranging from
miniature slotless brushless motors used in high
speed medical and dental applications, to large
NEMA frame DC motors used in sophisticated
automation equipment.
» High and low voltage variable speed brushless
DC blowers available in bypass and thru-flow versions.
The compact and low-noise blower products integrate
brushless DC technology that promotes long service
life, reliable performance, and virtually
maintenance-free operation.
» High and low voltage family of high performance
blowers is excellent for usage in any application with
primary design emphasis in the Gas Pre-Mix
Combustion Market. Embedded control features allow
for efficient aerodynamic performance, in a low noise
compact design. Electrically commutated motor
technology assures long life/maintenance free usage.
» A high performance brand of fluid motion products
known industry wide in virtually all market Sold & Serviced disciplines.
By:
Both the Heavy Duty Transit and the Regenerative
Blower products are designed for use in environ-mentally
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
challenging applications. Superior durability
in environmentally harsh applications allows for worry
free usage of all the pumps, fans, and blowers.

3. Page 4 | Solutions in motion Page 5 | Dunkermotoren
Solutions in motion
» Transportation » Health Care
» Packaging & Material handling » Energy
Dunkermotoren GmbH
is a world class leader in high quality motion control solutions
meeting the ever increasing demand for cost effective and
reliable drive solutions.
» For over 60 years, Dunkermotoren is the world market leader in
customized, configurable sole-source motion control solutions
composed of long-life brushed motor products and the industry´s
largest portfolio of integrated intelligence brushless motor +
controller solutions.
Headquartered in Bonndorf, Germany with production and / or
logistics facilities in Europe, Asia, and Elgin, Illinois,
Dunkermotoren employs 1000 globally and produces about
3 million motors per year.
» System solutions based on:
» Brushless DC servo motors | brushed DC motors
» Integrated power- & logic controllers
» Bus-Interfaces integrated in brushless DC motors
» Planetary & worm gearboxes
» Linear motors, modules and gantries
» Encoders & brakes
» The modular system | All-in-one motion solutions:
» Our standardized combinations of motors, gears and modular
options offer utmost flexibility to address the specific require-ments
of complete motion solutions. As a result, improved quality
control, reduced inventory costs and shorter production time are
some of the benefits provided to our customers.
» Advantages of Dunkermotoren’s
brushless & brushed DC motors:
» Precise & dynamic control characteristics
» High power density
» Superior overall efficiency
» Rugged & maintenance-free design
» Long operational life
» IP rating up to IP69K
» Highly customizable
» Brushless DC motors benefits:
» Reduce system costs and integration efforts
thanks to Dunkermotoren’s large offering of
advanced brushless DC motors with
integrated controls.
» Brushed DC motors benefits:
» Find the perfect match among
Dunkermotoren’s widest selection of motion
solutions and customization options.
Solution expertise for your application
» Industrial automation
» Medical devices & laboratory equipment
» Building automation
» Sun protection
» Transportation
» Renewable energy
» At Dunkermotoren, we understand that every
original equipment manufacturer has unique and
specific requirements to meet. Our experienced
applications engineers will work with your team to
design individualized and quick-to-market motion
solutions that meet or exceed your goals. Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

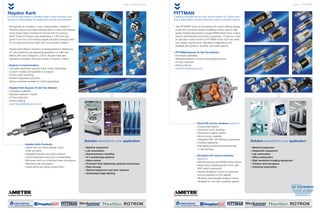

4. Page 6 | Haydon Kerk
Haydon Kerk
is a world class leader in precision linear motion solutions and
experts in customization for application-specific requirements.
» Recognized as a leader in motor miniaturization, HaydonTM
Products Division has been building electric motors and stepper
motor based linear actuators for almost half of a century.
Kerk® Products Division was established in 1976 and has
grown to be one of the world´s largest exclusive manufacturers
of non-ball lead screws, linear rails, and actuator systems.
Haydon Kerk Motion Solutions is headquartered in Waterbury,
CT with additional manufacturing operations in Hollis and
Milford, NH, and Changzhou, China. Haydon Kerk also
operates a European technical center in Coueron, France.
» Experts in Customization:
» Complete application-specific linear motion assemblies
» Custom-molded anti-backlash nut designs
» Custom part machining
» Kerkite® engineered polymers
» Various materials available for harsh applications
» Haydon Kerk Express To Get You Started:
» Immediate availability
» Standard selection of parts
» 24 hour shipment
» Online ordering
www.HaydonKerkExpress.com
» Haydon Kerk Products:
» Hybrid and can-stack stepper motor
linear actuators
» Integrated actuator and drive systems
» Customized lead screw and nut assemblies
» Motorized and non-motorized linear rail systems
» Motorized ball rail systems
» Linear spline and guide components
Solution expertise for your application
» Medical equipment
» Lab automation
» Semiconductor handling
» X-Y positioning systems
» Valve control
» Precision fluid dispensing systems and pumps
» Data storage
» Optical equipment and laser systems
» Automated stage lighting
Page 7 | PITTMAN
PITTMAN
A leading manufacturer of brush and brushless DC motors span-ning
a wide variety of frame sizes and custom assembly options.
» The PITTMAN® brush and brushless DC motor offering ranges
in size from miniature slotless brushless motors used in high
speed medical applications to large NEMA frame servo motors
used in sophisticated automation equipment. If there is a need
for precision motion there is a PITTMAN motor than can meet
your design requirements. Standard configurations are
available with gearbox, encoder, and brake options.
» PITTMAN Express To Get You Started:
» Immediate availability
» Standard selection of parts including gearmotors
» 24 hour shipment
» Online ordering
www.PittmanExpress.com
» Brush DC motors solutions based on:
» Unique shaft options
» Optimized motor windings
» Permanent magnet options
» Various brush materials
» Integrated EMI / RFI filtering components
» Precision balancing
» Self-aligning sintered bronze bearings
or ball bearings
» Brushless DC motors solutions
based on:
» General purpose and NEMA frame motors
» Heavy duty industrial grade motors with
IP65 rated construction
» Slotless brushless motors for extremely
smooth operation at low speeds
» Miniature autoclaveable slotless motors
designed for very high operating speeds
Solution expertise for your application
» Medical equipment
» Diagnostic equipment
» Lab automation
» Office automation
» High resolution imaging equipment
» Aviation and aerospace
» Industrial automation
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

5. Page 8 | Windjammer
Windjammer
is a world class brand family of high performance blowers
delivering superior performance in the high-end, dynamic fluid
motion markets in which they serve.
» Supplying the global market with Electrically Commutated
Brushless technology for 3 decades, the Windjammer line of
products revolutionized the demanding Medical, Business
Machine and other precision markets, allowing maximum air
moving performance in a high efficiency, long life product, all
housed within a small, lightweight package.
» Blower solutions include:
» Windjammer®:
Variable-speed, brushless DC blowers offer compact, low noise,
and long life solutions. With an extensive product line that covers
all voltage inputs (low voltage DC, standard 120 / 240 VAC, and
Universal 100-240 VAC), the widest range of blower applications
are fully satisfied by this product family. Both “bypass” and
“thru-flow” aerodynamic configurations enhance its versatility,
allowing for a more custom solution to any application challenge.
» Minijammer:
» Units accept a standard DC voltage input (12 and 24 VDC) and
are “real-time” speed adjustable allowing for the most efficient
operation. Already having a proven industry track record, these
variable-speed brushless DC blowers have been newly
engineered to further increase their existing
product life, improve their aerodynamic
performance and reduce vibration.
» MICROjammer:
» Brushless DC blowers deliver high dynamic
performance in a compact package. Powered by a 12 or 24VDC
input, these blowers are ideal for usage in low voltage Medical,
Business Machine and other commercial applications where
reliable, long life operation is demanded.
» Advantages of Windjammer product family:
» Maintenance free brushless design
» Speed adjustable
» Compact, lightweight design
» High efficiency | Easy installation
» Customized versions | High power density
» Centrifugal style blowers with integrated
Electrically Commutated DC motors:
» Programmable variable air performance
» Controllable via signal voltage input feature
(0-10VDC, 4-20mA, Pulse Width Modulation)
» Mechanical controllability option
(potentiometer adjustment)
» Tachometer output available
» Protected against under / over voltage,
over-temperature, locked rotor
» Many versions of basic configurations available
Solution expertise for your application
» Digital & analog printing presses
» Prepress
» Post press
» Medical airbeds
» Mail sorters
» Fume evacuation
» Cooling
» Packaging
» Disinfection
» Washers | Dryers
Page 9 | Nautilair
» Originally designed around the stringent demands of the Gas
Pre-mix Combustion Market, these blowers deliver pin point
aerodynamic performance, necessary for an accurately
measured air / fuel mixture yielding maximum efficiency
combustion. Having been established as a proven performer
in the combustion market, this AMETEK brand consists of three
unique package sizes, lending itself to a customized dynamic
aerodynamic solution for ANY application need. Developed
from the same Electrically Commutated motor technology used
across the extensive AMETEK motor / blower product lines,
this unit is characterized by long operational life, controllability,
all housed in a compact package.
» Blower solutions include:
» Nautilair® variable speed brushless DC blowers have been
engineered to deliver a precise air / fuel mixture in gas-fired
burner systems for optimized combustion and reduced
emissions (nitrous oxide and carbon
monoxide). These “Pre-mix”
blowers offer practical solutions
for a wide range of applications.
» Advantages of Nautilair product family:
» Maintenance free brushless design
» Speed adjustable
» High power density
» 10 to 1 turndown ratio
» Sealed & leak tested blower housing
» Compact, lightweight design
» High efficiency
» Easy installation
» Both AC and DC input versions
» Customized versions
» Centrifugal style blowers with integrated
Electrically Commutated DC motors:
» For air and gas mixtures
» Programmable variable air performance
» Controllable via signal voltage input feature
(0-10VDC, 4-20mA, Pulse Width Modulation)
» Mechanical controllability option
(potentiometer adjustment)
» Tachometer output available
» Protected against under / over voltage,
over-temperature, locked rotor
» Many versions of basic configurations available
Solution expertise for your application
» Combustion
» Digital printing presses
» Post press
» Industrial fume evacuation
» Mail sorters
» Cooling
» Washers | Dryers
Nautilair
This family of high performance blowers is excellent for usage in
any application where a higher flow-versus-pressure solution is
necessary.
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

6. Page 10 | ROTRON
ROTRON
Is a renown world class brand name in the design and
manufacturer of motors and fluid motion products.
» Blower solutions include:
» Regenerative Blowers:
Where customers must have overwhelming assurance that a
failure free / long life product will be employed in their challenging
environment, Regenerative Blowers are the industry standard
solution. AMETEK ROTRON’s line of Regenerative Blowers are
designed for exceedingly long life, high performance operation
in the harshest of applications. Based on the regenerative aero-dynamic
principle, ROTRON’s blowers provide the highest aero -
dynamic performance available while utilizing lower speed, long
life AC Induction motor technology.
» Transportation Fans, Pumps and Blowers:
Brushless Transportation products entered the Heavy Duty
transit business 30 years ago. By eliminating the frequent
removal and high maintenance cost associated with brush
motors, equipment operators and city transit authorities are
able to save millions of dollars by using the ROTRON brushless
line of long life, maintenance free fans, blowers, and pumps.
Incorporating advanced technologies
such as seal less / leak proof pumps,
electronic controllability and
efficient fluid dynamics
continues to differentiate
ROTRON’s transportation
products as the industry standard.
» Advantages of Regenerative Blower:
» Maintenance free design
» Rugged, environmentally & chemically protected design
» Min. radiated & conducted emissions or susceptibility
» UL, CSA and ATEX blower versions
» Care-free, unattended usage for remote applications.
» AC general purpose motors in all international voltages
& frequencies.
Solution expertise for your application
Regenerative Blowers:
» Industrial chemical processing
» Vacuum pick up or pull down
» Gas recovery
» Water pollution control
» Environmental protection
Transportation Fans, Pumps, and Blowers:
» Bus | Rail
» Water circulating pumps
» Diesel fuel pumps
» Evaporator Blowers | Condenser Fans
» Radiator cooling fans
» Underfloor seat and drivers ventilation fans
» Power inverters | Locomotive cab fans
» Heater | Defroster Fans
Page 11 | PMC Precision Motion Control
» is a global leader in electronic
instruments and electromechanical
devices with colleagues at numerous
manufacturing, sales, and service
locations in the US and many other
countries around the world.
» AMETEK
Precision Motion Control
Products Groups
» Linear motion products used in medical
devices, laboratory automation, imaging
equipment, precision micro-dispense
systems, business equipment, and other
linear motion applications.
» DC brush, brushless, and servo motors
used in medical devices, laboratory
automation, dental equipment,
transportation, solar tracking, and
industrial automation.
» Variable speed, brushless DC blower
and integrated control systems for
medical applications, fume evacuation,
combustion, and transportation
applications.
» Since its founding in 1947, the ROTRON Brand has supplied
millions of units globally in virtually every dynamic fluid motion
industry, including commercial, industrial, and military / aerospace
markets. Whether Electrically Commutated brushless technology
or AC induction style motor products, the international
community has been bringing their unique fluid motion needs
to the ROTRON Engineering Team, always receiving a best
value, custom solution in return.
» Advantages of Transportation Fan, Pump & Blower:
» Long life, Electronically Commutated DC (EC) motor
providing up to 60,000 operating hours in heavy duty
applications.
» Protected against under / over voltage, over
temperature and locked rotor occurrences
» Maintenance free operation
» High overload capability | High dynamic acceleration Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
