Managing your Docker image continuously with Concourse CI
This document discusses managing Docker images continuously using Concourse CI. It describes using a Docker image resource in a Concourse pipeline configuration file to build a custom Docker image. The pipeline pulls from a Git repository, builds the image using a Dockerfile, and pushes the new image to a registry on each run, ensuring the image is always up to date.
More Related Content
Similar to Managing your Docker image continuously with Concourse CI
Managing your Docker image continuously with Concourse CI
- 1. ‹#›© 2016 PivotalSoftware, Inc. All rights reserved. ‹#›© 2016 Pivotal Software, Inc. All rights reserved. Managing your Docker image continuously with Concourse CI Toshiaki Maki (@making) 2016-11-30 Concourse Meetup
- 2. © 2016 PivotalSoftware, Inc. All rights reserved. Who am I ? • Toshiaki Maki (@making) http://blog.ik.am • Sr. Solutions Architect @Pivotal • Spring Framework enthusiast bit.ly/hajiboot2

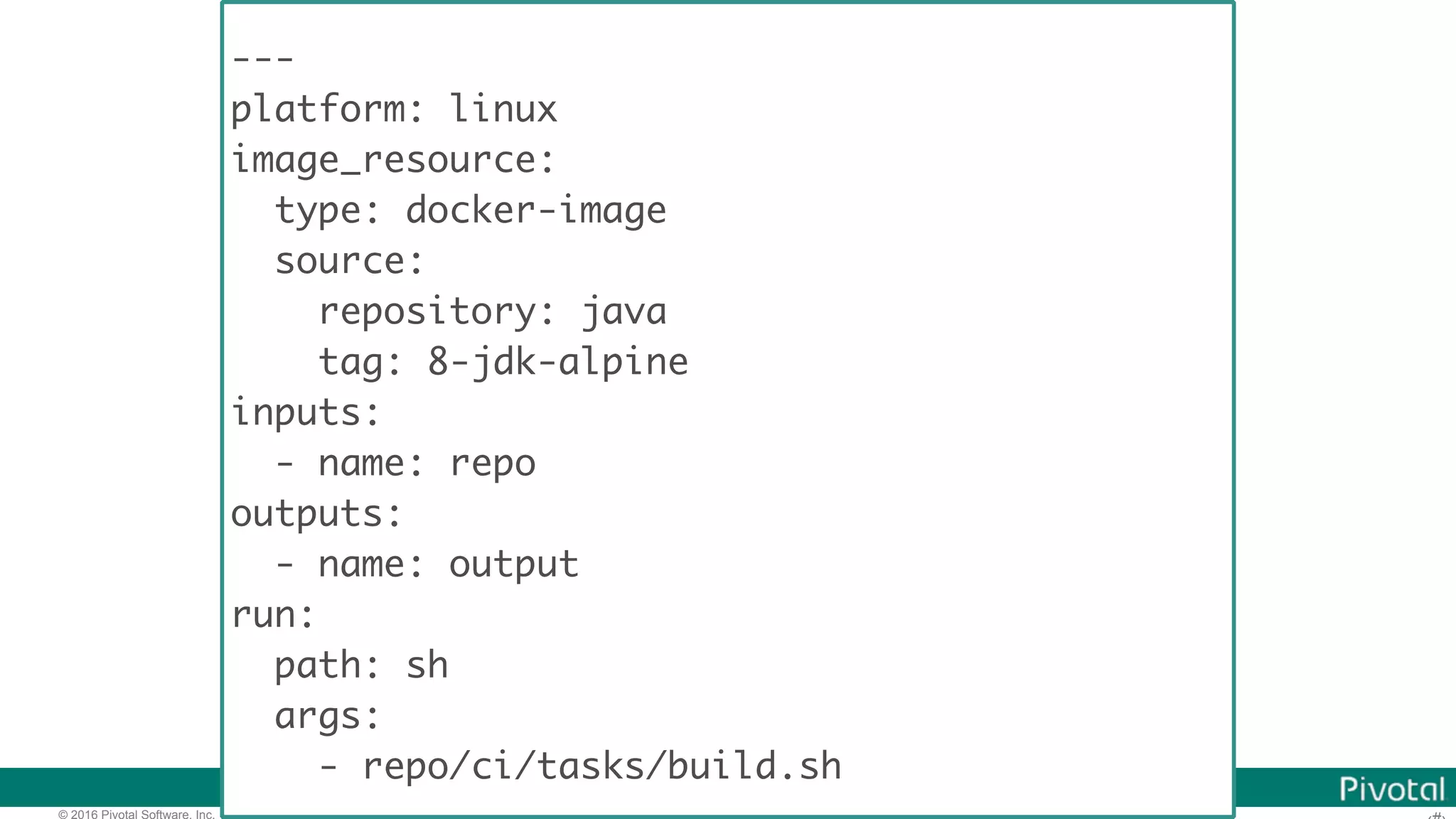

- 3. © 2016 PivotalSoftware, Inc. All rights reserved. --- platform: linux image_resource: type: docker-image source: repository: java tag: 8-jdk-alpine inputs: - name: repo outputs: - name: output run: path: sh args: - repo/ci/tasks/build.sh

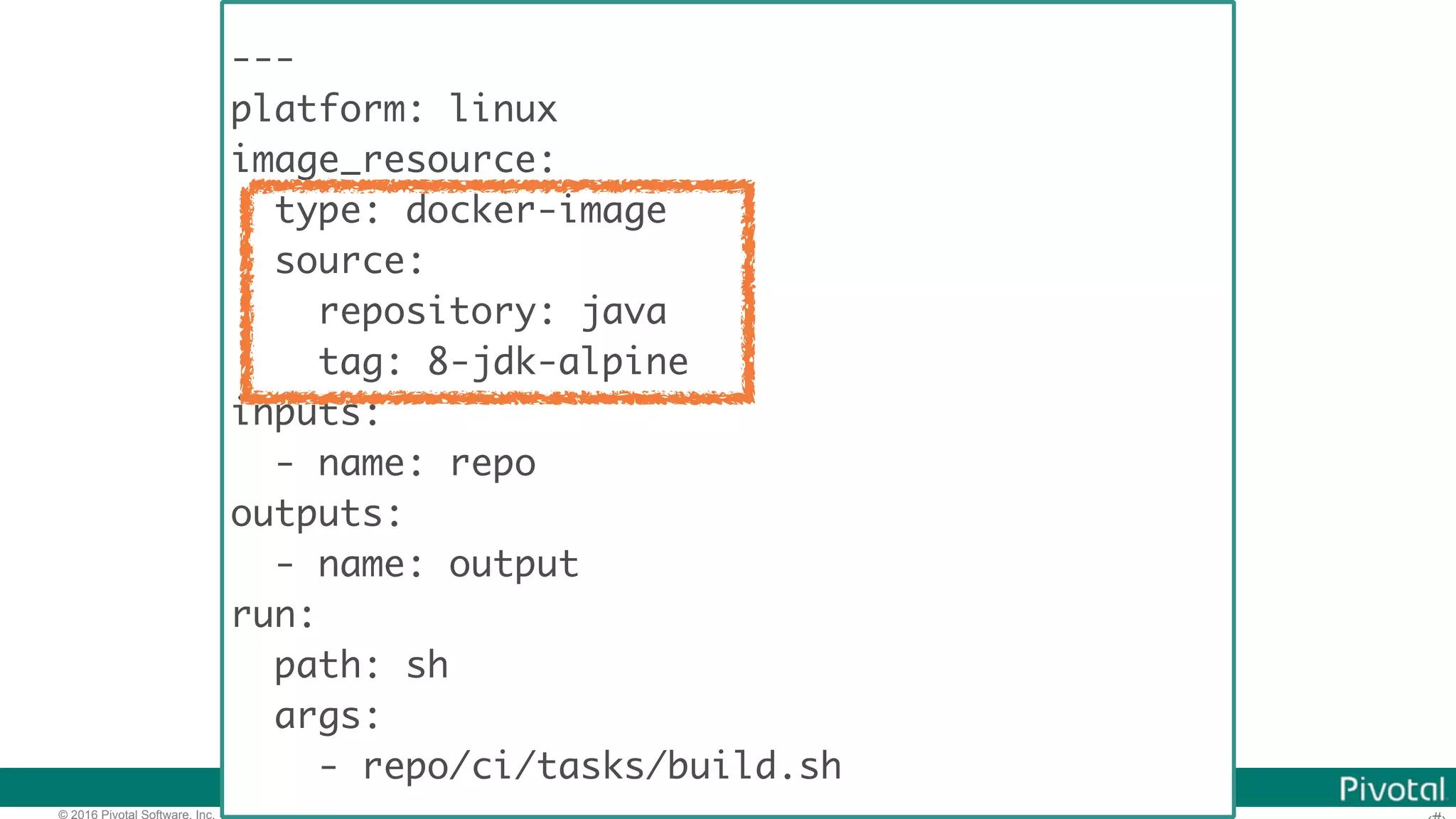

- 4. © 2016 PivotalSoftware, Inc. All rights reserved. --- platform: linux image_resource: type: docker-image source: repository: java tag: 8-jdk-alpine inputs: - name: repo outputs: - name: output run: path: sh args: - repo/ci/tasks/build.sh
- 5. © 2016 PivotalSoftware, Inc. All rights reserved. --- platform: linux image_resource: type: docker-image source: repository: making/alpine-java-bash-git tag: latest inputs: - name: repo outputs: - name: output run: path: sh args: - repo/ci/tasks/build.sh

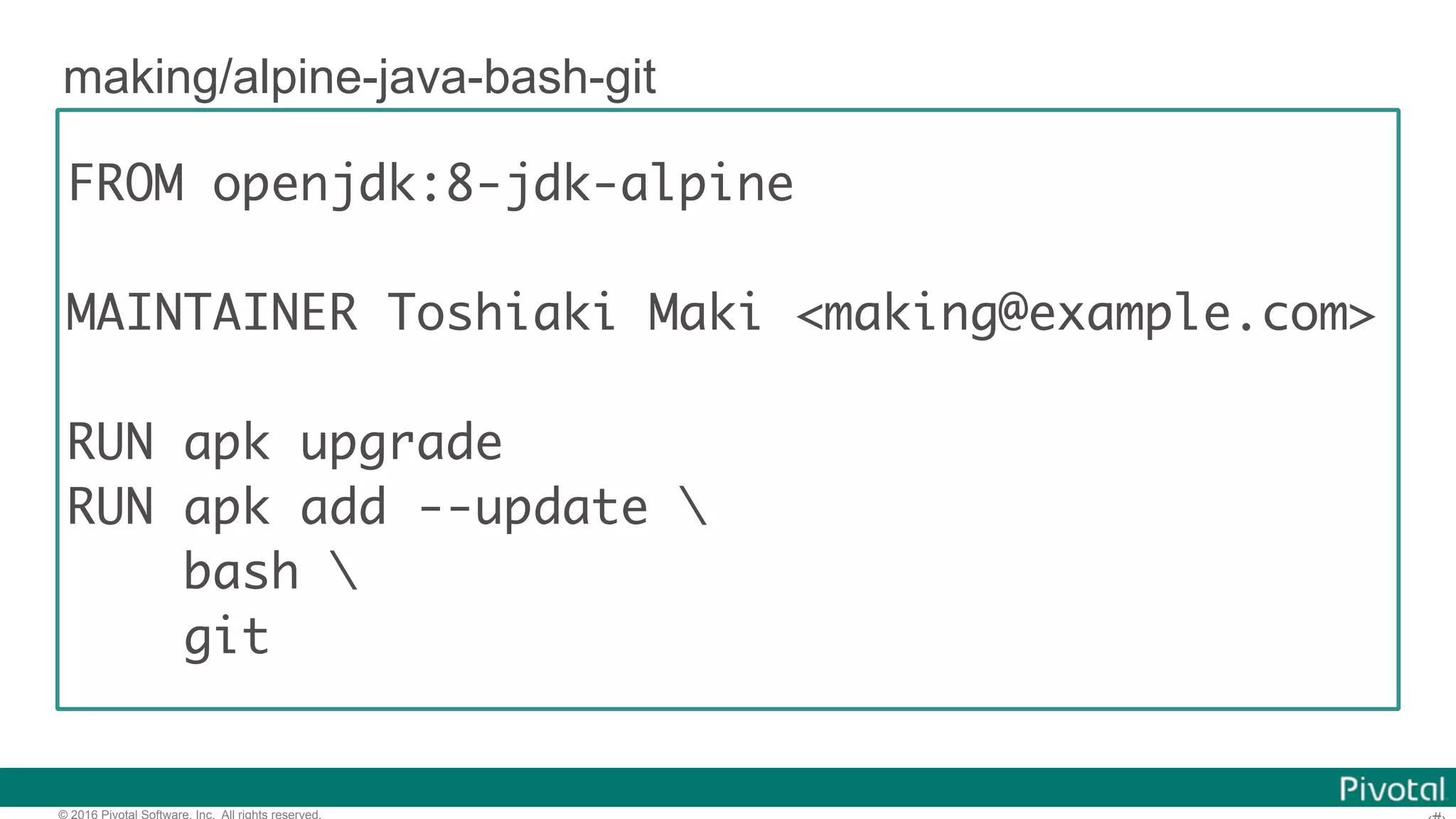

- 6. © 2016 PivotalSoftware, Inc. All rights reserved. FROM openjdk:8-jdk-alpine MAINTAINER Toshiaki Maki <making@example.com> RUN apk upgrade RUN apk add --update bash git making/alpine-java-bash-git

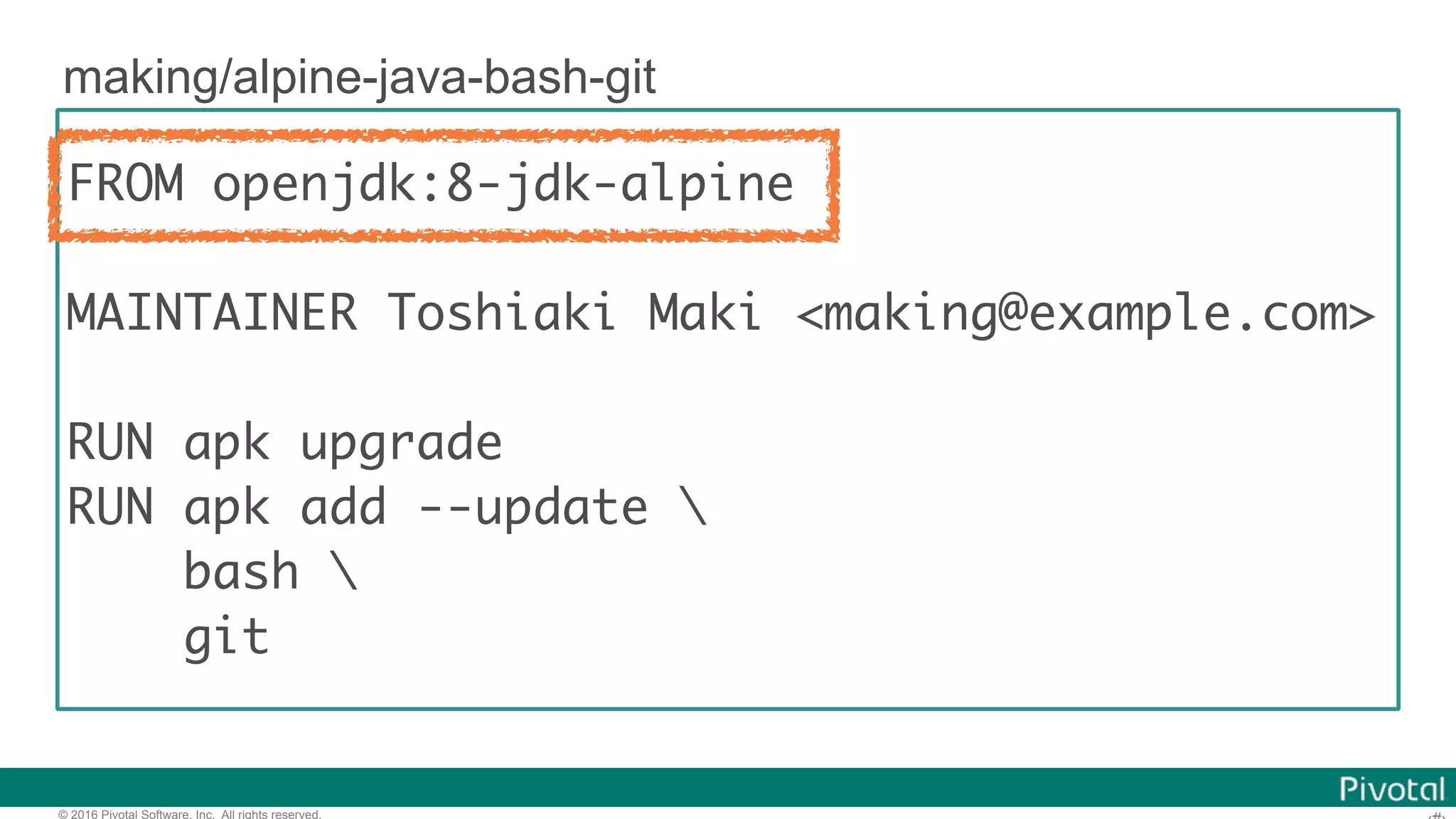

- 7. © 2016 PivotalSoftware, Inc. All rights reserved. FROM openjdk:8-jdk-alpine MAINTAINER Toshiaki Maki <making@example.com> RUN apk upgrade RUN apk add --update bash git making/alpine-java-bash-git

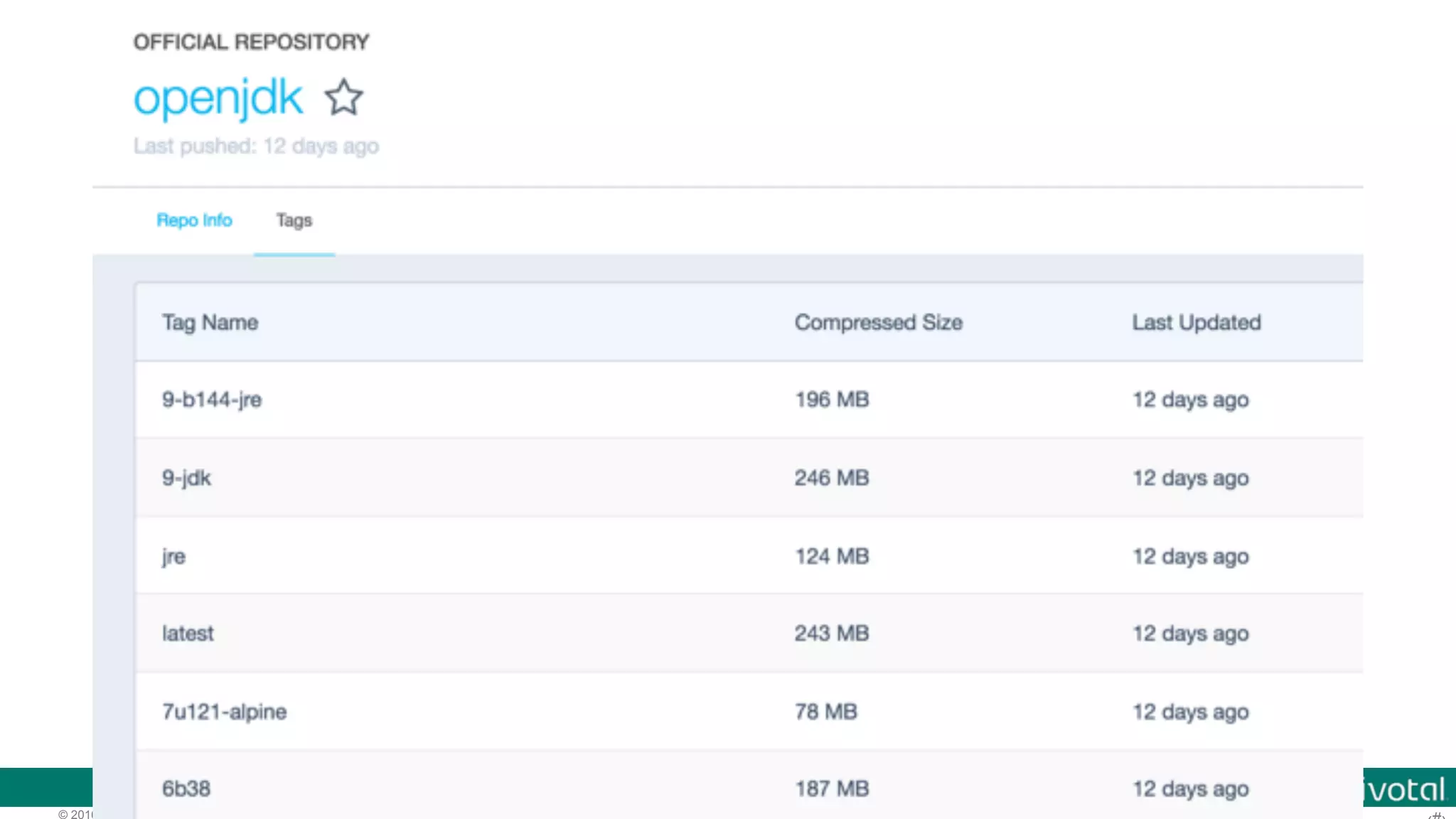

- 8. © 2016 PivotalSoftware, Inc. All rights reserved.

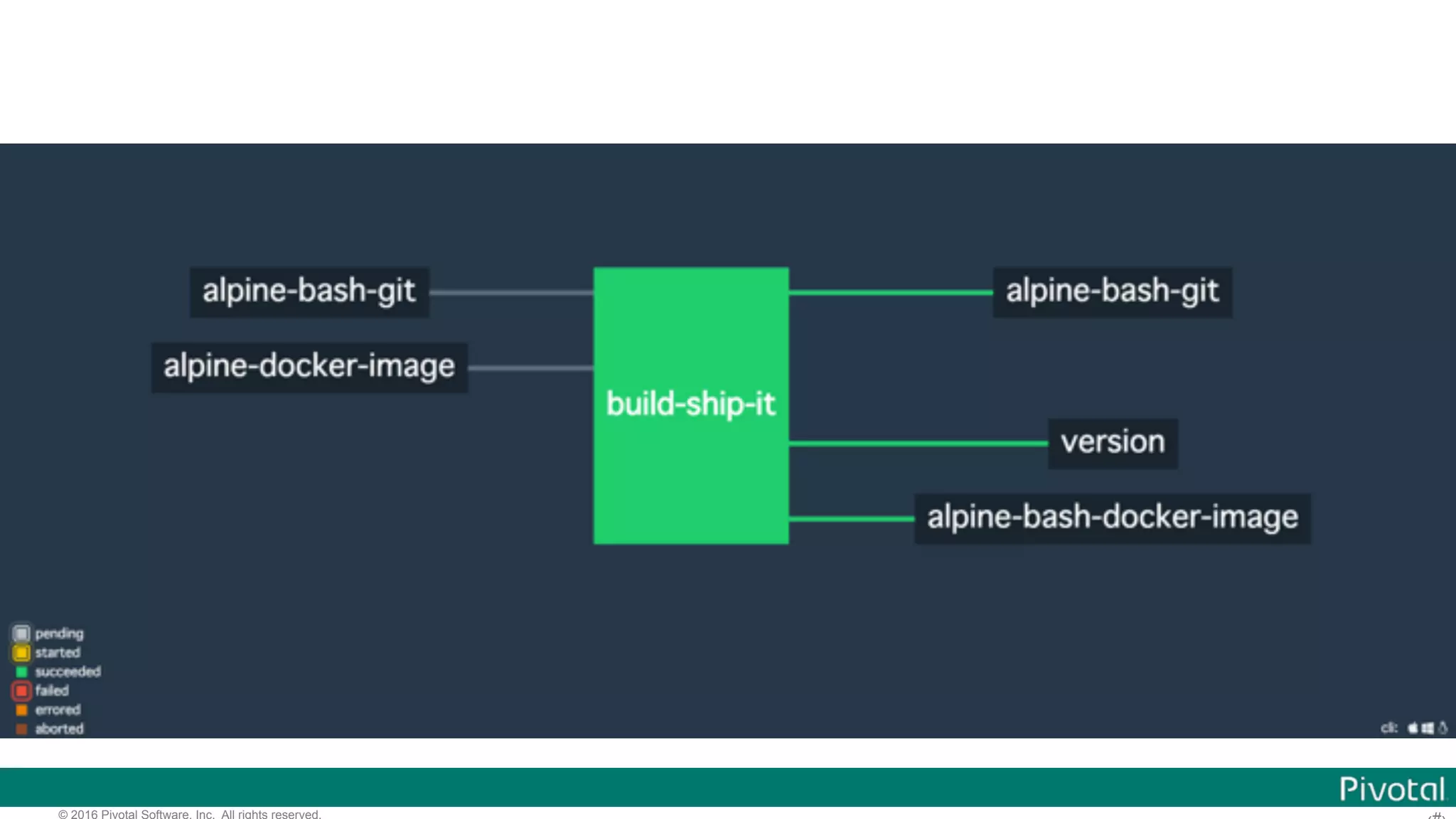

- 9. © 2016 PivotalSoftware, Inc. All rights reserved.

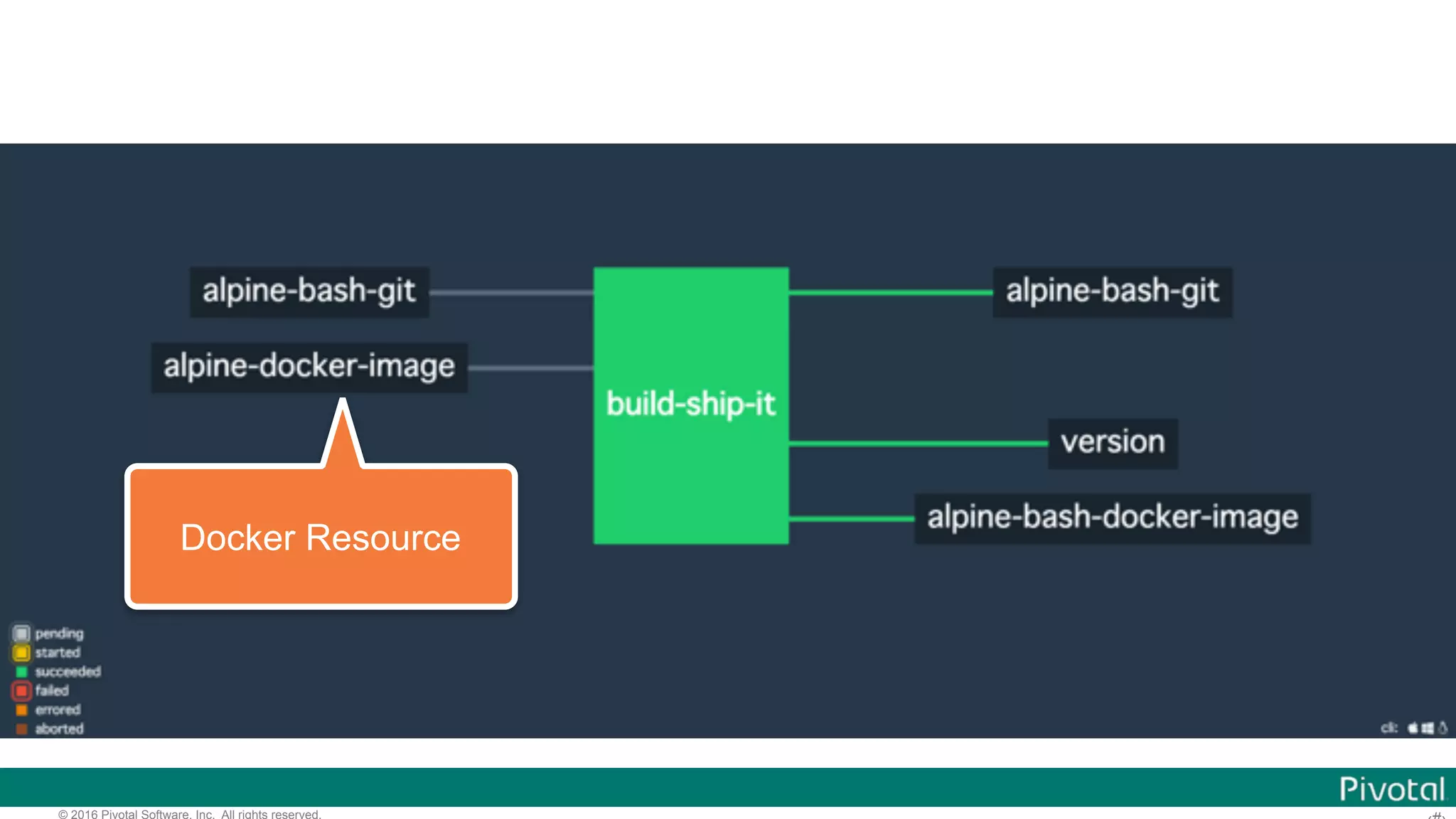

- 10. © 2016 PivotalSoftware, Inc. All rights reserved. Docker Resource

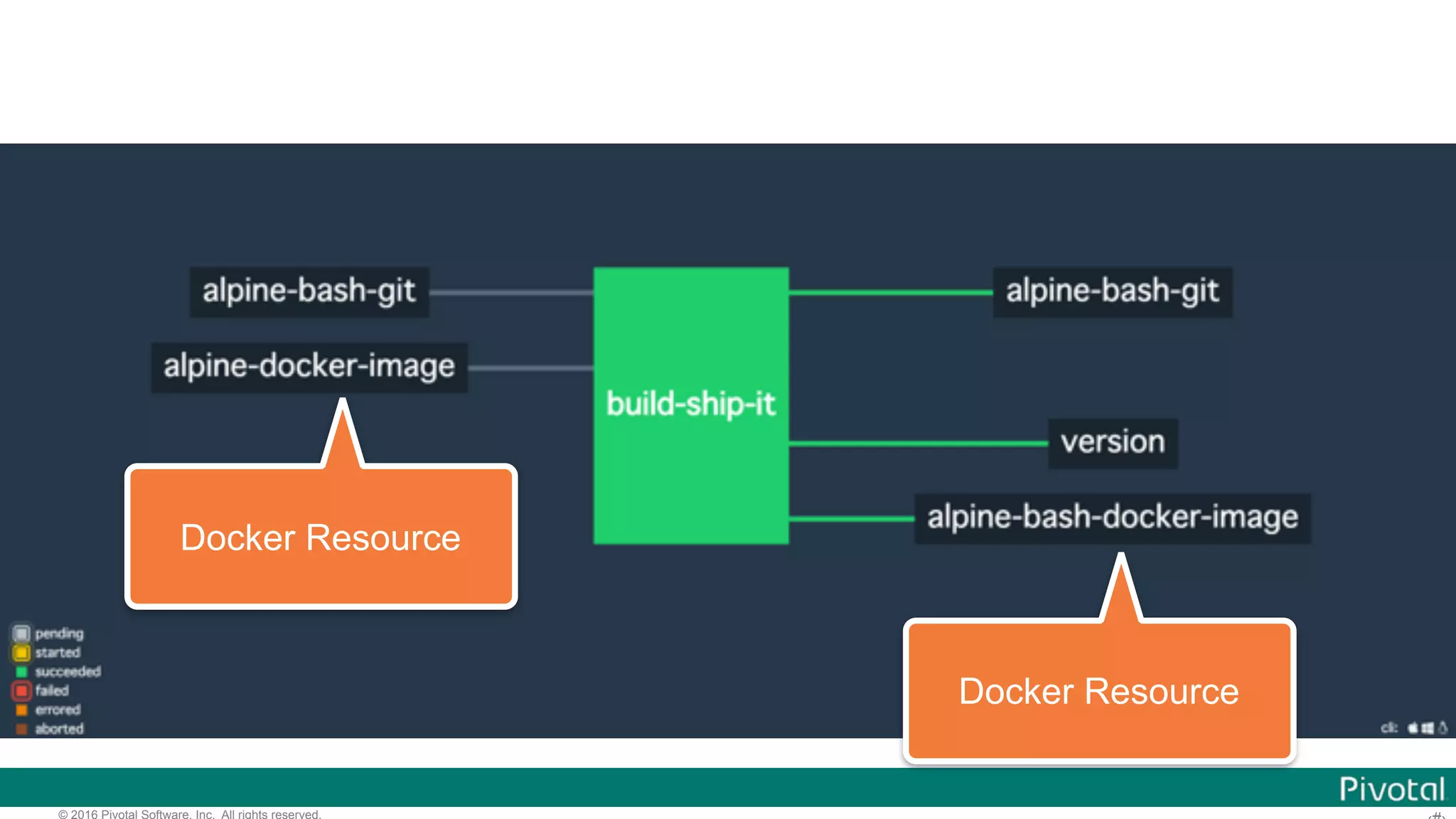

- 11. © 2016 PivotalSoftware, Inc. All rights reserved. Docker Resource Docker Resource
- 12. © 2016 PivotalSoftware, Inc. All rights reserved.

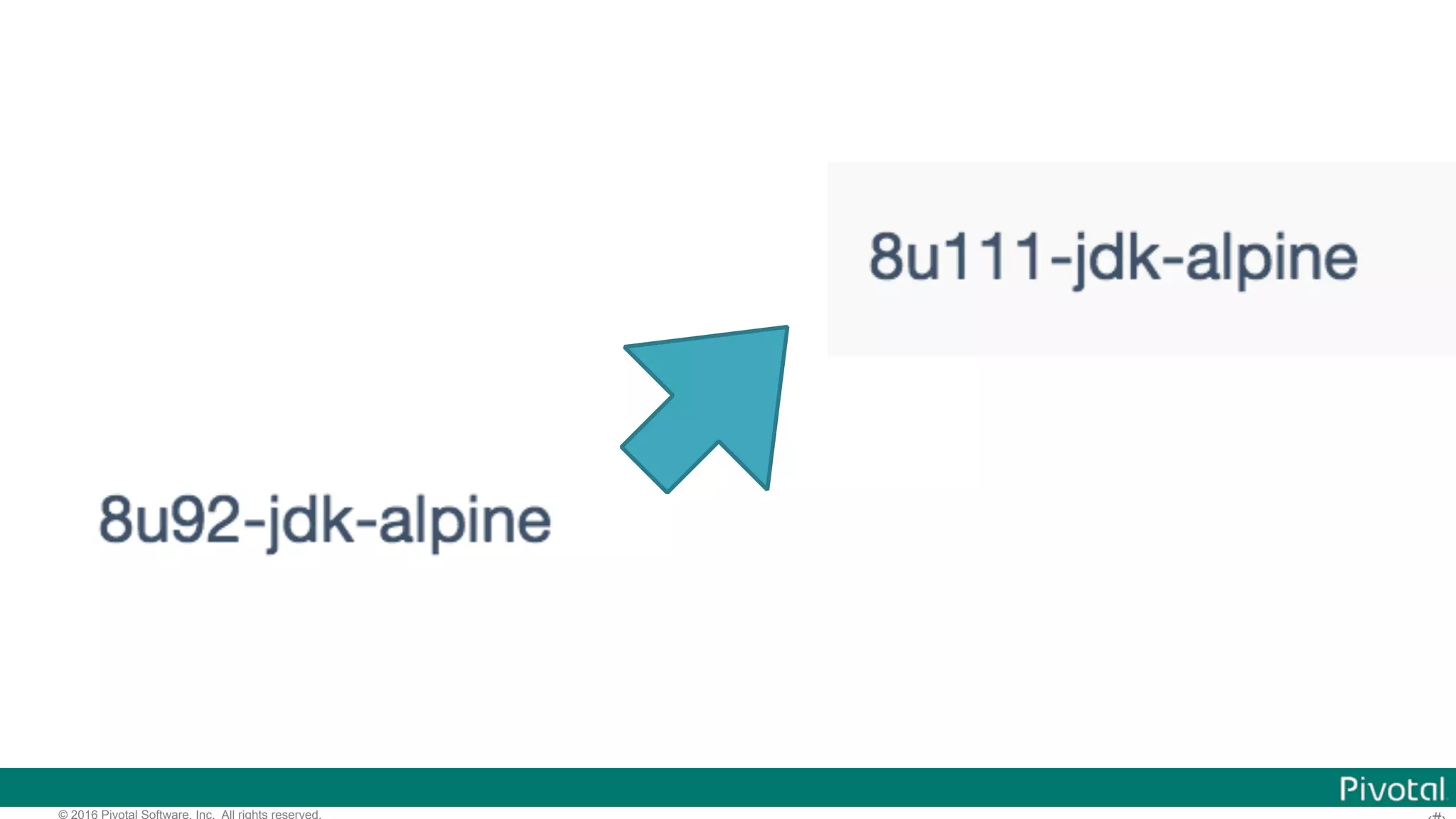

- 13. © 2016 PivotalSoftware, Inc. All rights reserved.
- 14. © 2016 PivotalSoftware, Inc. All rights reserved.

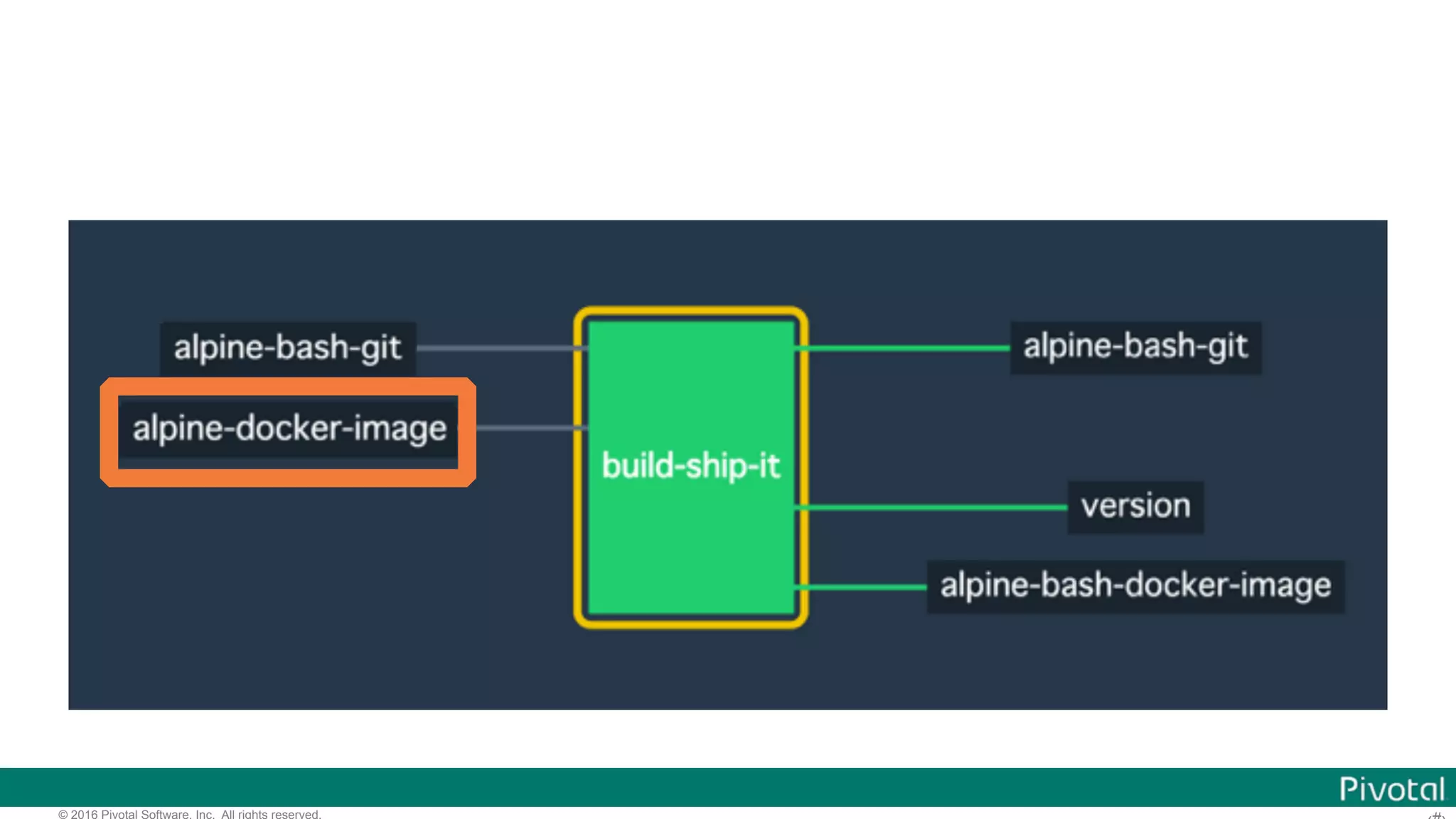

- 15. © 2016 PivotalSoftware, Inc. All rights reserved.

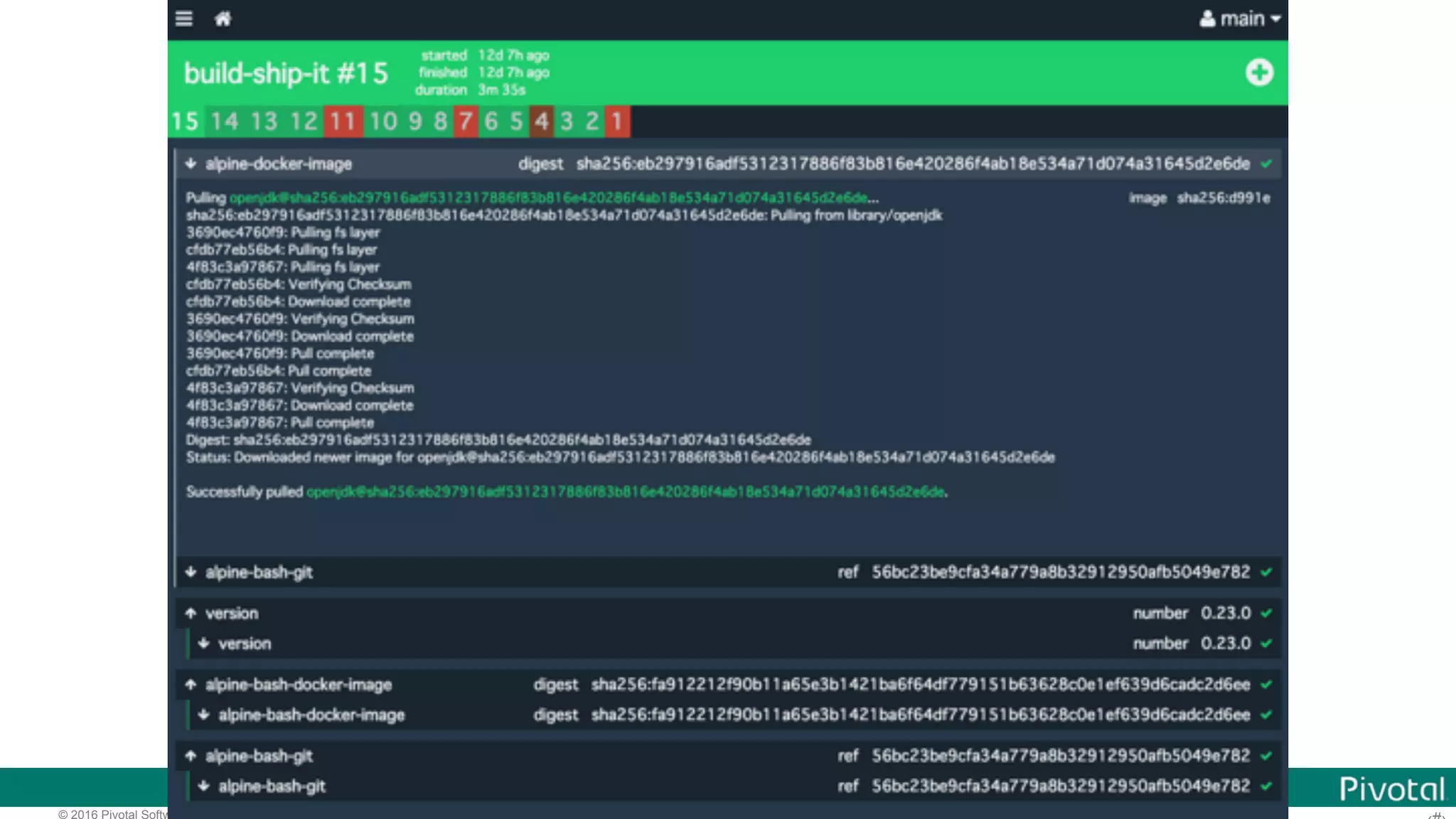

- 16. © 2016 PivotalSoftware, Inc. All rights reserved.

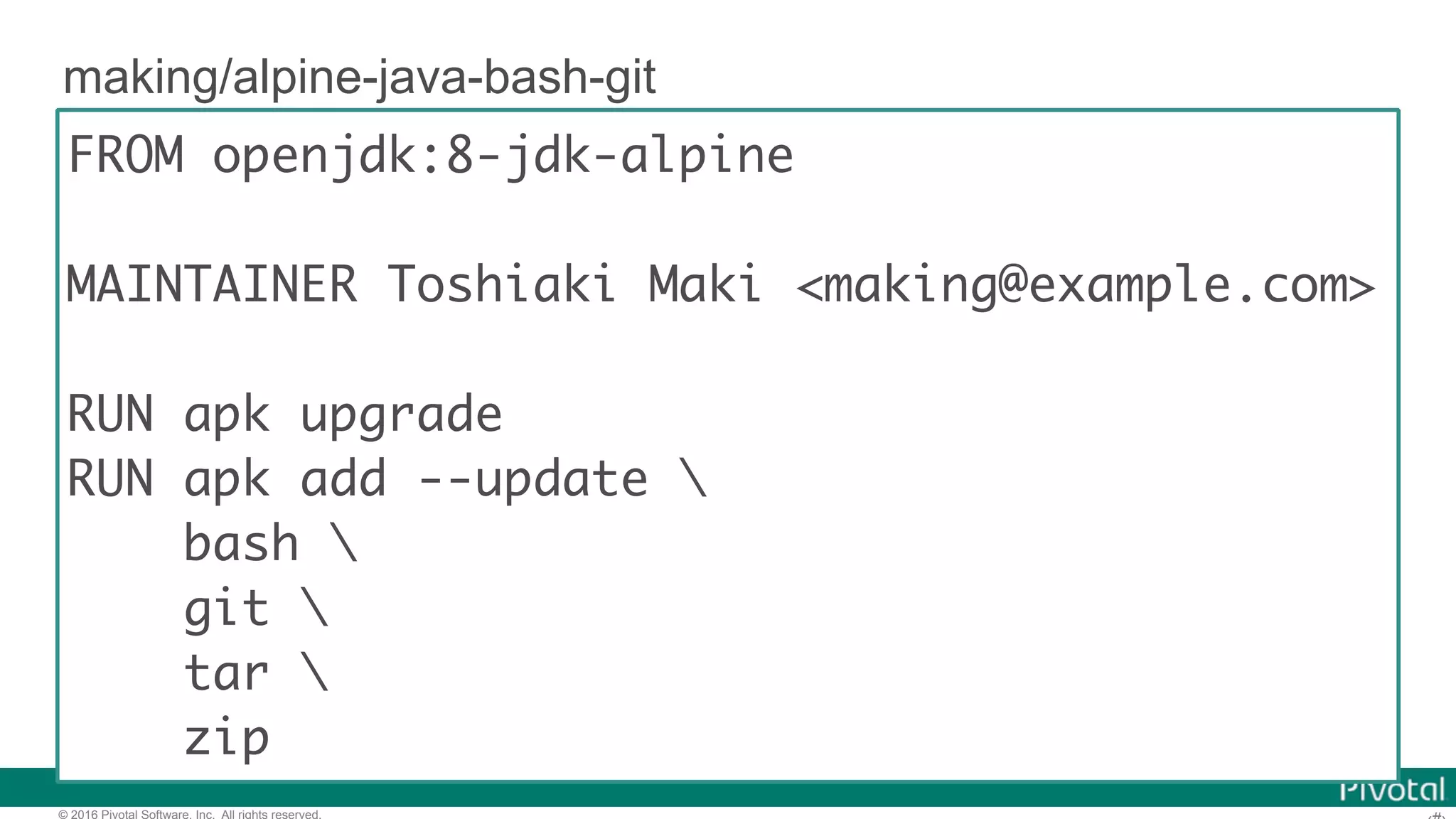

- 17. © 2016 PivotalSoftware, Inc. All rights reserved. FROM openjdk:8-jdk-alpine MAINTAINER Toshiaki Maki <making@example.com> RUN apk upgrade RUN apk add --update bash git tar zip making/alpine-java-bash-git

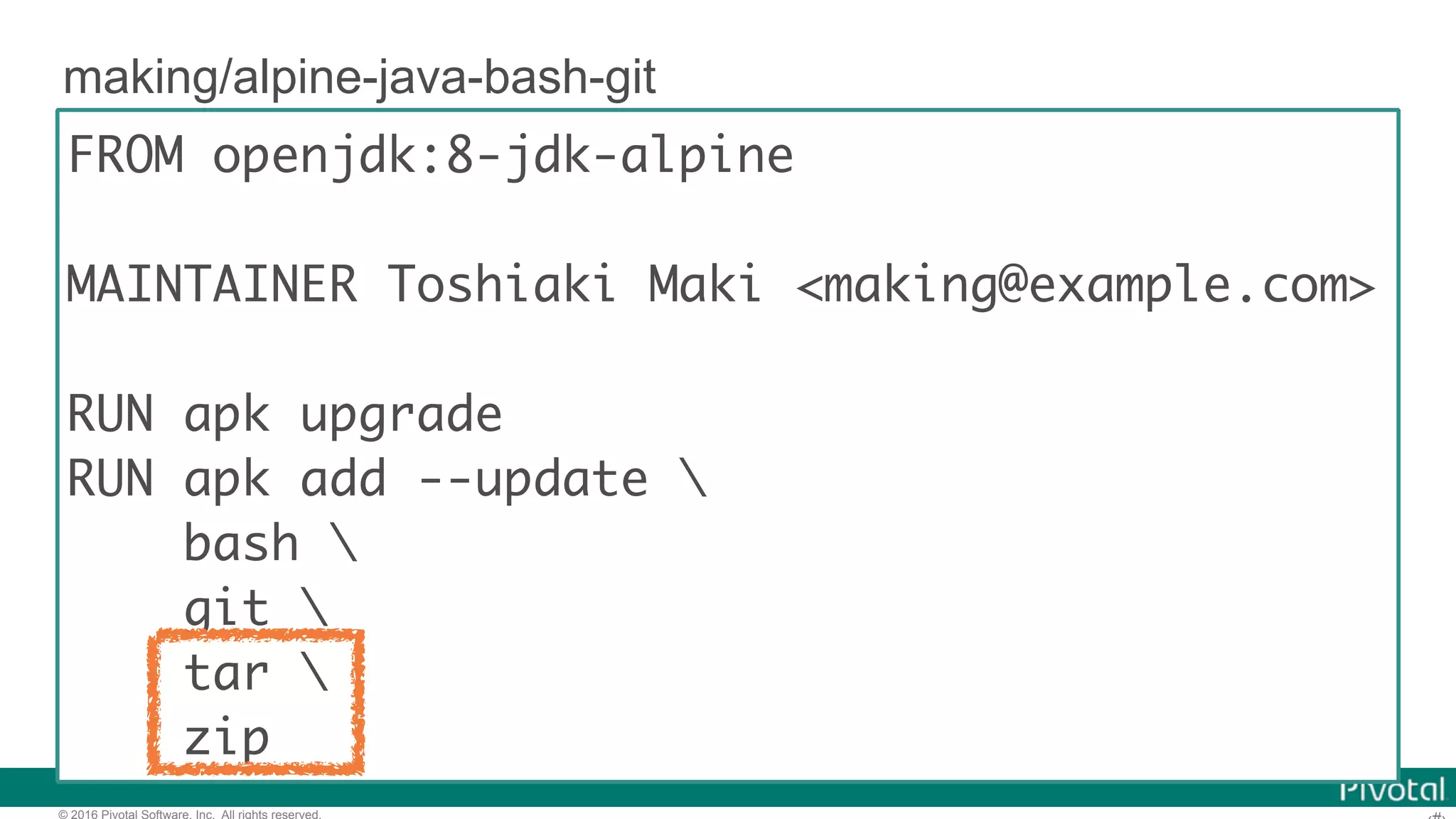

- 18. © 2016 PivotalSoftware, Inc. All rights reserved. FROM openjdk:8-jdk-alpine MAINTAINER Toshiaki Maki <making@example.com> RUN apk upgrade RUN apk add --update bash git tar zip making/alpine-java-bash-git
- 19. © 2016 PivotalSoftware, Inc. All rights reserved.
- 20. © 2016 PivotalSoftware, Inc. All rights reserved.

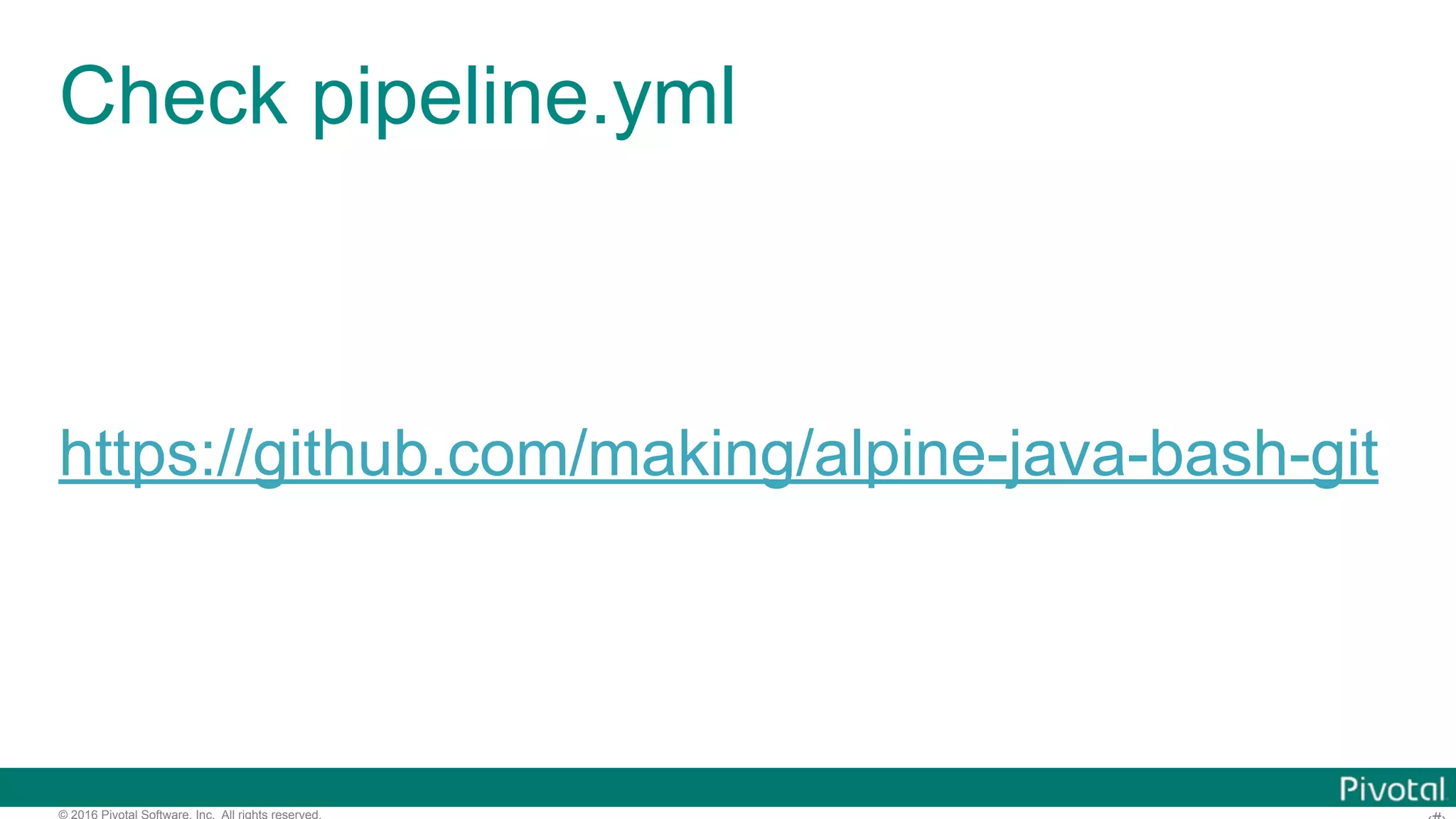

- 21. © 2016 PivotalSoftware, Inc. All rights reserved. Check pipeline.yml https://github.com/making/alpine-java-bash-git
