1. Spring Boot 1.3 News
earlier than anywhere else
Shibuya-Java 2015-08-01
@making (Toshiaki Maki)

2. About me
• @making
• Spring enthusiast/contributor

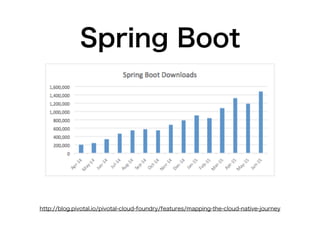

3. Spring Boot
http://blog.pivotal.io/pivotal-cloud-foundry/features/mapping-the-cloud-native-journey

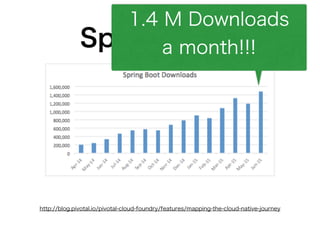

4. Spring Boot
http://blog.pivotal.io/pivotal-cloud-foundry/features/mapping-the-cloud-native-journey
1.4 M Downloads
a month!!!

5. Spring Boot 1.3!
will be released @ 2015-09
Current version is 1.3.0.RC2

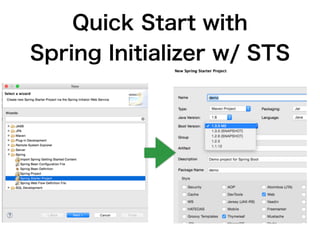

6. Quick Start with
Spring Initializer w/ STS

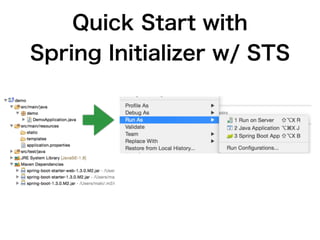

7. Quick Start with
Spring Initializer w/ STS

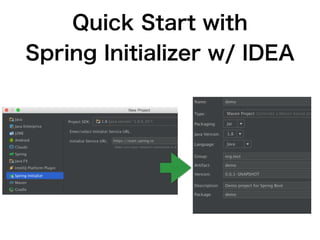

8. Quick Start with
Spring Initializer w/ IDEA

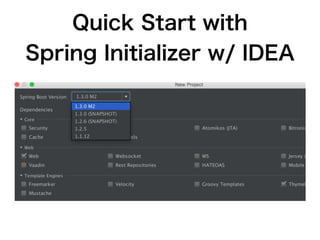

9. Quick Start with
Spring Initializer w/ IDEA

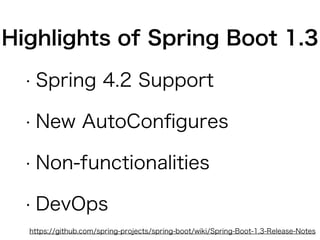

10. • Spring 4.2 Support
• New AutoConfigures
• Non-functionalities
• DevOps
Highlights of Spring Boot 1.3
https://github.com/spring-projects/spring-boot/wiki/Spring-Boot-1.3-Release-Notes

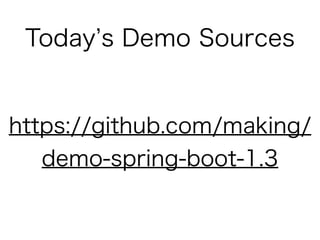

11. Today s Demo Sources
https://github.com/making/
demo-spring-boot-1.3

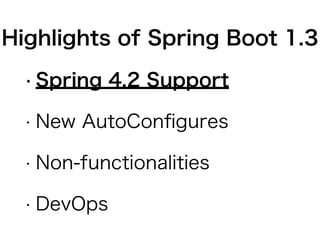

12. • Spring 4.2 Support
• New AutoConfigures
• Non-functionalities
• DevOps
Highlights of Spring Boot 1.3

13. Spring 4.2 Support
• Server Sent Event (SSE)
• Cross Origin Resource Sharing (CORS)
• ScriptEngineView
• CompletableFuture
• and so on…
Released
Yesterday!
https://spring.io/blog/2015/07/31/spring-framework-4-2-goes-ga

14. • Spring 4.2 Support
• New AutoConfigures
• Non-functionalities
• DevOps
Highlights of Spring Boot 1.3

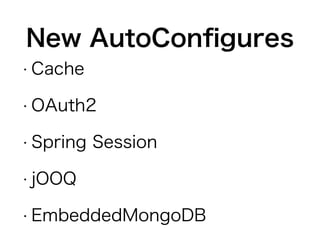

15. New AutoConfigures
• Cache
• OAuth2
• Spring Session
• jOOQ
• EmbeddedMongoDB

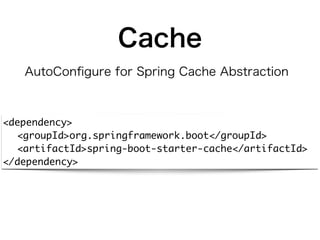

16. Cache
AutoConfigure for Spring Cache Abstraction
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-cache</artifactId>
</dependency>

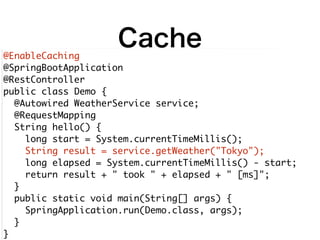

17. Cache@EnableCaching
@SpringBootApplication
@RestController
public class Demo {
@Autowired WeatherService service;
@RequestMapping
String hello() {
long start = System.currentTimeMillis();
String result = service.getWeather("Tokyo");
long elapsed = System.currentTimeMillis() - start;
return result + " took " + elapsed + " [ms]";
}
public static void main(String[] args) {
SpringApplication.run(Demo.class, args);
}
}

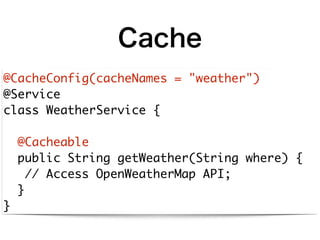

18. Cache
@CacheConfig(cacheNames = "weather")
@Service
class WeatherService {
@Cacheable
public String getWeather(String where) {
// Access OpenWeatherMap API;
}
}

19. Cache
@CacheDefaults(cacheName = "weather")
@Service
class WeatherService {
@CacheResult
public String getWeather(String where) {
// Access OpenWeatherMap API;
}
} Standard JCache API
is also available

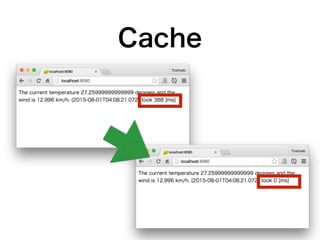

20. Cache

21. Cache Managers
•ConcurrentHashMap
•EhCache
•Hazelcast
•Infinispan
•JCache (JSR 107)
•Redis
•Guava
See Samples
https://github.com/making/demo-spring-boot-1.3
https://blog.ik.am/#/entries/339

22. OAuth2
AutoConfigure for Spring Security OAuth2
<dependency>
<groupId>org.springframework.security.oauth</groupId>
<artifactId>spring-security-oauth2</artifactId>
</dependency>

23. OAuth2
@SpringBootApplication
@RestController
public class Demo {
@RequestMapping("/")
String hello() {
return "Hello World!";
}
public static void main(String[] args) {
SpringApplication.run(Demo.class, args);
}
}

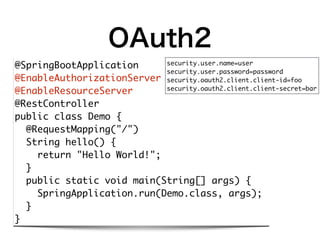

24. OAuth2
@SpringBootApplication
@EnableAuthorizationServer
@EnableResourceServer
@RestController
public class Demo {
@RequestMapping("/")
String hello() {
return "Hello World!";
}
public static void main(String[] args) {
SpringApplication.run(Demo.class, args);
}
}
security.user.name=user
security.user.password=password
security.oauth2.client.client-id=foo
security.oauth2.client.client-secret=bar

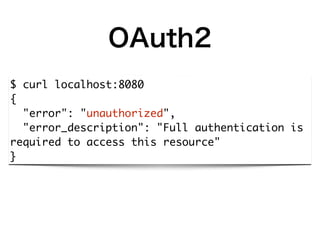

25. OAuth2
$ curl localhost:8080
{
"error": "unauthorized",
"error_description": "Full authentication is
required to access this resource"
}

26. OAuth2
$ curl foo:bar@localhost:8080/oauth/token -d
grant_type=password -d username=user -d password=password
-d scope=read
{
"access_token": "43a001d3-862f-4f02-a60f-b04d0988c24c",
"token_type": "bearer",
"refresh_token": "e4af4aac-eb8e-423b-b3a9-a73ba0f81fd1",
"expires_in": 43199,
"scope": "read"
}
Client ID/Secret Resource Owner s
username/password

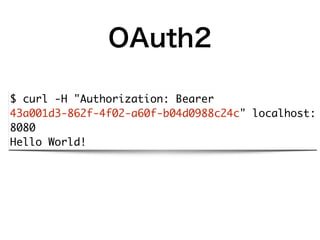

27. OAuth2
$ curl -H "Authorization: Bearer
43a001d3-862f-4f02-a60f-b04d0988c24c" localhost:
8080
Hello World!

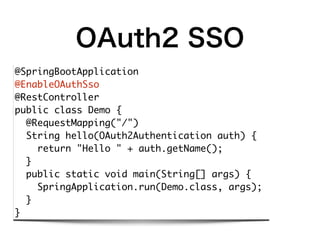

28. OAuth2 SSO
@SpringBootApplication
@EnableOAuthSso
@RestController
public class Demo {
@RequestMapping("/")
String hello(OAuth2Authentication auth) {
return "Hello " + auth.getName();
}
public static void main(String[] args) {
SpringApplication.run(Demo.class, args);
}
}

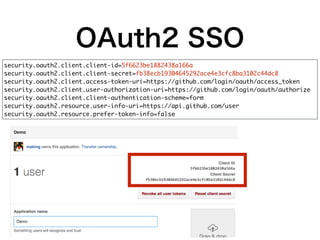

29. OAuth2 SSO
security.oauth2.client.client-id=5f6623be1882438a166a
security.oauth2.client.client-secret=fb38ecb19304645292ace4e3cfc8ba3102c44dc8
security.oauth2.client.access-token-uri=https://github.com/login/oauth/access_token
security.oauth2.client.user-authorization-uri=https://github.com/login/oauth/authorize
security.oauth2.client.client-authentication-scheme=form
security.oauth2.resource.user-info-uri=https://api.github.com/user
security.oauth2.resource.prefer-token-info=false

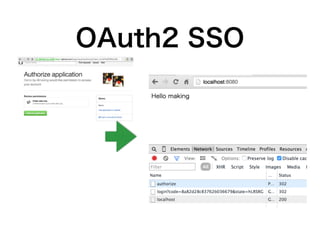

30. OAuth2 SSO

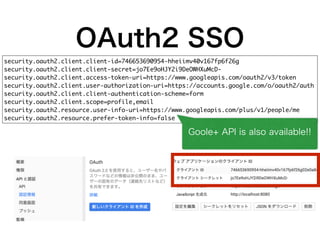

31. OAuth2 SSO
security.oauth2.client.client-id=746653690954-hheiimv40v167fp6f26g
security.oauth2.client.client-secret=jo7Ee9oHJY2i9DeOWHXuMcD-
security.oauth2.client.access-token-uri=https://www.googleapis.com/oauth2/v3/token
security.oauth2.client.user-authorization-uri=https://accounts.google.com/o/oauth2/auth
security.oauth2.client.client-authentication-scheme=form
security.oauth2.client.scope=profile,email
security.oauth2.resource.user-info-uri=https://www.googleapis.com/plus/v1/people/me
security.oauth2.resource.prefer-token-info=false
Goole+ API is also available!!

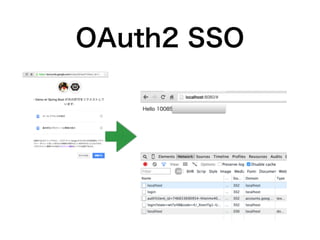

32. OAuth2 SSO

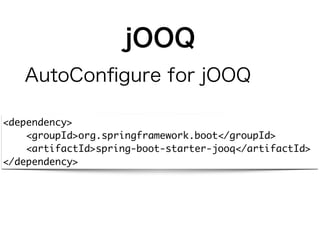

33. jOOQ
AutoConfigure for jOOQ
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jooq</artifactId>
</dependency>

34. jOOQ
@Repository
public class CustomerRepository {
@Autowired
DSLContext dslContext;
public List<Customer> findAll() {
return dslContext.select()
.from(CUSTOMERS)
.orderBy(CUSTOMERS.FIRST_NAME.asc())
.fetchInto(Customer.class);
}
}
AutoConfigured
Exception Handler, TransactionManager…
are also configured

35. Spring Session
AutoConfigure for Spring Session
<dependency>
<groupId>org.springframework.session</groupId>
<artifactId>spring-session</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-redis</artifactId>
</dependency>

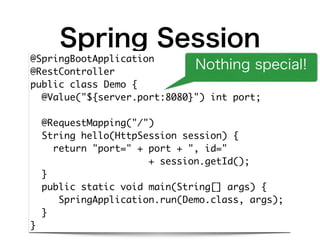

36. Spring Session
@SpringBootApplication
@RestController
public class Demo {
@Value("${server.port:8080}") int port;
@RequestMapping("/")
String hello(HttpSession session) {
return "port=" + port + ", id="
+ session.getId();
}
public static void main(String[] args) {
SpringApplication.run(Demo.class, args);
}
}
Nothing special!

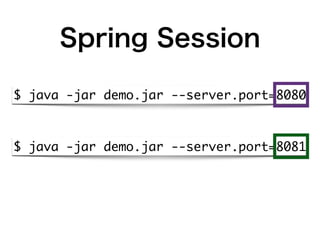

37. Spring Session
$ java -jar demo.jar --server.port=8080
$ java -jar demo.jar --server.port=8081

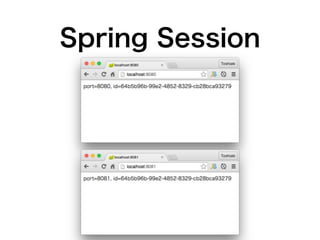

38. Spring Session

39. Spring Session

40. Spring Session

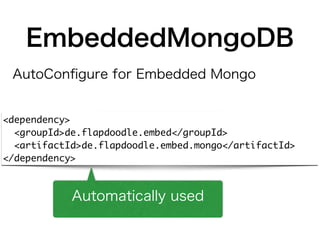

41. EmbeddedMongoDB
AutoConfigure for Embedded Mongo
<dependency>
<groupId>de.flapdoodle.embed</groupId>
<artifactId>de.flapdoodle.embed.mongo</artifactId>
</dependency>
Automatically used

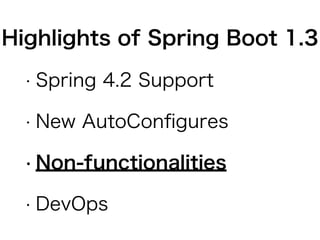

42. • Spring 4.2 Support
• New AutoConfigures
• Non-functionalities
• DevOps
Highlights of Spring Boot 1.3

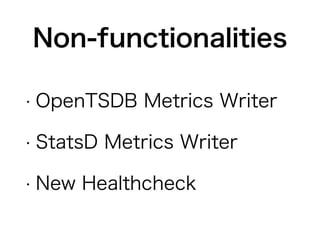

43. Non-functionalities
• OpenTSDB Metrics Writer
• StatsD Metrics Writer
• New Healthcheck

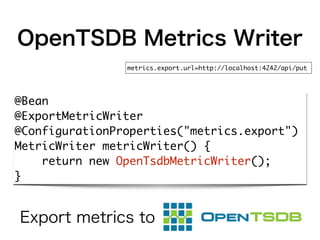

44. OpenTSDB Metrics Writer
@Bean
@ExportMetricWriter
@ConfigurationProperties("metrics.export")
MetricWriter metricWriter() {
return new OpenTsdbMetricWriter();
}
metrics.export.url=http://localhost:4242/api/put
Export metrics to

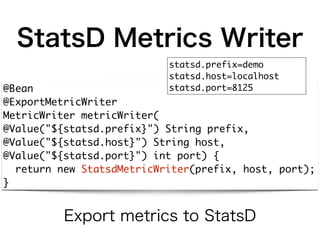

45. StatsD Metrics Writer
Export metrics to StatsD
@Bean
@ExportMetricWriter
MetricWriter metricWriter(
@Value("${statsd.prefix}") String prefix,
@Value("${statsd.host}") String host,
@Value("${statsd.port}") int port) {
return new StatsdMetricWriter(prefix, host, port);
}
statsd.prefix=demo
statsd.host=localhost
statsd.port=8125

46. StatsD Metrics Writer
StatsD + Graphite + Grafana
https://github.com/kamon-io/docker-grafana-graphite

47. New Health Check
• Elasticsearch
• Email
• JMS

48. Highlights of Spring Boot 1.3
• Spring 4.2 Support
• New AutoConfigures
• Non-functionalities
• DevOps

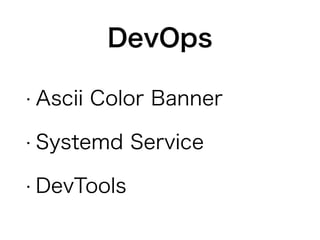

49. DevOps
• Ascii Color Banner
• Systemd Service
• DevTools

50. Ascii Color Banner
${AnsiColor.BRIGHT_GREEN}My Application
${AnsiColor.BRIGHT_YELLOW}Hello!!${AnsiColor.DEFAULT}
src/main/resources/banner.txt

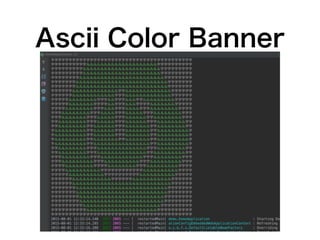

51. Ascii Color Banner

52. Systemd Service
$ mvn package
$ cp target/*.jar /var/demo/demo
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<configuration>
<executable>true</executable>
</configuration>
</plugin>

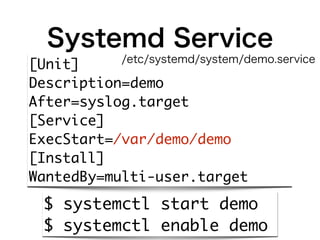

53. Systemd Service
$ systemctl start demo
$ systemctl enable demo
[Unit]
Description=demo
After=syslog.target
[Service]
ExecStart=/var/demo/demo
[Install]
WantedBy=multi-user.target
/etc/systemd/system/demo.service

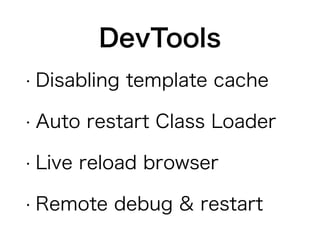

54. DevTools
• Disabling template cache
• Auto restart Class Loader
• Live reload browser
• Remote debug & restart

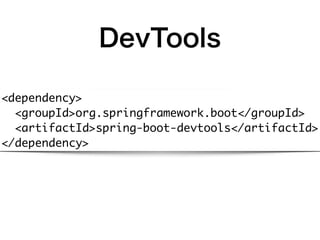

55. DevTools
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
</dependency>

56. Disabling template cache
spring.thymeleaf.cache=false
spring.freemarker.cache=false
spring.groovy.template.cache=false
spring.velocity.cache=false
spring.mustache.cache=false

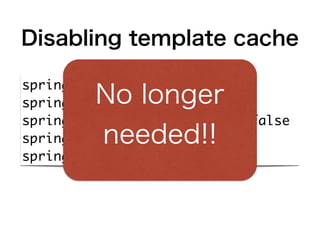

57. spring.thymeleaf.cache=false
spring.freemarker.cache=false
spring.groovy.template.cache=false
spring.velocity.cache=false
spring.mustache.cache=false
No longer
needed!!
Disabling template cache

58. Auto restart Class Loader
Demo
https://blog.ik.am/#/entries/349

59. Live reload browser
Demo

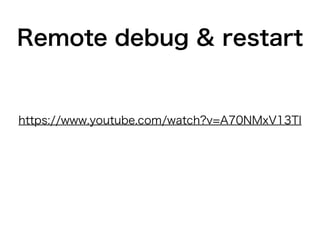

60. Remote debug & restart
https://www.youtube.com/watch?v=A70NMxV13TI

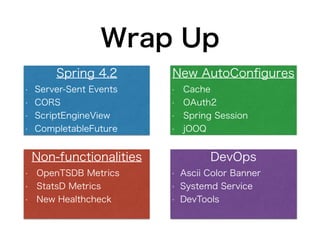

61. Wrap Up
Spring 4.2
• Server-Sent Events
• CORS
• ScriptEngineView
• CompletableFuture
New AutoConfigures
• Cache
• OAuth2
• Spring Session
• jOOQ
Non-functionalities
• OpenTSDB Metrics
• StatsD Metrics
• New Healthcheck
DevOps
• Ascii Color Banner
• Systemd Service
• DevTools

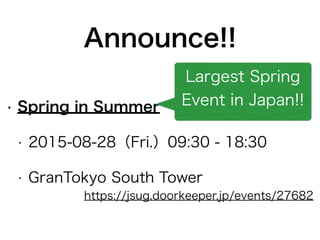

62. Announce!!
• Spring in Summer
• 2015-08-28（Fri.）09:30 - 18:30
• GranTokyo South Tower
https://jsug.doorkeeper.jp/events/27682
Largest Spring
Event in Japan!!

63. Announce!!
• JJUG LT Festival!!
• 2015-08-10（Mon.）19:00 - 21:00
https://jjug.doorkeeper.jp/events/28181
