This document summarizes a presentation about serverless computing using Spring Cloud Function, Knative, and riff. It discusses what serverless computing is, an overview of Spring Cloud Function for developing serverless applications, and how Knative and riff can be used as platforms to deploy serverless workloads on Kubernetes. Code examples are provided to demonstrate invoking functions via HTTP and messaging with Spring Cloud Function and deploying functions to Knative and riff.

1. !1
Serverless with
Spring Cloud Function, Knative and riff
2018-11-06
Toshiaki Maki (@making / tmaki@pivotal.io)
SpringOne Tour #s1t

2. Who am I ?
2
Toshiaki Maki (@making) https://blog.ik.am
Advisory Solutions Architect @Pivotal Japan
Spring / Cloud Foundry / Concourse / Kubernetes / BOSH

3. Agenda
!3
• Serverless?
• Spring Cloud Function
• Knative and riff

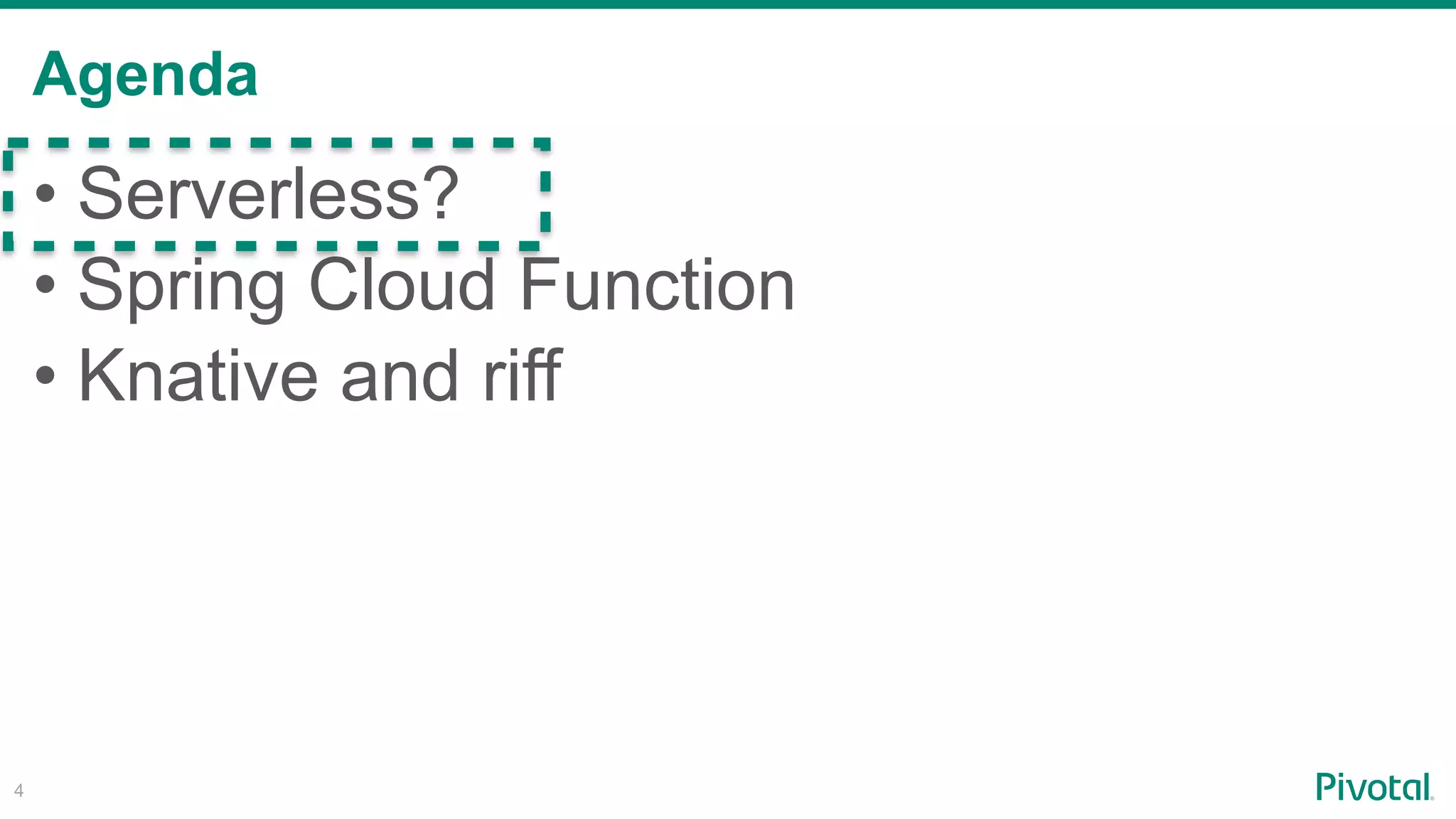

4. Agenda
!4
• Serverless?
• Spring Cloud Function
• Knative and riff

5. Serverless??
!5
• Dynamic resource utilization, "scale to N"
and "scale to zero"
• Easy integration with platform services
• Billing per message
• Focus on business logic

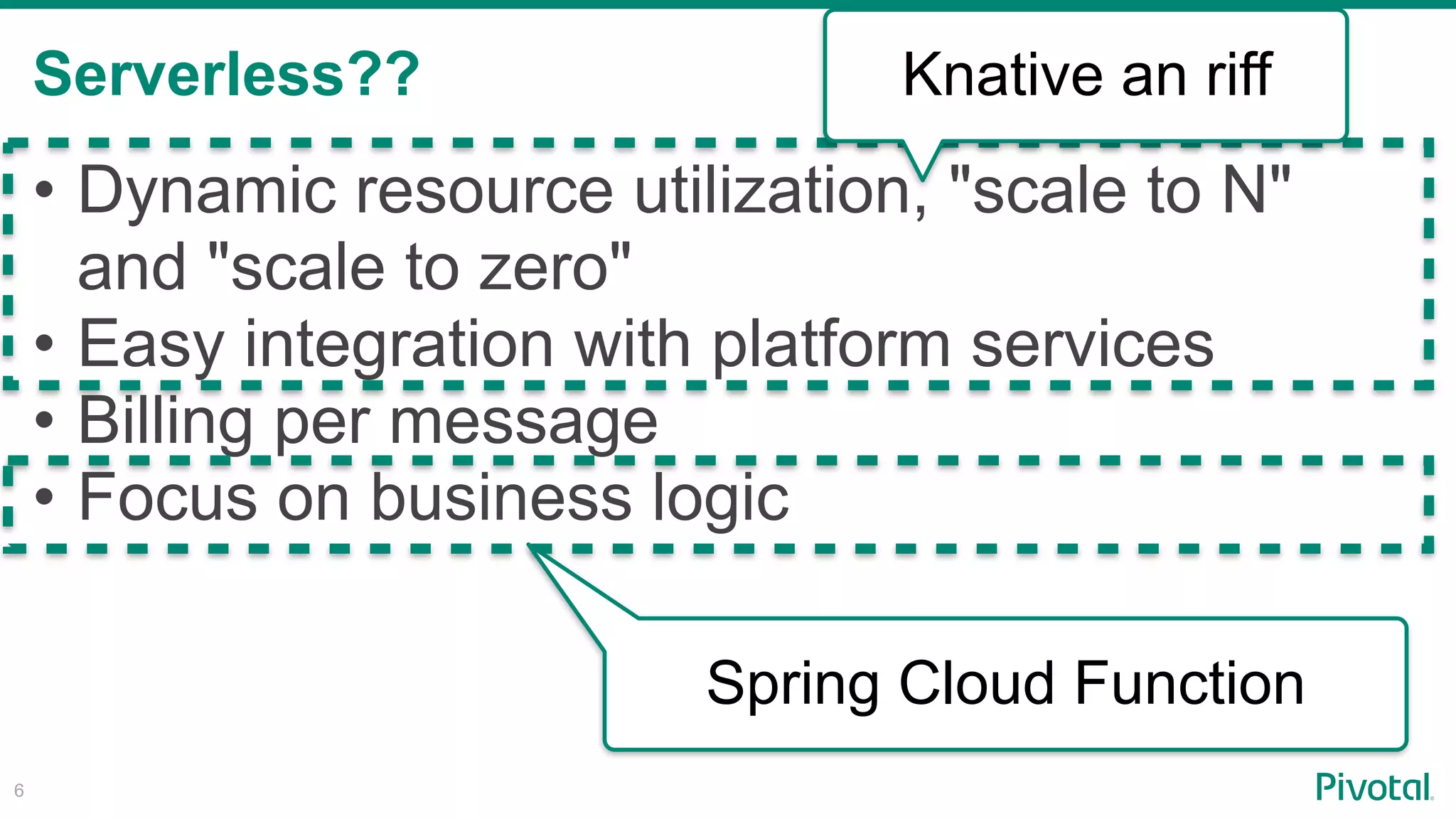

6. Serverless??
!6
• Dynamic resource utilization, "scale to N"
and "scale to zero"
• Easy integration with platform services
• Billing per message
• Focus on business logic
Knative an riff
Spring Cloud Function

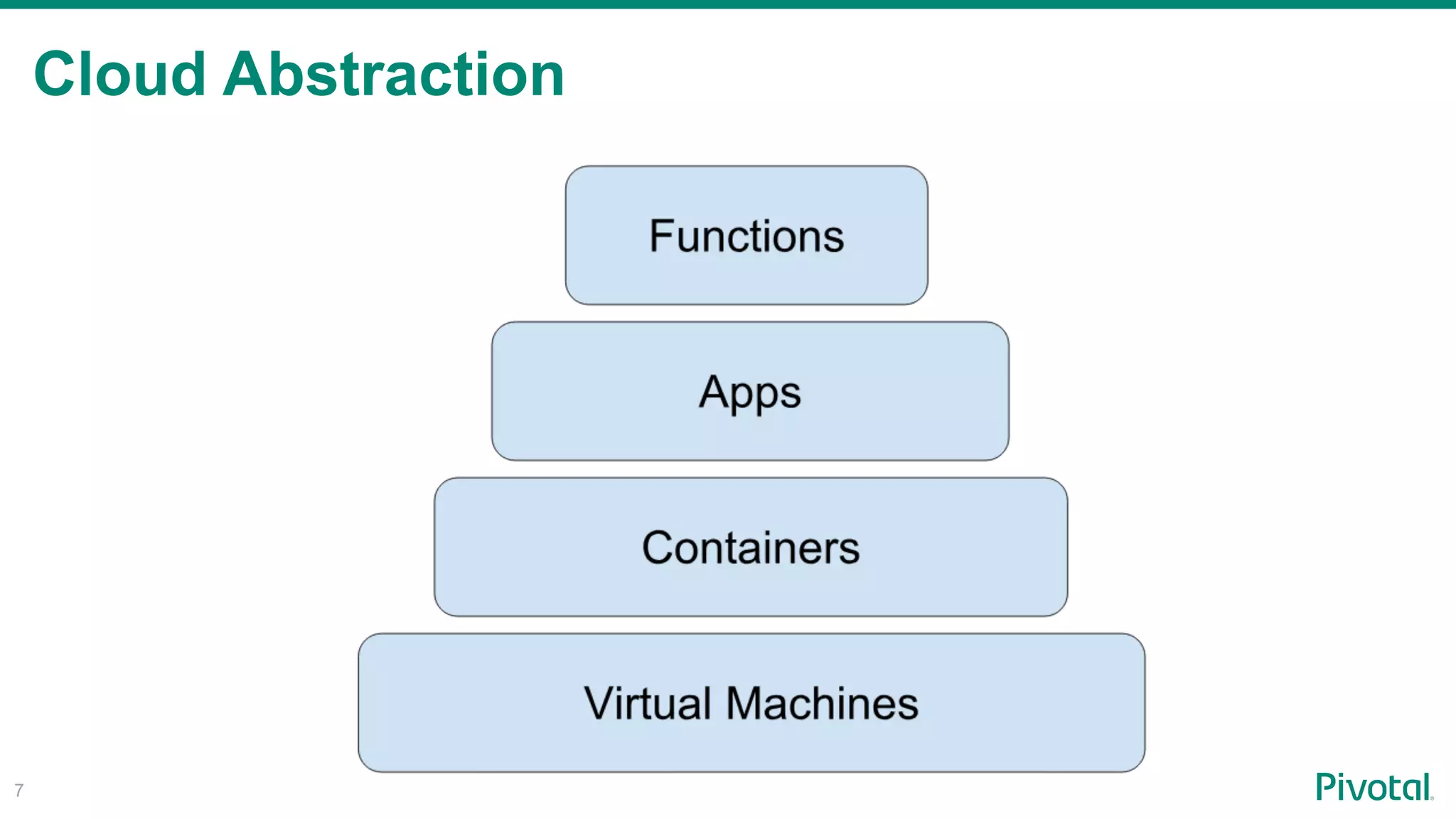

7. Cloud Abstraction
!7

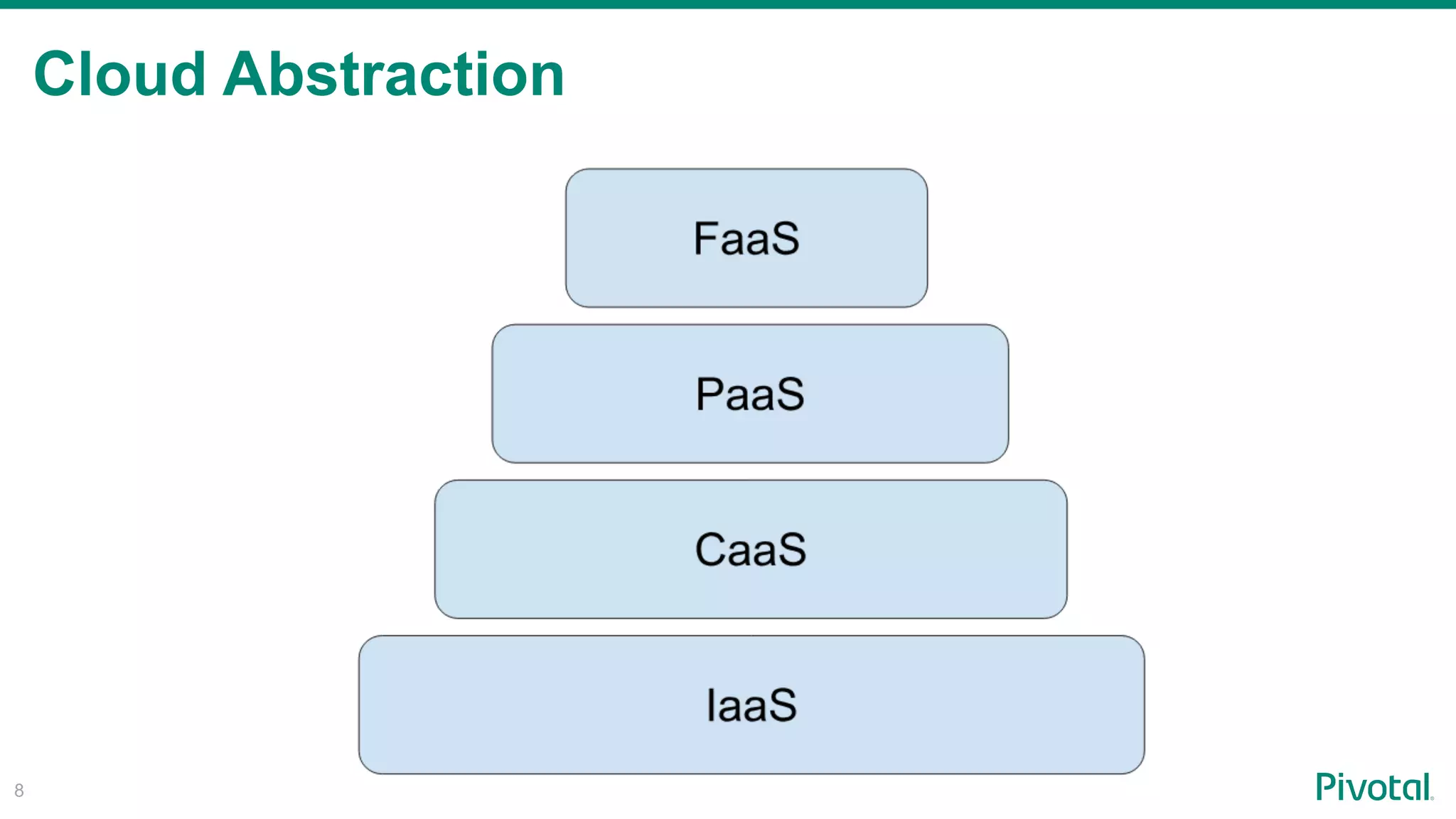

8. Cloud Abstraction
!8

9. Serverless? FaaS?
!9
Serverless
FaaS
λ

10. Agenda
!10
• Serverless?
• Spring Cloud Function
• Knative and riff

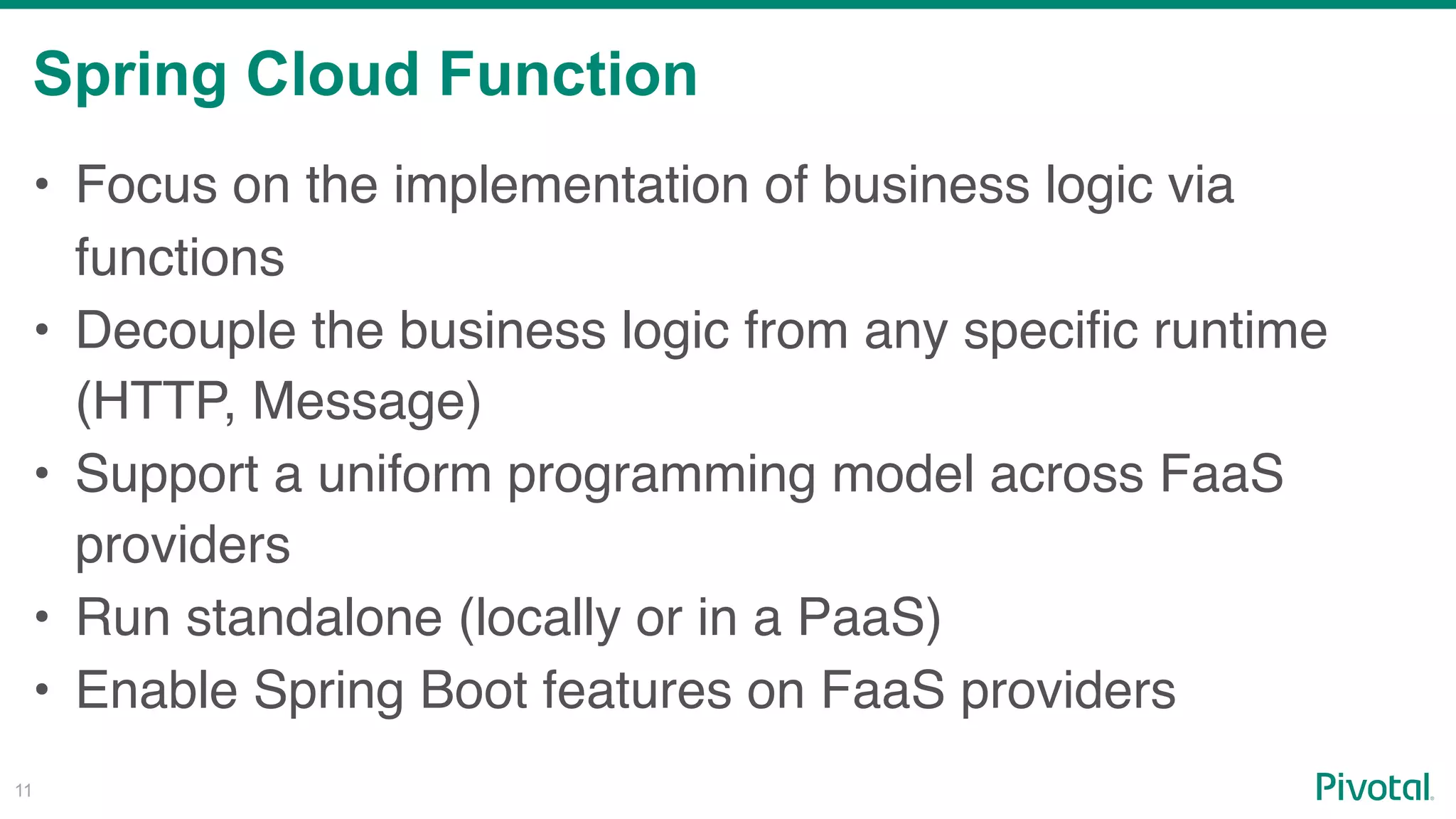

11. Spring Cloud Function
!11
• Focus on the implementation of business logic via
functions
• Decouple the business logic from any specific runtime
(HTTP, Message)
• Support a uniform programming model across FaaS
providers
• Run standalone (locally or in a PaaS)
• Enable Spring Boot features on FaaS providers

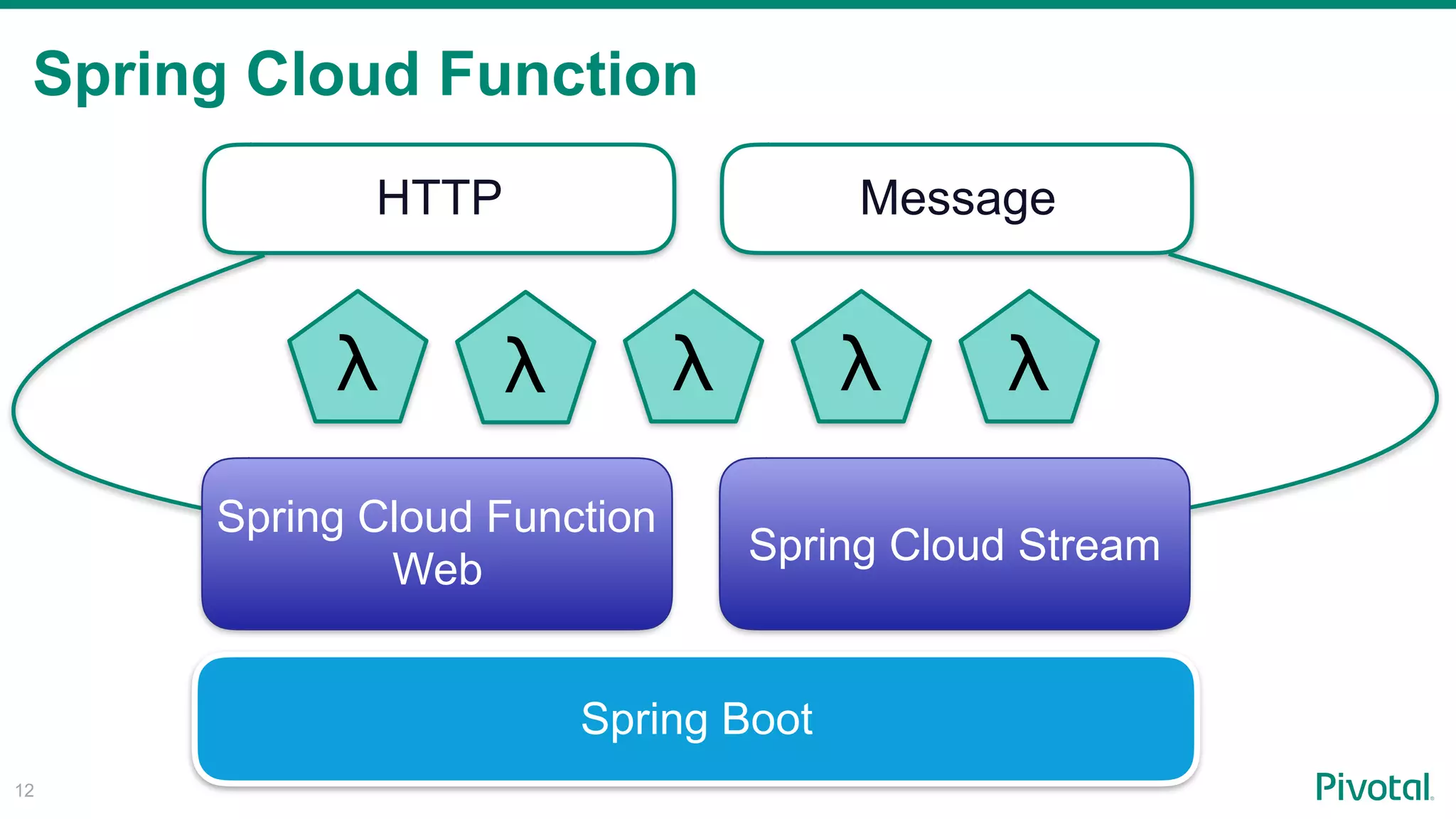

12. Spring Cloud Function
!12
HTTP Message
Spring Boot
Spring Cloud Function
Web
Spring Cloud Stream
λ λ λ λ λ

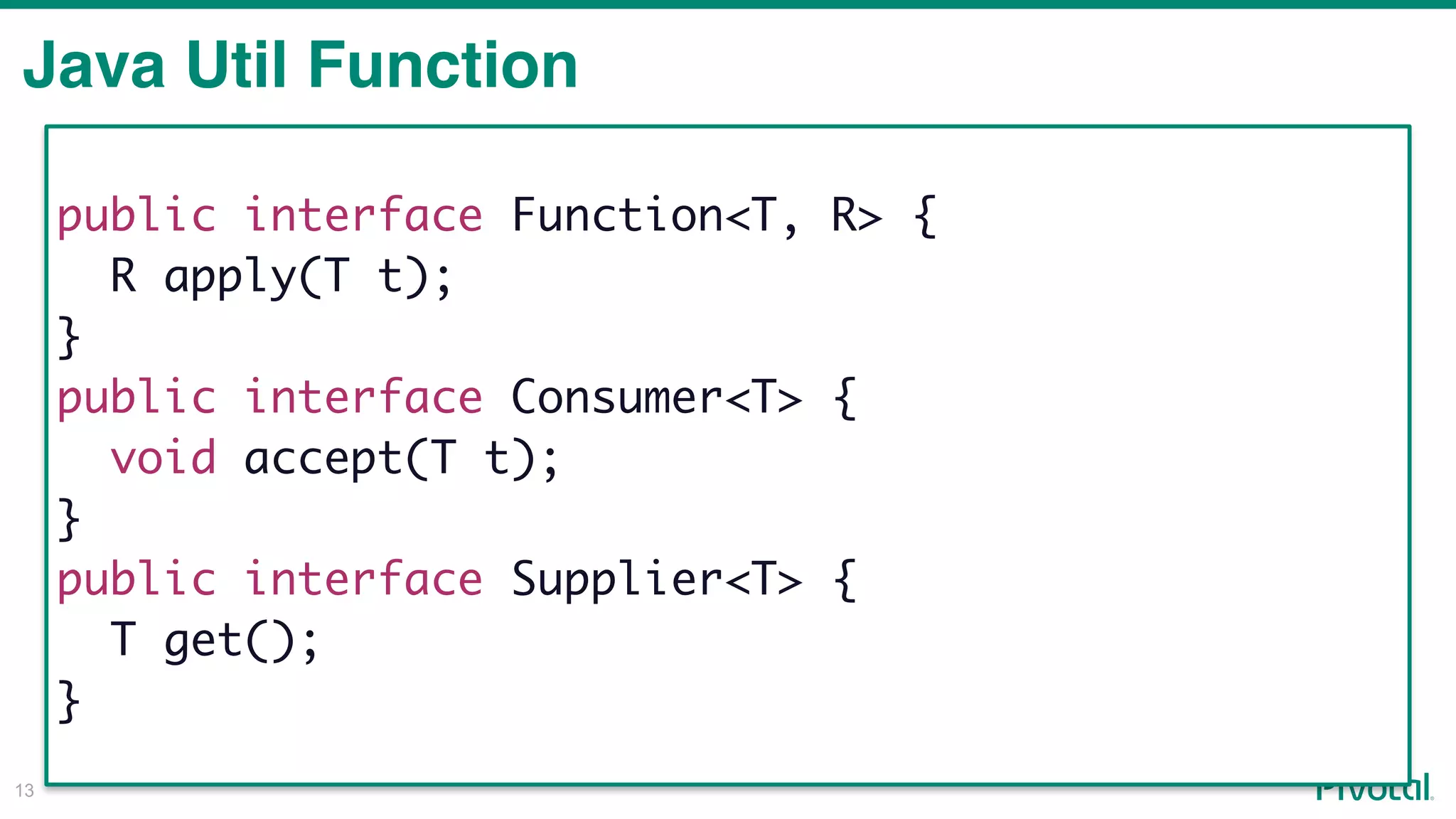

13. !13
Java Util Function
public interface Function<T, R> {
R apply(T t);
}
public interface Consumer<T> {
void accept(T t);
}
public interface Supplier<T> {
T get();
}

14. !14

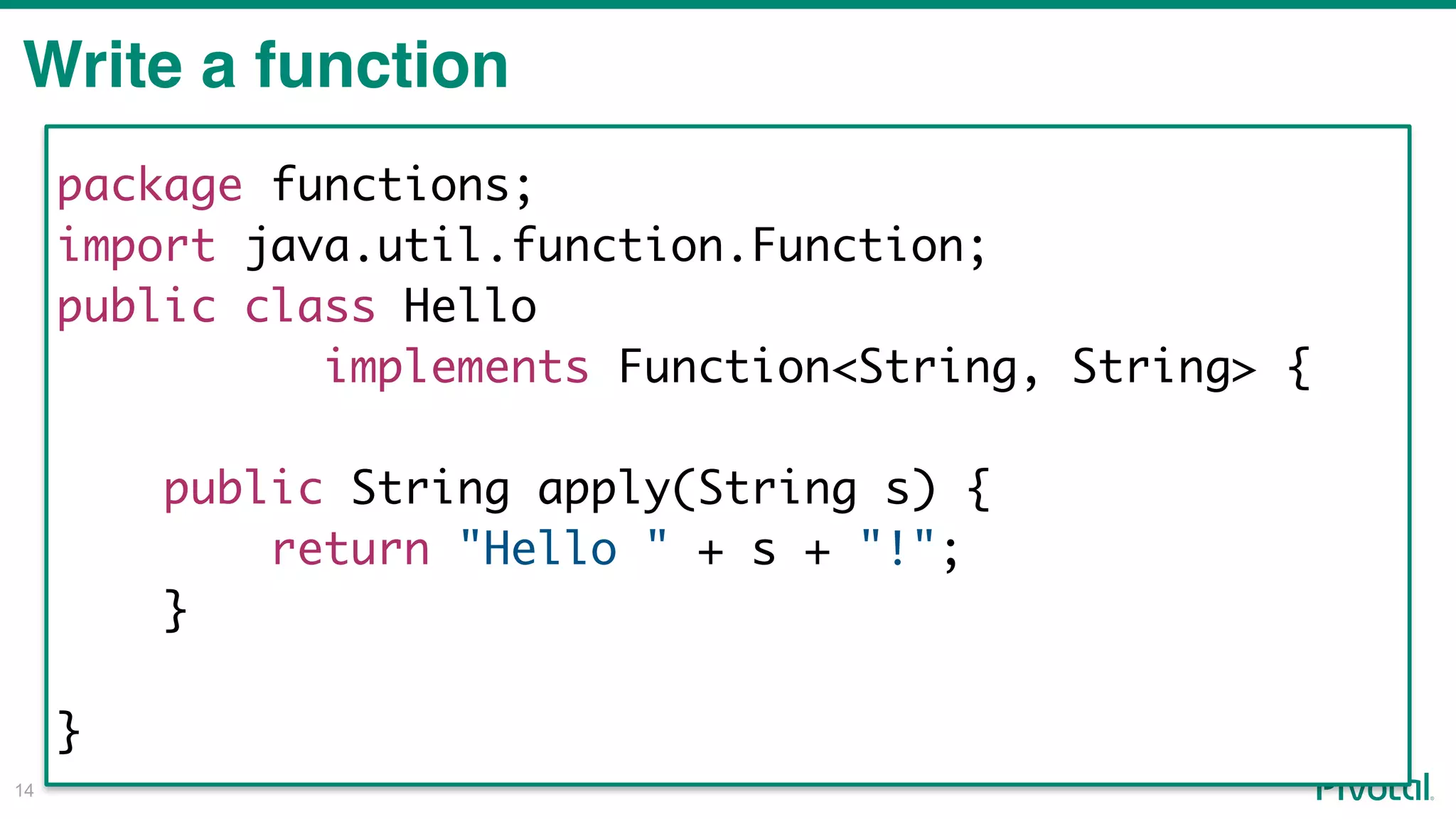

Write a function
package functions;
import java.util.function.Function;
public class Hello
implements Function<String, String> {
public String apply(String s) {
return "Hello " + s + "!";
}
}

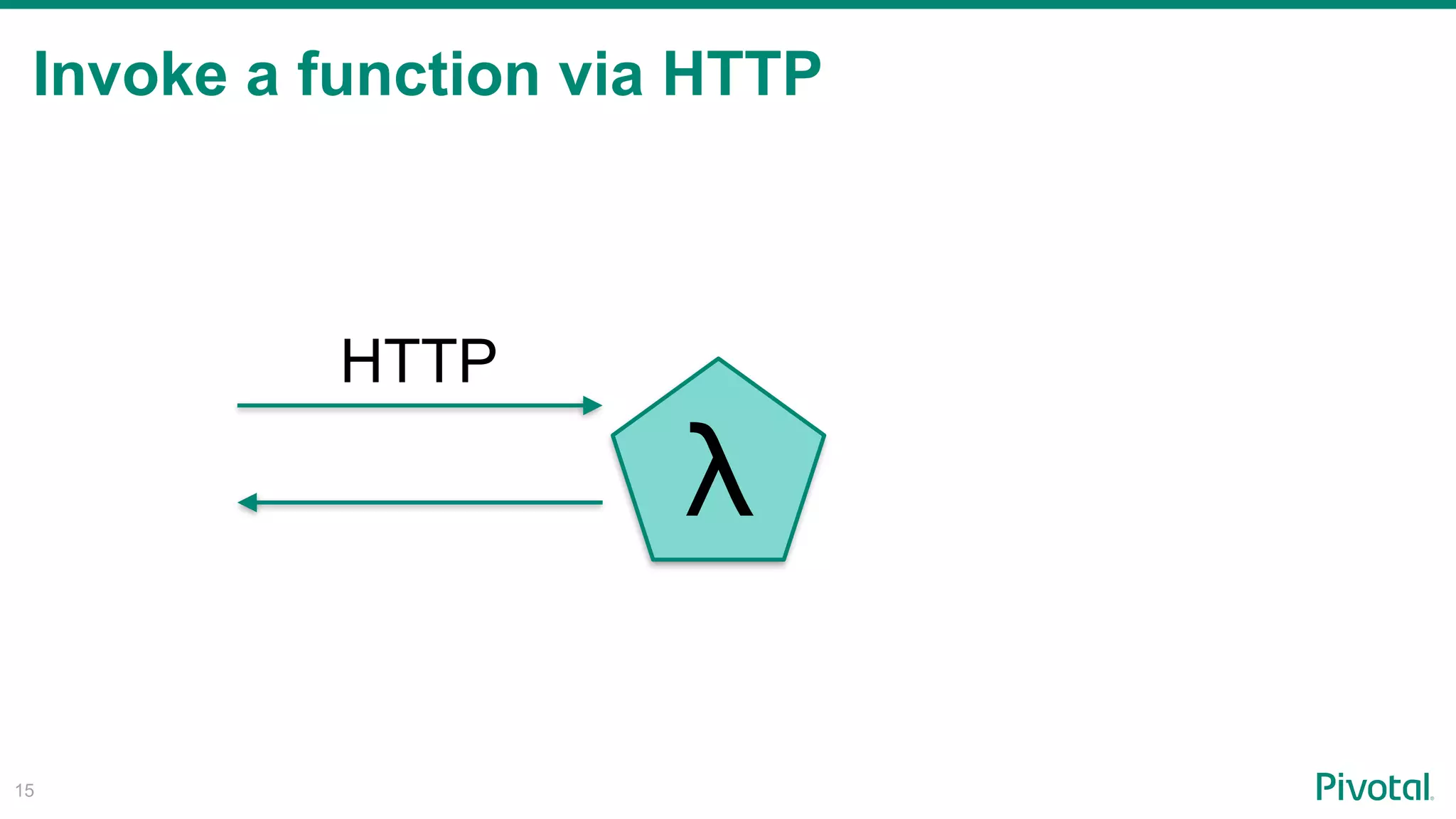

15. Invoke a function via HTTP
!15
λ
HTTP

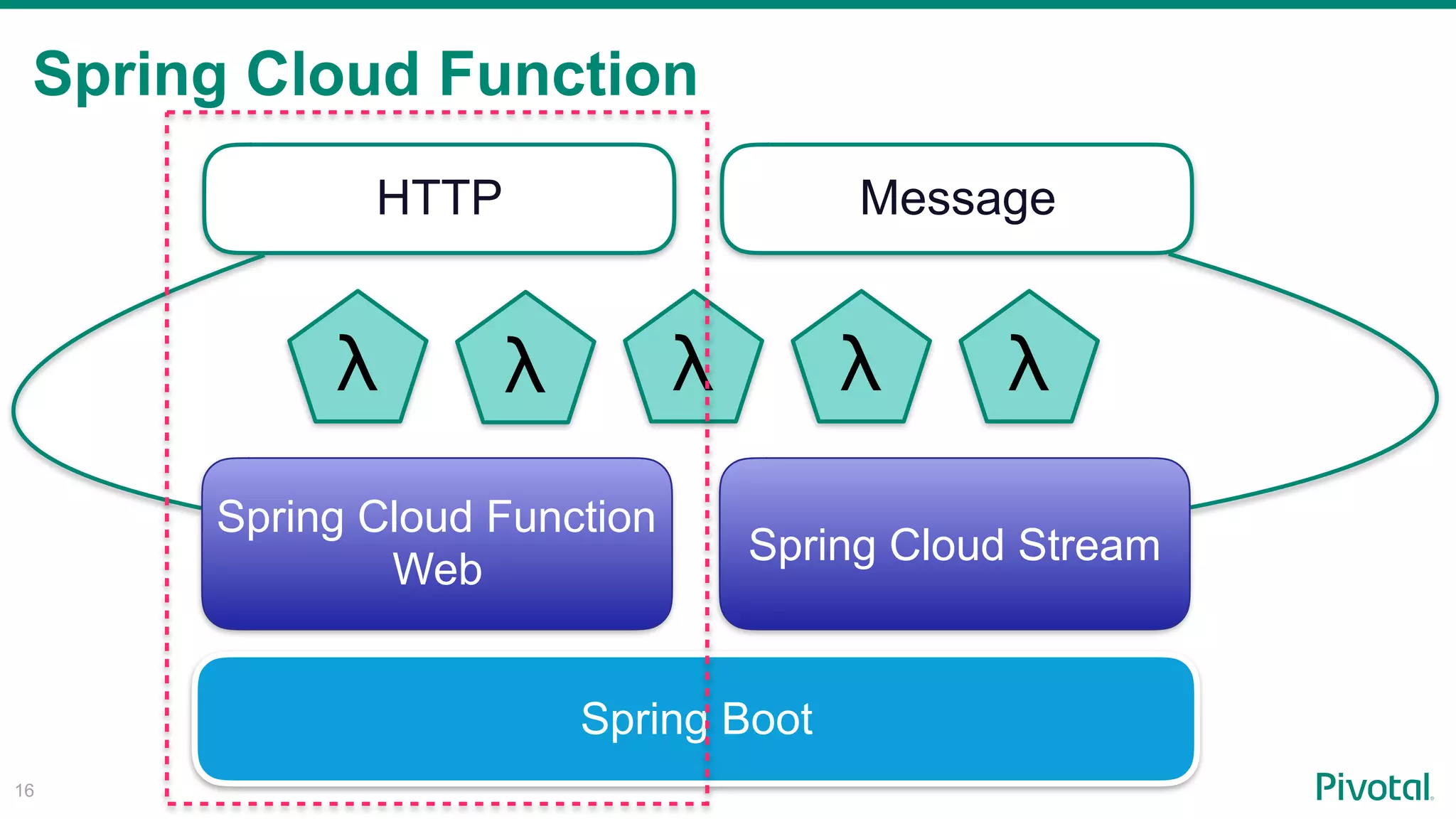

16. Spring Cloud Function
!16
HTTP Message
Spring Boot
Spring Cloud Function
Web
Spring Cloud Stream
λ λ λ λ λ

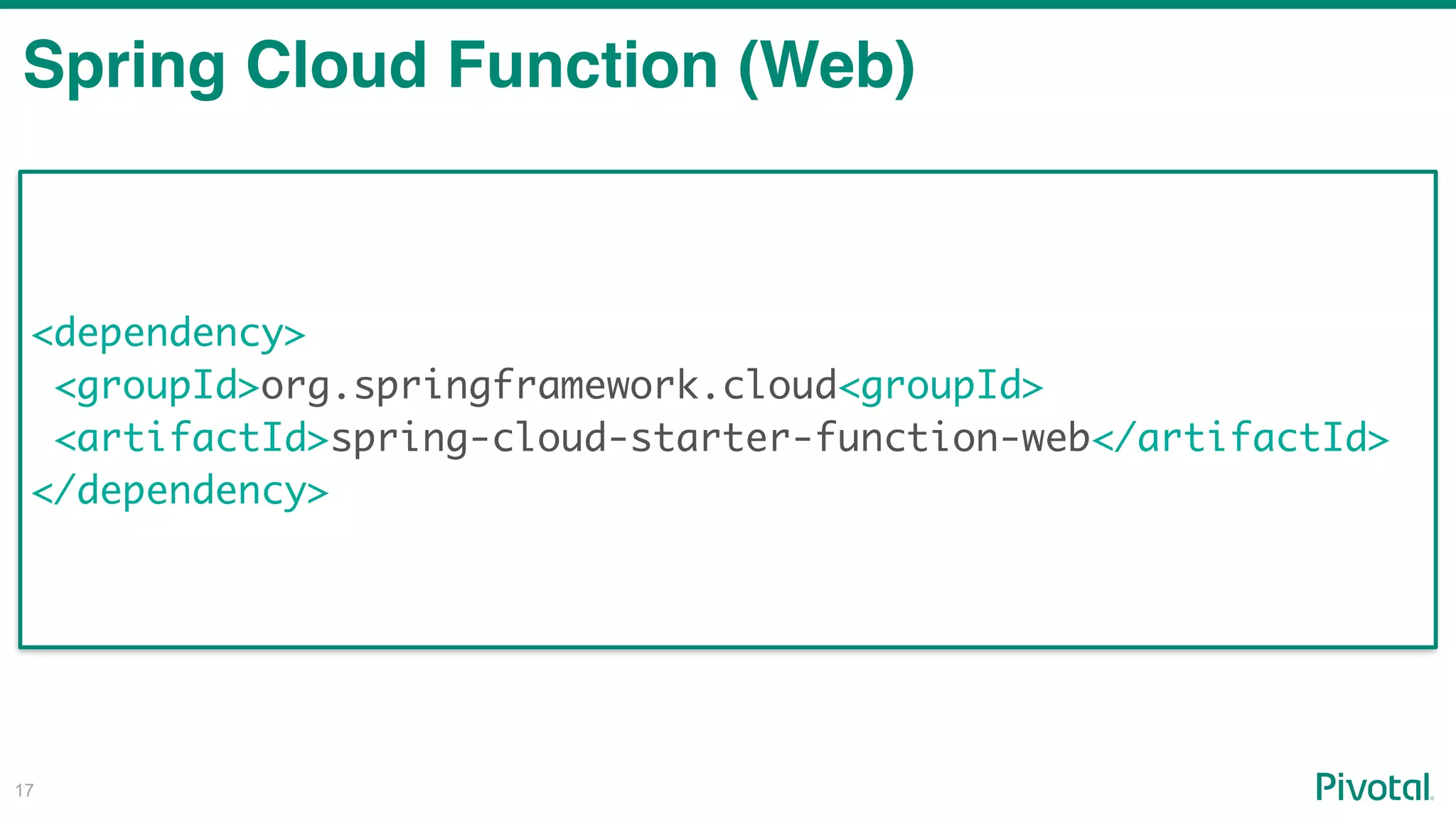

17. !17
Spring Cloud Function (Web)
<dependency>
<groupId>org.springframework.cloud<groupId>
<artifactId>spring-cloud-starter-function-web</artifactId>
</dependency>

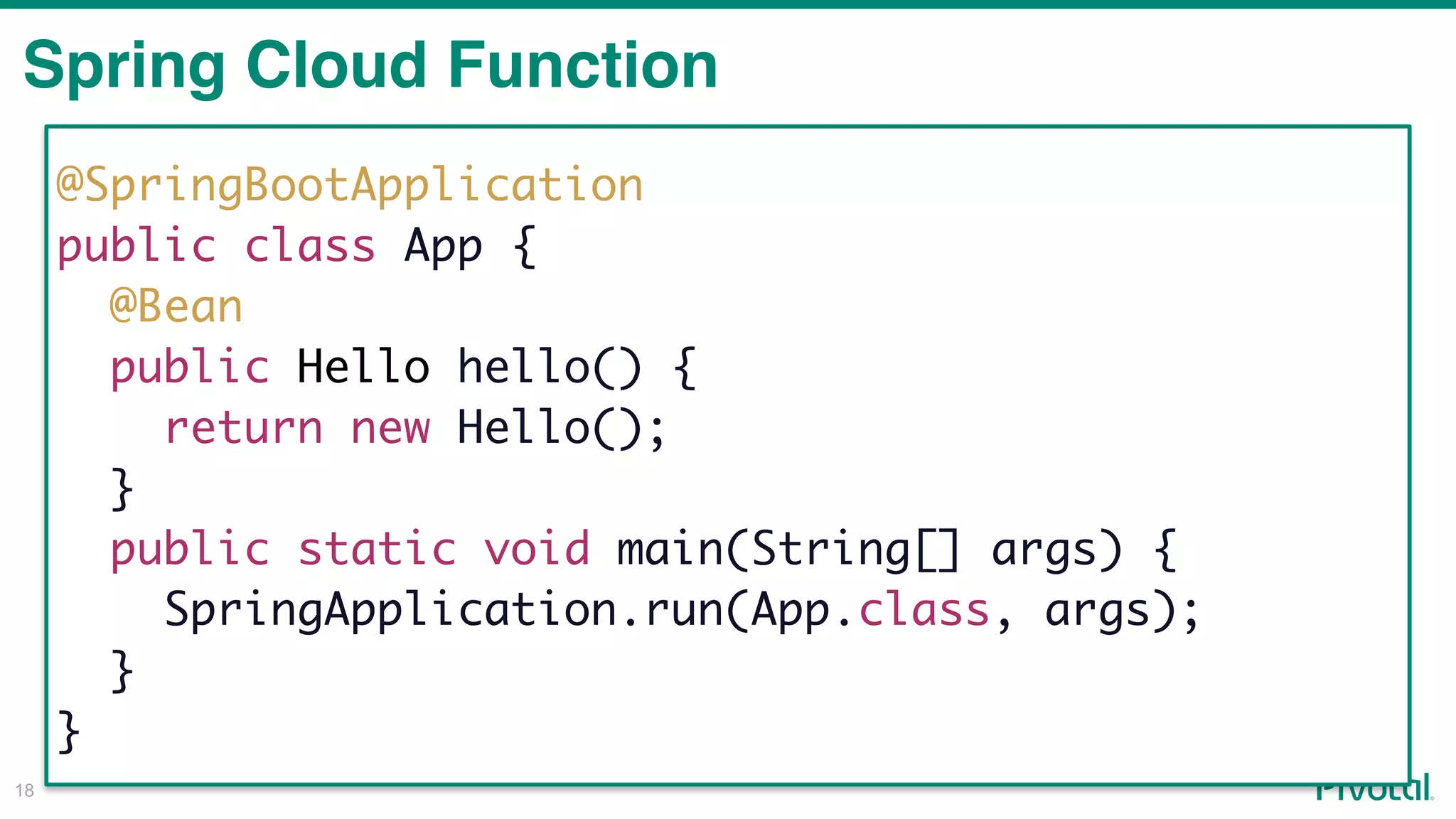

18. !18
Spring Cloud Function
@SpringBootApplication
public class App {
@Bean
public Hello hello() {
return new Hello();
}
public static void main(String[] args) {
SpringApplication.run(App.class, args);
}
}

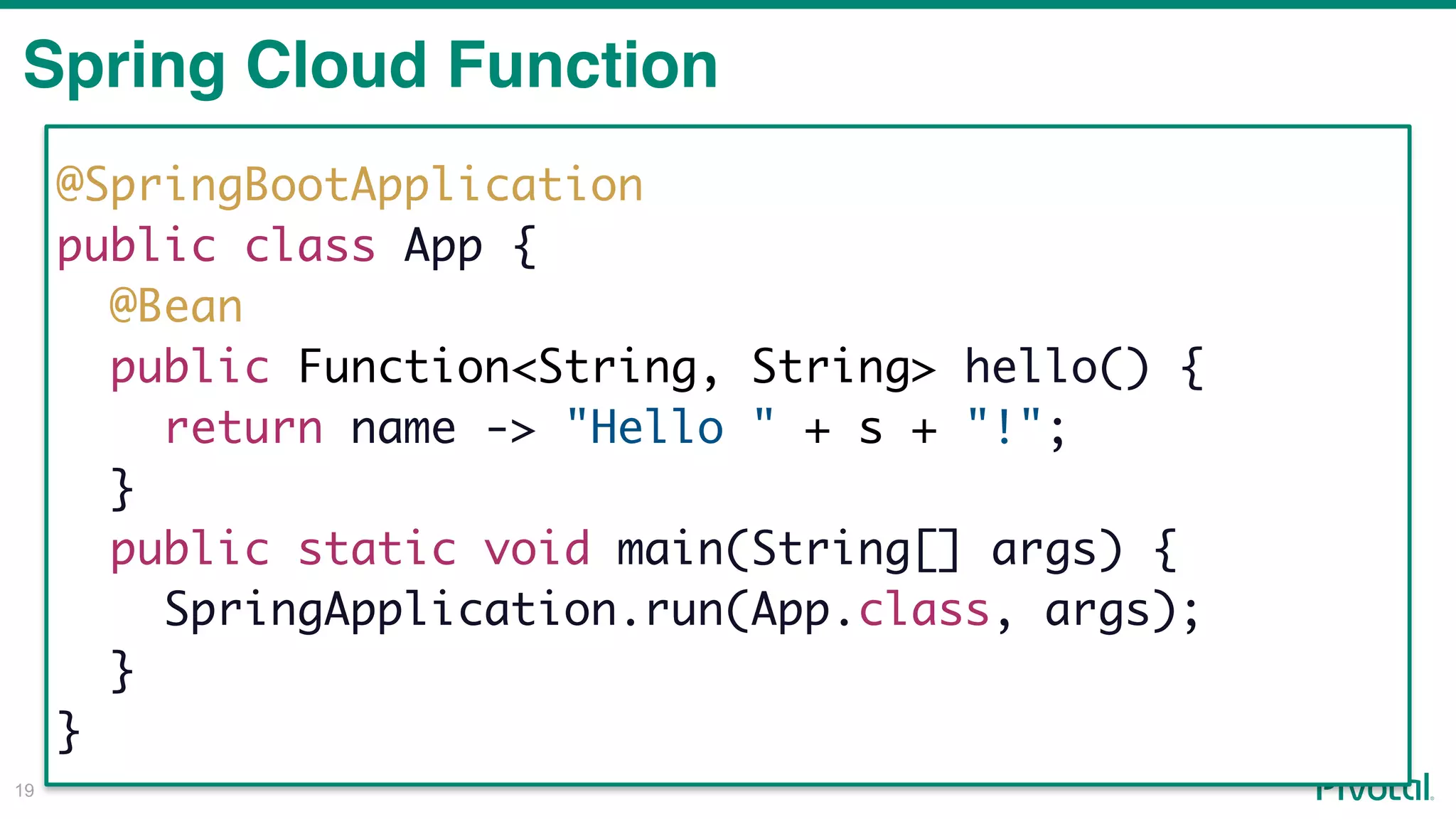

19. !19
Spring Cloud Function
@SpringBootApplication
public class App {
@Bean
public Function<String, String> hello() {
return name -> "Hello " + s + "!";
}
public static void main(String[] args) {
SpringApplication.run(App.class, args);
}
}

20. !20

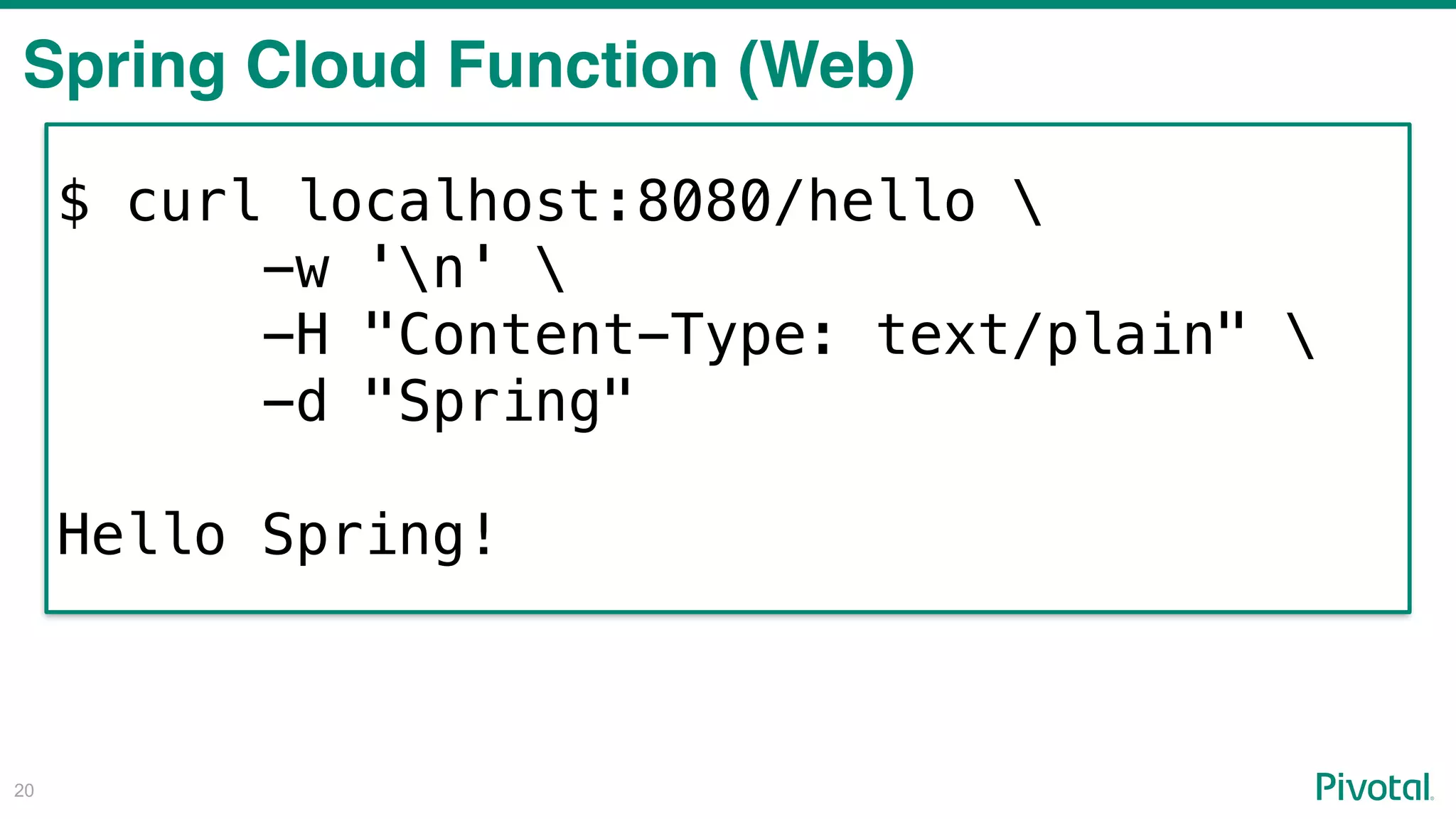

Spring Cloud Function (Web)
$ curl localhost:8080/hello
-w 'n'
-H "Content-Type: text/plain"
-d "Spring"
Hello Spring!

21. DEMO
https://github.com/making/hello-function

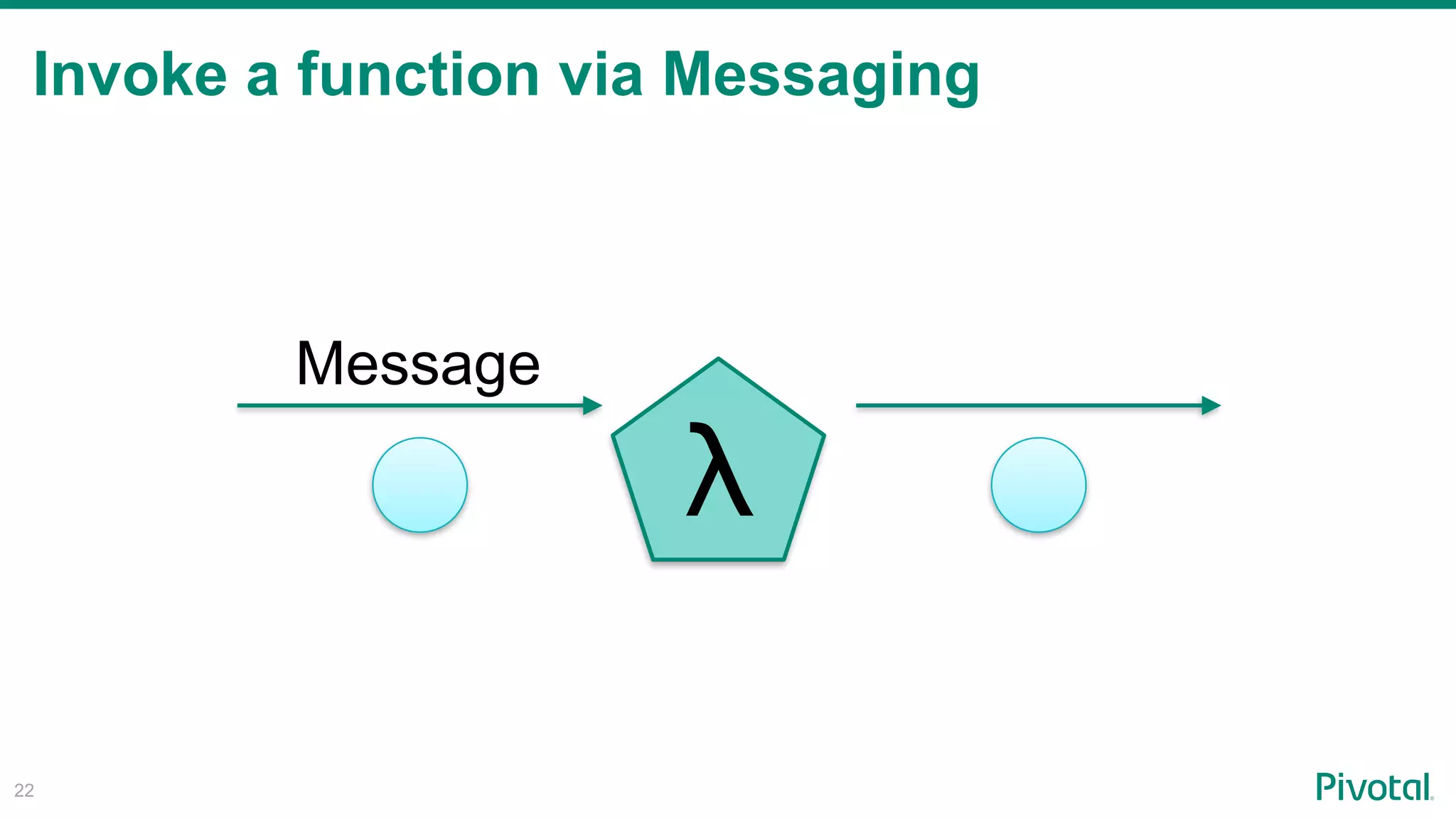

22. !22
λ
Message
Invoke a function via Messaging

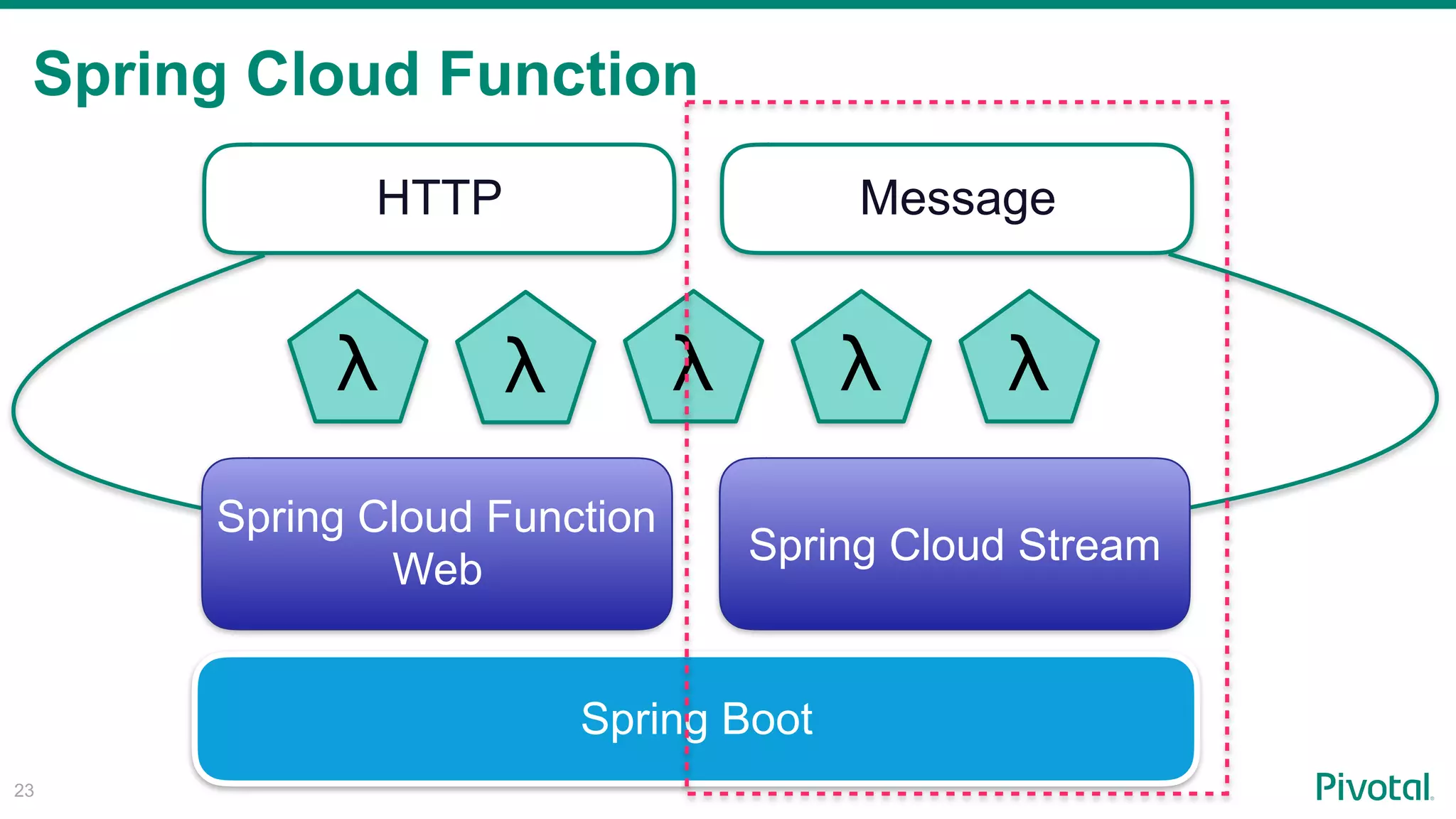

23. Spring Cloud Function
!23
HTTP Message
Spring Boot
Spring Cloud Function
Web
Spring Cloud Stream
λ λ λ λ λ

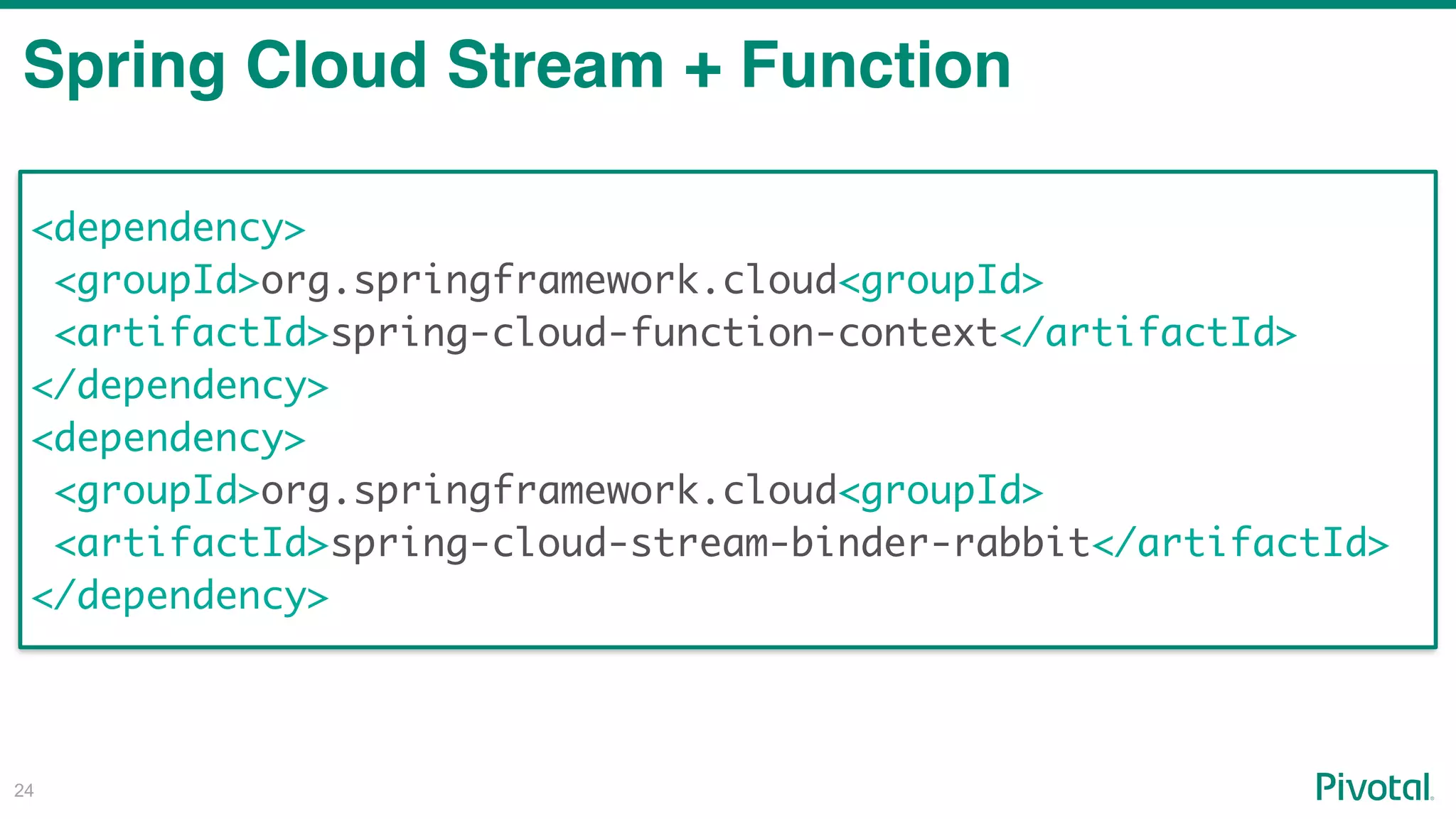

24. !24
Spring Cloud Stream + Function
<dependency>
<groupId>org.springframework.cloud<groupId>
<artifactId>spring-cloud-function-context</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud<groupId>
<artifactId>spring-cloud-stream-binder-rabbit</artifactId>
</dependency>

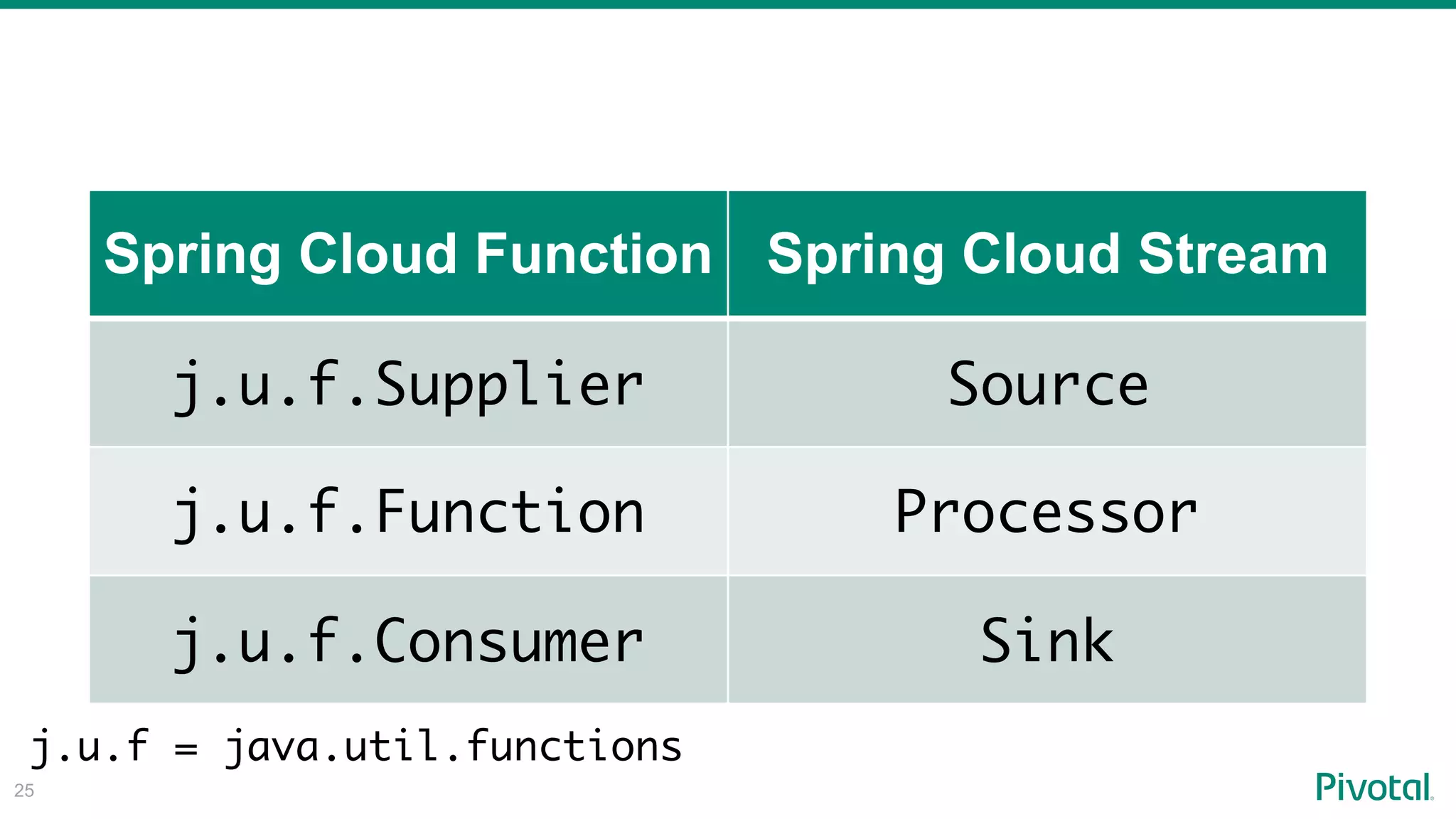

25. !25
Spring Cloud Function Spring Cloud Stream
j.u.f.Supplier Source
j.u.f.Function Processor
j.u.f.Consumer Sink
j.u.f = java.util.functions

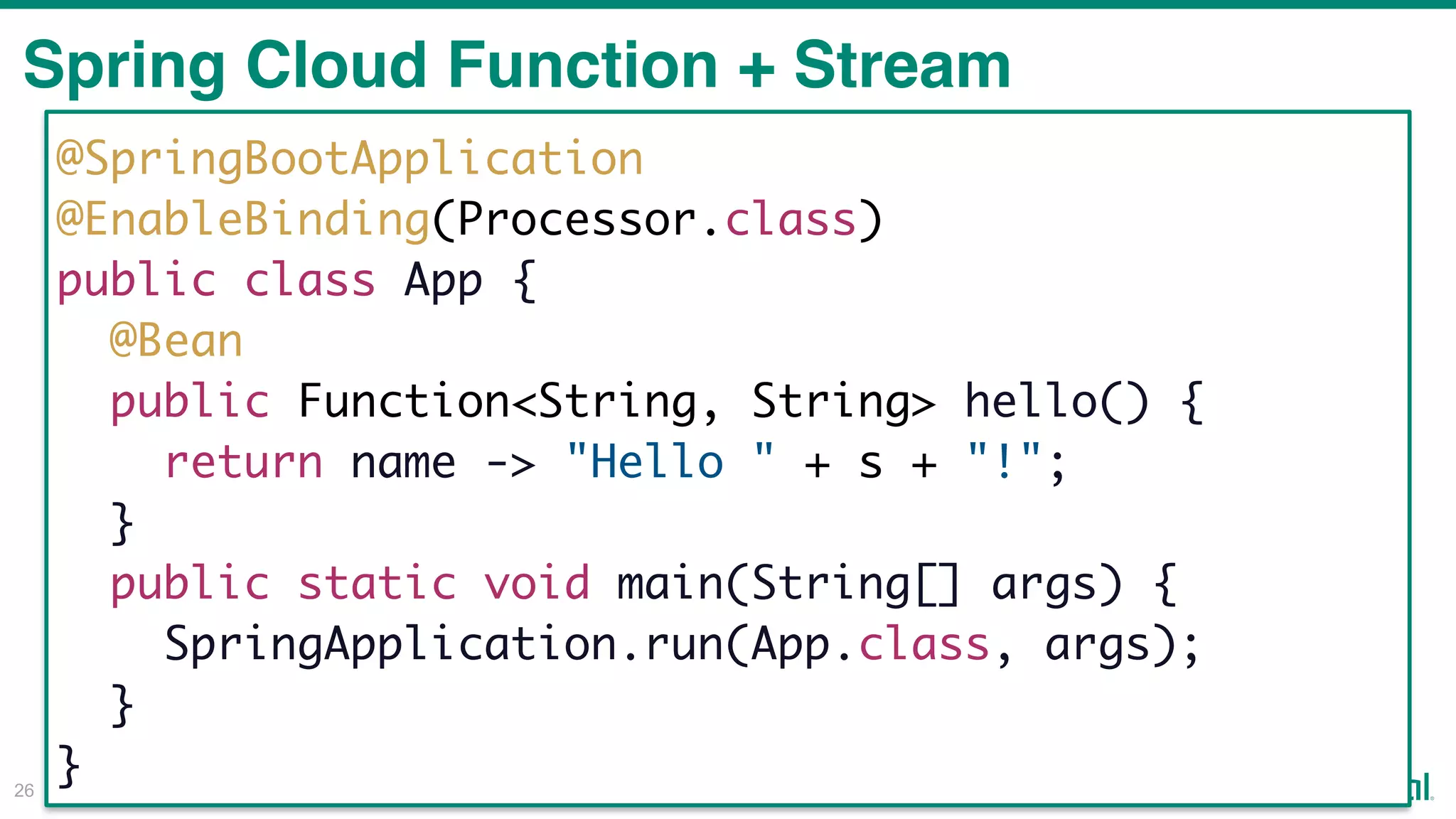

26. !26
Spring Cloud Function + Stream
@SpringBootApplication
@EnableBinding(Processor.class)
public class App {
@Bean
public Function<String, String> hello() {
return name -> "Hello " + s + "!";
}
public static void main(String[] args) {
SpringApplication.run(App.class, args);
}
}

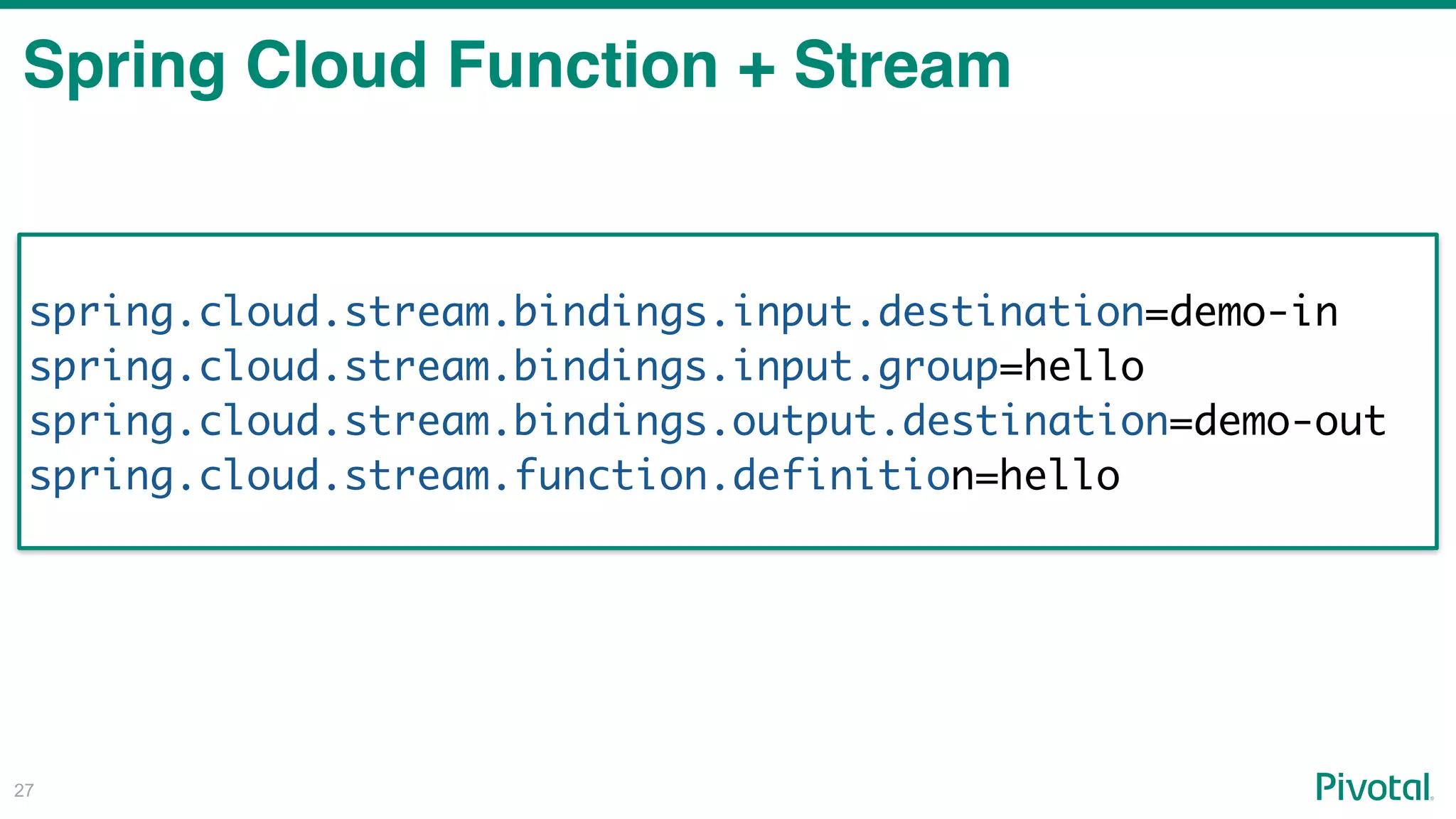

27. !27
Spring Cloud Function + Stream
spring.cloud.stream.bindings.input.destination=demo-in
spring.cloud.stream.bindings.input.group=hello
spring.cloud.stream.bindings.output.destination=demo-out
spring.cloud.stream.function.definition=hello

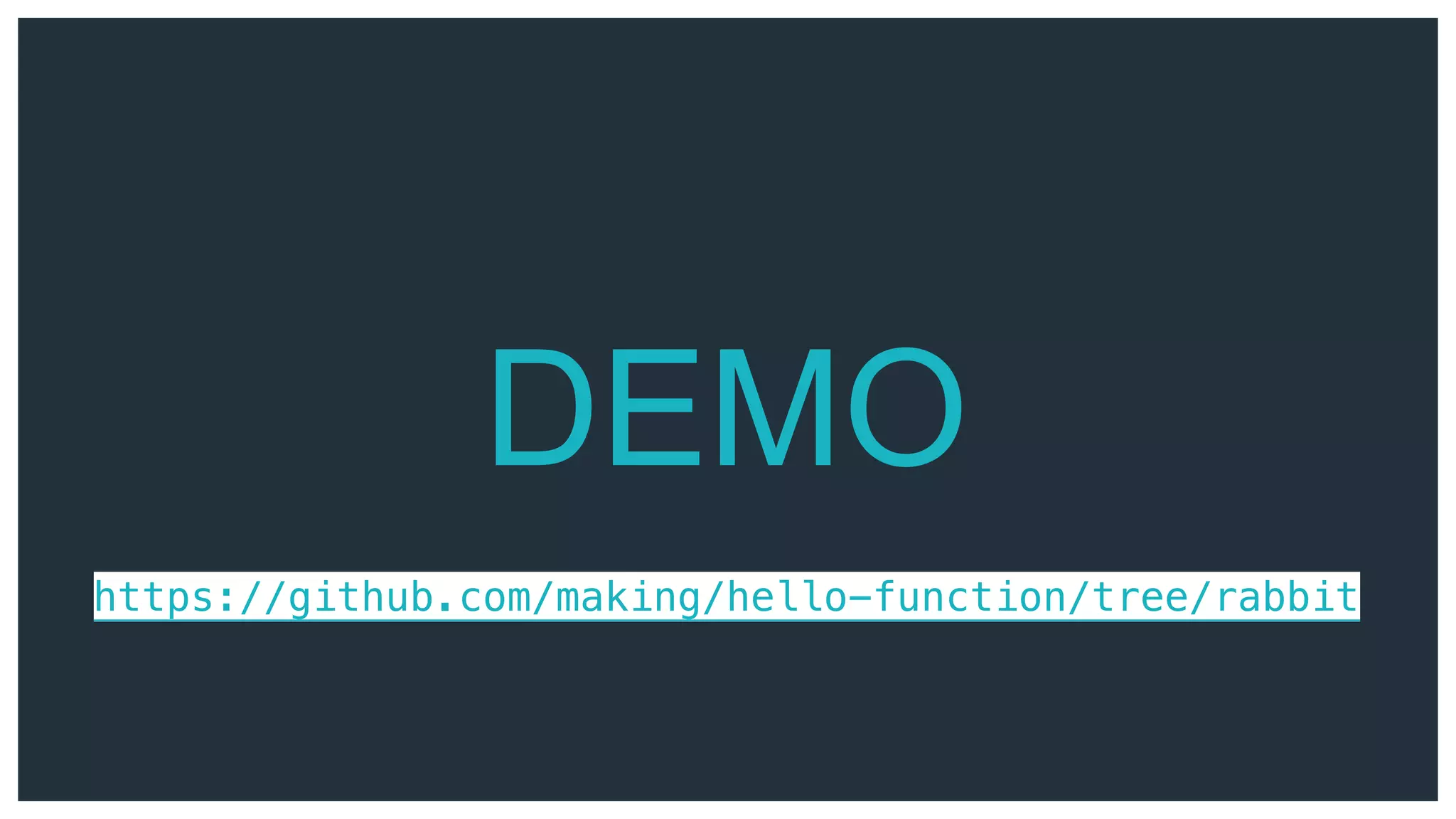

28. DEMO
https://github.com/making/hello-function/tree/rabbit

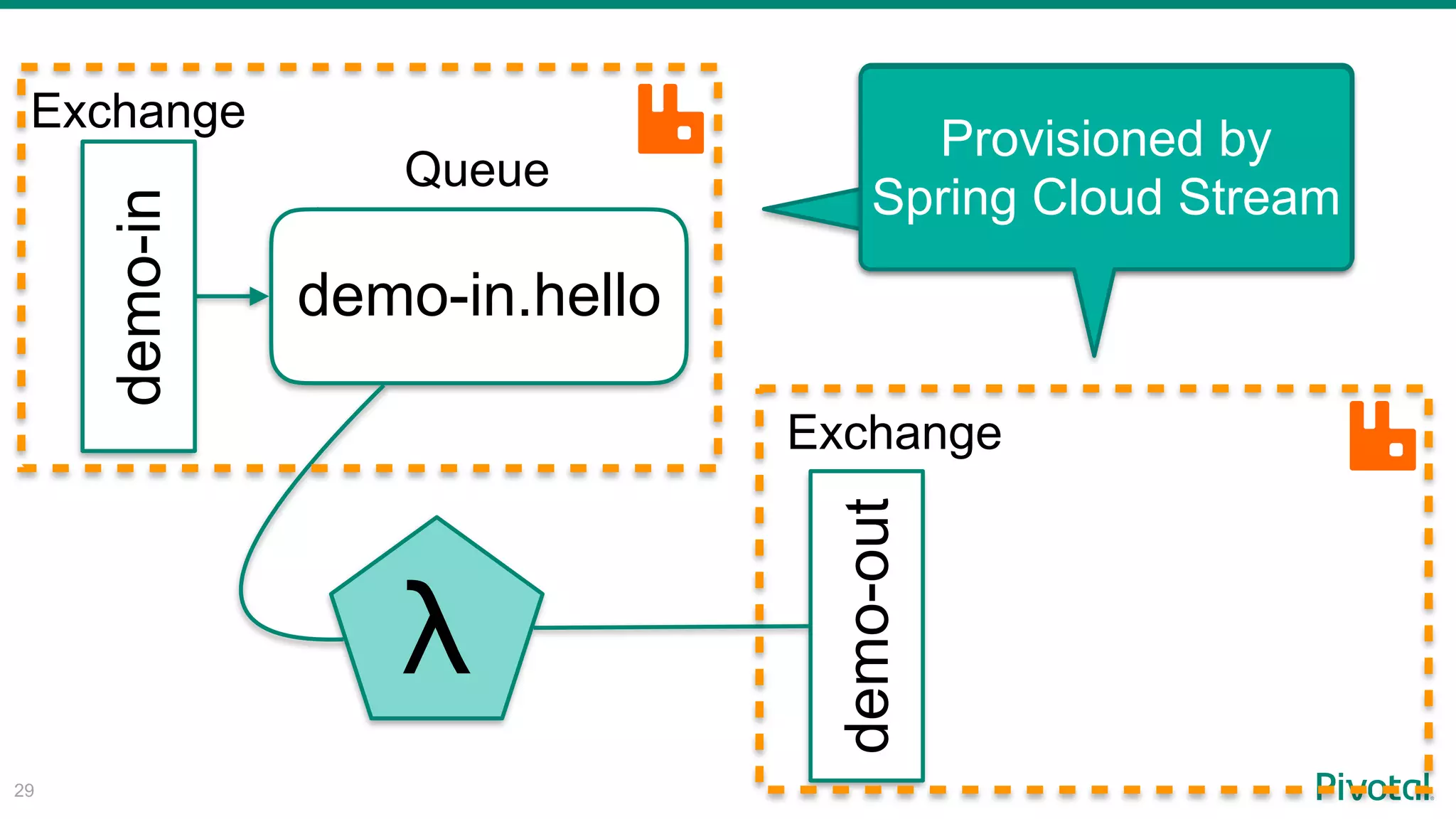

29. !29
demo-out
demo-in.hello
λ
Exchange
Exchange
Queue
demo-in Provisioned by
Spring Cloud Stream

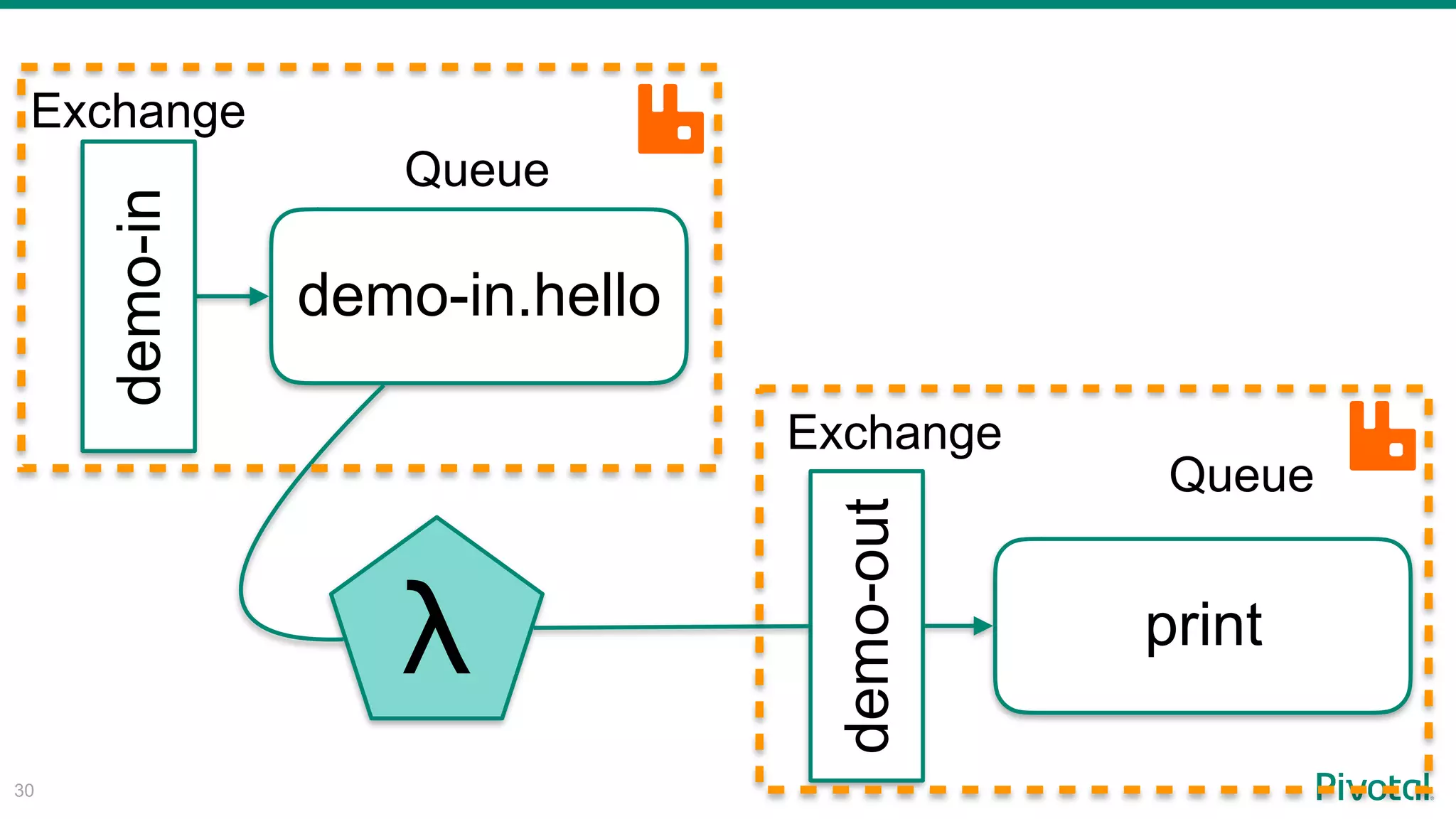

30. !30
demo-out
demo-in.hello
λ print
Exchange
Exchange
Queue
Queue
demo-in

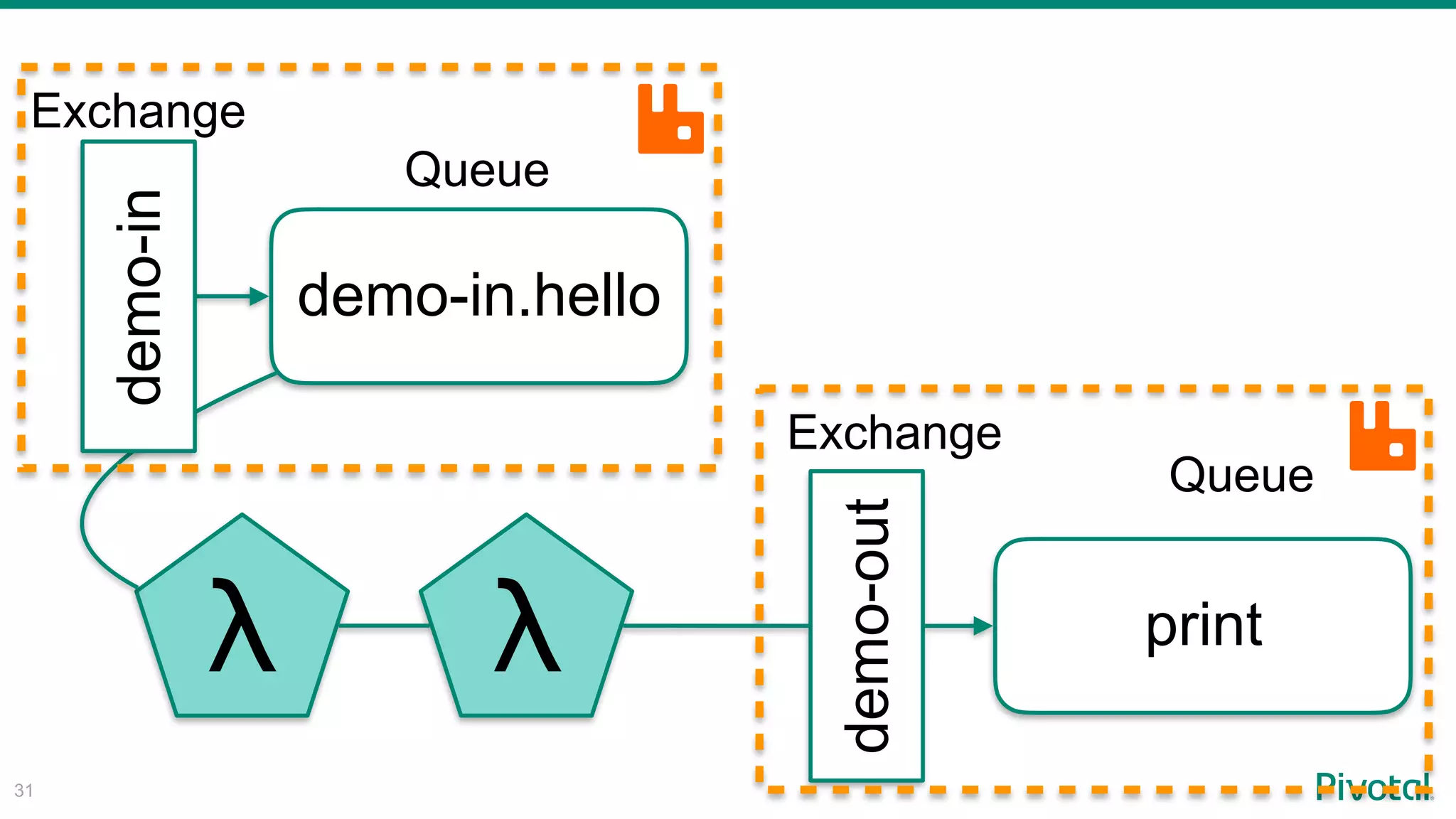

31. !31
demo-out
demo-in.hello
λ print
Exchange
Exchange
Queue
Queue
demo-in
λ

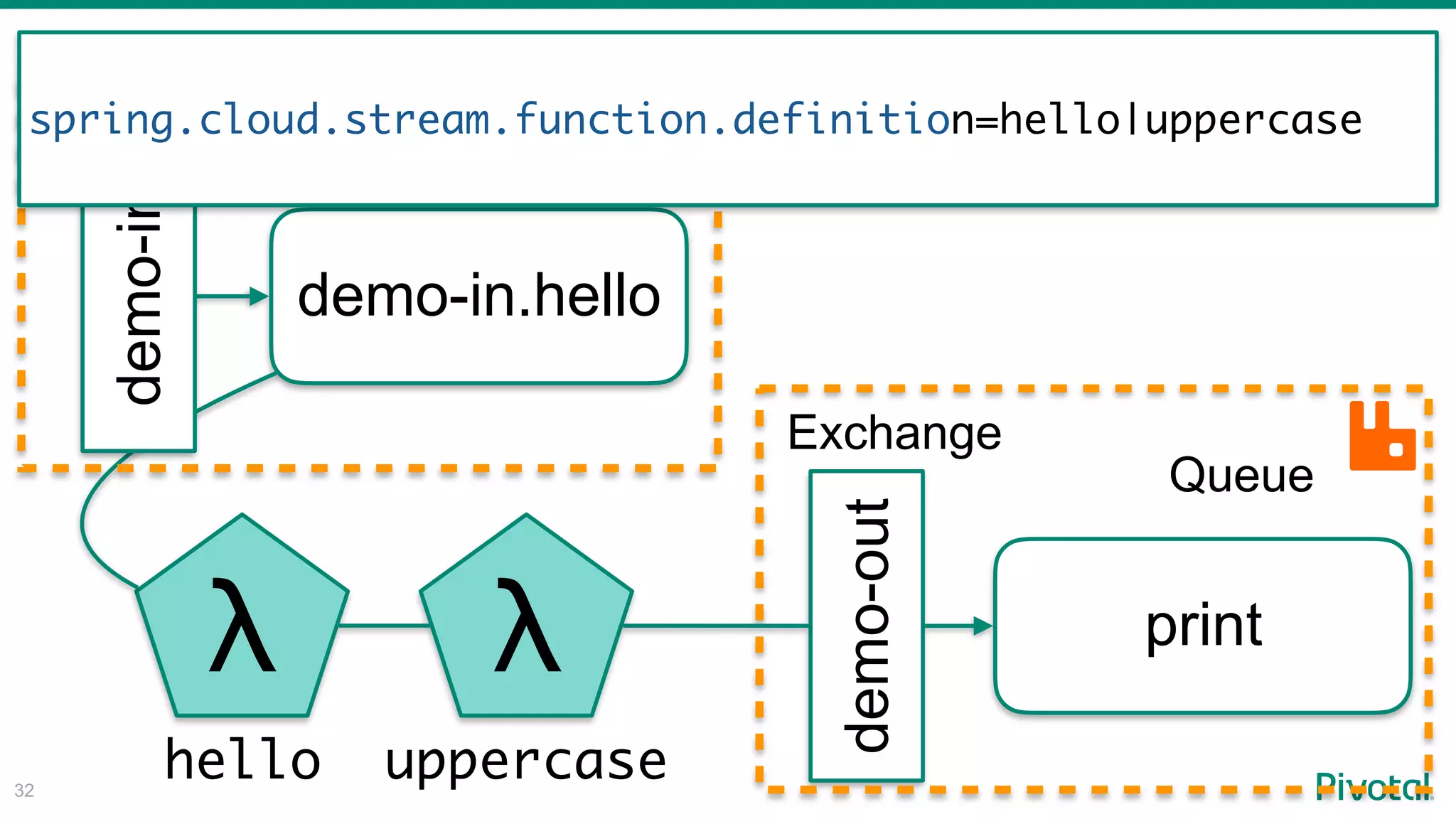

32. !32
demo-out
demo-in.hello
λ print
Exchange
Exchange
Queue
Queue
demo-in
λ
spring.cloud.stream.function.definition=hello|uppercase
hello uppercase

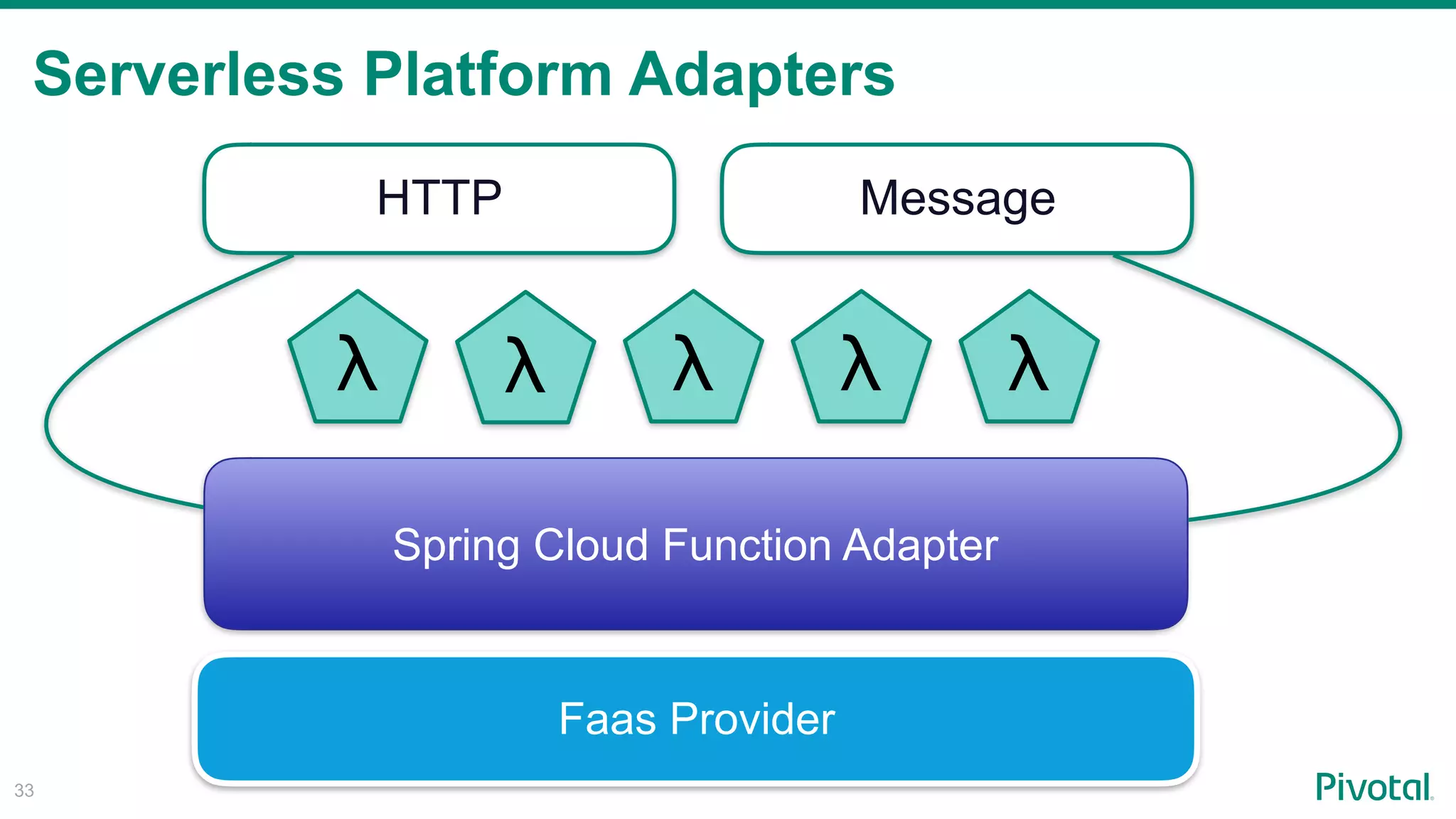

33. Serverless Platform Adapters
!33
HTTP Message
Spring Cloud Function Adapter
Faas Provider
λ λ λ λ λ

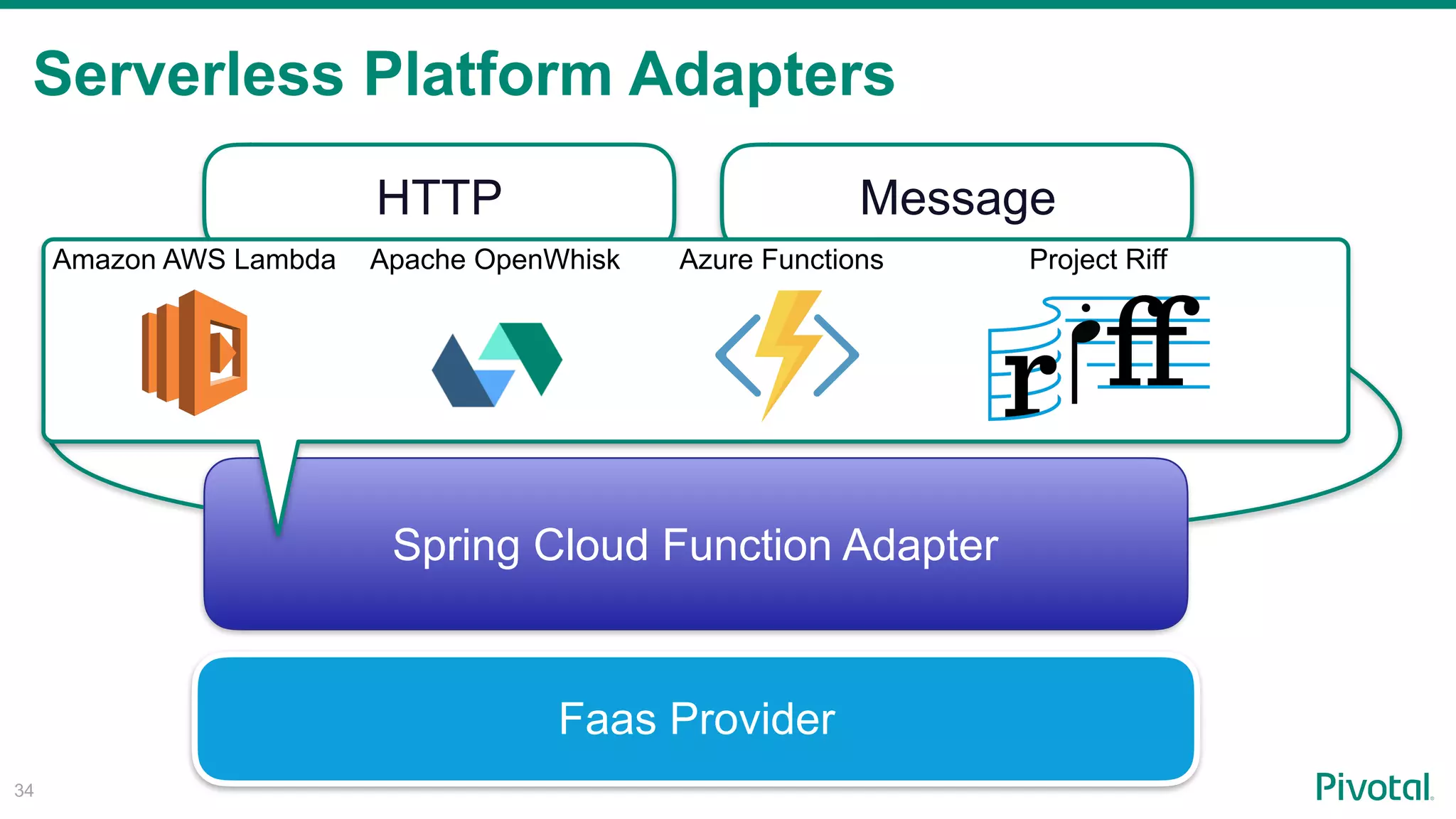

34. Serverless Platform Adapters
!34
HTTP Message
Spring Cloud Function Adapter
Faas Provider
λ λ λ λ λ
Amazon AWS Lambda Apache OpenWhisk Azure Functions Project Riff

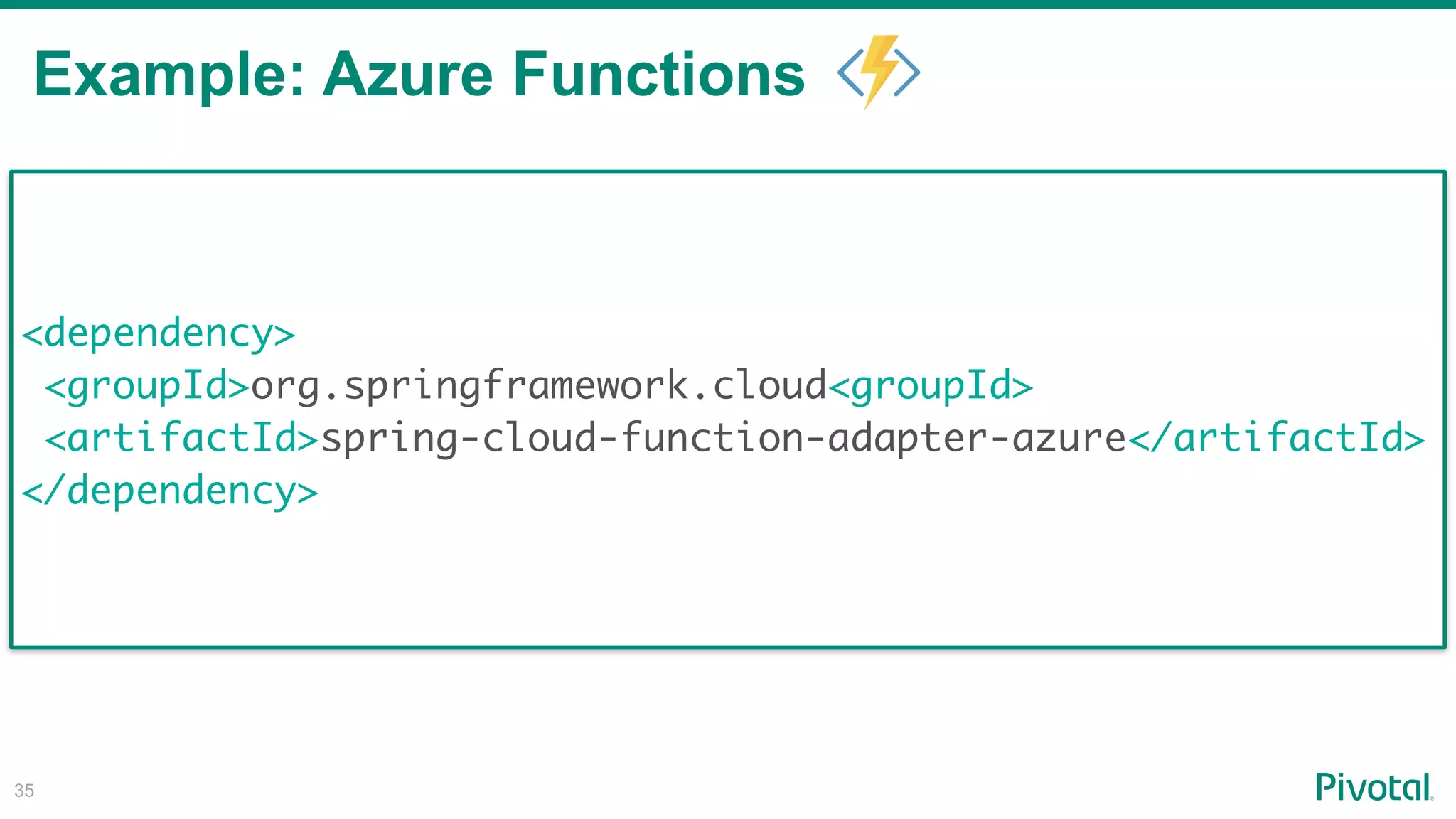

35. !35
<dependency>
<groupId>org.springframework.cloud<groupId>
<artifactId>spring-cloud-function-adapter-azure</artifactId>
</dependency>
Example: Azure Functions

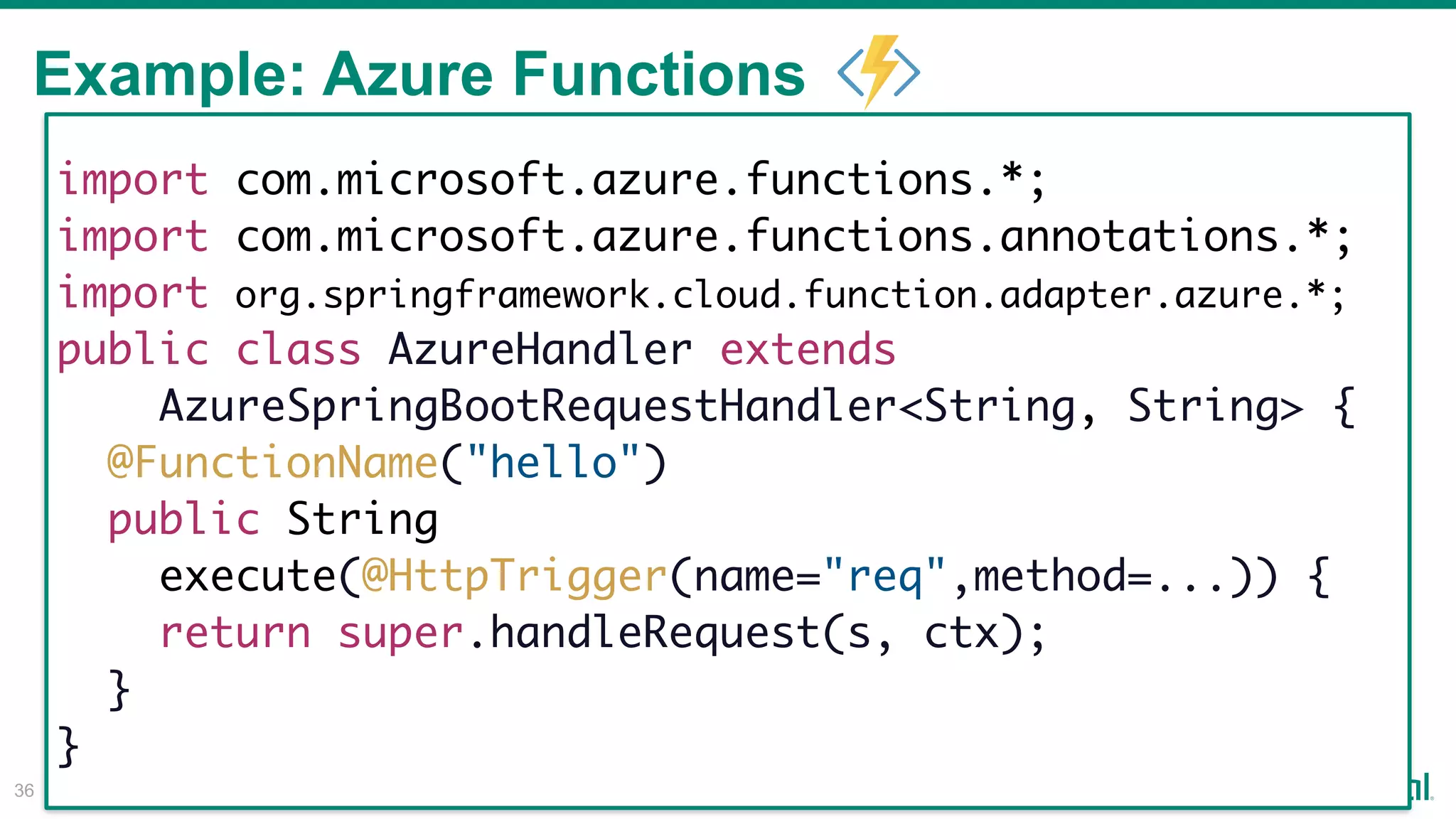

36. Example: Azure Functions
!36
import com.microsoft.azure.functions.*;
import com.microsoft.azure.functions.annotations.*;
import org.springframework.cloud.function.adapter.azure.*;
public class AzureHandler extends
AzureSpringBootRequestHandler<String, String> {
@FunctionName("hello")
public String
execute(@HttpTrigger(name="req",method=...)) {
return super.handleRequest(s, ctx);
}
}

37. DEMO
https://github.com/making/hello-function/tree/azure

38. Agenda
!38
• Serverless?
• Spring Cloud Function
• Knative and riff

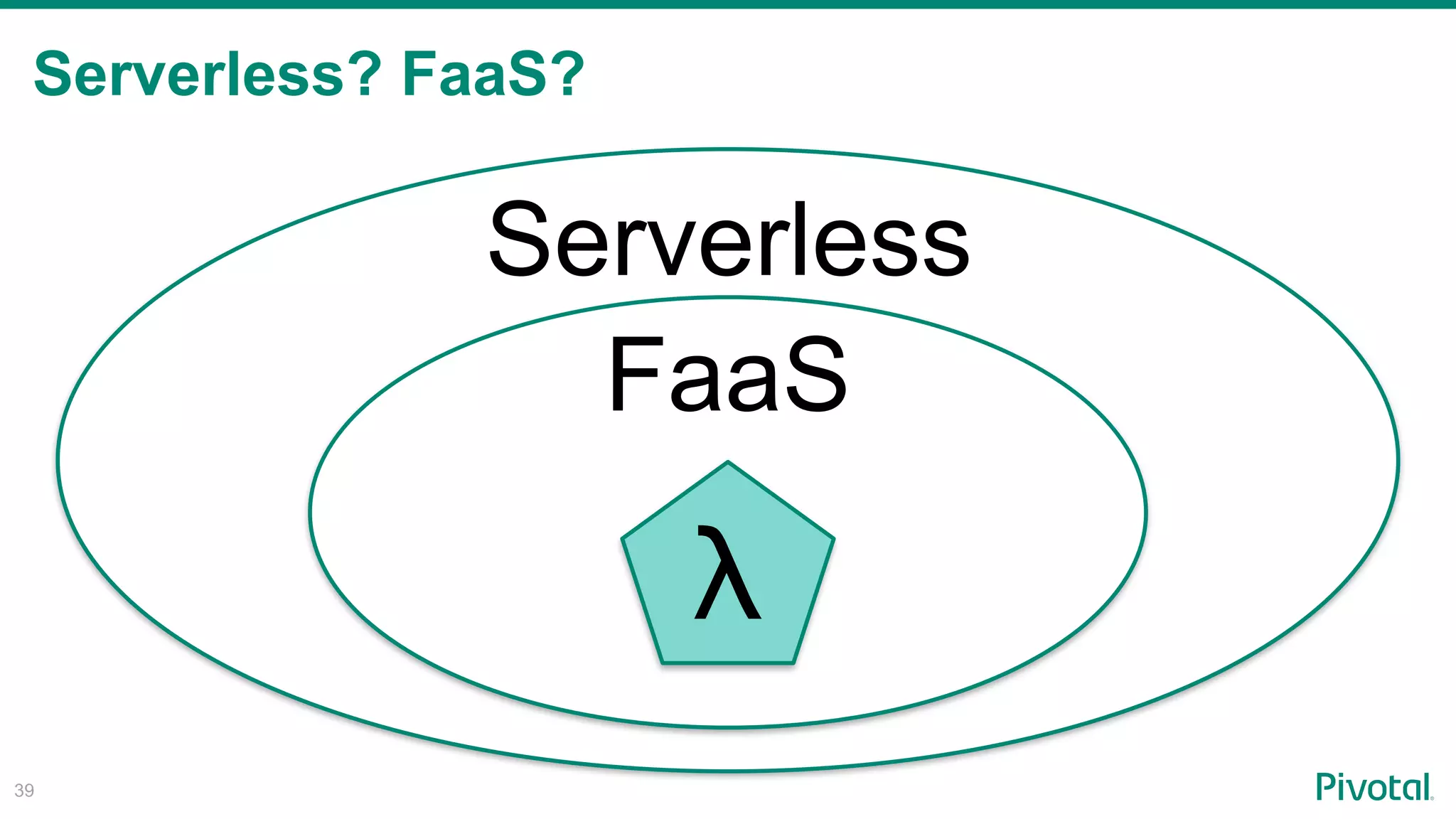

39. Serverless? FaaS?
!39
Serverless
FaaS
λ

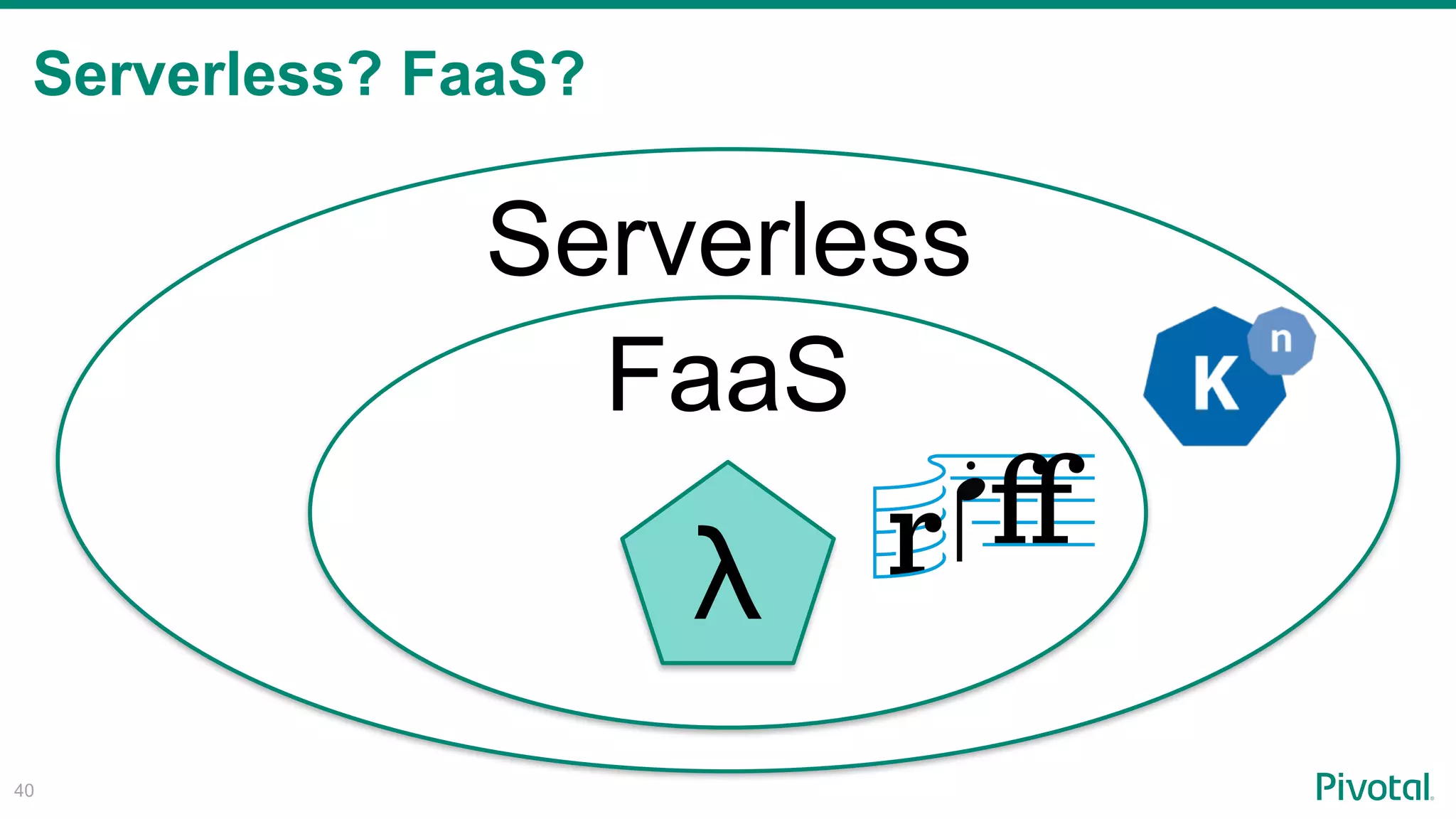

40. Serverless? FaaS?
!40
Serverless
FaaS
λ

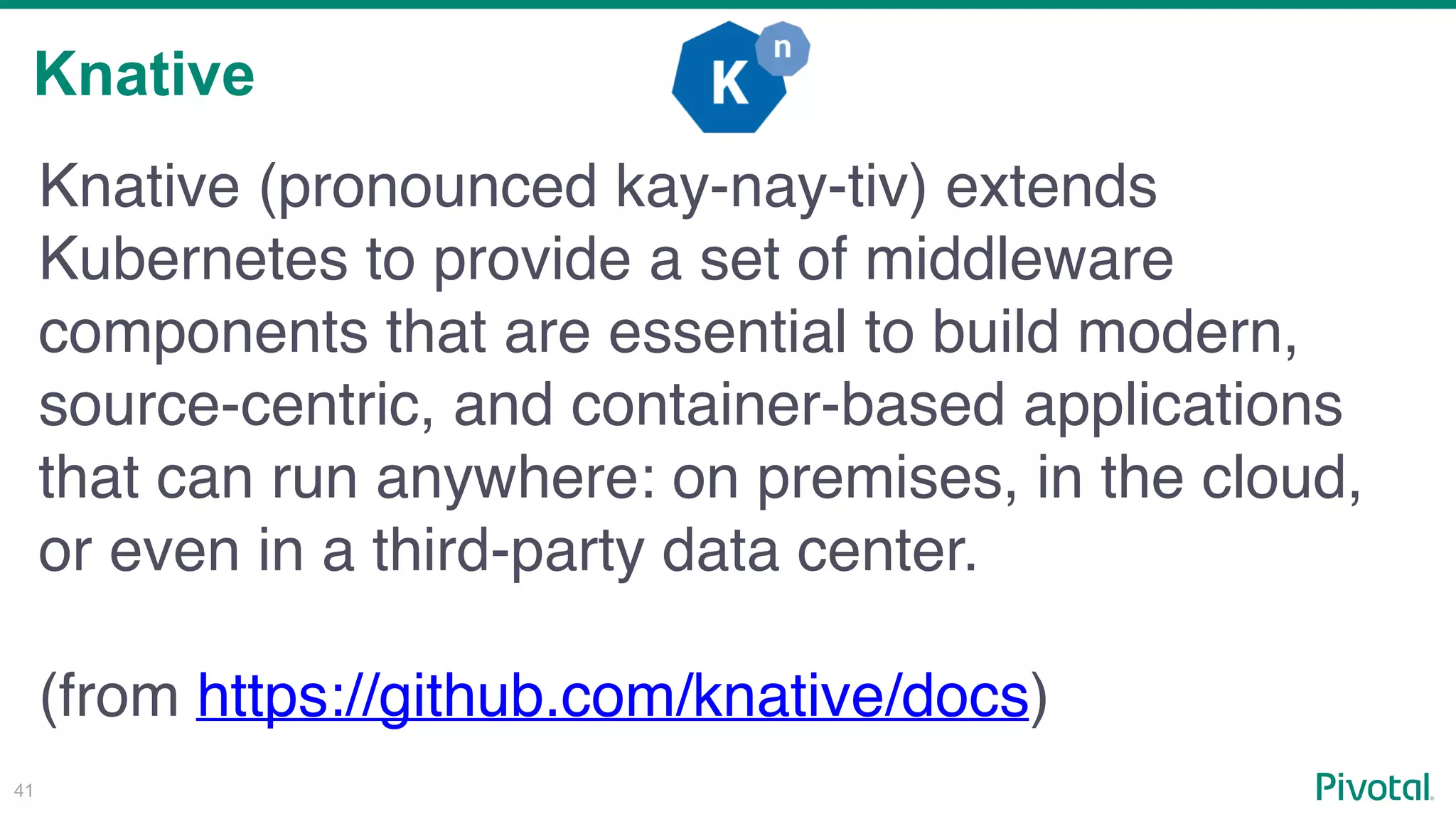

41. Knative
!41
Knative (pronounced kay-nay-tiv) extends
Kubernetes to provide a set of middleware
components that are essential to build modern,
source-centric, and container-based applications
that can run anywhere: on premises, in the cloud,
or even in a third-party data center.
(from https://github.com/knative/docs)

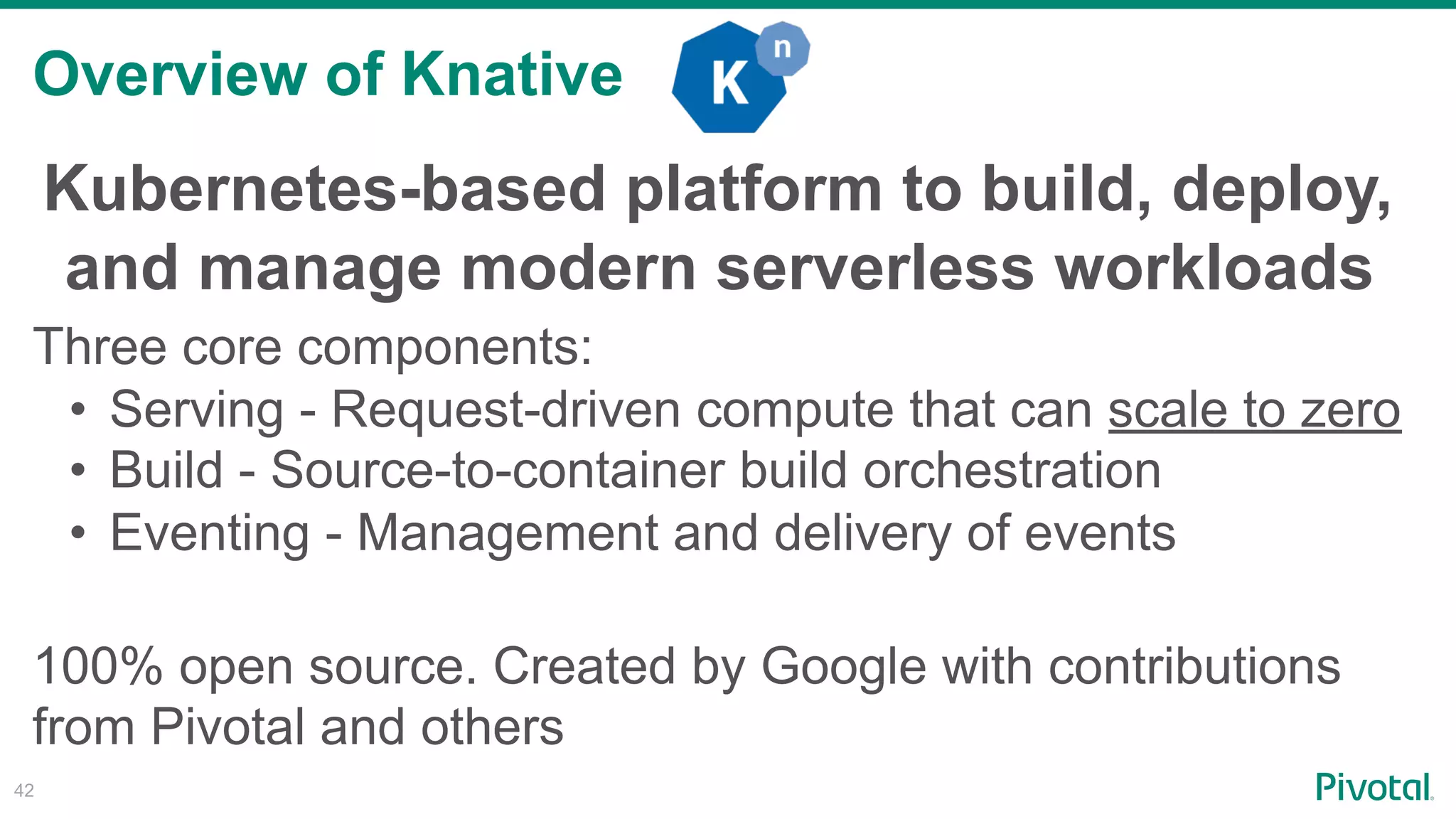

42. Overview of Knative
!42
Kubernetes-based platform to build, deploy,
and manage modern serverless workloads
Three core components:
• Serving - Request-driven compute that can scale to zero
• Build - Source-to-container build orchestration
• Eventing - Management and delivery of events
100% open source. Created by Google with contributions
from Pivotal and others

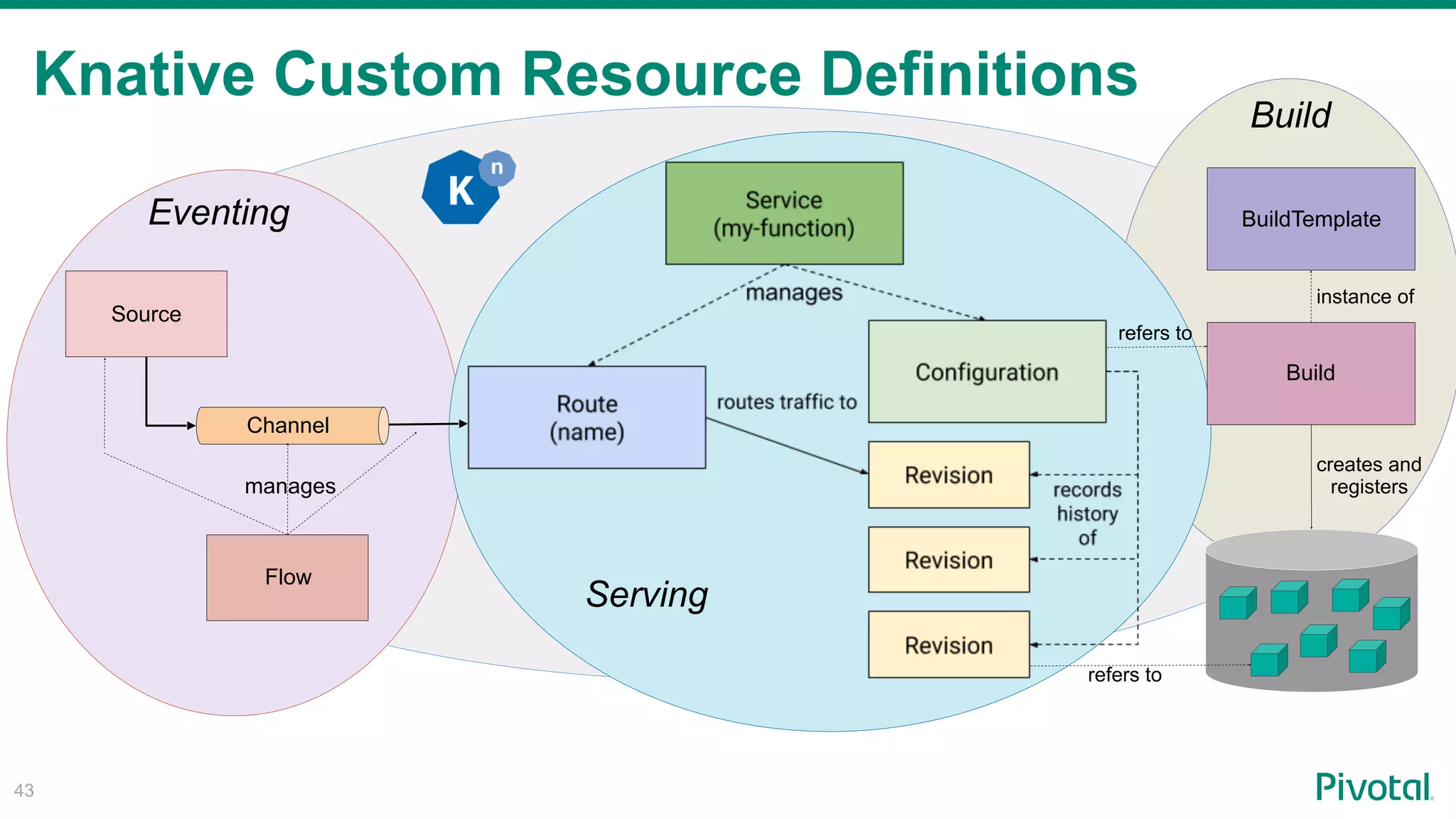

43. Knative Custom Resource Definitions
!43
BuildTemplate
Source
Channel
Build
Flow
manages
refers to
refers to
creates and
registers
instance of
Eventing
Serving
Build

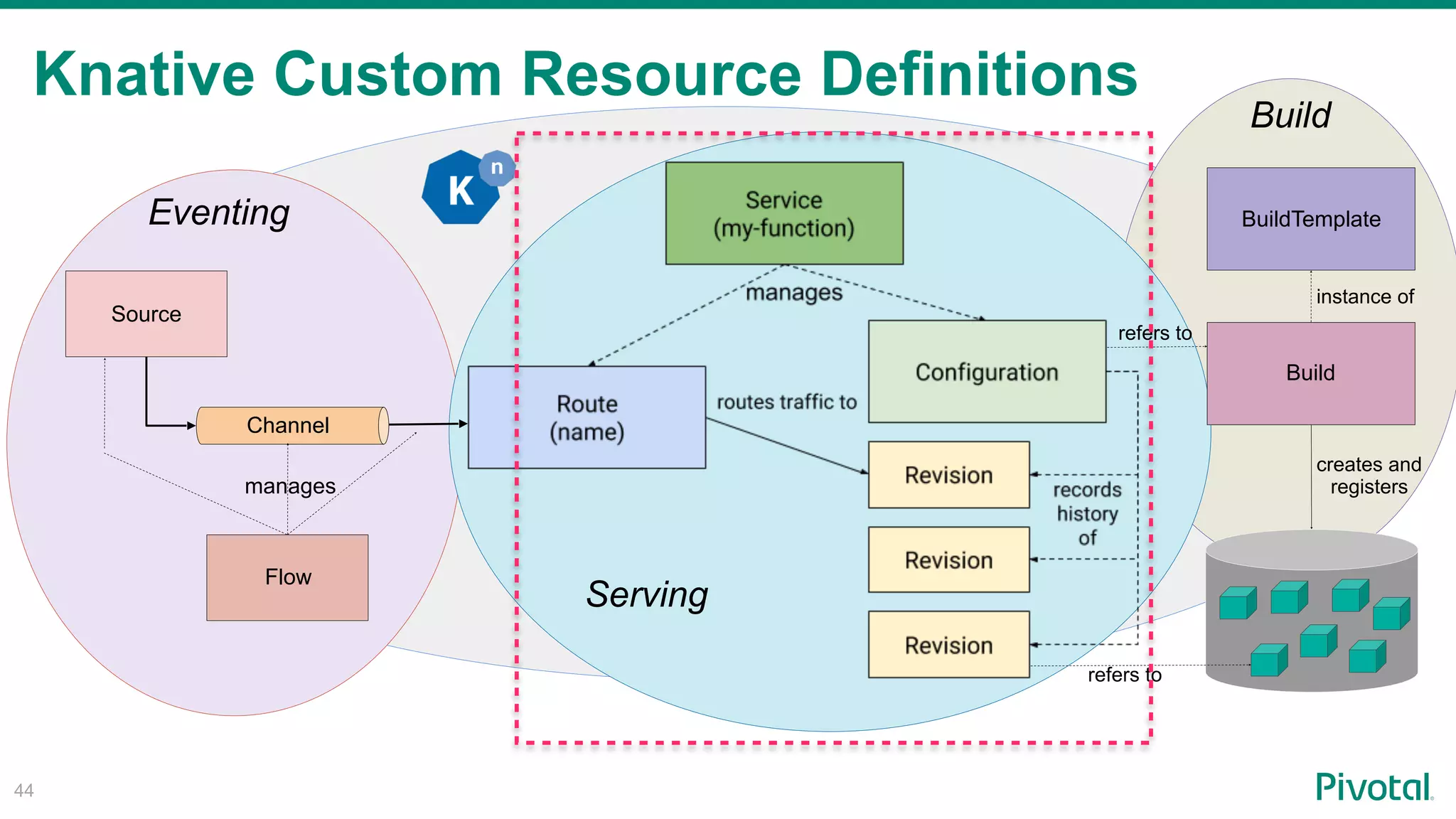

44. Knative Custom Resource Definitions
!44
BuildTemplate
Source
Channel
Build
Flow
manages
refers to
refers to
creates and
registers
instance of
Eventing
Serving
Build

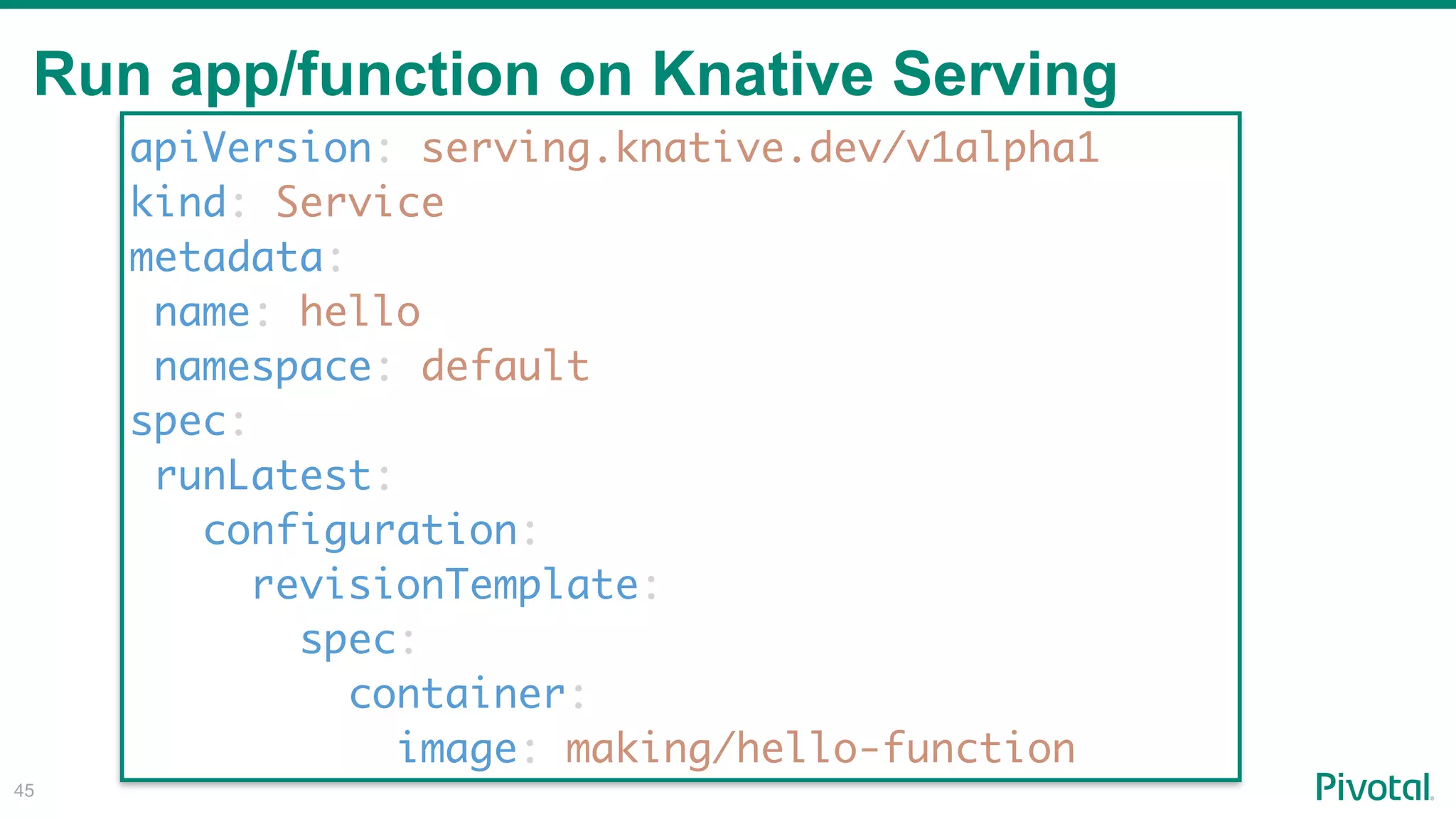

45. Run app/function on Knative Serving
!45
apiVersion: serving.knative.dev/v1alpha1
kind: Service
metadata:
name: hello
namespace: default
spec:
runLatest:
configuration:
revisionTemplate:
spec:
container:
image: making/hello-function

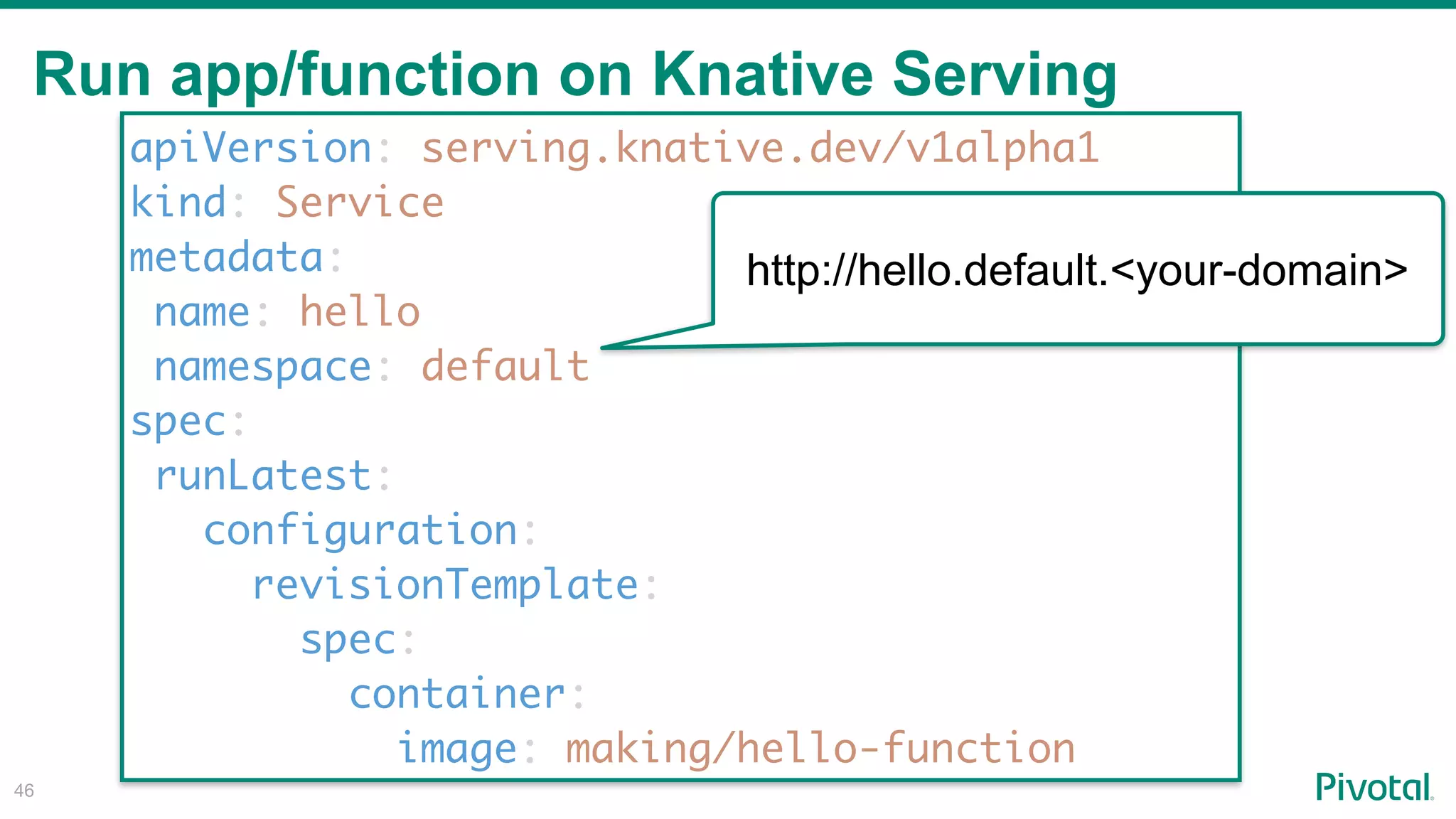

46. Run app/function on Knative Serving
!46
apiVersion: serving.knative.dev/v1alpha1
kind: Service
metadata:
name: hello
namespace: default
spec:
runLatest:
configuration:
revisionTemplate:
spec:
container:
image: making/hello-function
http://hello.default.<your-domain>

47. !47

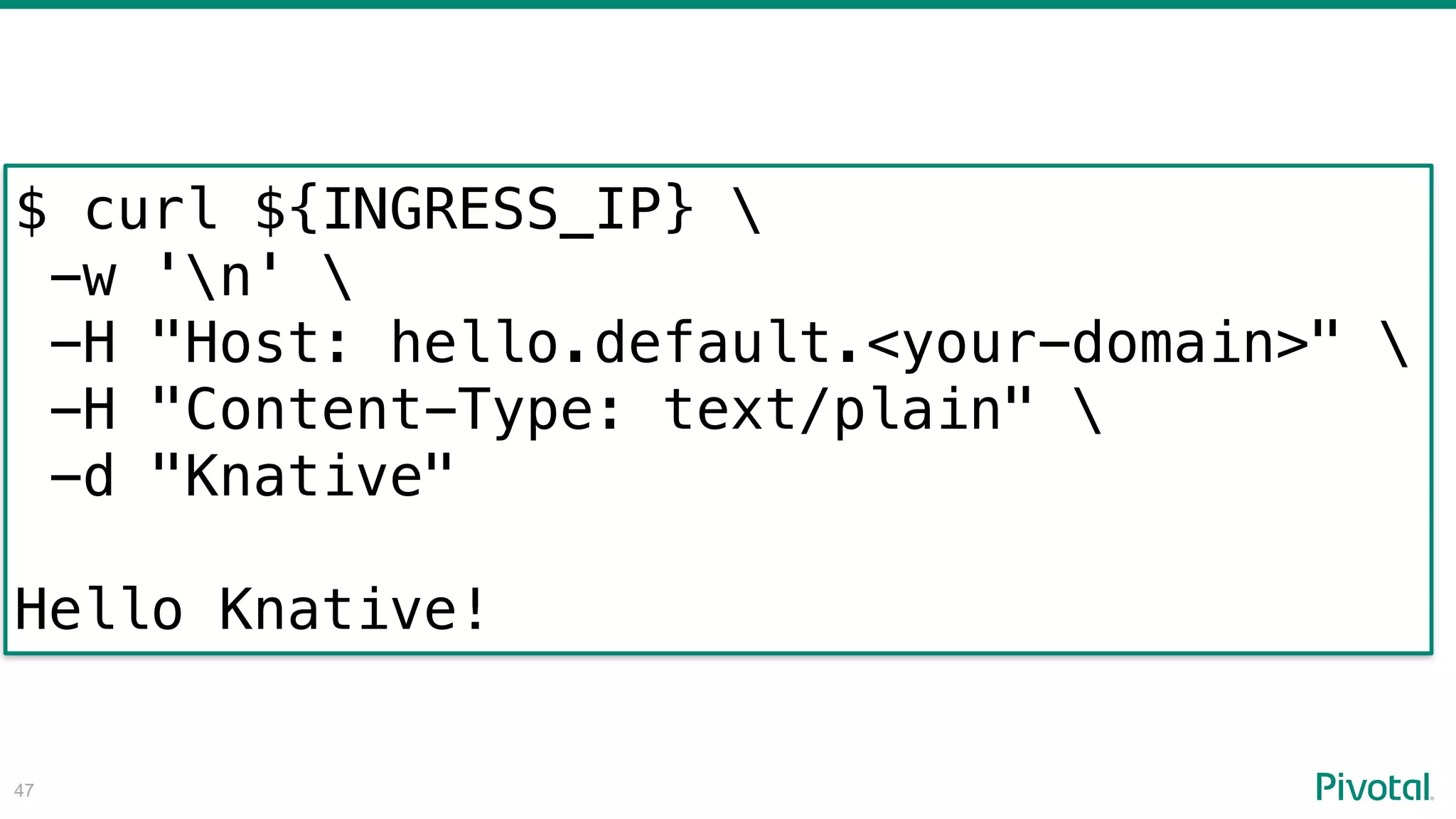

$ curl ${INGRESS_IP}
-w 'n'
-H "Host: hello.default.<your-domain>"
-H "Content-Type: text/plain"
-d "Knative"
Hello Knative!

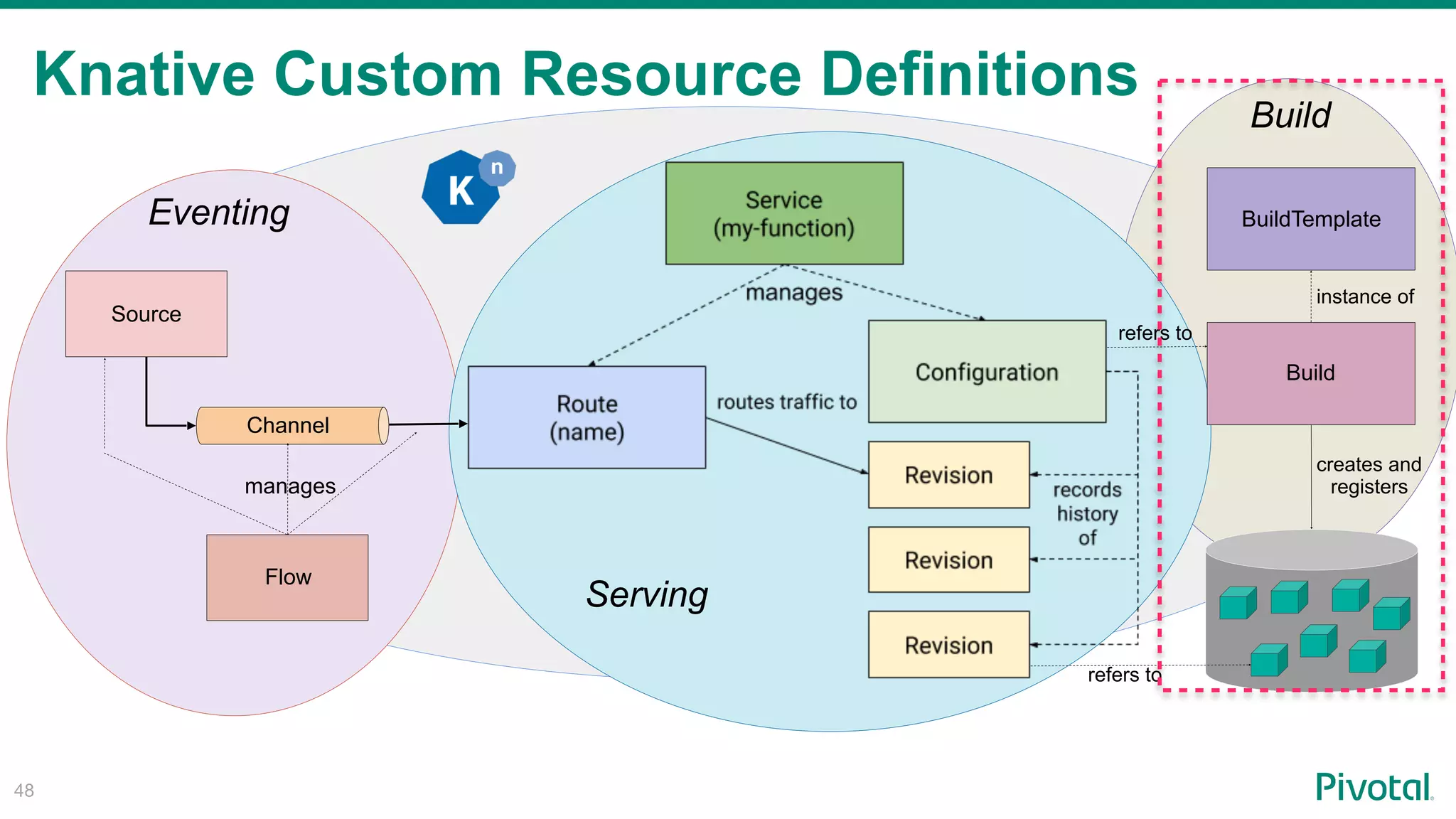

48. Knative Custom Resource Definitions
!48
BuildTemplate
Source
Channel
Build
Flow
manages
refers to
refers to
creates and
registers
instance of
Eventing
Serving
Build

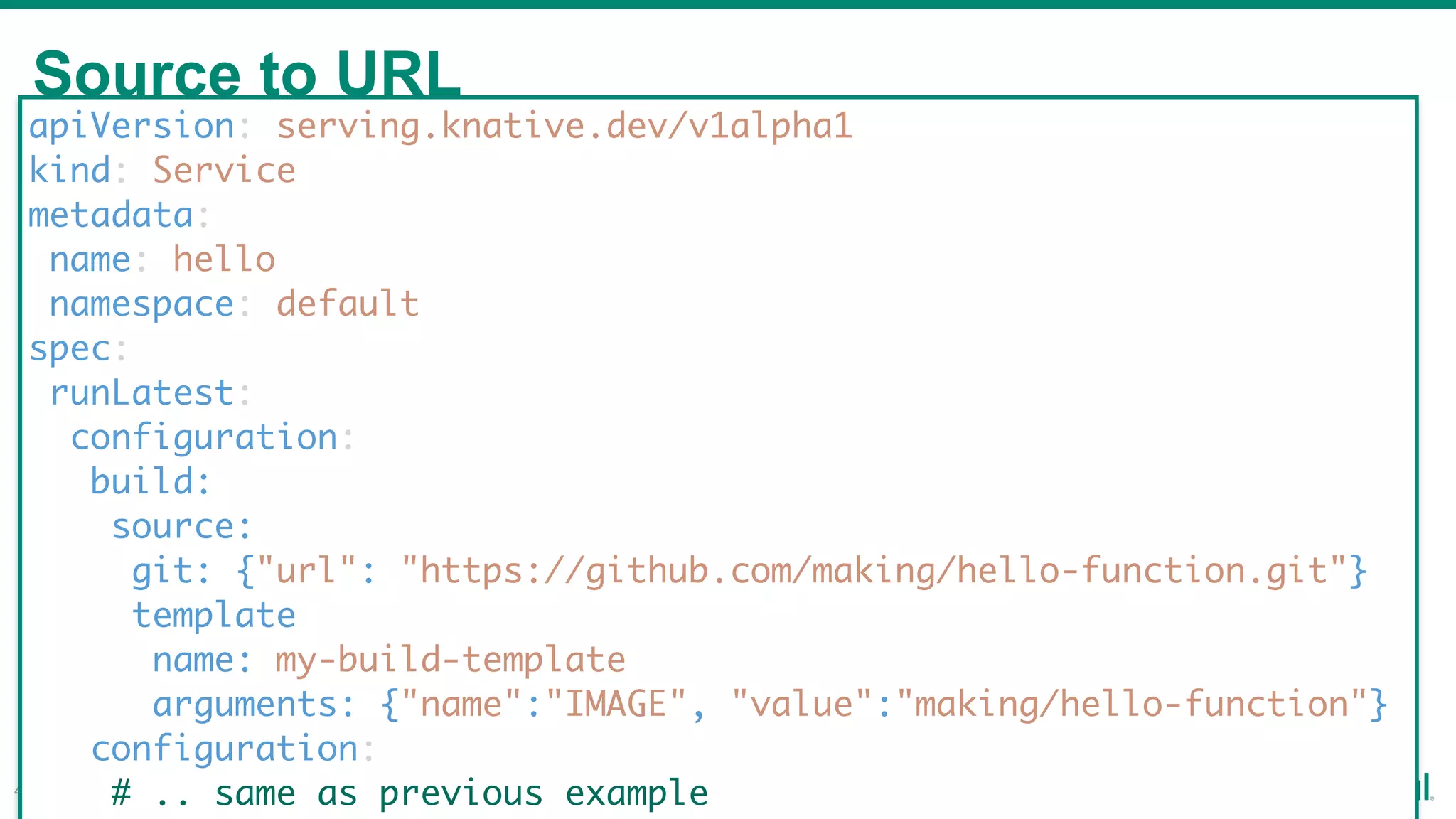

49. Source to URL
!49
apiVersion: serving.knative.dev/v1alpha1
kind: Service
metadata:
name: hello
namespace: default
spec:
runLatest:
configuration:
build:
source:
git: {"url": "https://github.com/making/hello-function.git"}
template
name: my-build-template
arguments: {"name":"IMAGE", "value":"making/hello-function"}
configuration:
# .. same as previous example

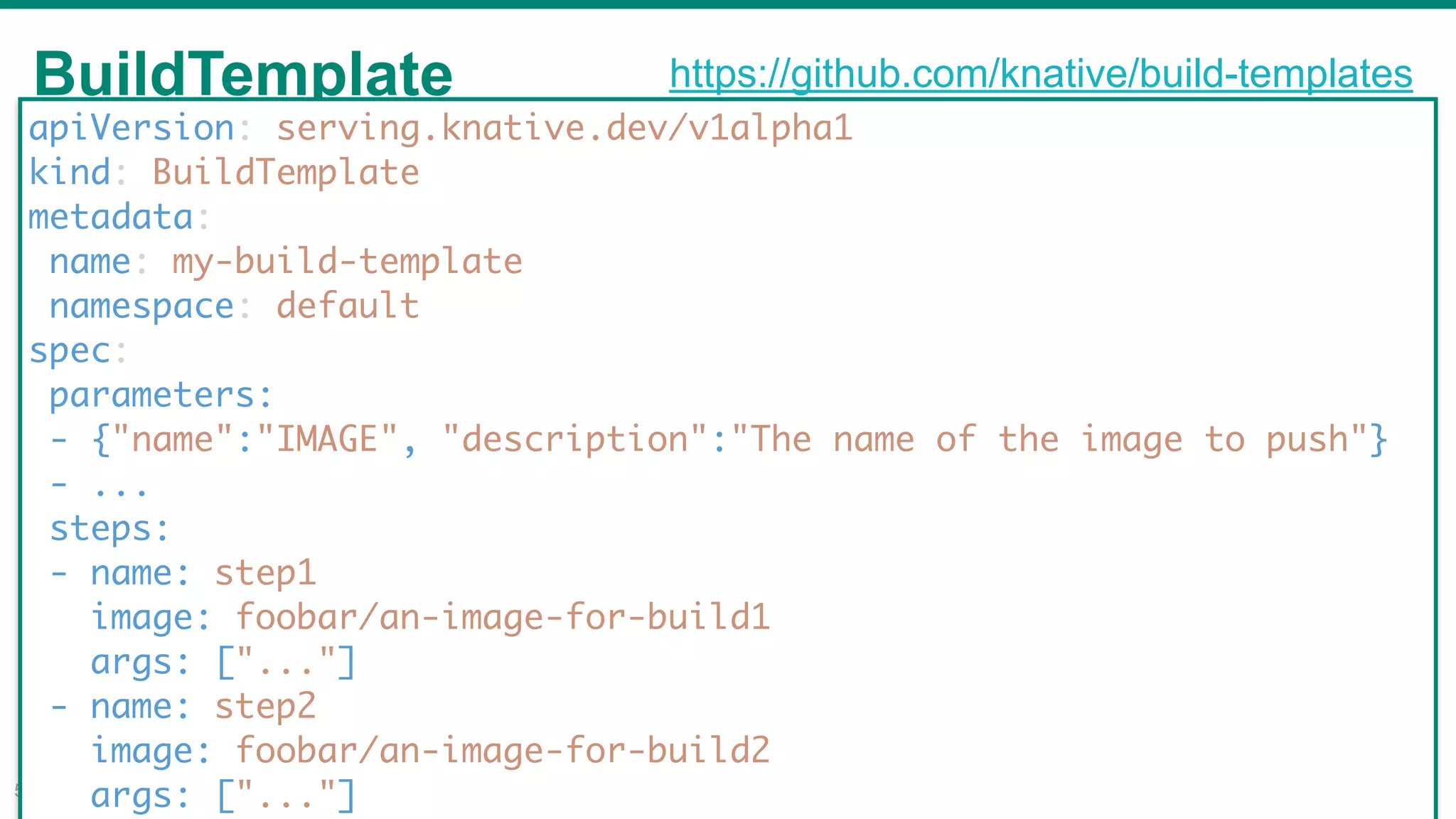

50. BuildTemplate
!50
apiVersion: serving.knative.dev/v1alpha1
kind: BuildTemplate
metadata:
name: my-build-template
namespace: default
spec:
parameters:
- {"name":"IMAGE", "description":"The name of the image to push"}
- ...
steps:
- name: step1
image: foobar/an-image-for-build1
args: ["..."]
- name: step2
image: foobar/an-image-for-build2
args: ["..."]
https://github.com/knative/build-templates

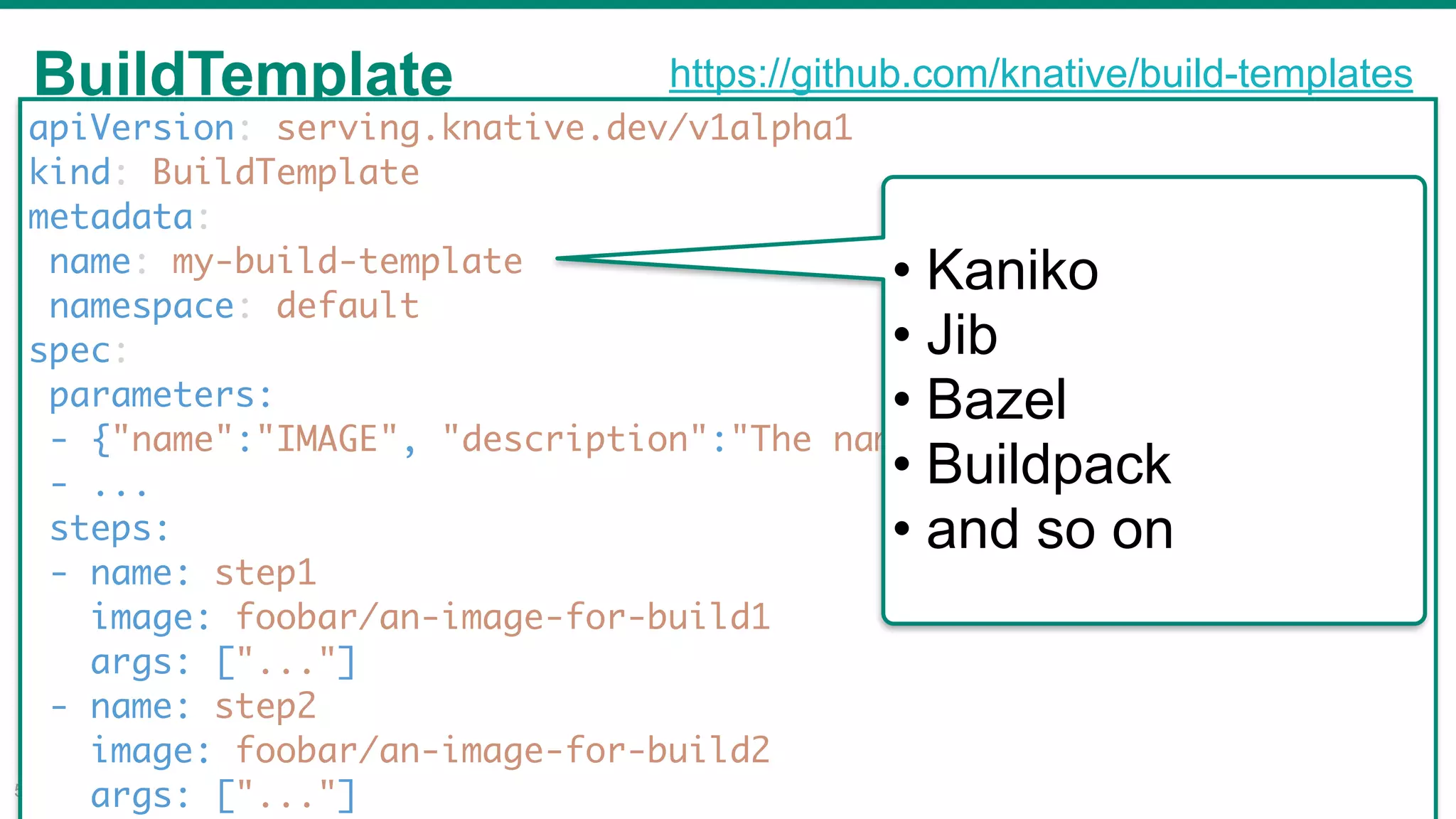

51. BuildTemplate
!51
apiVersion: serving.knative.dev/v1alpha1
kind: BuildTemplate
metadata:
name: my-build-template
namespace: default
spec:
parameters:
- {"name":"IMAGE", "description":"The name of the image to push"}
- ...
steps:
- name: step1
image: foobar/an-image-for-build1
args: ["..."]
- name: step2
image: foobar/an-image-for-build2
args: ["..."]
• Kaniko
• Jib
• Bazel
• Buildpack
• and so on
https://github.com/knative/build-templates

52. So complex !?
!52

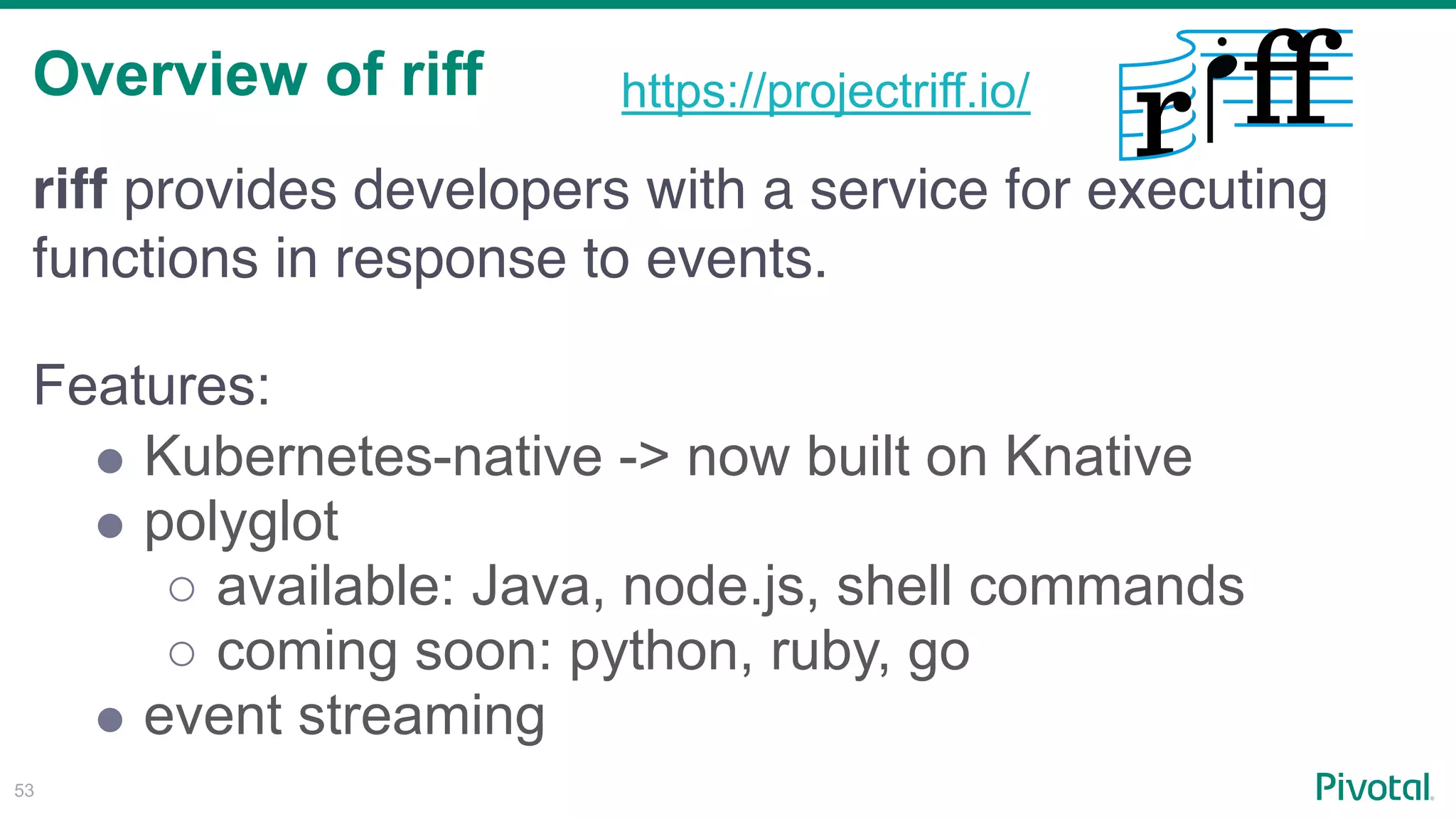

53. Overview of riff
!53
riff provides developers with a service for executing
functions in response to events.
Features:
! Kubernetes-native -> now built on Knative
! polyglot
○ available: Java, node.js, shell commands
○ coming soon: python, ruby, go
! event streaming
https://projectriff.io/

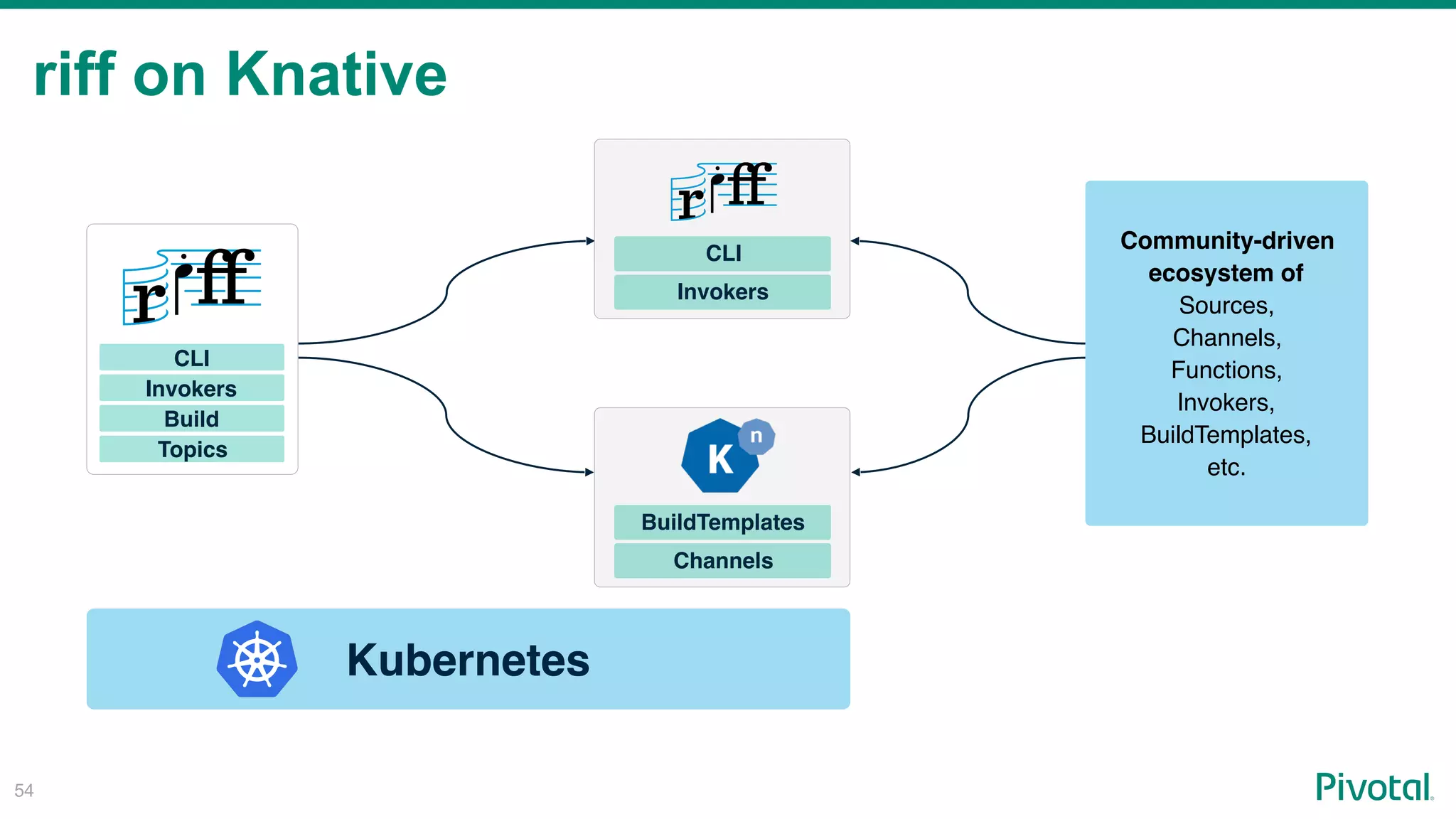

54. riff on Knative
!54
Community-driven
ecosystem of
Sources,
Channels,
Functions,
Invokers,
BuildTemplates,
etc.
Kubernetes
BuildTemplates
Channels
CLI
Invokers
CLI
Invokers
Build
Topics

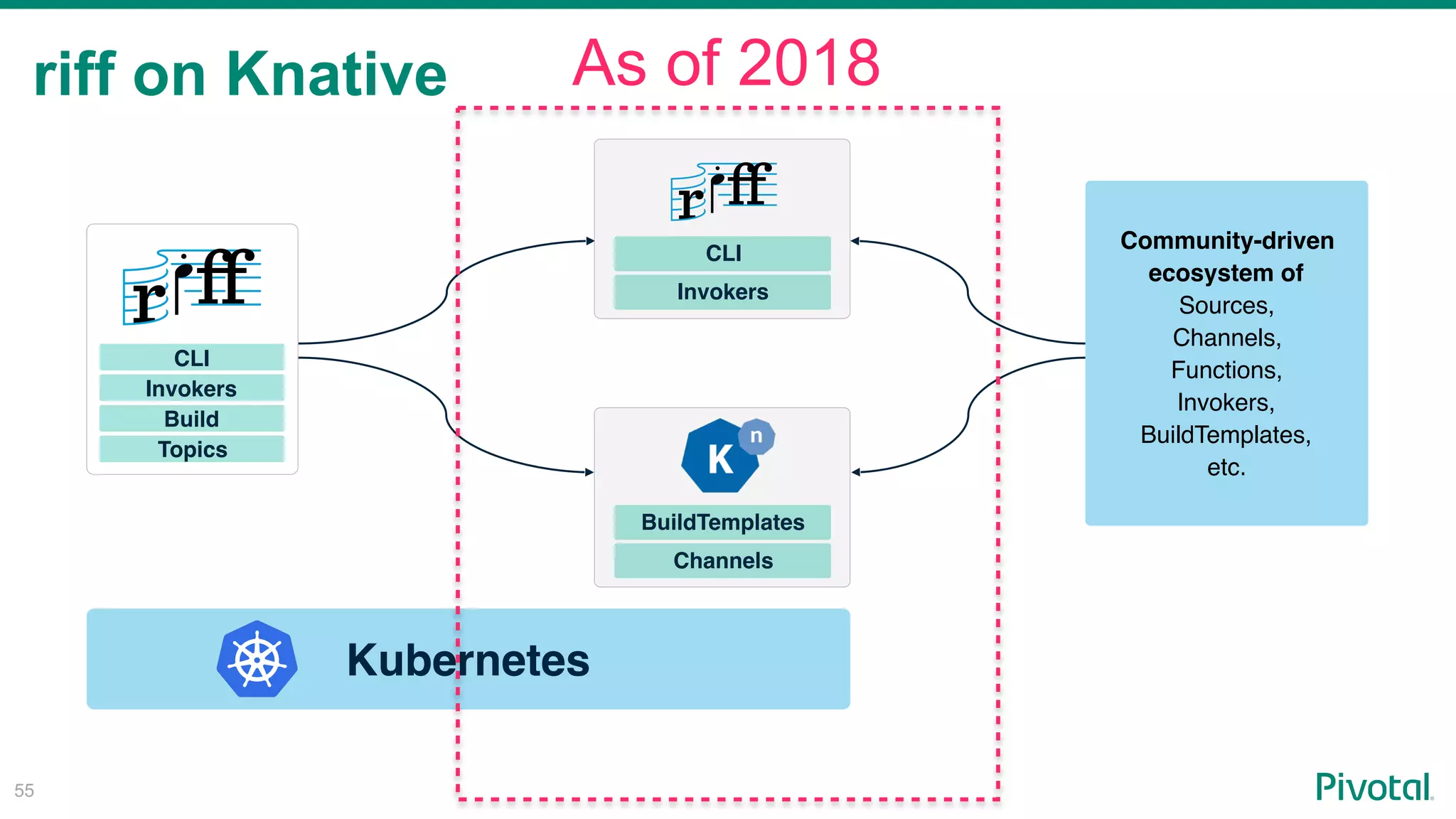

55. riff on Knative
!55
Community-driven
ecosystem of
Sources,
Channels,
Functions,
Invokers,
BuildTemplates,
etc.
Kubernetes
BuildTemplates
Channels
CLI
Invokers
CLI
Invokers
Build
Topics
As of 2018

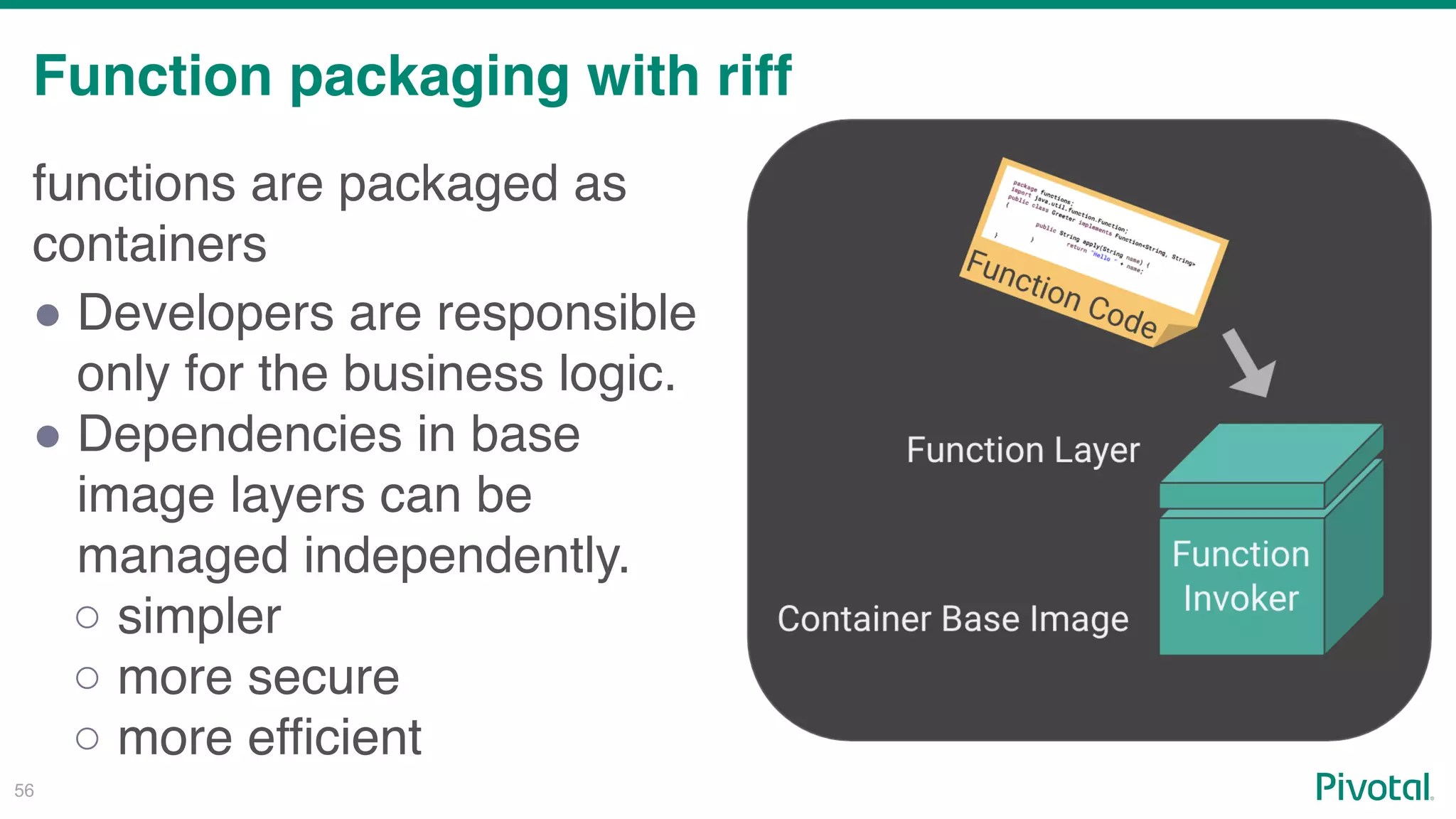

56. Function packaging with riff
!56
functions are packaged as
containers
! Developers are responsible
only for the business logic.
! Dependencies in base
image layers can be
managed independently.
○ simpler
○ more secure
○ more efficient

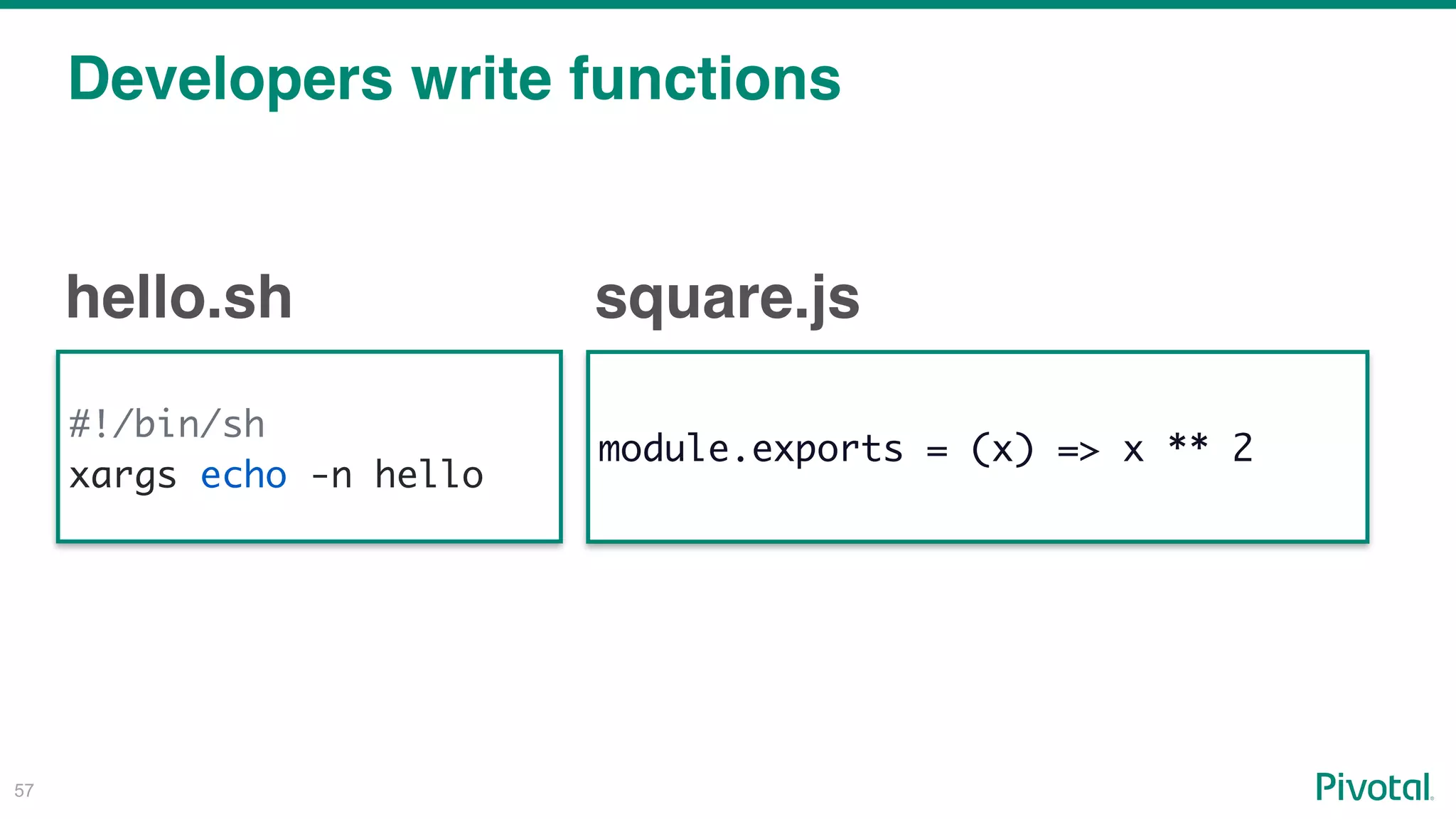

57. !57
#!/bin/sh
xargs echo -n hello
hello.sh
module.exports = (x) => x ** 2
square.js
Developers write functions

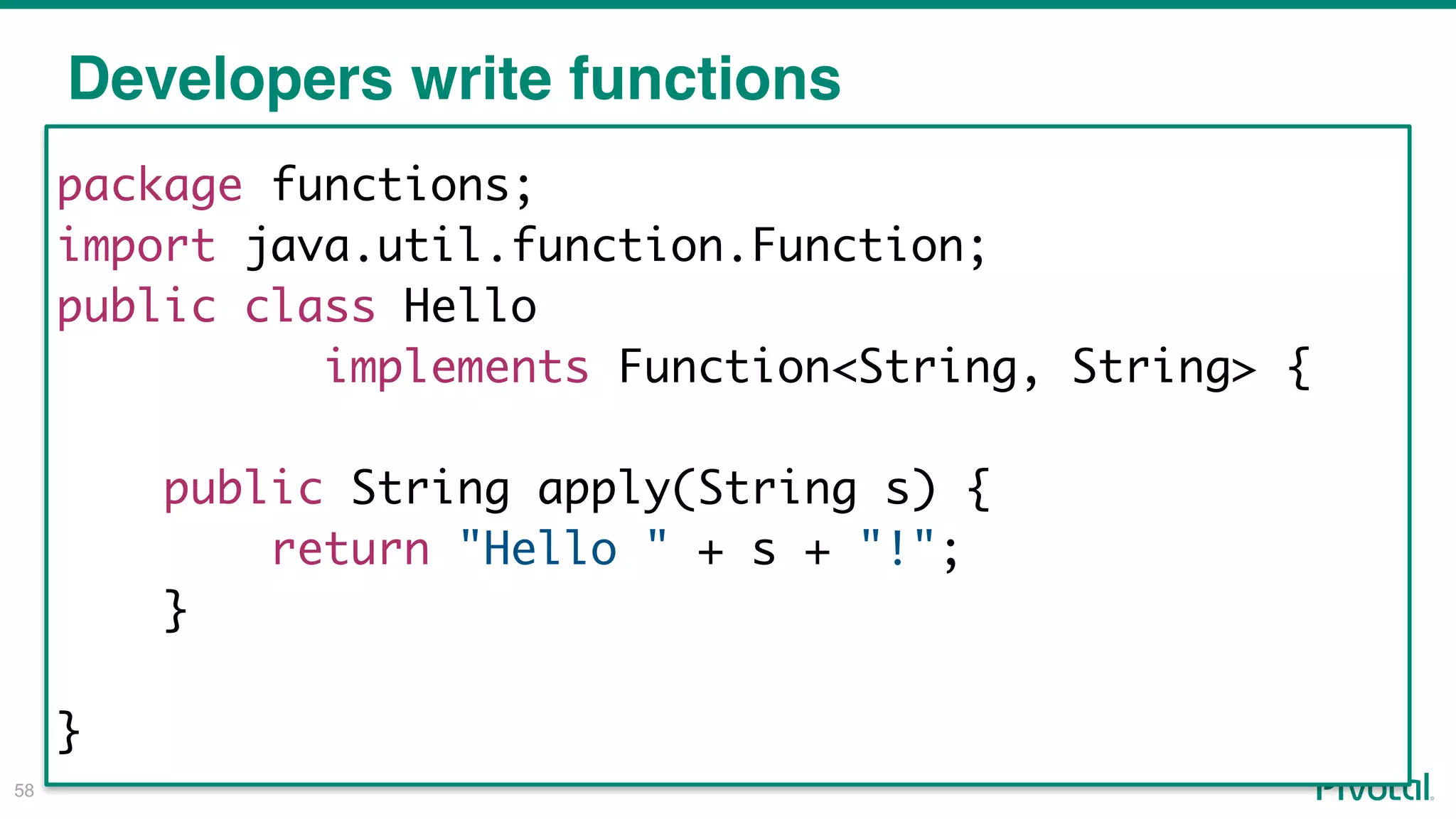

58. !58
package functions;
import java.util.function.Function;
public class Hello
implements Function<String, String> {
public String apply(String s) {
return "Hello " + s + "!";
}
}
Developers write functions

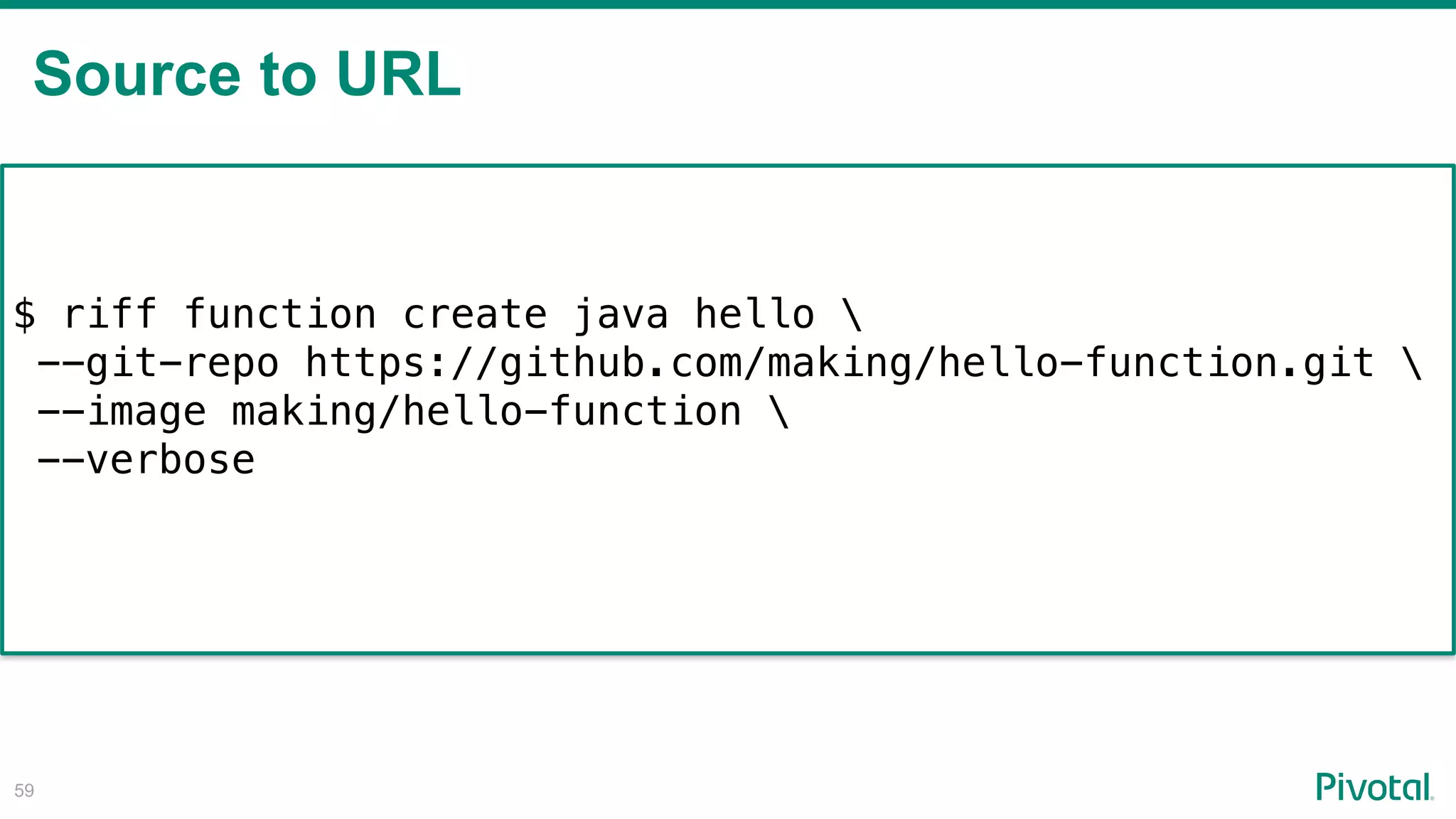

59. Source to URL
!59
$ riff function create java hello
--git-repo https://github.com/making/hello-function.git
--image making/hello-function
--verbose

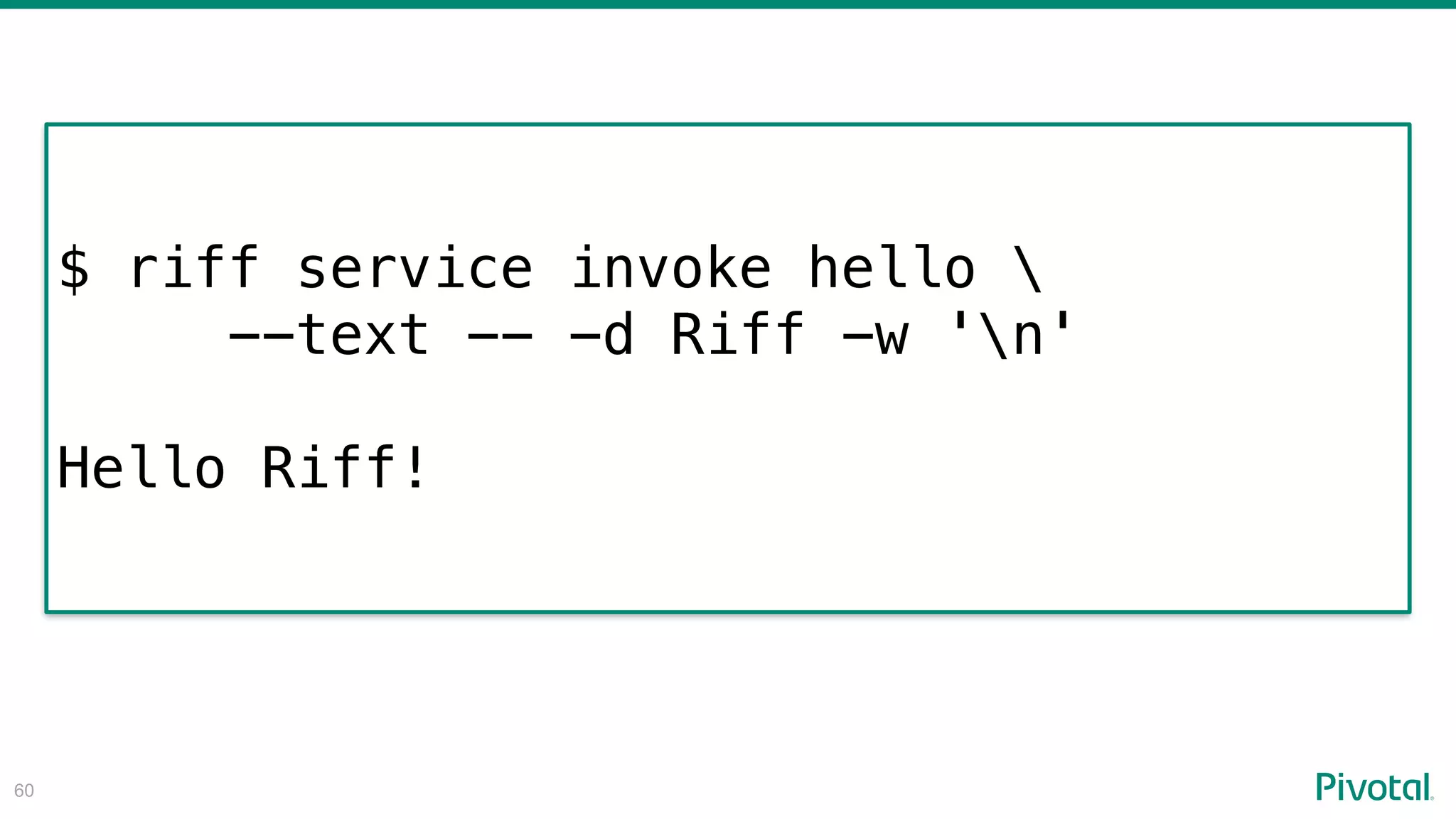

60. !60
$ riff service invoke hello
--text -- -d Riff -w 'n'
Hello Riff!

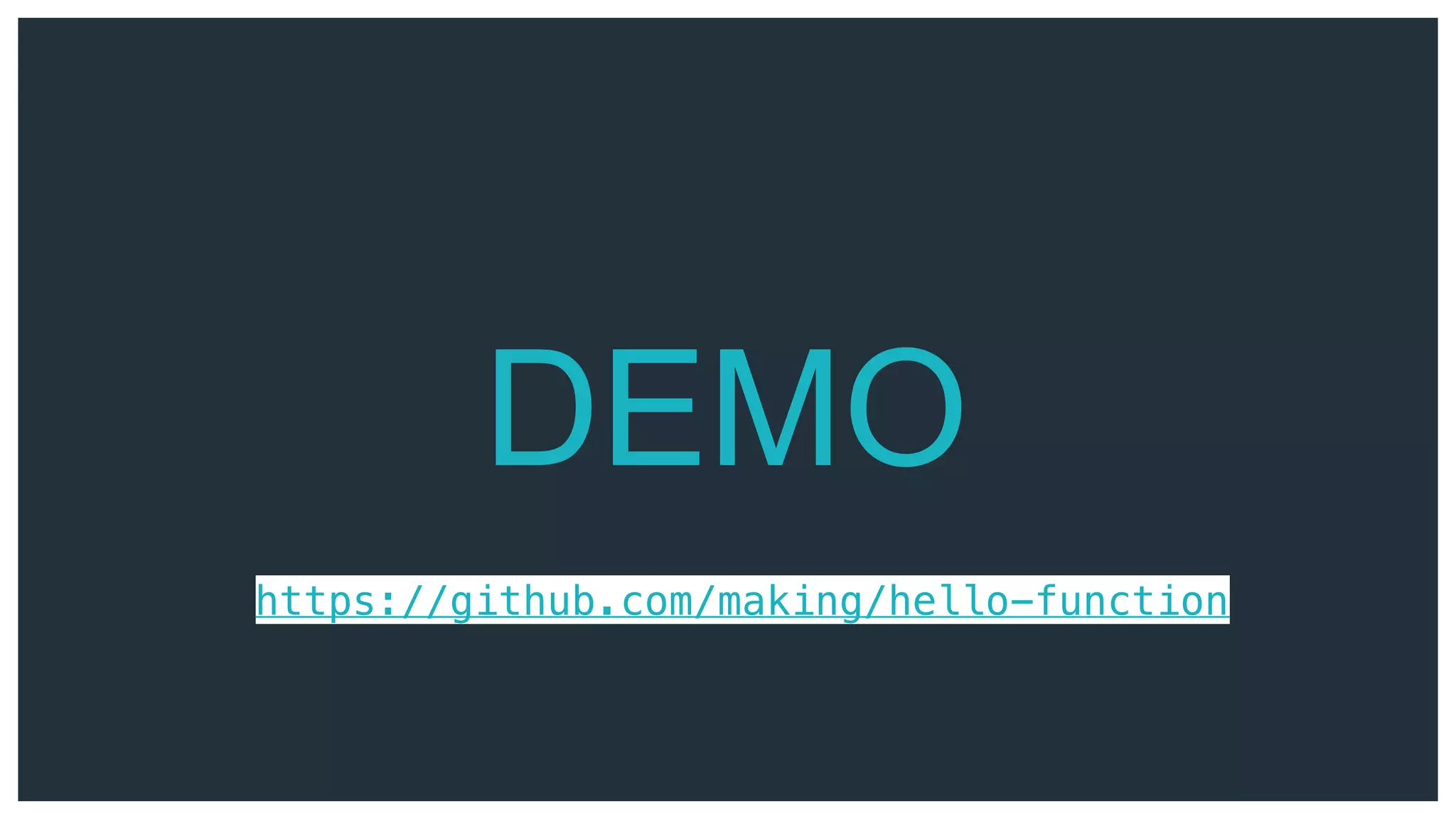

61. DEMO
https://github.com/making/hello-function

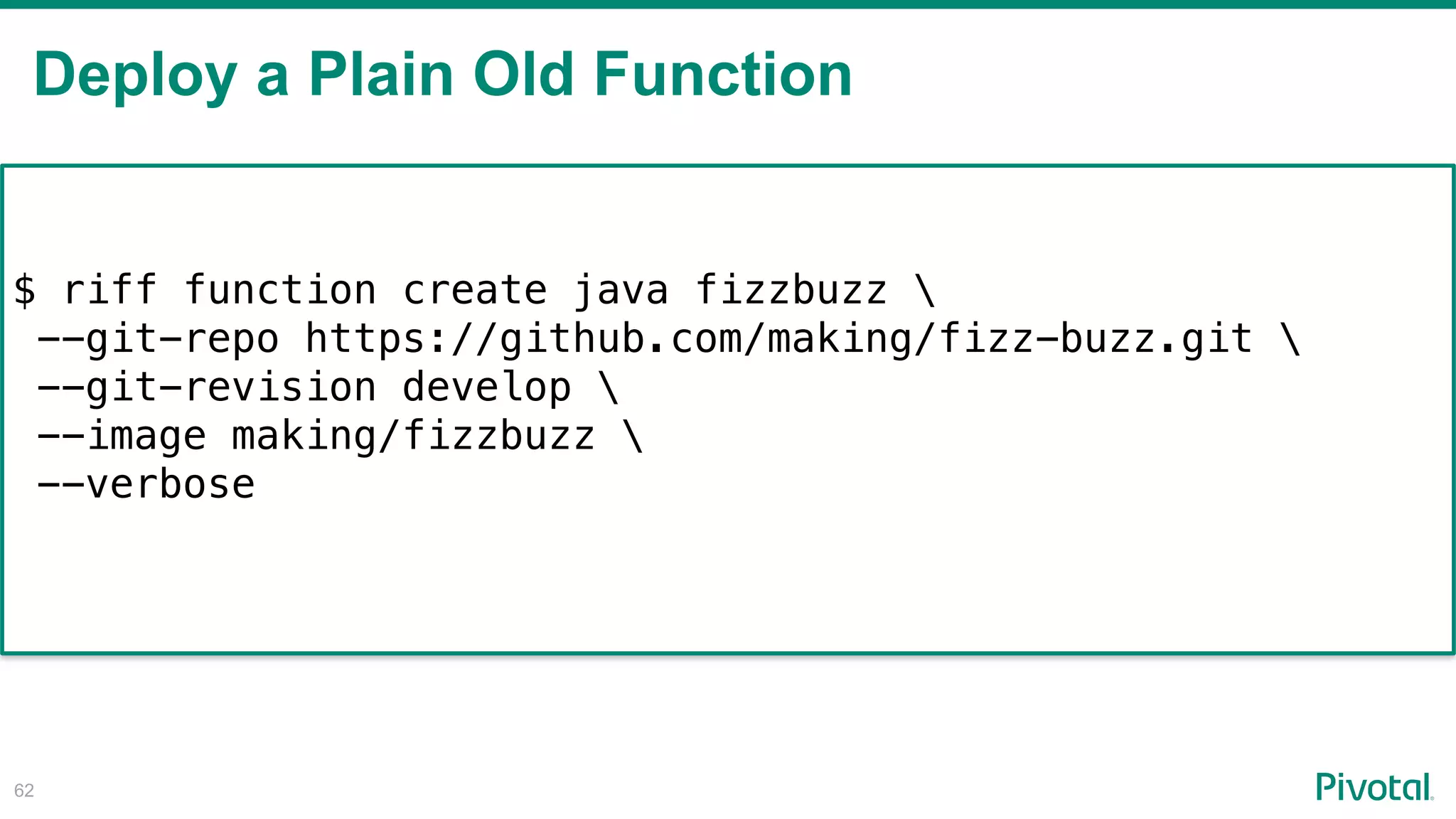

62. Deploy a Plain Old Function
!62
$ riff function create java fizzbuzz
--git-repo https://github.com/making/fizz-buzz.git
--git-revision develop
--image making/fizzbuzz
--verbose

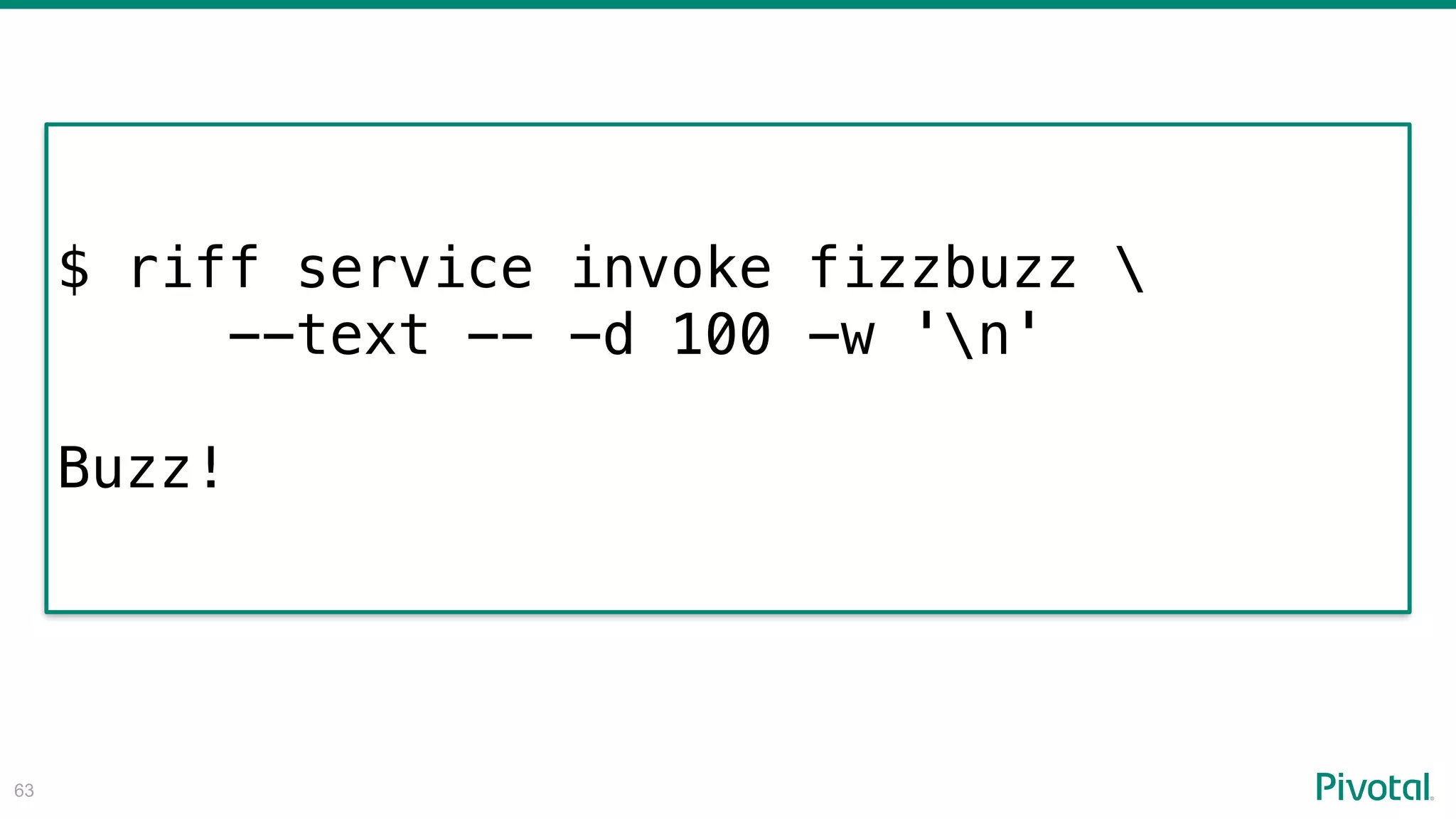

63. !63
$ riff service invoke fizzbuzz
--text -- -d 100 -w 'n'
Buzz!

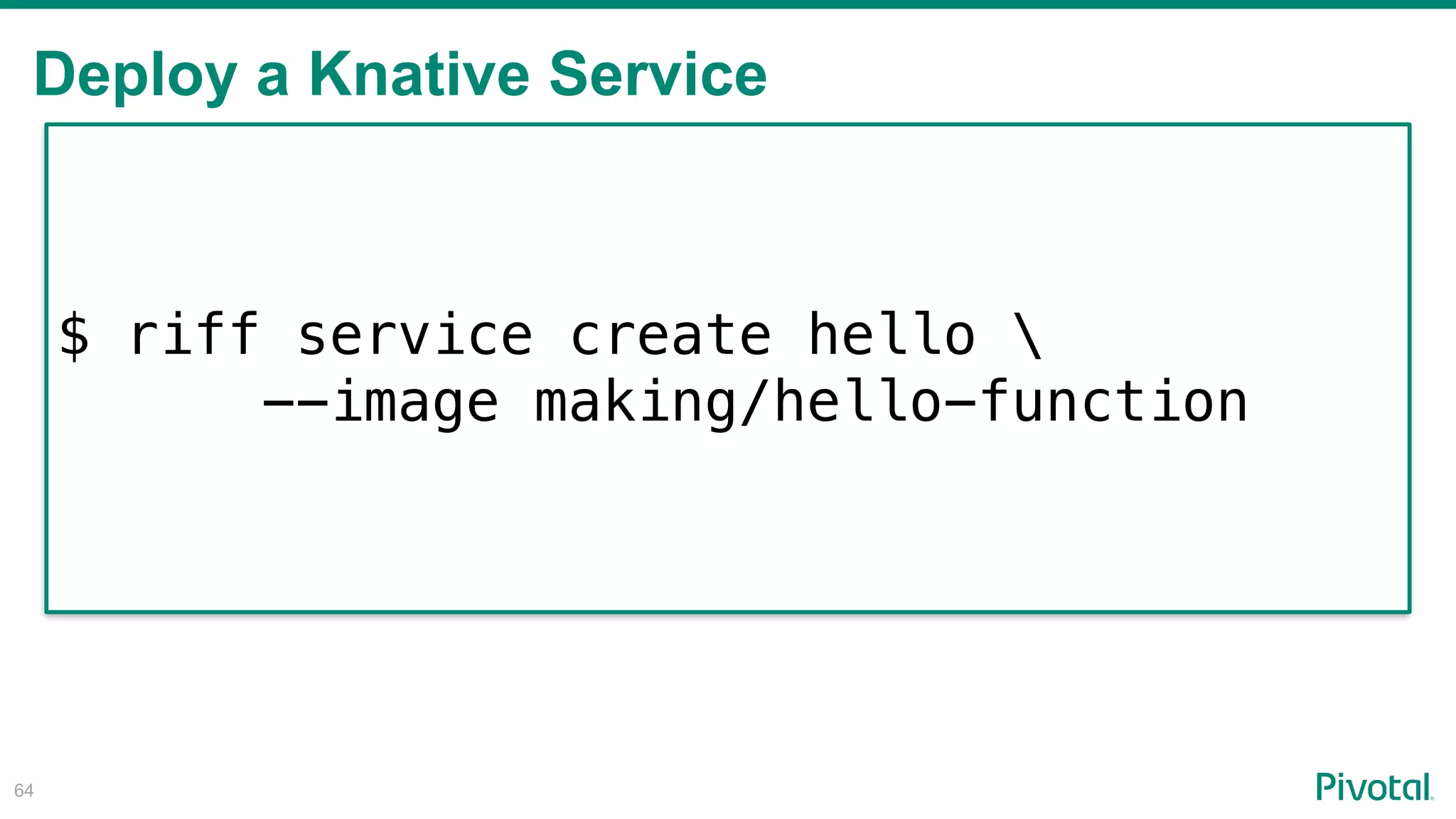

64. Deploy a Knative Service
!64
$ riff service create hello
--image making/hello-function

65. !65
$ riff service invoke hello
--text -- -d Riff -w 'n'
Hello Riff!

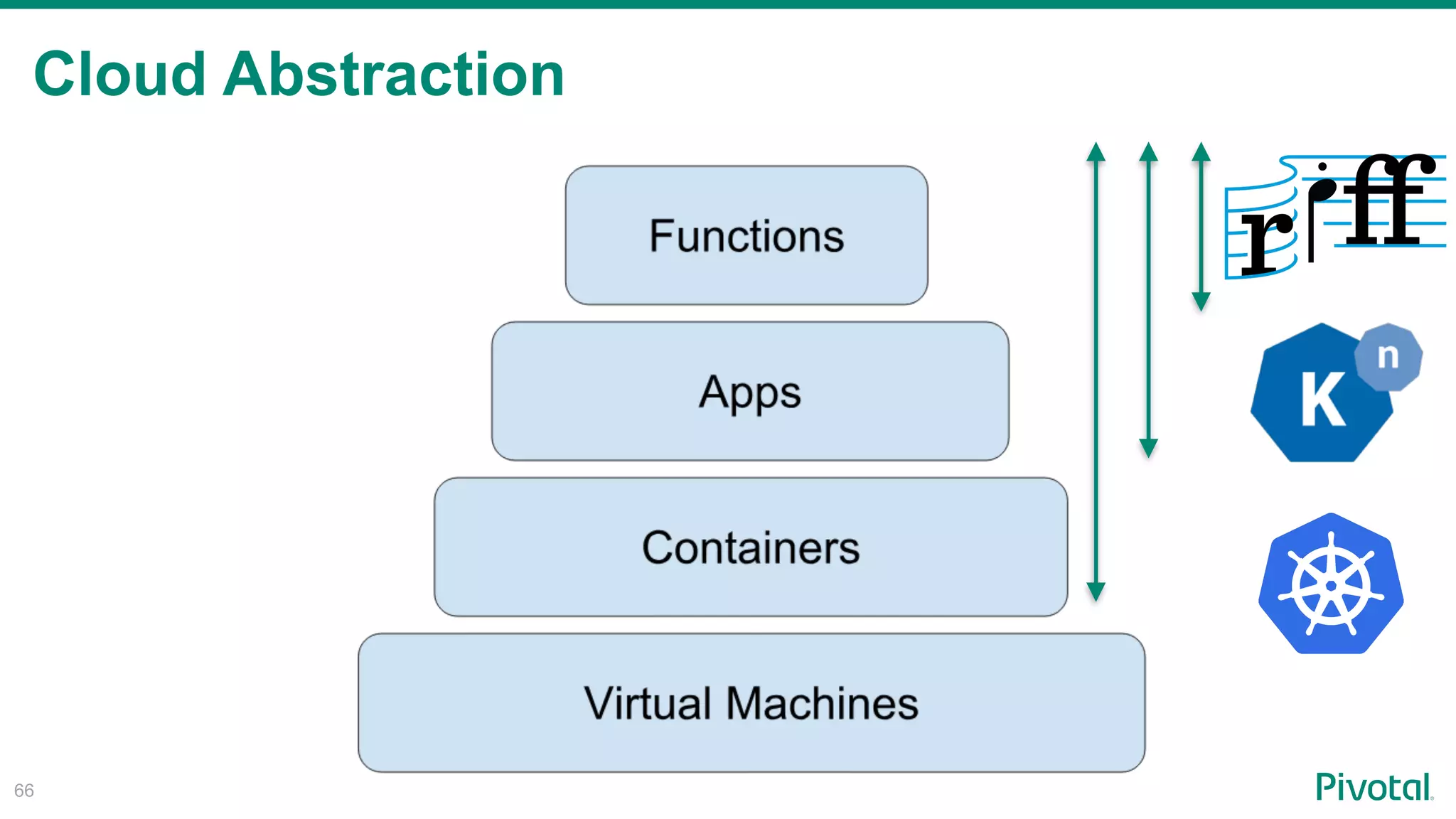

66. Cloud Abstraction
!66

67. Pivotal Function Service (PFS)
!67
https://pivotal.io/platform/pivotal-function-service Coming Soon!

68. Riff / Knative hands-on workshop will be open soon!
!68
https://pivotal-japan.connpass.com/

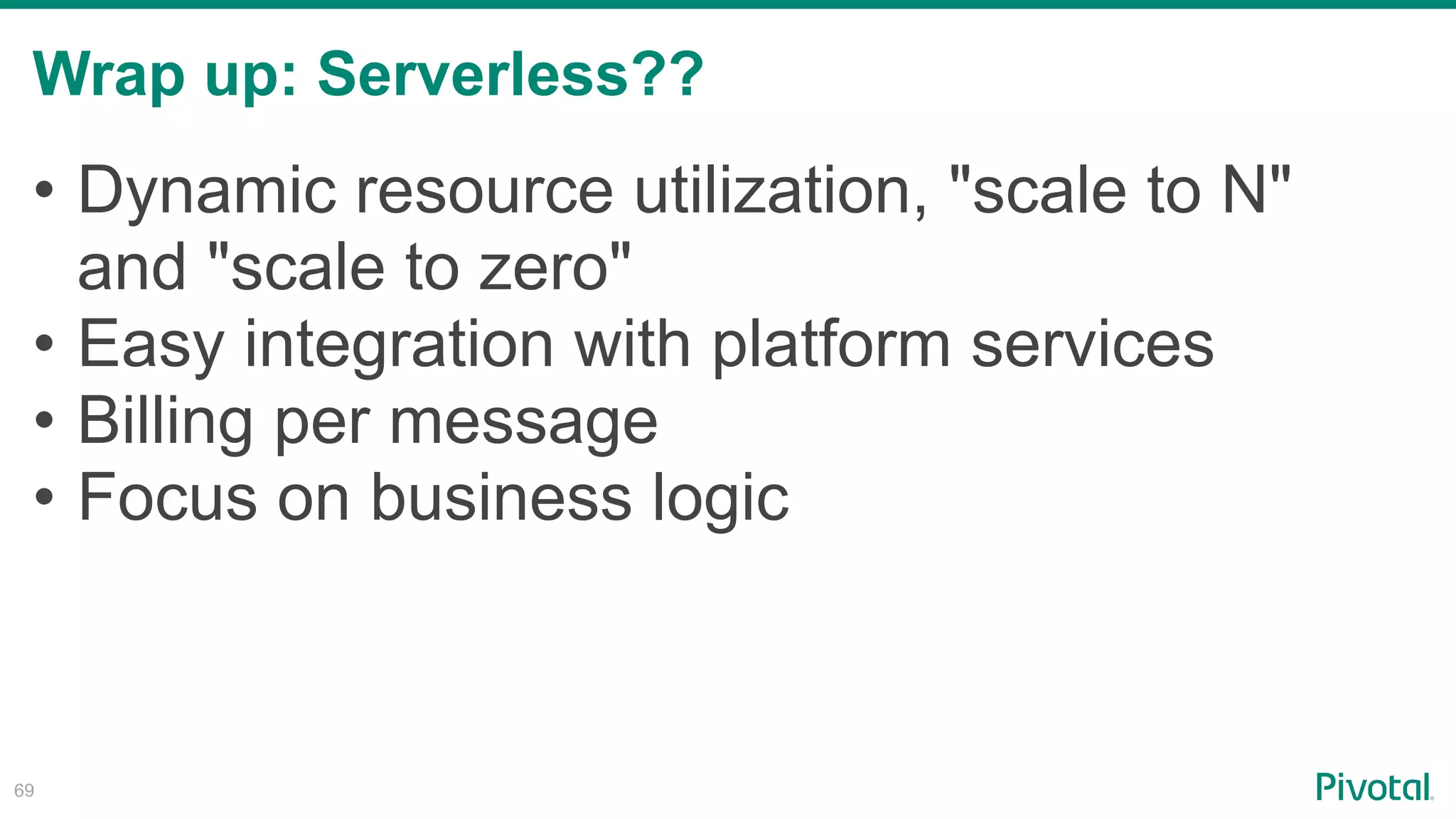

69. Wrap up: Serverless??
!69
• Dynamic resource utilization, "scale to N"
and "scale to zero"
• Easy integration with platform services
• Billing per message
• Focus on business logic

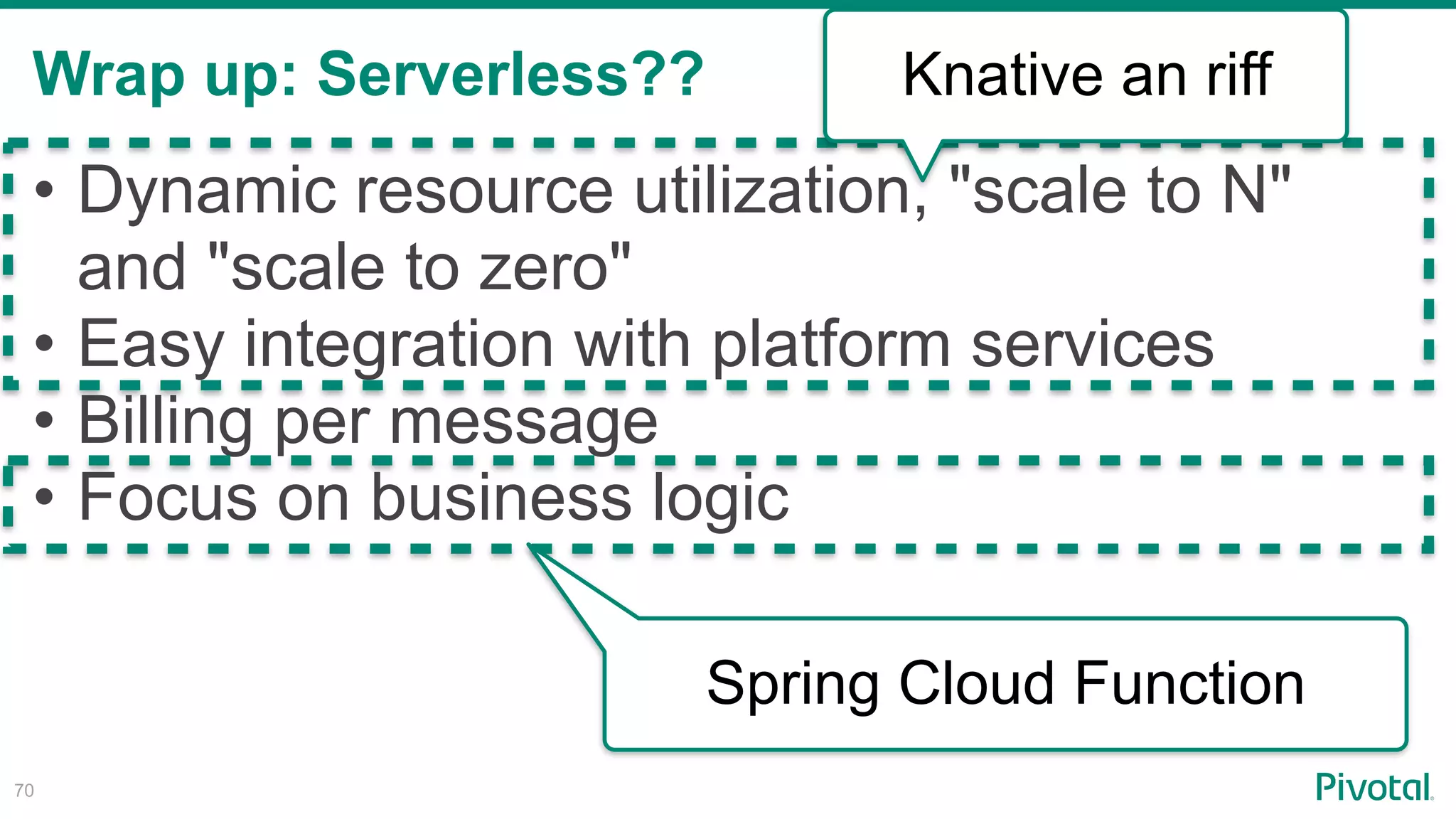

70. Wrap up: Serverless??
!70
• Dynamic resource utilization, "scale to N"
and "scale to zero"
• Easy integration with platform services
• Billing per message
• Focus on business logic
Knative an riff
Spring Cloud Function

71. Thanks for your attention!
!71
https://projectriff.io/
