This document provides instructions for installing and configuring Zipkin, an open source distributed tracing system. It describes how to download Zipkin, configure it to store traces in MySQL or Elasticsearch, and receive traces from Kafka. It also covers enabling OAuth2 authentication and securing the Zipkin UI and API endpoints.

2. •
•
• 💖
• 💖

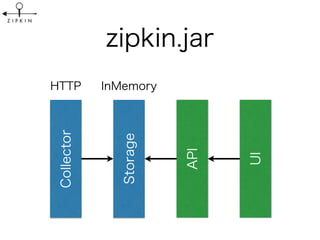

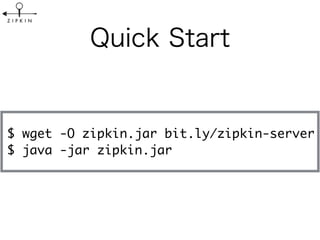

6. $ wget -O zipkin.jar bit.ly/zipkin-server
$ java -jar zipkin.jar

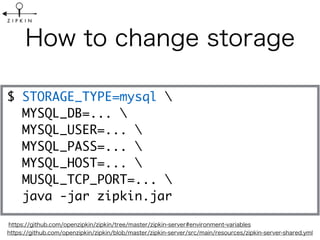

13. $ STORAGE_TYPE=mysql
MYSQL_DB=...
MYSQL_USER=...
MYSQL_PASS=...
MYSQL_HOST=...
MUSQL_TCP_PORT=...
java -jar zipkin.jar

14. $ STORAGE_TYPE=elasticsearch
ES_HOSTS=...
ES_USERNAME=...
ES_PASSWORD=...
java -jar zipkin.jar

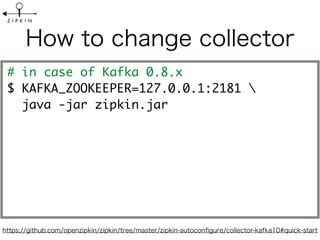

21. # in case of Kafka 0.8.x
$ KAFKA_ZOOKEEPER=127.0.0.1:2181
java -jar zipkin.jar

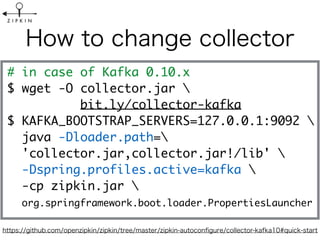

22. # in case of Kafka 0.10.x
$ wget -O collector.jar
bit.ly/collector-kafka
$ KAFKA_BOOTSTRAP_SERVERS=127.0.0.1:9092
java -Dloader.path=
'collector.jar,collector.jar!/lib'
-Dspring.profiles.active=kafka
-cp zipkin.jar
org.springframework.boot.loader.PropertiesLauncher

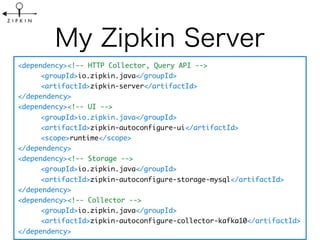

37. <dependency><!-- HTTP Collector, Query API -->
<groupId>io.zipkin.java</groupId>
<artifactId>zipkin-server</artifactId>
</dependency>
<dependency><!-- UI -->
<groupId>io.zipkin.java</groupId>
<artifactId>zipkin-autoconfigure-ui</artifactId>
<scope>runtime</scope>
</dependency>
<dependency><!-- Storage -->
<groupId>io.zipkin.java</groupId>
<artifactId>zipkin-autoconfigure-storage-mysql</artifactId>
</dependency>
<dependency><!-- Collector -->
<groupId>io.zipkin.java</groupId>
<artifactId>zipkin-autoconfigure-collector-kafka10</artifactId>
</dependency>

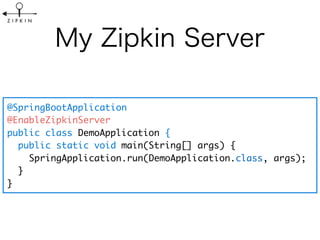

38. @SpringBootApplication
@EnableZipkinServer
public class DemoApplication {
public static void main(String[] args) {
SpringApplication.run(DemoApplication.class, args);
}
}

39. server.port=9411
# Storage
zipkin.storage.type=mysql
zipkin.storage.mysql.host=xxxxxxxxxx
zipkin.storage.mysql.port=xxxxxxxxxx
zipkin.storage.mysql.username=xxxxxxxxxx
zipkin.storage.mysql.password=xxxxxxxxxx
zipkin.storage.mysql.db=xxxxxxxxxx
# Collector
zipkin.collector.kafka.bootstrap-servers=127.0.0.1:9092

40. 🔑🔐👬

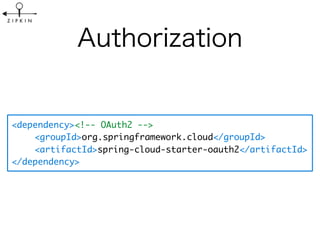

41. <dependency><!-- OAuth2 -->
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-oauth2</artifactId>
</dependency>

42. @SpringBootApplication
@EnableZipkinServer
@EnableOAuth2Sso
public class DemoApplication {
public static void main(String[] args) {
SpringApplication.run(DemoApplication.class, args);
}
}

43. security.oauth2.client.client-id=xxxxxx
security.oauth2.client.client-secret=xxxxxxx
security.oauth2.client.access-token-uri=https://github.com/login/
oauth/access_token
security.oauth2.client.user-authorization-uri=https://github.com/
login/oauth/authorize
security.oauth2.client.scope=user:email
security.oauth2.resource.user-info-uri=https://api.github.com/user

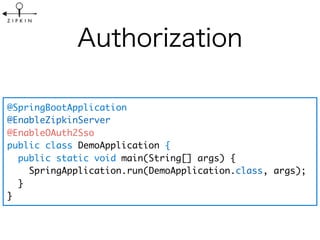

44. @SpringBootApplication
@EnableZipkinServer
@EnableOAuth2Sso
public class DemoApplication {
public static void main(String[] args) {
SpringApplication.run(DemoApplication.class, args);
}
}

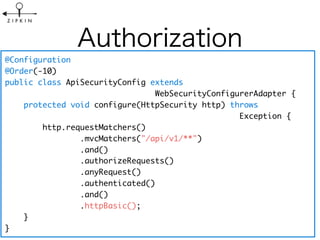

45. @Configuration
@Order(-10)
public class ApiSecurityConfig extends
WebSecurityConfigurerAdapter {
protected void configure(HttpSecurity http) throws
Exception {
http.requestMatchers()
.mvcMatchers("/api/v1/**")
.and()
.authorizeRequests()
.anyRequest()
.authenticated()
.and()
.httpBasic();
}
}

46. @Configuration
@Order(-5)
public class UiSecurityConfig extends
WebSecurityConfigurerAdapter {
protected void configure(HttpSecurity http) throws
Exception {
http.requestMatchers()
.antMatchers("/**")
.and()
.authorizeRequests()
.antMatchers("/login*", "/login/**").permitAll()
.anyRequest().authenticated(); // or hasRole("ADMIN")
}
}
