Team Support in Concourse CI 2.0 #concourse_tokyo

1. ‹#›© 2016 Pivotal Software, Inc. All rights reserved. ‹#›© 2016 Pivotal Software, Inc. All rights reserved.
Team Support
in Concourse CI 2.0
Toshiaki Maki
2016-09-08 #concourse_tokyo

2. © 2016 Pivotal Software, Inc. All rights reserved.
Who am I ?
• Toshiaki Maki (@making) http://blog.ik.am
• Sr. Solutions Architect @Pivotal
• Spring Framework enthusiast
bit.ly/spring-book

3. © 2016 Pivotal Software, Inc. All rights reserved.
Who am I ?
• Toshiaki Maki (@making) http://blog.ik.am
• Sr. Solutions Architect @Pivotal
• Spring Framework enthusiast
bit.ly/spring-book

4. © 2016 Pivotal Software, Inc. All rights reserved.

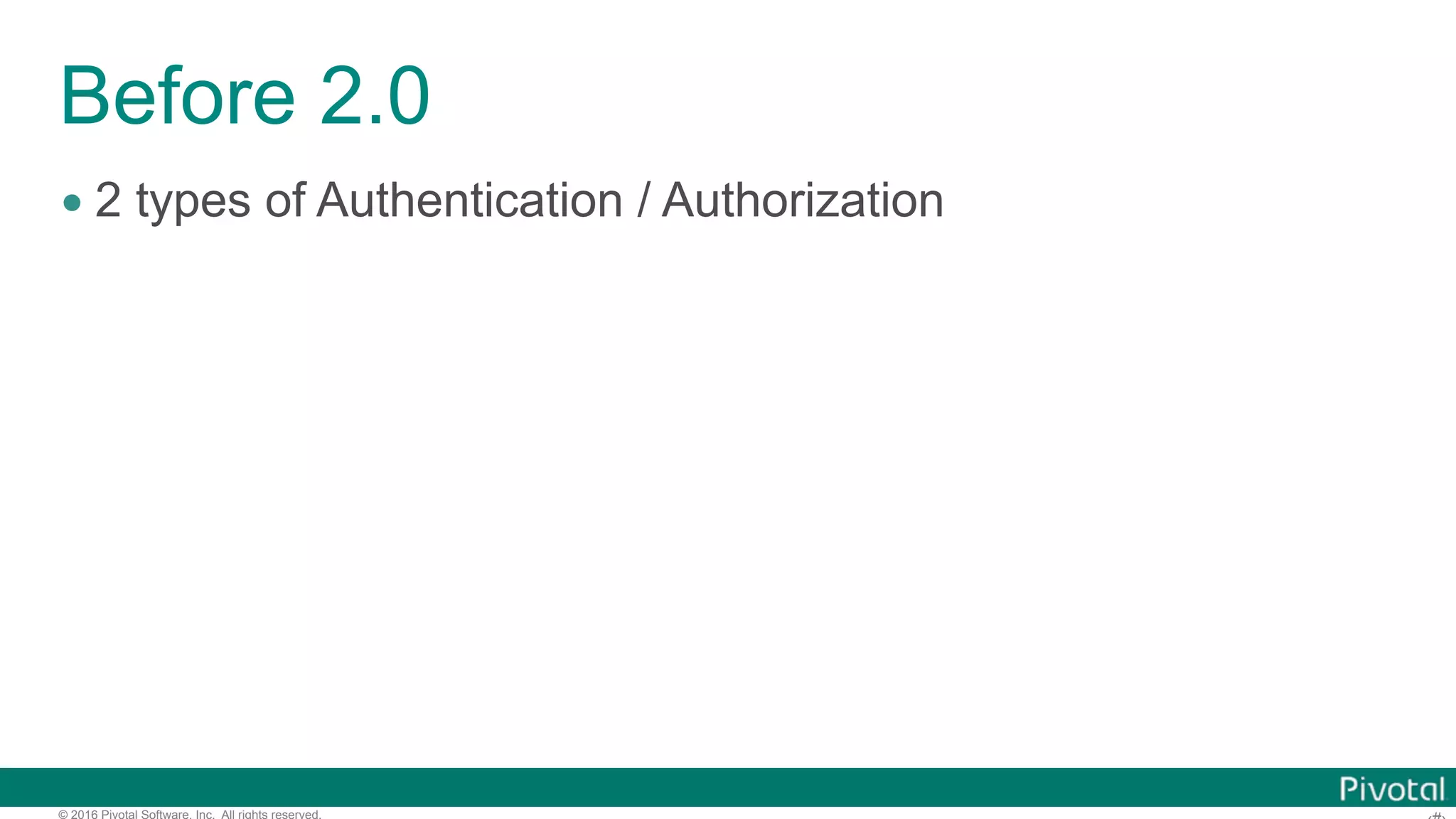

Before 2.0
• 2 types of Authentication / Authorization

5. © 2016 Pivotal Software, Inc. All rights reserved.

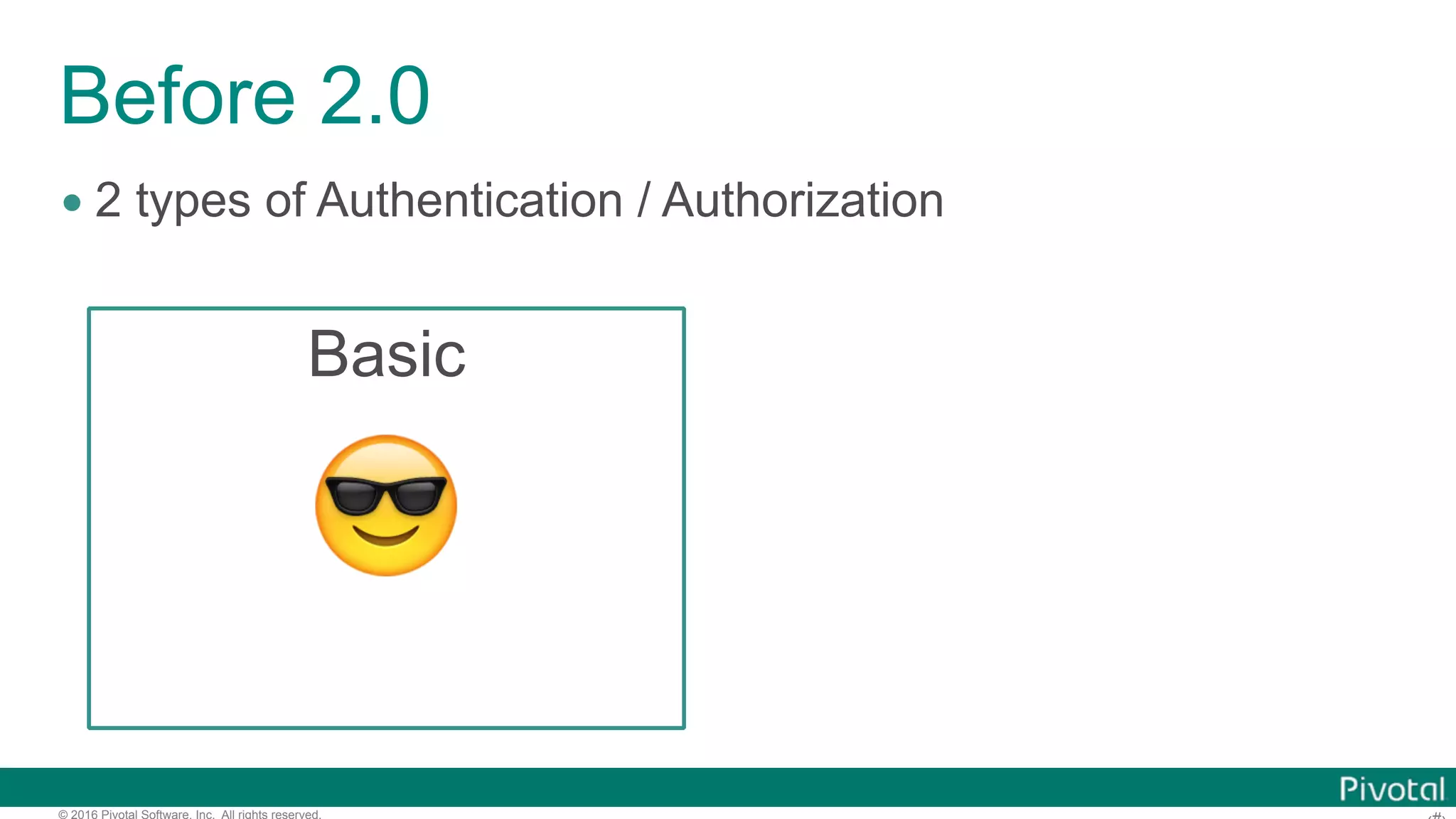

Before 2.0
• 2 types of Authentication / Authorization
Basic
😎

6. © 2016 Pivotal Software, Inc. All rights reserved.

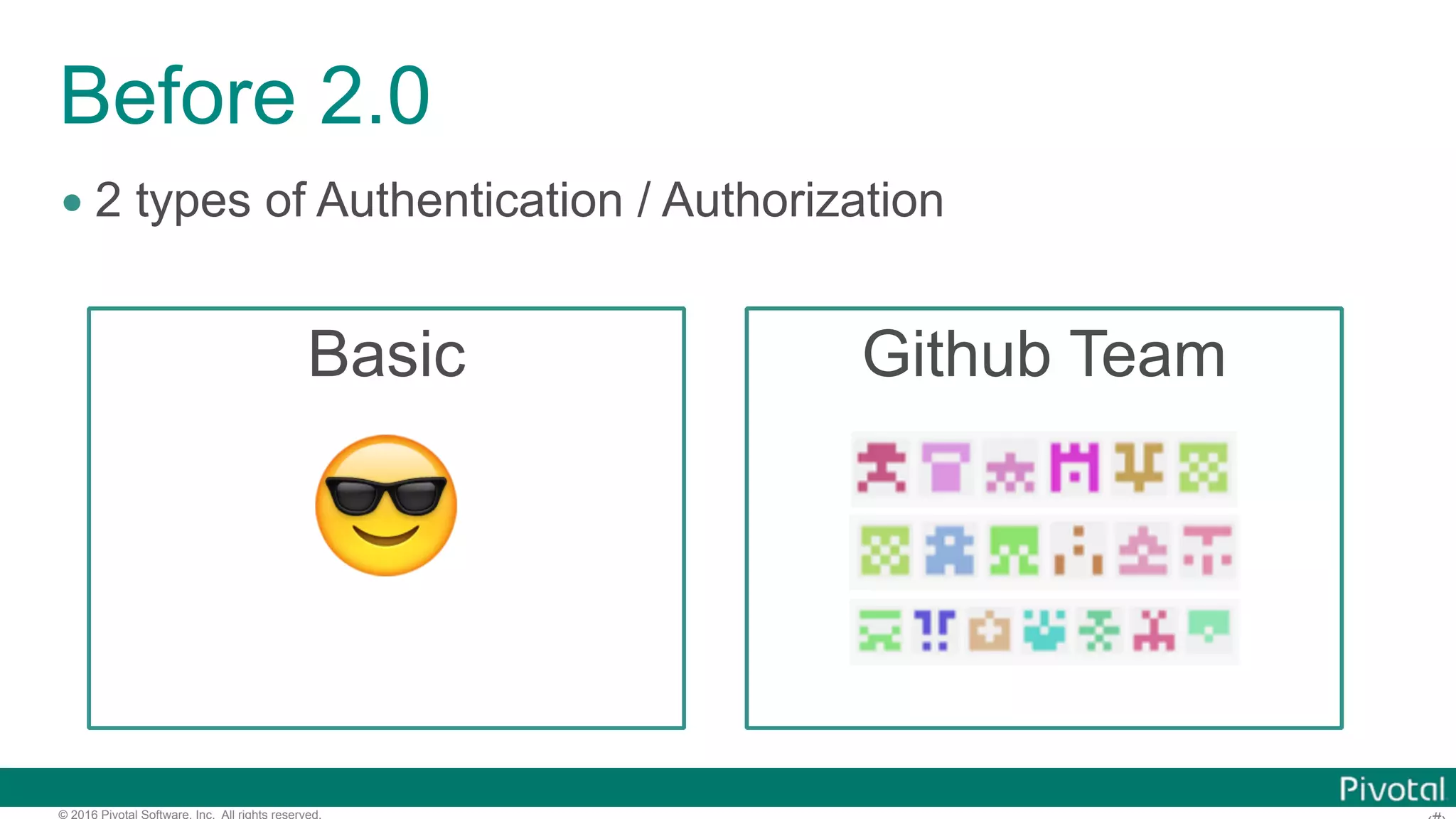

Before 2.0
• 2 types of Authentication / Authorization
Github TeamBasic
😎

7. © 2016 Pivotal Software, Inc. All rights reserved.

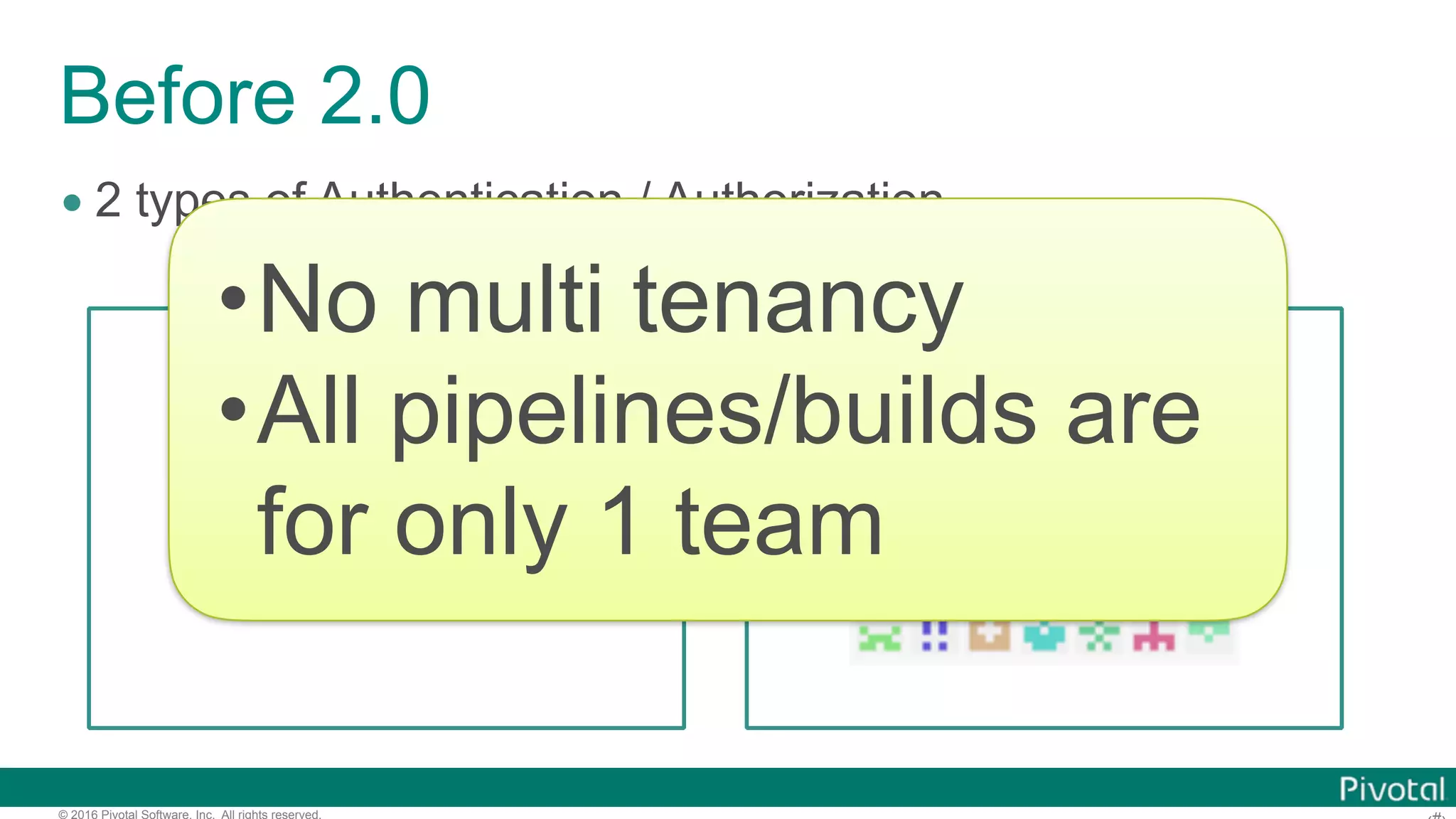

Before 2.0
• 2 types of Authentication / Authorization
Github TeamBasic
😎
•No multi tenancy
•All pipelines/builds are
for only 1 team

8. © 2016 Pivotal Software, Inc. All rights reserved.

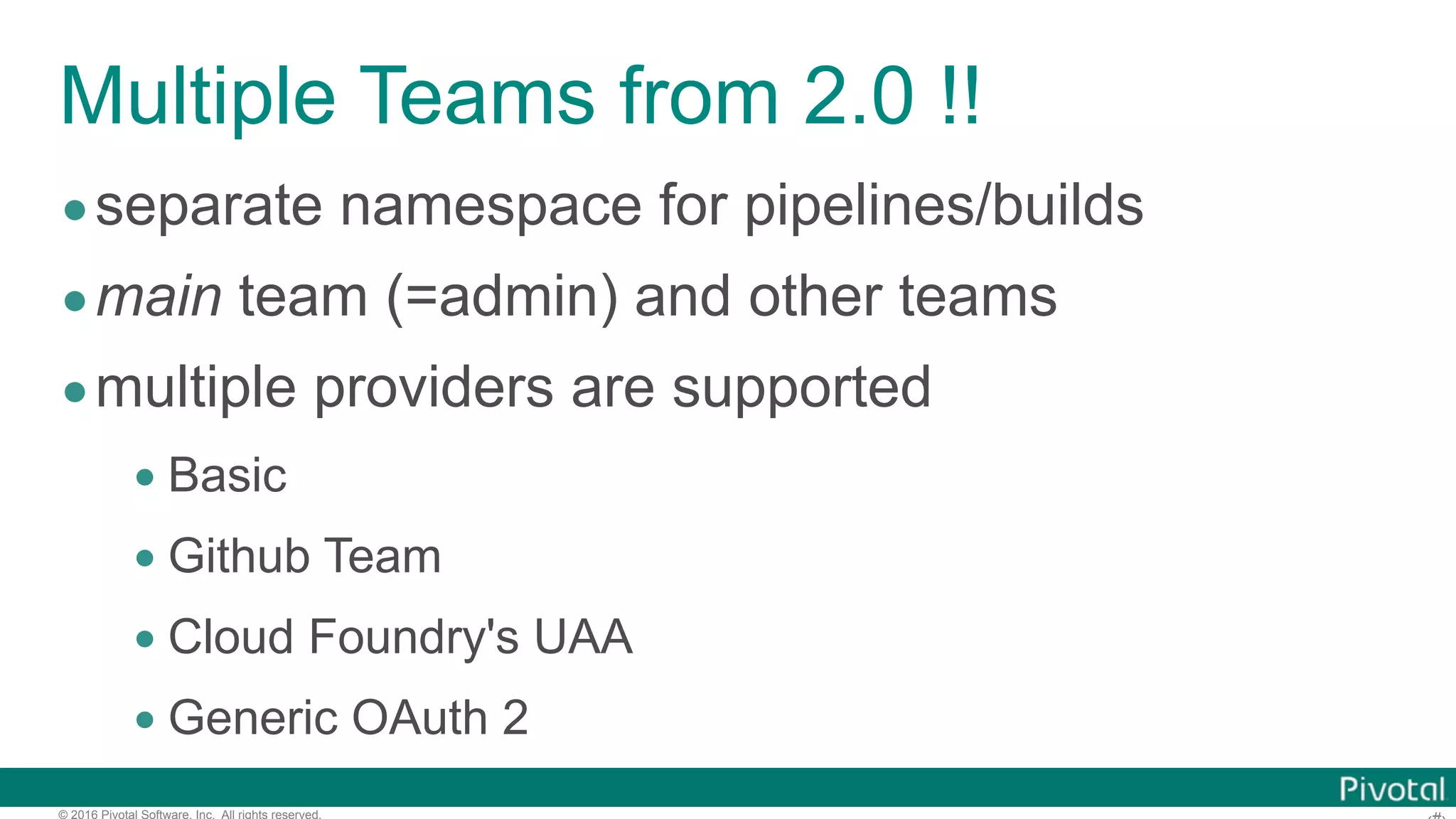

Multiple Teams from 2.0 !!
•separate namespace for pipelines/builds
•main team (=admin) and other teams
•multiple providers are supported
• Basic
• Github Team
• Cloud Foundry's UAA
• Generic OAuth 2

9. © 2016 Pivotal Software, Inc. All rights reserved.
Github TeamGithub TeamBasicBasicTeam A Team B
😎

10. © 2016 Pivotal Software, Inc. All rights reserved.

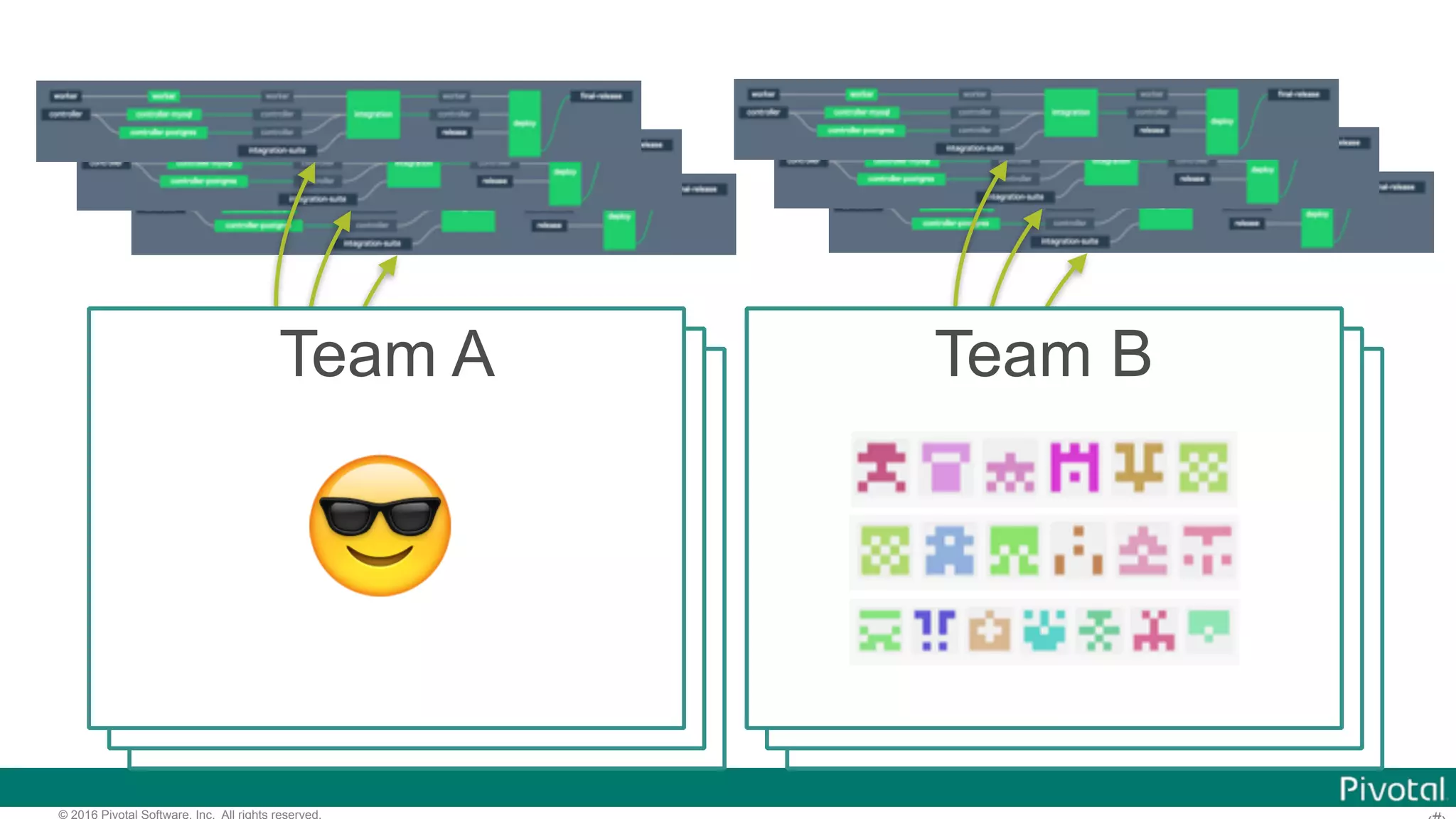

Github TeamGithub TeamBasicBasicTeam A Team B
😎

11. © 2016 Pivotal Software, Inc. All rights reserved.

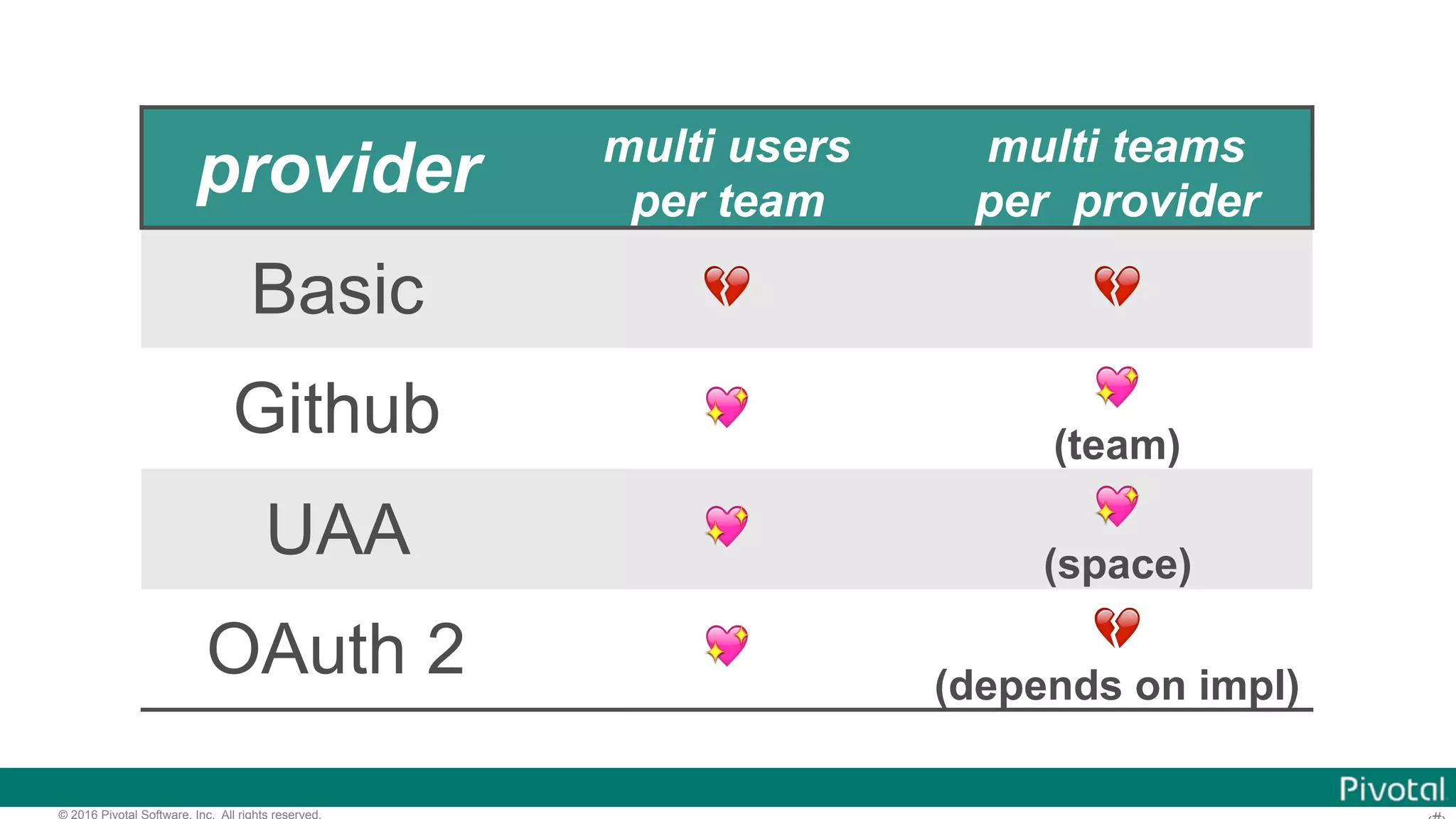

provider multi users
per team
multi teams
per provider
Basic 💔 💔
Github 💖 💖
(team)
UAA 💖 💖
(space)
OAuth 2 💖 💔
(depends on impl)

12. © 2016 Pivotal Software, Inc. All rights reserved.

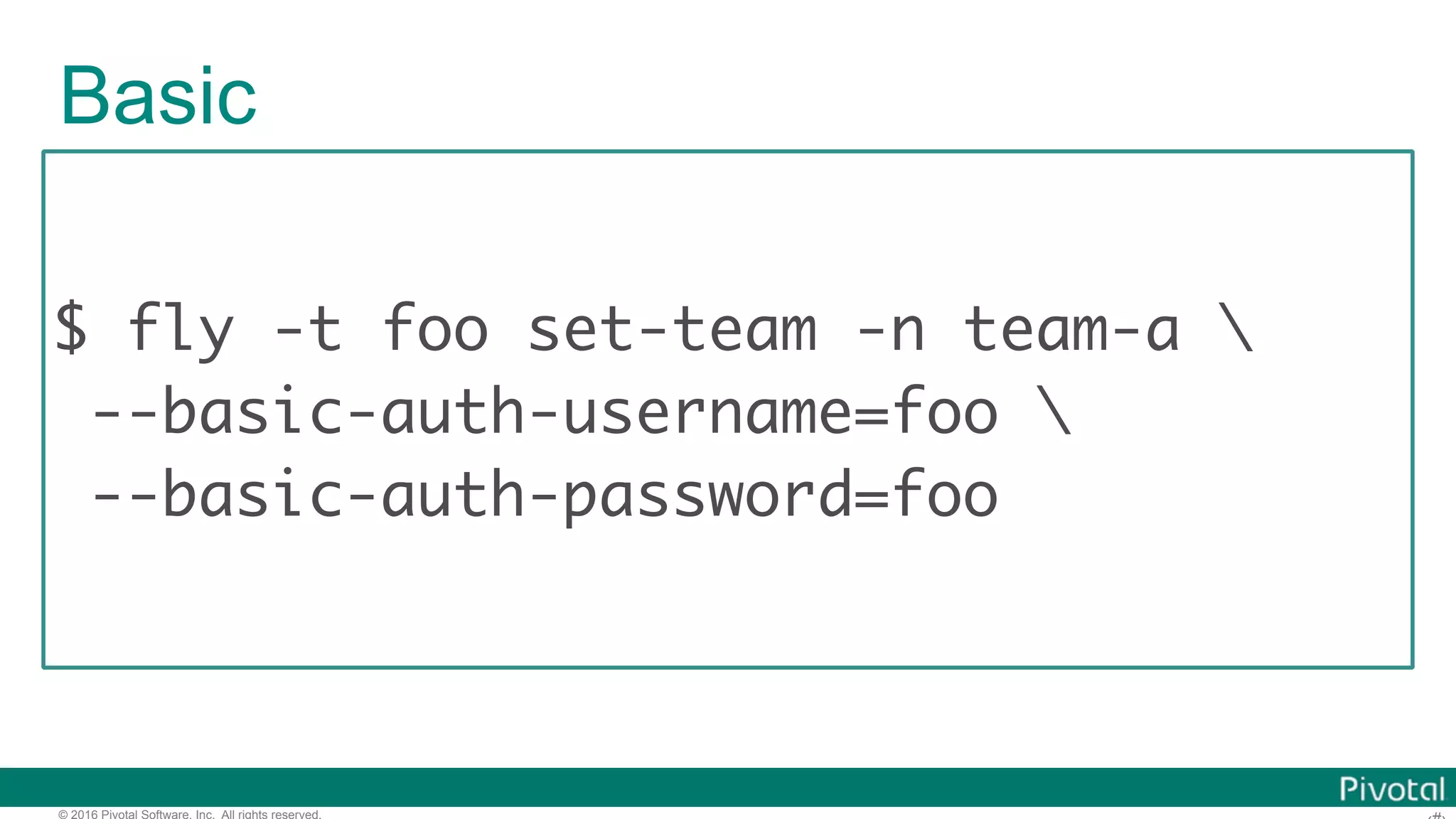

Basic
$ fly -t foo set-team -n team-a
--basic-auth-username=foo
--basic-auth-password=foo

13. © 2016 Pivotal Software, Inc. All rights reserved.

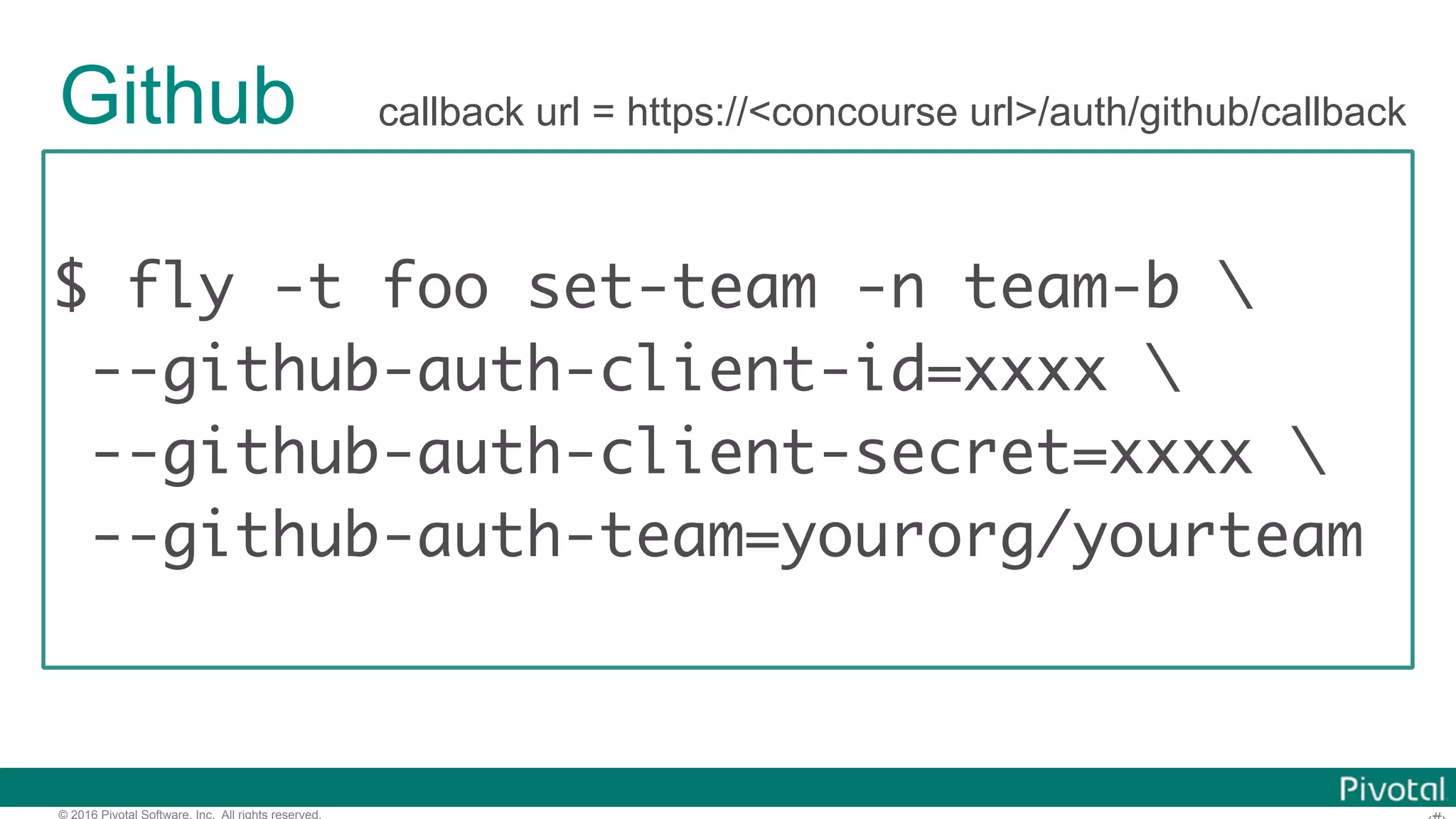

Github
$ fly -t foo set-team -n team-b
--github-auth-client-id=xxxx
--github-auth-client-secret=xxxx
--github-auth-team=yourorg/yourteam
callback url = https://<concourse url>/auth/github/callback

14. © 2016 Pivotal Software, Inc. All rights reserved.

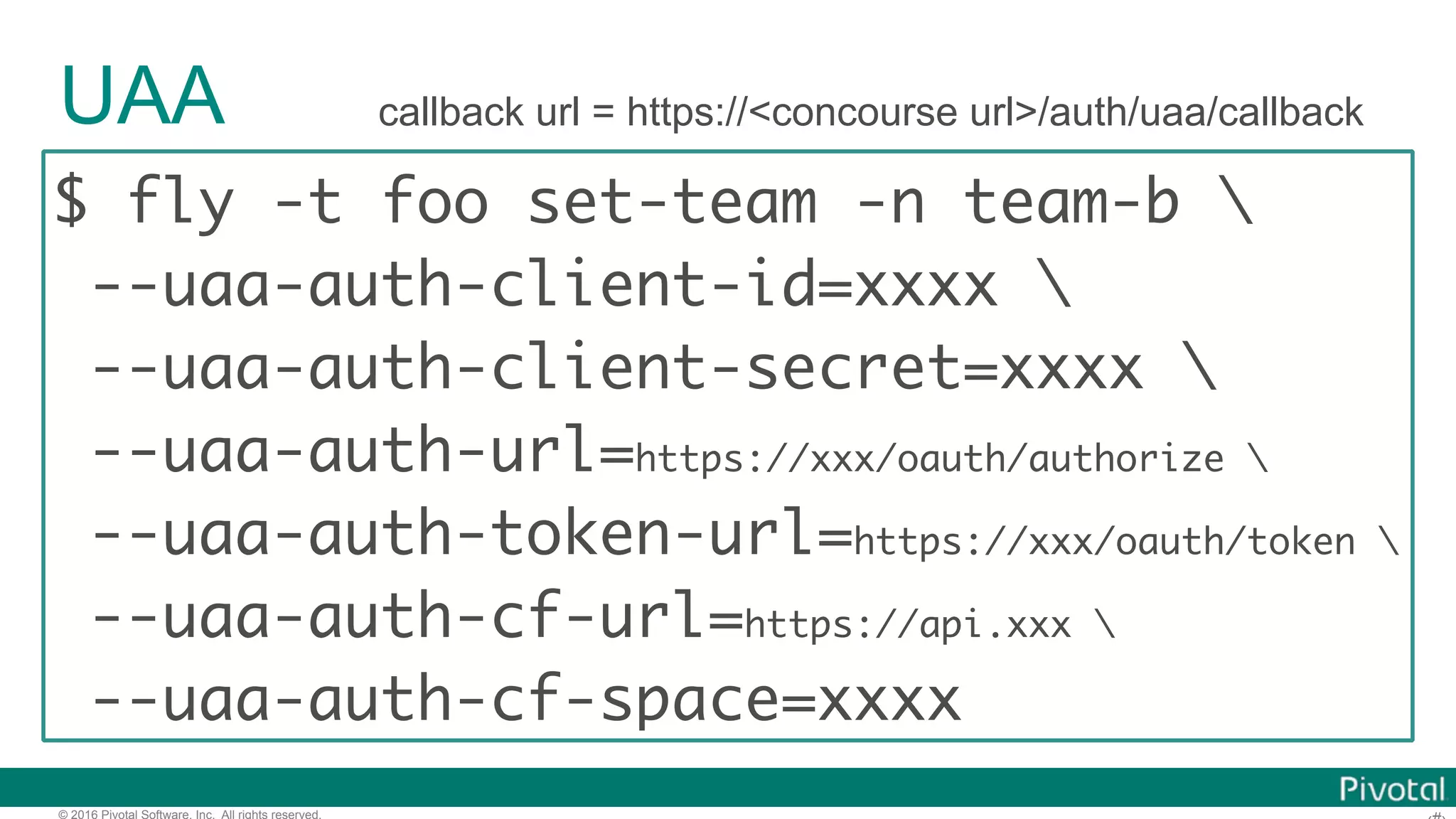

UAA
$ fly -t foo set-team -n team-b
--uaa-auth-client-id=xxxx
--uaa-auth-client-secret=xxxx
--uaa-auth-url=https://xxx/oauth/authorize
--uaa-auth-token-url=https://xxx/oauth/token
--uaa-auth-cf-url=https://api.xxx
--uaa-auth-cf-space=xxxx
callback url = https://<concourse url>/auth/uaa/callback

15. © 2016 Pivotal Software, Inc. All rights reserved.

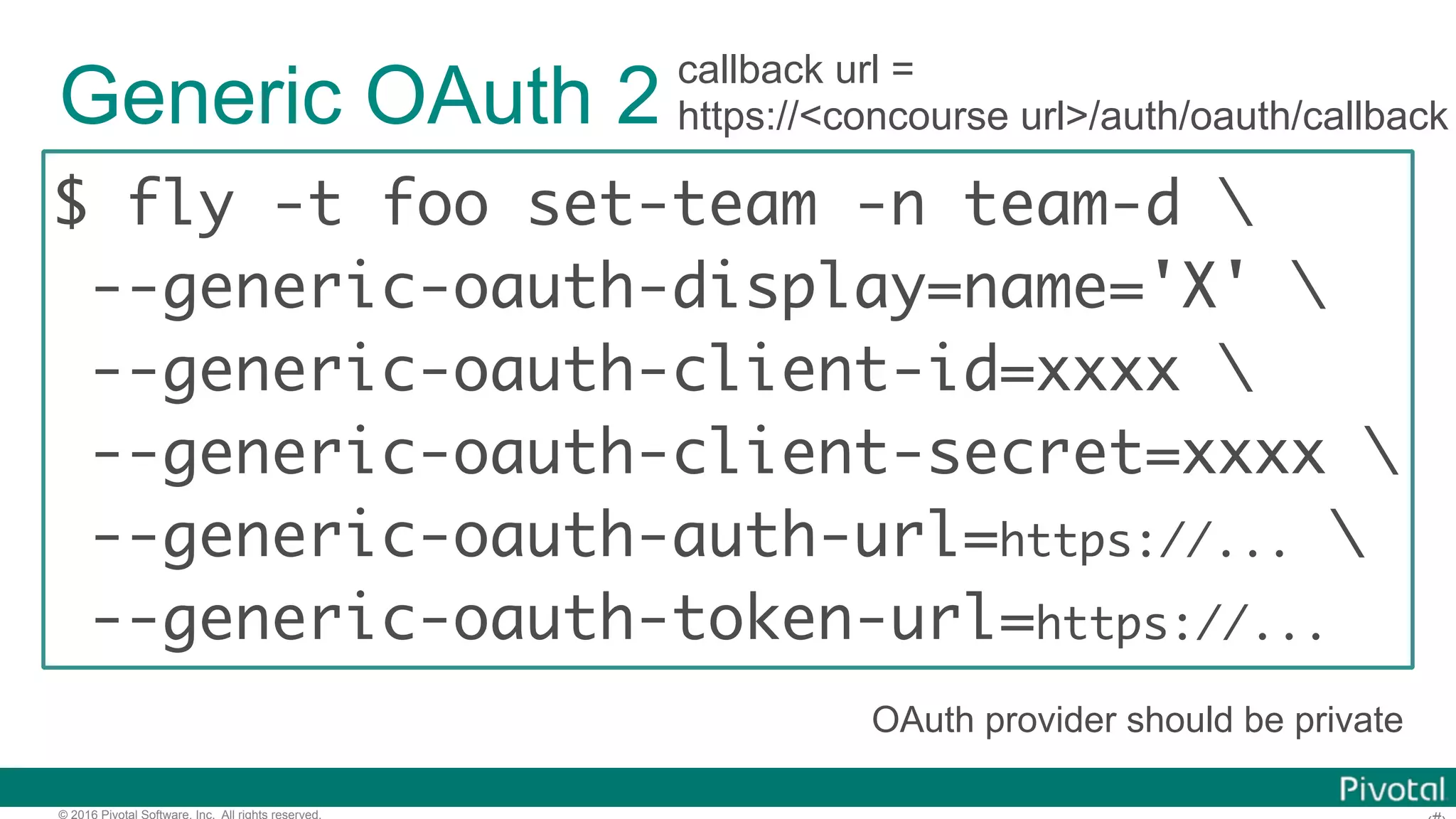

Generic OAuth 2
$ fly -t foo set-team -n team-d
--generic-oauth-display=name='X'
--generic-oauth-client-id=xxxx
--generic-oauth-client-secret=xxxx
--generic-oauth-auth-url=https://...
--generic-oauth-token-url=https://...
callback url =
https://<concourse url>/auth/oauth/callback
OAuth provider should be private

16. © 2016 Pivotal Software, Inc. All rights reserved.

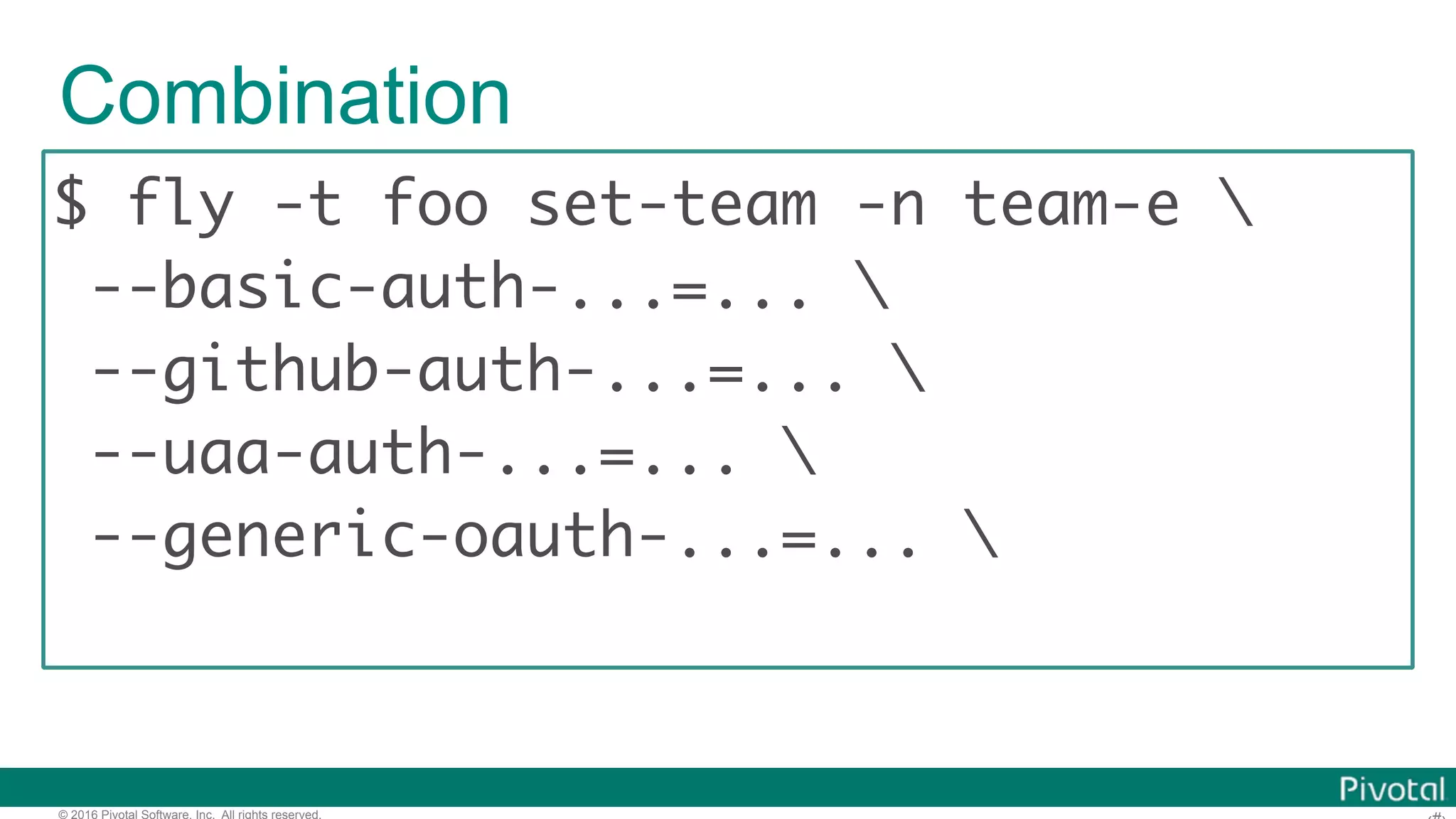

Combination
$ fly -t foo set-team -n team-e
--basic-auth-...=...
--github-auth-...=...
--uaa-auth-...=...
--generic-oauth-...=...

17. ‹#›© 2016 Pivotal Software, Inc. All rights reserved.

18. ‹#›© 2016 Pivotal Software, Inc. All rights reserved.
Demo
