Docker is used at MoneyBird to manage development environments for software engineers, prevent issues with dependencies, and maintain traceability of dependencies. MoneyBird started using Docker in 2013 for development environments, 2014 for staging, and 2015 for production on AWS. Images are based on Ubuntu and include build essentials, PostgreSQL client, locale settings, and SSH keys. Images are tagged with the Ruby version, image version, and git SHA. Dockerfiles are kept in a central git repository and each project has a Dockerfile. Continuous integration uses Buildkite to build and test images from git pushes. Development uses Vagrant and Docker for quick local development while production simply pulls and runs predefined images on EC2 instances.

1. Docker at MoneyBird
Edwin Vlieg
€

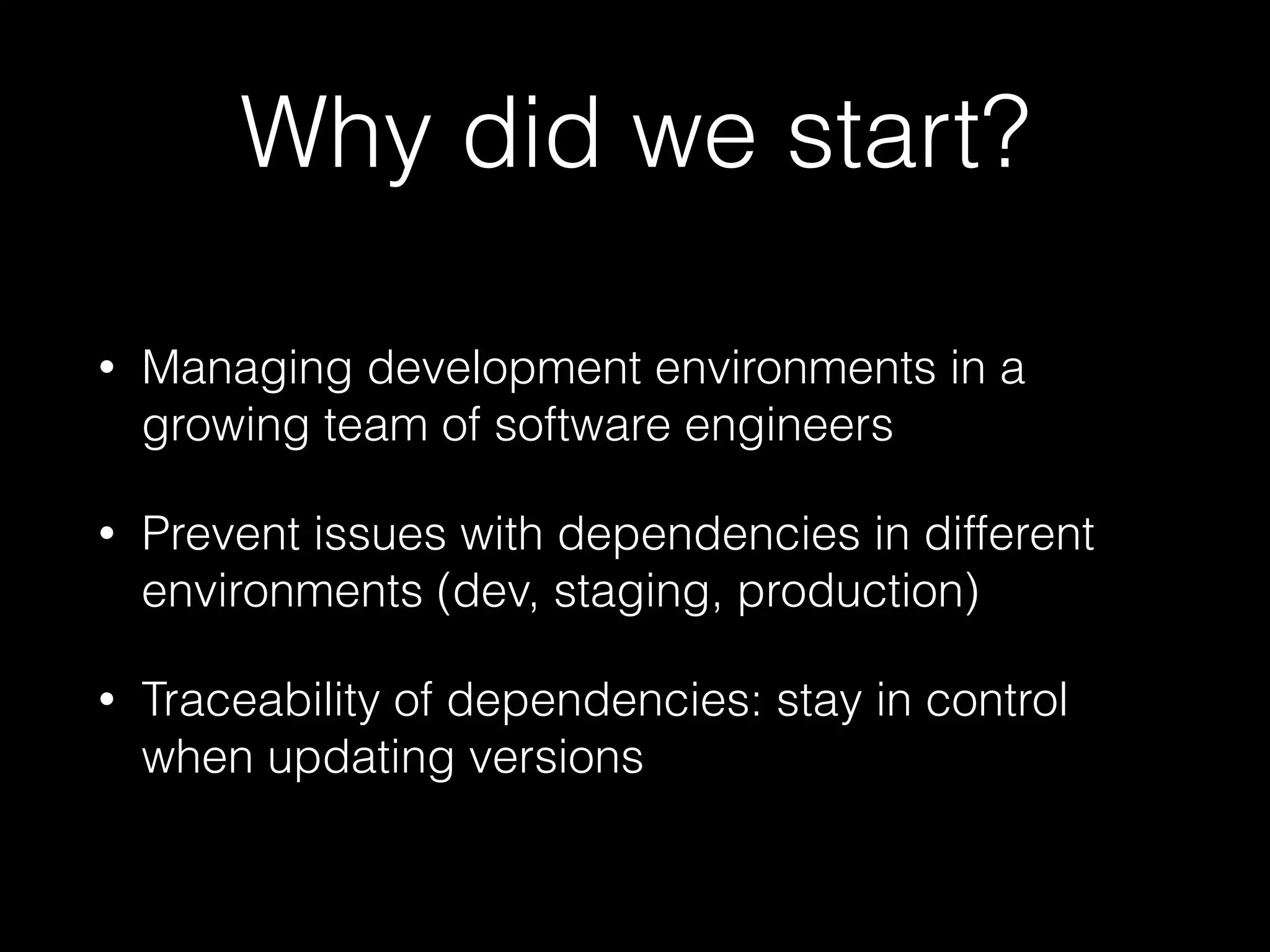

2. Why did we start?
• Managing development environments in a
growing team of software engineers
• Prevent issues with dependencies in different
environments (dev, staging, production)
• Traceability of dependencies: stay in control
when updating versions

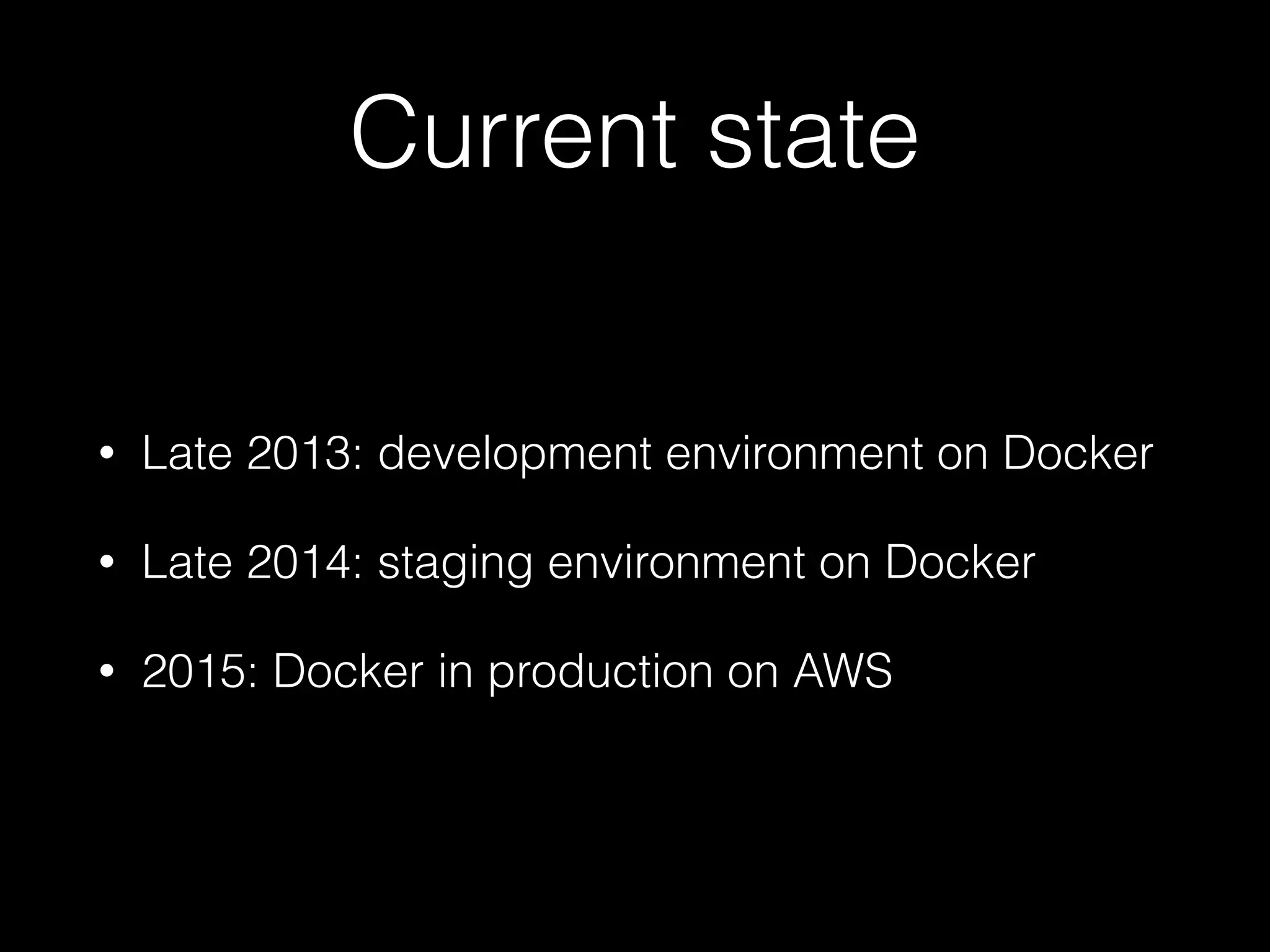

3. Current state
• Late 2013: development environment on Docker
• Late 2014: staging environment on Docker
• 2015: Docker in production on AWS

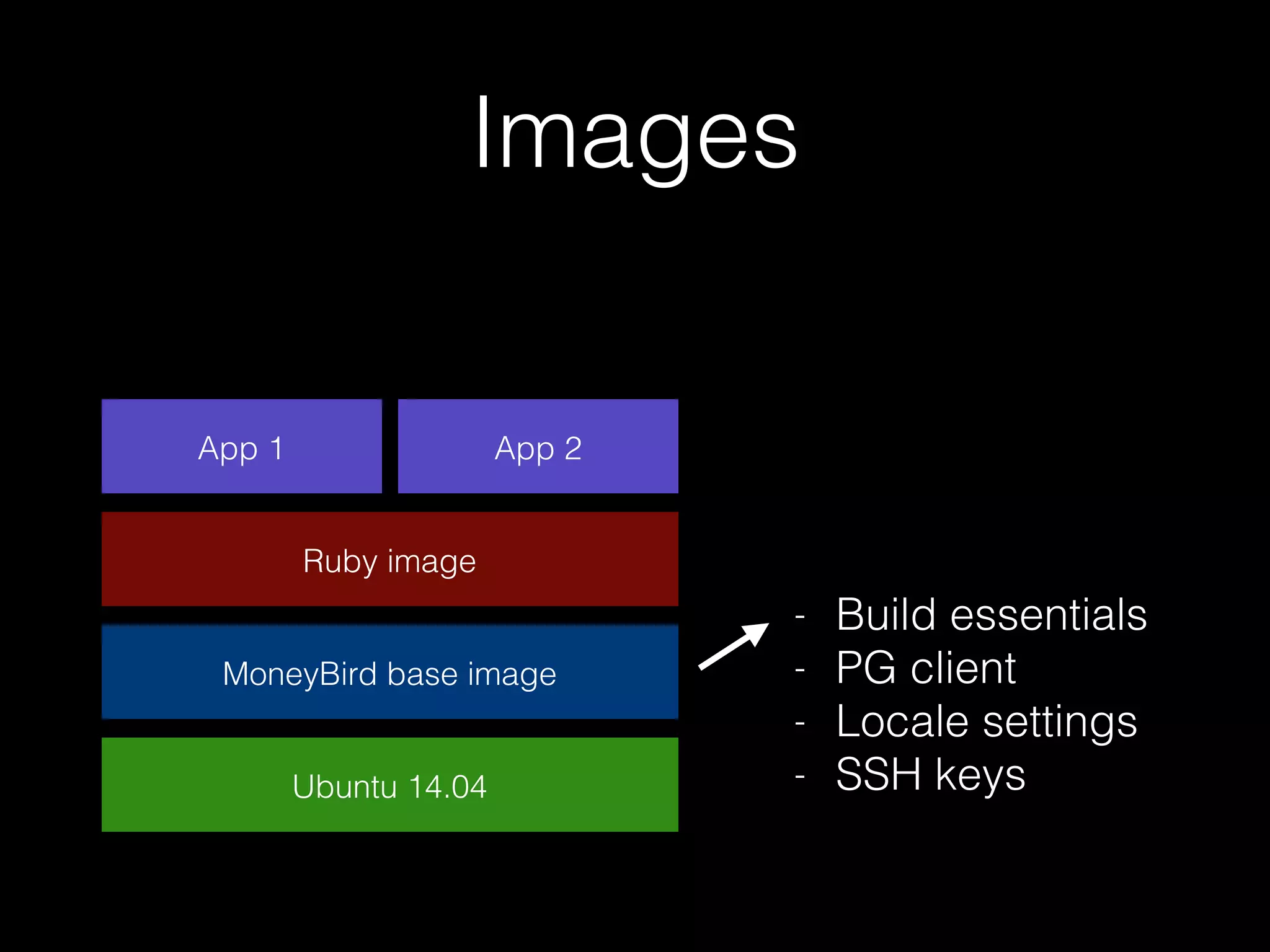

4. Images
Ubuntu 14.04
MoneyBird base image
- Build essentials
- PG client
- Locale settings
- SSH keys
Ruby image
App 1 App 2

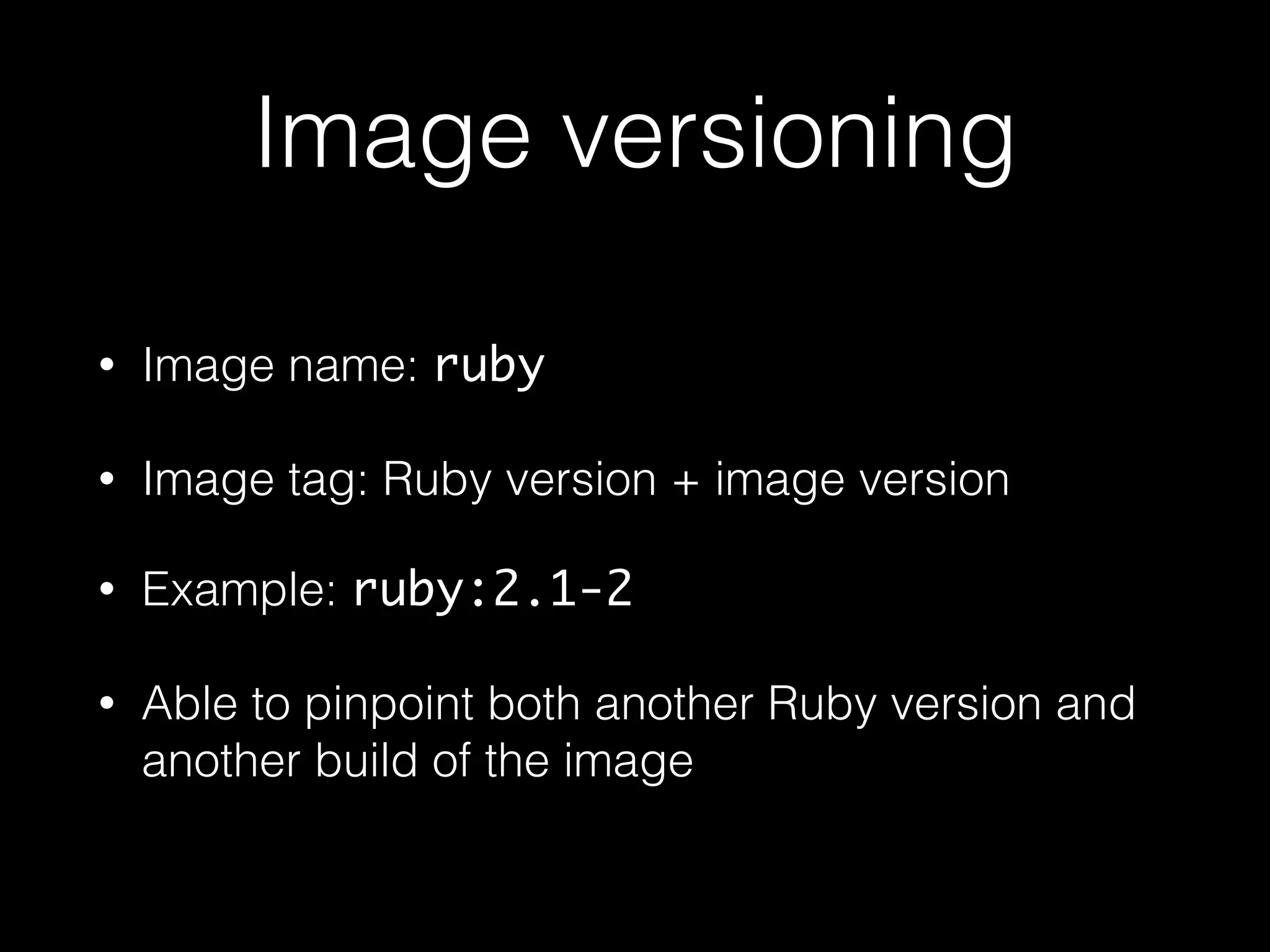

5. Image versioning
• Image name: ruby
• Image tag: Ruby version + image version
• Example: ruby:2.1-2
• Able to pinpoint both another Ruby version and
another build of the image

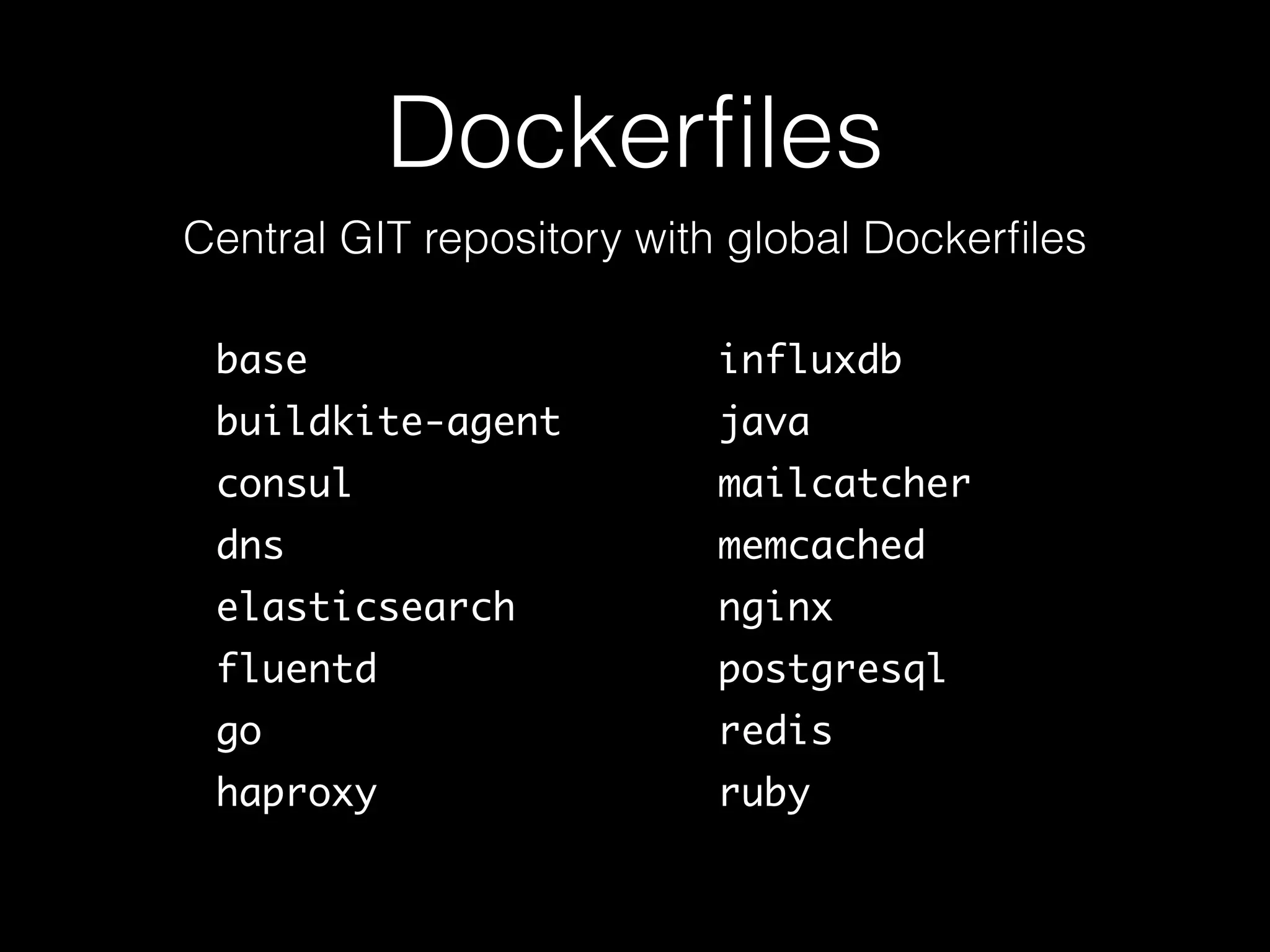

6. Dockerfiles
Central GIT repository with global Dockerfiles
base
buildkite-agent
consul
dns
elasticsearch
fluentd
go
haproxy
influxdb
java
mailcatcher
memcached
nginx
postgresql
redis
ruby

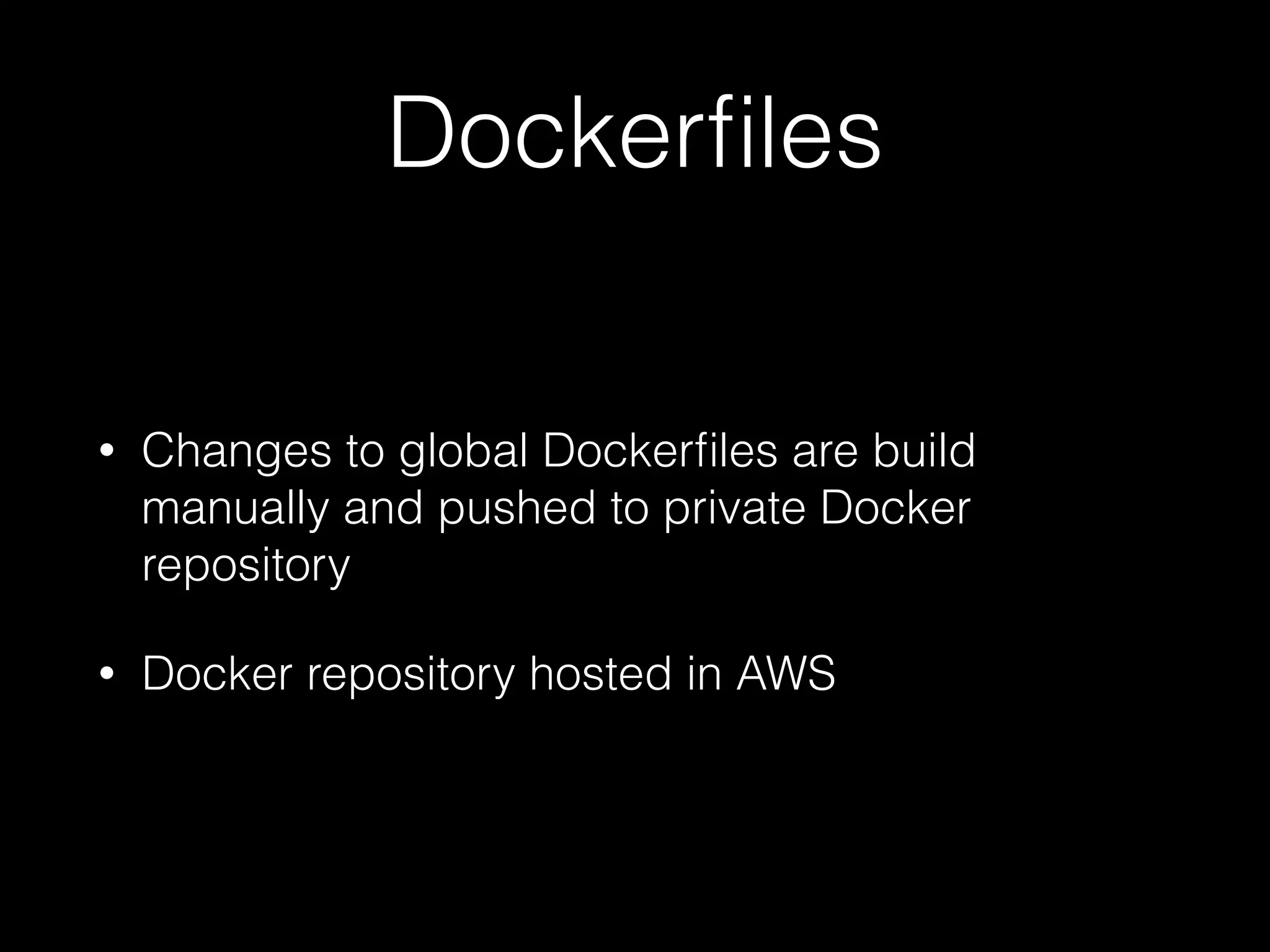

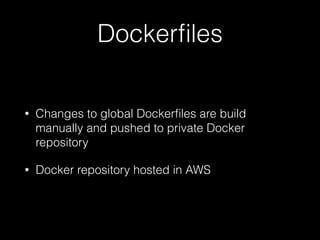

7. Dockerfiles
• Changes to global Dockerfiles are build
manually and pushed to private Docker
repository
• Docker repository hosted in AWS

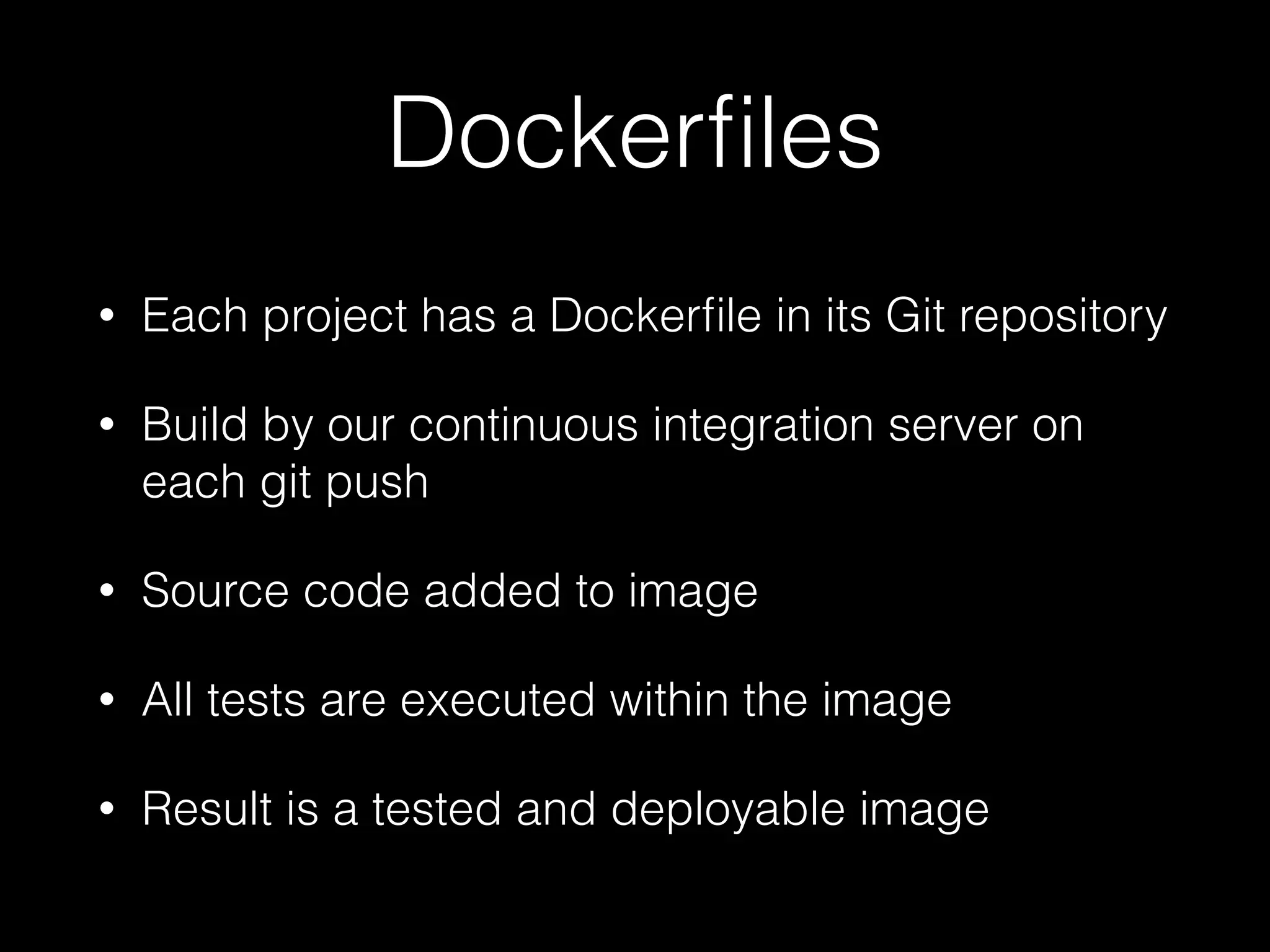

8. Dockerfiles
• Each project has a Dockerfile in its Git repository
• Build by our continuous integration server on
each git push
• Source code added to image
• All tests are executed within the image
• Result is a tested and deployable image

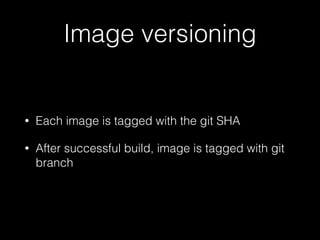

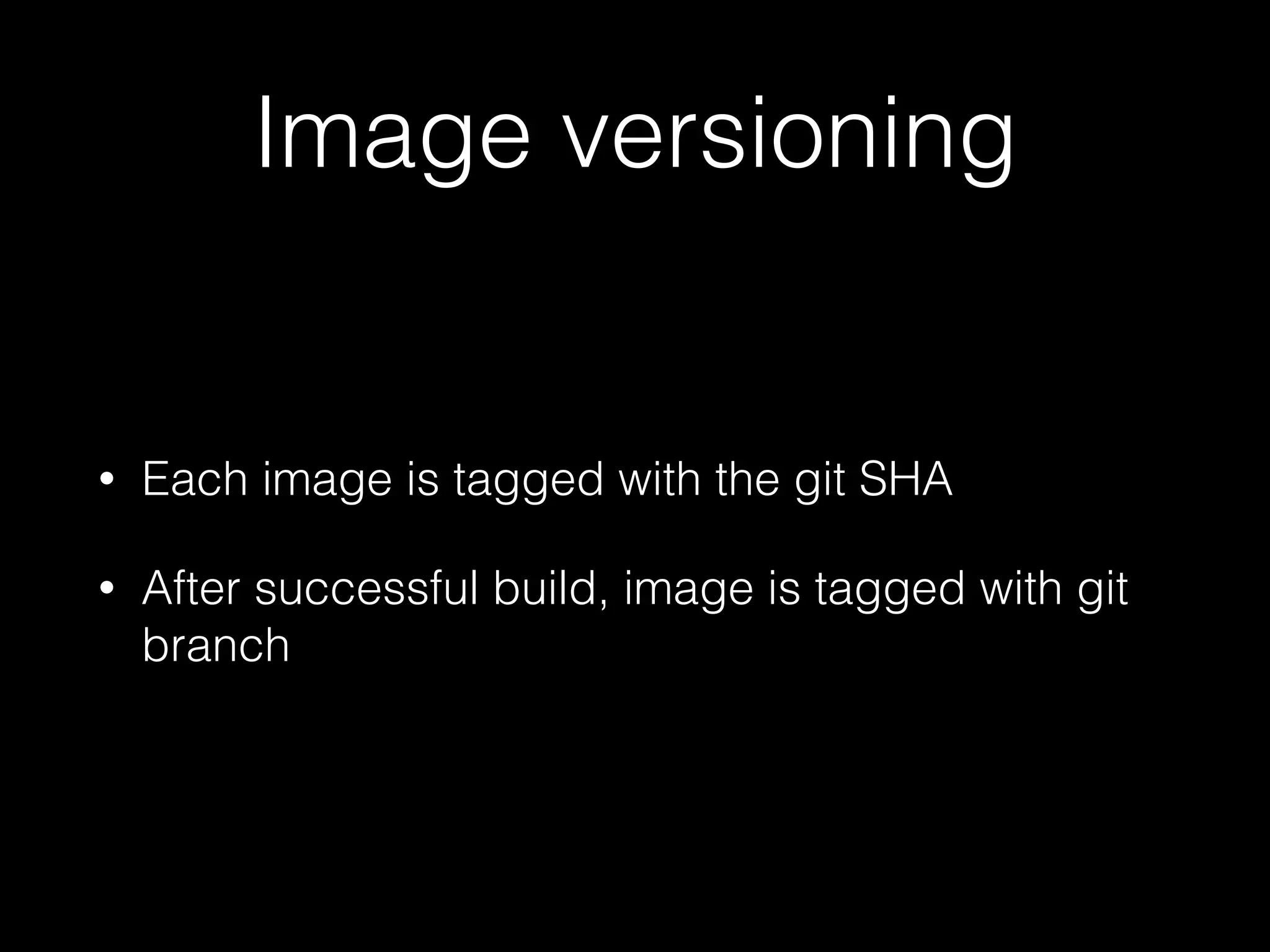

9. Image versioning
• Each image is tagged with the git SHA
• After successful build, image is tagged with git
branch

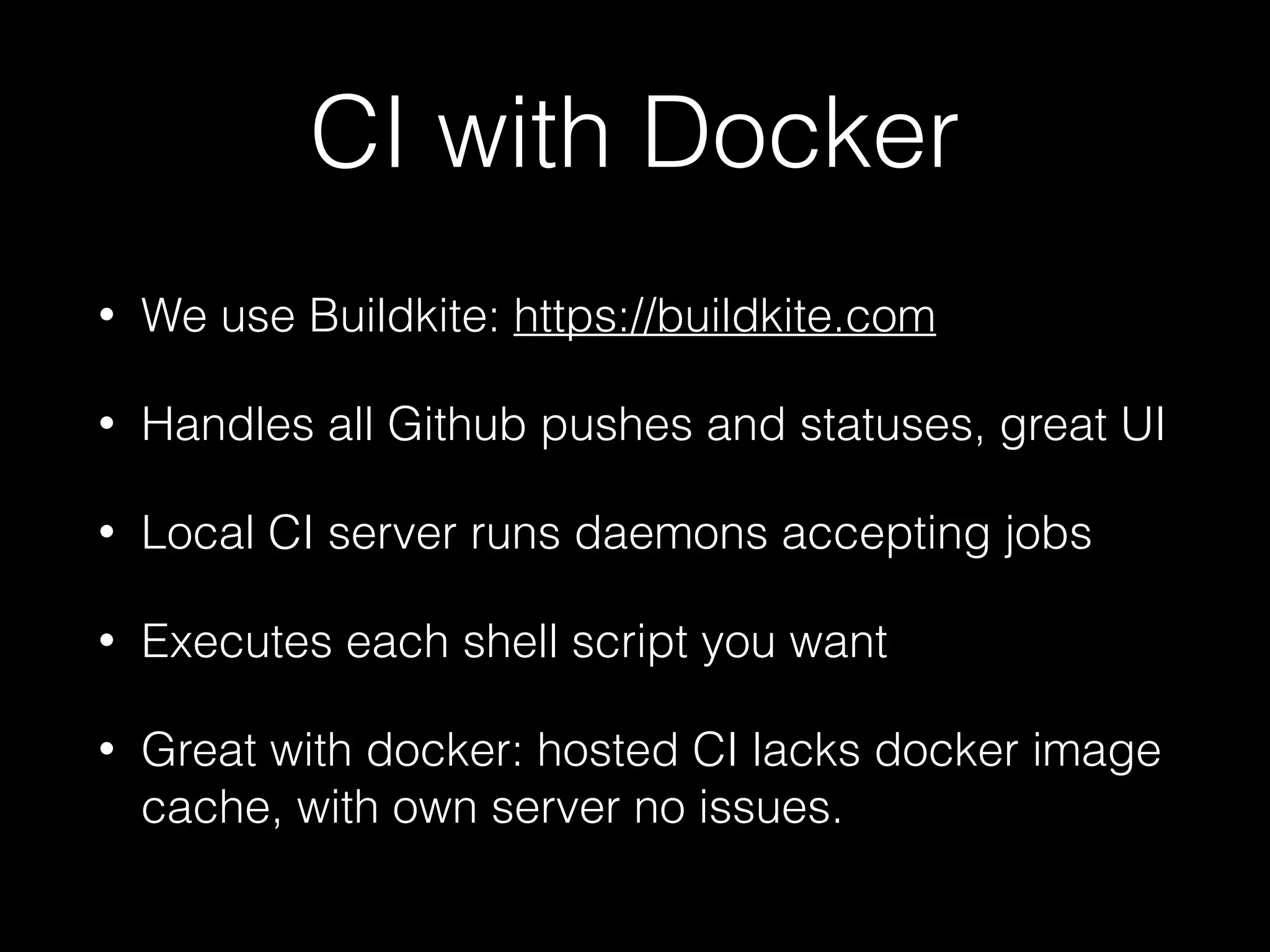

10. CI with Docker
• We use Buildkite: https://buildkite.com
• Handles all Github pushes and statuses, great UI
• Local CI server runs daemons accepting jobs
• Executes each shell script you want
• Great with docker: hosted CI lacks docker image
cache, with own server no issues.

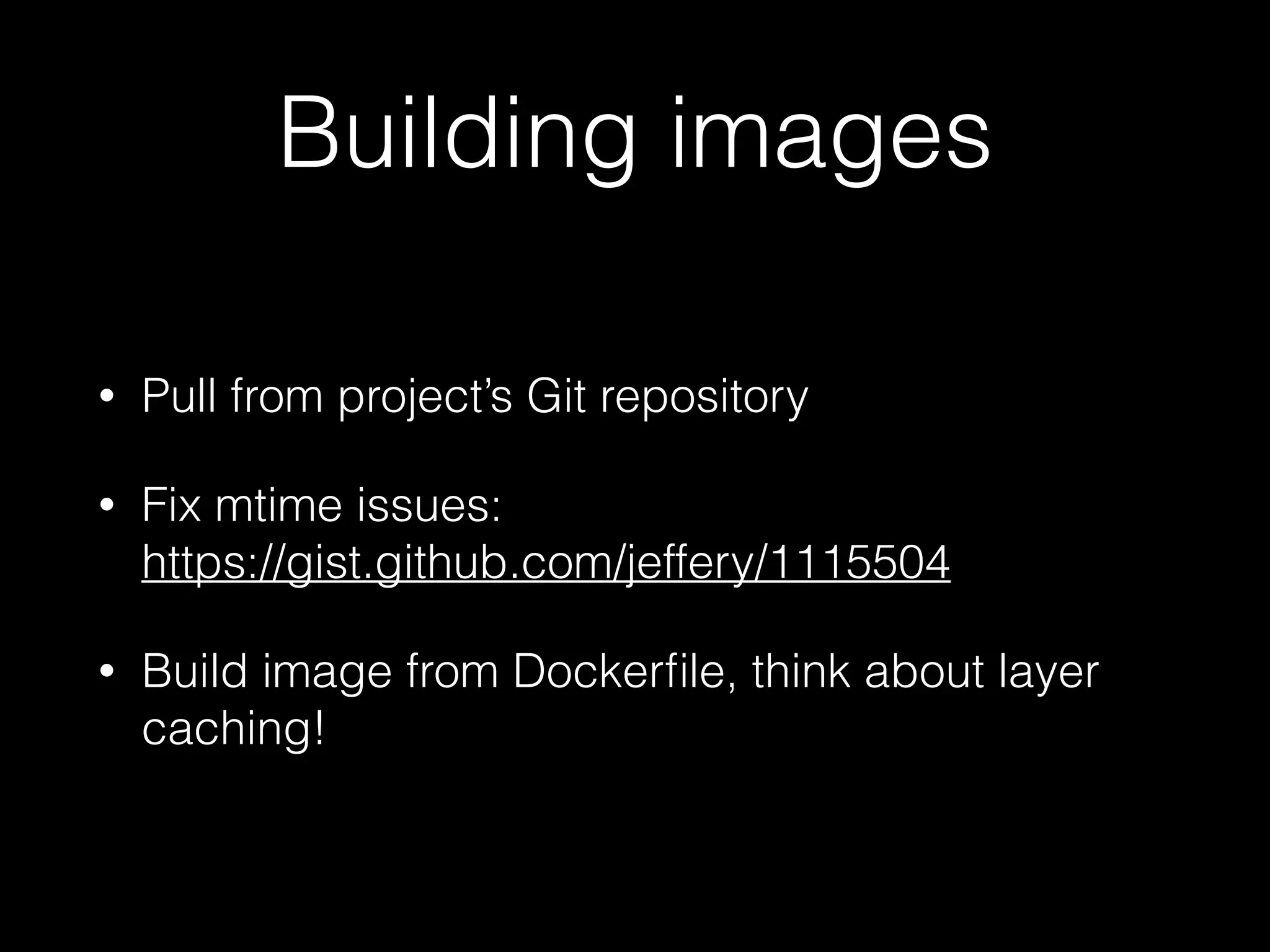

11. Building images
• Pull from project’s Git repository
• Fix mtime issues:
https://gist.github.com/jeffery/1115504
• Build image from Dockerfile, think about layer
caching!

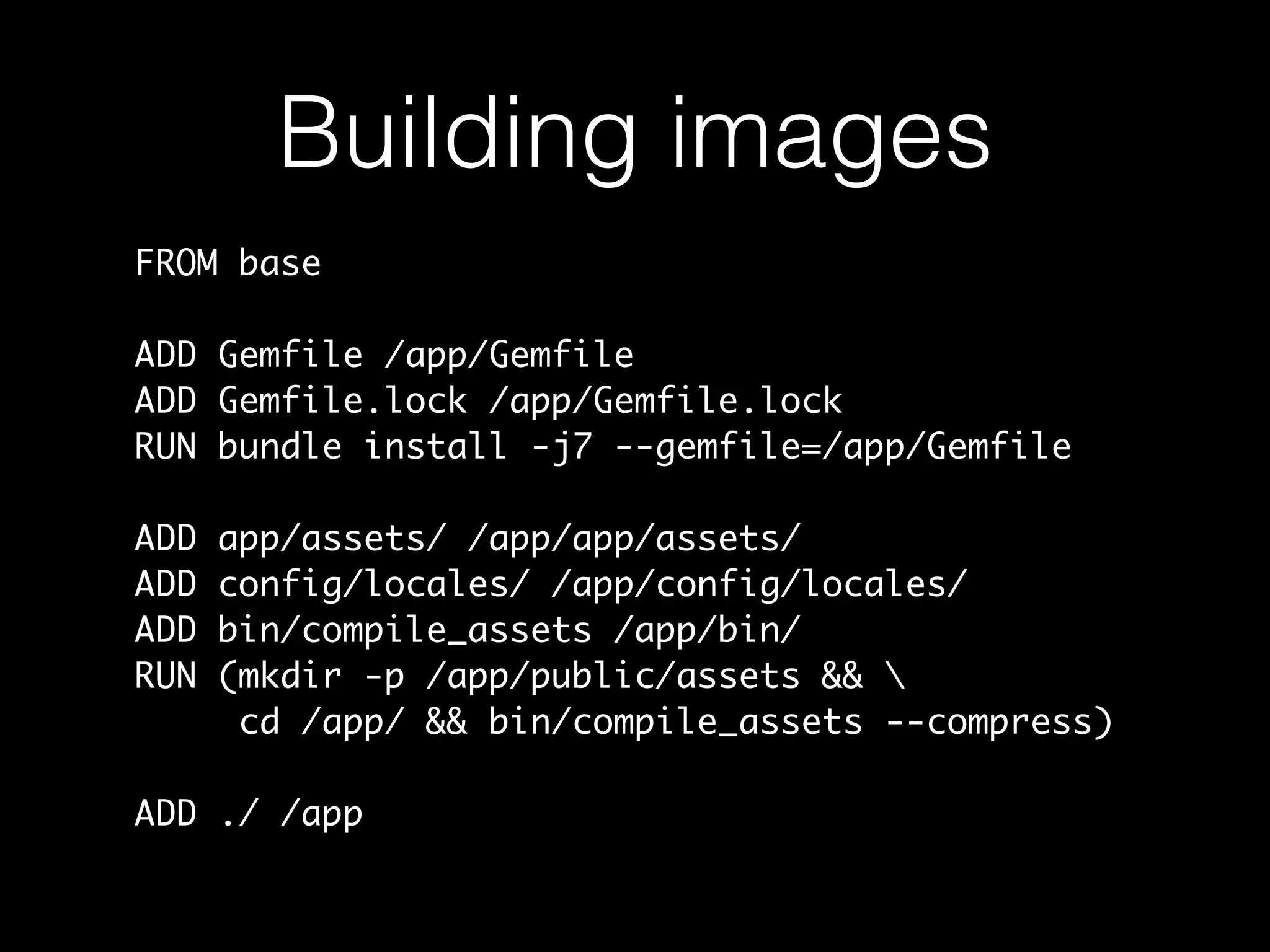

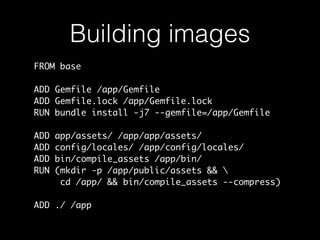

12. Building images
FROM base
ADD Gemfile /app/Gemfile
ADD Gemfile.lock /app/Gemfile.lock
RUN bundle install -j7 --gemfile=/app/Gemfile
ADD app/assets/ /app/app/assets/
ADD config/locales/ /app/config/locales/
ADD bin/compile_assets /app/bin/
RUN (mkdir -p /app/public/assets &&
cd /app/ && bin/compile_assets --compress)
ADD ./ /app

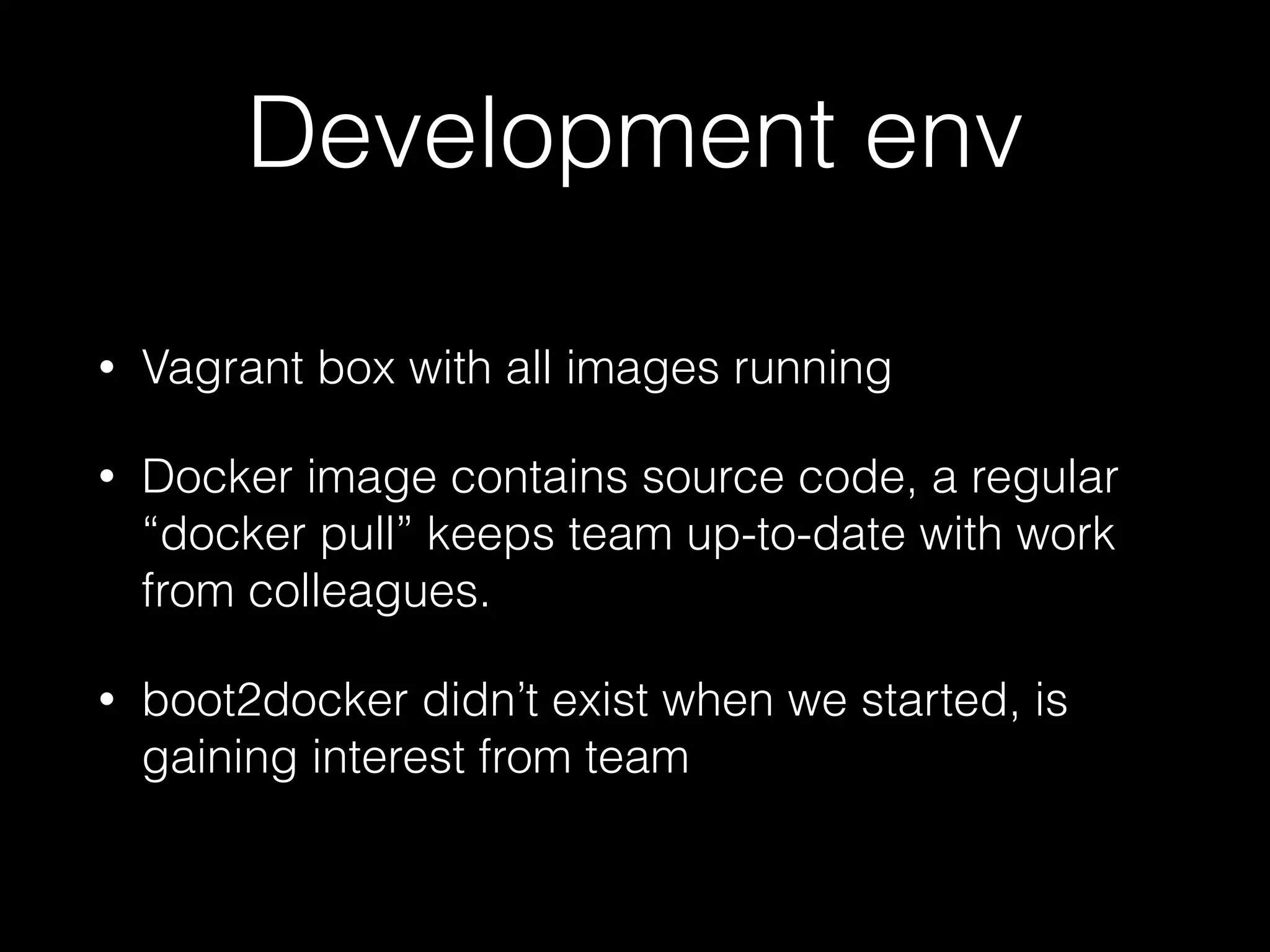

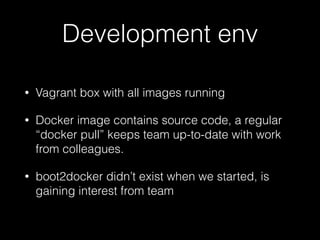

13. Development env
• Vagrant box with all images running
• Docker image contains source code, a regular
“docker pull” keeps team up-to-date with work
from colleagues.
• boot2docker didn’t exist when we started, is
gaining interest from team

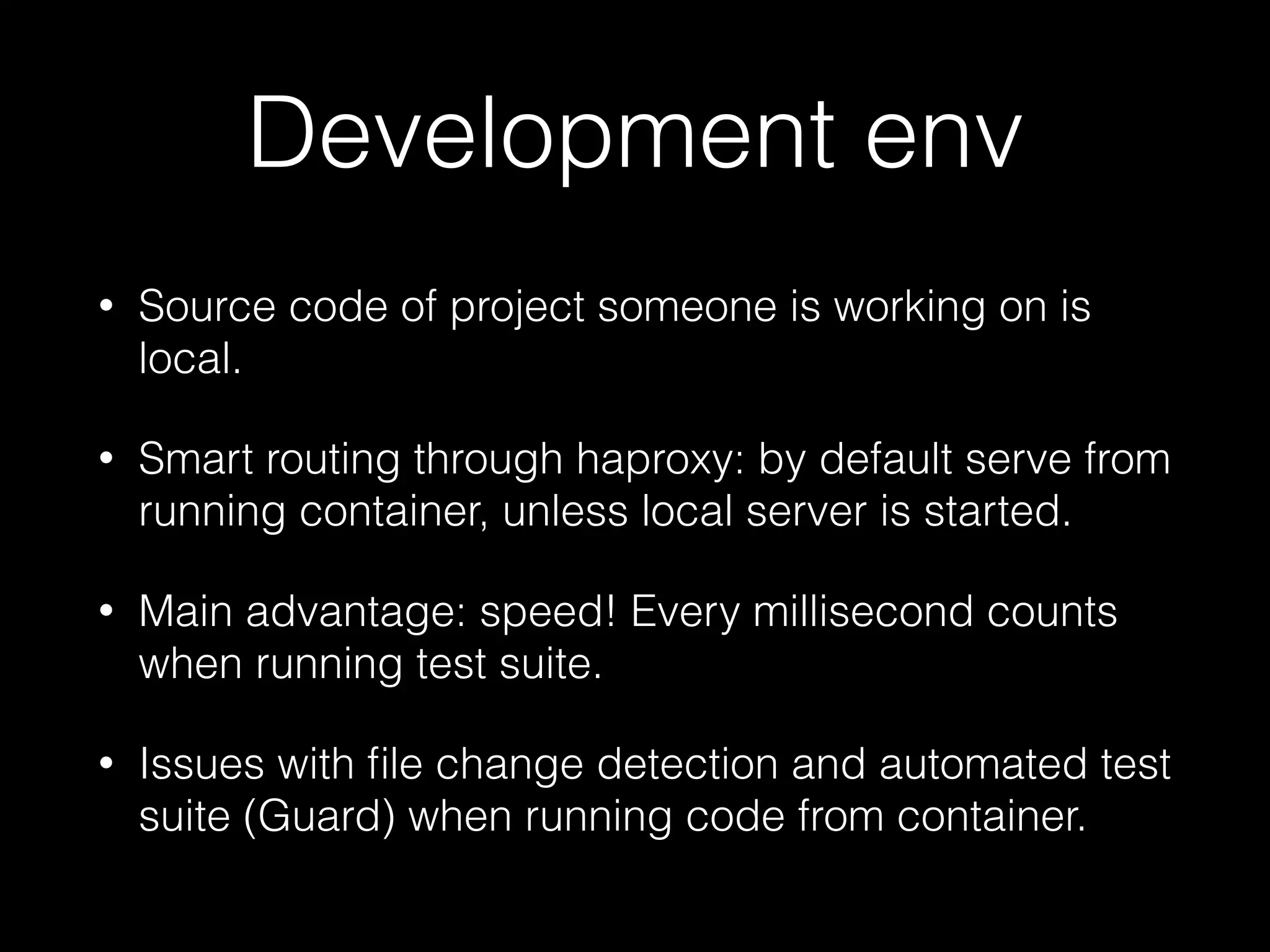

14. Development env
• Source code of project someone is working on is
local.
• Smart routing through haproxy: by default serve from
running container, unless local server is started.
• Main advantage: speed! Every millisecond counts
when running test suite.
• Issues with file change detection and automated test
suite (Guard) when running code from container.

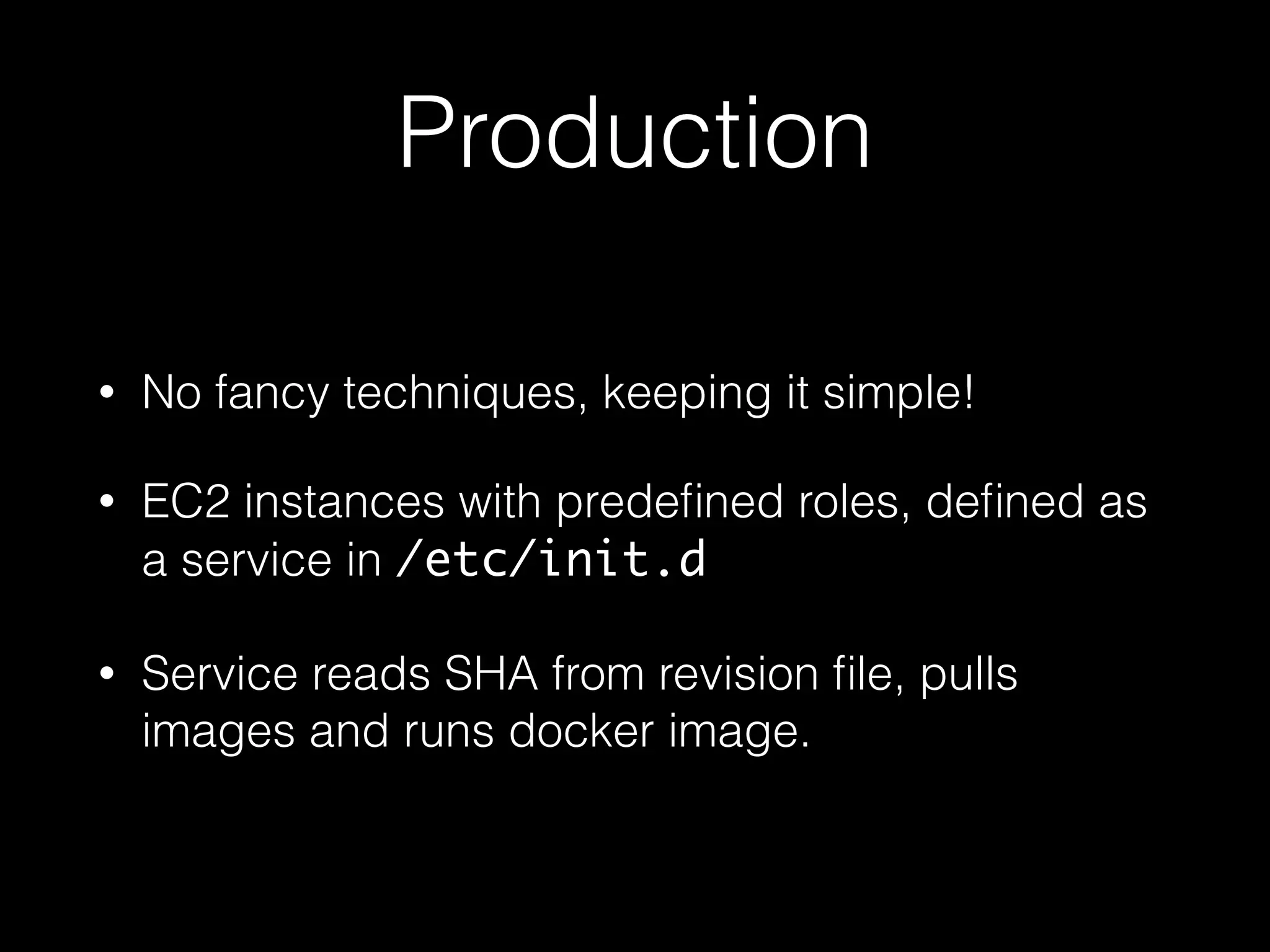

15. Production
• No fancy techniques, keeping it simple!
• EC2 instances with predefined roles, defined as
a service in /etc/init.d
• Service reads SHA from revision file, pulls
images and runs docker image.

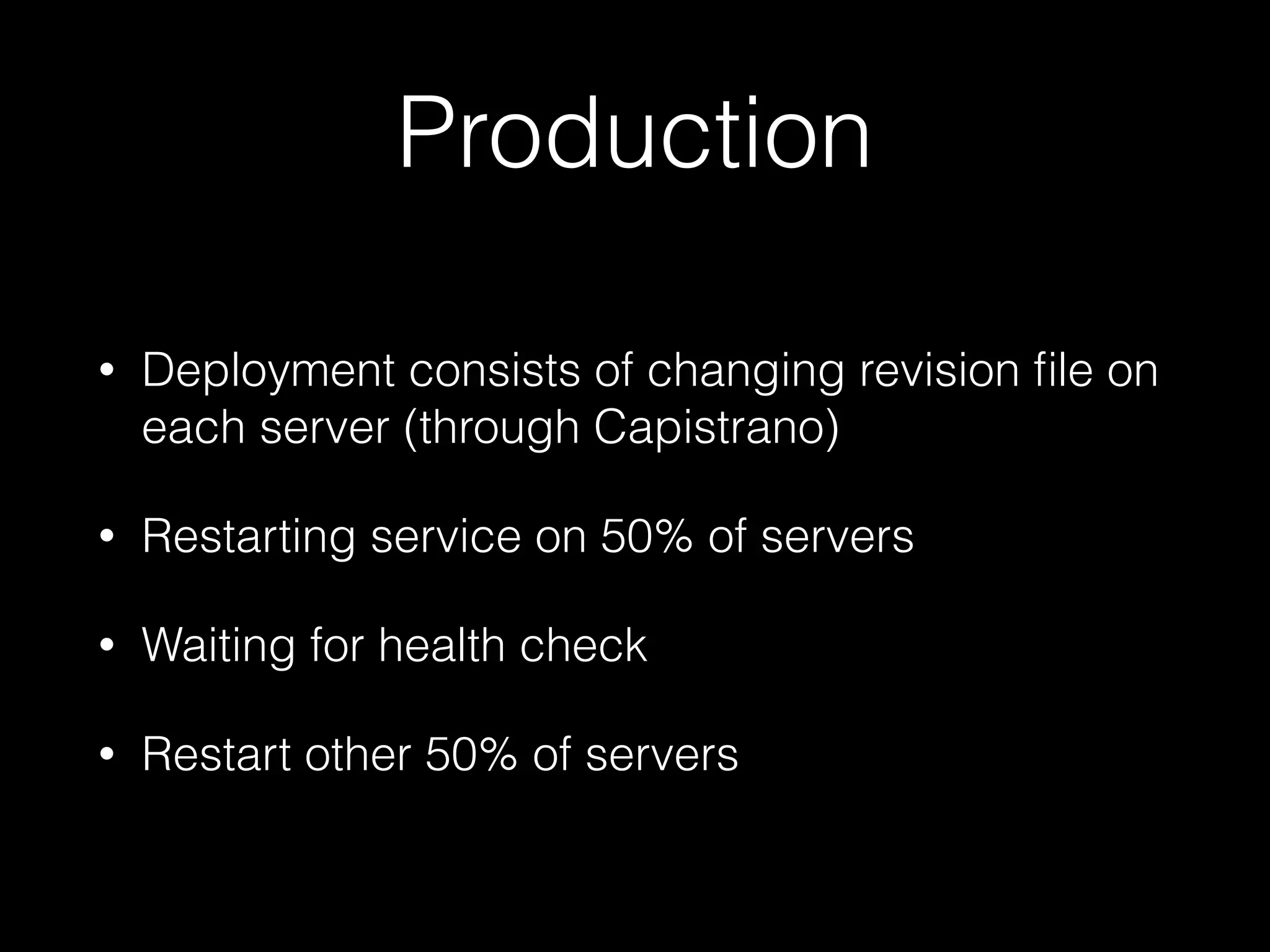

16. Production
• Deployment consists of changing revision file on
each server (through Capistrano)
• Restarting service on 50% of servers
• Waiting for health check
• Restart other 50% of servers

17. Questions?
