The document highlights the major features and enhancements introduced in Spring 5, including support for Java 9, HTTP/2, and reactive programming with WebFlux. It details changes in bean configuration, improved logging, and new validation features, while also mentioning deprecated APIs. Additionally, it provides links to resources and training opportunities related to Spring development.

1. © Copyright 2017 Pivotal Software, Inc. All rights Reserved. Version 1.0
Jay Lee(jaylee@pivotal.io)
Younjin Jeong(yjeong@pivotal.io)
November 2017
Spring 5 New Features

2. https://spring.io/blog/2016/09/22/new-in-spring-5-functional-web-framework

6. https://content.pivotal.io/white-papers/speed-thrills-how-to-harness-the-power-of-ci-cd-for-your-development-team

7. Discount Code: S1P200_Jeong

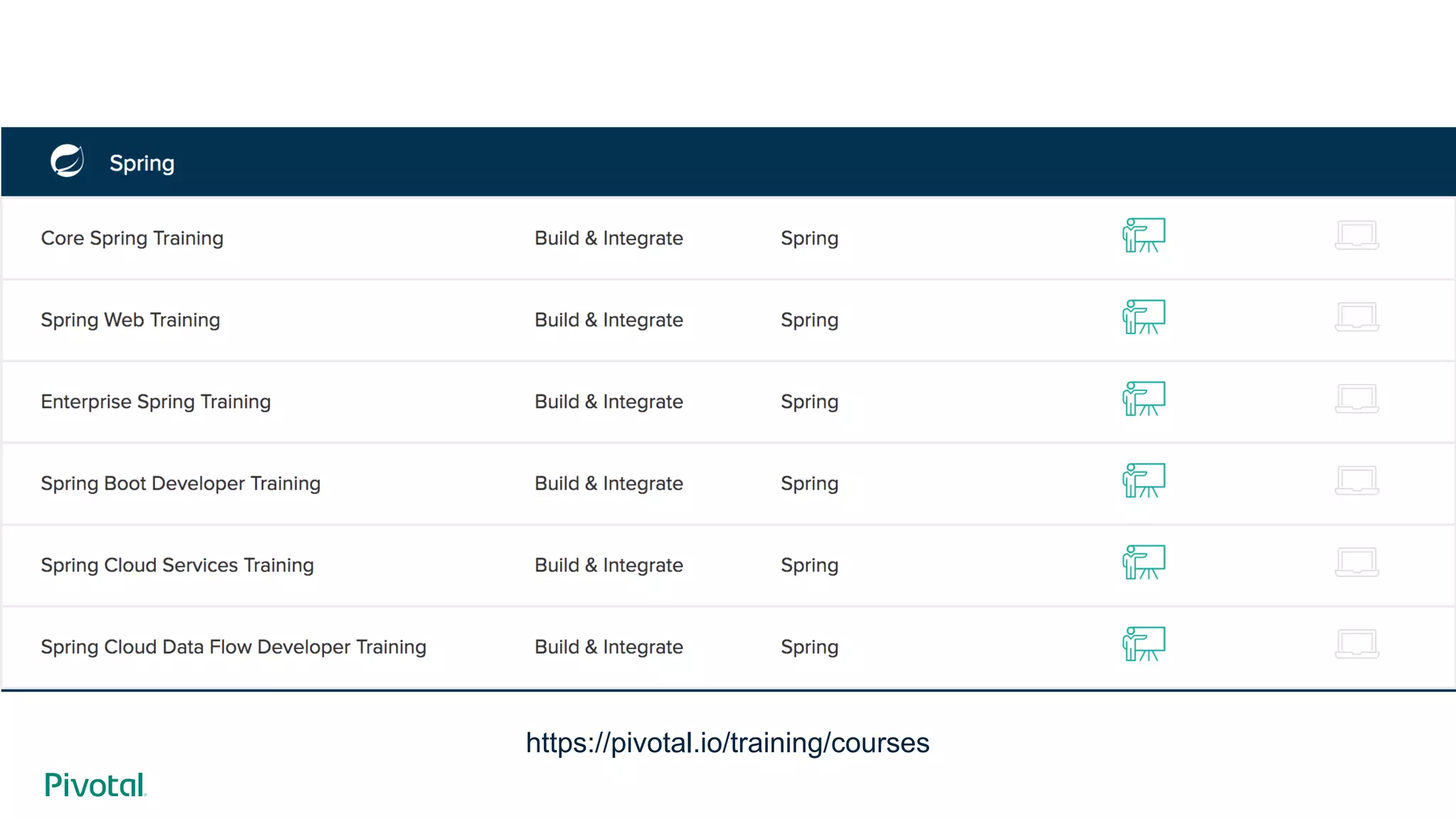

8. https://pivotal.io/training/courses

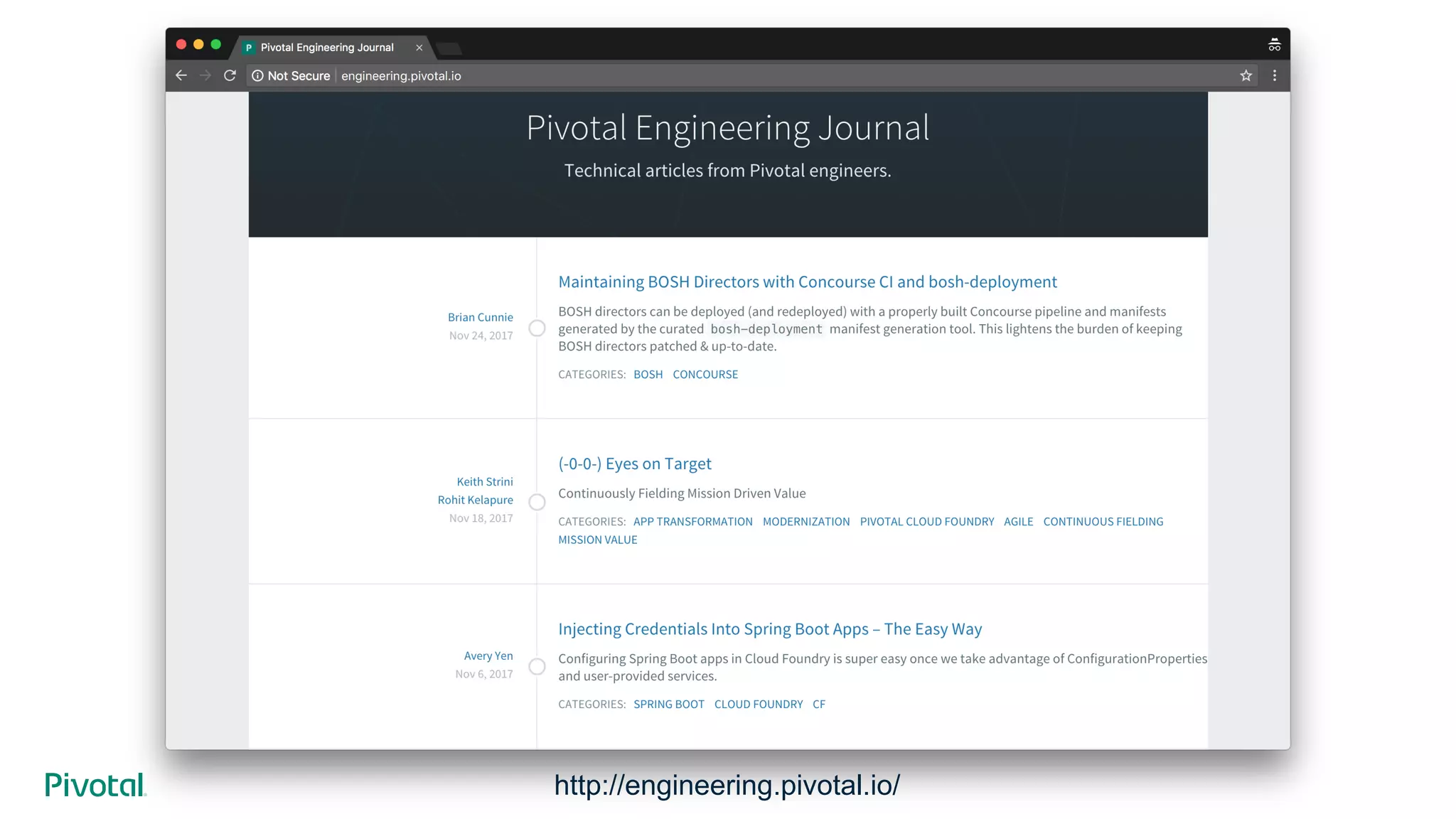

9. http://engineering.pivotal.io/

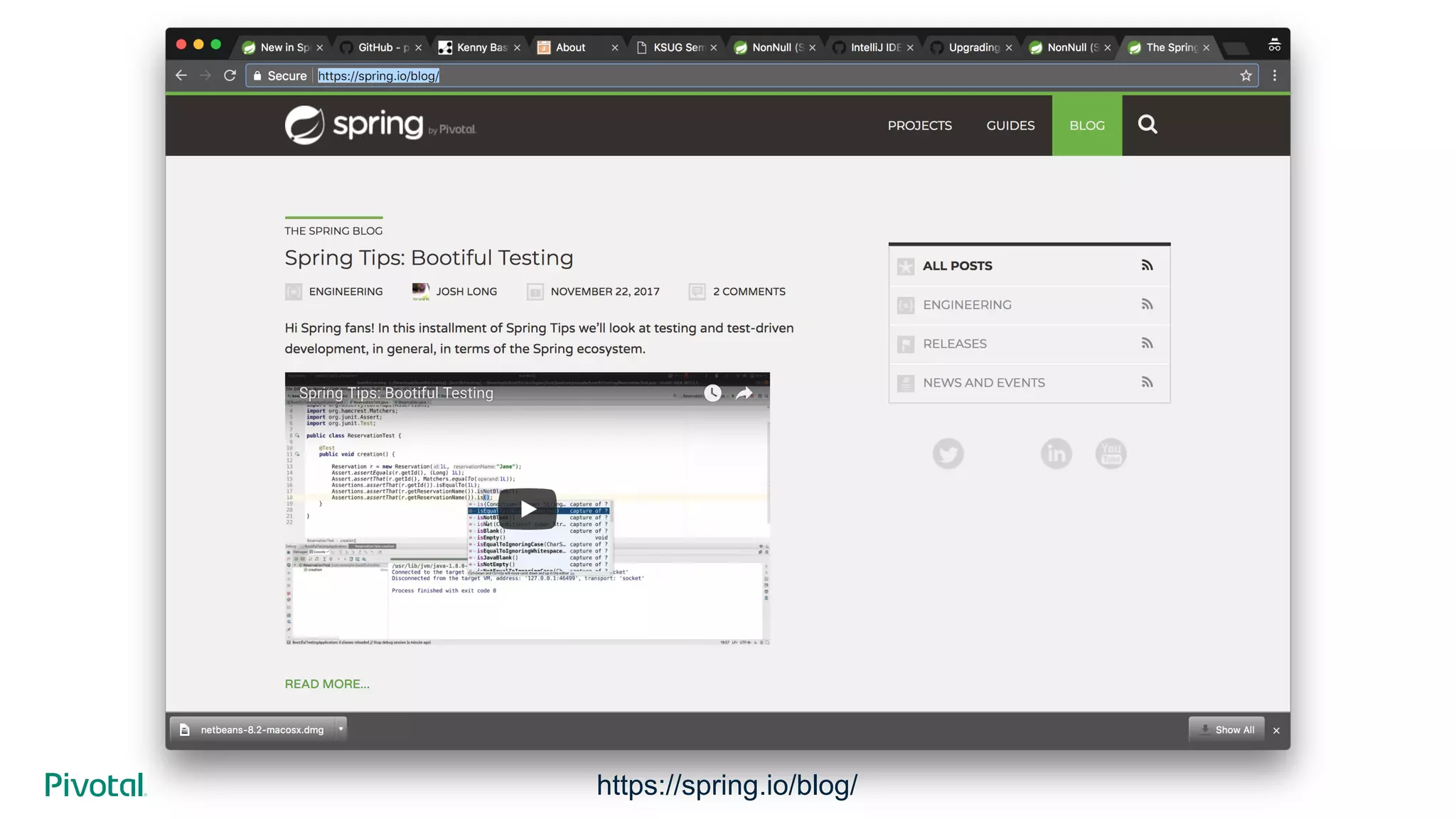

10. https://spring.io/blog/

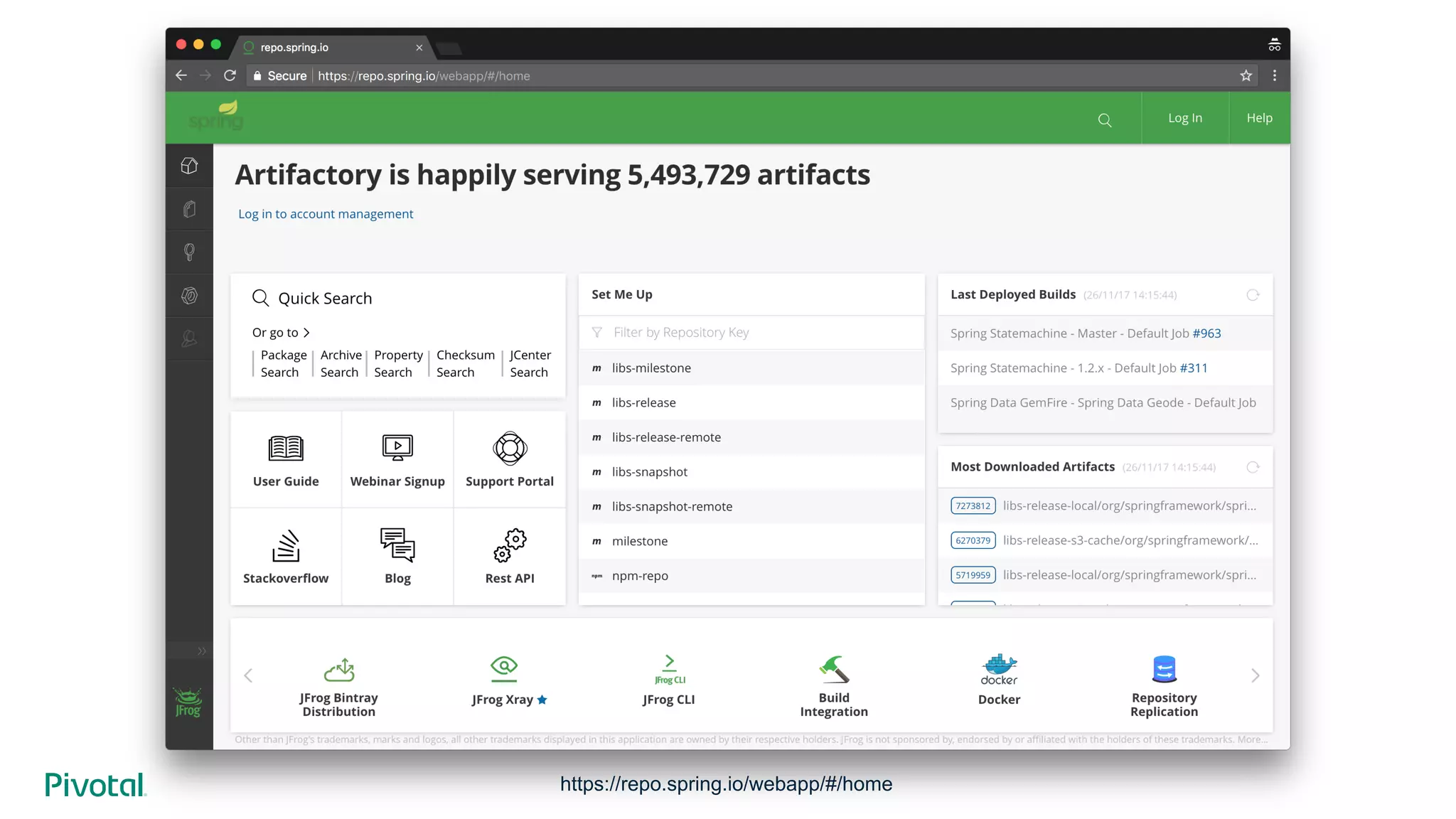

11. https://repo.spring.io/webapp/#/home

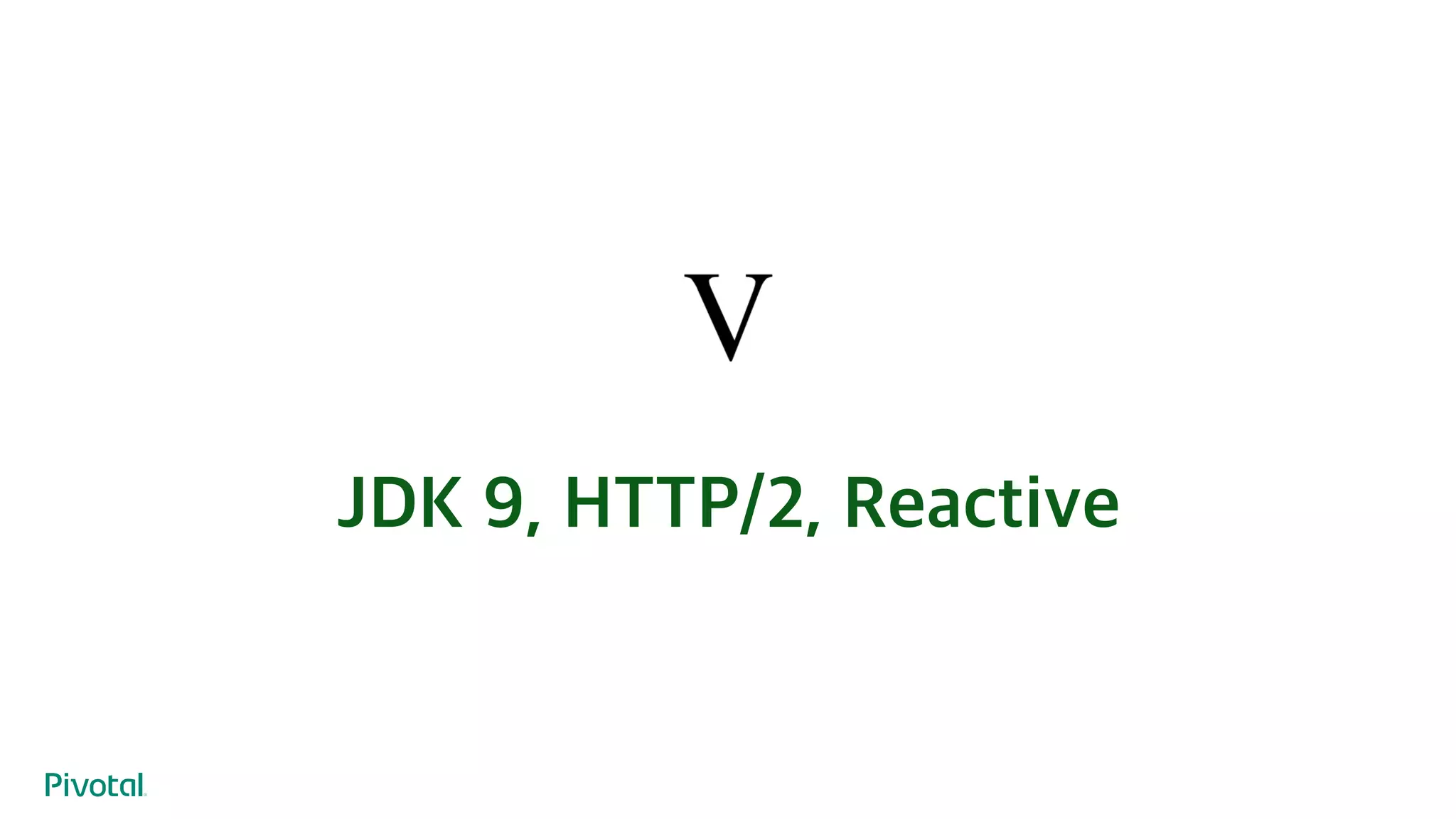

12. JDK 9, HTTP/2, Reactive

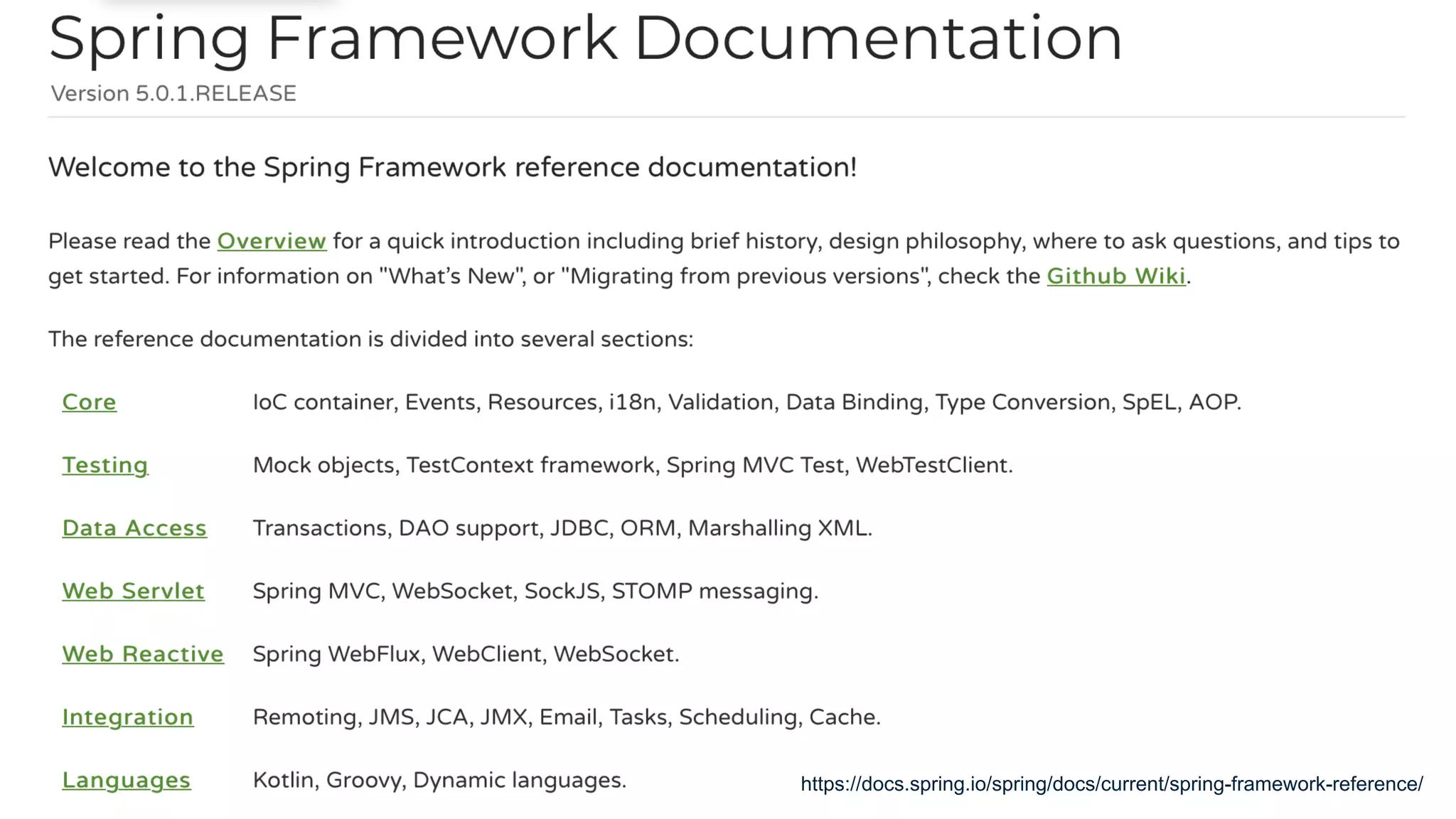

13. https://docs.spring.io/spring/docs/current/spring-framework-reference/

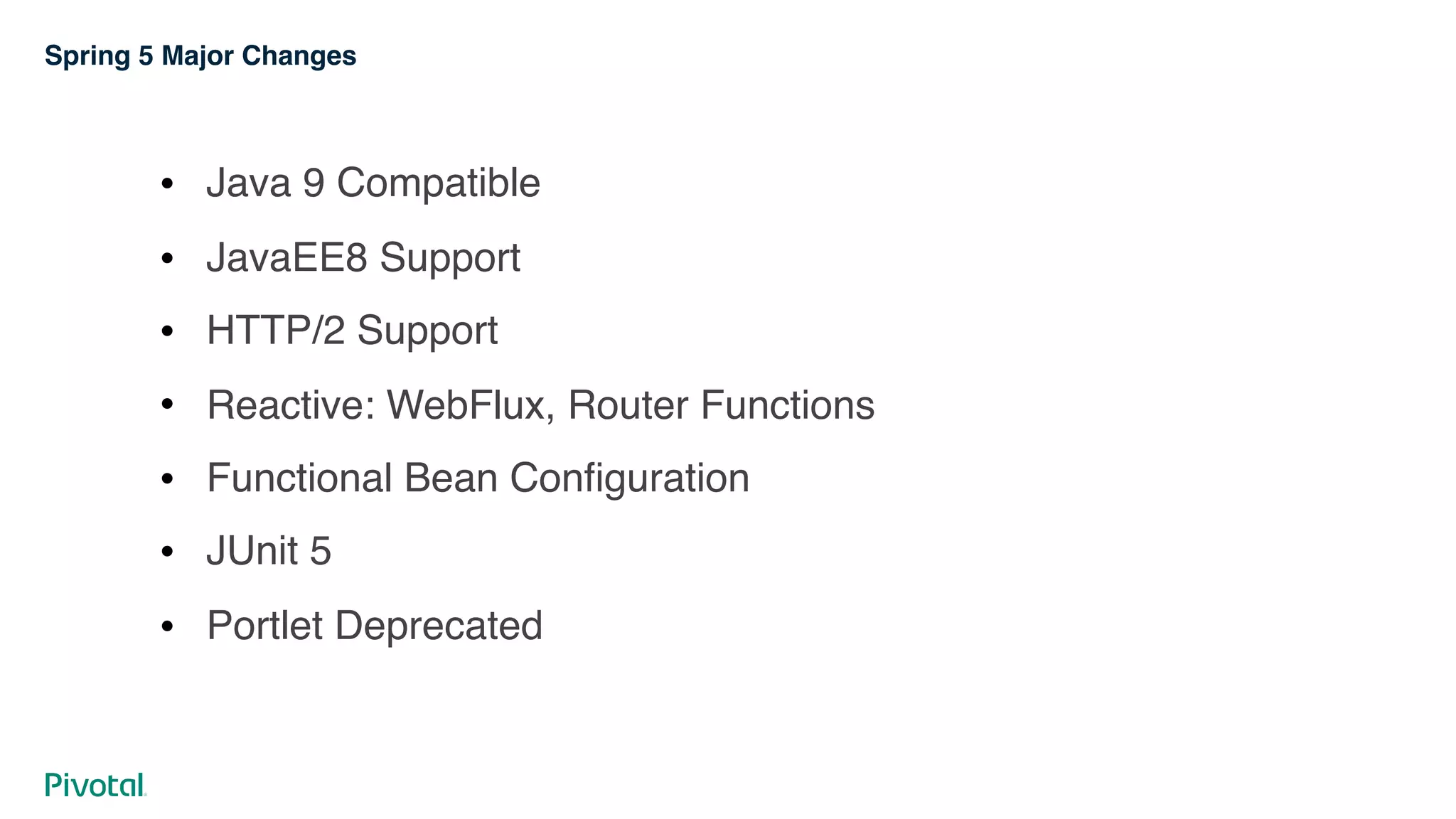

14. Spring 5 Major Changes
! Java 9 Compatible
! JavaEE8 Support
! HTTP/2 Support
! Reactive: WebFlux, Router Functions
! Functional Bean Configuration
! JUnit 5
! Portlet Deprecated

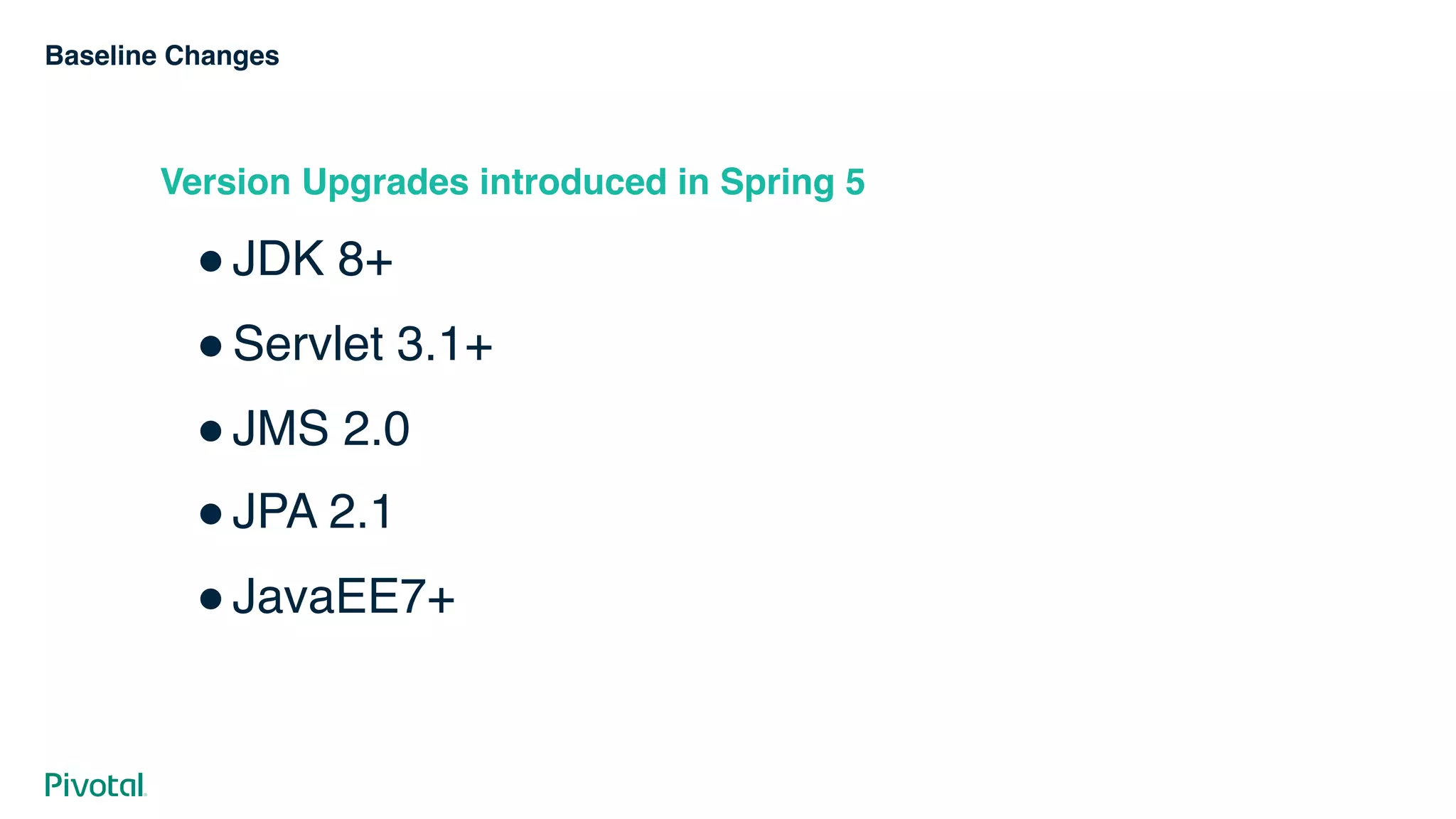

15. Baseline Changes
Version Upgrades introduced in Spring 5
!JDK 8+
!Servlet 3.1+
!JMS 2.0
!JPA 2.1
!JavaEE7+

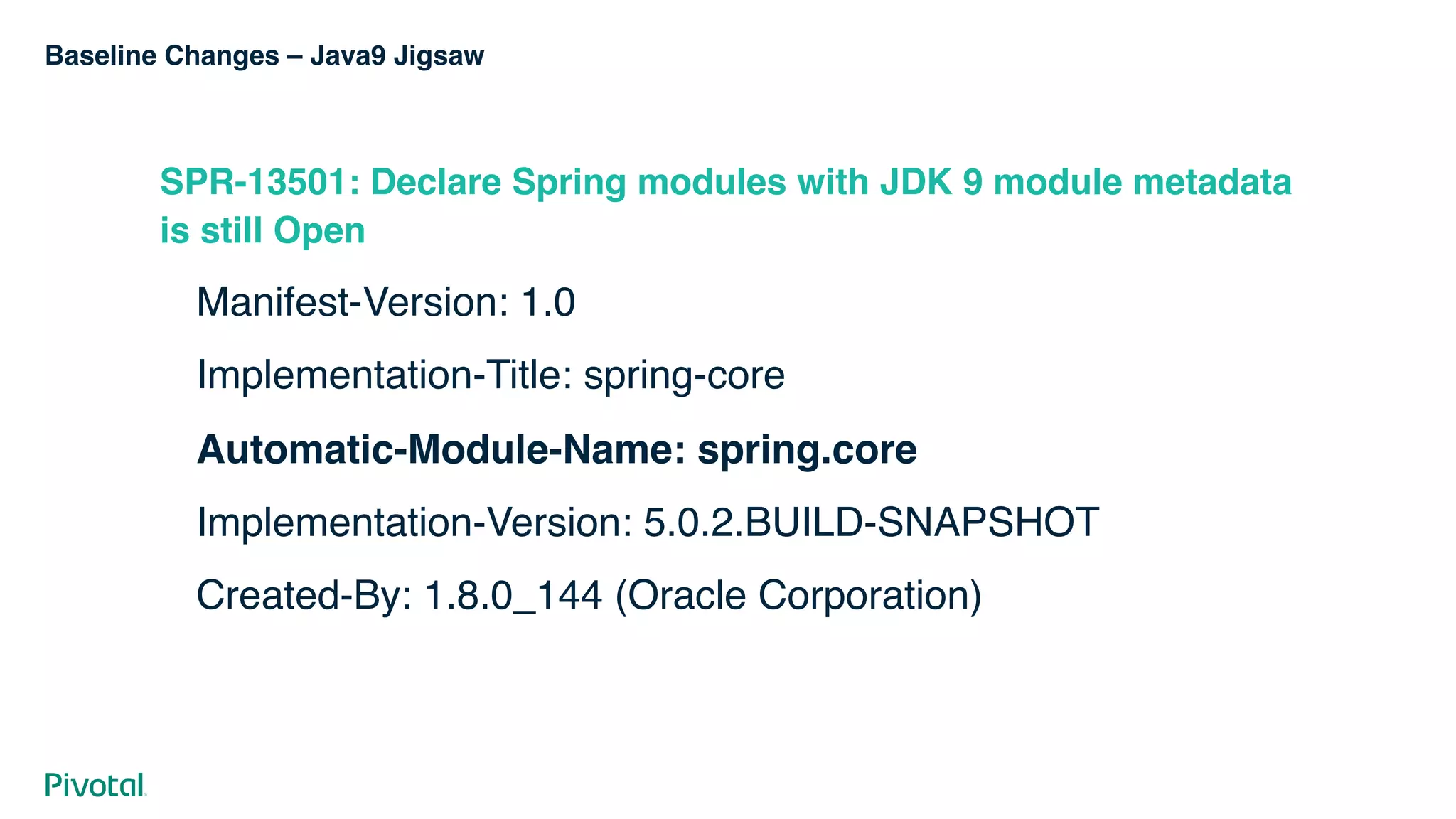

16. Baseline Changes – Java9 Jigsaw
SPR-13501: Declare Spring modules with JDK 9 module metadata
is still Open
Manifest-Version: 1.0
Implementation-Title: spring-core
Automatic-Module-Name: spring.core
Implementation-Version: 5.0.2.BUILD-SNAPSHOT
Created-By: 1.8.0_144 (Oracle Corporation)

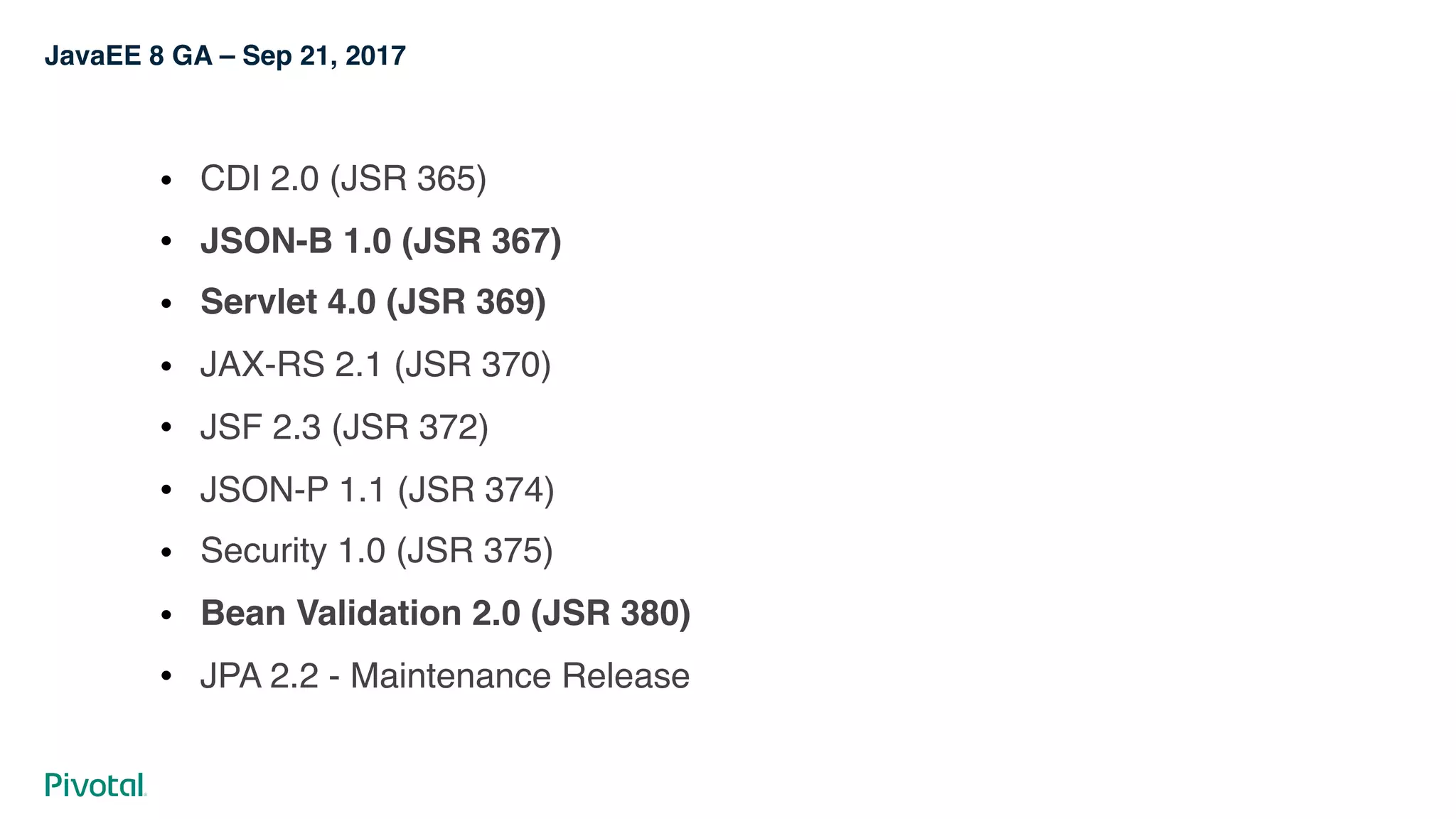

17. JavaEE 8 GA – Sep 21, 2017
! CDI 2.0 (JSR 365)
! JSON-B 1.0 (JSR 367)
! Servlet 4.0 (JSR 369)
! JAX-RS 2.1 (JSR 370)
! JSF 2.3 (JSR 372)
! JSON-P 1.1 (JSR 374)
! Security 1.0 (JSR 375)
! Bean Validation 2.0 (JSR 380)
! JPA 2.2 - Maintenance Release

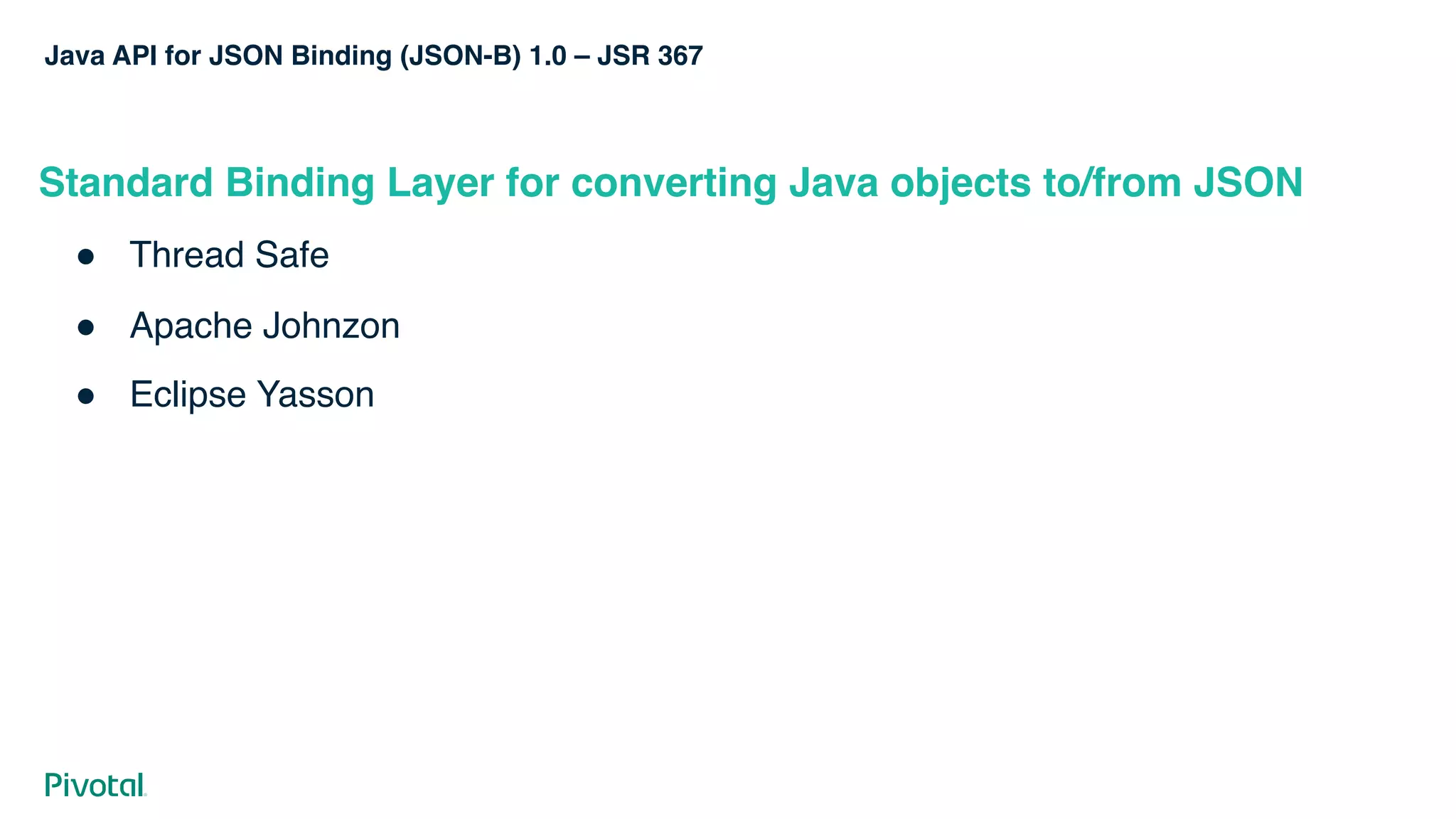

18. Java API for JSON Binding (JSON-B) 1.0 – JSR 367
Standard Binding Layer for converting Java objects to/from JSON
! Thread Safe
! Apache Johnzon
! Eclipse Yasson

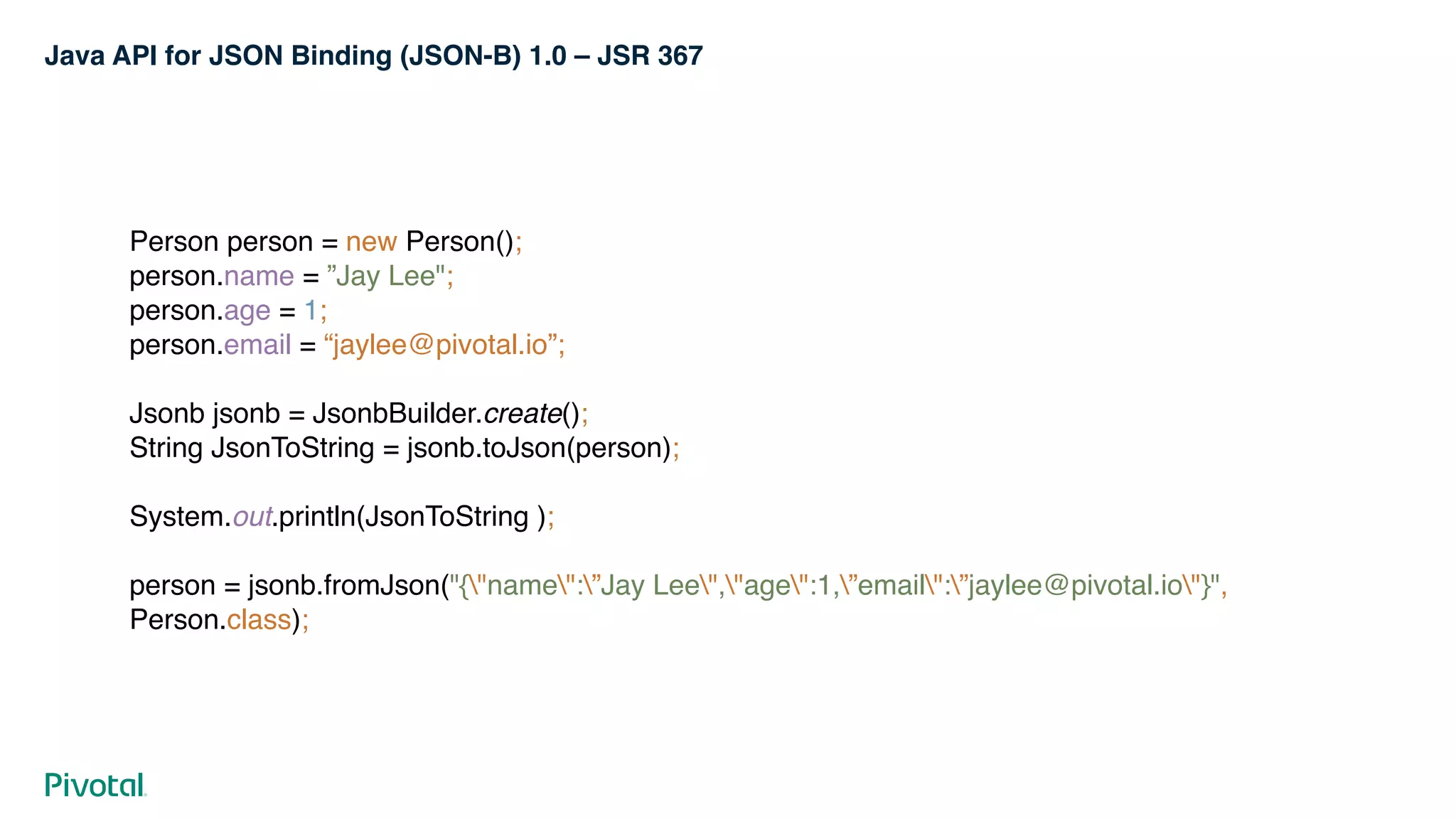

19. Java API for JSON Binding (JSON-B) 1.0 – JSR 367
Person person = new Person();
person.name = ”Jay Lee";
person.age = 1;
person.email = “jaylee@pivotal.io”;
Jsonb jsonb = JsonbBuilder.create();
String JsonToString = jsonb.toJson(person);
System.out.println(JsonToString );
person = jsonb.fromJson("{"name":”Jay Lee","age":1,”email":”jaylee@pivotal.io"}",
Person.class);

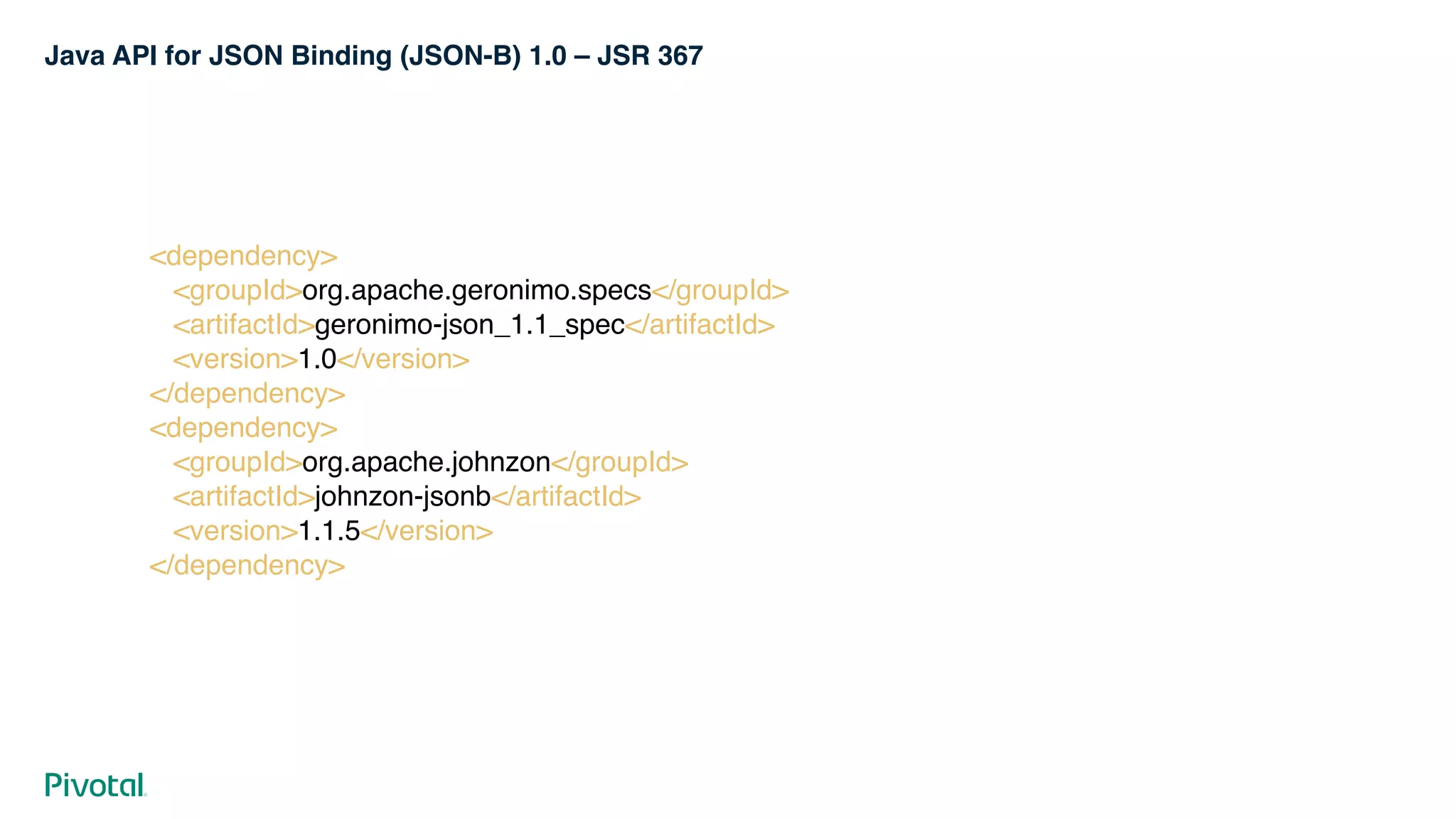

20. Java API for JSON Binding (JSON-B) 1.0 – JSR 367
<dependency>
<groupId>org.apache.geronimo.specs</groupId>
<artifactId>geronimo-json_1.1_spec</artifactId>
<version>1.0</version>
</dependency>
<dependency>
<groupId>org.apache.johnzon</groupId>
<artifactId>johnzon-jsonb</artifactId>
<version>1.1.5</version>
</dependency>

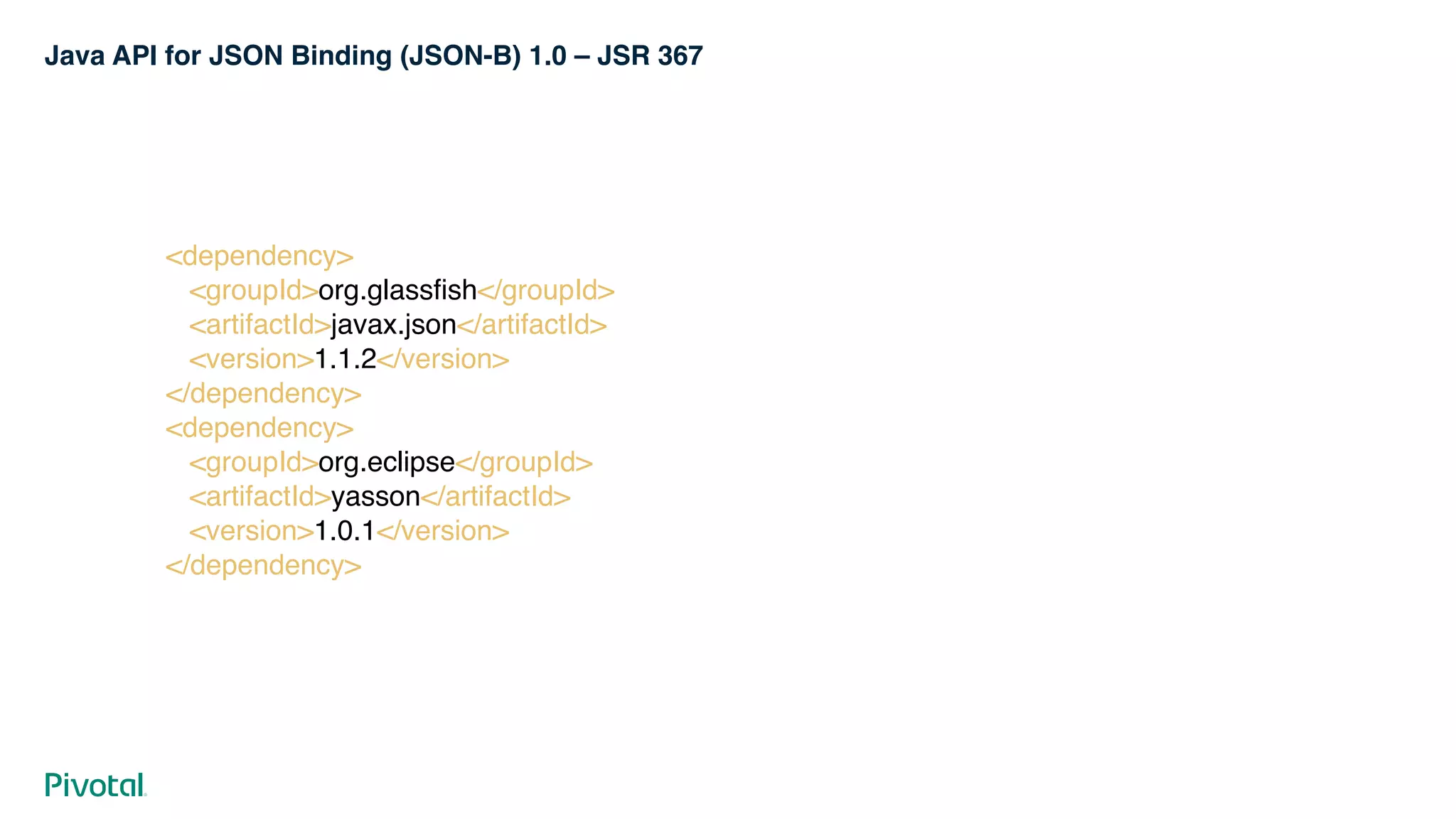

21. Java API for JSON Binding (JSON-B) 1.0 – JSR 367
<dependency>
<groupId>org.glassfish</groupId>
<artifactId>javax.json</artifactId>
<version>1.1.2</version>
</dependency>
<dependency>
<groupId>org.eclipse</groupId>
<artifactId>yasson</artifactId>
<version>1.0.1</version>
</dependency>

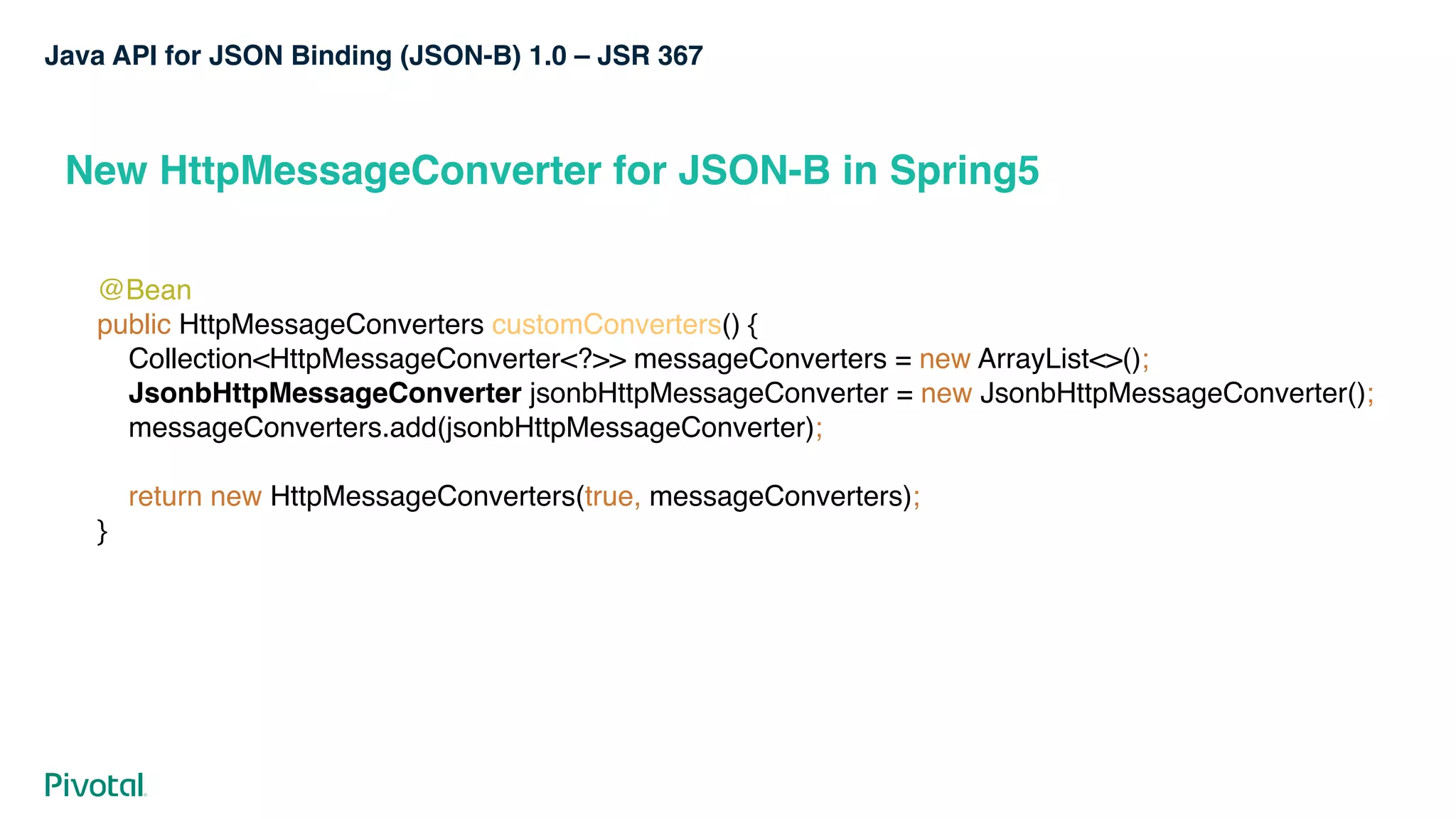

22. Java API for JSON Binding (JSON-B) 1.0 – JSR 367
New HttpMessageConverter for JSON-B in Spring5
@Bean
public HttpMessageConverters customConverters() {
Collection<HttpMessageConverter<?>> messageConverters = new ArrayList<>();
JsonbHttpMessageConverter jsonbHttpMessageConverter = new JsonbHttpMessageConverter();
messageConverters.add(jsonbHttpMessageConverter);
return new HttpMessageConverters(true, messageConverters);
}

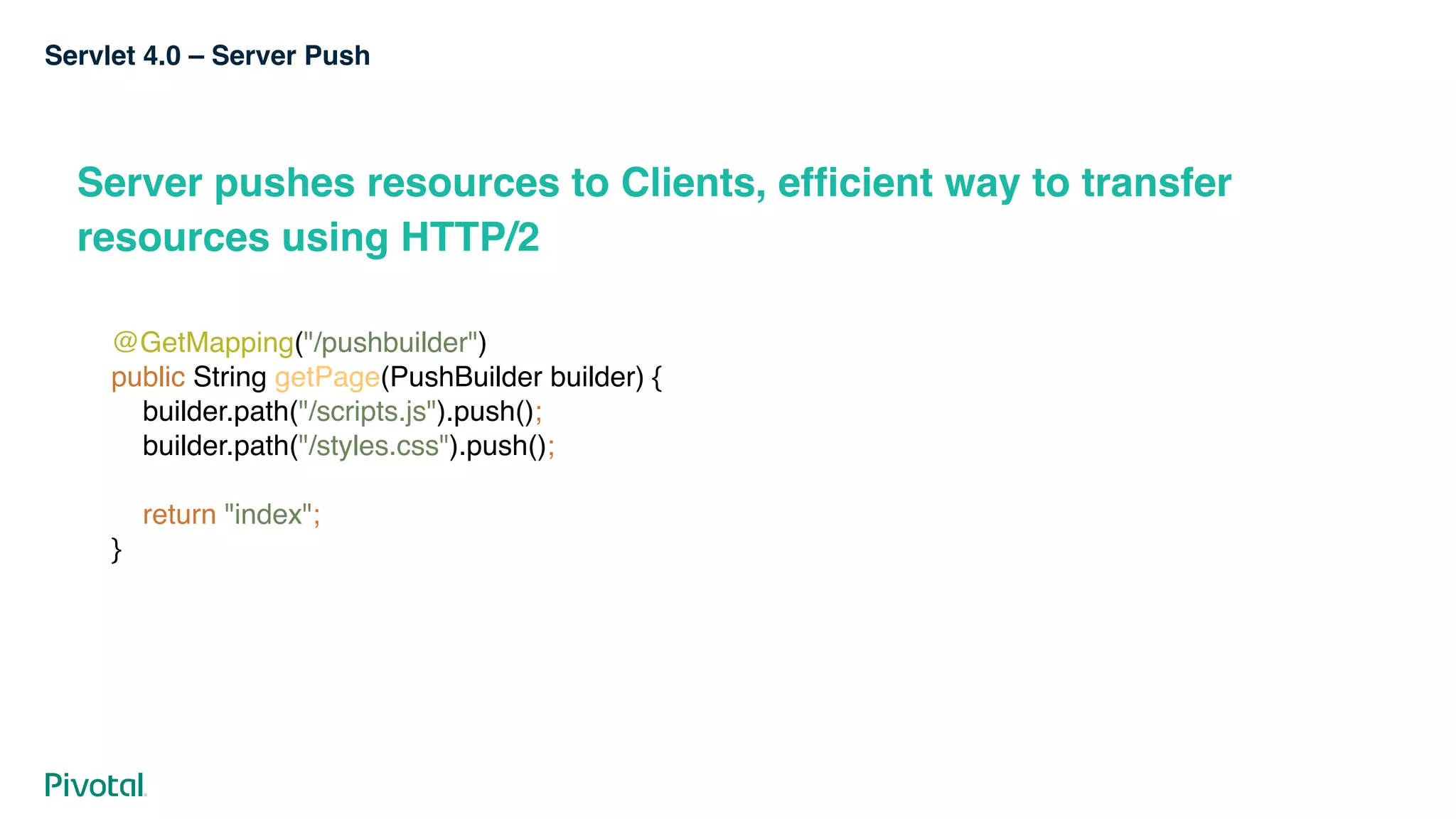

23. Servlet 4.0 – Server Push
Server pushes resources to Clients, efficient way to transfer
resources using HTTP/2
@GetMapping("/pushbuilder")
public String getPage(PushBuilder builder) {
builder.path("/scripts.js").push();
builder.path("/styles.css").push();
return "index";
}

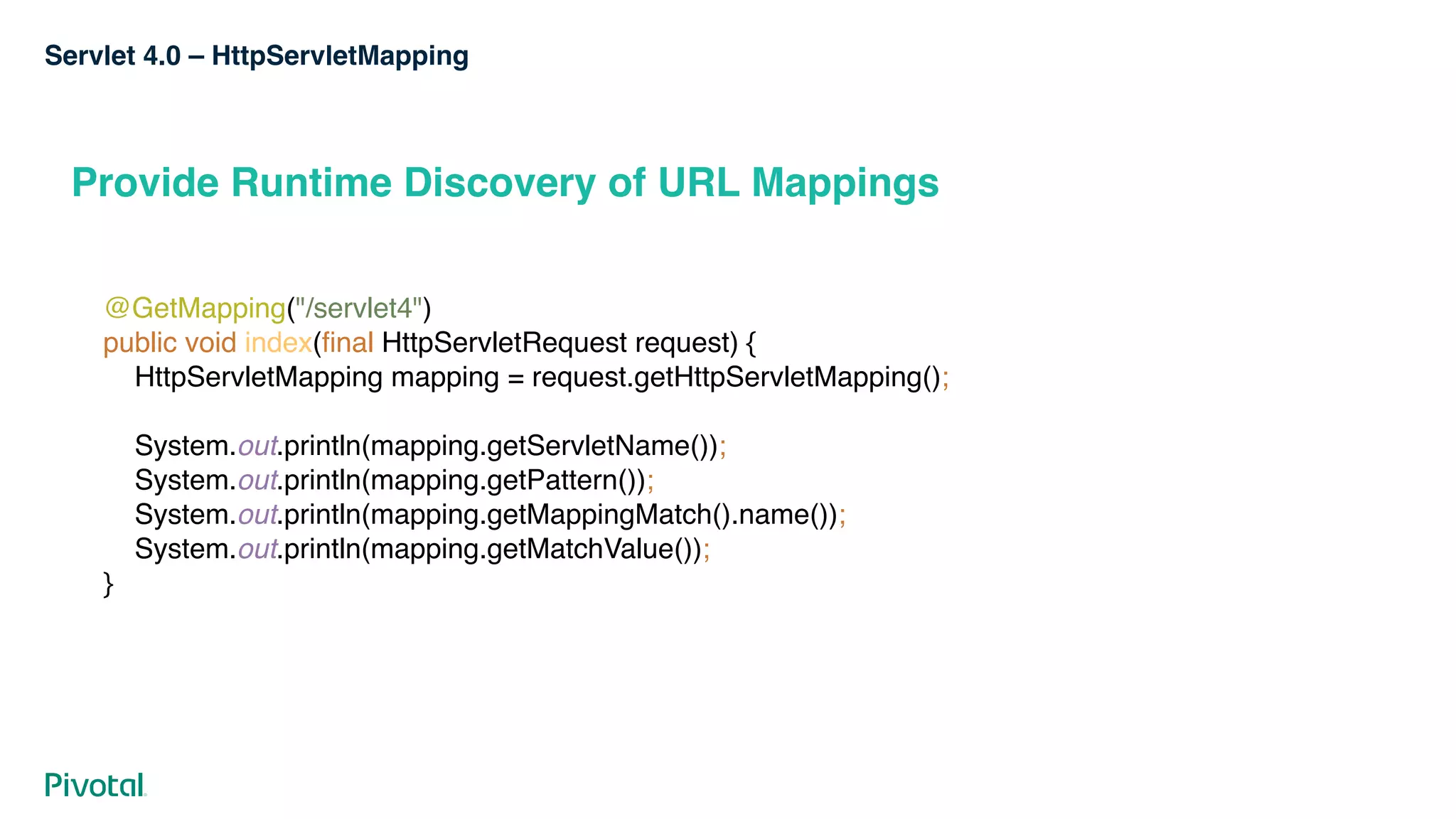

24. Servlet 4.0 – HttpServletMapping
Provide Runtime Discovery of URL Mappings
@GetMapping("/servlet4")
public void index(final HttpServletRequest request) {
HttpServletMapping mapping = request.getHttpServletMapping();
System.out.println(mapping.getServletName());
System.out.println(mapping.getPattern());
System.out.println(mapping.getMappingMatch().name());
System.out.println(mapping.getMatchValue());
}

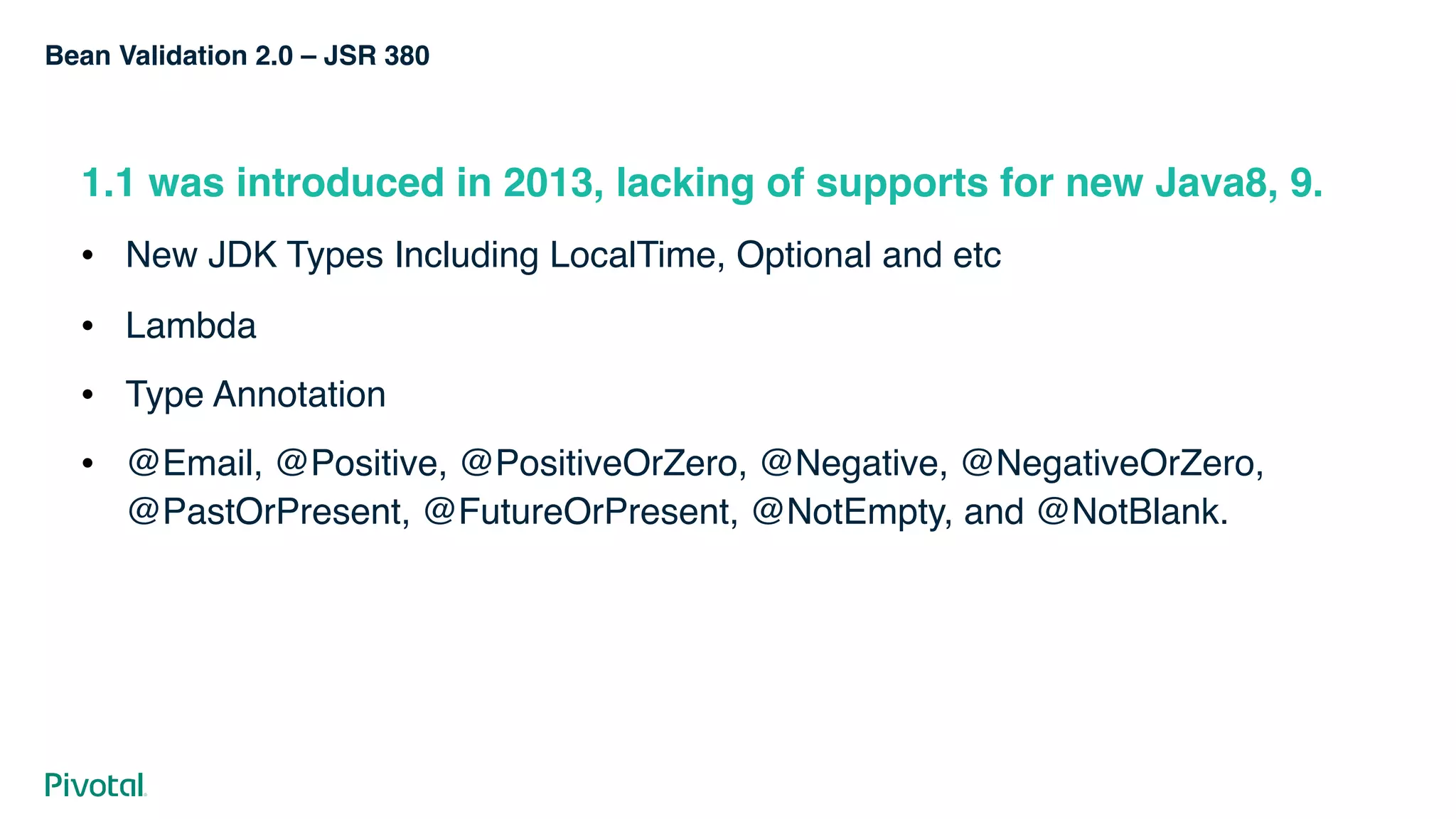

25. Bean Validation 2.0 – JSR 380
1.1 was introduced in 2013, lacking of supports for new Java8, 9.
! New JDK Types Including LocalTime, Optional and etc
! Lambda
! Type Annotation
! @Email, @Positive, @PositiveOrZero, @Negative, @NegativeOrZero,
@PastOrPresent, @FutureOrPresent, @NotEmpty, and @NotBlank.

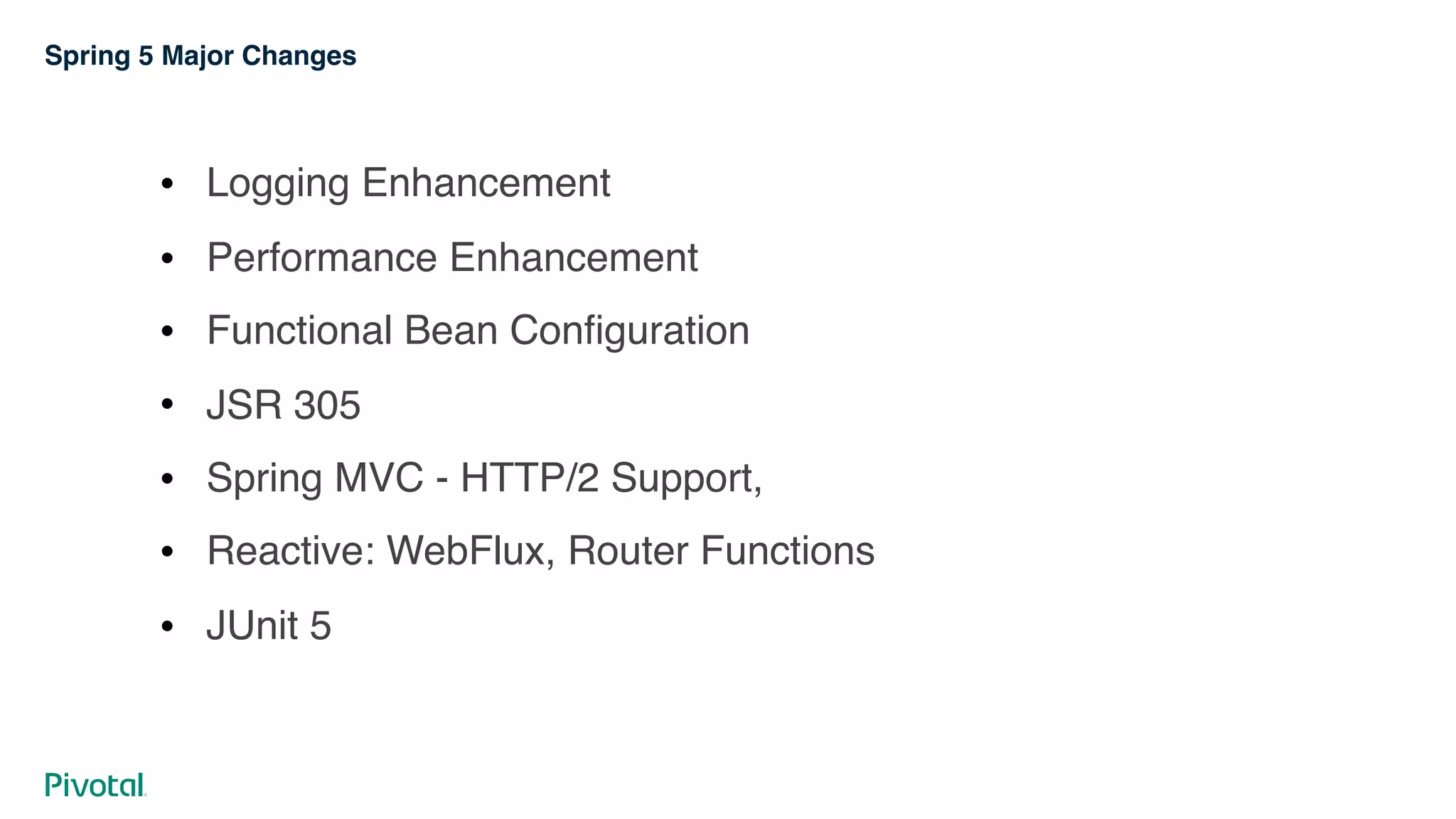

26. Spring 5 Major Changes
! Logging Enhancement
! Performance Enhancement
! Functional Bean Configuration
! JSR 305
! Spring MVC - HTTP/2 Support,
! Reactive: WebFlux, Router Functions
! JUnit 5

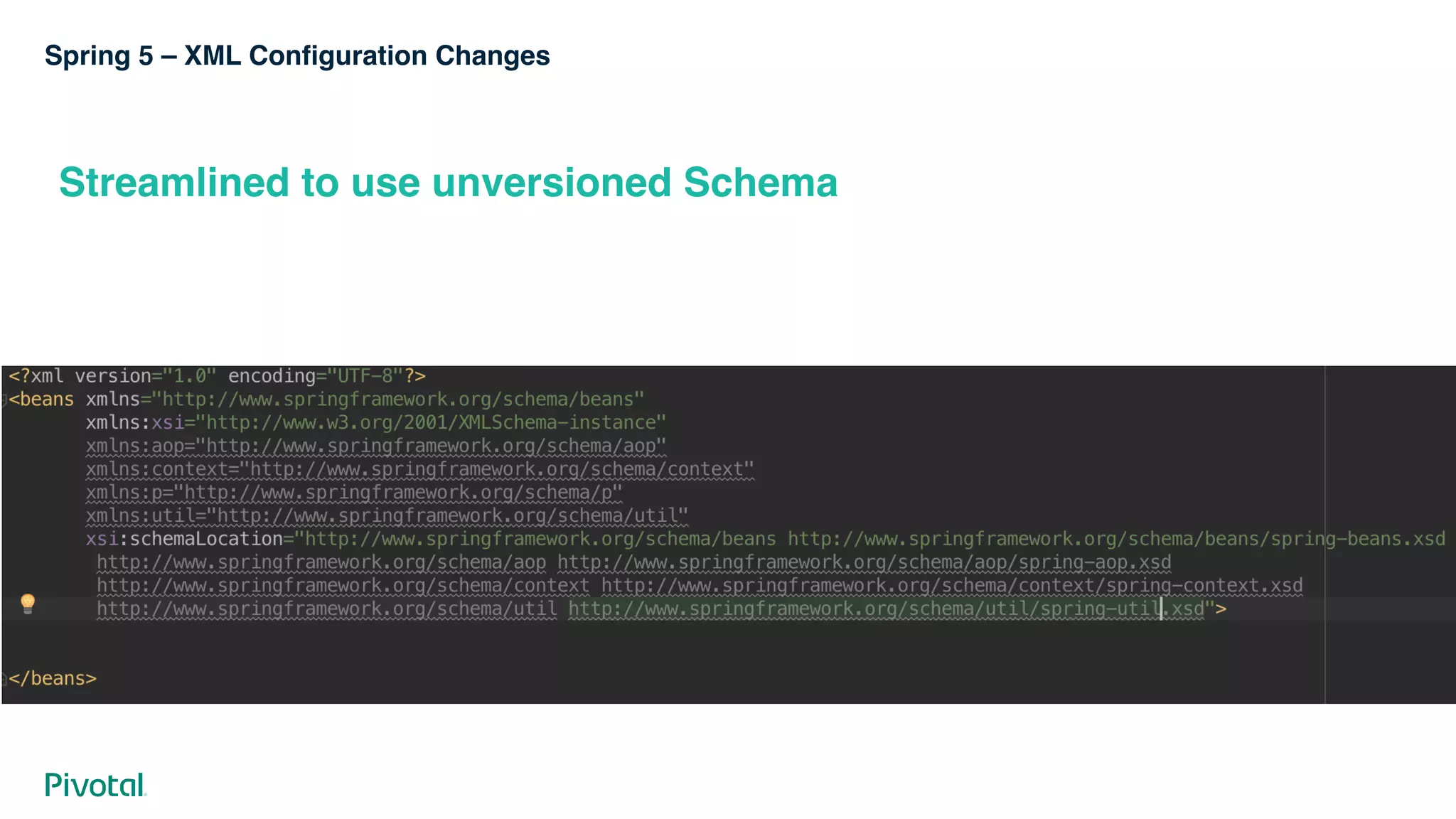

27. Spring 5 – XML Configuration Changes
Streamlined to use unversioned Schema

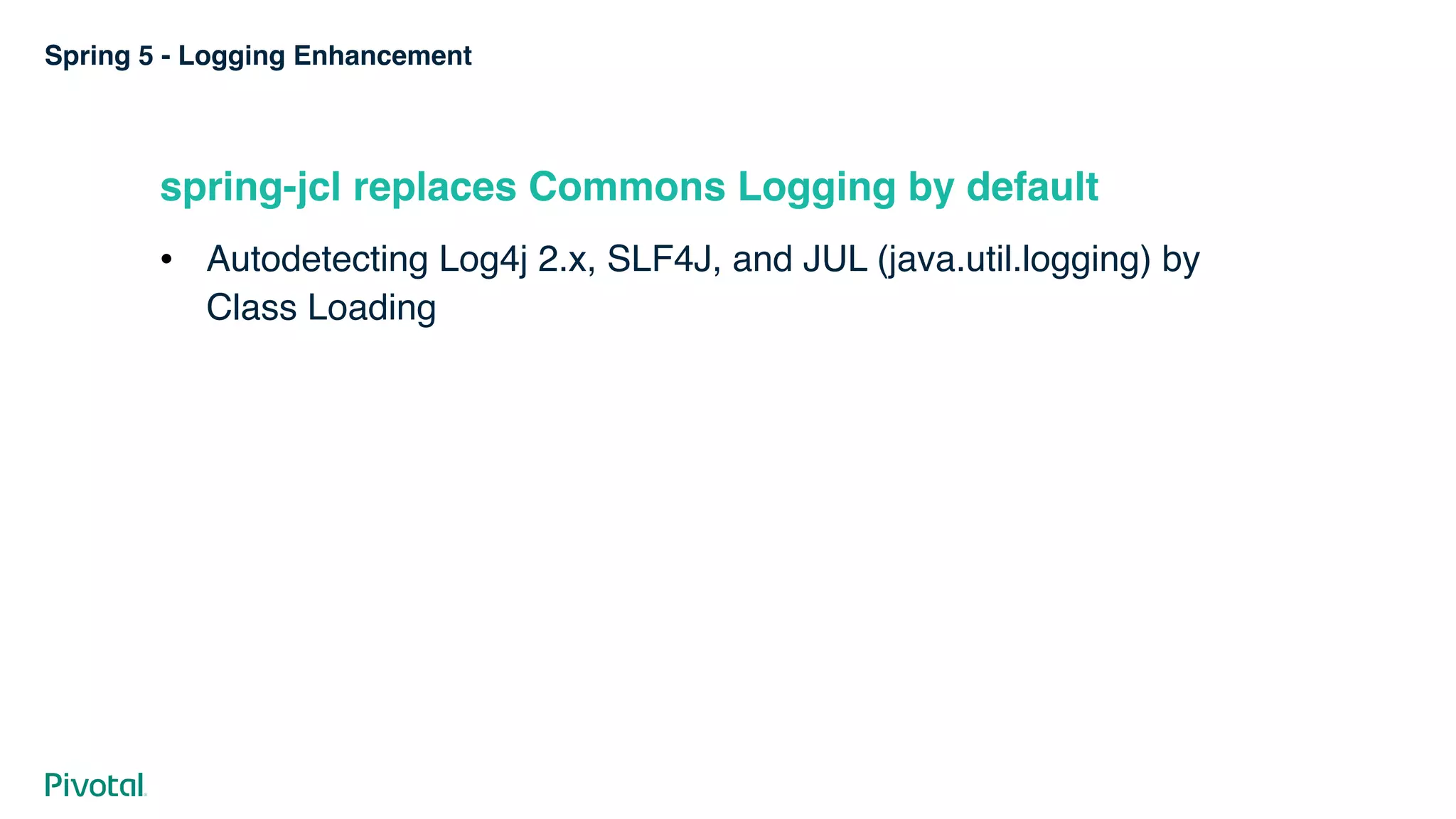

28. Spring 5 - Logging Enhancement
spring-jcl replaces Commons Logging by default
! Autodetecting Log4j 2.x, SLF4J, and JUL (java.util.logging) by
Class Loading

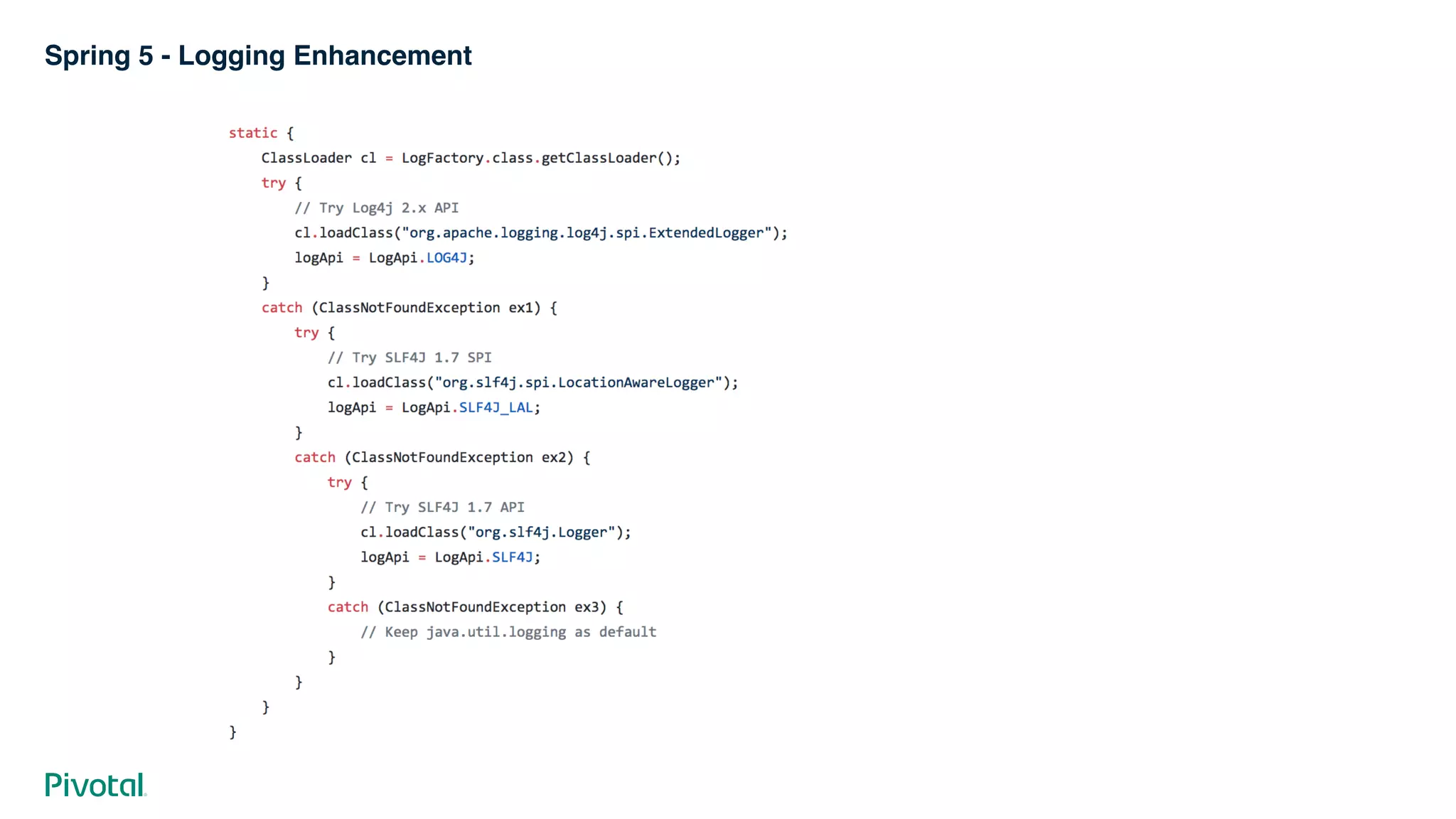

29. Spring 5 - Logging Enhancement

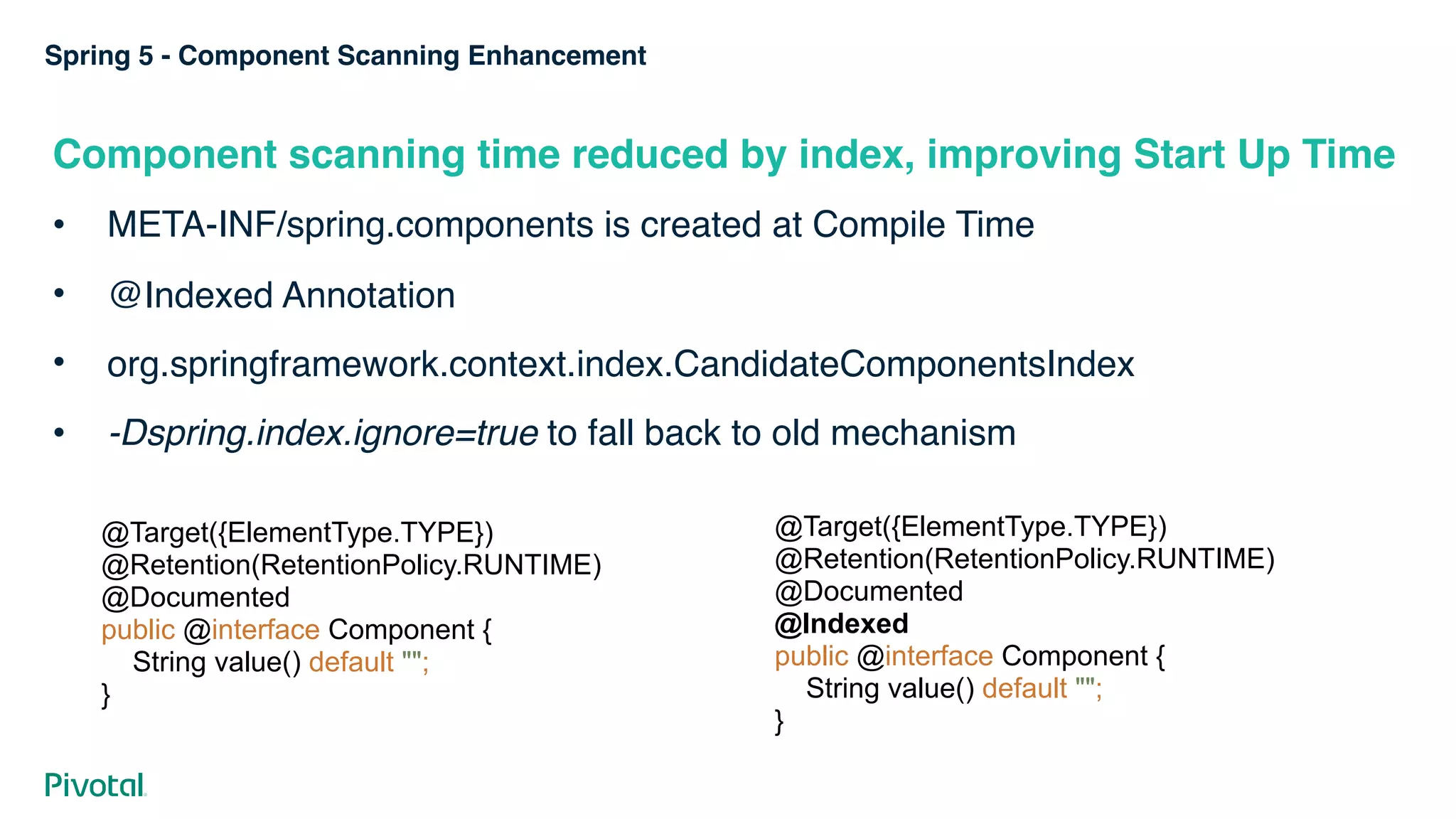

30. Spring 5 - Component Scanning Enhancement
Component scanning time reduced by index, improving Start Up Time
• META-INF/spring.components is created at Compile Time
• @Indexed Annotation
• org.springframework.context.index.CandidateComponentsIndex
• -Dspring.index.ignore=true to fall back to old mechanism
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Component {
String value() default "";
}
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Indexed
public @interface Component {
String value() default "";
}

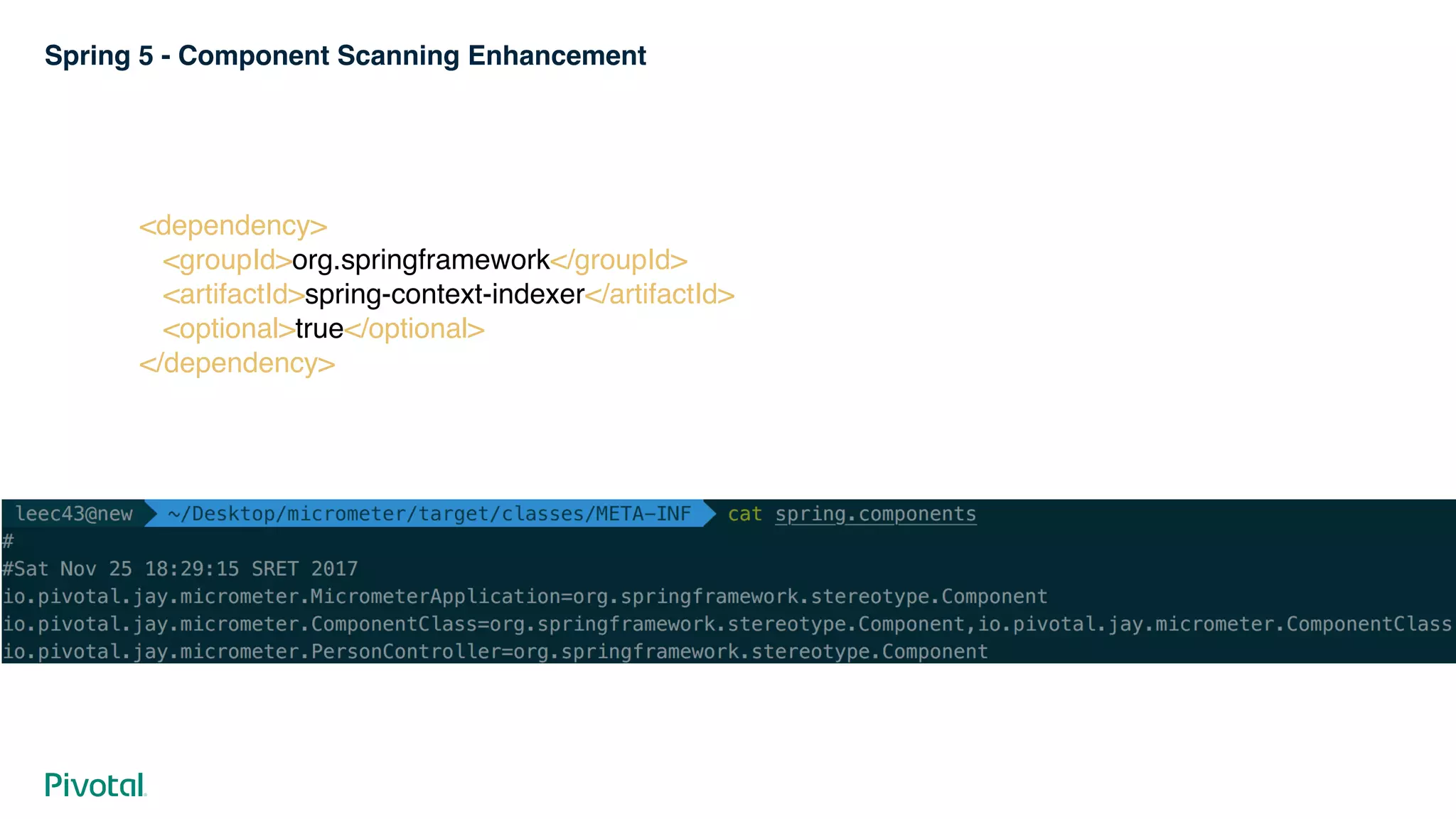

31. Spring 5 - Component Scanning Enhancement
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-indexer</artifactId>
<optional>true</optional>
</dependency>

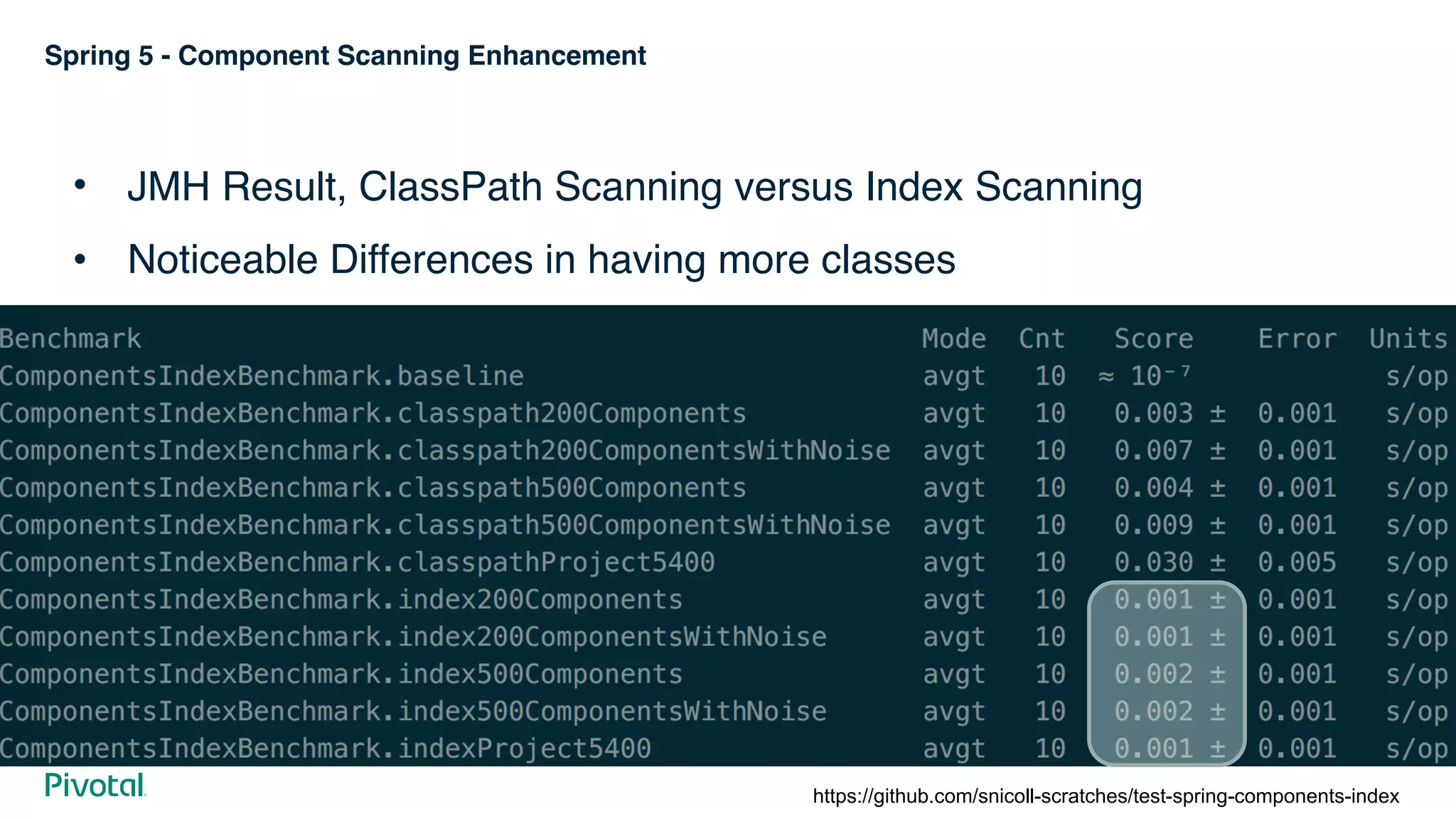

32. Spring 5 - Component Scanning Enhancement
• JMH Result, ClassPath Scanning versus Index Scanning
• Noticeable Differences in having more classes
https://github.com/snicoll-scratches/test-spring-components-index

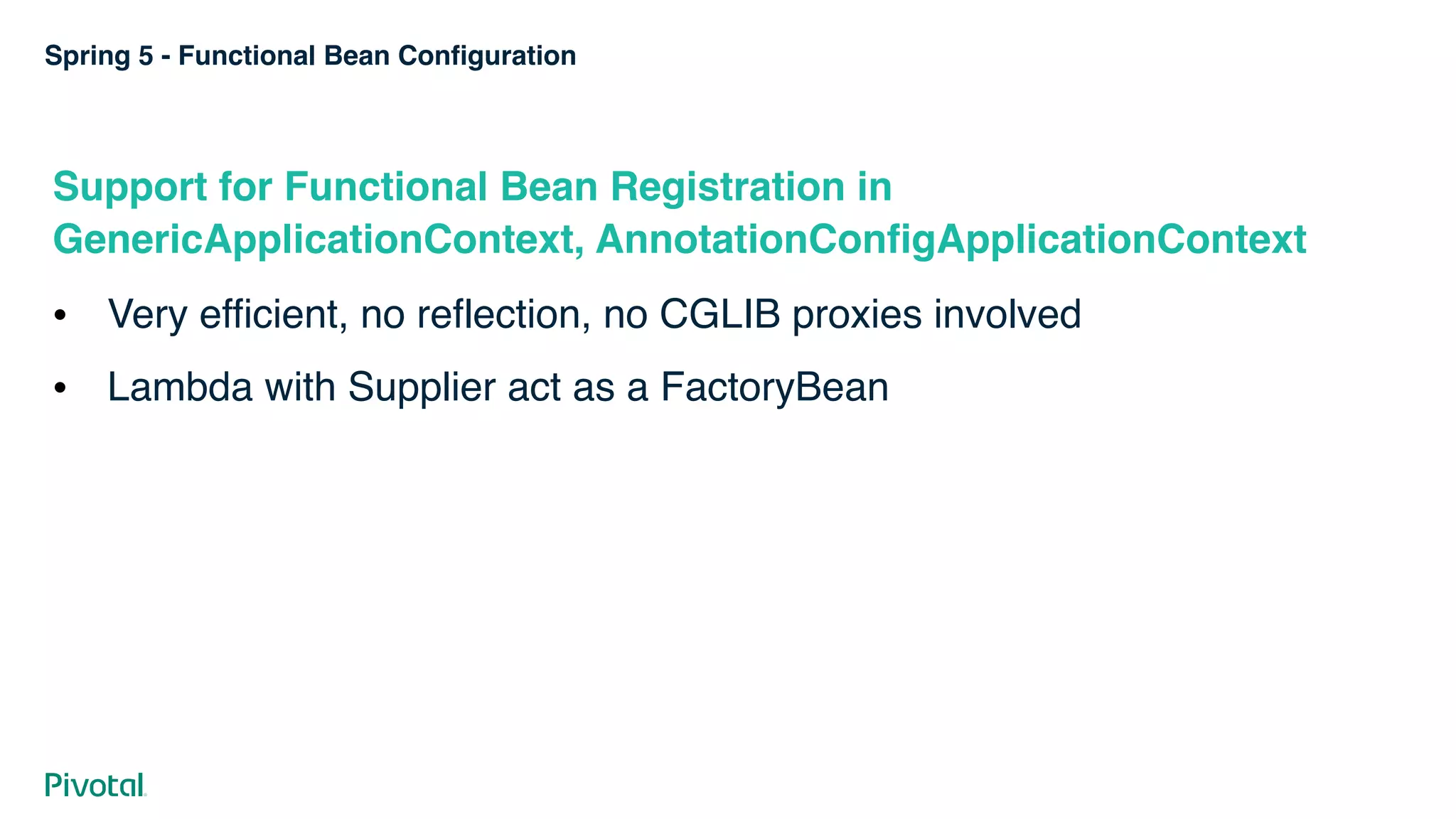

33. Spring 5 - Functional Bean Configuration
Support for Functional Bean Registration in
GenericApplicationContext, AnnotationConfigApplicationContext
! Very efficient, no reflection, no CGLIB proxies involved
! Lambda with Supplier act as a FactoryBean

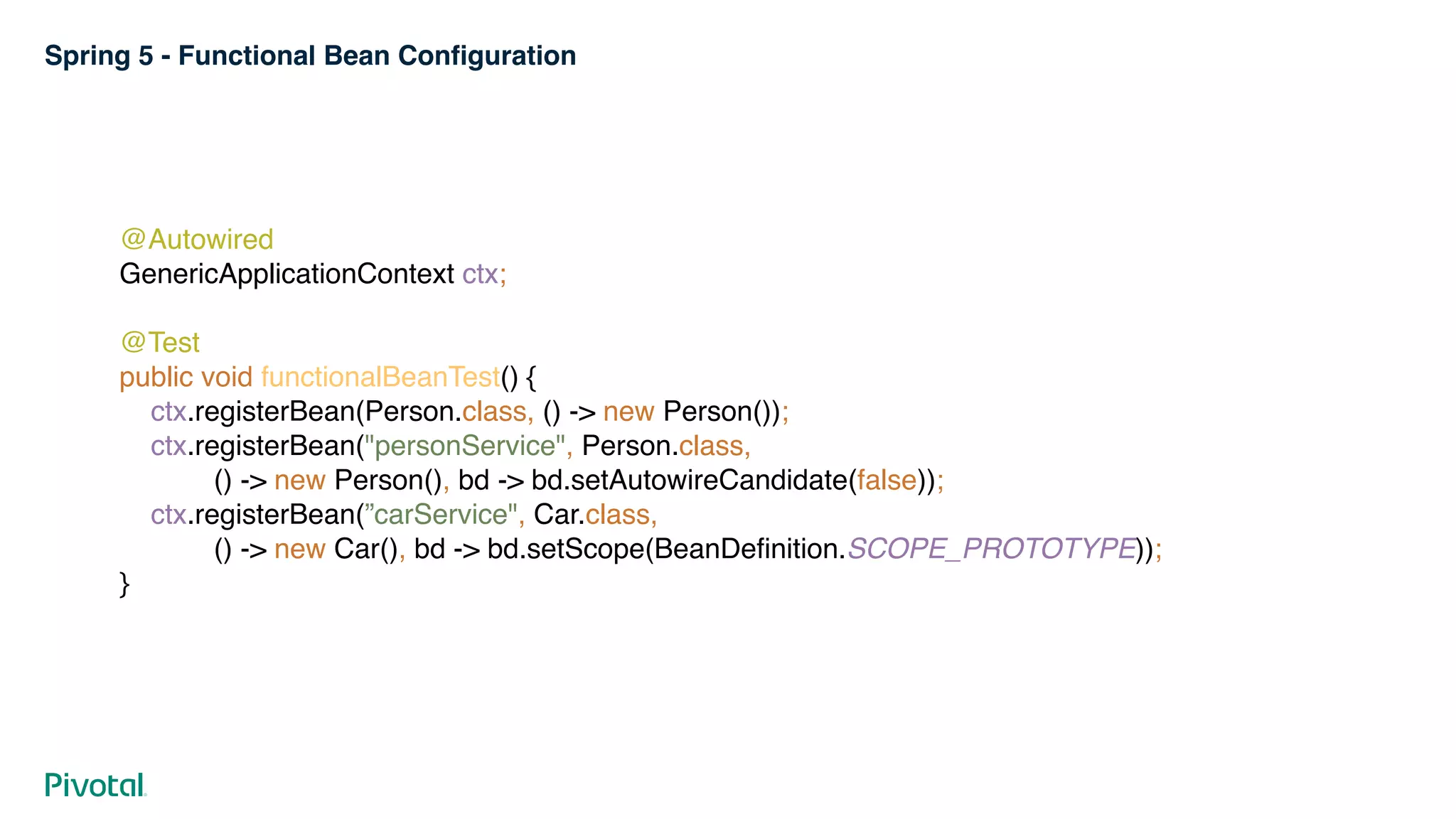

34. Spring 5 - Functional Bean Configuration
@Autowired
GenericApplicationContext ctx;
@Test
public void functionalBeanTest() {
ctx.registerBean(Person.class, () -> new Person());
ctx.registerBean("personService", Person.class,
() -> new Person(), bd -> bd.setAutowireCandidate(false));
ctx.registerBean(”carService", Car.class,
() -> new Car(), bd -> bd.setScope(BeanDefinition.SCOPE_PROTOTYPE));
}

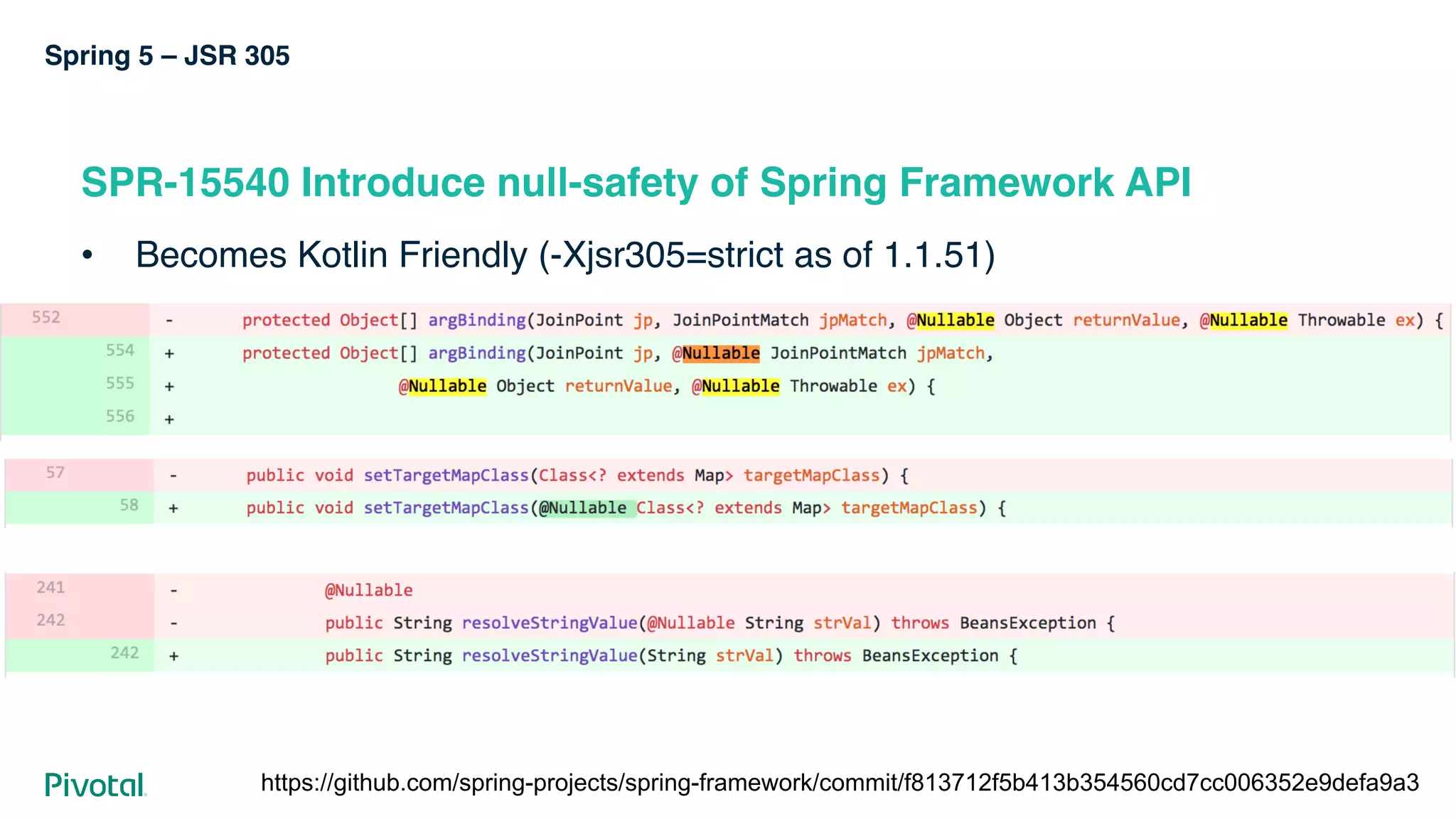

35. Spring 5 – JSR 305
SPR-15540 Introduce null-safety of Spring Framework API
• Becomes Kotlin Friendly (-Xjsr305=strict as of 1.1.51)
https://github.com/spring-projects/spring-framework/commit/f813712f5b413b354560cd7cc006352e9defa9a3

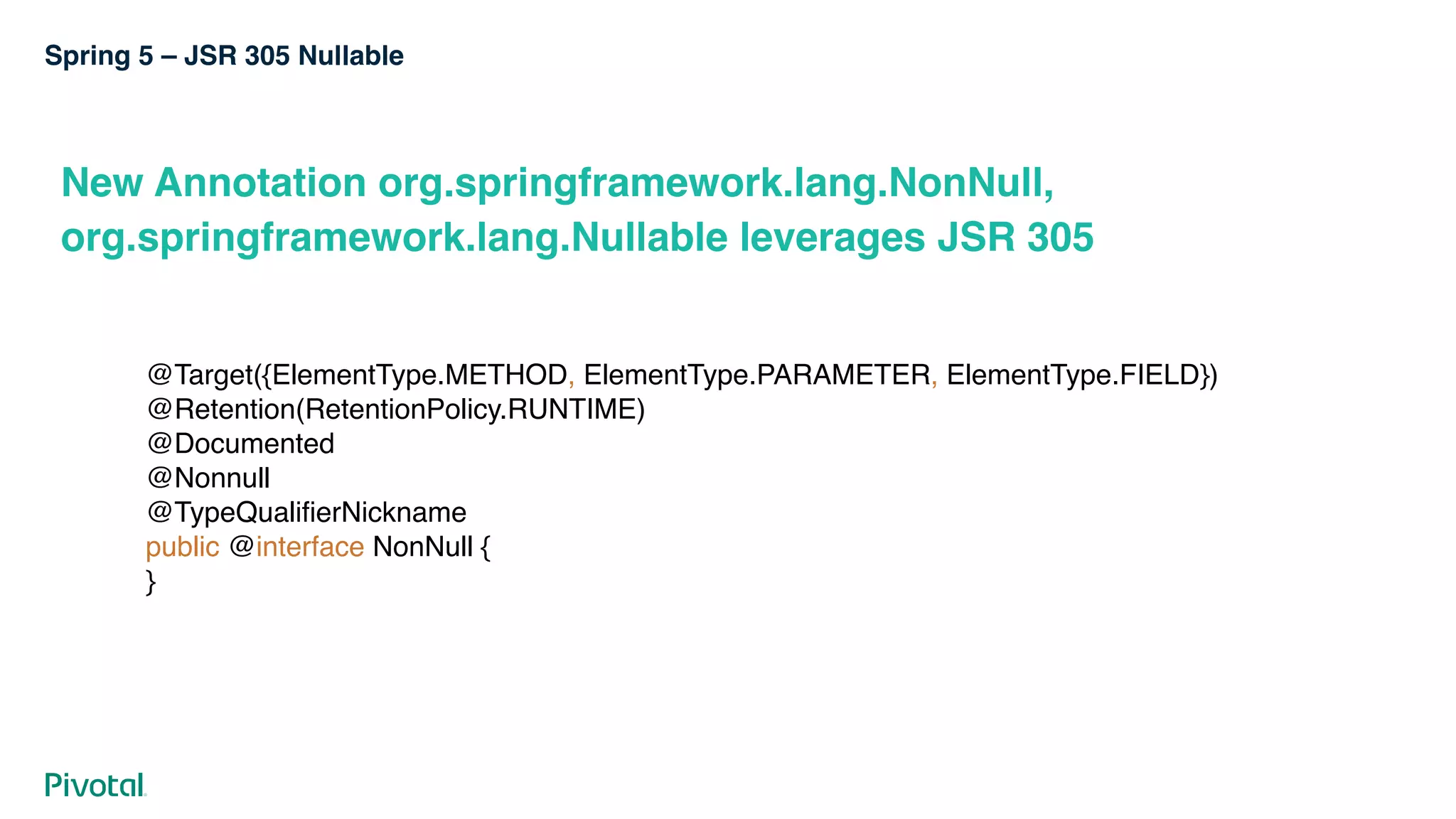

36. Spring 5 – JSR 305 Nullable
New Annotation org.springframework.lang.NonNull,
org.springframework.lang.Nullable leverages JSR 305
@Target({ElementType.METHOD, ElementType.PARAMETER, ElementType.FIELD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Nonnull
@TypeQualifierNickname
public @interface NonNull {
}

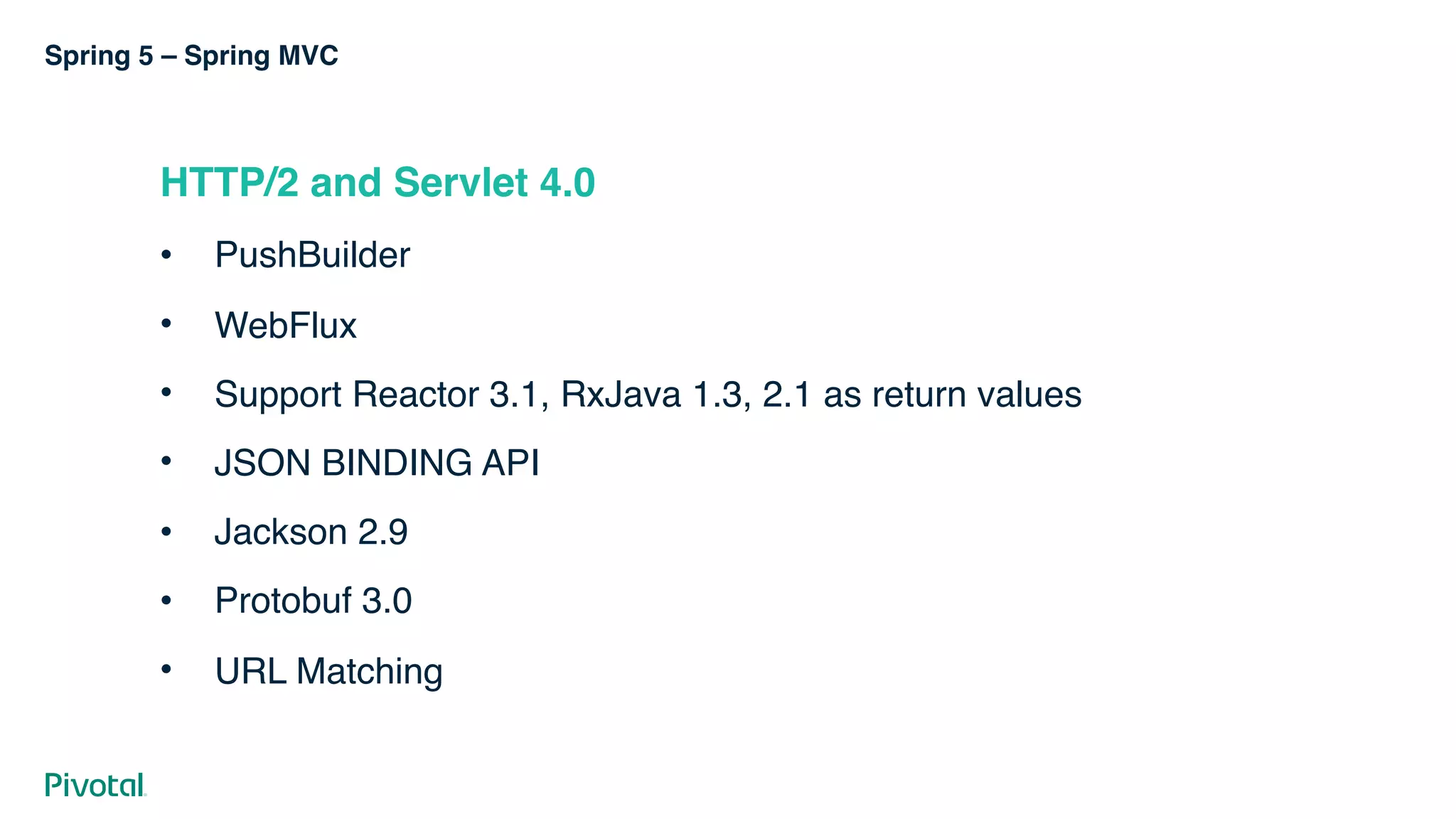

37. Spring 5 – Spring MVC
HTTP/2 and Servlet 4.0
• PushBuilder
• WebFlux
• Support Reactor 3.1, RxJava 1.3, 2.1 as return values
• JSON BINDING API
• Jackson 2.9
• Protobuf 3.0
• URL Matching

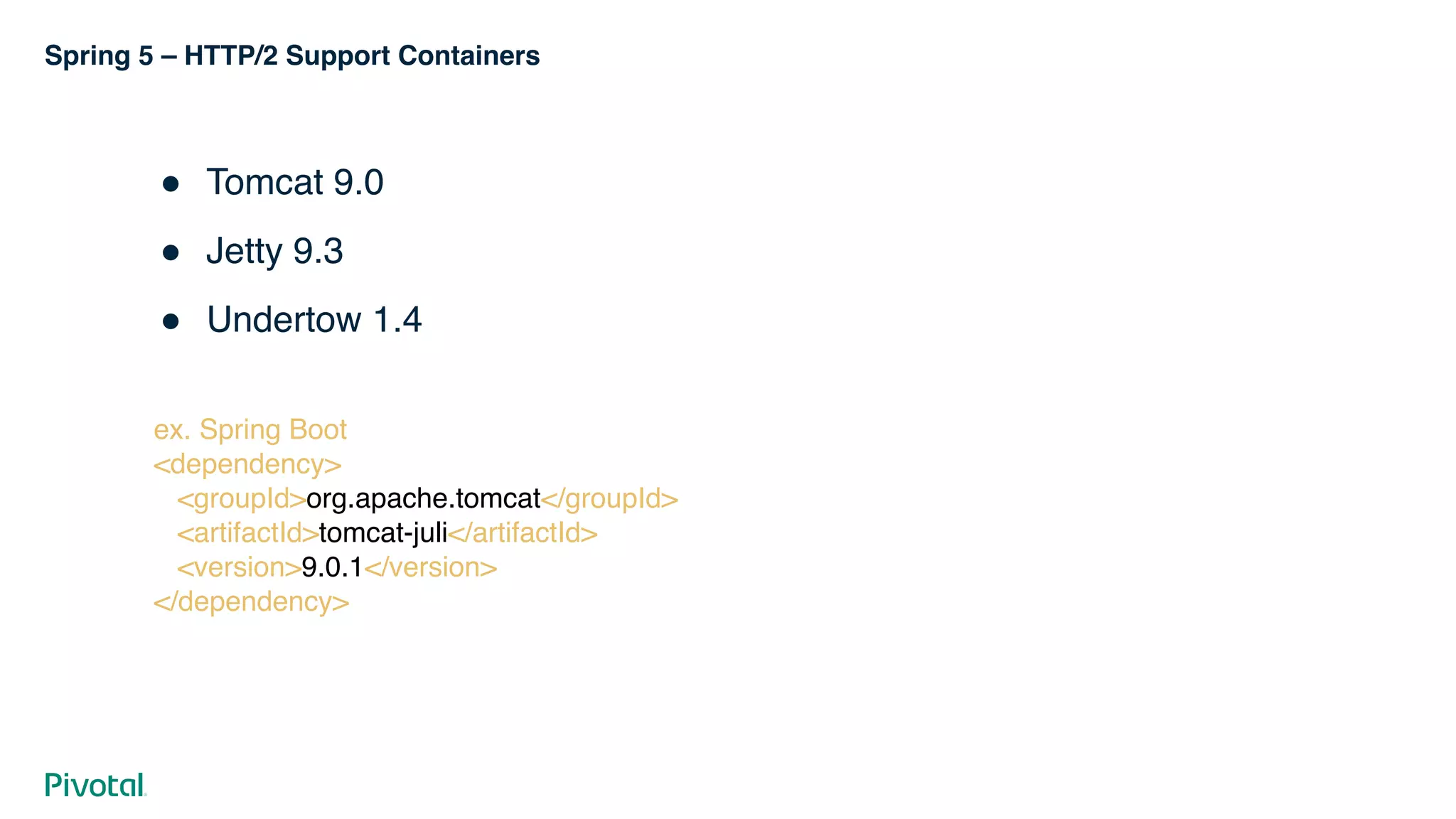

38. Spring 5 – HTTP/2 Support Containers
! Tomcat 9.0
! Jetty 9.3
! Undertow 1.4
ex. Spring Boot
<dependency>
<groupId>org.apache.tomcat</groupId>
<artifactId>tomcat-juli</artifactId>
<version>9.0.1</version>
</dependency>

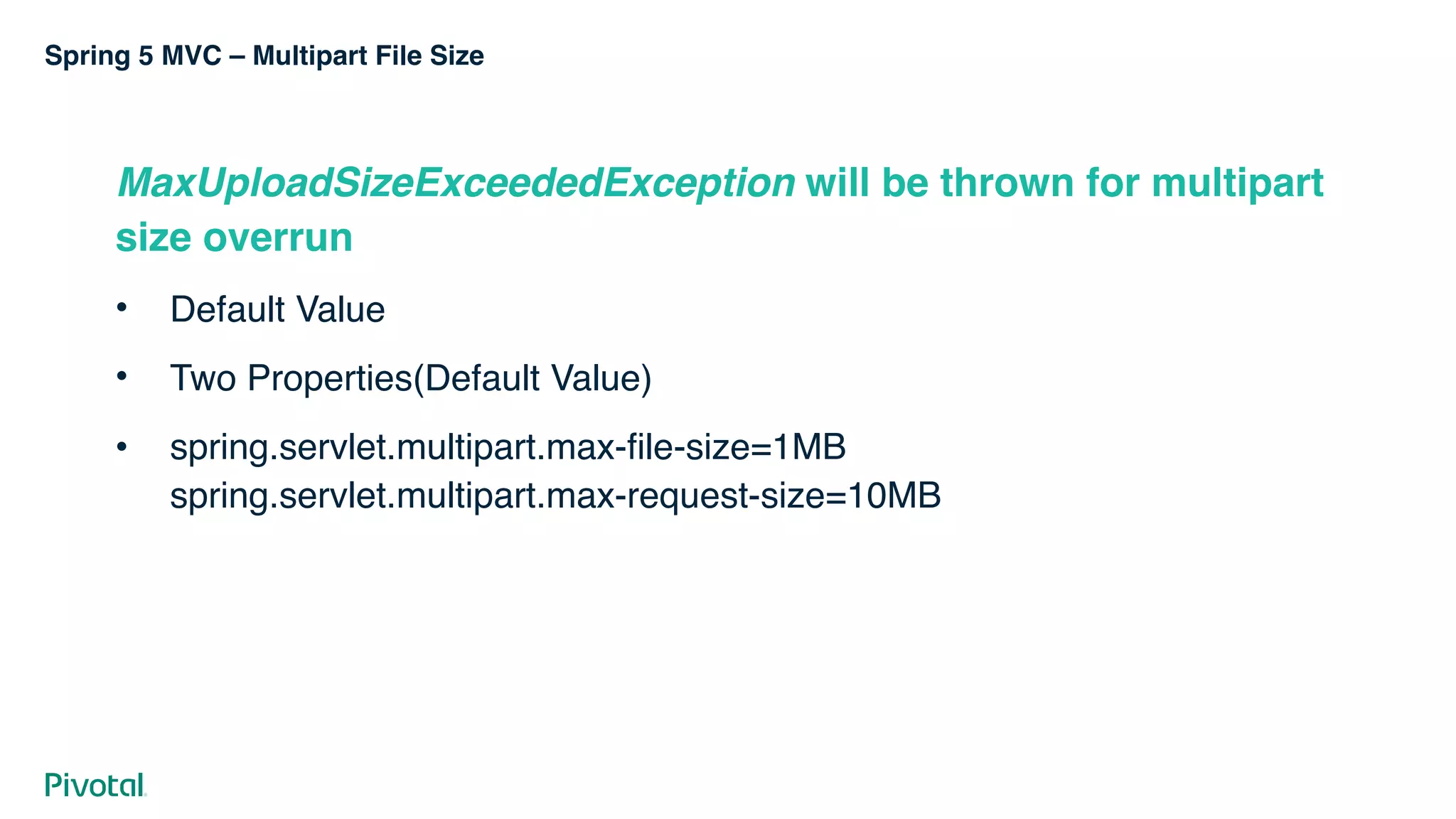

39. Spring 5 MVC – Multipart File Size
MaxUploadSizeExceededException will be thrown for multipart
size overrun
• Default Value
• Two Properties(Default Value)
• spring.servlet.multipart.max-file-size=1MB
spring.servlet.multipart.max-request-size=10MB

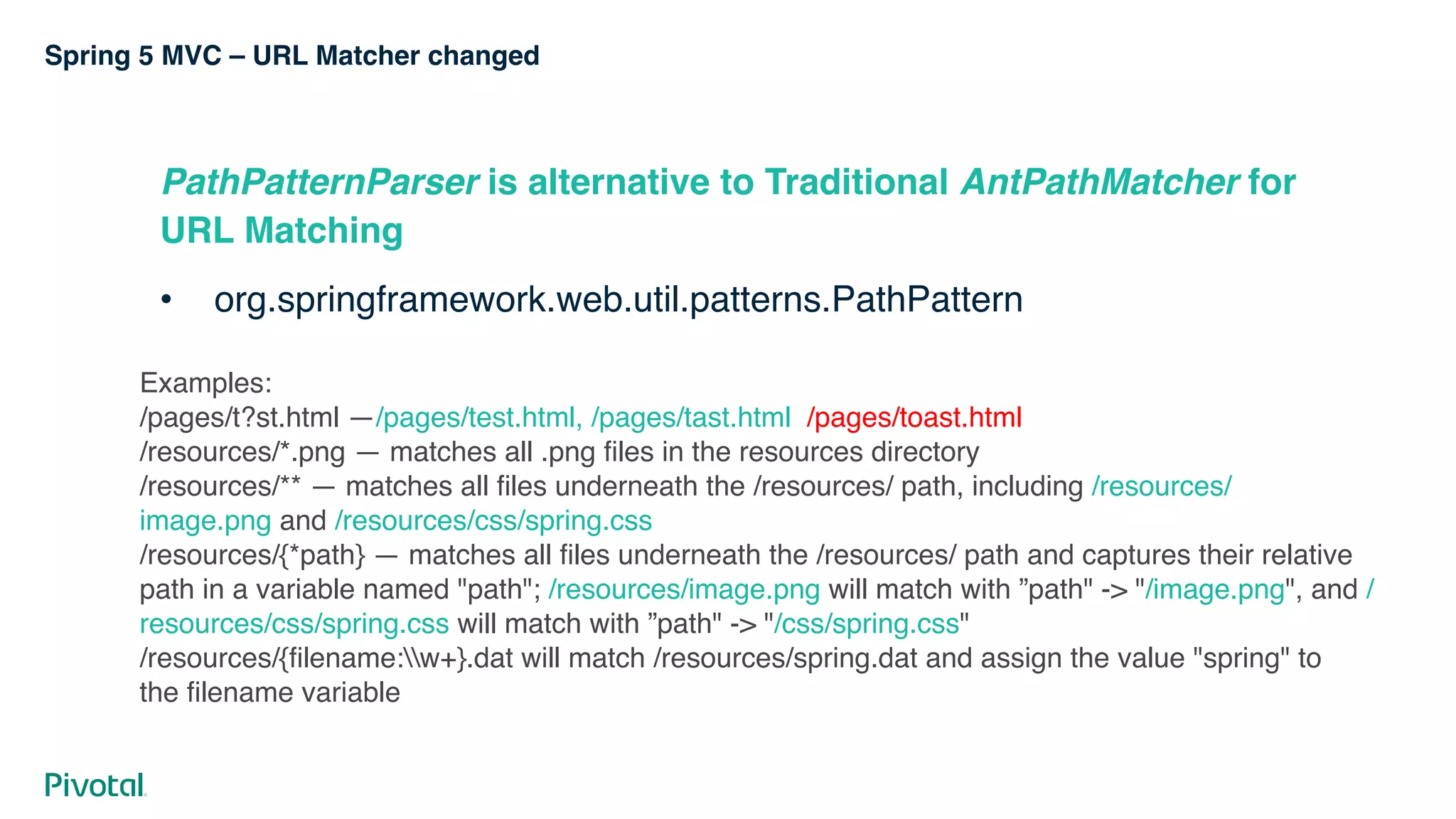

40. Spring 5 MVC – URL Matcher changed
PathPatternParser is alternative to Traditional AntPathMatcher for
URL Matching
• org.springframework.web.util.patterns.PathPattern
Examples:
/pages/t?st.html —/pages/test.html, /pages/tast.html /pages/toast.html
/resources/*.png — matches all .png files in the resources directory
/resources/** — matches all files underneath the /resources/ path, including /resources/
image.png and /resources/css/spring.css
/resources/{*path} — matches all files underneath the /resources/ path and captures their relative
path in a variable named "path"; /resources/image.png will match with ”path" -> "/image.png", and /
resources/css/spring.css will match with ”path" -> "/css/spring.css"
/resources/{filename:w+}.dat will match /resources/spring.dat and assign the value "spring" to
the filename variable

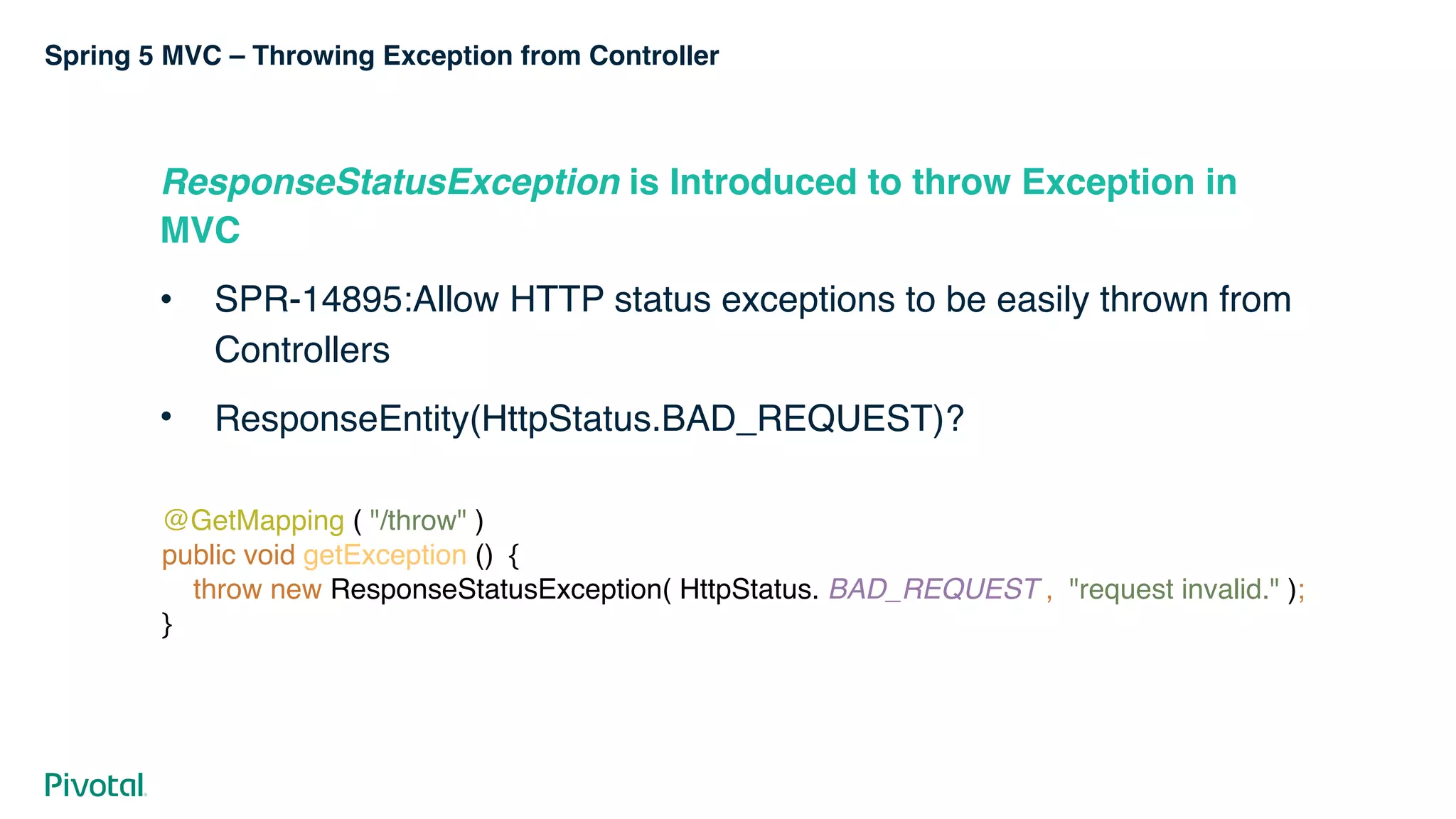

41. Spring 5 MVC – Throwing Exception from Controller
ResponseStatusException is Introduced to throw Exception in
MVC
• SPR-14895:Allow HTTP status exceptions to be easily thrown from
Controllers
• ResponseEntity(HttpStatus.BAD_REQUEST)?
@GetMapping ( "/throw" )
public void getException () {
throw new ResponseStatusException( HttpStatus. BAD_REQUEST , "request invalid." );
}

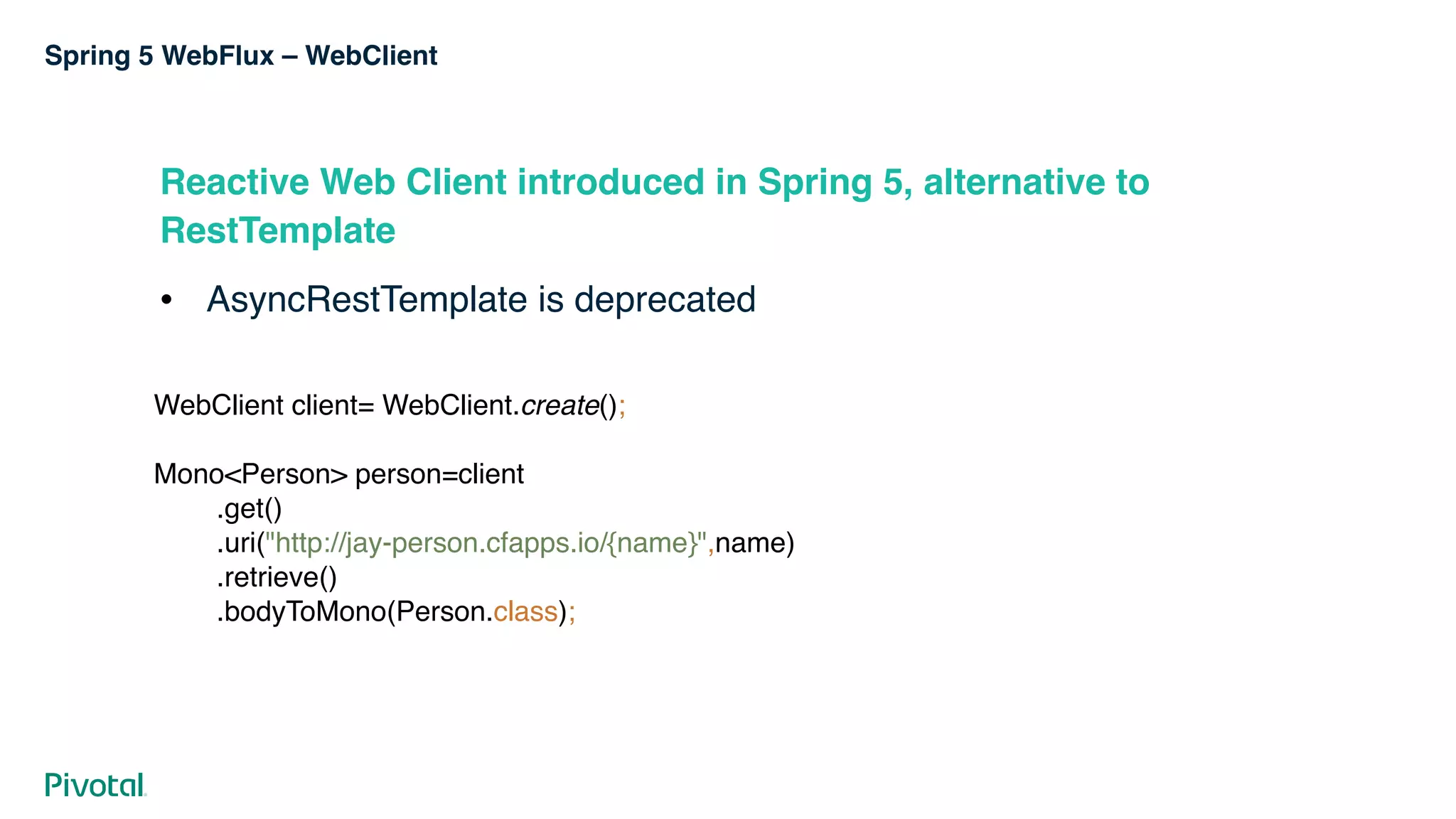

42. Spring 5 WebFlux – WebClient
Reactive Web Client introduced in Spring 5, alternative to
RestTemplate
! AsyncRestTemplate is deprecated
WebClient client= WebClient.create();
Mono<Person> person=client
.get()
.uri("http://jay-person.cfapps.io/{name}",name)
.retrieve()
.bodyToMono(Person.class);

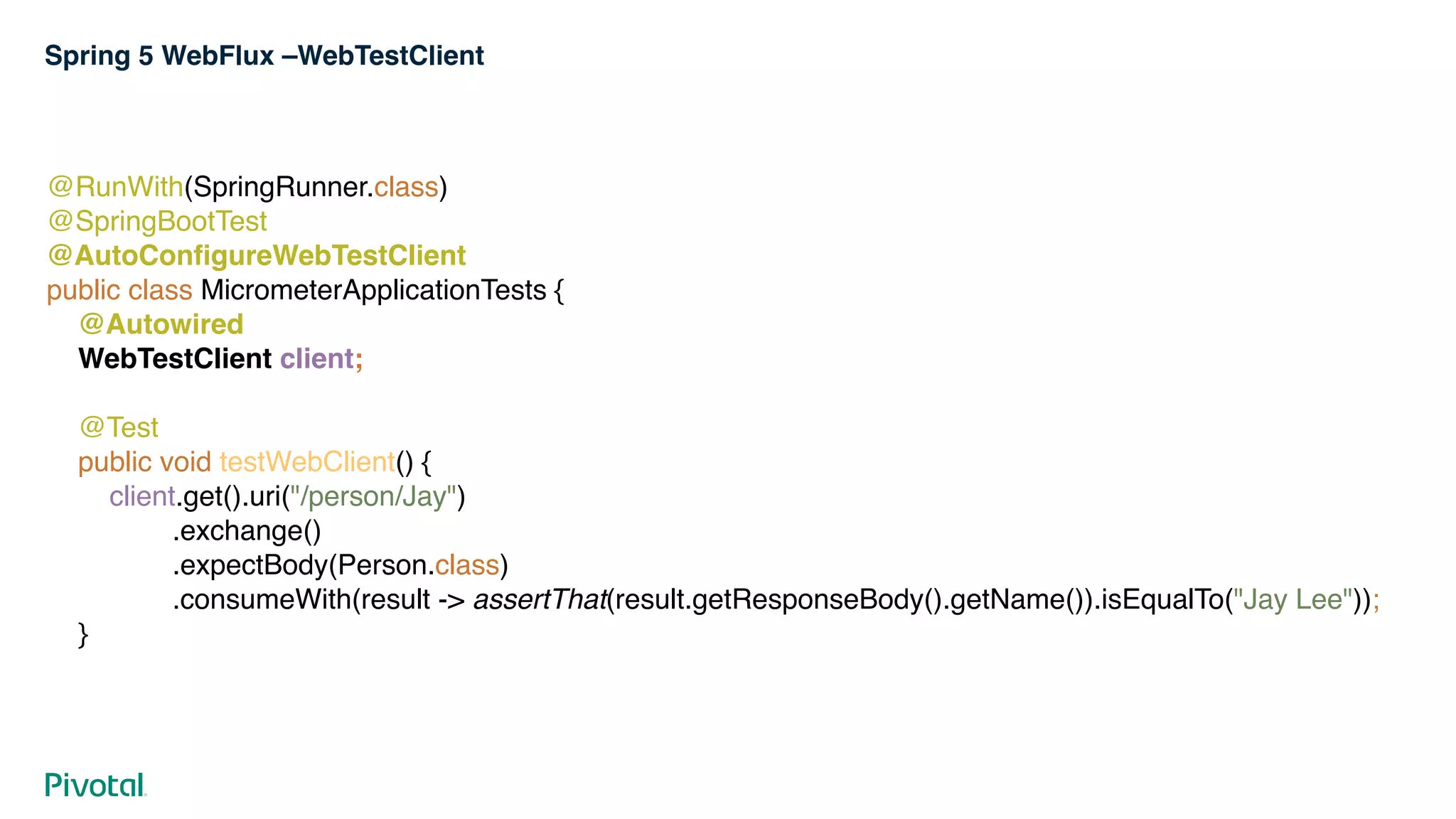

43. Spring 5 WebFlux –WebTestClient
@RunWith(SpringRunner.class)
@SpringBootTest
@AutoConfigureWebTestClient
public class MicrometerApplicationTests {
@Autowired
WebTestClient client;
@Test
public void testWebClient() {
client.get().uri("/person/Jay")
.exchange()
.expectBody(Person.class)
.consumeWith(result -> assertThat(result.getResponseBody().getName()).isEqualTo("Jay Lee"));
}

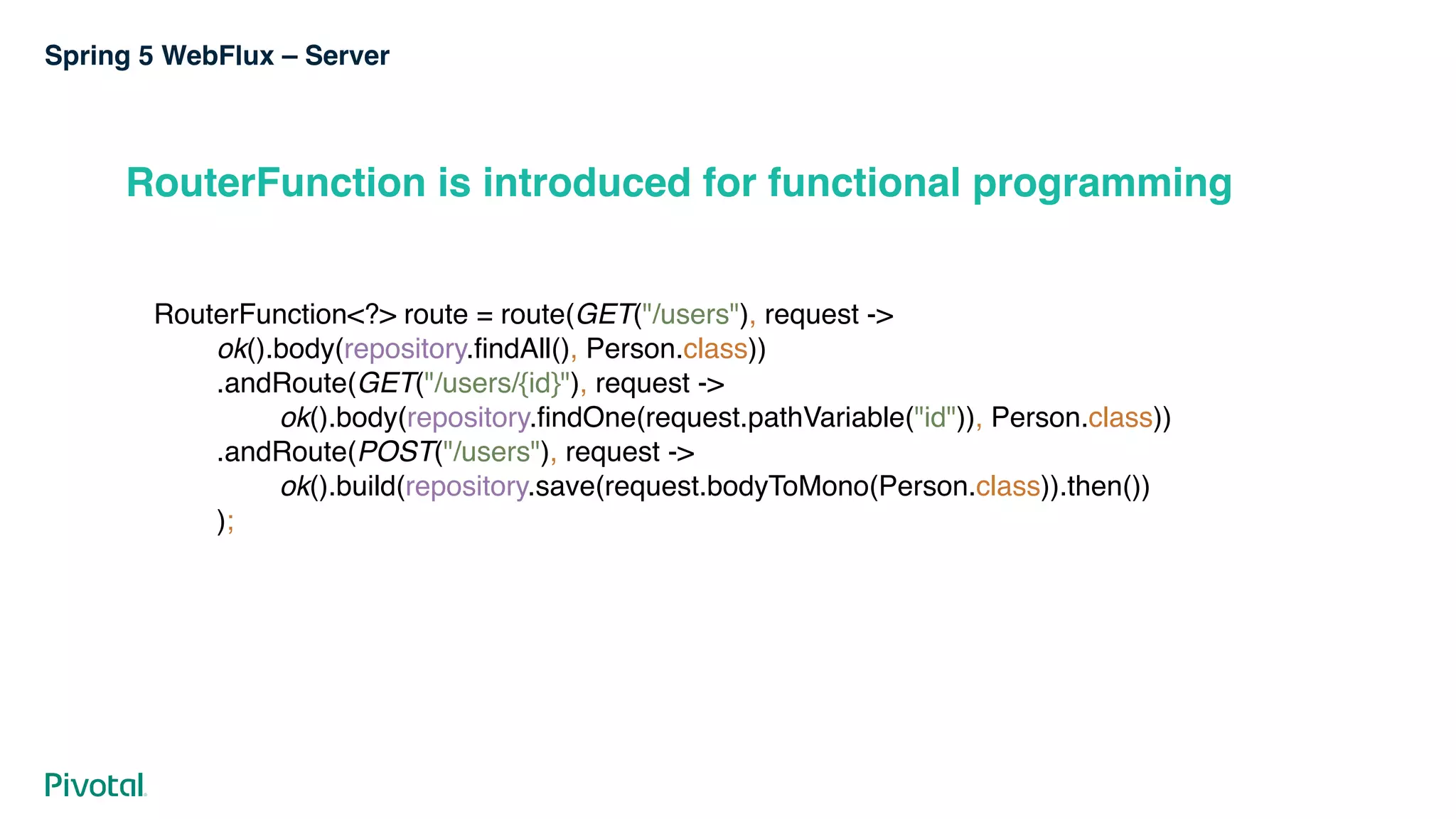

44. Spring 5 WebFlux – Server
RouterFunction is introduced for functional programming
RouterFunction<?> route = route(GET("/users"), request ->
ok().body(repository.findAll(), Person.class))
.andRoute(GET("/users/{id}"), request ->
ok().body(repository.findOne(request.pathVariable("id")), Person.class))
.andRoute(POST("/users"), request ->
ok().build(repository.save(request.bodyToMono(Person.class)).then())
);

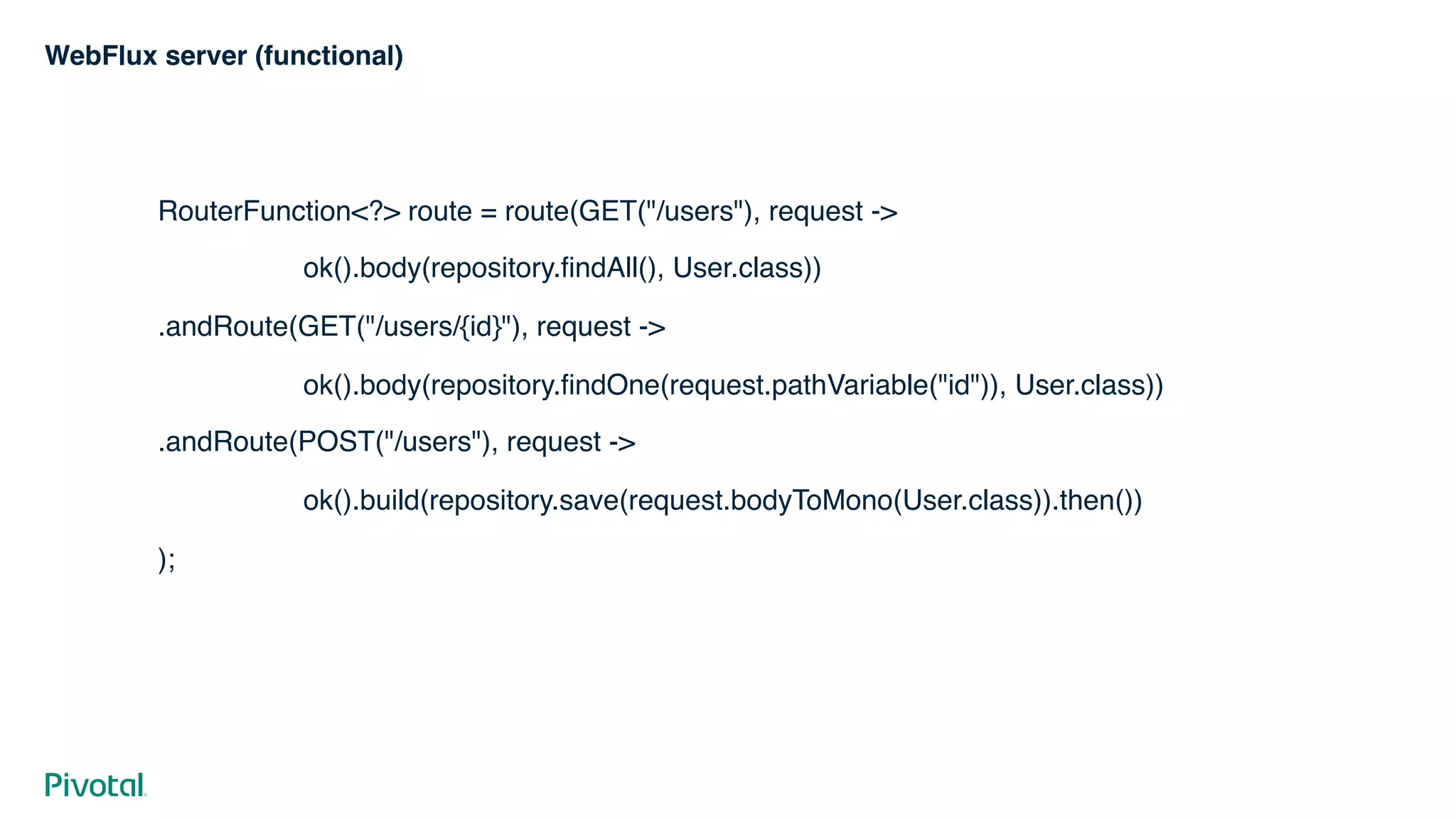

45. WebFlux server (functional)
RouterFunction<?> route = route(GET("/users"), request ->
ok().body(repository.findAll(), User.class))
.andRoute(GET("/users/{id}"), request ->
ok().body(repository.findOne(request.pathVariable("id")), User.class))
.andRoute(POST("/users"), request ->
ok().build(repository.save(request.bodyToMono(User.class)).then())
);

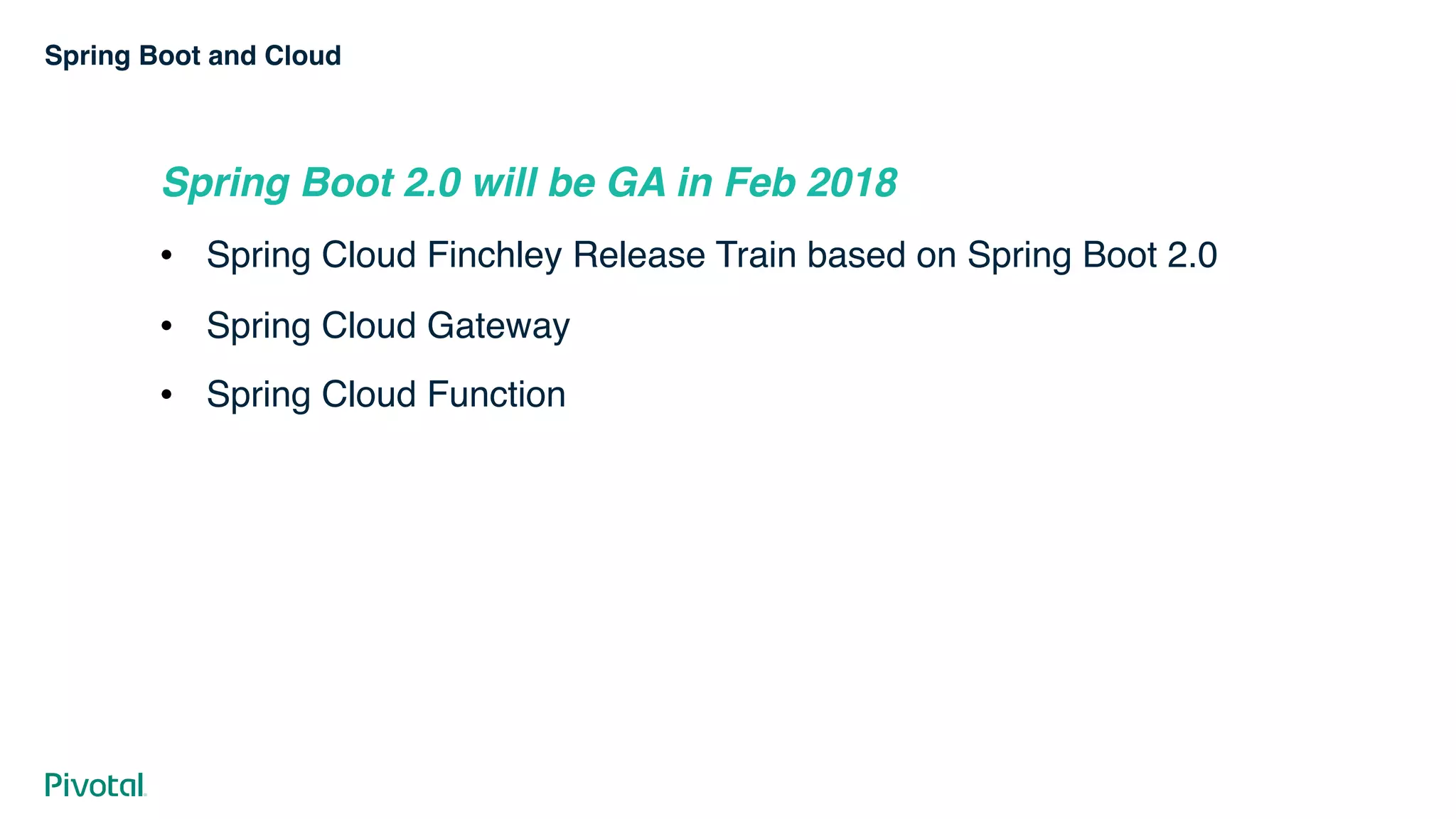

46. Spring Boot and Cloud
Spring Boot 2.0 will be GA in Feb 2018
! Spring Cloud Finchley Release Train based on Spring Boot 2.0
! Spring Cloud Gateway
! Spring Cloud Function

47. Spring Calendar
https://spring-calendar.cfapps.io/

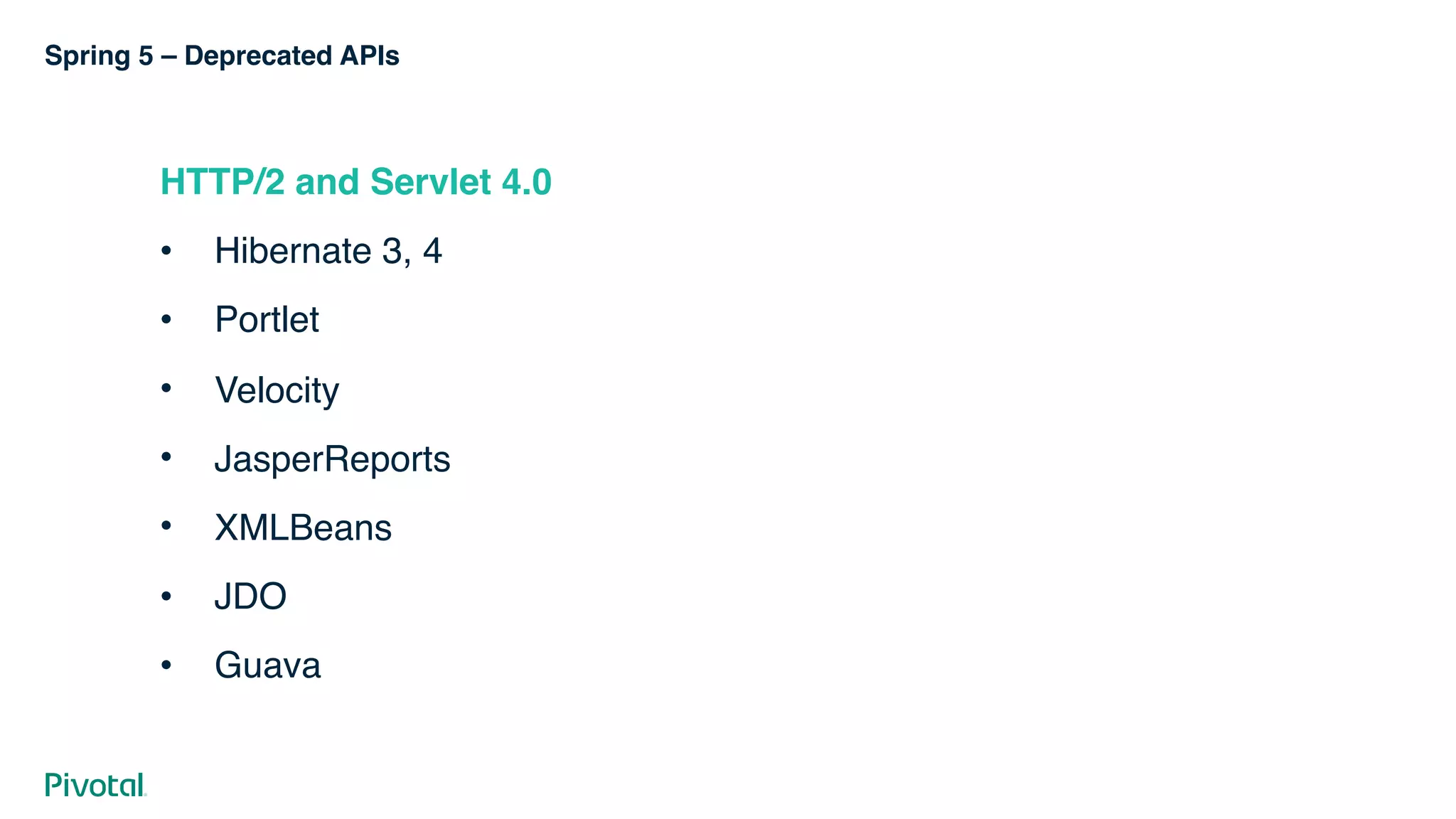

48. Spring 5 – Deprecated APIs
HTTP/2 and Servlet 4.0
• Hibernate 3, 4
• Portlet
• Velocity
• JasperReports
• XMLBeans
• JDO
• Guava

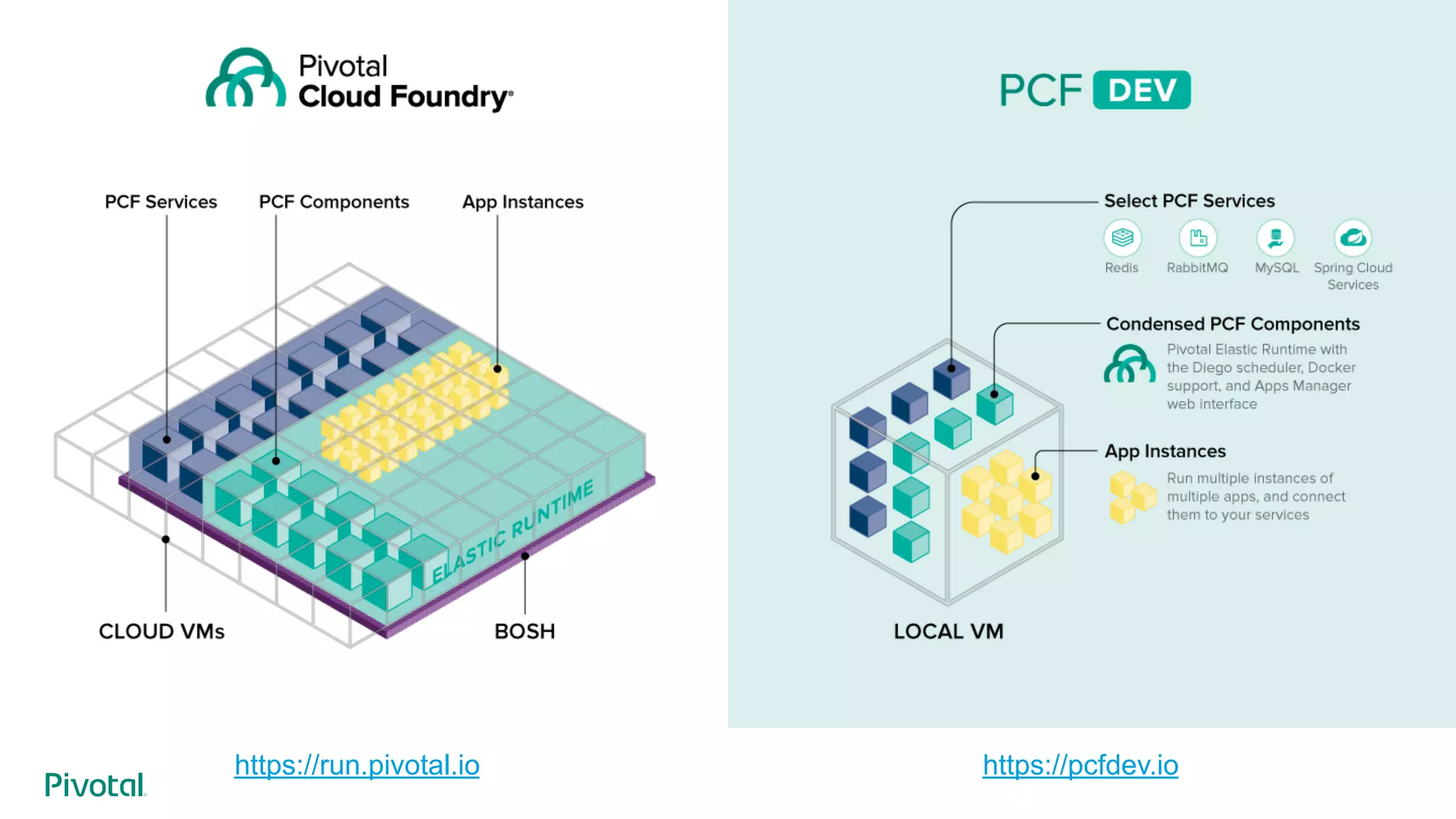

49. https://run.pivotal.io https://pcfdev.io
