This document discusses implementing a service broker with Spring Boot to provide services to applications running on Cloud Foundry. It provides an overview of service brokers and their APIs in Cloud Foundry. It then demonstrates how to build a sample fake service broker using Spring Boot and the Spring Cloud CloudFoundry Service Broker library by implementing the broker APIs and services. The broker is deployed locally to PCF Dev and services are created and bound to applications.

1. Implement Service Broker
with Spring Boot
Toshiaki Maki (@making)
Sr. Solutions Architect @Pivotal
2016-‐‑‒06-‐‑‒01 Cloud Foundry Tokyo Meetup #2

2. Who am I ?
•Toshiaki Maki (@making)
•https://blog.ik.am
•Sr. Solutions Architect
•Spring Framework enthusiast
Spring
Framework
徹底⼊入⾨門
(Coming
Soon?)
パーフェクト
Java EE
(Coming
Soon?)

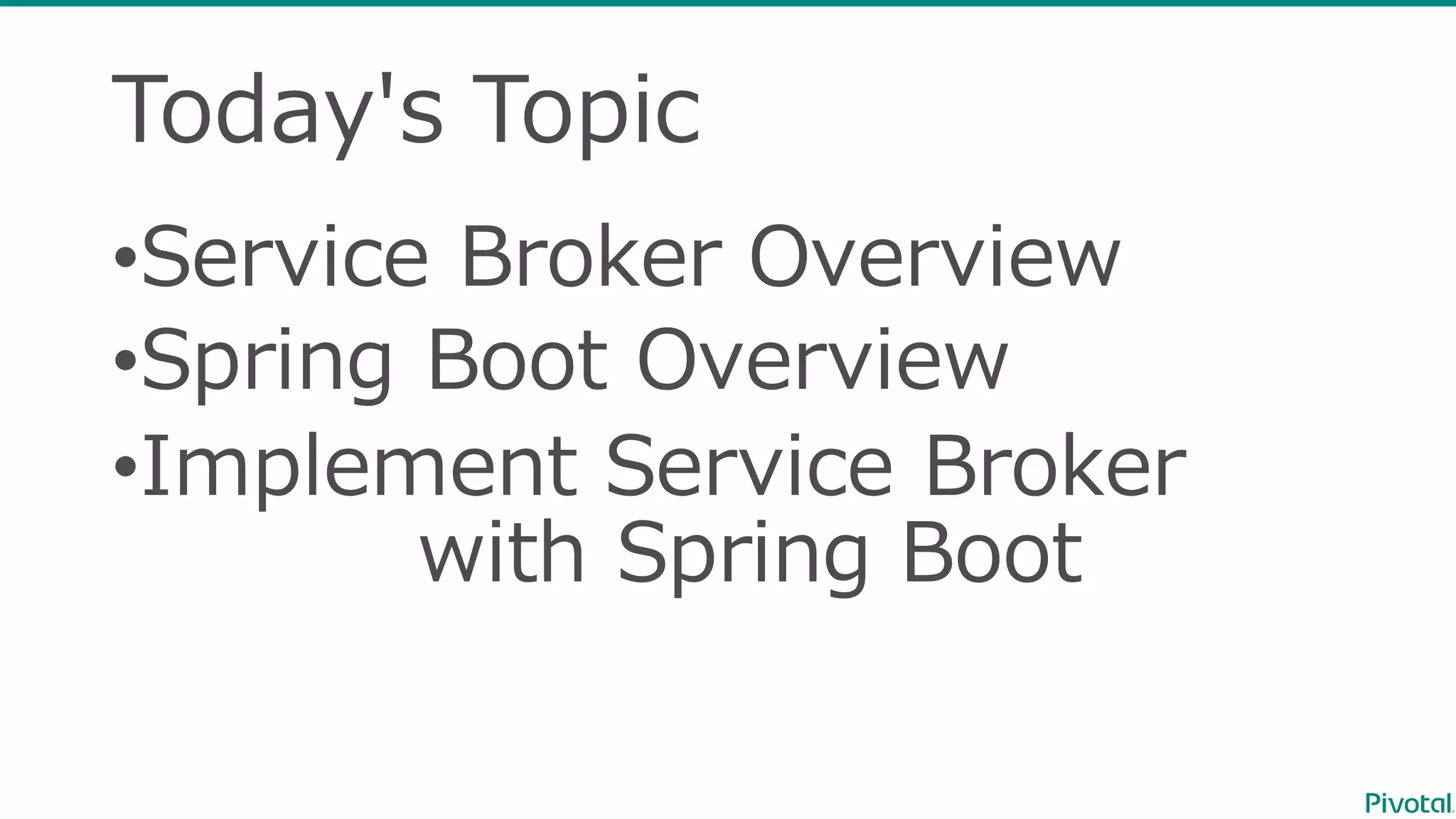

3. Today's Topic
•Service Broker Overview
•Spring Boot Overview
•Implement Service Broker
with Spring Boot

4. Service Broker Overview

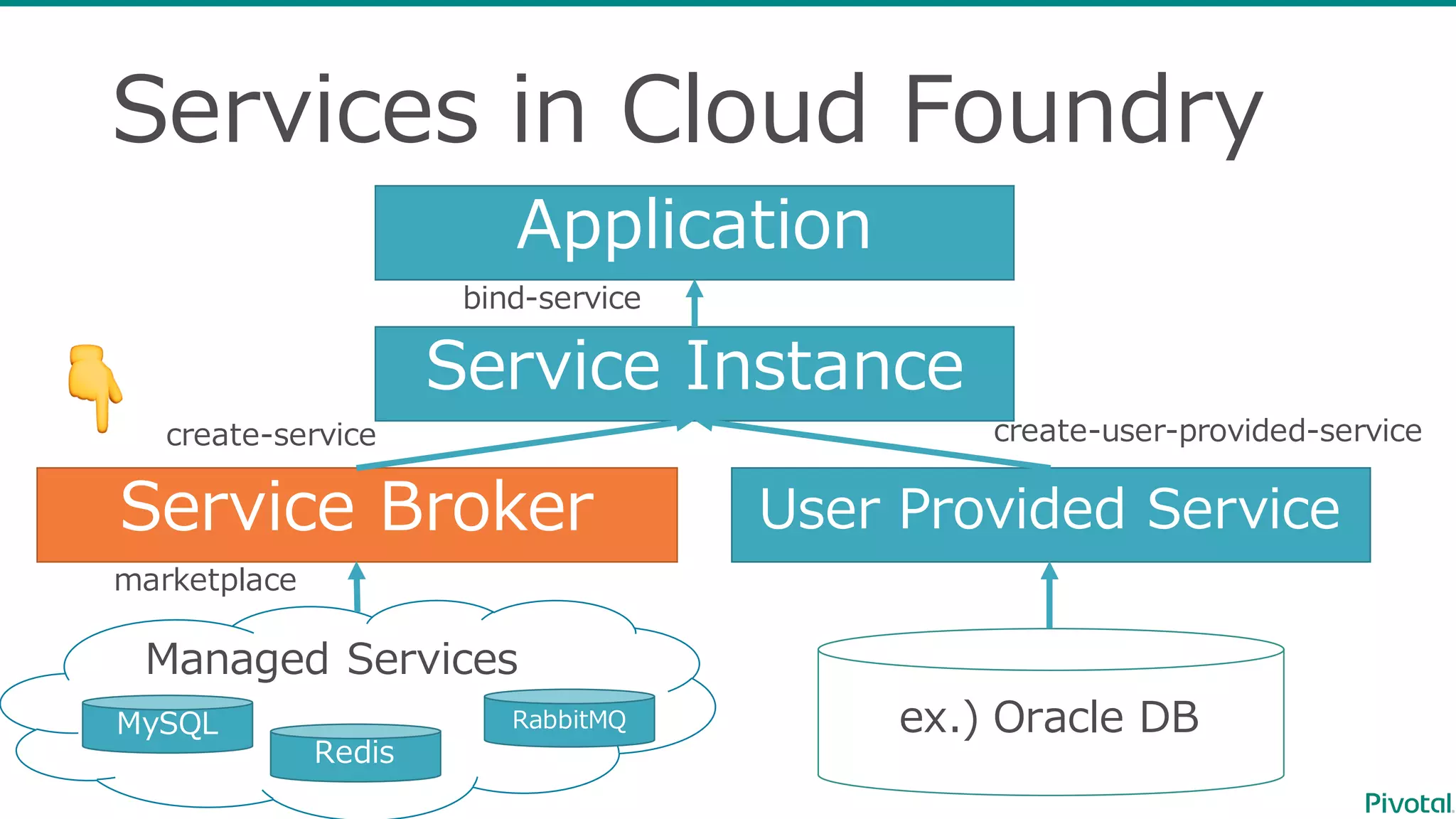

5. Services in Cloud Foundry
Application
Service Broker
Service Instance
User Provided Service
Managed Services
MySQL
Redis
RabbitMQ ex.) Oracle DB
create-‐‑‒user-‐‑‒provided-‐‑‒servicecreate-‐‑‒service
bind-‐‑‒service
marketplace

6. Services in Cloud Foundry
Application
Service Broker
Service Instance
User Provided Service
Managed Services
MySQL
Redis
RabbitMQ ex.) Oracle DB
create-‐‑‒user-‐‑‒provided-‐‑‒servicecreate-‐‑‒service
bind-‐‑‒service
marketplace
👇

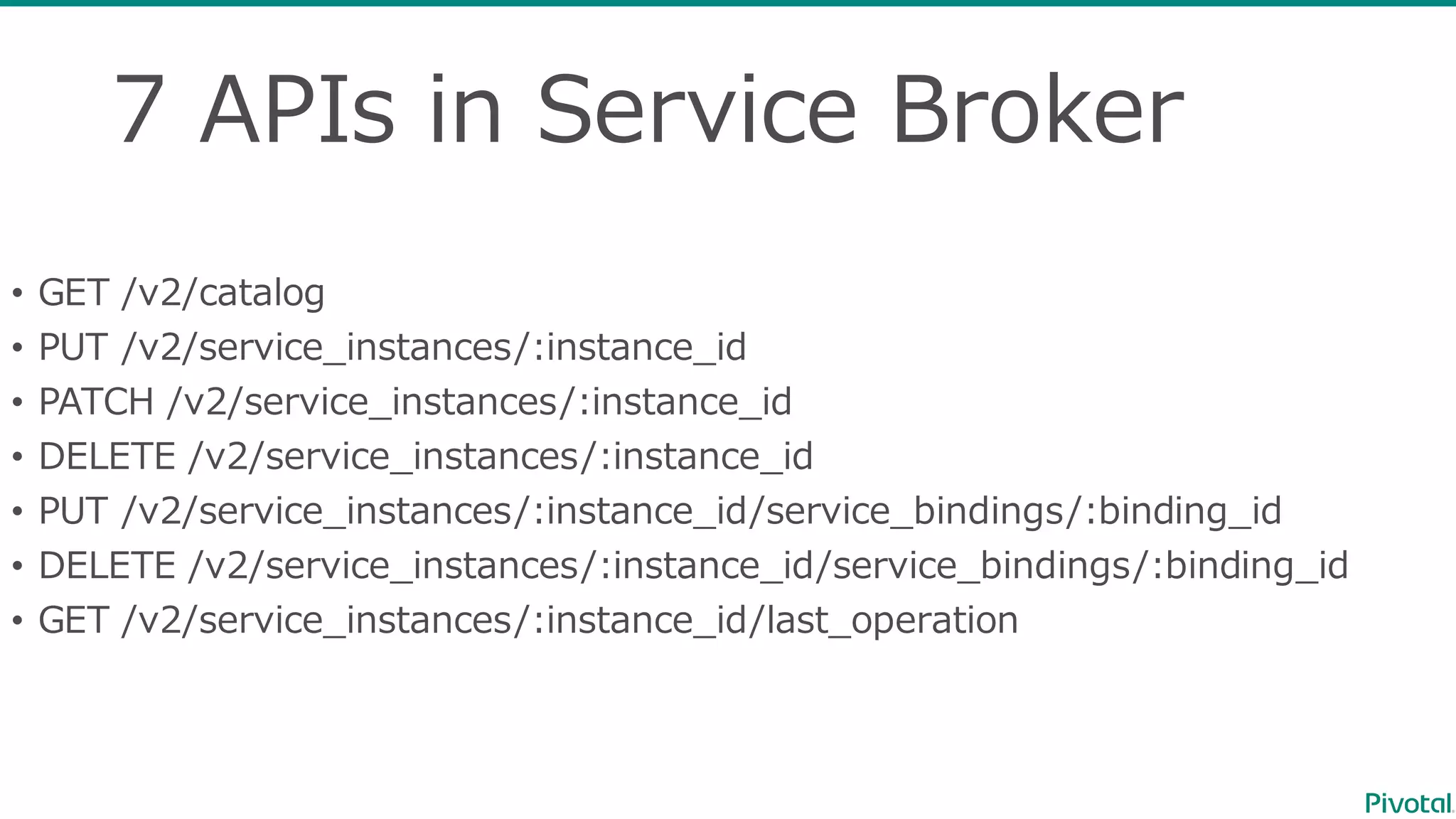

7. 7 APIs in Service Broker
• GET /v2/catalog
• PUT /v2/service_̲instances/:instance_̲id
• PATCH /v2/service_̲instances/:instance_̲id
• DELETE /v2/service_̲instances/:instance_̲id
• PUT /v2/service_̲instances/:instance_̲id/service_̲bindings/:binding_̲id
• DELETE /v2/service_̲instances/:instance_̲id/service_̲bindings/:binding_̲id
• GET /v2/service_̲instances/:instance_̲id/last_̲operation

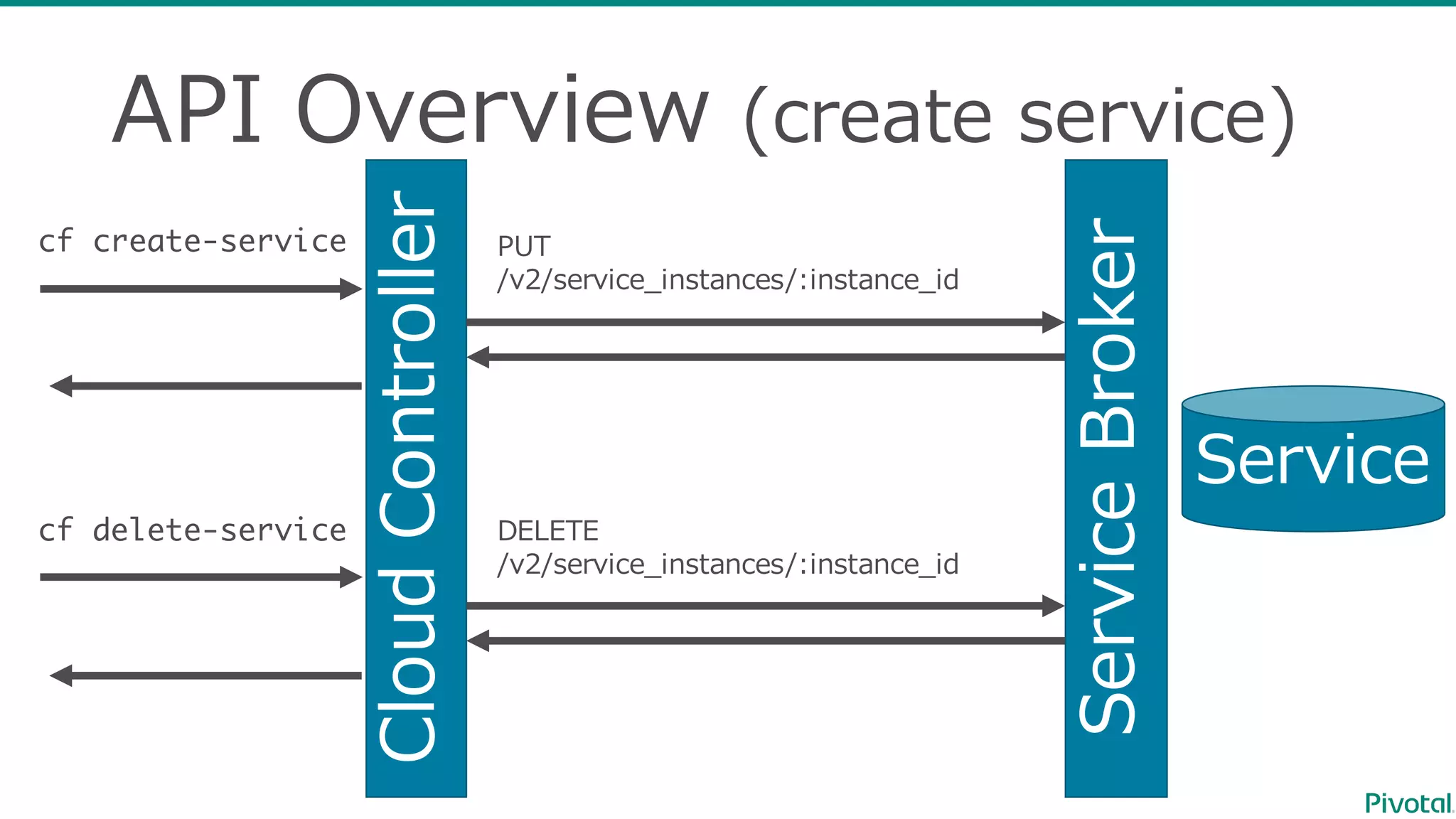

8. API Overview (create service)
Cloud Controller
Service
cf create-service PUT
/v2/service_̲instances/:instance_̲id
Service Broker
cf delete-service DELETE
/v2/service_̲instances/:instance_̲id

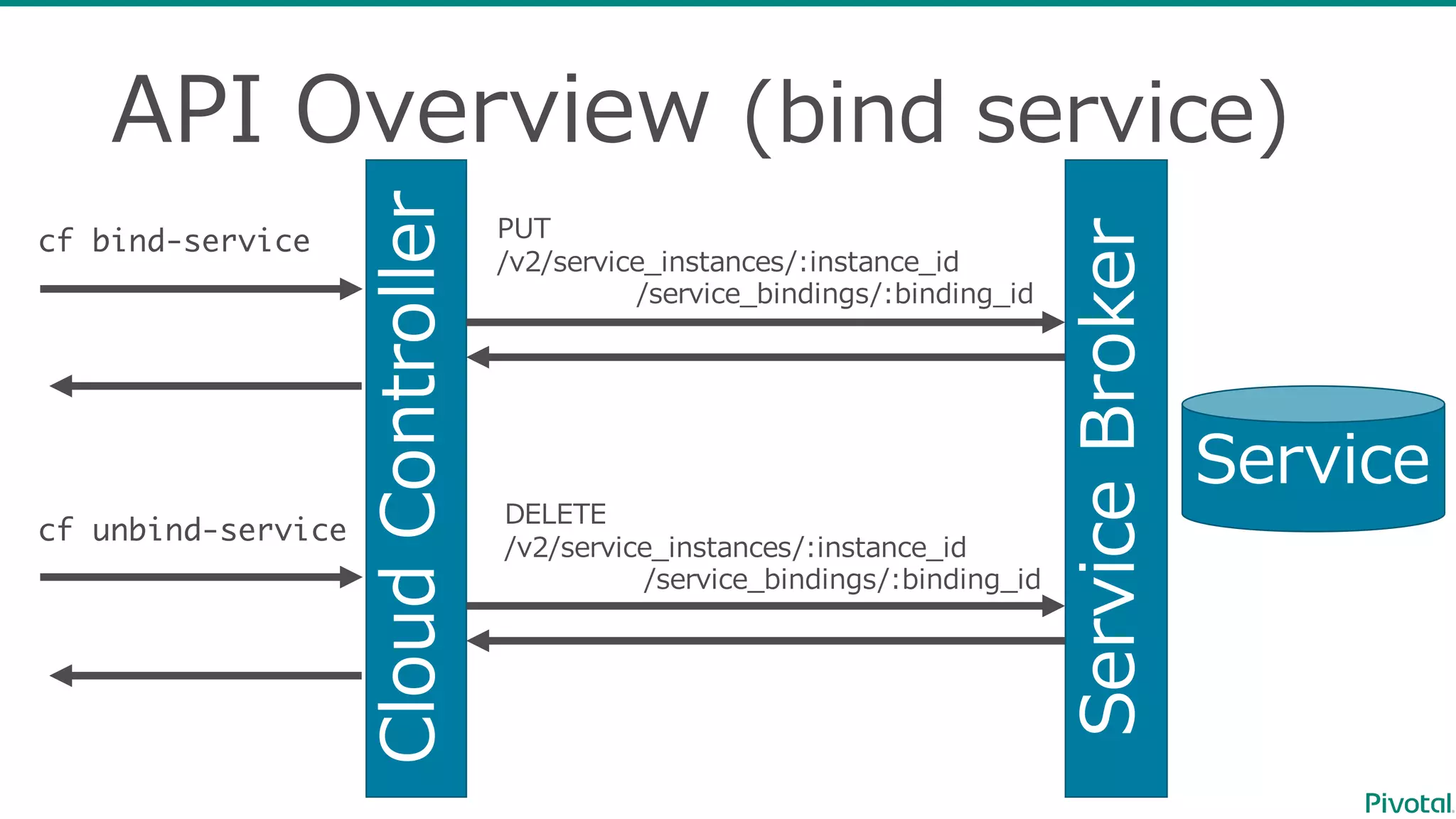

9. API Overview (bind service)
Cloud Controller
Service
cf bind-service PUT
/v2/service_̲instances/:instance_̲id
/service_̲bindings/:binding_̲id
Service Broker
cf unbind-service
DELETE
/v2/service_̲instances/:instance_̲id
/service_̲bindings/:binding_̲id

10. Spring Boot Overview

11. Spring Boot
• Super Easy Framework in Java

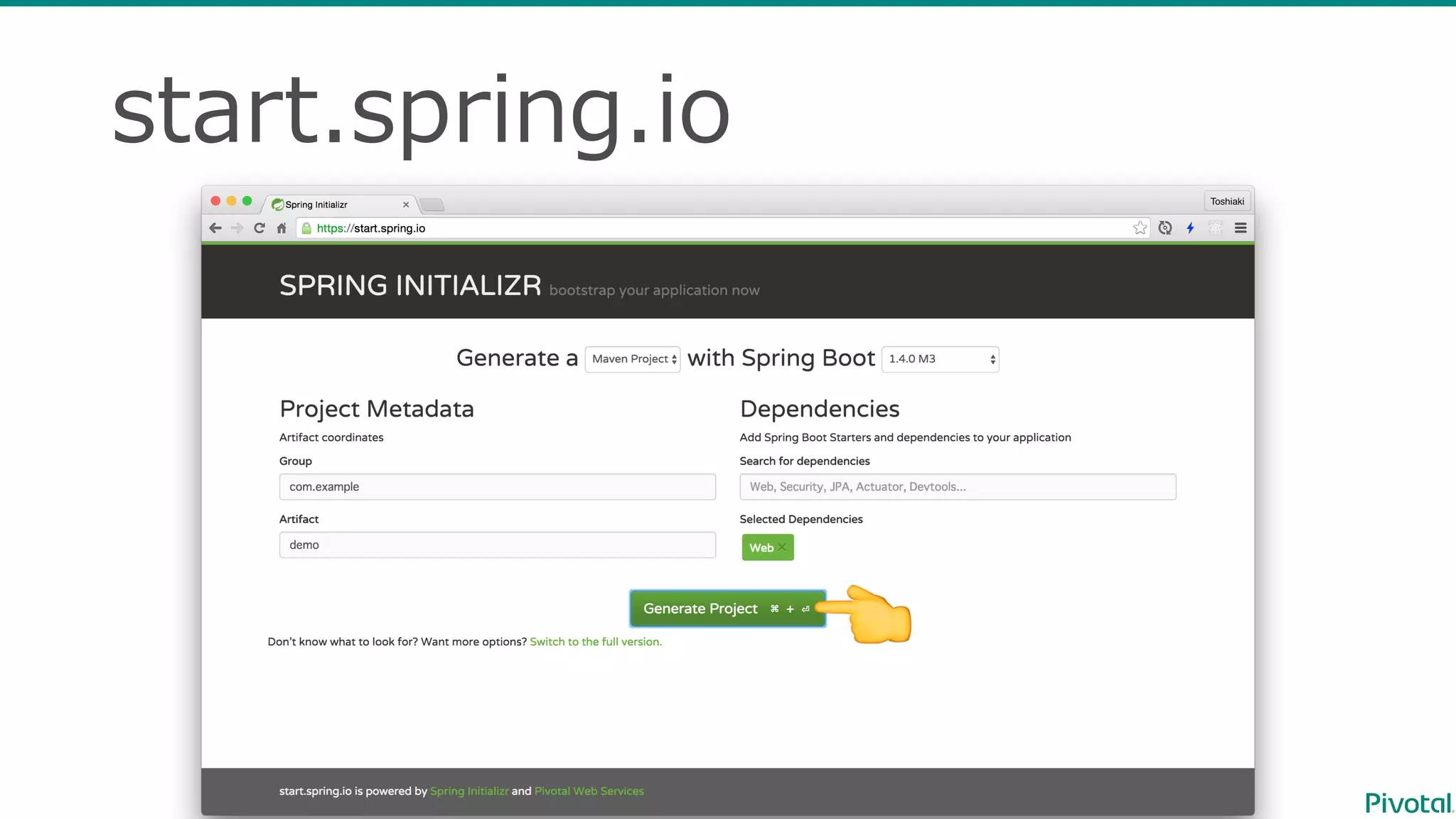

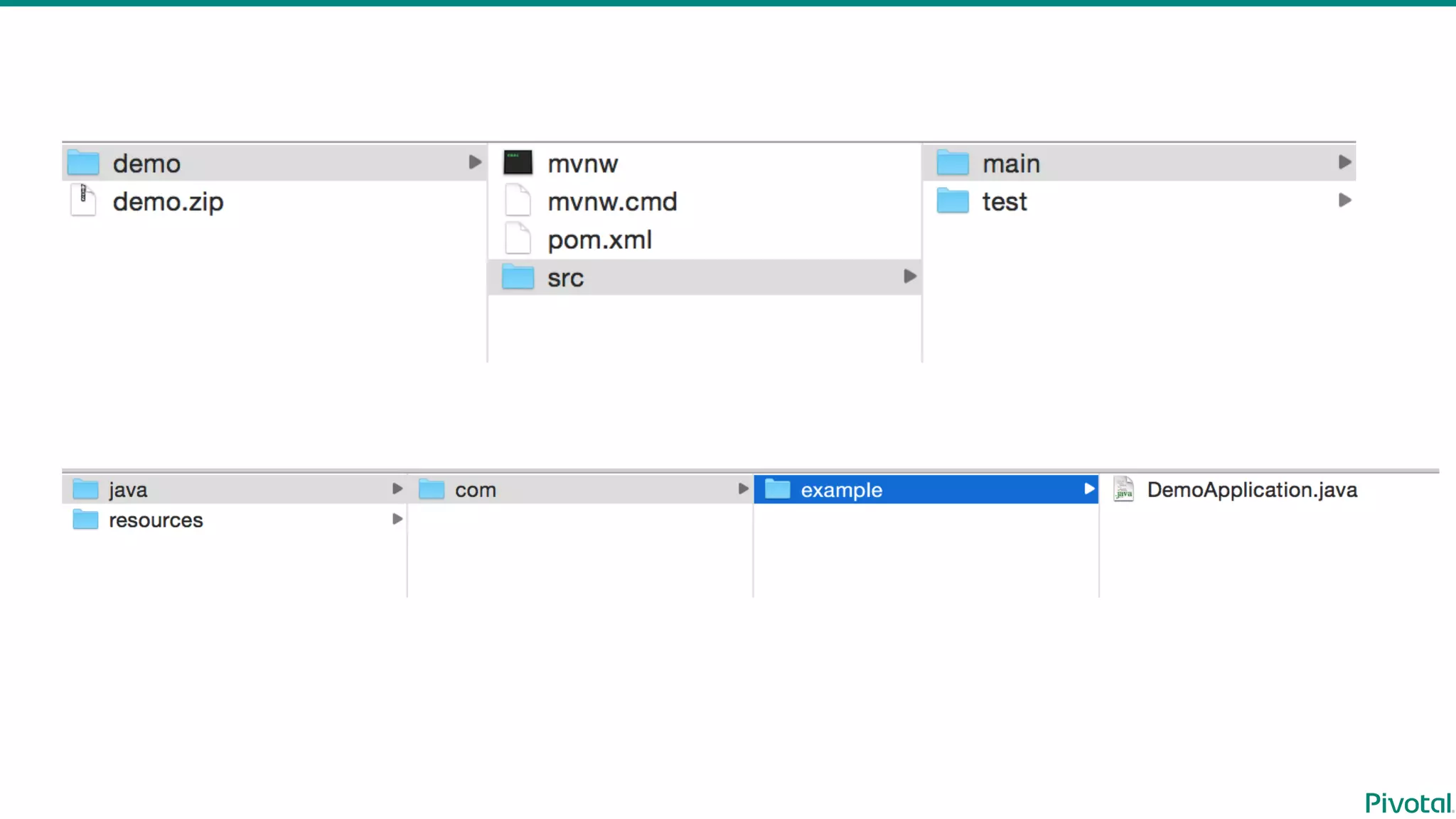

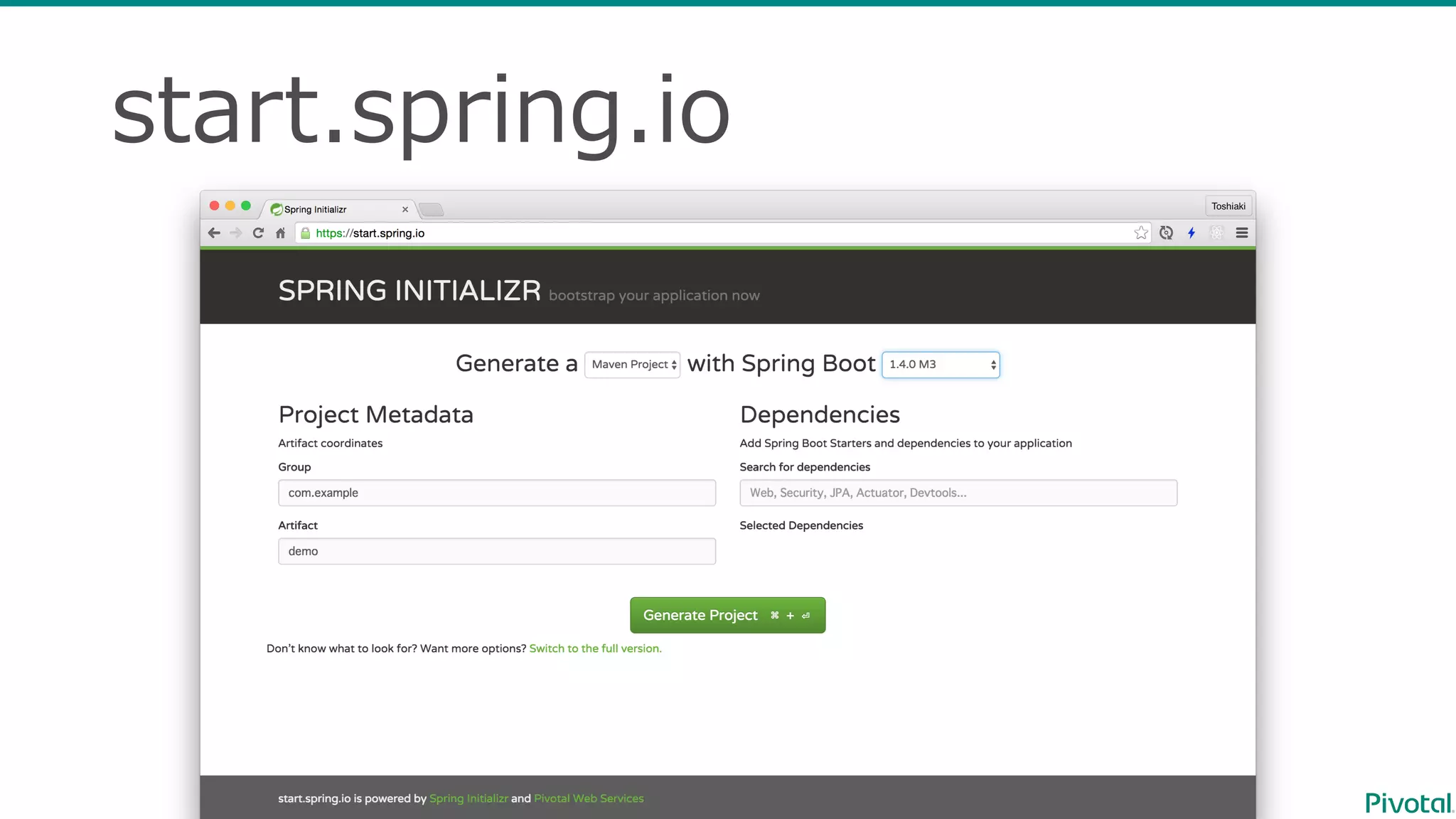

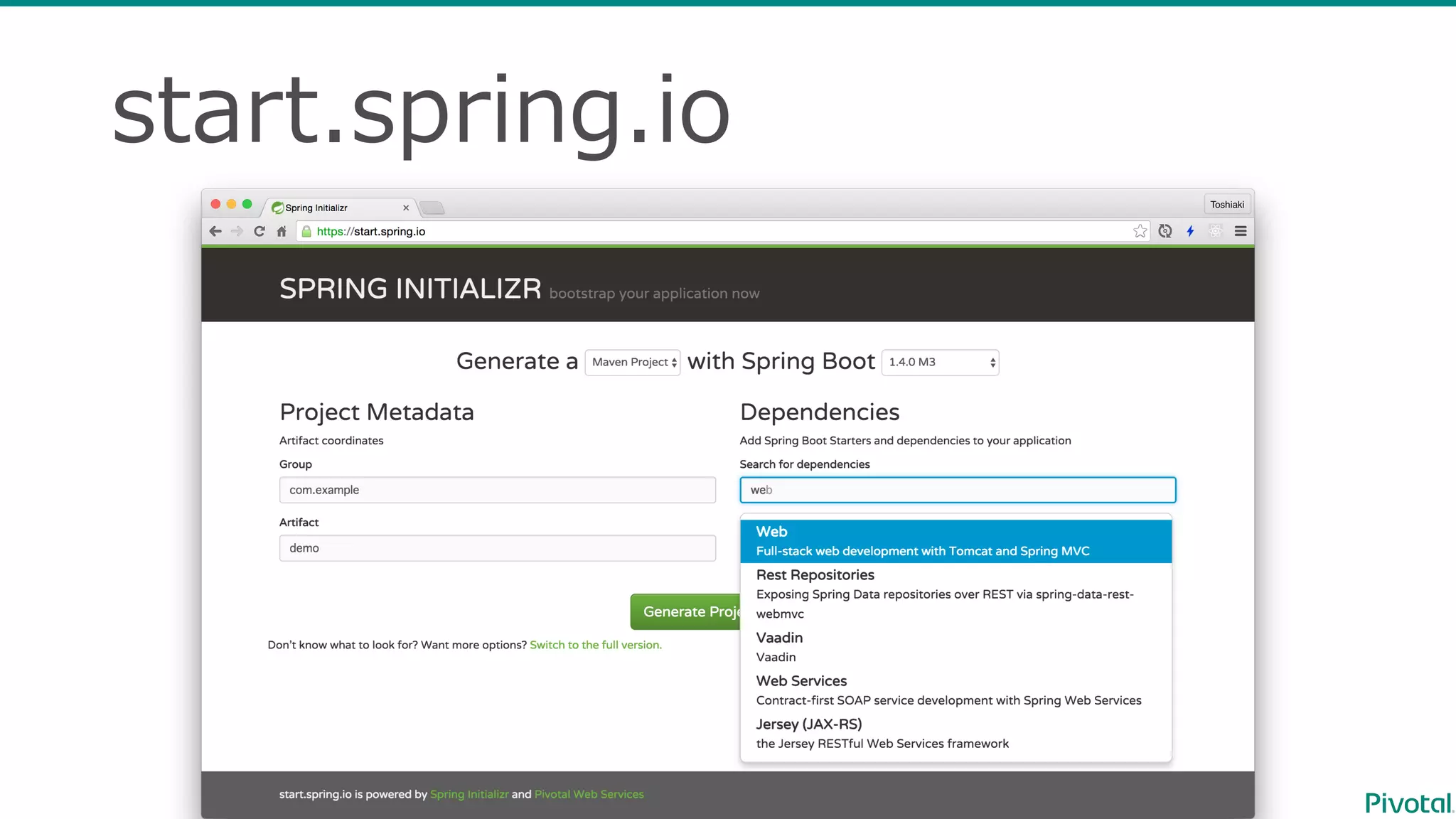

12. start.spring.io

13. start.spring.io

14. start.spring.io
👈

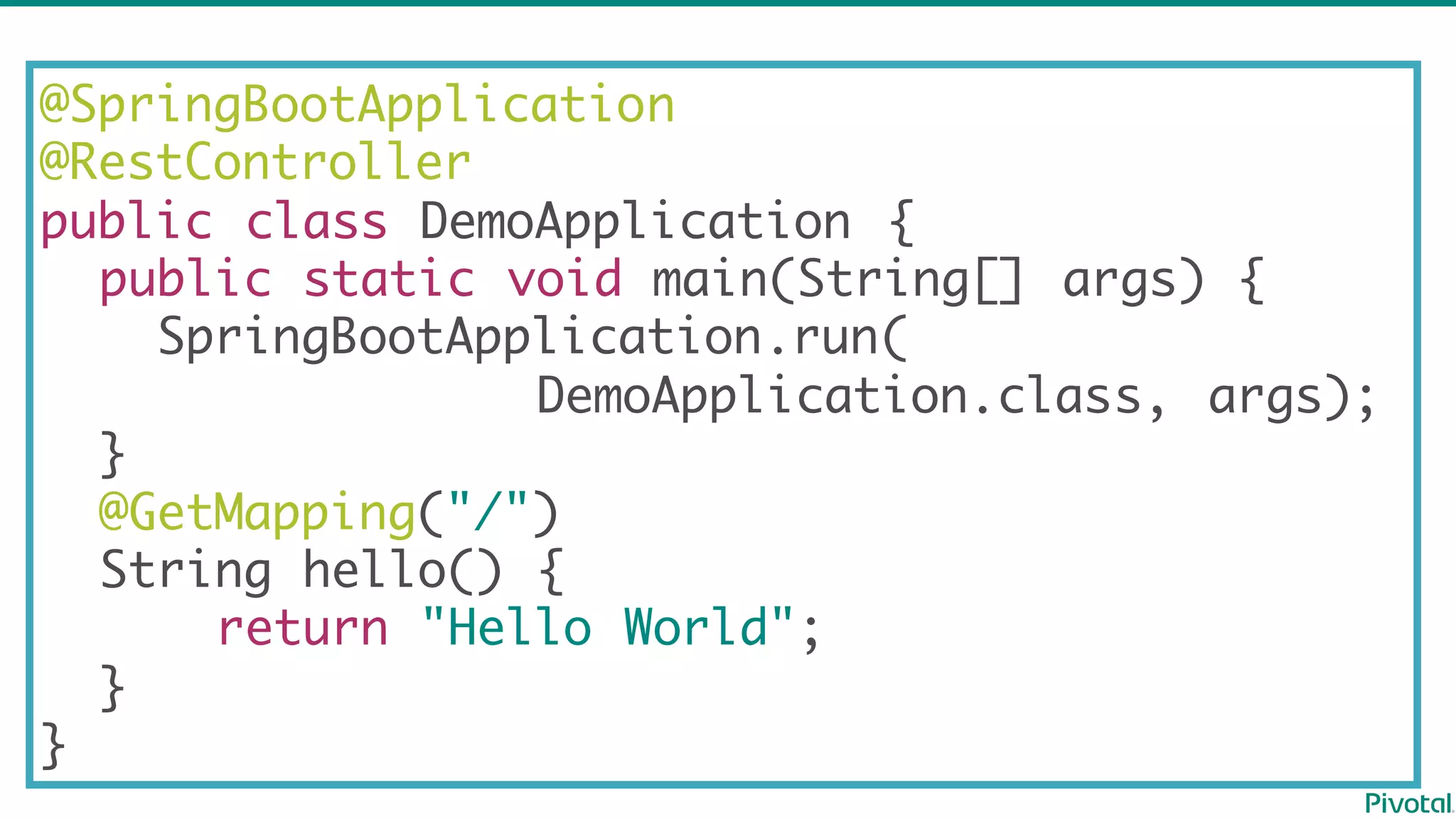

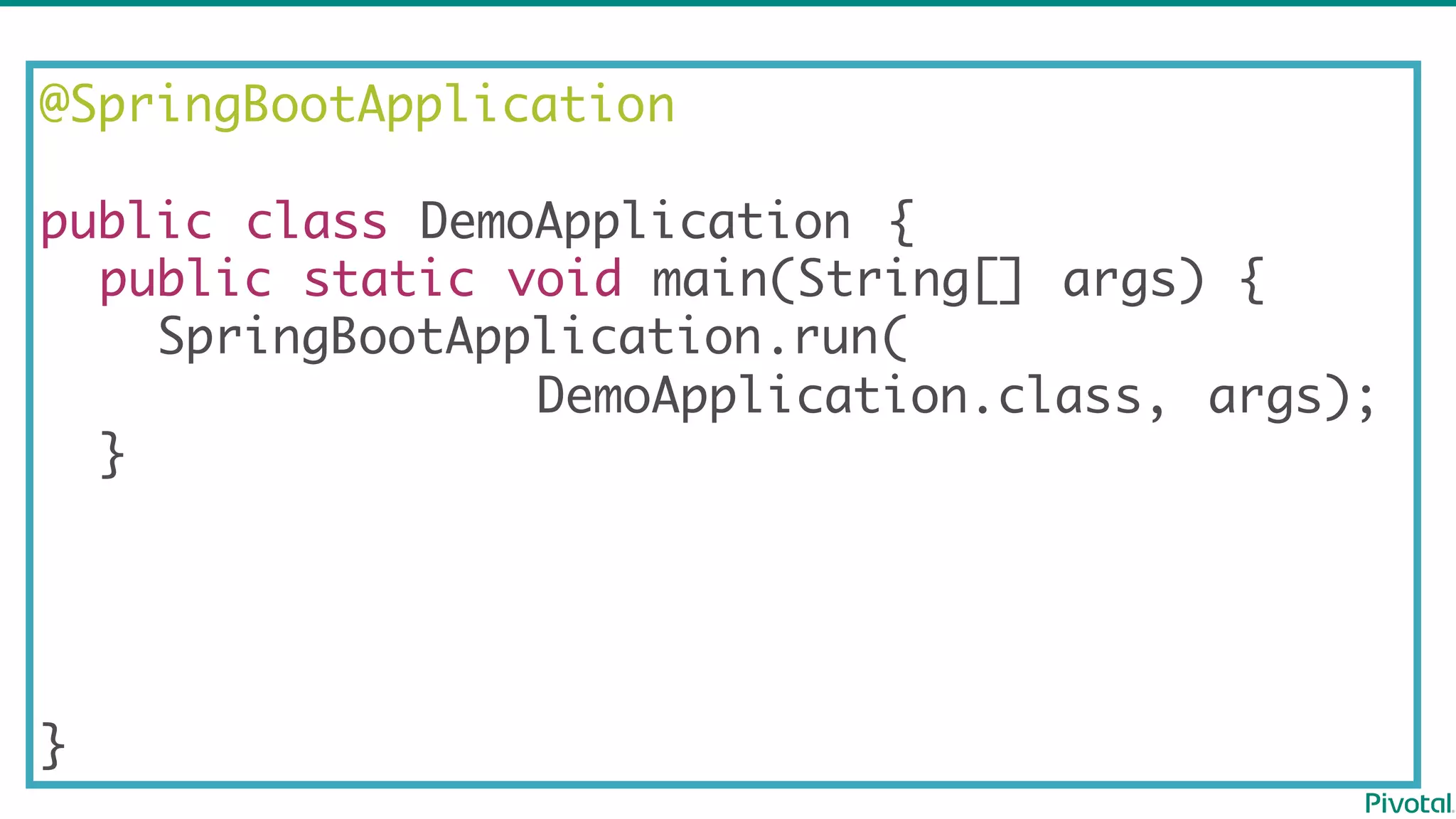

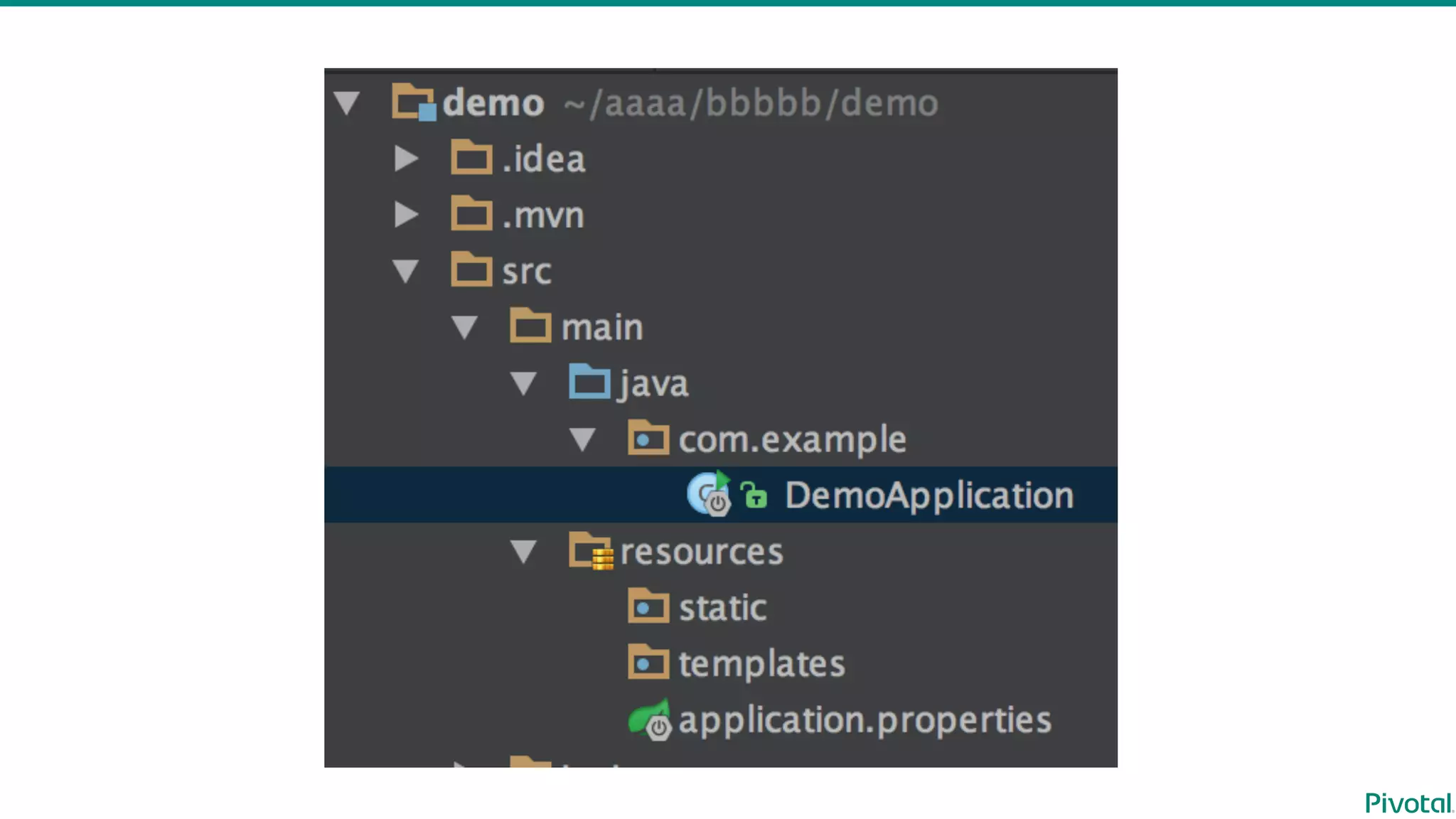

17. @SpringBootApplication
@RestController
public class DemoApplication {
public static void main(String[] args) {
SpringBootApplication.run(
DemoApplication.class, args);
}
@GetMapping("/")
String hello() {
return "Hello World";
}
}

18. @SpringBootApplication
@RestController
public class DemoApplication {
public static void main(String[] args) {
SpringBootApplication.run(
DemoApplication.class, args);
}
@GetMapping("/")
String hello() {
return "Hello World";
}
}

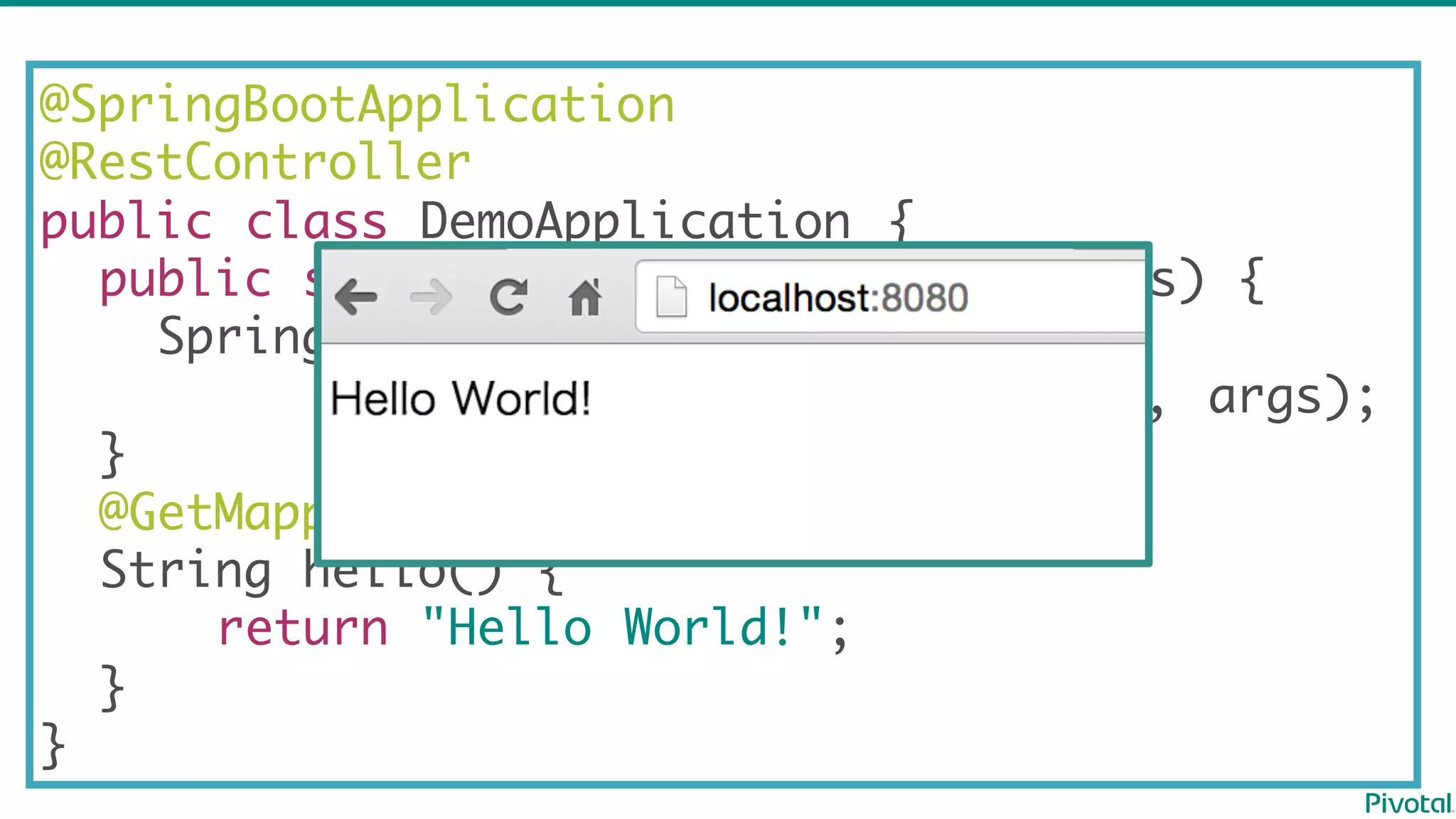

19. @SpringBootApplication
@RestController
public class DemoApplication {
public static void main(String[] args) {
SpringBootApplication.run(
DemoApplication.class, args);
}
@GetMapping("/")
String hello() {
return "Hello World!";
}
}

20. Implement Service Broker
with Spring Boot

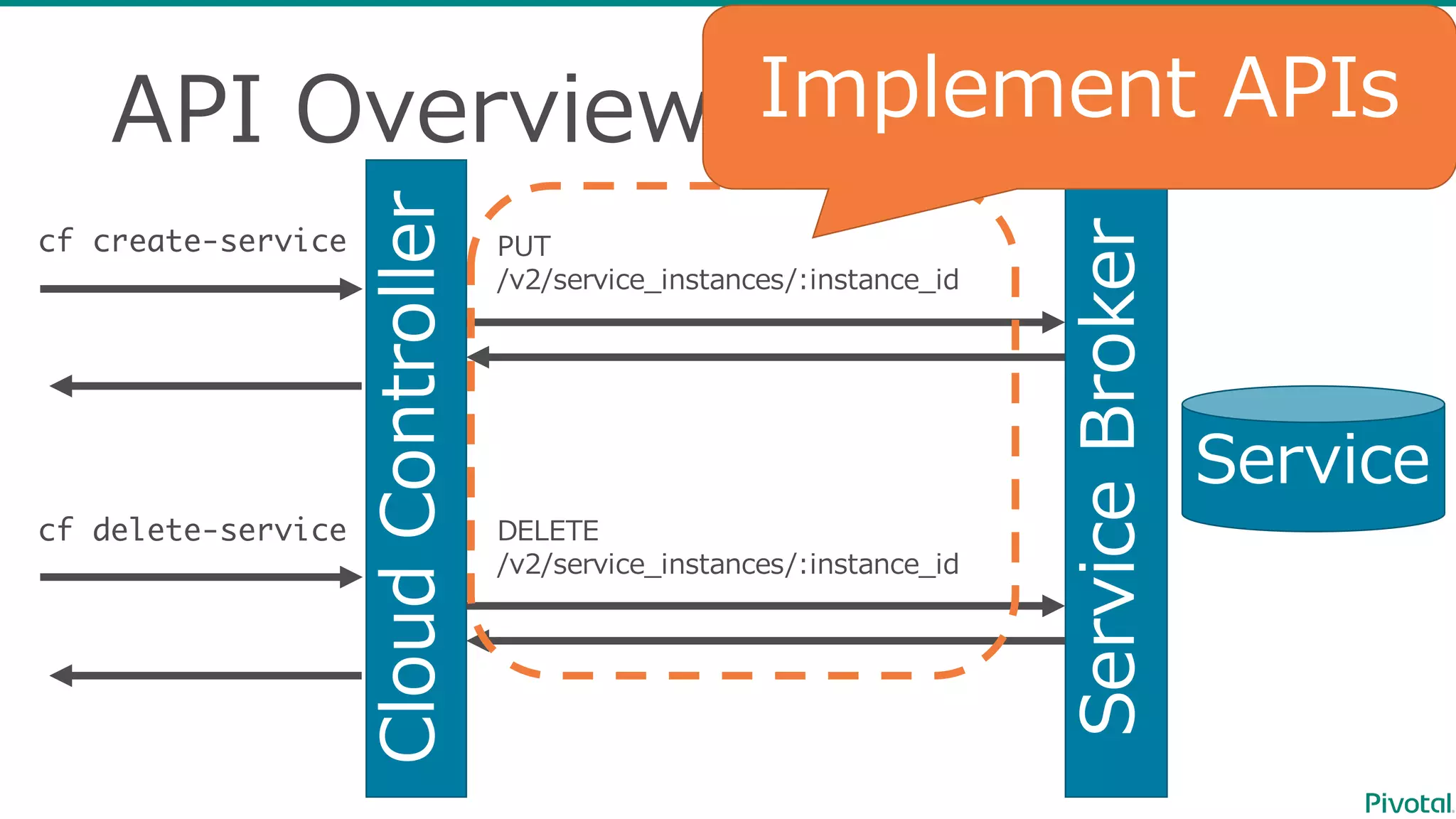

21. API Overview
Cloud Controller
Service
cf create-service PUT
/v2/service_̲instances/:instance_̲id
Service Broker
cf delete-service DELETE
/v2/service_̲instances/:instance_̲id
Implement APIs

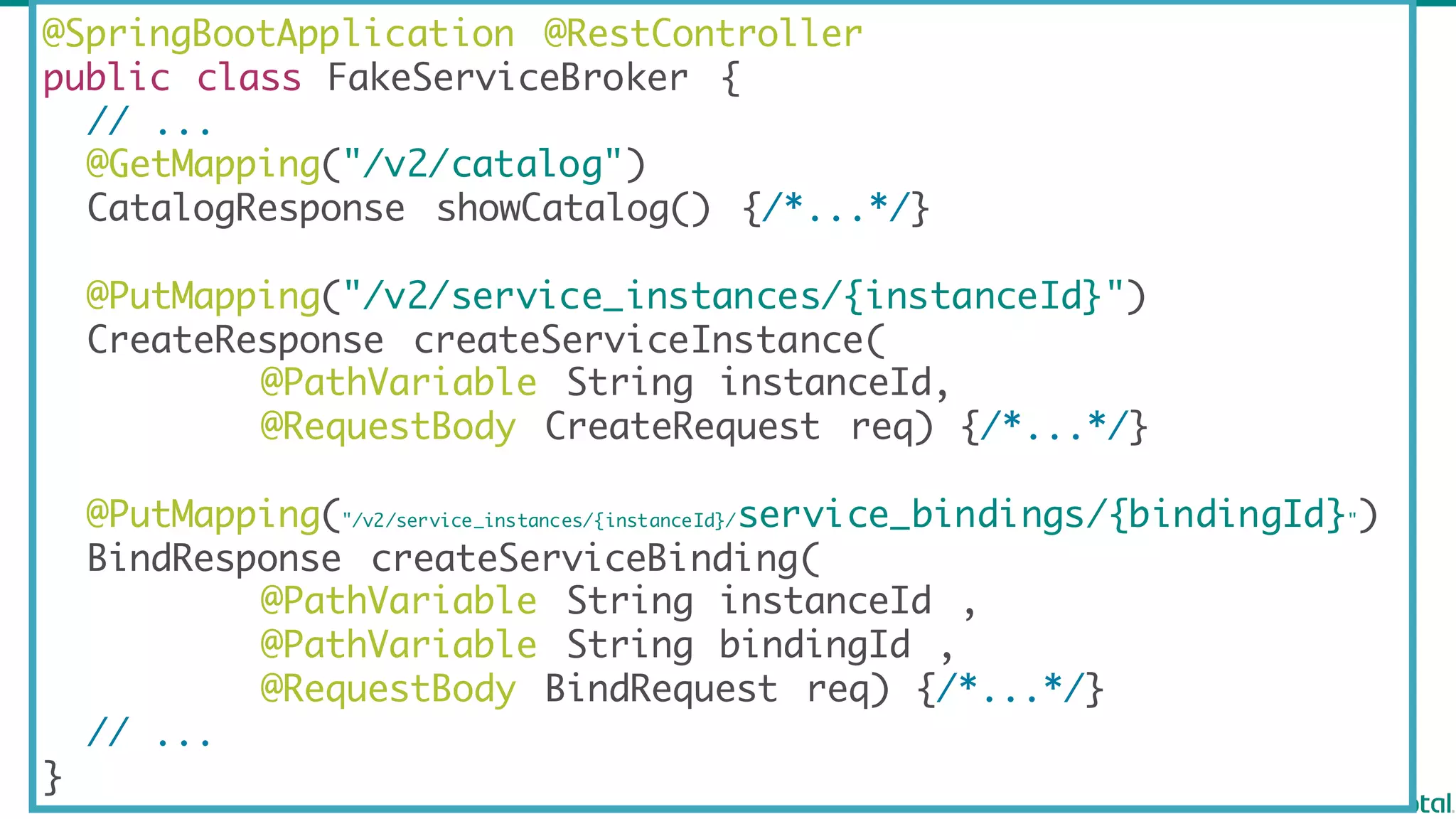

22. @SpringBootApplication @RestController
public class FakeServiceBroker {
// ...
@GetMapping("/v2/catalog")
CatalogResponse showCatalog() {/*...*/}
@PutMapping("/v2/service_instances/{instanceId}")
CreateResponse createServiceInstance(
@PathVariable String instanceId,
@RequestBody CreateRequest req) {/*...*/}
@PutMapping("/v2/service_instances/{instanceId}/service_bindings/{bindingId}")
BindResponse createServiceBinding(
@PathVariable String instanceId ,
@PathVariable String bindingId ,
@RequestBody BindRequest req) {/*...*/}
// ...
}

23. @SpringBootApplication @RestController
public class FakeServiceBroker {
// ...
@GetMapping("/v2/catalog")
CatalogResponse showCatalog() {/*...*/}
@PutMapping("/v2/service_instances/{instanceId}")
CreateResponse createServiceInstance(
@PathVariable String instanceId,
@RequestBody CreateRequest req) {/*...*/}
@PutMapping("/v2/service_instances/{instanceId}/service_bindings/{bindingId}")
BindResponse createServiceBinding(
@PathVariable String instanceId ,
@PathVariable String bindingId ,
@RequestBody BindRequest req) {/*...*/}
// ...
}

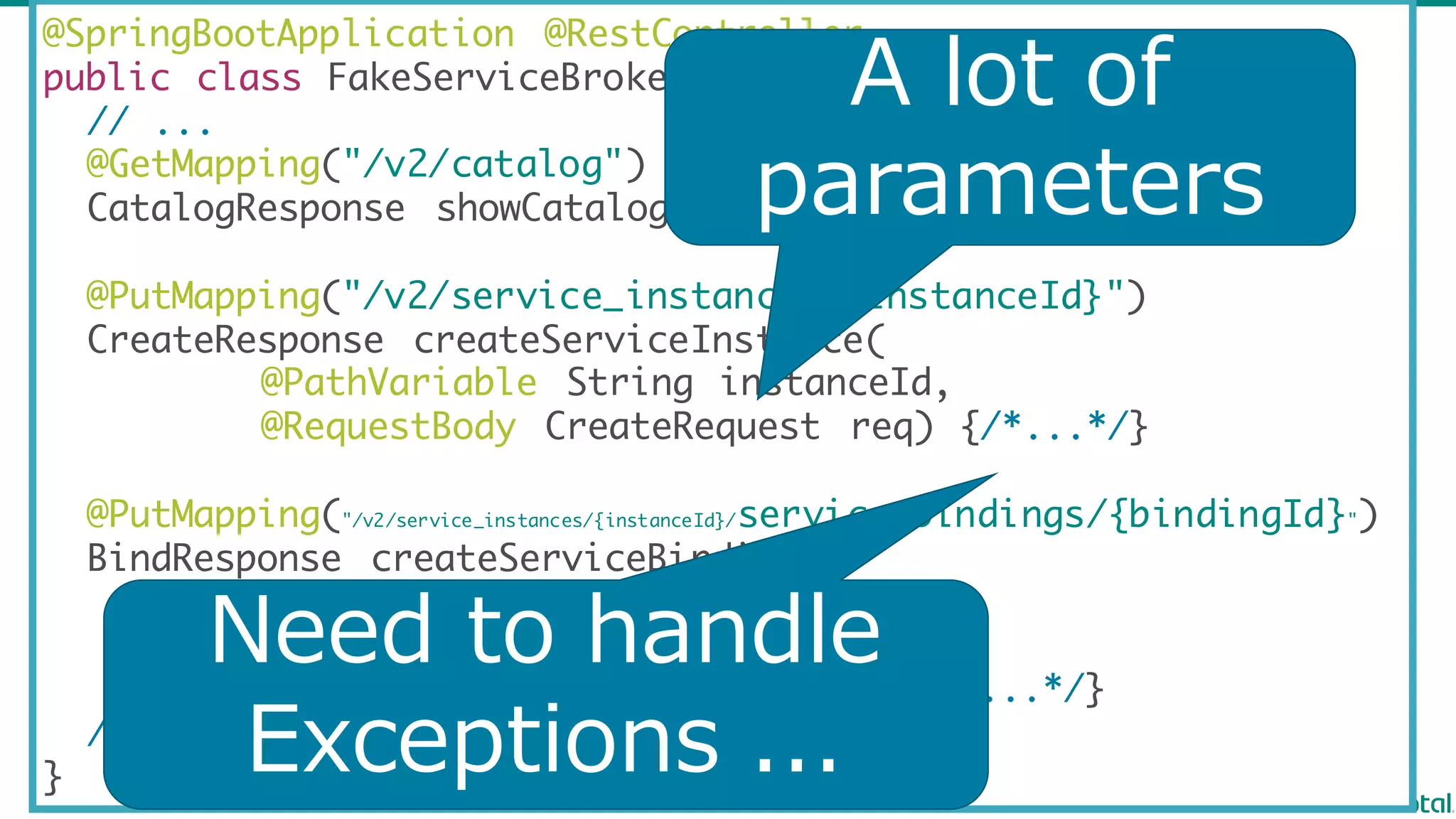

A lot of
parameters
Need to handle
Exceptions ...

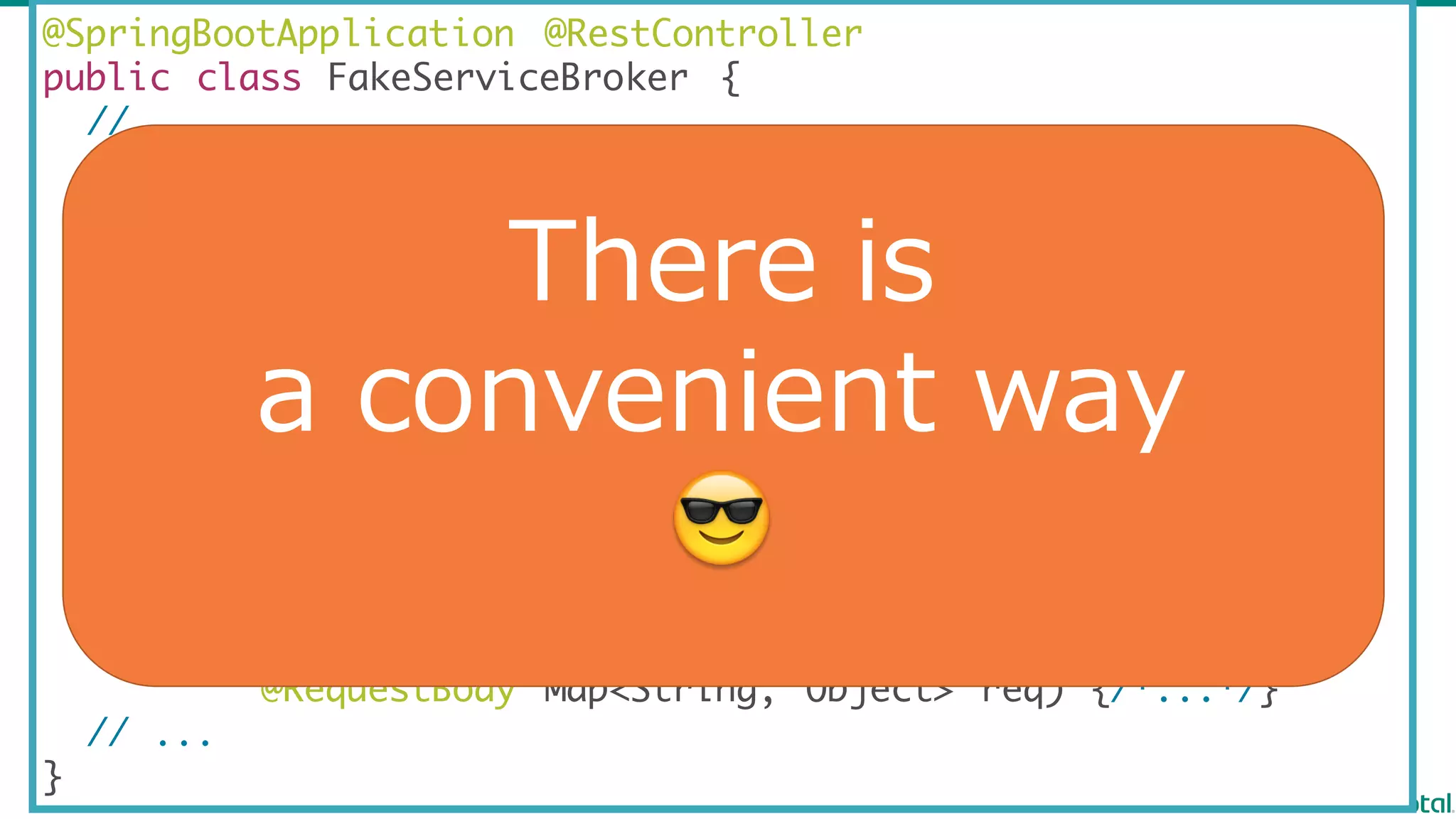

24. @SpringBootApplication @RestController
public class FakeServiceBroker {
// ...
@GetMapping("/v2/catalog")
Map<String, Object> showCatalog() {/*...*/}
@PutMapping("/v2/service_instances/{instanceId}")
Map<String, Object> createServiceInstance(
@PathVariable String instanceId,
@RequestBody Map<String, Object> req) {/*...*/}
@PutMapping("/v2/service_instances/{instanceId}/service_bindings/{bindingId}")
Map<String, Object> createServiceBinding(
@PathVariable String instanceId ,
@PathVariable String bindingId ,
@RequestBody Map<String, Object> req) {/*...*/}
// ...
}
There is
a convenient way
😎

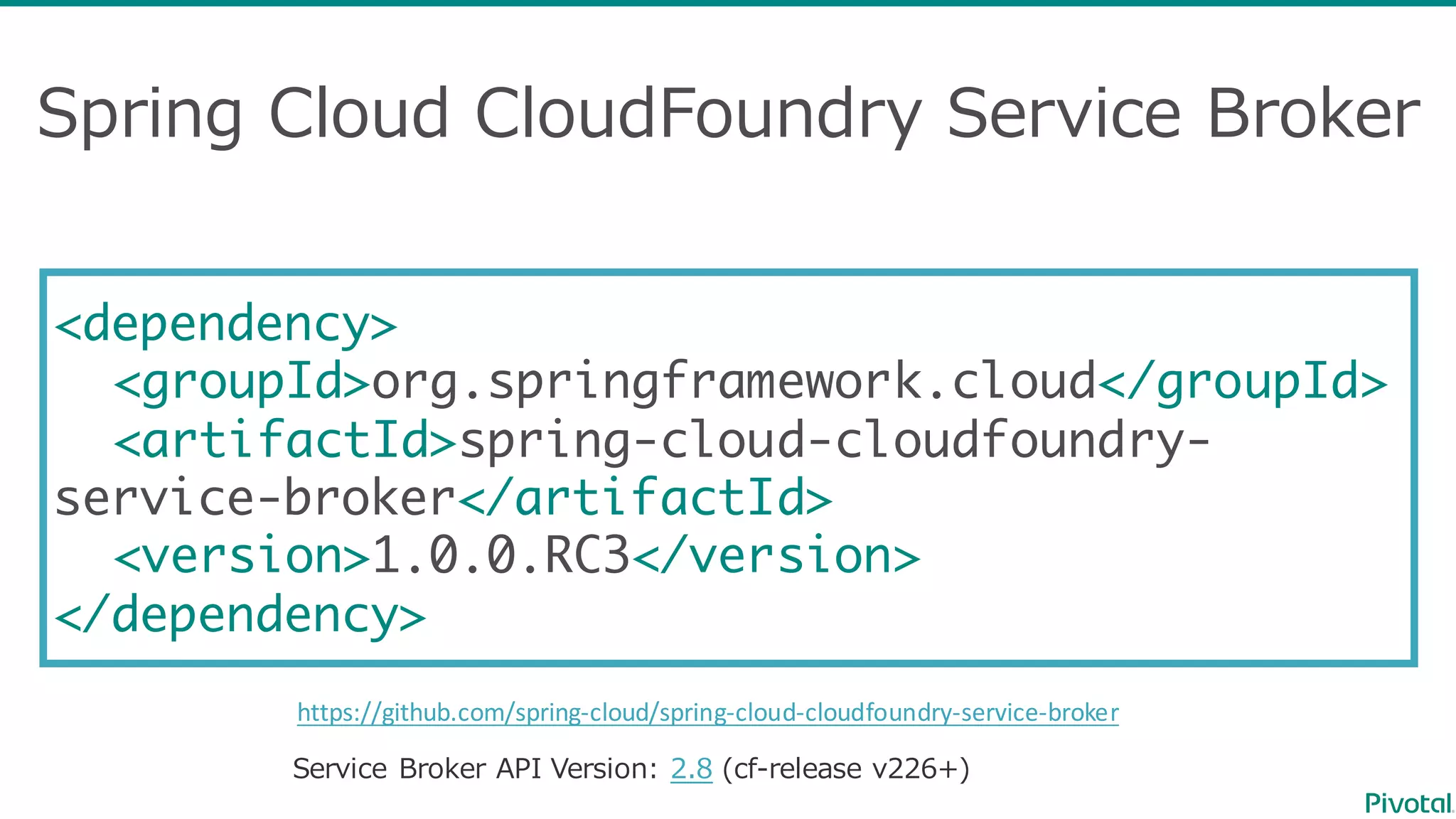

25. Spring Cloud CloudFoundry Service Broker
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-cloudfoundry-
service-broker</artifactId>
<version>1.0.0.RC3</version>
</dependency>
https://github.com/spring-­‐cloud/spring-­‐cloud-­‐cloudfoundry-­‐service-­‐broker
Service Broker API Version: 2.8 (cf-‐‑‒release v226+)

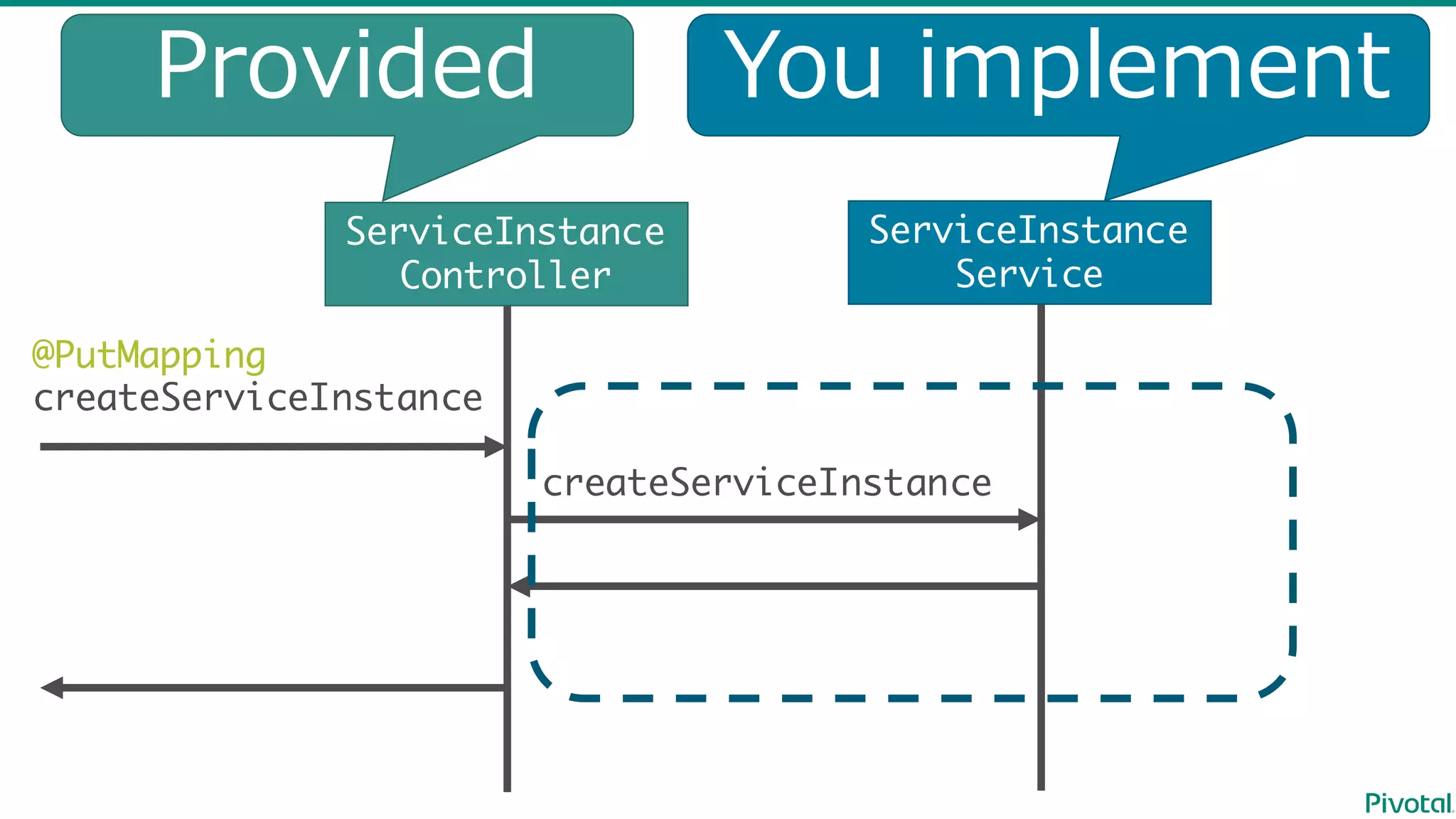

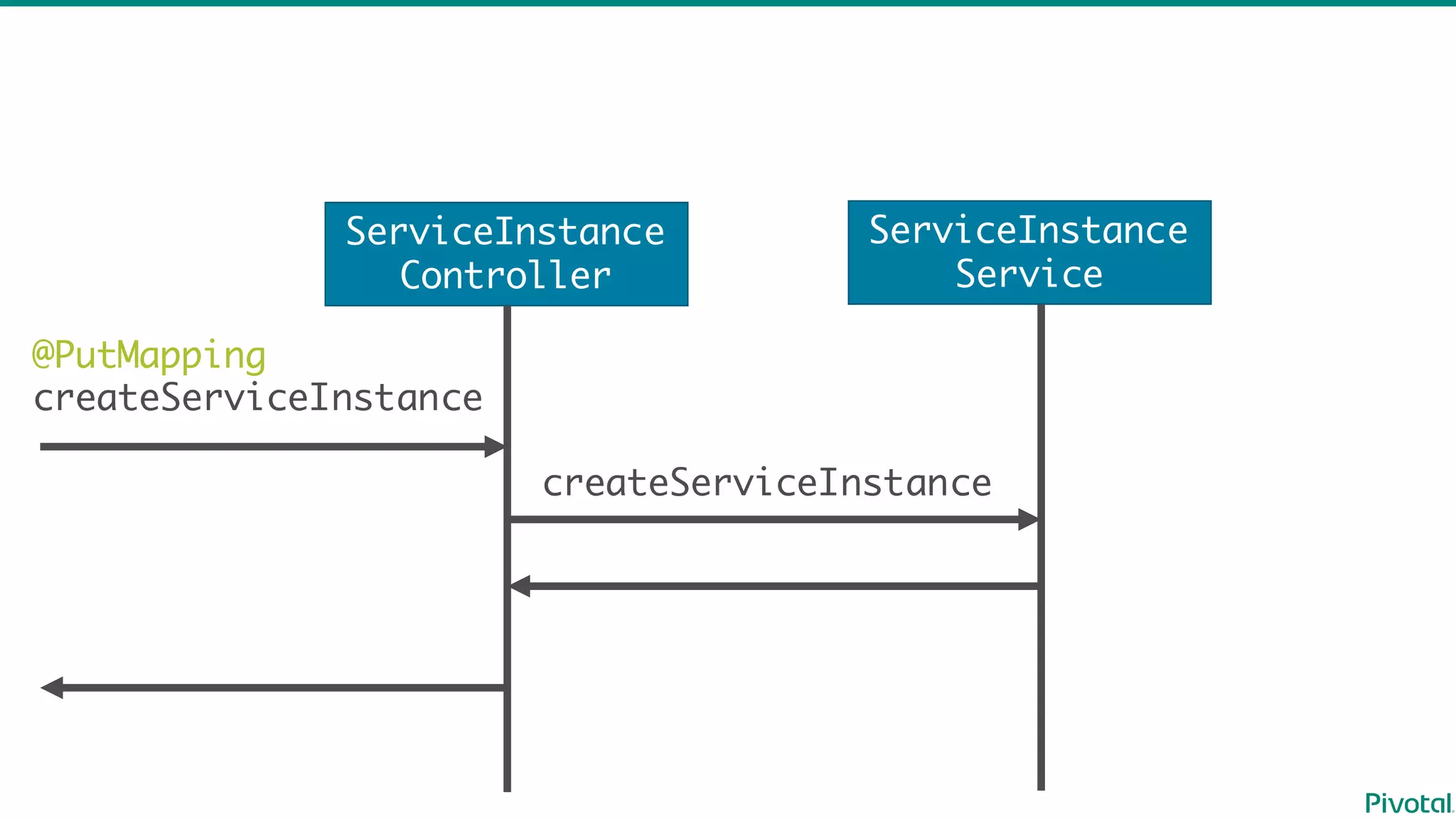

26. ServiceInstance
Controller
ServiceInstance
Service
@PutMapping
createServiceInstance
createServiceInstance

27. ServiceInstance
Controller
ServiceInstance
Service
@PutMapping
createServiceInstance
createServiceInstance
Provided You implement

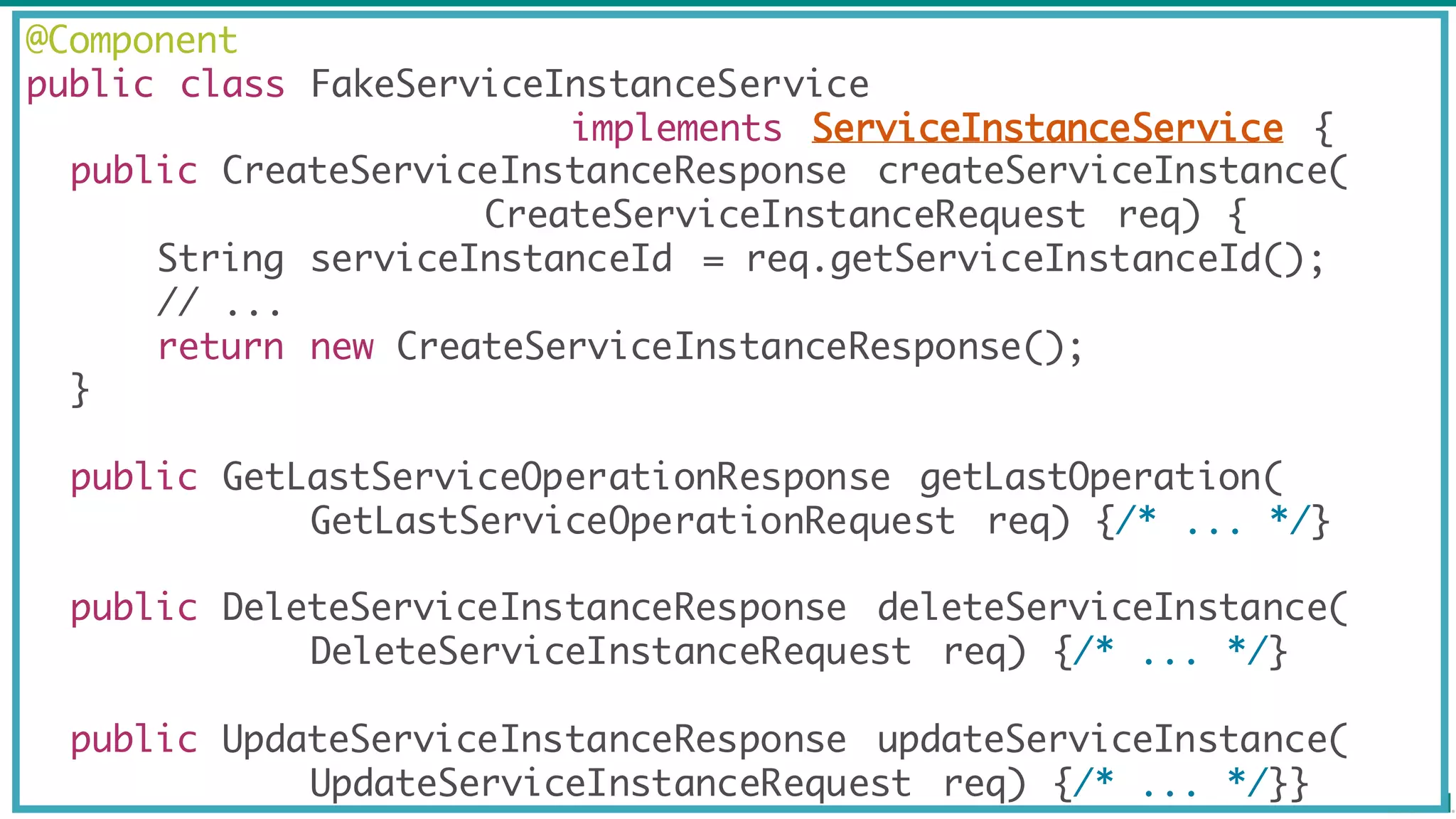

28. @Component
public class FakeServiceInstanceService
implements ServiceInstanceService {
public CreateServiceInstanceResponse createServiceInstance(
CreateServiceInstanceRequest req) {
String serviceInstanceId = req.getServiceInstanceId();
// ...
return new CreateServiceInstanceResponse();
}
public GetLastServiceOperationResponse getLastOperation(
GetLastServiceOperationRequest req) {/* ... */}
public DeleteServiceInstanceResponse deleteServiceInstance(
DeleteServiceInstanceRequest req) {/* ... */}
public UpdateServiceInstanceResponse updateServiceInstance(
UpdateServiceInstanceRequest req) {/* ... */}}

29. @Component
public class FakeServiceInstanceService
implements ServiceInstanceService {
public CreateServiceInstanceResponse createServiceInstance(
CreateServiceInstanceRequest req) {
String serviceInstanceId = req.getServiceInstanceId();
// ...
return new CreateServiceInstanceResponse();
}
public GetLastServiceOperationResponse getLastOperation(
GetLastServiceOperationRequest req) {/* ... */}
public DeleteServiceInstanceResponse deleteServiceInstance(
DeleteServiceInstanceRequest req) {/* ... */}
public UpdateServiceInstanceResponse updateServiceInstance(
UpdateServiceInstanceRequest req) {/* ... */}}

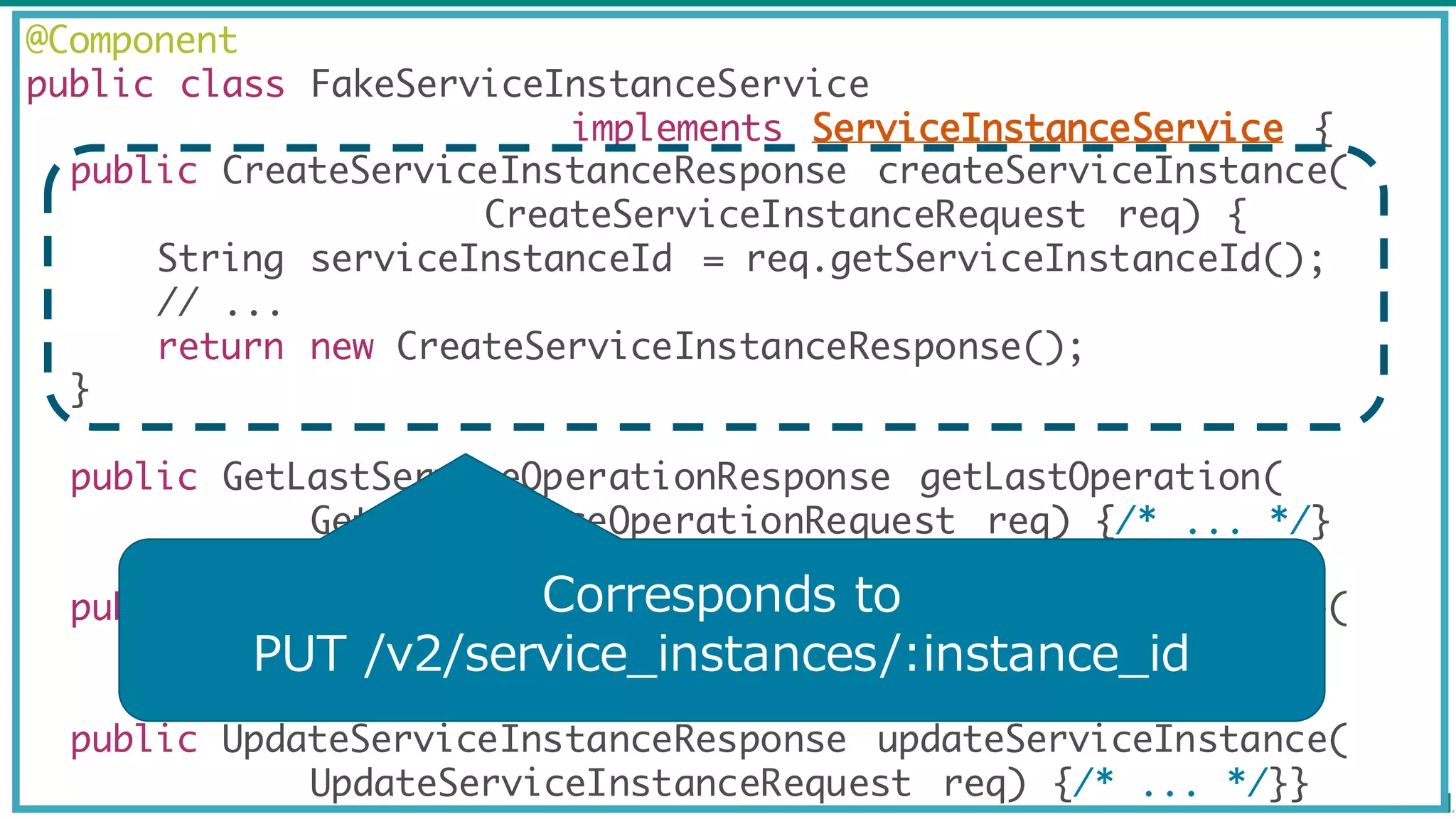

Corresponds to
PUT /v2/service_̲instances/:instance_̲id

30. @Component

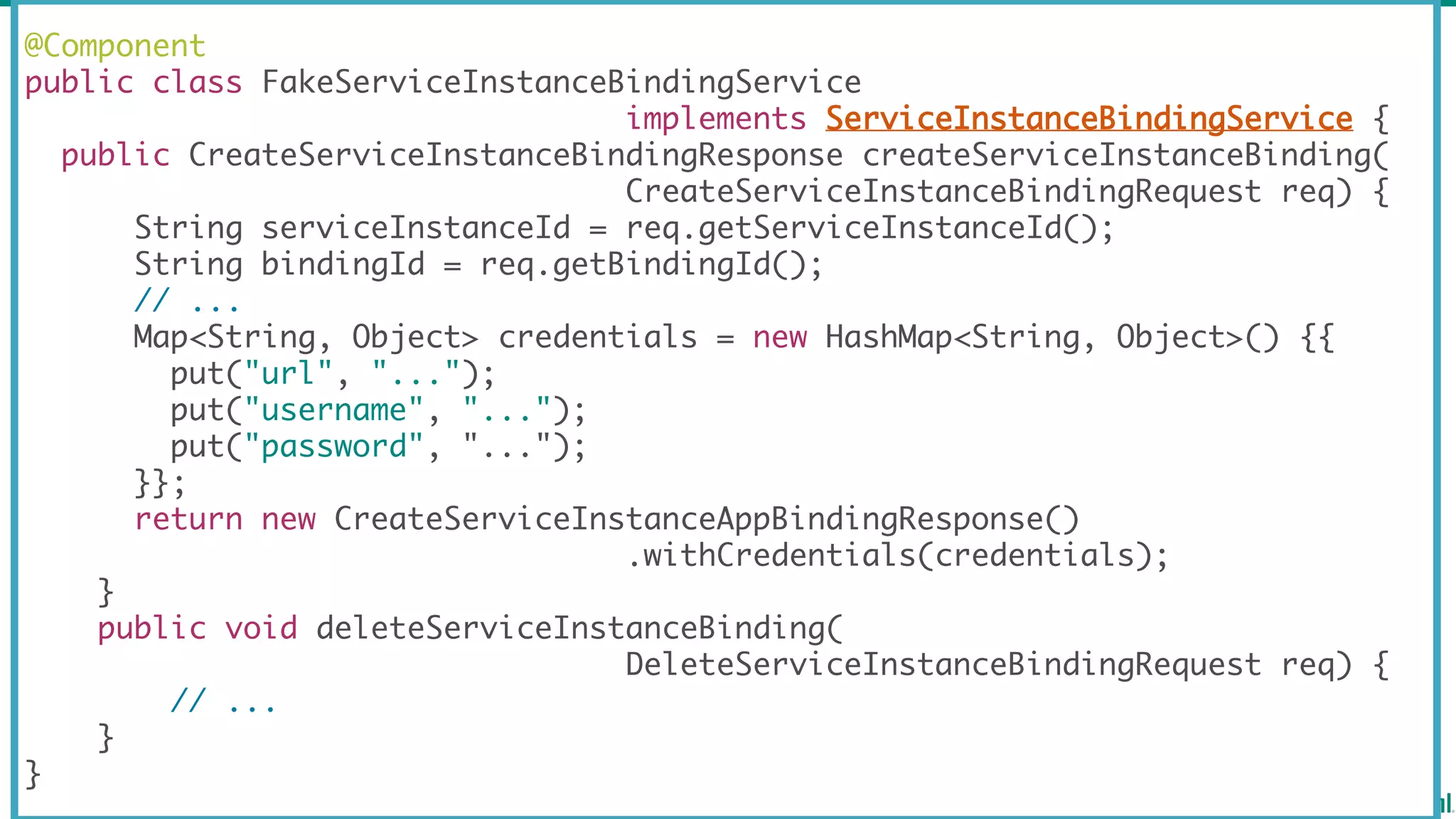

public class FakeServiceInstanceBindingService
implements ServiceInstanceBindingService {
public CreateServiceInstanceBindingResponse createServiceInstanceBinding(
CreateServiceInstanceBindingRequest req) {
String serviceInstanceId = req.getServiceInstanceId();
String bindingId = req.getBindingId();
// ...
Map<String, Object> credentials = new HashMap<String, Object>() {{
put("url", "...");
put("username", "...");
put("password", "...");
}};
return new CreateServiceInstanceAppBindingResponse()
.withCredentials(credentials);
}
public void deleteServiceInstanceBinding(
DeleteServiceInstanceBindingRequest req) {
// ...
}
}

31. @Component
public class FakeServiceInstanceBindingService
implements ServiceInstanceBindingService {
public CreateServiceInstanceBindingResponse createServiceInstanceBinding(
CreateServiceInstanceBindingRequest req) {
String serviceInstanceId = req.getServiceInstanceId();
String bindingId = req.getBindingId();
// ...
Map<String, Object> credentials = new HashMap<String, Object>() {{
put("url", "...");
put("username", "...");
put("password", "...");
}};
return new CreateServiceInstanceAppBindingResponse()
.withCredentials(credentials);
}
public void deleteServiceInstanceBinding(
DeleteServiceInstanceBindingRequest req) {
// ...
}
}

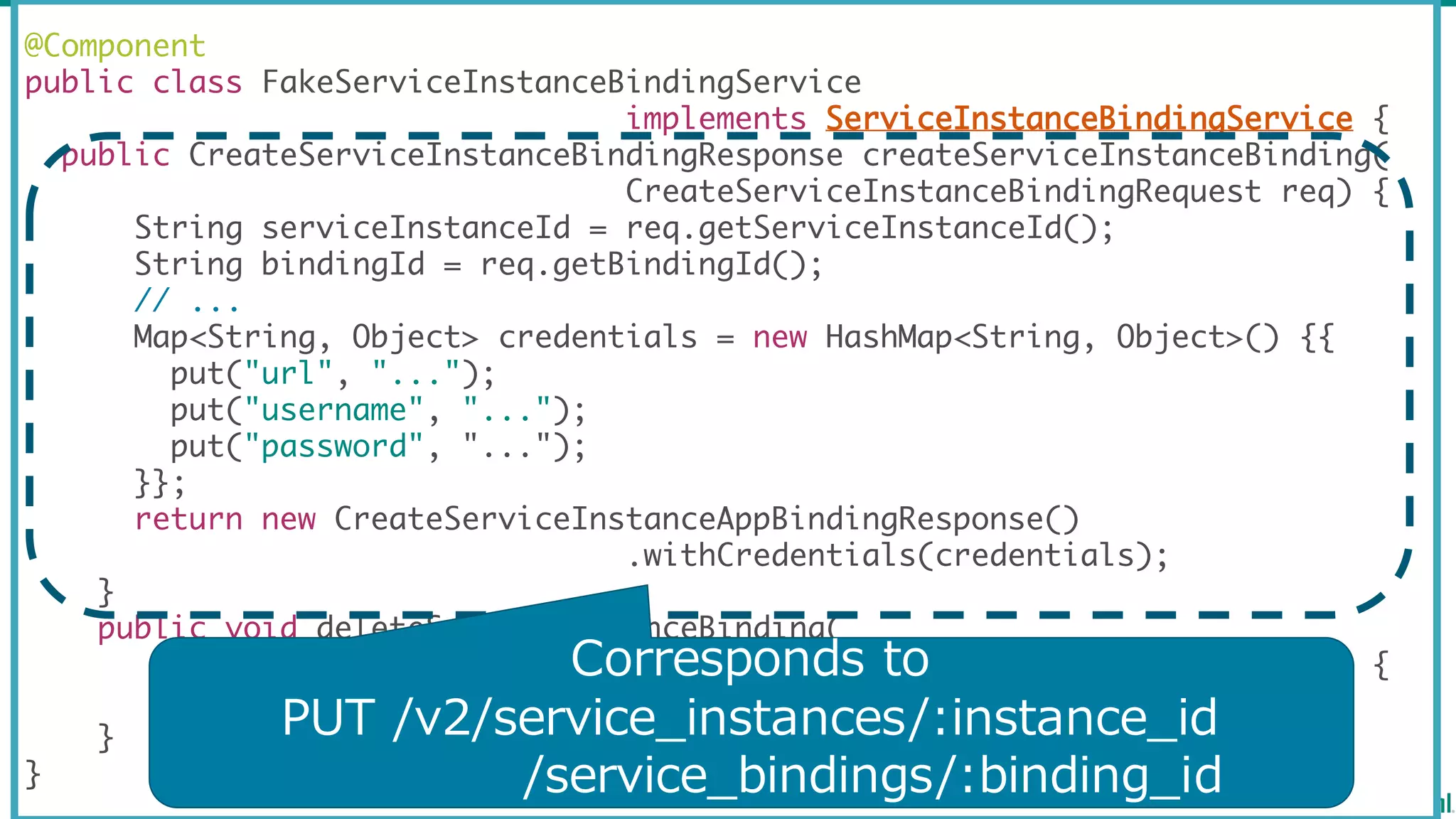

Corresponds to
PUT /v2/service_̲instances/:instance_̲id
/service_̲bindings/:binding_̲id

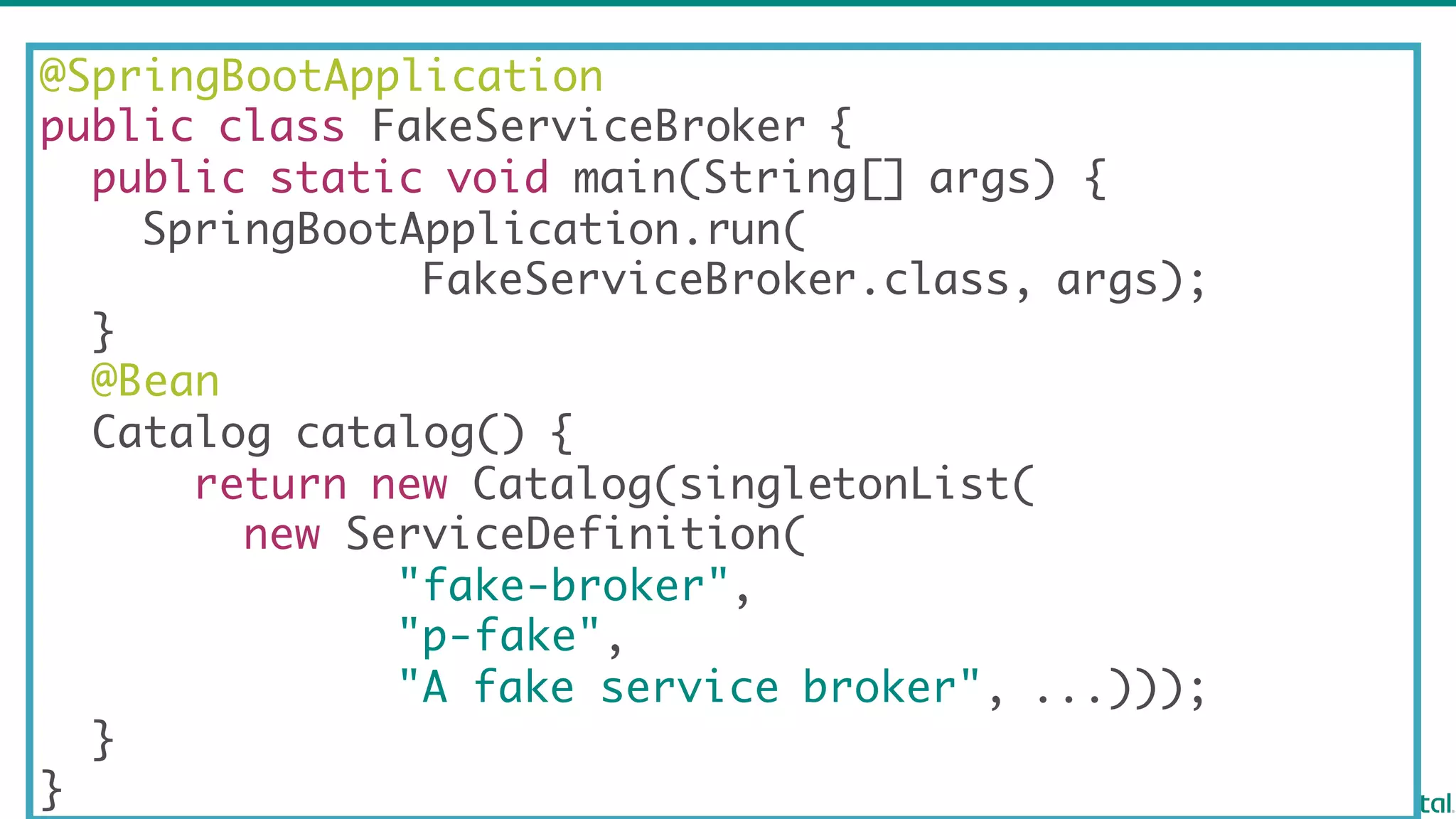

32. @SpringBootApplication
public class FakeServiceBroker {
public static void main(String[] args) {
SpringBootApplication.run(
FakeServiceBroker.class, args);
}
@Bean
Catalog catalog() {
return new Catalog(singletonList(
new ServiceDefinition(
"fake-broker",
"p-fake",
"A fake service broker", ...)));
}
}

33. @SpringBootApplication
public class FakeServiceBroker {
public static void main(String[] args) {
SpringBootApplication.run(
FakeServiceBroker.class, args);
}
@Bean
Catalog catalog() {
return new Catalog(singletonList(
new ServiceDefinition(
"fake-broker",
"p-fake",
"A fake service broker", ...)));
}
}

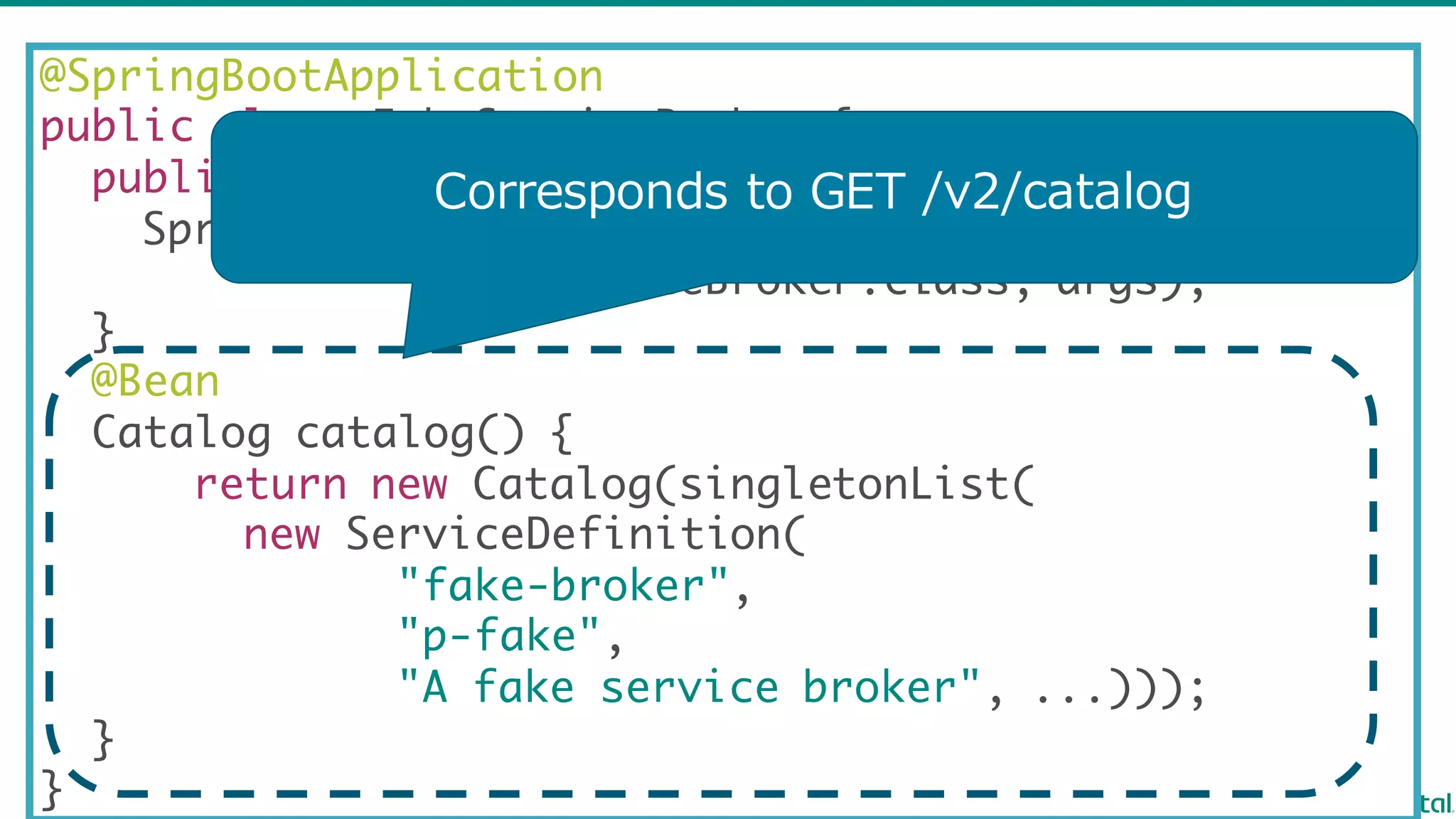

Corresponds to GET /v2/catalog

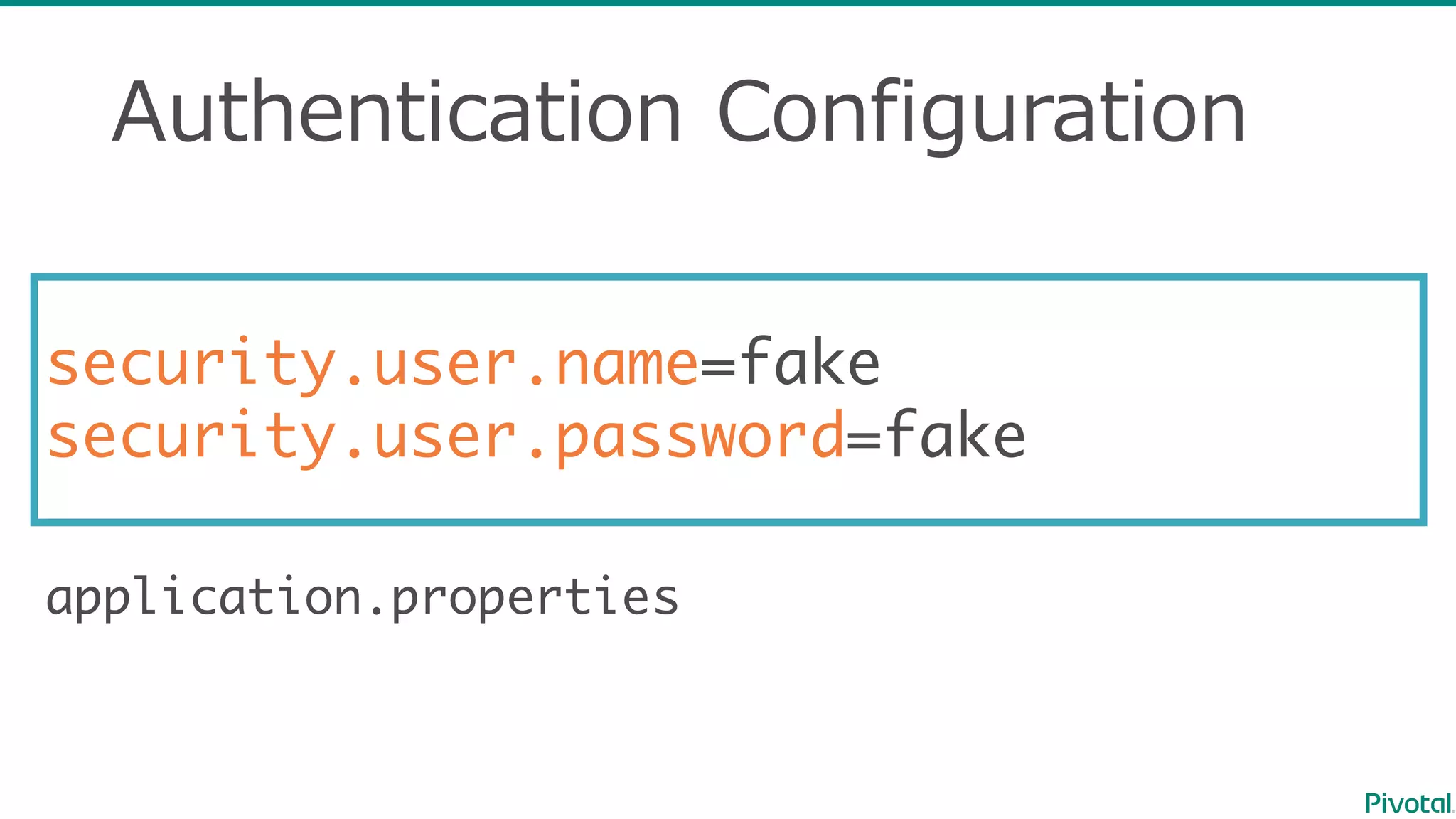

34. Authentication Configuration
security.user.name=fake
security.user.password=fake
application.properties

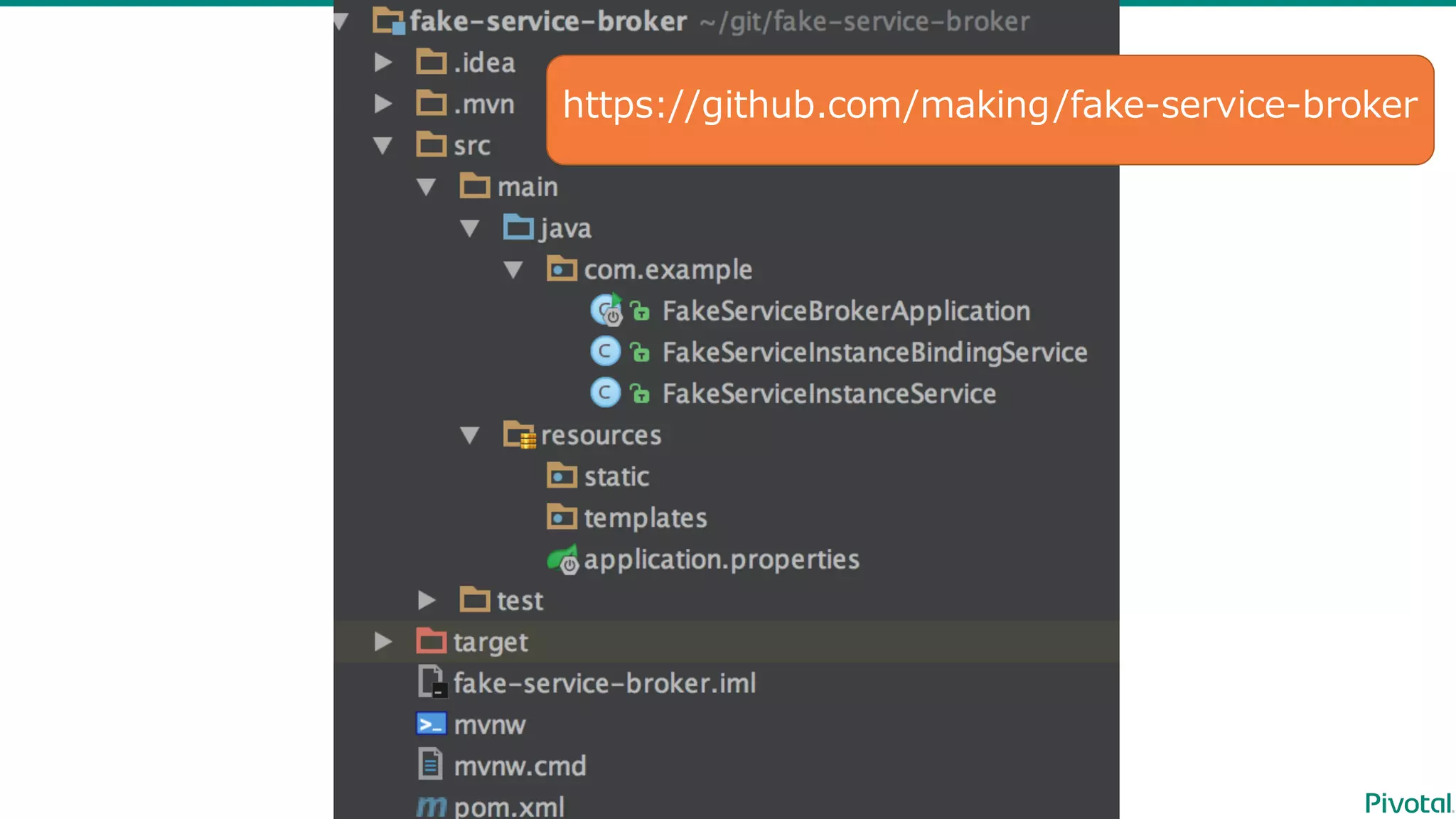

35. https://github.com/making/fake-‐‑‒service-‐‑‒broker

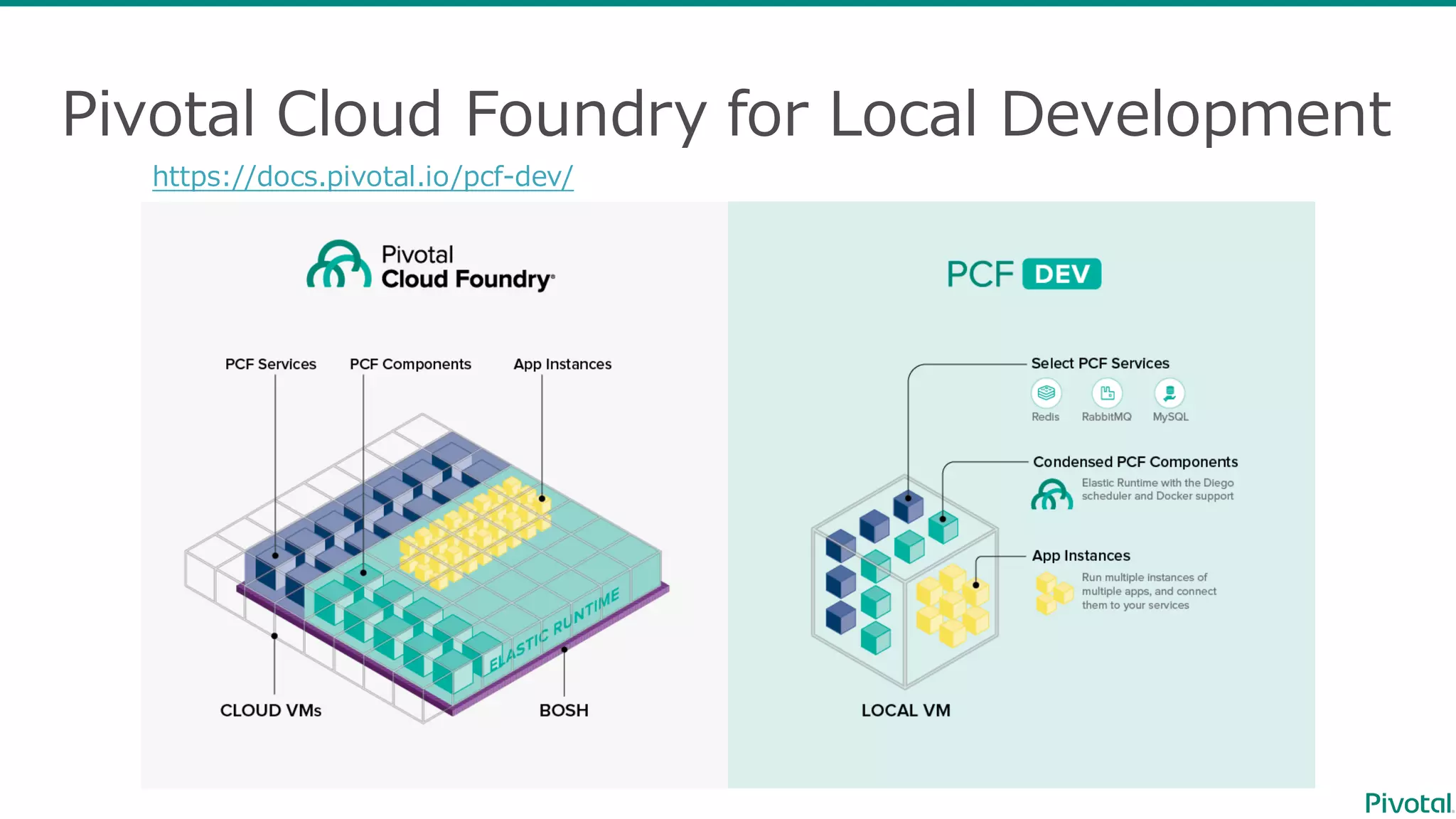

36. Pivotal Cloud Foundry for Local Development
https://docs.pivotal.io/pcf-‐‑‒dev/

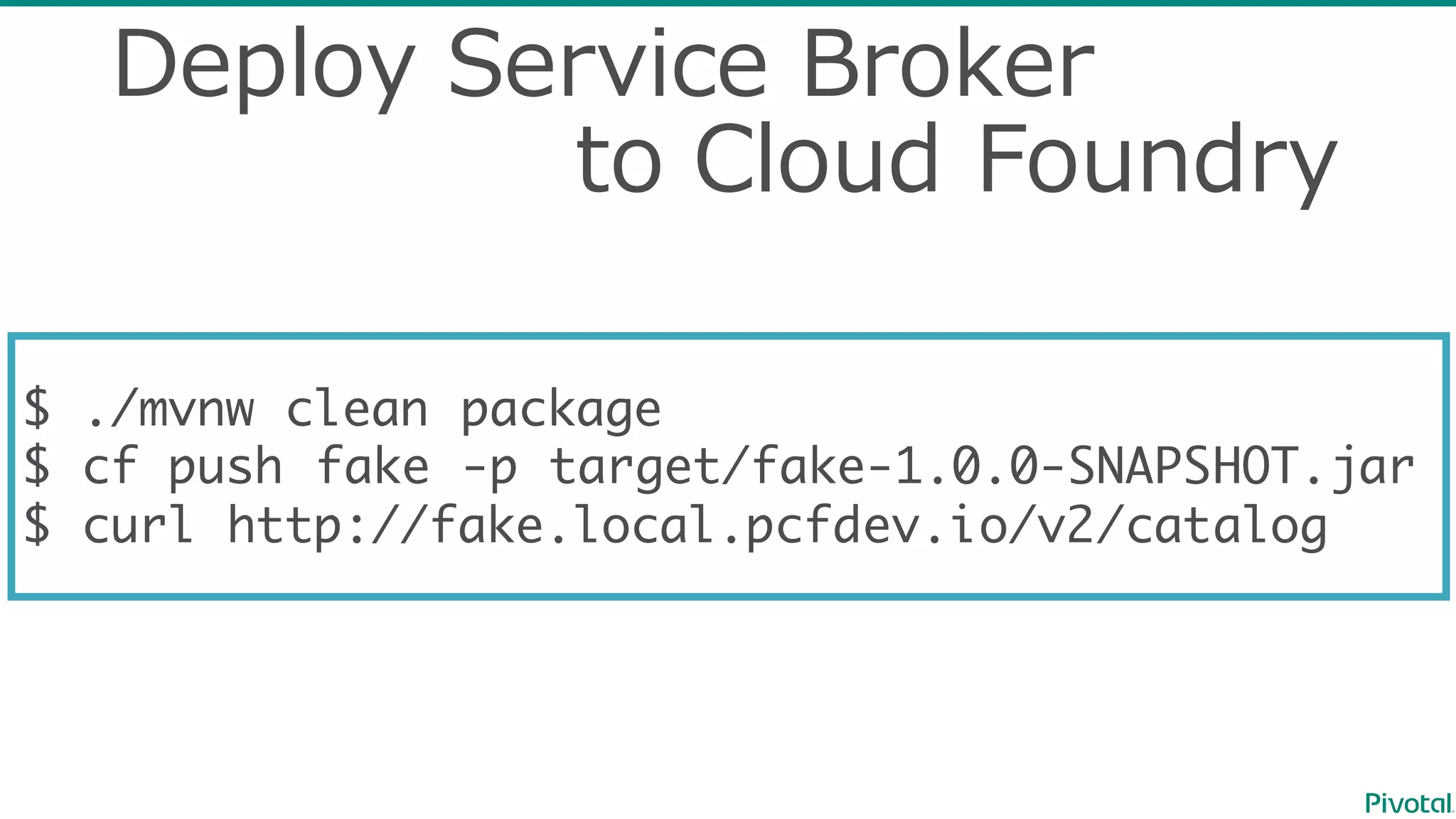

37. Deploy Service Broker
to Cloud Foundry
$ ./mvnw clean package
$ cf push fake -p target/fake-1.0.0-SNAPSHOT.jar
$ curl http://fake.local.pcfdev.io/v2/catalog

38. Enable Service Broker
$ cf create-service-broker p-fake fake fake ¥
http://fake.local.pcfdev.io
$ cf enable-service-access p-fake
Service Name Username Password

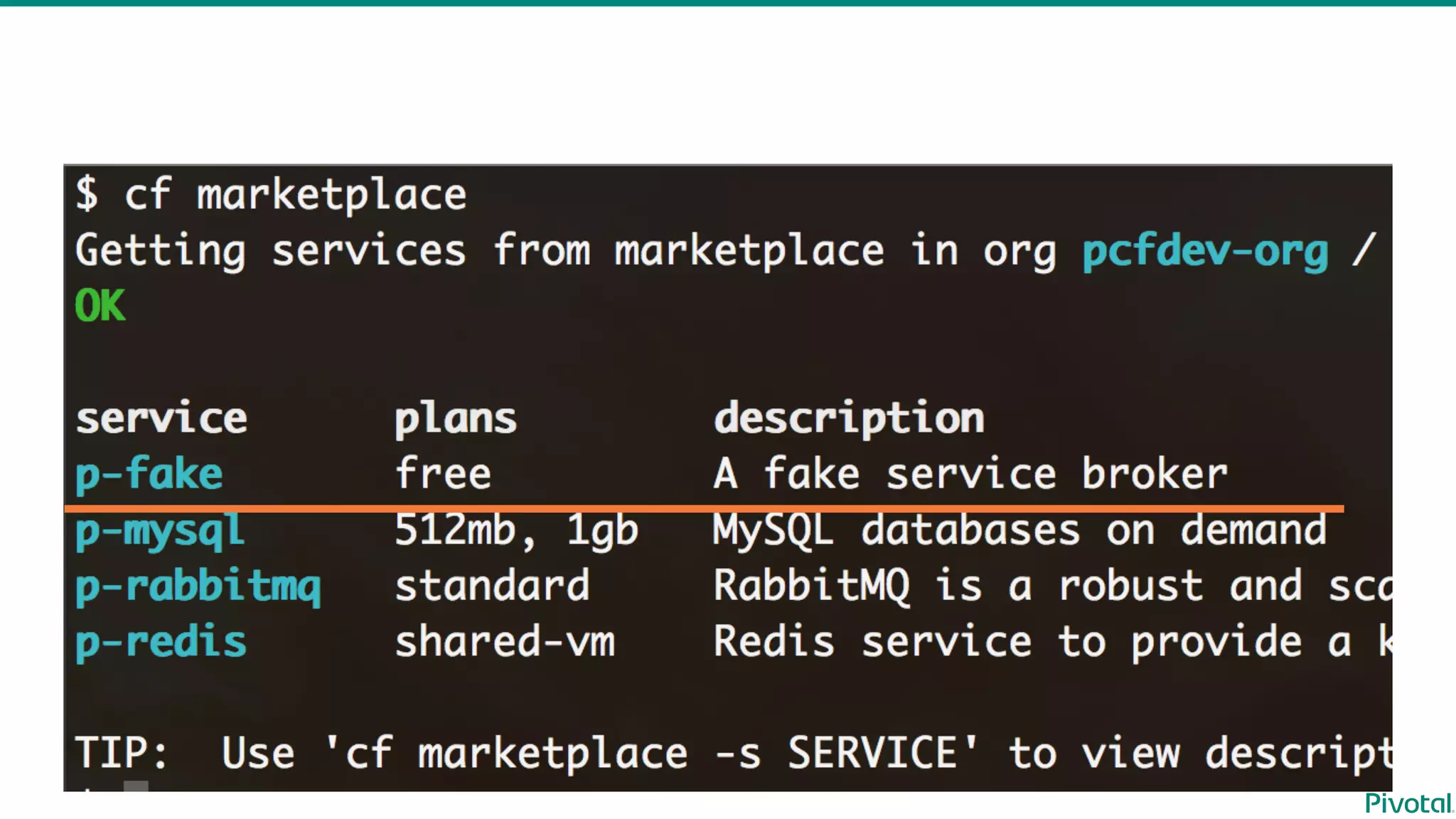

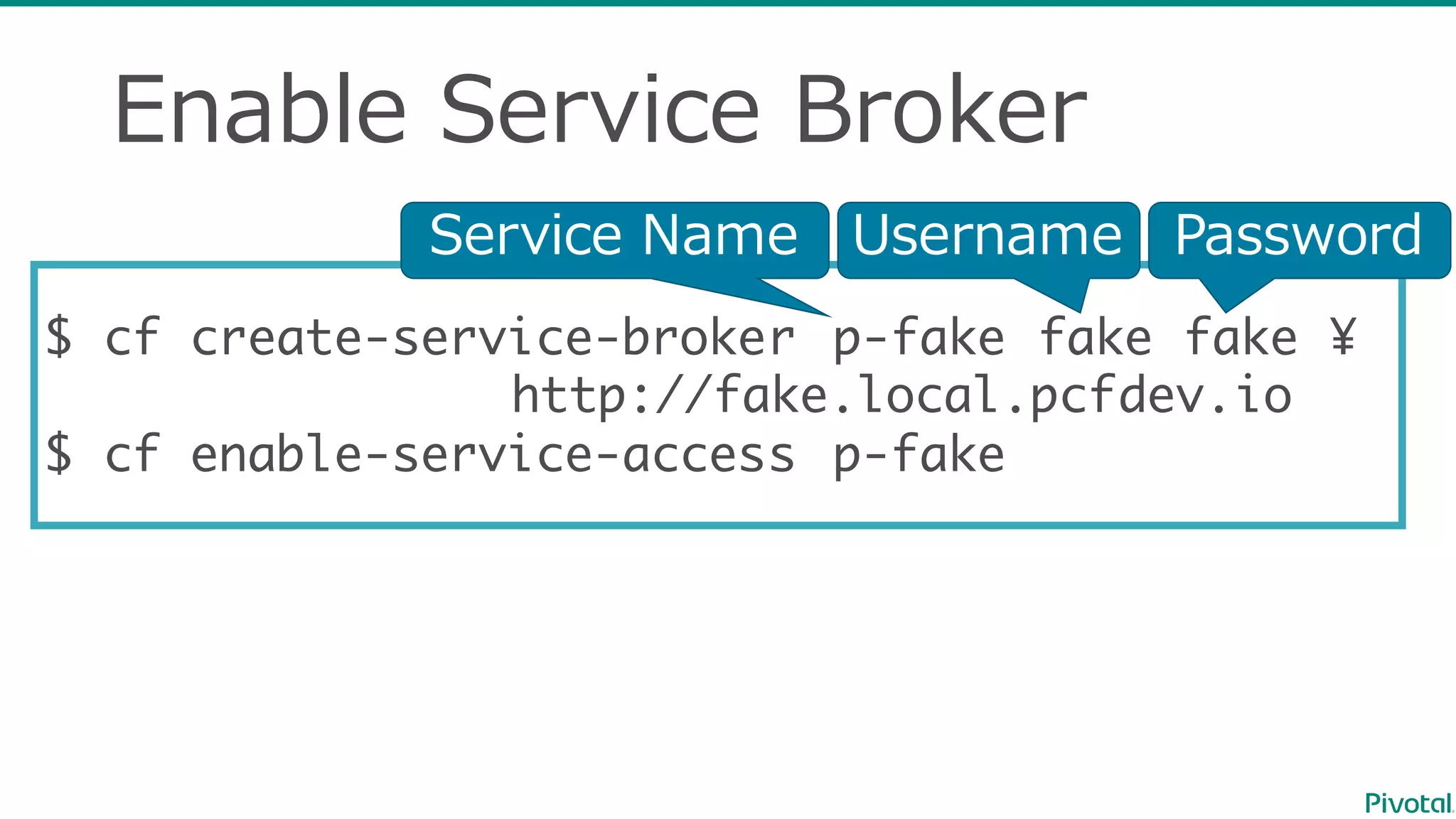

40. Enable Service Broker

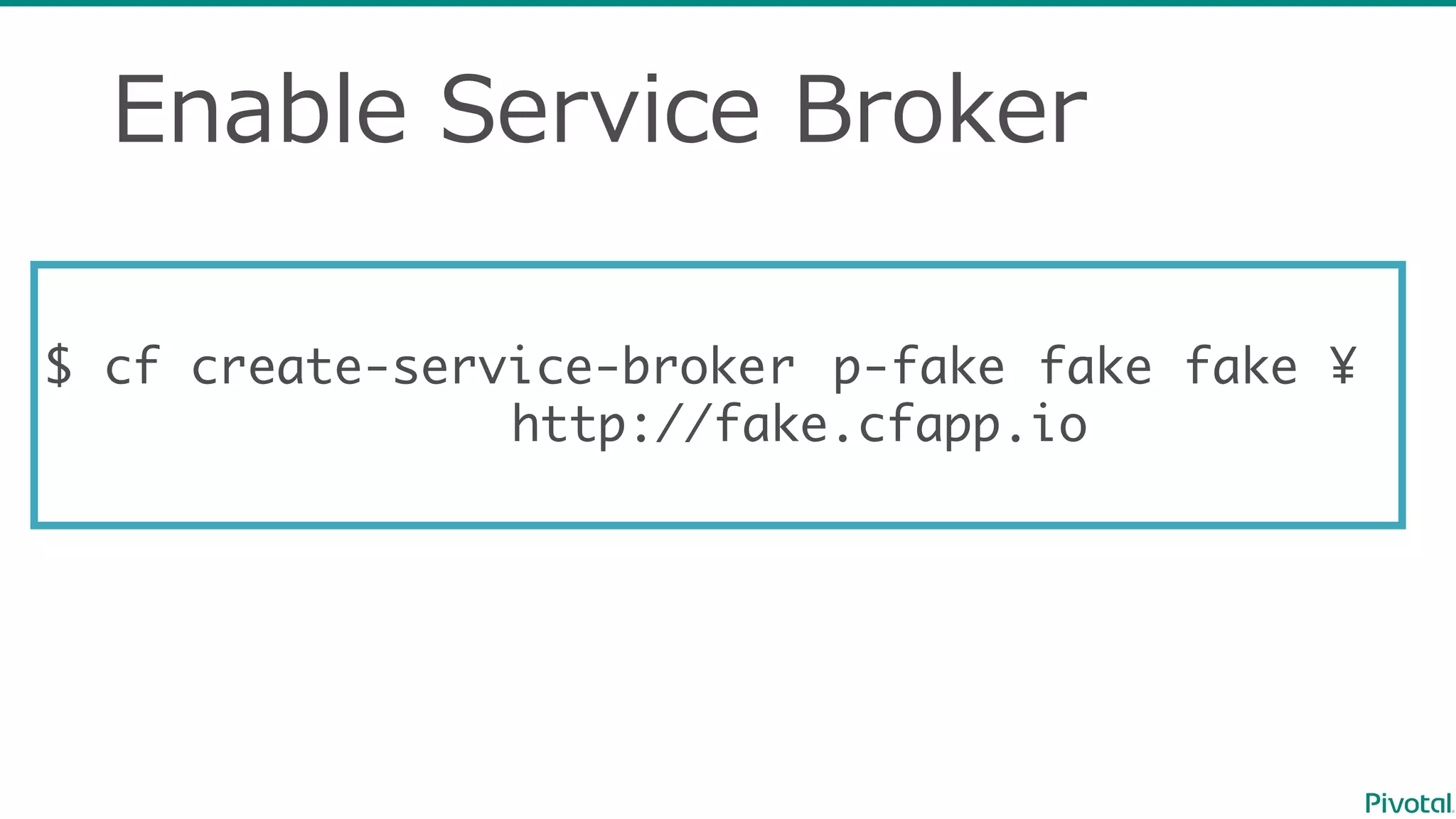

$ cf create-service-broker p-fake fake fake ¥
http://fake.cfapp.io

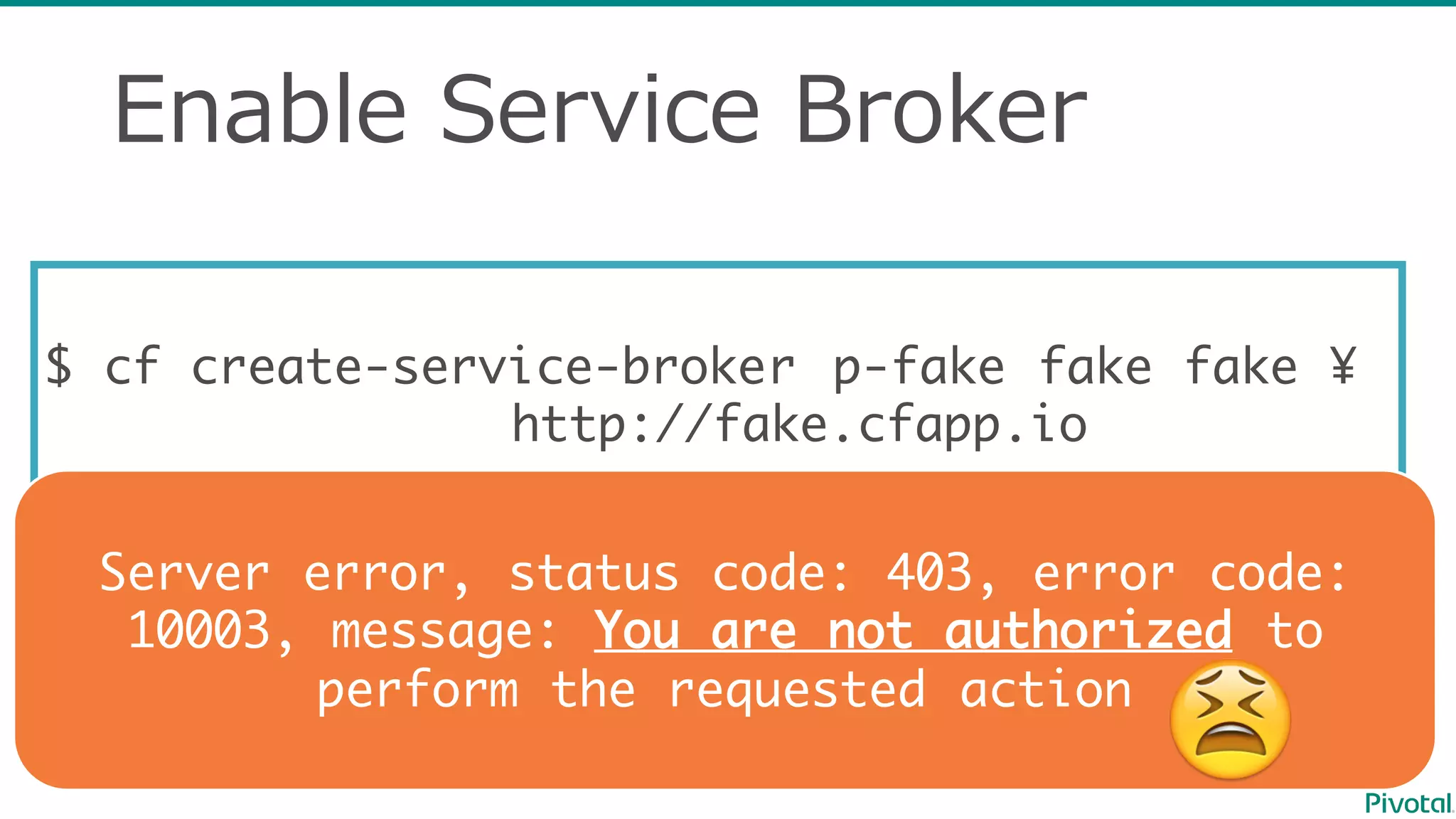

41. Enable Service Broker
$ cf create-service-broker p-fake fake fake ¥
http://fake.cfapp.io
Server error, status code: 403, error code:
10003, message: You are not authorized to
perform the requested action
😫

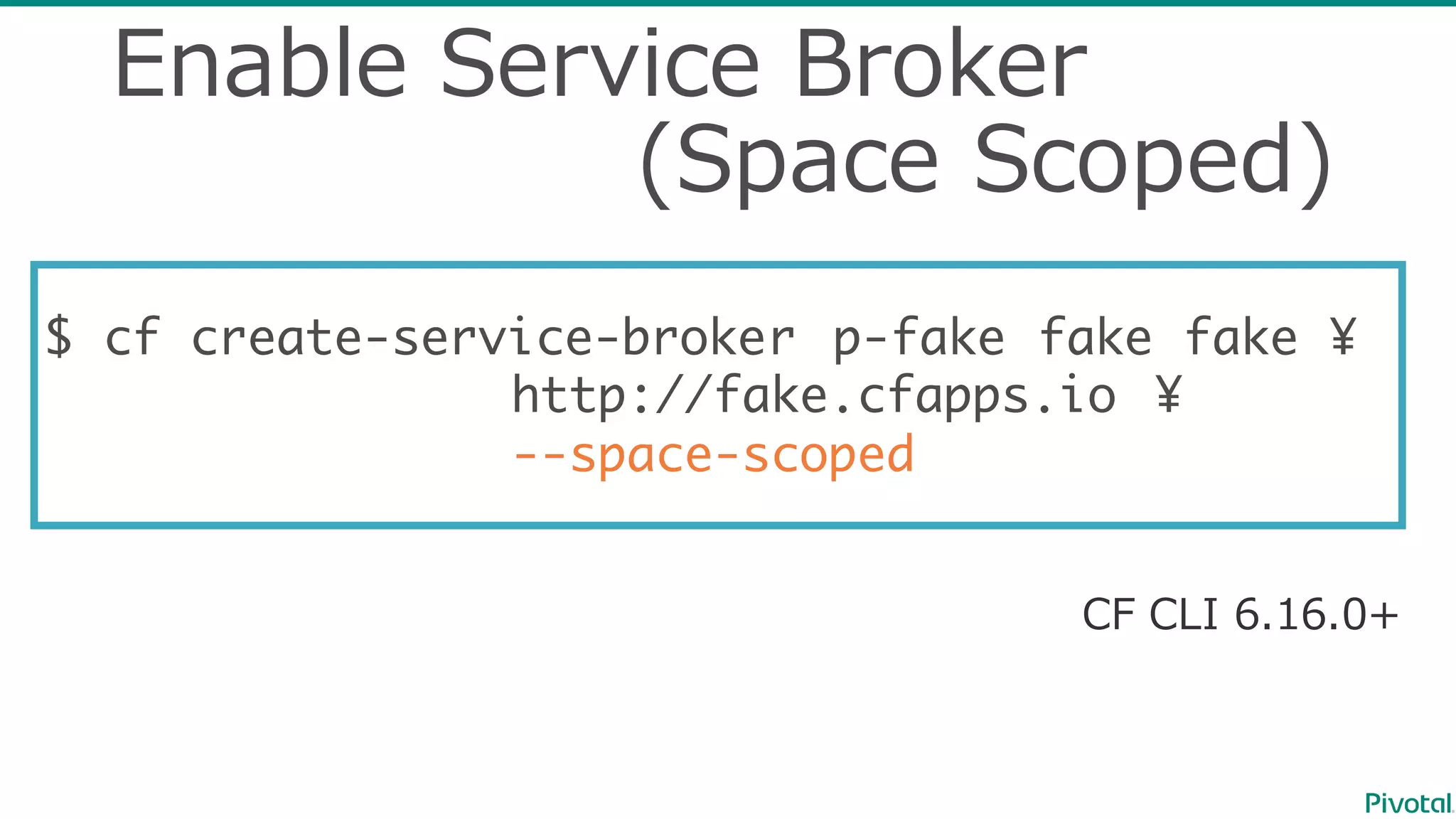

42. $ cf create-service-broker p-fake fake fake ¥
http://fake.cfapps.io ¥
--space-scoped
Enable Service Broker
(Space Scoped)
CF CLI 6.16.0+

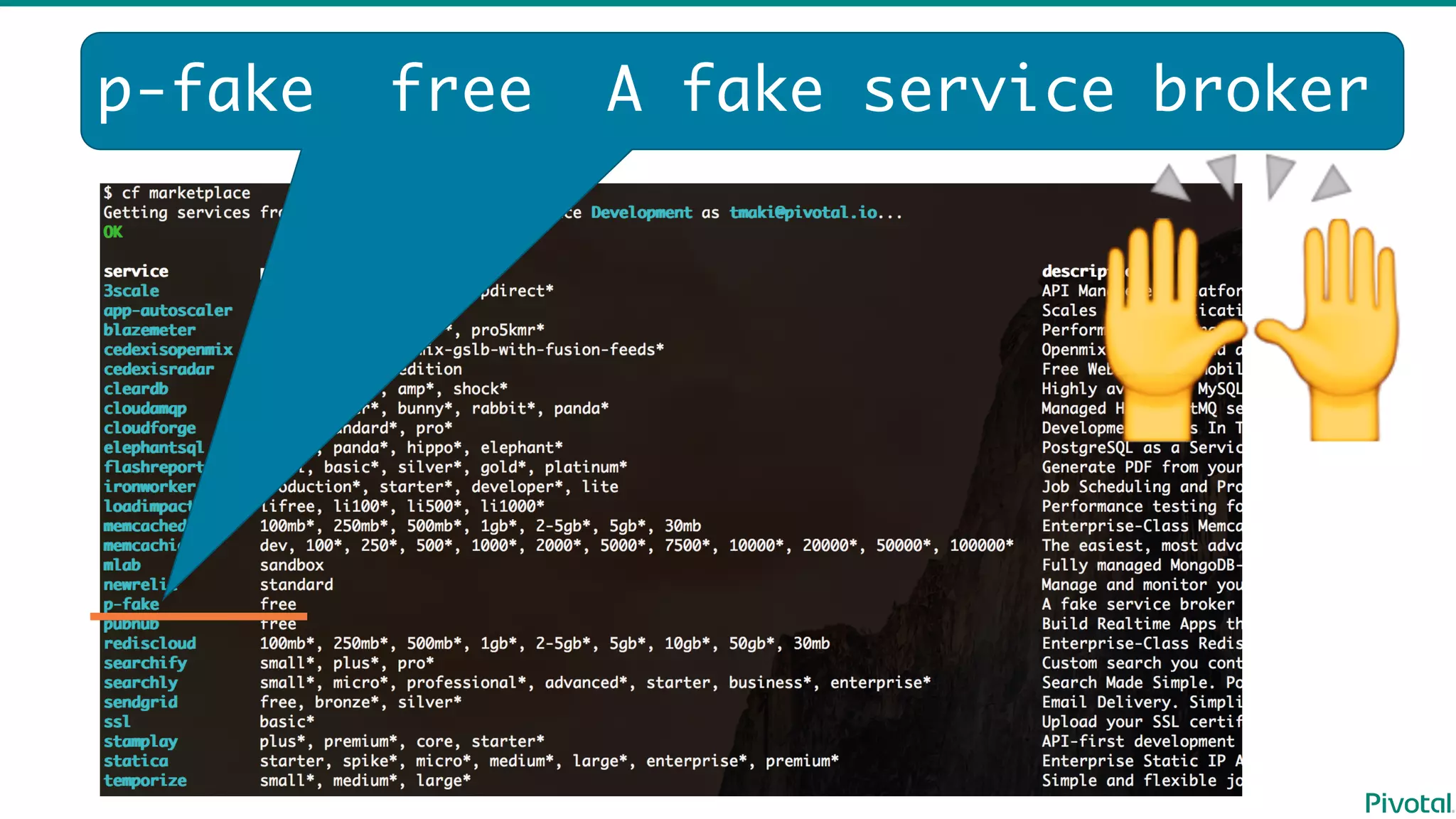

43. p-fake free A fake service broker
🙌

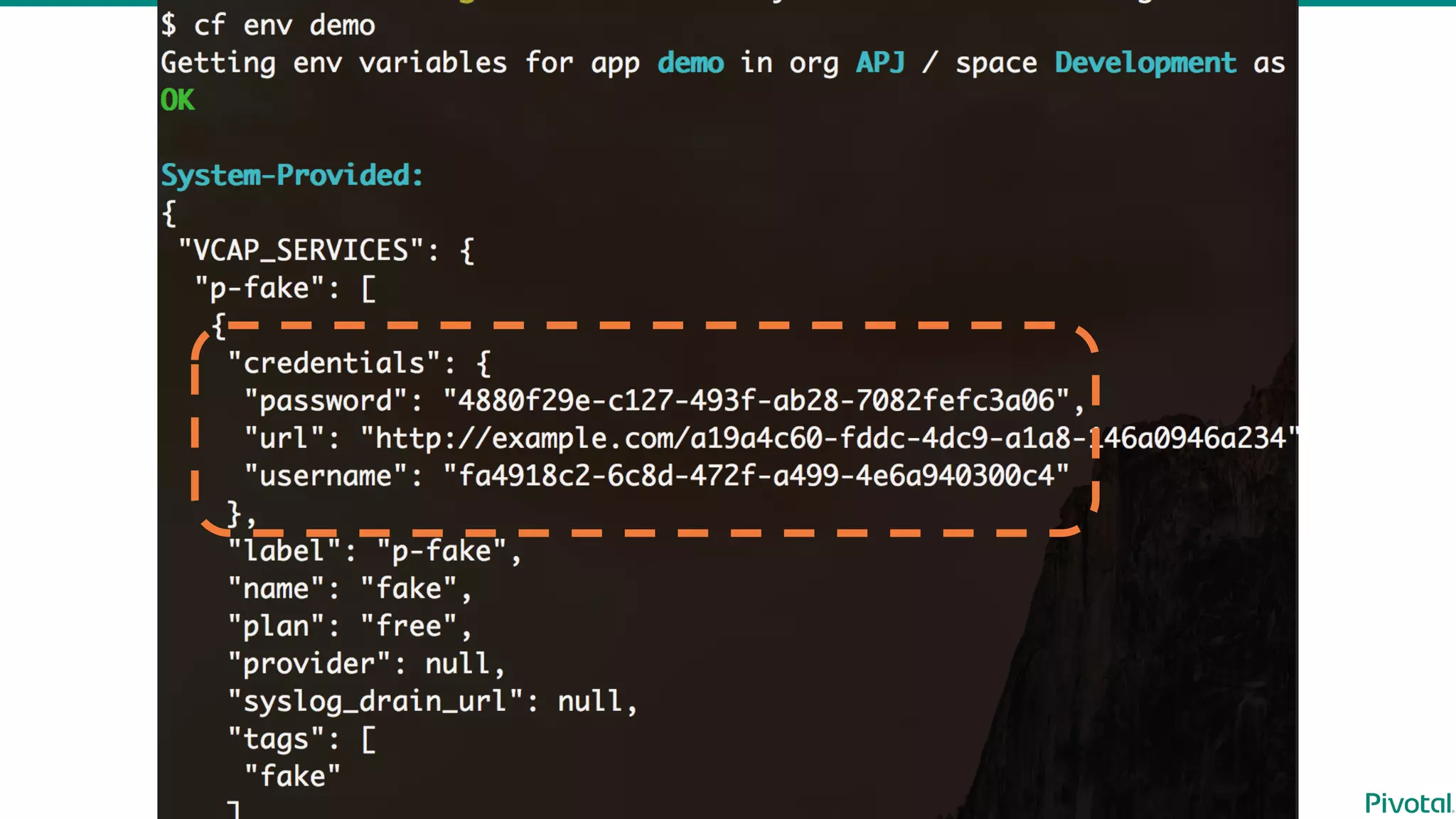

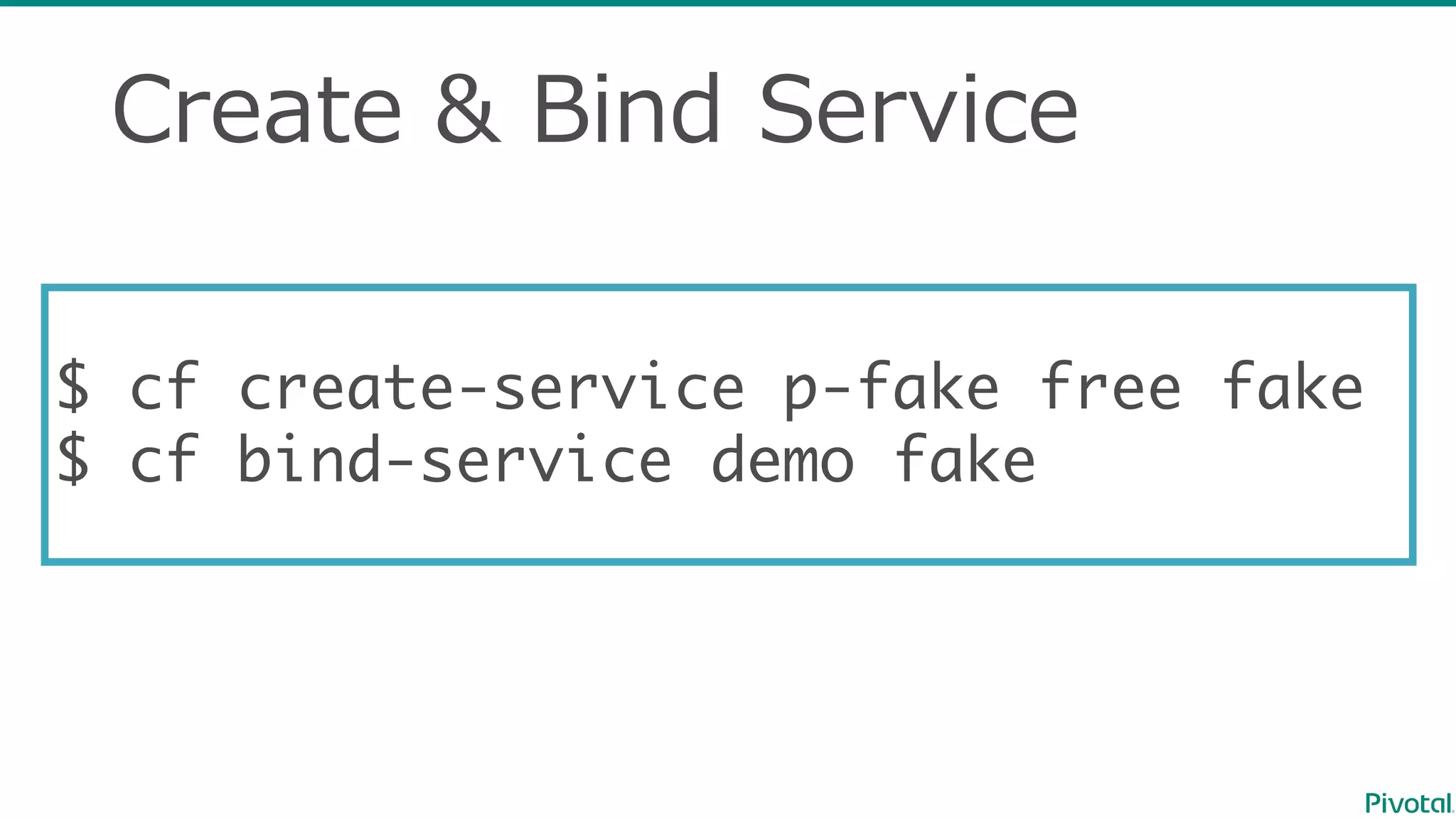

44. Create & Bind Service
$ cf create-service p-fake free fake
$ cf bind-service demo fake

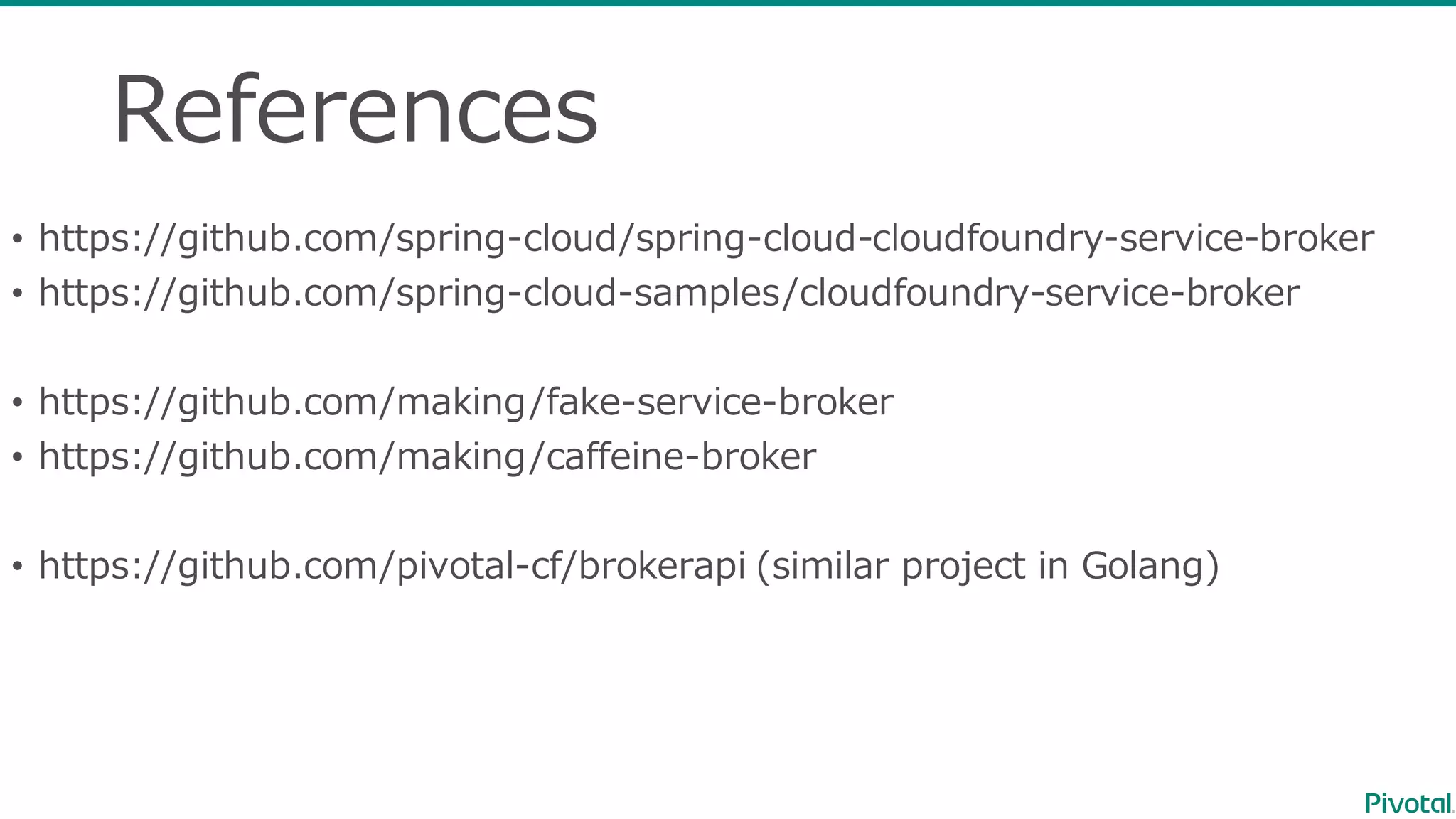

47. References
• https://github.com/spring-‐‑‒cloud/spring-‐‑‒cloud-‐‑‒cloudfoundry-‐‑‒service-‐‑‒broker
• https://github.com/spring-‐‑‒cloud-‐‑‒samples/cloudfoundry-‐‑‒service-‐‑‒broker
• https://github.com/making/fake-‐‑‒service-‐‑‒broker
• https://github.com/making/caffeine-‐‑‒broker
• https://github.com/pivotal-‐‑‒cf/brokerapi (similar project in Golang)

48. Announce
http://pivotal-‐‑‒japan.connpass.com
Pivotal Japan Technical Meetup
2016/06/29(Wed) 18:30-‐‑‒
