Magic body suspension 1st

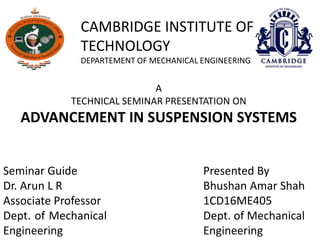

1. CAMBRIDGE INSTITUTE OF
TECHNOLOGY
DEPARTEMENT OF MECHANICAL ENGINEERING
A
TECHNICAL SEMINAR PRESENTATION ON
ADVANCEMENT IN SUSPENSION SYSTEMS
Seminar Guide
Dr. Arun L R
Associate Professor
Dept. of Mechanical
Engineering
Presented By
Bhushan Amar Shah
1CD16ME405
Dept. of Mechanical
Engineering

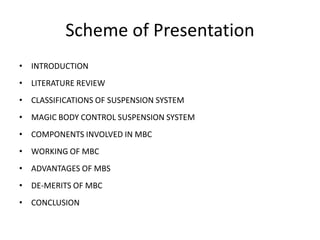

2. Scheme of Presentation
• INTRODUCTION
• LITERATURE REVIEW
• CLASSIFICATIONS OF SUSPENSION SYSTEM
• MAGIC BODY CONTROL SUSPENSION SYSTEM
• COMPONENTS INVOLVED IN MBC

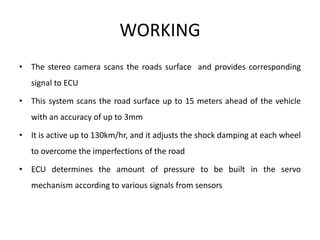

• WORKING OF MBC
• ADVANTAGES OF MBS
• DE-MERITS OF MBC
• CONCLUSION

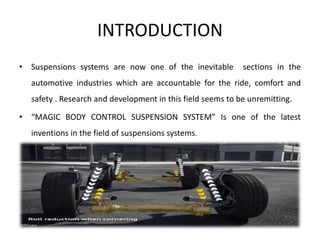

3. INTRODUCTION
• Suspensions systems are now one of the inevitable sections in the
automotive industries which are accountable for the ride, comfort and
safety . Research and development in this field seems to be unremitting.
• “MAGIC BODY CONTROL SUSPENSION SYSTEM” Is one of the latest
inventions in the field of suspensions systems.

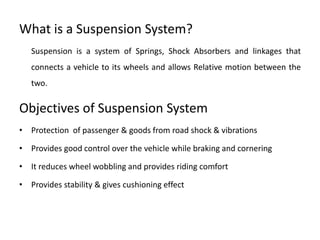

4. What is a Suspension System?
Suspension is a system of Springs, Shock Absorbers and linkages that
connects a vehicle to its wheels and allows Relative motion between the
two.
Objectives of Suspension System
• Protection of passenger & goods from road shock & vibrations
• Provides good control over the vehicle while braking and cornering
• It reduces wheel wobbling and provides riding comfort
• Provides stability & gives cushioning effect
5. LITERATURE RIVEW
SL.NO JOURNAL PAPER AUTHOR FINDINGS
1 ADVANCES IN ACTIVE
SUSPENSION SYSTEM
AHISHEK GOYAL,
ASHISH SHARMA
Various Advancements in
the automobile suspension
& different types of
Advanced suspensions
system were descried in
this paper
2 REVIEW ON ACTIVE
SUSPENSION SYSTEM
AIZUDDIN FAHMI,
FAUZI AHEMAD
A Brief Comparison
between various types of
suspension systems
3 THE FUTURE
DEVELOPMENT &
ANALYSIS OF VEHICLE
ACTIVE SUSPENSION
SYSTEM
NOUBY M.
GHAZALY,
AHMAD A.
MOAAZ
Active suspension system is
more effective compared
to other suspension
system.
4 ACTIVE BODY CONTROL
SUSPENSION
MAHIPATI
DAHIPALE,
YOGESH CHOPADE
Working of Magic Body
Control Suspension System
6. CLASSIFICATIONS OF SUSPENSION
SYSTEMS
ACTIVE SUSPENSION
SYSTEM
SEMI-ACTIVE
SUSPENSION SYSTEM
PASSIVE SUSPENSION
SYSTEM
It is a type of automotive
suspension system that
controls the vertical
movement of the wheels
relative to the chassis
with an on board
system.
It is a type of automotive
suspension system that
controls the damping
force of the shock
absorber from
continuously varying
road surfaces.
Here the movement is
determined entirely by
the road surface
7. MAGIC BODY CONTROL
SUSPENSION SYSTEM
• Magic body suspension system is the next generation of active body
suspension system improving both comfort & driving dynamics
• It includes a globally innovative road scan function i.e. A stereo camera
scans the road ahead and registers the road surface & its conditions
• It recognizes the uneven road surface before passing through it & enabling
the suspension to adjust itself .
8. COMPONENTS INVOLVED
• ECU ( Electronic Control Unit )
• Stereo Camera
• Sensors

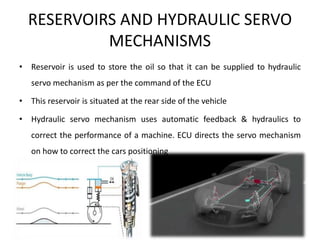

• Reservoir
• Hydraulic servo mechanism
• Shock absorbers

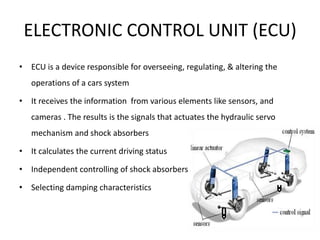

9. ELECTRONIC CONTROL UNIT (ECU)
• ECU is a device responsible for overseeing, regulating, & altering the
operations of a cars system
• It receives the information from various elements like sensors, and
cameras . The results is the signals that actuates the hydraulic servo
mechanism and shock absorbers
• It calculates the current driving status
• Independent controlling of shock absorbers
• Selecting damping characteristics

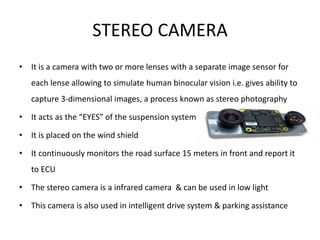

10. STEREO CAMERA
• It is a camera with two or more lenses with a separate image sensor for
each lense allowing to simulate human binocular vision i.e. gives ability to
capture 3-dimensional images, a process known as stereo photography
• It acts as the “EYES” of the suspension system
• It is placed on the wind shield
• It continuously monitors the road surface 15 meters in front and report it
to ECU
• The stereo camera is a infrared camera & can be used in low light
• This camera is also used in intelligent drive system & parking assistance
11. SENSORS
• The sensor continually monitors the body movement and supplies the
input to ECU every 10 millisecond
• It uses acceleration sensors to measure the movement of body by
Longitudinal, Lateral and Vertical Acceleration sensors
• Pressure sensors are used to measure the pressure of front and rear axle
strut assembly also it senses the pressure developed in the servo
mechanism and are reported to ECU
• It also uses vehicle height sensor to measure the ride height and
compensate for the road variations. They are located on wheels to
measure the vehicle height at every condition
12. RESERVOIRS AND HYDRAULIC SERVO
MECHANISMS
• Reservoir is used to store the oil so that it can be supplied to hydraulic
servo mechanism as per the command of the ECU
• This reservoir is situated at the rear side of the vehicle
• Hydraulic servo mechanism uses automatic feedback & hydraulics to
correct the performance of a machine. ECU directs the servo mechanism
on how to correct the cars positioning
13. SHOCK ABSORBERS
• Shock absorbers are used to absorb shock impulses formed during
different road shocks
• Magic body control suspension system uses a electronically controlled
shock absorber that feature variable shock damping
• The degree of damping is controlled based on the inputs of ECU, sensors &
stereo camera
14. WORKING
• The stereo camera scans the roads surface and provides corresponding
signal to ECU
• This system scans the road surface up to 15 meters ahead of the vehicle
with an accuracy of up to 3mm
• It is active up to 130km/hr, and it adjusts the shock damping at each wheel
to overcome the imperfections of the road
• ECU determines the amount of pressure to be built in the servo
mechanism according to various signals from sensors
15. • The sensors and the servo hydraulic mechanism generates forces to
overcome the imperfection of road surface
• By these combinations the suspensions take action before the wheels
reach them

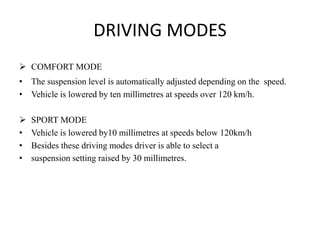

17. DRIVING MODES
COMFORT MODE
• The suspension level is automatically adjusted depending on the speed.
• Vehicle is lowered by ten millimetres at speeds over 120 km/h.
SPORT MODE
• Vehicle is lowered by10 millimetres at speeds below 120km/h
• Besides these driving modes driver is able to select a
• suspension setting raised by 30 millimetres.
18. CONCLUSION
• Innovation of MAGIC BODY CONTROL SYSPENSION SYSTEM
created a revolutionary change in suspension system compared to
conventional suspension system hence increasing the performance, safety,
and comfort of an automobile.
Future Scope
These type of suspension systems can be installed in emergency vehicles
by reducing the manufacturing cost of the suspension system.
