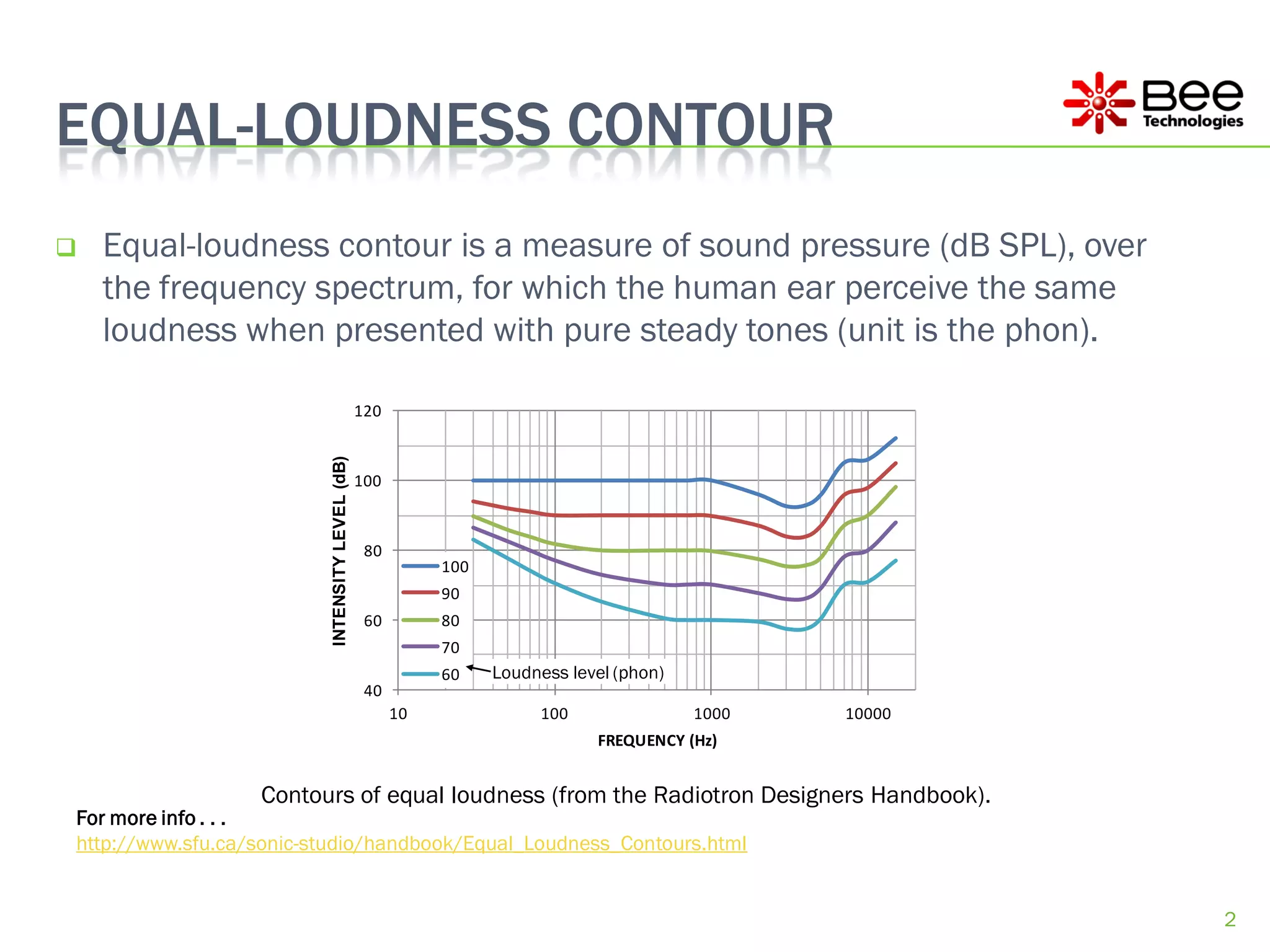

2. EQUAL-LOUDNESS CONTOUR
Equal-loudness contour is a measure of sound pressure (dB SPL), over
the frequency spectrum, for which the human ear perceive the same
loudness when presented with pure steady tones (unit is the phon).
120
INTENSITY LEVEL (dB)
100
80
100
90
60 80
70
60 Loudness level (phon)
40
10 100 1000 10000
FREQUENCY (Hz)
Contours of equal loudness (from the Radiotron Designers Handbook).
For more info . . .
http://www.sfu.ca/sonic-studio/handbook/Equal_Loudness_Contours.html
2

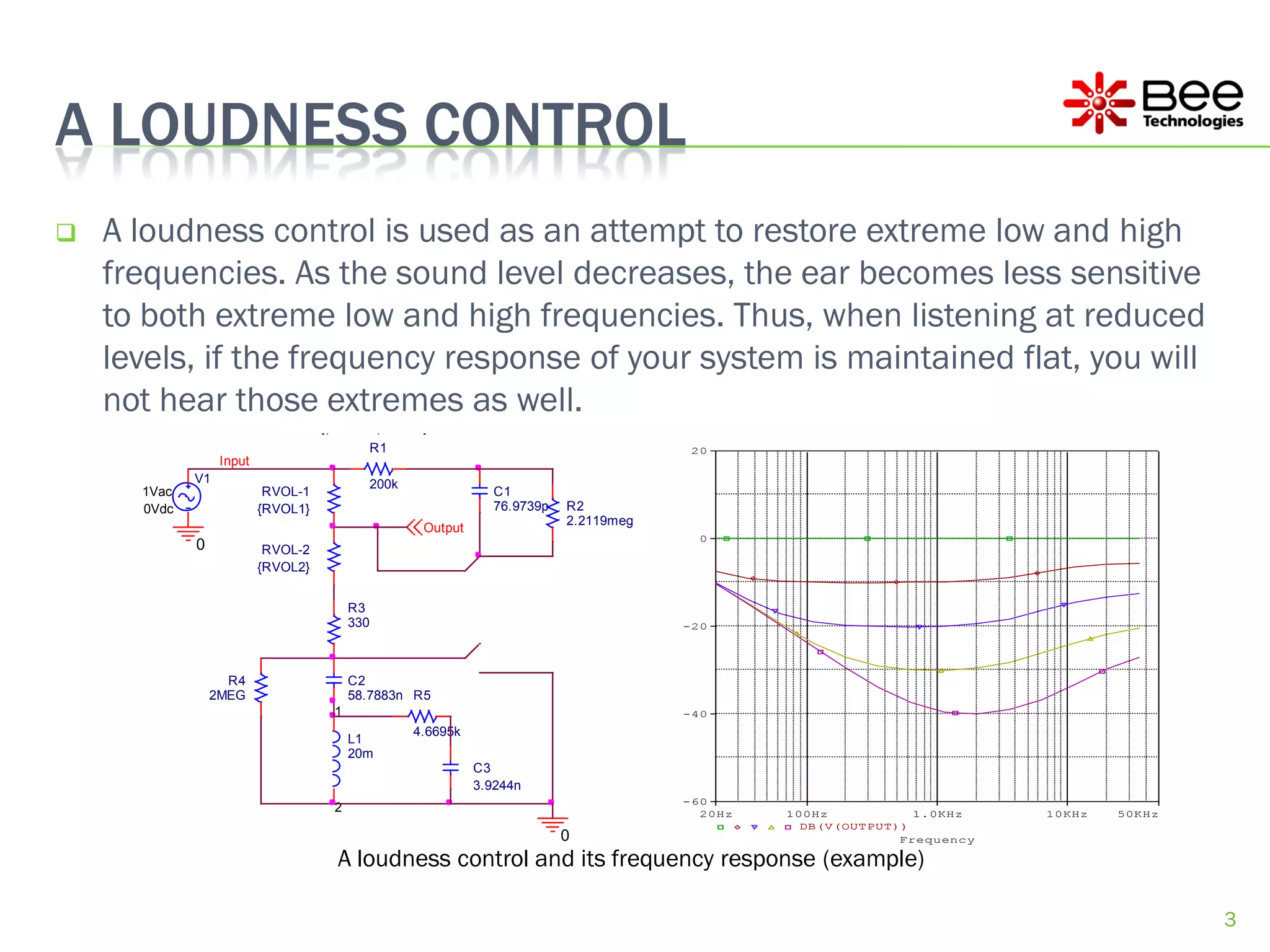

3. A LOUDNESS CONTROL
A loudness control is used as an attempt to restore extreme low and high
frequencies. As the sound level decreases, the ear becomes less sensitive
to both extreme low and high frequencies. Thus, when listening at reduced
PARAMETERS:
RVOL = 500k
levels, if the frequency response of your system is maintained flat, you will
VOL = 0.0245
not hear those extremes as well.
PARAMETERS:
RVOL1 = {(1-VOL+1u)*RVOL}
RVOL2 = {(VOL+1u)*RVOL}
R1 20
Input
V1 200k
1Vac RVOL-1 C1
0Vdc {RVOL1} 76.9739p R2
2.2119meg
Output
0
0 RVOL-2
{RVOL2}
R3
330 -20
R4 C2
2MEG 58.7883n R5
1 -40
4.6695k
L1
20m
C3
3.9244n
-60
2 20Hz 100Hz 1.0KHz 10KHz 50KHz
DB(V(OUTPUT))
0 Frequency
A loudness control and its frequency response (example)
3
4. THE LOUDNESS CONTROL VS. EQUAL-LOUDNESS CONTOUR
20
0
INTENSITY LEVEL (dB)
-20
100
100(Sim)
90
90(Sim)
80
-40
80(Sim)
70
70(Sim)
60
60(Sim)
-60
10 100 1000 10000
FREQUENCY (Hz)

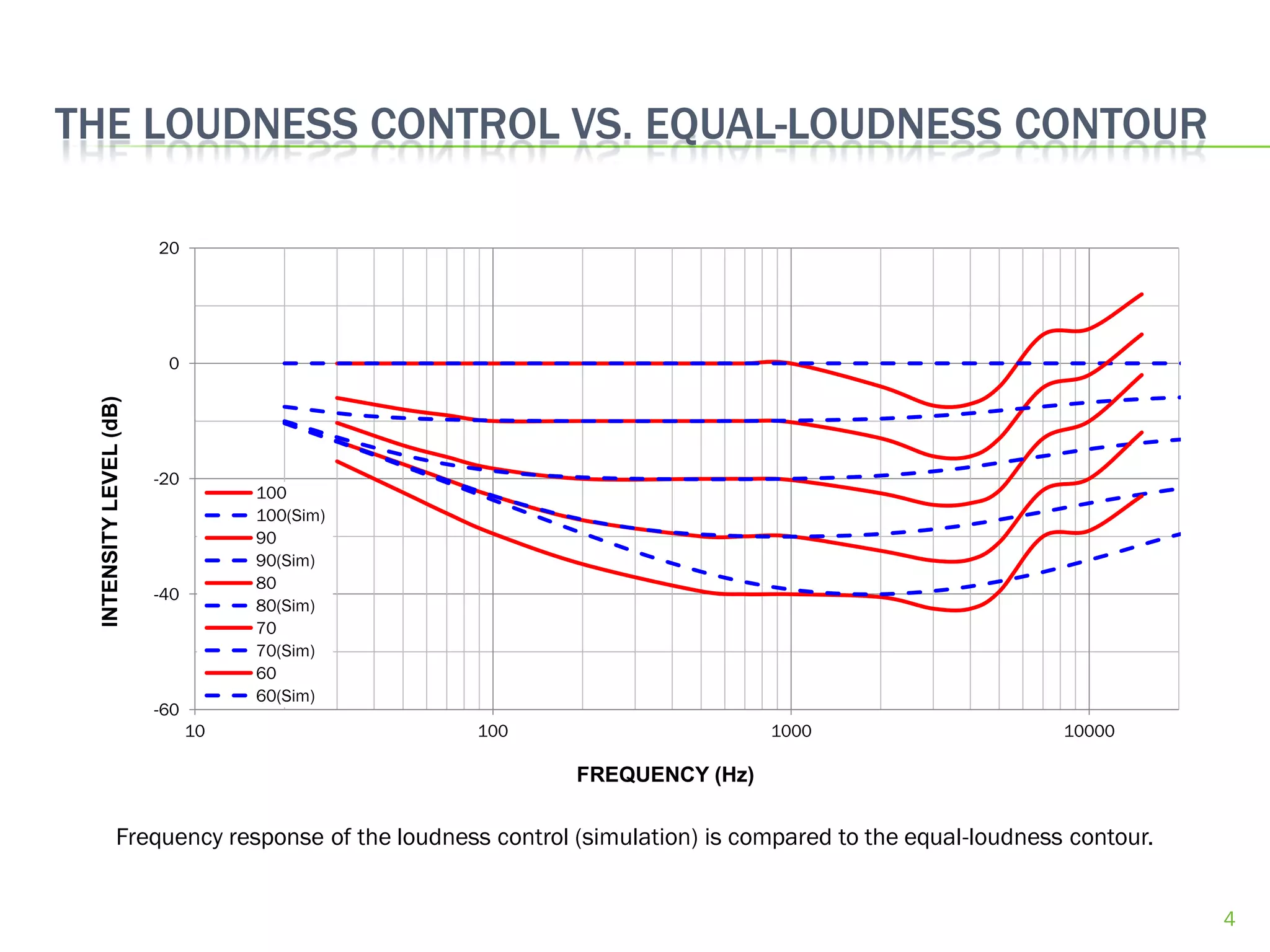

Frequency response of the loudness control (simulation) is compared to the equal-loudness contour.
4

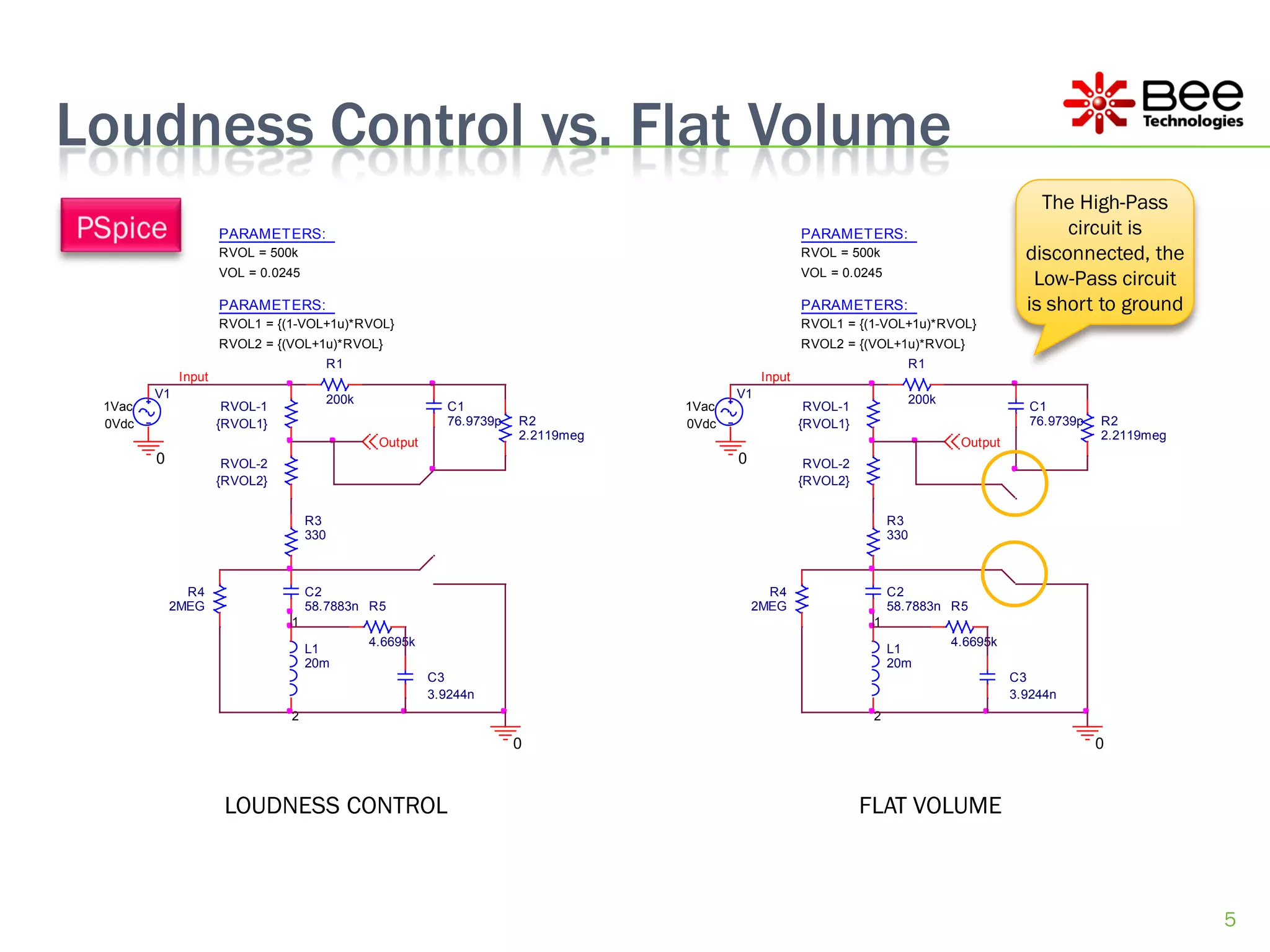

6. Loudness Control vs. Flat Volume
20 20
0 0
-20 -20
-40 -40
-60 -60
20Hz 100Hz 1.0KHz 10KHz 50KHz 20Hz 100Hz 1.0KHz 10KHz 50KHz
DB(V(OUTPUT)) DB(V(OUTPUT))
Frequency Frequency
LOUDNESS CONTROL RESPONSE FLAT VOLUME RESPONSE
6
7. LTspice Simulation: .WAV IN/OUT Loudness Control
Low to high swept audible signal (Input)
-30 dB level down with the loudness control (Output)

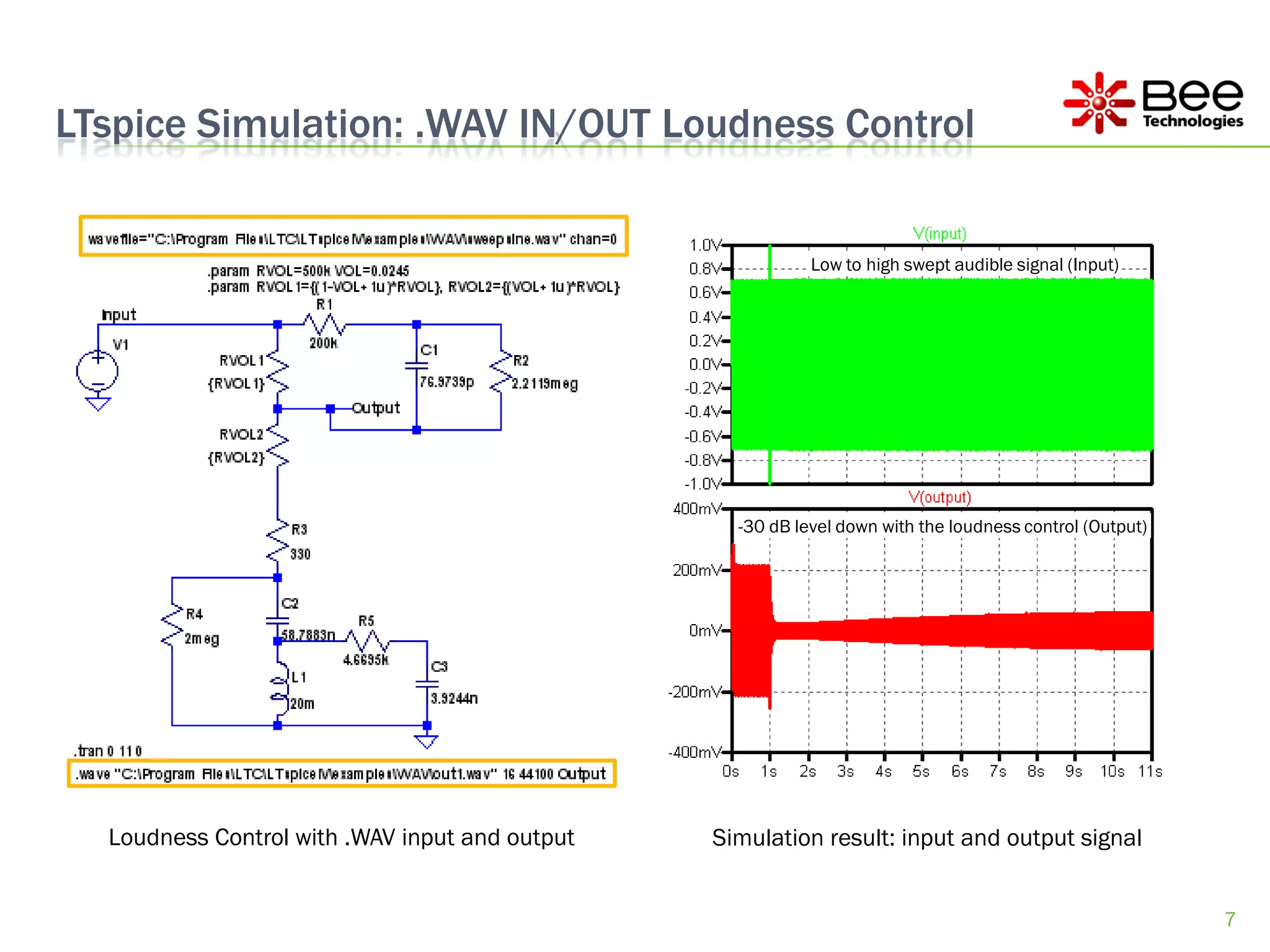

Loudness Control with .WAV input and output Simulation result: input and output signal
7

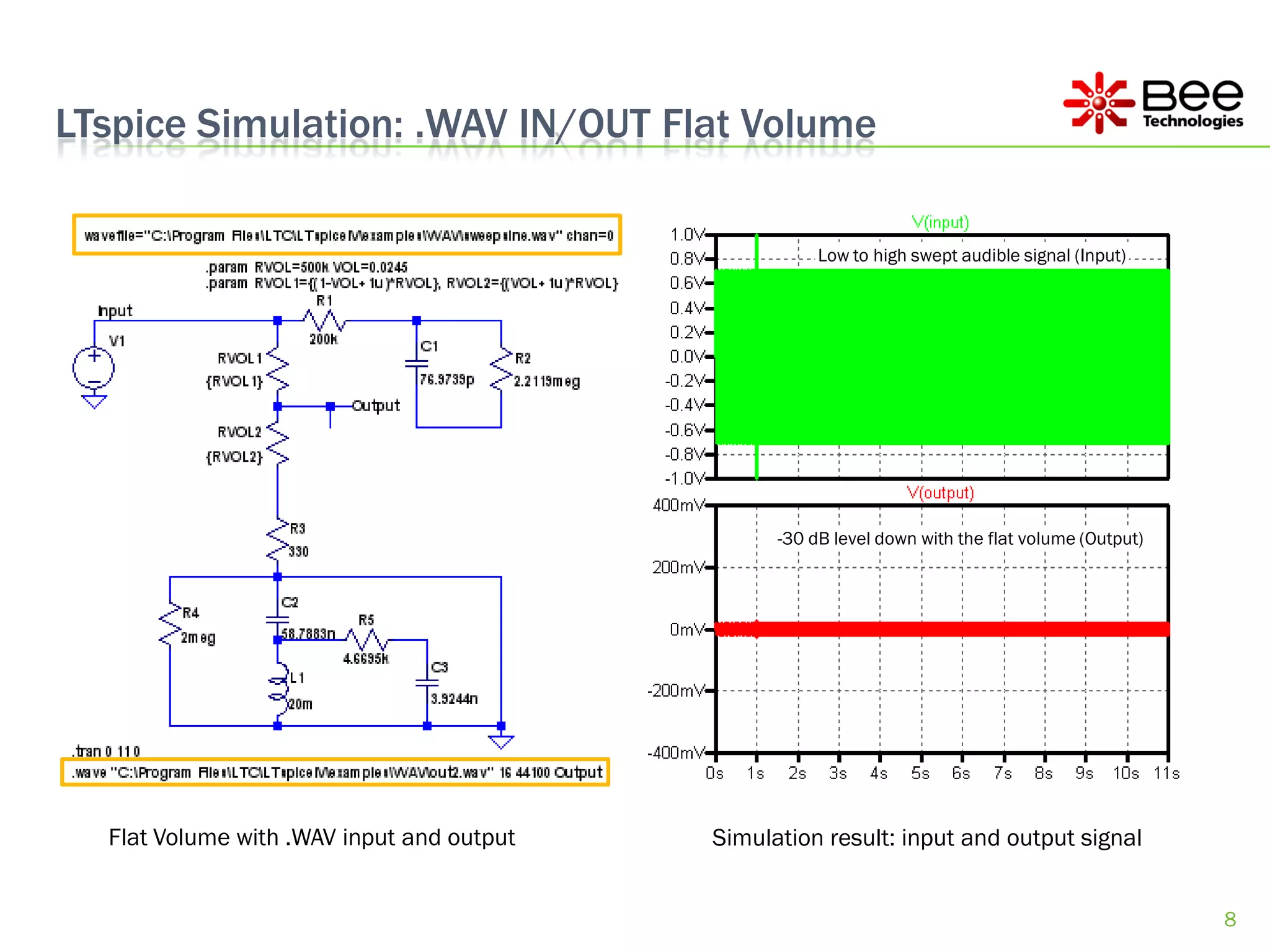

8. LTspice Simulation: .WAV IN/OUT Flat Volume
Low to high swept audible signal (Input)
-30 dB level down with the flat volume (Output)
Flat Volume with .WAV input and output Simulation result: input and output signal
8
10. USING WAVE FILE (.WAV) AS INPUT
Using audio signal (WAVE file) as an input voltage for LTSpice could be done
by replace the voltage expression of the voltage source with a WAVE-file
expression: wavefile=“file location" chan=0 (as seen in the example
below)
“chan” refers to the respective channel in the WAVE file used for the
simulation, can be a number between 1 and 65535 although usually
channel 0 refer to the left channel and channel 1 refers to the right channel
A loudness control and its frequency response (example)
10
11. USING WAVE FILE (.WAV) AS OUTPUT

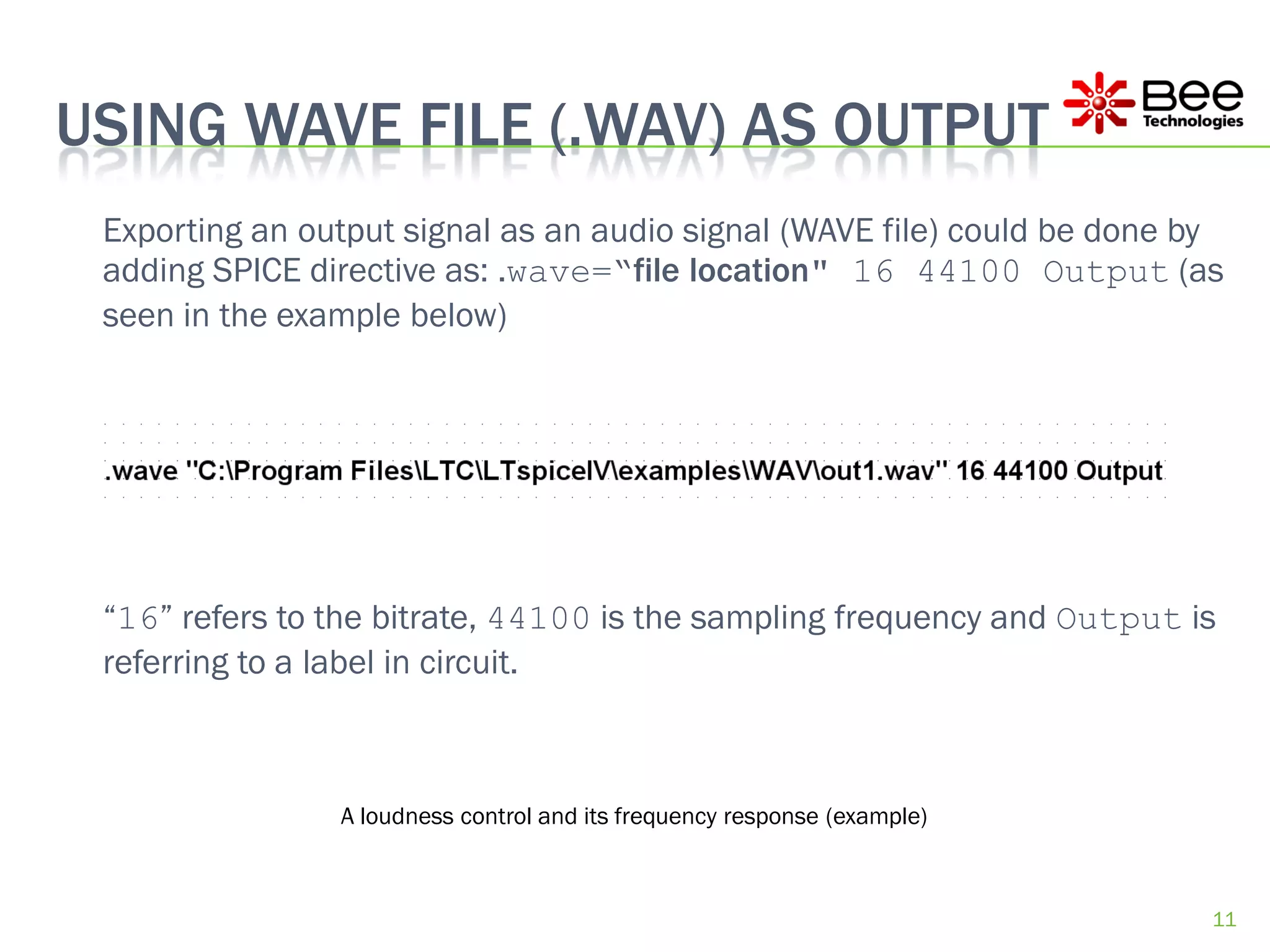

Exporting an output signal as an audio signal (WAVE file) could be done by
adding SPICE directive as: .wave=“file location" 16 44100 Output (as
seen in the example below)
“16” refers to the bitrate, 44100 is the sampling frequency and Output is
referring to a label in circuit.
A loudness control and its frequency response (example)
11

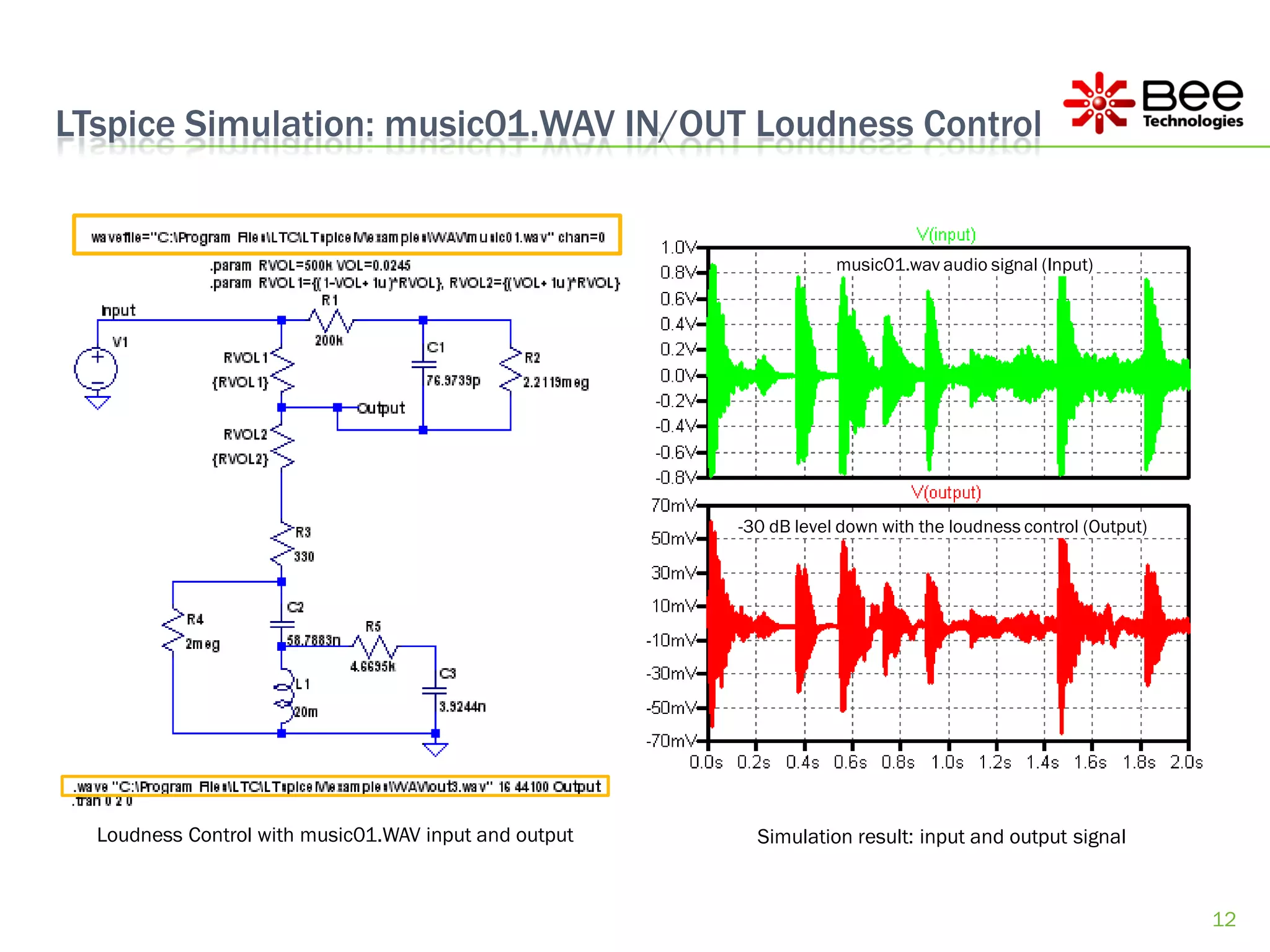

12. LTspice Simulation: music01.WAV IN/OUT Loudness Control
music01.wav audio signal (Input)
-30 dB level down with the loudness control (Output)
Loudness Control with music01.WAV input and output Simulation result: input and output signal
12

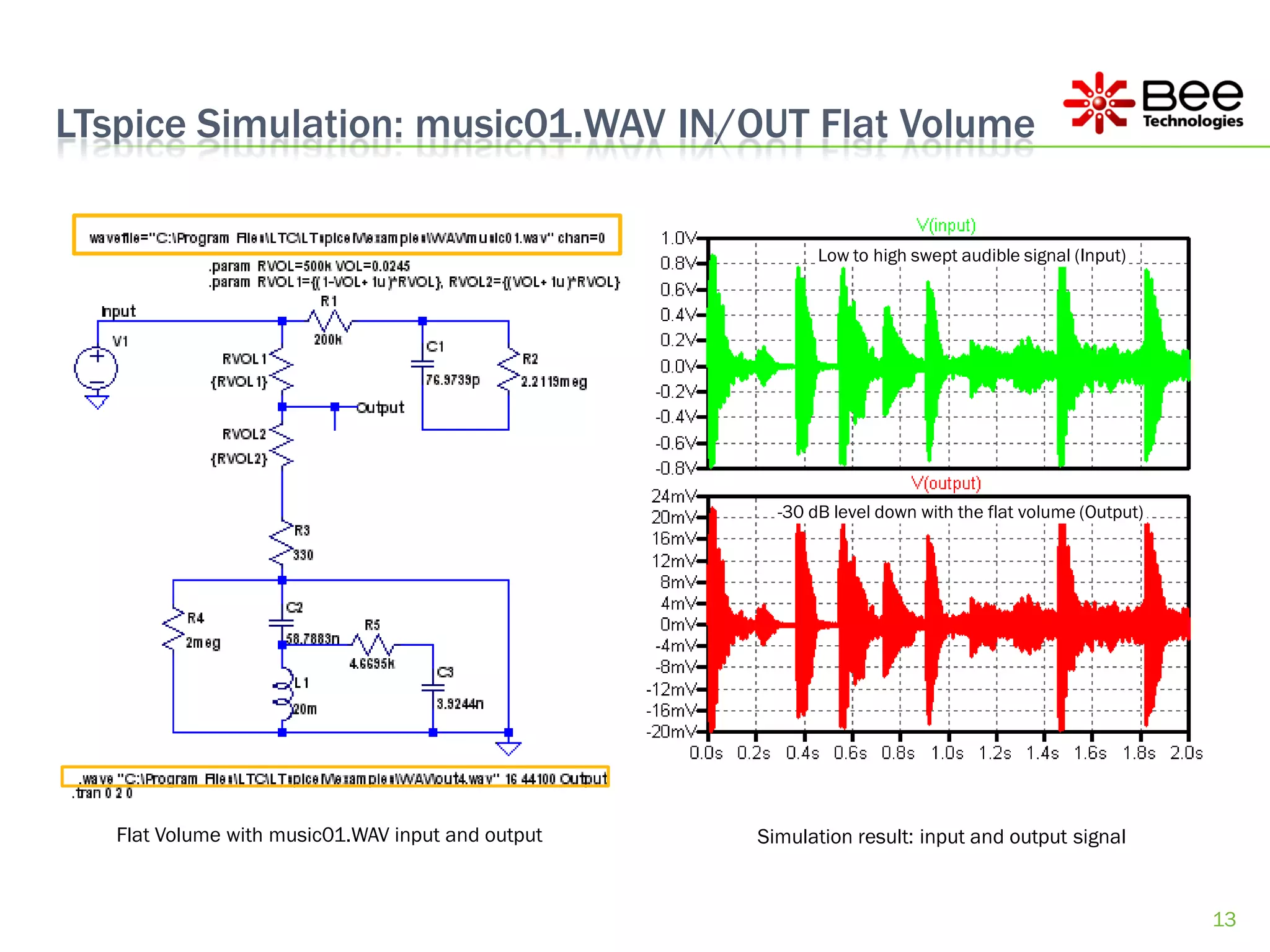

13. LTspice Simulation: music01.WAV IN/OUT Flat Volume
Low to high swept audible signal (Input)
-30 dB level down with the flat volume (Output)
Flat Volume with music01.WAV input and output Simulation result: input and output signal
13

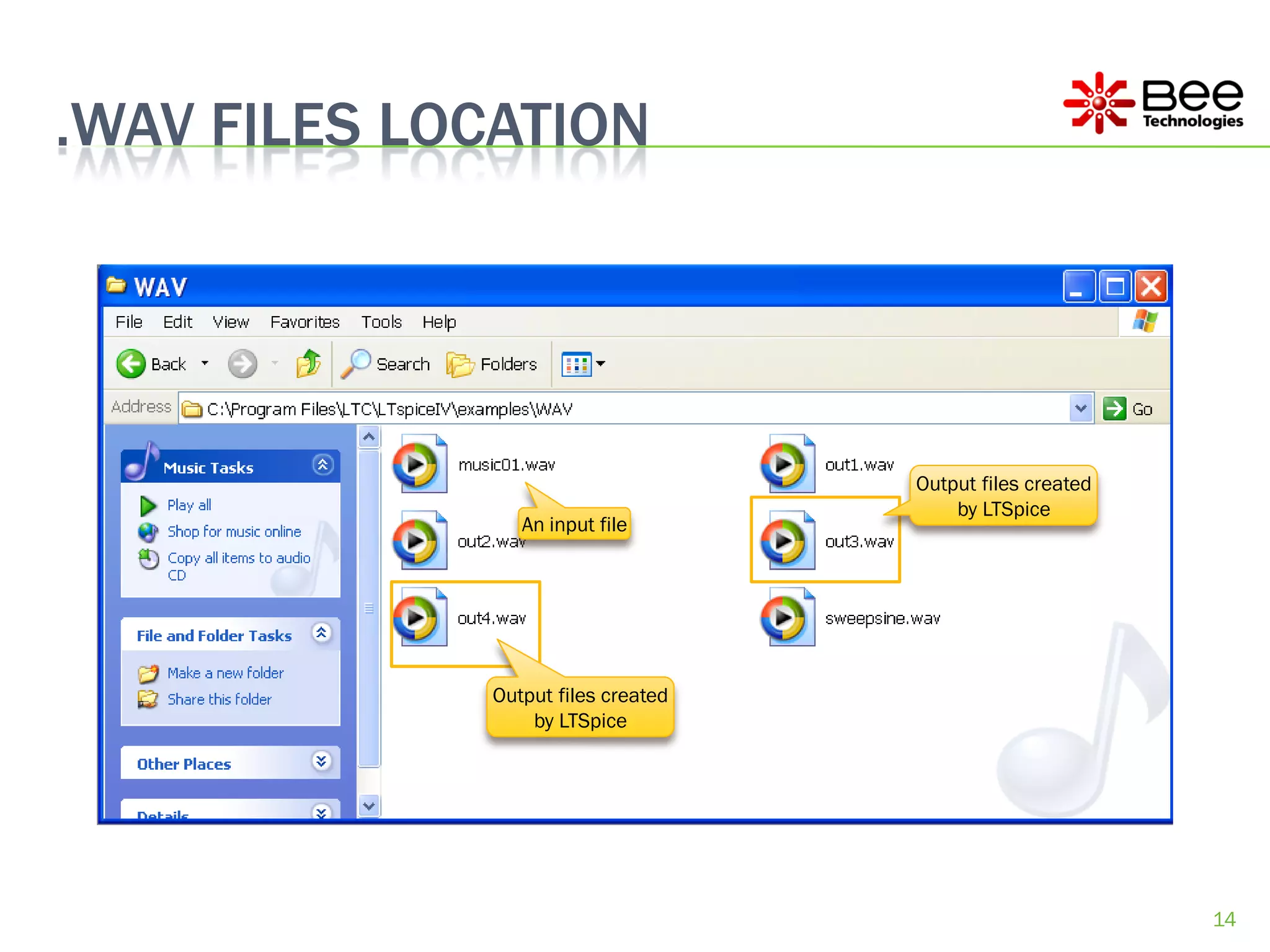

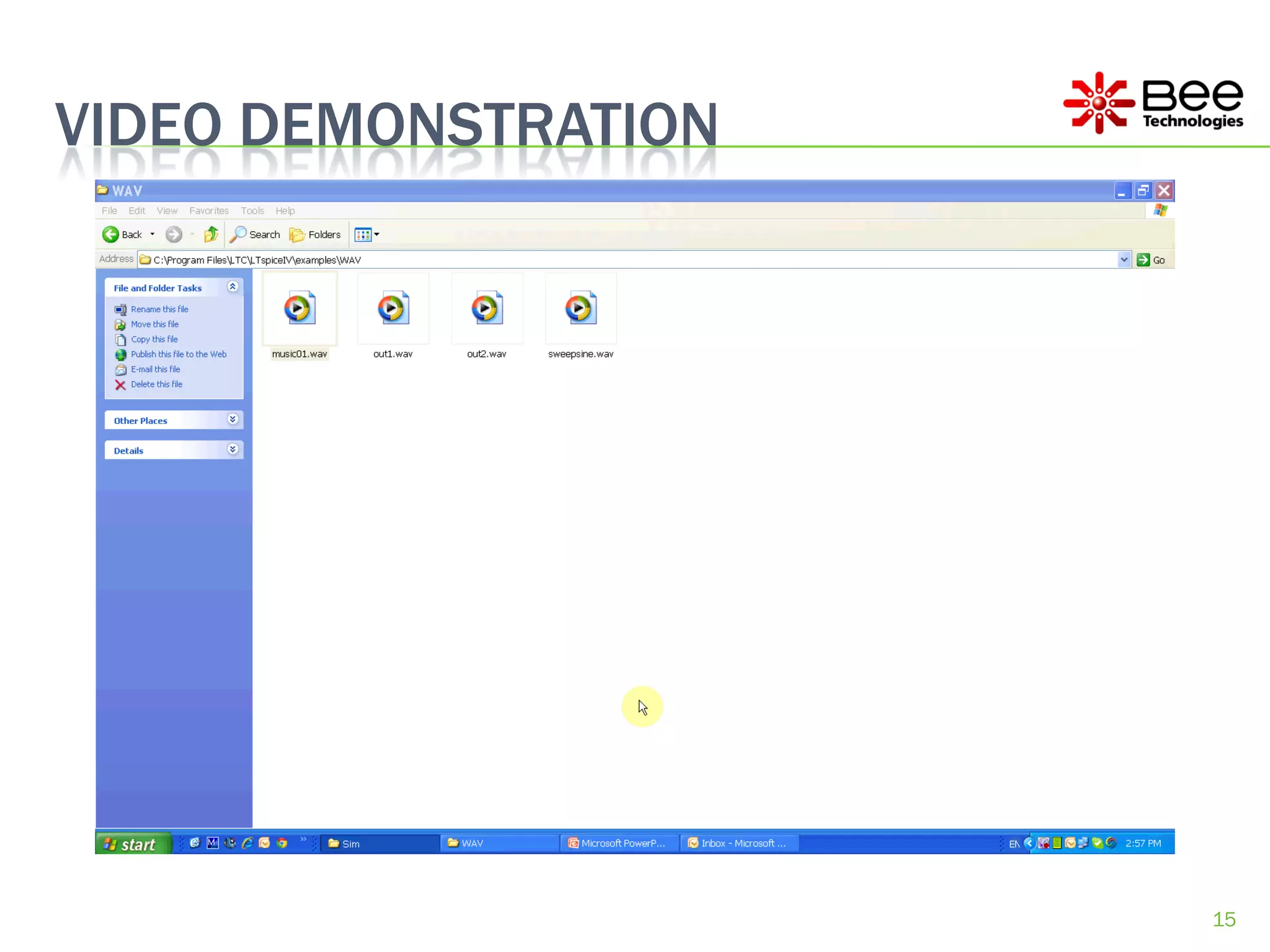

14. .WAV FILES LOCATION
Output files created
by LTSpice
An input file
Output files created
by LTSpice
14
