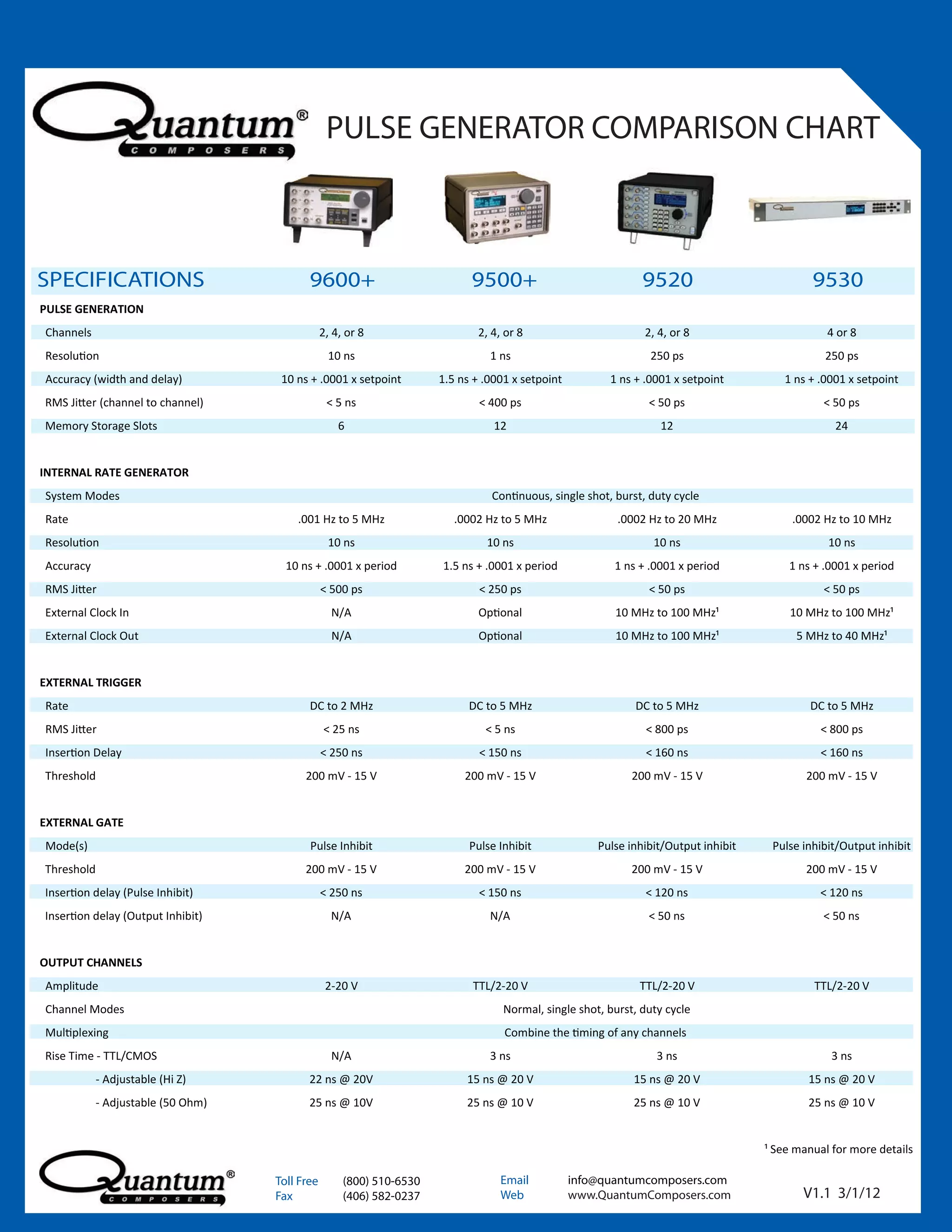

1. PULSE GENERATOR COMPARISON CHART

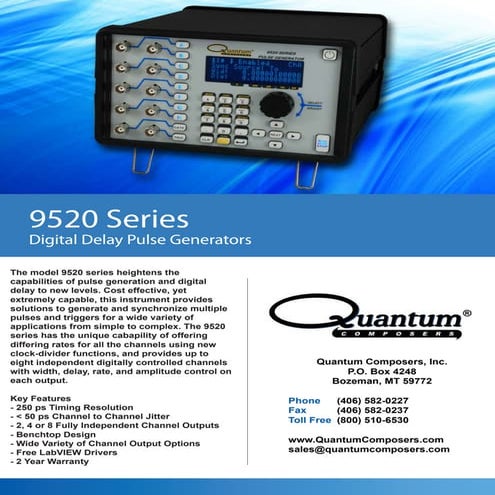

SPECIFICATIONS 9600+ 9500+ 9520 9530
PULSE GENERATION
Channels 2, 4, or 8 2, 4, or 8 2, 4, or 8 4 or 8
Resolution 10 ns 1 ns 250 ps 250 ps
Accuracy (width and delay) 10 ns + .0001 x setpoint 1.5 ns + .0001 x setpoint 1 ns + .0001 x setpoint 1 ns + .0001 x setpoint
RMS Jitter (channel to channel) < 5 ns < 400 ps < 50 ps < 50 ps
Memory Storage Slots 6 12 12 24
INTERNAL RATE GENERATOR
System Modes Continuous, single shot, burst, duty cycle
Rate .001 Hz to 5 MHz .0002 Hz to 5 MHz .0002 Hz to 20 MHz .0002 Hz to 10 MHz
Resolution 10 ns 10 ns 10 ns 10 ns
Accuracy 10 ns + .0001 x period 1.5 ns + .0001 x period 1 ns + .0001 x period 1 ns + .0001 x period
RMS Jitter < 500 ps < 250 ps < 50 ps < 50 ps
External Clock In N/A Optional 10 MHz to 100 MHz¹ 10 MHz to 100 MHz¹
External Clock Out N/A Optional 10 MHz to 100 MHz¹ 5 MHz to 40 MHz¹
EXTERNAL TRIGGER
Rate DC to 2 MHz DC to 5 MHz DC to 5 MHz DC to 5 MHz
RMS Jitter < 25 ns < 5 ns < 800 ps < 800 ps
Insertion Delay < 250 ns < 150 ns < 160 ns < 160 ns
Threshold 200 mV - 15 V 200 mV - 15 V 200 mV - 15 V 200 mV - 15 V
EXTERNAL GATE
Mode(s) Pulse Inhibit Pulse Inhibit Pulse inhibit/Output inhibit Pulse inhibit/Output inhibit
Threshold 200 mV - 15 V 200 mV - 15 V 200 mV - 15 V 200 mV - 15 V
Insertion delay (Pulse Inhibit) < 250 ns < 150 ns < 120 ns < 120 ns
Insertion delay (Output Inhibit) N/A N/A < 50 ns < 50 ns
OUTPUT CHANNELS
Amplitude 2-20 V TTL/2-20 V TTL/2-20 V TTL/2-20 V
Channel Modes Normal, single shot, burst, duty cycle
Multiplexing Combine the timing of any channels
Rise Time - TTL/CMOS N/A 3 ns 3 ns 3 ns
- Adjustable (Hi Z) 22 ns @ 20V 15 ns @ 20 V 15 ns @ 20 V 15 ns @ 20 V
- Adjustable (50 Ohm) 25 ns @ 10V 25 ns @ 10 V 25 ns @ 10 V 25 ns @ 10 V
¹ See manual for more details
Toll Free (800) 510-6530 Email info@quantumcomposers.com
Fax (406) 582-0237 Web www.QuantumComposers.com V1.1 3/1/12
