Linux:
             A Getting Started presentation


       by: Nap Ramirez
    email: napramirez@gmail.com

INTRODUCTION


    What is Linux?

    Linux is an operating system* created
    by Linus Torvalds, with the help of
    developers around the world.




     * An operating system is a special set of programs that
     manages the hardware and software resources of a
     computer.
INTRODUCTION


    Why Linux?
    ●   It's free!
    ●   It is Open Source Software.
    ●   It is reliable.

    ●   Perks include:
         ✔   no viruses
         ✔   no need to restart all the time
         ✔   no registration/activation hassles
         ✔   unlimited support
         ✔   a large pool of applications for your preference

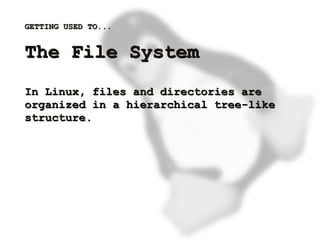

GETTING USED TO...


    The File System
    In Linux, files and directories are
    organized in a hierarchical tree-like
    structure.

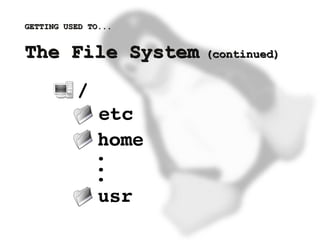

GETTING USED TO...


    The File System          (continued)

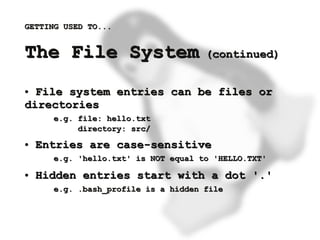

GETTING USED TO...


    The File System                      (continued)


    ● File system entries can be files or
    directories
          e.g. file: hello.txt
               directory: src/
    ●   Entries are case-sensitive
          e.g. 'hello.txt' is NOT equal to 'HELLO.TXT'
    ●   Hidden entries start with a dot '.'
          e.g. .bash_profile is a hidden file

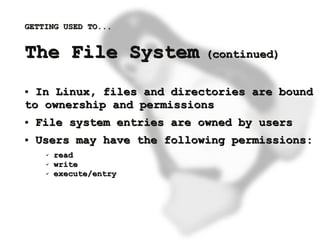

GETTING USED TO...


    The File System              (continued)


    ● In Linux, files and directories are bound
    to ownership and permissions
    ●   File system entries are owned by users
    ●   Users may have the following permissions:
         ✔   read
         ✔   write
         ✔   execute/entry

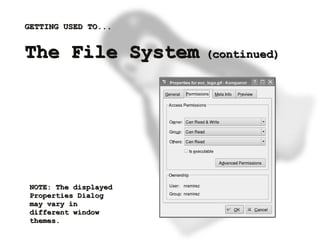

GETTING USED TO...


    The File System            (continued)




     NOTE: The displayed
     Properties Dialog
     may vary in
     different window
     themes.

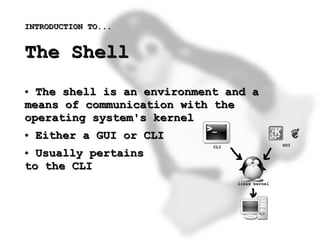

INTRODUCTION TO...


    The Shell
    ● The shell is an environment and a
    means of communication with the
    operating system's kernel
    ●   Either a GUI or CLI
    ● Usually pertains
    to the CLI

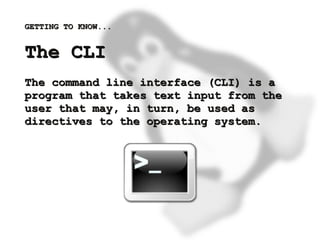

GETTING TO KNOW...


    The CLI
    The command line interface (CLI) is a
    program that takes text input from the
    user that may, in turn, be used as
    directives to the operating system.

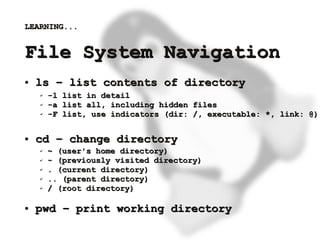

LEARNING...


    File System Navigation
    ●   ls – list contents of directory
        ✔   -l list in detail
        ✔   -a list all, including hidden files
        ✔   -F list, use indicators (dir: /, executable: *, link: @)

    ●   cd – change directory
        ✔   ~ (user's home directory)
        ✔   - (previously visited directory)
        ✔   . (current directory)
        ✔   .. (parent directory)
        ✔   / (root directory)

    ●   pwd – print working directory

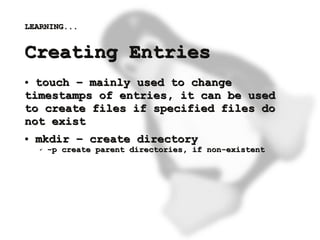

LEARNING...


    Creating Entries
    ● touch – mainly used to change
    timestamps of entries, it can be used
    to create files if specified files do
    not exist
    ●   mkdir – create directory
        ✔   -p create parent directories, if non-existent

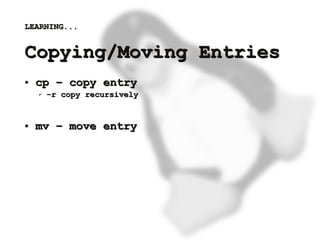

LEARNING...


    Copying/Moving Entries
    ●   cp – copy entry
        ✔   -r copy recursively


    ●   mv – move entry

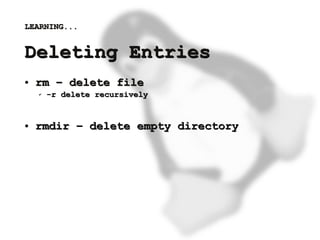

LEARNING...


    Deleting Entries
    ●   rm – delete file
        ✔   -r delete recursively


    ●   rmdir – delete empty directory

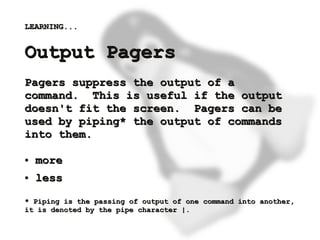

LEARNING...


    Output Pagers
    Pagers suppress the output of a
    command. This is useful if the output
    doesn't fit the screen. Pagers can be
    used by piping* the output of commands
    into them.

    ●   more
    ●   less
    * Piping is the passing of output of one command into another,
    it is denoted by the pipe character |.

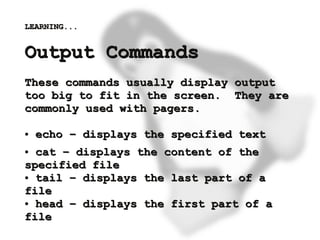

LEARNING...


    Output Commands
    These commands usually display output
    too big to fit in the screen. They are
    commonly used with pagers.

    ●   echo – displays the specified text
    ● cat – displays the content of the
    specified file
    ● tail – displays the last part of a

    file
    ● head – displays the first part of a



    file
LEARNING...


    Editing Text Files
    Many text editors exist in every
    installation. The most popular are:

    ●   vi, vim
    ●   emacs
    ●   joe
    ●   pico, nano

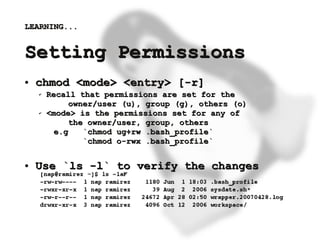

LEARNING...


    Setting Permissions
    ●   chmod <mode> <entry> [-r]
        ✔   Recall that permissions are set for the
                  owner/user (u), group (g), others (o)
        ✔   <mode> is the permissions set for any of
                  the owner/user, group, others
              e.g    `chmod ug+rw .bash_profile`
                     `chmod o-rwx .bash_profile`

    ●   Use `ls -l` to verify the changes

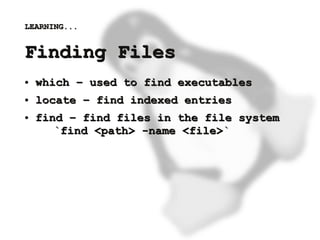

LEARNING...


    Finding Files
    ●   which – used to find executables
    ●   locate – find indexed entries
    ●   find – find files in the file system
           `find <path> -name <file>`

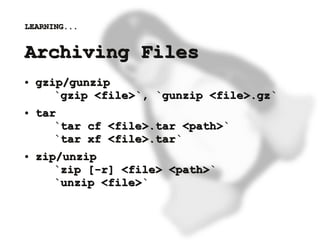

LEARNING...


    Archiving Files
    ●   gzip/gunzip
           `gzip <file>`, `gunzip <file>.gz`
    ●   tar
           `tar cf <file>.tar <path>`
           `tar xf <file>.tar`
    ●   zip/unzip
           `zip [-r] <file> <path>`
           `unzip <file>`

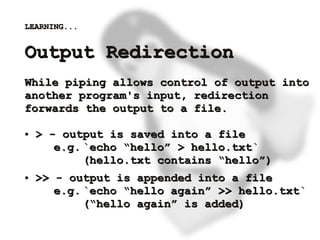

LEARNING...


    Output Redirection
    While piping allows control of output into
    another program's input, redirection
    forwards the output to a file.

    ●   > - output is saved into a file
           e.g. `echo “hello” > hello.txt`
                (hello.txt contains “hello”)
    ●   >> - output is appended into a file
           e.g. `echo “hello again” >> hello.txt`
                (“hello again” is added)

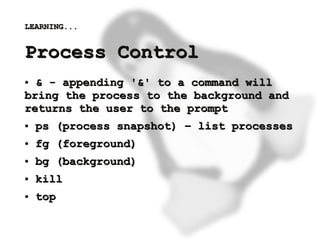

LEARNING...


    Process Control
    ● & - appending '&' to a command will
    bring the process to the background and
    returns the user to the prompt
    ●   ps (process snapshot) – list processes
    ●   fg (foreground)
    ●   bg (background)
    ●   kill
    ●   top

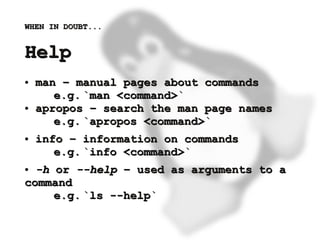

WHEN IN DOUBT...


    Help
    ●   man – manual pages about commands
           e.g. `man <command>`
    ●   apropos – search the man page names
           e.g. `apropos <command>`
    ●   info – information on commands
           e.g. `info <command>`
    ● -h or --help – used as arguments to a
    command
         e.g. `ls --help`

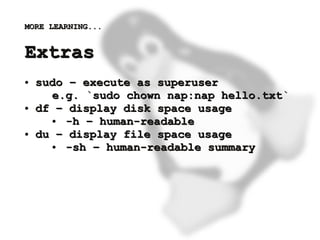

MORE LEARNING...


    Extras
    ●   sudo – execute as superuser
          e.g. `sudo chown nap:nap hello.txt`
    ●   df – display disk space usage
          ● -h – human-readable
    ●   du – display file space usage
          ● -sh – human-readable summary

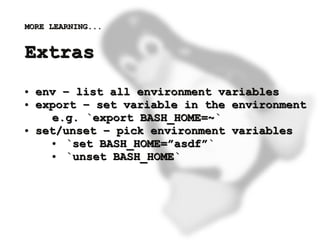

MORE LEARNING...


    Extras
    ●   env – list all environment variables
    ●   export – set variable in the environment
          e.g. `export BASH_HOME=~`
    ●   set/unset – pick environment variables
          ● `set BASH_HOME=”asdf”`
          ● `unset BASH_HOME`





Let's put it to the test!


    Exercise
    Identify the ff commands:
    unzip, strip, touch, finger,    grep, mount, fsck,
    more, yes, fsck, fsck, fsck,    umount, sleep





THE END...


    Thanks!
    Please mail me your feedback!




    ----------------------------
    Nap Ramirez
    napramirez@gmail.com

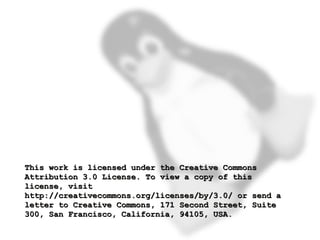

This work is licensed under the Creative Commons
    Attribution 3.0 License. To view a copy of this
    license, visit
    http://creativecommons.org/licenses/by/3.0/ or send a
    letter to Creative Commons, 171 Second Street, Suite
    300, San Francisco, California, 94105, USA.
