1. LIGHT PEN
TECHNOLOGY

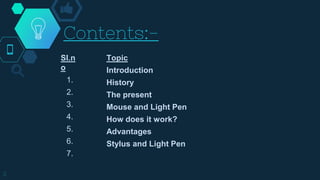

2. Contents:-
Sl.n
o
1.
2.
3.
4.
5.
6.
7.
Topic
Introduction
History
The present
Mouse and Light Pen
How does it work?
Advantages
Stylus and Light Pen
2

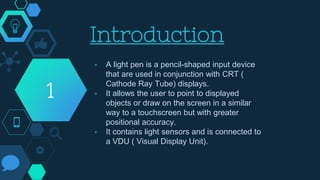

3. Introduction
1
• A light pen is a pencil-shaped input device
that are used in conjunction with CRT (
Cathode Ray Tube) displays.
• It allows the user to point to displayed
objects or draw on the screen in a similar
way to a touchscreen but with greater
positional accuracy.
• It contains light sensors and is connected to
a VDU ( Visual Display Unit).

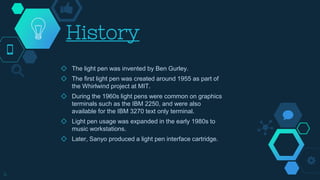

4. History
◇ The light pen was invented by Ben Gurley.
◇ The first light pen was created around 1955 as part of
the Whirlwind project at MIT.
◇ During the 1960s light pens were common on graphics
terminals such as the IBM 2250, and were also
available for the IBM 3270 text only terminal.
◇ Light pen usage was expanded in the early 1980s to
music workstations.
◇ Later, Sanyo produced a light pen interface cartridge.
4

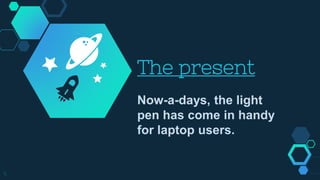

5. The present
Now-a-days, the light
pen has come in handy
for laptop users.
5

6. Mouse is a most popular pointing device. It is a
cursor control device having a small palm size box
with a round ball at the base which sense the
movement of the mouse and sends corresponding
signals to CPU when the mouse button are pressed
whereas a Light Pen is a pointing device which is
similar to a mouse which is just like a writing pen with
a pointing ball in it’s tip.
Mouse and Light Pen
6

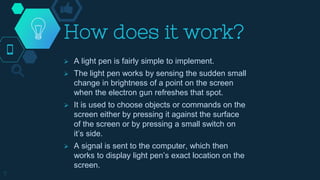

7. How does it work?
 A light pen is fairly simple to implement.
 The light pen works by sensing the sudden small
change in brightness of a point on the screen
when the electron gun refreshes that spot.
 It is used to choose objects or commands on the
screen either by pressing it against the surface
of the screen or by pressing a small switch on
it’s side.
 A signal is sent to the computer, which then
works to display light pen’s exact location on the
screen.
7

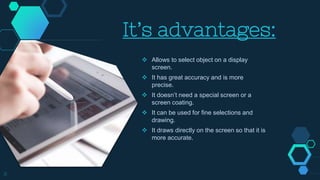

8. It’s advantages:
 Allows to select object on a display
screen.
 It has great accuracy and is more
precise.
 It doesn’t need a special screen or a
screen coating.
 It can be used for fine selections and
drawing.
 It draws directly on the screen so that it is
more accurate.
8

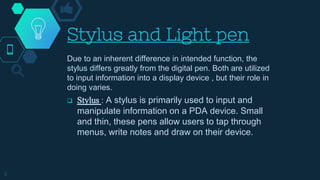

9. Stylus and Light pen
Due to an inherent difference in intended function, the
stylus differs greatly from the digital pen. Both are utilized
to input information into a display device , but their role in
doing varies.
 Stylus : A stylus is primarily used to input and
manipulate information on a PDA device. Small
and thin, these pens allow users to tap through
menus, write notes and draw on their device.
9

10. 10

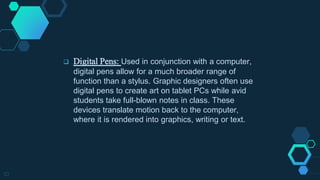

 Digital Pens: Used in conjunction with a computer,
digital pens allow for a much broader range of
function than a stylus. Graphic designers often use
digital pens to create art on tablet PCs while avid
students take full-blown notes in class. These
devices translate motion back to the computer,
where it is rendered into graphics, writing or text.

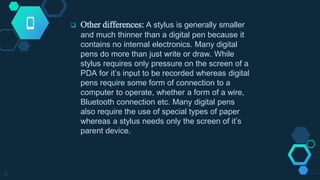

11.  Other differences: A stylus is generally smaller
and much thinner than a digital pen because it
contains no internal electronics. Many digital
pens do more than just write or draw. While
stylus requires only pressure on the screen of a
PDA for it’s input to be recorded whereas digital
pens require some form of connection to a
computer to operate, whether a form of a wire,
Bluetooth connection etc. Many digital pens
also require the use of special types of paper
whereas a stylus needs only the screen of it’s
parent device.
11

12. Thank
You All!
12

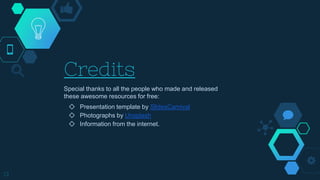

13. Credits
