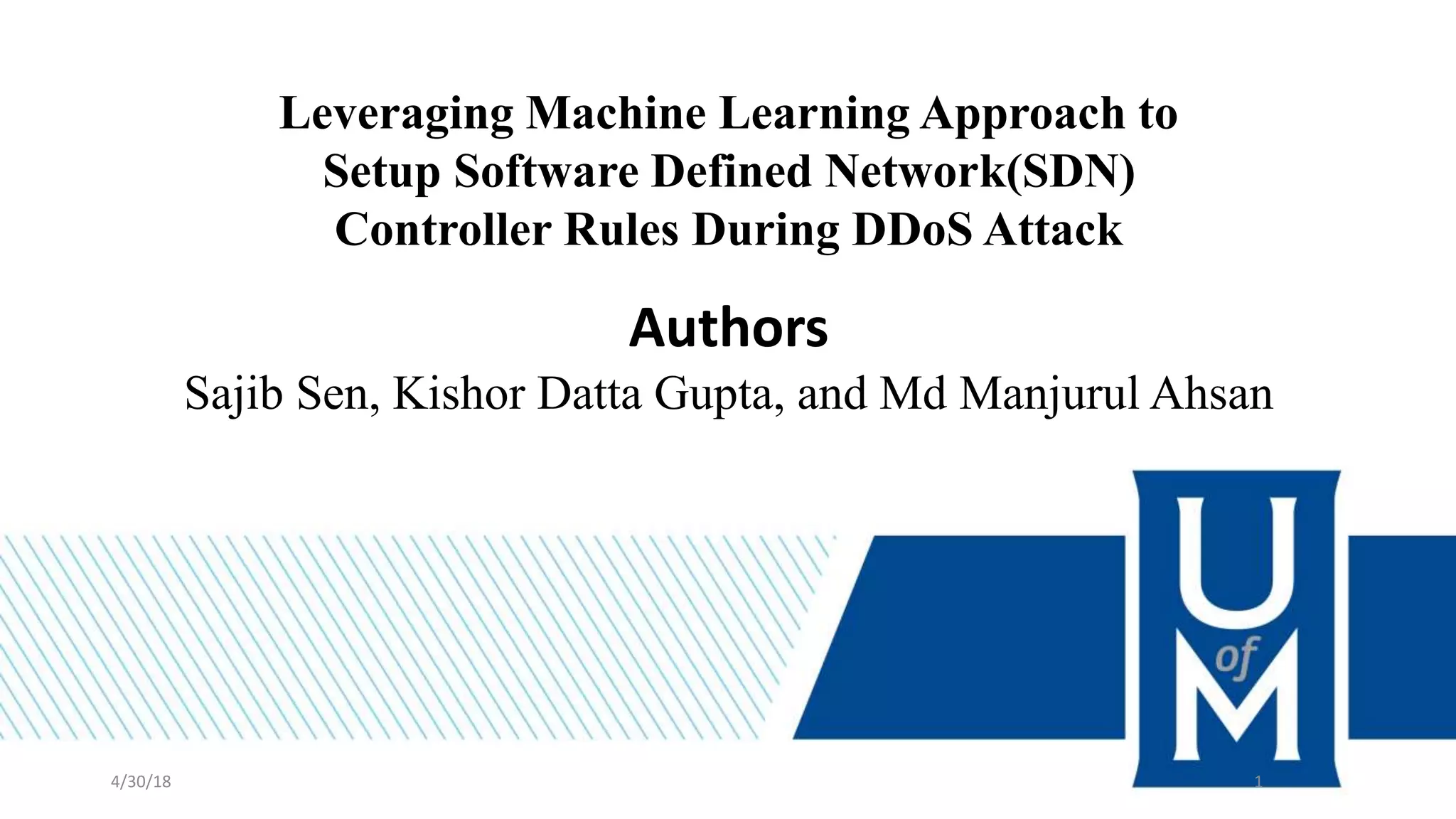

1. Leveraging Machine Learning Approach to
Setup Software Defined Network(SDN)
Controller Rules During DDoS Attack
Authors
Sajib Sen, Kishor Datta Gupta, and Md Manjurul Ahsan
4/30/18 1

2. Introduction

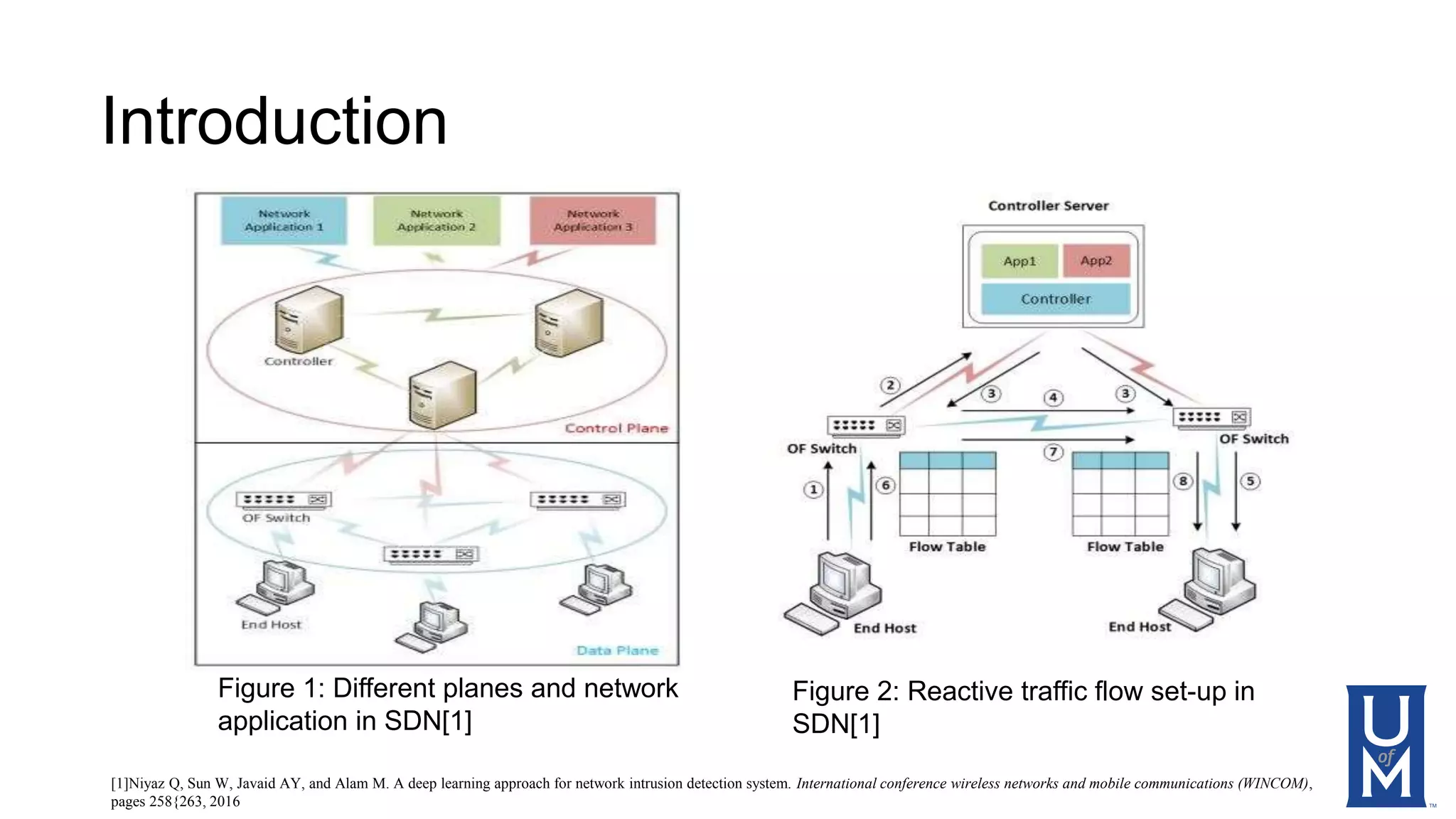

Figure 1: Different planes and network
application in SDN[1]
Figure 2: Reactive traffic flow set-up in
SDN[1]
[1]Niyaz Q, Sun W, Javaid AY, and Alam M. A deep learning approach for network intrusion detection system. International conference wireless networks and mobile communications (WINCOM),
pages 258{263, 2016

3. Introduction
Figure 3: OpenVSwitch architecture
Figure 4: Packet flow

4. Introduction
Figure 5: sFlow-RT interface

5. Introduction
Figure 6: Traffic monitoring Figure 7: Event handling

6. Implementation:
• To create a virtual network SDN topology:
• sudo mn --controller=remote,ip=127.0.0.1,port=6653 --topo=single,3 --mac --switch ovsk
• This tells Mininet to start up a 3-host, single-(openvSwitch-based)switch topology, set the MAC
address of each host equal to its IP, and point to a remote controller which defaults to the localhost.

7. Implementation:
Figure 8: Setting of Virtual SDN

8. Flow rules set up in SDN controller:
# sudo ovs-ofctl add-flow s1 in_port=1,actions=output:2
# sudo ovs-ofctl add-flow s1 in_port=2,actions=output:1
This will forward packets coming at port 1 to port 2 and vice-verca.

9. Implementation:
• To connect OpenVSwitch to sFlow-RT analyzer:
• sudo ovs-vsctl -- --id=@sflow create sflow agent=eth0 target="127.0.0.1:6343" sampling=10
polling=20 -- -- set bridge s1 sflow=@sflow
• Here the OpenVSwitch has been connected to sFlow-RT with eth0 as agent and flow switch as s1.
• To start: ./sFlow-rt/start.sh and to check the topology of mininet network in sFlow-RT need to visit
• http://localhost:8008/metric/127.0.0.1/html
• http://localhost:8080/ui/pages/index.html

10. Implementation:
• xterm h1 h2
• on h1 terminal "python -m SimpleHTTPServer 80&
• on h2 terminal "ping 10.0.0.1"
Figure 9: Ping request to node h1

11. Implementation:
Figure 10: Network packet information in Wireshark

12. Implementation:
Figure 11 : Packet flow in s1-eth0 interface

13. Implementation:
Data Description:
No. Features Description
1 Service network service on the destination, e.g., http,
telnet, etc.
2 Header length Length of Header data
3 Flags normal (0) or error(1) status of the connection
4 TTL Time to Live
5 Protocol type of the protocol, e.g. tcp, udp, etc.
6 Data bytes Bytes of data needed for certain protocol
7 Epoch Time Time to complete one epoch
8 Reply Response
Time
Time to give response
9 Land 1 if connection is from/to the same host/port; 0
otherwise

14. Implementation:
• DDoS flood attack:
• ping -f 10.0.0.1 command from different MiniNet hosts.
• Besides to create flood attack manually, a payload had been created by python code using scapy
library.
Figure 12: DDoS Attack

15. Implementation:
Figure 13: Ping flood attack to node h1

16. Implementation:
Figure 14: Ping flood packet data in wireshark

17. Figure 15: Dos attack in sFlow-RT
Implementation:

18. No Techniques Precision Recall F- Measure ROC Area
1 Bayes Net 0.889 0.885 0.885 0.863
2 Naïve
Bayes
0.731 0.705 0.693 0.707
3 Multilayer
Perceptron
0.836 0.836 0.836 0.834
4 Support
Vector
Machine(ker
nel=3)
0.853 0.852 0.852 0.853
5 AdaBoost
(Decision
Stump as
weak
classifier)
0.934 0.934 0.934 0.887
6 J48 decision
tree
0.903 0.902 0.901 0.880
7 Random
Forest
0.837 0.836 0.836 0.899
Result and Observation:

19. 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Bayes Net
Naïve Bayes
Multilayer Perceptron
Support Vector Machine(kernel=3)
AdaBoost(Decision Stump as weak classifier)
J48 decision tree
Random Forest
Comparison of F-measure Among Classifier
Result and Observation

20. • Virtual SDN testbed environment has been created
• DoS attack performed on the network
• Data collected for both normal and attack scenario.
• Model trained and performance compare for different classifier
Conclusion
