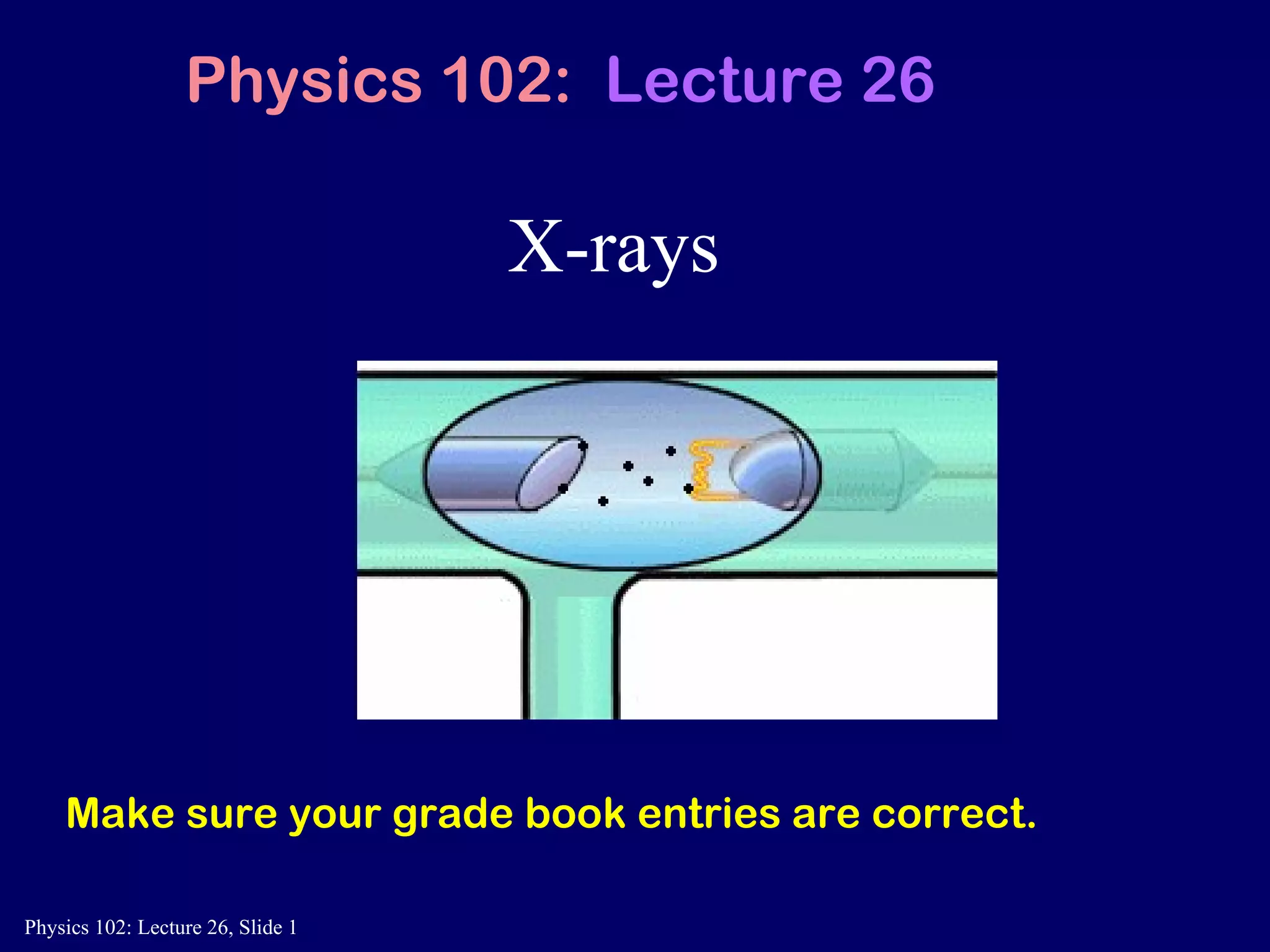

1. X-rays Physics 102: Lecture 26 Make sure your grade book entries are correct.

2. X-Rays Photons with energy in approx range 100eV to 100,000eV . This large energy means they go right through you (except for your bones). What are the wavelengths? .01 nm to 10 nm

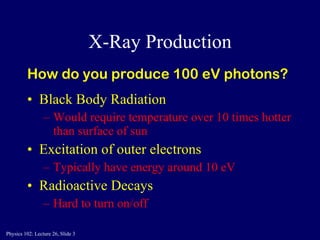

3. X-Ray Production Black Body Radiation Would require temperature over 10 times hotter than surface of sun Excitation of outer electrons Typically have energy around 10 eV Radioactive Decays Hard to turn on/off How do you produce 100 eV photons?

4. Electron Tubes Accelerate an electron through a voltage difference to give it some energy... An electron is accelerated through a potential difference of 70,000 V. How much energy does it emerge with? Example EPE of voltage gap becomes K.E. for electron. Recall from Lecture 3: EPE = V q KE = EPE = (70,000 V) (1 e - ) = 1.6 x 10 -19 C = 70,000 eV = 11.2 x 10 -14 J

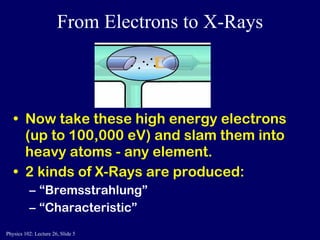

5. From Electrons to X-Rays Now take these high energy electrons (up to 100,000 eV) and slam them into heavy atoms - any element. 2 kinds of X-Rays are produced: “ Bremsstrahlung” “ Characteristic”

6. Bremsstrahlung X-Rays Electron hits atom and slows down, losing kinetic energy. Energy emitted as photon If all of electron’s energy is lost to a single photon, photon has maximum energy (minimum wavelength) . Minimum X-Ray wavelength =  o . Electron hitting atom makes many photons (X-Rays), all with different energy. Many different wavelengths.  intensity  0

7. Bremsstrahlung Practice Electron loses ALL of its energy in one collision and emits one photon. Example Minimum wavelength Maximum energy An electron is accelerated through 50,000 volts What is the minimum wavelength photon it can produce when striking a target?  intensity  0

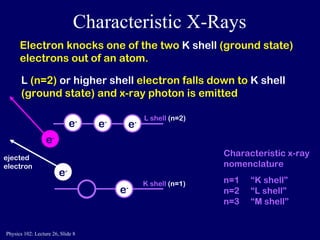

8. Characteristic x-ray nomenclature n=1 “K shell” n=2 “L shell” n=3 “M shell” Characteristic X-Rays Electron knocks one of the two K shell (ground state) electrons out of an atom. L (n=2) or higher shell electron falls down to K shell (ground state) and x-ray photon is emitted e - e - e - e - e - K shell (n=1) L shell (n=2) e - ejected electron e - e -

9. Characteristic x-ray nomenclature n=1 “K shell” n=2 “L shell” n=3 “M shell” Characteristic X-Rays Electron knocks one of the two K shell (ground state) electrons out of an atom. L (n=2) or higher shell electron falls down to K shell (ground state) and x-ray photon is emitted e - e - e - e - e - K shell (n=1) L shell (n=2) X-Ray photon emitted L shell electron falls down e - e - “ K  X-ray” (n=2 n=1 transition)

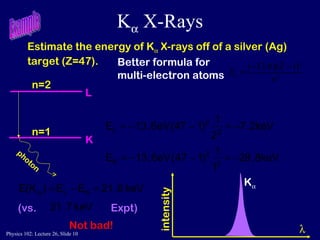

10. K  X-Rays Estimate the energy of K  X-rays off of a silver (Ag) target (Z=47). Not bad! Example L K n=2 n=1 photon (vs. Expt)  intensity K  Better formula for multi-electron atoms

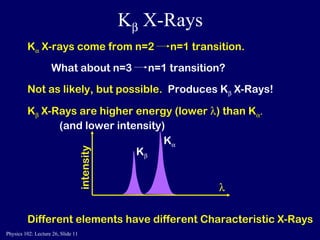

11. K  X-Rays Not as likely, but possible. Produces K  X-Rays! Different elements have different Characteristic X-Rays K  X-rays come from n=2 n=1 transition. What about n=3 n=1 transition? K  X-Rays are higher energy (lower  ) than K   (and lower intensity) K   K  intensity

12. All Together Now... Brehmsstrahlung X-Rays and Characteristic X-Rays both occur at the same time.  0  intensity K   K  intensity K   K  intensity  0

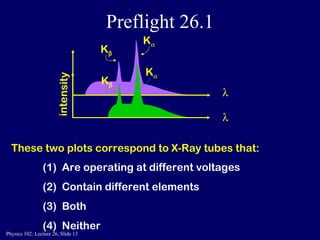

13. Preflight 26.1 These two plots correspond to X-Ray tubes that: (1) Are operating at different voltages (2) Contain different elements (3) Both (4) Neither   K  K  intensity K  K 

14. ACT: X-Rays I Which graph corresponds to the tube being operated at the higher voltage? 1) Top 2) Bottom   intensity intensity

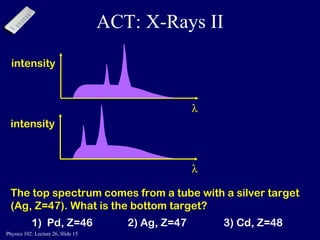

15. ACT: X-Rays II The top spectrum comes from a tube with a silver target (Ag, Z=47). What is the bottom target? 1) Pd, Z=46 2) Ag, Z=47 3) Cd, Z=48   intensity intensity

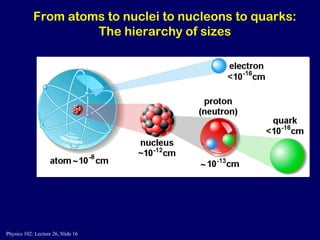

16. From atoms to nuclei to nucleons to quarks: The hierarchy of sizes

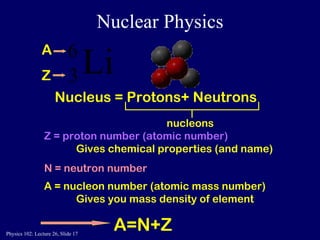

17. Nuclear Physics Nucleus = Protons+ Neutrons nucleons A = nucleon number (atomic mass number) Gives you mass density of element Z = proton number (atomic number) Gives chemical properties (and name) N = neutron number A=N+Z A Z

18. Strong Nuclear Force Rutherford experiment shows that all the positive charge is contained in a small nucleus Size ~ few x 10 -15 m (few fm) Let’s estimate EPE of two protons separated by 1 fm EPE = kq 2 /r = (9 x 10 9 )(1.6 x 10 -19 ) 2 /10 -15 = 2.3 x 10 -13 J = 1.44 x 10 6 eV = 1.44 MeV Therefore, the force that binds protons and neutrons together to form a nucleus must be very strong in order to overcome Coulomb repulsion But the force acts over very short distances—of order few fm Two atoms don’t feel force

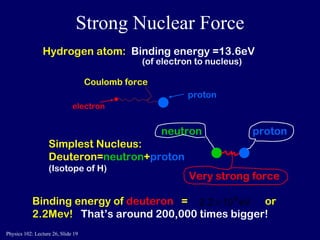

19. Strong Nuclear Force Hydrogen atom: Binding energy =13.6eV Simplest Nucleus: Deuteron= neutron + proton (Isotope of H) (of electron to nucleus) Binding energy of deuteron = or 2.2Mev! That’s around 200,000 times bigger! neutron proton Very strong force Coulomb force electron proton

20. Smaller is Bigger! Comparing Nuclear and Atomic sizes Nucleus is 10 4 times smaller and binding energy is 10 5 times larger! Hydrogen Atom: Bohr radius = Nucleus with nucl number A: Note the TREMENDOUS difference has radius Example A Z

21. Nuclei have energy level (just like atoms) 12 C energy levels Note the energy scale is MeV rather than eV energy needed to remove a proton from 12 C is 16.0 MeV energy needed to remove a neutron from 12 C is 18.7 MeV
