This document provides specifications for the Laminar Air Flow Clean Bench, Daihan model WLC-V1500. Key features include a HEPA filter that removes 99.97% of 0.3 μm particles, 10-step air velocity control, and a microprocessor digital controller. The WLC-V1500 has interior dimensions of 1,500x787x762 mm, an air volume of 1,700 m3/h, and a noise level between 56-60 dBA. Additional features are a tempered safety glass sliding door and corrosion resistant 304 stainless steel working table. Specifications and contact information for the manufacturer are also provided.

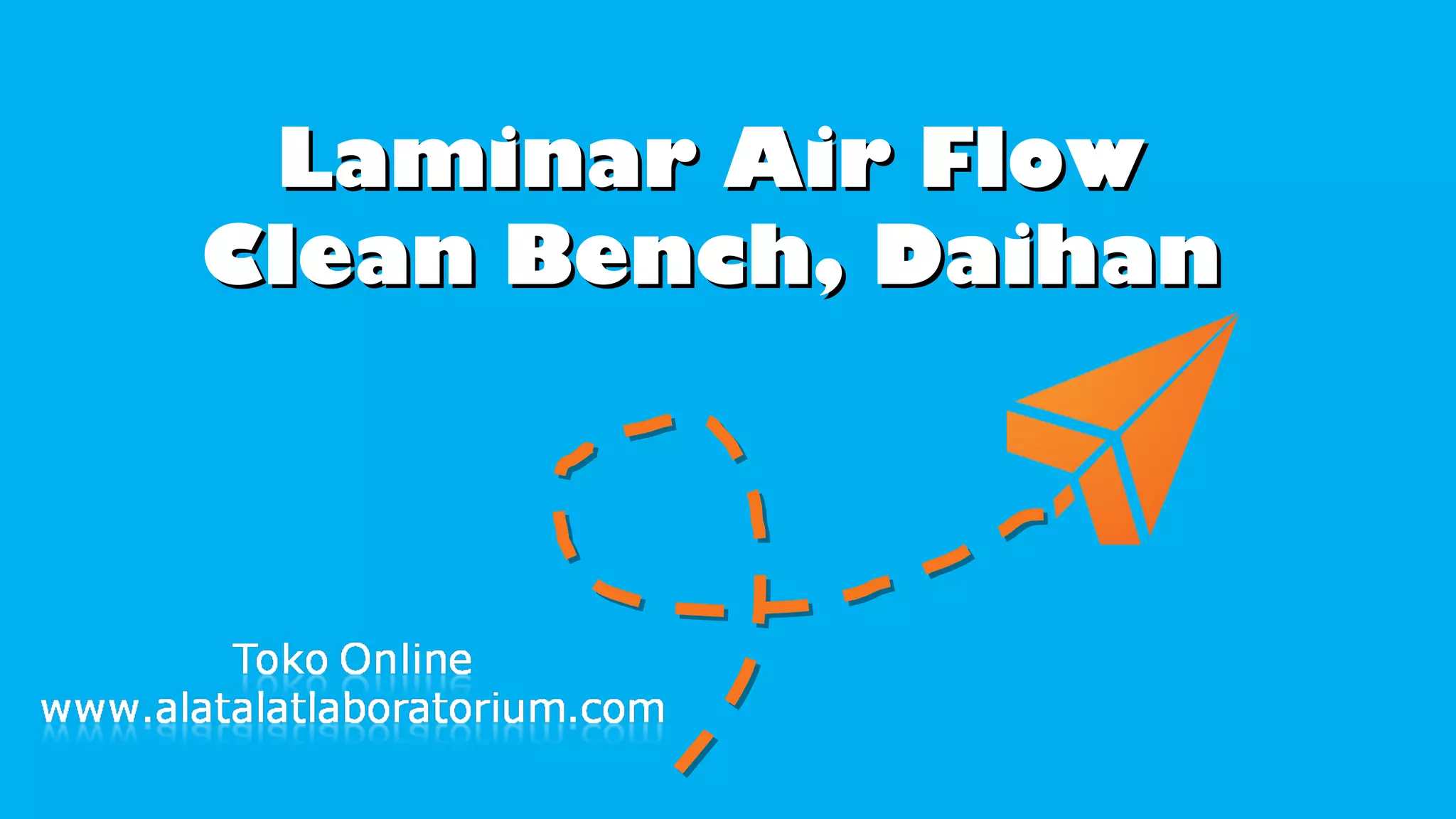

1. Laminar Air Flow
Clean Bench, Daihan

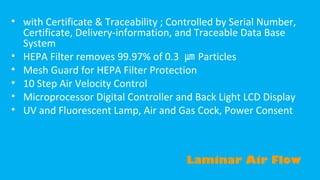

2. • with Certificate & Traceability ; Controlled by Serial Number,
Certificate, Delivery-information, and Traceable Data Base
System
• HEPA Filter removes 99.97% of 0.3 ㎛ Particles
• Mesh Guard for HEPA Filter Protection
• 10 Step Air Velocity Control
• Microprocessor Digital Controller and Back Light LCD Display
• UV and Fluorescent Lamp, Air and Gas Cock, Power Consent
Laminar Air Flow

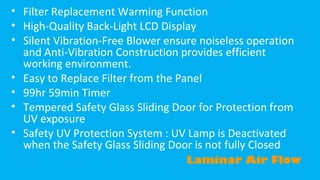

3. • Filter Replacement Warming Function
• High-Quality Back-Light LCD Display
• Silent Vibration-Free Blower ensure noiseless operation
and Anti-Vibration Construction provides efficient
working environment.
• Easy to Replace Filter from the Panel
• 99hr 59min Timer
• Tempered Safety Glass Sliding Door for Protection from
UV exposure
• Safety UV Protection System : UV Lamp is Deactivated
when the Safety Glass Sliding Door is not fully Closed
Laminar Air Flow

4. • Optimized Air Flow System for Uniform Air
Flow/Velocity
• Corrosion Resistant 304 Stainless Steel Working
table
• Air Flow-type : Vertical Air Flow-type
Laminar Air Flow

5. Specification “WLC-V1500”
•
•
•
•
•
•
•
•
•
Air Flow-type : Vertical Air Flow-type
Dimension (w×d ×h) : Interior = 1,500×787×762,
Exterior = 1,582×937×2,190
Air Volume : 1,700 m²/h
Air Flow Velocity : 0.3 ~ 0.6 m/s
HEPA Filter : Class 100, 0.3 ㎛ Particle Removal
99.97%
Prefilter : 3~30 ㎛ Particle Removal
Display : Back Light LCD Display
Controller : Microprocessor Digital Controller
Noise Level : 56~60 dBA
Laminar Air Flow

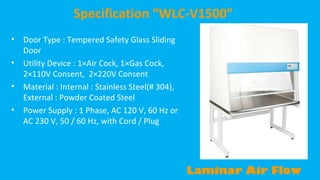

6. Specification “WLC-V1500”
•
•
•
•
Door Type : Tempered Safety Glass Sliding
Door
Utility Device : 1×Air Cock, 1×Gas Cock,
2×110V Consent, 2×220V Consent
Material : Internal : Stainless Steel(# 304),
External : Powder Coated Steel
Power Supply : 1 Phase, AC 120 V, 60 Hz or
AC 230 V, 50 / 60 Hz, with Cord / Plug
Laminar Air Flow

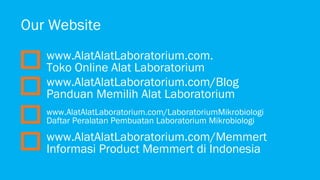

7. Our Website
