Sean Owen – Director of Data Science @Cloudera Building machine learning models is all well and good, but how do they get productionized into a service? It's a long way from a Python script on a laptop, to a fault-tolerant system that learns continuously, serves thousands of queries per second, and scales to terabytes. The confederation of open source technologies we know as Hadoop now offers data scientists the raw materials from which to assemble an answer: the means to build models but also ingest data and serve queries, at scale. This short talk will introduce Oryx 2, a blueprint for building this type of service on Hadoop technologies. It will survey the problem and the standard technologies and ideas that Oryx 2 combines: Apache Spark, Kafka, HDFS, the lambda architecture, PMML, REST APIs. The talk will touch on a key use case for this architecture -- recommendation engines.

1. 1© Cloudera, Inc. All rights reserved.
Oryx 2 Overview
Sean Owen | Cloudera | @sean_r_owen

2. 2© Cloudera, Inc. All rights reserved.

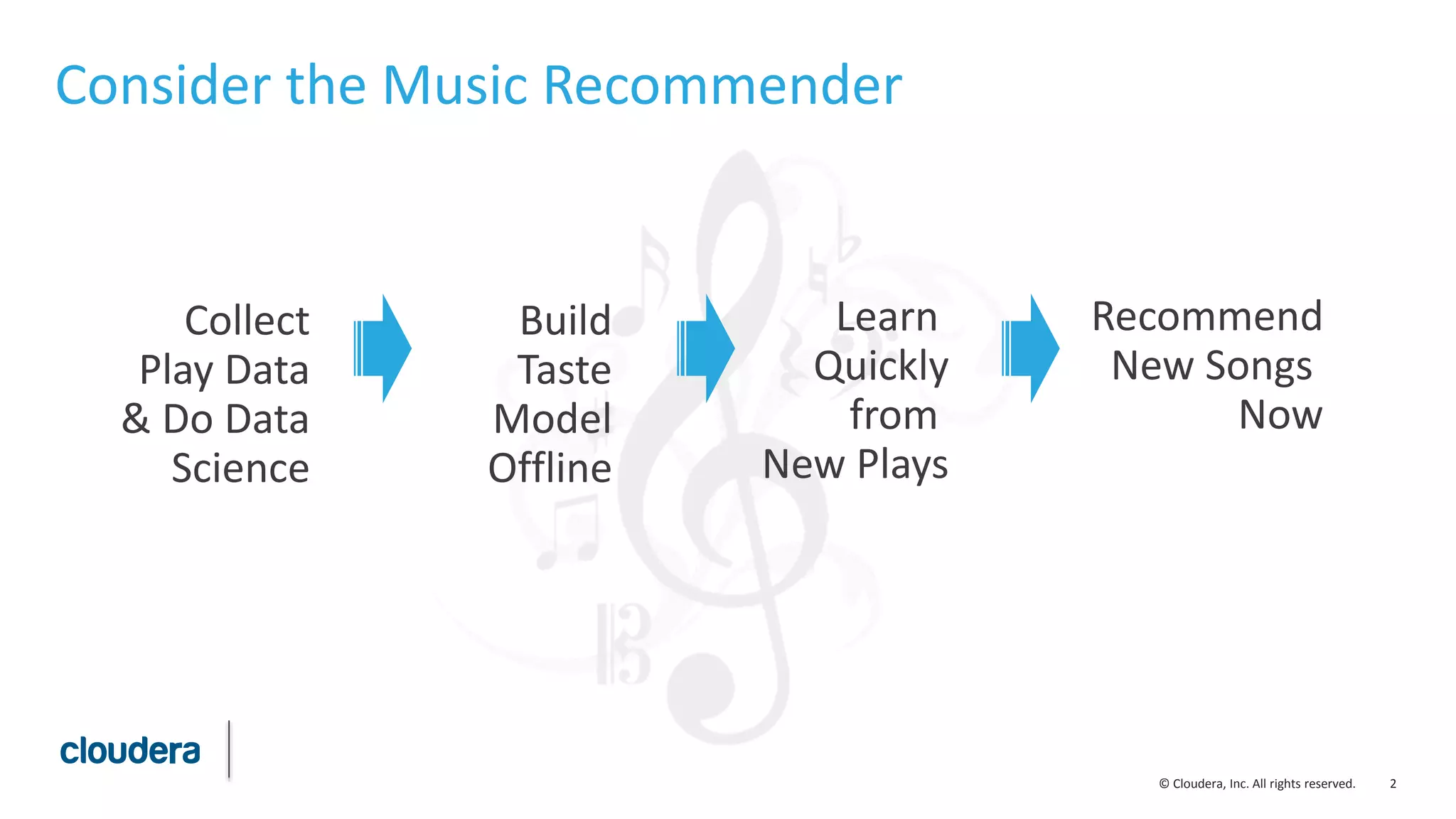

Consider the Music Recommender
Collect
Play Data
& Do Data
Science
Build
Taste
Model
Offline
Learn
Quickly
from
New Plays
Recommend
New Songs
Now

3. 3© Cloudera, Inc. All rights reserved.

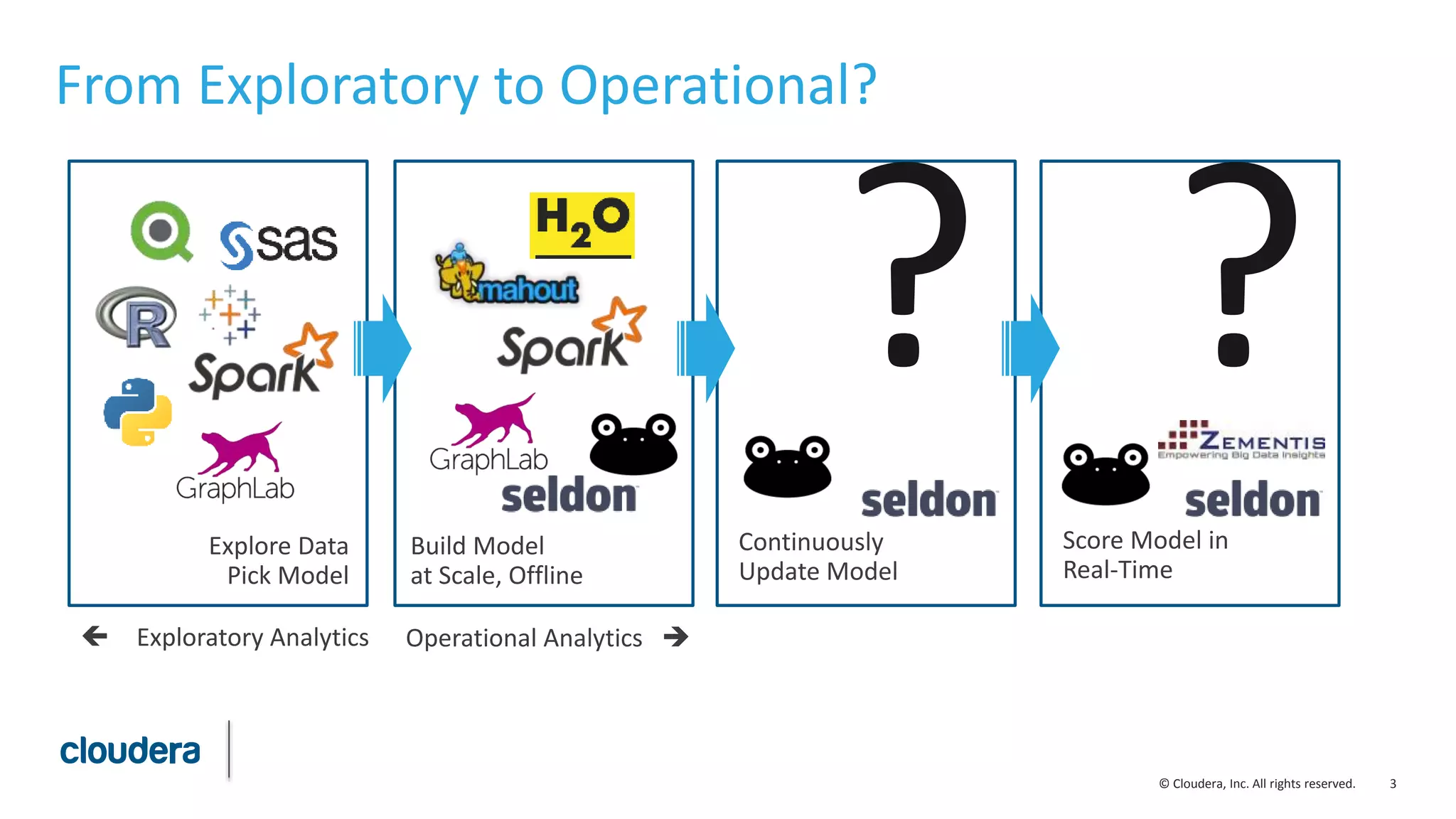

From Exploratory to Operational?
 Exploratory Analytics Operational Analytics 
Explore Data
Pick Model
Build Model
at Scale, Offline
Continuously
Update Model
?
Score Model in
Real-Time
?

4. 4© Cloudera, Inc. All rights reserved.
Large Scale or Real-Time?
Large-Scale
Offline
Batch
Real-Time
Online
Streaming
vs
Why Don’t We Have Both?
λ!

5. 5© Cloudera, Inc. All rights reserved.

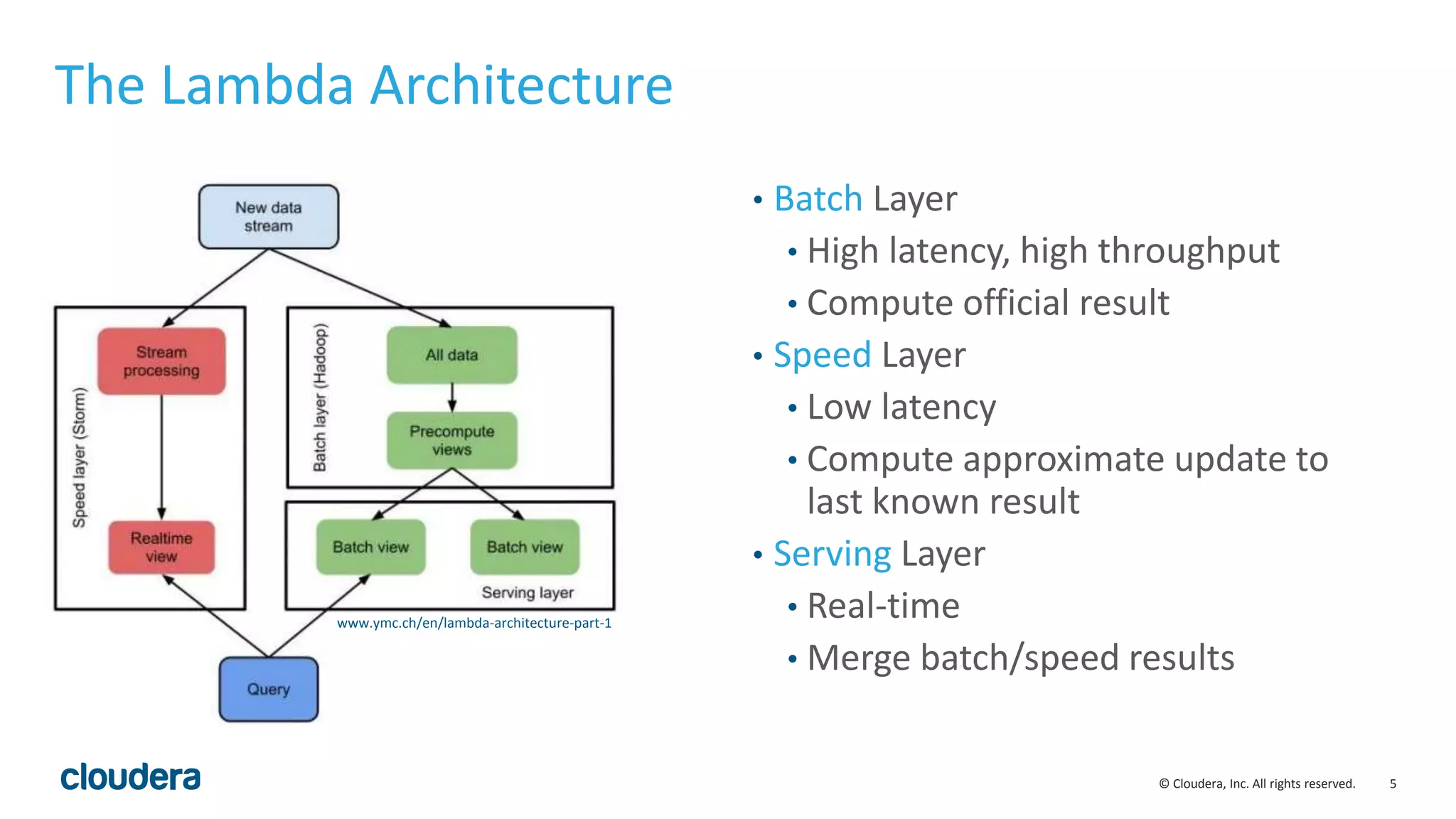

• Batch Layer
• High latency, high throughput
• Compute official result
• Speed Layer
• Low latency
• Compute approximate update to
last known result
• Serving Layer
• Real-time
• Merge batch/speed results
The Lambda Architecture
www.ymc.ch/en/lambda-architecture-part-1

6. 6© Cloudera, Inc. All rights reserved.

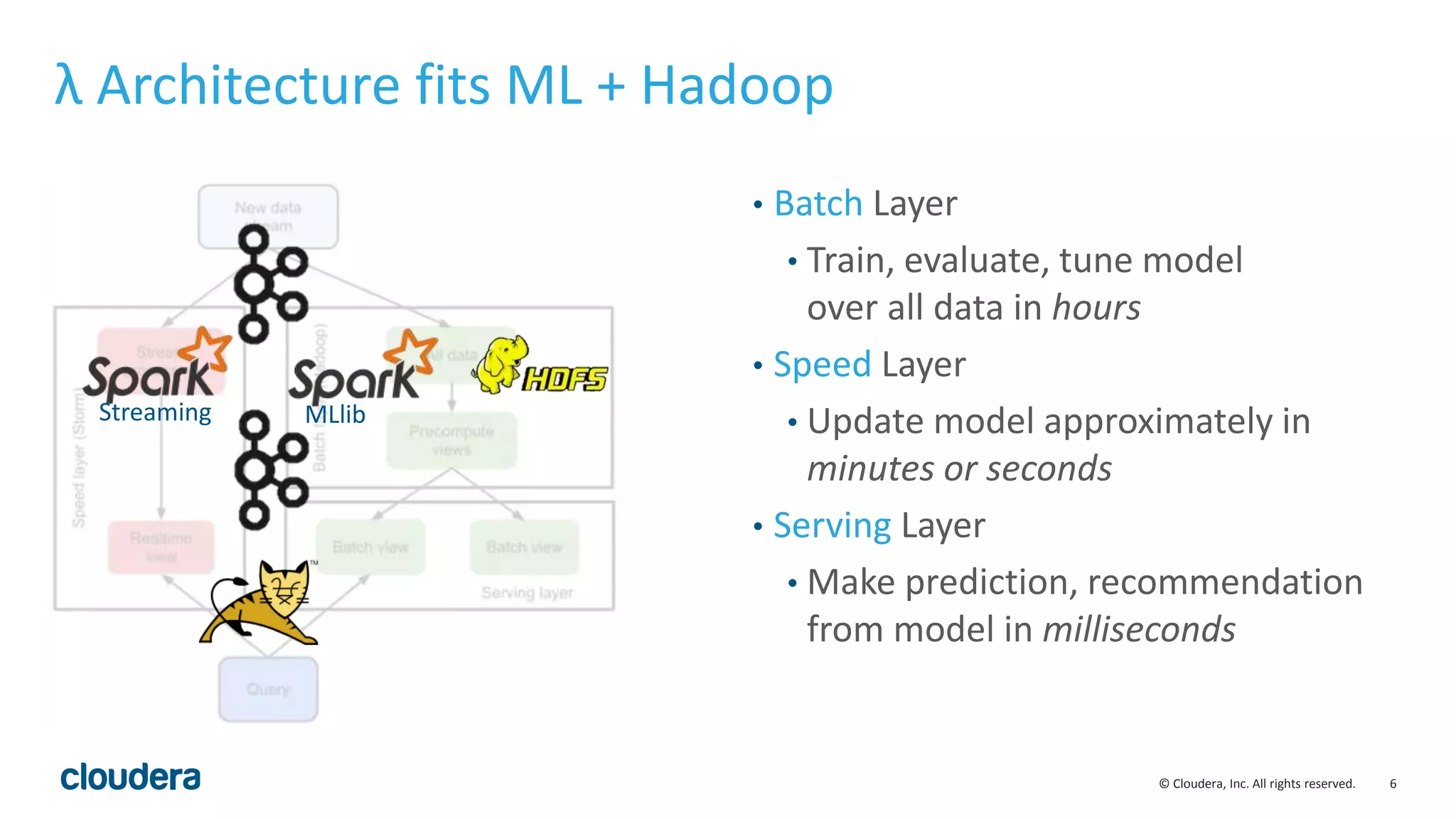

• Batch Layer
• Train, evaluate, tune model
over all data in hours
• Speed Layer
• Update model approximately in
minutes or seconds
• Serving Layer
• Make prediction, recommendation
from model in milliseconds
λ Architecture fits ML + Hadoop
Streaming MLlib

7. 7© Cloudera, Inc. All rights reserved.
www.mwttl.com/wp-content/uploads/2013/11/IMG_5446_edited-2_mwttl.jpg

8. 8© Cloudera, Inc. All rights reserved.
History (or: 5th time’s a charm)
Taste
2005 – 2009
- Recommender
toolkit in Java
- Local only
- Serves results
Apache Mahout
2009 – 2014
- Adds Hadoop-based
model building
at scale
- But no serving
Myrrix
2011-2013
- Mahout recs
reimagined
- Adds serving to
Hadoop-based
model build
Oryx 1
2013 –
- Extends to
classification,
clustering
- PMML
- Merge with
cloudera/ml
Oryx 2
2014 –
- Same APIs / goals
- Rewrite
- Full lambda
architecture
- Kafka + Spark + YARN

9. 9© Cloudera, Inc. All rights reserved.
Complementary, Not Competitive
Most ML-on-Hadoop tools are
for building models only, and
excel at this.
Oryx and similar projects do
everything else around this:
continuous update, serving

10. 10© Cloudera, Inc. All rights reserved.

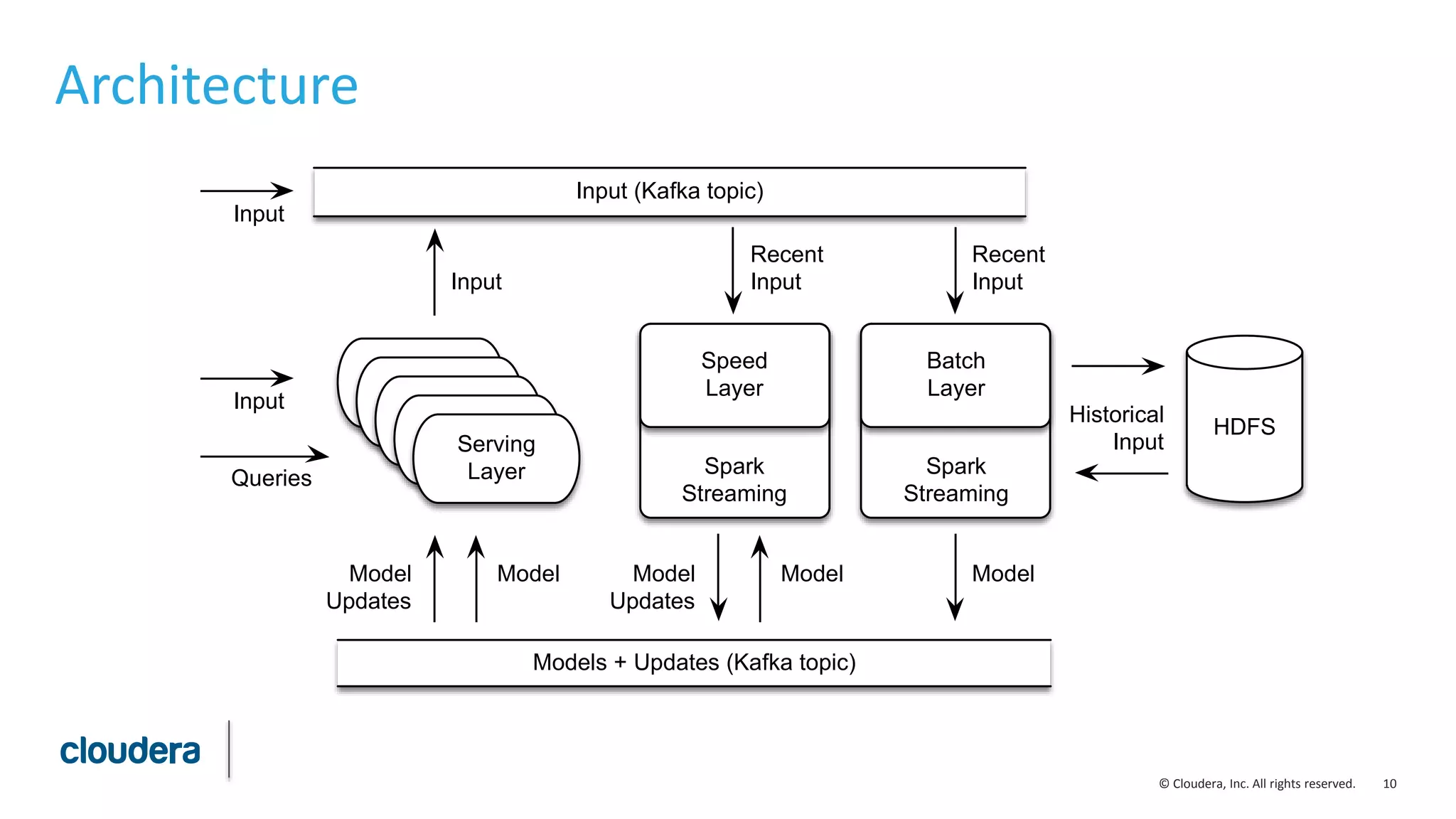

Architecture
HDFS
Input (Kafka topic)
Spark
Streaming
Batch
Layer
Recent
Input
Historical
Input
Models + Updates (Kafka topic)
Model
Spark
Streaming
Speed
Layer
Recent
Input
Model
Updates
Model
Input
Serving
Layer
Input
Serving
LayerServing
LayerServing
Layer
Model
Updates
Model
Serving
LayerQueries
Input

11. 11© Cloudera, Inc. All rights reserved.

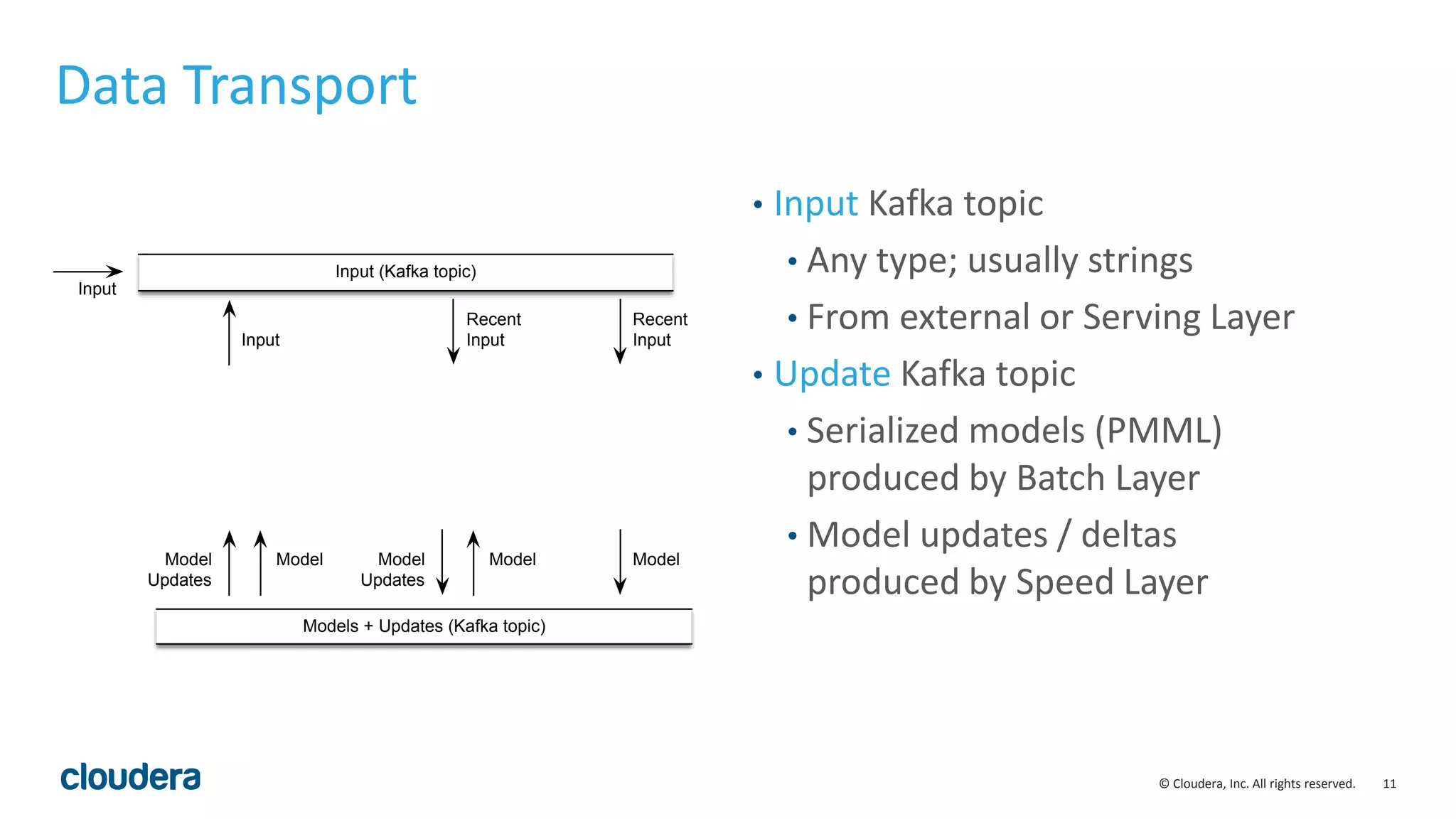

• Input Kafka topic
• Any type; usually strings
• From external or Serving Layer
• Update Kafka topic
• Serialized models (PMML)
produced by Batch Layer
• Model updates / deltas
produced by Speed Layer
Data Transport
Input (Kafka topic)
Recent
Input
Models + Updates (Kafka topic)
Model
Recent
Input
Model
Updates
Model
Input
Input
Model
Updates
Model

12. 12© Cloudera, Inc. All rights reserved.

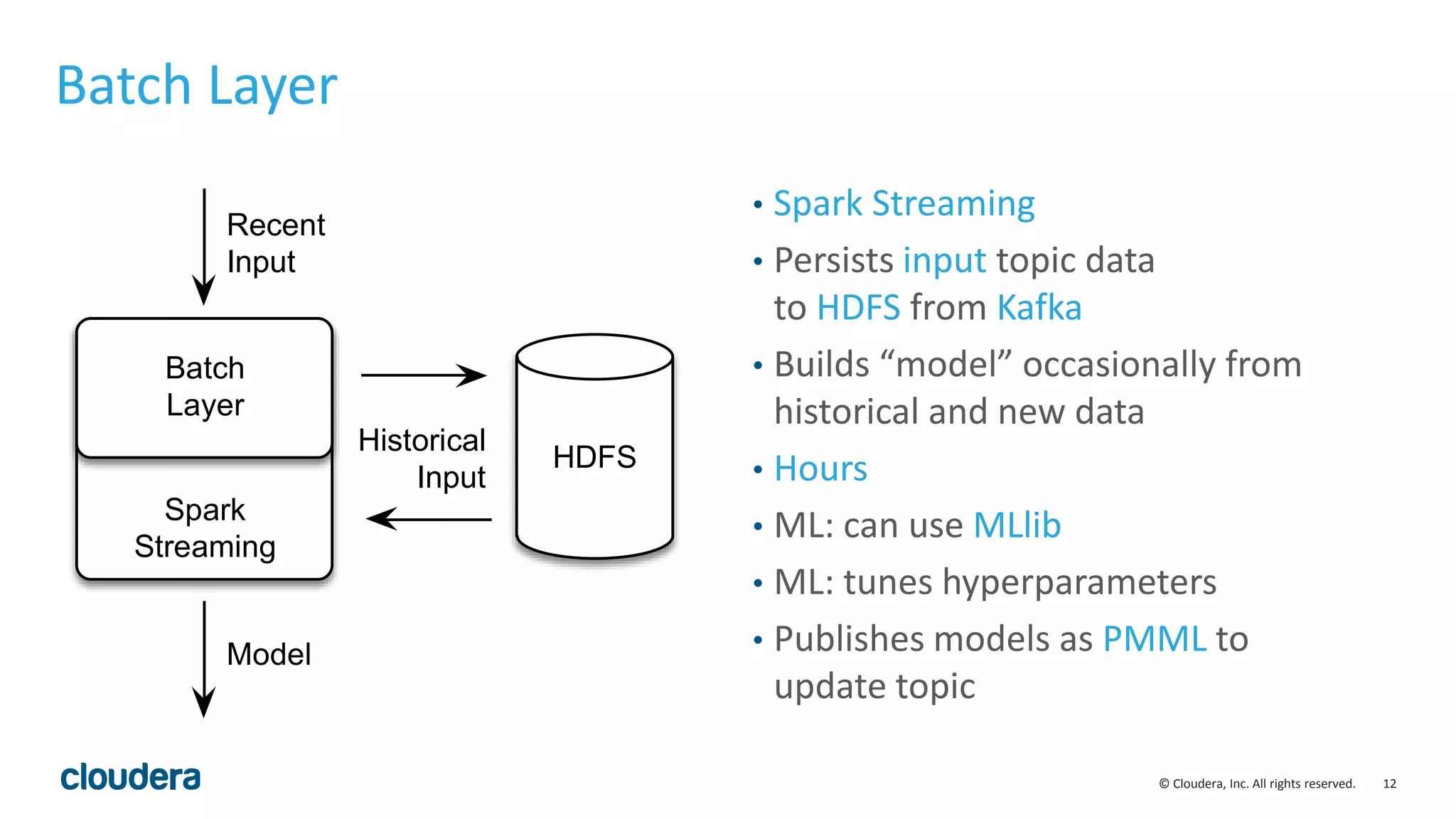

• Spark Streaming
• Persists input topic data
to HDFS from Kafka
• Builds “model” occasionally from
historical and new data
• Hours
• ML: can use MLlib
• ML: tunes hyperparameters
• Publishes models as PMML to
update topic
Batch Layer
HDFS
Spark
Streaming
Batch
Layer
Recent
Input
Historical
Input
Model

13. 13© Cloudera, Inc. All rights reserved.

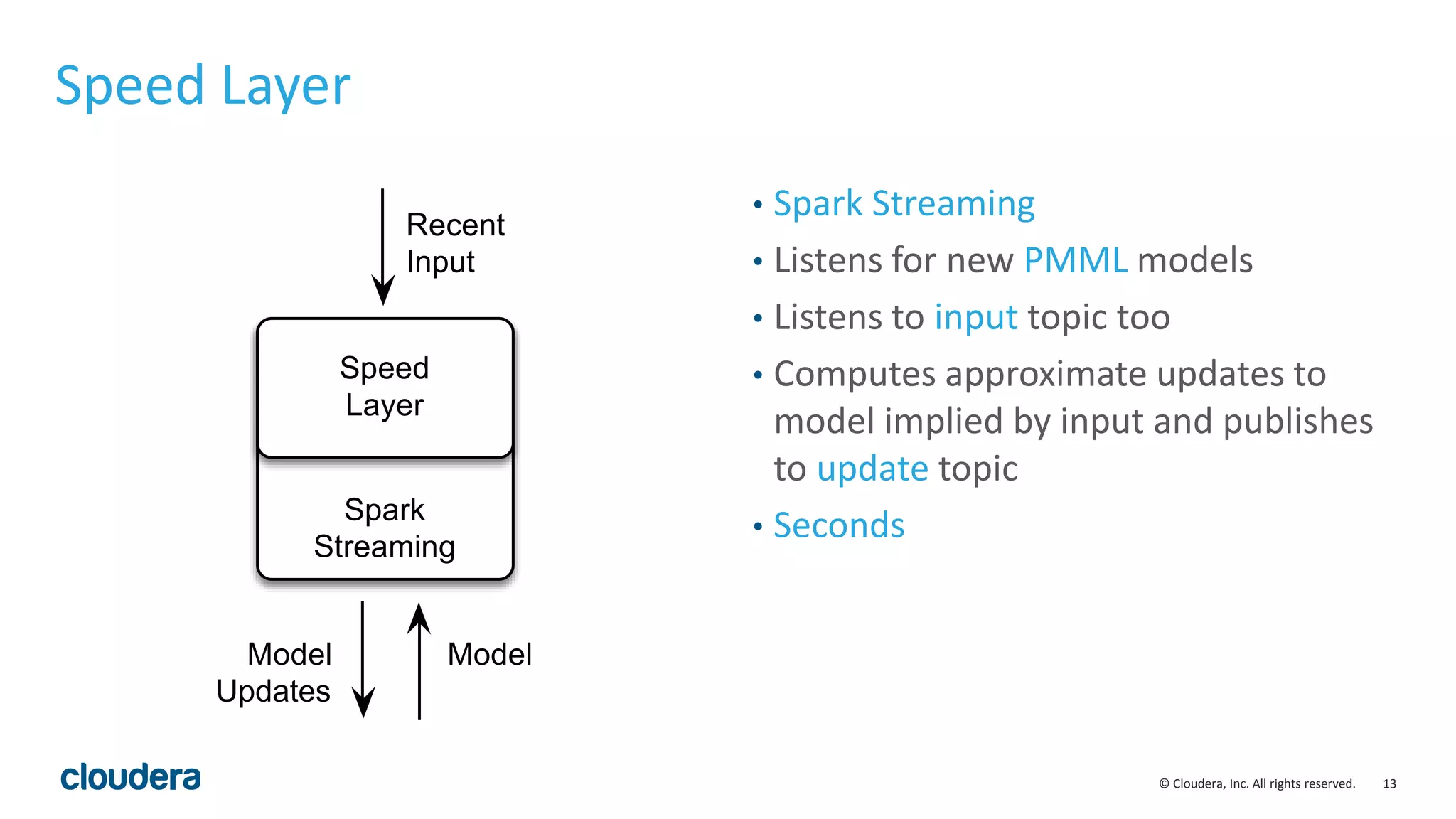

• Spark Streaming
• Listens for new PMML models
• Listens to input topic too
• Computes approximate updates to
model implied by input and publishes
to update topic
• Seconds
Speed Layer
Spark
Streaming
Speed
Layer
Recent
Input
Model
Updates
Model

14. 14© Cloudera, Inc. All rights reserved.

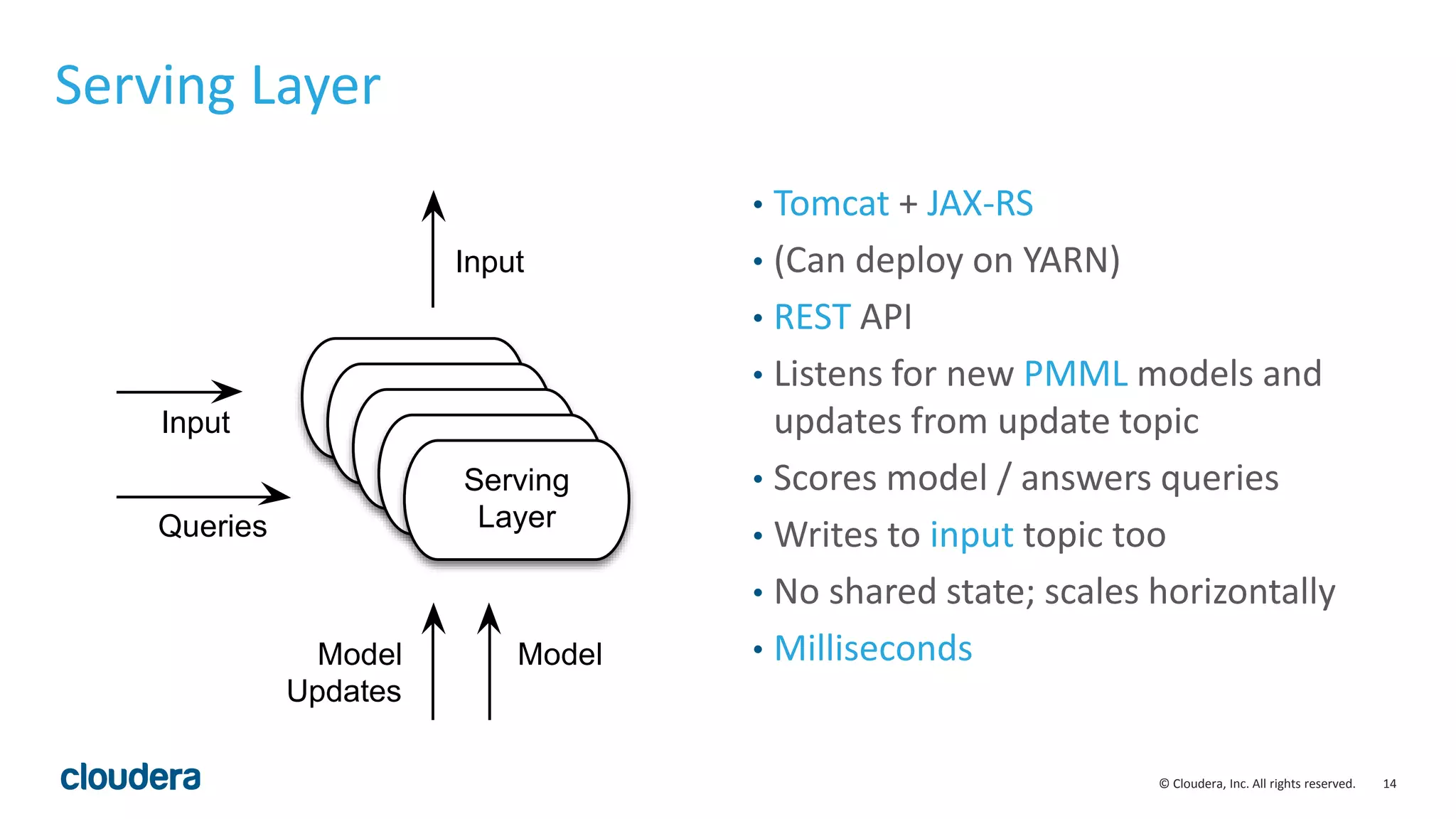

• Tomcat + JAX-RS
• (Can deploy on YARN)
• REST API
• Listens for new PMML models and
updates from update topic
• Scores model / answers queries
• Writes to input topic too
• No shared state; scales horizontally
• Milliseconds
Serving Layer
Serving
Layer
Input
Serving
LayerServing
LayerServing
Layer
Model
Updates
Model
Serving
LayerQueries
Input

15. 15© Cloudera, Inc. All rights reserved.
Logical Architecture
Serving Layer Speed Layer Batch Layer
App Tier oryx-app-serving oryx-app-mllib
oryx-app
oryx-app-mllib
oryx-app
ML Tier oryx-ml oryx-ml
Lambda Tier oryx-lambda-serving oryx-lambda oryx-lambda
Generic Lambda-Architecture support
ML-specific specialization
Prebuilt recommender, clustering,
classification implementations

16. 16© Cloudera, Inc. All rights reserved.

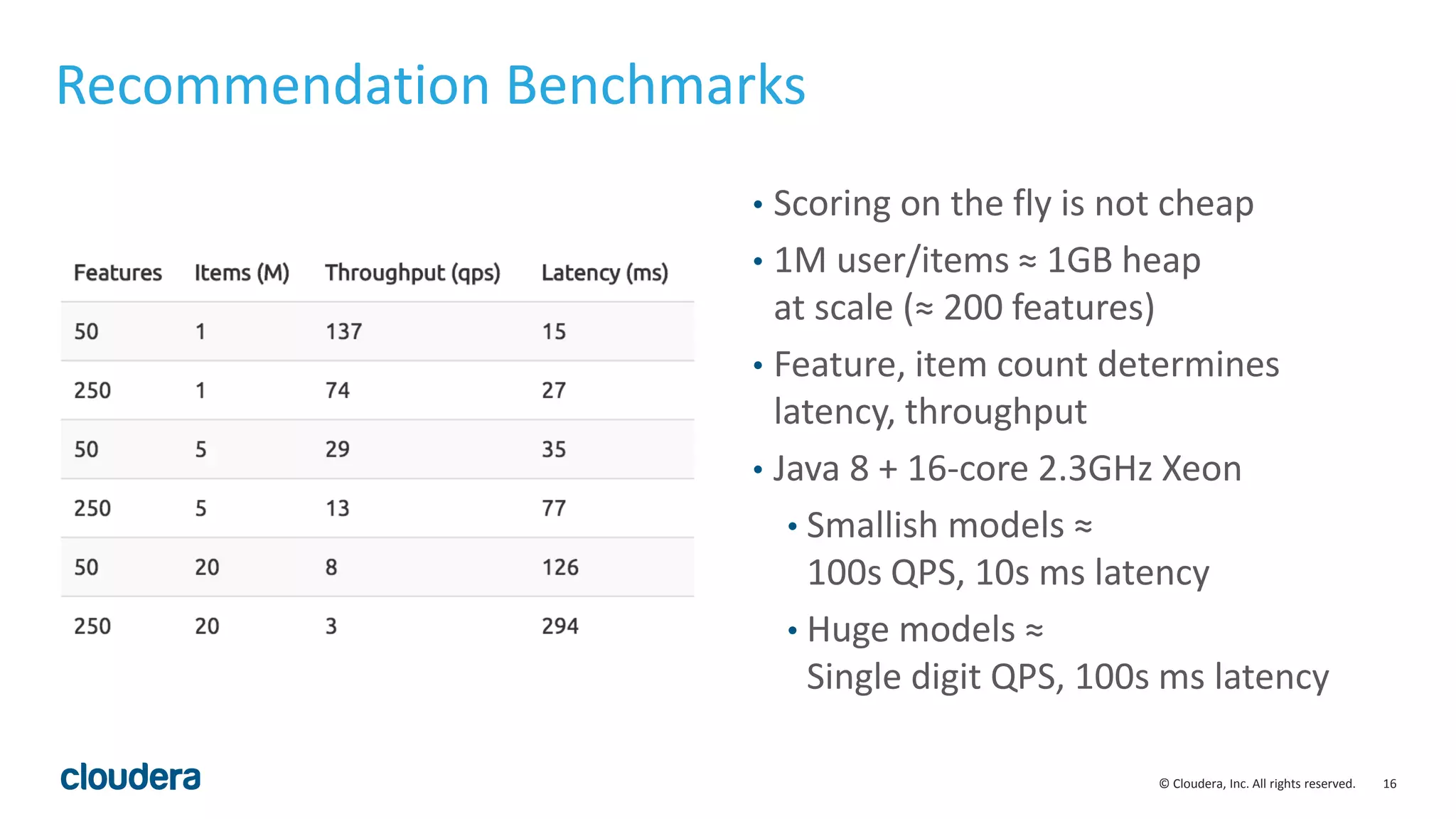

• Scoring on the fly is not cheap
• 1M user/items ≈ 1GB heap
at scale (≈ 200 features)
• Feature, item count determines
latency, throughput
• Java 8 + 16-core 2.3GHz Xeon
• Smallish models ≈
100s QPS, 10s ms latency
• Huge models ≈
Single digit QPS, 100s ms latency
Recommendation Benchmarks

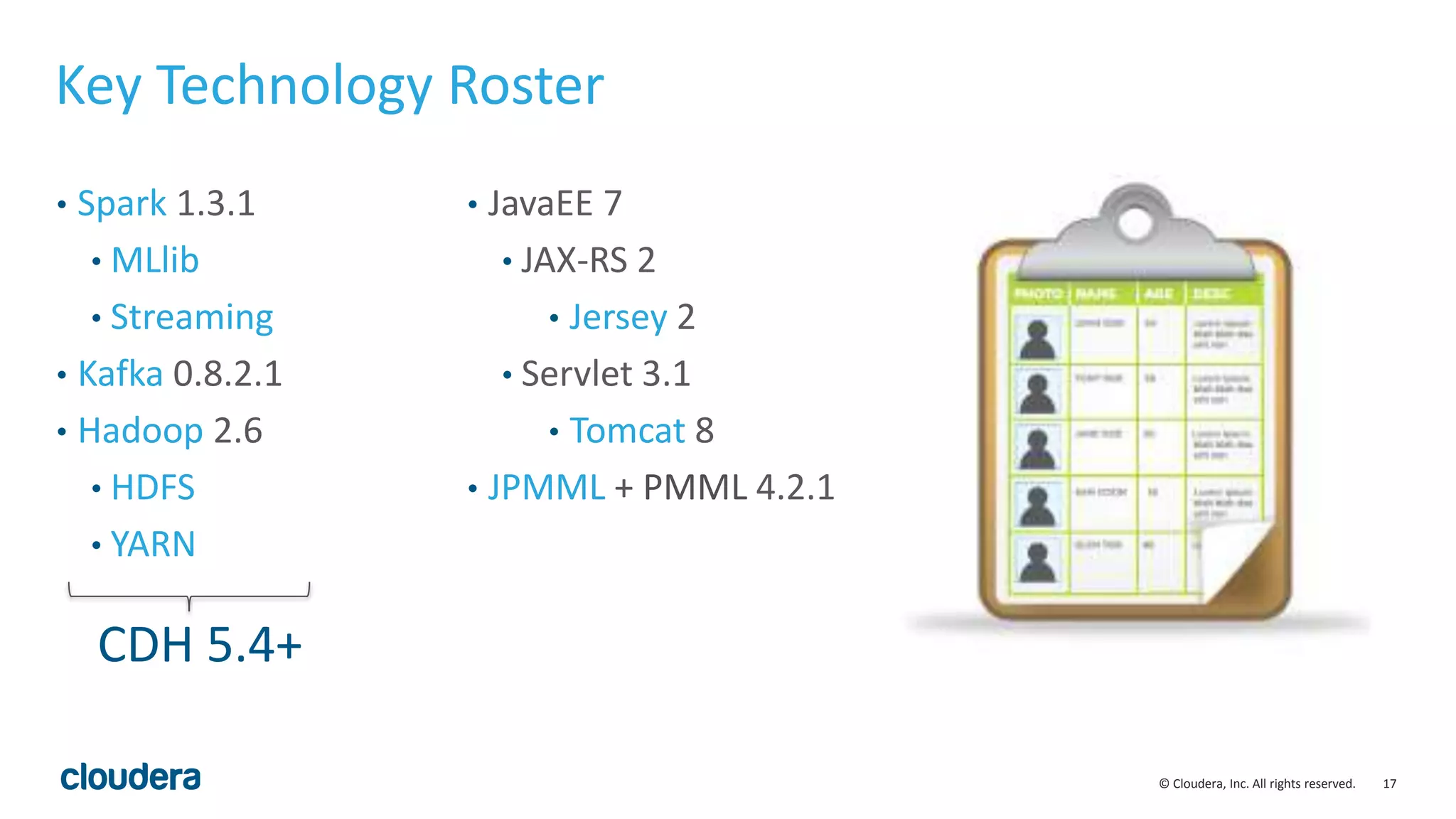

17. 17© Cloudera, Inc. All rights reserved.
• Spark 1.3.1
• MLlib
• Streaming
• Kafka 0.8.2.1
• Hadoop 2.6
• HDFS
• YARN
• JavaEE 7
• JAX-RS 2
• Jersey 2
• Servlet 3.1
• Tomcat 8
• JPMML + PMML 4.2.1
Key Technology Roster
CDH 5.4+

18. 18© Cloudera, Inc. All rights reserved.

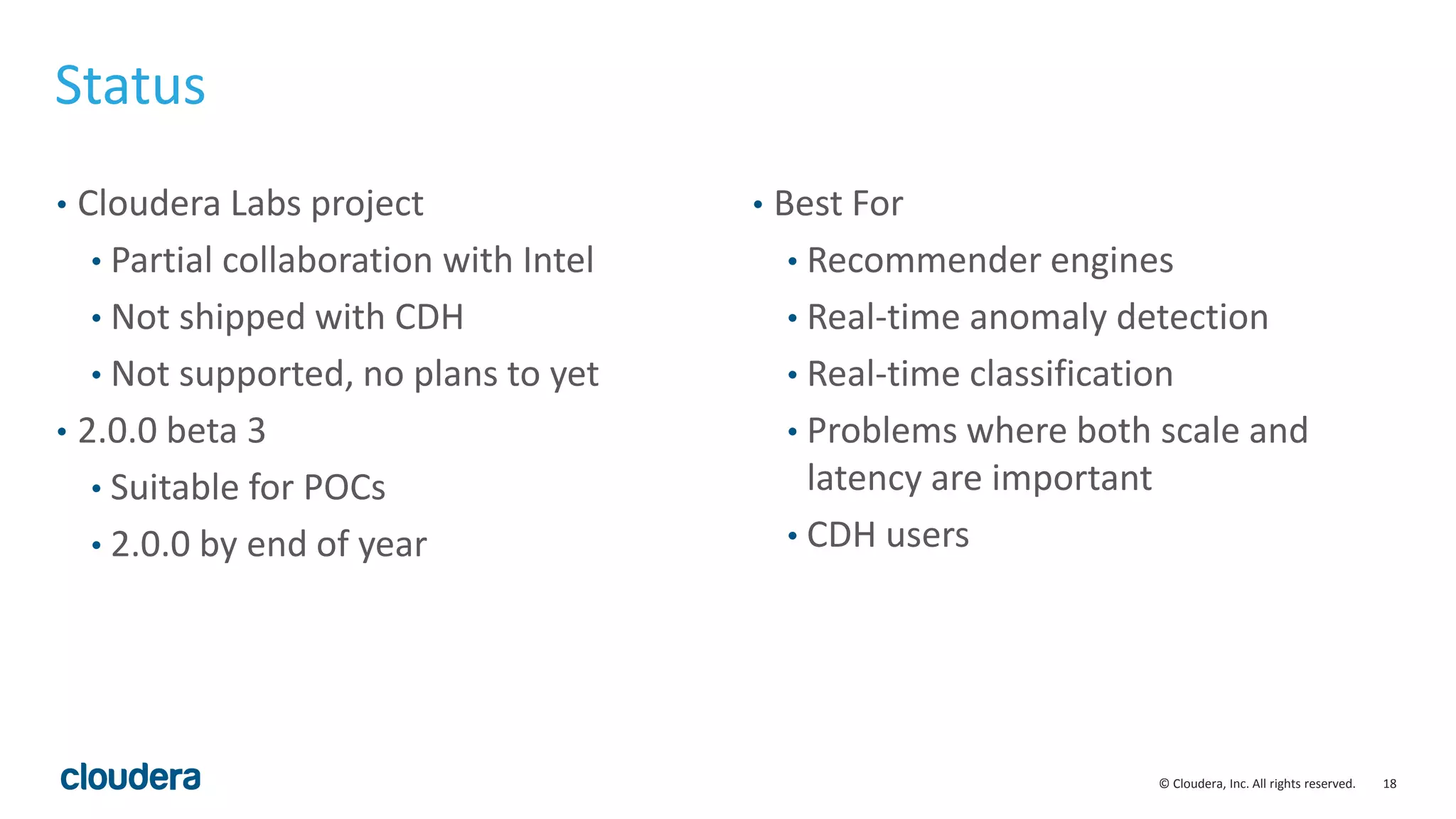

• Cloudera Labs project
• Partial collaboration with Intel
• Not shipped with CDH
• Not supported, no plans to yet
• 2.0.0 beta 3
• Suitable for POCs
• 2.0.0 by end of year
• Best For
• Recommender engines
• Real-time anomaly detection
• Real-time classification
• Problems where both scale and
latency are important
• CDH users
Status

19. 19© Cloudera, Inc. All rights reserved.
Get Started in ~1 Hour
http://oryx.io

20. 20© Cloudera, Inc. All rights reserved.
Thank you
@sean_r_owen
sowen@cloudera.com
