1. Click to edit place and date
Name of presentation
Subtitle of presentation | presentator
KubeCI
Cloud Native Continuous Delivery
Tobias Schneck - @toschneck
Loodse
Frankfurt

2. toschneck
@toschneck
Tobias Schneck

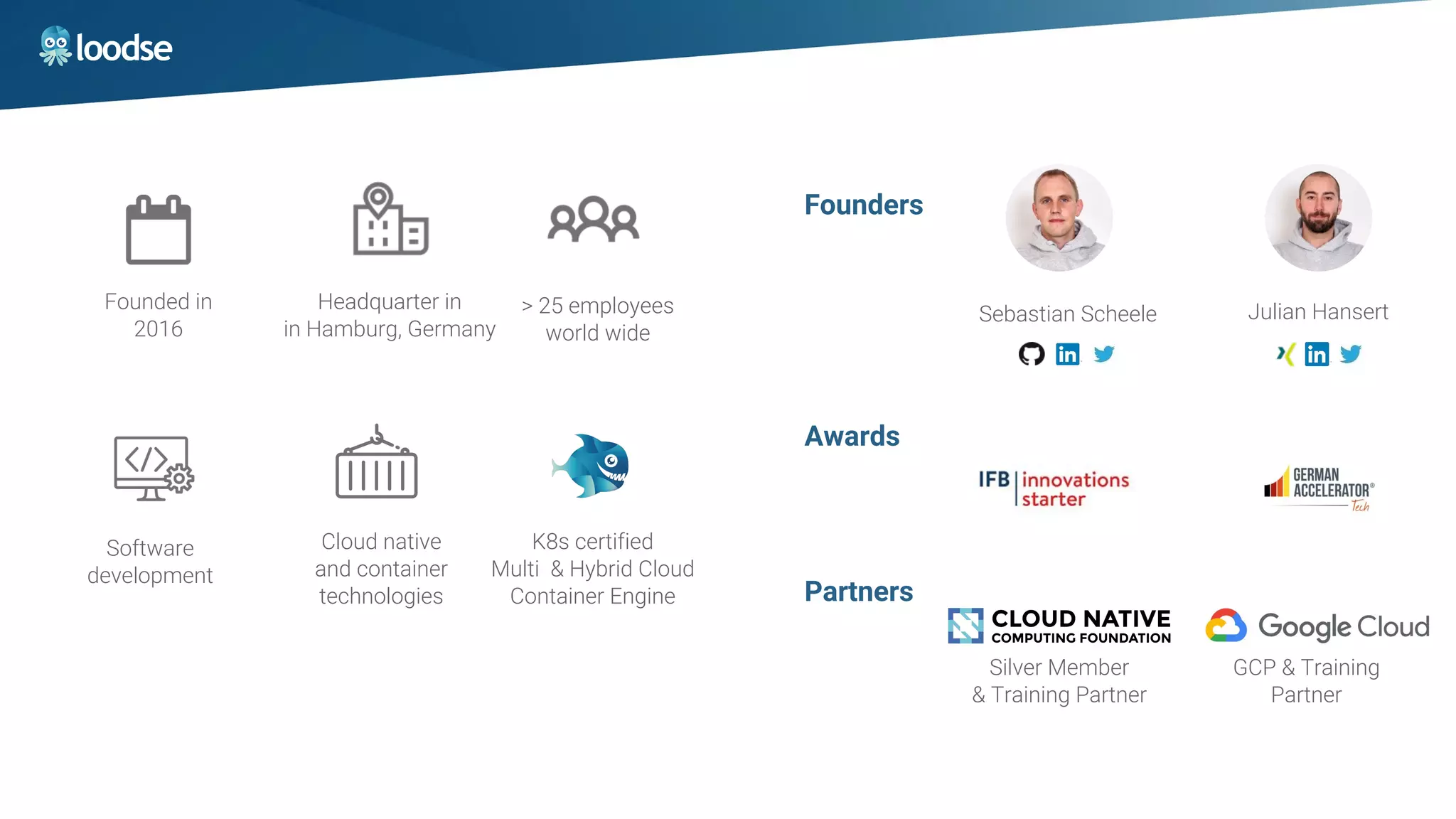

3. Sebastian Scheele
Headquarter in
in Hamburg, Germany
Founders
Awards
> 25 employees
world wide
Founded in
2016
Julian Hansert
Cloud native
and container
technologies
Software
development
K8s certified
Multi & Hybrid Cloud
Container Engine Partners
Silver Member
& Training Partner
GCP & Training
Partner

4. Drone

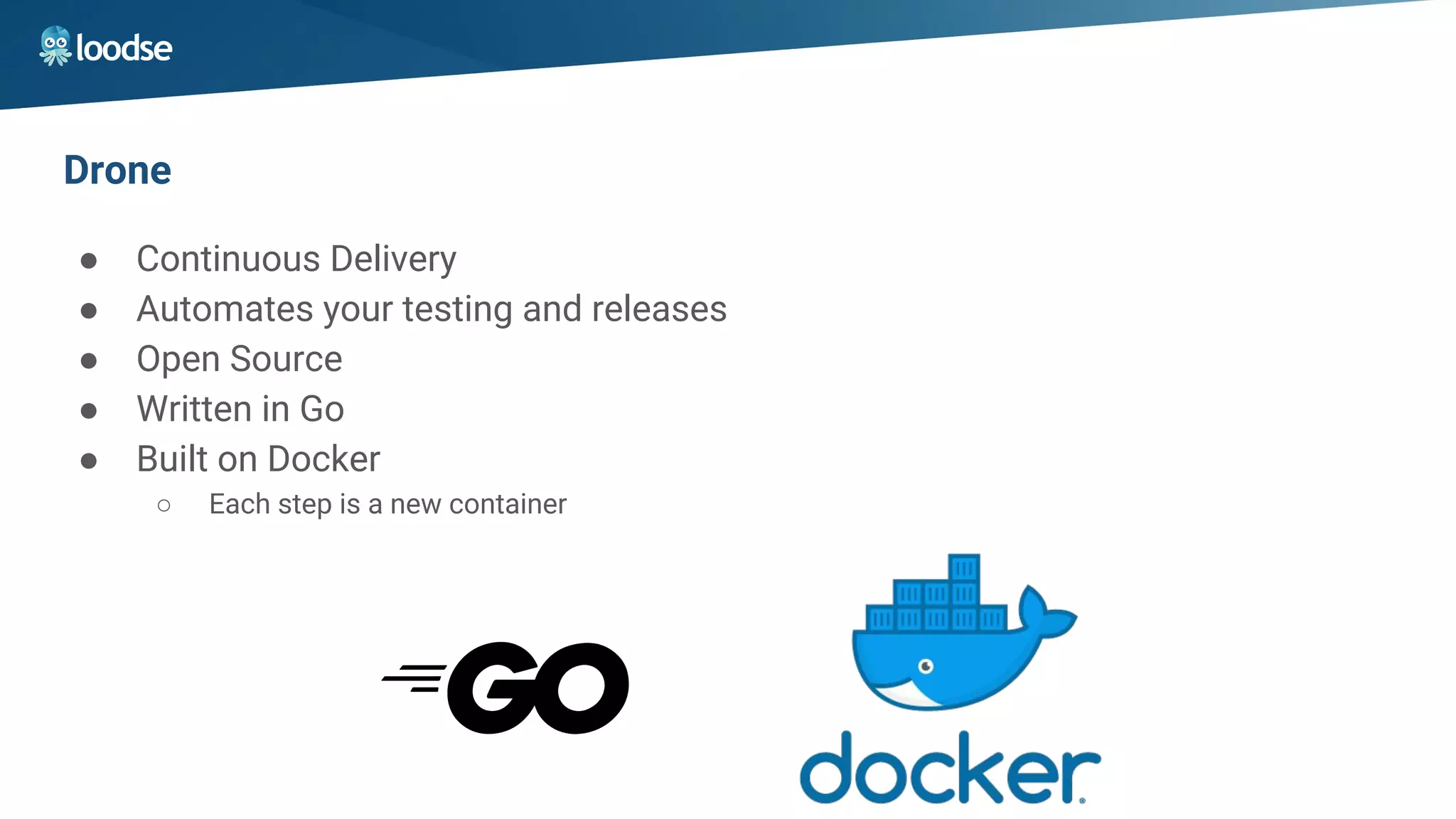

5. Drone
● Continuous Delivery
● Automates your testing and releases
● Open Source
● Written in Go
● Built on Docker
○ Each step is a new container

6. Version Control Support

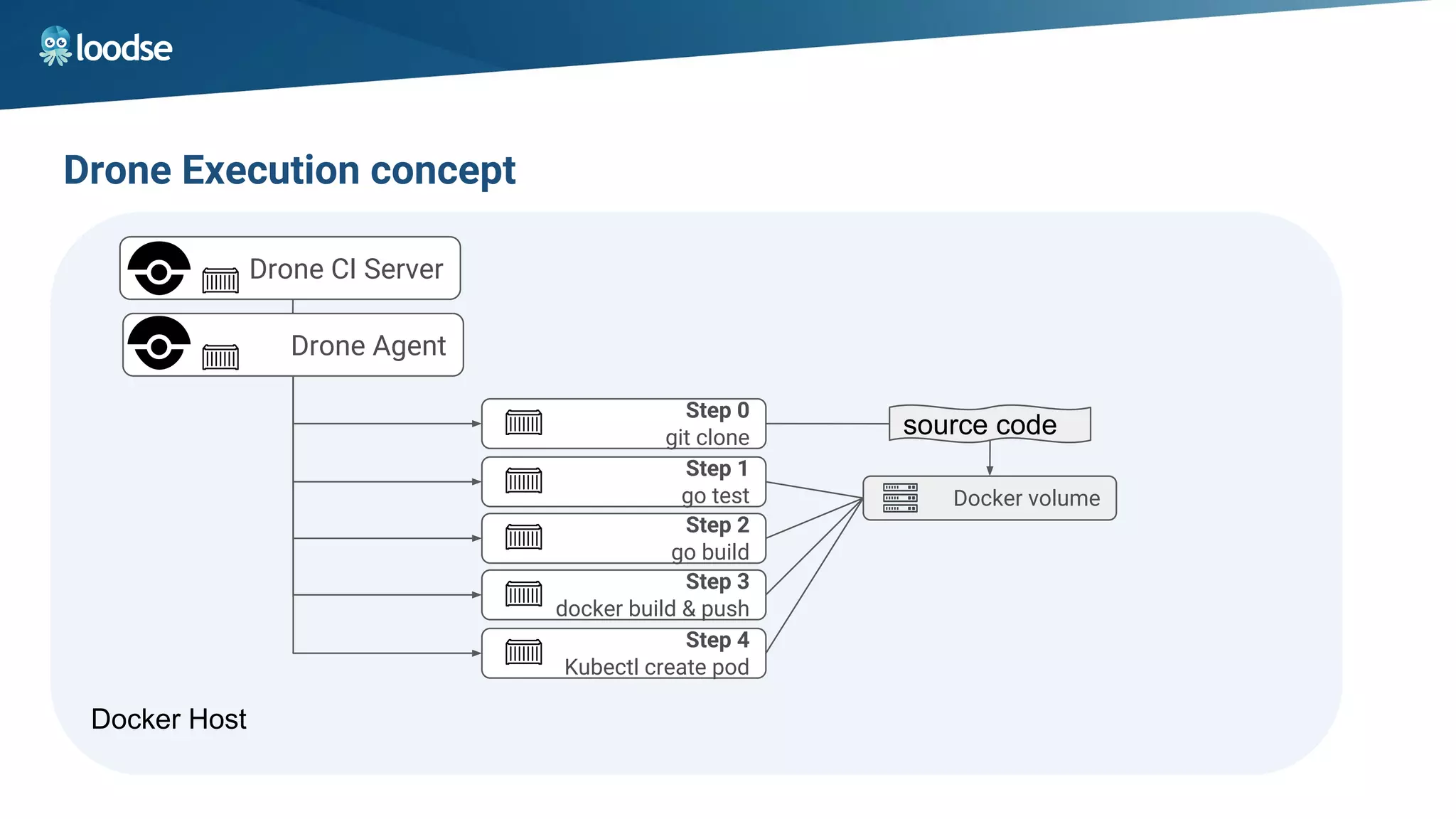

7. Drone Execution concept
Docker Host
Drone CI Server
Docker volume
Step 0
git clone
Drone Agent
source code
Step 1
go test
Step 2
go build
Step 3
docker build & push
Step 4
Kubectl create pod

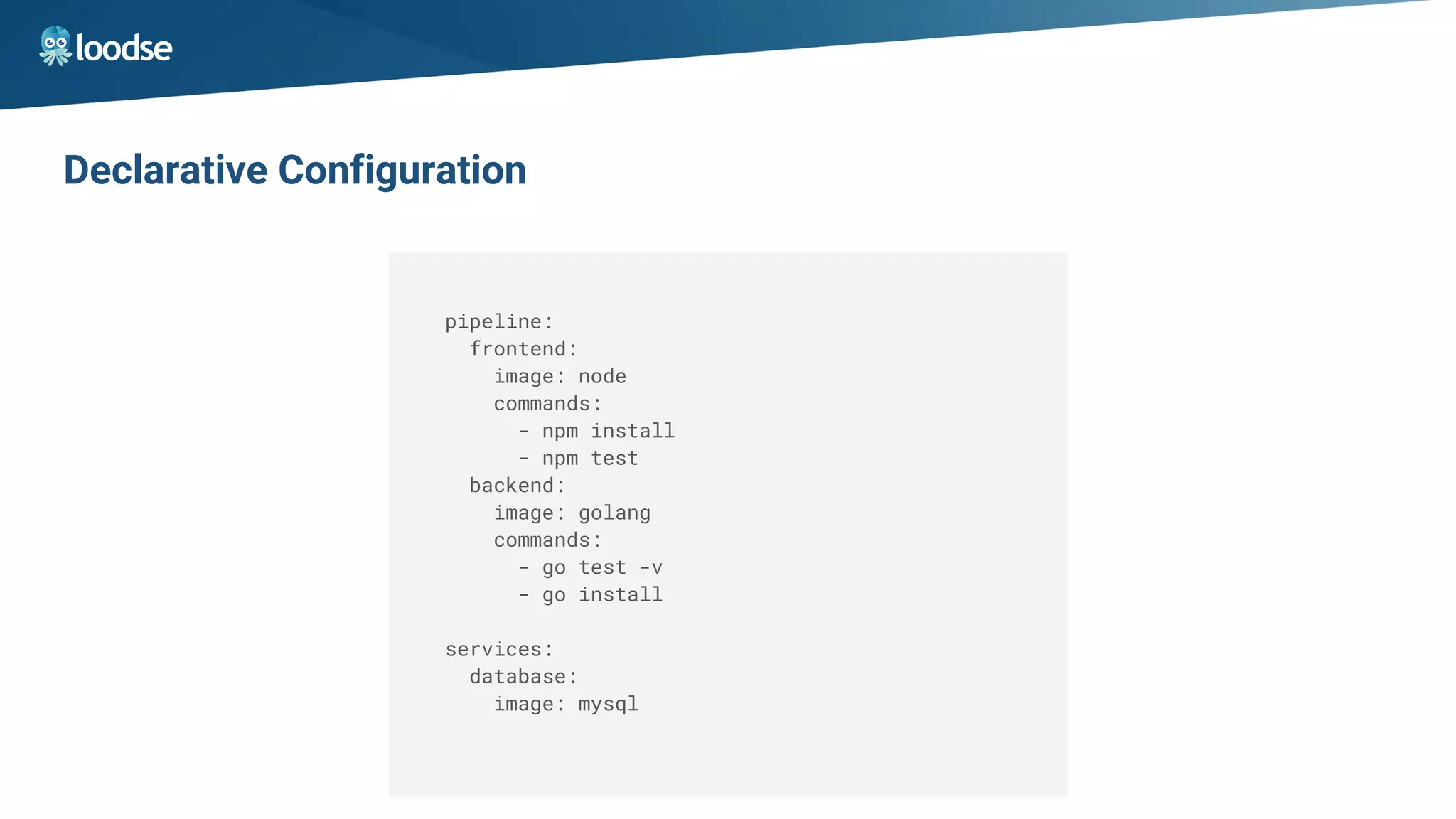

8. Declarative Configuration
pipeline:
frontend:
image: node
commands:
- npm install
- npm test
backend:
image: golang
commands:
- go test -v
- go install
services:
database:
image: mysql

9. Plugins

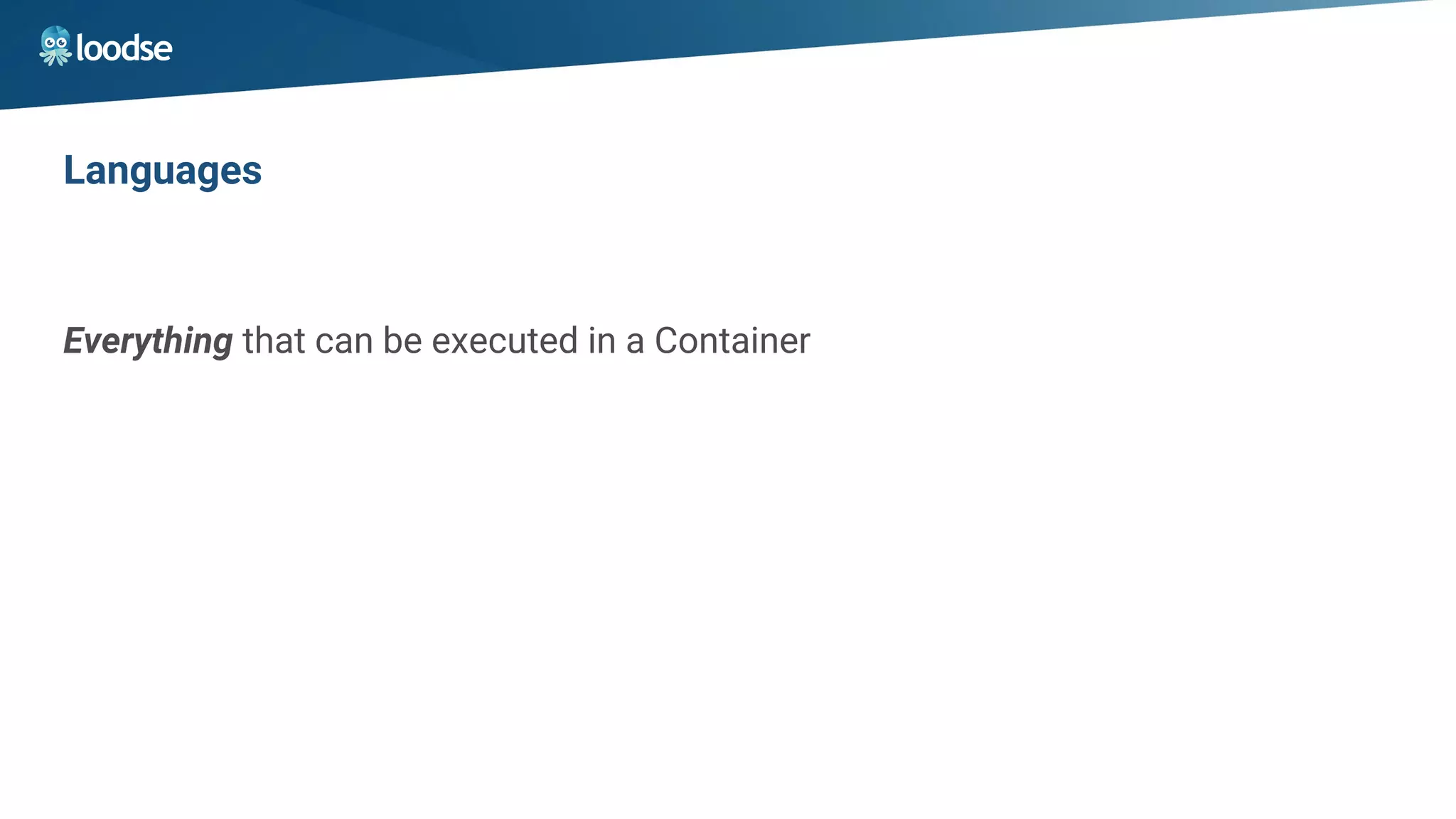

10. Languages
Everything that can be executed in a Container

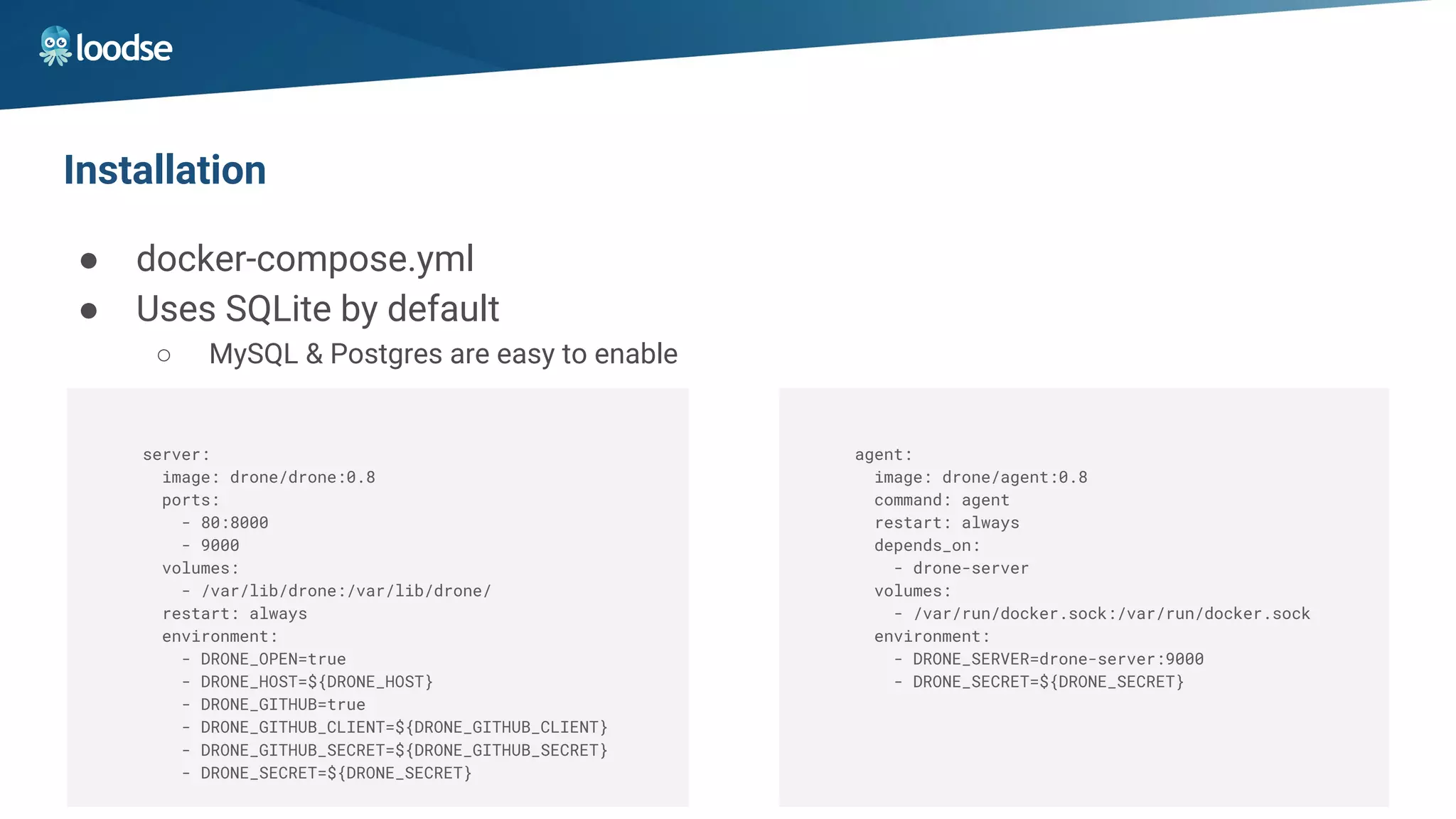

11. Installation
● docker-compose.yml
● Uses SQLite by default
○ MySQL & Postgres are easy to enable
server:
image: drone/drone:0.8
ports:
- 80:8000
- 9000
volumes:
- /var/lib/drone:/var/lib/drone/
restart: always
environment:
- DRONE_OPEN=true
- DRONE_HOST=${DRONE_HOST}
- DRONE_GITHUB=true
- DRONE_GITHUB_CLIENT=${DRONE_GITHUB_CLIENT}
- DRONE_GITHUB_SECRET=${DRONE_GITHUB_SECRET}
- DRONE_SECRET=${DRONE_SECRET}
agent:
image: drone/agent:0.8
command: agent
restart: always
depends_on:
- drone-server
volumes:
- /var/run/docker.sock:/var/run/docker.sock
environment:
- DRONE_SERVER=drone-server:9000
- DRONE_SECRET=${DRONE_SECRET}

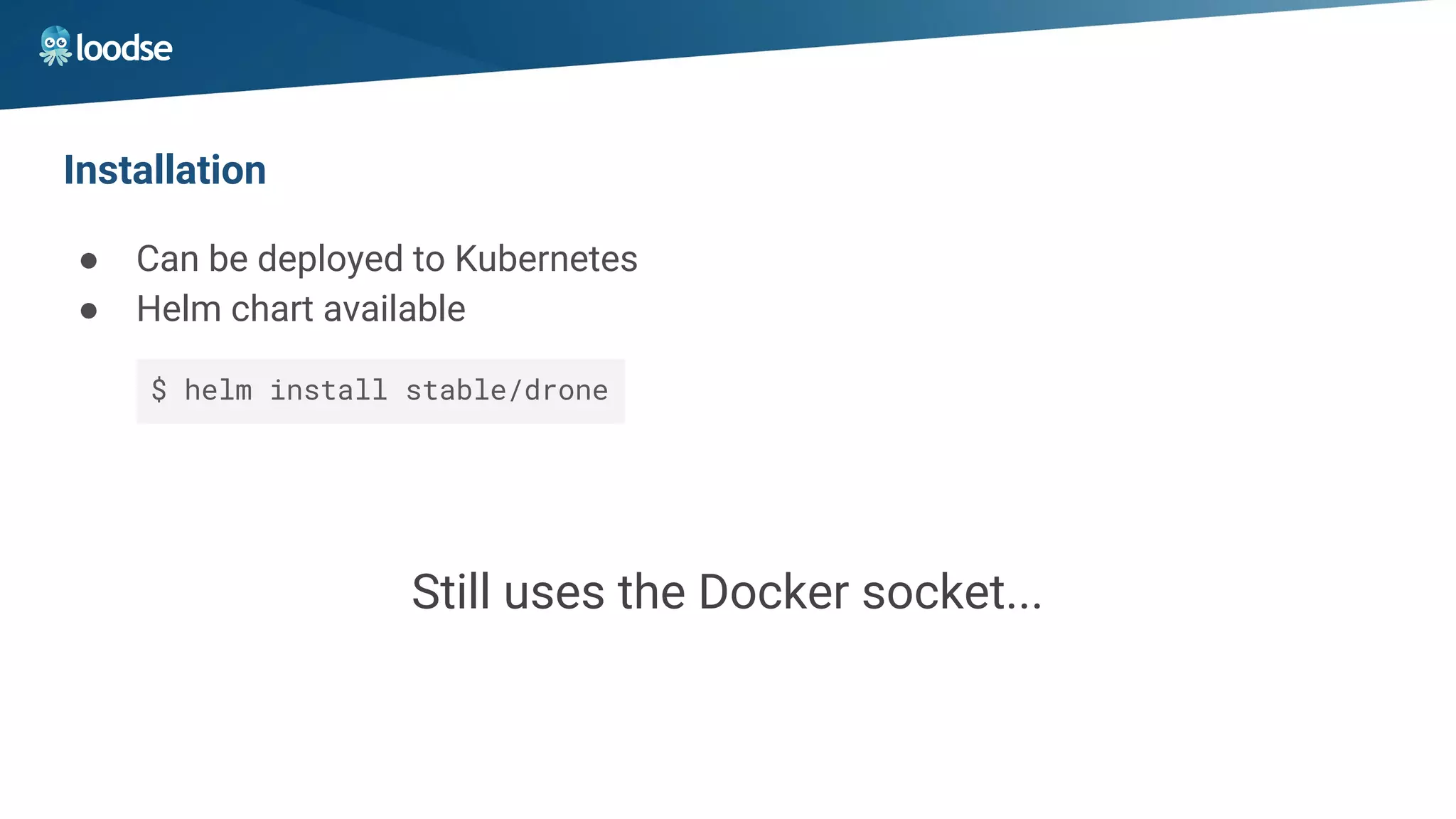

12. Installation
● Can be deployed to Kubernetes
● Helm chart available
$ helm install stable/drone
Still uses the Docker socket...

13. Demo

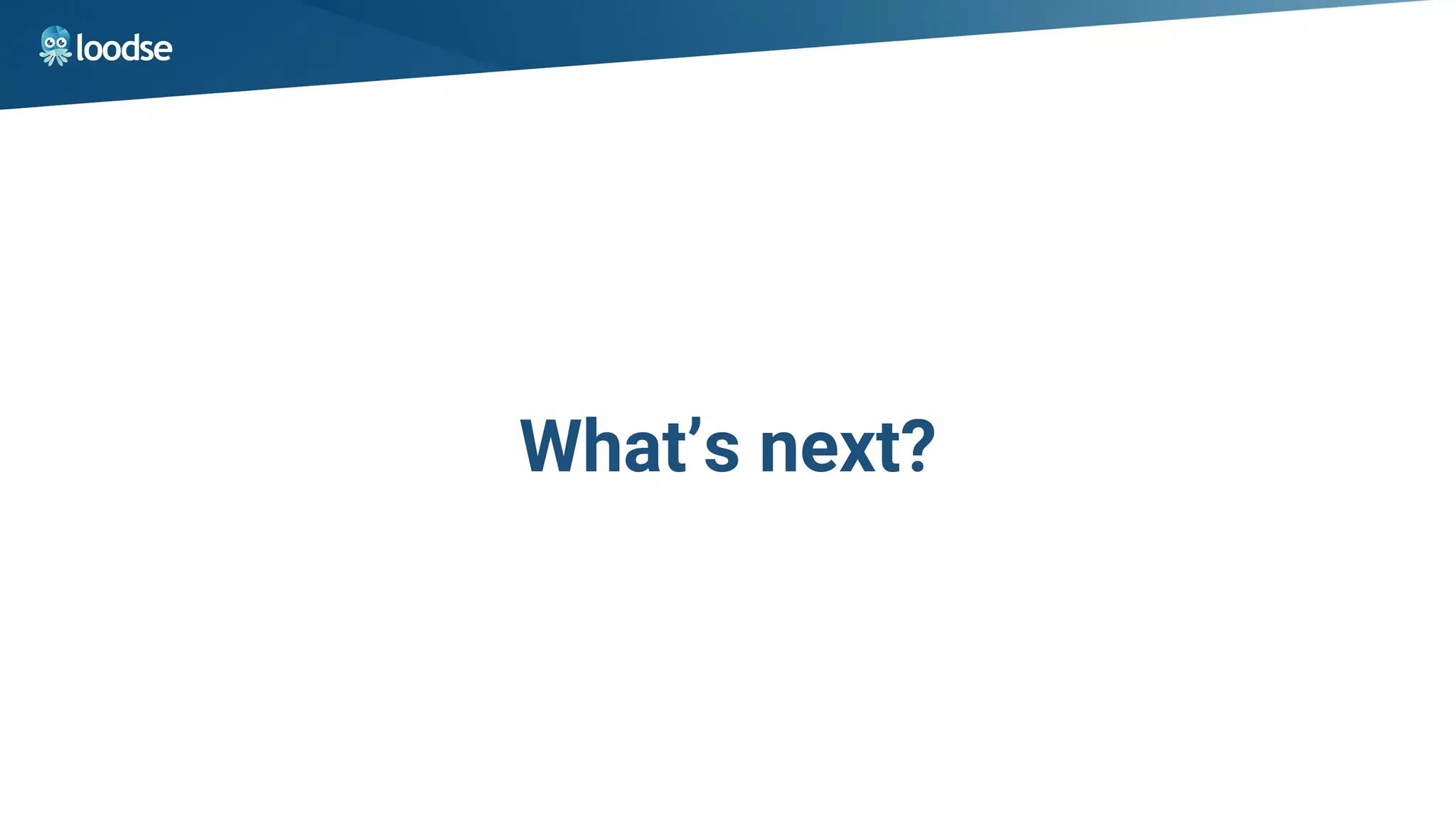

14. What’s next?

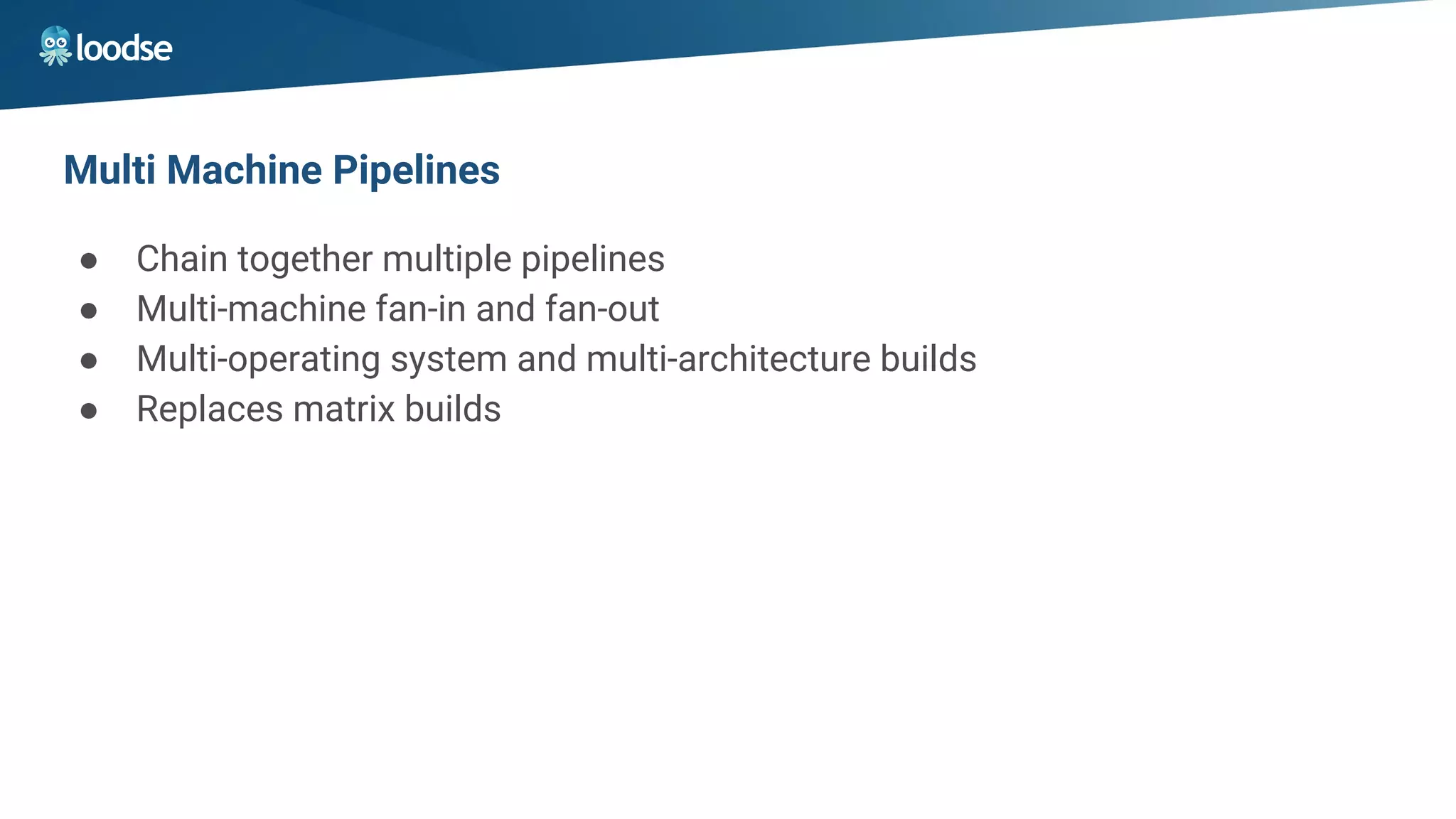

15. Multi Machine Pipelines
● Chain together multiple pipelines
● Multi-machine fan-in and fan-out
● Multi-operating system and multi-architecture builds
● Replaces matrix builds

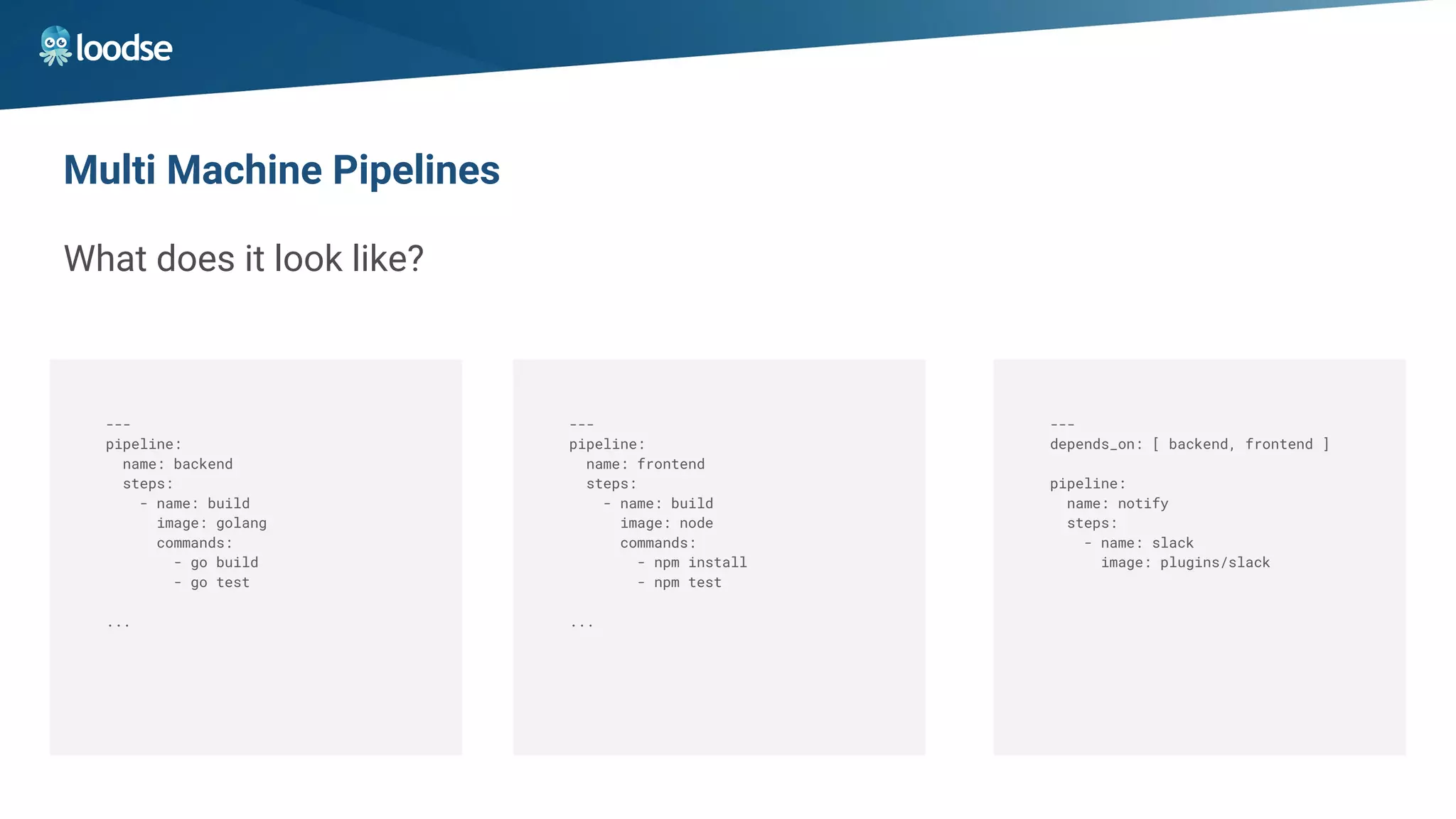

16. Multi Machine Pipelines
What does it look like?
---
pipeline:
name: backend
steps:
- name: build
image: golang
commands:
- go build
- go test
...
---
depends_on: [ backend, frontend ]
pipeline:
name: notify
steps:
- name: slack
image: plugins/slack
---
pipeline:
name: frontend
steps:
- name: build
image: node
commands:
- npm install
- npm test
...

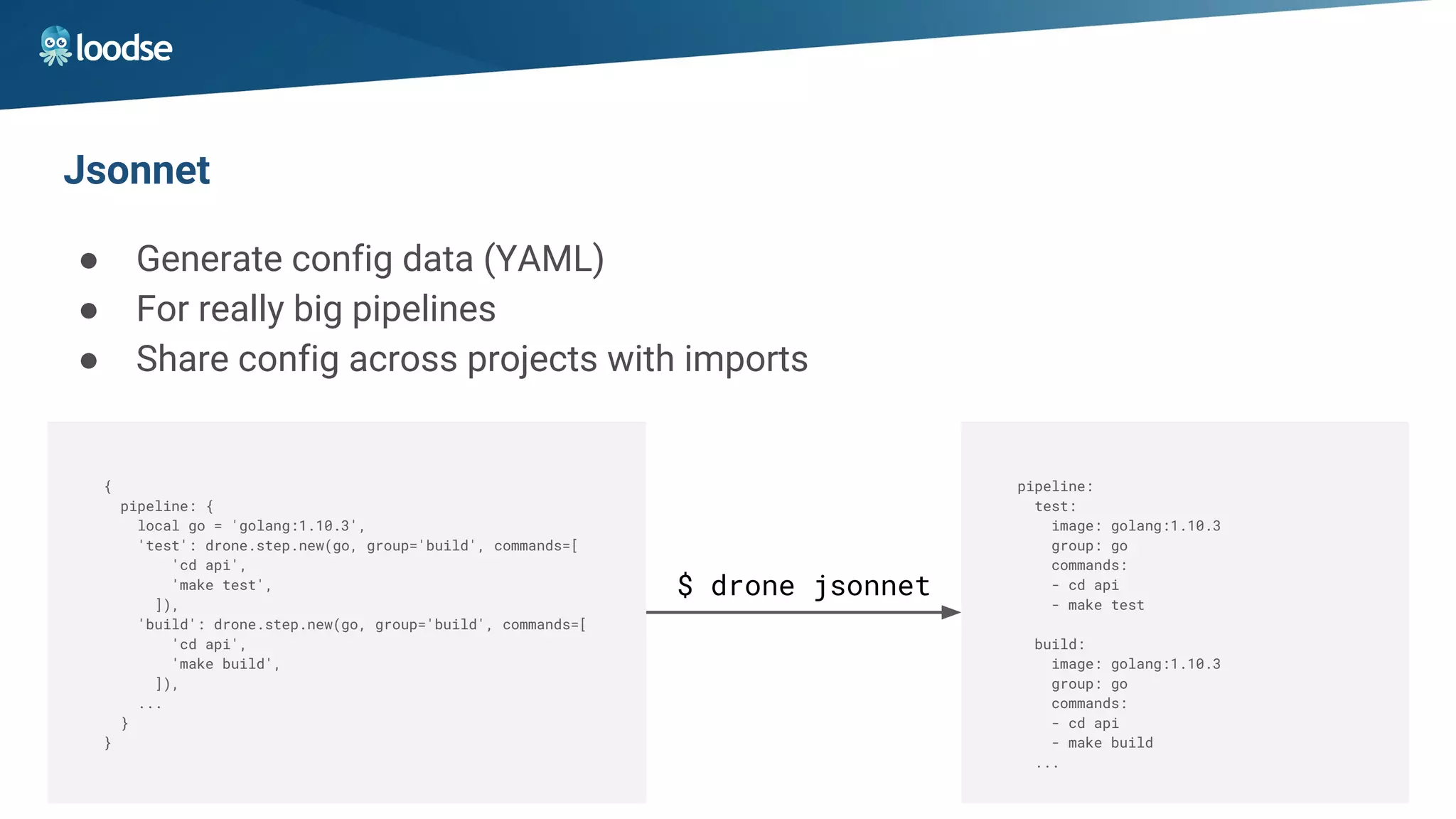

17. Jsonnet
● Generate config data (YAML)
● For really big pipelines
● Share config across projects with imports
{
pipeline: {
local go = 'golang:1.10.3',
'test': drone.step.new(go, group='build', commands=[
'cd api',
'make test',
]),
'build': drone.step.new(go, group='build', commands=[
'cd api',
'make build',
]),
...
}
}
pipeline:
test:
image: golang:1.10.3
group: go
commands:
- cd api
- make test
build:
image: golang:1.10.3
group: go
commands:
- cd api
- make build
...
$ drone jsonnet

18. Project KubeCI
Cloud Native Continuous Delivery

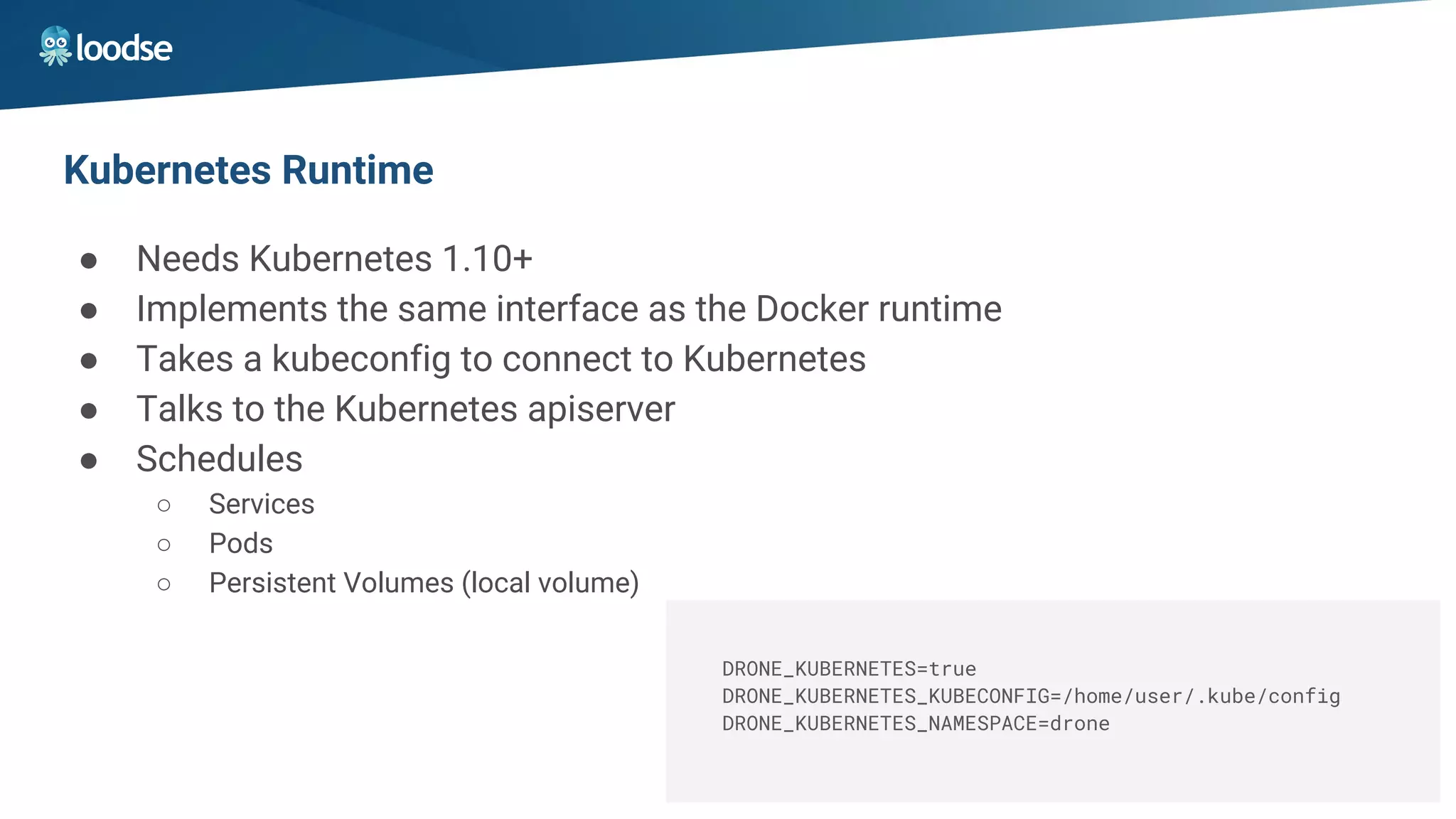

19. Kubernetes Runtime
● Needs Kubernetes 1.10+
● Implements the same interface as the Docker runtime
● Takes a kubeconfig to connect to Kubernetes
● Talks to the Kubernetes apiserver
● Schedules
○ Services
○ Pods
○ Persistent Volumes (local volume)
DRONE_KUBERNETES=true
DRONE_KUBERNETES_KUBECONFIG=/home/user/.kube/config
DRONE_KUBERNETES_NAMESPACE=drone

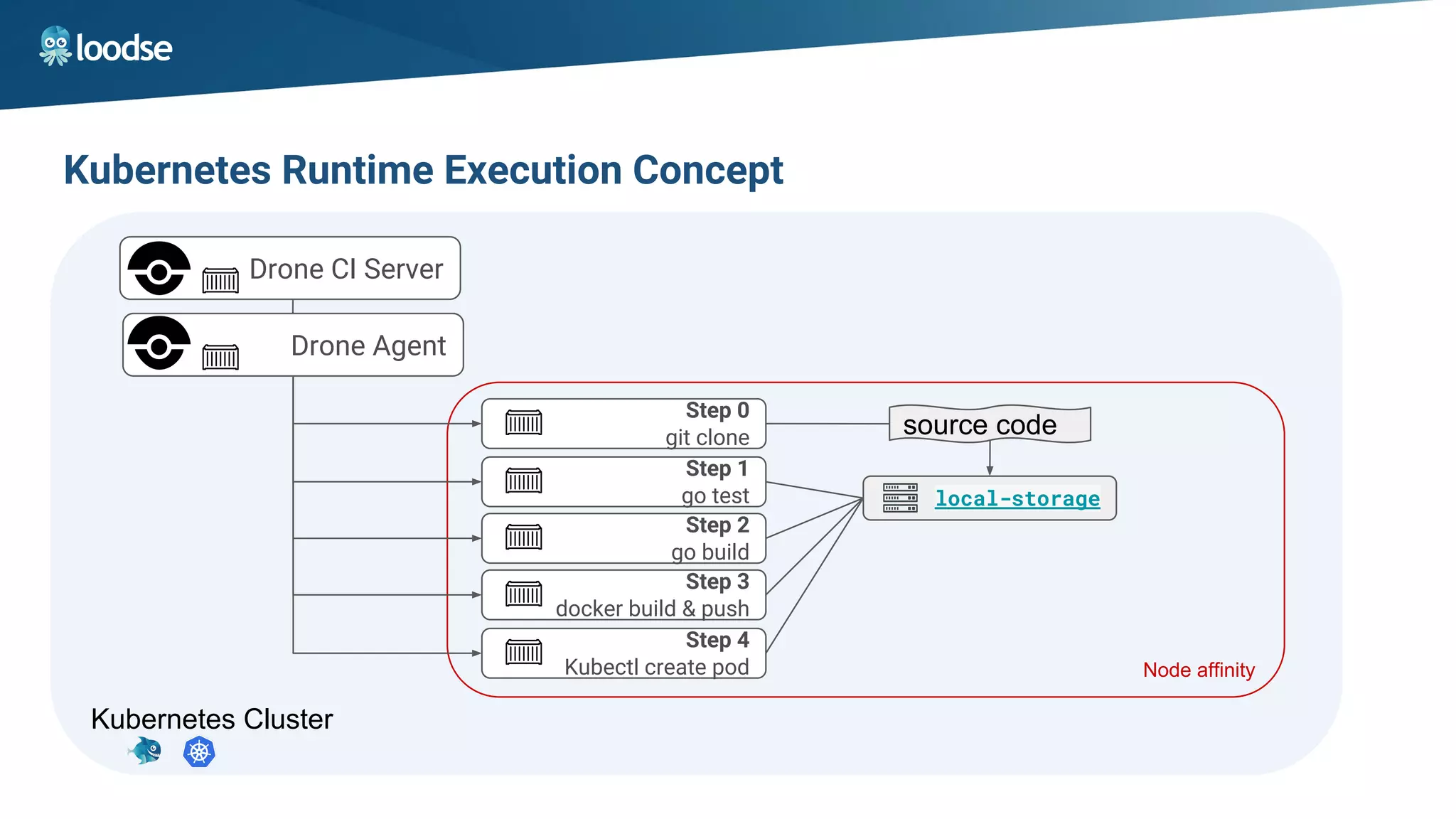

20. Kubernetes Runtime Execution Concept
Kubernetes Cluster
Node affinity
Drone CI Server
local-storage
Step 0
git clone
Drone Agent
source code
Step 1
go test
Step 2
go build
Step 3
docker build & push
Step 4
Kubectl create pod

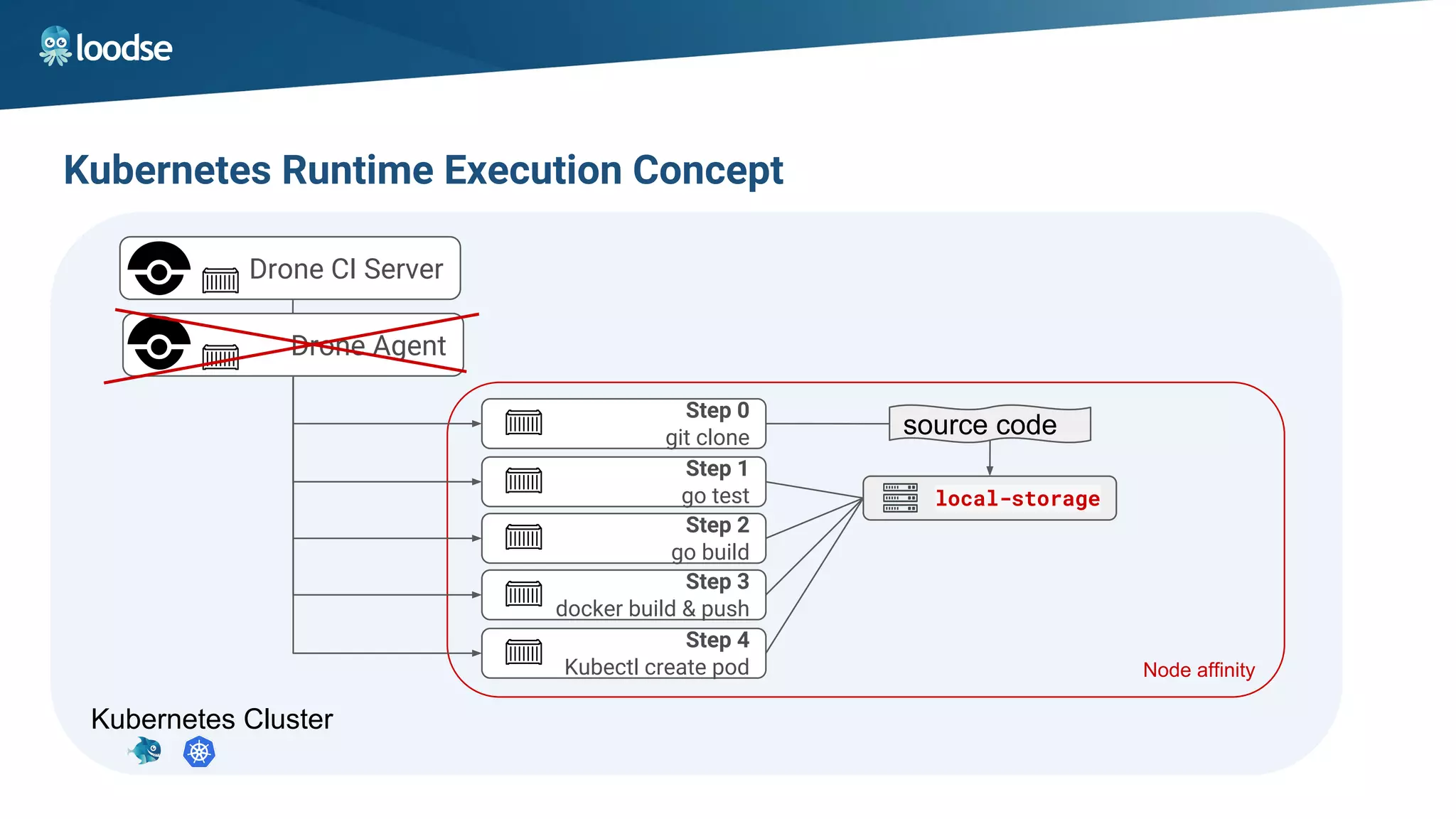

21. Kubernetes Runtime Execution Concept
Kubernetes Cluster
Node affinity
Drone CI Server
local-storage
Step 0
git clone
Drone Agent
source code
Step 1
go test
Step 2
go build
Step 3
docker build & push
Step 4
Kubectl create pod

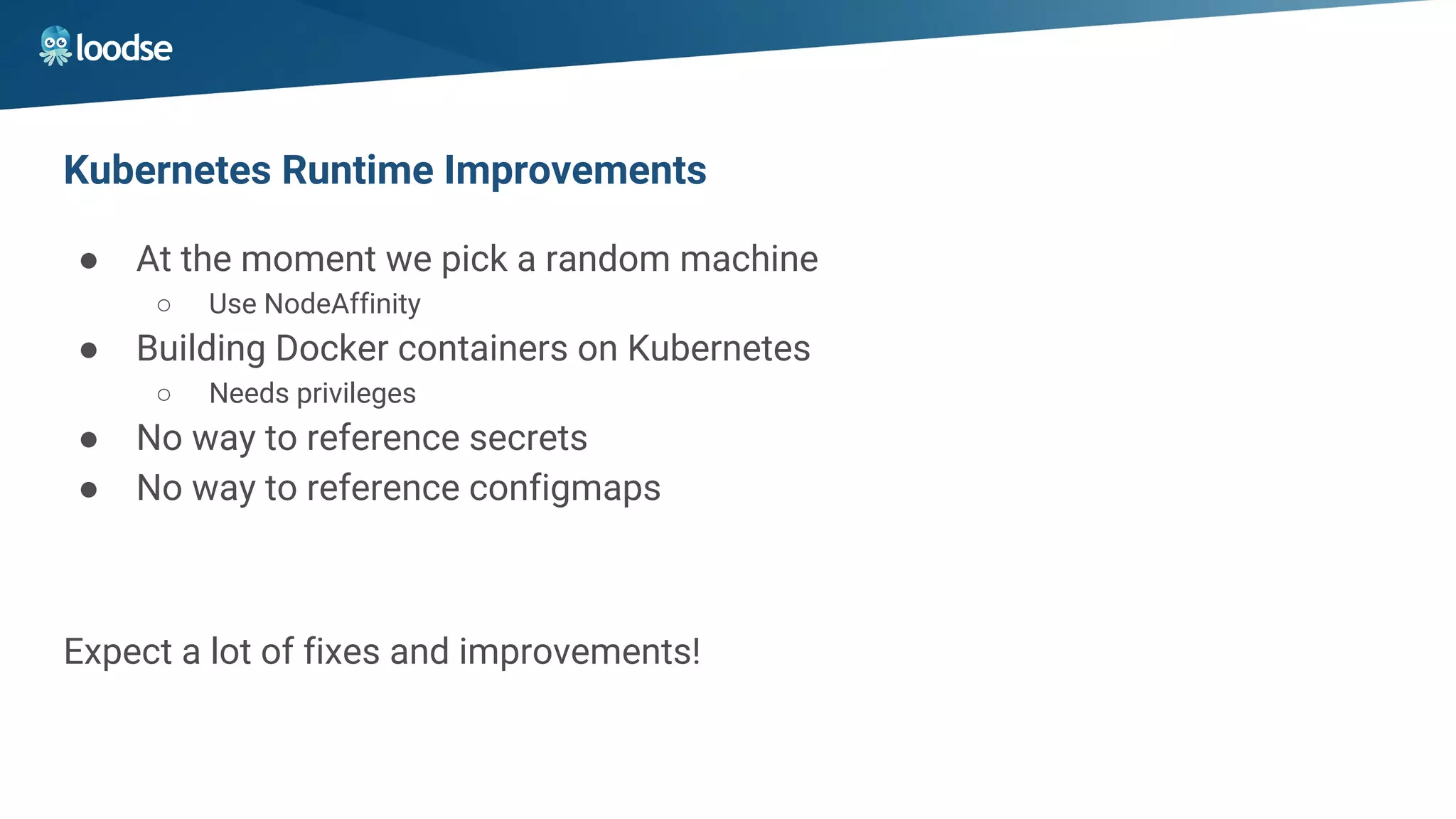

22. Kubernetes Runtime Improvements
● At the moment we pick a random machine
○ Use NodeAffinity
● Building Docker containers on Kubernetes
○ Needs privileges
● No way to reference secrets
● No way to reference configmaps
Expect a lot of fixes and improvements!

23. Demo

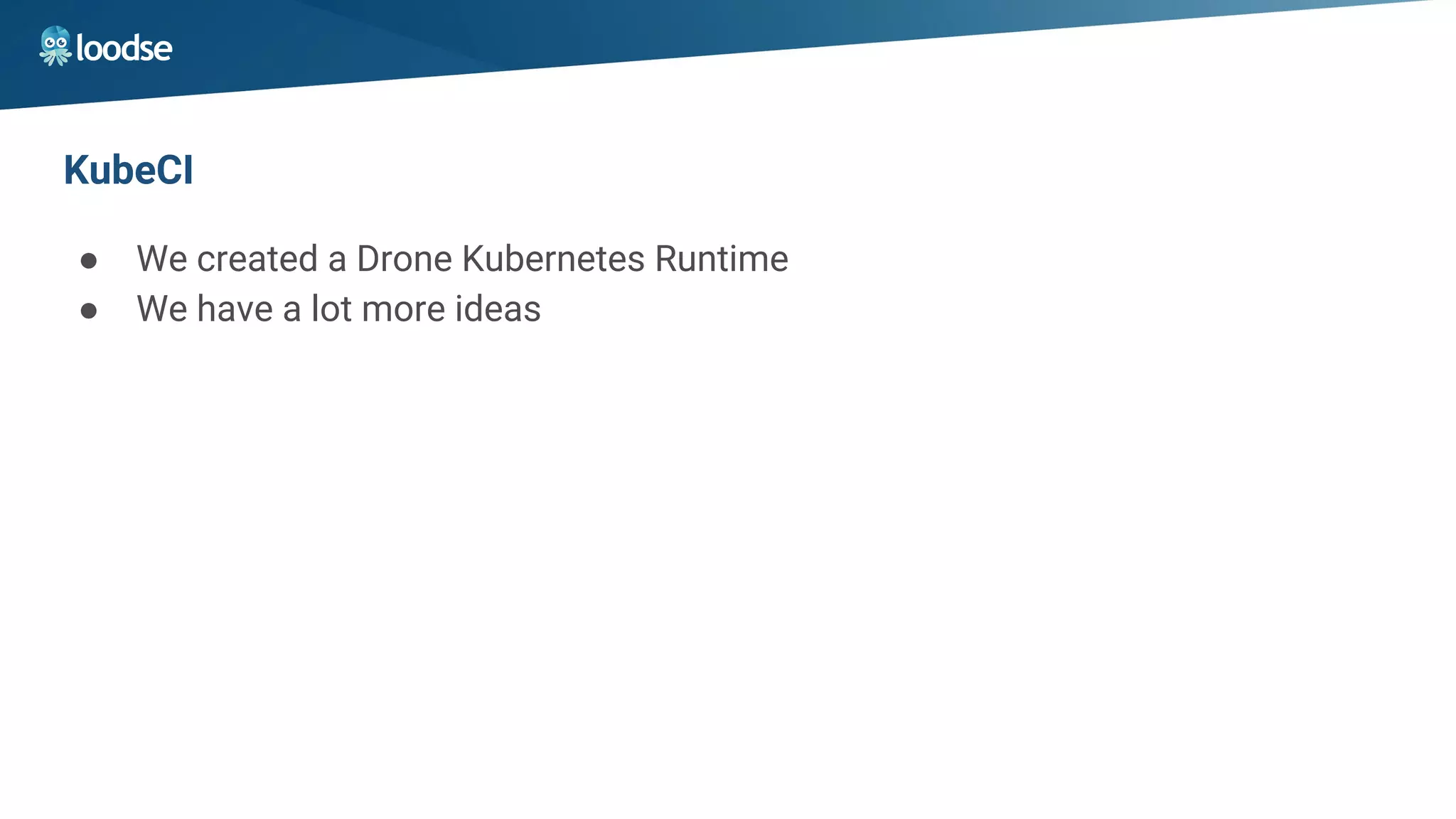

24. KubeCI
● We created a Drone Kubernetes Runtime
● We have a lot more ideas

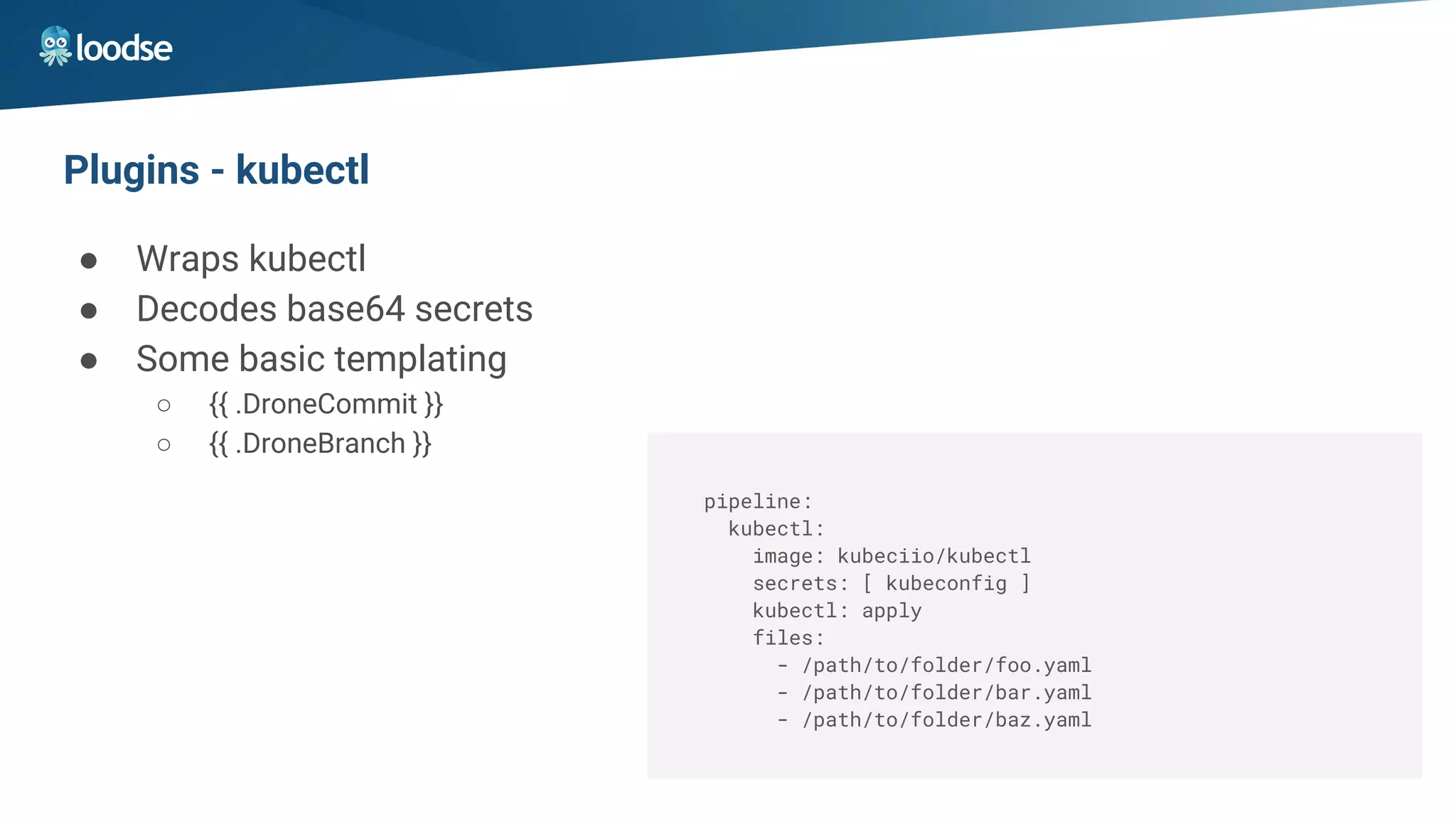

25. Plugins - kubectl
● Wraps kubectl
● Decodes base64 secrets
● Some basic templating
○ {{ .DroneCommit }}
○ {{ .DroneBranch }}
pipeline:
kubectl:
image: kubeciio/kubectl
secrets: [ kubeconfig ]
kubectl: apply
files:
- /path/to/folder/foo.yaml
- /path/to/folder/bar.yaml
- /path/to/folder/baz.yaml

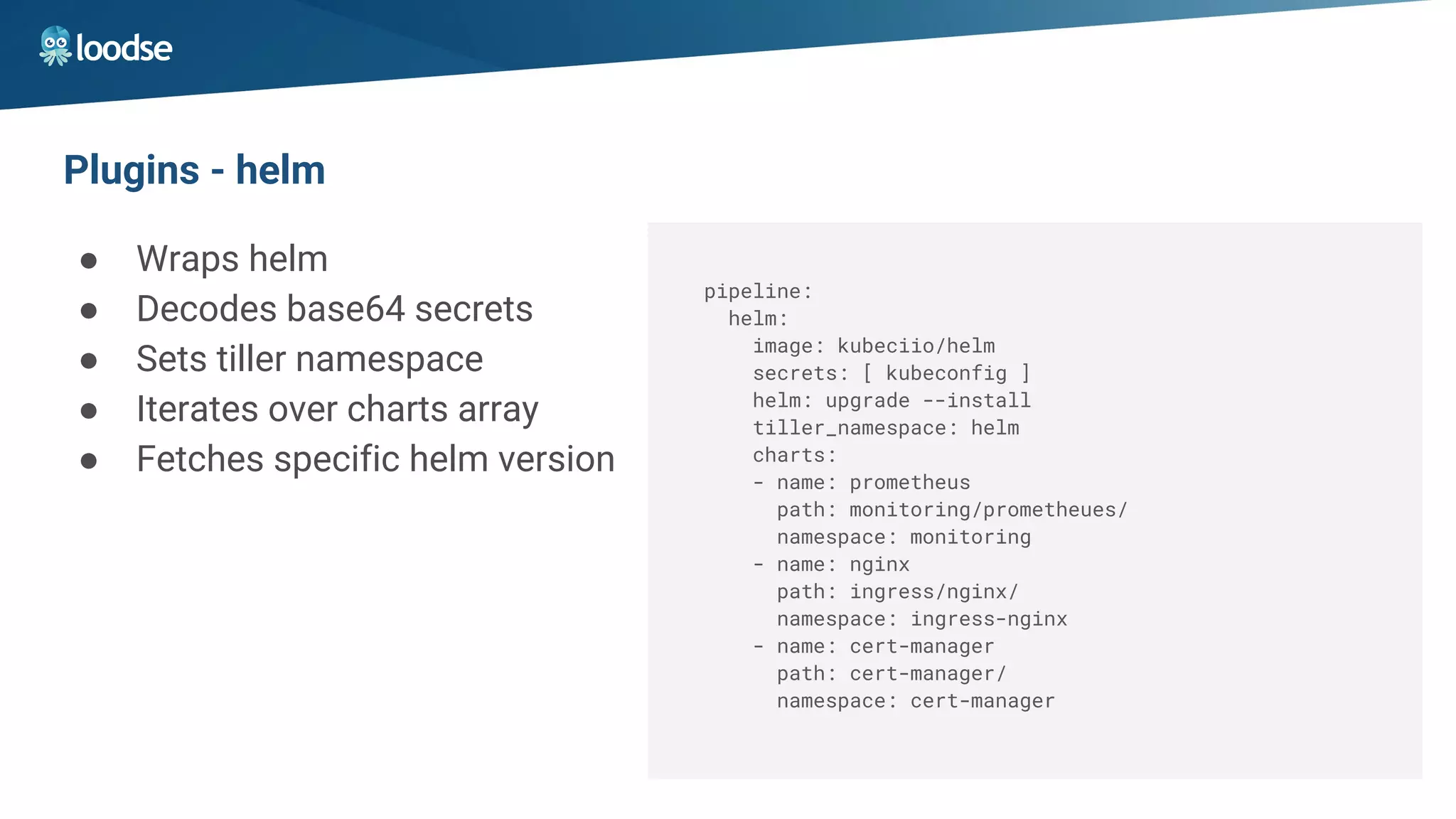

26. Plugins - helm
● Wraps helm
● Decodes base64 secrets
● Sets tiller namespace
● Iterates over charts array
● Fetches specific helm version
pipeline:
helm:
image: kubeciio/helm
secrets: [ kubeconfig ]
helm: upgrade --install
tiller_namespace: helm
charts:
- name: prometheus
path: monitoring/prometheues/
namespace: monitoring
- name: nginx
path: ingress/nginx/
namespace: ingress-nginx
- name: cert-manager
path: cert-manager/
namespace: cert-manager

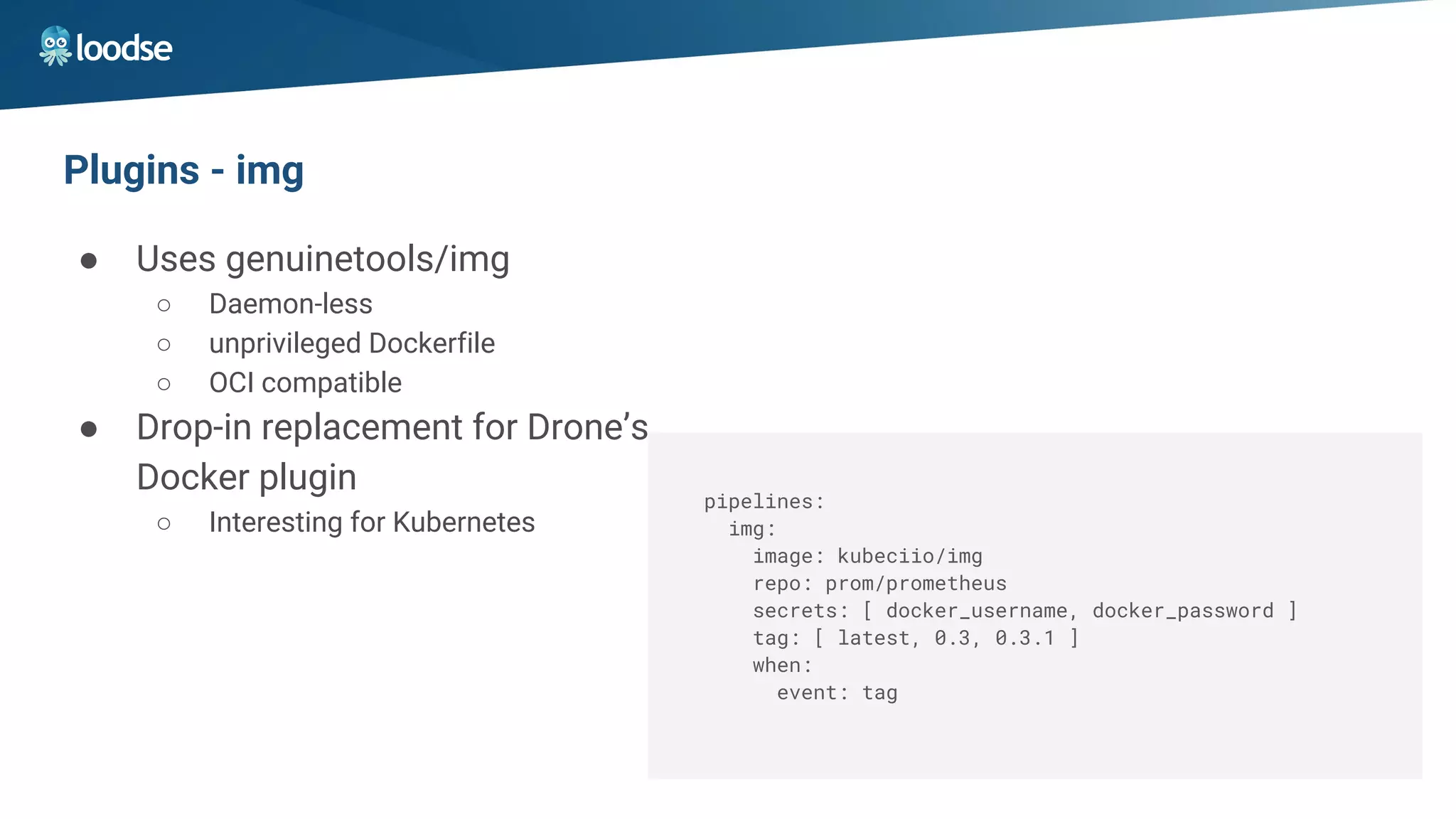

27. Plugins - img
● Uses genuinetools/img
○ Daemon-less
○ unprivileged Dockerfile
○ OCI compatible
● Drop-in replacement for Drone’s
Docker plugin
○ Interesting for Kubernetes
pipelines:
img:
image: kubeciio/img
repo: prom/prometheus
secrets: [ docker_username, docker_password ]
tag: [ latest, 0.3, 0.3.1 ]
when:
event: tag

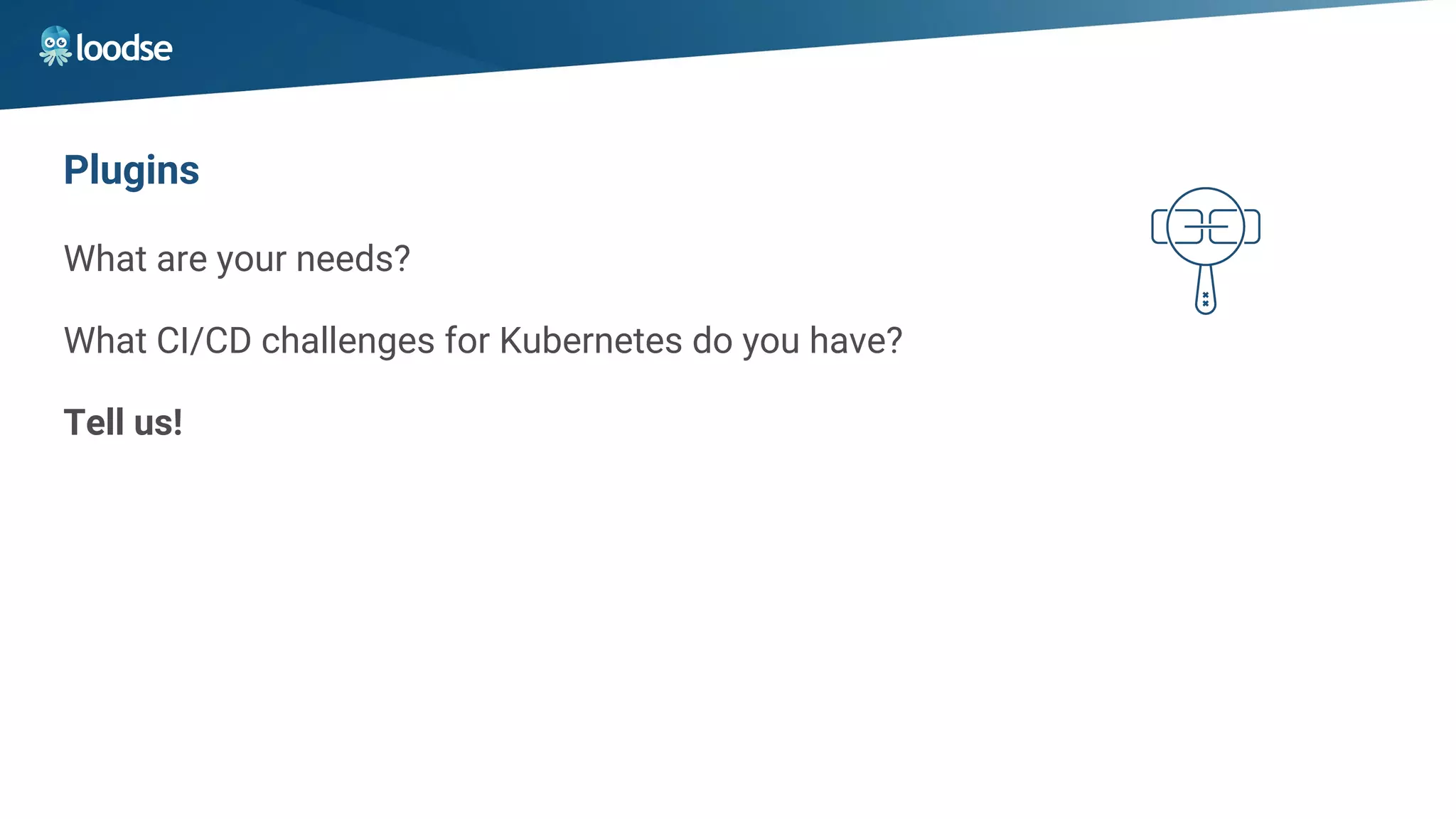

28. Plugins
What are your needs?
What CI/CD challenges for Kubernetes do you have?
Tell us!

29. Matthias Loib - @metalmatze
POC Lead of KubeCI
Brad Rydzewski - @bradrydzewski
Creator of Drone
Chris Bargmann - @chrisbargmann
Support on KubeCI plugins
Stefan Schimanski - @the_sttts
Brainstorming at FOSDEM
Jason Murray - @chaosaffe
Initial hacking sessions
Acknowledgements

30. Questions?

32. We are hiring!
Hamburg, Berlin, Munich, San Francisco, Gdańsk, …
www.loodse.com
@Loodse

33. Thank you
Tobias Schneck - @toschneck
Loodse
