1. Drone CI/CD Platform
Drone is a Continuous Delivery platform built on Docker, written in Go
2018/11/03

2. Agenda
• Why I don’t choose Jenkins or GitLab CI?
• What is Drone CI?
• Drone Infrastructure
• How to install Drone in five minutes?
• Integrate your project
• Create your Drone plugin
• Try drone cli without drone server

3. About Me
appleboy @
appleboy @

4. Jenkins Drone Travis Gitlab ci

5. Why I leave Jenkins

6. Why?
• Complicated project setting
• Write the plugin (Java language)
• Maintenance?
• Learning Curve?
• Grow your team?

7. Try the GitLab CI

8. .gitlab-ci.yml config

9. But Why I leave GitLab CI ?

10. Why?
1. GitLab Only
2. Not extensible

11. SSH Tunnel

12. How to use SSH command

13. https://florianbrinkmann.com/en/3473/deployment-gitlab-ci/

14. Try drone-ssh tool
https://github.com/appleboy/drone-ssh

15. pipeline:
ssh:
image: appleboy/drone-ssh
host: foo.com
username: root
password: 1234
port: 22
script:
- echo hello
- echo world
proxy_host: 10.130.33.145
proxy_user: ubuntu
proxy_port: 22
proxy_password: 1234
custom key

16. What is Drone?

17. Drone CI• Container native CI/CD platform
• Easy to install & maintain
• Isolate builds
• Simple YAML Configuration
• Integrates with several VCS Providers
• Rich set of official plugins (any container can be a plugin)
• Execute locally with simple command (drone exec)
• open source (https://github.com/drone/drone)

18. Everything is a
Docker Container

19. Project CI/CD Flow
git clone testing deploy notify

20. Project List and Status

21. Job detail and logs

22. .drone.yml

23. Isolate build

24. Support Git Host

25. Drone CI Infrastructure
Agent
Server
Step 1
git clone
Step 2
make build
Step 3
deploy app
work space
extra service
Agent

26. Support Platform
https://blog.drone.io/drone-cloud-native-ci-cd-windows-containers/
https://blog.drone.io/drone-announces-official-support-for-arm/

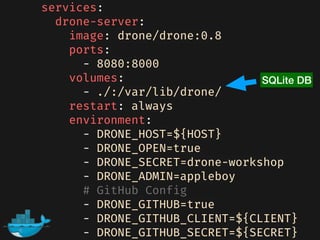

27. services:
drone-server:
image: drone/drone:0.8
ports:
- 8080:8000
volumes:
- ./:/var/lib/drone/
restart: always
environment:
- DRONE_HOST=${HOST}
- DRONE_OPEN=true
- DRONE_SECRET=drone-workshop
- DRONE_ADMIN=appleboy
# GitHub Config
- DRONE_GITHUB=true
- DRONE_GITHUB_CLIENT=${CLIENT}
- DRONE_GITHUB_SECRET=${SECRET}
SQLite DB

28. drone-agent:
image: drone/agent:0.8
restart: always
depends_on:
- drone-server
volumes:
- /var/run/docker.sock:/var/run/docker.sock
environment:
- DRONE_SERVER=drone-server:9000
- DRONE_SECRET=drone-workshop
- DRONE_MAX_PROCS=3
drone agent count

29. Auto scale drone agent
https://github.com/appleboy/drone-on-kubernetes

30. Agent
Server
Agent
Agent Agent
autoscaler
https://github.com/drone/autoscaler

31. Task - Agent
drone_server=server:9000
Task - Server
port: 80/9000
ECS - Fargate ECS - Service
Target Group
Port: 80
Route 53 Service Discovery
ALB / SSL
Cloud Watch
https://github.com/appleboy/drone-terraform-in-aws

32. Deploy Flow in Golang
ReleaseTestGit Docker Notify

33. Pipeline in Golang
• Go Testing
• Verify Quality
• Build Binary
• Deploy Binary
• Build Image
• Deploy Container
• Send Notification

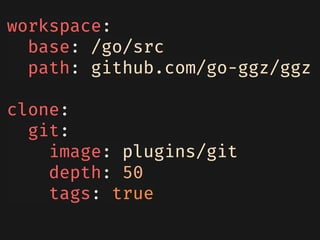

34. workspace:
base: /go/src
path: github.com/go-ggz/ggz
clone:
git:
image: plugins/git
depth: 50
tags: true

35. Testing && Verify Quality

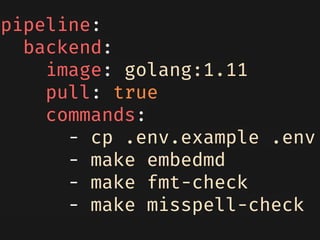

36. pipeline:
backend:
image: golang:1.11
pull: true
commands:
- cp .env.example .env
- make embedmd
- make fmt-check
- make misspell-check

37. Parallel processing

38. build_linux_i386:
image: golang:1.11
pull: true
group: build
environment:
TAGS: sqlite
commands:
- SERVICE=ggz-server make build_linux_i386
- SERVICE=ggz-redirect make build_linux_i386
build_linux_arm64:
image: golang:1.11
pull: true
group: build
environment:
TAGS: sqlite
commands:
- SERVICE=ggz-server make build_linux_arm64
- SERVICE=ggz-redirect make build_linux_arm64

39. Build Docker

40. publish_linux_amd64:
image: plugins/docker
group: release
pull: true
repo: goggz/ggz-server
dockerfile: dockerfile/server/Dockerfile
secrets: [ docker_username, docker_password ]
default_tags: true
when:
event: [ push, tag ]
local: false
Docker plugin for Drone CI/CD

41. Secret Security

43. Notification Plugin

44. Write Drone Plugin
Whether you prefer language
PHP, Ruby, Bash, Go, Python

45. Three Steps
•Program with your language
•Build Docker Image and Testing
•Upload to Docker Hub

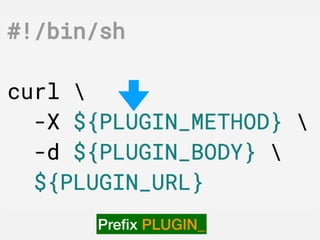

47. Prefix PLUGIN_

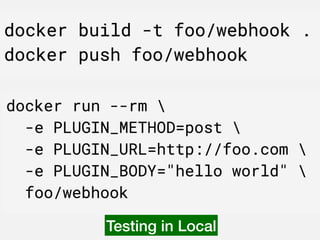

49. Testing in Local

50. Try Drone without Server
drone exec

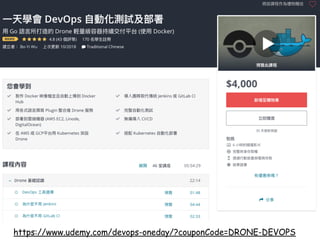

51. https://www.udemy.com/devops-oneday/?couponCode=DRONE-DEVOPS

52. Any Question?
