1. OpenShift Build Pipelines
Build ► Test ► Run!
Tobias Schneck
Software Engineer @ Loodse GmbH
Testautomation @ ConSol Software GmbH (until June 18)

2. Sebastian ScheeleHeadquarter in
in Hamburg, Germany
Founders
Awarded by
> 25 employees
world wide
Founded in 2016 Julian Hansert
Cloud native
and container
technologies
Software
development
K8s certified
Multi & Hybrid Cloud
Container Engine

3. Testing as a Service
Consulting
Workshops
Infrastruktur
Open Source
Testautomatisierung @ ConSol
Kontakt: nico.zellner@consol.de

4. +

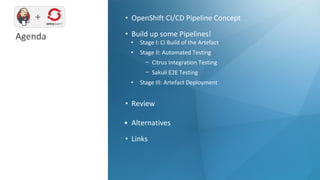

Agenda
• OpenShift CI/CD Pipeline Concept
• Build up some Pipelines!
• Stage I: CI Build of the Artefact
• Stage II: Automated Testing
− Citrus Integration Testing
− Sakuli E2E Testing
• Stage III: Artefact Deployment
• Review
• Alternatives
• Links

5. OpenShift CI/CD Pipeline Concept

6. OpenShift Build Pipelines: Build -> Test -> Run! Folie 6

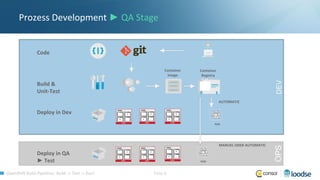

Prozess Development ► QA Stage
OPS
Code
Build &
Unit-Test
Deploy in Dev
Container
Container
Registry
POD
AUTOMATIC
MANUEL ODER AUTOMATIC
POD
Deploy in QA
► Test

7. OpenShift Build Pipelines: Build -> Test -> Run! Folie 7

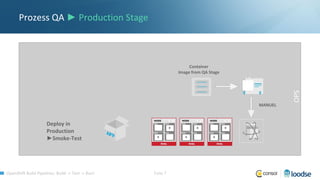

Prozess QA ► Production Stage
OPS
Deploy in
Production
►Smoke-Test
Container
Image from QA Stage
MANUEL

8. OpenShift Build Pipelines: Build -> Test -> Run! Folie 8

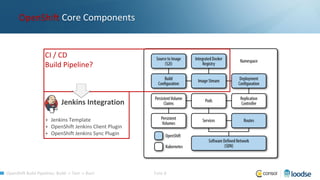

OpenShift Core Components
CI / CD
Build Pipeline?
Jenkins Integration
+ Jenkins Template
+ OpenShift Jenkins Client Plugin
+ OpenShift Jenkins Sync Plugin

9. OpenShift Build Pipelines: Build -> Test -> Run! Folie 9

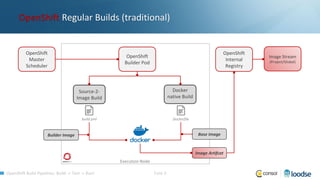

OpenShift Regular Builds (traditional)
Execution Node
OpenShift
Builder Pod
OpenShift
Master
Scheduler
OpenShift
Internal
Registry
Image Stream
(Project/Global)
Source-2-
Image Build
Docker
native Build
build.yml Dockerfile
Image Artifcat
Builder Image Base Image

10. OpenShift Build Pipelines: Build -> Test -> Run! Folie 10

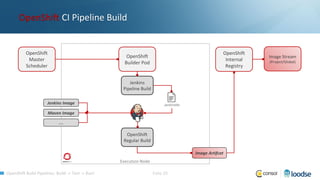

OpenShift CI Pipeline Build
Execution Node
OpenShift
Builder Pod
OpenShift
Master
Scheduler
OpenShift
Internal
Registry
Image Stream
(Project/Global)
Image Artifcat
Jenkins Image
Maven Image
…
Jenkinsfile
Jenkins
Pipeline Build
OpenShift
Regular Build

11. OpenShift Build Pipelines: Build -> Test -> Run! Folie 11
● Uses OpenShift CLI: oc
○ Automatically authorized
○ Use complete CLI possibilities
○ Huge flexibility
● Uses OpenShift Jenkins Client Plugin
○ Based on Jenkins kubernetes-plugin
○ Groovy wrapper for OpenShift API
○ Enables dynamic slave images
- built-in images: base, maven, nodejs
- custom images

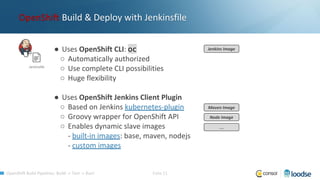

OpenShift Build & Deploy with Jenkinsfile
Jenkins Image
Jenkinsfile
Maven Image
Node Image
…

12. OpenShift Build Pipelines: Build -> Test -> Run! Folie 12
OpenShift Custom Jenkins Slave
Jenkinsfile
podTemplate(label: "citrus",
cloud: "openshift",
inheritFrom: "maven",
containers: [
containerTemplate(name: "jnlp",
image: "toschneck/citrus-jenkins-slave",
)
])
{
node('citrus') {
sh "echo execute oc citrus build"
checkout scm
sh "mvn install"
junit 'citrus-tests/target/citrus-reports/**/*.xml'
archiveArtifacts "citrus-tests/target/citrus-*/**/*"
}
}
Used by
citrusframework/citrus-docker-images PR #3
FROM consol/citrus:2.7.5
### sourced are copied from:
# https://github.com/openshift/jenkins/tree/master/slave-base
# https://github.com/openshift/jenkins/tree/master/slave-maven
# Copy the jenkins-slave entrypoint
ADD contrib/bin/* /usr/local/bin/
# Run the Jenkins JNLP client
ENTRYPOINT ["/usr/local/bin/run-jnlp-client"]

13. Build up a Build Pipeline!

14. OpenShift Build Pipelines: Build -> Test -> Run! Folie 14

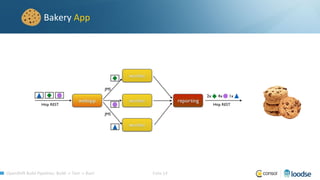

Bakery App

15. OpenShift Build Pipelines: Build -> Test -> Run! Folie 15
Bakery App

16. OpenShift Build Pipelines: Build -> Test -> Run! Folie 16
Transition to OpenShift
Goals:
• Don’t change the Sourcecode of the Apps
• Also don’t change the Testcode
• Fully Automated Pipeline until Production
• All in OpenShift (CI, Build, Test, Deployment)
• Jenkins v1 -> v2

17. Stage I: CI-Build of the Artefact

18. OpenShift Build Pipelines: Build -> Test -> Run! Folie 18

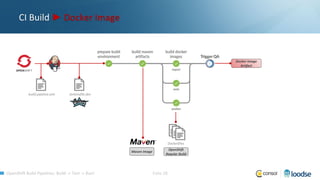

CI Build ► Docker Image
build.pipeline.yml Jenkinsfile.dev
Maven Image
Dockerfiles
OpenShift
Regular Build
Docker Image
Artifact

19. DEMO
toschneck/openshift-example-bakery-ci-pipeline

20. Stage II: Automated Testing

21. Citrus Integration Testing

22. OpenShift Build Pipelines: Build -> Test -> Run! Folie 22

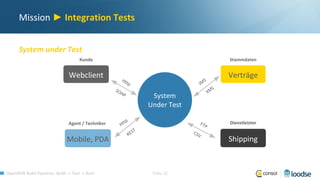

Mission ► Integration Tests
System under Test
System
Under Test
Verträge
Stammdaten
Dienstleister
Shipping
JM
S
XM
L
FTP
CSV
Webclient
Kunde
Agent / Techniker
Mobile, PDA
Http
REST
Http
SOAP

23. OpenShift Build Pipelines: Build -> Test -> Run! Folie 23

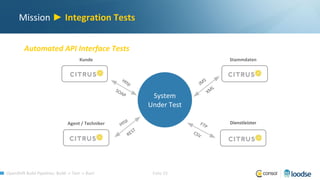

Mission ► Integration Tests
System
Under Test
Stammdaten
Dienstleister
JM
S
XM
L
FTP
CSV
Kunde
Agent / Techniker Http
REST
Http
SOAP
Automated API Interface Tests

24. OpenShift Build Pipelines: Build -> Test -> Run! Folie 24

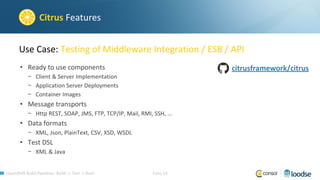

Use Case: Testing of Middleware Integration / ESB / API
Citrus Features
• Ready to use components
− Client & Server Implementation
− Application Server Deployments
− Container Images
• Message transports
− Http REST, SOAP, JMS, FTP, TCP/IP, Mail, RMI, SSH, ...
• Data formats
− XML, Json, PlainText, CSV, XSD, WSDL
• Test DSL
− XML & Java
citrusframework/citrus

25. OpenShift Build Pipelines: Build -> Test -> Run! Folie 25

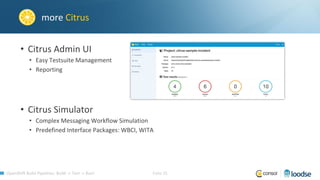

more Citrus
• Citrus Admin UI
• Easy Testsuite Management
• Reporting
• Citrus Simulator
• Complex Messaging Workflow Simulation
• Predefined Interface Packages: WBCI, WITA

26. OpenShift Build Pipelines: Build -> Test -> Run! Folie 26

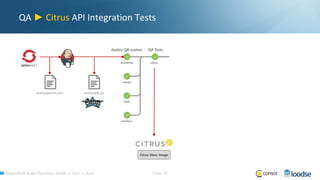

QA ► Citrus API Integration Tests
Citrus Slave Image
build.pipeline.yml Jenkinsfile.qa

27. DEMO
toschneck/openshift-example-bakery-ci-pipeline

28. E2E Testing

29. OpenShift Build Pipelines: Build -> Test -> Run! Folie 29

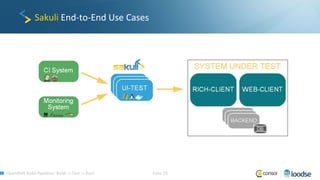

Sakuli End-to-End Use Cases

30. OpenShift Build Pipelines: Build -> Test -> Run! Folie 30
Motivation
• Founded February 2014 Open Source (Apache)
• Goals:
− Combine a web and screen-based testing in ONE tool
− Use test results in CI- and monitoring systems
− Platform independent: (Linux/Windows/MacOS)
• Application tests from a End User Perspective
− Functionality (business critical path)
− Performance (e2e loading time)

31. OpenShift Build Pipelines: Build -> Test -> Run! Folie 31
Component 1: Sahi / Selenium
Web testing tool (sahi.co.in, seleniumhq.org)
method based DOM access:
_assertContainsText ("Logged in as: Sakuli", _div("user_field"));
_click(_span("Loaded Run Tabels"));
_assertExists(_table("cross_table_fixed"));
_assertExists(_cell(“testing allowed", _rightOf(_span("Name")), _under(_cell("Action")));
<table>
<tbody>
<tr>
<td>Alice</td>
<td>Bob</td>
</tr>
</tbody>
</table>
Webserverlocalhost:9999
{js}

32. OpenShift Build Pipelines: Build -> Test -> Run! Folie 32

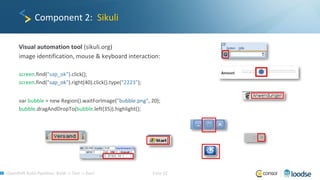

Component 2: Sikuli
Visual automation tool (sikuli.org)
image identification, mouse & keyboard interaction:
screen.find("sap_ok").click();
screen.find("sap_ok").right(40).click().type("2223");
var bubble = new Region().waitForImage("bubble.png", 20);
bubble.dragAndDropTo(bubble.left(35)).highlight();

33. OpenShift Build Pipelines: Build -> Test -> Run! Folie 33

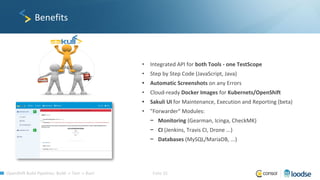

Benefits
• Integrated API for both Tools - one TestScope
• Step by Step Code (JavaScript, Java)
• Automatic Screenshots on any Errors
• Cloud-ready Docker Images for Kubernets/OpenShift
• Sakuli UI for Maintenance, Execution and Reporting (beta)
• "Forwarder" Modules:
− Monitoring (Gearman, Icinga, CheckMK)
− CI (Jenkins, Travis CI, Drone ...)
− Databases (MySQL/MariaDB, ...)

34. OpenShift Build Pipelines: Build -> Test -> Run! Folie 34

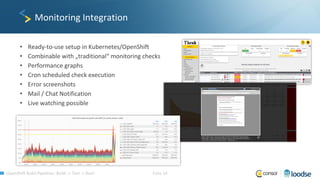

Monitoring Integration
• Ready-to-use setup in Kubernetes/OpenShift
• Combinable with „traditional“ monitoring checks
• Performance graphs
• Cron scheduled check execution
• Error screenshots
• Mail / Chat Notification
• Live watching possible

35. OpenShift Build Pipelines: Build -> Test -> Run! Folie 35

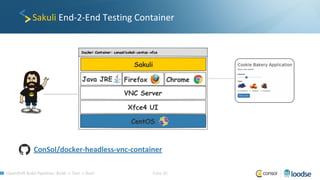

Sakuli End-2-End Testing Container
ConSol/docker-headless-vnc-container

36. OpenShift Build Pipelines: Build -> Test -> Run! Folie 36

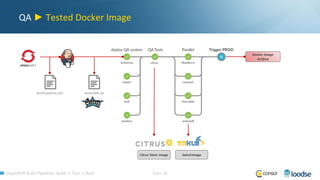

QA ► Tested Docker Image
Docker Image
Artifcat
Citrus Slave Image SakuliImage
build.pipeline.yml Jenkinsfile.qa

37. DEMO
toschneck/openshift-example-bakery-ci-pipeline

38. OpenShift Build Pipelines: Build -> Test -> Run! Folie 38

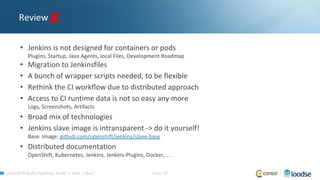

Review
• Jenkins is not designed for containers or pods
Plugins, Startup, Java Agents, local Files, Development Roadmap
• Migration to Jenkinsfiles
• A bunch of wrapper scripts needed, to be flexible
• Rethink the CI workflow due to distributed approach
• Access to CI runtime data is not so easy any more
Logs, Screenshots, Artifacts
• Broad mix of technologies
• Jenkins slave image is intransparent -> do it yourself!
Base image: github.com/openshift/jenkins/slave-base
• Distributed documentation
OpenShift, Kubernetes, Jenkins, Jenkins-Plugins, Docker, …

39. OpenShift Build Pipelines: Build -> Test -> Run! Folie 39

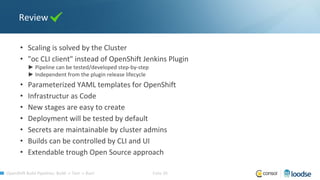

Review
• Scaling is solved by the Cluster
• "oc CLI client" instead of OpenShift Jenkins Plugin
► Pipeline can be tested/developed step-by-step
► Independent from the plugin release lifecycle
• Parameterized YAML templates for OpenShift
• Infrastructur as Code
• New stages are easy to create
• Deployment will be tested by default
• Secrets are maintainable by cluster admins
• Builds can be controlled by CLI and UI
• Extendable trough Open Source approach

40. OpenShift Build Pipelines: Build -> Test -> Run! Folie 40
Alternative Approaches
hasura/gitkube
⇨ Gitkube
• “git push” based Workflow on remote Git
• Simple: combination of bash scripts
⇨ Skaffold:
• Simple scripted CI/CD Workflow
• 2 Stages: Local & Remote
⇨ JenkinsX
• Predefined workflow for CI/CD in Kubernetes
• NO new Jenkins -> just a Wrapper
• GitHub only (currently)
⇨ DroneCI / KubeCI
• Container first and easy understandable concept
• Local execution
• Layered build concept for Pods (in Development)
GoogleContainerTools/skaffold
kubeciiodrone/drone
jenkins-x/jx

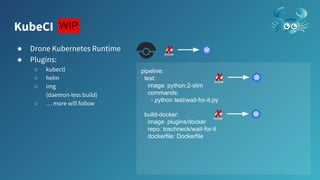

41. KubeCI
● Drone Kubernetes Runtime
● Plugins:
○ kubectl
○ helm
○ img
(daemon-less build)
○ … more will follow
pipeline:
test:
image: python:2-slim
commands:
- python test/wait-for-it.py
build-docker:
image: plugins/docker
repo: toschneck/wait-for-it
dockerfile: Dockerfile
WIP

42. OpenShift Build Pipelines: Build -> Test -> Run! Folie 42
Links
toschneck/openshift-example-bakery-ci-pipeline
citrusframework/citrus www.citrusframework.org
ConSol/sakuli www.sakuli.org
@toschneck
@citrus_test
@sakuli_e2e
