1. OpenShift-Build-Pipelines
Build ► Test ► Run!
Tobias Schneck
Software Engineer @ Loodse GmbH
Testautomatisierung @ ConSol Software GmbH (bis Juli 18)

2. +

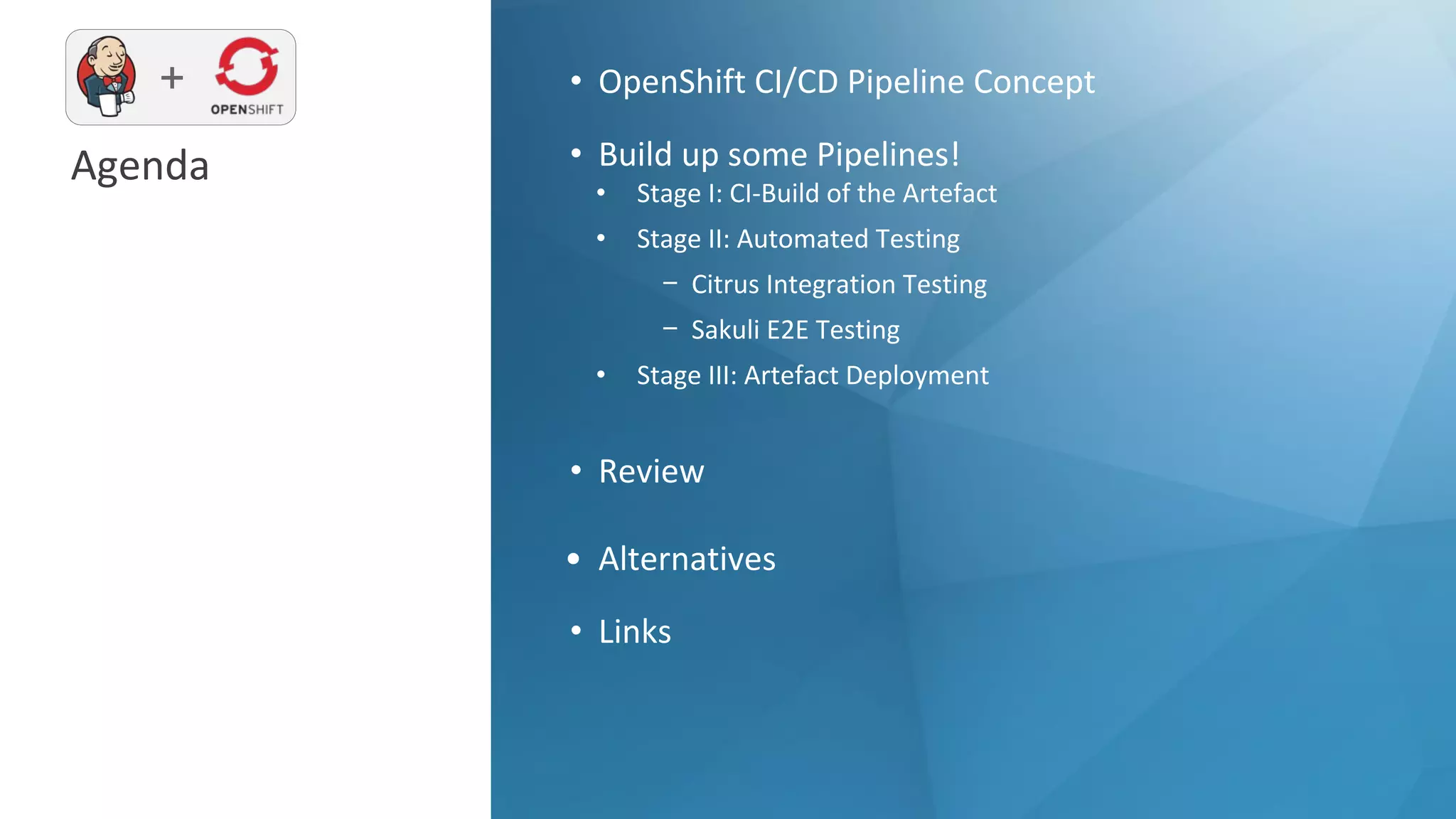

Agenda
• OpenShift CI/CD Pipeline Concept
• Build up some Pipelines!
• Stage I: CI-Build of the Artefact
• Stage II: Automated Testing
− Citrus Integration Testing
− Sakuli E2E Testing
• Stage III: Artefact Deployment
• Review
• Alternatives
• Links

3. OpenShift CI/CD Pipeline Concept

4. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 4

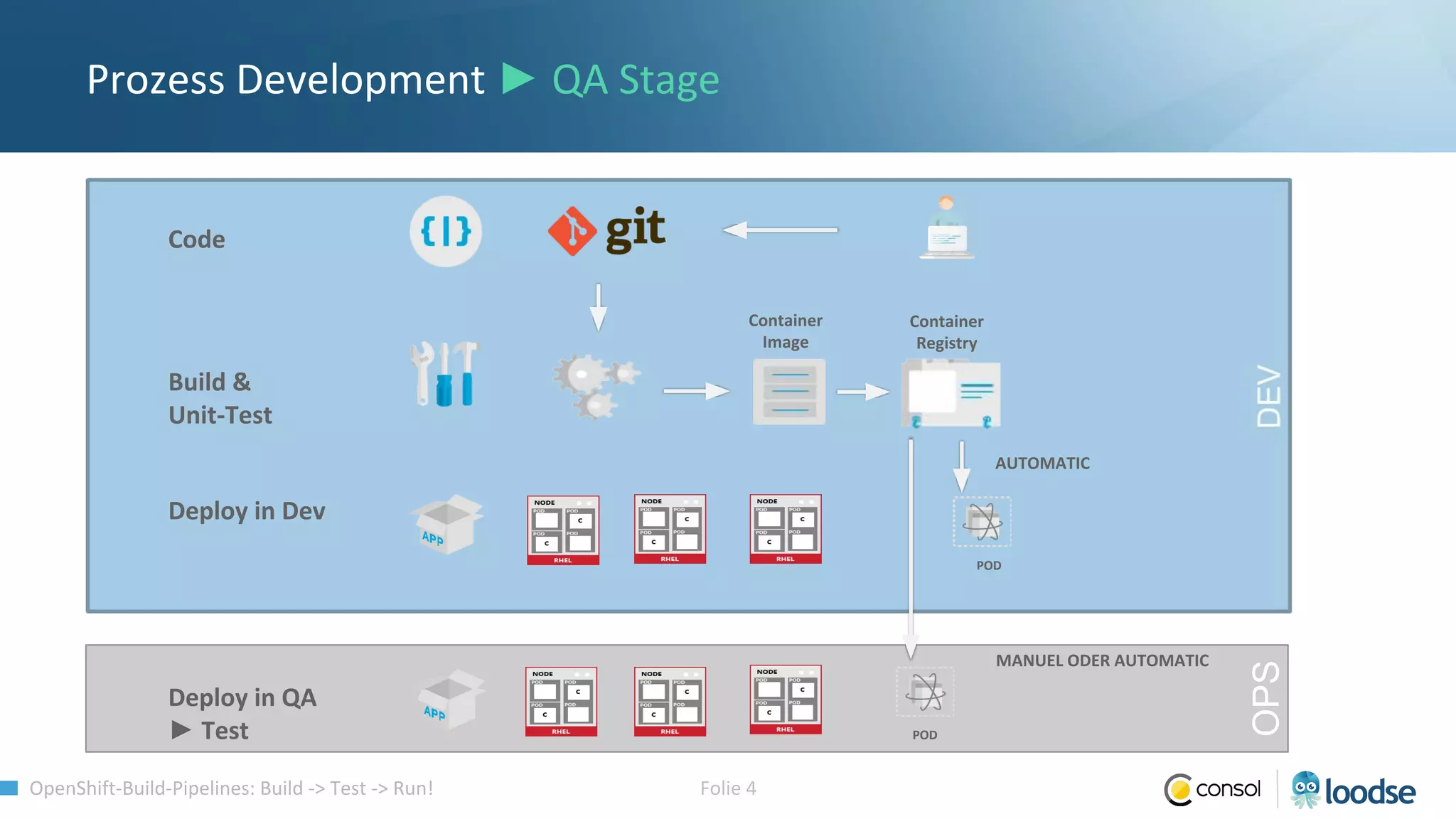

Prozess Development ► QA Stage
OPS
Code
Build &
Unit-Test
Deploy in Dev
Container
Container
Registry
POD
AUTOMATIC
MANUEL ODER AUTOMATIC
POD
Deploy in QA
► Test

5. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 5

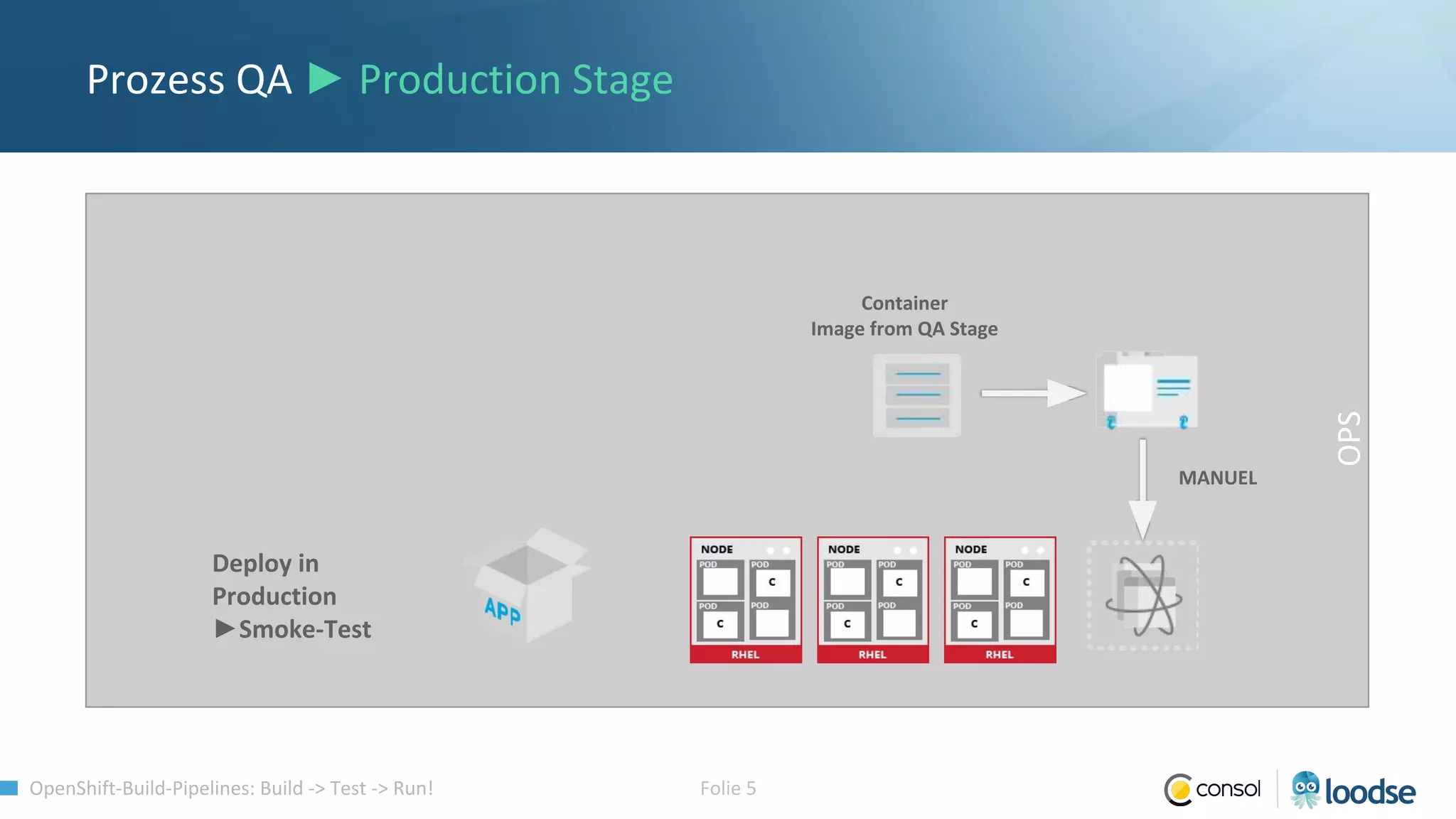

Prozess QA ► Production Stage
OPS
Deploy in
Production
►Smoke-Test
Container
Image from QA Stage
MANUEL

6. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 6

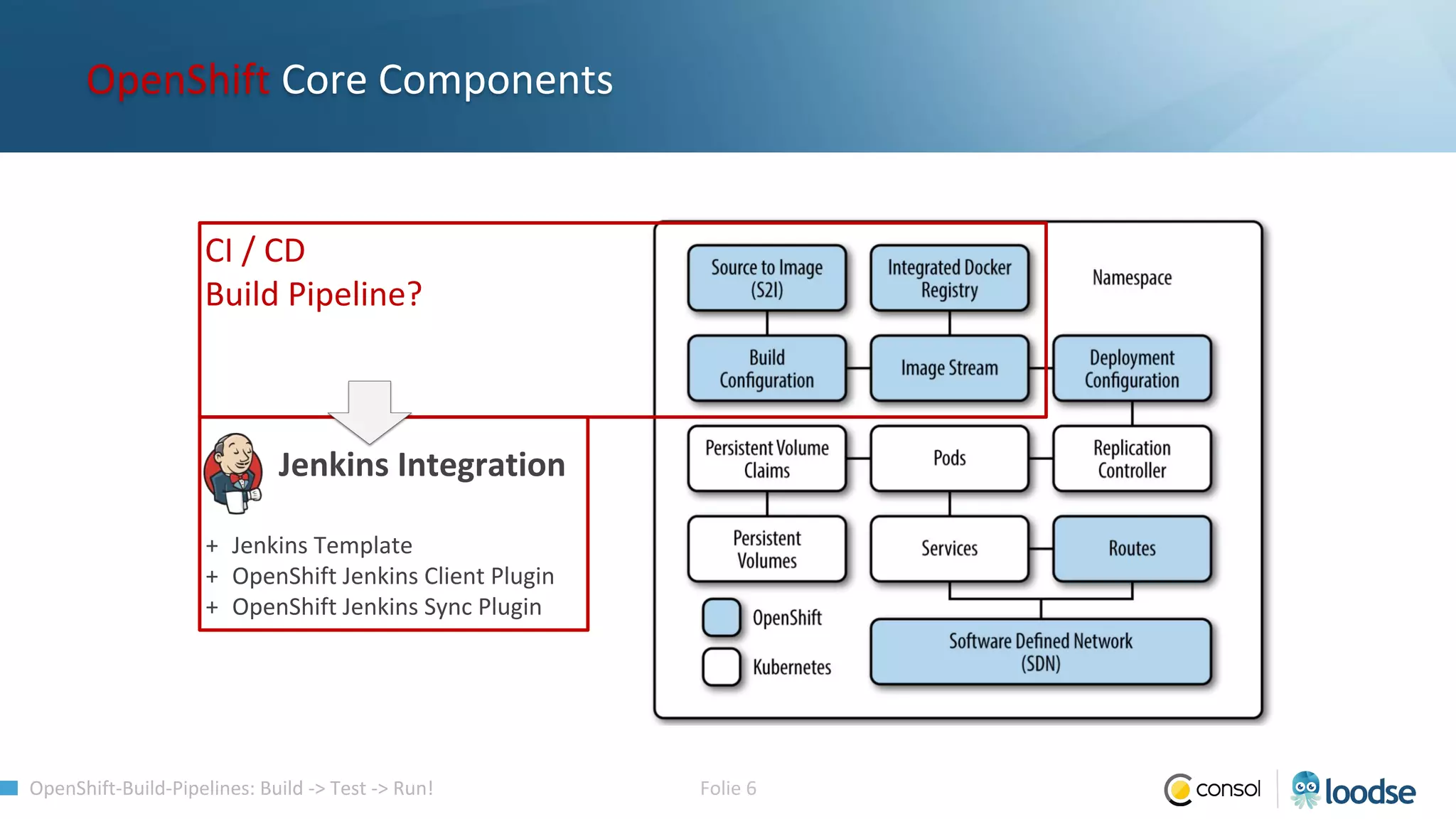

OpenShift Core Components
CI / CD
Build Pipeline?
Jenkins Integration
+ Jenkins Template
+ OpenShift Jenkins Client Plugin
+ OpenShift Jenkins Sync Plugin

7. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 7

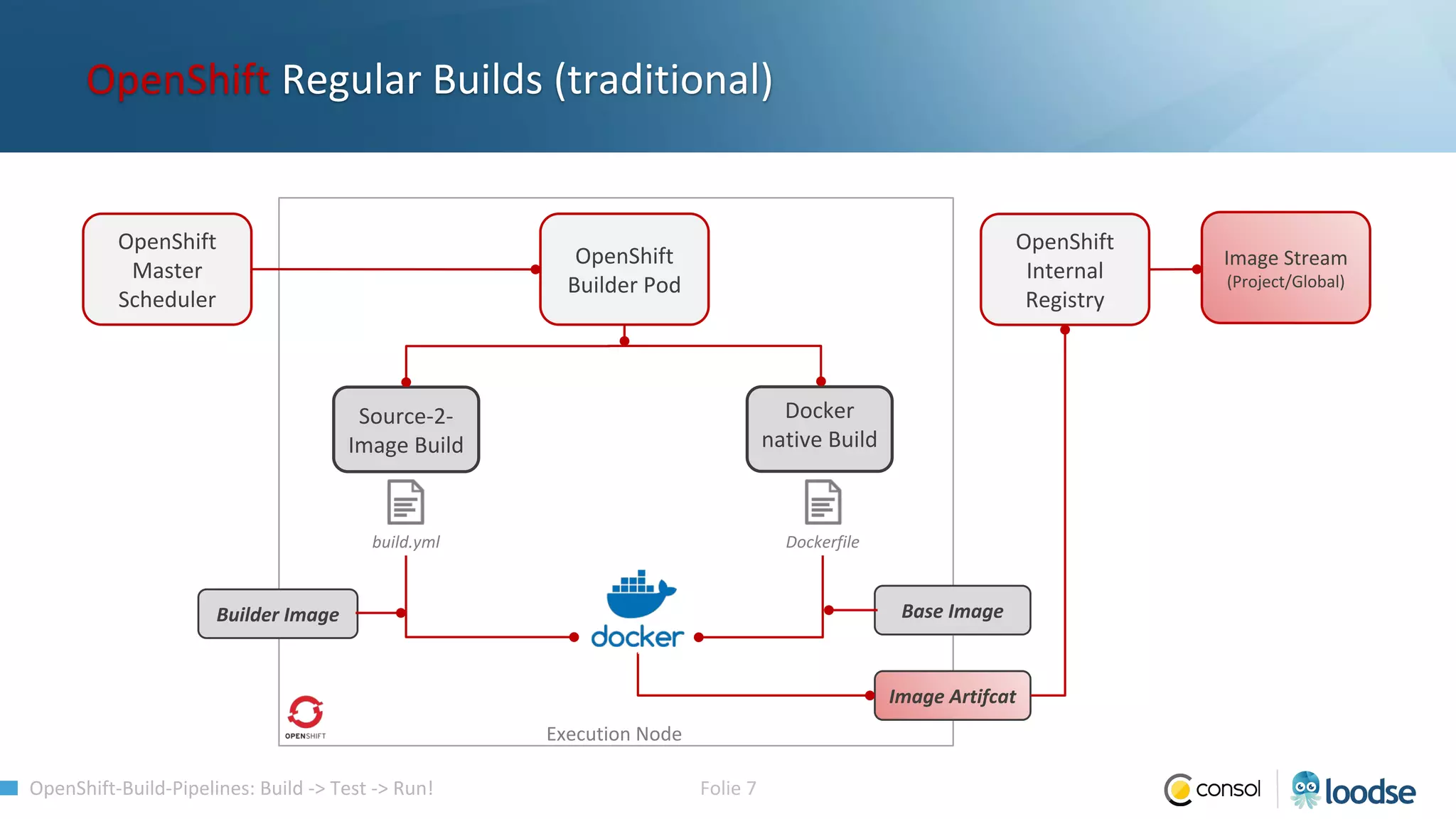

OpenShift Regular Builds (traditional)
Execution Node
OpenShift
Builder Pod
OpenShift
Master
Scheduler
OpenShift
Internal
Registry
Image Stream
(Project/Global)
Source-2-
Image Build
Docker
native Build
build.yml Dockerfile
Image Artifcat
Builder Image Base Image

8. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 8

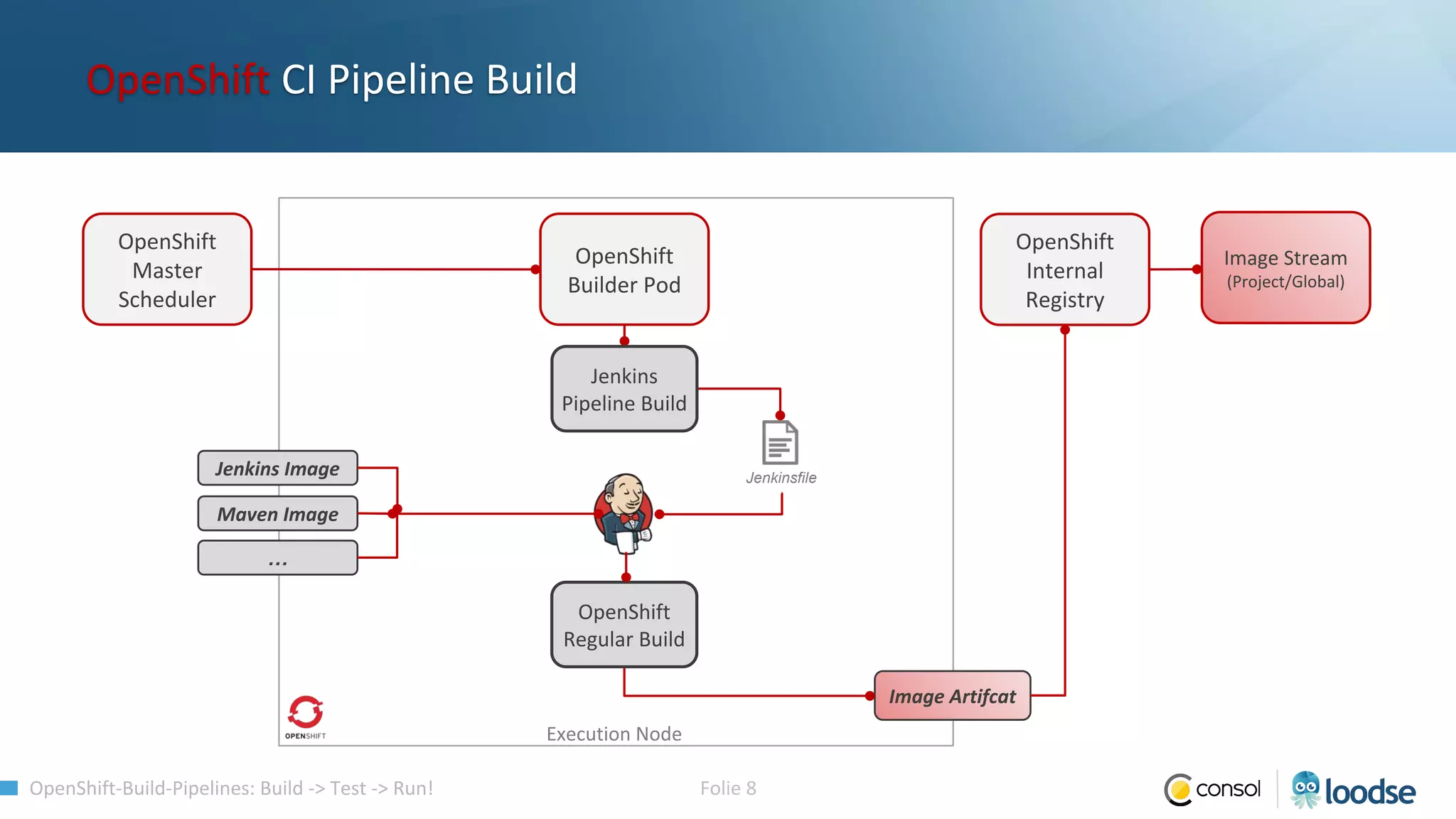

OpenShift CI Pipeline Build
Execution Node
OpenShift
Builder Pod
OpenShift
Master
Scheduler
OpenShift
Internal
Registry
Image Stream
(Project/Global)
Image Artifcat
Jenkins Image
Maven Image
…
Jenkinsfile
Jenkins
Pipeline Build
OpenShift
Regular Build

9. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 9

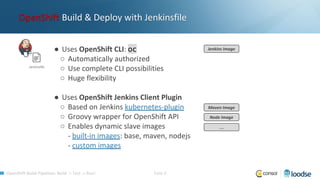

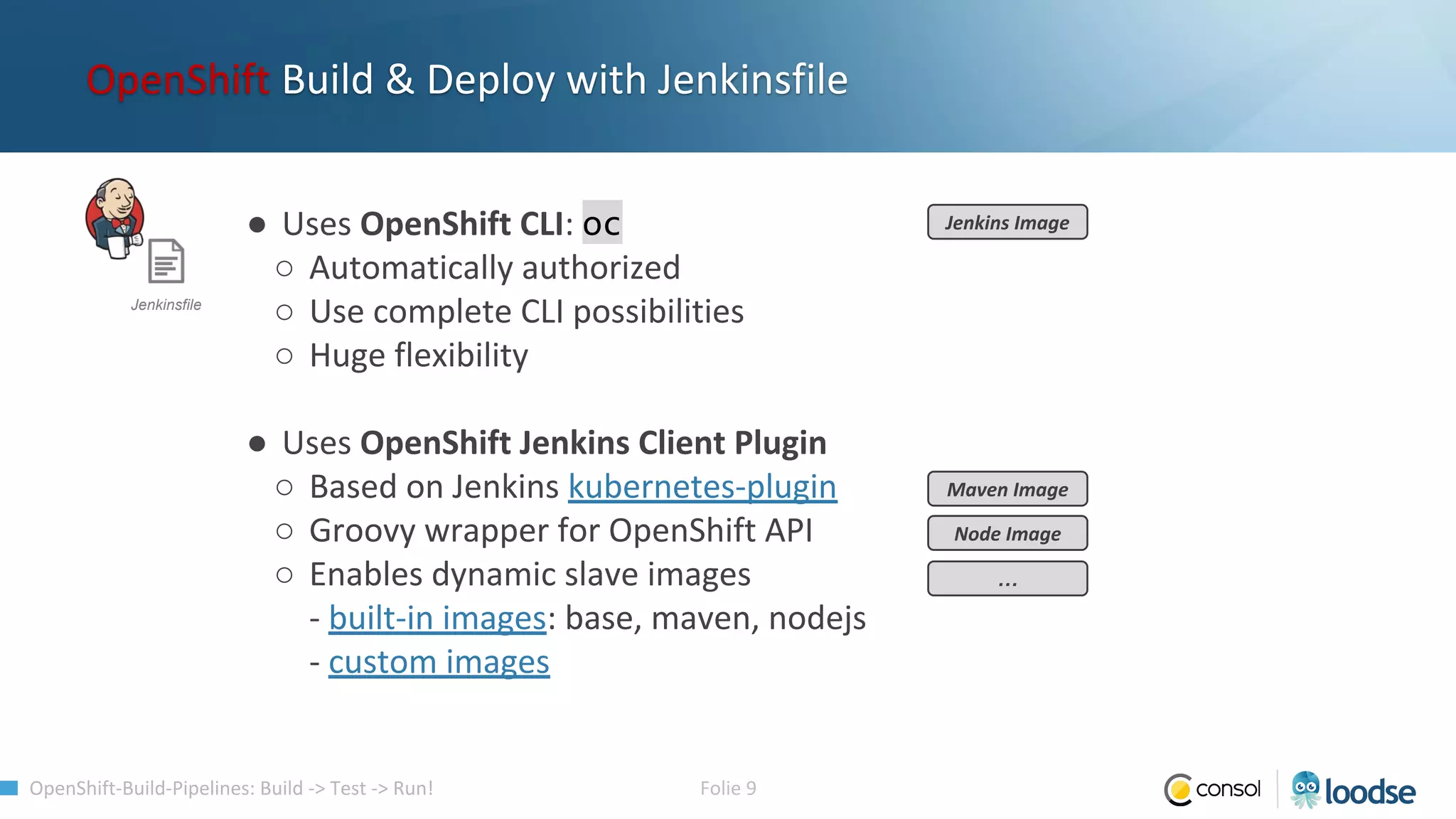

● Uses OpenShift CLI: oc
○ Automatically authorized
○ Use complete CLI possibilities
○ Huge flexibility
● Uses OpenShift Jenkins Client Plugin
○ Based on Jenkins kubernetes-plugin
○ Groovy wrapper for OpenShift API
○ Enables dynamic slave images
- built-in images: base, maven, nodejs
- custom images
OpenShift Build & Deploy with Jenkinsfile
Jenkins Image
Jenkinsfile
Maven Image
Node Image
…

10. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 10

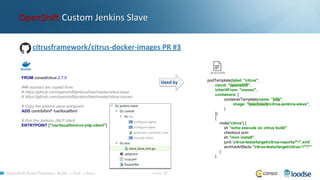

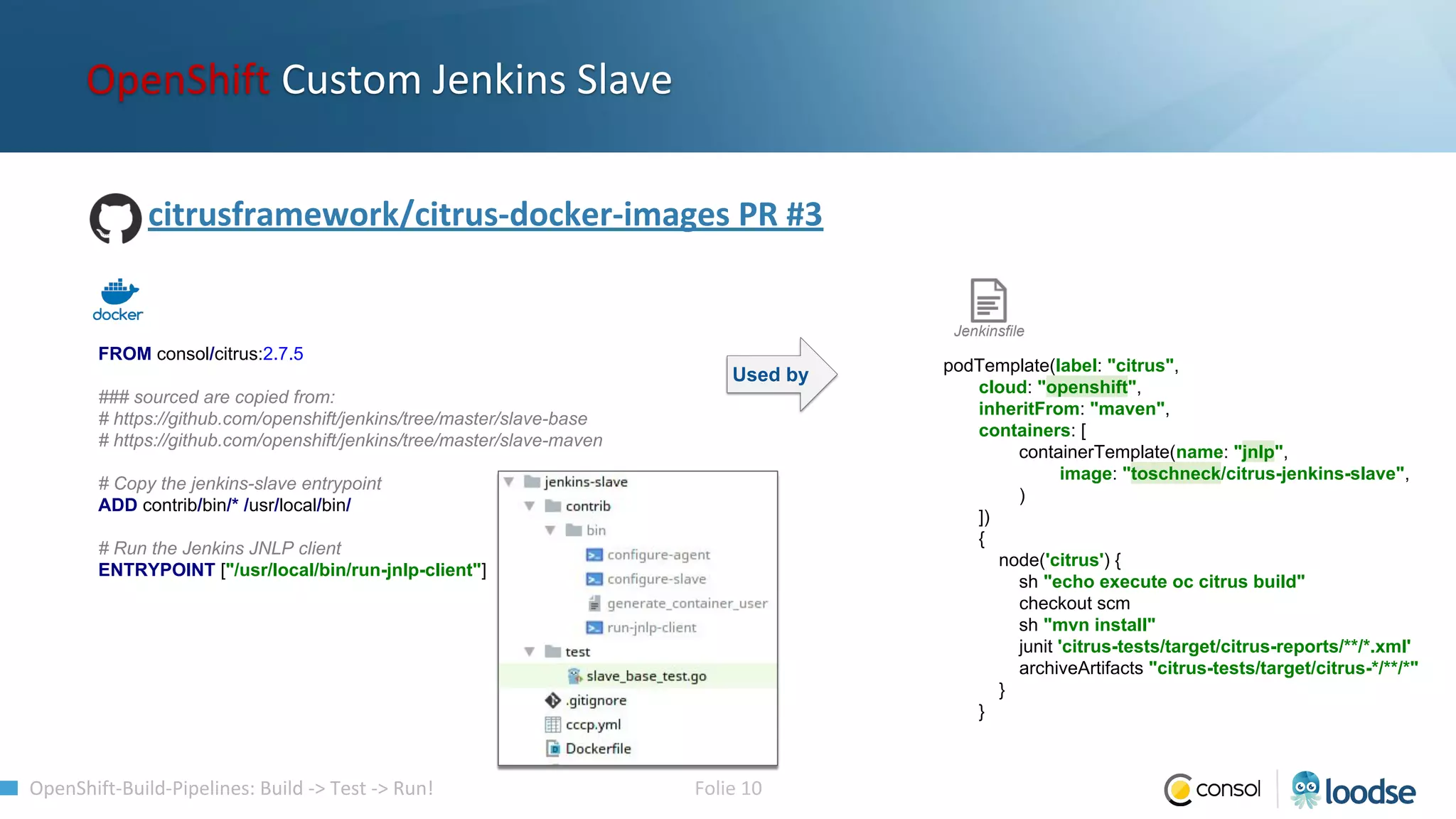

OpenShift Custom Jenkins Slave
Jenkinsfile
podTemplate(label: "citrus",
cloud: "openshift",
inheritFrom: "maven",
containers: [
containerTemplate(name: "jnlp",
image: "toschneck/citrus-jenkins-slave",
)
])
{
node('citrus') {
sh "echo execute oc citrus build"
checkout scm
sh "mvn install"
junit 'citrus-tests/target/citrus-reports/**/*.xml'
archiveArtifacts "citrus-tests/target/citrus-*/**/*"
}
}
Used by
citrusframework/citrus-docker-images PR #3
FROM consol/citrus:2.7.5
### sourced are copied from:
# https://github.com/openshift/jenkins/tree/master/slave-base
# https://github.com/openshift/jenkins/tree/master/slave-maven
# Copy the jenkins-slave entrypoint
ADD contrib/bin/* /usr/local/bin/
# Run the Jenkins JNLP client
ENTRYPOINT ["/usr/local/bin/run-jnlp-client"]

11. Build up a Build Pipeline!

12. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 12

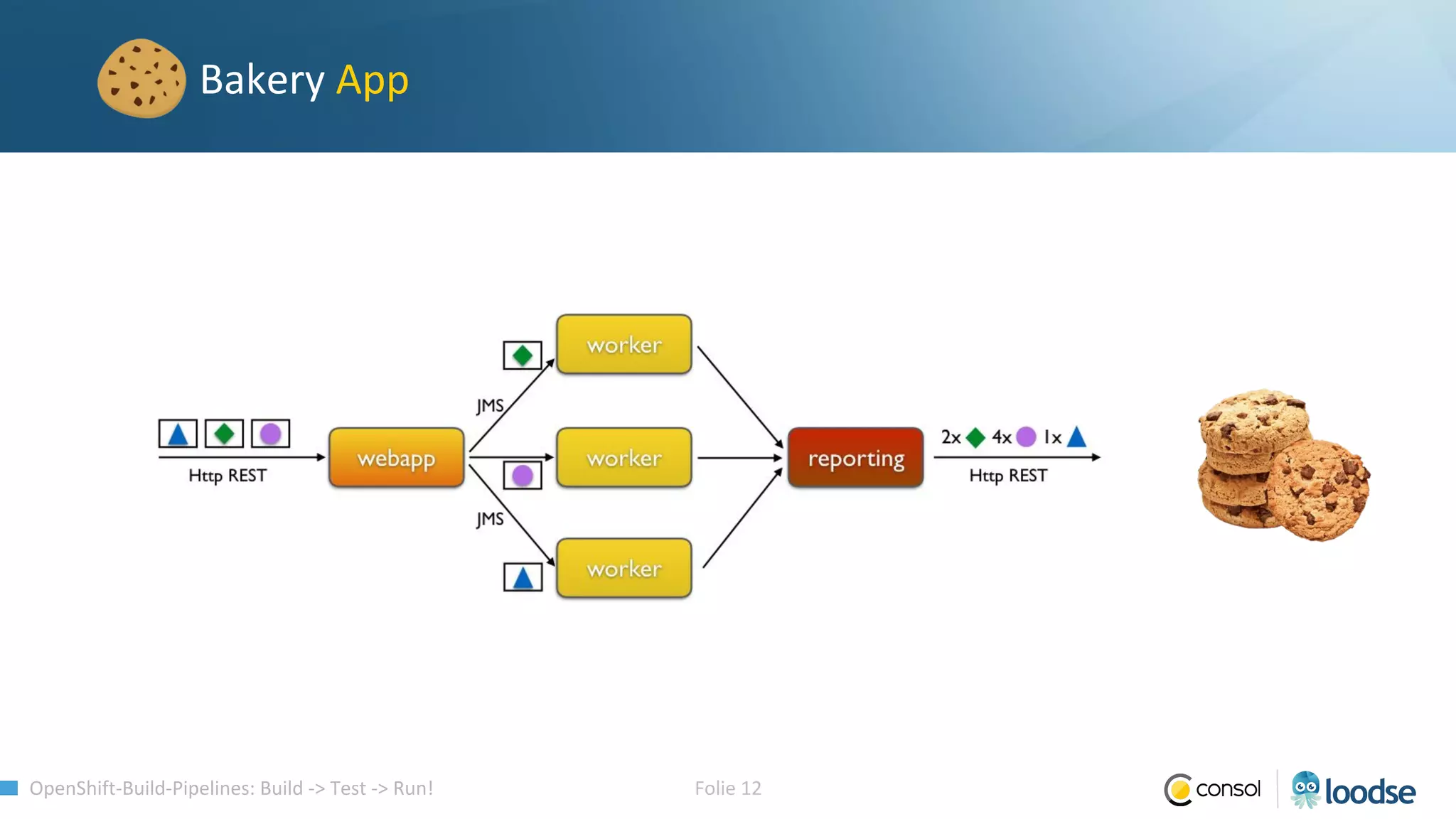

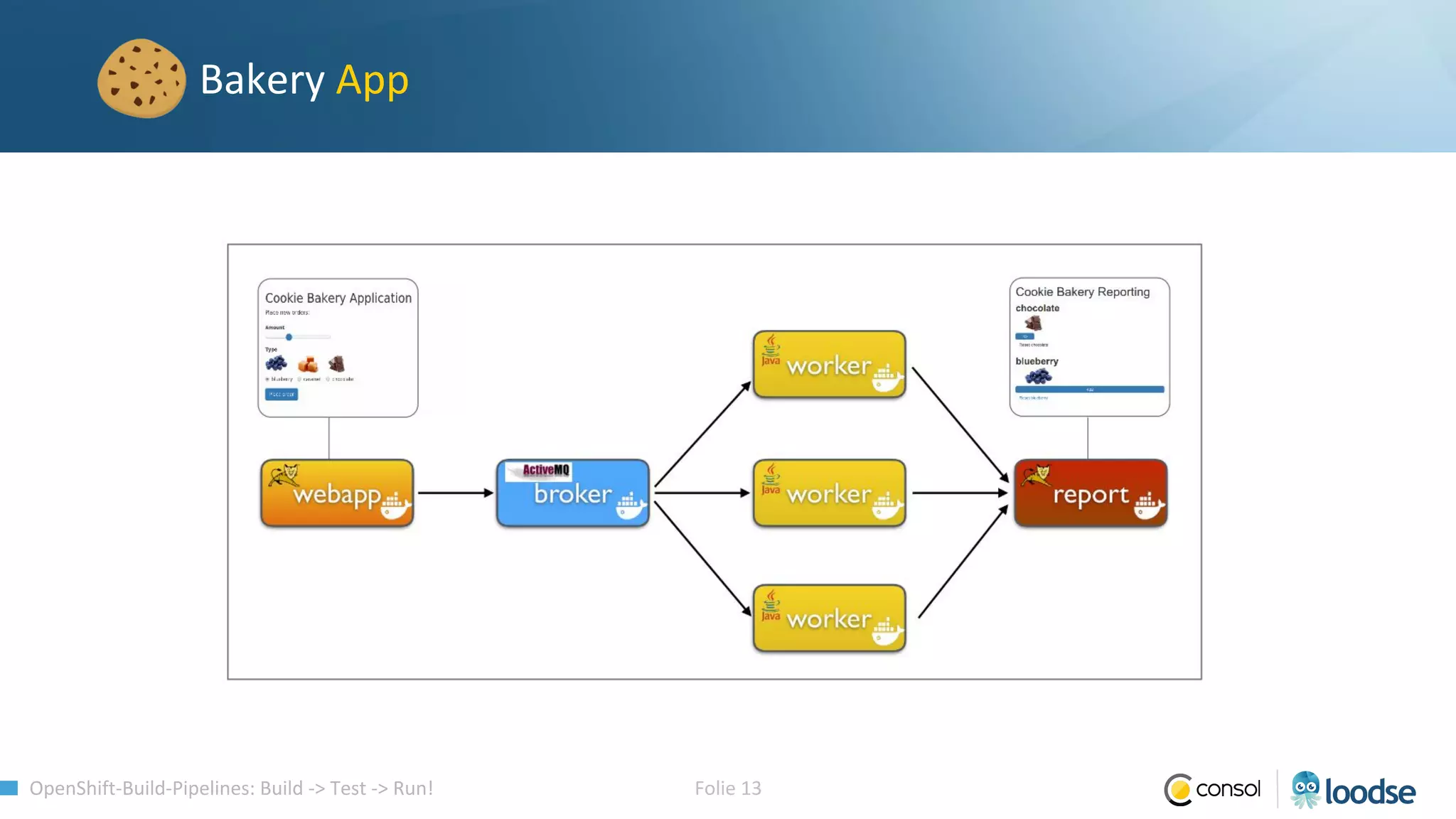

Bakery App

13. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 13
Bakery App

14. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 14

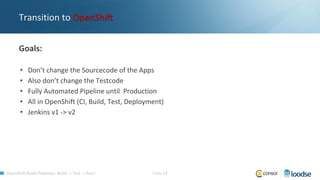

Transition to OpenShift

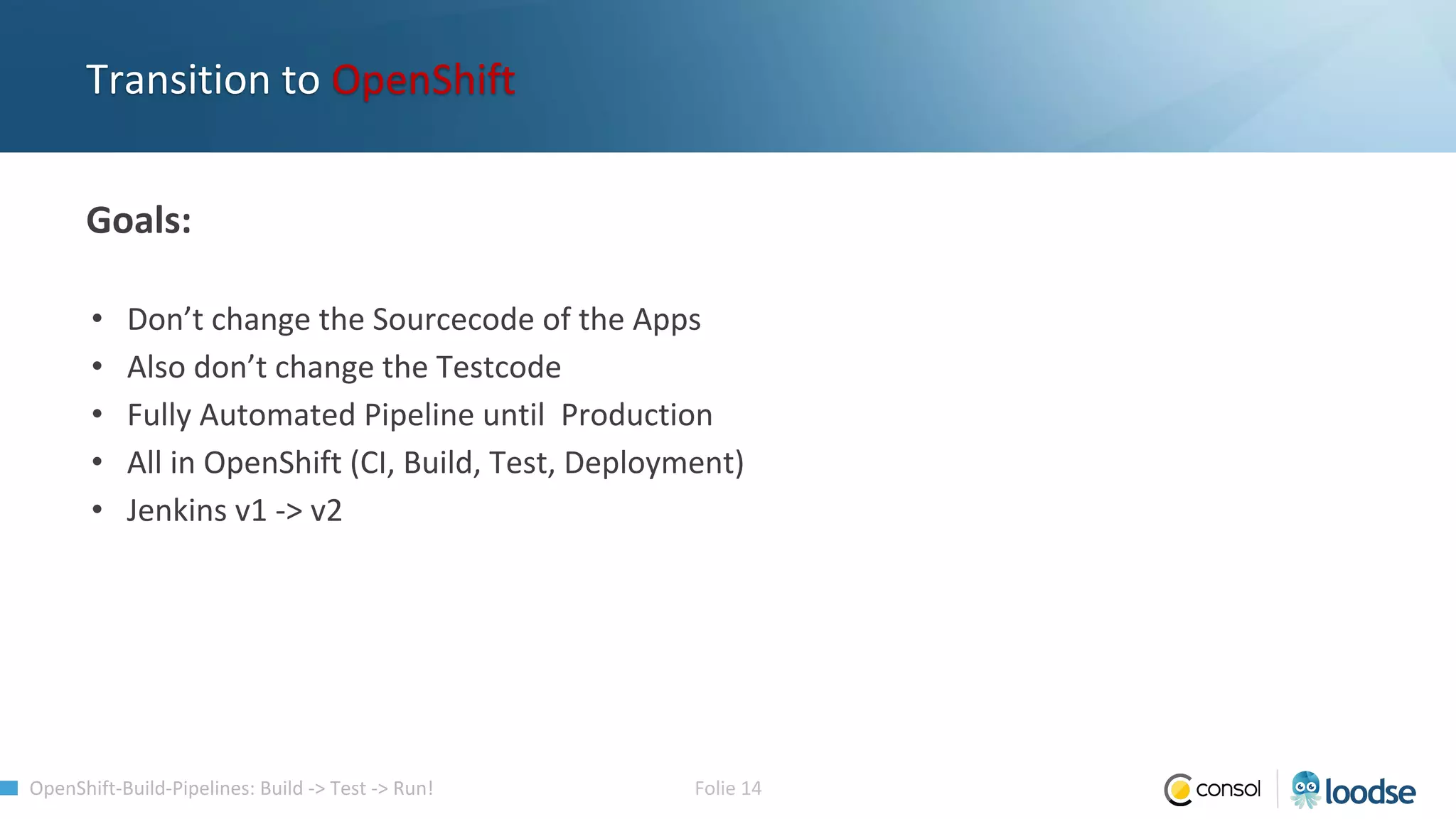

Goals:
• Don’t change the Sourcecode of the Apps
• Also don’t change the Testcode
• Fully Automated Pipeline until Production
• All in OpenShift (CI, Build, Test, Deployment)
• Jenkins v1 -> v2

15. Stage I: CI-Build of the Artefact

16. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 16

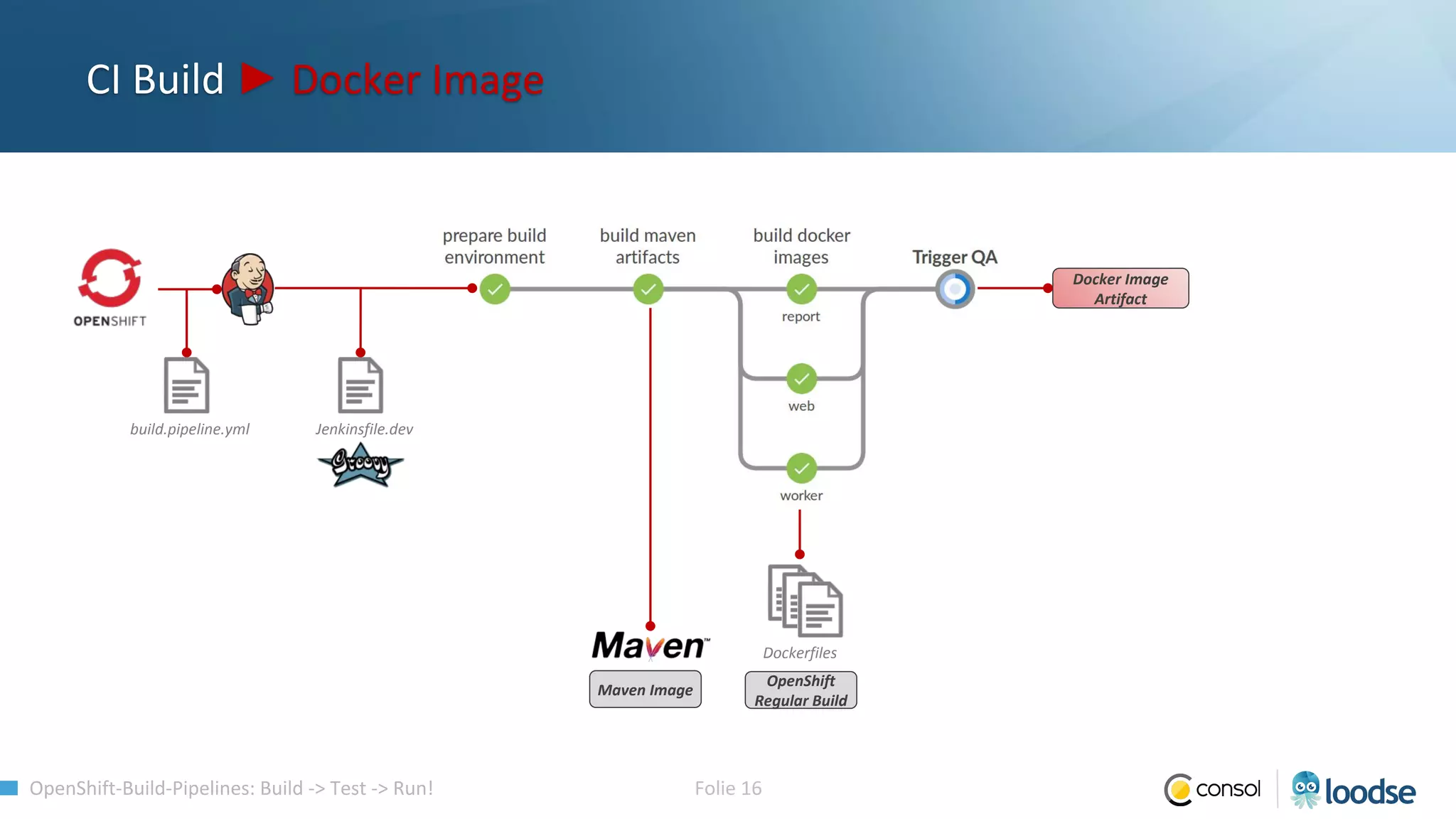

CI Build ► Docker Image
build.pipeline.yml Jenkinsfile.dev
Maven Image
Dockerfiles
OpenShift
Regular Build
Docker Image
Artifact

17. DEMO
toschneck/openshift-example-bakery-ci-pipeline

18. Stage II: Automated Testing

19. Citrus Integration Testing

20. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 20

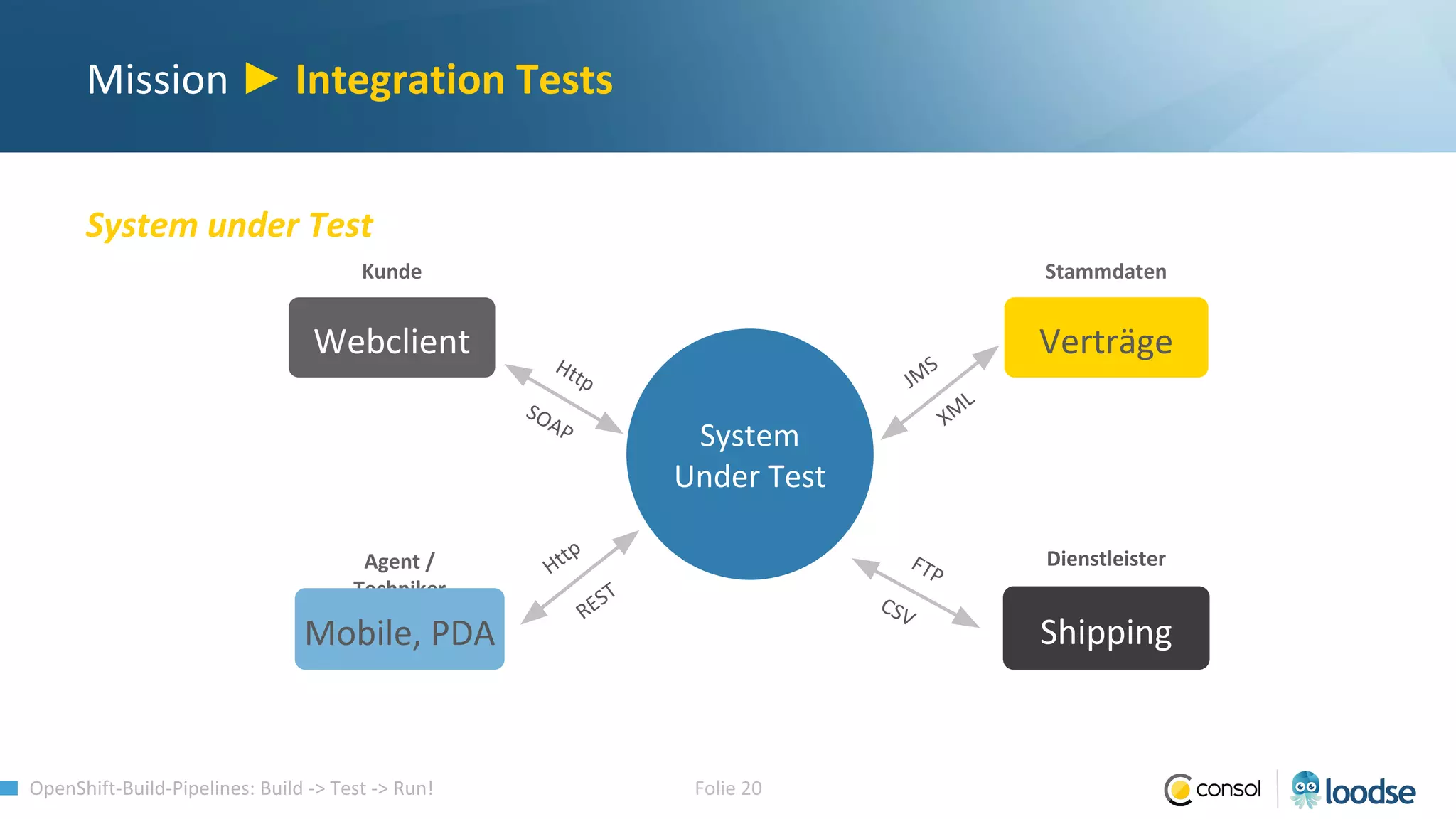

Mission ► Integration Tests
System under Test
System
Under Test
Verträge
Stammdaten
Dienstleister
Shipping
JM
S
XM
L
FTP
CSV
Webclient
Kunde
Agent /
Techniker
Mobile, PDA
Http
REST
Http
SOAP

21. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 21

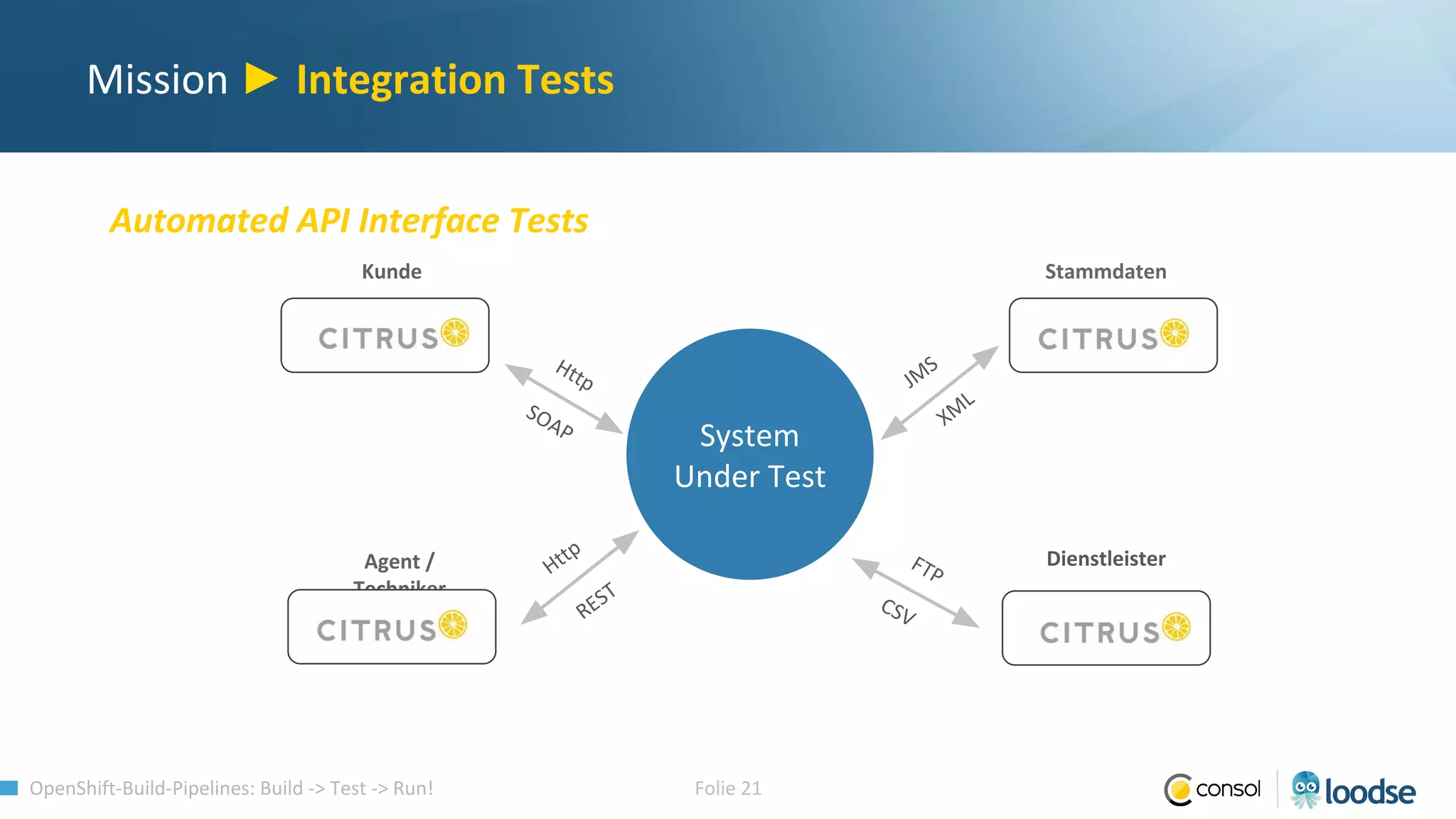

Mission ► Integration Tests
System
Under Test
Stammdaten
Dienstleister
JM
S
XM
L
FTP
CSV
Kunde
Agent /
Techniker
Http
REST
Http
SOAP
Automated API Interface Tests

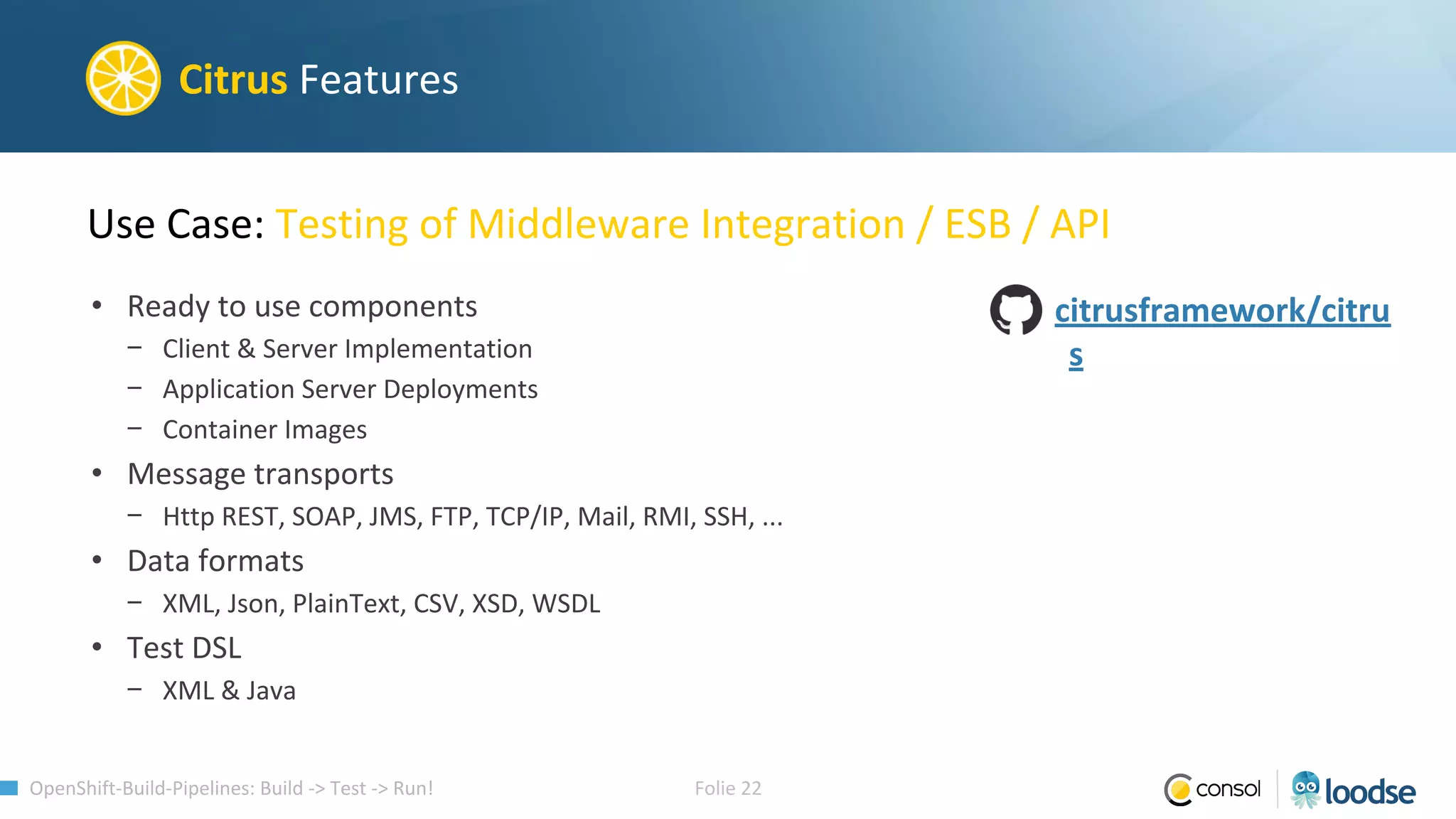

22. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 22

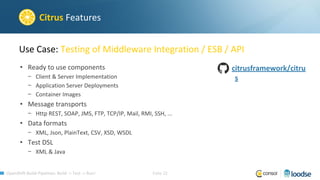

Use Case: Testing of Middleware Integration / ESB / API
Citrus Features
• Ready to use components
− Client & Server Implementation
− Application Server Deployments
− Container Images
• Message transports
− Http REST, SOAP, JMS, FTP, TCP/IP, Mail, RMI, SSH, ...
• Data formats
− XML, Json, PlainText, CSV, XSD, WSDL
• Test DSL
− XML & Java
citrusframework/citru
s

23. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 23

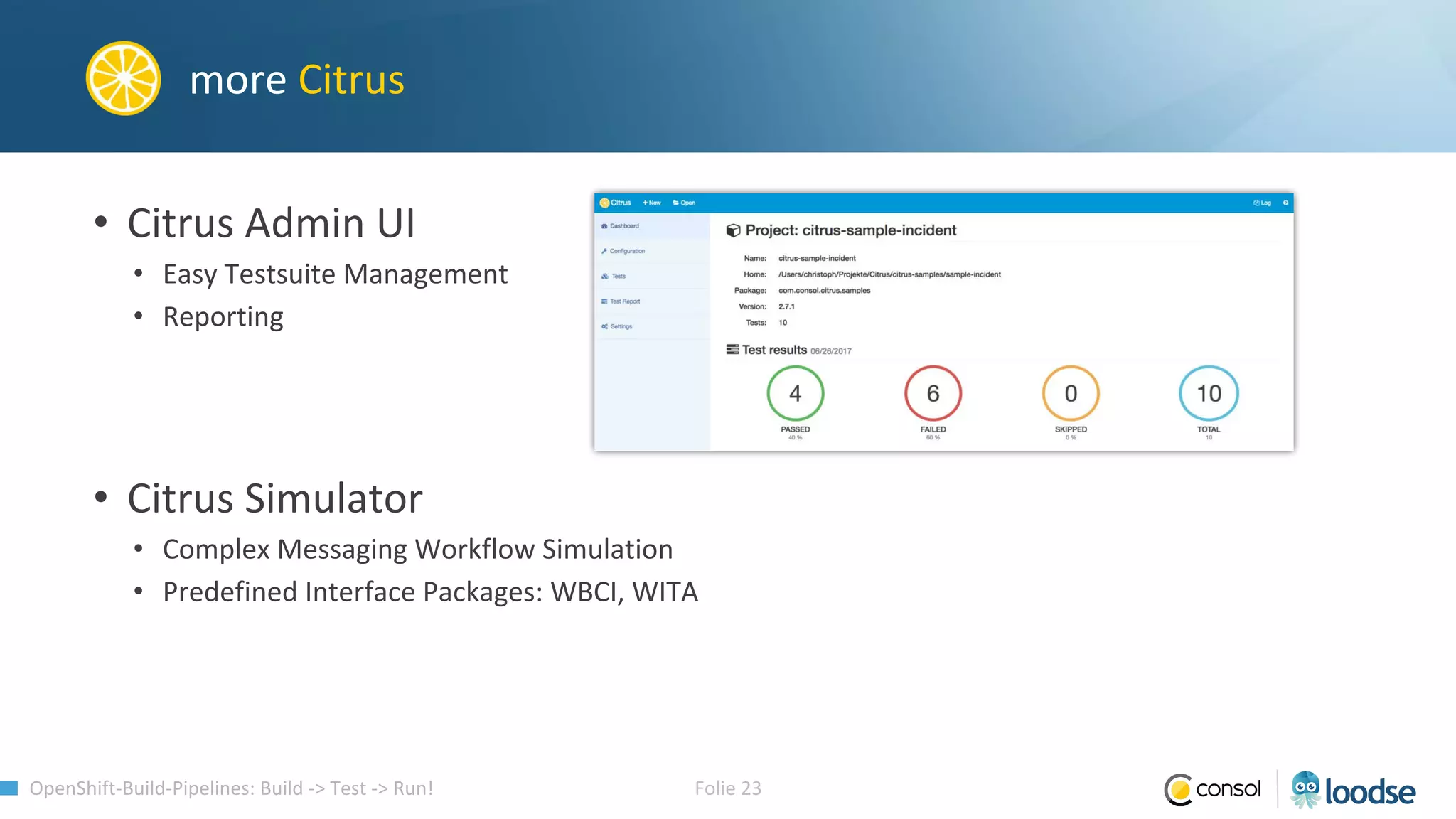

more Citrus
• Citrus Admin UI
• Easy Testsuite Management
• Reporting
• Citrus Simulator
• Complex Messaging Workflow Simulation
• Predefined Interface Packages: WBCI, WITA

24. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 24

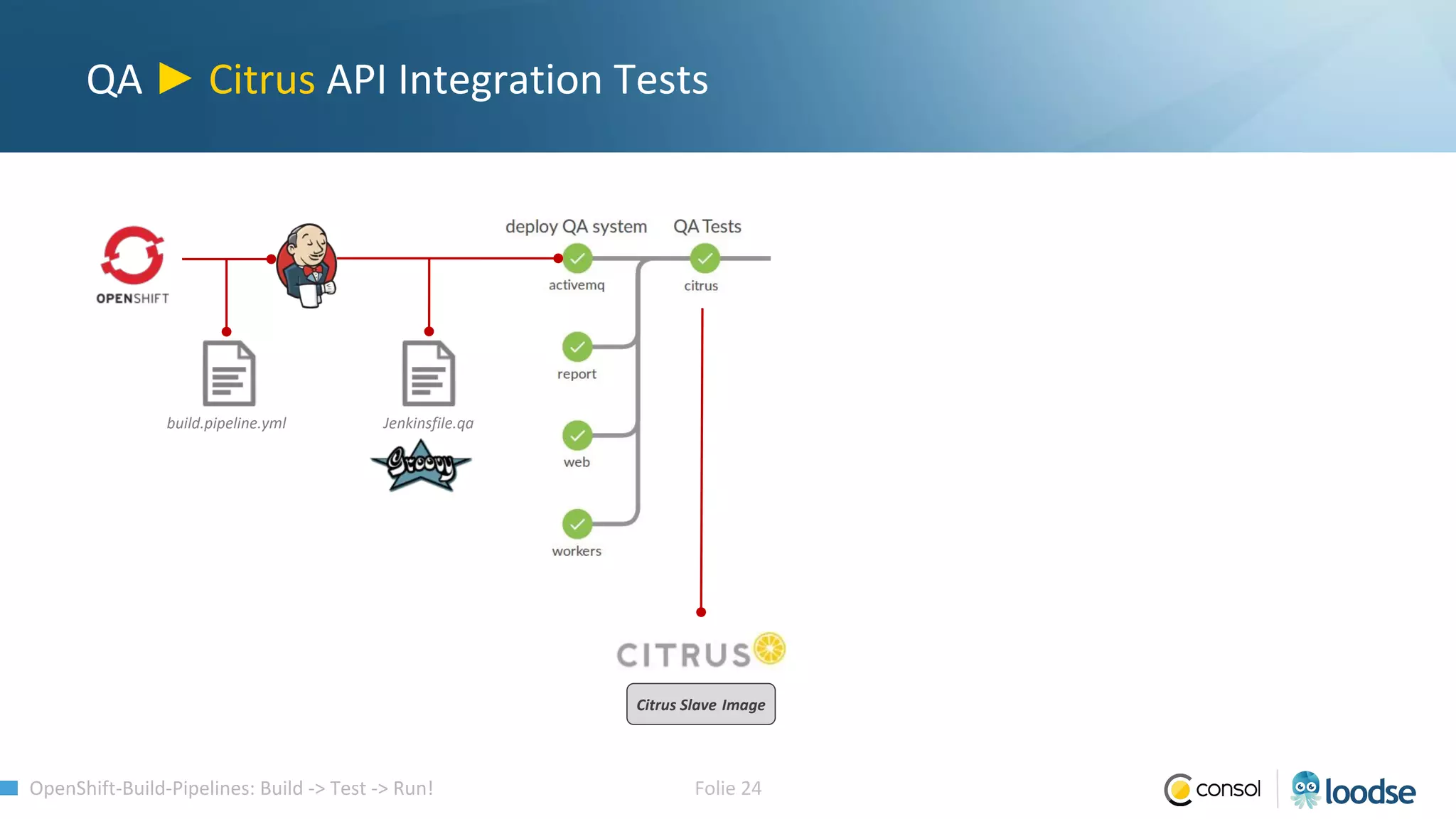

QA ► Citrus API Integration Tests
Citrus Slave Image
build.pipeline.yml Jenkinsfile.qa

25. DEMO
toschneck/openshift-example-bakery-ci-pipeline

26. E2E Testing

27. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 27

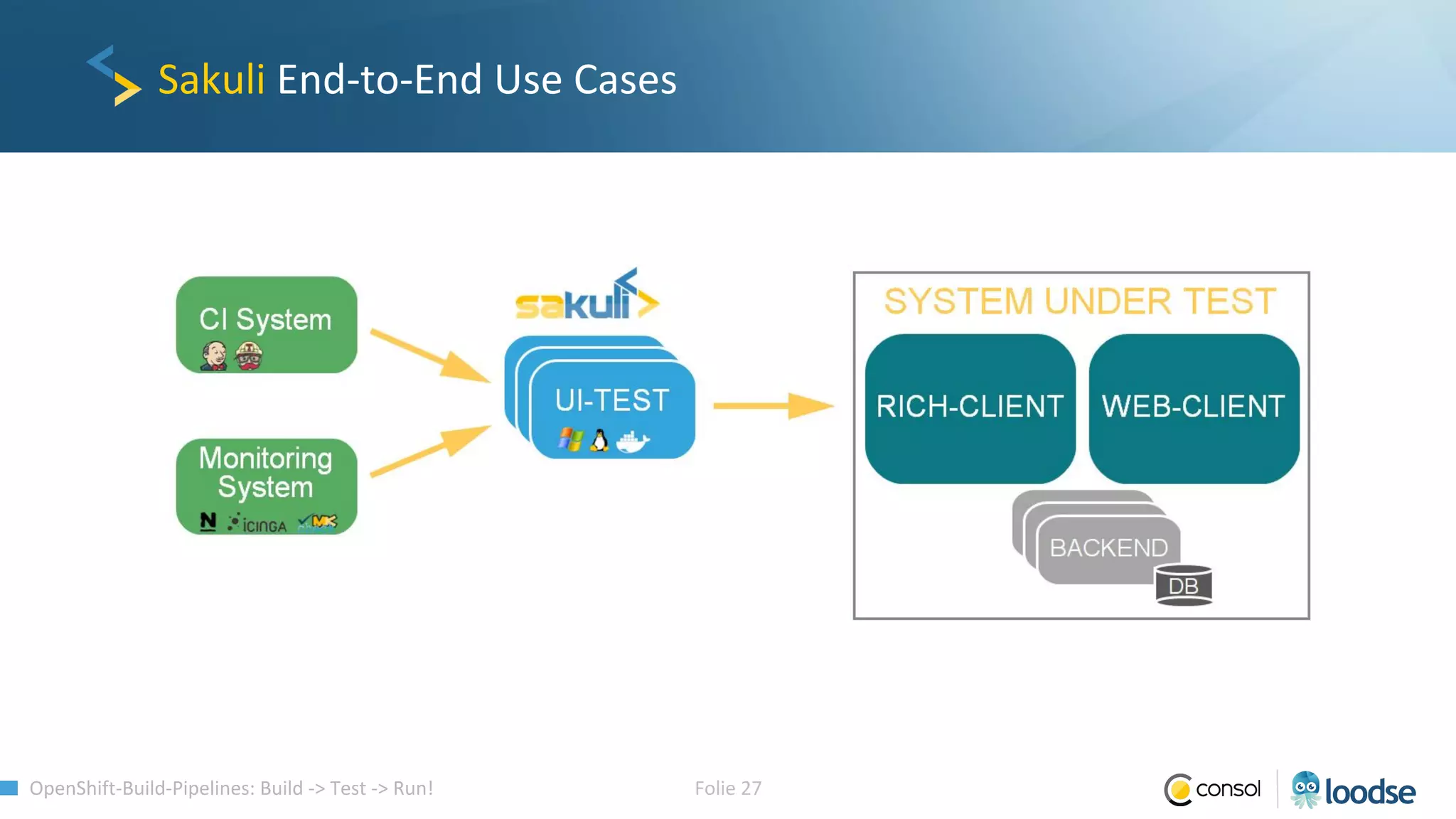

Sakuli End-to-End Use Cases

28. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 28

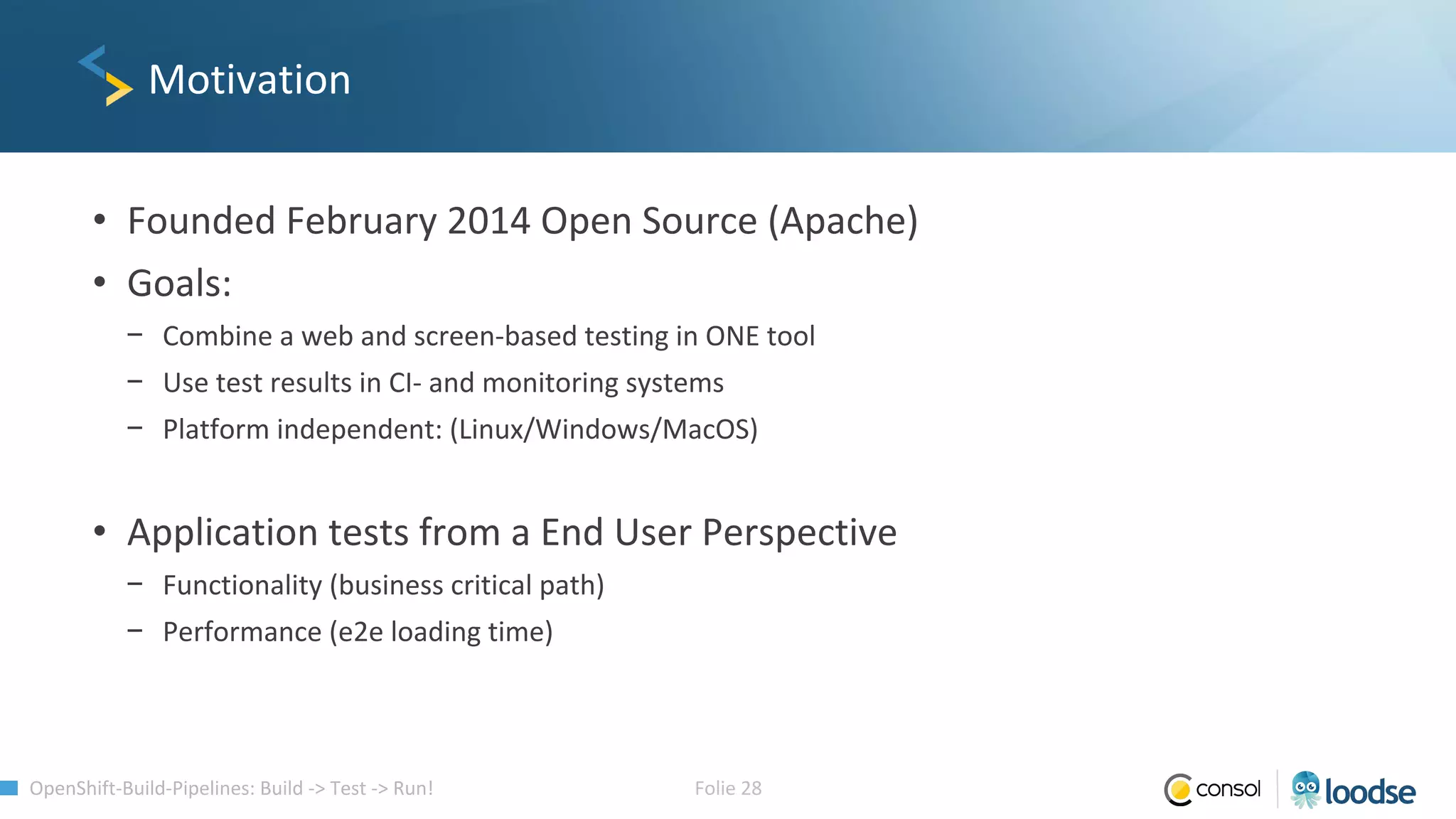

Motivation
• Founded February 2014 Open Source (Apache)
• Goals:
− Combine a web and screen-based testing in ONE tool
− Use test results in CI- and monitoring systems
− Platform independent: (Linux/Windows/MacOS)
• Application tests from a End User Perspective
− Functionality (business critical path)
− Performance (e2e loading time)

29. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 29

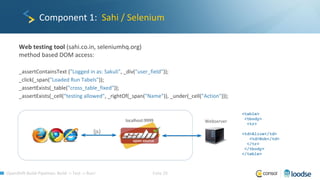

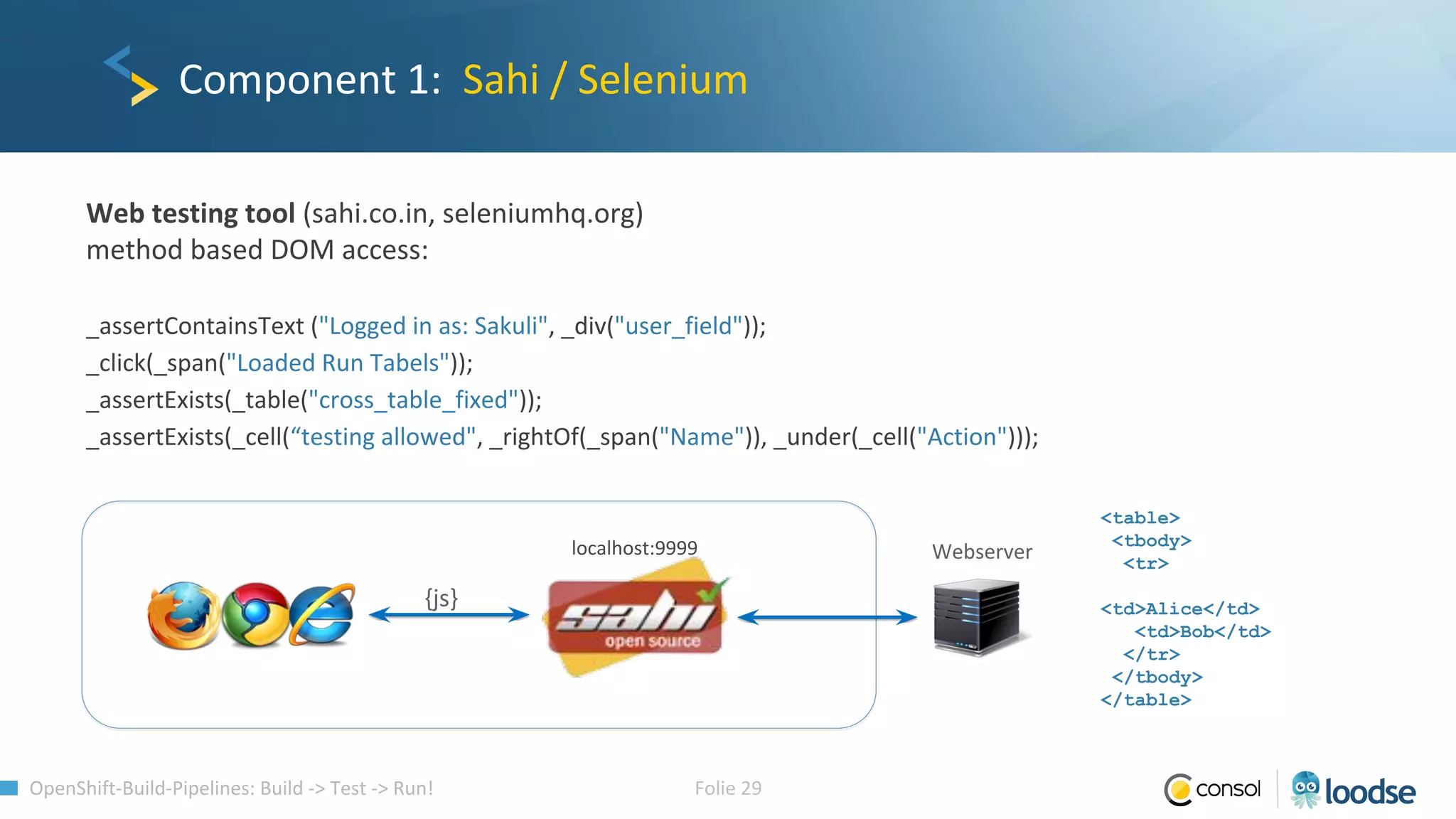

Component 1: Sahi / Selenium
Web testing tool (sahi.co.in, seleniumhq.org)
method based DOM access:
_assertContainsText ("Logged in as: Sakuli", _div("user_field"));
_click(_span("Loaded Run Tabels"));
_assertExists(_table("cross_table_fixed"));
_assertExists(_cell(“testing allowed", _rightOf(_span("Name")), _under(_cell("Action")));
<table>
<tbody>
<tr>
<td>Alice</td>
<td>Bob</td>
</tr>
</tbody>
</table>
Webserverlocalhost:9999
{js}

30. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 30

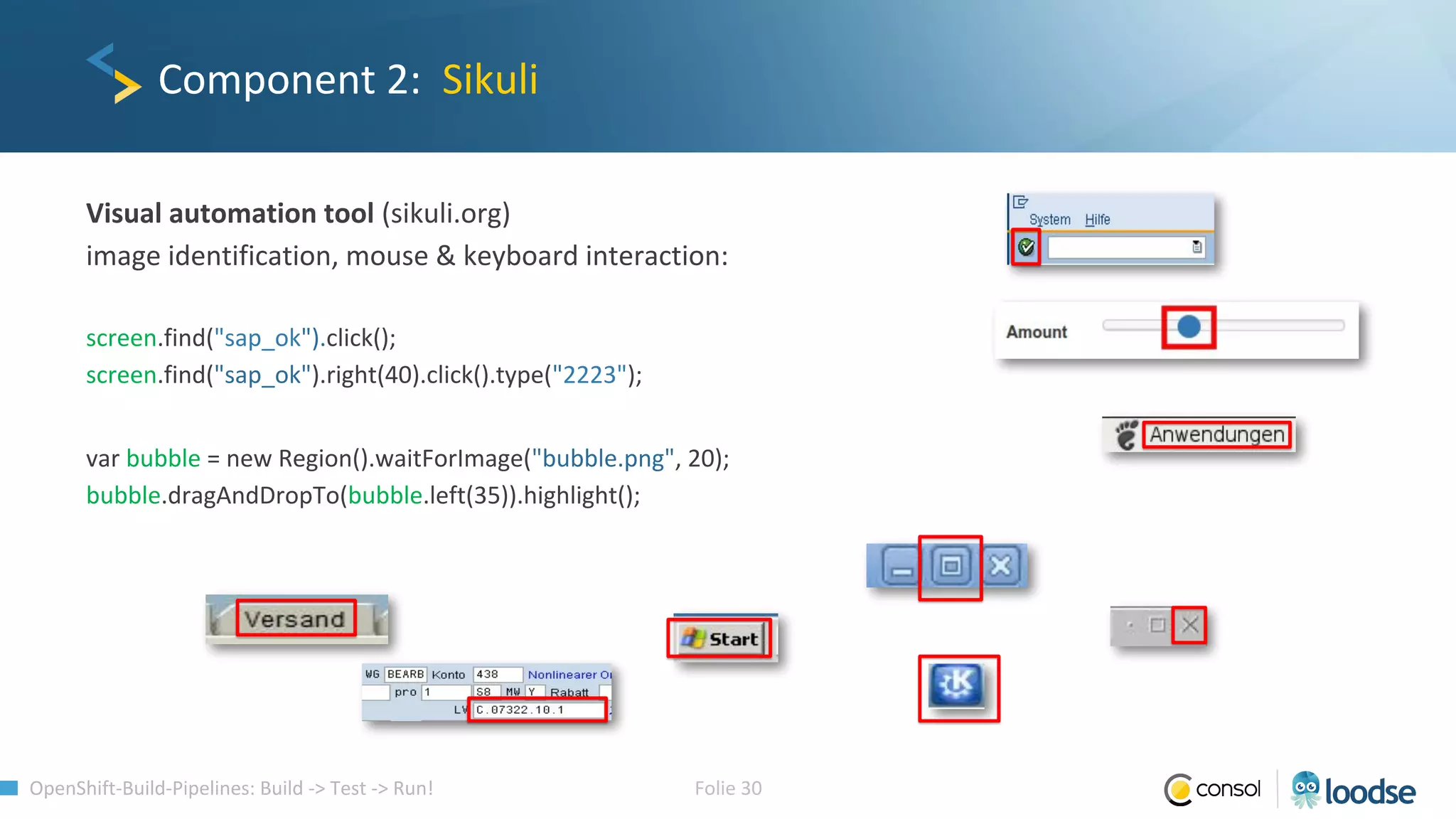

Component 2: Sikuli
Visual automation tool (sikuli.org)
image identification, mouse & keyboard interaction:
screen.find("sap_ok").click();
screen.find("sap_ok").right(40).click().type("2223");
var bubble = new Region().waitForImage("bubble.png", 20);
bubble.dragAndDropTo(bubble.left(35)).highlight();

31. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 31

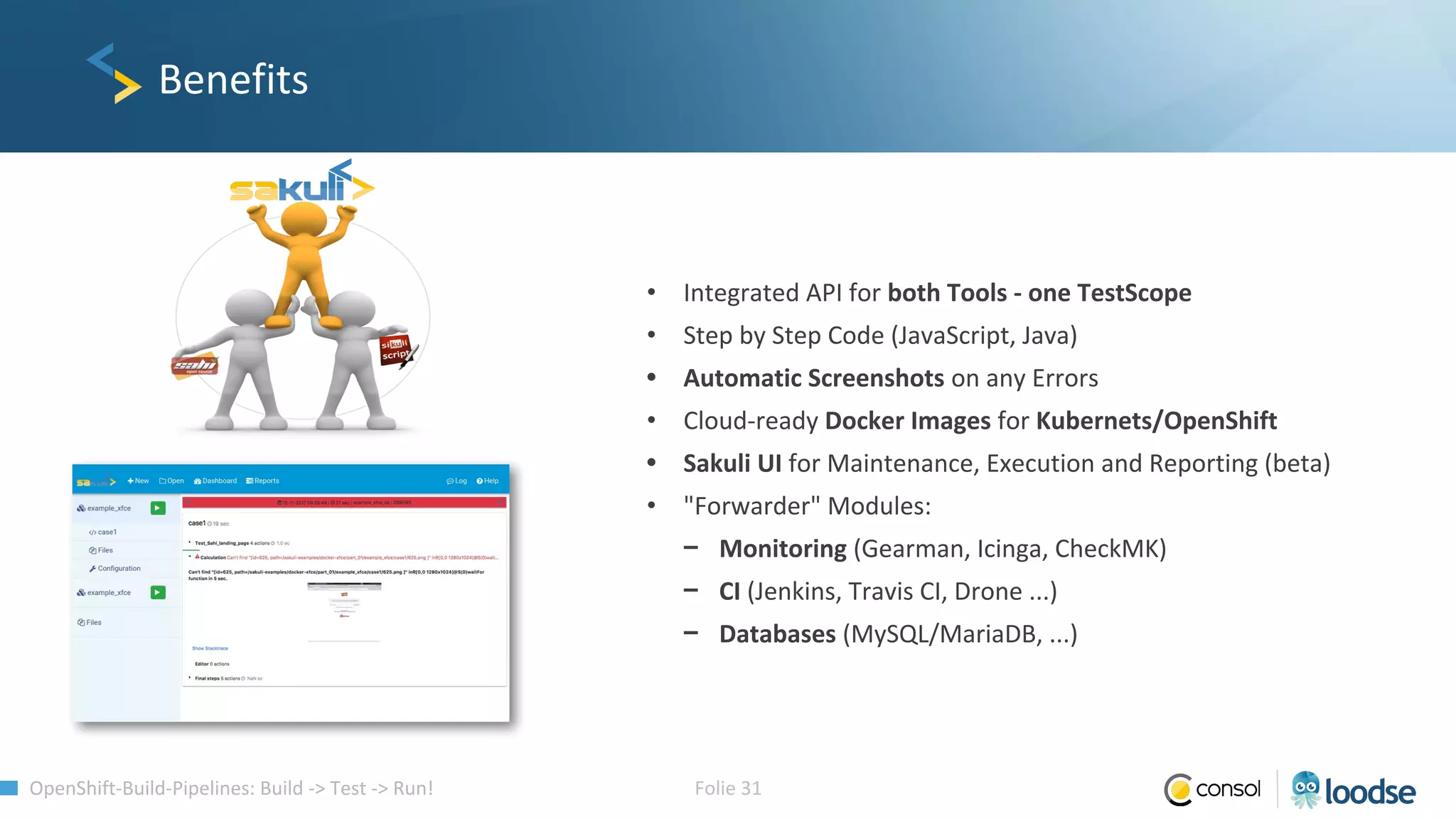

Benefits
• Integrated API for both Tools - one TestScope
• Step by Step Code (JavaScript, Java)
• Automatic Screenshots on any Errors
• Cloud-ready Docker Images for Kubernets/OpenShift
• Sakuli UI for Maintenance, Execution and Reporting (beta)
• "Forwarder" Modules:
− Monitoring (Gearman, Icinga, CheckMK)
− CI (Jenkins, Travis CI, Drone ...)
− Databases (MySQL/MariaDB, ...)

32. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 32

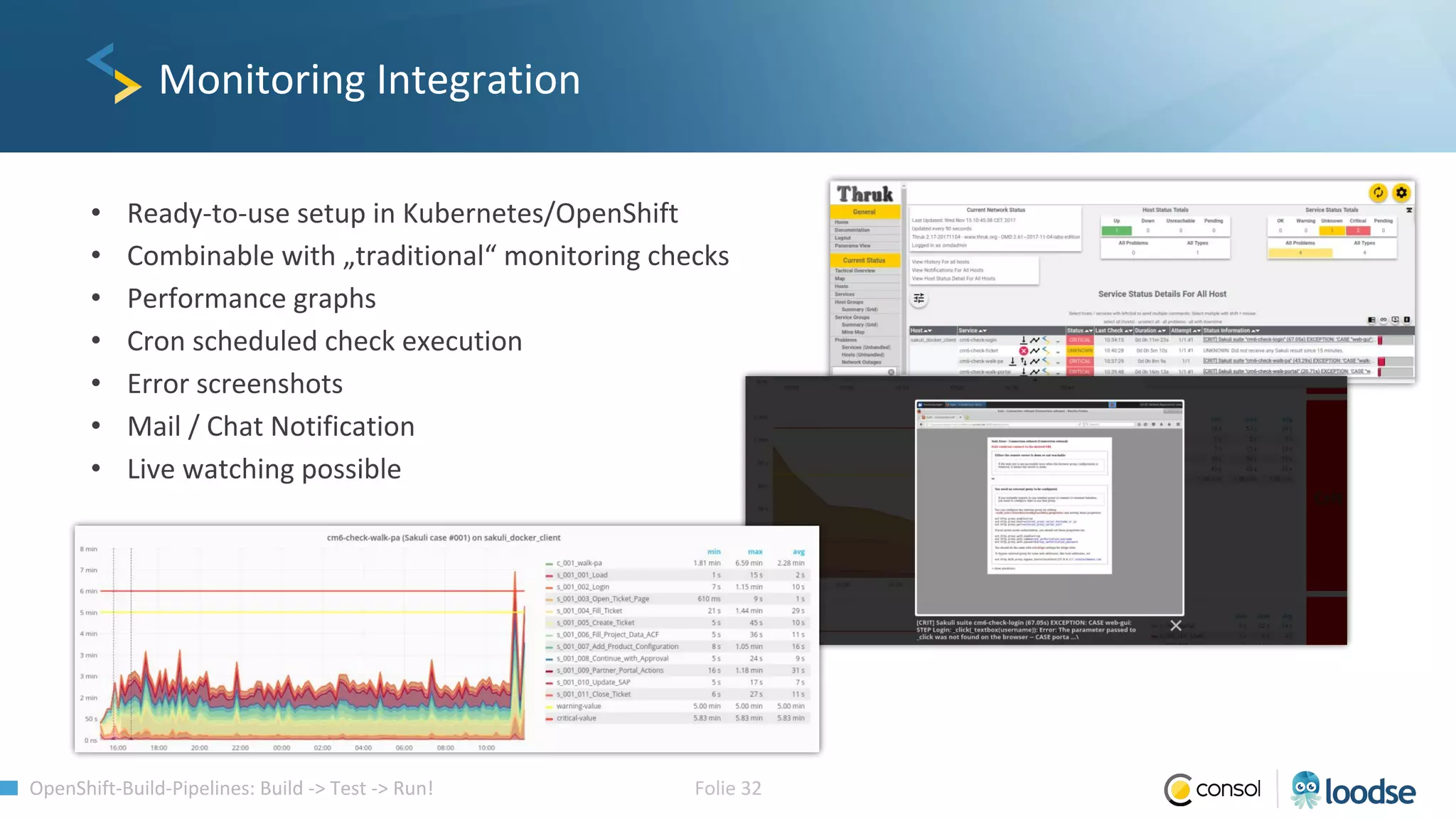

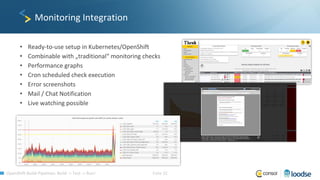

Monitoring Integration
• Ready-to-use setup in Kubernetes/OpenShift
• Combinable with „traditional“ monitoring checks
• Performance graphs
• Cron scheduled check execution
• Error screenshots
• Mail / Chat Notification
• Live watching possible

33. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 33

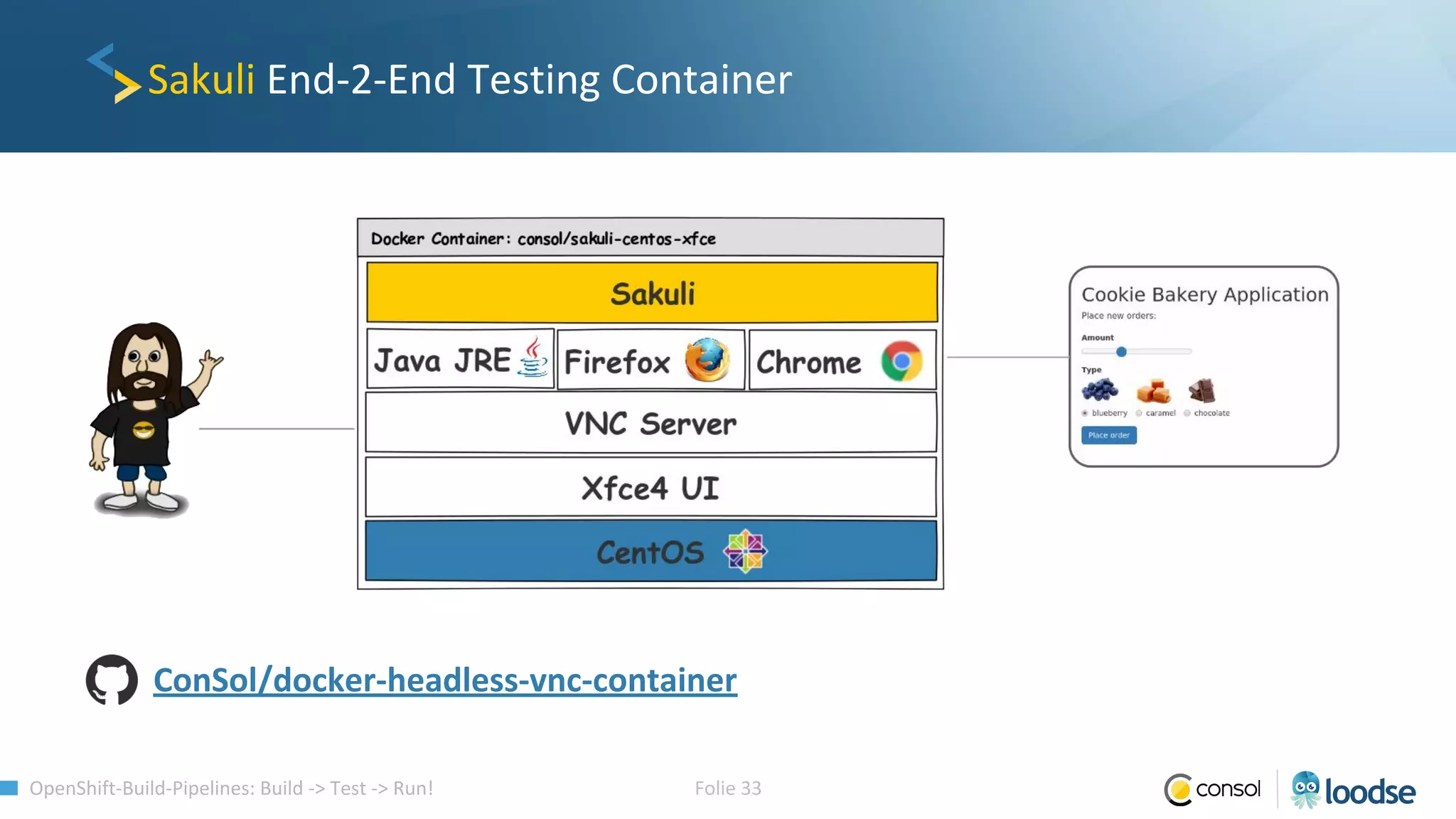

Sakuli End-2-End Testing Container
ConSol/docker-headless-vnc-container

34. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 34

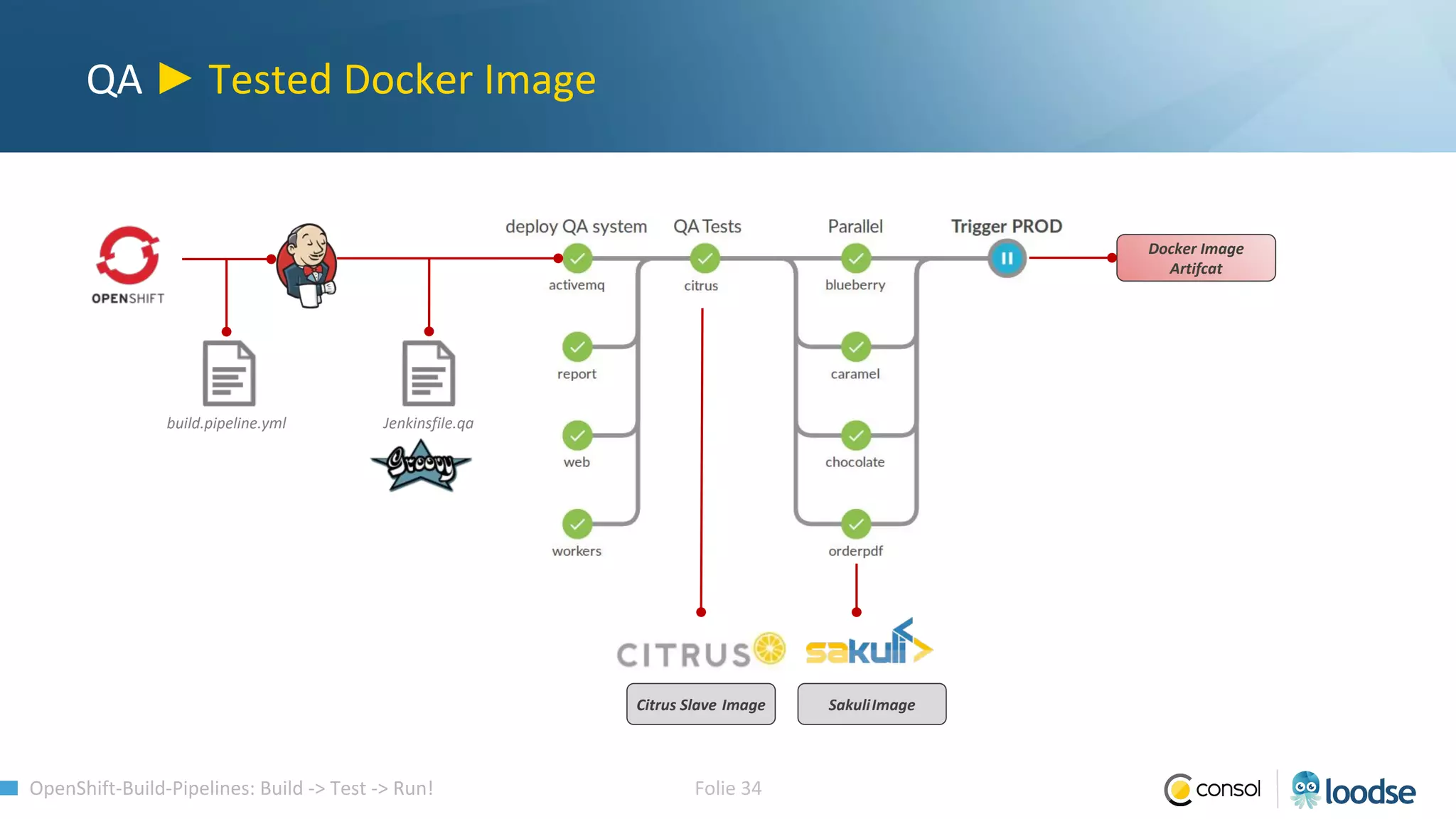

QA ► Tested Docker Image
Docker Image
Artifcat
Citrus Slave Image SakuliImage
build.pipeline.yml Jenkinsfile.qa

35. DEMO
toschneck/openshift-example-bakery-ci-pipeline

36. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 36

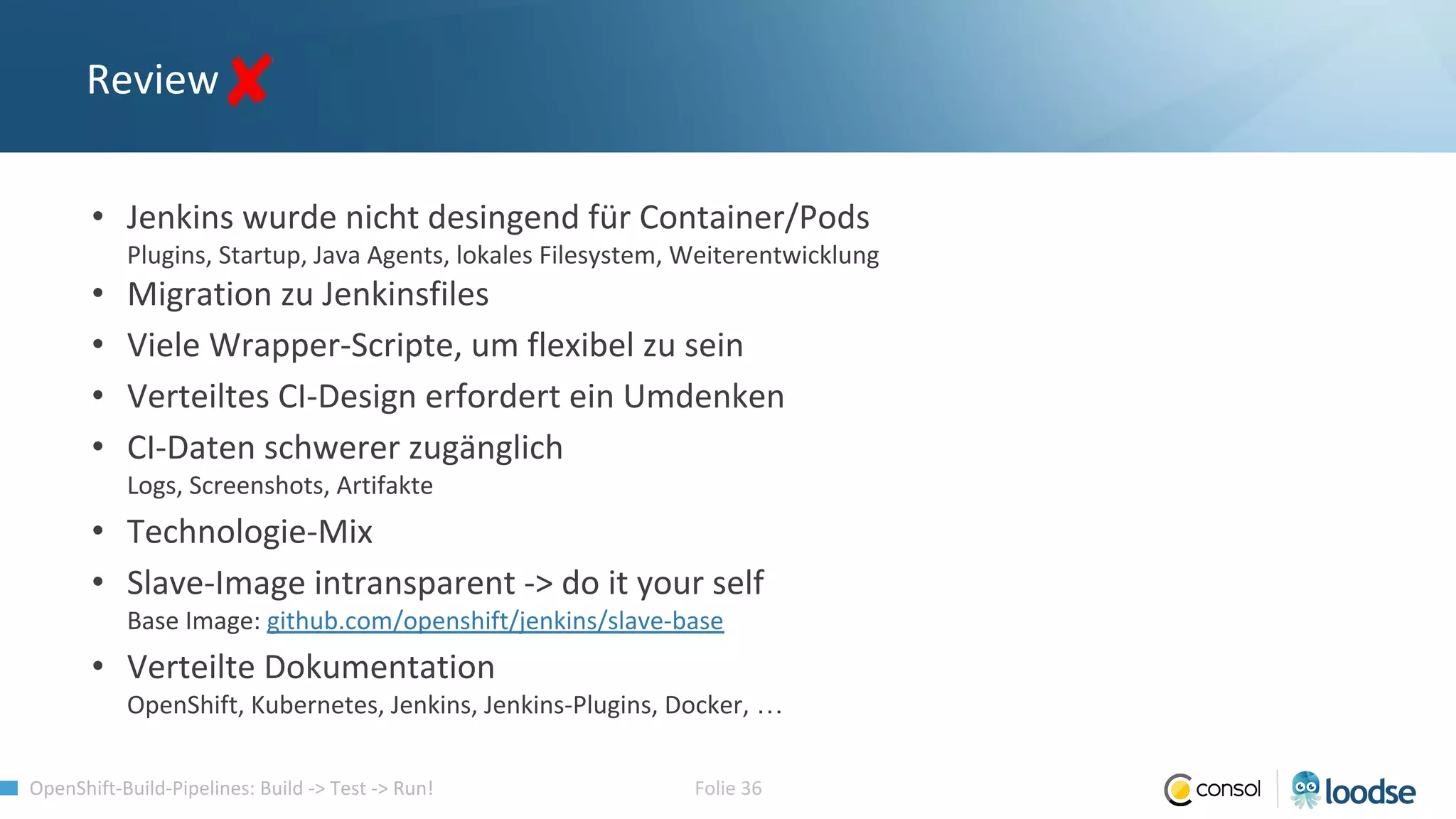

Review
• Jenkins wurde nicht desingend für Container/Pods
Plugins, Startup, Java Agents, lokales Filesystem, Weiterentwicklung
• Migration zu Jenkinsfiles
• Viele Wrapper-Scripte, um flexibel zu sein
• Verteiltes CI-Design erfordert ein Umdenken
• CI-Daten schwerer zugänglich
Logs, Screenshots, Artifakte
• Technologie-Mix
• Slave-Image intransparent -> do it your self
Base Image: github.com/openshift/jenkins/slave-base
• Verteilte Dokumentation
OpenShift, Kubernetes, Jenkins, Jenkins-Plugins, Docker, …

37. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 37

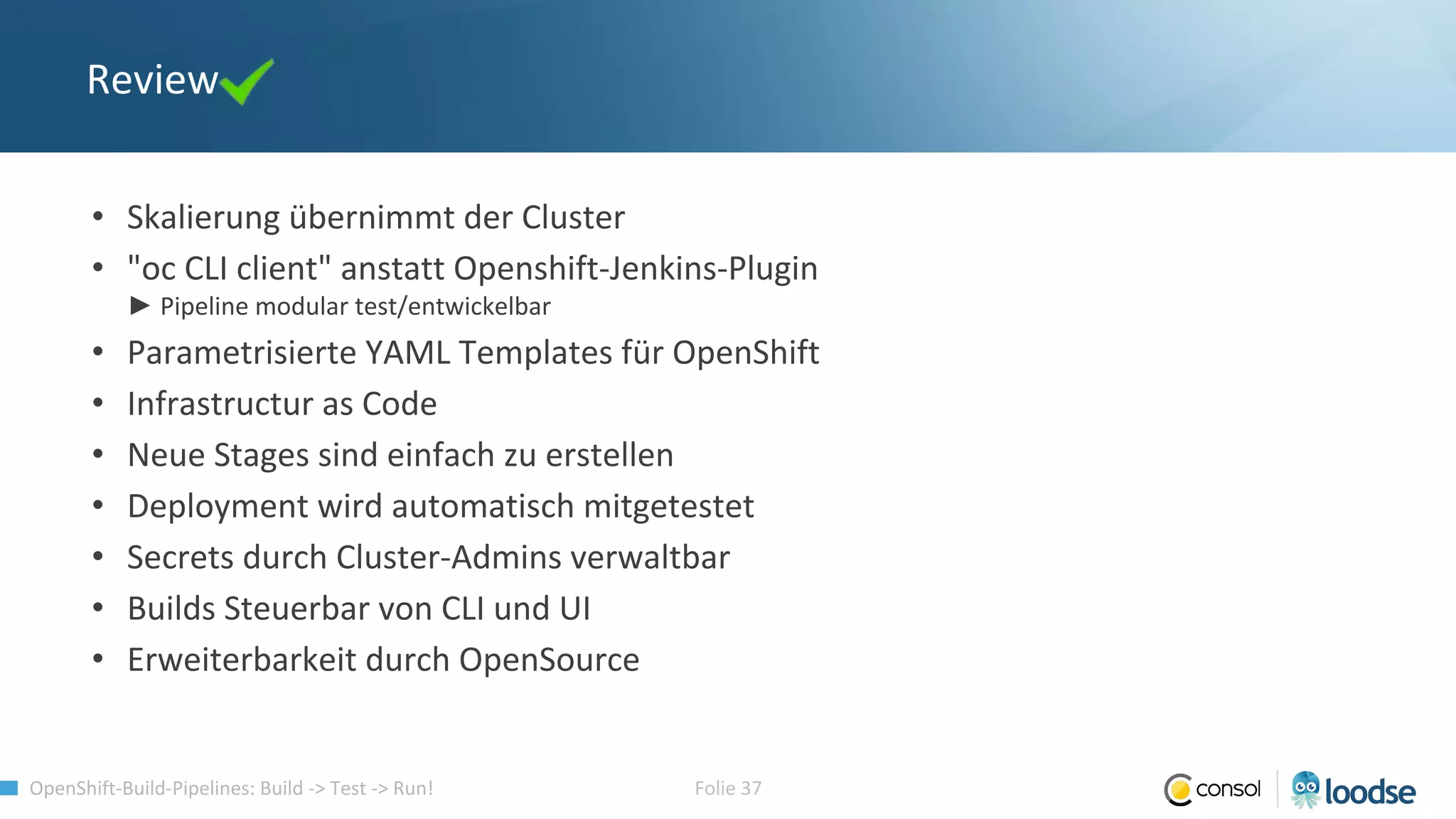

Review
• Skalierung übernimmt der Cluster
• "oc CLI client" anstatt Openshift-Jenkins-Plugin
► Pipeline modular test/entwickelbar
• Parametrisierte YAML Templates für OpenShift
• Infrastructur as Code
• Neue Stages sind einfach zu erstellen
• Deployment wird automatisch mitgetestet
• Secrets durch Cluster-Admins verwaltbar
• Builds Steuerbar von CLI und UI
• Erweiterbarkeit durch OpenSource

38. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 38

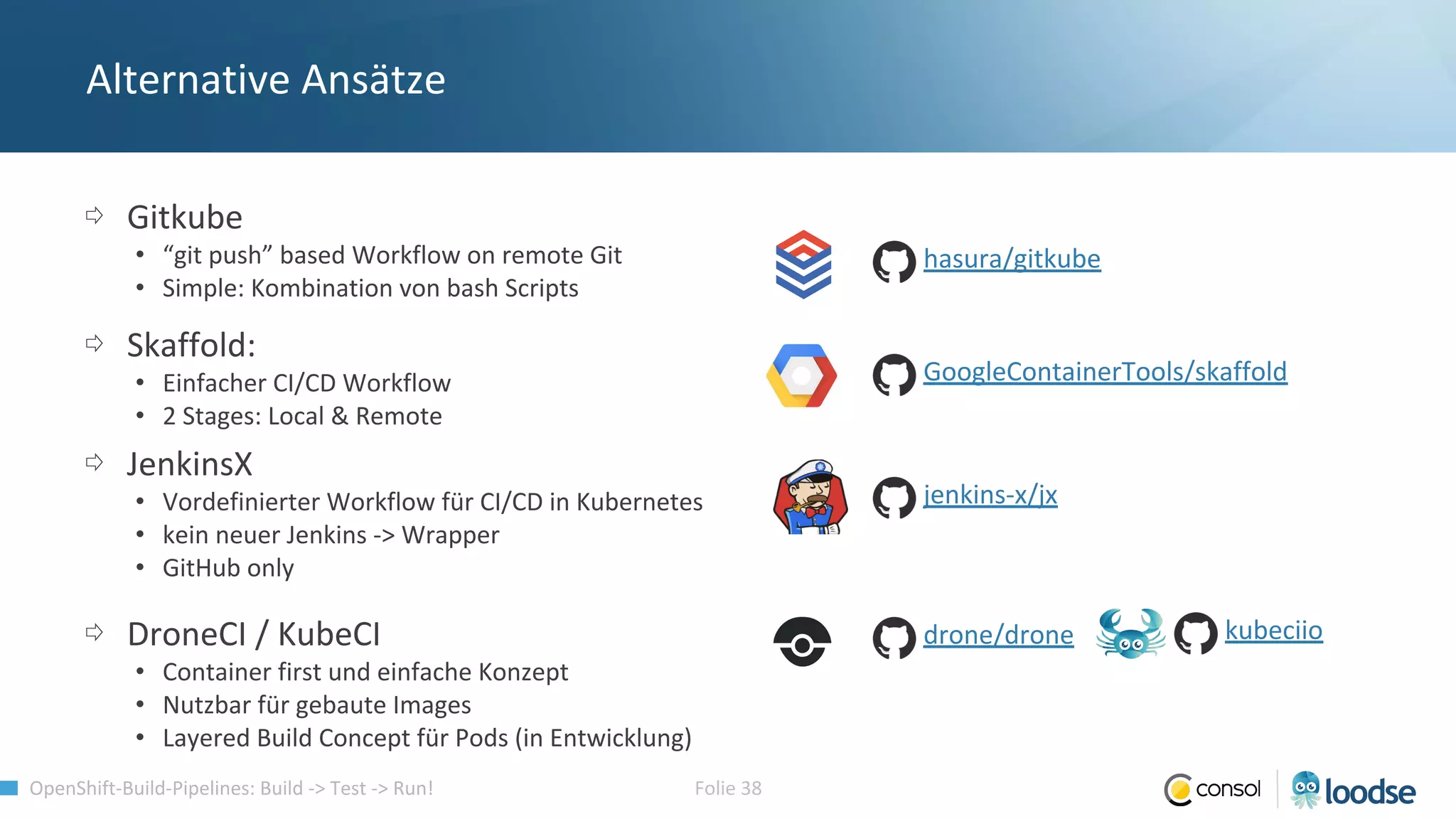

Alternative Ansätze
hasura/gitkube
⇨ Gitkube
• “git push” based Workflow on remote Git
• Simple: Kombination von bash Scripts
⇨ Skaffold:
• Einfacher CI/CD Workflow
• 2 Stages: Local & Remote
⇨ JenkinsX
• Vordefinierter Workflow für CI/CD in Kubernetes
• kein neuer Jenkins -> Wrapper
• GitHub only
⇨ DroneCI / KubeCI
• Container first und einfache Konzept
• Nutzbar für gebaute Images
• Layered Build Concept für Pods (in Entwicklung)
GoogleContainerTools/skaffold
kubeciiodrone/drone
jenkins-x/jx

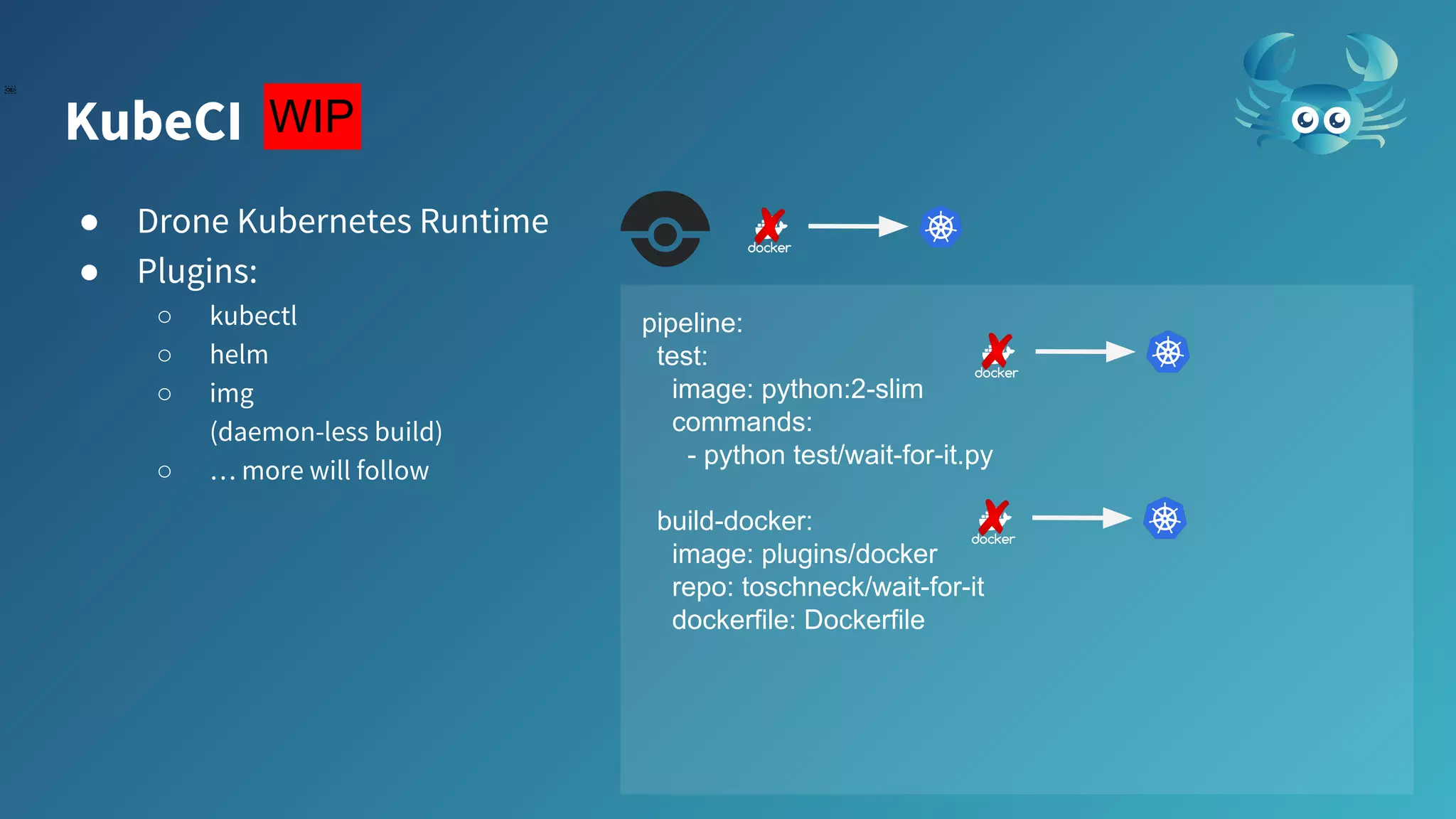

39. KubeCI
● Drone Kubernetes Runtime
● Plugins:
○ kubectl
○ helm
○ img
(daemon-less build)
○ … more will follow
pipeline:
test:
image: python:2-slim
commands:
- python test/wait-for-it.py
build-docker:
image: plugins/docker
repo: toschneck/wait-for-it
dockerfile: Dockerfile

WIP

40. OpenShift-Build-Pipelines: Build -> Test -> Run! Folie 40

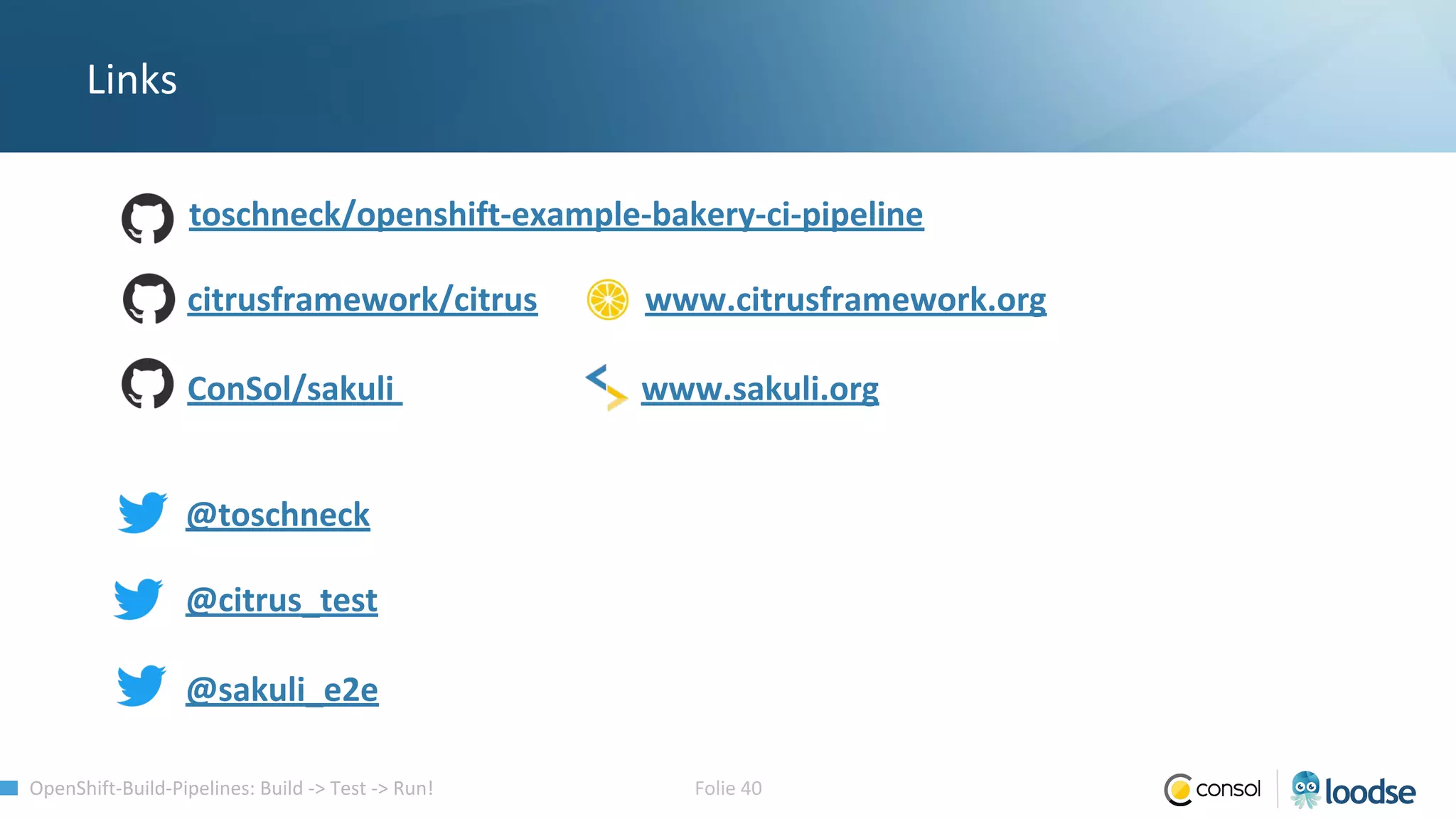

Links
toschneck/openshift-example-bakery-ci-pipeline
citrusframework/citrus www.citrusframework.org
ConSol/sakuli www.sakuli.org
@toschneck
@citrus_test
@sakuli_e2e

41. Questions?

42. Thank you Stuttgart!
Tobias Schneck, Loodse
@toschneck
