A knuckle joint connects two rods that are subjected to tensile and compressive forces but whose axes do not align. It allows for a small angular movement between the rods. Common applications include elevator chains and valve rods. The joint can be easily connected and disconnected.
More Related Content
Knuckle joint

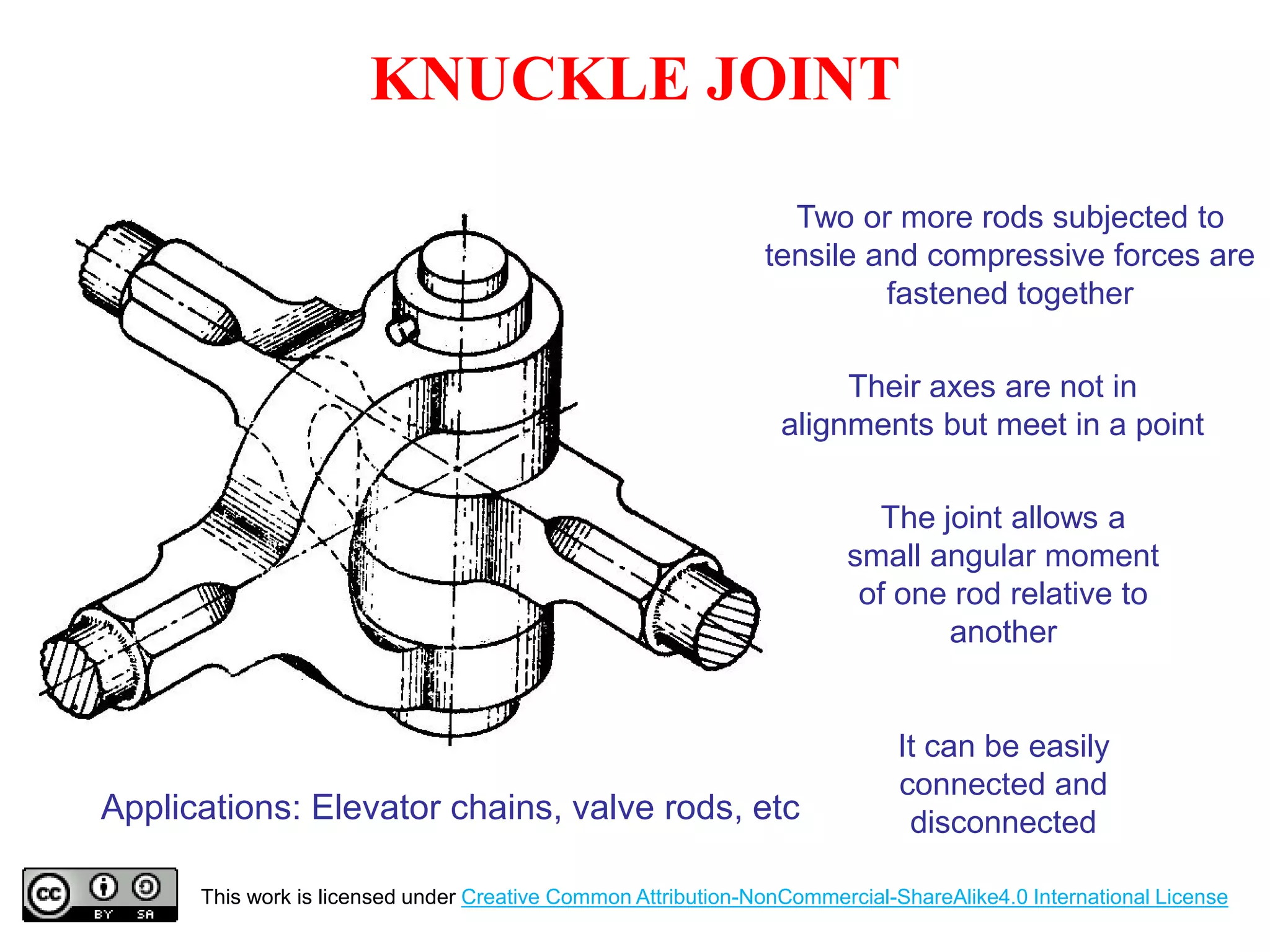

- 1. Two or morerods subjected to tensile and compressive forces are fastened together Their axes are not in alignments but meet in a point The joint allows a small angular moment of one rod relative to another It can be easily connected and disconnectedApplications: Elevator chains, valve rods, etc KNUCKLE JOINT This work is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License

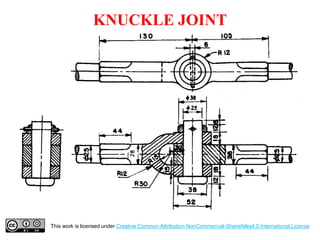

- 2. KNUCKLE JOINT ASSEMBLY Thiswork is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License
- 3. KNUCKLE JOINT This workis licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License

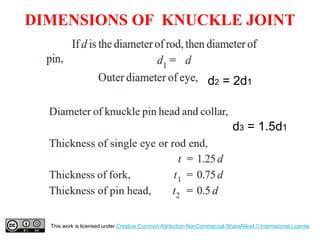

- 4. DIMENSIONS OF KNUCKLEJOINT This work is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License d2 = 2d1 d3 = 1.5d1
- 5. KNUCKLE JOINT This workis licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License

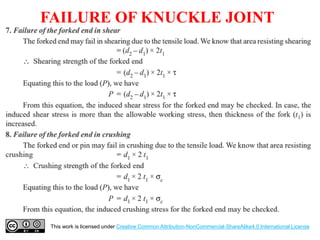

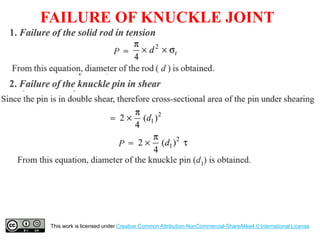

- 6. FAILURE OF KNUCKLEJOINT This work is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License

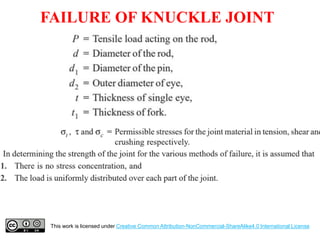

- 7. FAILURE OF KNUCKLEJOINT This work is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License

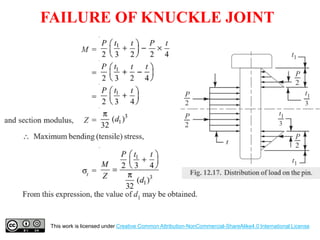

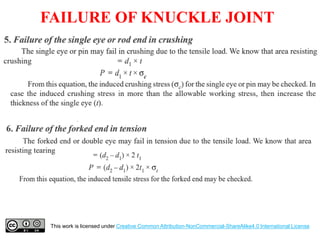

- 8. This work islicensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License FAILURE OF KNUCKLE JOINT

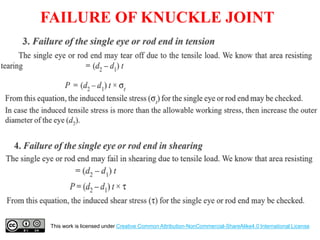

- 9. FAILURE OF KNUCKLEJOINT This work is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License
- 10. FAILURE OF KNUCKLEJOINT This work is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License
- 11. FAILURE OF KNUCKLEJOINT This work is licensed under Creative Common Attribution-NonCommercial-ShareAlike4.0 International License
