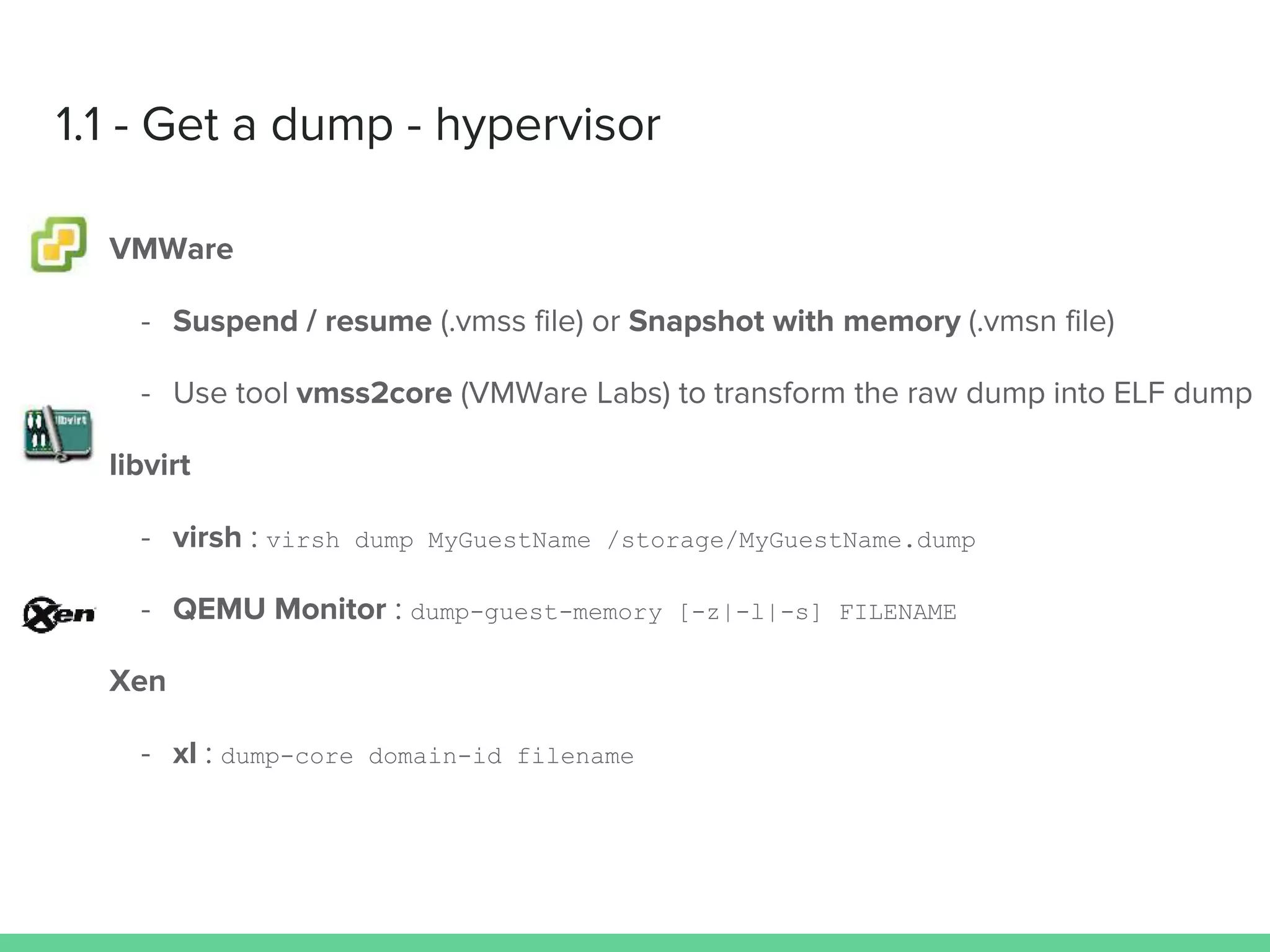

4. virsh dump MyGuestName /storage/MyGuestName.dump
dump-guest-memory [-z|-l|-s] FILENAME
dump-core domain-id filename

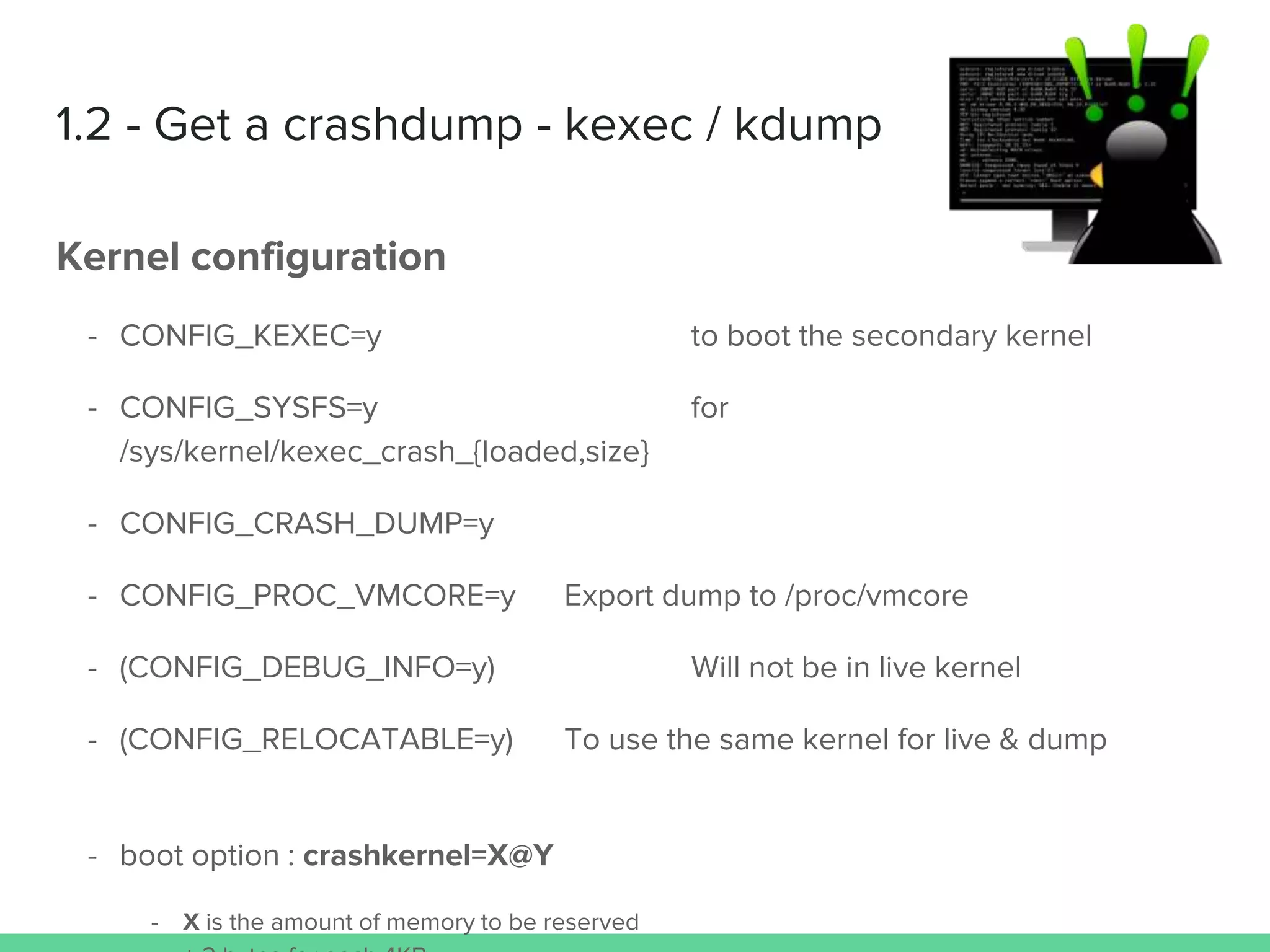

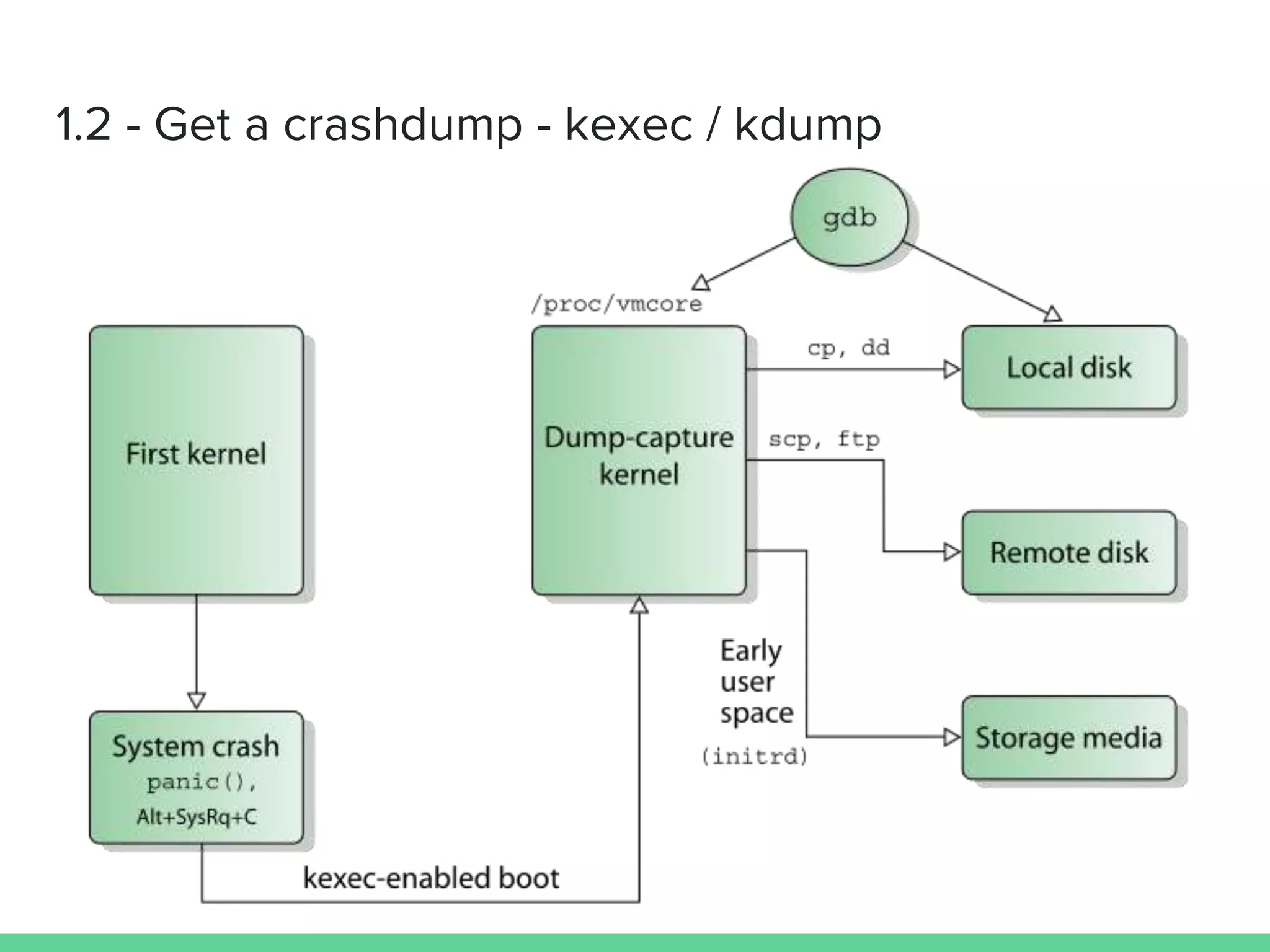

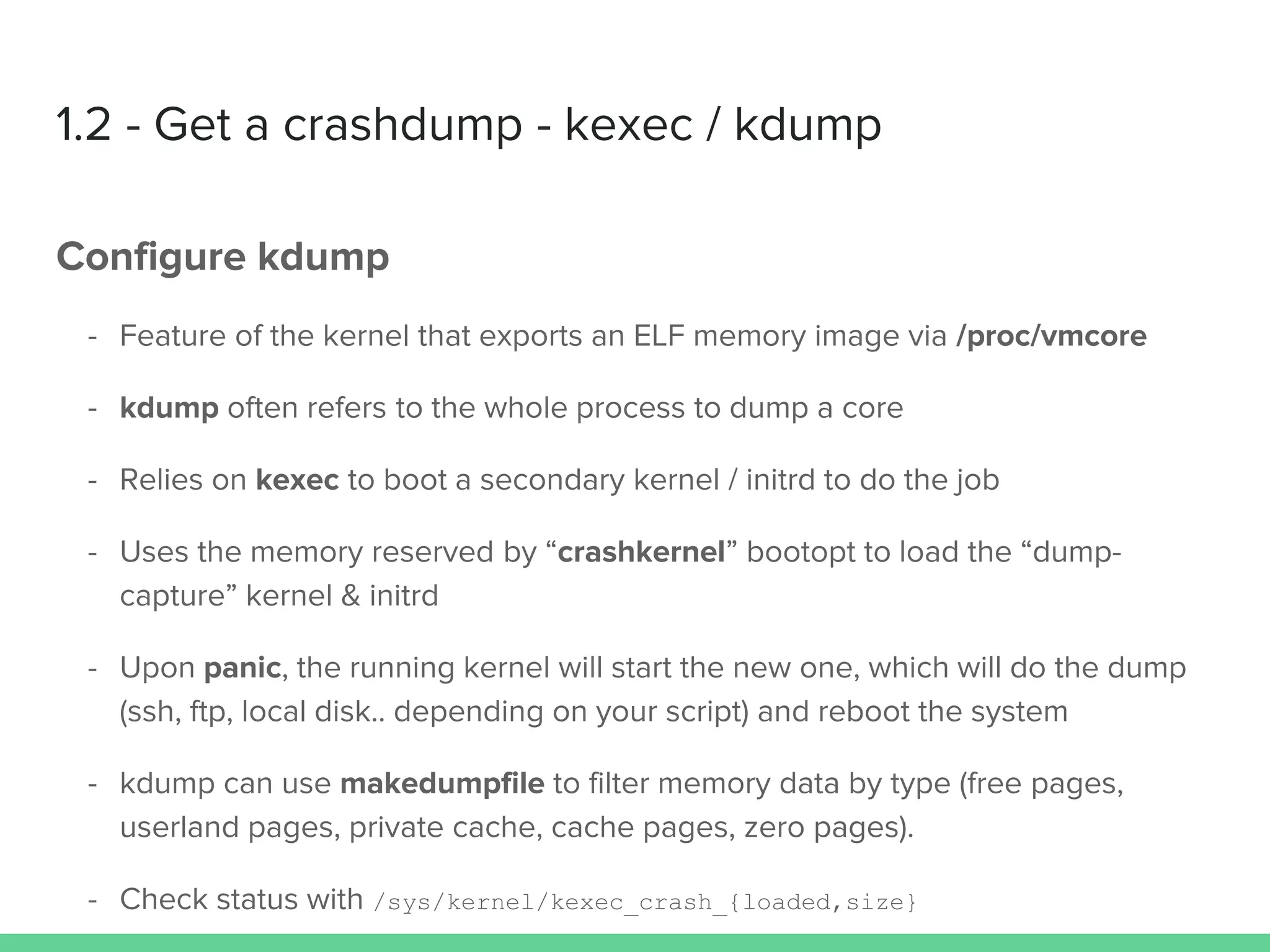

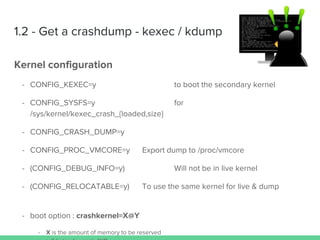

6. /sys/kernel/kexec_crash_{loaded,size}

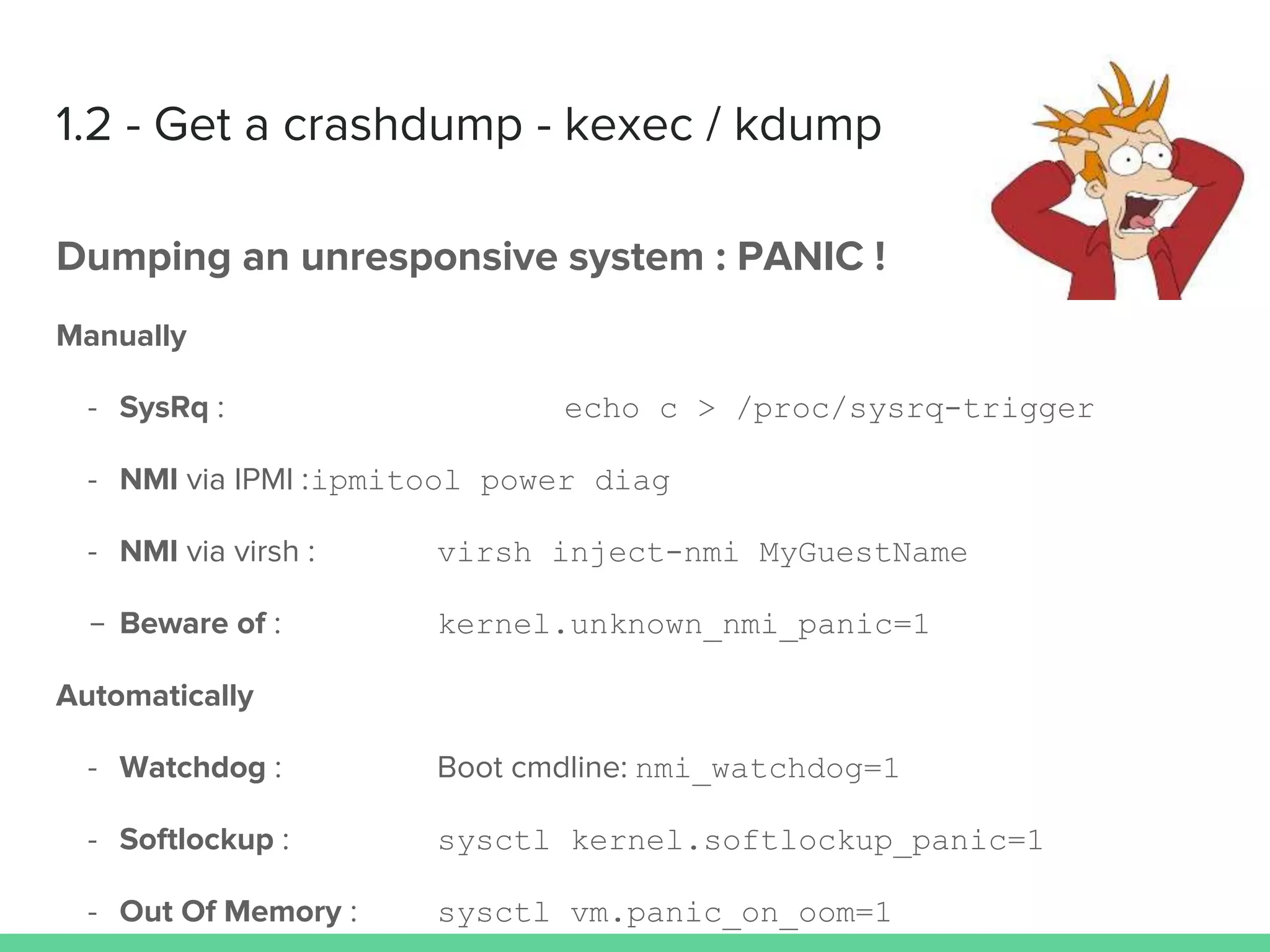

7. echo c > /proc/sysrq-trigger
ipmitool power diag
virsh inject-nmi MyGuestName
- kernel.unknown_nmi_panic=1
nmi_watchdog=1
sysctl kernel.softlockup_panic=1
sysctl vm.panic_on_oom=1

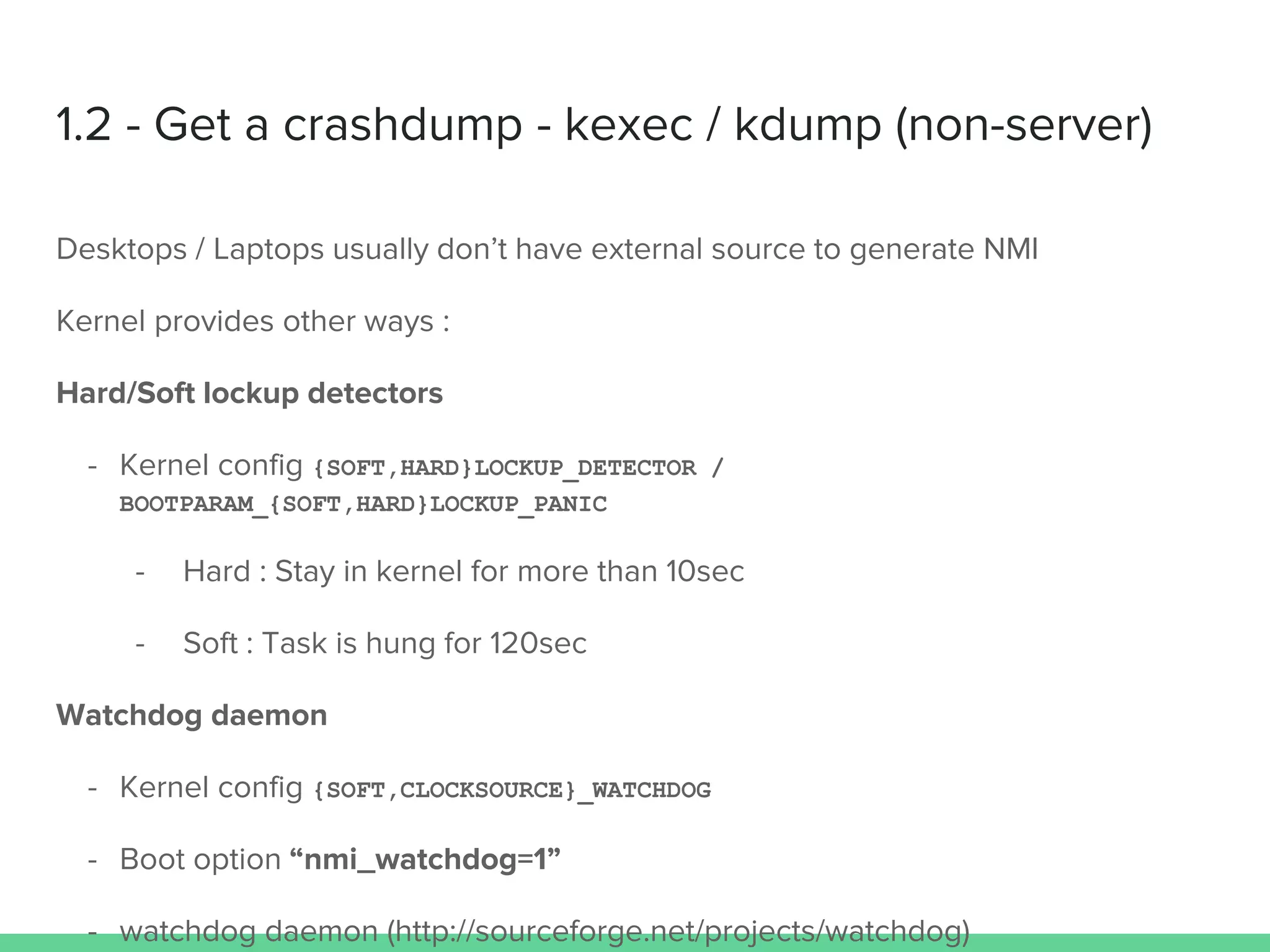

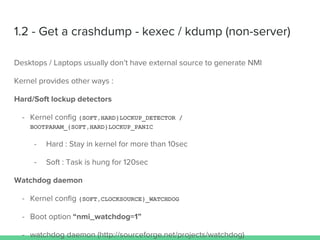

8. {SOFT,HARD}LOCKUP_DETECTOR / BOOTPARAM_{SOFT,HARD}
LOCKUP_PANIC
{SOFT,CLOCKSOURCE}_WATCHDOG

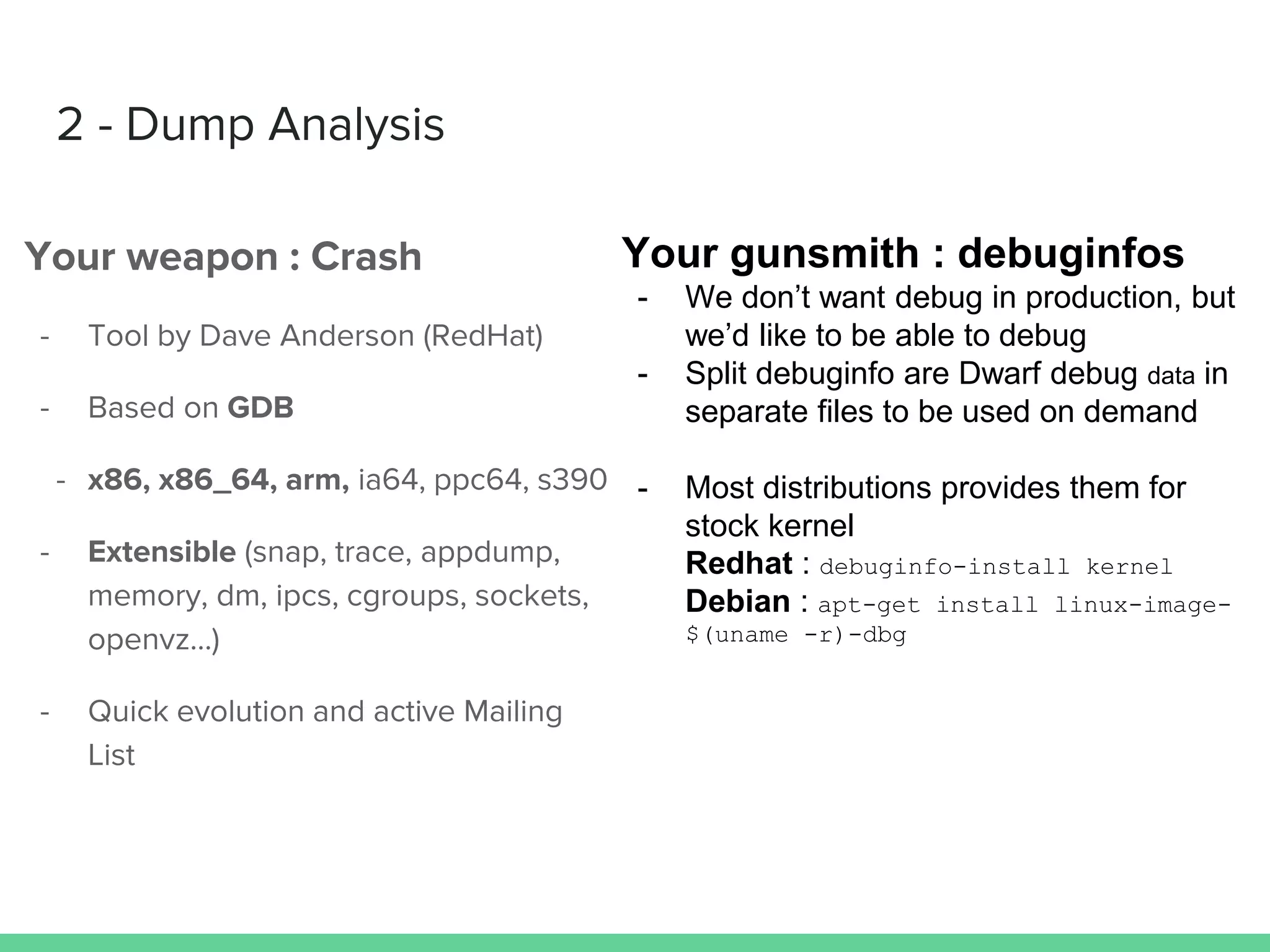

11. debuginfo-install
kernel
apt-get install linux-
image-$(uname -r)-dbg

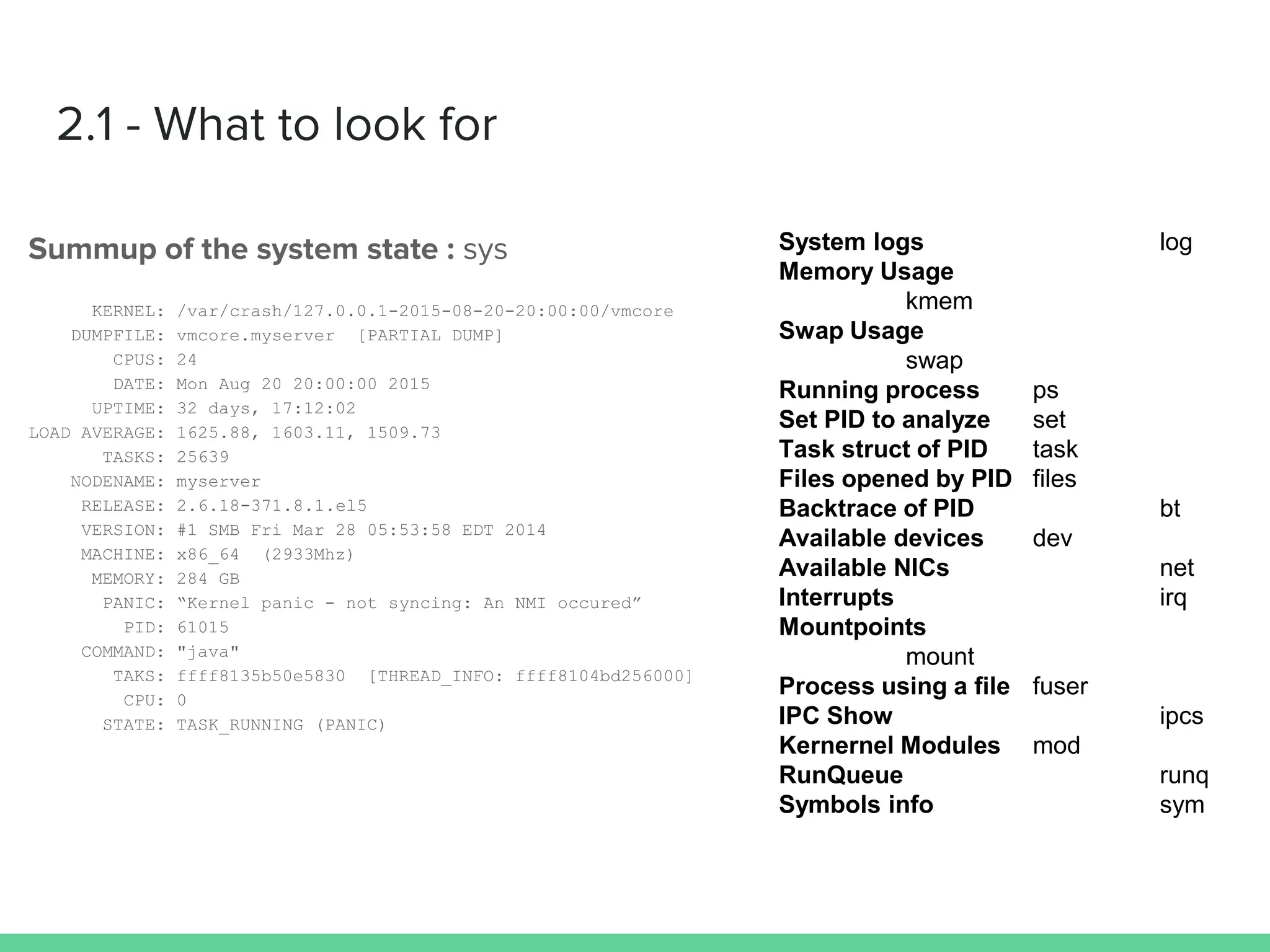

12. KERNEL: /var/crash/127.0.0.1-2015-08-20-20:00:00/vmcore
DUMPFILE: vmcore.myserver [PARTIAL DUMP]
CPUS: 24
DATE: Mon Aug 20 20:00:00 2015
UPTIME: 32 days, 17:12:02
LOAD AVERAGE: 1625.88, 1603.11, 1509.73
TASKS: 25639
NODENAME: myserver
RELEASE: 2.6.18-371.8.1.el5
VERSION: #1 SMB Fri Mar 28 05:53:58 EDT 2014
MACHINE: x86_64 (2933Mhz)
MEMORY: 284 GB
PANIC: “Kernel panic - not syncing: An NMI occured”
PID: 61015
COMMAND: "java"
TAKS: ffff8135b50e5830 [THREAD_INFO: ffff8104bd256000]
CPU: 0
STATE: TASK_RUNNING (PANIC)

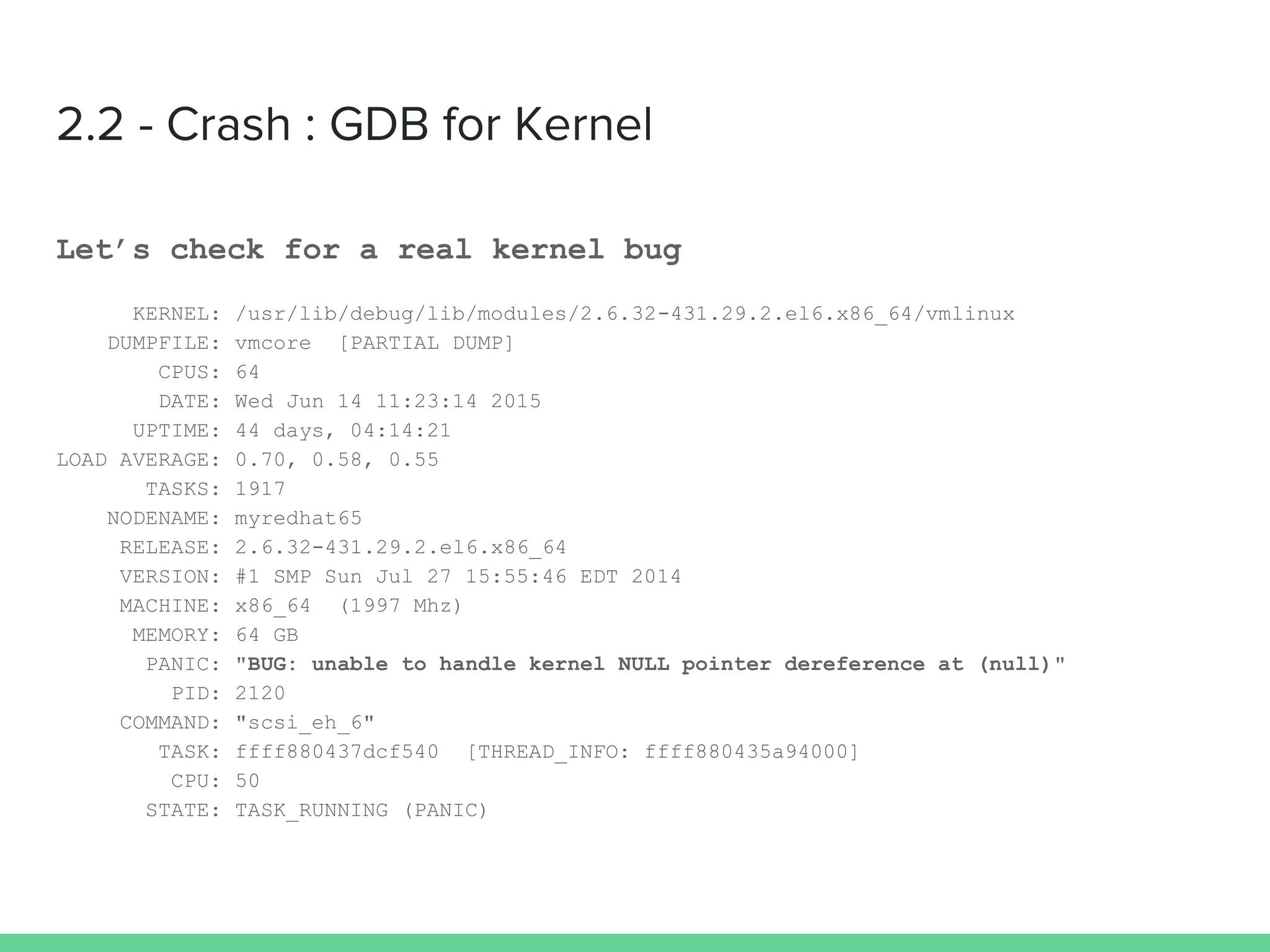

13. Let’s check for a real kernel bug
KERNEL: /usr/lib/debug/lib/modules/2.6.32-431.29.2.el6.x86_64/vmlinux
DUMPFILE: vmcore [PARTIAL DUMP]
CPUS: 64
DATE: Wed Jun 14 11:23:14 2015
UPTIME: 44 days, 04:14:21
LOAD AVERAGE: 0.70, 0.58, 0.55
TASKS: 1917
NODENAME: myredhat65
RELEASE: 2.6.32-431.29.2.el6.x86_64
VERSION: #1 SMP Sun Jul 27 15:55:46 EDT 2014
MACHINE: x86_64 (1997 Mhz)
MEMORY: 64 GB
PANIC: "BUG: unable to handle kernel NULL pointer dereference at (null)"
PID: 2120
COMMAND: "scsi_eh_6"
TASK: ffff880437dcf540 [THREAD_INFO: ffff880435a94000]
CPU: 50
STATE: TASK_RUNNING (PANIC)

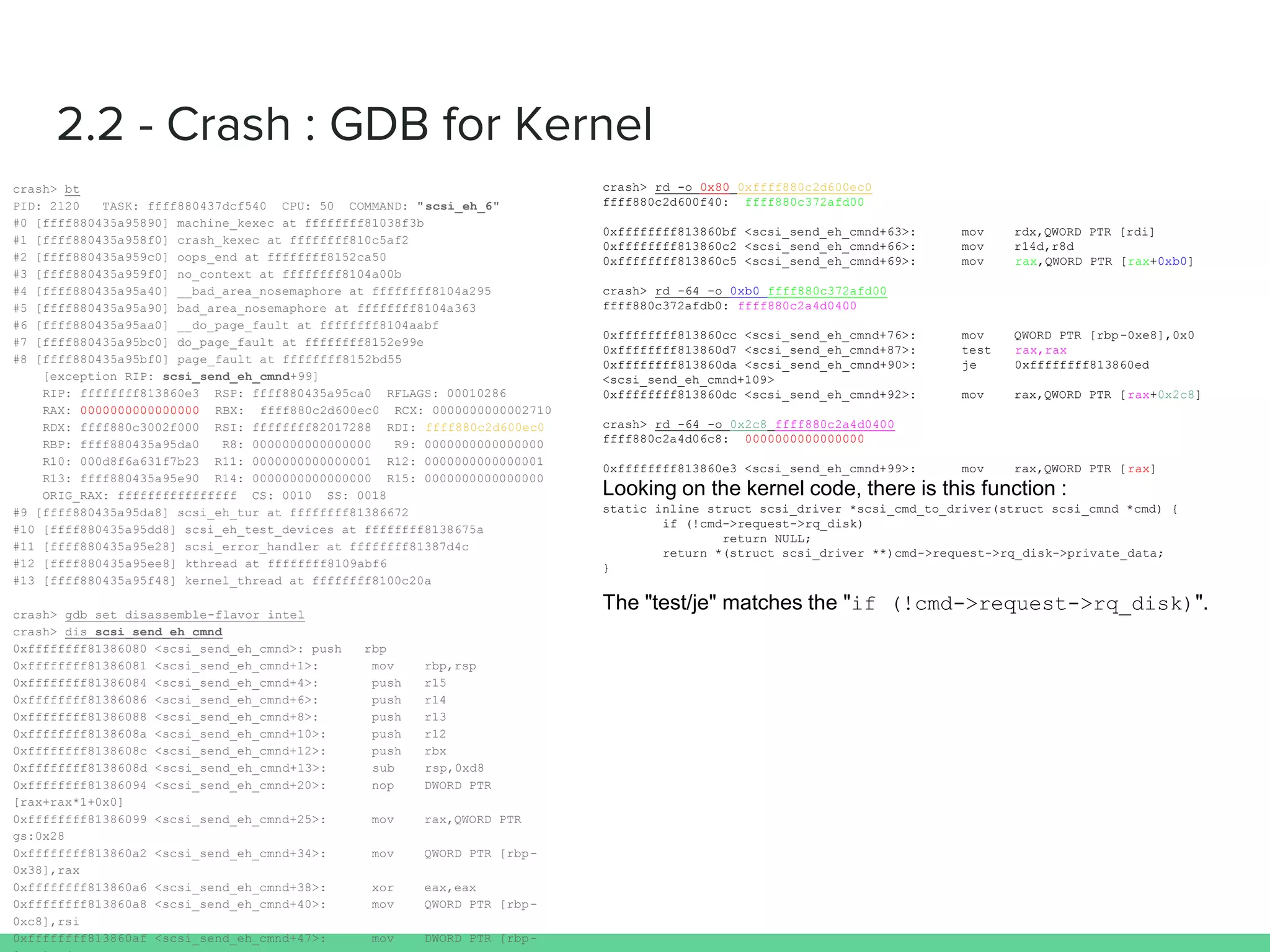

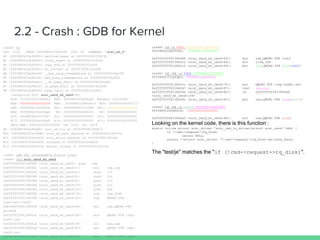

14. crash> bt
PID: 2120 TASK: ffff880437dcf540 CPU: 50 COMMAND: "scsi_eh_6"
#0 [ffff880435a95890] machine_kexec at ffffffff81038f3b
#1 [ffff880435a958f0] crash_kexec at ffffffff810c5af2
#2 [ffff880435a959c0] oops_end at ffffffff8152ca50
#3 [ffff880435a959f0] no_context at ffffffff8104a00b
#4 [ffff880435a95a40] __bad_area_nosemaphore at ffffffff8104a295
#5 [ffff880435a95a90] bad_area_nosemaphore at ffffffff8104a363
#6 [ffff880435a95aa0] __do_page_fault at ffffffff8104aabf
#7 [ffff880435a95bc0] do_page_fault at ffffffff8152e99e
#8 [ffff880435a95bf0] page_fault at ffffffff8152bd55
[exception RIP: scsi_send_eh_cmnd+99]
RIP: ffffffff813860e3 RSP: ffff880435a95ca0 RFLAGS: 00010286
RAX: 0000000000000000 RBX: ffff880c2d600ec0 RCX: 0000000000002710
RDX: ffff880c3002f000 RSI: ffffffff82017288 RDI:ffff880c2d600ec0
RBP: ffff880435a95da0 R8: 0000000000000000 R9: 0000000000000000
R10: 000d8f6a631f7b23 R11: 0000000000000001 R12: 0000000000000001
R13: ffff880435a95e90 R14: 0000000000000000 R15: 0000000000000000
ORIG_RAX: ffffffffffffffff CS: 0010 SS: 0018
#9 [ffff880435a95da8] scsi_eh_tur at ffffffff81386672
#10 [ffff880435a95dd8] scsi_eh_test_devices at ffffffff8138675a
#11 [ffff880435a95e28] scsi_error_handler at ffffffff81387d4c
#12 [ffff880435a95ee8] kthread at ffffffff8109abf6
#13 [ffff880435a95f48] kernel_thread at ffffffff8100c20a
crash> gdb set disassemble-flavor intel
crash> dis scsi_send_eh_cmnd
0xffffffff81386080 <scsi_send_eh_cmnd>: push rbp
0xffffffff81386081 <scsi_send_eh_cmnd+1>: mov rbp,rsp
0xffffffff81386084 <scsi_send_eh_cmnd+4>: push r15
0xffffffff81386086 <scsi_send_eh_cmnd+6>: push r14
0xffffffff81386088 <scsi_send_eh_cmnd+8>: push r13
0xffffffff8138608a <scsi_send_eh_cmnd+10>: push r12
0xffffffff8138608c <scsi_send_eh_cmnd+12>: push rbx
0xffffffff8138608d <scsi_send_eh_cmnd+13>: sub rsp,0xd8
0xffffffff81386094 <scsi_send_eh_cmnd+20>: nop DWORD PTR
[rax+rax*1+0x0]
0xffffffff81386099 <scsi_send_eh_cmnd+25>: mov rax,QWORD PTR gs:0x28
0xffffffff813860a2 <scsi_send_eh_cmnd+34>: mov QWORD PTR [rbp-0x38],rax
0xffffffff813860a6 <scsi_send_eh_cmnd+38>: xor eax,eax
0xffffffff813860a8 <scsi_send_eh_cmnd+40>: mov QWORD PTR [rbp-0xc8],rsi
0xffffffff813860af <scsi_send_eh_cmnd+47>: mov DWORD PTR [rbp-0xcc],edx
0xffffffff813860b5 <scsi_send_eh_cmnd+53>: mov rbx,rdi
0xffffffff813860b8 <scsi_send_eh_cmnd+56>: mov rax,QWORD PTR [rdi+0x80]
crash> rd -o 0x80 0xffff880c2d600ec0
ffff880c2d600f40: ffff880c372afd00
0xffffffff813860bf <scsi_send_eh_cmnd+63>: mov rdx,QWORD PTR [rdi]
0xffffffff813860c2 <scsi_send_eh_cmnd+66>: mov r14d,r8d
0xffffffff813860c5 <scsi_send_eh_cmnd+69>: mov rax,QWORD PTR [rax+0xb0]
crash> rd -64 -o 0xb0 ffff880c372afd00
ffff880c372afdb0: ffff880c2a4d0400
0xffffffff813860cc <scsi_send_eh_cmnd+76>: mov QWORD PTR [rbp-0xe8],0x0
0xffffffff813860d7 <scsi_send_eh_cmnd+87>: test rax,rax
0xffffffff813860da <scsi_send_eh_cmnd+90>: je 0xffffffff813860ed
<scsi_send_eh_cmnd+109>
0xffffffff813860dc <scsi_send_eh_cmnd+92>: mov rax,QWORD PTR [rax+0x2c8]
crash> rd -64 -o 0x2c8 ffff880c2a4d0400
ffff880c2a4d06c8: 0000000000000000
0xffffffff813860e3 <scsi_send_eh_cmnd+99>: mov rax,QWORD PTR [rax]
static inline struct scsi_driver *scsi_cmd_to_driver(struct scsi_cmnd *cmd) {
if (!cmd->request->rq_disk)
return NULL;
return *(struct scsi_driver **)cmd->request->rq_disk->private_data;
}
if (!cmd->request->rq_disk)

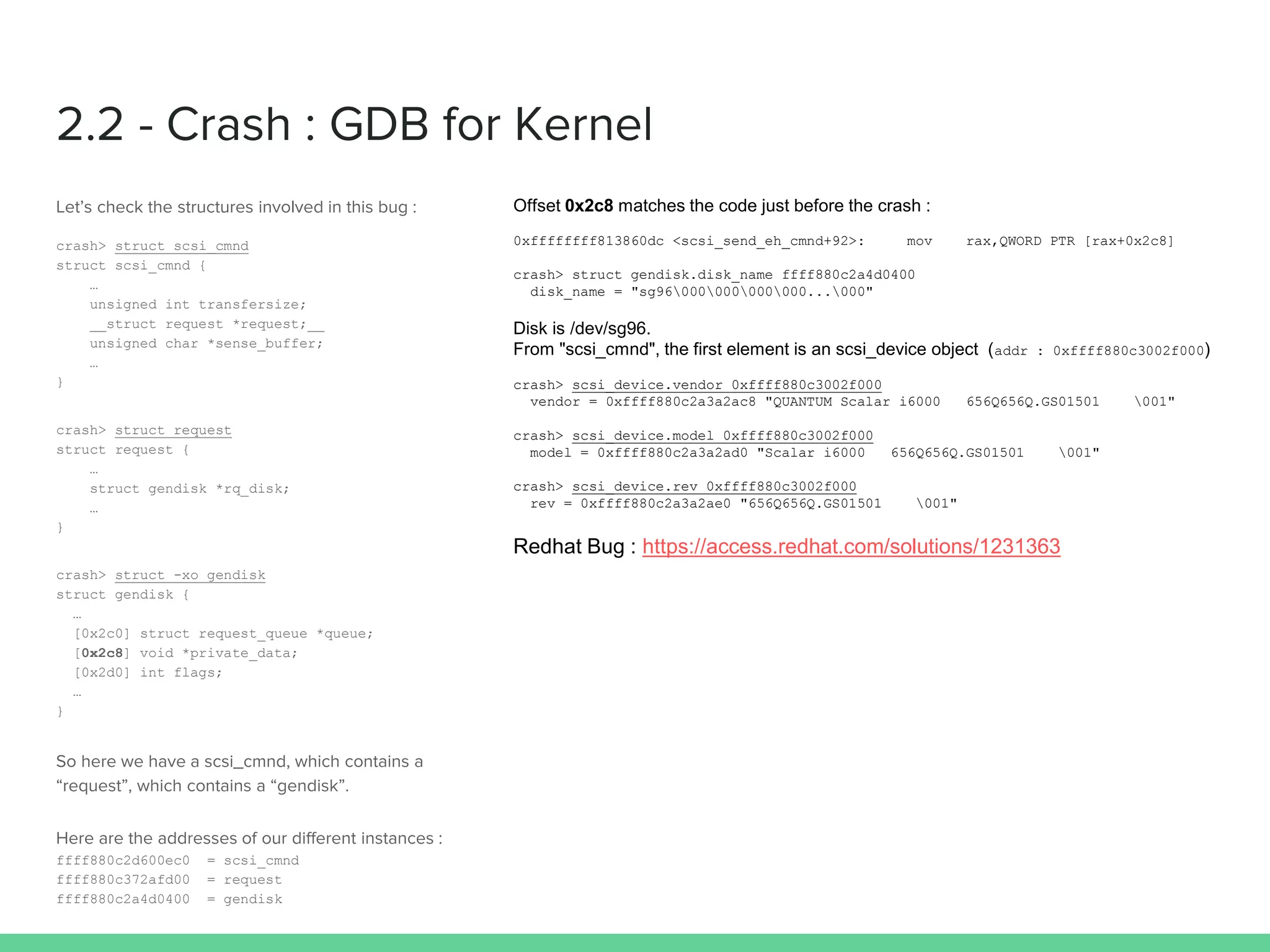

15. crash> struct scsi_cmnd
struct scsi_cmnd {
…
unsigned int transfersize;
__struct request *request;__
unsigned char *sense_buffer;
…
}
crash> struct request
struct request {
…
struct gendisk *rq_disk;
…
}
crash> struct -xo gendisk
struct gendisk {
…
[0x2c0] struct request_queue *queue;
[0x2c8] void *private_data;
[0x2d0] int flags;
…
}
ffff880c2d600ec0 = scsi_cmnd
ffff880c372afd00 = request
ffff880c2a4d0400 = gendisk
0xffffffff813860dc <scsi_send_eh_cmnd+92>: mov rax,QWORD PTR [rax+0x2c8]
crash> struct gendisk.disk_name ffff880c2a4d0400
disk_name = "sg96000000000000...000"
addr : 0xffff880c3002f000
crash> scsi_device.vendor 0xffff880c3002f000
vendor = 0xffff880c2a3a2ac8 "QUANTUM Scalar i6000 656Q656Q.GS01501 001"
crash> scsi_device.model 0xffff880c3002f000
model = 0xffff880c2a3a2ad0 "Scalar i6000 656Q656Q.GS01501 001"
crash> scsi_device.rev 0xffff880c3002f000
rev = 0xffff880c2a3a2ae0 "656Q656Q.GS01501 001"

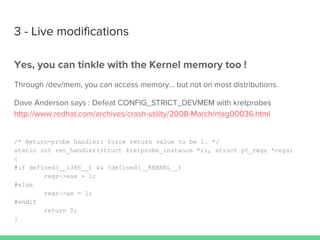

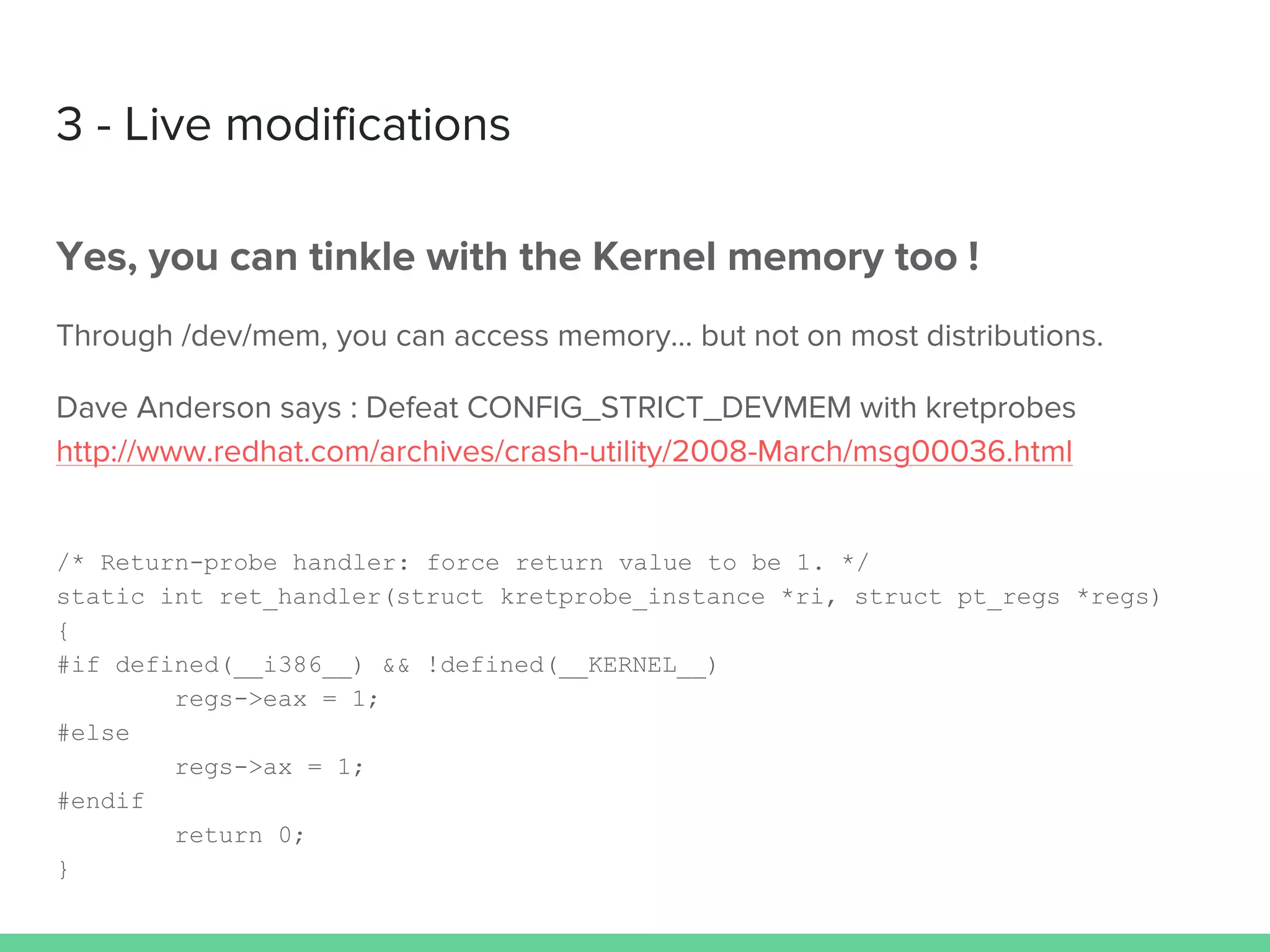

17. /* Return-probe handler: force return value to be 1. */
static int ret_handler(struct kretprobe_instance *ri, struct pt_regs *regs)
{
#if defined(__i386__) && !defined(__KERNEL__)
regs->eax = 1;
#else
regs->ax = 1;
#endif
return 0;
}

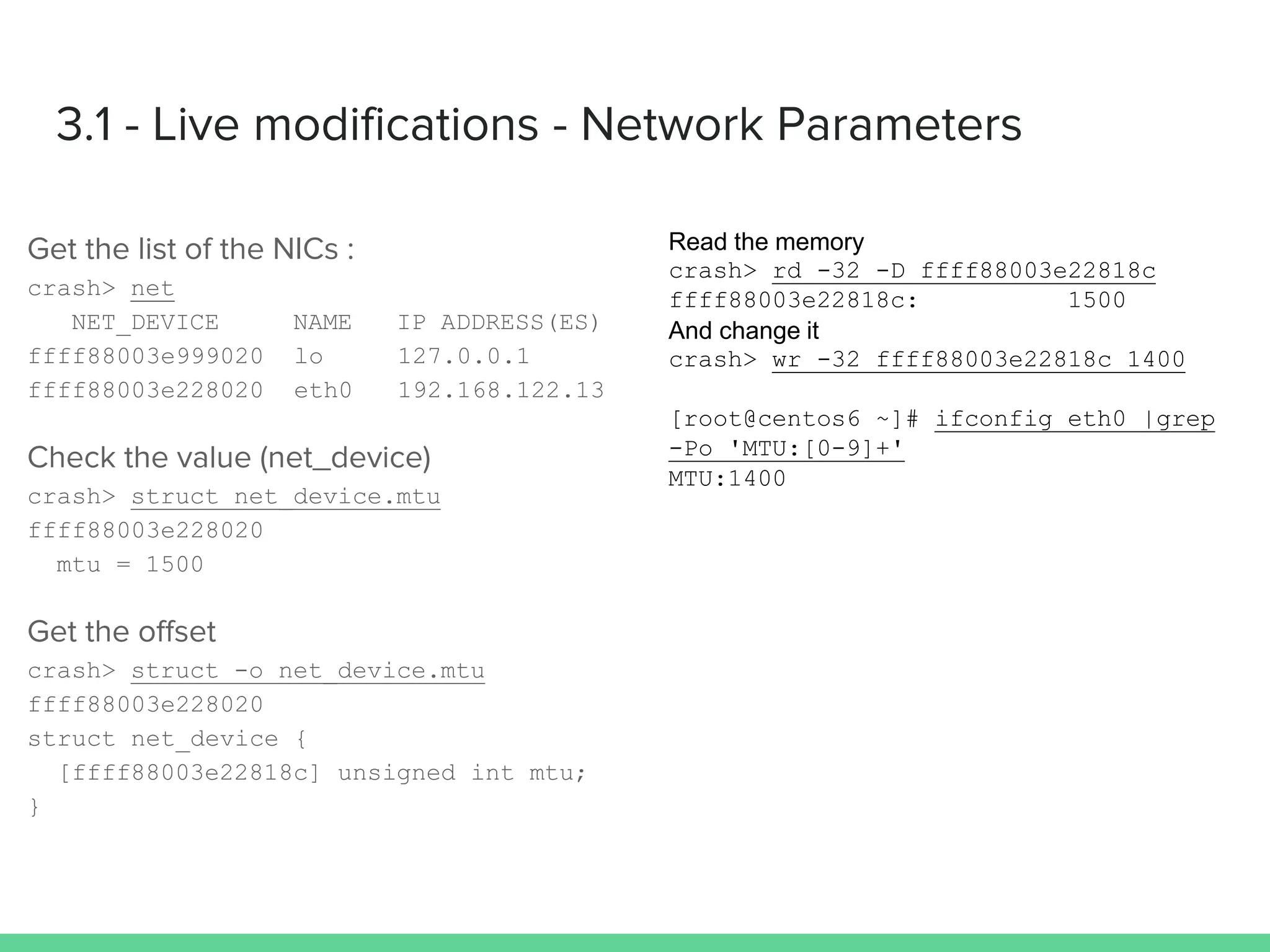

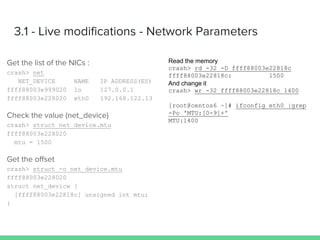

18. crash> net
NET_DEVICE NAME IP ADDRESS(ES)
ffff88003e999020 lo 127.0.0.1
ffff88003e228020 eth0 192.168.122.13
crash> struct net_device.mtu
ffff88003e228020
mtu = 1500
crash> struct -o net_device.mtu
ffff88003e228020
struct net_device {
[ffff88003e22818c] unsigned int mtu;
}
crash> rd -32 -D ffff88003e22818c
ffff88003e22818c: 1500
crash> wr -32 ffff88003e22818c 1400
[root@centos6 ~]# ifconfig eth0 |grep
-Po 'MTU:[0-9]+'
MTU:1400
