Kcd226 Sistem Operasi Lecture04

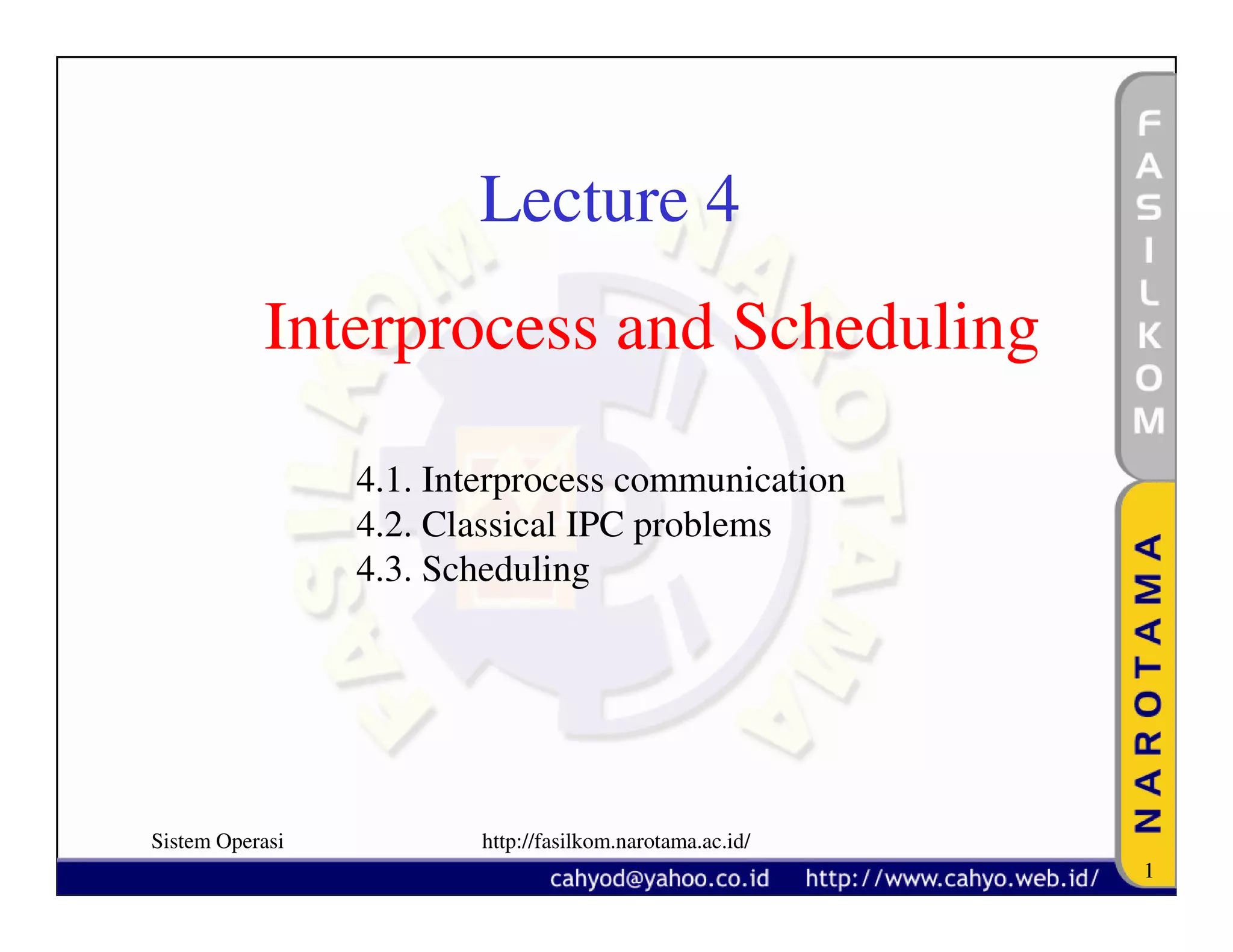

1. Lecture 4
Interprocess and Scheduling
4.1. Interprocess communication
4.2. Classical IPC problems
4.3. Scheduling
Sistem Operasi http://fasilkom.narotama.ac.id/
1
2. Interprocess Communication
Race Conditions
Two processes want to access shared memory at same time
Sistem Operasi http://fasilkom.narotama.ac.id/
2

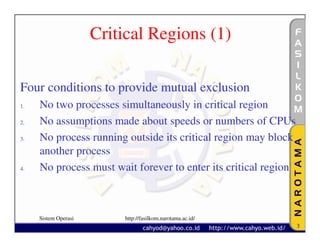

3. Critical Regions (1)
Four conditions to provide mutual exclusion
1. No two processes simultaneously in critical region
2. No assumptions made about speeds or numbers of CPUs
3. No process running outside its critical region may block
another process
4. No process must wait forever to enter its critical region
Sistem Operasi http://fasilkom.narotama.ac.id/
3

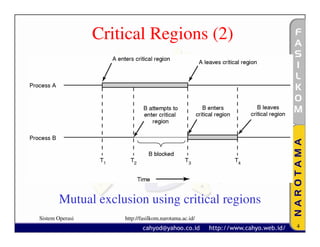

4. Critical Regions (2)
Mutual exclusion using critical regions
Sistem Operasi http://fasilkom.narotama.ac.id/
4

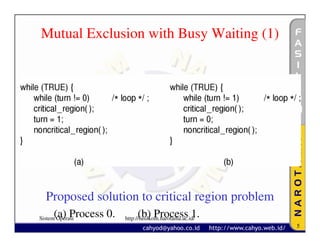

5. Mutual Exclusion with Busy Waiting (1)
Proposed solution to critical region problem
(a) Process 0.
Sistem Operasi
(b) Process 1.
http://fasilkom.narotama.ac.id/
5
6. Mutual Exclusion with Busy Waiting (2)
Sistem Operasi http://fasilkom.narotama.ac.id/
Peterson's solution for achieving mutual exclusion 6

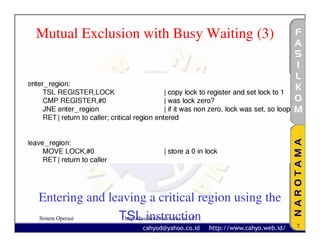

7. Mutual Exclusion with Busy Waiting (3)
Entering and leaving a critical region using the
Sistem Operasi TSL instruction
http://fasilkom.narotama.ac.id/
7

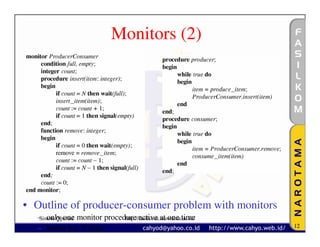

12. Monitors (2)
• Outline of producer-consumer problem with monitors
– only one monitor procedure active at one time
Sistem Operasi http://fasilkom.narotama.ac.id/
– buffer has N slots 12

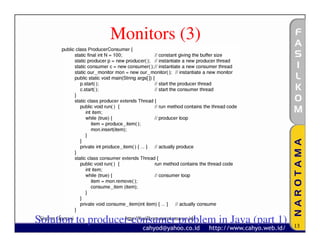

13. Monitors (3)
Solution to producer-consumer problem in Java (part 1)
Sistem Operasi http://fasilkom.narotama.ac.id/
13
14. Monitors (4)
Solution to producer-consumer problem in Java (part 2)
Sistem Operasi http://fasilkom.narotama.ac.id/
14

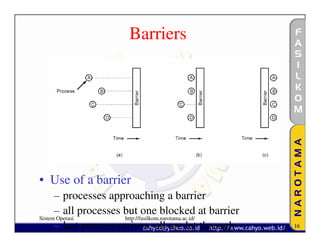

16. Barriers
• Use of a barrier
– processes approaching a barrier
– all processes but one blocked at barrier
Sistem Operasi http://fasilkom.narotama.ac.id/
– last process arrives, all are let through 16

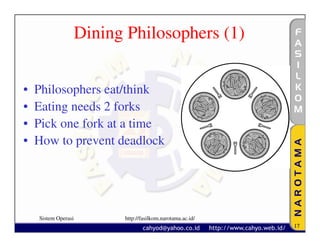

17. Dining Philosophers (1)
• Philosophers eat/think
• Eating needs 2 forks
• Pick one fork at a time
• How to prevent deadlock
Sistem Operasi http://fasilkom.narotama.ac.id/
17

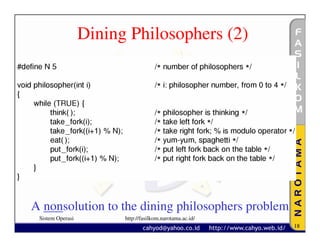

18. Dining Philosophers (2)
A nonsolution to the dining philosophers problem
Sistem Operasi http://fasilkom.narotama.ac.id/
18

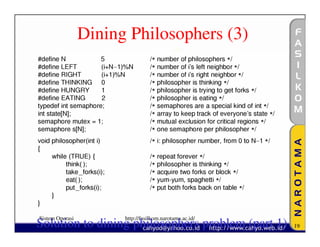

19. Dining Philosophers (3)
Sistem Operasi http://fasilkom.narotama.ac.id/
Solution to dining philosophers problem (part 1) 19
20. Dining Philosophers (4)
Sistem Operasi http://fasilkom.narotama.ac.id/
Solution to dining philosophers problem (part 2) 20

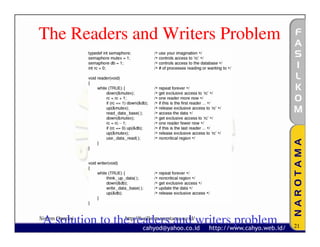

21. The Readers and Writers Problem
A solution to the readers and writers problem
Sistem Operasi http://fasilkom.narotama.ac.id/
21

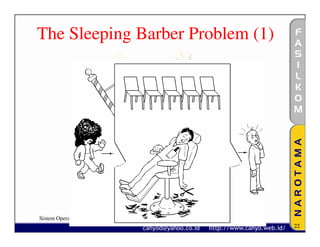

22. The Sleeping Barber Problem (1)
Sistem Operasi http://fasilkom.narotama.ac.id/
22

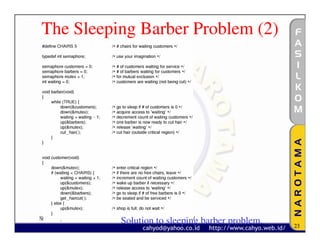

23. The Sleeping Barber Problem (2)
Sistem Operasi http://fasilkom.narotama.ac.id/
Solution to sleeping barber problem. 23
24. Scheduling
Introduction to Scheduling (1)
• Bursts of CPU usage alternate with periods of I/O wait
– a CPU-bound process
– an I/O bound process
Sistem Operasi http://fasilkom.narotama.ac.id/
24
25. Introduction to Scheduling (2)
Sistem Operasi Scheduling Algorithm Goals
http://fasilkom.narotama.ac.id/
25

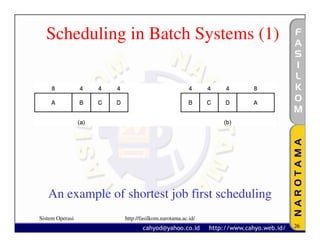

26. Scheduling in Batch Systems (1)
An example of shortest job first scheduling
Sistem Operasi http://fasilkom.narotama.ac.id/
26
27. Scheduling in Batch Systems (2)
Sistem Operasi Three level scheduling
http://fasilkom.narotama.ac.id/
27

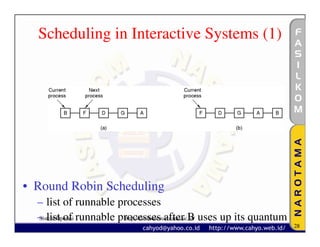

28. Scheduling in Interactive Systems (1)
• Round Robin Scheduling
– list of runnable processes
– list of runnable processes after B uses up its quantum
Sistem Operasi http://fasilkom.narotama.ac.id/
28
29. Scheduling in Interactive Systems (2)
A scheduling algorithm with four priority classes
Sistem Operasi http://fasilkom.narotama.ac.id/
29

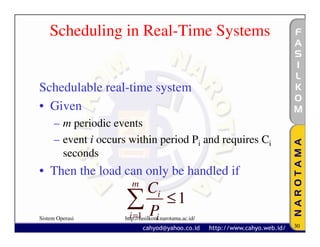

30. Scheduling in Real-Time Systems
Schedulable real-time system
• Given
– m periodic events
– event i occurs within period Pi and requires Ci
seconds
• Then the load can only be handled if
m
Ci
∑ P ≤1
i =1
Sistem Operasi i
http://fasilkom.narotama.ac.id/
30
31. Policy versus Mechanism
• Separate what is allowed to be done with
how it is done
– a process knows which of its children threads
are important and need priority
• Scheduling algorithm parameterized
– mechanism in the kernel
• Parameters filled in by user processes
– policy set by user process
Sistem Operasi http://fasilkom.narotama.ac.id/
31
32. Thread Scheduling (1)
Possible scheduling of user-level threads
• 50-msec process quantum
• threads run http://fasilkom.narotama.ac.id/
Sistem Operasi
5 msec/CPU burst 32

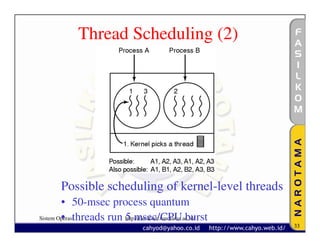

33. Thread Scheduling (2)
Possible scheduling of kernel-level threads
• 50-msec process quantum
• threads run http://fasilkom.narotama.ac.id/
Sistem Operasi 5 msec/CPU burst
33
