1. Juniper for Enterprise
Sławomir Janukowicz
Juniper System Engineer

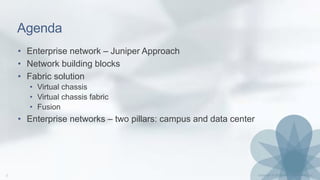

2. Agenda
• Enterprise network – Juniper Approach
• Network building blocks
• Fabric solution
• Virtual chassis
• Virtual chassis fabric
• Fusion
• Enterprise networks – two pillars: campus and data center

3. Enterprise Network – Juniper Approach

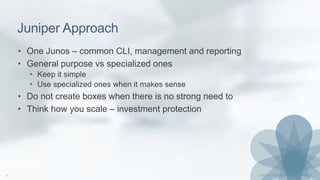

4. Juniper Approach
• One Junos – common CLI, management and reporting
• General purpose vs specialized ones
• Keep it simple
• Use specialized ones when it makes sense
• Do not create boxes when there is no strong need to
• Think how you scale – investment protection

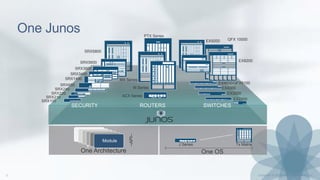

5. One Junos
–API–
Module
x
One Architecture
SECURITY ROUTERS
ACX Series
M Series
PTX Series
EX4600/QFX5100
SWITCHES
EX3300
EX8200
MX Series
EX2200
SRX3600
SRX5800
SRX210
SRX240
SRX650
SRX100
SRX5600
SRX220
SRX3400
SRX1400
J Series Tx Matrix
One OS
EX4300
EX9200 QFX 10000

6. JUNOS SOFTWARE ARCHITECTURE
 Separation of Control & Data Plane
 Independent modules
 Protected memory for stability
 Well-defined interfaces for expansion
of functions/platforms
 Scales performance, enhances
resiliency, enables redundancy
 Open Management & Development
Interfaces
 NETCONF/XML/DMI
 Junos API
 Automation
ControlPlaneDataPlane
Management
Routing
Switching
DaemonX
Kernel
mKernel
Open Management Interfaces
HAL
Physical Interfaces

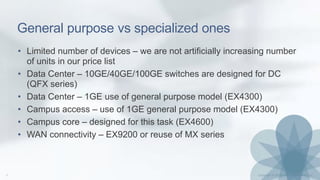

7. General purpose vs specialized ones
• Limited number of devices – we are not artificially increasing number
of units in our price list
• Data Center – 10GE/40GE/100GE switches are designed for DC
(QFX series)
• Data Center – 1GE use of general purpose model (EX4300)
• Campus access – use of 1GE general purpose model (EX4300)
• Campus core – designed for this task (EX4600)
• WAN connectivity – EX9200 or reuse of MX series

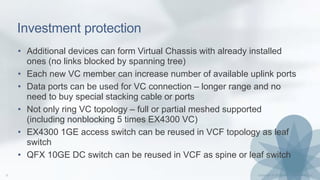

8. Investment protection
• Additional devices can form Virtual Chassis with already installed
ones (no links blocked by spanning tree)
• Each new VC member can increase number of available uplink ports
• Data ports can be used for VC connection – longer range and no
need to buy special stacking cable or ports
• Not only ring VC topology – full or partial meshed supported
(including nonblocking 5 times EX4300 VC)
• EX4300 1GE access switch can be reused in VCF topology as leaf
switch
• QFX 10GE DC switch can be reused in VCF as spine or leaf switch

9. Network building blocks

10. Devices portfolio
• QFX series switches
• QFX 3600
• QFX 5100
• QFX 10000
• MX routers• EX series switches
• Fixed configuration
• EX 2200
• EX 3300
• EX 4300
• EX 4600
• Modular
• EX 9200

11. EX4600 Campus Core 10GbaseX platform for
Distribution
 24x10GbaseX SFP+ ports
 4x40GE fixed QSFP+ ports
 Two slots for uplink modules
 8x10GbE
 4x40GbE
4x40GbaseX Modular slots
8x10GbE
Or
4x40GbE
24x10/GbaseX
EX4600 supporting skus Description
EX4600-EM-8F EX4600 8 port SFP+/SFP expansion module
EX-EM-4Q EX4600 4 port QSFP expansion module
EX4600-AFL EX4600, Advanced Feature License for IS-IS, BGP, MPLS
EX4600 SKUs* 10GbaseX ports 40 Gbase-X ports
Total 10GbaseX
ports
Total 40GbaseX
ports
Cooling AC/DC
EX4600-40F-AFO 24 4 Up to 40 Up to 12 AFO AC
EX4600-40F-AFI 24 4 Up to 40 Up to 12 AFI AC
EX4600-40F-DC-AFO 24 4 Up to 40 Up to 12 AFO DC
EX4600-40F-DC-AFI 24 4 Up to 40 Up to 12 AFI

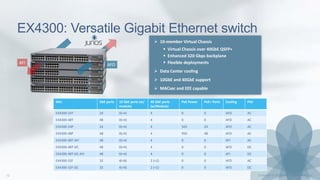

12. EX4300: Versatile Gigabit Ethernet switch
 10-member Virtual Chassis
 Virtual Chassis over 40GbE QSFP+
 Enhanced 320 Gbps backplane
 Flexible deployments
 Data Center cooling
 10GbE and 40GbE support
 MACsec and EEE capable
AFI AFO
SKU GbE ports 10 GbE ports (w/
module)
40 GbE ports
(w/Module)
PoE Power PoE+ Ports Cooling PSU
EX4300-24T 24 0(+4) 4 0 0 AFO AC
EX4300-48T 48 0(+4) 4 0 0 AFO AC
EX4300-24P 24 0(+4) 4 565 24 AFO AC
EX4300-48P 48 0(+4) 4 950 48 AFO AC
EX4300-48T-AFI 48 0(+4) 4 0 0 AFI AC
EX4300-48T-DC 48 0(+4) 4 0 0 AFO DC
EX4300-48T-DC-AFI 48 0(+4) 4 0 0 AFI DC
EX4300-32F 32 4(+8) 2 (+2) 0 0 AFO AC
EX4300-32F-DC 32 4(+8) 2 (+2) 0 0 AFO DC

13. Introducing QFX10000 Series Spine Switches
Accelerate
innovation
OPEN
Meet rapid
and continuing
data growth
MOST SCALABLE
Invest for today
and tomorrow
FUTURE PROOF
FIXED & MODULAR 10G / 40G / 100G SPINE / CORE SWITCHES
Powered by
Juniper
custom silicon

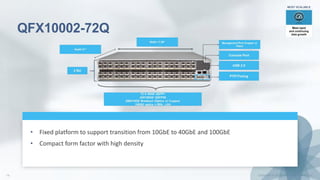

14. QFX10002-72Q
• Fixed platform to support transition from 10GbE to 40GbE and 100GbE
• Compact form factor with high density

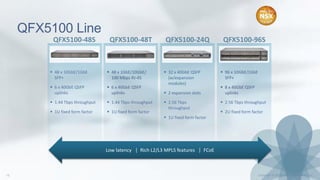

15. QFX5100 Line
Low latency │ Rich L2/L3 MPLS features │ FCoE
QFX5100-48S
 48 x 10GbE/1GbE
SFP+
 6 x 40GbE QSFP
uplinks
 1.44 Tbps throughput
 1U fixed form factor
 48 x 1GbE/10GbE/
100 Mbps RJ-45
 6 x 40GbE QSFP
uplinks
 1.44 Tbps throughput
 1U fixed form factor
 32 x 40GbE QSFP
(w/expansion
modules)
 2 expansion slots
 2.56 Tbps
throughput
 1U fixed form factor
QFX5100-48T
 96 x 10GbE/1GbE
SFP+
 8 x 40GbE QSFP
uplinks
 2.56 Tbps throughput
 2U fixed form factor
QFX5100-96SQFX5100-24Q

16. Fabric solutions

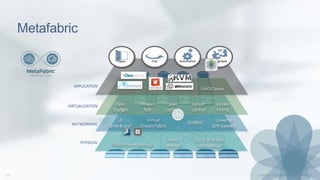

17. PHYSICAL
NETWORKING
VIRTUALIZATION
APPLICATION
VMware
NSX
Juniper
FireFly
L3
Spine & Leaf
Virtual
Chassis Fabric
QFABRIC
40GB
EthernetMulti-Silicon Strategy
CLOS-IN-A-BOX
switch design
Juniper
Contrail
Open
Contrail
Open
Daylight
JunOS Space
Universal
SDN Gateway
Metafabric

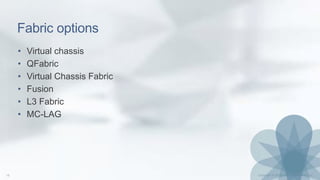

18. Fabric options
• Virtual chassis
• QFabric
• Virtual Chassis Fabric
• Fusion
• L3 Fabric
• MC-LAG

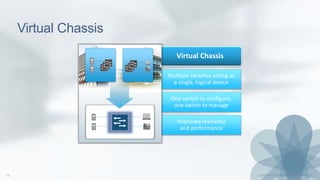

19. Virtual Chassis
Multiple switches acting as
a single, logical device
One switch to configure,
one switch to manage
Improved resiliency
and performance
Virtual Chassis

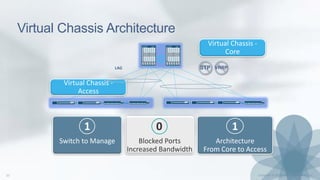

20. Virtual Chassis Architecture
STP
Virtual Chassis -
Access
1
Architecture
From Core to Access
Switch to Manage
1
Blocked Ports
Increased Bandwidth
0
VRRP
Virtual Chassis -
Core
LAG

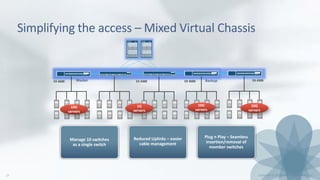

21. EX 4600 EX 4300
10G
servers
1G
servers
EX 4600Master Backup
10G
servers
EX 4300
10G
servers
Manage 10 switches
as a single switch
Reduced Uplinks – easier
cable management
Plug n Play – Seamless
insertion/removal of
member switches
Simplifying the access – Mixed Virtual Chassis

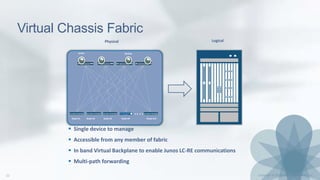

22. Virtual Chassis Fabric
1RU, 48 SFP+& 1 QIC
Node #1 Node #16Node #3Node #2
Active
Node #4
Backup
 Single device to manage
 Accessible from any member of fabric
 In band Virtual Backplane to enable Junos LC-RE communications
 Multi-path forwarding
LogicalPhysical

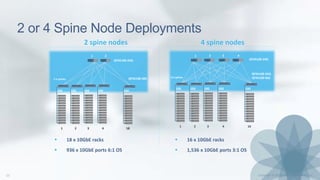

23. 2 spine nodes
10G 10G10G
QFX5100-24Q
1 2 18
10G 10G
3 4
QFX5100-48S
1 2
2 X uplinks
 18 x 10GbE racks
 936 x 10GbE ports 6:1 OS
10G 10G10G
QFX5100-24Q
1 2 16
10G 10G
3 4
1 2 3 4
QFX5100-24Q
QFX5100-96S8 X uplinks
 16 x 10GbE racks
 1,536 x 10GbE ports 3:1 OS
4 spine nodes
2 or 4 Spine Node Deployments

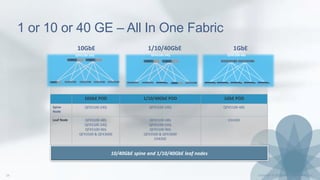

24. 1 or 10 or 40 GE – All In One Fabric
10GbE 1/10/40GbE 1GbE
10/40GbE spine and 1/10/40GbE leaf nodes
10GbE POD 1/10/40GbE POD 1GbE POD
Spine
Node
QFX5100-24Q QFX5100-24Q QFX5100-48S
Leaf Node QFX5100-48S
QFX5100-24Q
QFX5100-96S
QFX3500 & QFX3600
QFX5100-48S
QFX5100-24Q
QFX5100-96S
QFX3500 & QFX3600
EX4300
EX4300
QFX5100-24Q QFX5100-24Q QFX5100-48S

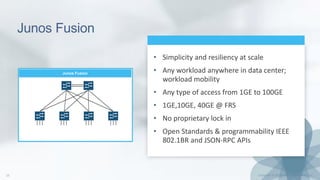

25. Junos Fusion
Junos Fusion
• Simplicity and resiliency at scale
• Any workload anywhere in data center;
workload mobility
• Any type of access from 1GE to 100GE
• 1GE,10GE, 40GE @ FRS
• No proprietary lock in
• Open Standards & programmability IEEE
802.1BR and JSON-RPC APIs

26. IP Fabric Topologies
• One Size Doesn’t Fit All
S S S S
L L L L L L L L L L L LL L L L
3:1
O/S
3-Stage IP Fabric
S S S S S S S S
L L L L L L L L L L L L L L L L
A A A A A A A A
3:1
O/S
5-Stage IP Fabric
Performance
L L L L L L L L
A A A A A A A A A A A A A A A A
S S S S
3:1
O/S
3:1
O/S
3:1
O/S
3:1
O/S
24:1
O/S
5-Stage IP Fabric
Real Estate / POD
S L ASpine Leaf Access

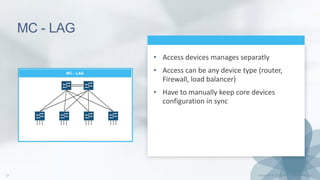

27. MC - LAG
MC - LAG
• Access devices manages separatly
• Access can be any device type (router,
Firewall, load balancer)
• Have to manually keep core devices
configuration in sync

28. Enterprise Networks

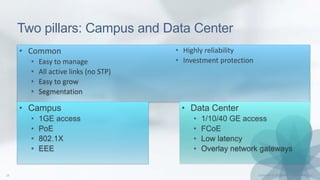

29. Two pillars: Campus and Data Center
• Common
• Easy to manage
• All active links (no STP)
• Easy to grow
• Segmentation
• Highly reliability
• Investment protection
• Data Center
• 1/10/40 GE access
• FCoE
• Low latency
• Overlay network gateways
• Campus
• 1GE access
• PoE
• 802.1X
• EEE

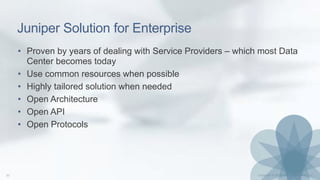

30. Juniper Solution for Enterprise
• Proven by years of dealing with Service Providers – which most Data
Center becomes today
• Use common resources when possible
• Highly tailored solution when needed
• Open Architecture
• Open API
• Open Protocols

31. Thank you
