- 1. Juniper Day 2016 Campus May2016 Prague Sergei Gotchev – sgotchev@juniper.net

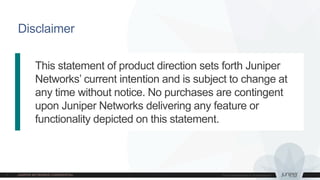

- 2. Disclaimer This statement ofproduct direction sets forth Juniper Networks’ current intention and is subject to change at any time without notice. No purchases are contingent upon Juniper Networks delivering any feature or functionality depicted on this statement.

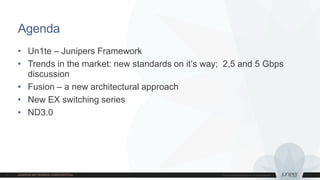

- 3. Agenda • Un1te –Junipers Framework • Trends in the market: new standards on it‘s way; 2,5 and 5 Gbps discussion • Fusion – a new architectural approach • New EX switching series • ND3.0

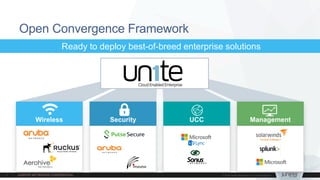

- 4. Open Convergence Framework WirelessSecurity UCC Management Ready to deploy best-of-breed enterprise solutions
- 5.

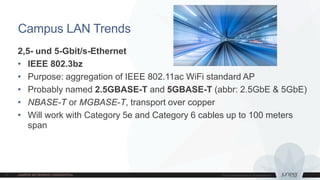

- 6. Campus LAN Trends 2,5-und 5-Gbit/s-Ethernet • IEEE 802.3bz • Purpose: aggregation of IEEE 802.11ac WiFi standard AP • Probably named 2.5GBASE-T and 5GBASE-T (abbr: 2.5GbE & 5GbE) • NBASE-T or MGBASE-T, transport over copper • Will work with Category 5e and Category 6 cables up to 100 meters span

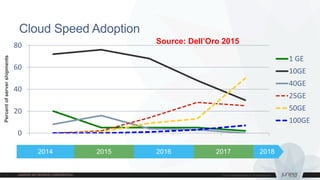

- 7. Cloud Speed Adoption 201820142015 2016 2017 0 20 40 60 80 1 GE 10GE 40GE 25GE 50GE 100GE Percentofservershipments Source: Dell’Oro 2015

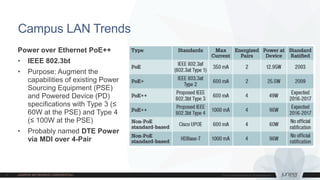

- 8. Campus LAN Trends Powerover Ethernet PoE++ • IEEE 802.3bt • Purpose: Augment the capabilities of existing Power Sourcing Equipment (PSE) and Powered Device (PD) specifications with Type 3 (≤ 60W at the PSE) and Type 4 (≤ 100W at the PSE) • Probably named DTE Power via MDI over 4-Pair
- 9. Multi-Gigabit Related Timelines 2015- Cisco/Aquantia ship NBASE-T switch IEEE merges NBASE- T/MBASE-T 2016 Vendors announce pre- standard products 2016 Aruba Wave 2 AP Early 2017 - 2.5G based Wave 2 APs 2017 IEEE 802.3bz/8 02.3bt 2017 Juniper Switches FRS (standards based) Non-standard based products [draft] standard based products Non-standards based Standards based (JNPR) All speeds - 100M/1G/2.5G/5G/10G Some vendors only Yes Up to 99.9W PoE (IEEE 802.3bt) Some vendors only Yes Interop testing with 2.5G APs No Yes
- 10.
- 11. What is JunosFusion Enterprise? Junos Fusion for Enterprise Simple • Single management domain • Plug and play deployment of access switches (ZTP) • Single configuration with resilient control & data plane Reliable • Carrier-grade control and data plane resiliency • High availability and ISSU • Consistent tooling across data center and campus Flexible • Built on open protocols (802.1BR) • Flexible attachment models and scalability • Mix and match with traditional wiring closet switches Junos Fusion Enterprise Campus Building Aggregation Device (AD): EX9200 Satellite Devices (SD): EX4300 (1H 2016), EX3400 (2H 2016), EX2300 (2H 2016) On-premise DC * Subject to verification

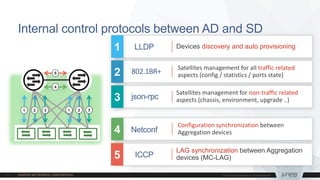

- 12. Internal control protocolsbetween AD and SD Satellites management for all traffic related aspects (config / statistics / ports state) LAG synchronization between Aggregation devices (MC-LAG) LLDP 802.1BR+ Configuration synchronization between Aggregation devicesNetconf 1 2 3 4 Satellites management for non-traffic related aspects (chassis, environment, upgrade ..)json-rpc 5 Devices discovery and auto provisioning 1 2 3 4 5 1 2 3 ICCP
- 13. Guest VPN Sales VPN EngineeringVPN Finance VPN Unifying Enterprise Networks Simple Smart Flexible Boston HQ Junos Fusion Enterprise Chicago Junos Fusion Enterprise San Francisco Junos Fusion Enterprise Cleveland Junos Fusion Data Center L3 / EVPN Junos Fusion Enterprise elegantly unifies the enterprise Extends EVPN capabilities to the access Consistent segmentation across all sites Uniform VLANs, configuration and policies

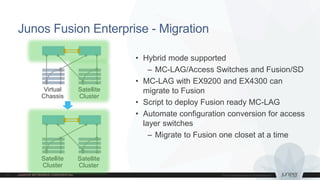

- 14. Junos Fusion Enterprise- Migration Virtual Chassis Satellite Cluster Satellite Cluster Satellite Cluster • Hybrid mode supported – MC-LAG/Access Switches and Fusion/SD • MC-LAG with EX9200 and EX4300 can migrate to Fusion • Script to deploy Fusion ready MC-LAG • Automate configuration conversion for access layer switches – Migrate to Fusion one closet at a time
- 15.

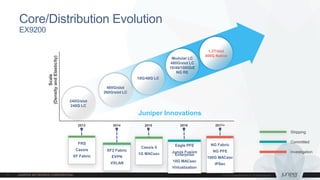

- 16. Core/Distribution Evolution EX9200 Scale (DensityandElasticity) 2014 20152016 2017+2013 Juniper Innovations FRS Cassis XF Fabric XF2 Fabric EVPN VXLAN Eagle PFE Junos Fusion Enterprise 10G MACsec Virtualization Cassis II 1G MACsec NG Fabric NG PFE 100G MACsec IPSec 240G/slot 240G LC 480G/slot 260G/slot LC 10G/40G LC Modular LC 480G/slot LC 10/40/100GbE NG RE 1.2T/slot 400G Native Shipping Committed Investigation

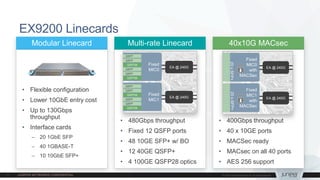

- 17. EX9200 Linecards Modular LinecardMulti-rate Linecard 40x10G MACsec • Flexible configuration • Lower 10GbE entry cost • Up to 130Gbps throughput • Interface cards – 20 1GbE SFP – 40 1GBASE-T – 10 10GbE SFP+ • 480Gbps throughput • Fixed 12 QSFP ports • 48 10GE SFP+ w/ BO • 12 40GE QSFP+ • 4 100GE QSFP28 optics • 400Gbps throughput • 40 x 10GE ports • MACSec ready • MACsec on all 40 ports • AES 256 support EA @ 240G EA @ 240G Fixed MIC0 Fixed MIC1 QSFP QSFP QSFP28 QSFP QSFP QSFP28 QSFP QSFP QSFP28 QSFP QSFP QSFP28 EA @ 240G EA @ 240G Fixed MIC0 with MACSec Fixed MIC1 with MACSec 20xSFP+20xSFP+

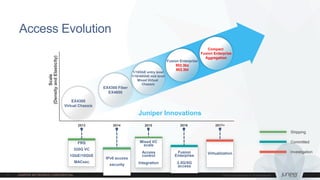

- 18. Access Evolution Scale (DensityandElasticity) 2014 20152016 2017+2013 Juniper Innovations FRS 320G VC 1GbE/10GbE MACsec IPv6 access security Fusion Enterprise 2.5G/5G access Mixed VC scale Access control Integration Virtualization EX4300 Virtual Chassis EX4300 Fiber EX4600 1/10GbE entry level 1/10/40GbE mid level Mixed Virtual Chassis Fusion Enterprise 802.3bz 802.3bt Compact Fusion Enterprise Aggregation Shipping Committed Investigation

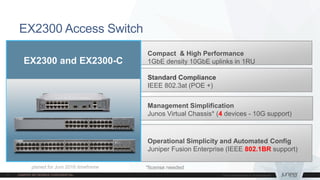

- 19. EX2300 Access Switch Compact& High Performance 1GbE density 10GbE uplinks in 1RU Standard Compliance IEEE 802.3at (POE +) Management Simplification Junos Virtual Chassis* (4 devices - 10G support) Operational Simplicity and Automated Config Juniper Fusion Enterprise (IEEE 802.1BR support) EX2300 and EX2300-C *license neededplaned for Juni 2016 timeframe

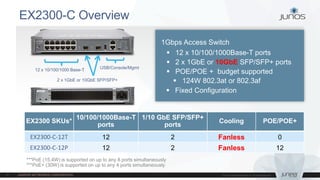

- 20. EX2300-C Overview 1Gbps AccessSwitch 12 x 10/100/1000Base-T ports 2 x 1GbE or 10GbE SFP/SFP+ ports POE/POE + budget supported 124W 802.3at or 802.3af Fixed Configuration EX2300 SKUs* 10/100/1000Base-T ports 1/10 GbE SFP/SFP+ ports Cooling POE/POE+ EX2300-C-12T 12 2 Fanless 0 EX2300-C-12P 12 2 Fanless 12 ***PoE (15.4W) is supported on up to any 8 ports simultaneously ***PoE+ (30W) is supported on up to any 4 ports simultaneously 12 x 10/100/1000 Base-T 2 x 1GbE or 10GbE SFP/SFP+ USB/Console/Mgmt

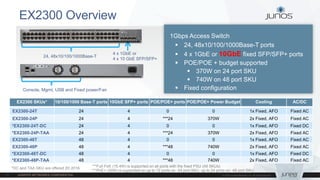

- 21. EX2300 Overview 1Gbps AccessSwitch 24, 48x10/100/1000Base-T ports 4 x 1GbE or 10GbE fixed SFP/SFP+ ports POE/POE + budget supported 370W on 24 port SKU 740W on 48 port SKU Fixed configuration 4 x 1GbE or 4 x 10 GbE SFP/SFP+ 24, 48x10/100/1000Base-T EX2300 SKUs* 10/100/1000 Base-T ports 10GbE SFP+ ports POE/POE+ ports POE/POE+ Power Budget Cooling AC/DC EX2300-24T 24 4 0 0 1x Fixed, AFO Fixed AC EX2300-24P 24 4 ***24 370W 2x Fixed, AFO Fixed AC *EX2300-24T-DC 24 4 0 0 1x Fixed, AFO Fixed DC *EX2300-24P-TAA 24 4 ***24 370W 2x Fixed, AFO Fixed AC EX2300-48T 48 4 0 0 1x Fixed, AFO Fixed AC EX2300-48P 48 4 ***48 740W 2x Fixed, AFO Fixed AC *EX2300-48T-DC 48 4 0 0 1x Fixed, AFO Fixed DC *EX2300-48P-TAA 48 4 ***48 740W 2x Fixed, AFO Fixed AC *DC and TAA SKU are offered 2H 2016 ***Full PoE (15.4W) is supported on all ports with the fixed PSU (All SKUs) ***PoE+ (30W) is supported on up to 12 ports on -24 port SKU, up to 24 ports on -48 port SKU Console, Mgmt, USB and Fixed power/Fan

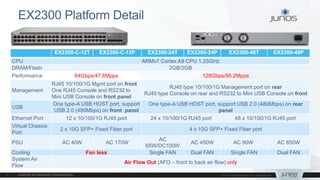

- 22. EX2300 Platform Detail EX2300-C-12TEX2300-C-12P EX2300-24T EX2300-24P EX2300-48T EX2300-48P CPU ARMv7 Cortex A9 CPU 1.25GHz DRAM/Flash 2GB/2GB Performance 64Gbps/47.6Mpps 128Gbps/95.2Mpps Management RJ45 10/100/1G Mgmt port on front One RJ45 Console and RS232 to Mini USB Console on front panel RJ45 type 10/100/1G Management port on rear RJ45 type Console on rear and RS232 to Mini USB Console on front USB One type-A USB HOST port, support USB 2.0 (480Mbps) on front panel One type-A USB HOST port, support USB 2.0 (480Mbps) on rear panel Ethernet Port 12 x 10/100/1G RJ45 port 24 x 10/100/1G RJ45 port 48 x 10/100/1G RJ45 port Virtual Chassis Port 2 x 10G SFP+ Fixed Fiber port 4 x 10G SFP+ Fixed Fiber port PSU AC 40W AC 170W AC 65W/DC100W AC 450W AC 90W AC 850W Cooling Fan less Single FAN Dual FAN Single FAN Dual FAN System Air Flow Air Flow Out (AFO – front to back air flow) only

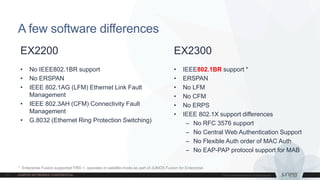

- 23. A few softwaredifferences • No IEEE802.1BR support • No ERSPAN • IEEE 802.1AG (LFM) Ethernet Link Fault Management • IEEE 802.3AH (CFM) Connectivity Fault Management • G.8032 (Ethernet Ring Protection Switching) • IEEE802.1BR support * • ERSPAN • No LFM • No CFM • No ERPS • IEEE 802.1X support differences – No RFC 3576 support – No Central Web Authentication Support – No Flexible Auth order of MAC Auth – No EAP-PAP protocol support for MAB EX2200 EX2300 * Enterprise Fusion supported FRS +, operates in satellite mode as part of JUNOS Fusion for Enterprise

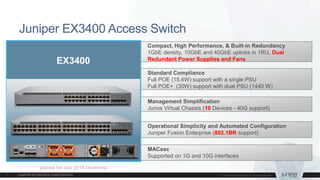

- 24. MACsec Supported on 1Gand 10G interfaces Juniper EX3400 Access Switch Compact, High Performance, & Built-in Redundancy 1GbE density, 10GbE and 40GbE uplinks in 1RU, Dual Redundant Power Supplies and Fans Standard Compliance Full POE (15.4W) support with a single PSU Full POE+ (30W) support with dual PSU (1440 W) Management Simplification Junos Virtual Chassis (10 Devices - 40G support) Operational Simplicity and Automated Configuration Juniper Fusion Enterprise (802.1BR support) EX3400 planed for Juni 2016 timeframe

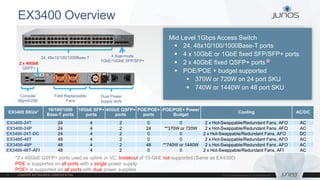

- 25. EX3400 Overview Mid Level1Gbps Access Switch 24, 48x10/100/1000Base-T ports 4 x 10GbE or 1GbE fixed SFP/SFP+ ports 2 x 40GbE fixed QSFP+ ports * POE/POE + budget supported 370W or 720W on 24 port SKU 740W or 1440W on 48 port SKU 4 dual-mode 1GbE/10GbE SFP/SFP+ 24, 48x10/100/1000Base-T EX3400 SKUs* 10/100/1000 Base-T ports 10GbE SFP+ ports 40GbE QSFP+ ports POE/POE+ ports POE/POE+ Power Budget Cooling AC/DC EX3400-24T 24 4 2 0 0 2 x Hot-Swappable/Redundant Fans, AFO AC EX3400-24P 24 4 2 24 **370W or 720W 2 x Hot-Swappable/Redundant Fans, AFO AC EX3400-24T-DC 24 4 2 0 0 2 x Hot-Swappable/Redundant Fans, AFO DC EX3400-48T 48 4 2 0 0 2 x Hot-Swappable/Redundant Fans, AFO AC EX3400-48P 48 4 2 48 **740W or 1440W 2 x Hot-Swappable/Redundant Fans, AFO AC EX3400-48T-AFI 48 4 2 0 0 2 x Hot-Swappable/Redundant Fans, AFI AC *2 x 40GbE QSFP+ ports used as uplink or VC, breakout of 10-GbE not supported (Same as EX4300) POE is supported on all ports with a single power supply POE+ is supported on all ports with dual power supplies Field Replaceable Fans Dual Power supply slots Console/ Mgmt/USB 2 x 40GbE QSFP+

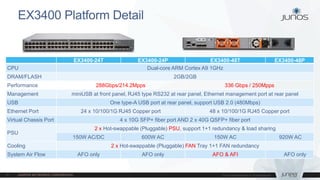

- 26. EX3400 Platform Detail EX3400-24TEX3400-24P EX3400-48T EX3400-48P CPU Dual-core ARM Cortex A9 1GHz DRAM/FLASH 2GB/2GB Performance 288Gbps/214.2Mpps 336 Gbps / 250Mpps Management miniUSB at front panel, RJ45 type RS232 at rear panel, Ethernet management port at rear panel USB One type-A USB port at rear panel, support USB 2.0 (480Mbps) Ethernet Port 24 x 10/100/1G RJ45 Copper port 48 x 10/100/1G RJ45 Copper port Virtual Chassis Port 4 x 10G SFP+ fiber port AND 2 x 40G QSFP+ fiber port PSU 2 x Hot-swappable (Pluggable) PSU, support 1+1 redundancy & load sharing 150W AC/DC 600W AC 150W AC 920W AC Cooling 2 x Hot-swappable (Pluggable) FAN Tray 1+1 FAN redundancy System Air Flow AFO only AFO only AFO & AFI AFO only
- 27. A few softwaredifferences • No configurable TCAM support • No IEEE802.1BR support • No ERSPAN • IEEE 802.1AG (LFM) Ethernet Link Fault Management • IEEE 802.3AH (CFM) Connectivity Fault Management • G.8032 (ERPS) Ethernet Ring Protection Switching • BGP v4 • Configurable Unified Forwarding Table (UFT) FRS + • IEEE802.1BR support* • ERSPAN • No LFM • No CFM • No ERPS • No BGP • IEEE 802.1X support differences – No RFC 3576 support – No Central Web Authentication Support – No Flexible Auth order of MAC Auth – No EAP-PAP protocol support for MAB EX3300 EX3400 * Enterprise Fusion supported FRS +, operates in satellite mode as part of JUNOS Fusion for Enterprise

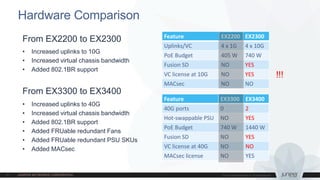

- 28. Hardware Comparison • Increaseduplinks to 10G • Increased virtual chassis bandwidth • Added 802.1BR support From EX2200 to EX2300 • Increased uplinks to 40G • Increased virtual chassis bandwidth • Added 802.1BR support • Added FRUable redundant Fans • Added FRUable redundant PSU SKUs • Added MACsec From EX3300 to EX3400 Feature EX2200 EX2300 Uplinks/VC 4 x 1G 4 x 10G PoE Budget 405 W 740 W Fusion SD NO YES VC license at 10G NO YES MACsec NO NO Feature EX3300 EX3400 40G ports 0 2 Hot-swappable PSU NO YES PoE Budget 740 W 1440 W Fusion SD NO YES VC license at 40G NO NO MACsec license NO YES !!!

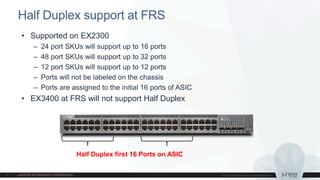

- 29. Half Duplex supportat FRS • Supported on EX2300 – 24 port SKUs will support up to 16 ports – 48 port SKUs will support up to 32 ports – 12 port SKUs will support up to 12 ports – Ports will not be labeled on the chassis – Ports are assigned to the initial 16 ports of ASIC • EX3400 at FRS will not support Half Duplex Half Duplex first 16 Ports on ASIC
- 30.

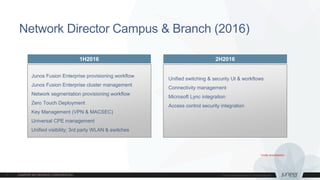

- 31. Network Director Campus& Branch (2016) Junos Fusion Enterprise provisioning workflow Junos Fusion Enterprise cluster management Network segmentation provisioning workflow Zero Touch Deployment Key Management (VPN & MACSEC) Universal CPE management Unified visibility; 3rd party WLAN & switches Under investigation Unified switching & security UI & workflows Connectivity management Microsoft Lync integration Access control security integration 1H2016 2H2016

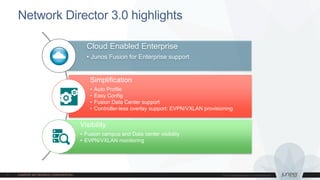

- 32. Network Director 3.0highlights Cloud Enabled Enterprise • Junos Fusion for Enterprise support Simplification • Auto Profile • Easy Config • Fusion Data Center support • Controller-less overlay support: EVPN/VXLAN provisioning Visibility • Fusion campus and Data center visibility • EVPN/VXLAN monitoring
- 33. Easy Config 1 2 3 Portal forday to day operations Allow the network admin or help desk to make quick and point changes Ability to configure vlans, POE,802.1x

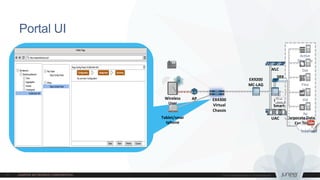

- 34.

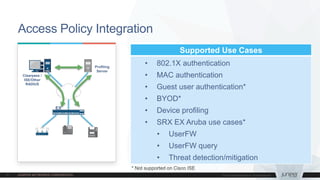

- 35. Supported Use Cases •802.1X authentication • MAC authentication • Guest user authentication* • BYOD* • Device profiling • SRX EX Aruba use cases* • UserFW • UserFW query • Threat detection/mitigation Access Policy Integration Clearpass / ISE/Other RADIUS EX Profiling Server * Not supported on Cisco ISE
- 36.

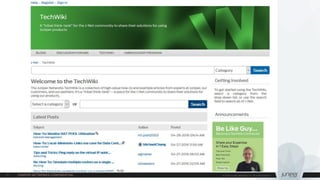

- 37. How to makethings easier – • Network Design and Architecture Center – Data Center Networks • J-Net Forum TechWiki • Cloud Labs

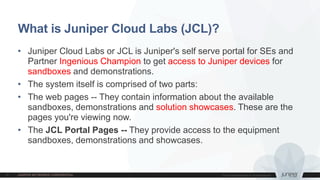

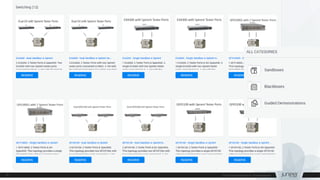

- 40. What is JuniperCloud Labs (JCL)? • Juniper Cloud Labs or JCL is Juniper's self serve portal for SEs and Partner Ingenious Champion to get access to Juniper devices for sandboxes and demonstrations. • The system itself is comprised of two parts: • The web pages -- They contain information about the available sandboxes, demonstrations and solution showcases. These are the pages you're viewing now. • The JCL Portal Pages -- They provide access to the equipment sandboxes, demonstrations and showcases.
