The document provides an overview of Jersey, an open source framework for developing RESTful web services in Java. It describes how Jersey implements JAX-RS and supports developing resources using Java annotations like @Path, @GET and @Produces. Resources are POJOs that handle HTTP requests at specific URI paths. Jersey also supports object injection, sub-resources, response building and common deployment options like using Grizzly HTTP server.

1. Scott
Leberknight
RESTful
Web Services with
Jersey

2. "Jersey RESTful Web Services framework is
[an] open source, production quality framework
for developing RESTful Web Services in Java..."

3. Jersey...

4. ...produces & consumes
RESTful web services
(in Java, mostly pain-free)

5. ...is the JAX-RS reference
implementation
(and extends JAX-RS with
additional features)

6. JAX-RS?
Java API for RESTful Services

7. It's about the
Resources,
stupid...

8. "A JAX-RS resource is an annotated
POJO that provides so-called resource
methods that are able to handle HTTP
requests for URI paths that the resource
is bound to."

9. @Path("/simple")
public class SimpleResource {
!
@GET
@Produces("text/plain")
public String get() {
return "it's quite simple, you see?";
}
}
resource class

10. Root Resources
POJO (plain-old Java object)
Annotated with @Path and/or
method designator (e.g. @GET)

11. @Path
Specifies the URI at which a
resource is located
URI template capability
(via @PathParam)

12. URI path template
@Path("/users/{userid}")
@GET
@Produces("application/json")
public User user(@PathParam("userid") String id) {
return _userRepository.getUser(id);
}

13. Method designators
Represent the HTTP method that
resource methods respond to

14. @GET
@Produces("text/plain")
public String get() {
return "this is it!";
}
HTTP method designator

15. @Produces
Specifies the MIME type of
representations that a resource
produces

16. Media Types
MediaType class contains constants
for common MIME types...

17. Media Types
MediaType.TEXT_PLAIN
!
MediaType.APPLICATION_JSON
!
MediaType.APPLICATION_XML
!
MediaType.MULTIPART_FORM_DATA
!
// and more...

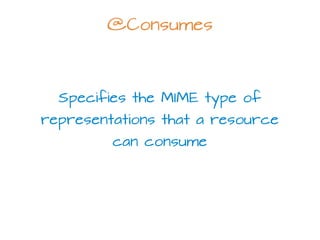

18. @Consumes
Specifies the MIME type of
representations that a resource
can consume

19. @Consumes
@Path("/users")
@POST
@Consumes(MediaType.APPLICATION_JSON)
public Response create(User user) {
Long id = _userRepository.create(user);
URI uri = URIBuilder.fromURI("/users")
.path(id).build();
return Response.created(uri).build();
}

20. Sub-Resources & Paths
methods annotated with @Path in
root resource classes, or...
methods returning an (annotated)
resource class

21. @Path("/myapp")
public class UserResource { // root resource
@Path("users")
@GET
@Produces(MediaType.TEXT_HTML)
public String getUsersAsHtml() { ... }
!
@Path("users.xml")
@GET
@Produces(MediaType.APPLICATION_XML)
public String getUsersAsXml() { ... }
!
@Path("users.json")
@GET
@Produces(MediaType.APPLICATION_JSON)
public String getUsersAsXml() { ... }
}
Sub-resource methods

22. Sub-resource URIs
/myapp/users
/myapp/users.xml
/myapp/users.json

23. Injection
Use annotations to specify data to
be injected...
Query & form parameters
Headers, cookies, etc.
Security context
...and more

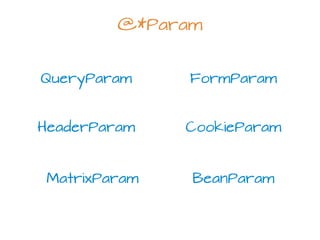

24. @*Param
QueryParam
HeaderParam
MatrixParam
FormParam
CookieParam
BeanParam

25. @QueryParam
@Path("query-params")
@GET
public String colors (@QueryParam("red") int red,
@QueryParam("green") int green,
@QueryParam("blue") int blue) {
return String.format("RGB(%d,%d,%d)", red, green, blue);
}

26. @HeaderParam
@Path("header-params")
@GET
public String headers(@HeaderParam("Accept") String accept,
@HeaderParam("X-Foo") String foo) {
return String.format("Accept: %s, X-Foo: %s",
accept, foo);
}

27. @MatrixParam
@Path("matrix-params")
@GET
public String matrixParams(@MatrixParam("red") int red,
@MatrixParam("green") int green,
@MatrixParam("blue") int blue) {
return String.format("RGB(%d,%d,%d)", red, green, blue);
}

28. What's a "matrix param"?
http://www.w3.org/DesignIssues/MatrixURIs.html
Also, see Tim-Berners Lee on matrix param
design issues circa 1996...
acme.com/rest/samples/color;red=25;green=78;blue=192
Parameters separate by semi-colons, e.g.
Not widely used, supported (or known)

29. What if a parameter isn't
supplied???

30. @DefaultValue
@Path("defaults")
@GET
public String defaults(
@DefaultValue("Orange") @QueryParam("color") String color,
@DefaultValue(MediaType.APPLICATION_JSON)
@HeaderParam("Accept") String accept) {
!
return String.format("color: %s, Accept: %s", color, accept);
}

31. @FormParam
@Path("form-params")
@POST
@Consumes(MediaType.APPLICATION_FORM_URLENCODED)
public Response formParams(@FormParam("first") String firstName,
@FormParam("last") String lastName) {
!
String entity = String.format("%s %s", firstName, lastName);
return Response.ok(entity).build();
}

32. @BeanParam
@Path("bean-params")
@POST
public Response beanParams(@BeanParam User user) {
!
String entity = String.format("User: %s %s",
user.getFirstName(), user.getLastName());
return Response.ok(entity).build();
}

33. @BeanParam class
public class User {
!
@QueryParam("first")
@DefaultValue("John")
private String _firstName;
!
@QueryParam("last")
@DefaultValue("Doe")
private String _lastName;
!
public String getFirstName() {
return _firstName;
}
!
public String getLastName() {
return _lastName;
}
}

34. @Context
Use to obtain information
related to request/response

35. UriInfo
@Path("context-uri-info/{thing}")
@GET
public String uriInfo(@Context UriInfo info) {
URI baseUri = info.getBaseUri();
MultivaluedMap<String, String> queryParams = info.getQueryParameters();
MultivaluedMap<String, String> pathParams = info.getPathParameters();
!
return String.format("base URI: %s, query params: %s, path params: %s",
baseUri, queryParams.entrySet(), pathParams.entrySet());
}

36. HttpHeaders
@Path("http-headers")
@GET
public String httpHeaders(@Context HttpHeaders headers) {
List<MediaType> acceptableMediaTypes =
headers.getAcceptableMediaTypes();
String xFoo = headers.getHeaderString("X-Foo");
!
return String.format("acceptableMediaTypes: %s, X-Foo: %s",
acceptableMediaTypes, xFoo);
}

37. Raw form parameters
@Path("raw-form")
@POST
@Consumes(MediaType.APPLICATION_FORM_URLENCODED)
public Response rawForm(MultivaluedMap<String, String> formParams) {
!
String entity = formParams.entrySet().toString();
return Response.ok(entity).build();
}
(Note: don't actually need @Context in above)

38. Resource Life Cycle

39. Scopes
Per-Request (default)
new instance created on each request
Per-lookup
new instance created on each lookup
(perhaps within same request)
Singleton
only one instance for entire app

40. JAX-RS Application
Model

41. Defines components of a JAX-RS
application, i.e. resources
Application class
Independent of deployment environment
JAX-RS apps provide concrete
implementation class

42. Simple Application
public class SampleApplication extends Application {
!
@Override
public Set<Class<?>> getClasses() {
Set<Class<?>> classes = new HashSet<>();
!
classes.add(SampleResource.class);
classes.add(SimpleResource.class);
classes.add(UserResource.class);
!
return classes;
}
}

43. Jersey's implementation of Application
Jersey ResourceConfig
Extend or create programmatically
Provides additional features like
resource classpath scanning

44. Jersey ResourceConfig
public class SampleJerseyApp extends ResourceConfig {
!
public SampleJerseyApp() {
// scan classpath for resources
packages("com.acme.rest", "com.foo.services");
!
// register filters
register(CsrfProtectionFilter.class);
register(UriConnegFilter.class);
register(HttpMethodOverrideFilter.class);
!
// other configuration, etc.
}
}

45. Deployment Options

46. JavaSE
(e.g. Grizzly, Jetty, Simple, etc.)
Servlet container
(e.g. Tomcat, Jetty)
JavaEE
(e.g. JBoss, etc.)
OSGi

47. Using Grizzly
HTTP Server
(JavaSE deployment)

48. public class Server {
public static final String BASE_URI = "http://localhost:8080/rest/";
!
public static HttpServer startServer() {
ResourceConfig config = new ResourceConfig()
.packages("com.acme.rest")
.register(CsrfProtectionFilter.class)
.register(UriConnegFilter.class)
.register(HttpMethodOverrideFilter.class);
!
// create a new Grizzly HTTP server rooted at BASE_URI
return GrizzlyHttpServerFactory
.createHttpServer(URI.create(BASE_URI), config);
}
!
public static void main(String[] args) throws Exception {
final HttpServer server = startServer();
System.out.printf("Jersey app started with WADL available at "
+ "%sapplication.wadlnHit enter to stop it...n", BASE_URI);
System.in.read();
server.shutdownNow();
}
}
Grizzly Server

49. Client API

50. Jersey provides a client API to consume
RESTful services
Written in fluent-style
(method chaining)
Supports URI templates, forms, etc.

51. Client client = ClientBuilder.newClient();
WebTarget target = client.target("http://localhost:8080/rest")
.path("sample/query-params");
String response = target.queryParam("red", 0)
.queryParam("green", 113)
.queryParam("blue", 195)
.request()
.get(String.class);
Client API example

52. Representations

53. ...supports common media types like
JSON, XML, etc.
...implementations provide ways to
convert to/from various media
representations
JAX-RS...

54. ...supplies support out-of-box for XML,
JSON, etc.
...uses MOXy as the default provider for
JSON and XML conversion
Jersey...

55. @Path("/")
public class UserResource {
!
@Path("/users.json") @GET @Produces(MediaType.APPLICATION_JSON)
public Collection<User> users() {
return _userRepository.getAllUsers();
}
!
@Path("/users/{userid}.json") @GET
@Produces(MediaType.APPLICATION_JSON)
public User user(@PathParam("userid") Integer id) {
return _userRepository.getUser(id);
}
!
@Path("/users.json") @POST @Consumes(MediaType.APPLICATION_JSON)
public Response create(User user) throws Exception {
Long id = _userRepository.save(user);
URI uri = UriBuilder.fromUri("users").path(id).build();
return Response.created(uri).build();
}
!
// more resource methods...
}
Automatic JSON support

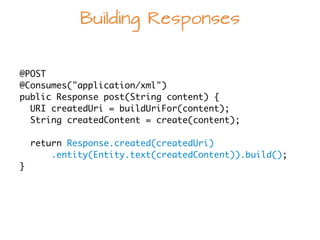

56. Building Responses
@POST
@Consumes("application/xml")
public Response post(String content) {
URI createdUri = buildUriFor(content);
String createdContent = create(content);
return Response.created(createdUri)
.entity(Entity.text(createdContent)).build();
}

57. & more to explore...

58. Security
JerseyTest
Asynchronous
API
Filters &
Interceptors
Bean Validation
MVC templates
...and more (see Jersey user guide)

59. References
https://jersey.java.net
Jersey web site
https://jersey.java.net/documentation/latest/index.html
Jersey user guide (latest)
https://grizzly.java.net/
Project Grizzly web site
https://jersey.java.net/apidocs/latest/jersey/index.html
Jersey API docs
https://jax-rs-spec.java.net
JAX-RS web site

60. My Info
twitter: sleberknight
www.sleberknight.com/blog
scott dot leberknight at gmail dot com
