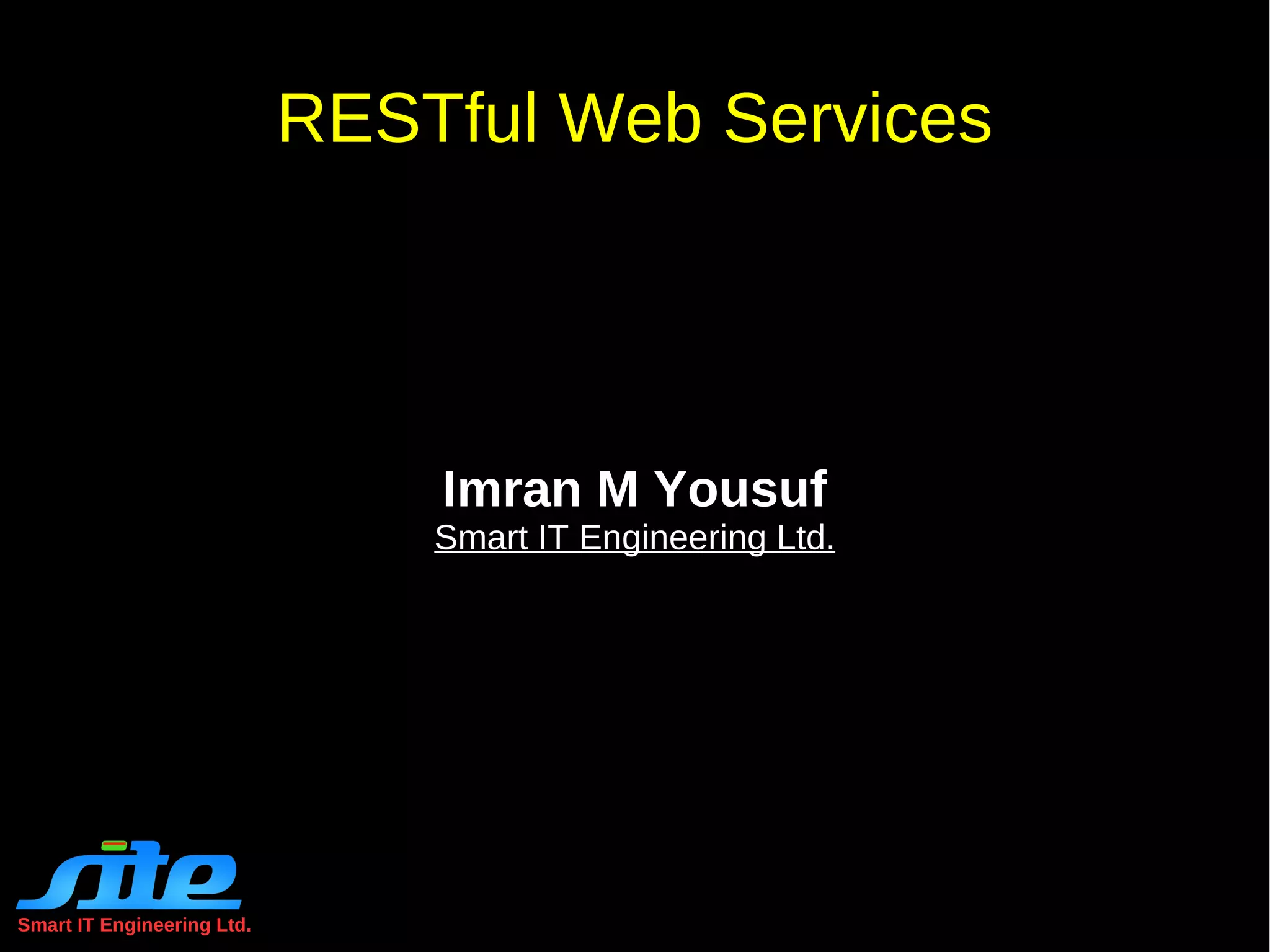

Smart IT Engineering Ltd. RESTful Web Services Imran M Yousuf Smart IT Engineering Ltd.

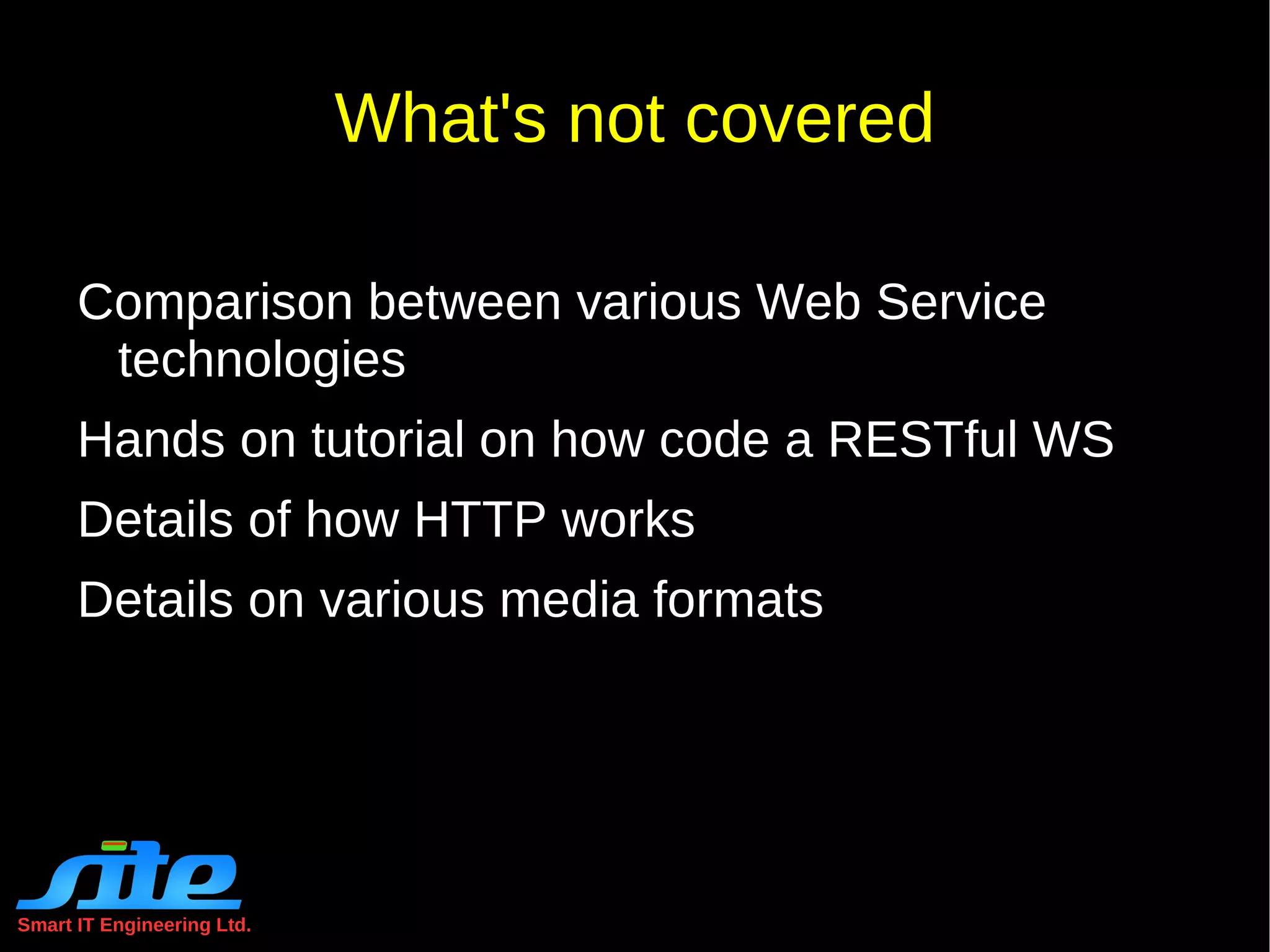

Smart IT Engineering Ltd. What's not covered Comparison between various Web Service technologies
Hands on tutorial on how code a RESTful WS
Details of how HTTP works
Details on various media formats

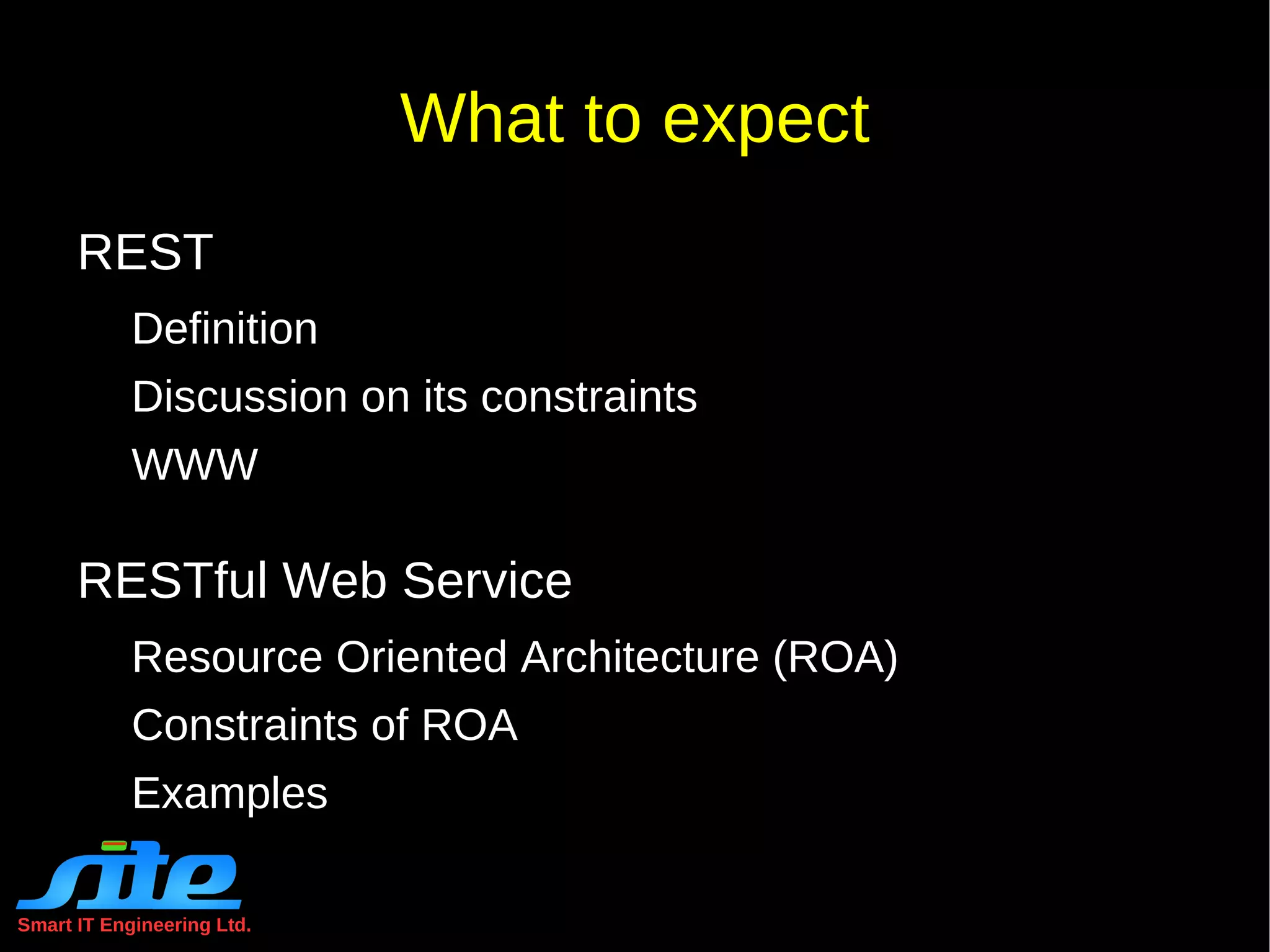

Smart IT Engineering Ltd. What to expect REST Definition
Discussion on its constraints

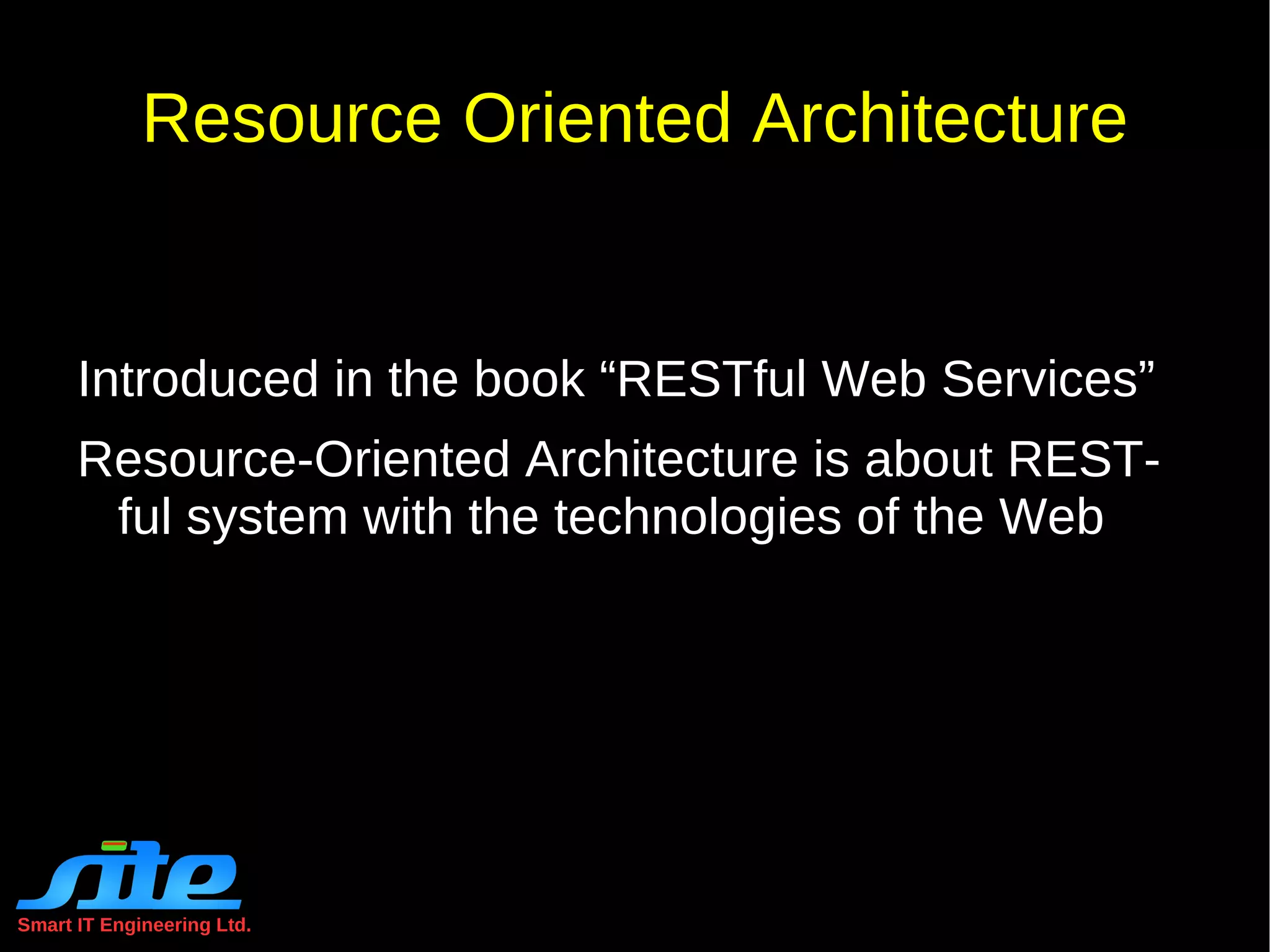

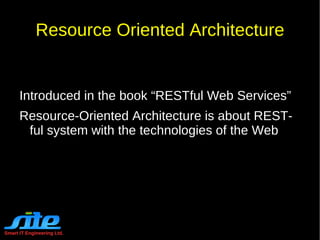

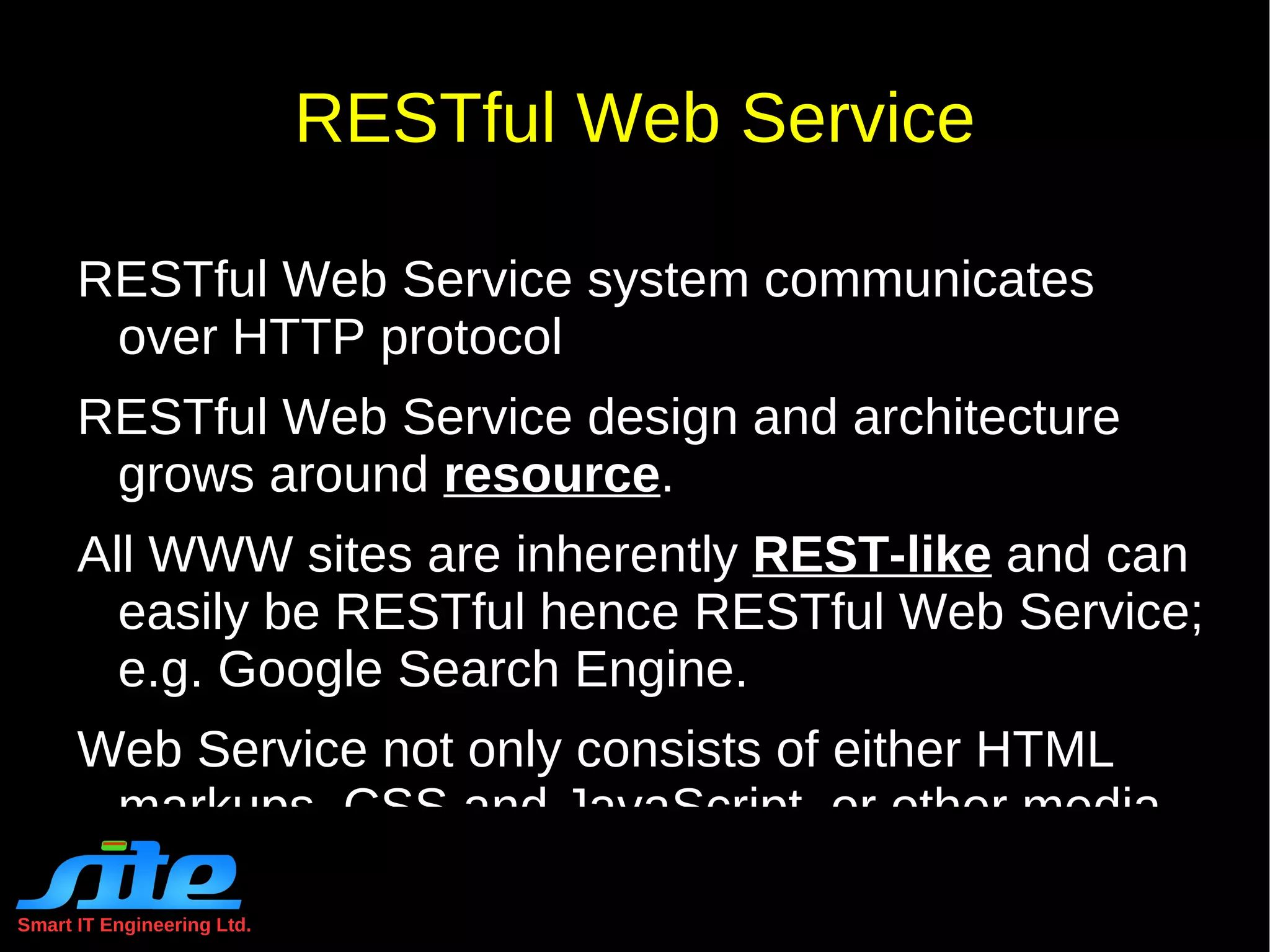

WWW RESTful Web Service Resource Oriented Architecture (ROA)
Constraints of ROA
Examples

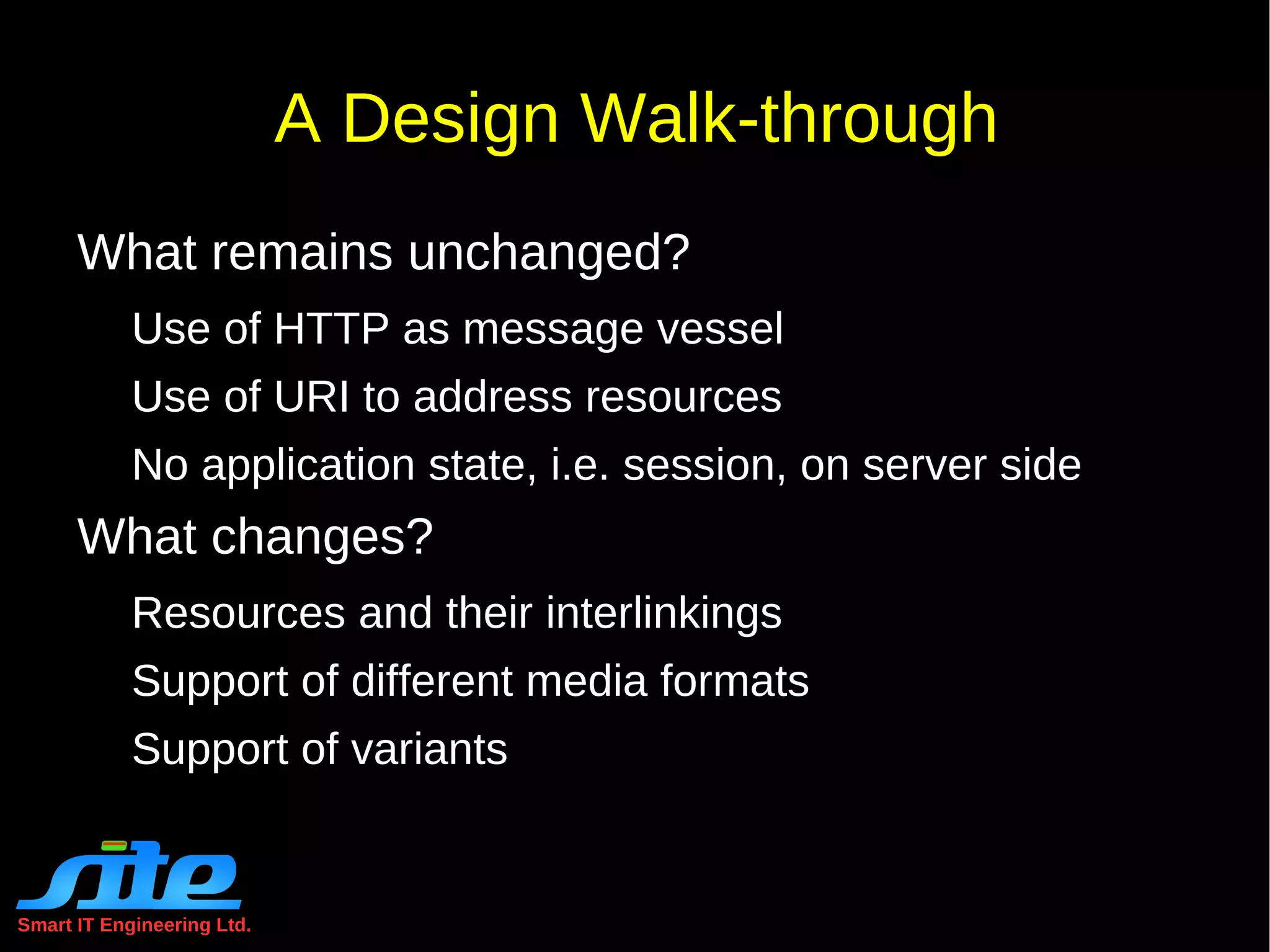

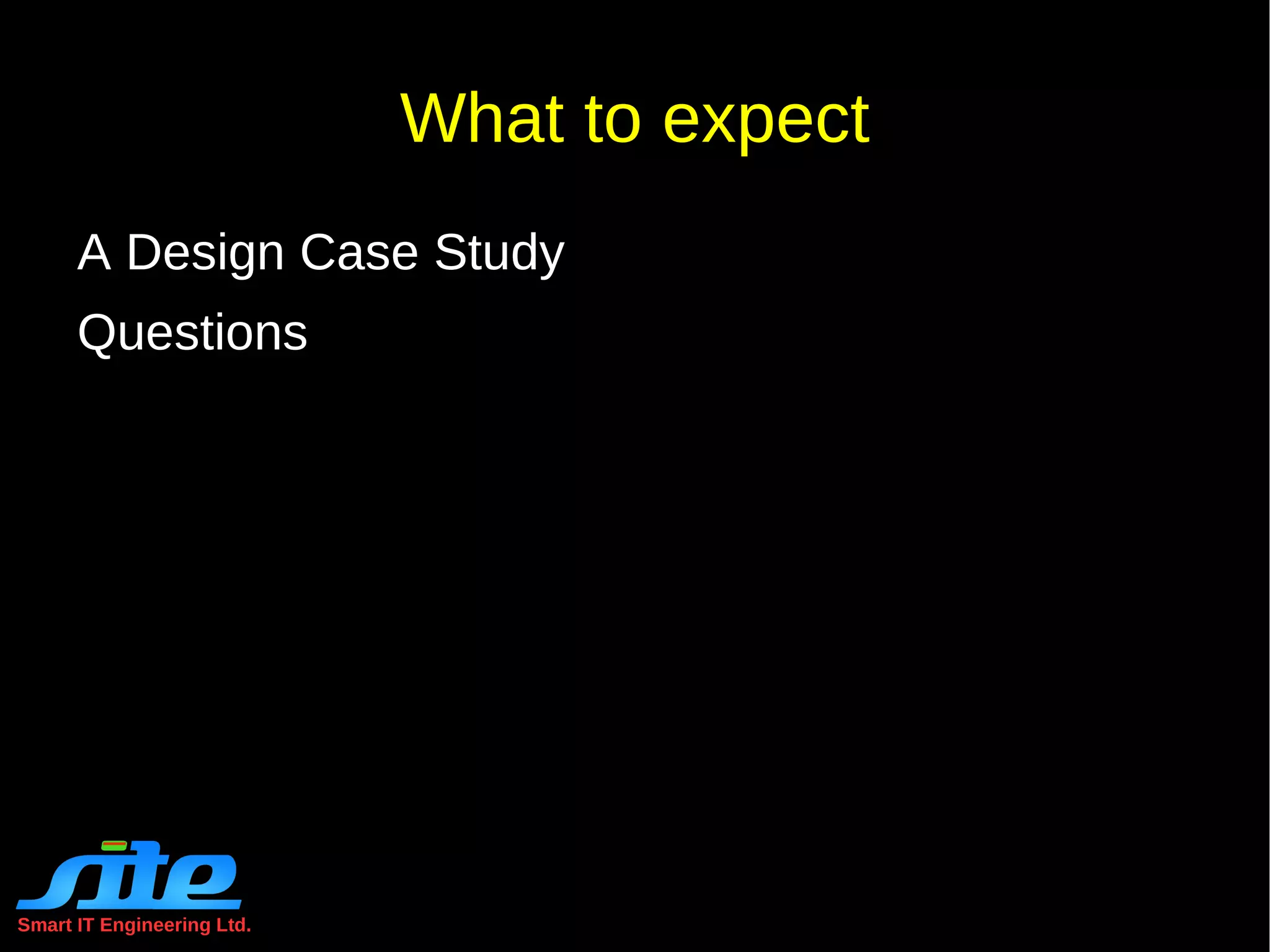

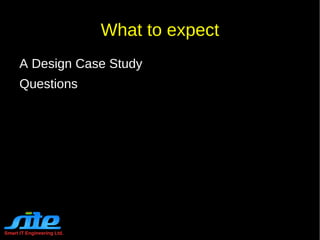

Smart IT Engineering Ltd. What to expect A Design Case Study

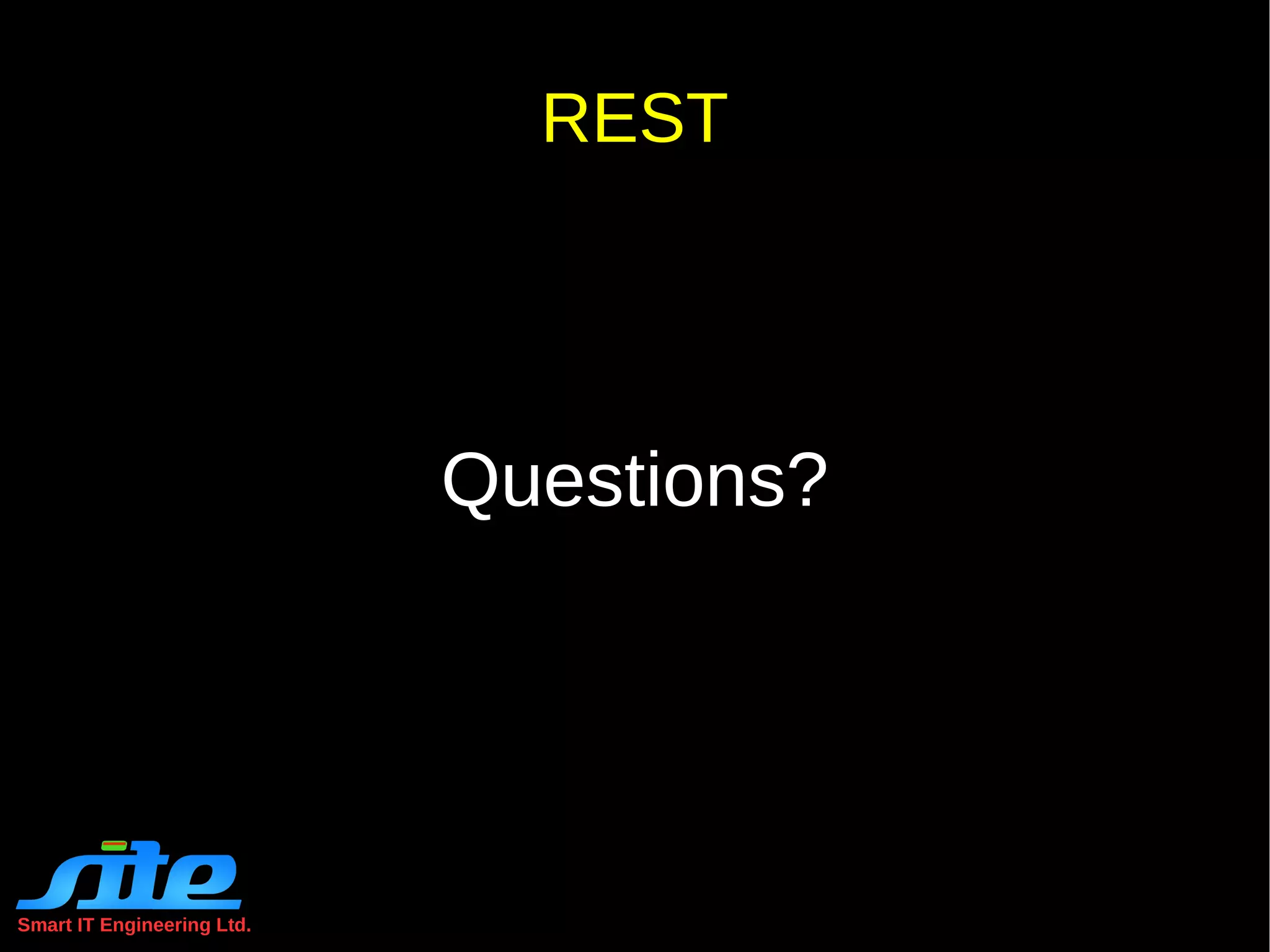

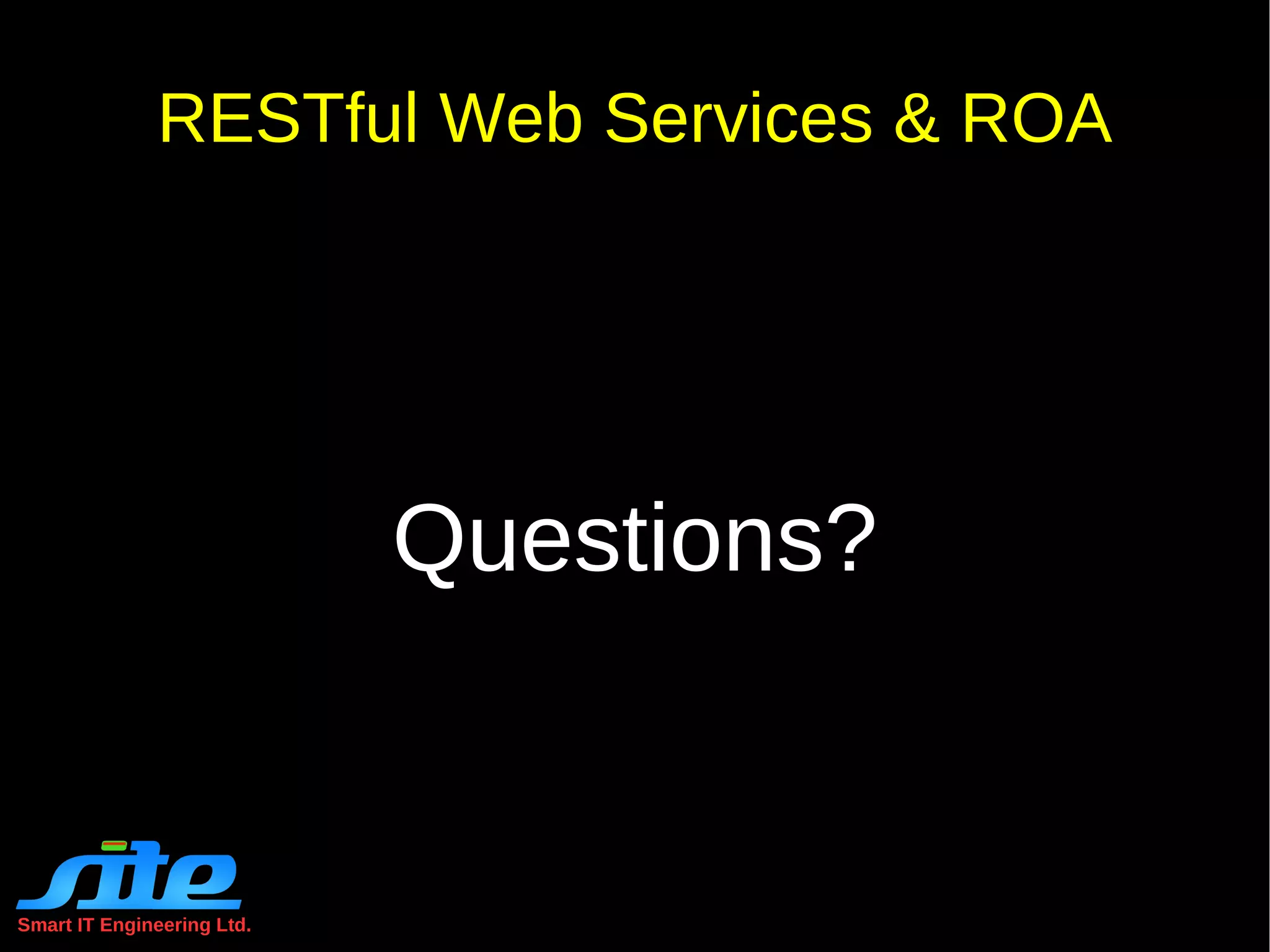

Questions

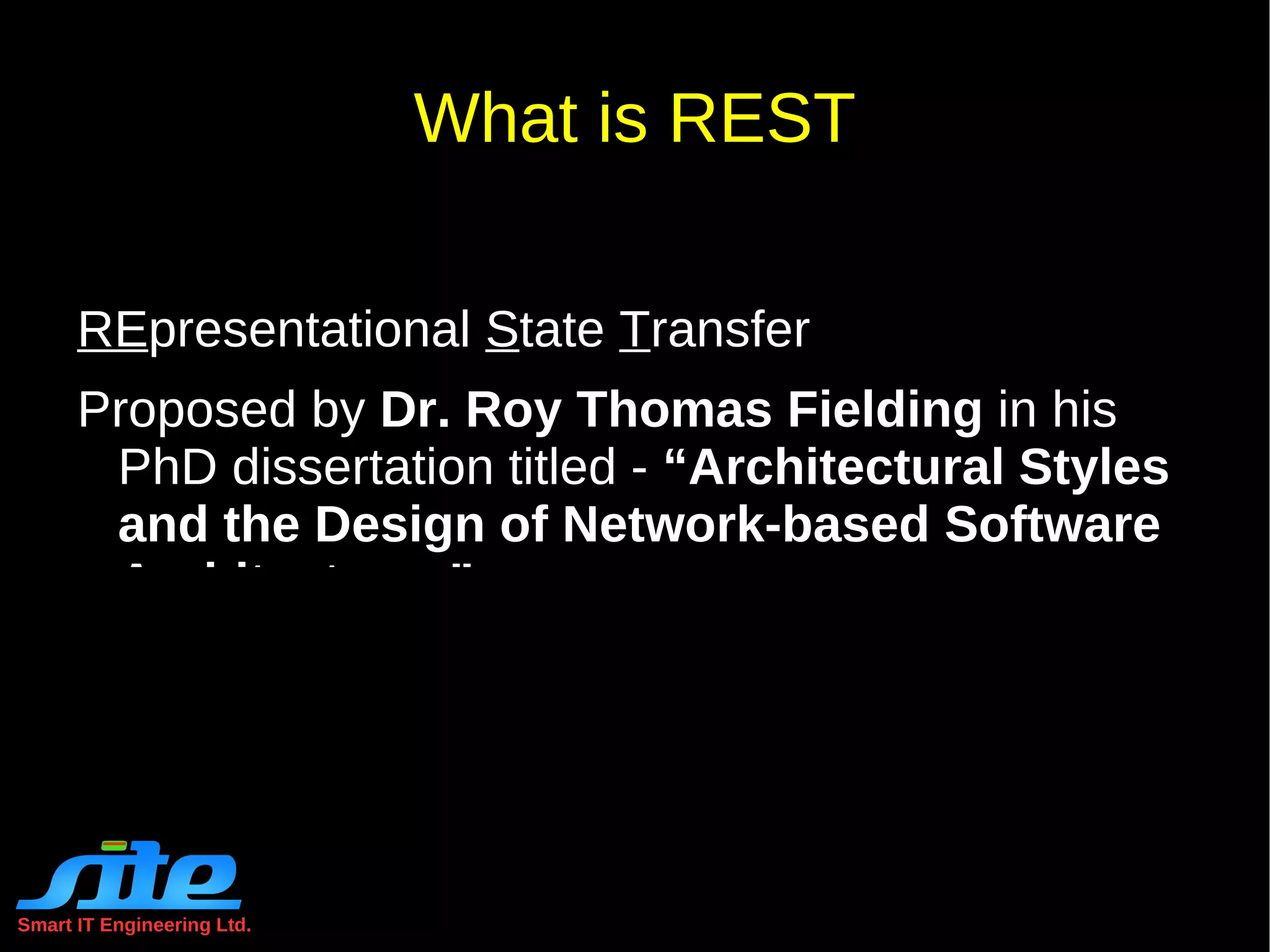

Smart IT Engineering Ltd. What is REST RE presentational  S tate  T ransfer
Proposed by  Dr. Roy Thomas Fielding  in his PhD dissertation titled -  “Architectural Styles and the Design of Network-based Software Architectures”

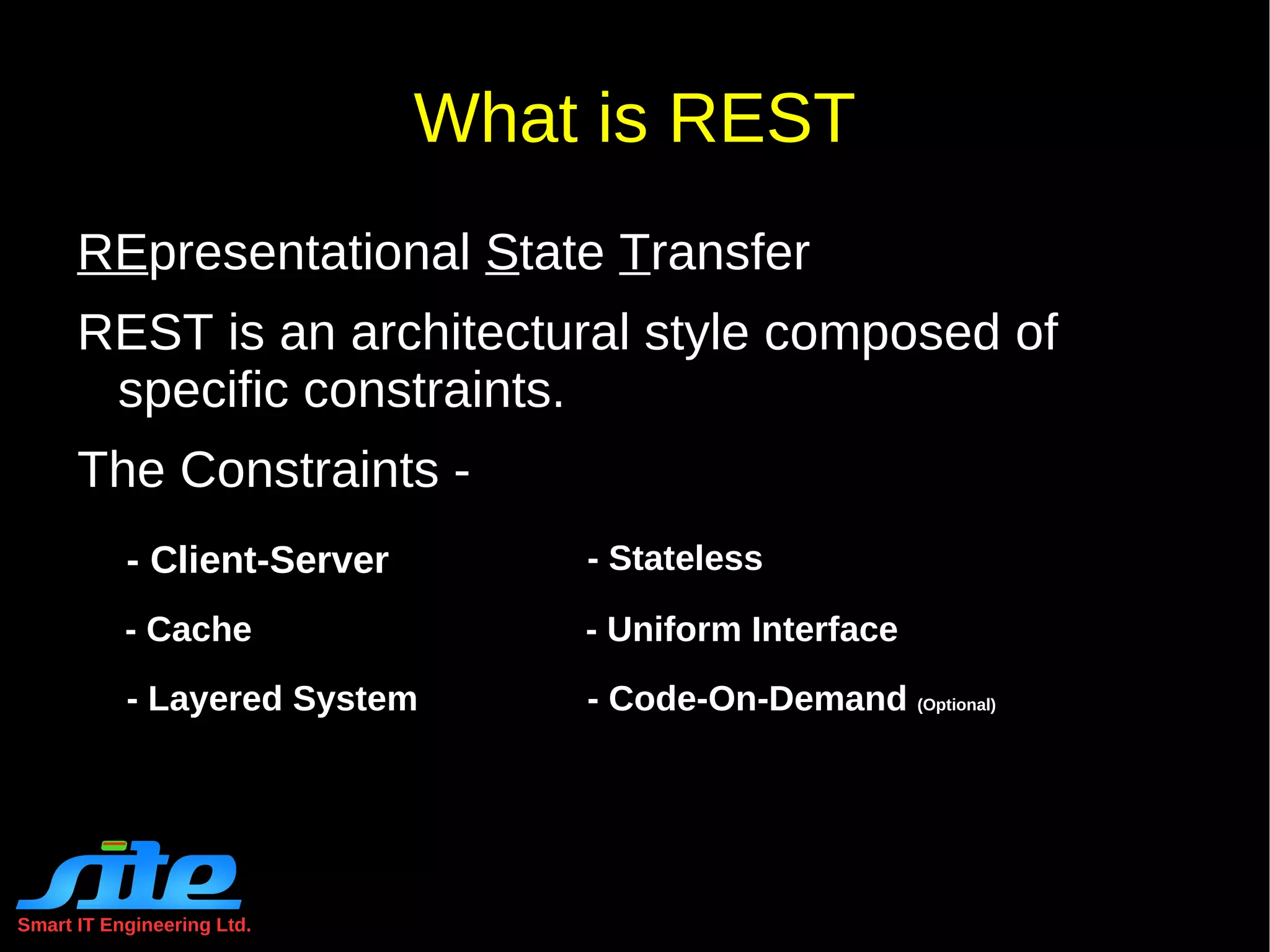

Smart IT Engineering Ltd. What is REST RE presentational  S tate  T ransfer
REST is an architectural style composed of specific constraints.
The Constraints -  - Client-Server - Stateless - Cache - Uniform Interface - Layered System - Code-On-Demand  (Optional)

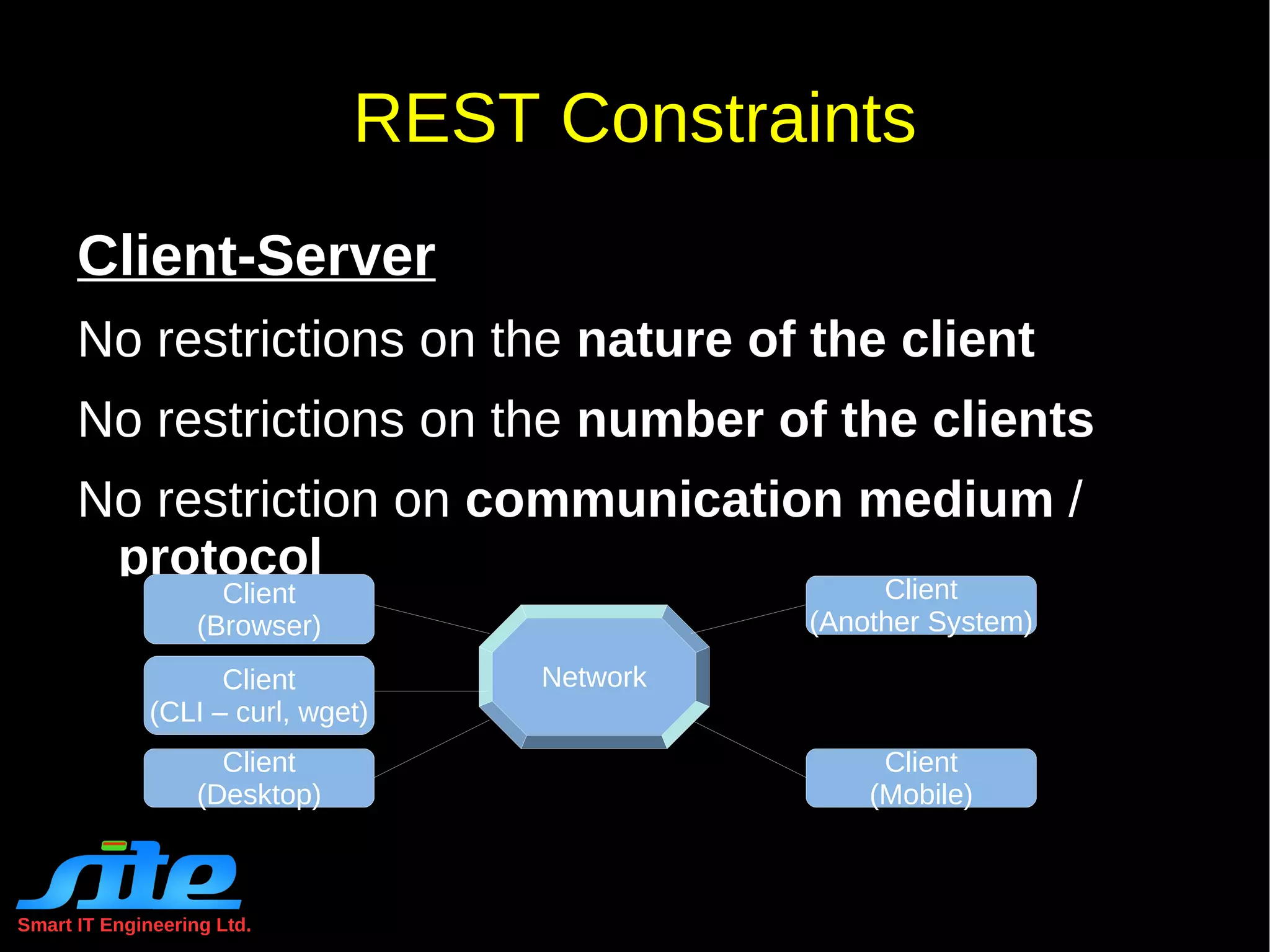

Smart IT Engineering Ltd. REST Constraints Client-Server No restrictions on the  nature of the client
No restrictions on the  number of the clients
No restriction on  communication medium  /  protocol Client (Browser) Client (CLI – curl, wget) Client (Desktop) Network Client (Mobile) Client (Another System)

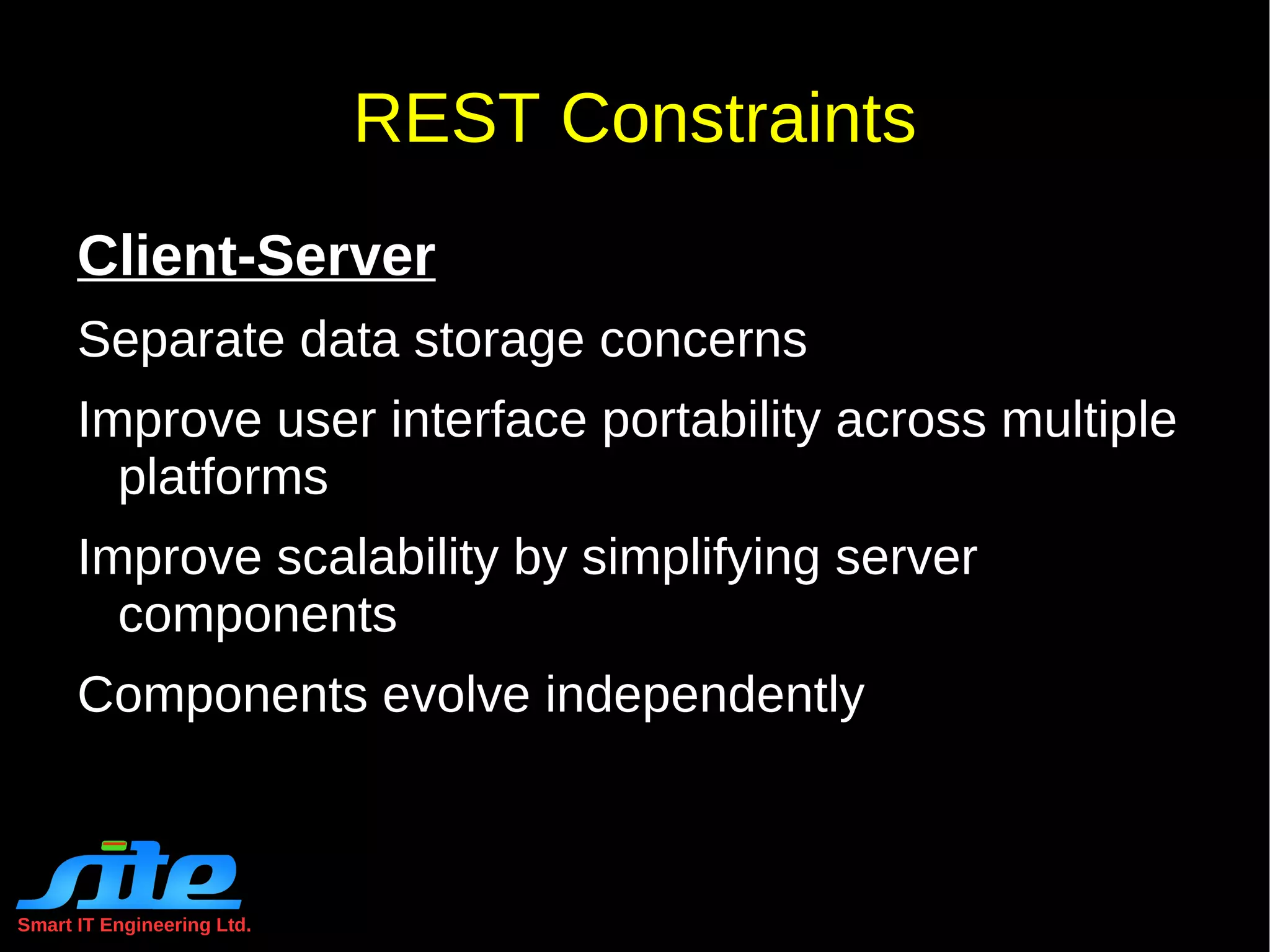

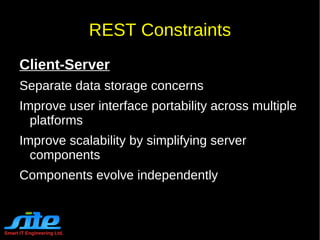

Smart IT Engineering Ltd. REST Constraints Client-Server Separate data storage concerns
Improve user interface portability across multiple platforms
Improve scalability by simplifying server components
Components evolve independently

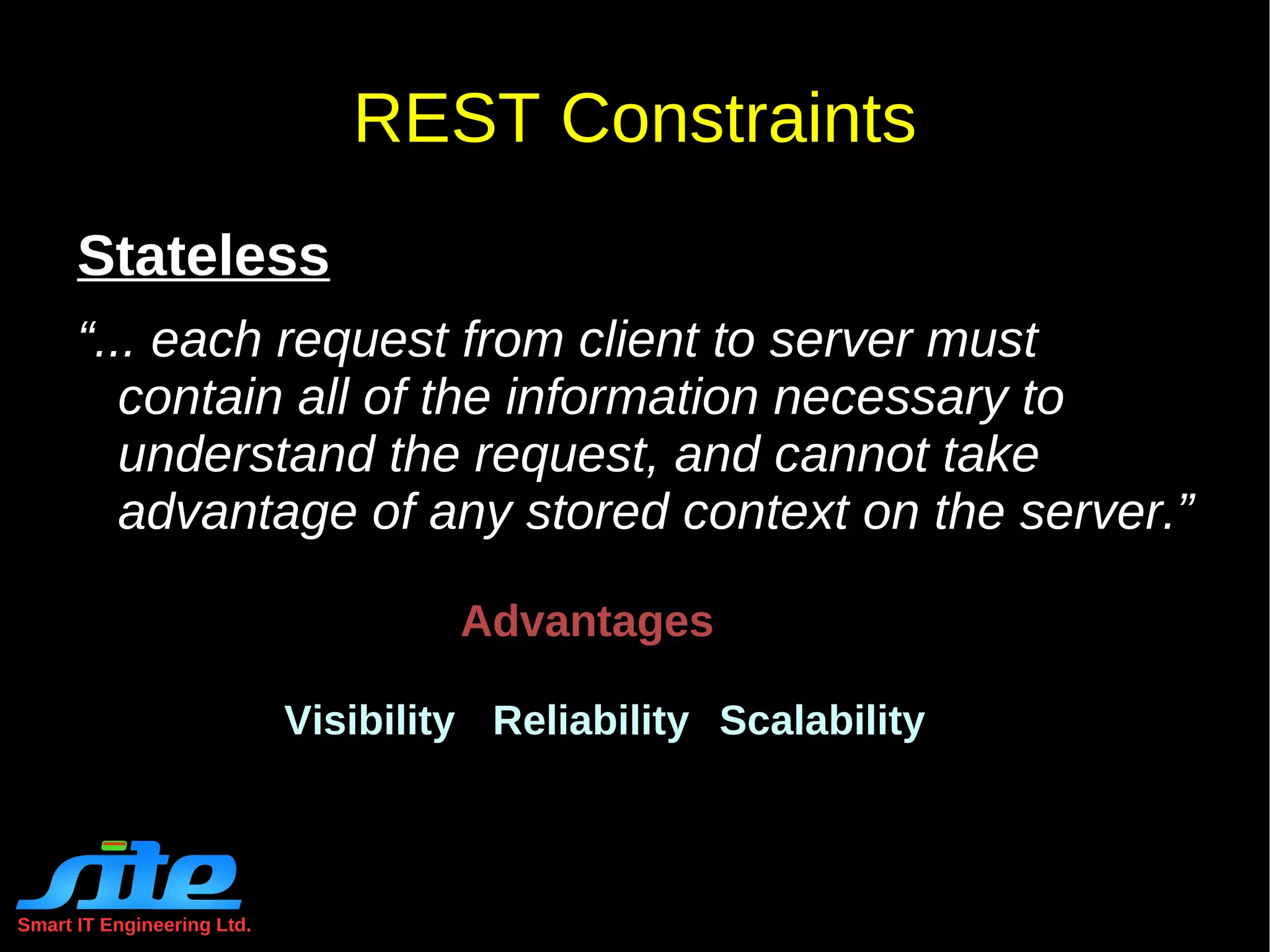

Smart IT Engineering Ltd. REST Constraints Stateless “ ... each request from client to server must contain all of the information necessary to understand the request, and cannot take advantage of any stored context on the server.” Advantages Visibility Reliability Scalability

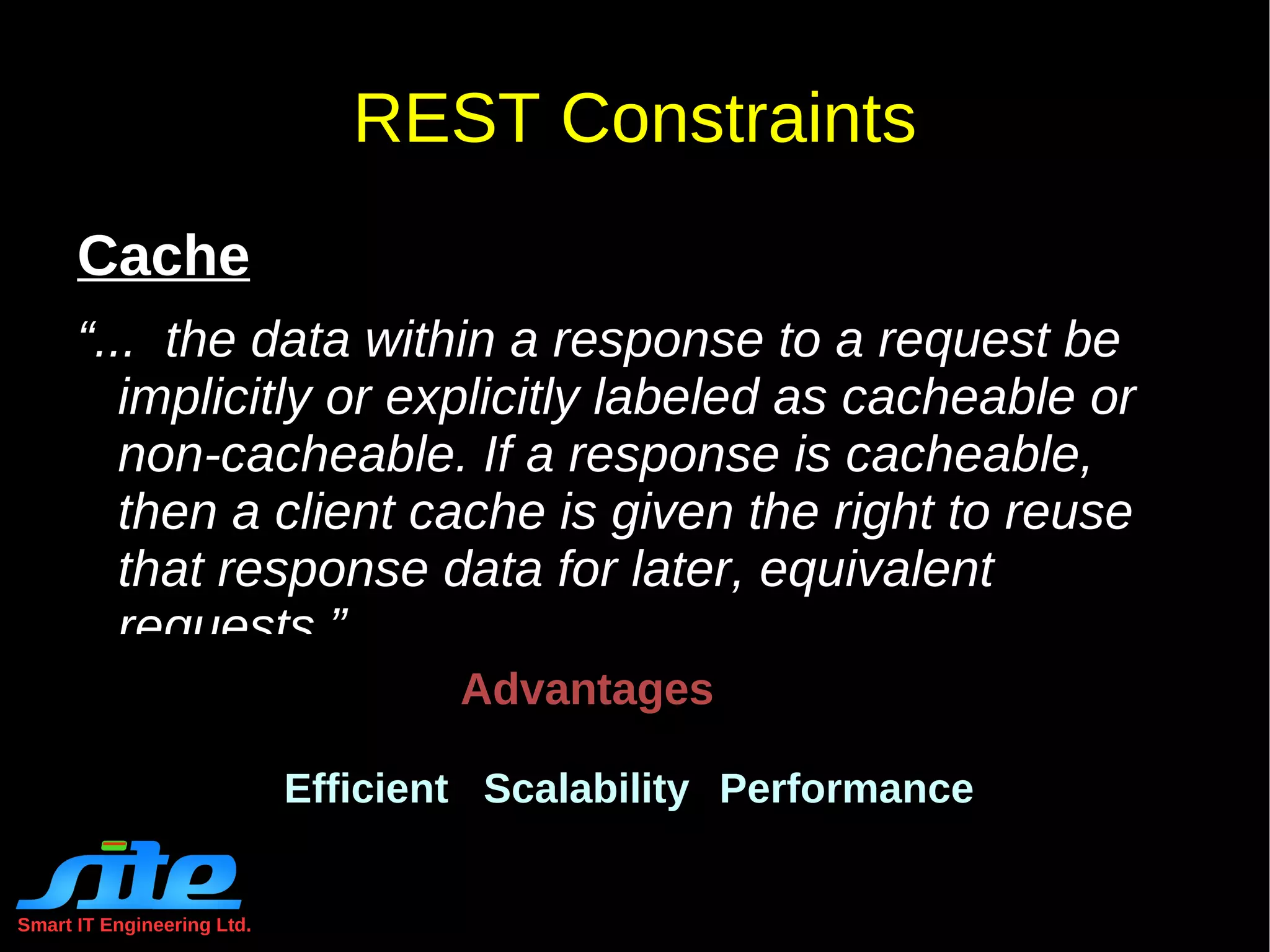

Smart IT Engineering Ltd. REST Constraints Cache “ ...  the data within a response to a request be implicitly or explicitly labeled as cacheable or non-cacheable. If a response is cacheable, then a client cache is given the right to reuse that response data for later, equivalent requests.” Advantages Efficient Scalability Performance

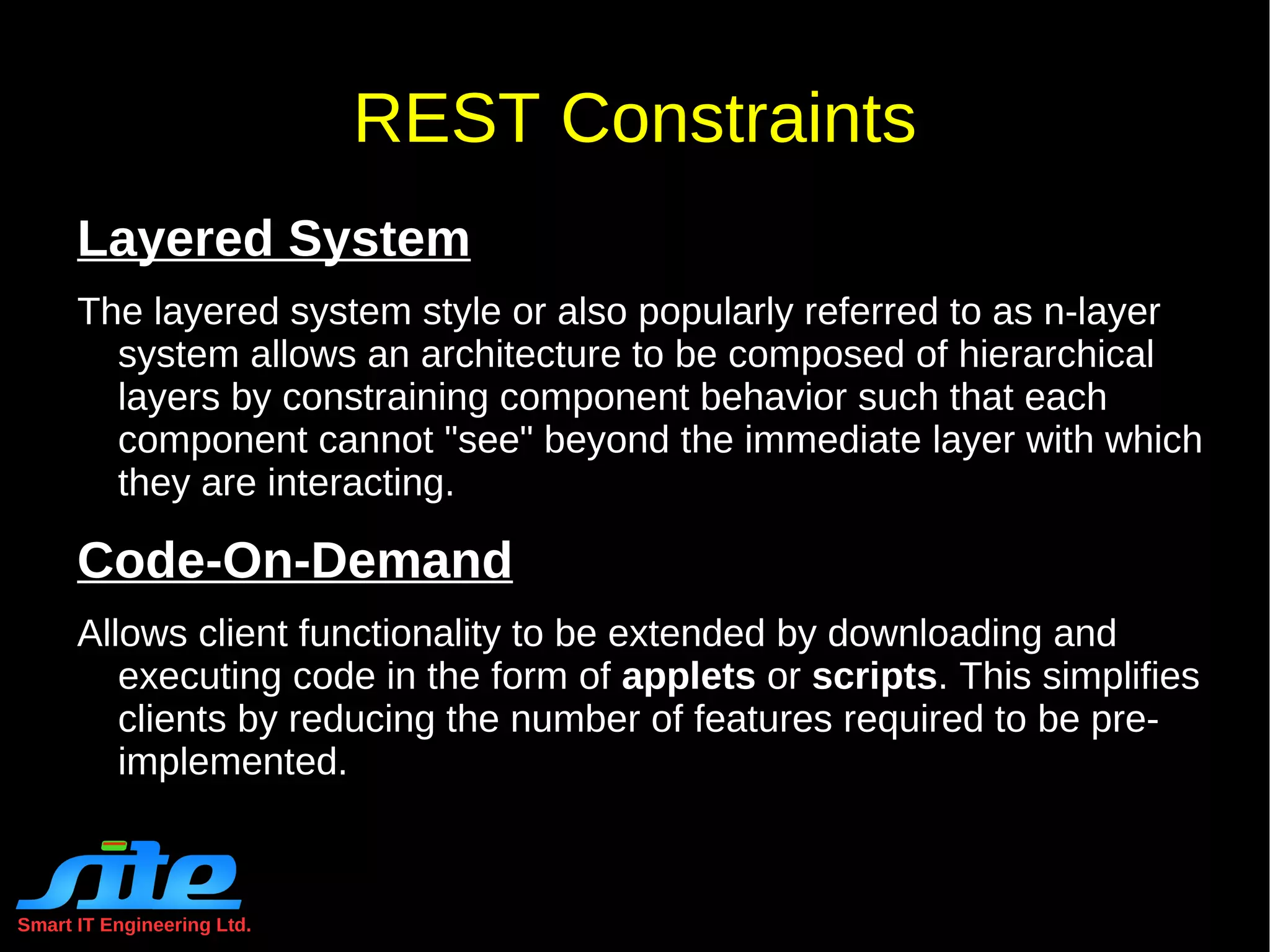

Smart IT Engineering Ltd. REST Constraints Layered System The layered system style or also popularly referred to as n-layer system allows an architecture to be composed of hierarchical layers by constraining component behavior such that each component cannot "see" beyond the immediate layer with which they are interacting. Code-On-Demand Allows client functionality to be extended by downloading and executing code in the form of  applets  or  scripts . This simplifies clients by reducing the number of features required to be pre-implemented.

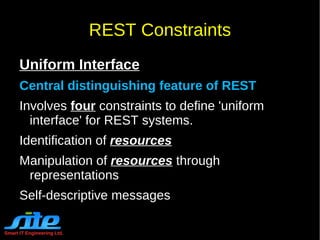

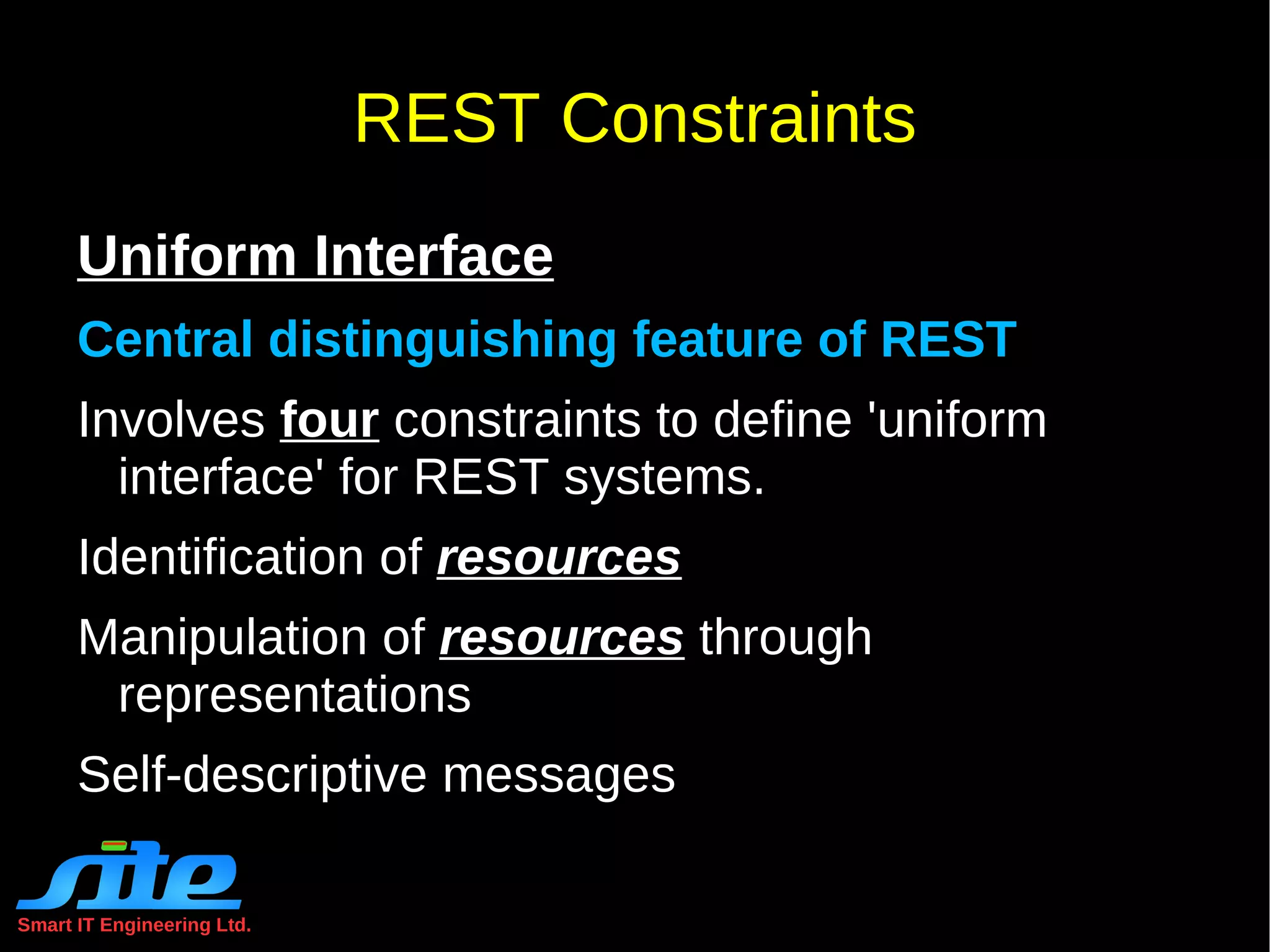

Smart IT Engineering Ltd. REST Constraints Uniform Interface Central distinguishing feature of REST Involves  four  constraints to define 'uniform interface' for REST systems. Identification of  resources
Manipulation of  resources  through representations
Self-descriptive messages
HATEOAS  ( H ypermedia  A s  T he  E ngine  O f  A pplication  S tate)

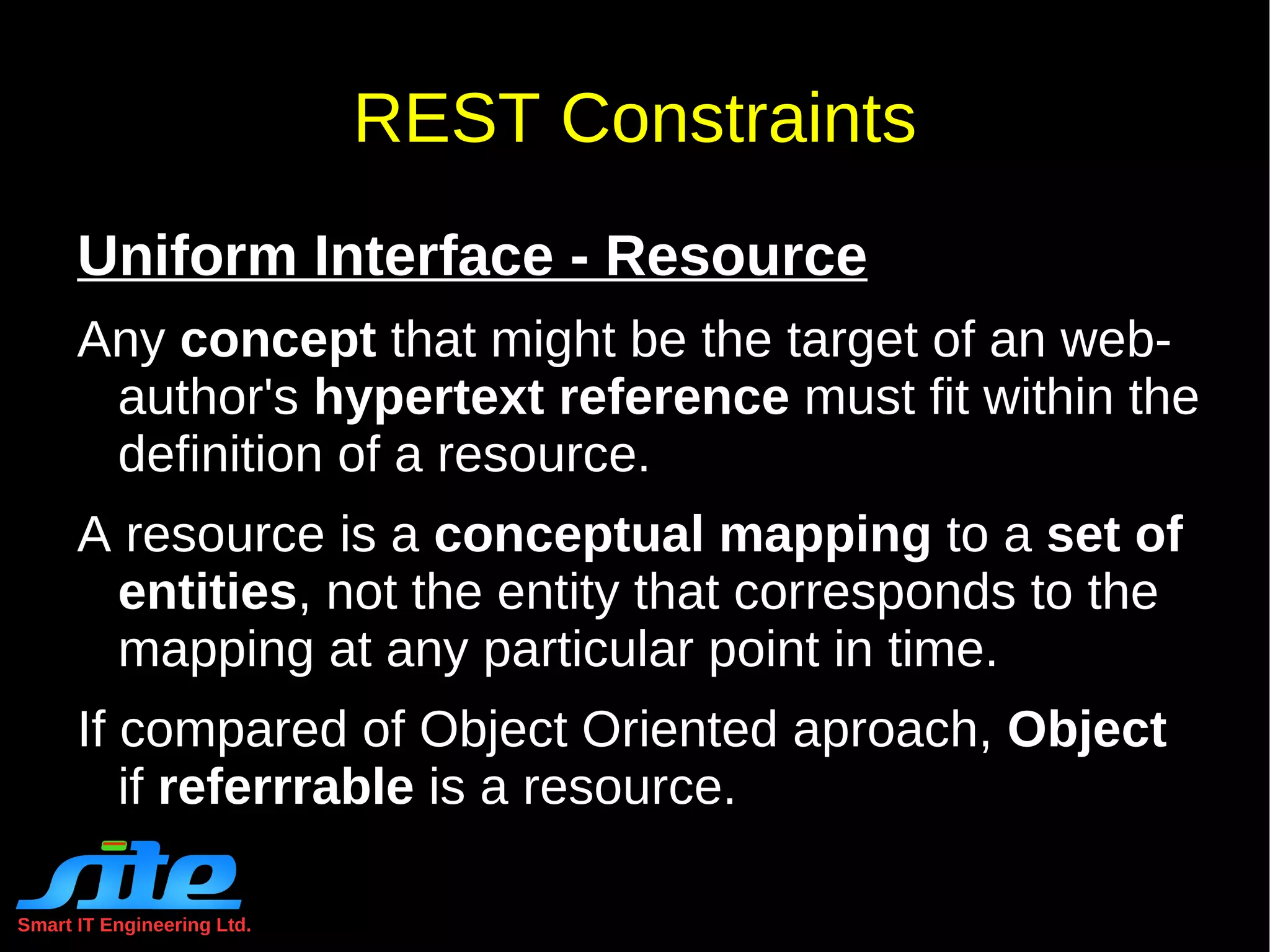

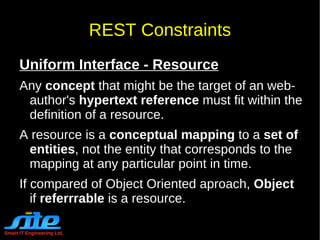

Smart IT Engineering Ltd. REST Constraints Uniform Interface - Resource Any  concept  that might be the target of an web-author's  hypertext reference  must fit within the definition of a resource.
A resource is a  conceptual mapping  to a  set of entities , not the entity that corresponds to the mapping at any particular point in time.
If compared of Object Oriented aproach,  Object  if  referrrable  is a resource.
Examples of resources would Books, A Book, An Author, Authors, Authors of a Book, A Publisher, Categories of a Book, A Category etc.

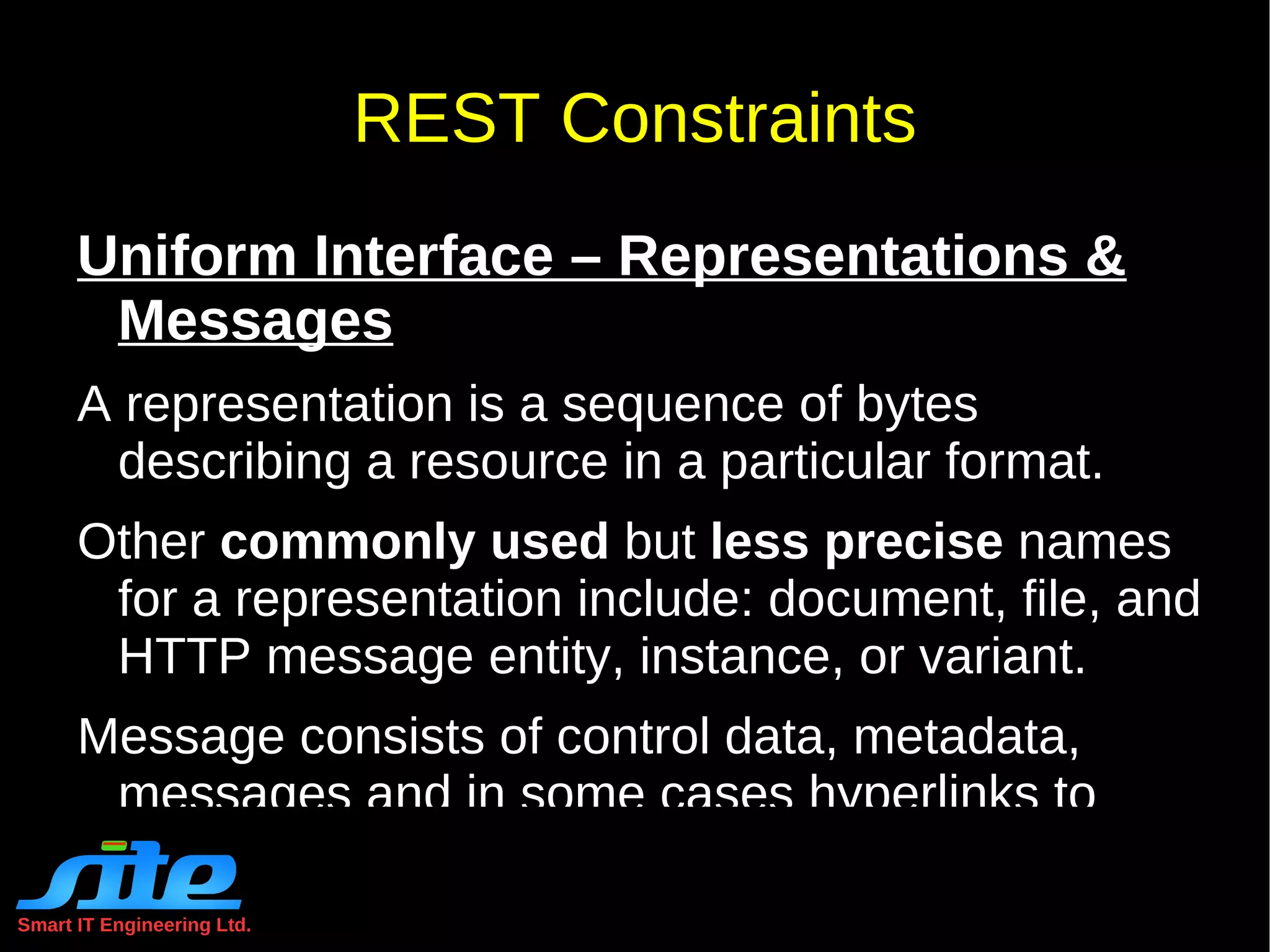

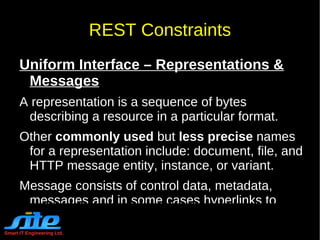

Smart IT Engineering Ltd. REST Constraints Uniform Interface – Representations & Messages A representation is a sequence of bytes describing a resource in a particular format.
Other  commonly used  but  less precise  names for a representation include: document, file, and HTTP message entity, instance, or variant.
Message consists of control data, metadata, messages and in some cases hyperlinks to resources.
Examples: Images (image/jpg, image/png, etc.), Markups (text/html, application/xml etc.) and more.

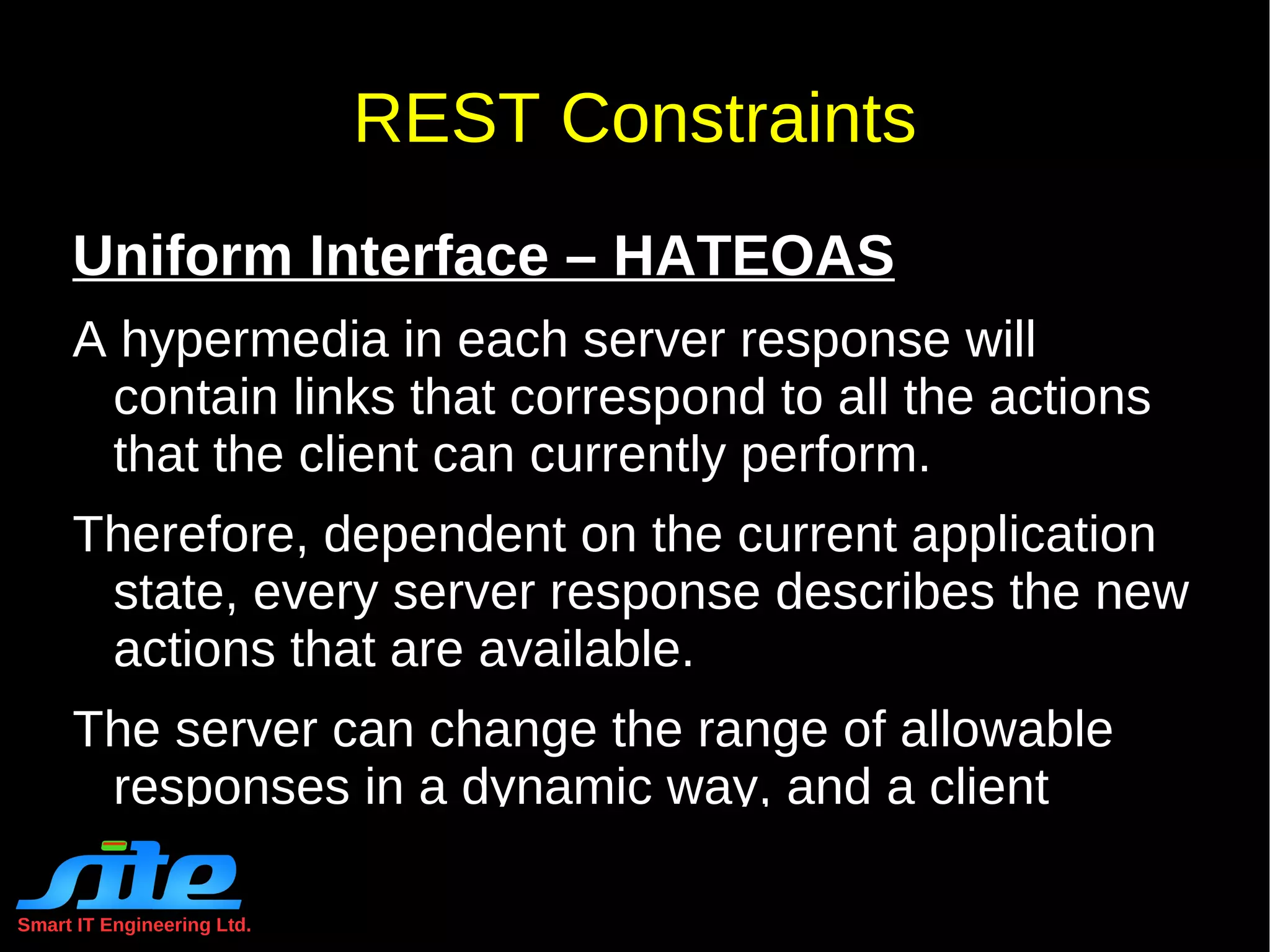

Smart IT Engineering Ltd. REST Constraints Uniform Interface – HATEOAS A hypermedia in each server response will contain links that correspond to all the actions that the client can currently perform.
Therefore, dependent on the current application state, every server response describes the new actions that are available.
The server can change the range of allowable responses in a dynamic way, and a client should adapt its behavior to these changes.
A client of a RESTful application need only know a  single fixed URL  to access it.

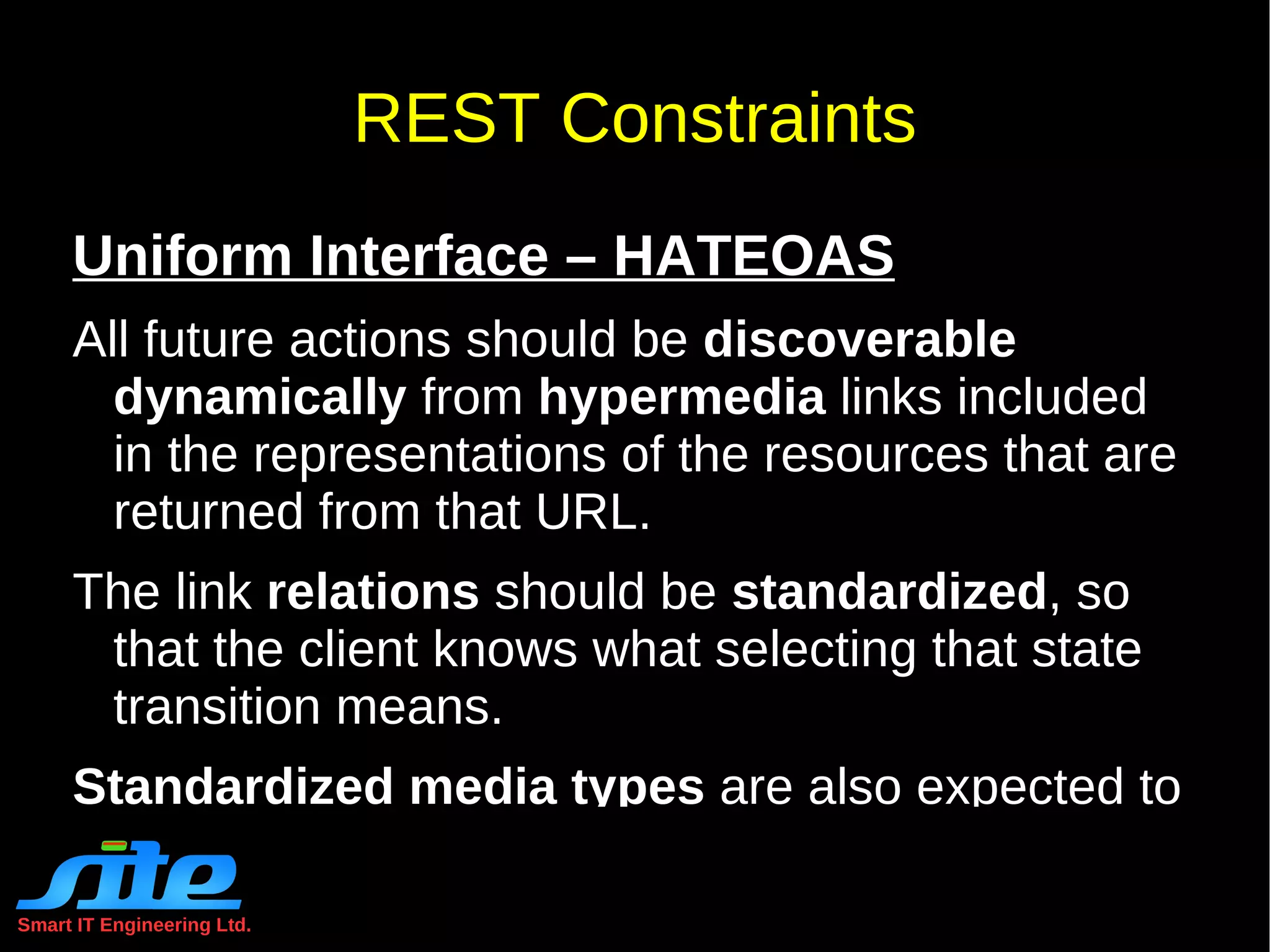

Smart IT Engineering Ltd. REST Constraints Uniform Interface – HATEOAS All future actions should be  discoverable dynamically  from  hypermedia  links included in the representations of the resources that are returned from that URL.
The link  relations  should be  standardized , so that the client knows what selecting that state transition means.
Standardized media types  are also expected to be understood by any client that might use the API.
Application state  transitions are driven  by a  combination of the known processing rules  for each media type, client selection from the server-provided choices in representations received, and the user's manipulation of those representations. Thus interactions are driven by  hypermedia .

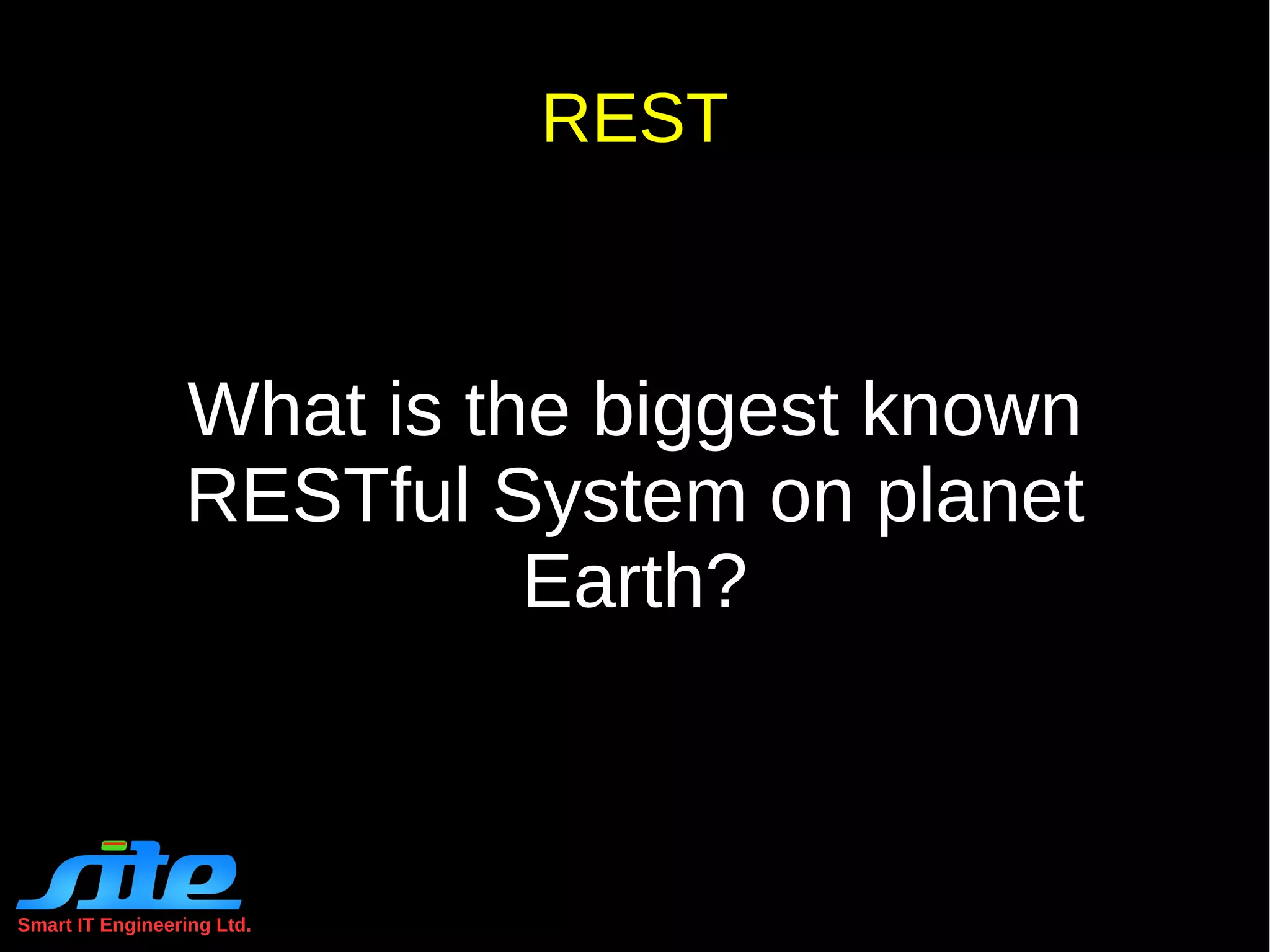

Smart IT Engineering Ltd. REST What is the biggest known RESTful System on planet Earth?

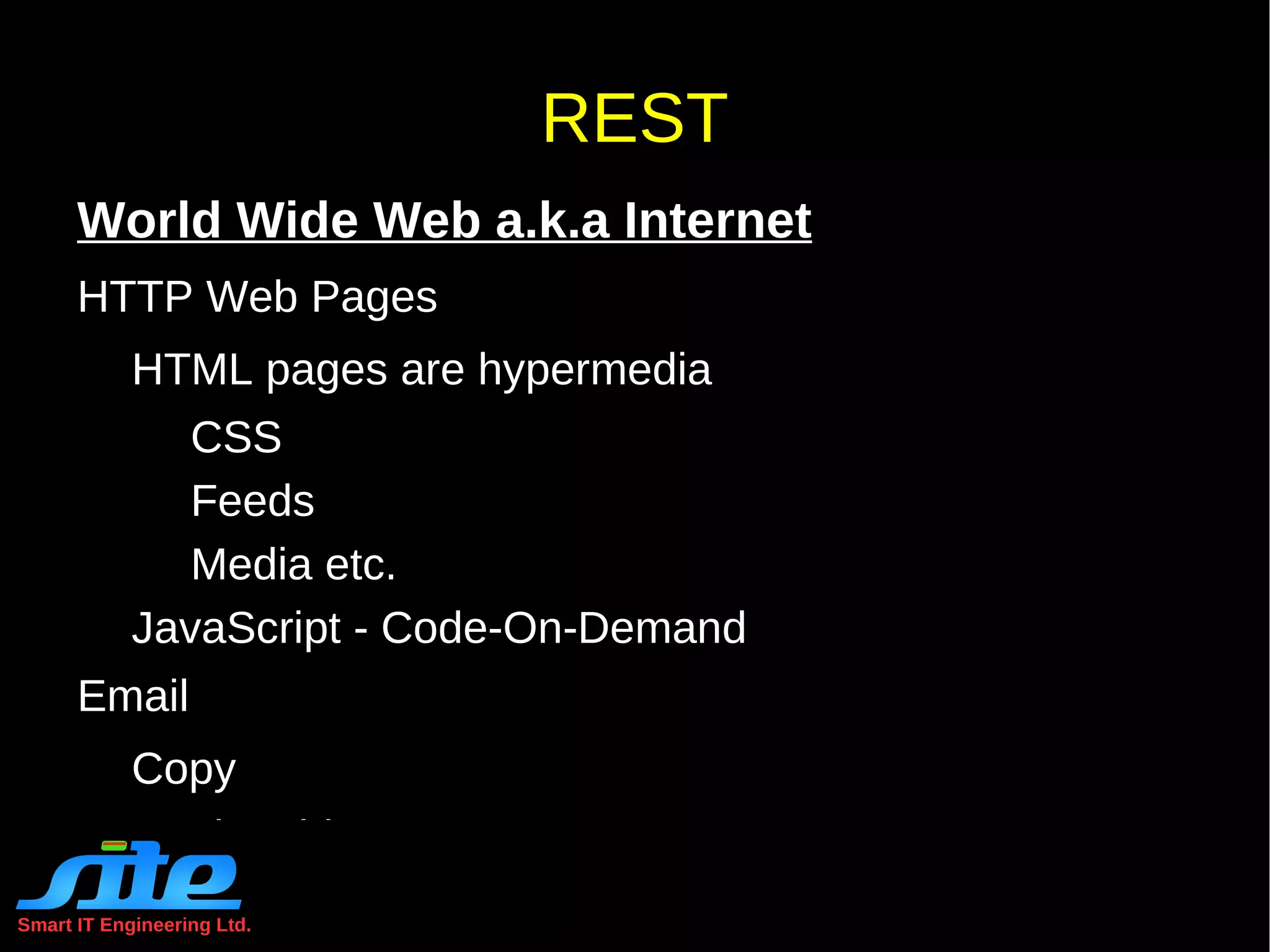

Smart IT Engineering Ltd. REST World Wide Web a.k.a Internet HTTP Web Pages HTML pages are hypermedia CSS

More Related Content

What's hot

REST API and CRUD
REST API and CRUDREST API and CRUD
REST API and CRUD
Prem Sanil

Understanding REST
Understanding RESTUnderstanding REST
Understanding REST
Nitin Pande

Best Practices in Web Service Design
Best Practices in Web Service DesignBest Practices in Web Service Design
Best Practices in Web Service Design
Lorna Mitchell

Soap vs rest
Soap vs restSoap vs rest
Soap vs rest
Antonio Severien

Web api
Web apiWeb api
introduction about REST API
introduction about REST APIintroduction about REST API
introduction about REST API
AmilaSilva13

REST-API overview / concepts
REST-API overview / conceptsREST-API overview / concepts
REST-API overview / concepts
Patrick Savalle

Introduction to API
Introduction to APIIntroduction to API
Introduction to API
rajnishjha29

Understanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple StepsUnderstanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple Steps
Tessa Mero

Doing REST Right
Doing REST RightDoing REST Right
Doing REST Right
Kerry Buckley

RESTful API - Best Practices
RESTful API - Best PracticesRESTful API - Best Practices
RESTful API - Best Practices
Tricode (part of Dept)

REST-API introduction for developers
REST-API introduction for developersREST-API introduction for developers
REST-API introduction for developers
Patrick Savalle

RESTful Architecture
RESTful ArchitectureRESTful Architecture
RESTful Architecture
Kabir Baidya

Rest presentation
Rest  presentationRest  presentation
Rest presentation
srividhyau

OpenAPI 3.0, And What It Means for the Future of Swagger
OpenAPI 3.0, And What It Means for the Future of SwaggerOpenAPI 3.0, And What It Means for the Future of Swagger
OpenAPI 3.0, And What It Means for the Future of Swagger
SmartBear

Express JS Middleware Tutorial
Express JS Middleware TutorialExpress JS Middleware Tutorial
Express JS Middleware Tutorial
Simplilearn

ReST (Representational State Transfer) Explained
ReST (Representational State Transfer) ExplainedReST (Representational State Transfer) Explained
ReST (Representational State Transfer) Explained
Dhananjay Nene

Introduction to the Web API
Introduction to the Web APIIntroduction to the Web API
Introduction to the Web API
Brad Genereaux

Rest API
Rest APIRest API
Introduction to PHP
Introduction to PHPIntroduction to PHP
Introduction to PHP
Kengatharaiyer Sarveswaran


What's hot (20)

REST API and CRUD
REST API and CRUDREST API and CRUD
REST API and CRUD

Understanding REST
Understanding RESTUnderstanding REST
Understanding REST

Best Practices in Web Service Design
Best Practices in Web Service DesignBest Practices in Web Service Design
Best Practices in Web Service Design

Soap vs rest
Soap vs restSoap vs rest
Soap vs rest

Web api
Web apiWeb api
Web api

introduction about REST API
introduction about REST APIintroduction about REST API
introduction about REST API

REST-API overview / concepts
REST-API overview / conceptsREST-API overview / concepts
REST-API overview / concepts

Introduction to API
Introduction to APIIntroduction to API
Introduction to API

Understanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple StepsUnderstanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple Steps

Doing REST Right
Doing REST RightDoing REST Right
Doing REST Right

RESTful API - Best Practices
RESTful API - Best PracticesRESTful API - Best Practices
RESTful API - Best Practices

REST-API introduction for developers
REST-API introduction for developersREST-API introduction for developers
REST-API introduction for developers

RESTful Architecture
RESTful ArchitectureRESTful Architecture
RESTful Architecture

Rest presentation
Rest  presentationRest  presentation
Rest presentation

OpenAPI 3.0, And What It Means for the Future of Swagger
OpenAPI 3.0, And What It Means for the Future of SwaggerOpenAPI 3.0, And What It Means for the Future of Swagger
OpenAPI 3.0, And What It Means for the Future of Swagger

Express JS Middleware Tutorial
Express JS Middleware TutorialExpress JS Middleware Tutorial
Express JS Middleware Tutorial

ReST (Representational State Transfer) Explained
ReST (Representational State Transfer) ExplainedReST (Representational State Transfer) Explained
ReST (Representational State Transfer) Explained

Introduction to the Web API
Introduction to the Web APIIntroduction to the Web API
Introduction to the Web API

Rest API
Rest APIRest API
Rest API

Introduction to PHP
Introduction to PHPIntroduction to PHP
Introduction to PHP


Viewers also liked

Restful web services by Sreeni Inturi
Restful web services by Sreeni InturiRestful web services by Sreeni Inturi
Restful web services by Sreeni Inturi
Sreeni I

Restful Web Services
Restful Web ServicesRestful Web Services
Restful Web Services
Angelin R

RESTful Web Services
RESTful Web ServicesRESTful Web Services
RESTful Web Services
Christopher Bartling

Design Restful Web Service, use SpringMVC as Example
Design Restful Web Service, use SpringMVC as ExampleDesign Restful Web Service, use SpringMVC as Example
Design Restful Web Service, use SpringMVC as Example
Kevingo Tsai

RESTful Web Services with Jersey
RESTful Web Services with JerseyRESTful Web Services with Jersey
RESTful Web Services with Jersey
Scott Leberknight

Impact of Restful Web Architecture on Performance and Scalability
Impact of Restful Web Architecture on Performance and ScalabilityImpact of Restful Web Architecture on Performance and Scalability
Impact of Restful Web Architecture on Performance and Scalability
Sanchit Gera

Rest & RESTful WebServices
Rest & RESTful WebServicesRest & RESTful WebServices
Rest & RESTful WebServices
Prateek Tandon

RESTful API Design, Second Edition
RESTful API Design, Second EditionRESTful API Design, Second Edition
RESTful API Design, Second Edition
Apigee | Google Cloud


Viewers also liked (8)

Restful web services by Sreeni Inturi
Restful web services by Sreeni InturiRestful web services by Sreeni Inturi
Restful web services by Sreeni Inturi

Restful Web Services
Restful Web ServicesRestful Web Services
Restful Web Services

RESTful Web Services
RESTful Web ServicesRESTful Web Services
RESTful Web Services

Design Restful Web Service, use SpringMVC as Example
Design Restful Web Service, use SpringMVC as ExampleDesign Restful Web Service, use SpringMVC as Example
Design Restful Web Service, use SpringMVC as Example

RESTful Web Services with Jersey
RESTful Web Services with JerseyRESTful Web Services with Jersey
RESTful Web Services with Jersey

Impact of Restful Web Architecture on Performance and Scalability
Impact of Restful Web Architecture on Performance and ScalabilityImpact of Restful Web Architecture on Performance and Scalability
Impact of Restful Web Architecture on Performance and Scalability

Rest & RESTful WebServices
Rest & RESTful WebServicesRest & RESTful WebServices
Rest & RESTful WebServices

RESTful API Design, Second Edition
RESTful API Design, Second EditionRESTful API Design, Second Edition
RESTful API Design, Second Edition


Similar to RESTful Web Services

The Rest Architectural Style
The Rest Architectural StyleThe Rest Architectural Style
The Rest Architectural Style
Robert Wilson

Unit 2
Unit 2Unit 2
Unit 2
Ravi Kumar

Rest surekha
Rest surekhaRest surekha
Rest surekha
Surekha Achanta

ReSTful API Final
ReSTful API FinalReSTful API Final
ReSTful API Final
Claudine Bruyns

REST & RESTful APIs: The State of Confusion
REST & RESTful APIs: The State of ConfusionREST & RESTful APIs: The State of Confusion
REST & RESTful APIs: The State of Confusion
Glenn Antoine

Rest web service
Rest web serviceRest web service
Rest web service
Hamid Ghorbani

REST Introduction.ppt
REST Introduction.pptREST Introduction.ppt
REST Introduction.ppt
KGSCSEPSGCT

Rest api best practices – comprehensive handbook
Rest api best practices – comprehensive handbookRest api best practices – comprehensive handbook
Rest api best practices – comprehensive handbook
Katy Slemon

80068
8006880068
80068
DEEPIKA T

RESTfulll web services
RESTfulll web servicesRESTfulll web services
RESTfulll web services
Juan Sandoval

Restful web-services
Restful web-servicesRestful web-services
Restful web-services
rporwal

Modern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdfModern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdf
Aparna Sharma

Rest introduction
Rest introductionRest introduction
Rest introduction
William Martinez Pomares

Mini-Training: Let's have a rest
Mini-Training: Let's have a restMini-Training: Let's have a rest
Mini-Training: Let's have a rest
Betclic Everest Group Tech Team

REST: So What's It All About? (SAP TechEd 2011, MOB107)
REST: So What's It All About? (SAP TechEd 2011, MOB107)REST: So What's It All About? (SAP TechEd 2011, MOB107)
REST: So What's It All About? (SAP TechEd 2011, MOB107)
Sascha Wenninger

Lab7 paper
Lab7 paperLab7 paper
Modern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdfModern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdf
Aparna Sharma

SFDC REST API
SFDC REST APISFDC REST API
SFDC REST API
Bohdan Dovhań

Rest API Automation with REST Assured
Rest API Automation with REST AssuredRest API Automation with REST Assured
Rest API Automation with REST Assured
TO THE NEW Pvt. Ltd.

REST - Representational State Transfer
REST - Representational State TransferREST - Representational State Transfer
REST - Representational State Transfer
Peter R. Egli


Similar to RESTful Web Services (20)

The Rest Architectural Style
The Rest Architectural StyleThe Rest Architectural Style
The Rest Architectural Style

Unit 2
Unit 2Unit 2
Unit 2

Rest surekha
Rest surekhaRest surekha
Rest surekha

ReSTful API Final
ReSTful API FinalReSTful API Final
ReSTful API Final

REST & RESTful APIs: The State of Confusion
REST & RESTful APIs: The State of ConfusionREST & RESTful APIs: The State of Confusion
REST & RESTful APIs: The State of Confusion

Rest web service
Rest web serviceRest web service
Rest web service

REST Introduction.ppt
REST Introduction.pptREST Introduction.ppt
REST Introduction.ppt

Rest api best practices – comprehensive handbook
Rest api best practices – comprehensive handbookRest api best practices – comprehensive handbook
Rest api best practices – comprehensive handbook

80068
8006880068
80068

RESTfulll web services
RESTfulll web servicesRESTfulll web services
RESTfulll web services

Restful web-services
Restful web-servicesRestful web-services
Restful web-services

Modern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdfModern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdf

Rest introduction
Rest introductionRest introduction
Rest introduction

Mini-Training: Let's have a rest
Mini-Training: Let's have a restMini-Training: Let's have a rest
Mini-Training: Let's have a rest

REST: So What's It All About? (SAP TechEd 2011, MOB107)
REST: So What's It All About? (SAP TechEd 2011, MOB107)REST: So What's It All About? (SAP TechEd 2011, MOB107)
REST: So What's It All About? (SAP TechEd 2011, MOB107)

Lab7 paper
Lab7 paperLab7 paper
Lab7 paper

Modern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdfModern REST API design principles and rules.pdf
Modern REST API design principles and rules.pdf

SFDC REST API
SFDC REST APISFDC REST API
SFDC REST API

Rest API Automation with REST Assured
Rest API Automation with REST AssuredRest API Automation with REST Assured
Rest API Automation with REST Assured

REST - Representational State Transfer
REST - Representational State TransferREST - Representational State Transfer
REST - Representational State Transfer


Recently uploaded

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
digitalxplive

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf
ChristopherTHyatt

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024
aakash malhotra

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure
KAMAL CHOUDHARY

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world
Emerging Tech

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx
SynapseIndia

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide
Shiv Technolabs

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence
rajancomputerfbd

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck
Lidia A.


Recently uploaded (20)

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...
The Rise of AI in Cybersecurity How Machine Learning Will Shape Threat Detect...

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024

Recent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS InfrastructureRecent Advancements in the NIST-JARVIS Infrastructure
Recent Advancements in the NIST-JARVIS Infrastructure

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world

How RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptxHow RPA Help in the Transportation and Logistics Industry.pptx
How RPA Help in the Transportation and Logistics Industry.pptx

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx

The Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF GuideThe Role of IoT in Australian Mobile App Development - PDF Guide
The Role of IoT in Australian Mobile App Development - PDF Guide

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Choose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presenceChoose our Linux Web Hosting for a seamless and successful online presence
Choose our Linux Web Hosting for a seamless and successful online presence

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck


RESTful Web Services

  • 1. Smart IT Engineering Ltd. RESTful Web Services Imran M Yousuf Smart IT Engineering Ltd.
  • 2. Smart IT Engineering Ltd. What's not covered Comparison between various Web Service technologies
  • 3. Hands on tutorial on how code a RESTful WS
  • 4. Details of how HTTP works
  • 5. Details on various media formats
  • 6. Smart IT Engineering Ltd. What to expect REST Definition
  • 7. Discussion on its constraints
  • 8. WWW RESTful Web Service Resource Oriented Architecture (ROA)
  • 11. Smart IT Engineering Ltd. What to expect A Design Case Study
  • 13. Smart IT Engineering Ltd. What is REST RE presentational S tate T ransfer
  • 14. Proposed by Dr. Roy Thomas Fielding in his PhD dissertation titled - “Architectural Styles and the Design of Network-based Software Architectures”
  • 15. Smart IT Engineering Ltd. What is REST RE presentational S tate T ransfer
  • 16. REST is an architectural style composed of specific constraints.
  • 17. The Constraints - - Client-Server - Stateless - Cache - Uniform Interface - Layered System - Code-On-Demand (Optional)
  • 18. Smart IT Engineering Ltd. REST Constraints Client-Server No restrictions on the nature of the client
  • 19. No restrictions on the number of the clients
  • 20. No restriction on communication medium / protocol Client (Browser) Client (CLI – curl, wget) Client (Desktop) Network Client (Mobile) Client (Another System)
  • 21. Smart IT Engineering Ltd. REST Constraints Client-Server Separate data storage concerns
  • 22. Improve user interface portability across multiple platforms
  • 23. Improve scalability by simplifying server components
  • 25. Smart IT Engineering Ltd. REST Constraints Stateless “ ... each request from client to server must contain all of the information necessary to understand the request, and cannot take advantage of any stored context on the server.” Advantages Visibility Reliability Scalability
  • 26. Smart IT Engineering Ltd. REST Constraints Cache “ ... the data within a response to a request be implicitly or explicitly labeled as cacheable or non-cacheable. If a response is cacheable, then a client cache is given the right to reuse that response data for later, equivalent requests.” Advantages Efficient Scalability Performance
  • 27. Smart IT Engineering Ltd. REST Constraints Layered System The layered system style or also popularly referred to as n-layer system allows an architecture to be composed of hierarchical layers by constraining component behavior such that each component cannot "see" beyond the immediate layer with which they are interacting. Code-On-Demand Allows client functionality to be extended by downloading and executing code in the form of applets or scripts . This simplifies clients by reducing the number of features required to be pre-implemented.
  • 28. Smart IT Engineering Ltd. REST Constraints Uniform Interface Central distinguishing feature of REST Involves four constraints to define 'uniform interface' for REST systems. Identification of resources
  • 29. Manipulation of resources through representations
  • 31. HATEOAS ( H ypermedia A s T he E ngine O f A pplication S tate)
  • 32. Smart IT Engineering Ltd. REST Constraints Uniform Interface - Resource Any concept that might be the target of an web-author's hypertext reference must fit within the definition of a resource.
  • 33. A resource is a conceptual mapping to a set of entities , not the entity that corresponds to the mapping at any particular point in time.
  • 34. If compared of Object Oriented aproach, Object if referrrable is a resource.
  • 35. Examples of resources would Books, A Book, An Author, Authors, Authors of a Book, A Publisher, Categories of a Book, A Category etc.
  • 36. Smart IT Engineering Ltd. REST Constraints Uniform Interface – Representations & Messages A representation is a sequence of bytes describing a resource in a particular format.
  • 37. Other commonly used but less precise names for a representation include: document, file, and HTTP message entity, instance, or variant.
  • 38. Message consists of control data, metadata, messages and in some cases hyperlinks to resources.
  • 39. Examples: Images (image/jpg, image/png, etc.), Markups (text/html, application/xml etc.) and more.
  • 40. Smart IT Engineering Ltd. REST Constraints Uniform Interface – HATEOAS A hypermedia in each server response will contain links that correspond to all the actions that the client can currently perform.
  • 41. Therefore, dependent on the current application state, every server response describes the new actions that are available.
  • 42. The server can change the range of allowable responses in a dynamic way, and a client should adapt its behavior to these changes.
  • 43. A client of a RESTful application need only know a single fixed URL to access it.
  • 44. Smart IT Engineering Ltd. REST Constraints Uniform Interface – HATEOAS All future actions should be discoverable dynamically from hypermedia links included in the representations of the resources that are returned from that URL.
  • 45. The link relations should be standardized , so that the client knows what selecting that state transition means.
  • 46. Standardized media types are also expected to be understood by any client that might use the API.
  • 47. Application state transitions are driven by a combination of the known processing rules for each media type, client selection from the server-provided choices in representations received, and the user's manipulation of those representations. Thus interactions are driven by hypermedia .
  • 48. Smart IT Engineering Ltd. REST What is the biggest known RESTful System on planet Earth?
  • 49. Smart IT Engineering Ltd. REST World Wide Web a.k.a Internet HTTP Web Pages HTML pages are hypermedia CSS
  • 50. Feeds
  • 51. Media etc. JavaScript - Code-On-Demand Email Copy
  • 54. Smart IT Engineering Ltd. REST Questions?

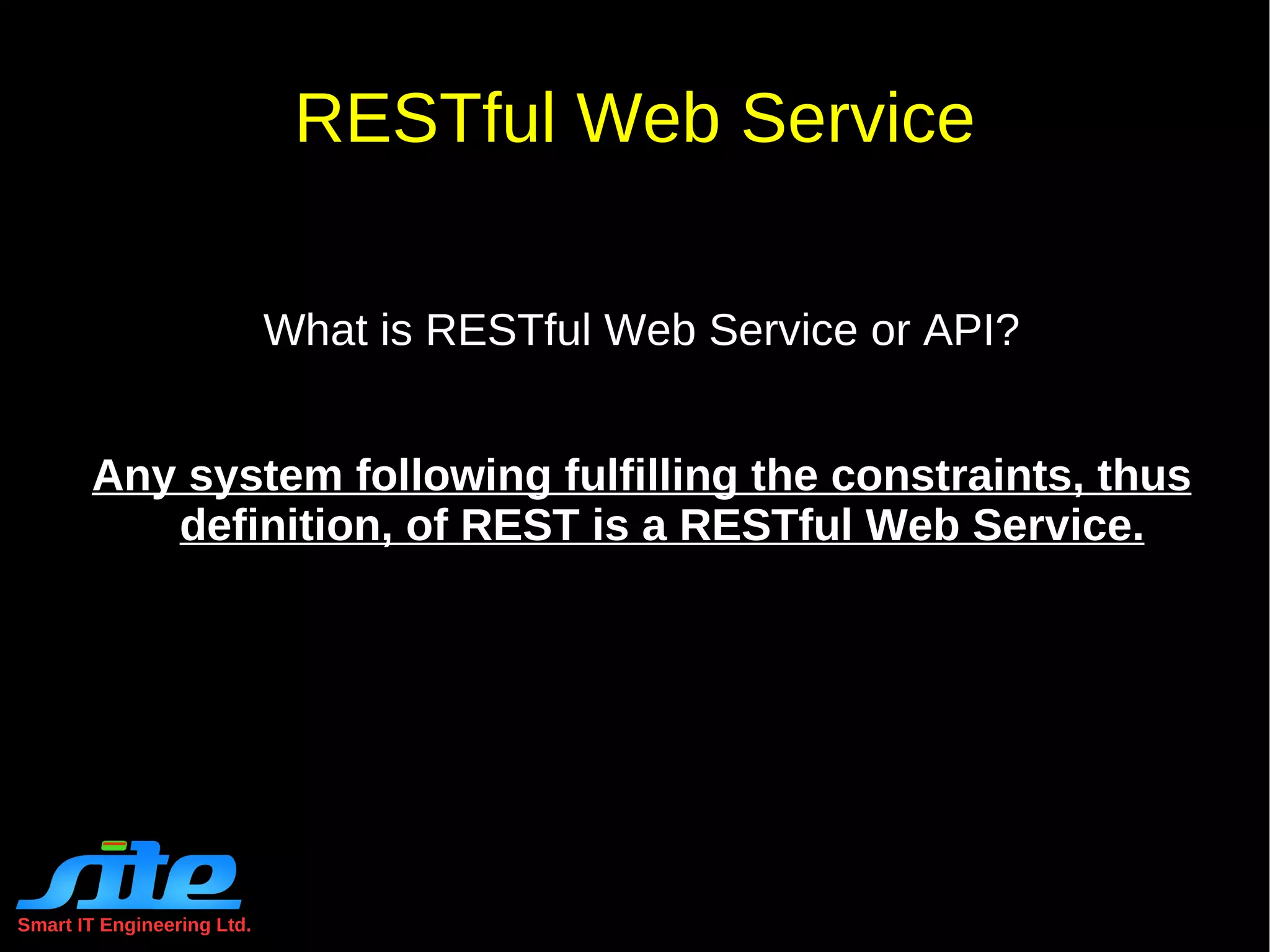

  • 55. Smart IT Engineering Ltd. RESTful Web Service What is RESTful Web Service or API? Any system following fulfilling the constraints, thus definition, of REST is a RESTful Web Service.
  • 56. Smart IT Engineering Ltd. RESTful Web Service RESTful Web Service system communicates over HTTP protocol
  • 57. RESTful Web Service design and architecture grows around resource .
  • 58. All WWW sites are inherently REST-like and can easily be RESTful hence RESTful Web Service; e.g. Google Search Engine.
  • 59. Web Service not only consists of either HTML markups, CSS and JavaScript, or other media formats, but may consist both
  • 60. Smart IT Engineering Ltd. Resource Oriented Architecture Introduced in the book “RESTful Web Services”
  • 61. Resource-Oriented Architecture is about REST-ful system with the technologies of the Web

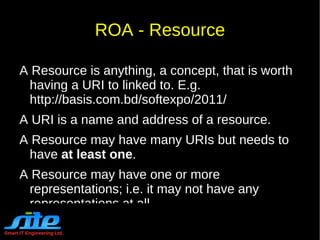

  • 62. Smart IT Engineering Ltd. ROA - Resource A Resource is anything, a concept, that is worth having a URI to linked to. E.g. http://basis.com.bd/softexpo/2011/
  • 63. A URI is a name and address of a resource.
  • 64. A Resource may have many URIs but needs to have at least one .
  • 65. A Resource may have one or more representations; i.e. it may not have any representations at all.

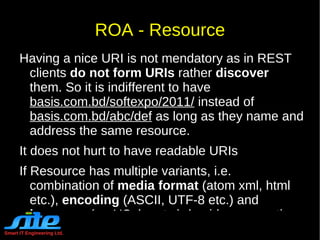

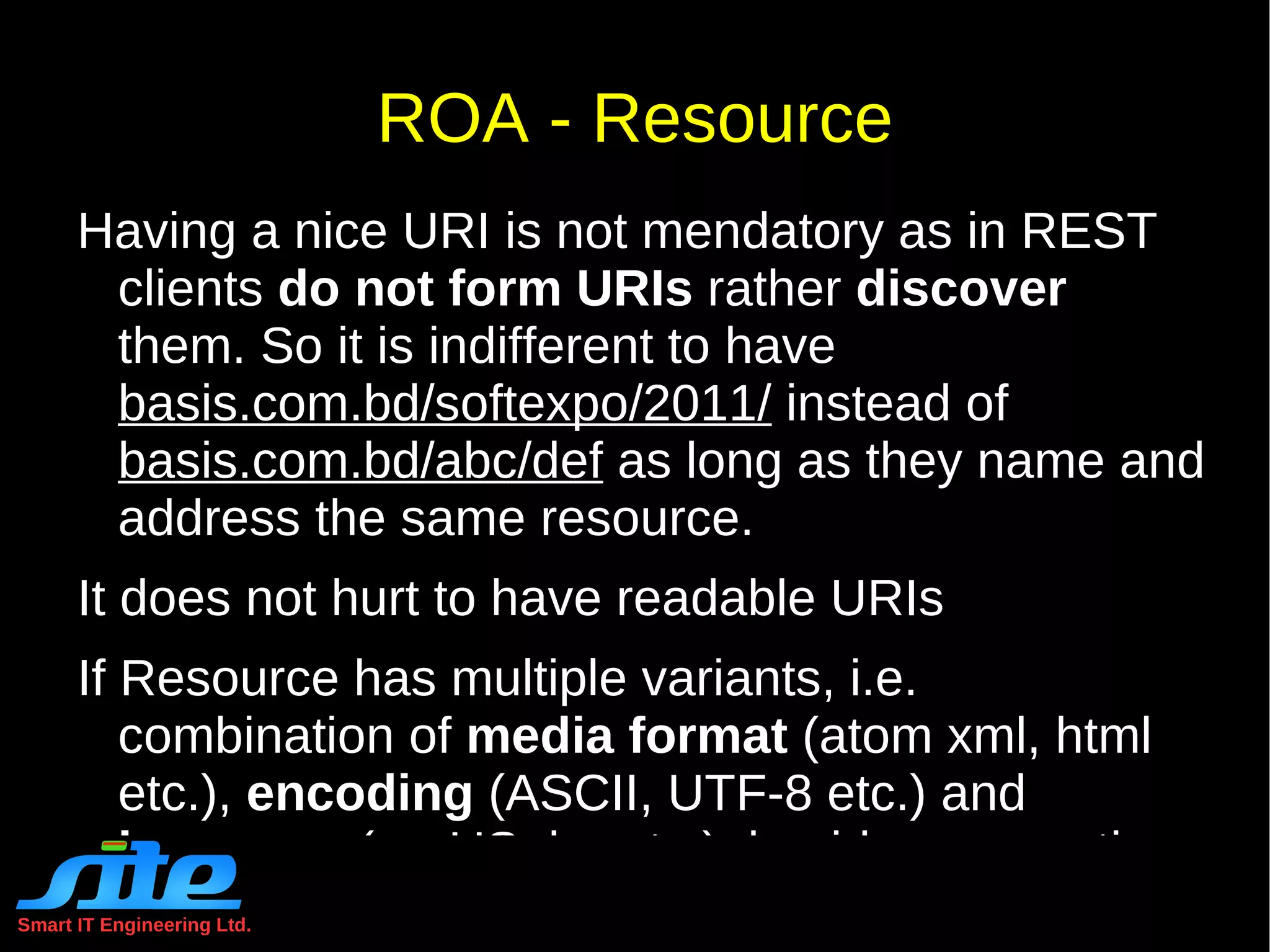

  • 66. Smart IT Engineering Ltd. ROA - Resource Having a nice URI is not mendatory as in REST clients do not form URIs rather discover them. So it is indifferent to have basis.com.bd/softexpo/2011/ instead of basis.com.bd/abc/def as long as they name and address the same resource.
  • 67. It does not hurt to have readable URIs
  • 68. If Resource has multiple variants, i.e. combination of media format (atom xml, html etc.), encoding (ASCII, UTF-8 etc.) and language (en-US, bn etc.), besides supporting content negotiation, URI for each variant is beneficial for external linking.

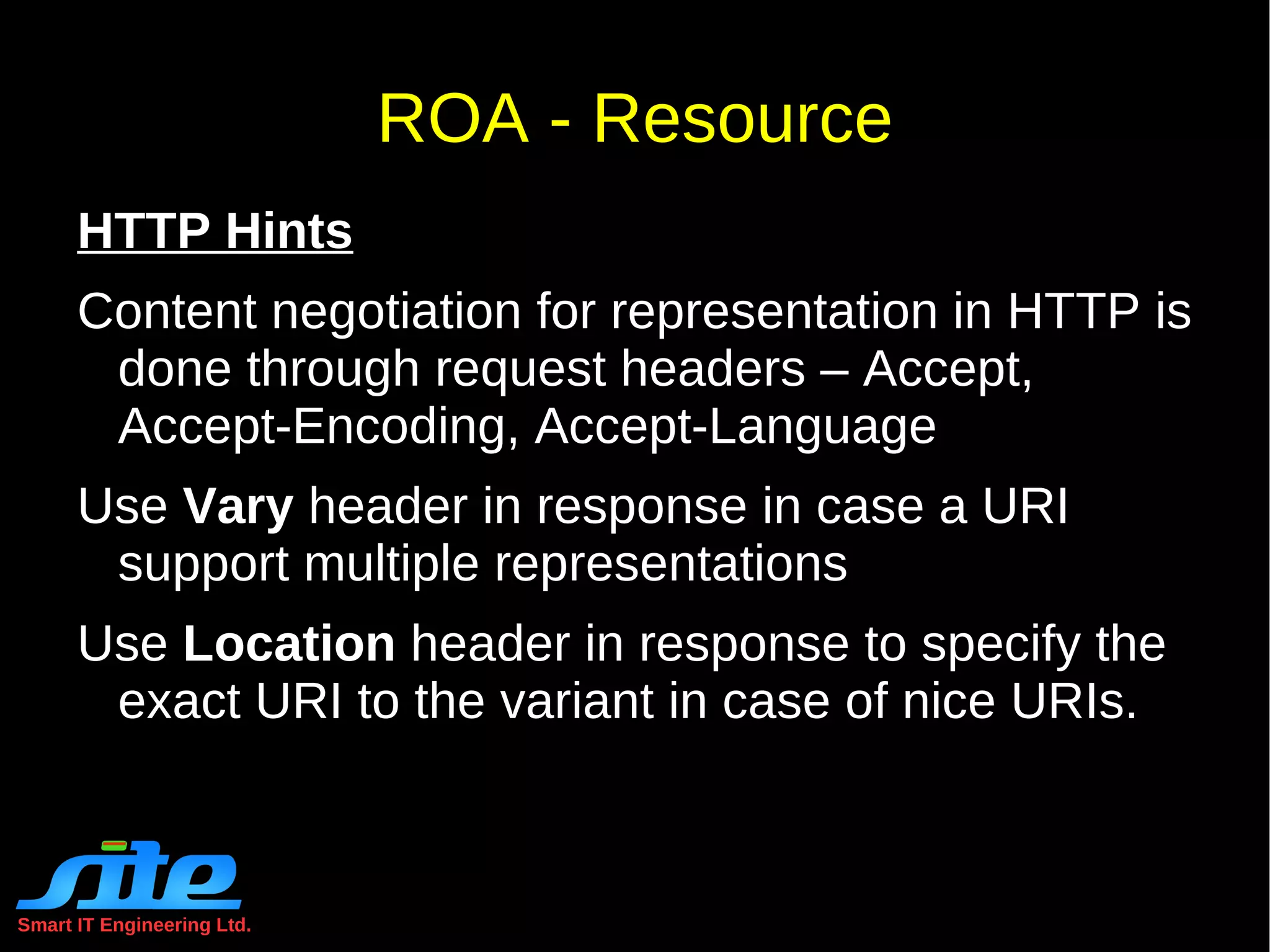

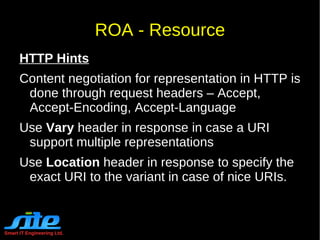

  • 69. Smart IT Engineering Ltd. ROA - Resource HTTP Hints Content negotiation for representation in HTTP is done through request headers – Accept, Accept-Encoding, Accept-Language
  • 70. Use Vary header in response in case a URI support multiple representations
  • 71. Use Location header in response to specify the exact URI to the variant in case of nice URIs.

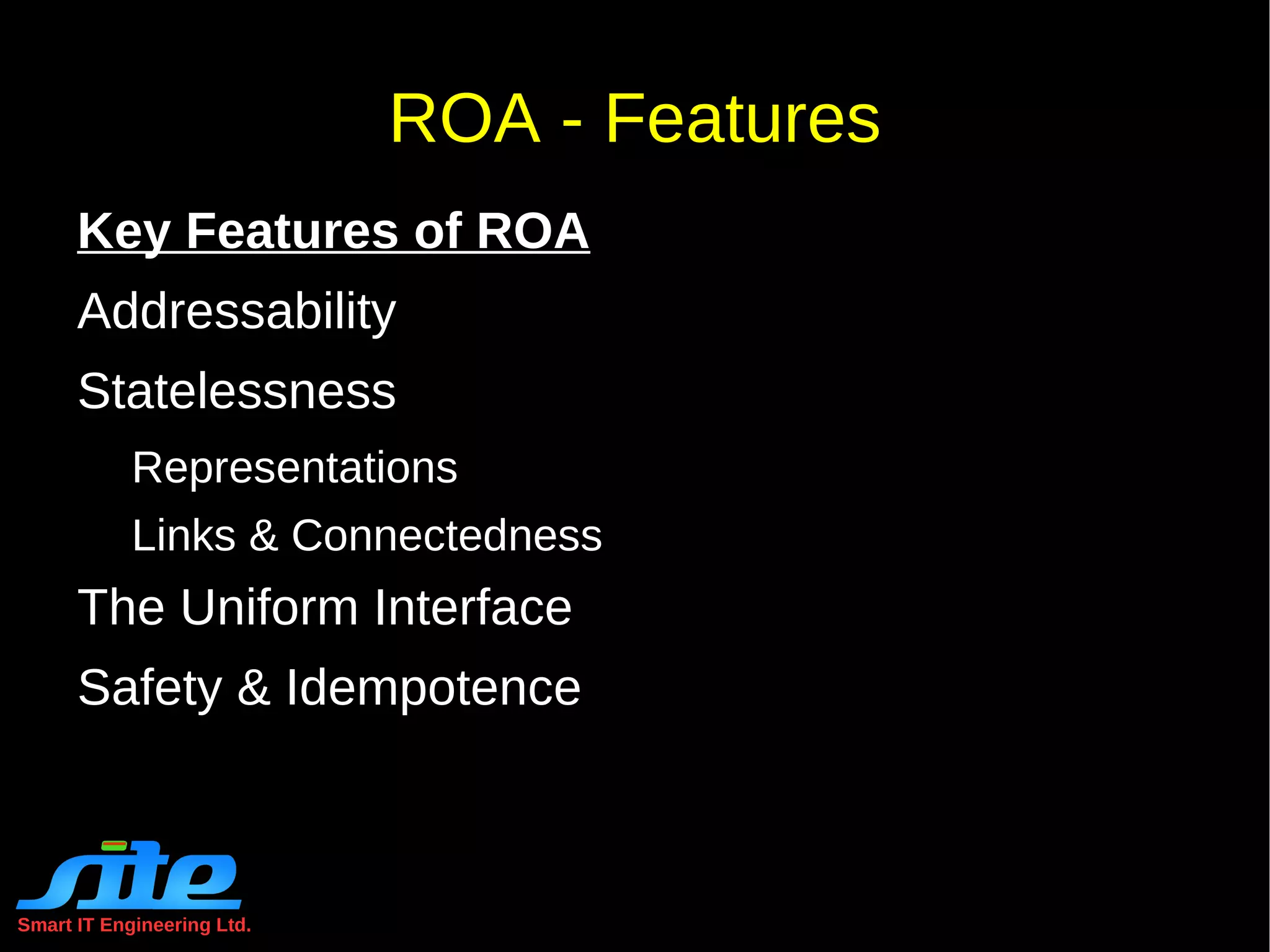

  • 72. Smart IT Engineering Ltd. ROA - Features Key Features of ROA Addressability
  • 74. Links & Connectedness The Uniform Interface

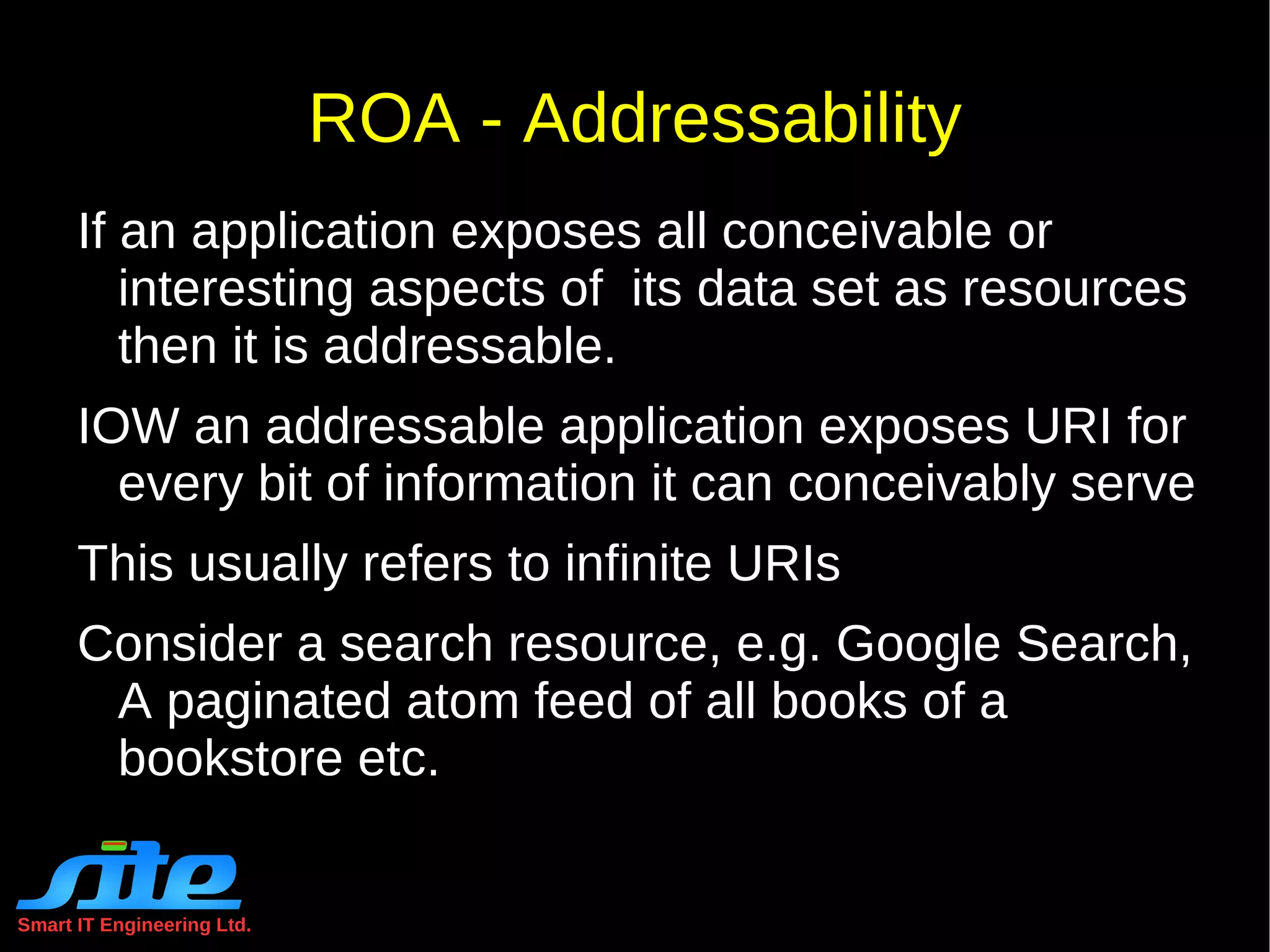

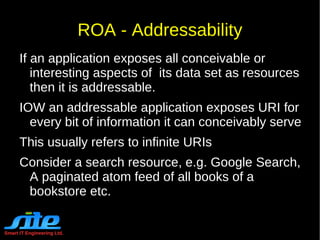

  • 76. Smart IT Engineering Ltd. ROA - Addressability If an application exposes all conceivable or interesting aspects of its data set as resources then it is addressable.
  • 77. IOW an addressable application exposes URI for every bit of information it can conceivably serve
  • 78. This usually refers to infinite URIs
  • 79. Consider a search resource, e.g. Google Search, A paginated atom feed of all books of a bookstore etc.

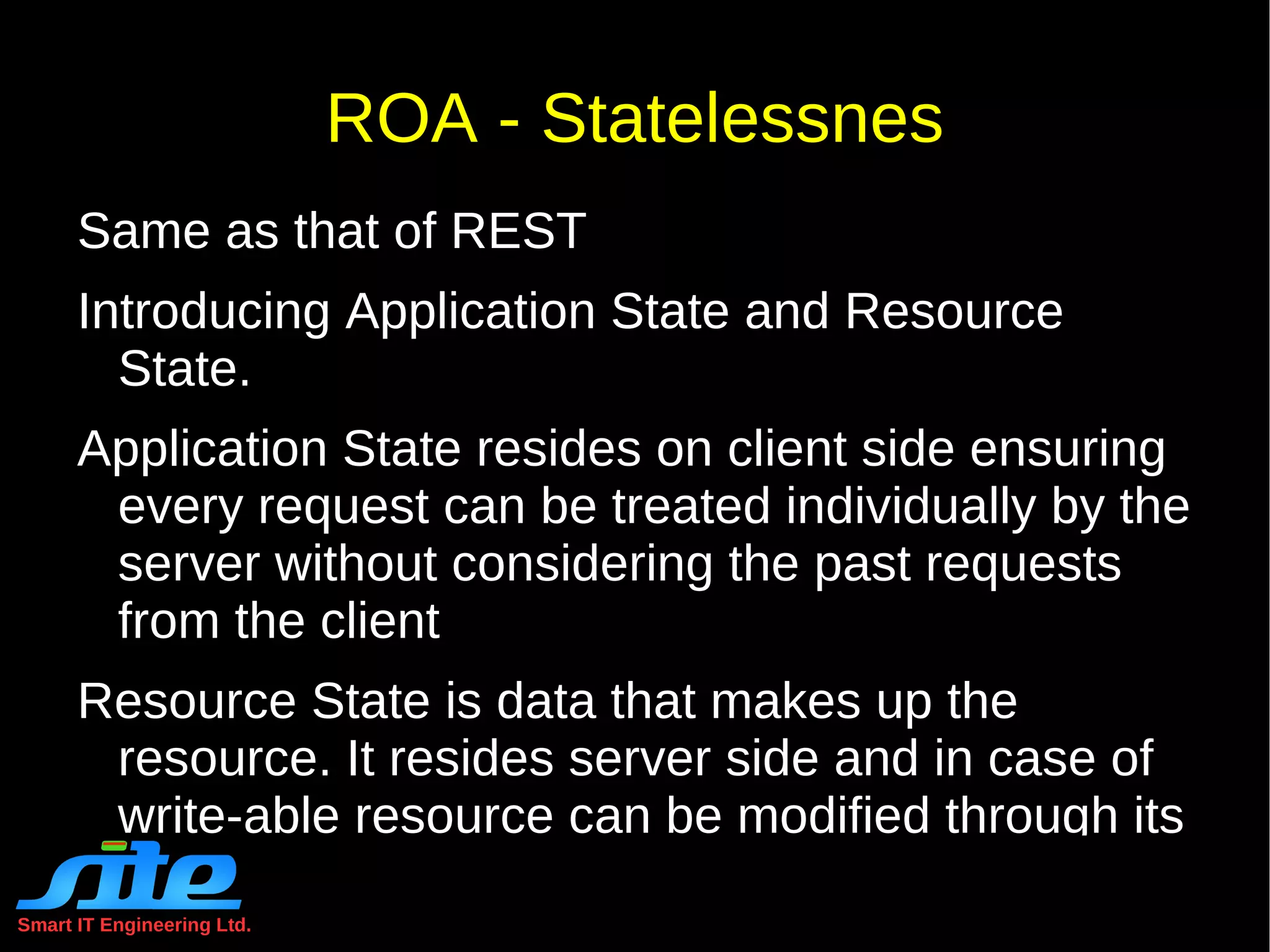

  • 80. Smart IT Engineering Ltd. ROA - Statelessnes Same as that of REST
  • 81. Introducing Application State and Resource State.
  • 82. Application State resides on client side ensuring every request can be treated individually by the server without considering the past requests from the client
  • 83. Resource State is data that makes up the resource. It resides server side and in case of write-able resource can be modified through its representation

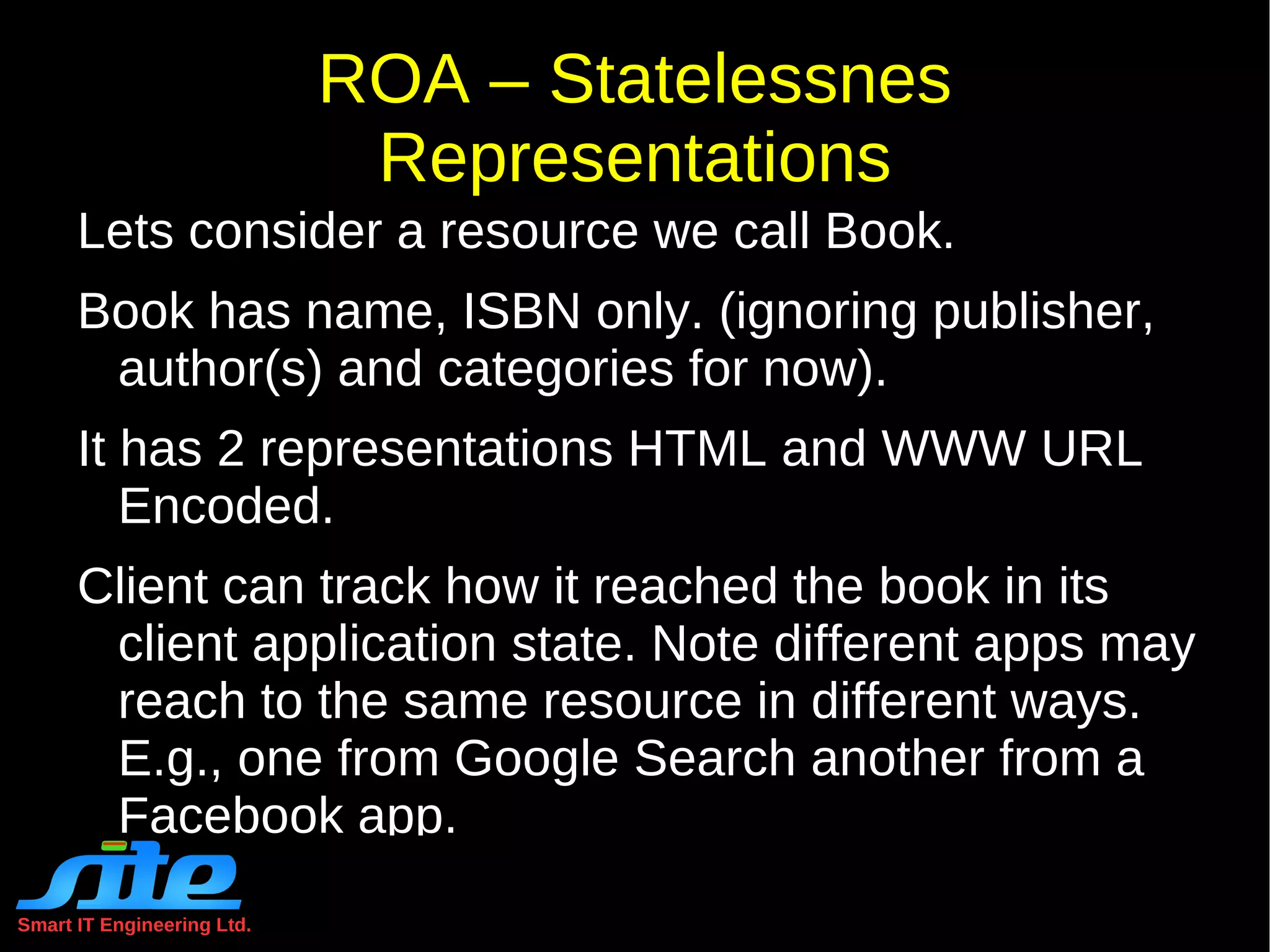

  • 84. Smart IT Engineering Ltd. ROA – Statelessnes Representations Lets consider a resource we call Book.
  • 85. Book has name, ISBN only. (ignoring publisher, author(s) and categories for now).
  • 86. It has 2 representations HTML and WWW URL Encoded.
  • 87. Client can track how it reached the book in its client application state. Note different apps may reach to the same resource in different ways. E.g., one from Google Search another from a Facebook app.
  • 88. The resource state, i.e. the current name and ISBN resides on the server side and is indifferent for any client.
  • 89. Clients receive the representations of the resource and provides the server with the same to edit its information.

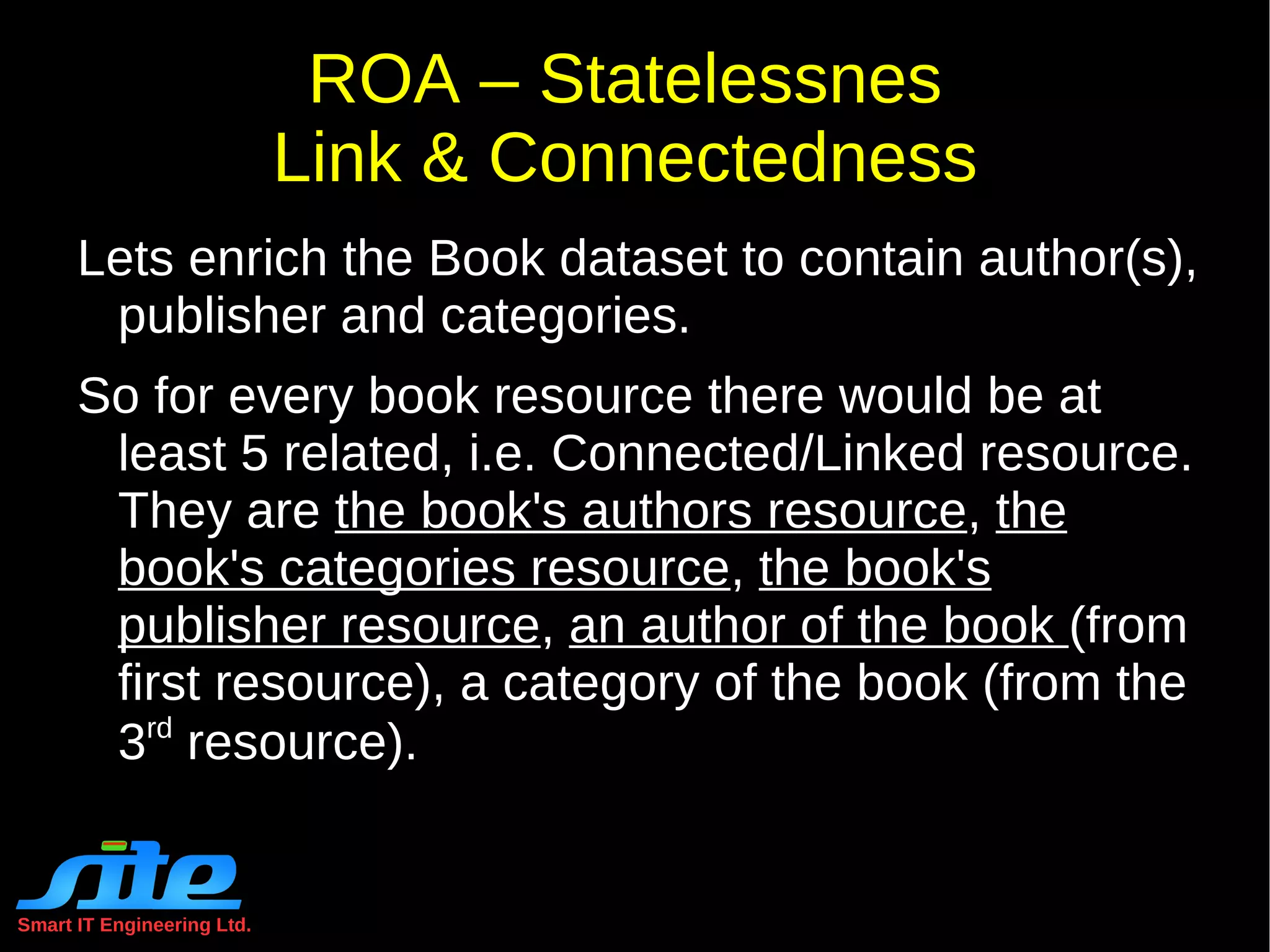

  • 90. Smart IT Engineering Ltd. ROA – Statelessnes Link & Connectedness Lets enrich the Book dataset to contain author(s), publisher and categories.
  • 91. So for every book resource there would be at least 5 related, i.e. Connected/Linked resource. They are the book's authors resource , the book's categories resource , the book's publisher resource , an author of the book (from first resource), a category of the book (from the 3 rd resource).
  • 92. Smart IT Engineering Ltd. ROA – Resources /books /books/A /books/B /books/C /books/A/authors /books/A/publishers /pubs/A /authors/A /pubs/A/books /authors/A/books /pubs /authors /

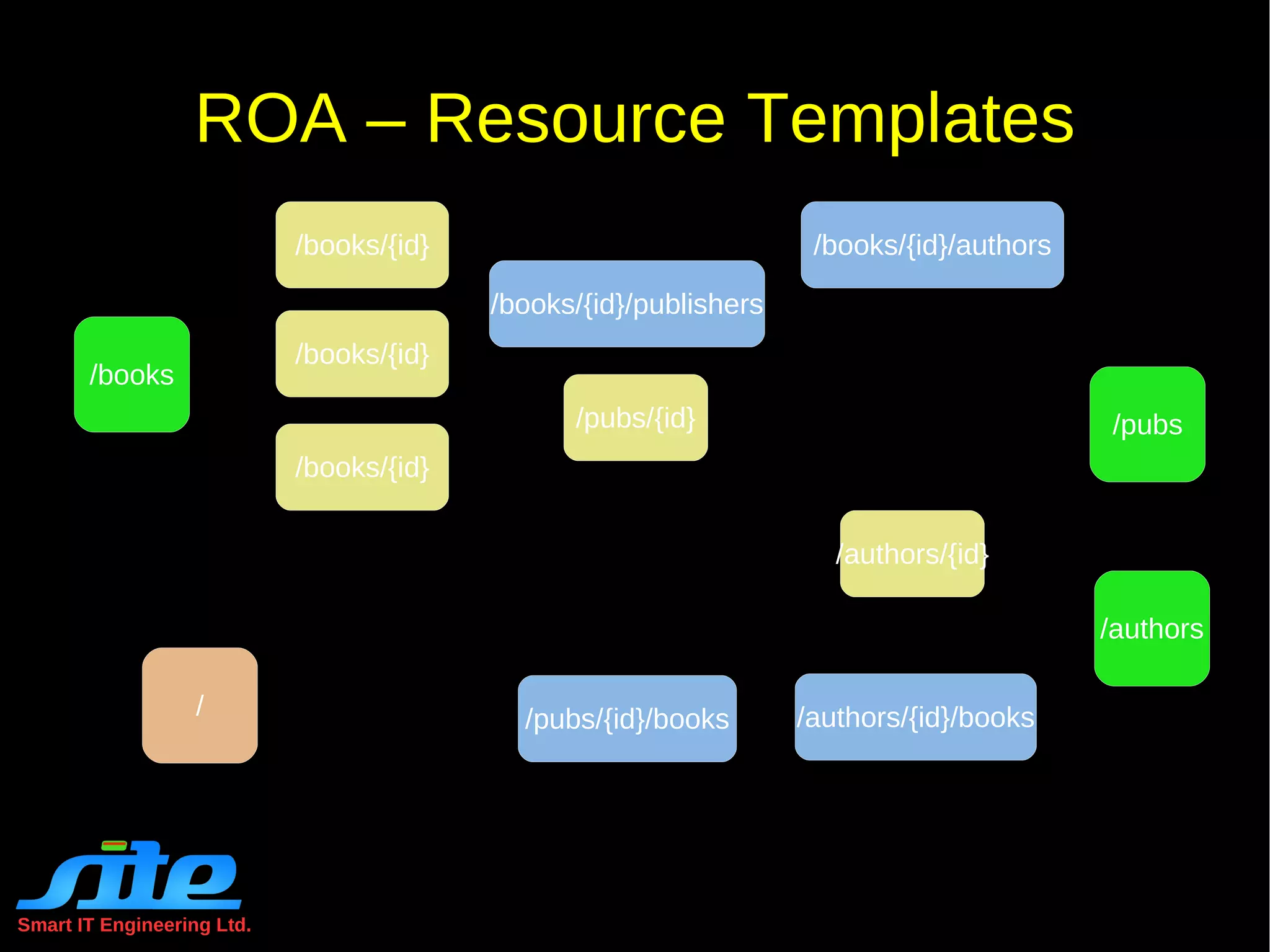

  • 93. Smart IT Engineering Ltd. ROA – Resource Templates /books /books/{id} /books/{id} /books/{id} /books/{id}/authors /books/{id}/publishers /pubs/{id} /authors/{id} /pubs/{id}/books /authors/{id}/books /pubs /authors /

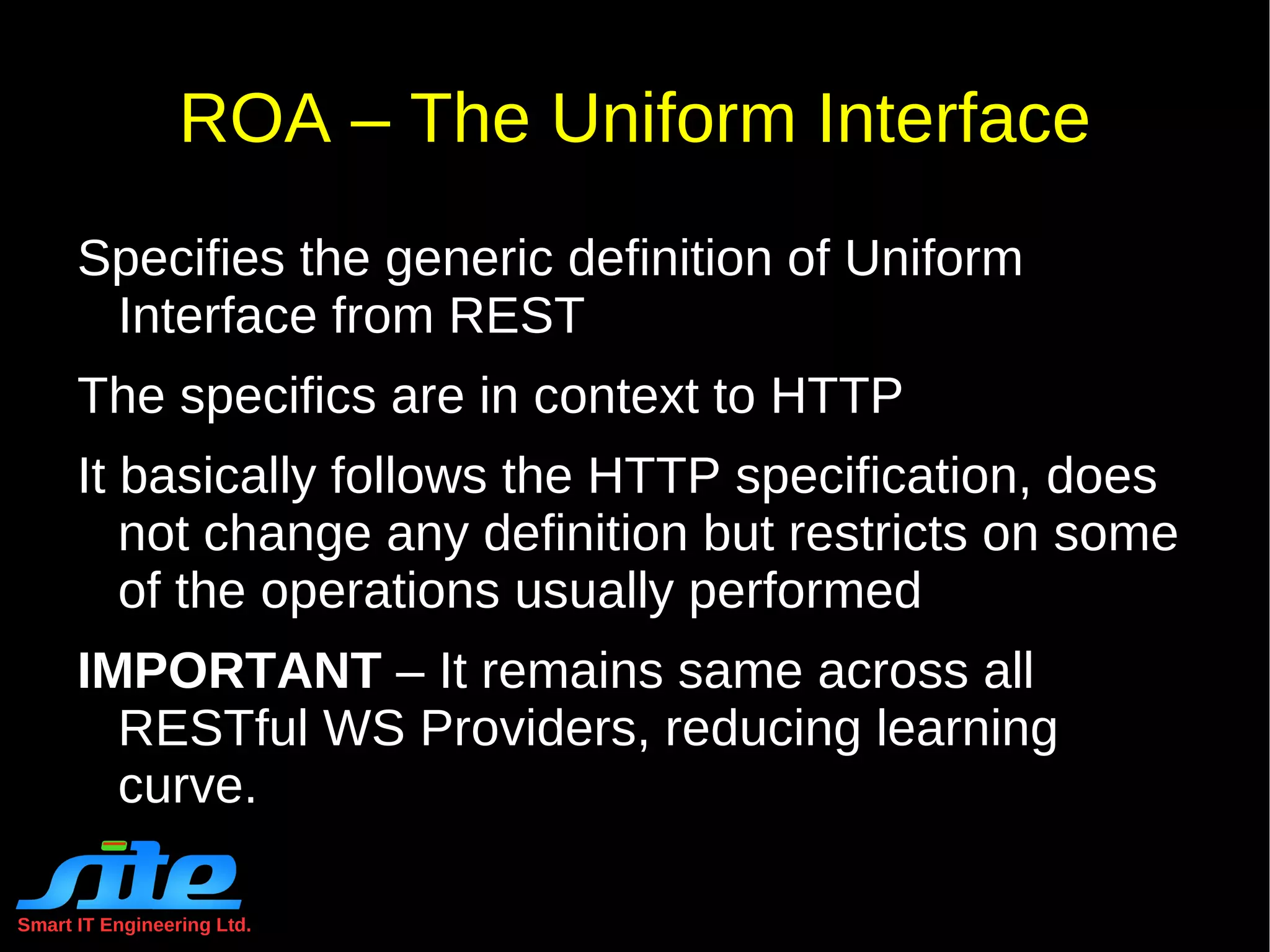

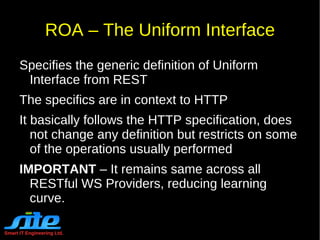

  • 94. Smart IT Engineering Ltd. ROA – The Uniform Interface Specifies the generic definition of Uniform Interface from REST
  • 95. The specifics are in context to HTTP
  • 96. It basically follows the HTTP specification, does not change any definition but restricts on some of the operations usually performed
  • 97. IMPORTANT – It remains same across all RESTful WS Providers, reducing learning curve.

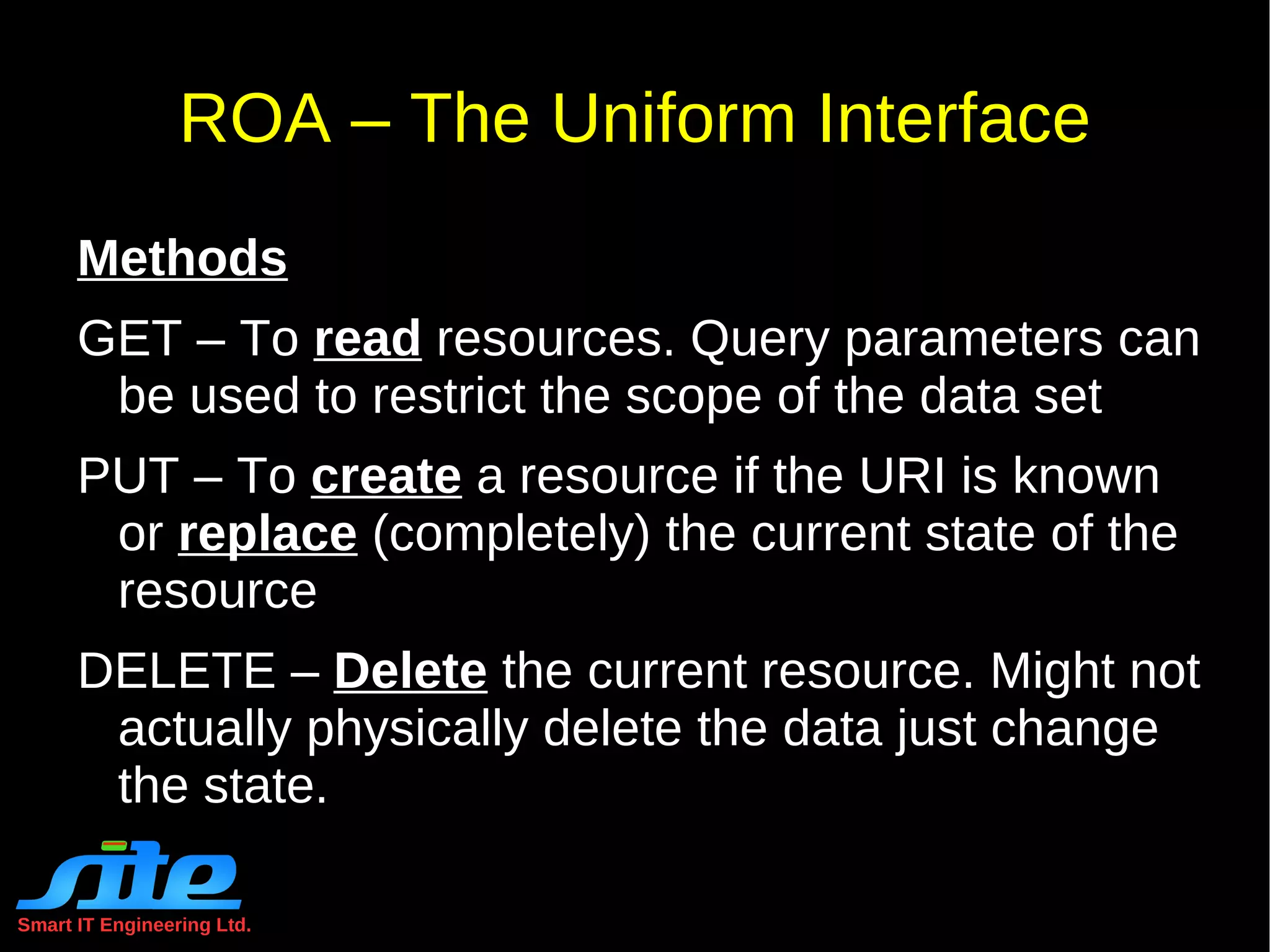

  • 98. Smart IT Engineering Ltd. ROA – The Uniform Interface Methods GET – To read resources. Query parameters can be used to restrict the scope of the data set
  • 99. PUT – To create a resource if the URI is known or replace (completely) the current state of the resource
  • 100. DELETE – Delete the current resource. Might not actually physically delete the data just change the state.

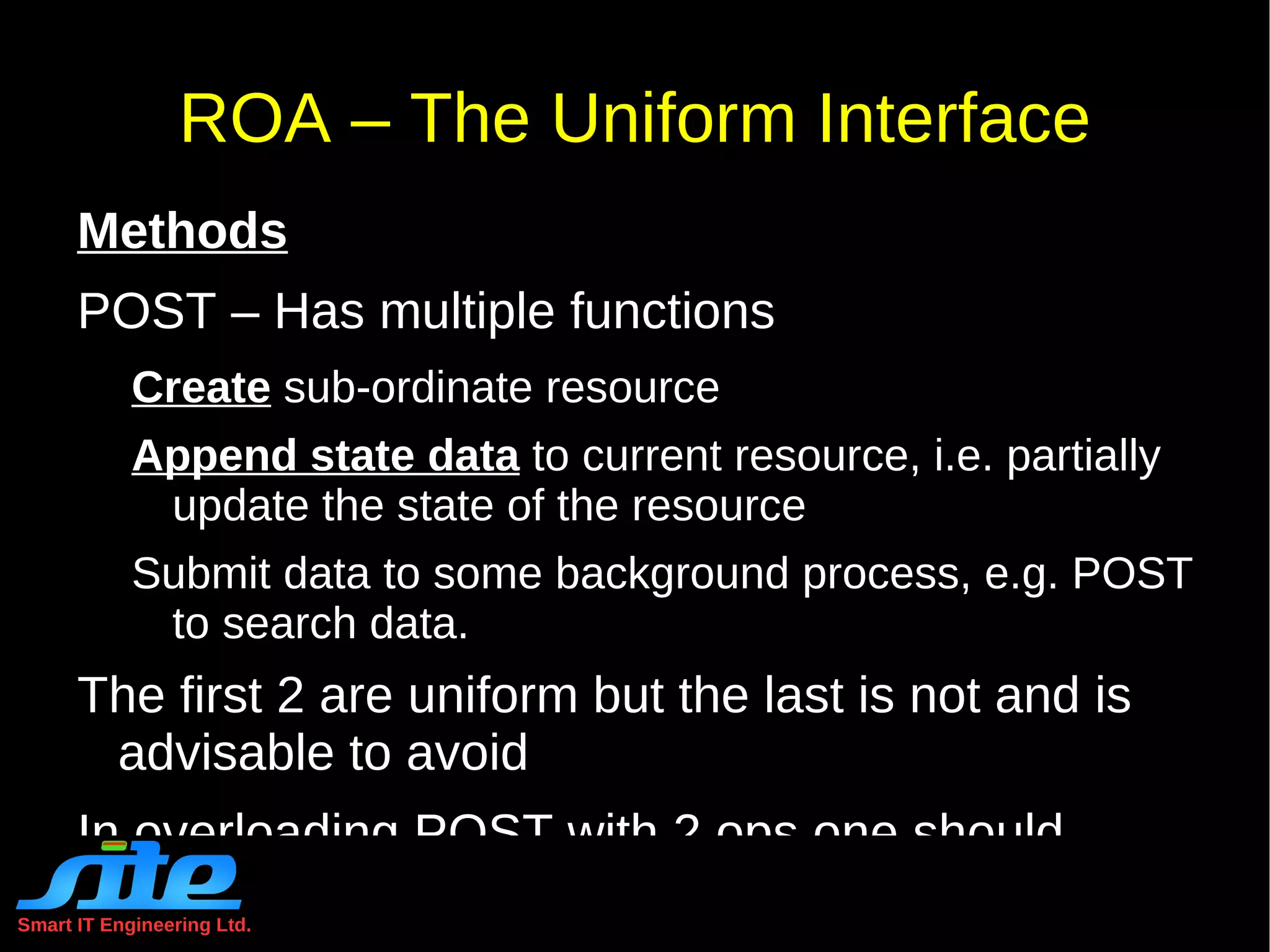

  • 101. Smart IT Engineering Ltd. ROA – The Uniform Interface Methods POST – Has multiple functions Create sub-ordinate resource
  • 102. Append state data to current resource, i.e. partially update the state of the resource
  • 103. Submit data to some background process, e.g. POST to search data. The first 2 are uniform but the last is not and is advisable to avoid
  • 104. In overloading POST with 2 ops one should consider breaking the resource to avoid overloading.

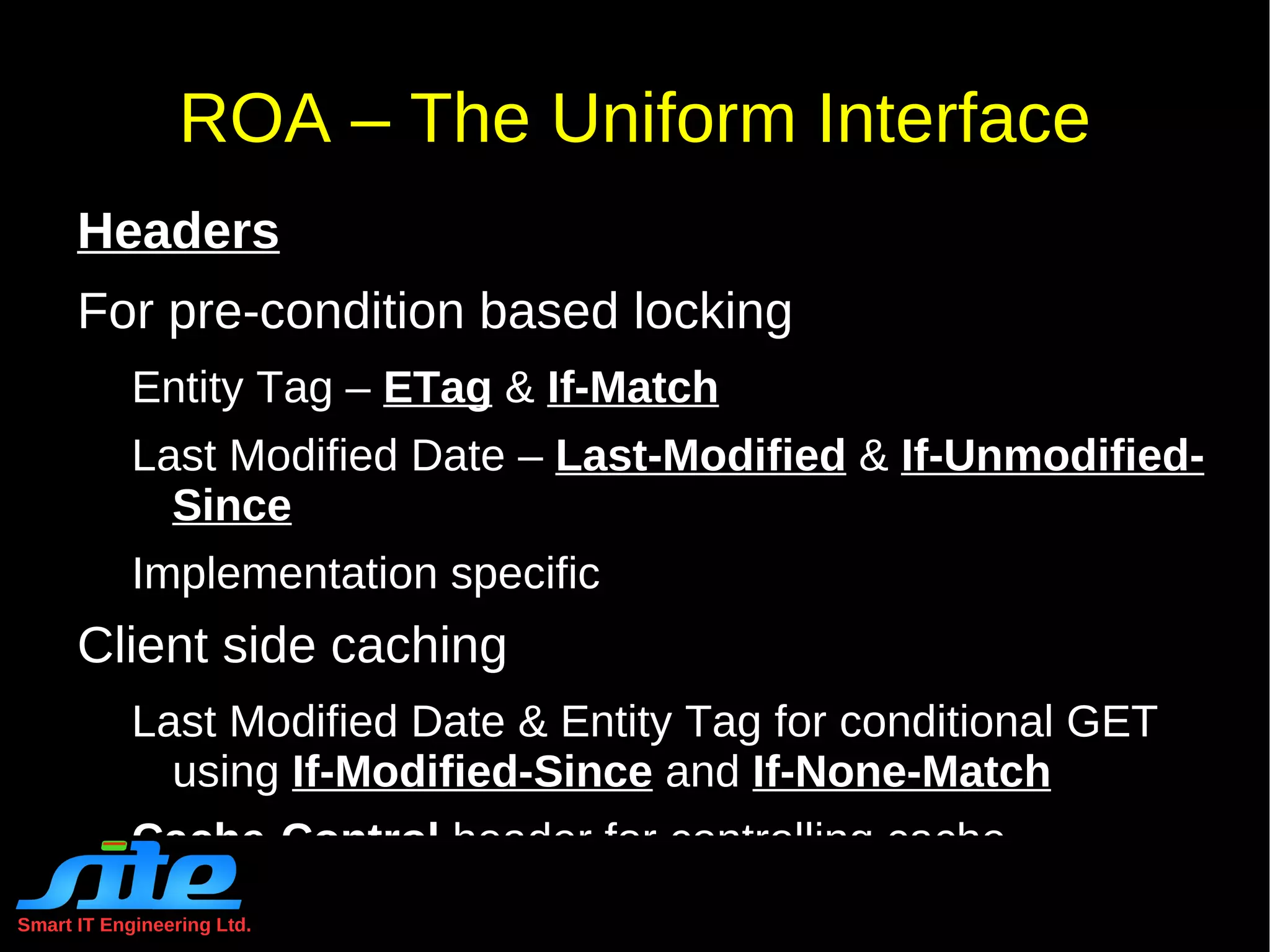

  • 105. Smart IT Engineering Ltd. ROA – The Uniform Interface Headers For pre-condition based locking Entity Tag – ETag & If-Match
  • 106. Last Modified Date – Last-Modified & If-Unmodified-Since
  • 107. Implementation specific Client side caching Last Modified Date & Entity Tag for conditional GET using If-Modified-Since and If-None-Match
  • 108. Cache-Control header for controlling cache
  • 109. Use Vary to support variants. Use Location to redirect or point to the permanent URI

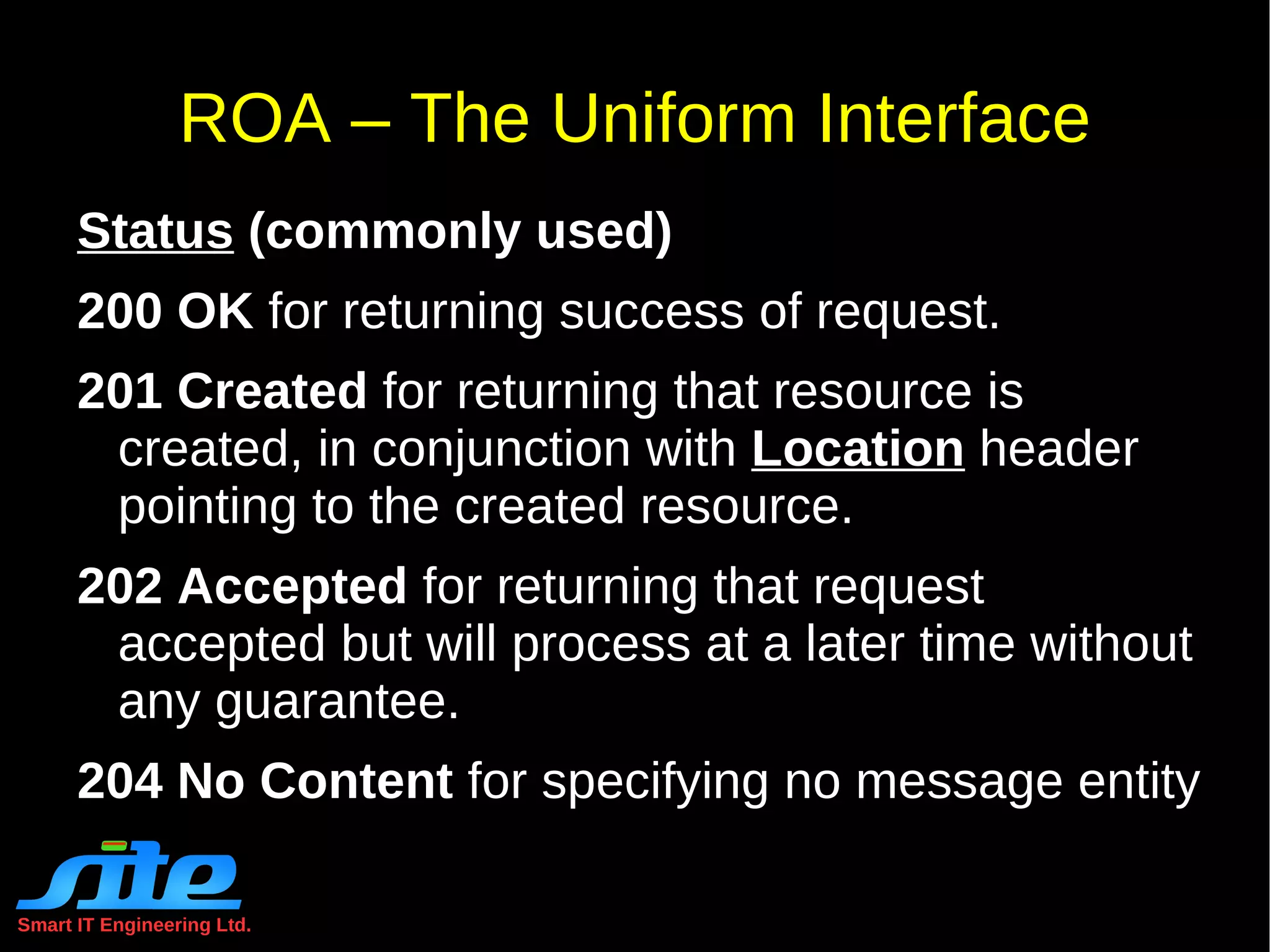

  • 110. Smart IT Engineering Ltd. ROA – The Uniform Interface Status (commonly used) 200 OK for returning success of request.
  • 111. 201 Created for returning that resource is created, in conjunction with Location header pointing to the created resource.
  • 112. 202 Accepted for returning that request accepted but will process at a later time without any guarantee.
  • 113. 204 No Content for specifying no message entity

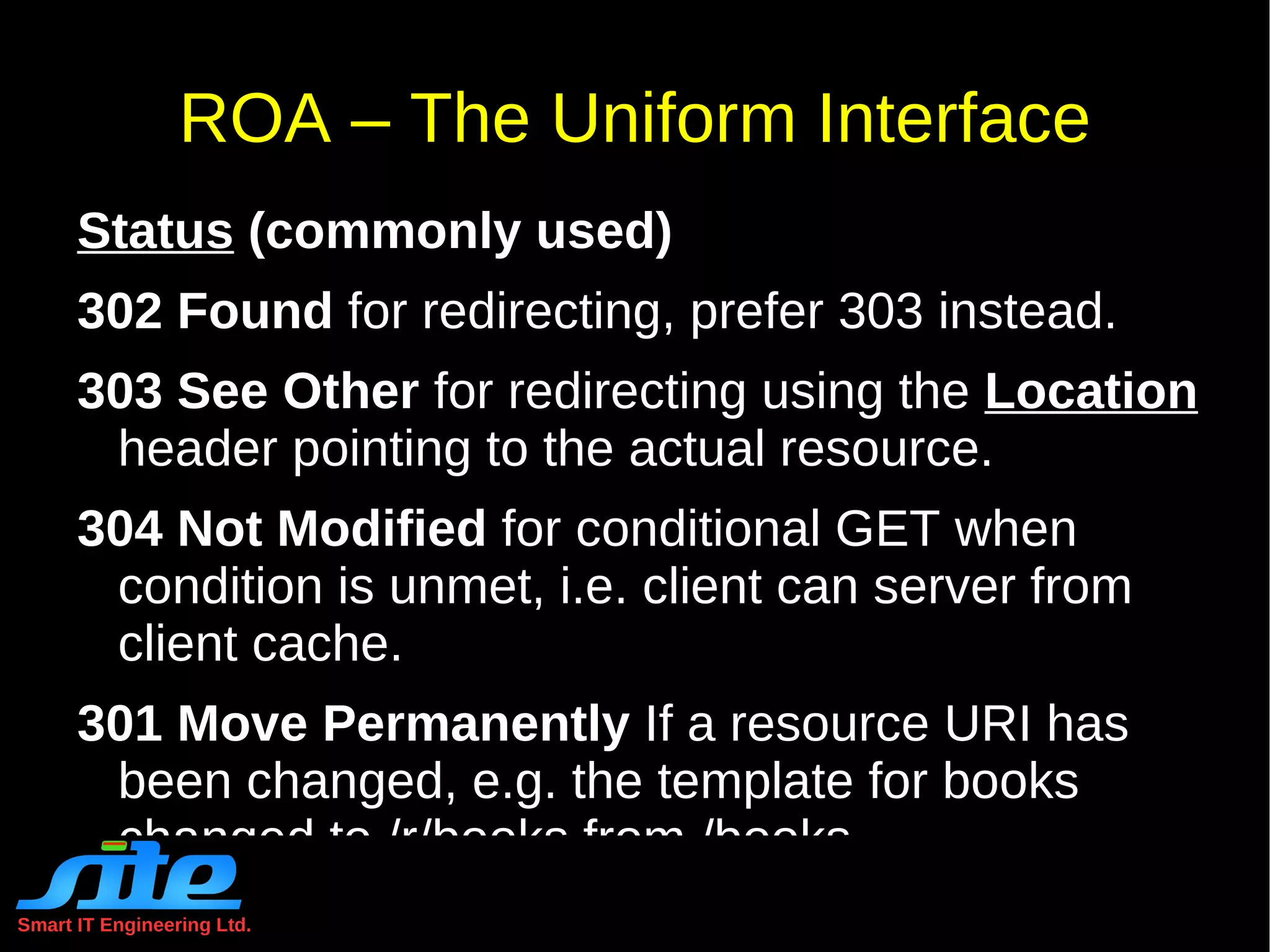

  • 114. Smart IT Engineering Ltd. ROA – The Uniform Interface Status (commonly used) 302 Found for redirecting, prefer 303 instead.
  • 115. 303 See Other for redirecting using the Location header pointing to the actual resource.
  • 116. 304 Not Modified for conditional GET when condition is unmet, i.e. client can server from client cache.
  • 117. 301 Move Permanently If a resource URI has been changed, e.g. the template for books changed to /r/books from /books.

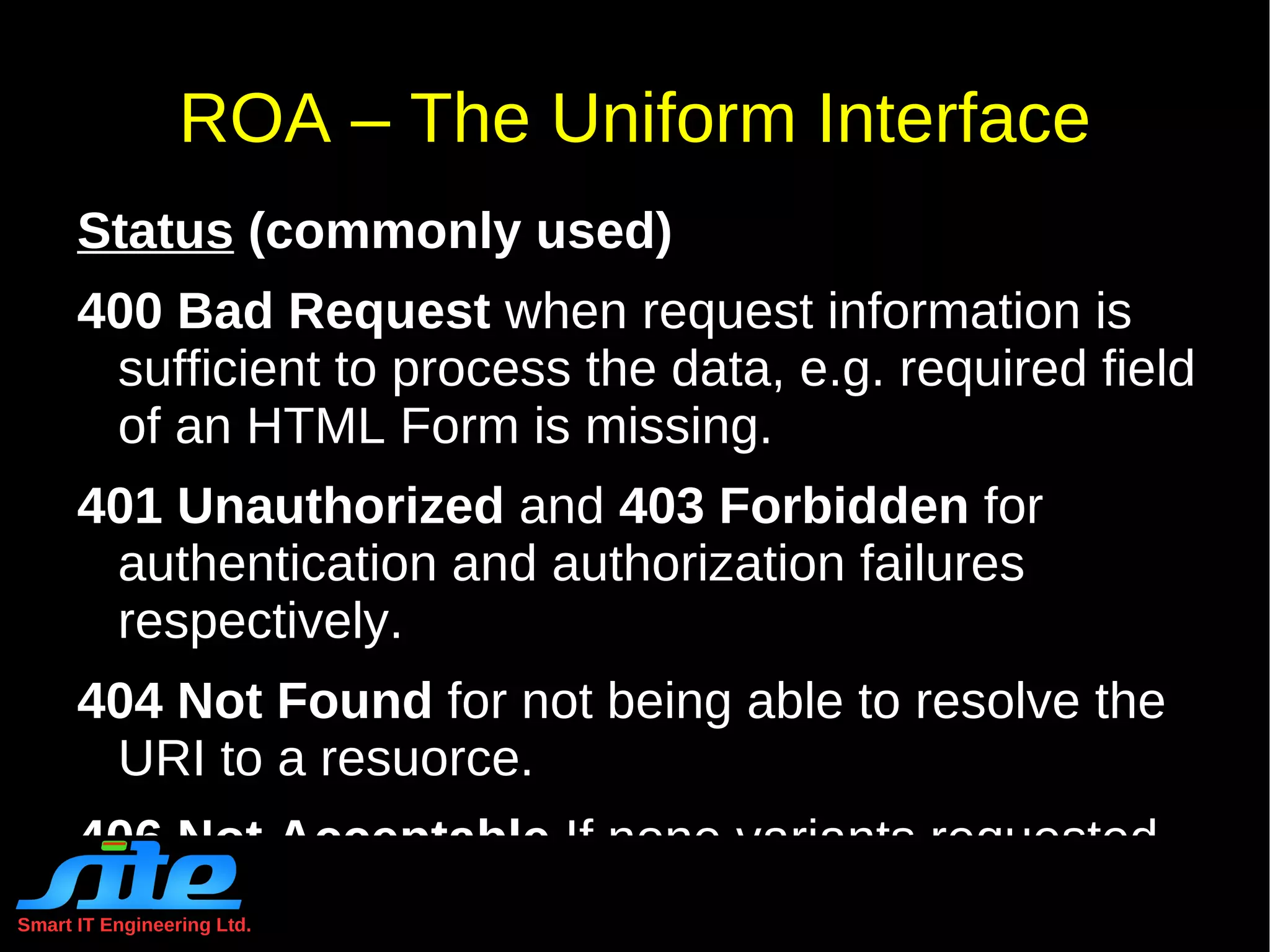

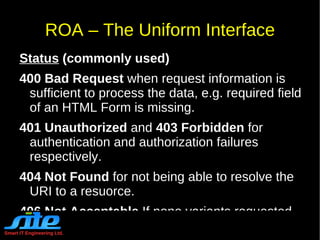

  • 118. Smart IT Engineering Ltd. ROA – The Uniform Interface Status (commonly used) 400 Bad Request when request information is sufficient to process the data, e.g. required field of an HTML Form is missing.
  • 119. 401 Unauthorized and 403 Forbidden for authentication and authorization failures respectively.
  • 120. 404 Not Found for not being able to resolve the URI to a resuorce.
  • 121. 406 Not Acceptable If none variants requested can be served by the server
  • 122. 412 Preconditioned Failed if the conditions in request not met. Useful lock like feature in case of updates.
  • 123. 415 Unsupported Media Type when request entity is not recognized by server for processing.

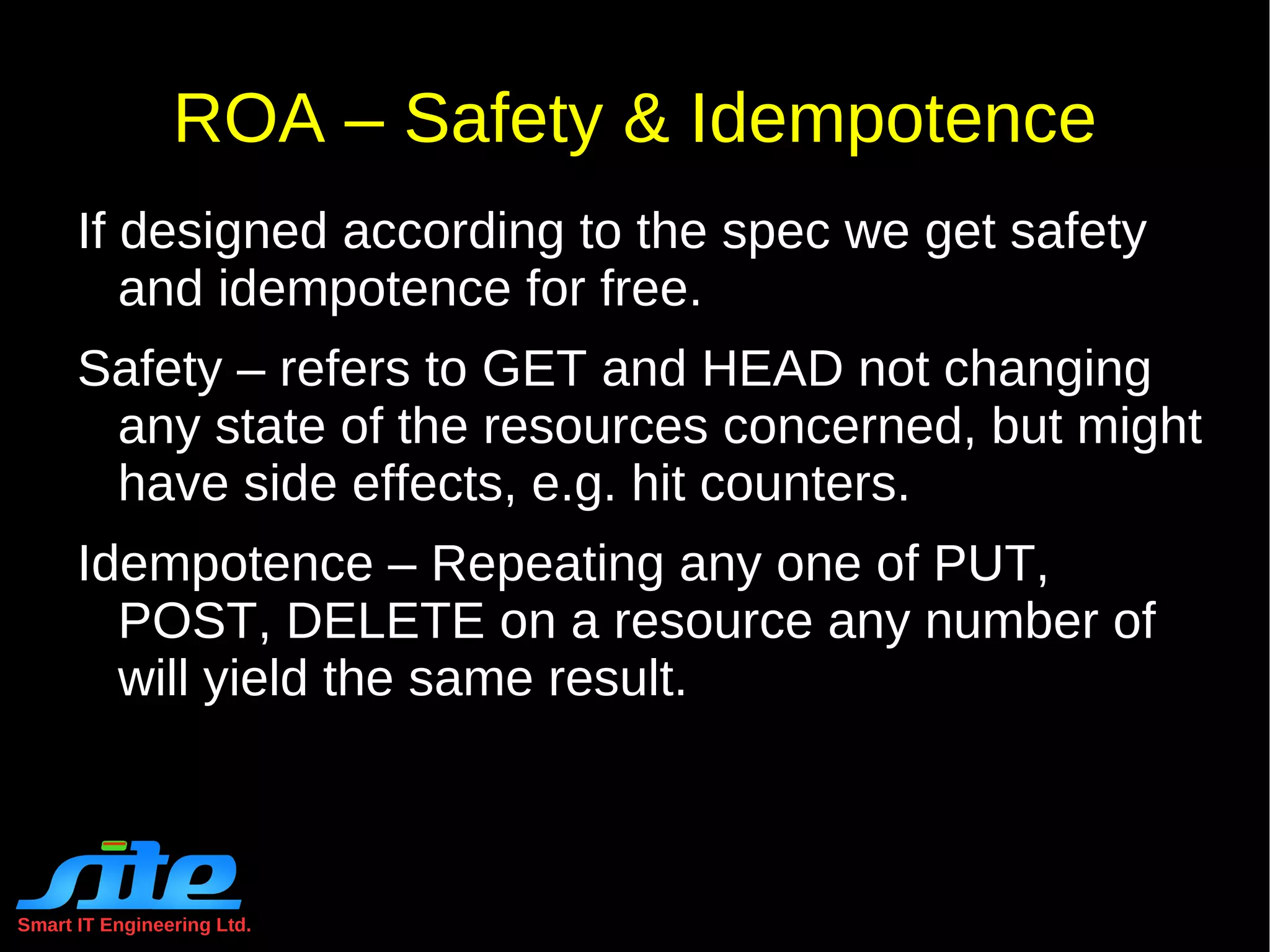

  • 124. Smart IT Engineering Ltd. ROA – Safety & Idempotence If designed according to the spec we get safety and idempotence for free.
  • 125. Safety – refers to GET and HEAD not changing any state of the resources concerned, but might have side effects, e.g. hit counters.
  • 126. Idempotence – Repeating any one of PUT, POST, DELETE on a resource any number of will yield the same result.

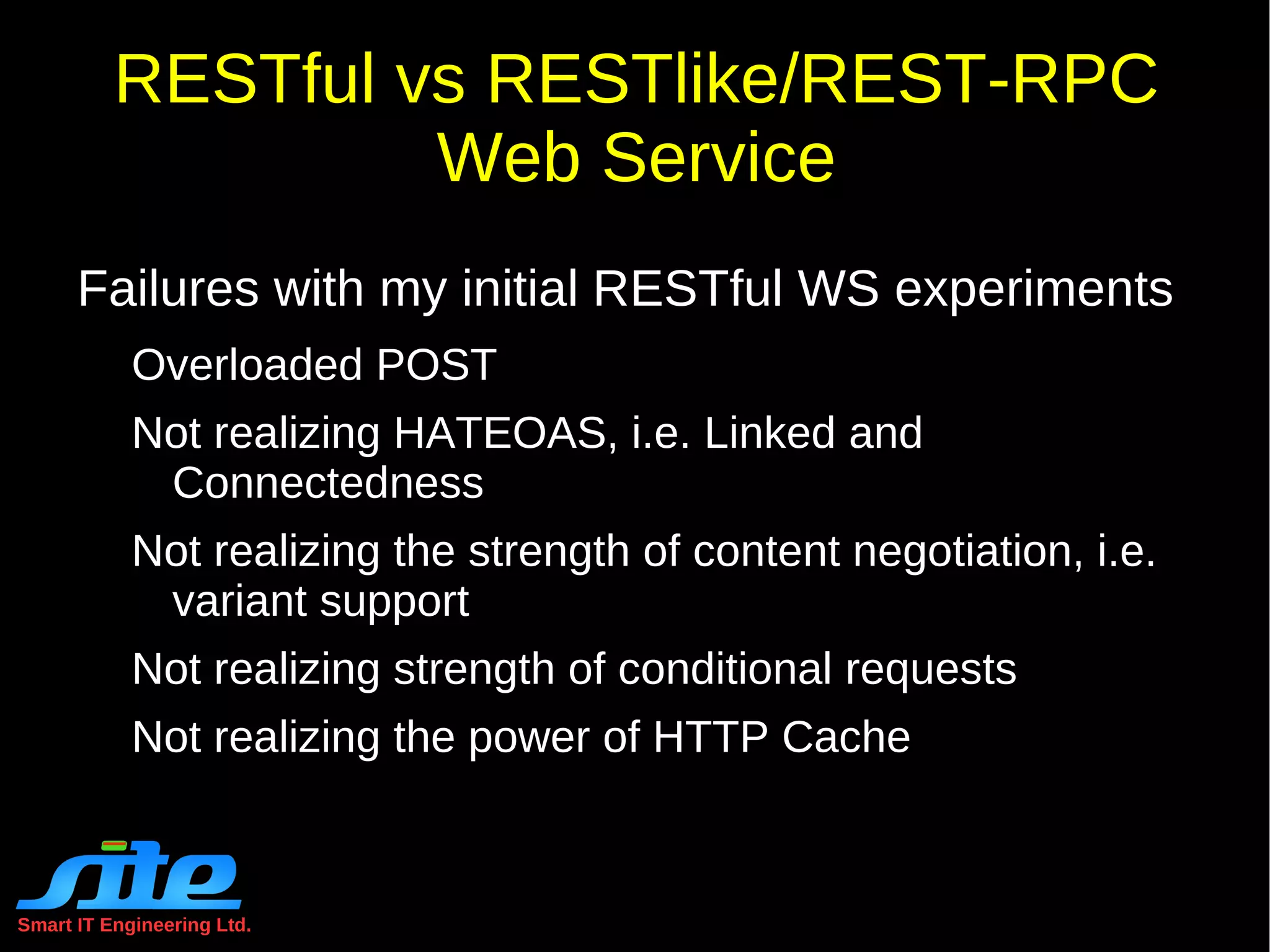

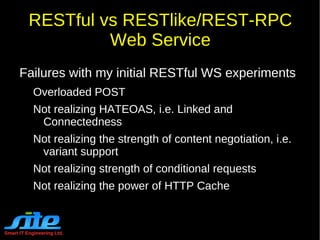

  • 127. Smart IT Engineering Ltd. RESTful vs RESTlike/REST-RPC Web Service Failures with my initial RESTful WS experiments Overloaded POST
  • 128. Not realizing HATEOAS, i.e. Linked and Connectedness
  • 129. Not realizing the strength of content negotiation, i.e. variant support
  • 130. Not realizing strength of conditional requests
  • 131. Not realizing the power of HTTP Cache
  • 132. Smart IT Engineering Ltd. RESTful Web Services & ROA Questions?
  • 133. Smart IT Engineering Ltd. A Design Walk-through What remains unchanged? Use of HTTP as message vessel
  • 134. Use of URI to address resources
  • 135. No application state, i.e. session, on server side What changes? Resources and their interlinkings
  • 136. Support of different media formats
  • 138. Smart IT Engineering Ltd. Design – Content Repository My Steps to design Identify domain objects using Object Oriented Approach
  • 140. Identify resource templates from objects and their cardinal relations
  • 141. Design uri templates for resource templates
  • 142. Specify Entity tag generation algorithm for resources as applicable
  • 143. Specify cache directives for resources
  • 144. Choose supporting media types for resources

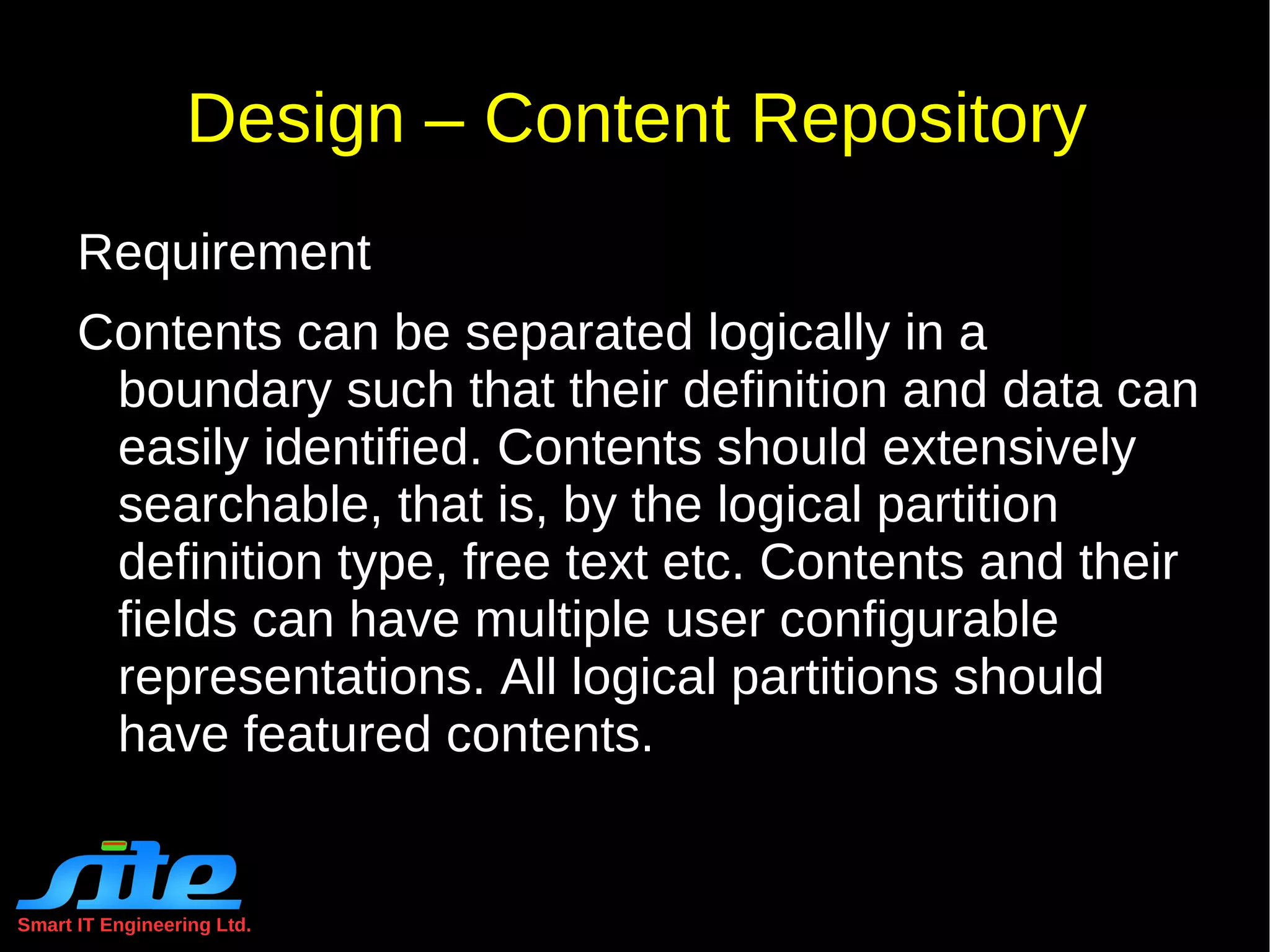

  • 145. Smart IT Engineering Ltd. Design – Content Repository Requirement
  • 146. Contents can be separated logically in a boundary such that their definition and data can easily identified. Contents should extensively searchable, that is, by the logical partition definition type, free text etc. Contents and their fields can have multiple user configurable representations. All logical partitions should have featured contents.

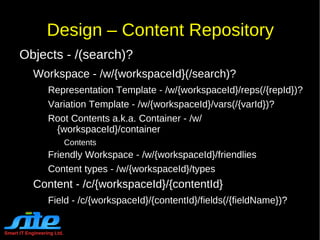

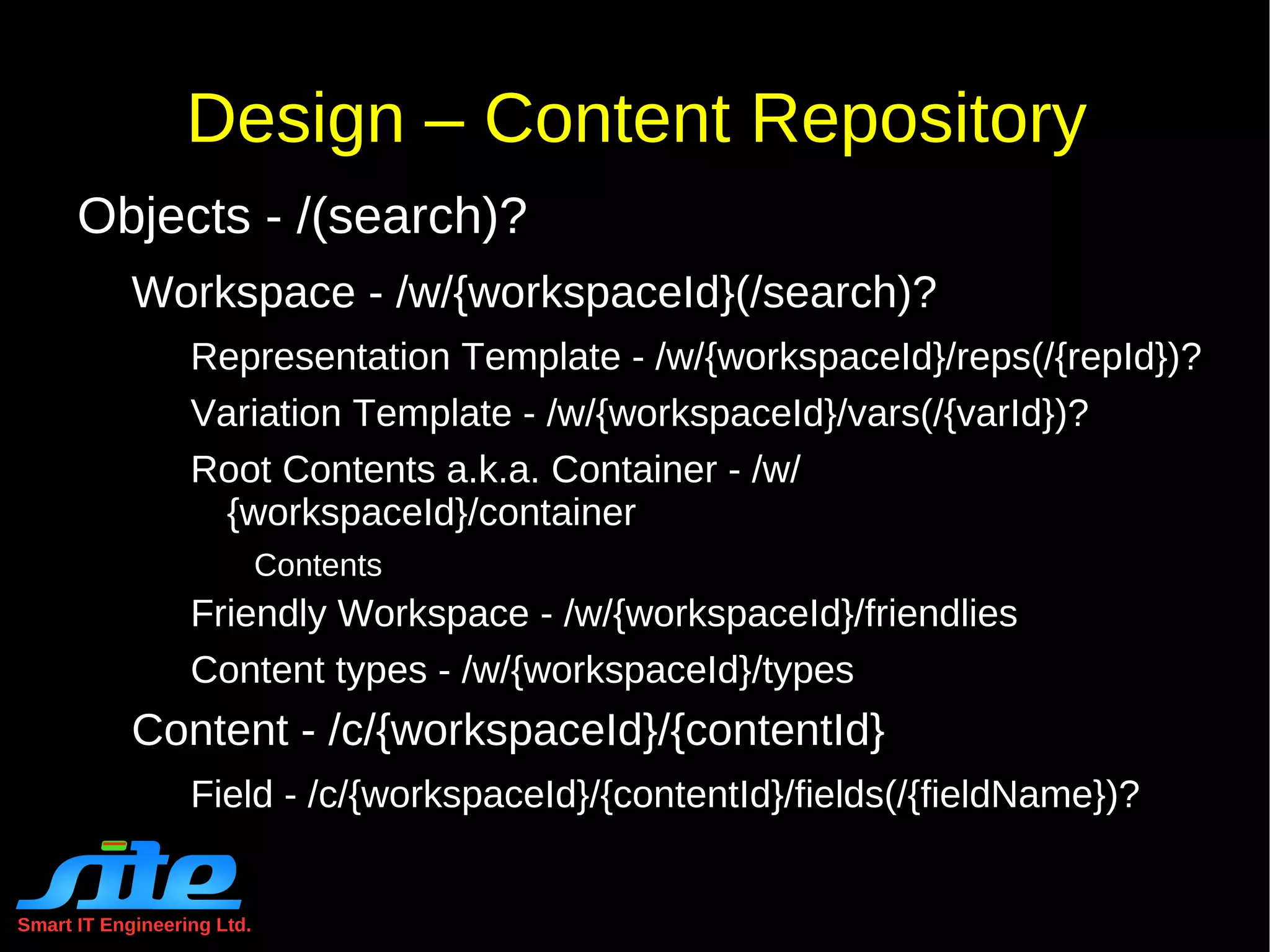

  • 147. Smart IT Engineering Ltd. Design – Content Repository Objects - /(search)? Workspace - /w/{workspaceId}(/search)? Representation Template - /w/{workspaceId}/reps(/{repId})?
  • 148. Variation Template - /w/{workspaceId}/vars(/{varId})?
  • 149. Root Contents a.k.a. Container - /w/{workspaceId}/container Contents Friendly Workspace - /w/{workspaceId}/friendlies
  • 150. Content types - /w/{workspaceId}/types Content - /c/{workspaceId}/{contentId} Field - /c/{workspaceId}/{contentId}/fields(/{fieldName})? Variation - /c/{workspaceId}/{contentId}/fields/{fieldName}/{varId} Representation - /c/{workspaceId}/{contentId}/fields(/{repId})? Content Type -/t/{workspaceId}/{contentTypeId}(/search)?
  • 151. Smart IT Engineering Ltd. Design – Content Repository Objects - /(search)? Workspace - /w/{workspaceId}(/search)?
  • 152. Content Type -/t/{workspaceId}/{contentTypeId}(/search)? The later 2 searches URIs are equivalent of /search?workspace={workspaceId}

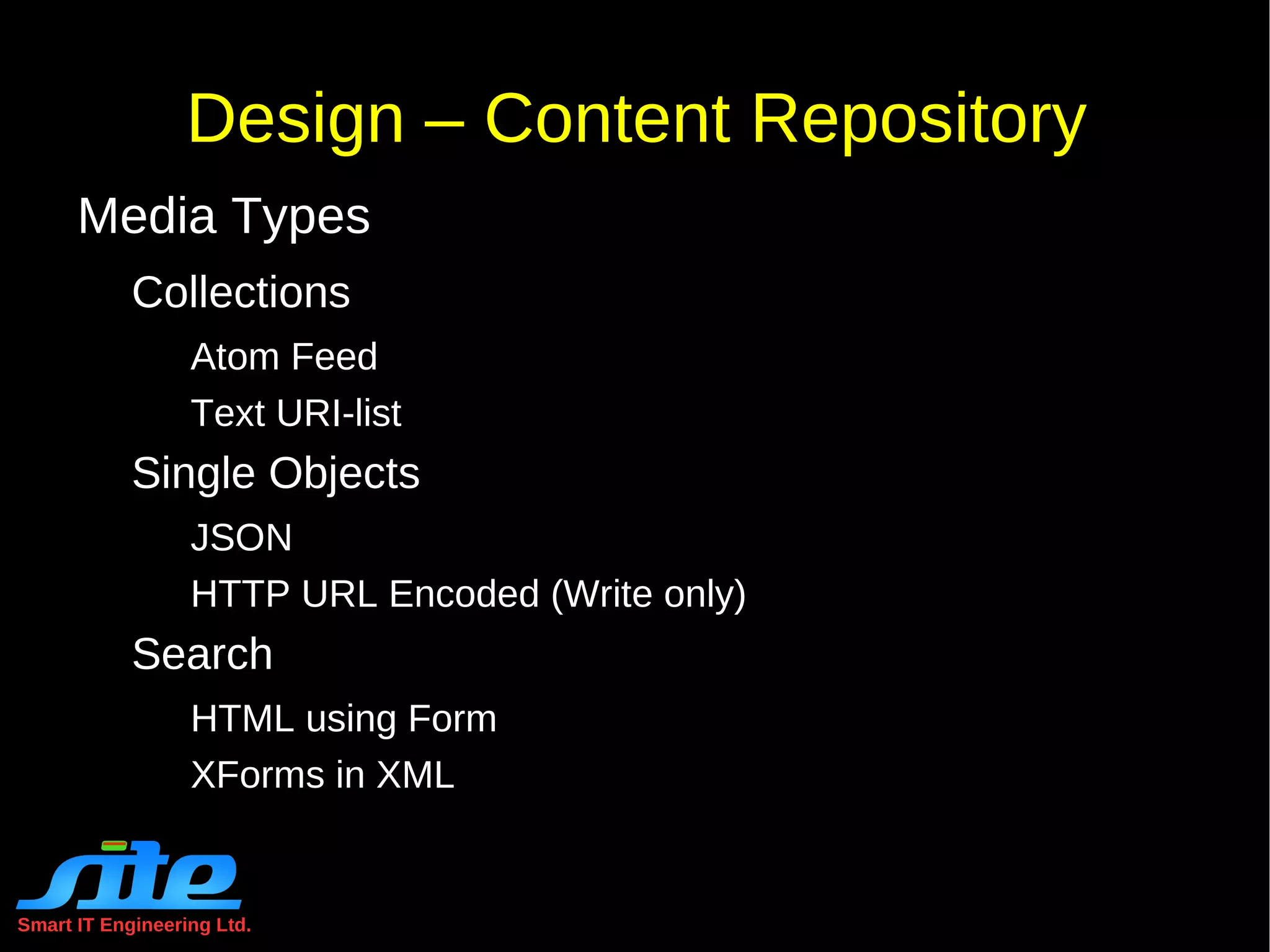

  • 154. Smart IT Engineering Ltd. Design – Content Repository Media Types Collections Atom Feed
  • 155. Text URI-list Single Objects JSON
  • 156. HTTP URL Encoded (Write only) Search HTML using Form
  • 158. Open Search Description (my only preference)

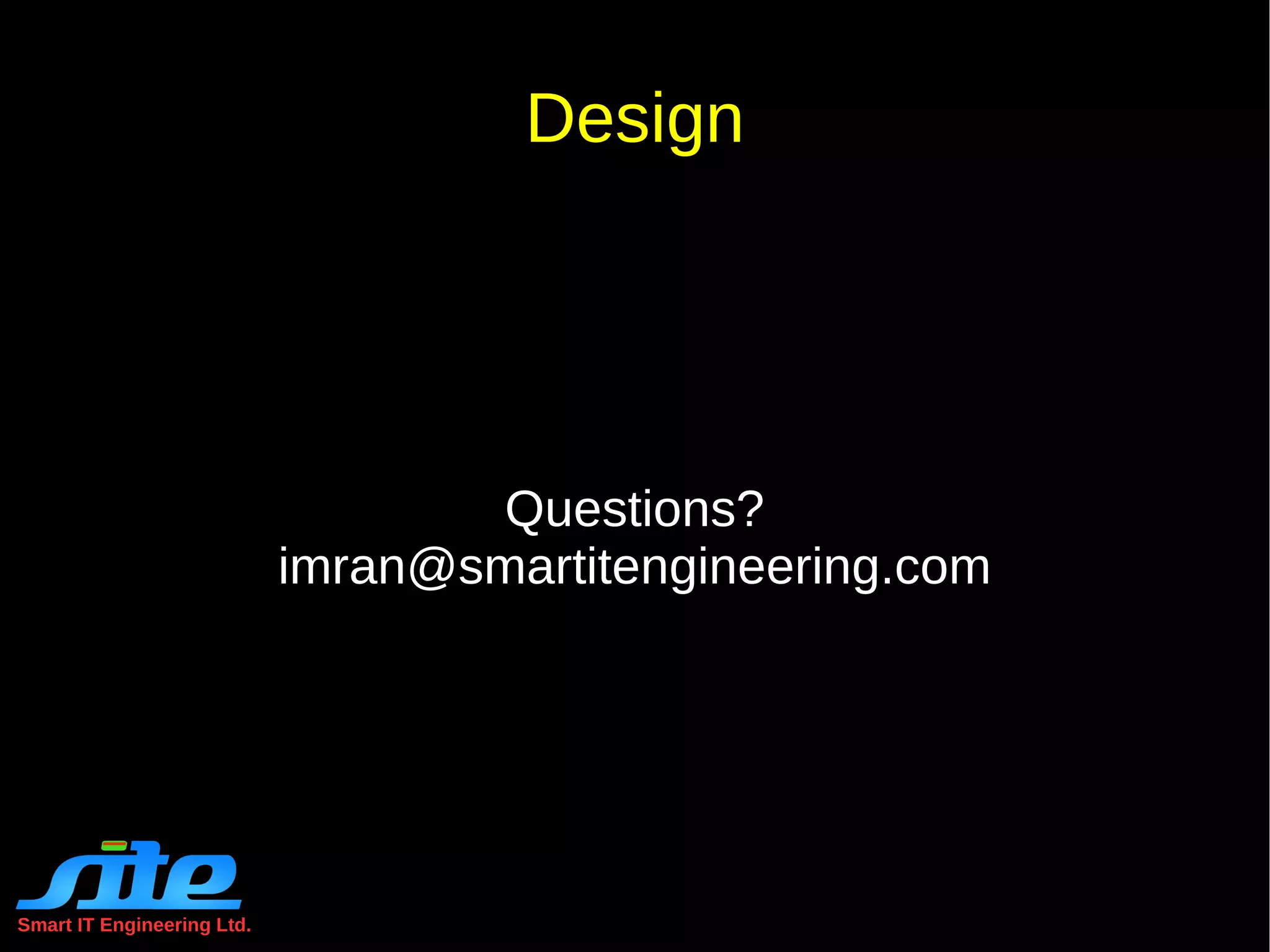

  • 159. Smart IT Engineering Ltd. Design Questions? [email_address]
