The document provides an introduction to the Java Server Pages Tag Library (JSTL), outlining its advantages of avoiding conflicts between jar versions and easing page development, and describing how to install and use its core, XML, SQL, and functions tags to output, access, and manipulate data in JSP pages through tag libraries and handlers. It also discusses using expression language for data access and implicit objects, and developing custom functions to extend JSTL's capabilities.

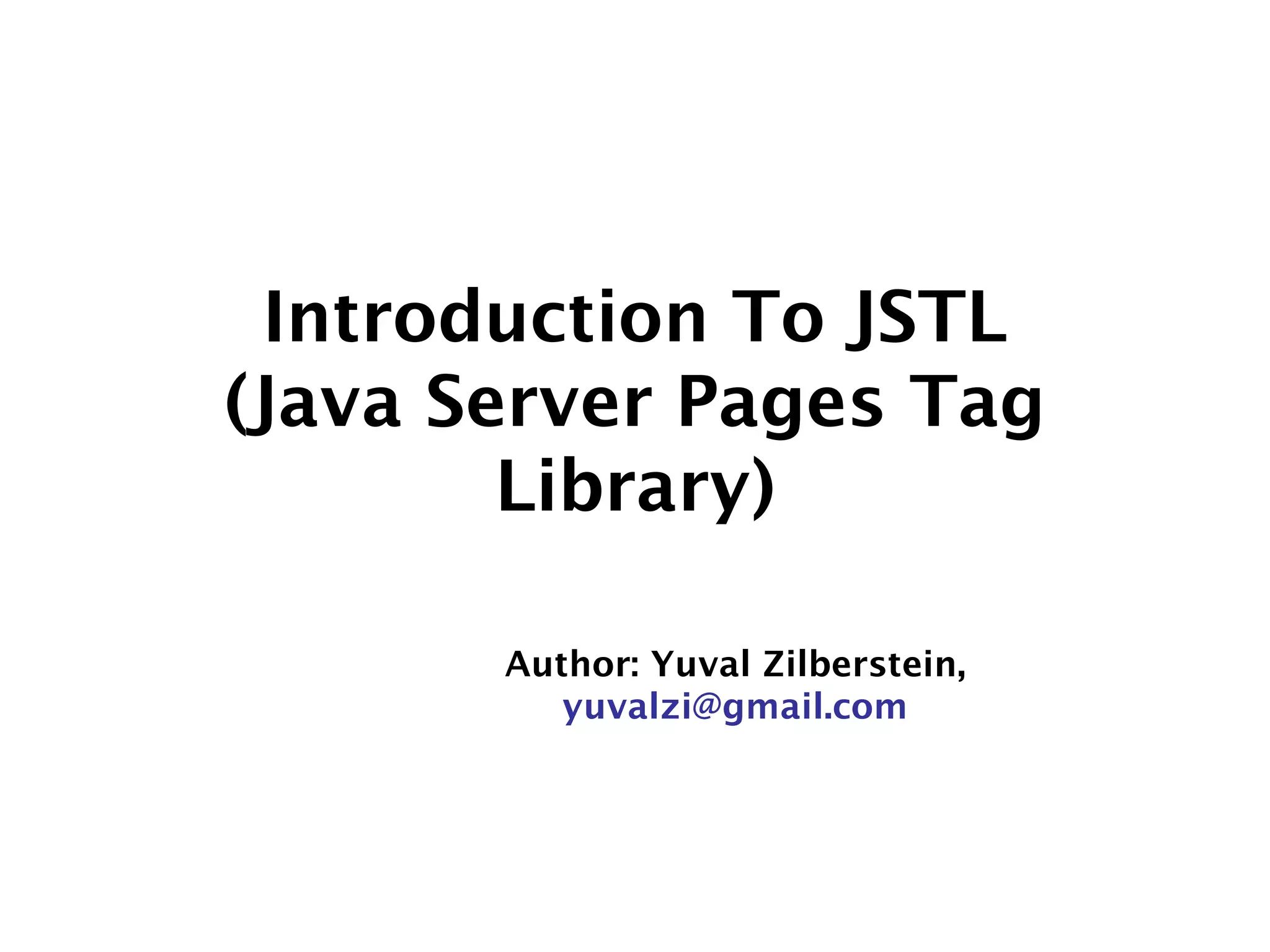

1. Introduction To JSTL
(Java Server Pages Tag
Library)
Author: Yuval Zilberstein,
yuvalzi@gmail.com

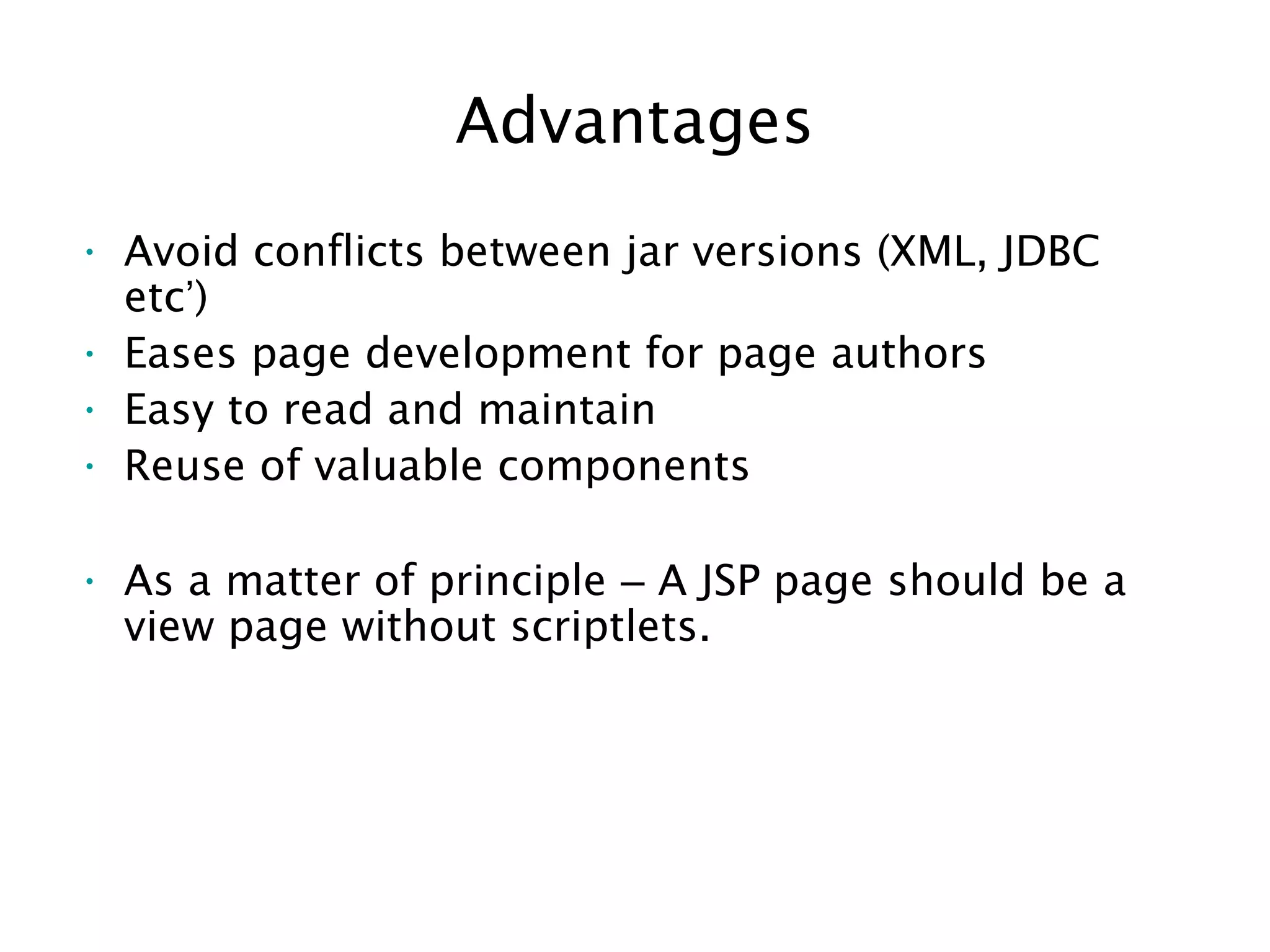

2. Advantages
• Avoid conflicts between jar versions (XML, JDBC
etc’)
• Eases page development for page authors
• Easy to read and maintain
• Reuse of valuable components
• As a matter of principle – A JSP page should be a
view page without scriptlets.

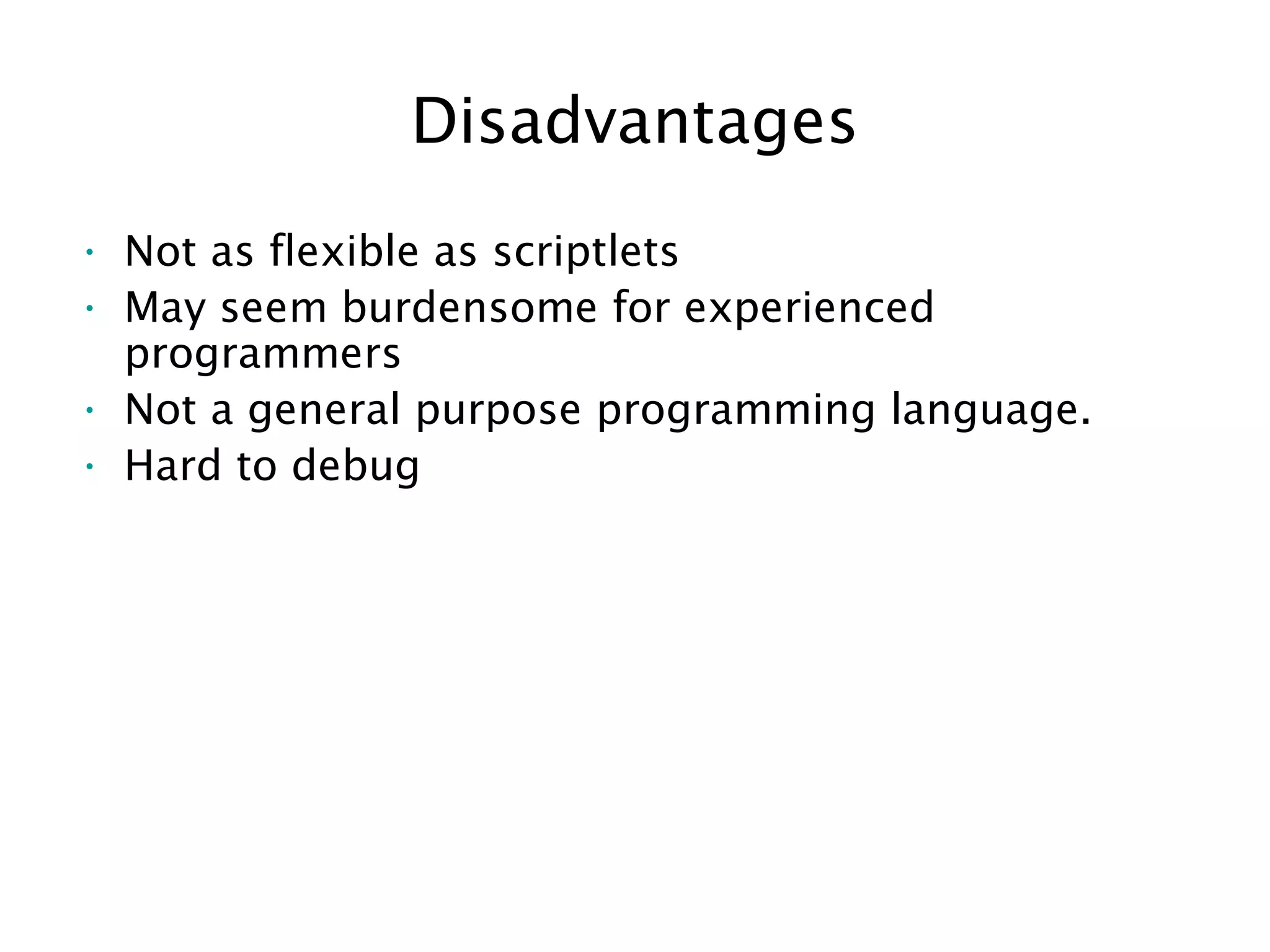

3. Disadvantages
• Not as flexible as scriptlets
• May seem burdensome for experienced
programmers
• Not a general purpose programming language.
• Hard to debug

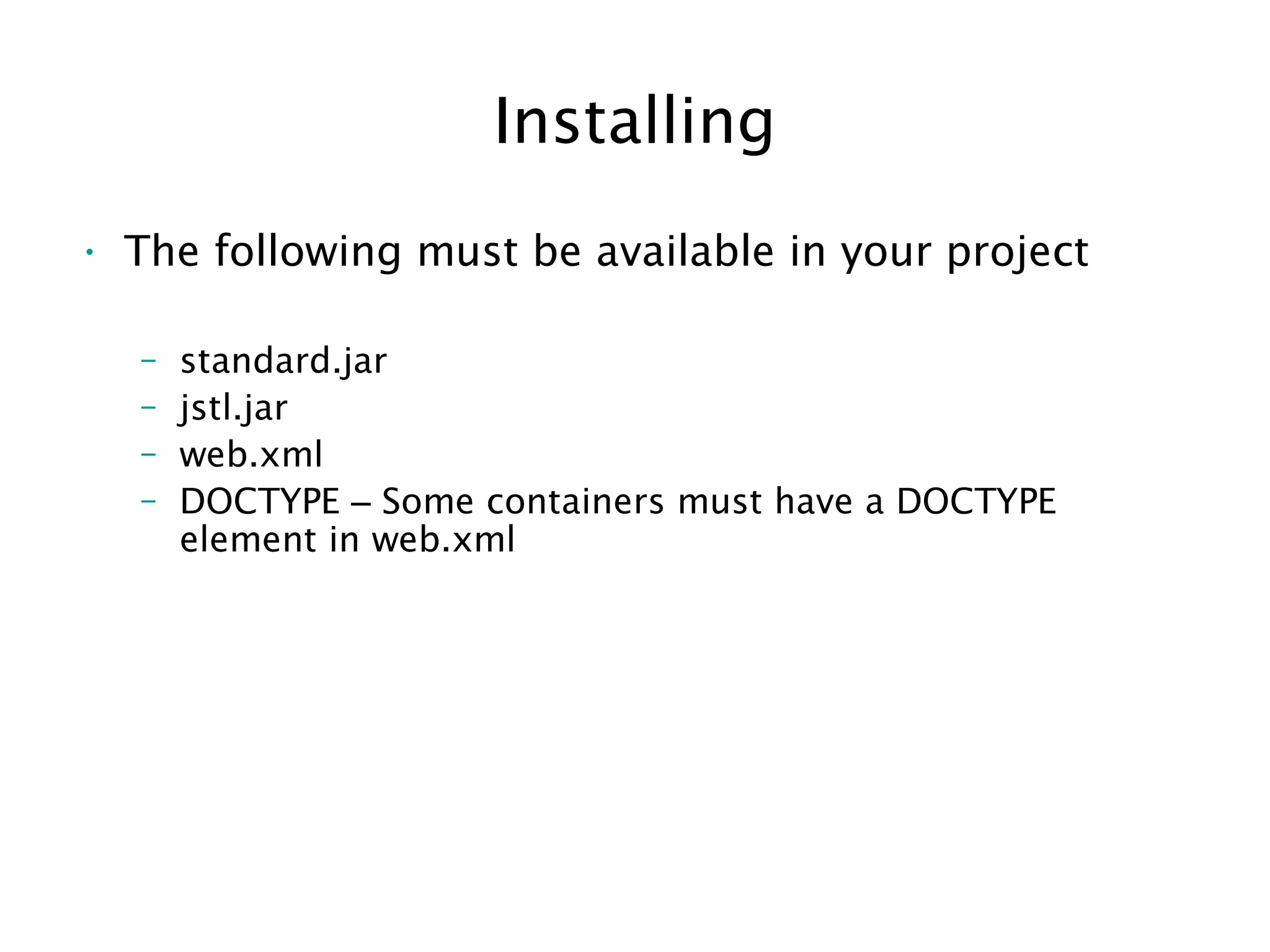

4. Installing
• The following must be available in your project
– standard.jar
– jstl.jar
– web.xml
– DOCTYPE – Some containers must have a DOCTYPE
element in web.xml

5. Installing
• web.xml example
<?xml version="1.0" encoding="ISO-8859-1"?>
<!DOCTYPE web-app
PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd">
<web-app>
<description>Learning JSTL (or whatever you like</description>
</web-app>

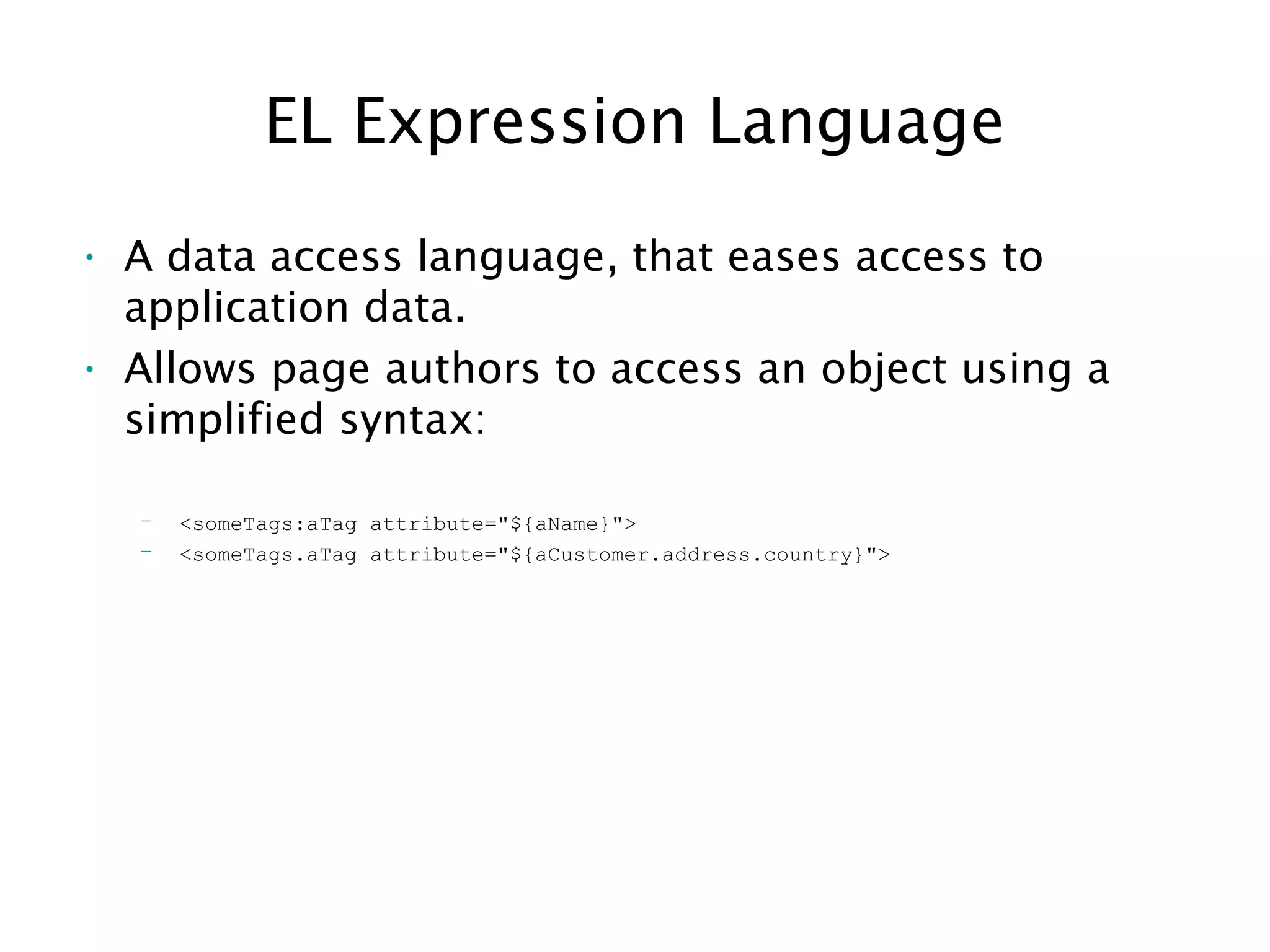

6. EL Expression Language
• A data access language, that eases access to
application data.
• Allows page authors to access an object using a
simplified syntax:
– <someTags:aTag attribute="${aName}">
– <someTags.aTag attribute="${aCustomer.address.country}">

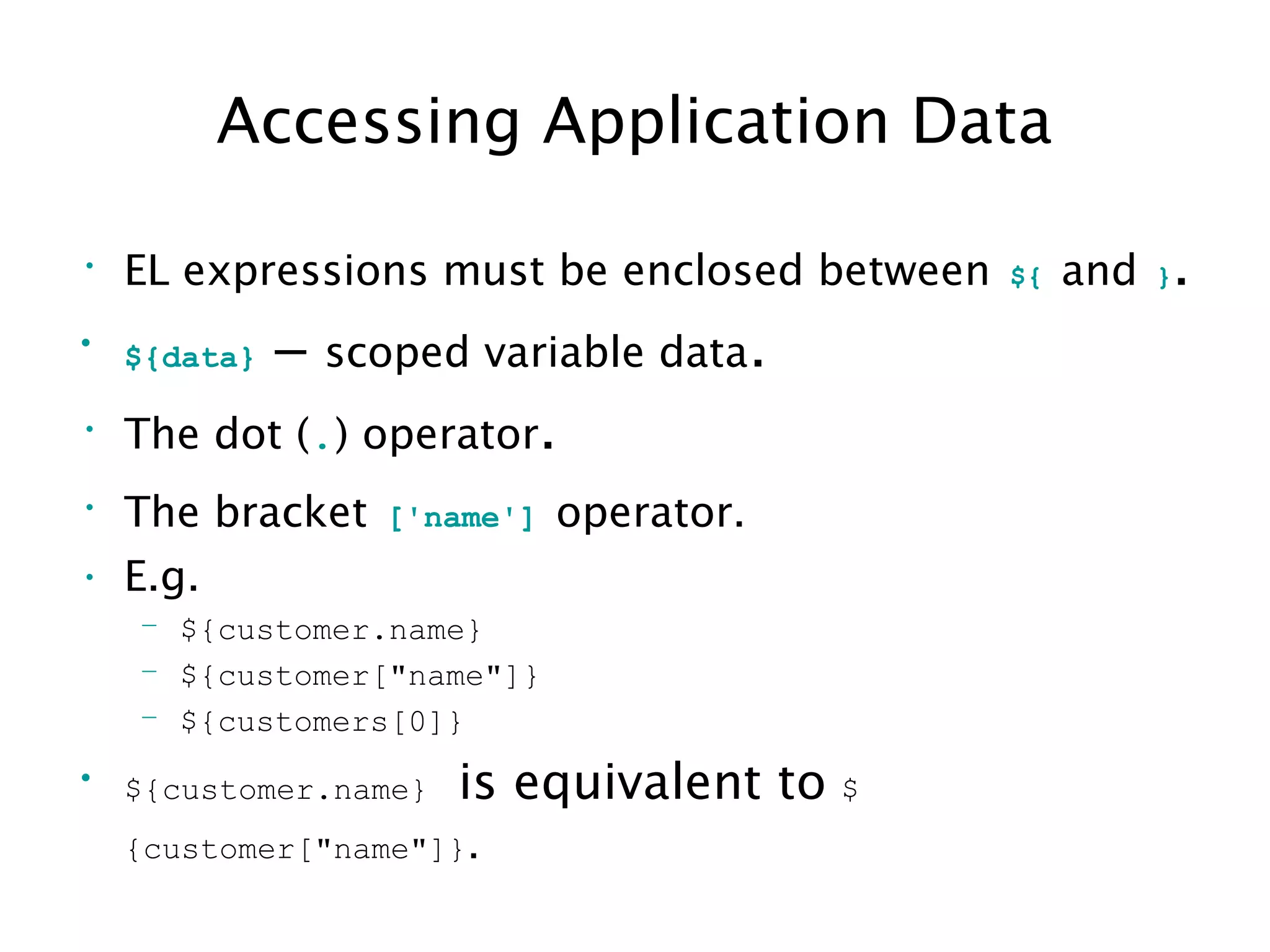

7. Accessing Application Data
• EL expressions must be enclosed between ${ and }.
• ${data} – scoped variable data.
• The dot (.) operator.
• The bracket ['name'] operator.
• E.g.
– ${customer.name}
– ${customer["name"]}
– ${customers[0]}
• ${customer.name} is equivalent to $
{customer["name"]}.

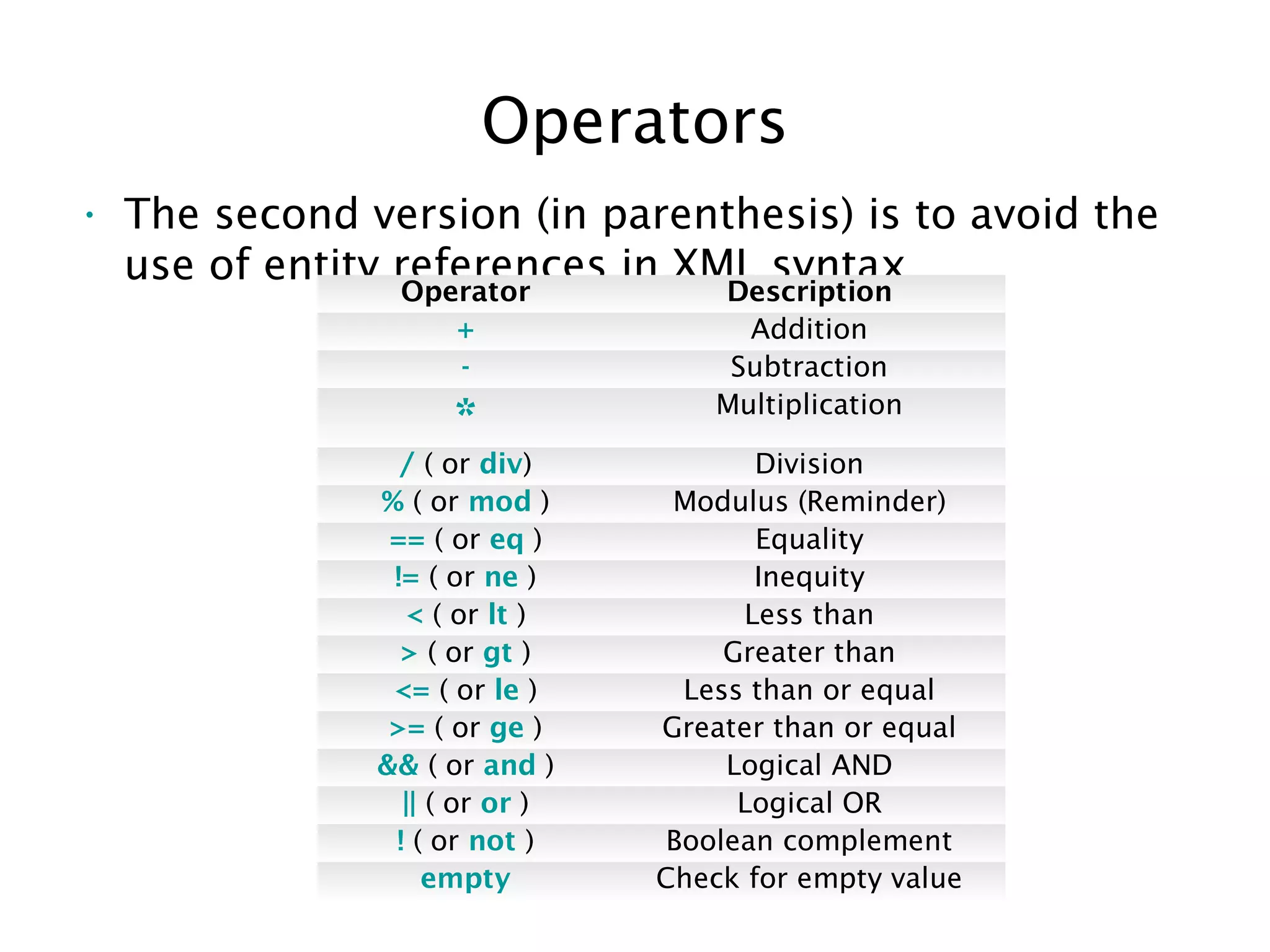

8. Operators
• The second version (in parenthesis) is to avoid the
use of entity references in XML syntax
Operator Description
+ Addition
- Subtraction
* Multiplication
/ ( or div) Division
% ( or mod ) Modulus (Reminder)
== ( or eq ) Equality
!= ( or ne ) Inequity
< ( or lt ) Less than
> ( or gt ) Greater than
<= ( or le ) Less than or equal
>= ( or ge ) Greater than or equal
&& ( or and ) Logical AND
|| ( or or ) Logical OR
! ( or not ) Boolean complement
empty Check for empty value

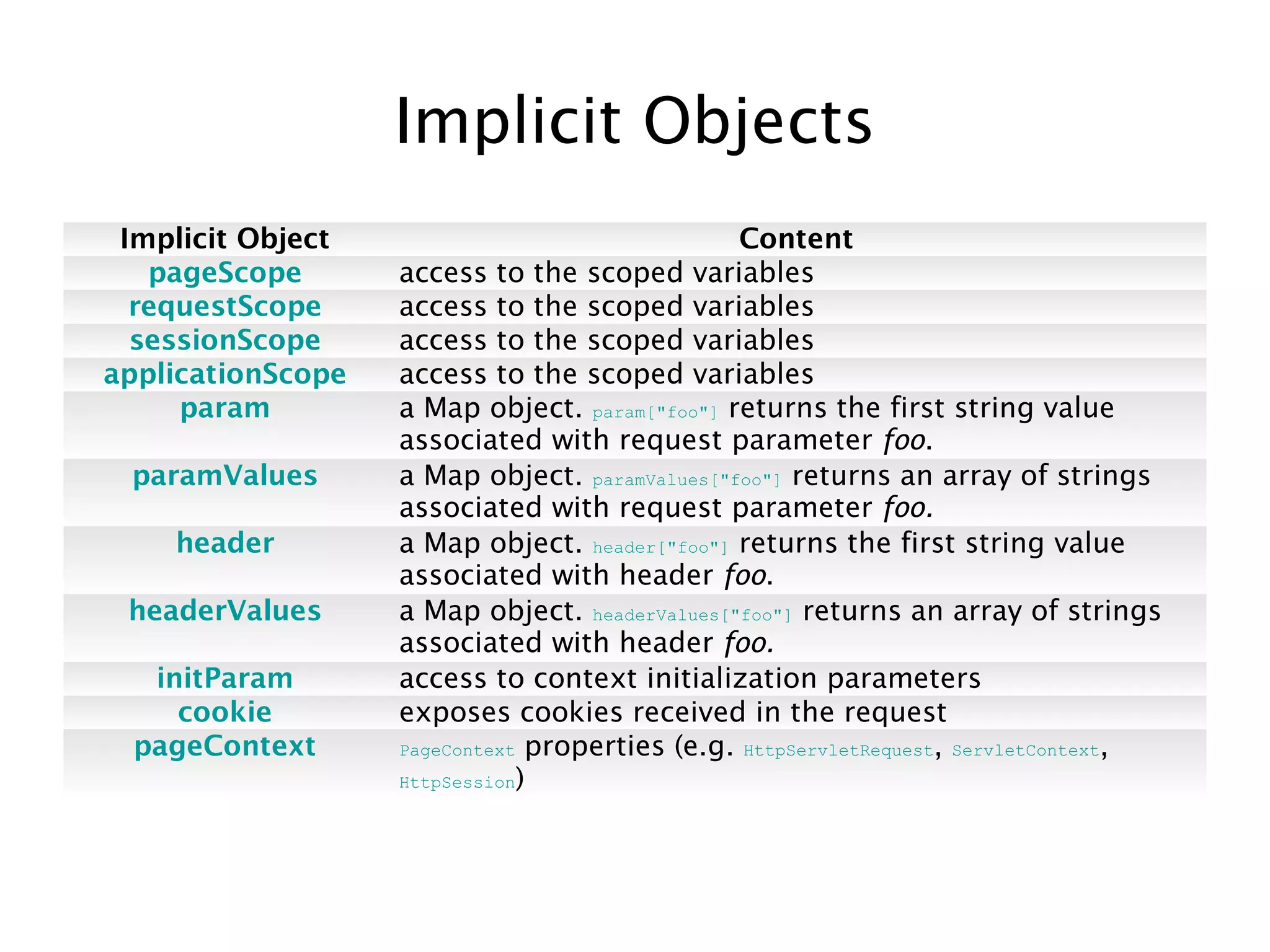

9. Implicit Objects
Implicit Object Content
pageScope access to the scoped variables
requestScope access to the scoped variables
sessionScope access to the scoped variables
applicationScope access to the scoped variables
param a Map object. param["foo"] returns the first string value
associated with request parameter foo.
paramValues a Map object. paramValues["foo"] returns an array of strings
associated with request parameter foo.
header a Map object. header["foo"] returns the first string value
associated with header foo.
headerValues a Map object. headerValues["foo"] returns an array of strings
associated with header foo.
initParam access to context initialization parameters
cookie exposes cookies received in the request
pageContext PageContext properties (e.g. HttpServletRequest, ServletContext,
HttpSession)

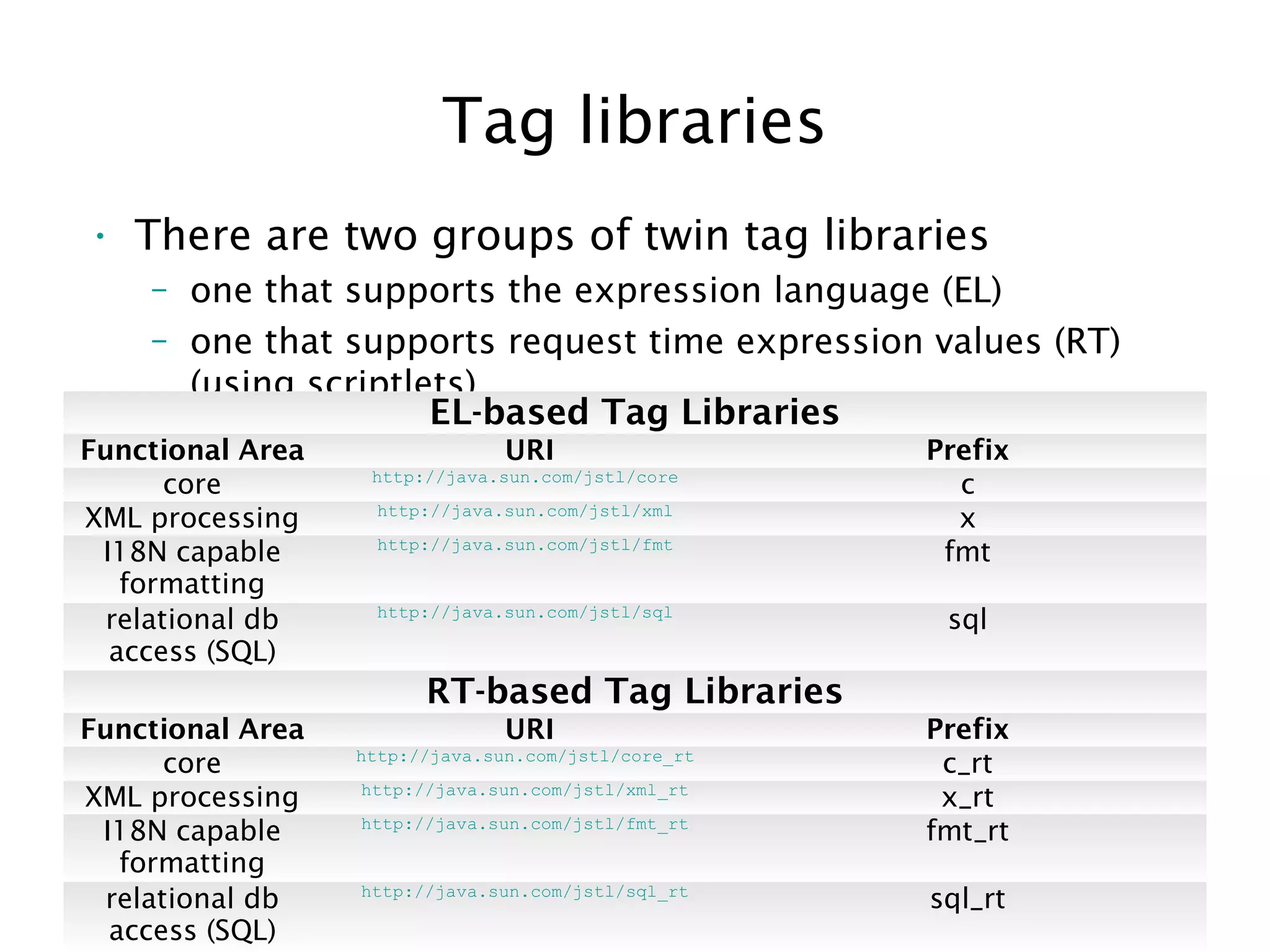

10. Tag libraries
• There are two groups of twin tag libraries
– one that supports the expression language (EL)
– one that supports request time expression values (RT)
(using scriptlets)
EL-based Tag Libraries
Functional Area URI Prefix
core http://java.sun.com/jstl/core
c
XML processing http://java.sun.com/jstl/xml
x
I18N capable
formatting
http://java.sun.com/jstl/fmt
fmt
relational db
access (SQL)
http://java.sun.com/jstl/sql
sql
RT-based Tag Libraries
Functional Area URI Prefix
core http://java.sun.com/jstl/core_rt
c_rt
XML processing http://java.sun.com/jstl/xml_rt
x_rt
I18N capable
formatting
http://java.sun.com/jstl/fmt_rt
fmt_rt
relational db
access (SQL)
http://java.sun.com/jstl/sql_rt
sql_rt

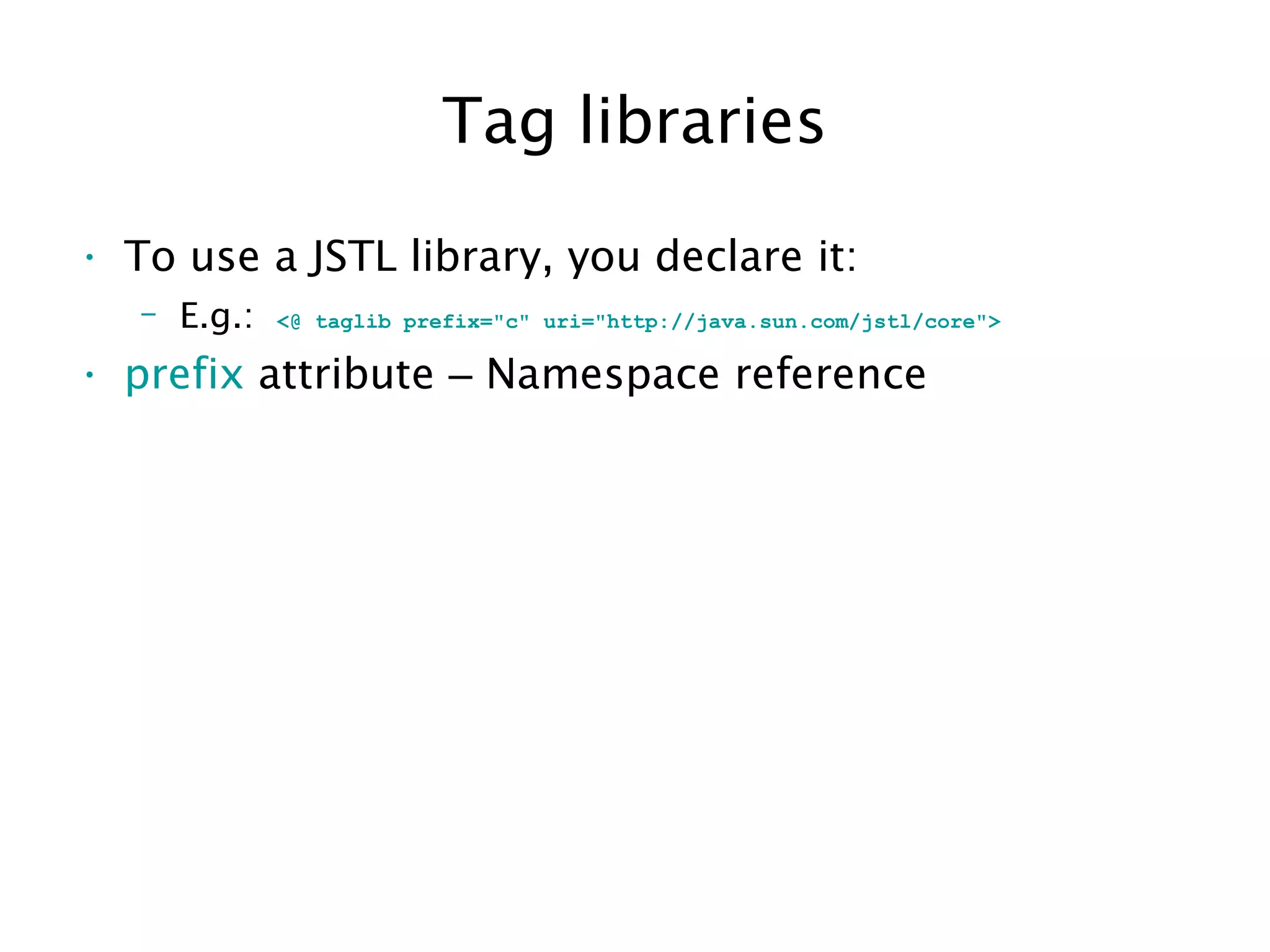

11. Tag libraries
• To use a JSTL library, you declare it:
– E.g.: <@ taglib prefix="c" uri="http://java.sun.com/jstl/core">
• prefix attribute – Namespace reference

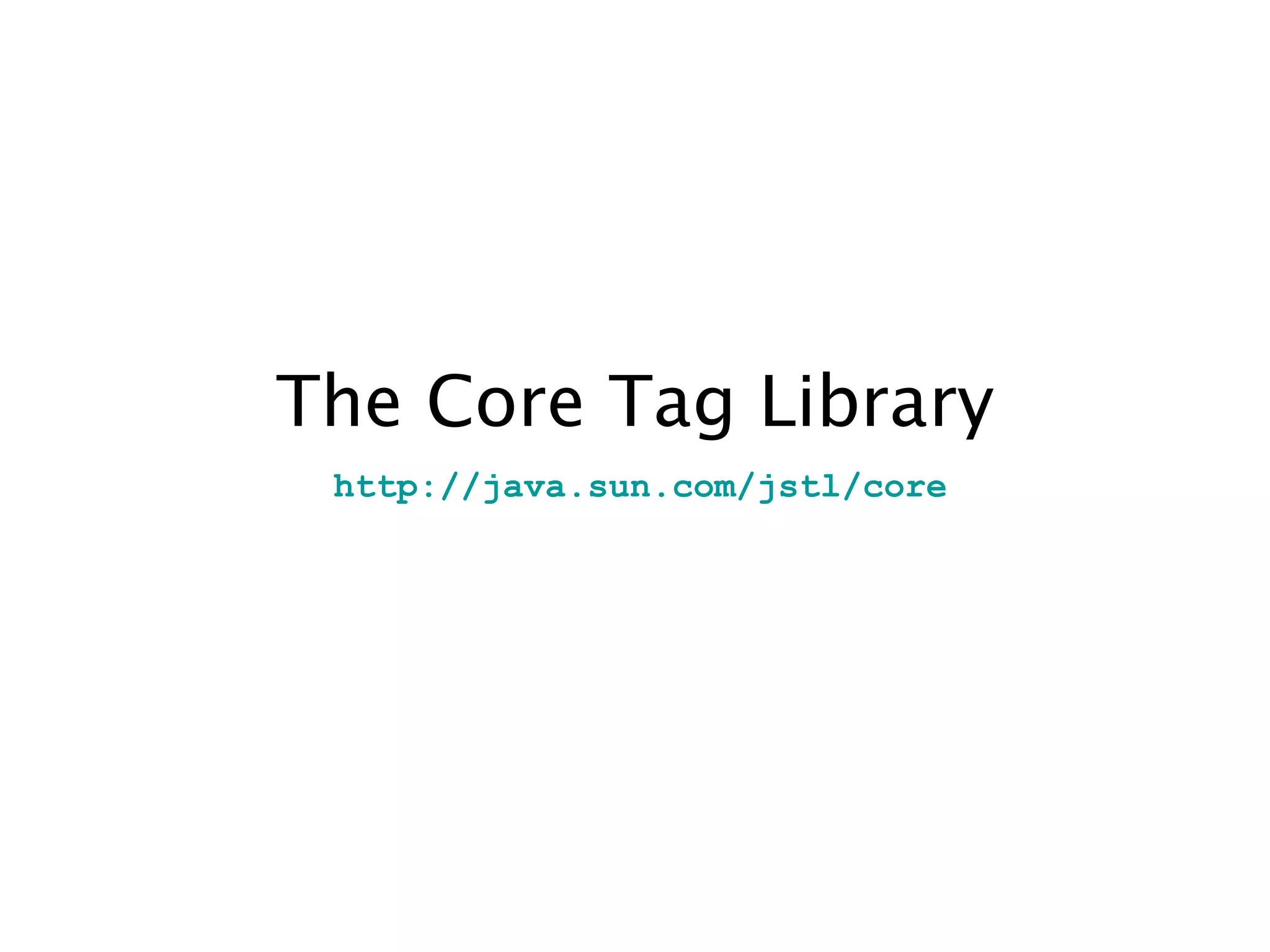

12. The Core Tag Library
http://java.sun.com/jstl/core

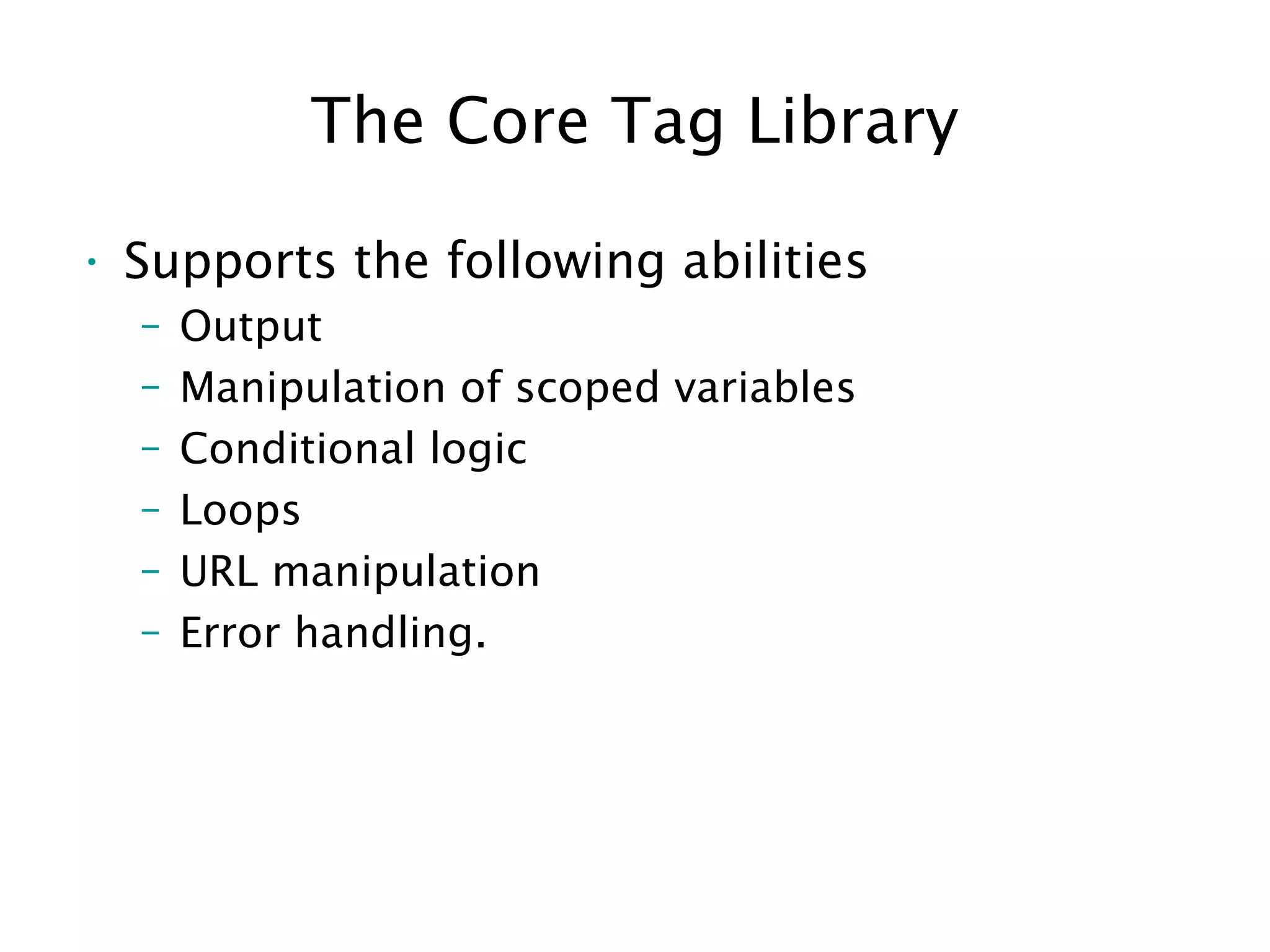

13. The Core Tag Library
• Supports the following abilities
– Output
– Manipulation of scoped variables
– Conditional logic
– Loops
– URL manipulation
– Error handling.

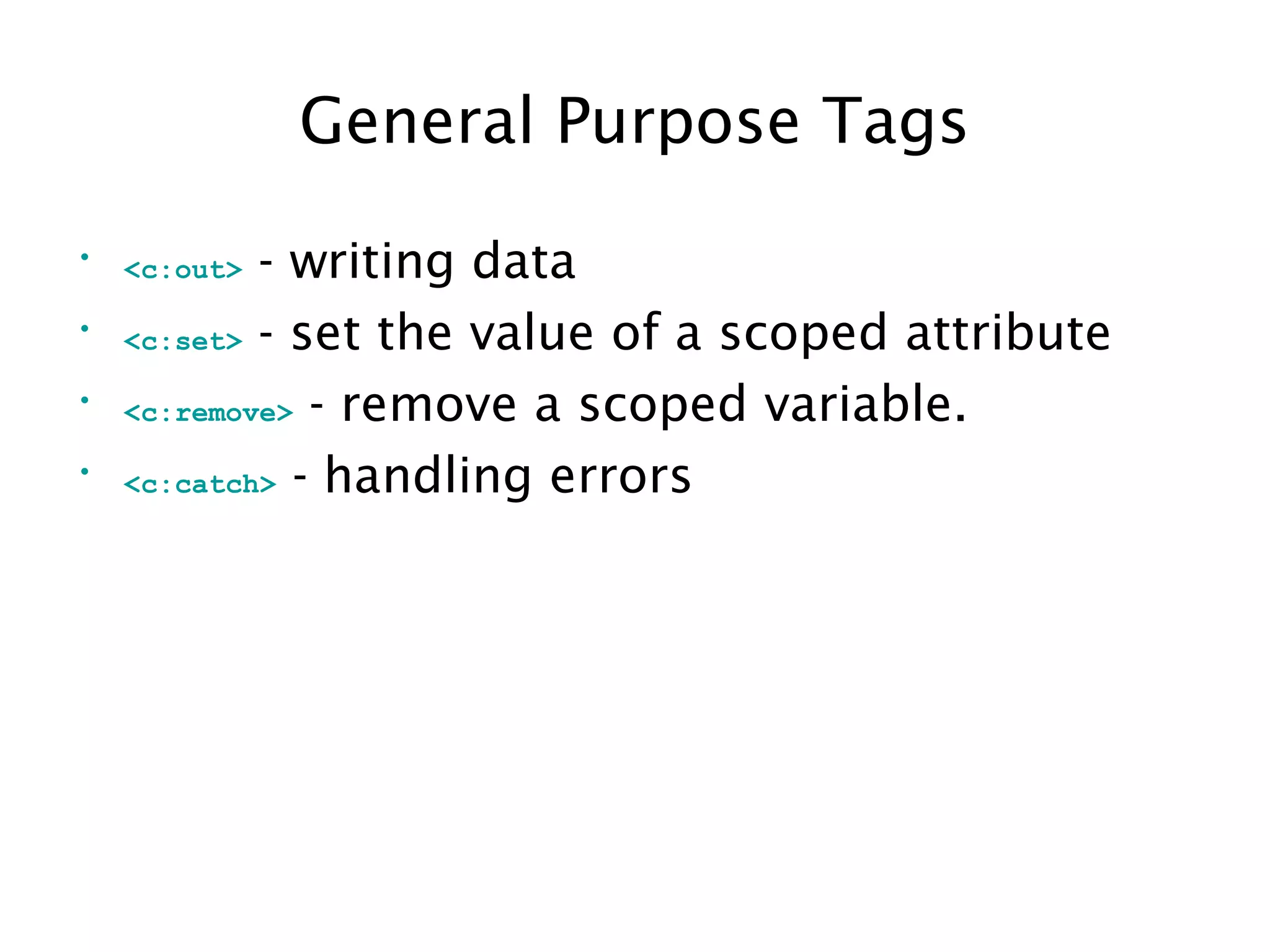

14. General Purpose Tags
• <c:out> - writing data
• <c:set> - set the value of a scoped attribute
• <c:remove> - remove a scoped variable.
• <c:catch> - handling errors

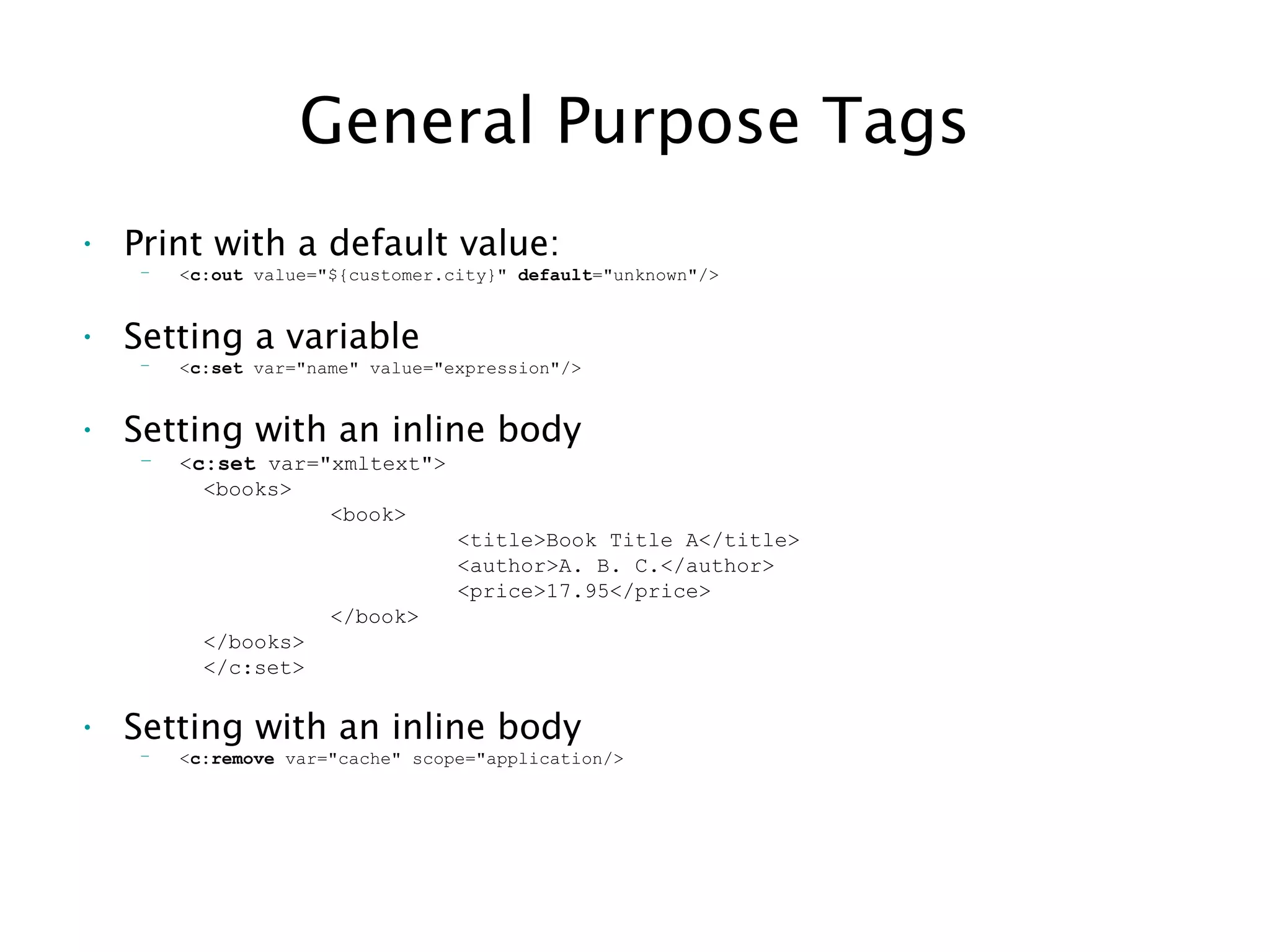

15. General Purpose Tags
• Print with a default value:
– <c:out value="${customer.city}" default="unknown"/>
• Setting a variable
– <c:set var="name" value="expression"/>
• Setting with an inline body
– <c:set var="xmltext">
<books>
<book>
<title>Book Title A</title>
<author>A. B. C.</author>
<price>17.95</price>
</book>
</books>
</c:set>
• Setting with an inline body
– <c:remove var="cache" scope="application/>

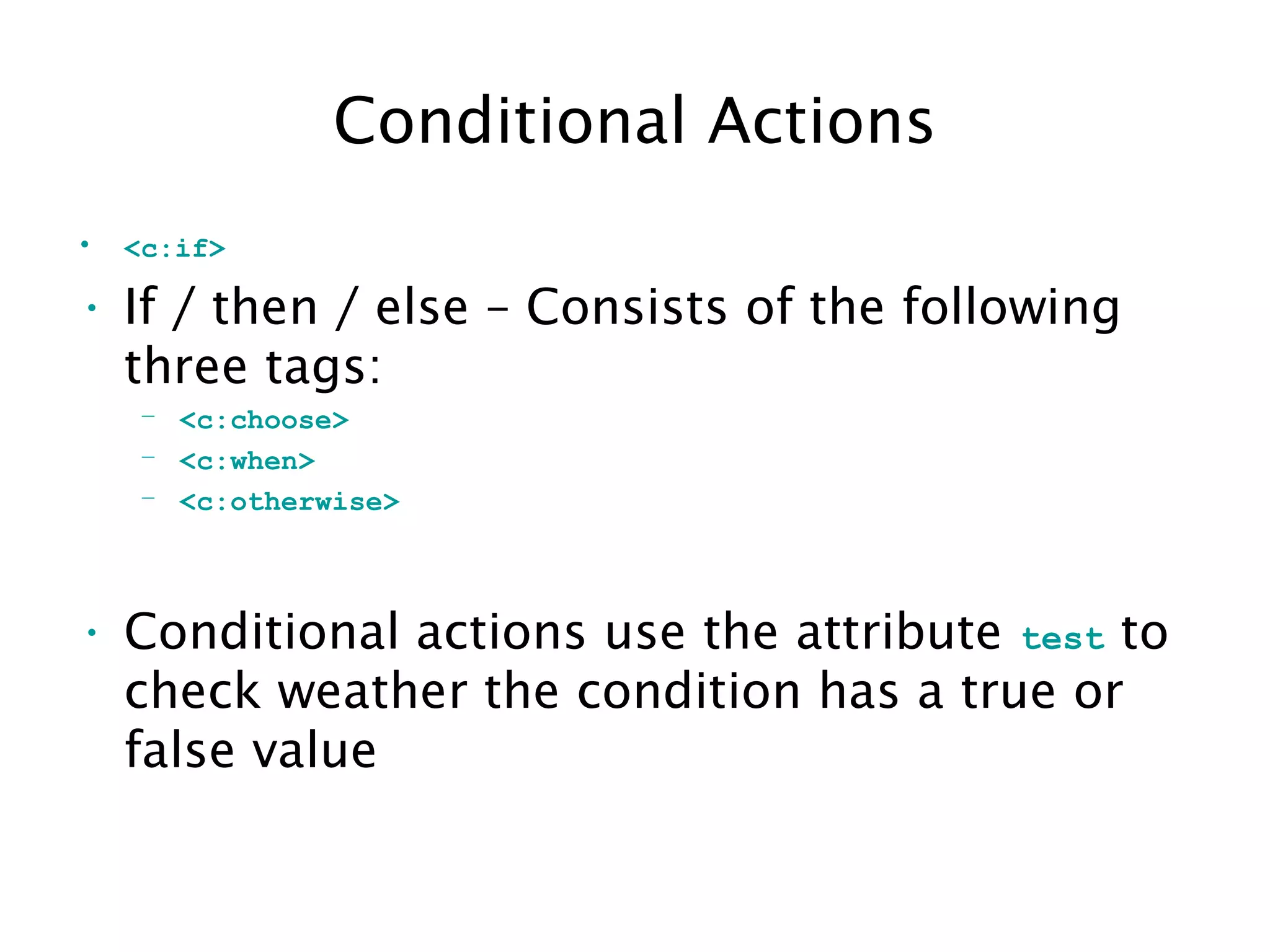

16. Conditional Actions
• <c:if>
• If / then / else – Consists of the following
three tags:
– <c:choose>
– <c:when>
– <c:otherwise>
• Conditional actions use the attribute test to
check weather the condition has a true or
false value

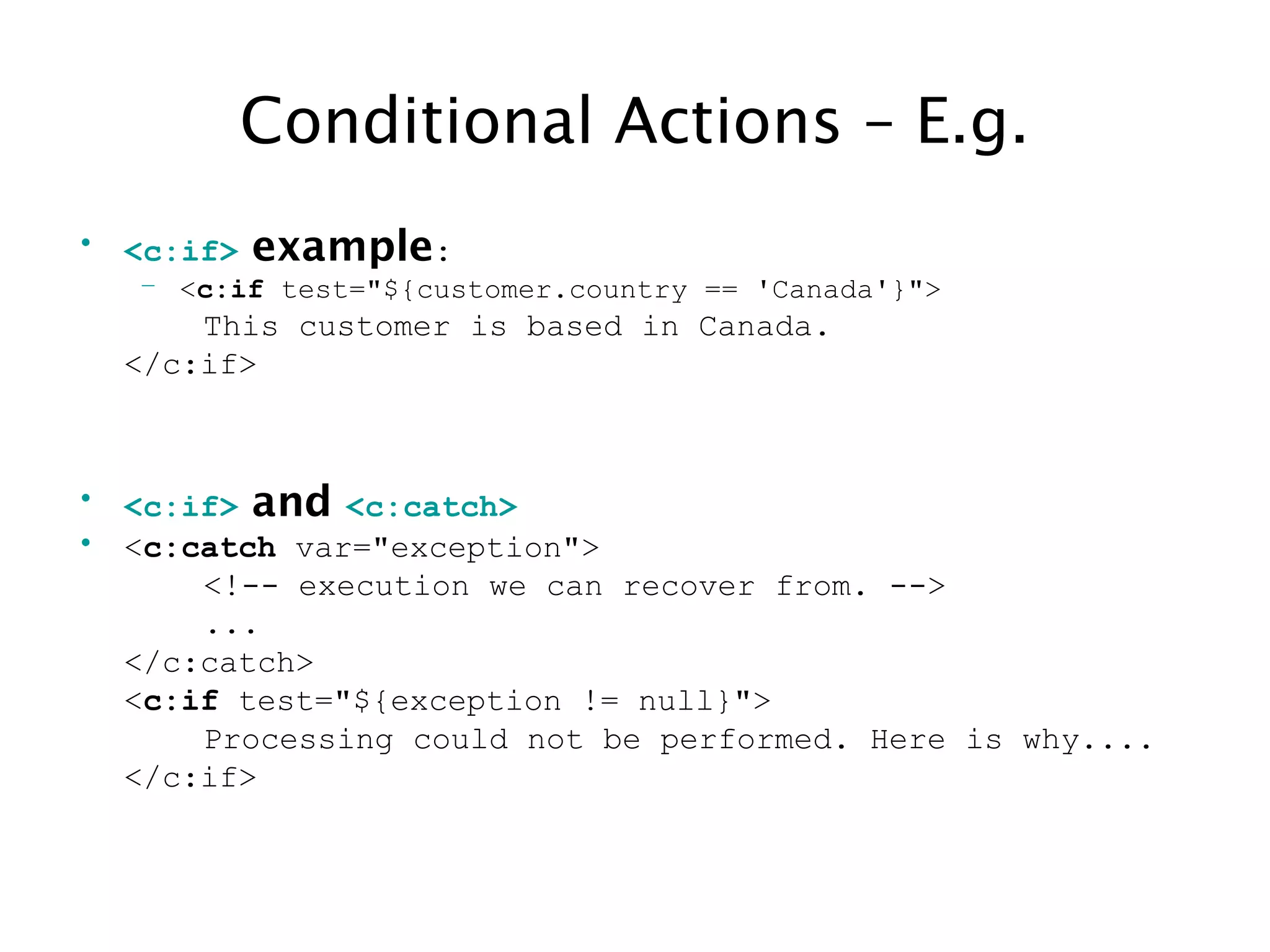

17. Conditional Actions – E.g.
• <c:if> example:
– <c:if test="${customer.country == 'Canada'}">
This customer is based in Canada.
</c:if>
• <c:if> and <c:catch>
• <c:catch var="exception">
<!-- execution we can recover from. -->
...
</c:catch>
<c:if test="${exception != null}">
Processing could not be performed. Here is why....
</c:if>

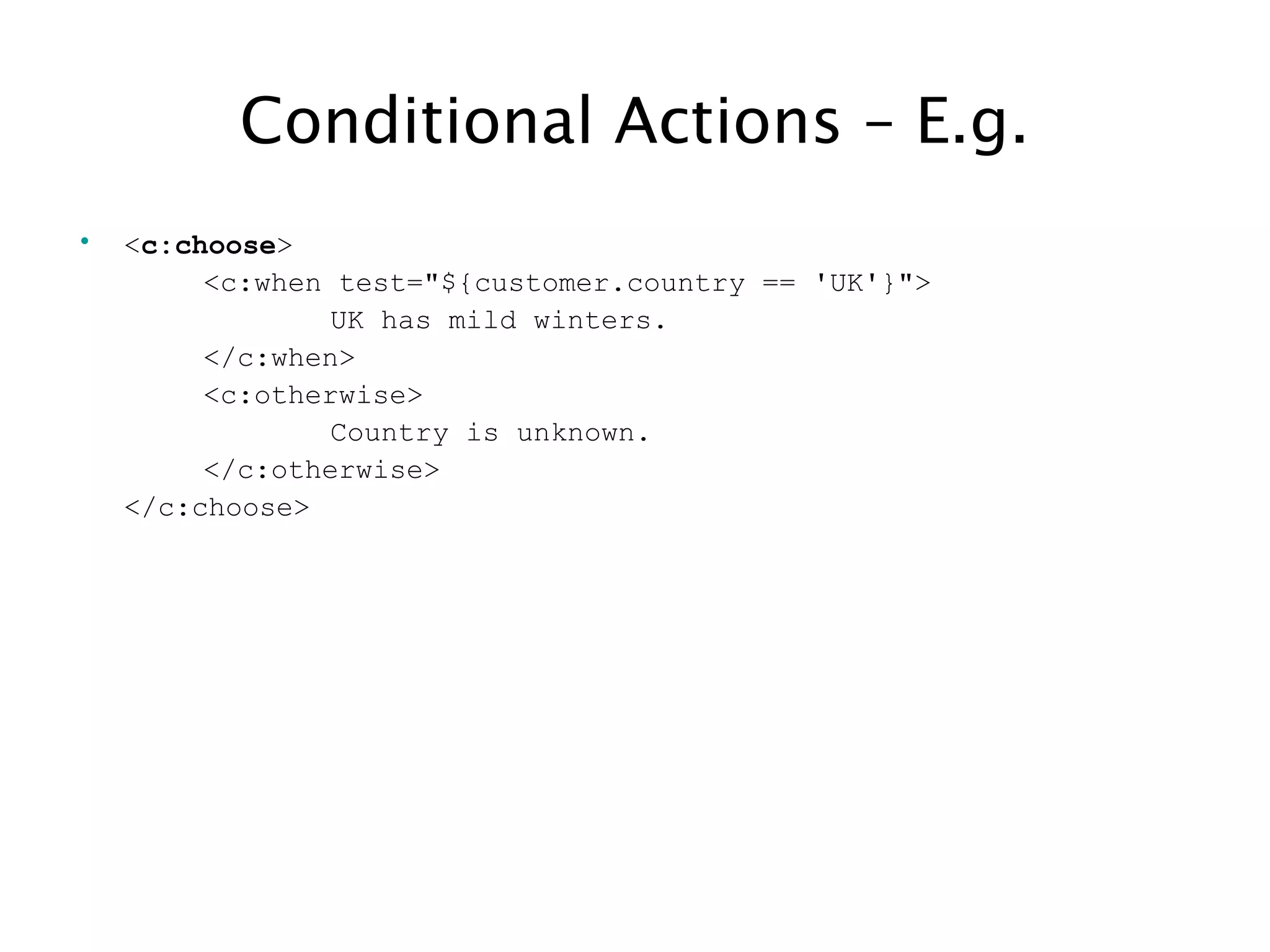

18. Conditional Actions – E.g.
• <c:choose>
<c:when test="${customer.country == 'UK'}">
UK has mild winters.
</c:when>
<c:otherwise>
Country is unknown.
</c:otherwise>
</c:choose>

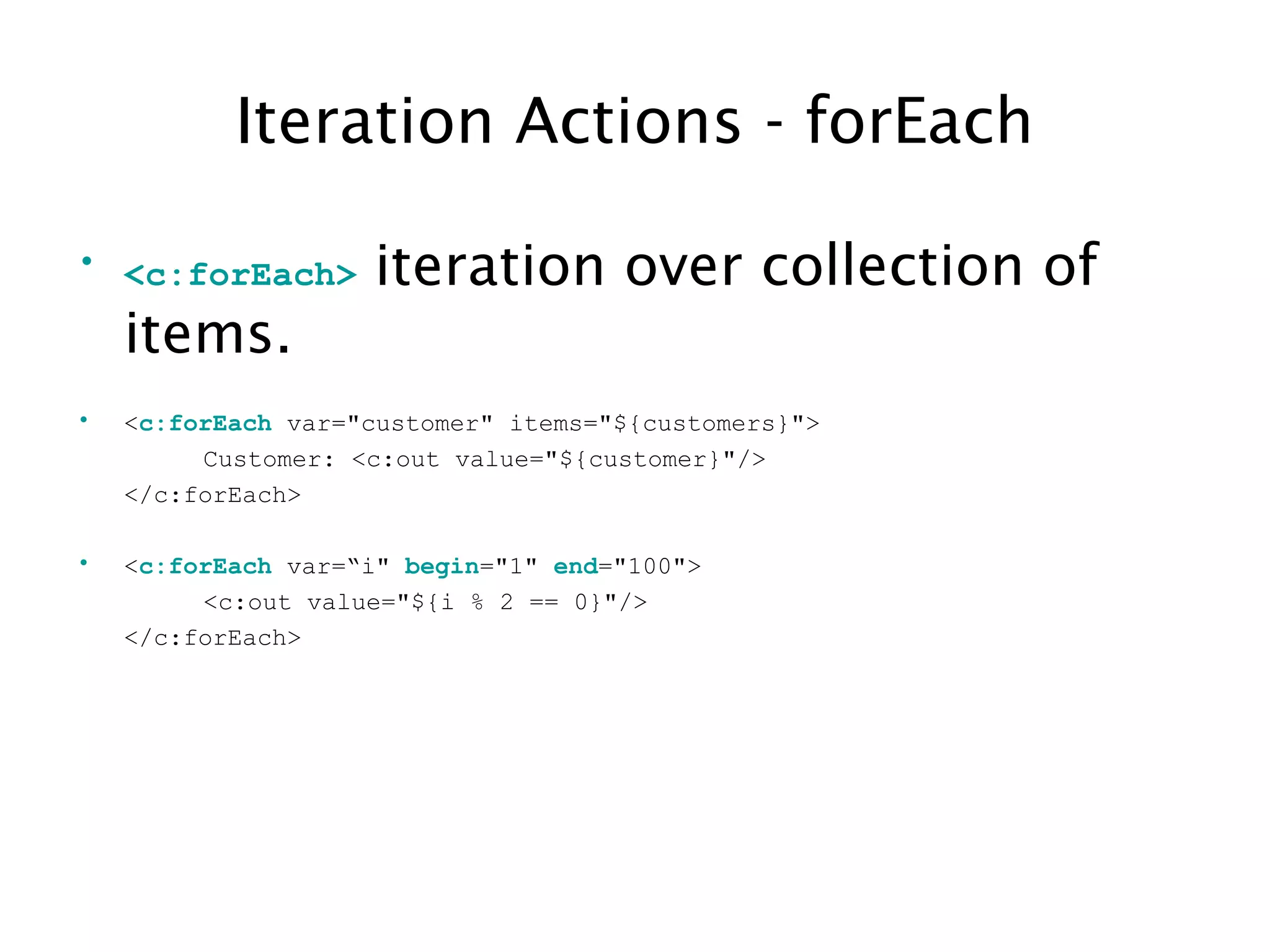

19. Iteration Actions - forEach
• <c:forEach> iteration over collection of
items.
• <c:forEach var="customer" items="${customers}">
Customer: <c:out value="${customer}"/>
</c:forEach>
• <c:forEach var=“i" begin="1" end="100">
<c:out value="${i % 2 == 0}"/>
</c:forEach>

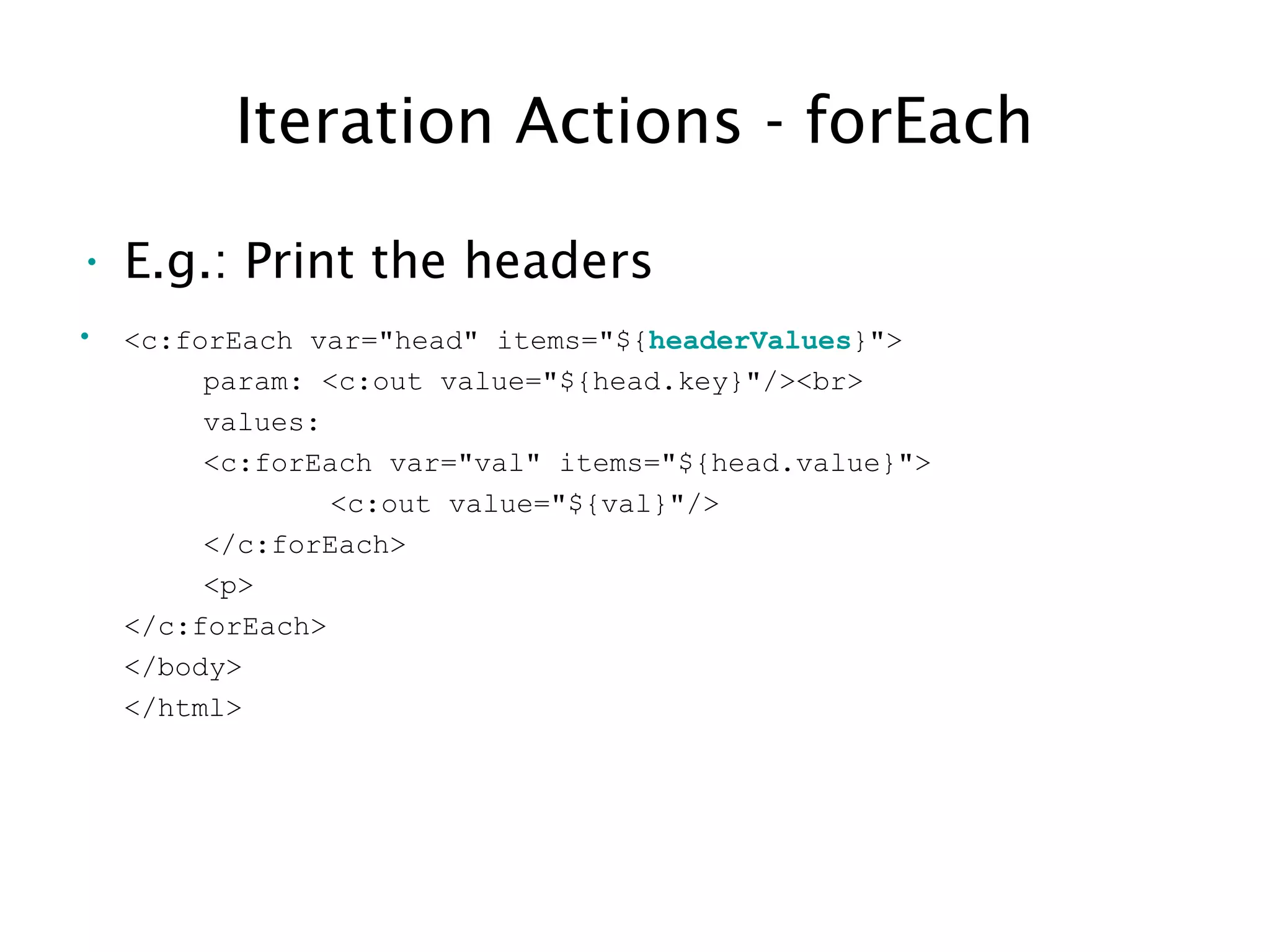

20. Iteration Actions - forEach
• E.g.: Print the headers
• <c:forEach var="head" items="${headerValues}">
param: <c:out value="${head.key}"/><br>
values:
<c:forEach var="val" items="${head.value}">
<c:out value="${val}"/>
</c:forEach>
<p>
</c:forEach>
</body>
</html>

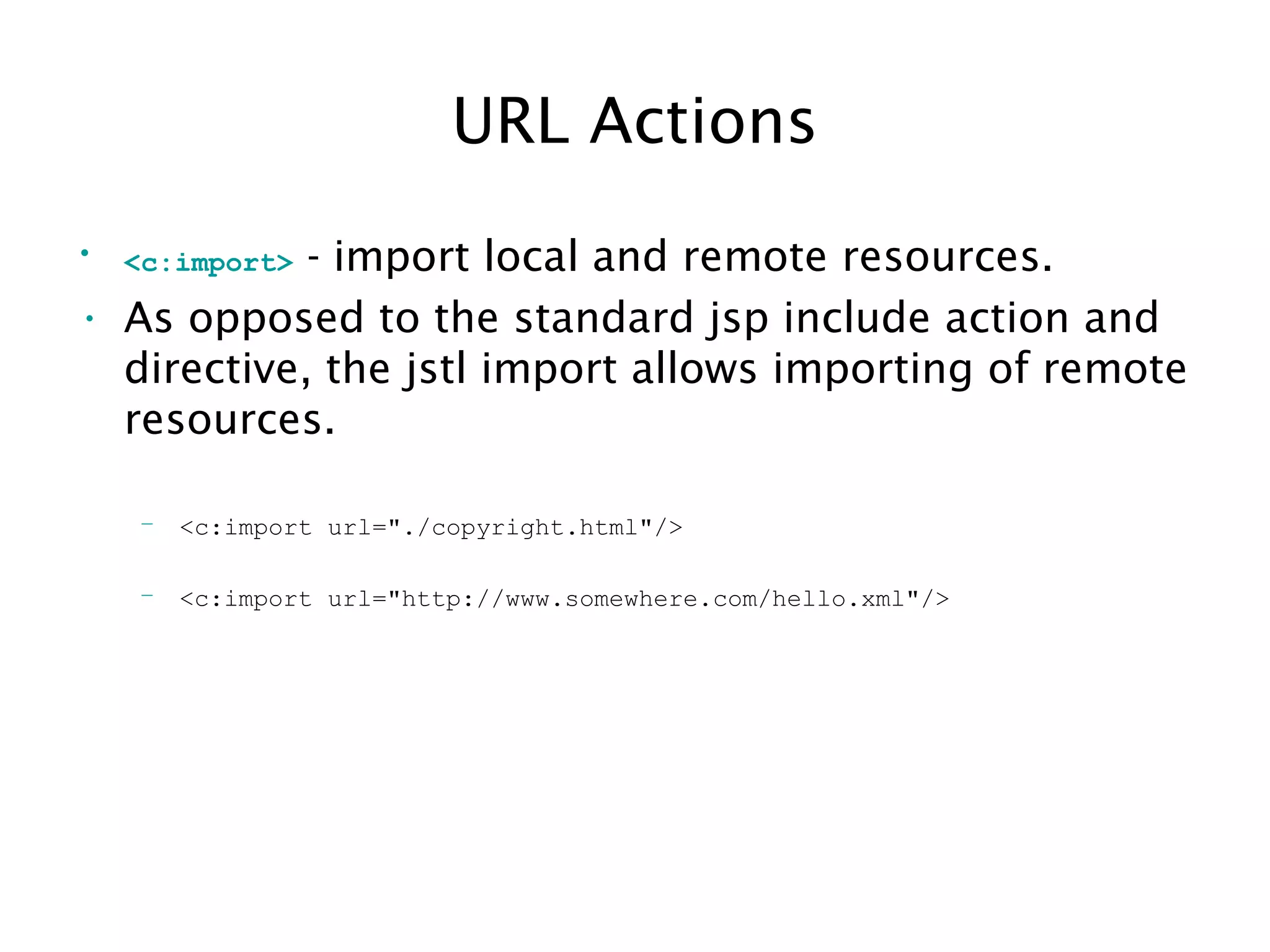

21. URL Actions
• <c:import> - import local and remote resources.
• As opposed to the standard jsp include action and
directive, the jstl import allows importing of remote
resources.
– <c:import url="./copyright.html"/>
– <c:import url="http://www.somewhere.com/hello.xml"/>

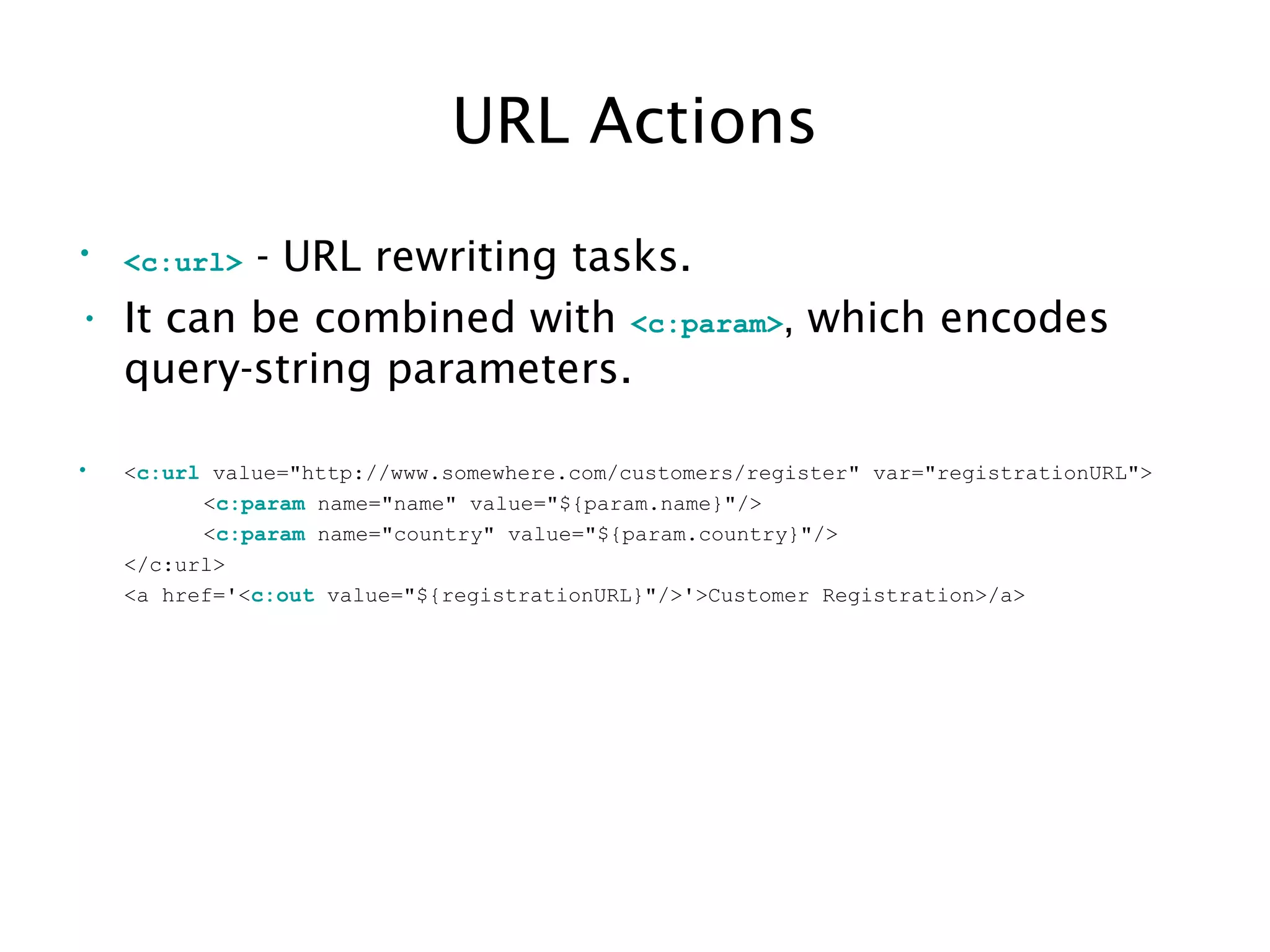

22. URL Actions
• <c:url> - URL rewriting tasks.
• It can be combined with <c:param>, which encodes
query-string parameters.
• <c:url value="http://www.somewhere.com/customers/register" var="registrationURL">
<c:param name="name" value="${param.name}"/>
<c:param name="country" value="${param.country}"/>
</c:url>
<a href='<c:out value="${registrationURL}"/>'>Customer Registration>/a>

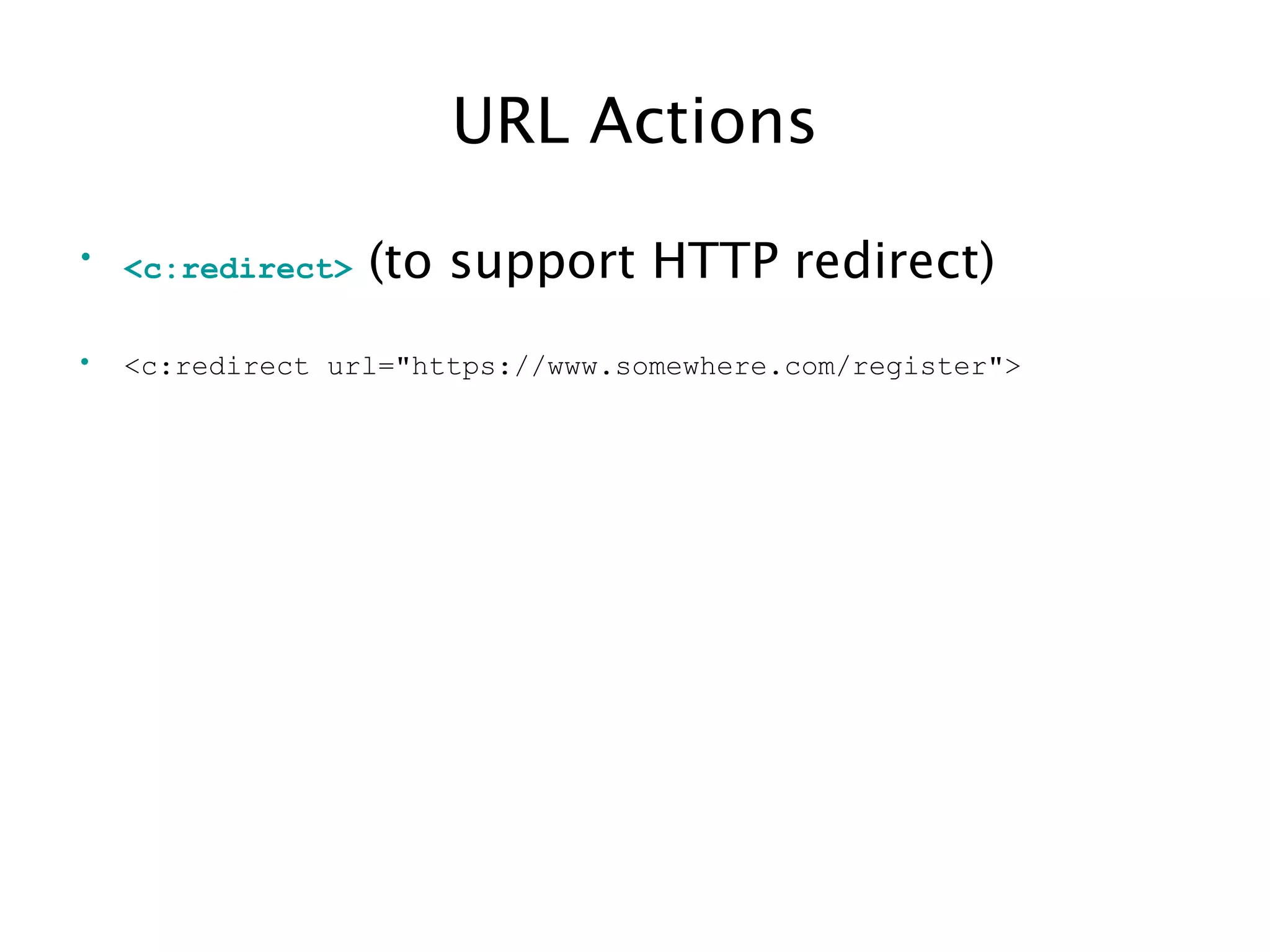

23. URL Actions
• <c:redirect> (to support HTTP redirect)
• <c:redirect url="https://www.somewhere.com/register">

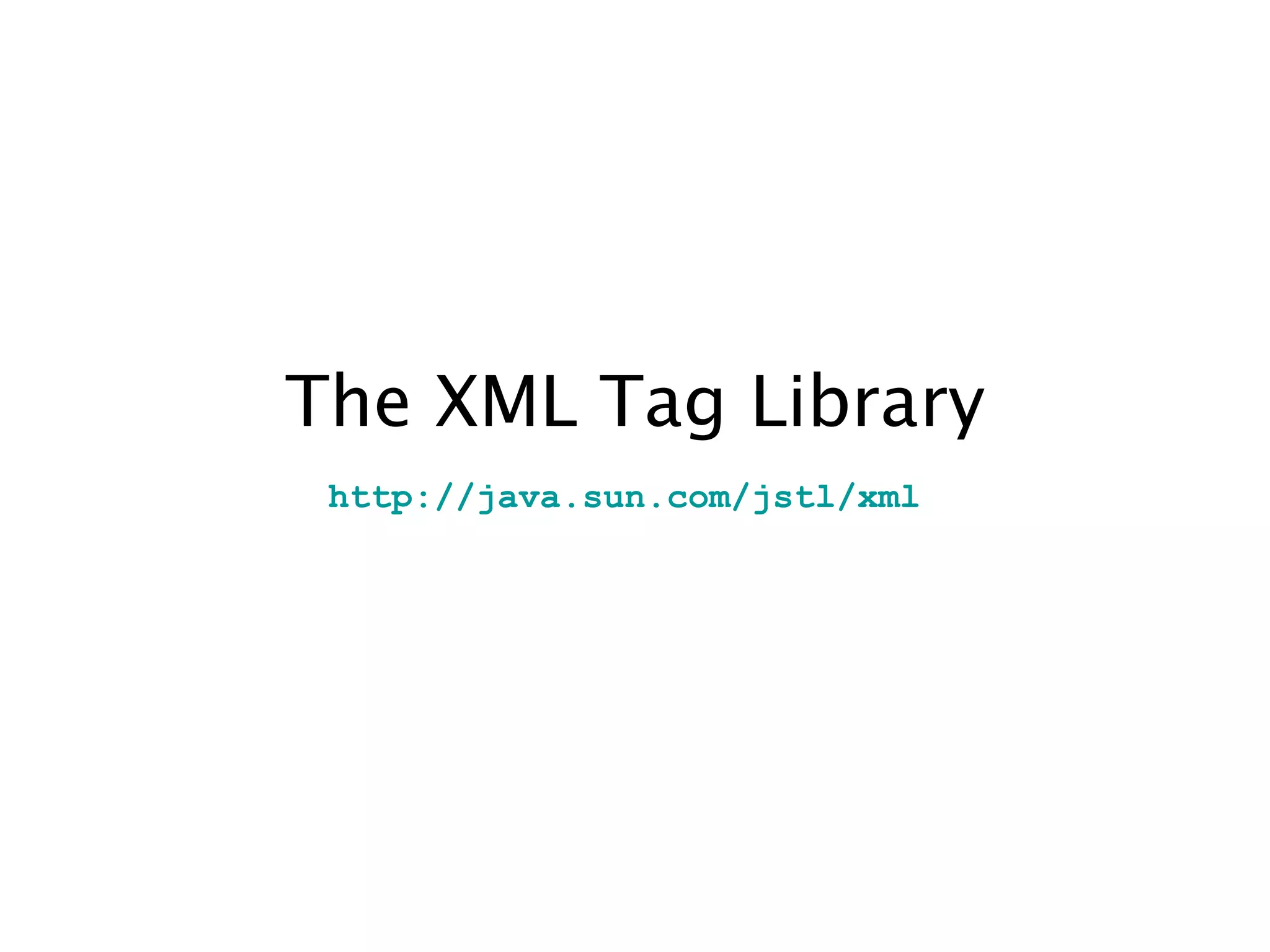

24. The XML Tag Library
http://java.sun.com/jstl/xml

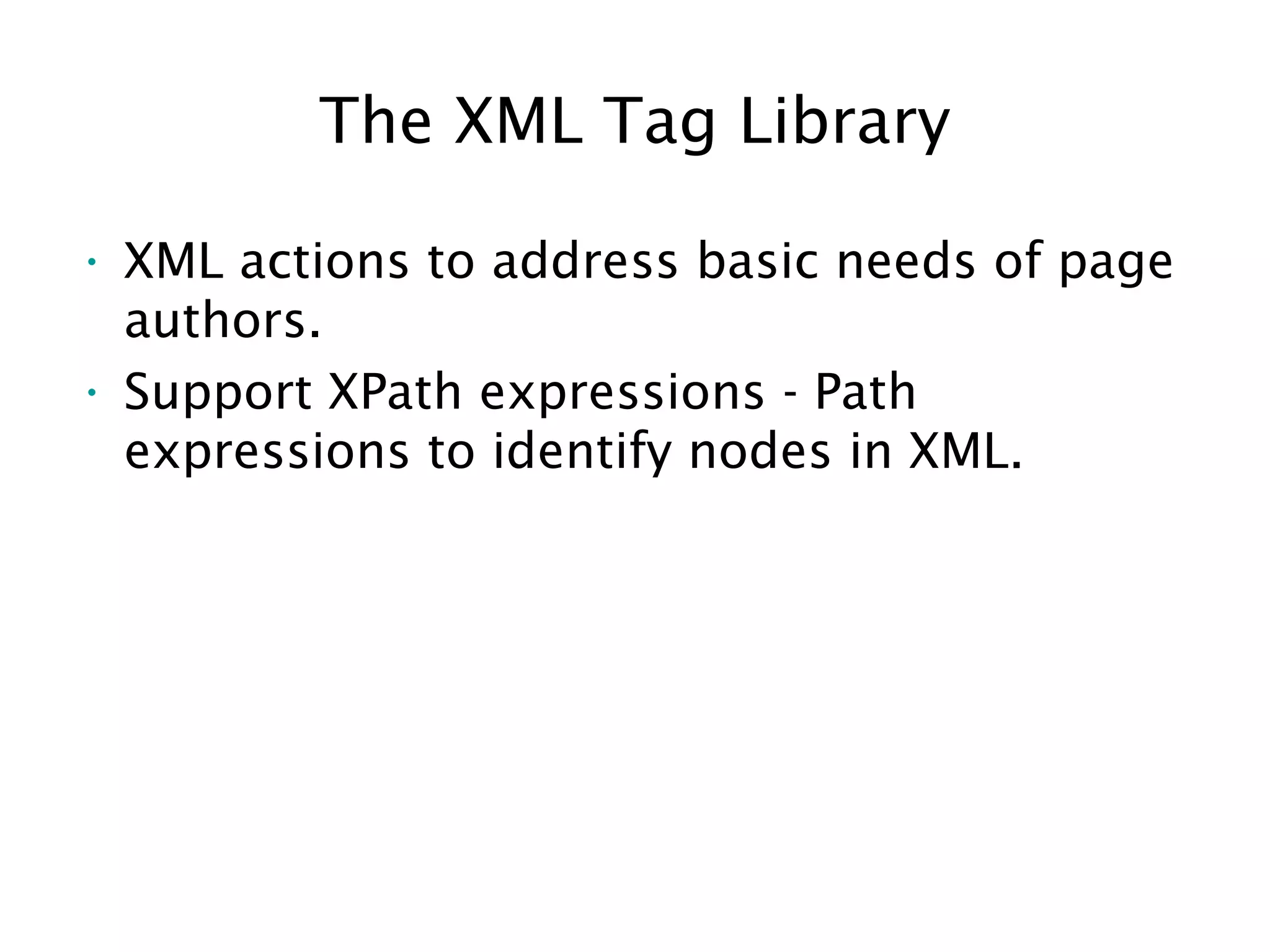

25. The XML Tag Library
• XML actions to address basic needs of page
authors.
• Support XPath expressions - Path
expressions to identify nodes in XML.

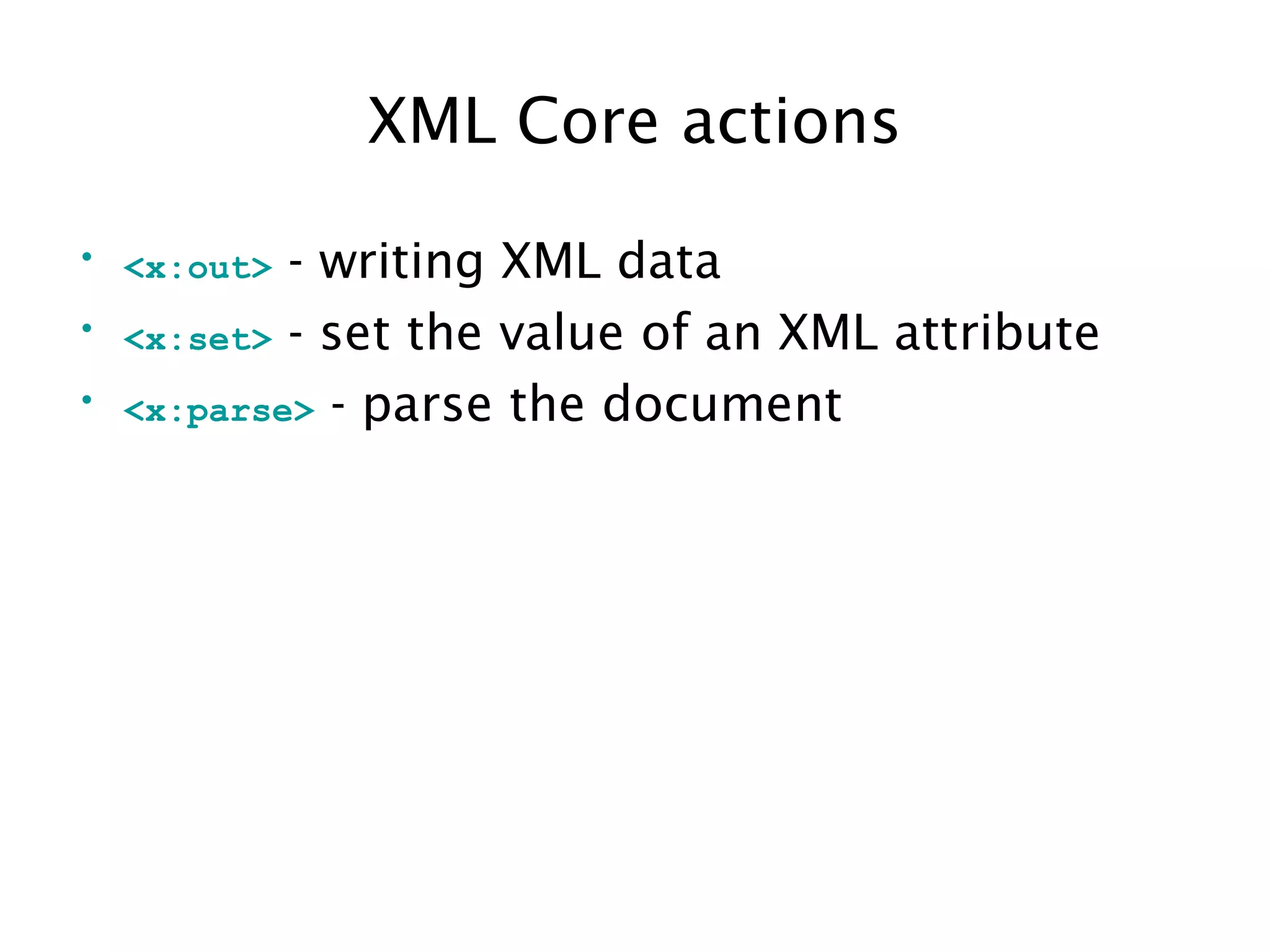

26. XML Core actions
• <x:out> - writing XML data
• <x:set> - set the value of an XML attribute
• <x:parse> - parse the document

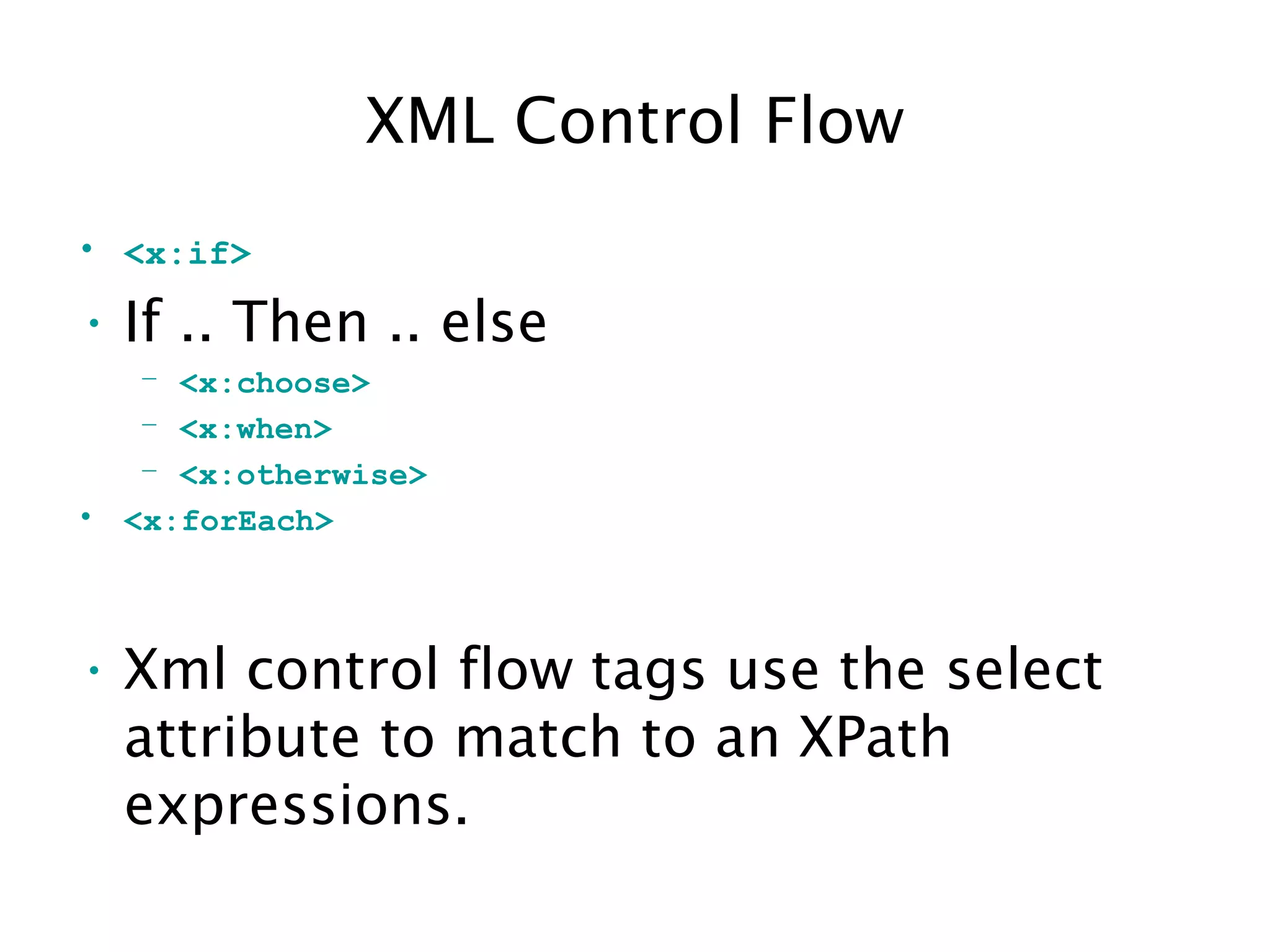

27. XML Control Flow
• <x:if>
• If .. Then .. else
– <x:choose>
– <x:when>
– <x:otherwise>
• <x:forEach>
• Xml control flow tags use the select
attribute to match to an XPath
expressions.

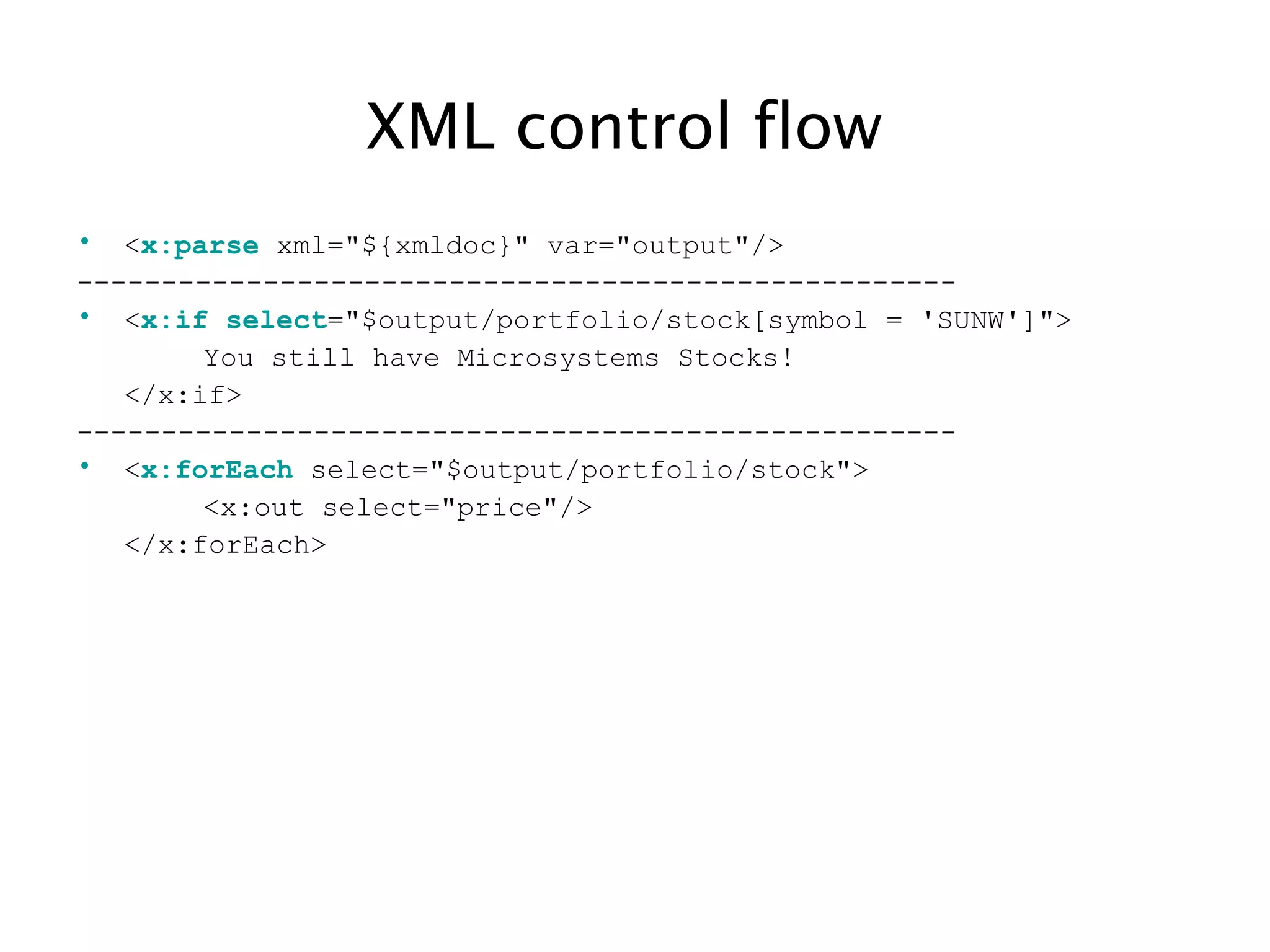

28. XML control flow
• <x:parse xml="${xmldoc}" var="output"/>
----------------------------------------------------
• <x:if select="$output/portfolio/stock[symbol = 'SUNW']">
You still have Microsystems Stocks!
</x:if>
----------------------------------------------------
• <x:forEach select="$output/portfolio/stock">
<x:out select="price"/>
</x:forEach>

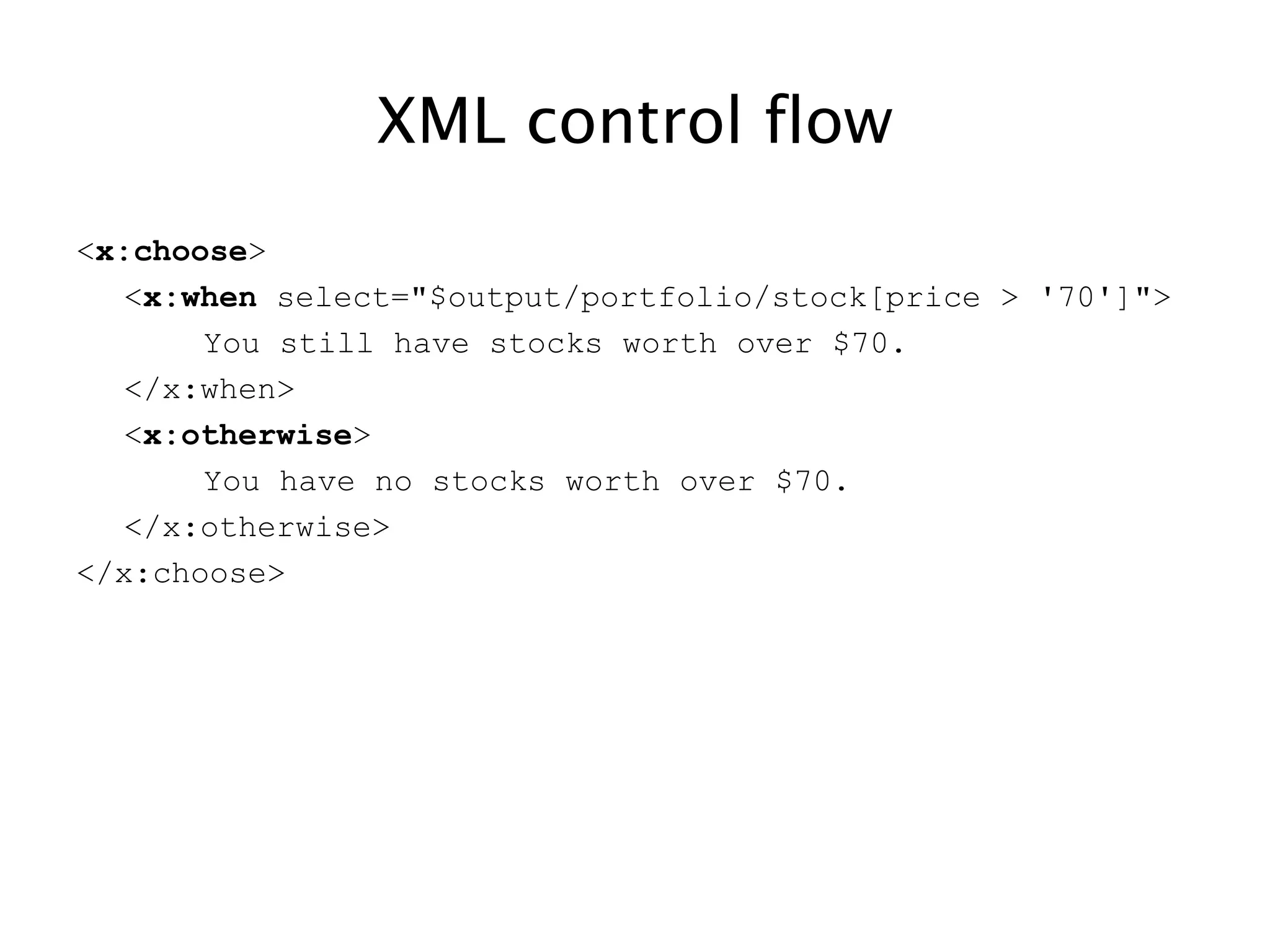

29. XML control flow
<x:choose>
<x:when select="$output/portfolio/stock[price > '70']">
You still have stocks worth over $70.
</x:when>
<x:otherwise>
You have no stocks worth over $70.
</x:otherwise>
</x:choose>

30. Code Sample 1
<c:set var="xmltext">
<books>
<book>
<title>Book Title A</title>
<author>A. B. C.</author>
<price>17.95</price>
</book>
<book>
<title>Book Title B</title>
<author>X. Y. Z.</author>
<price>24.99</price>
</book>
</books>
</c:set>
<x:parse xml="${xmltext}" var="output"/>
The title of the first book is:
<x:out select="$output/books/book[1]/title"/>
The price of the second book:
<x:out select="$output/books/book[2]/price"/>

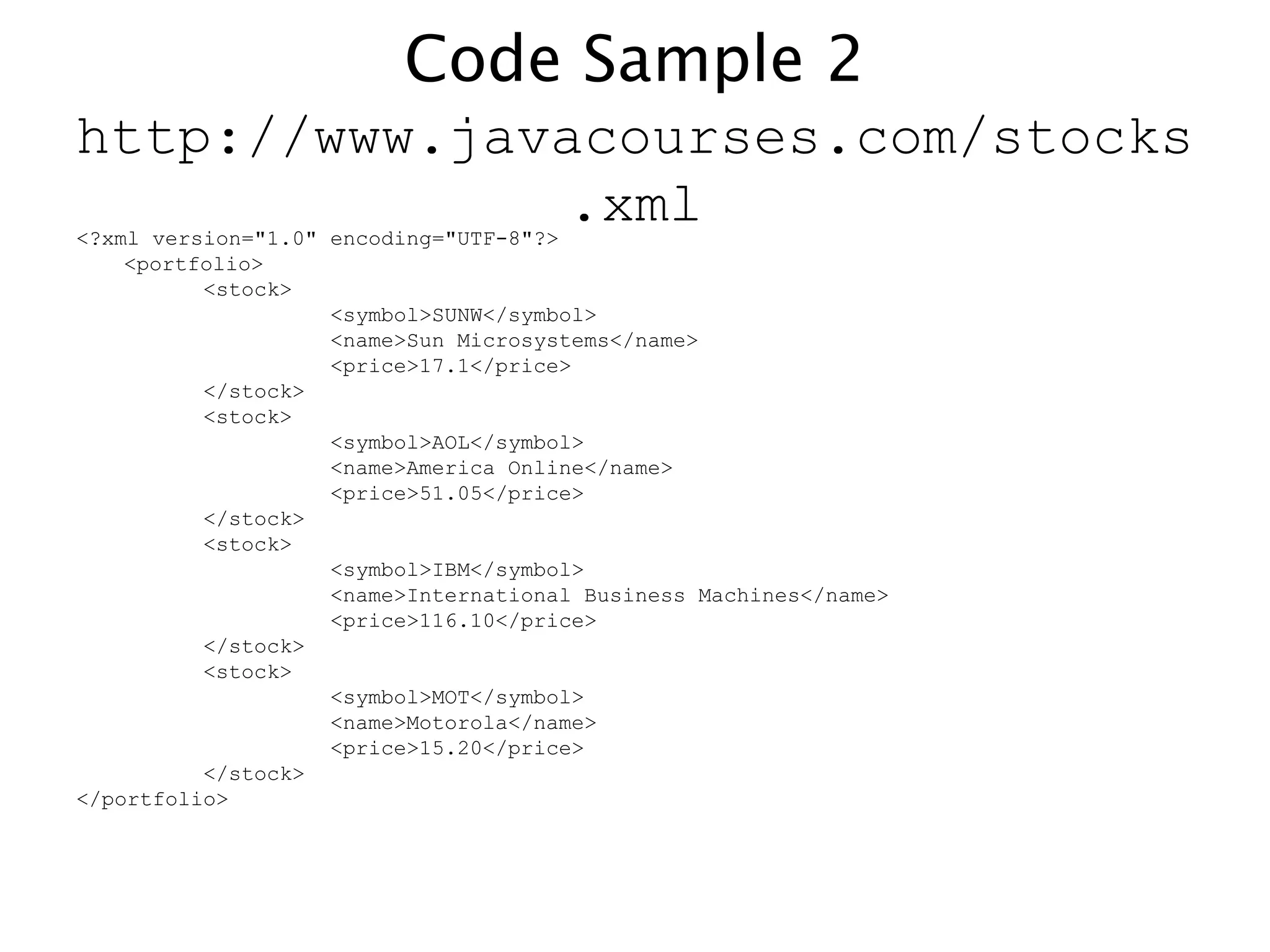

31. Code Sample 2
http://www.javacourses.com/stocks
.xml<?xml version="1.0" encoding="UTF-8"?>
<portfolio>
<stock>
<symbol>SUNW</symbol>
<name>Sun Microsystems</name>
<price>17.1</price>
</stock>
<stock>
<symbol>AOL</symbol>
<name>America Online</name>
<price>51.05</price>
</stock>
<stock>
<symbol>IBM</symbol>
<name>International Business Machines</name>
<price>116.10</price>
</stock>
<stock>
<symbol>MOT</symbol>
<name>Motorola</name>
<price>15.20</price>
</stock>
</portfolio>

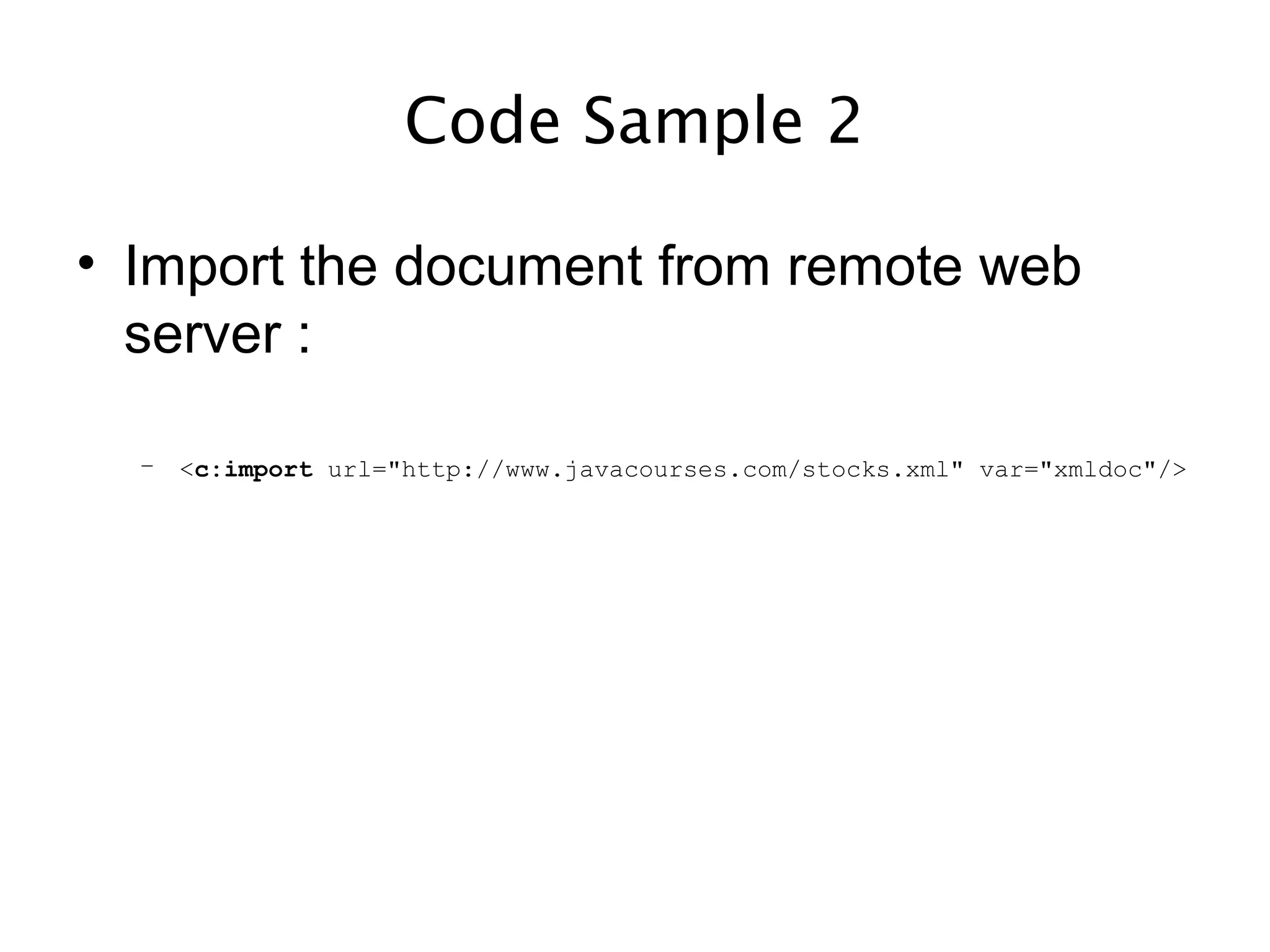

32. Code Sample 2
• Import the document from remote web
server :
– <c:import url="http://www.javacourses.com/stocks.xml" var="xmldoc"/>

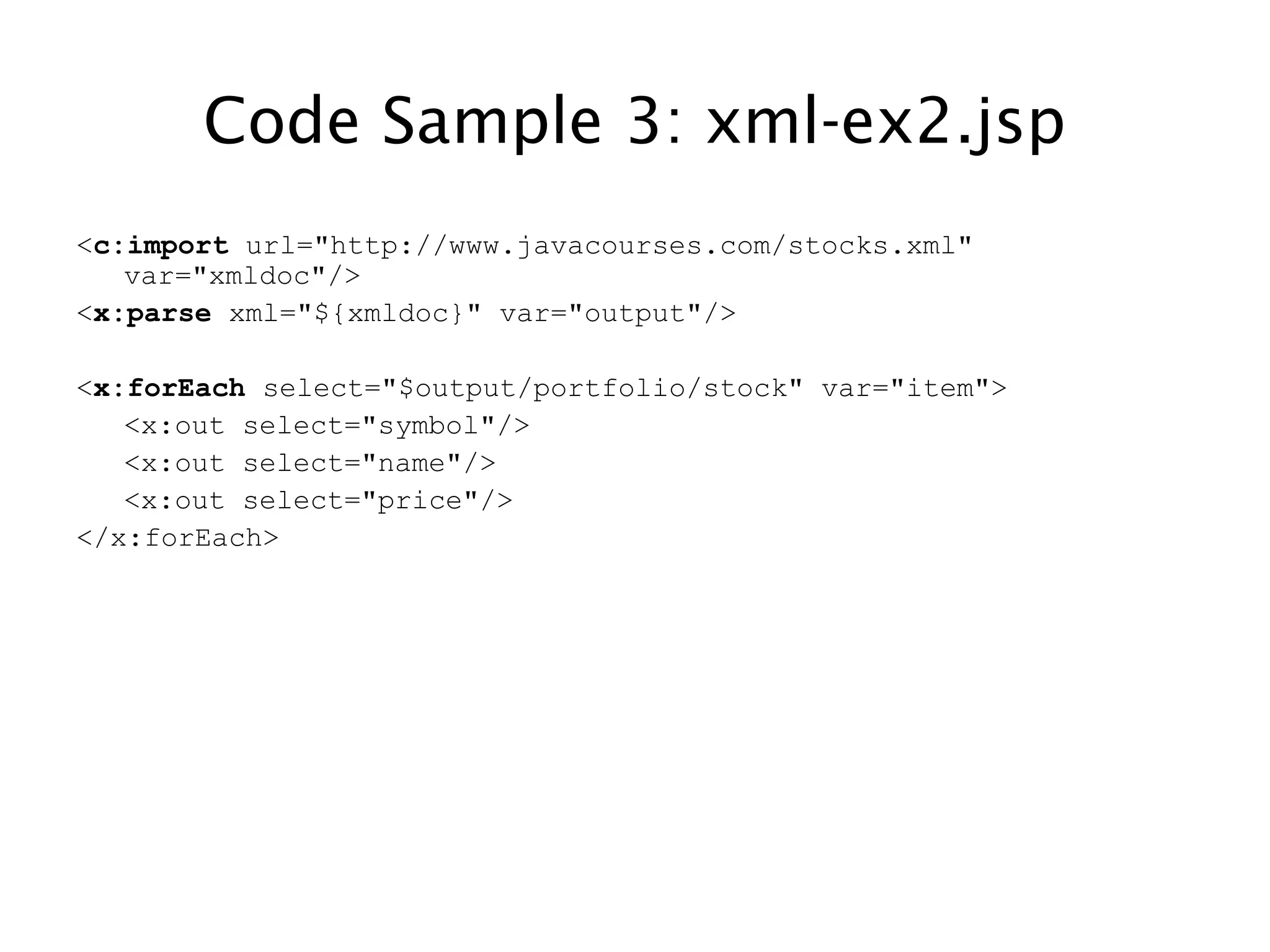

33. Code Sample 3: xml-ex2.jsp
<c:import url="http://www.javacourses.com/stocks.xml"
var="xmldoc"/>
<x:parse xml="${xmldoc}" var="output"/>
<x:forEach select="$output/portfolio/stock" var="item">
<x:out select="symbol"/>
<x:out select="name"/>
<x:out select="price"/>
</x:forEach>

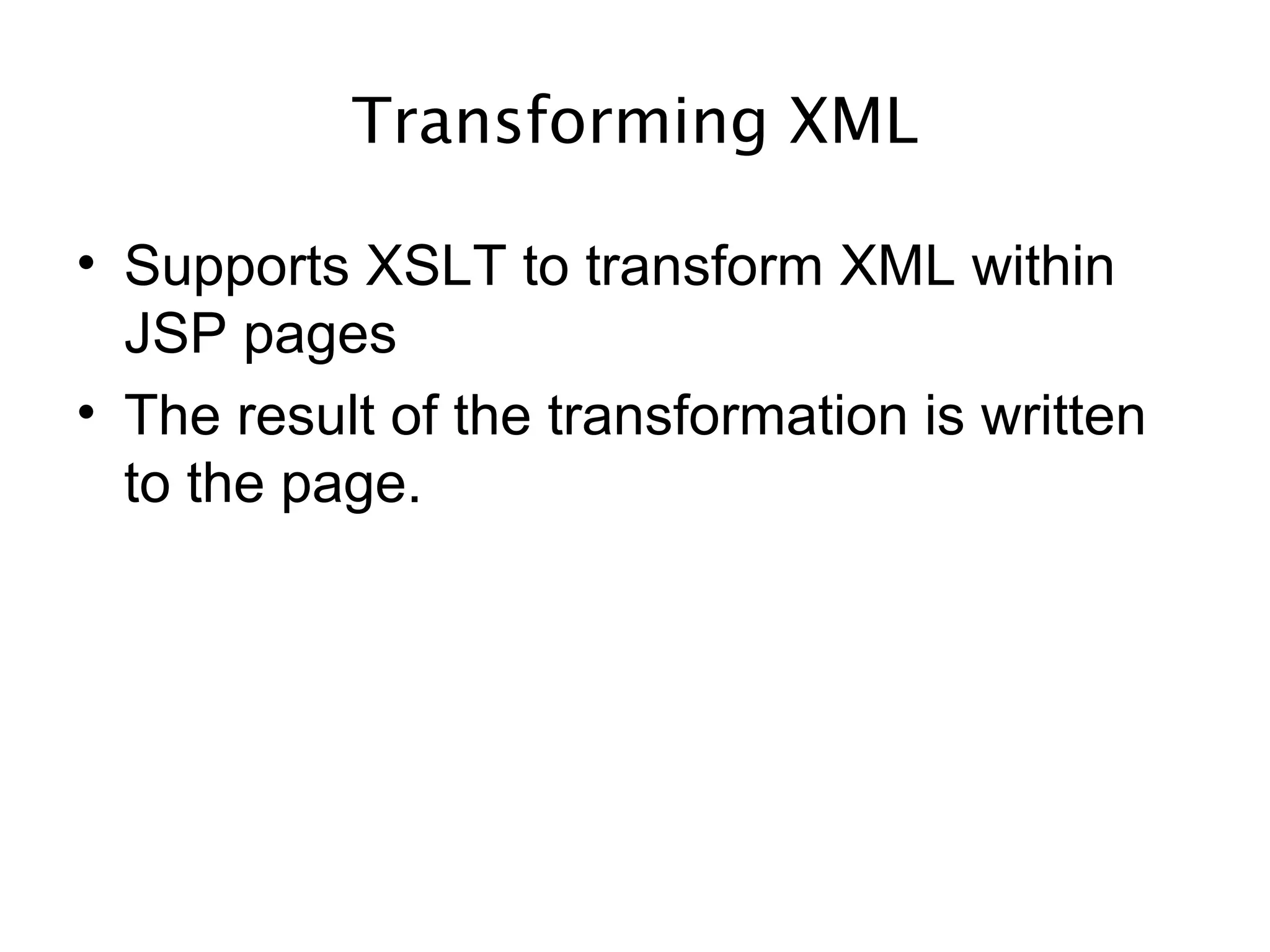

34. Transforming XML
• Supports XSLT to transform XML within
JSP pages
• The result of the transformation is written
to the page.

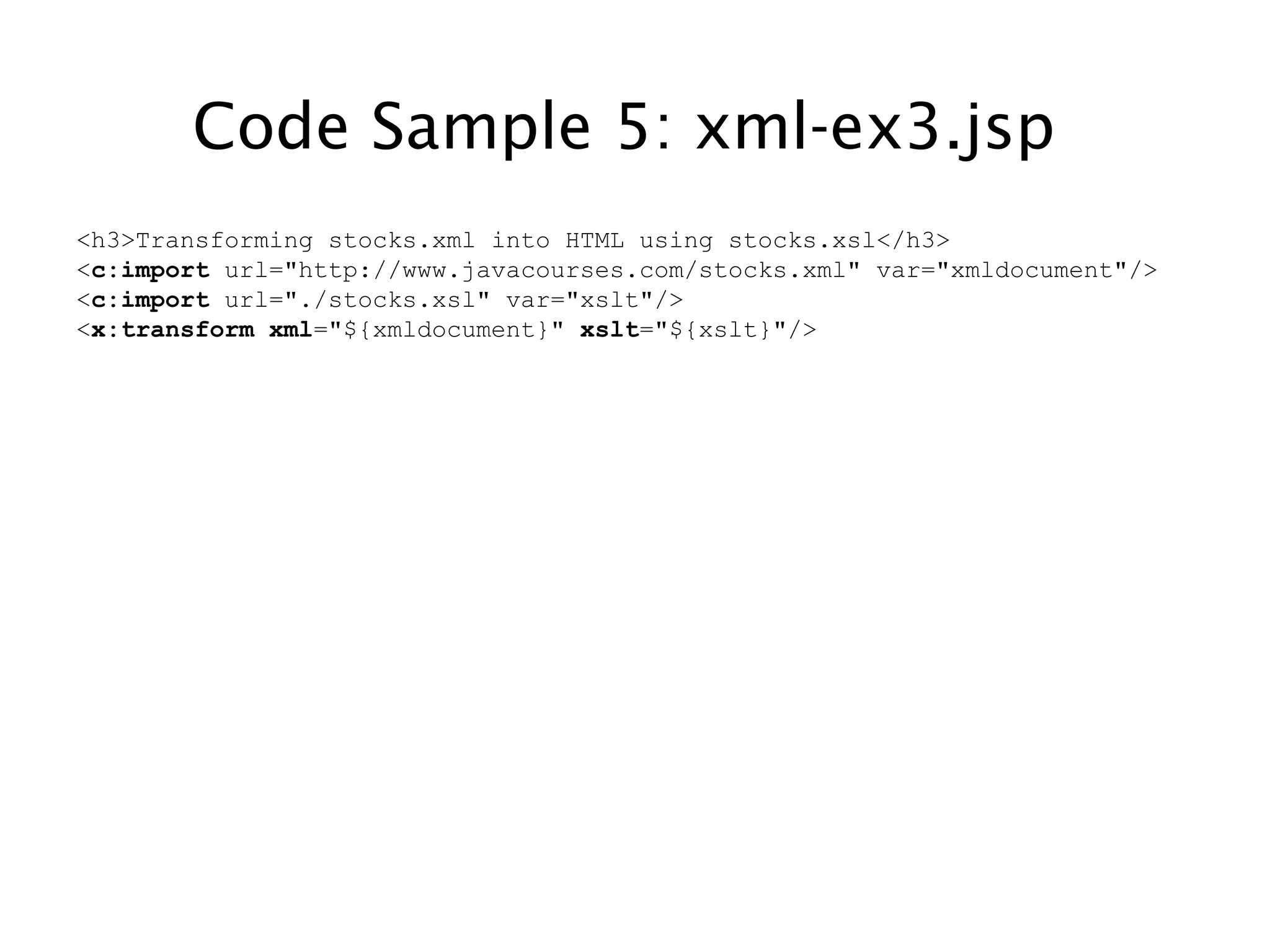

35. Code Sample 5: xml-ex3.jsp
<h3>Transforming stocks.xml into HTML using stocks.xsl</h3>
<c:import url="http://www.javacourses.com/stocks.xml" var="xmldocument"/>
<c:import url="./stocks.xsl" var="xslt"/>
<x:transform xml="${xmldocument}" xslt="${xslt}"/>

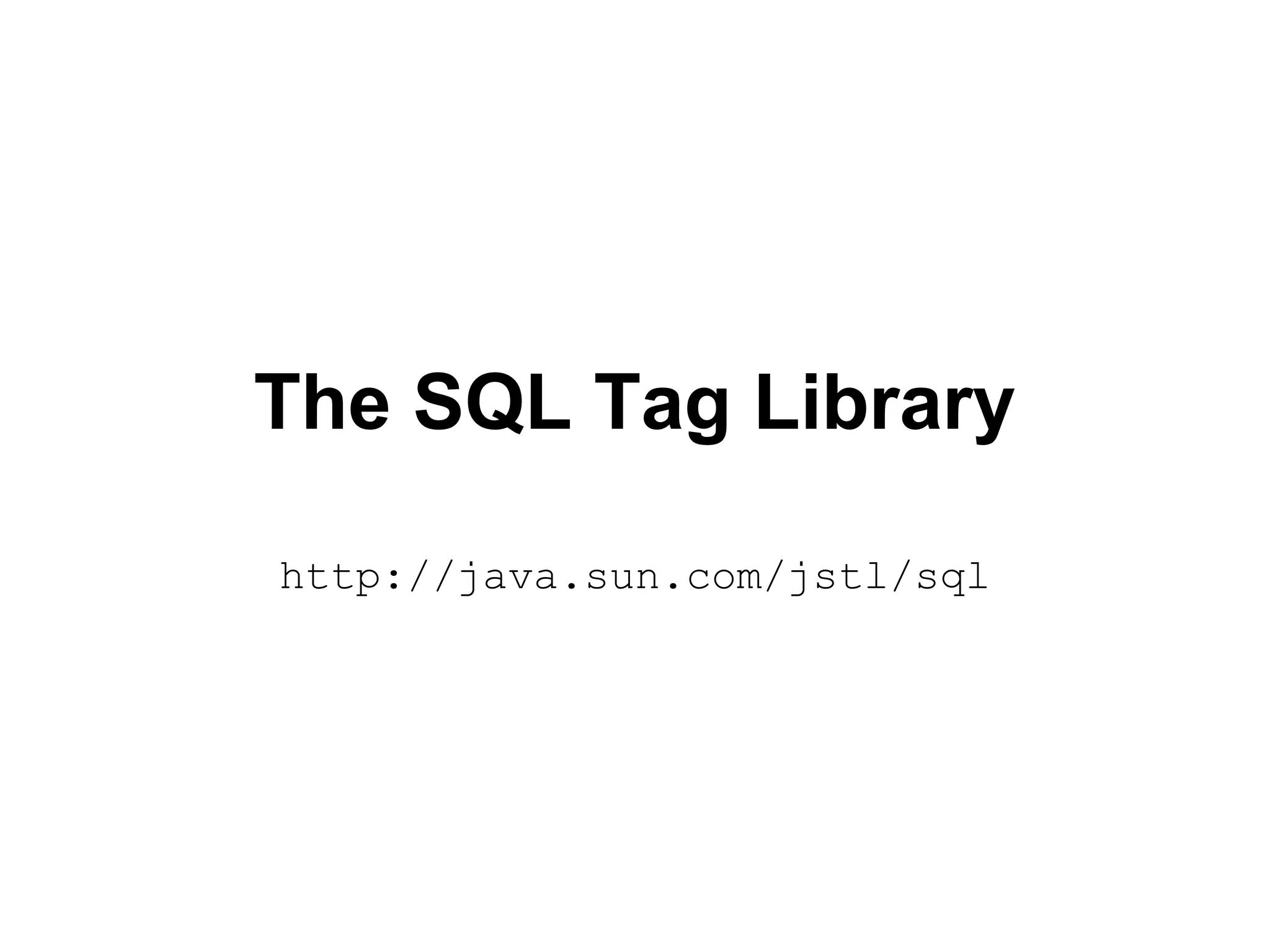

36. The SQL Tag Library
http://java.sun.com/jstl/sql

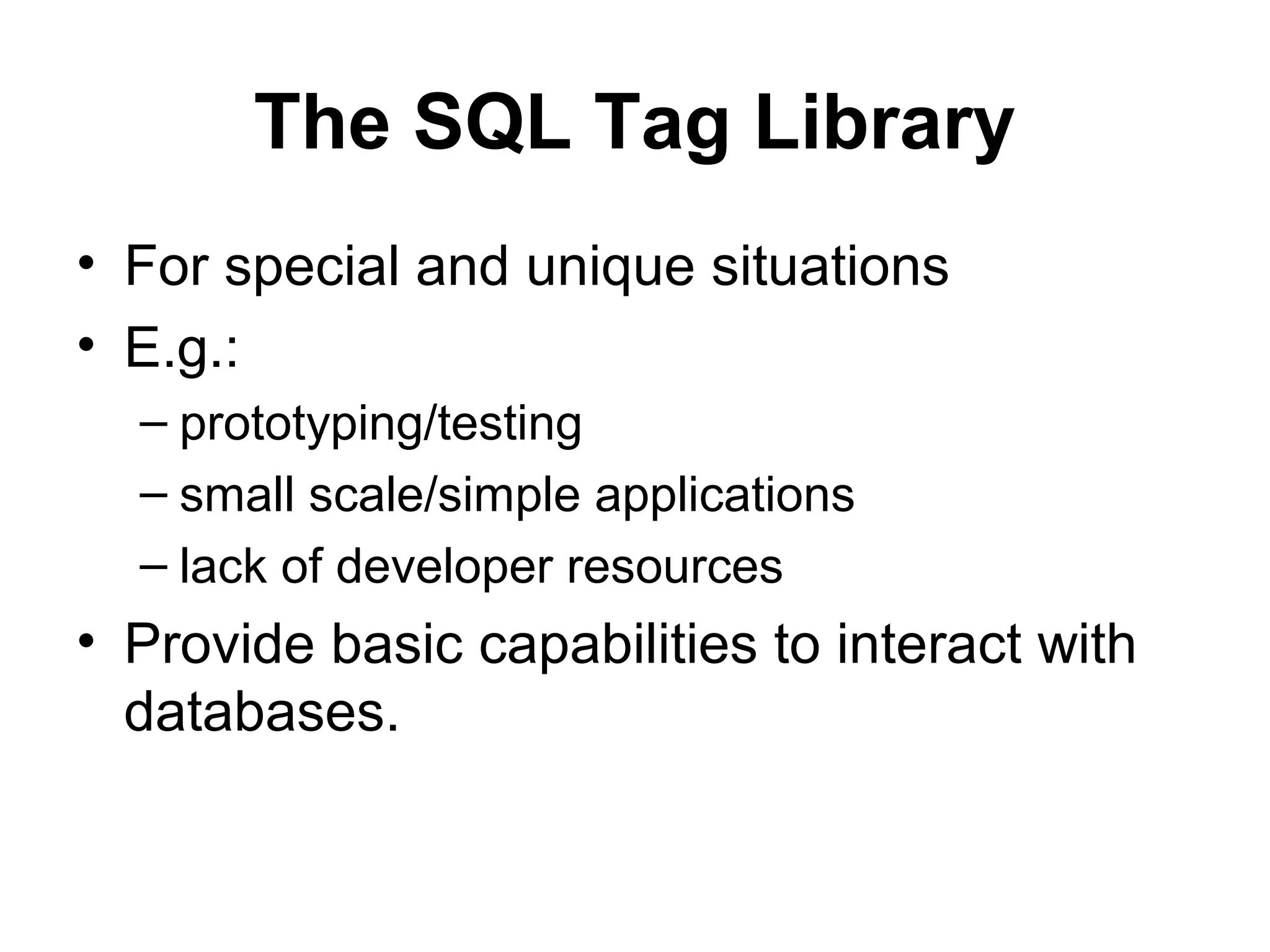

37. The SQL Tag Library
• For special and unique situations
• E.g.:
– prototyping/testing
– small scale/simple applications
– lack of developer resources
• Provide basic capabilities to interact with
databases.

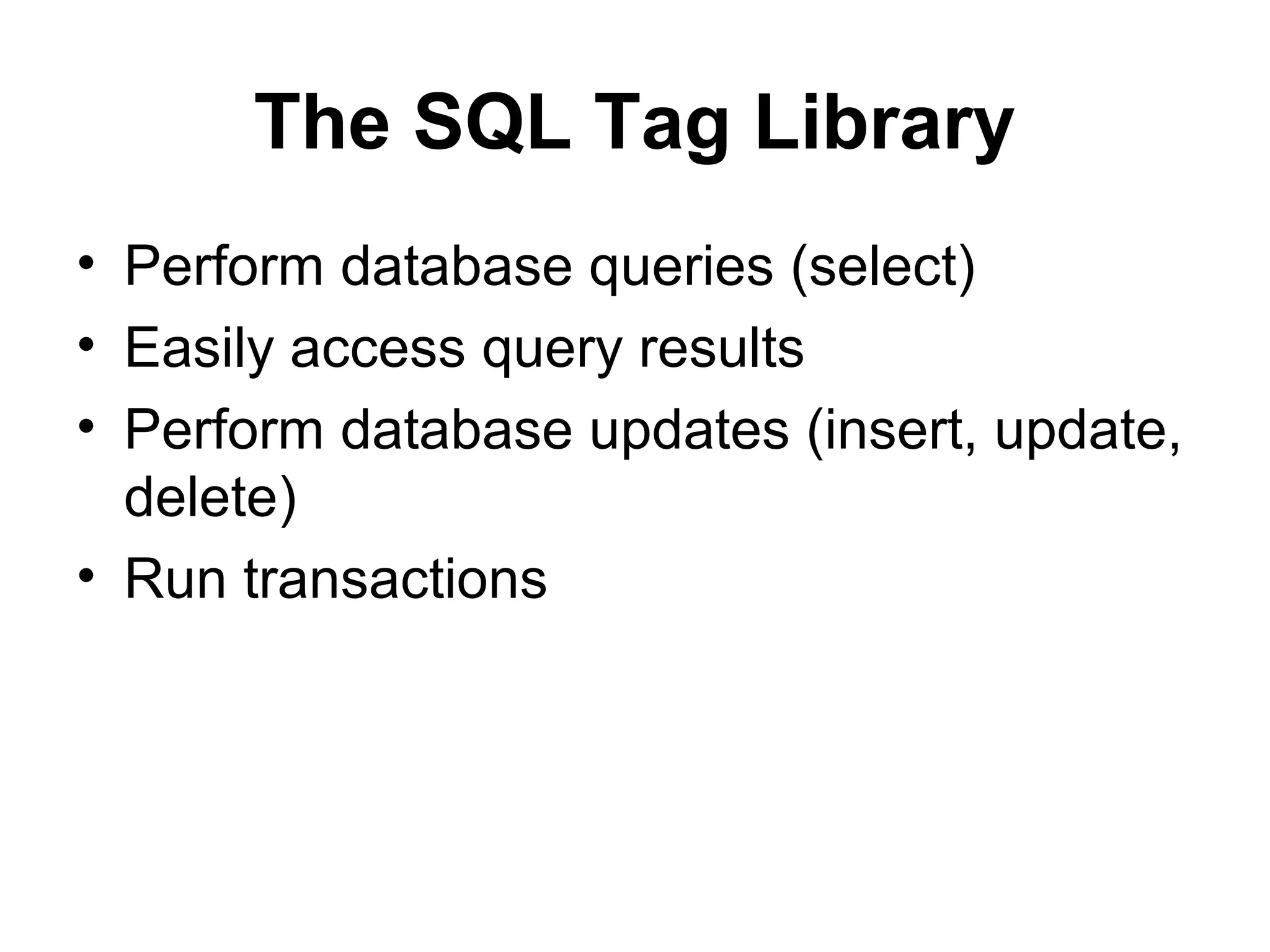

38. The SQL Tag Library
• Perform database queries (select)
• Easily access query results
• Perform database updates (insert, update,
delete)
• Run transactions

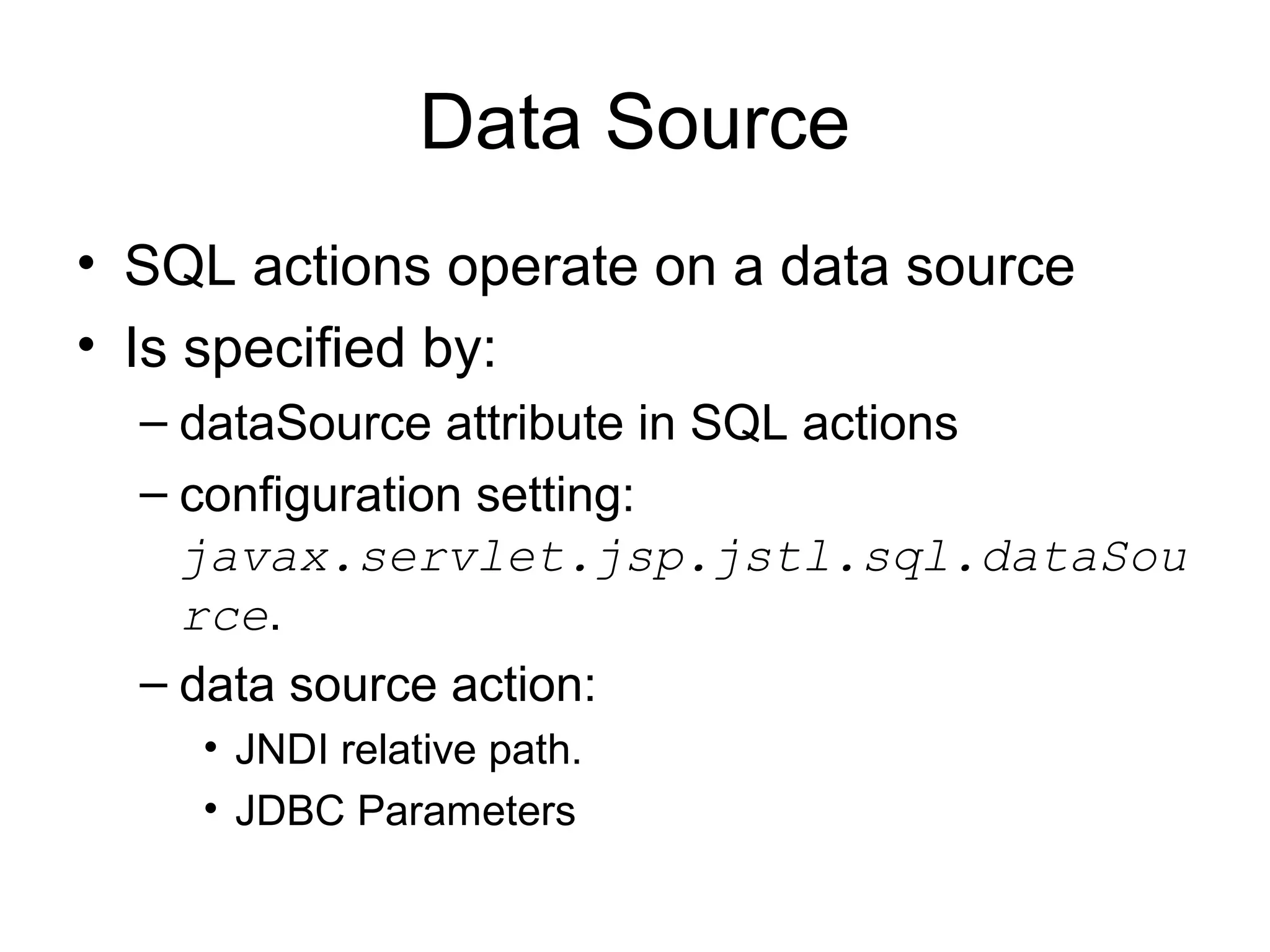

39. Data Source
• SQL actions operate on a data source
• Is specified by:
– dataSource attribute in SQL actions
– configuration setting:
javax.servlet.jsp.jstl.sql.dataSou
rce.
– data source action:
• JNDI relative path.
• JDBC Parameters

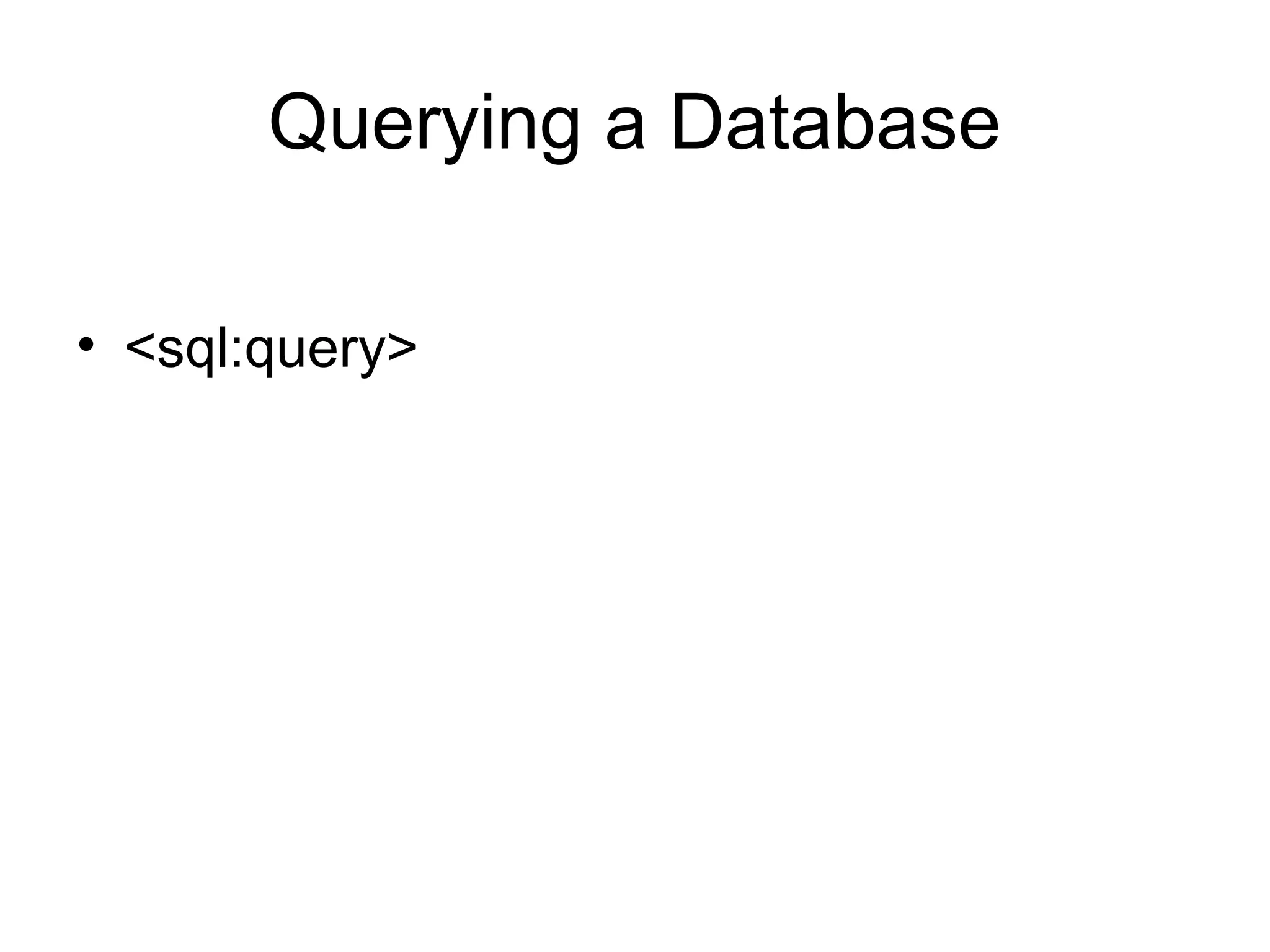

40. Querying a Database
• <sql:query>

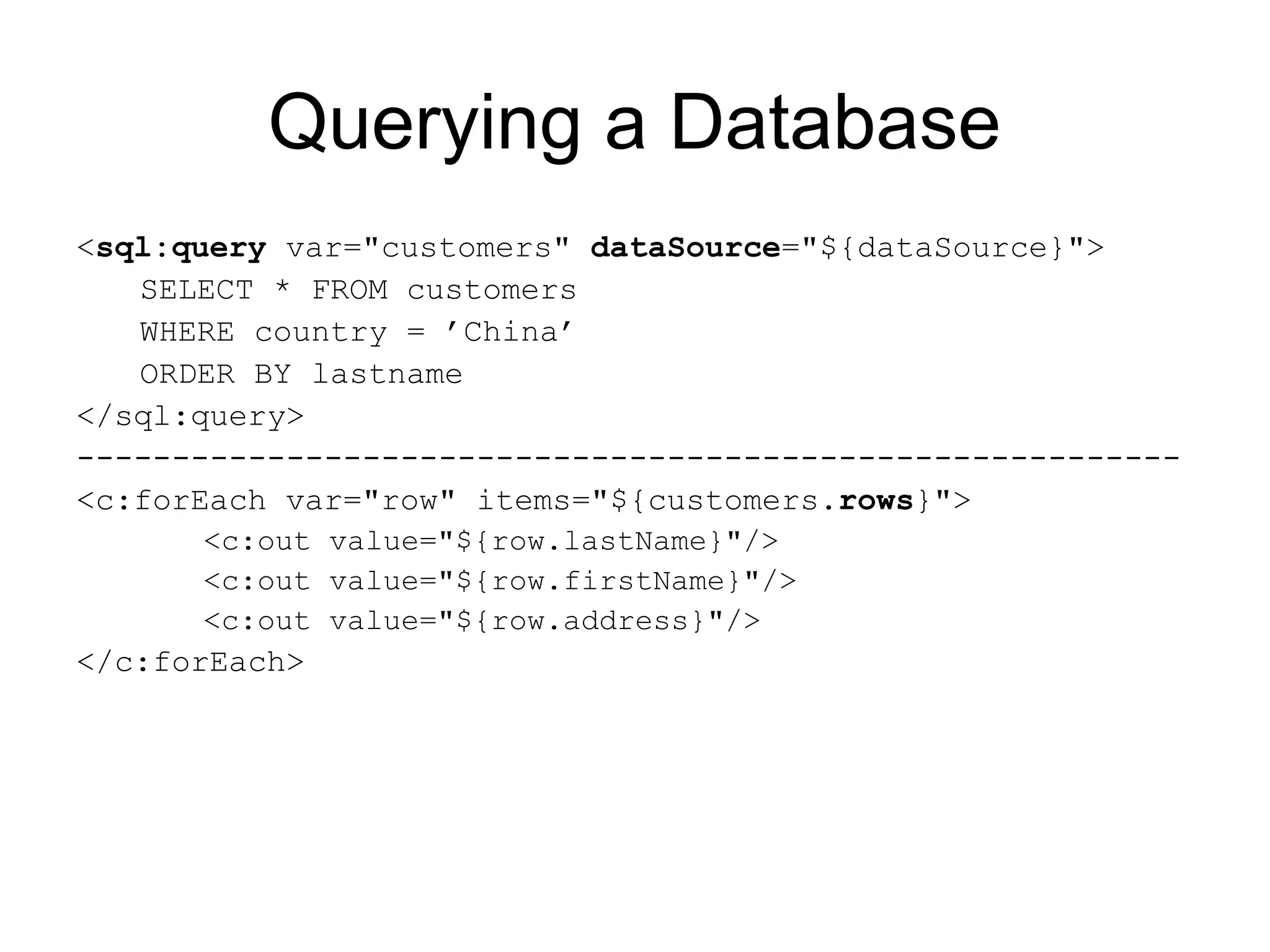

41. Querying a Database
<sql:query var="customers" dataSource="${dataSource}">
SELECT * FROM customers
WHERE country = ’China’
ORDER BY lastname
</sql:query>
----------------------------------------------------------
<c:forEach var="row" items="${customers.rows}">
<c:out value="${row.lastName}"/>
<c:out value="${row.firstName}"/>
<c:out value="${row.address}"/>
</c:forEach>

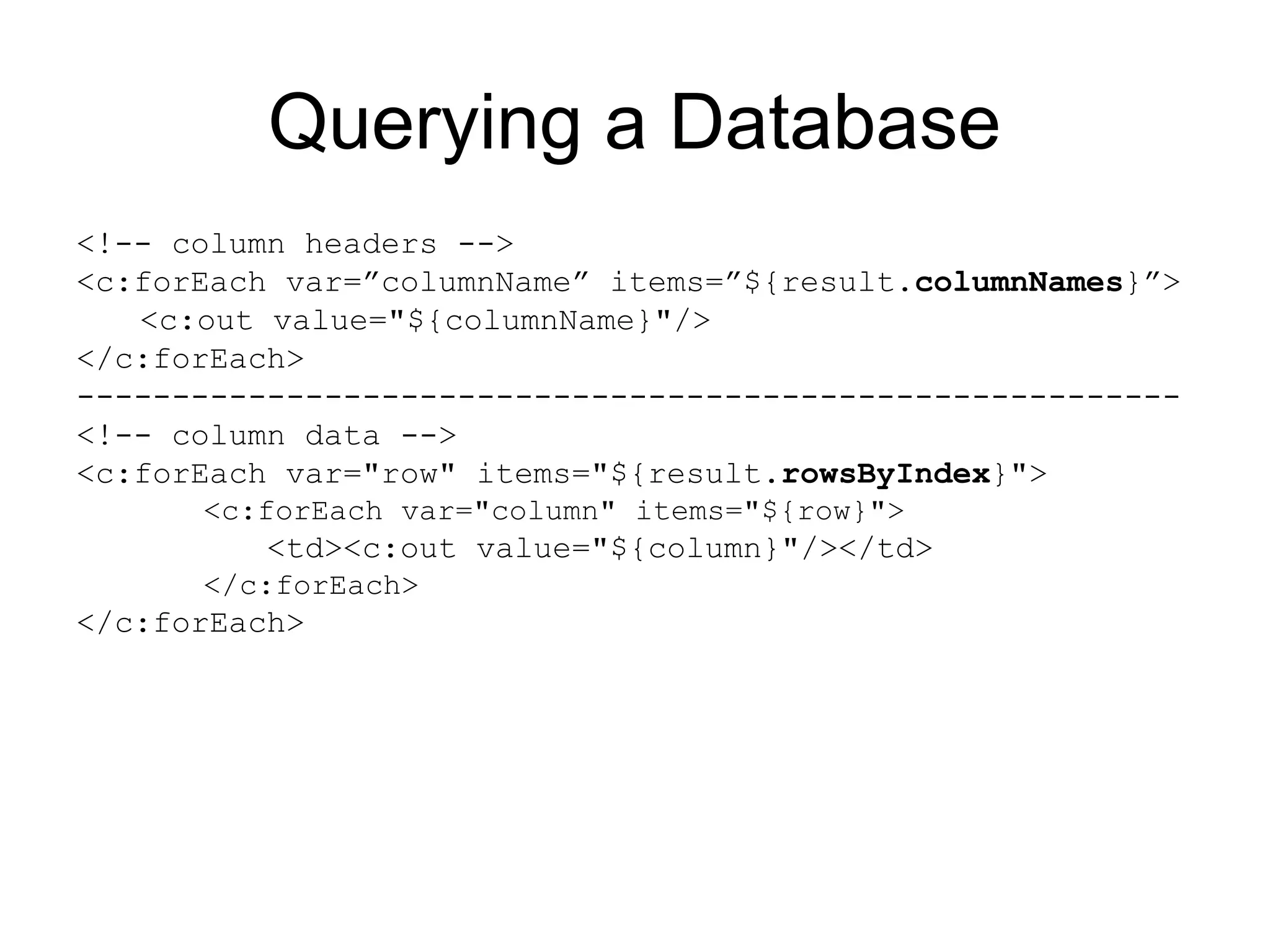

42. Querying a Database
<!-- column headers -->
<c:forEach var=”columnName” items=”${result.columnNames}”>
<c:out value="${columnName}"/>
</c:forEach>
----------------------------------------------------------
<!-- column data -->
<c:forEach var="row" items="${result.rowsByIndex}">
<c:forEach var="column" items="${row}">
<td><c:out value="${column}"/></td>
</c:forEach>
</c:forEach>

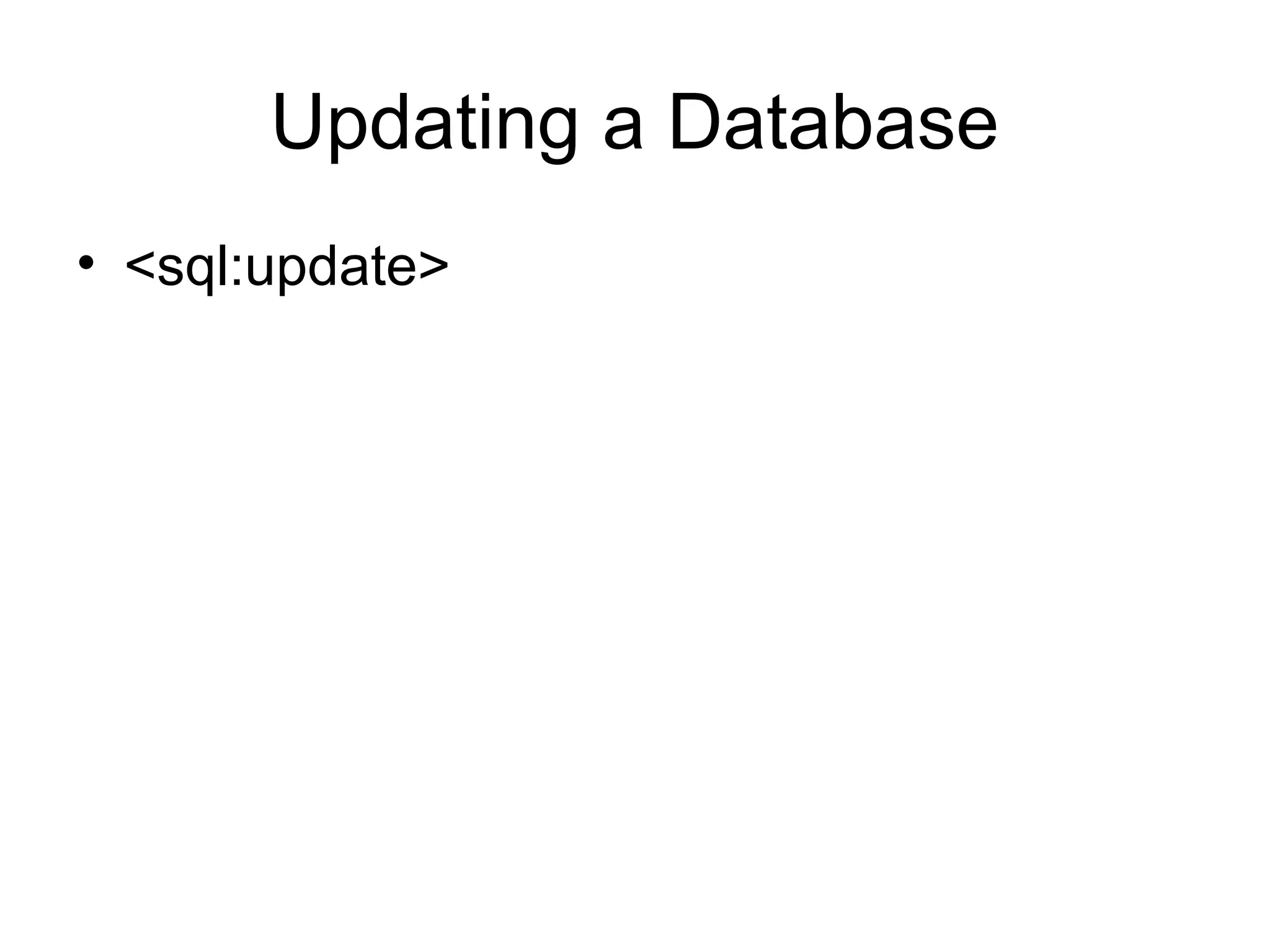

43. Updating a Database
• <sql:update>

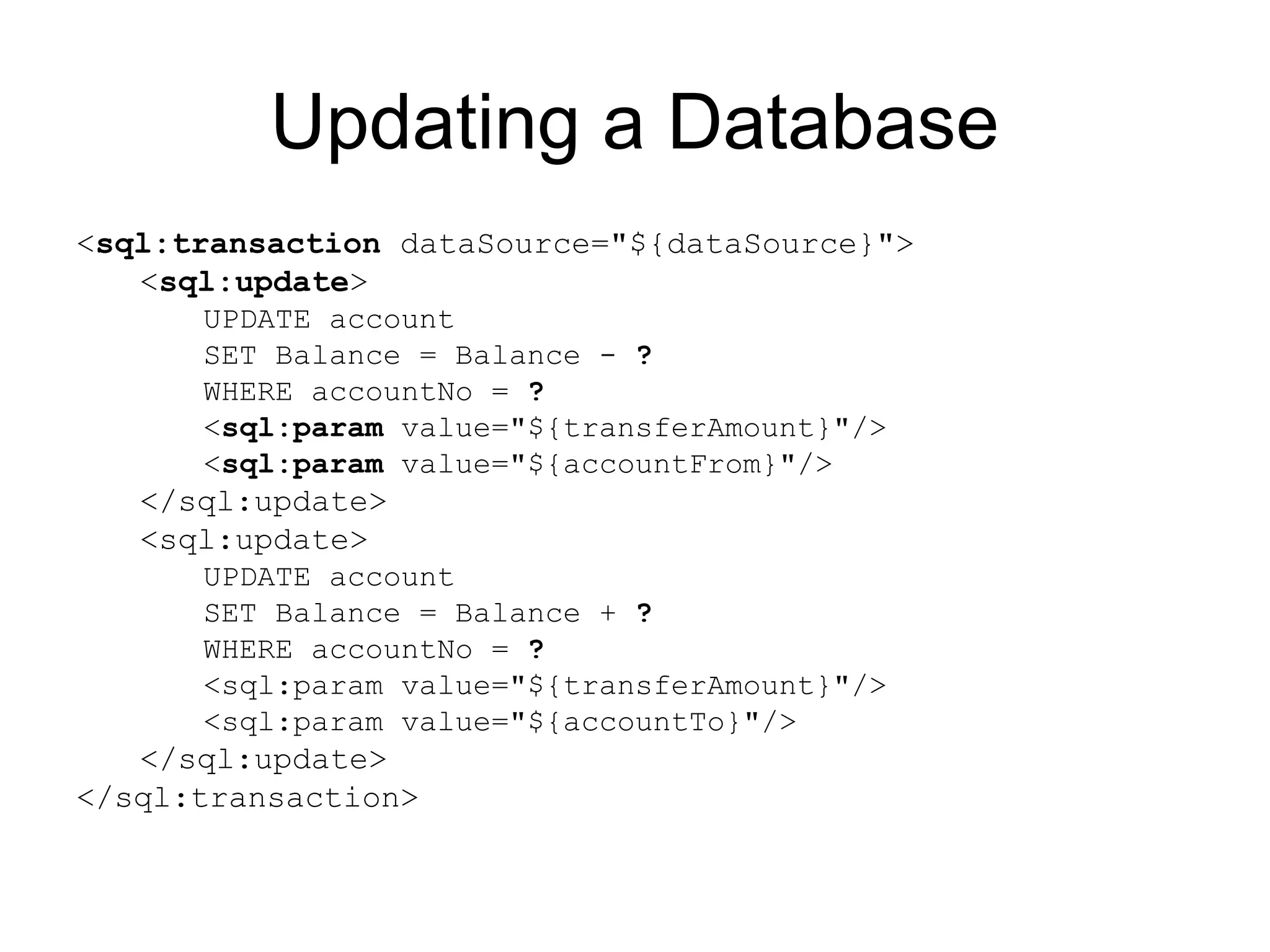

44. Updating a Database
<sql:transaction dataSource="${dataSource}">
<sql:update>
UPDATE account
SET Balance = Balance - ?
WHERE accountNo = ?
<sql:param value="${transferAmount}"/>
<sql:param value="${accountFrom}"/>
</sql:update>
<sql:update>
UPDATE account
SET Balance = Balance + ?
WHERE accountNo = ?
<sql:param value="${transferAmount}"/>
<sql:param value="${accountTo}"/>
</sql:update>
</sql:transaction>

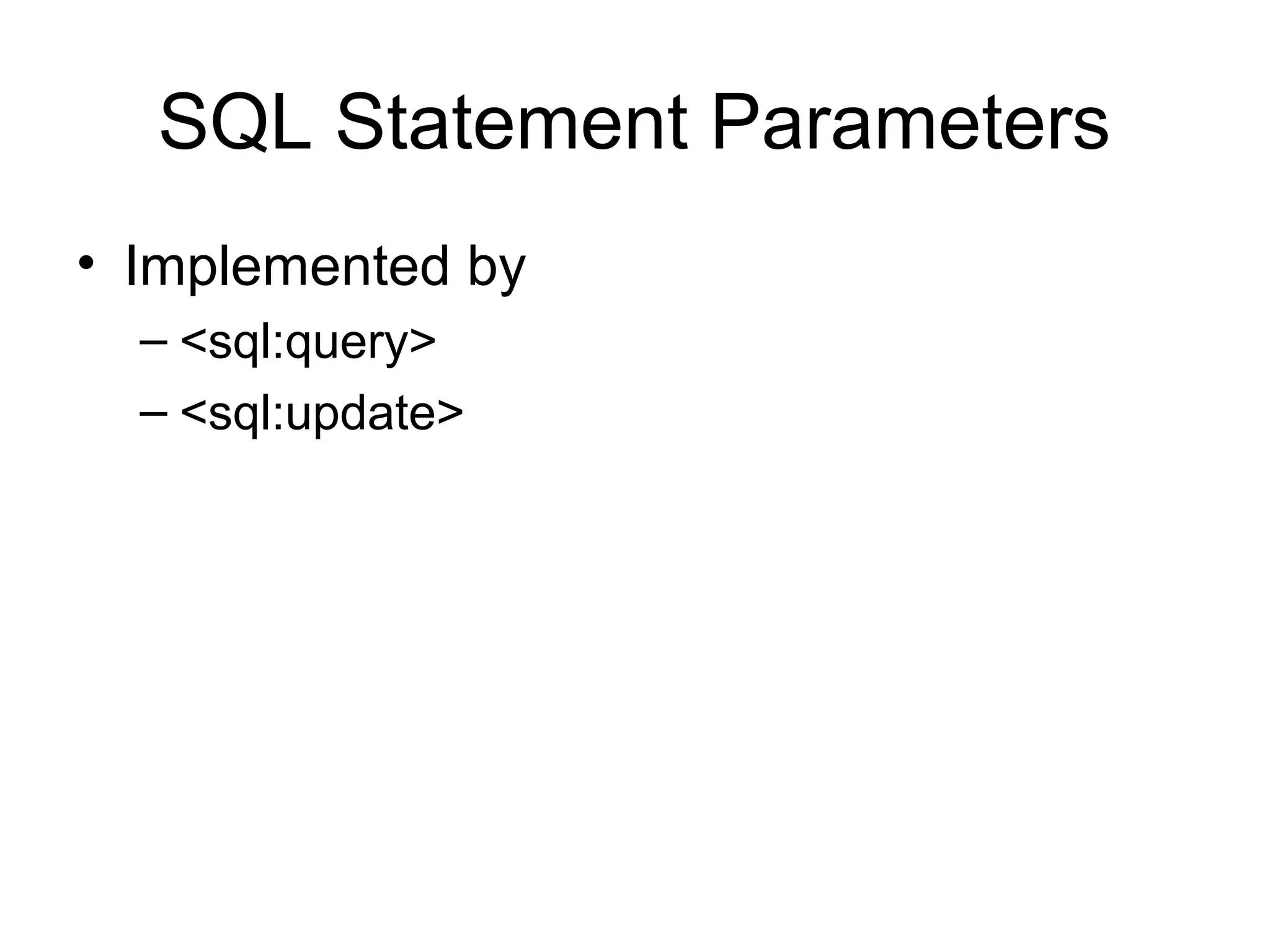

45. SQL Statement Parameters
• Implemented by
– <sql:query>
– <sql:update>

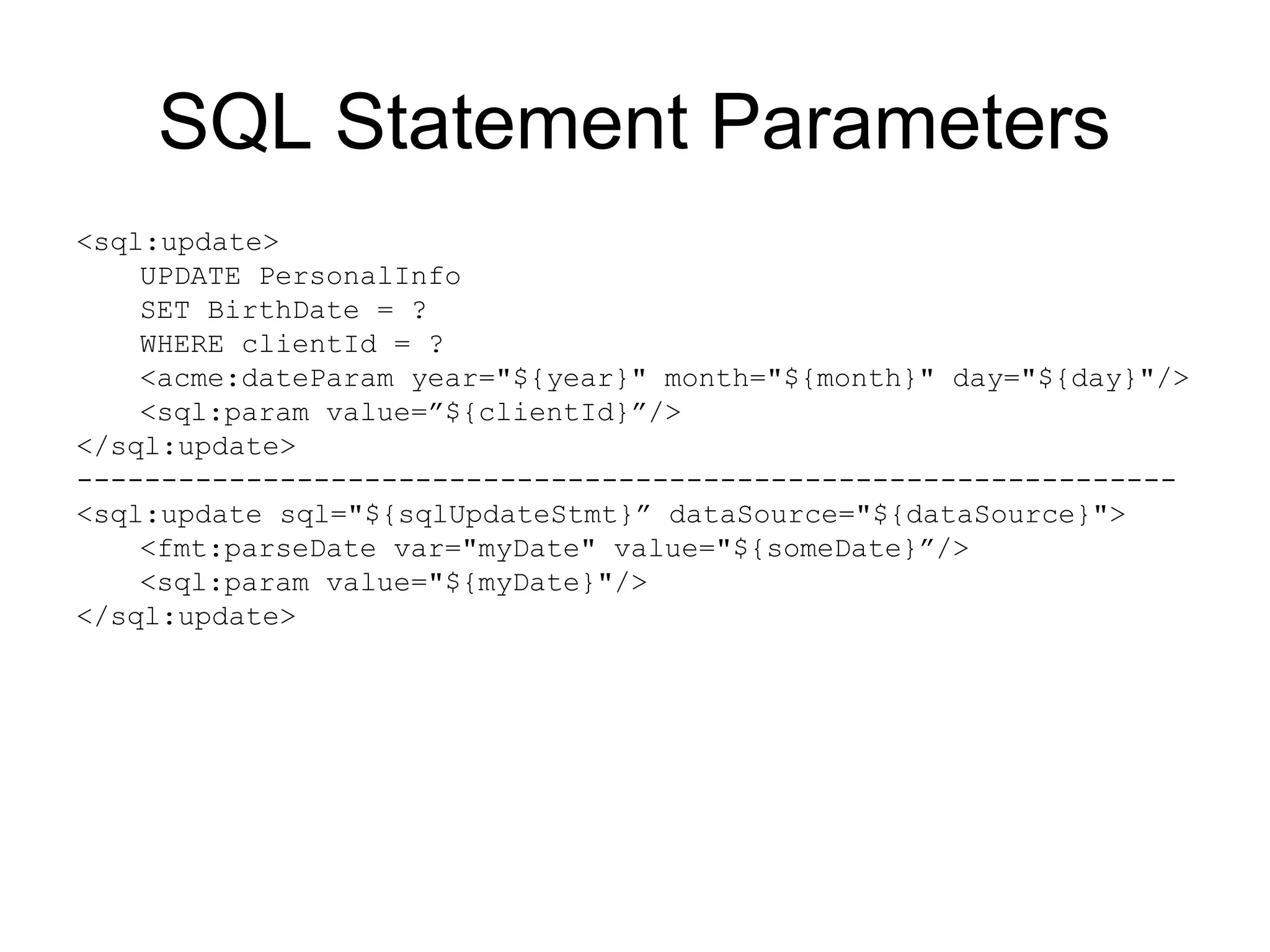

46. SQL Statement Parameters
<sql:update>
UPDATE PersonalInfo
SET BirthDate = ?
WHERE clientId = ?
<acme:dateParam year="${year}" month="${month}" day="${day}"/>
<sql:param value=”${clientId}”/>
</sql:update>
-----------------------------------------------------------------
<sql:update sql="${sqlUpdateStmt}” dataSource="${dataSource}">
<fmt:parseDate var="myDate" value="${someDate}”/>
<sql:param value="${myDate}"/>
</sql:update>

47. Database Access
• Implemented actions:
– <sql:query>
– <sql:update>
– <sql:transaction>
• DataSource attribute of the SQL action.
• DataSource name at the
“javax.servlet.jsp.jstl.sql.dataSource”
configuration setting:
– DataSource object
– String
• Retrieve the data source from the JNDI relative path
• JDBC parameters

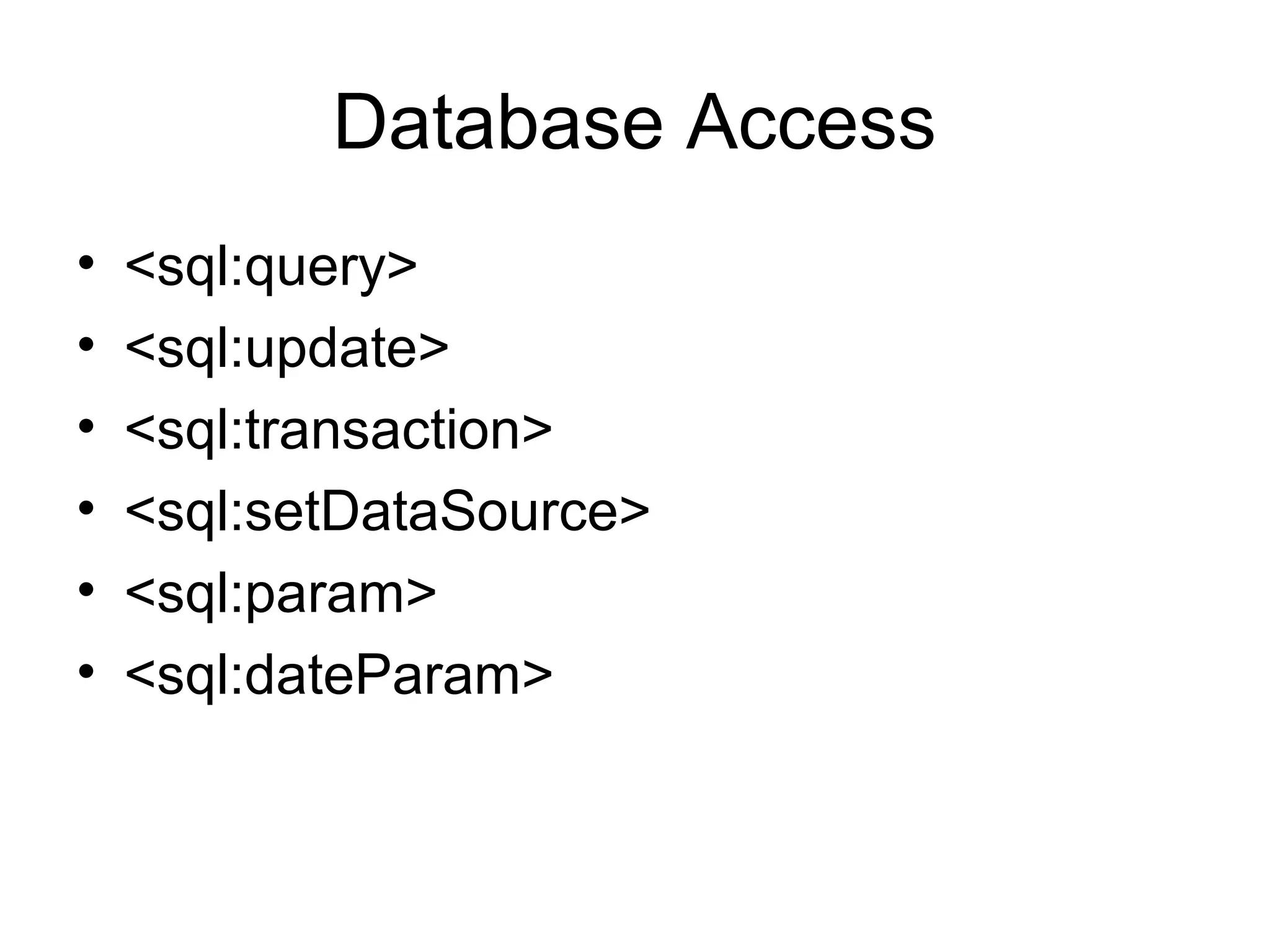

48. Database Access
• <sql:query>
• <sql:update>
• <sql:transaction>
• <sql:setDataSource>
• <sql:param>
• <sql:dateParam>

49. Configuration Settings

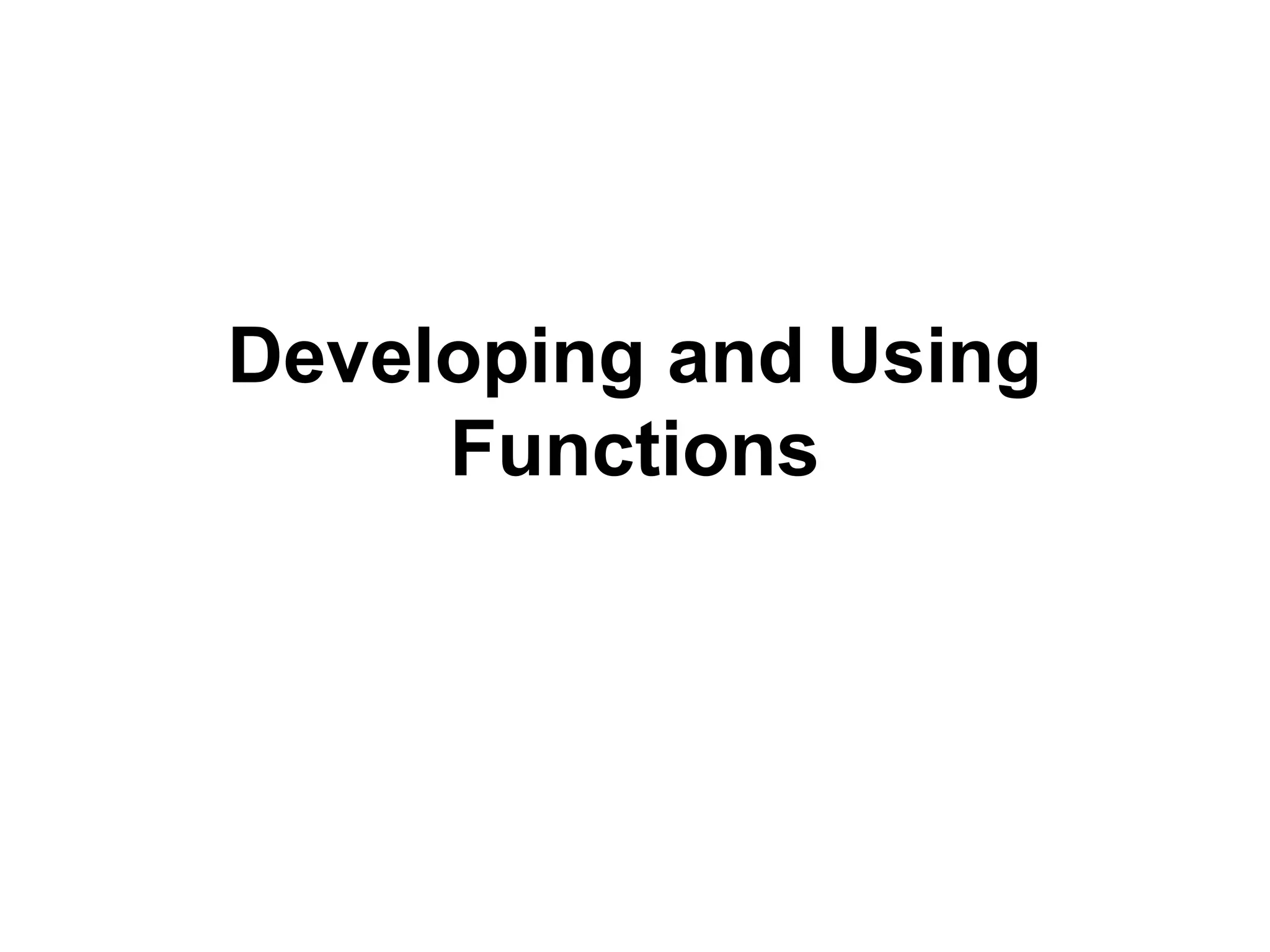

50. Developing and Using
Functions

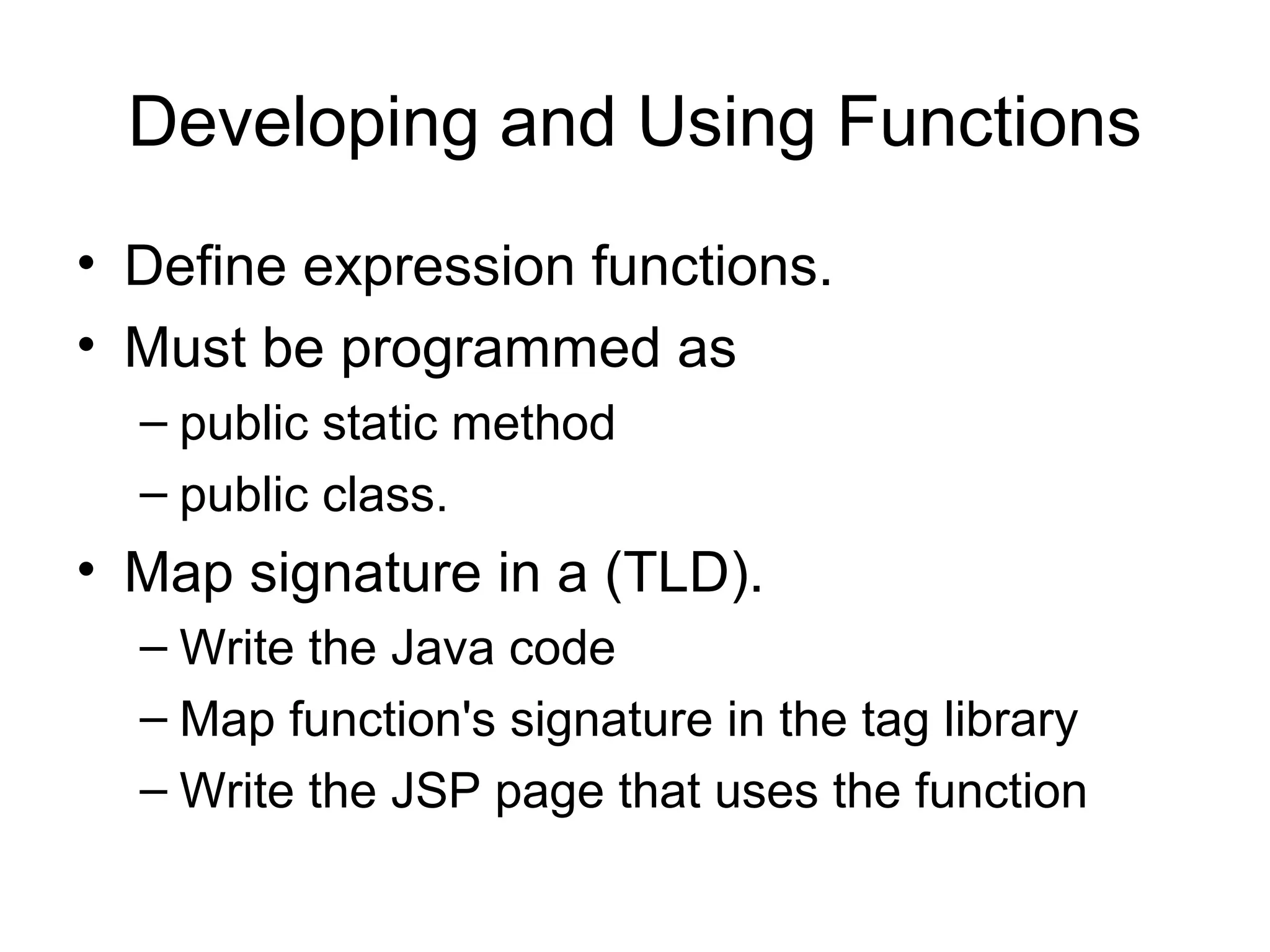

51. Developing and Using Functions
• Define expression functions.
• Must be programmed as
– public static method
– public class.
• Map signature in a (TLD).
– Write the Java code
– Map function's signature in the tag library
– Write the JSP page that uses the function

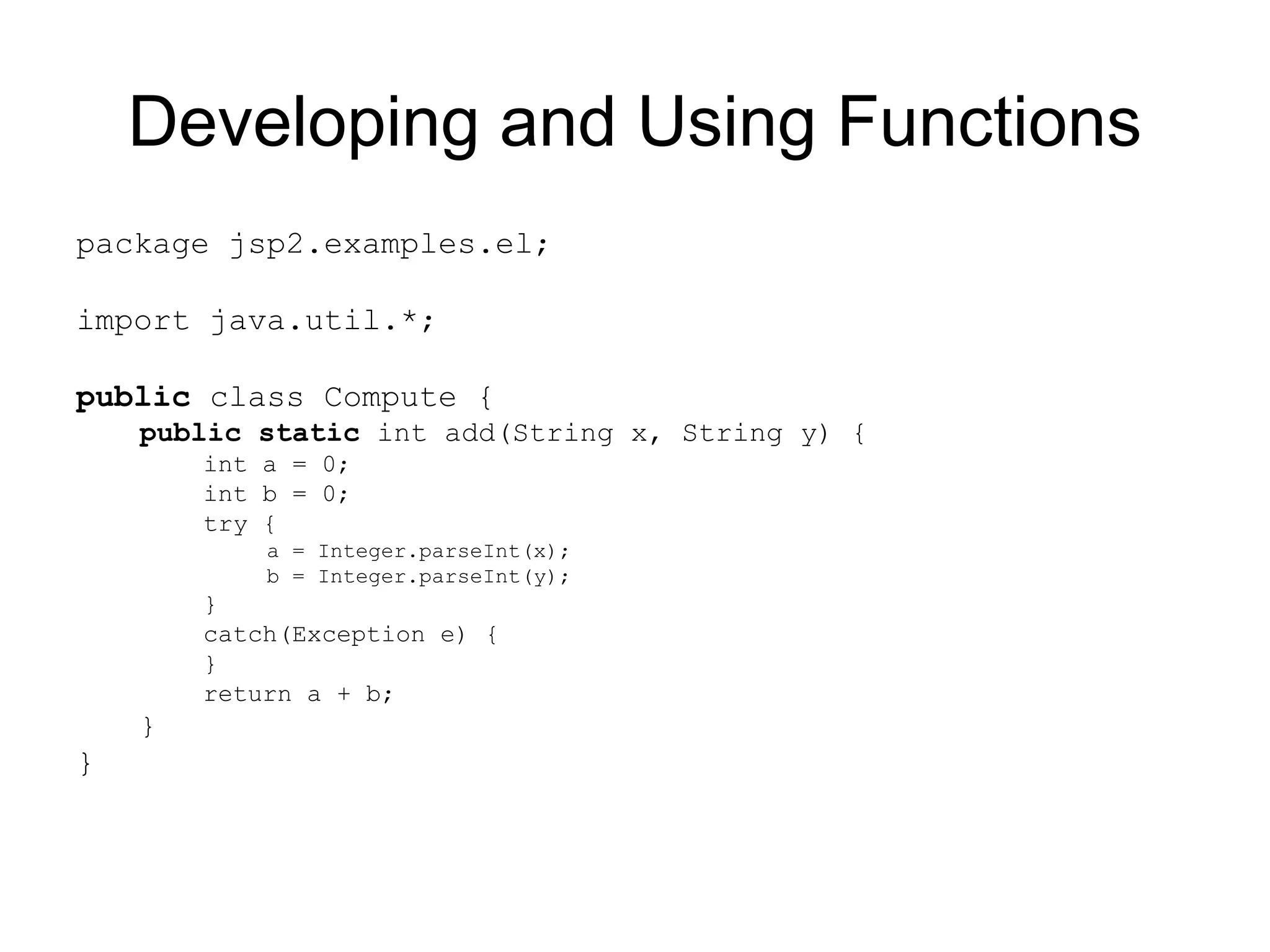

52. Developing and Using Functions
package jsp2.examples.el;
import java.util.*;
public class Compute {
public static int add(String x, String y) {
int a = 0;
int b = 0;
try {
a = Integer.parseInt(x);
b = Integer.parseInt(y);
}
catch(Exception e) {
}
return a + b;
}
}

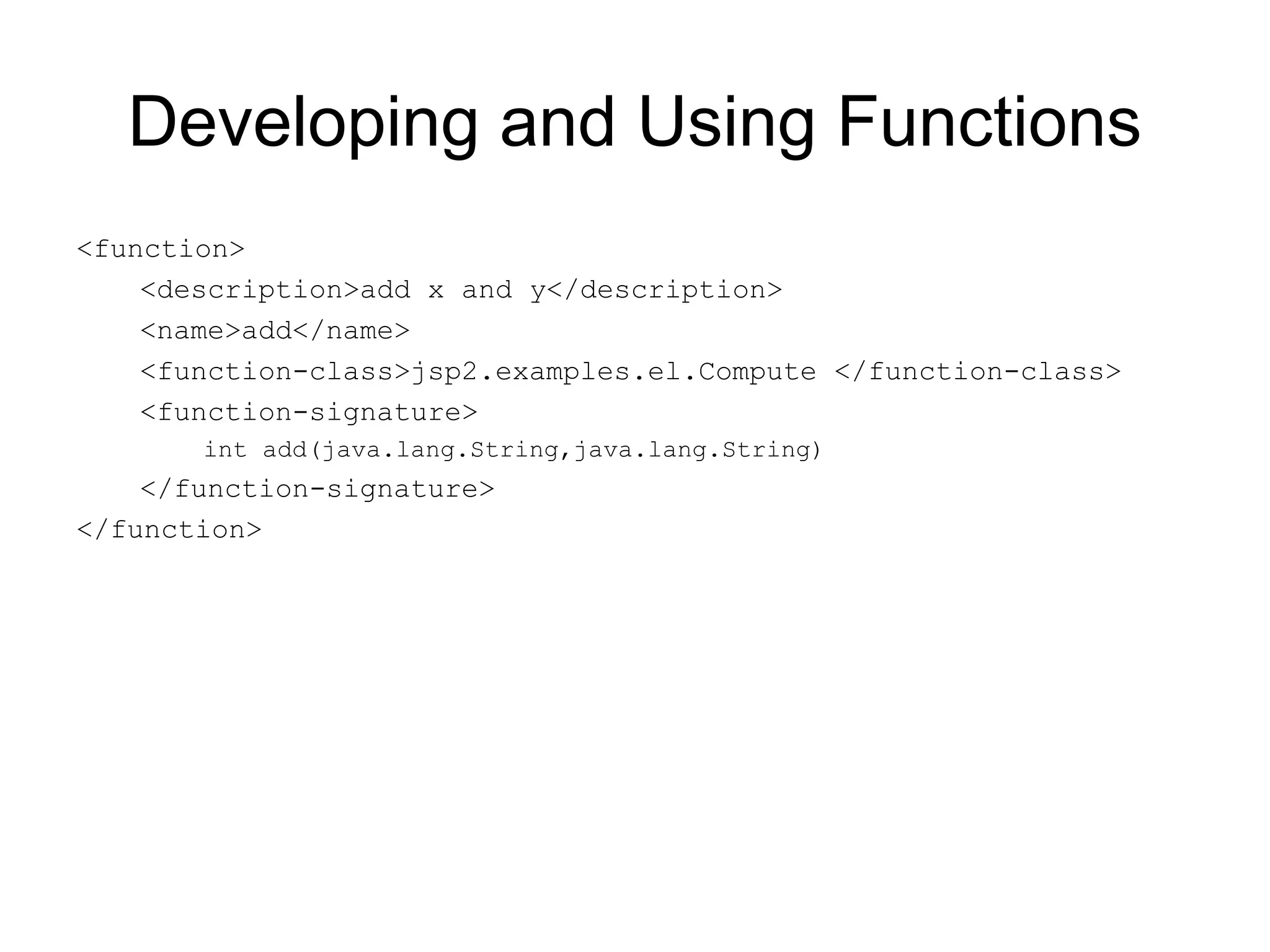

53. Developing and Using Functions
<function>
<description>add x and y</description>
<name>add</name>
<function-class>jsp2.examples.el.Compute </function-class>
<function-signature>
int add(java.lang.String,java.lang.String)
</function-signature>
</function>

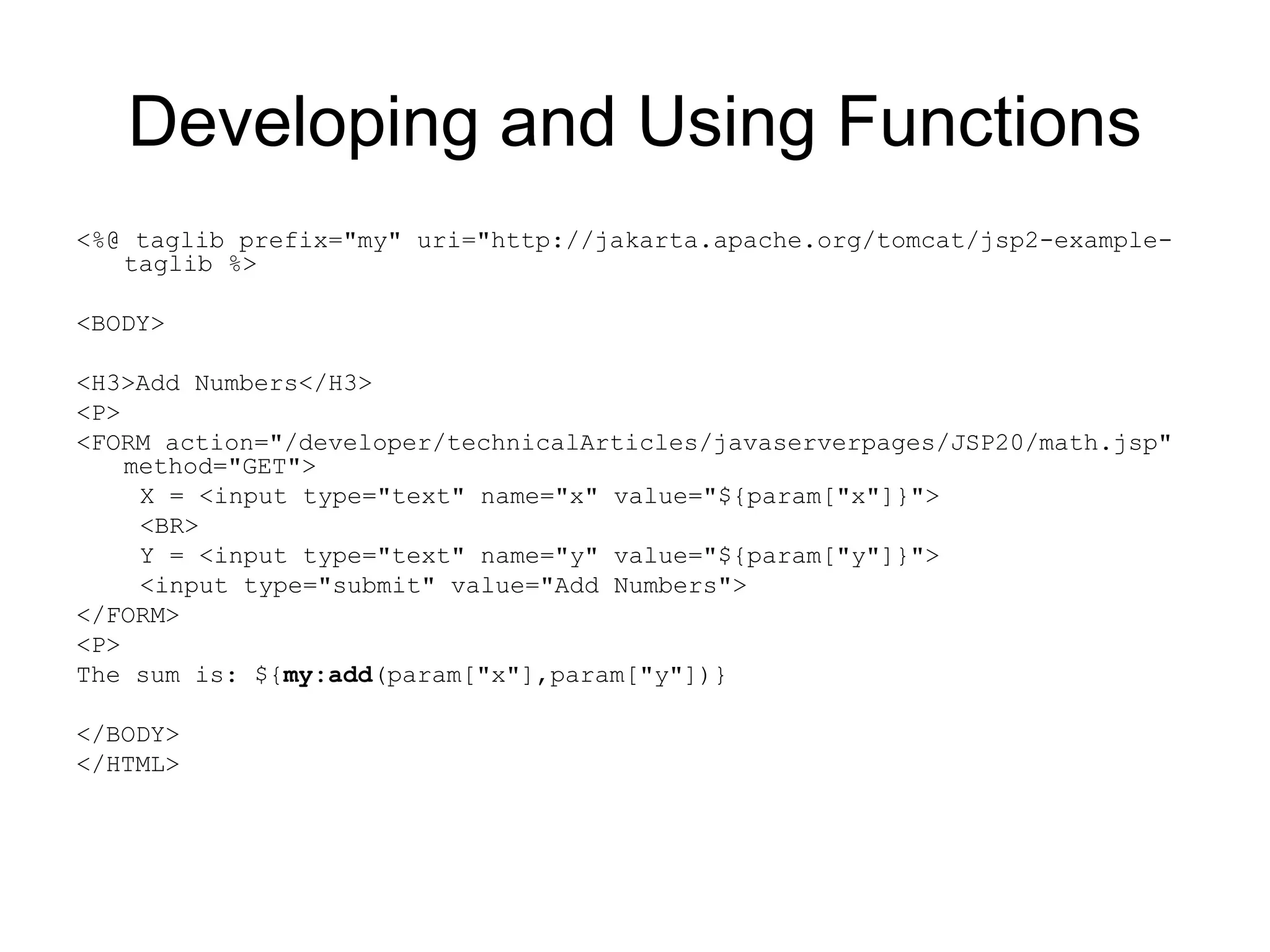

54. Developing and Using Functions
<%@ taglib prefix="my" uri="http://jakarta.apache.org/tomcat/jsp2-example-
taglib %>
<BODY>
<H3>Add Numbers</H3>
<P>
<FORM action="/developer/technicalArticles/javaserverpages/JSP20/math.jsp"
method="GET">
X = <input type="text" name="x" value="${param["x"]}">
<BR>
Y = <input type="text" name="y" value="${param["y"]}">
<input type="submit" value="Add Numbers">
</FORM>
<P>
The sum is: ${my:add(param["x"],param["y"])}
</BODY>
</HTML>

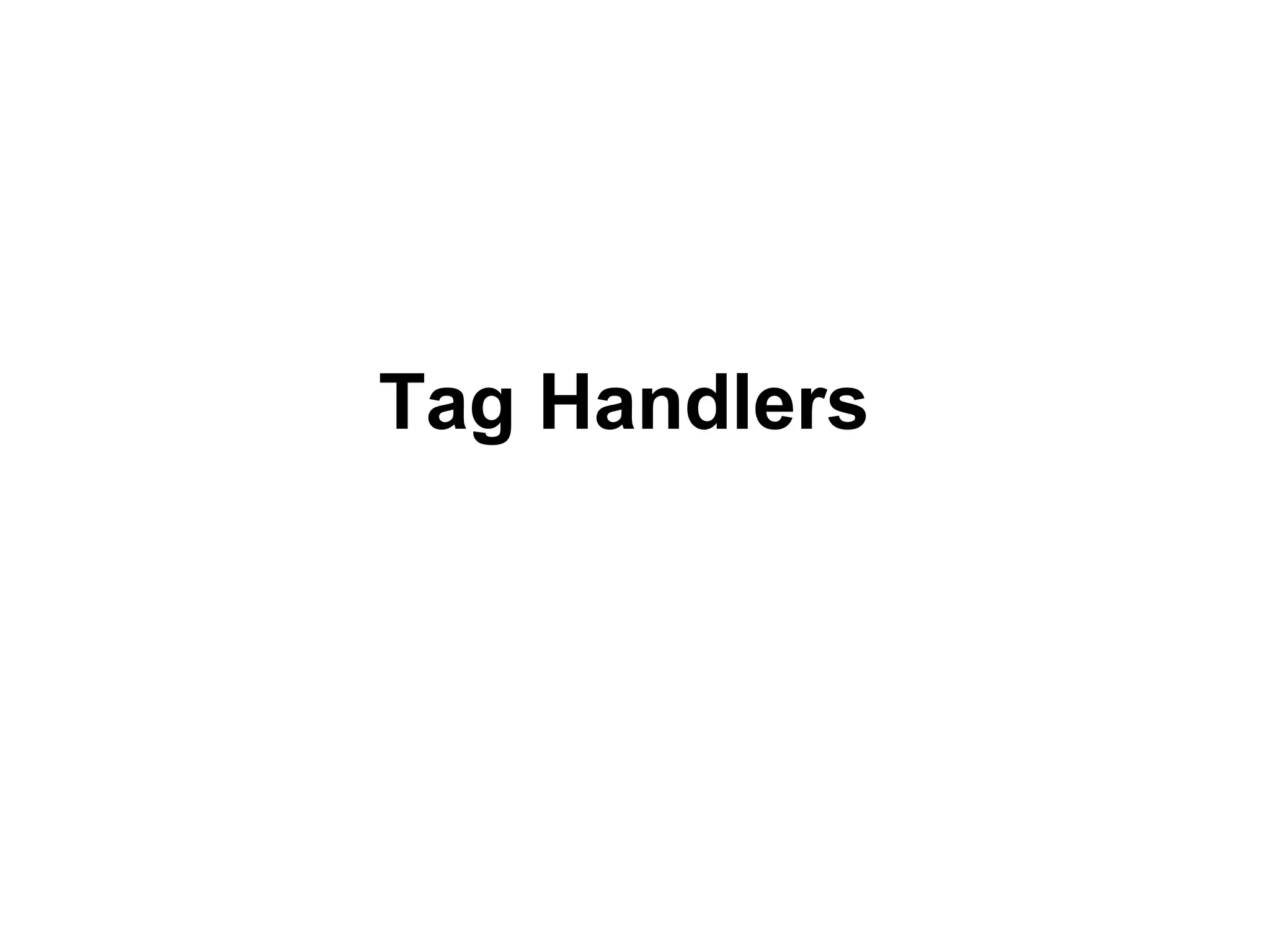

55. Tag Handlers

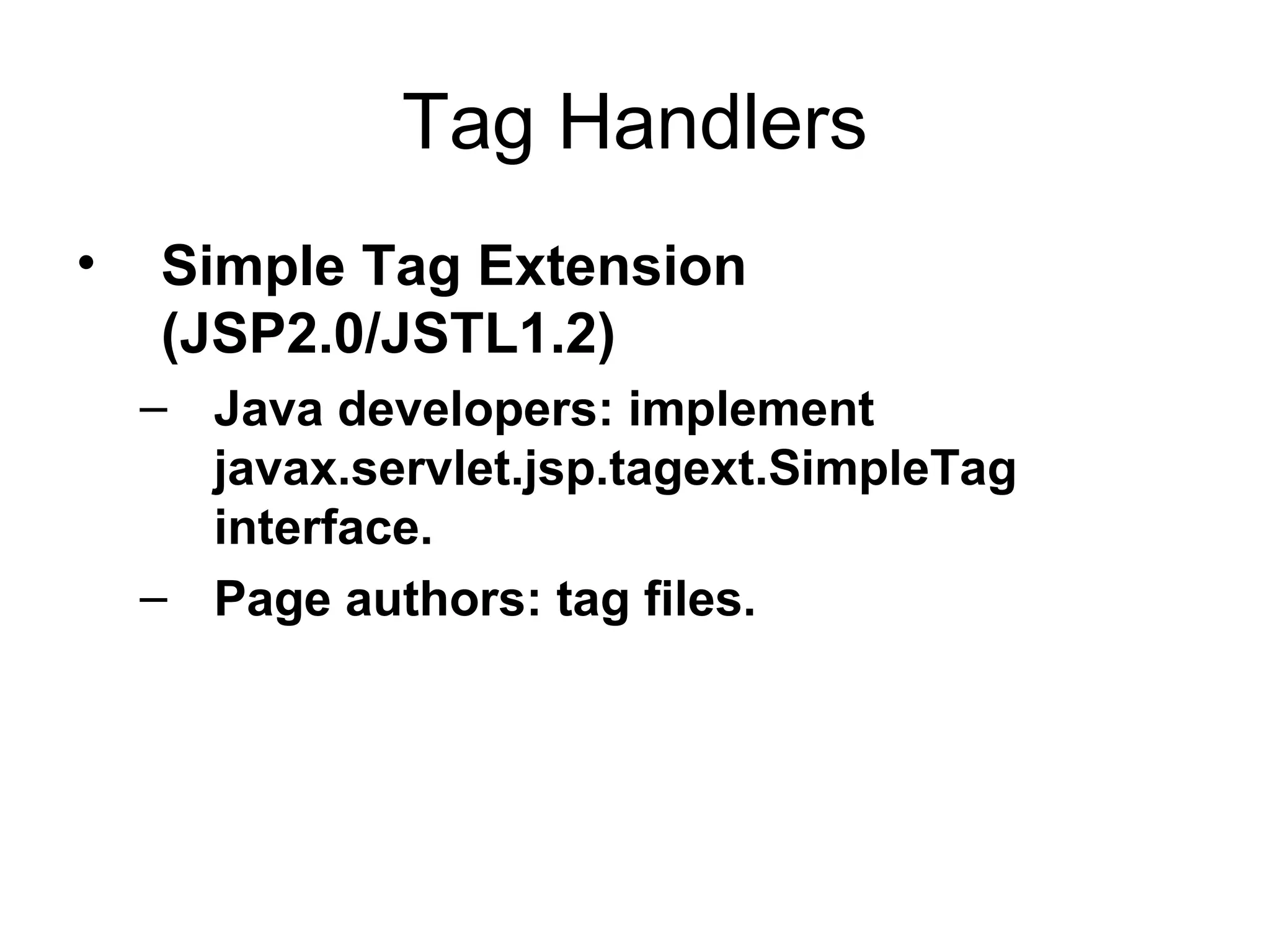

56. Tag Handlers
• Simple Tag Extension
(JSP2.0/JSTL1.2)
– Java developers: implement
javax.servlet.jsp.tagext.SimpleTag
interface.
– Page authors: tag files.

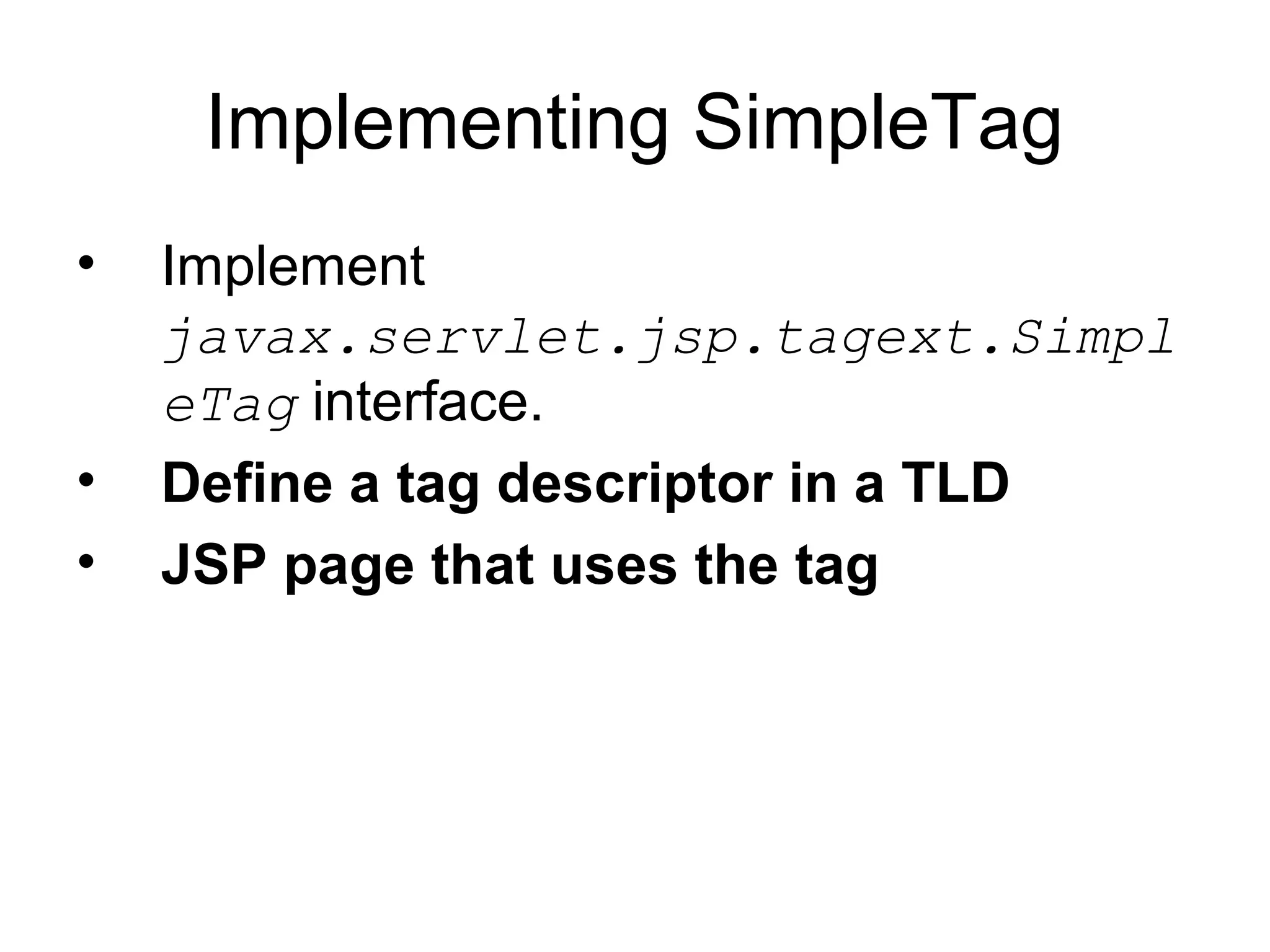

57. Implementing SimpleTag
• Implement
javax.servlet.jsp.tagext.Simpl
eTag interface.
• Define a tag descriptor in a TLD
• JSP page that uses the tag

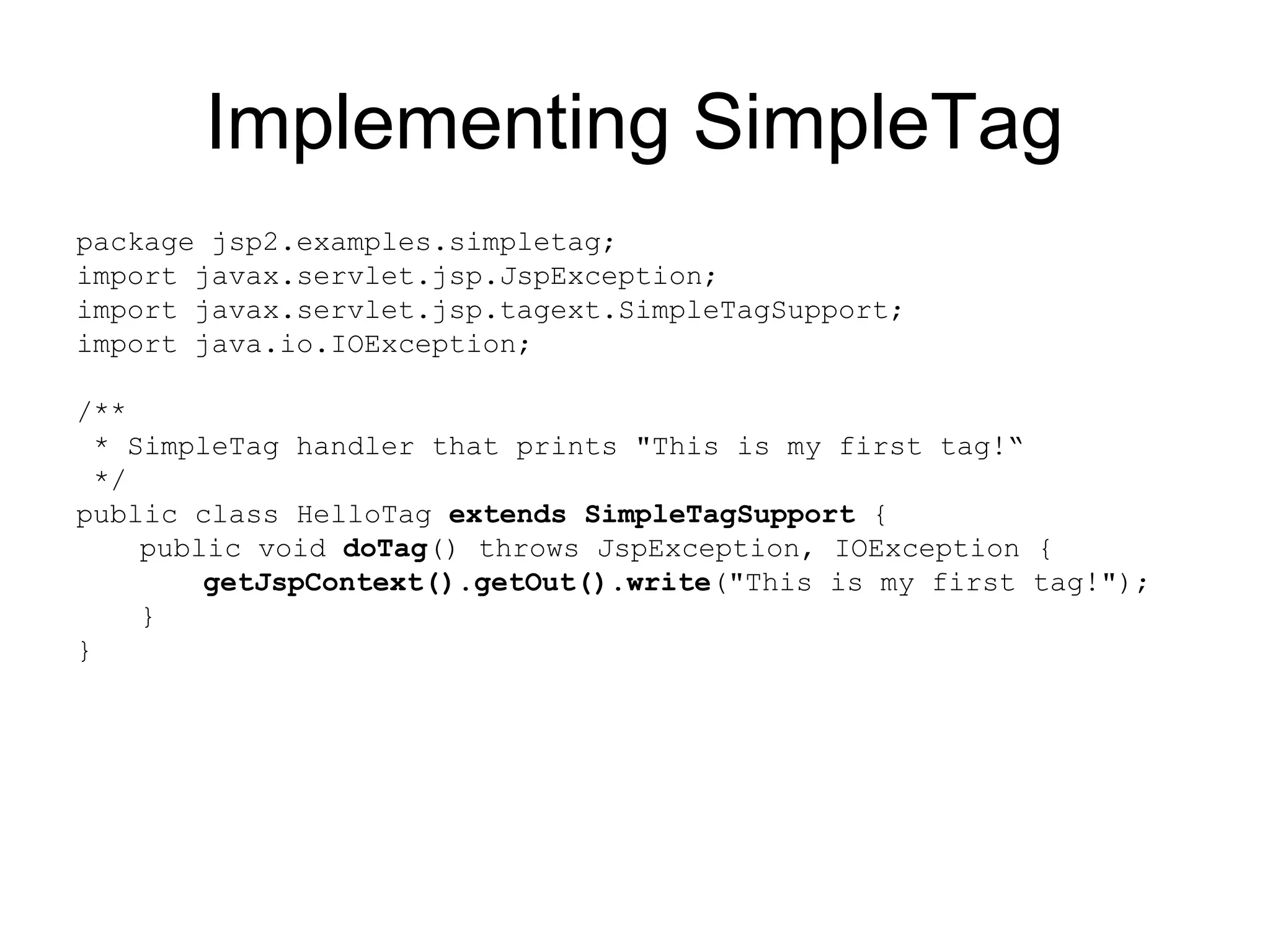

58. Implementing SimpleTag
package jsp2.examples.simpletag;
import javax.servlet.jsp.JspException;
import javax.servlet.jsp.tagext.SimpleTagSupport;
import java.io.IOException;
/**
* SimpleTag handler that prints "This is my first tag!“
*/
public class HelloTag extends SimpleTagSupport {
public void doTag() throws JspException, IOException {
getJspContext().getOut().write("This is my first tag!");
}
}

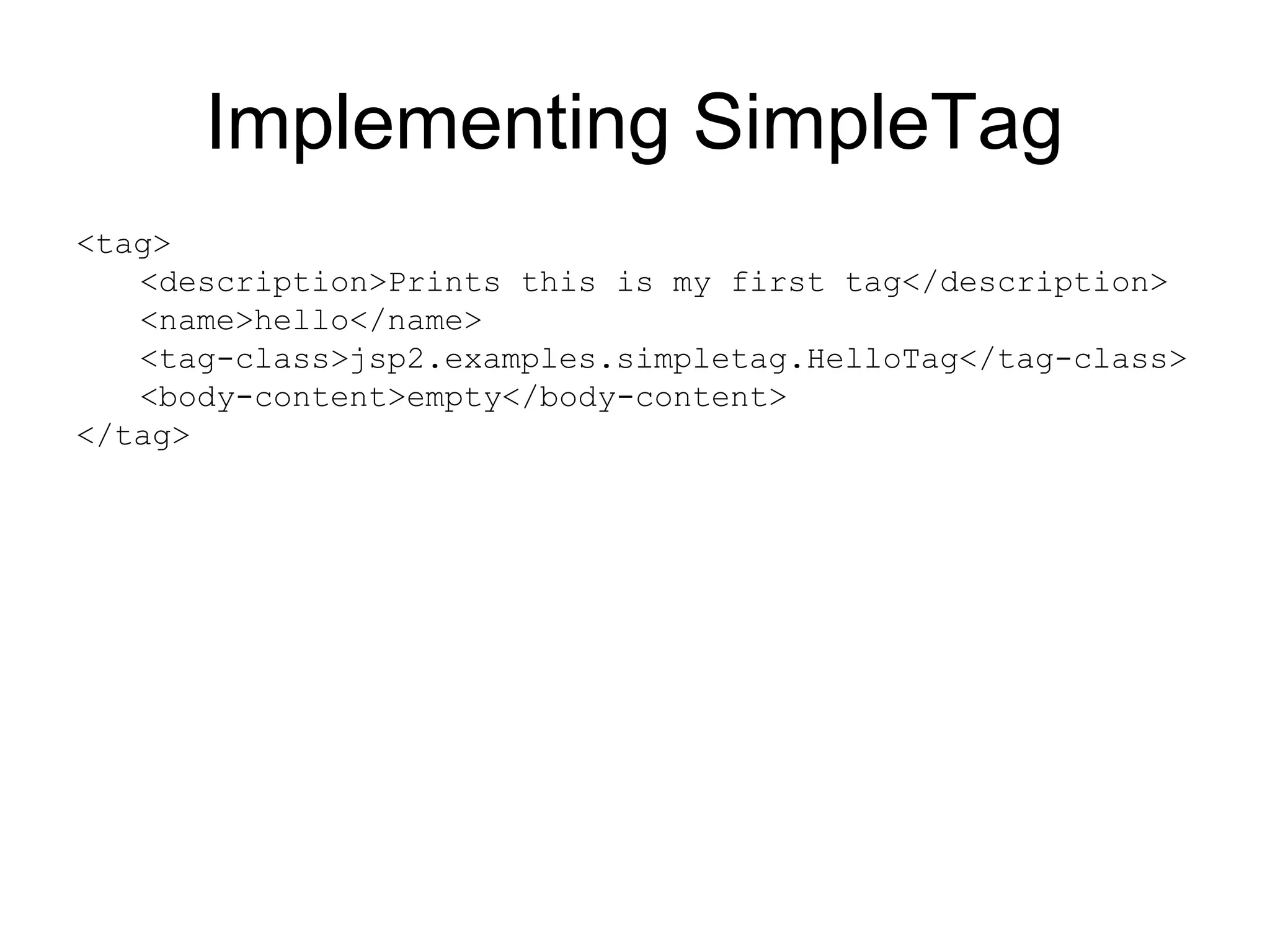

59. Implementing SimpleTag
<tag>
<description>Prints this is my first tag</description>
<name>hello</name>
<tag-class>jsp2.examples.simpletag.HelloTag</tag-class>
<body-content>empty</body-content>
</tag>

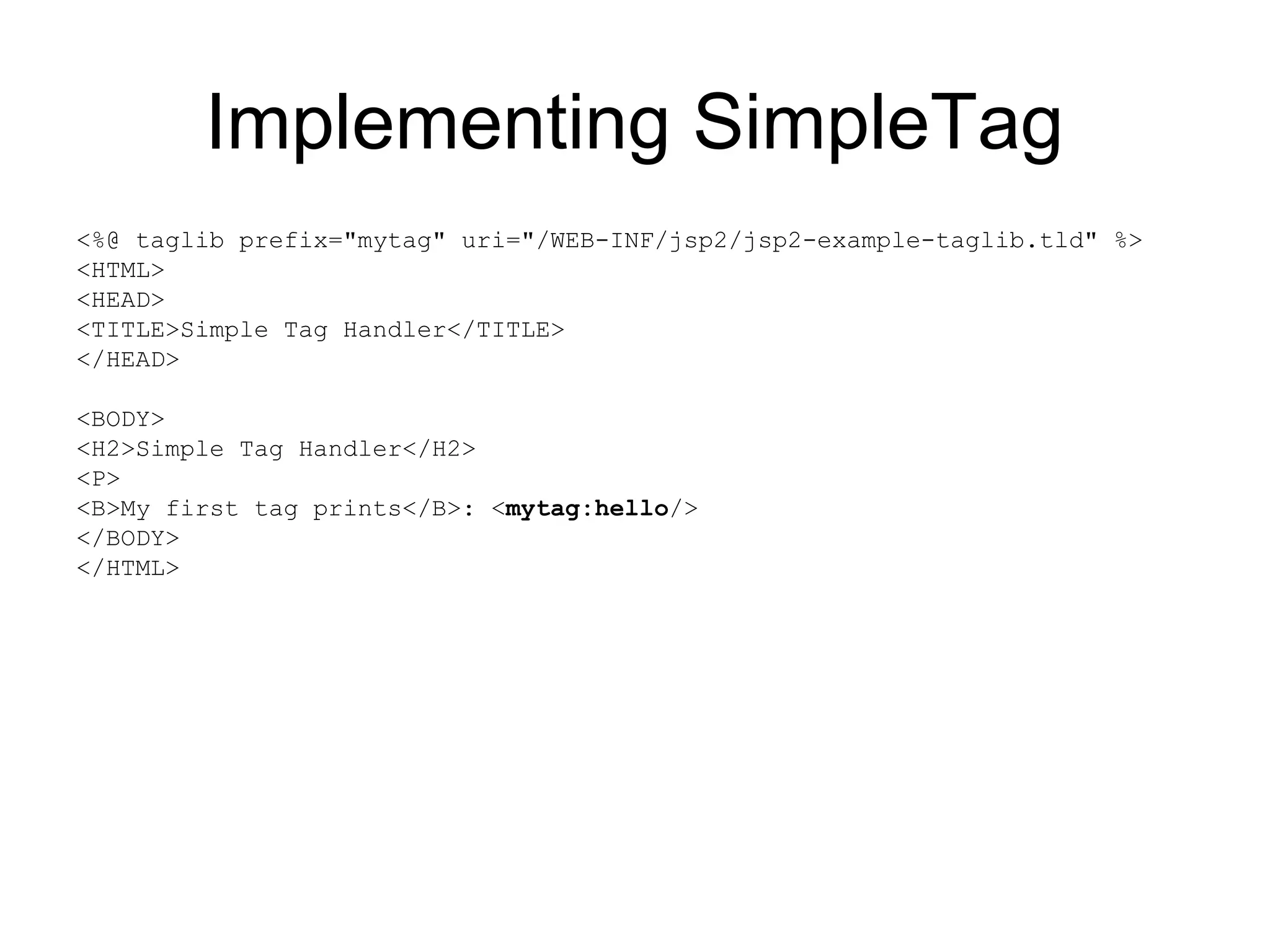

60. Implementing SimpleTag
<%@ taglib prefix="mytag" uri="/WEB-INF/jsp2/jsp2-example-taglib.tld" %>
<HTML>
<HEAD>
<TITLE>Simple Tag Handler</TITLE>
</HEAD>
<BODY>
<H2>Simple Tag Handler</H2>
<P>
<B>My first tag prints</B>: <mytag:hello/>
</BODY>
</HTML>

61. Tag File

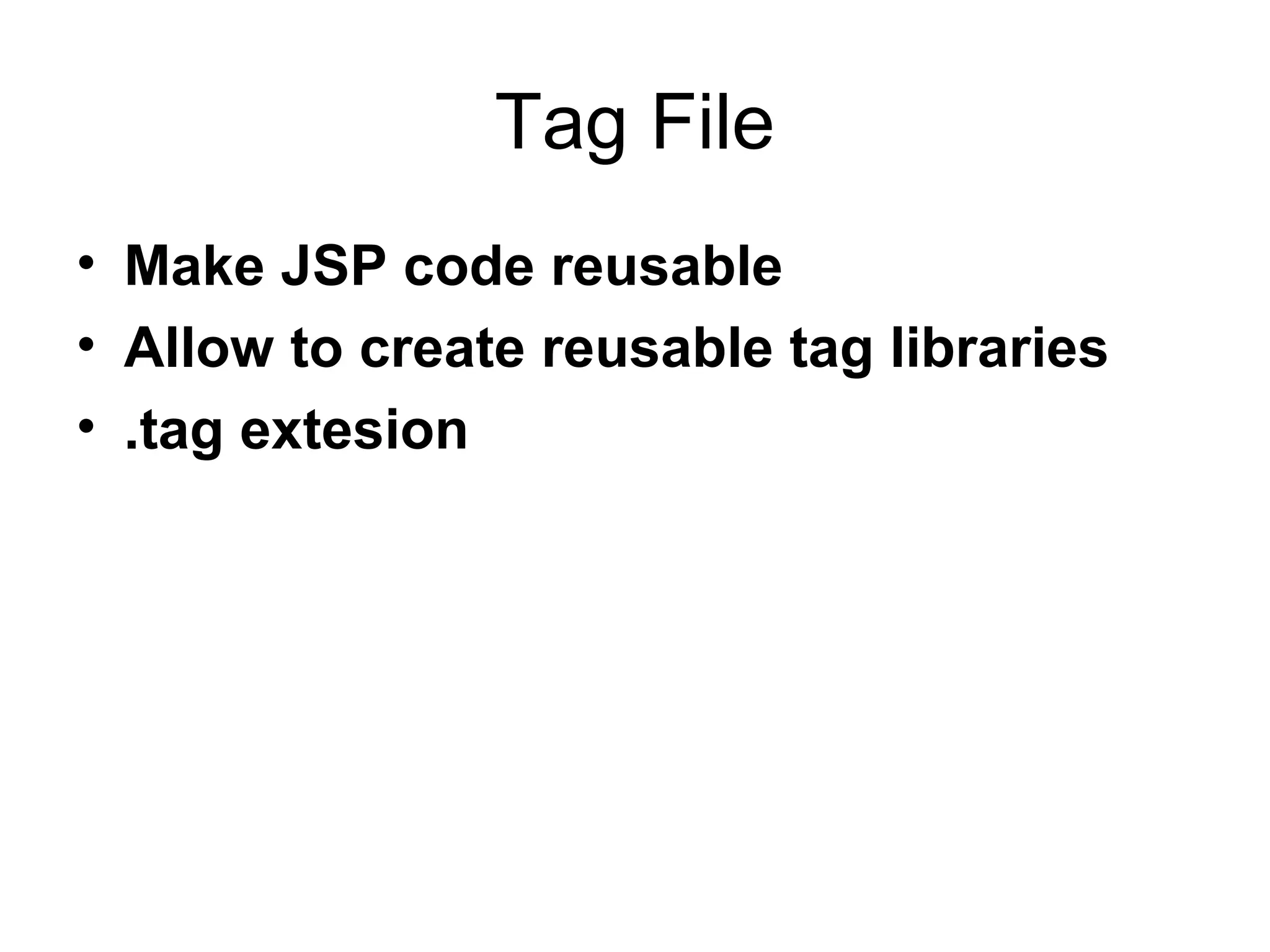

62. Tag File
• Make JSP code reusable
• Allow to create reusable tag libraries
• .tag extesion

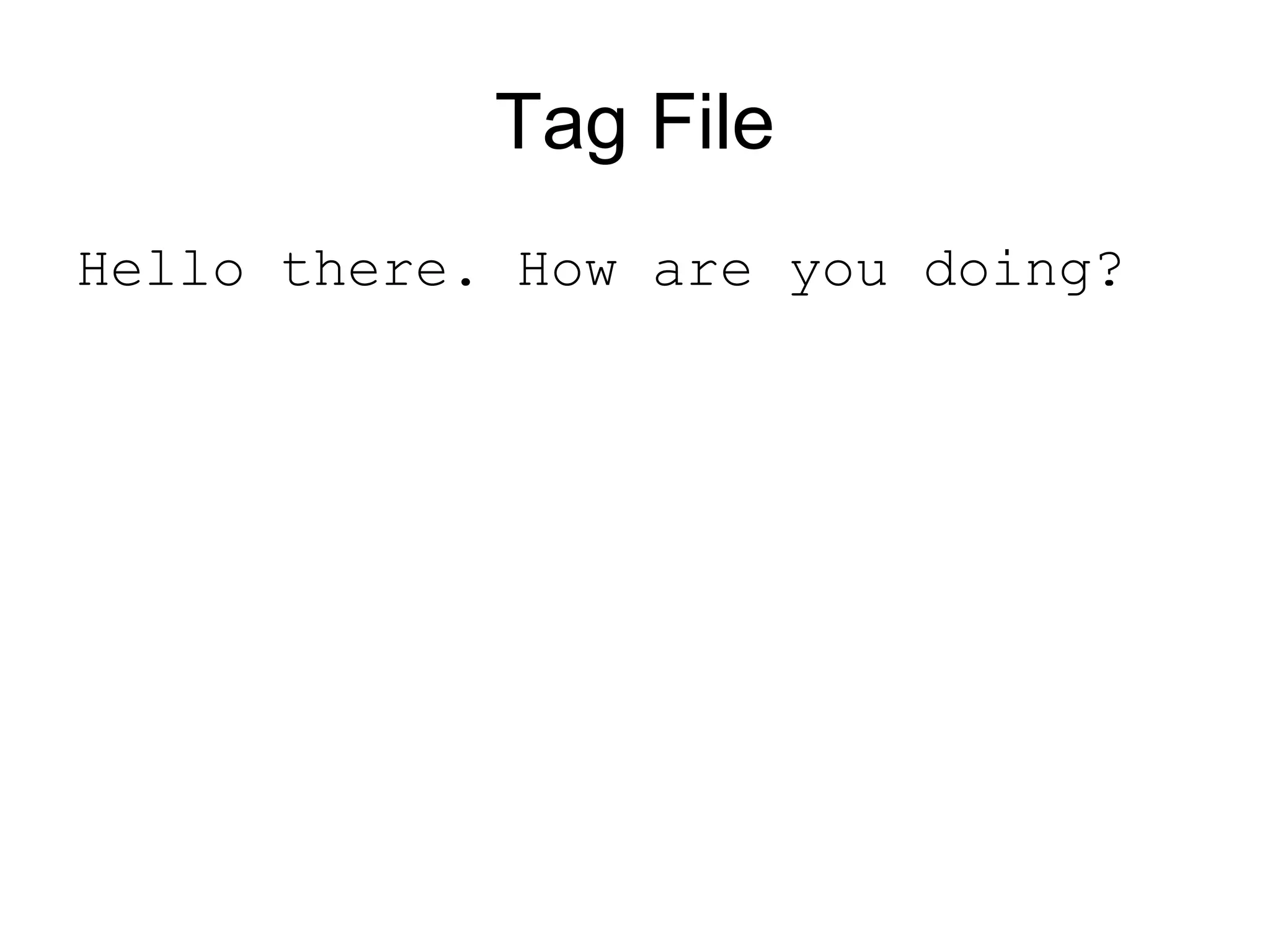

63. Tag File
Hello there. How are you doing?

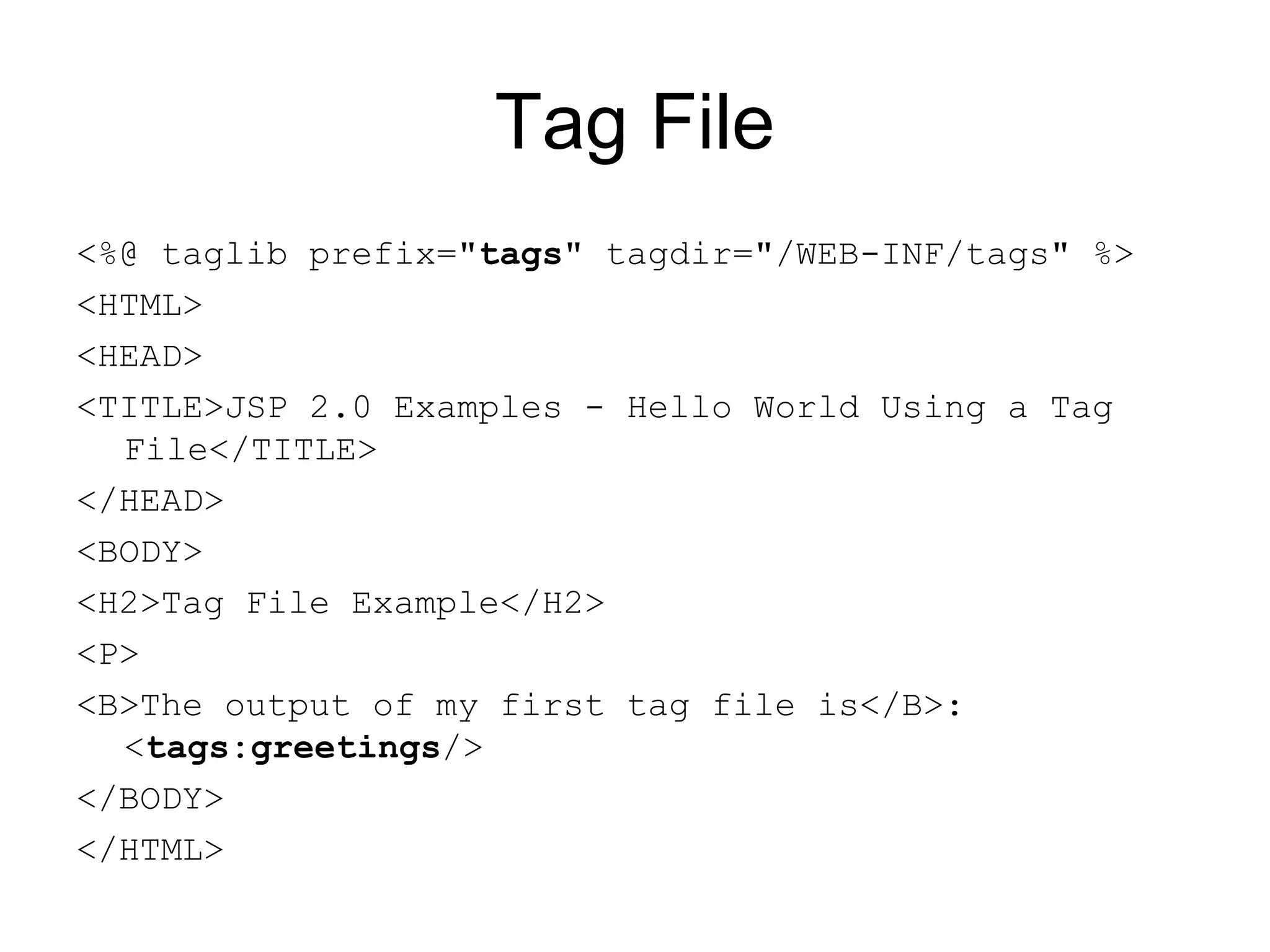

64. Tag File
<%@ taglib prefix="tags" tagdir="/WEB-INF/tags" %>
<HTML>
<HEAD>
<TITLE>JSP 2.0 Examples - Hello World Using a Tag
File</TITLE>
</HEAD>
<BODY>
<H2>Tag File Example</H2>
<P>
<B>The output of my first tag file is</B>:
<tags:greetings/>
</BODY>
</HTML>

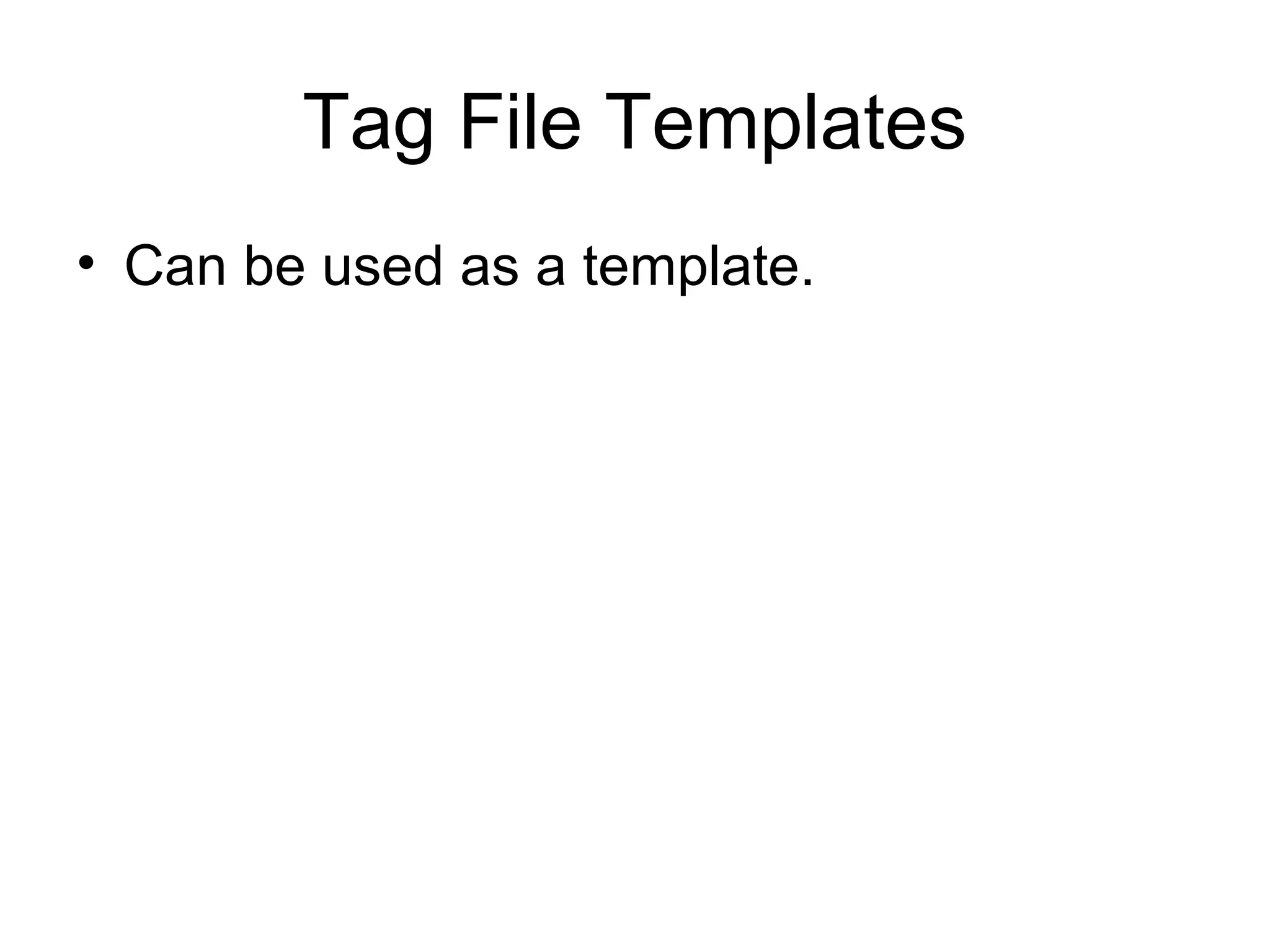

65. Tag File Templates
• Can be used as a template.

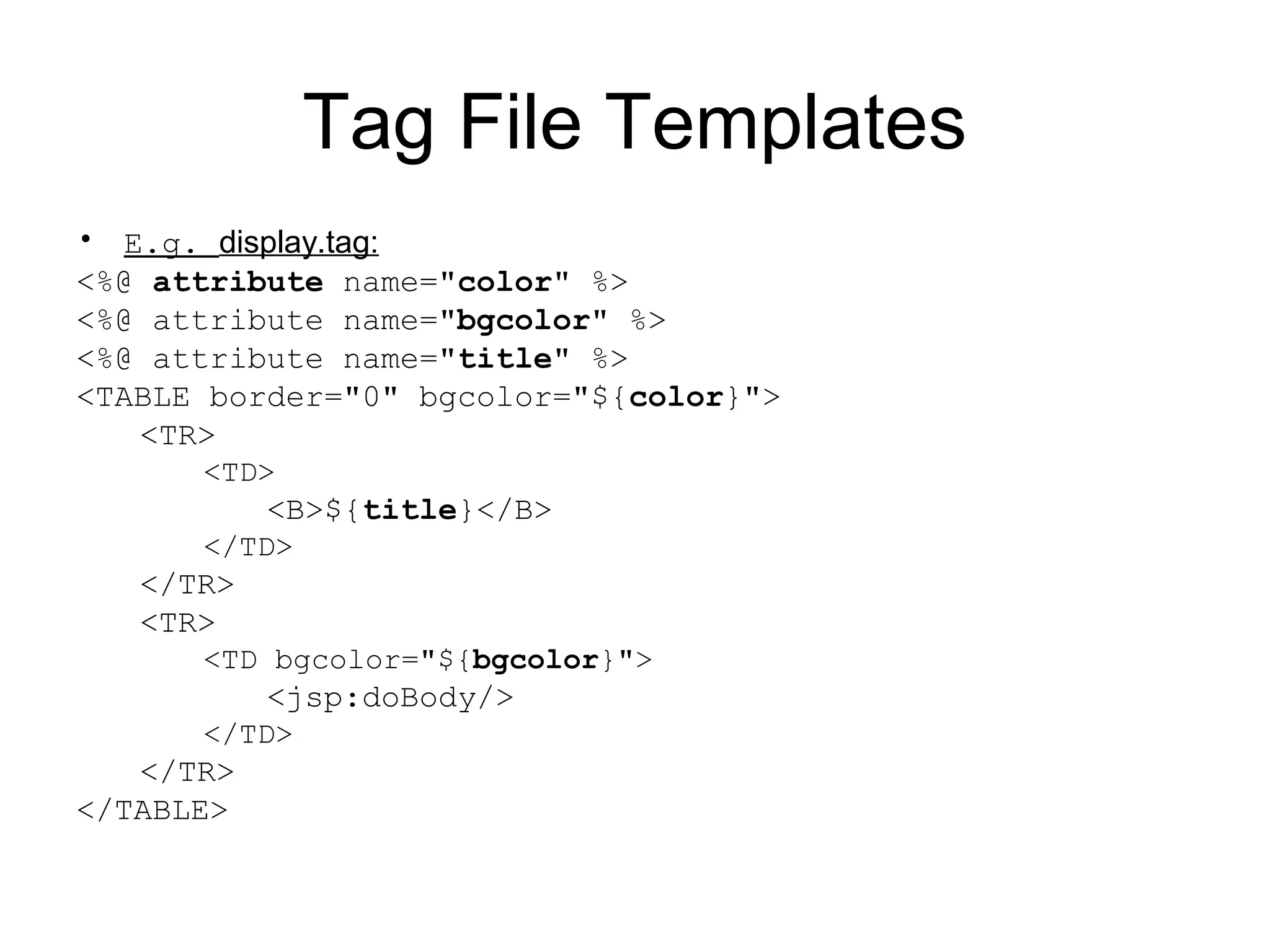

66. Tag File Templates
• E.g. display.tag:
<%@ attribute name="color" %>
<%@ attribute name="bgcolor" %>
<%@ attribute name="title" %>
<TABLE border="0" bgcolor="${color}">
<TR>
<TD>
<B>${title}</B>
</TD>
</TR>
<TR>
<TD bgcolor="${bgcolor}">
<jsp:doBody/>
</TD>
</TR>
</TABLE>

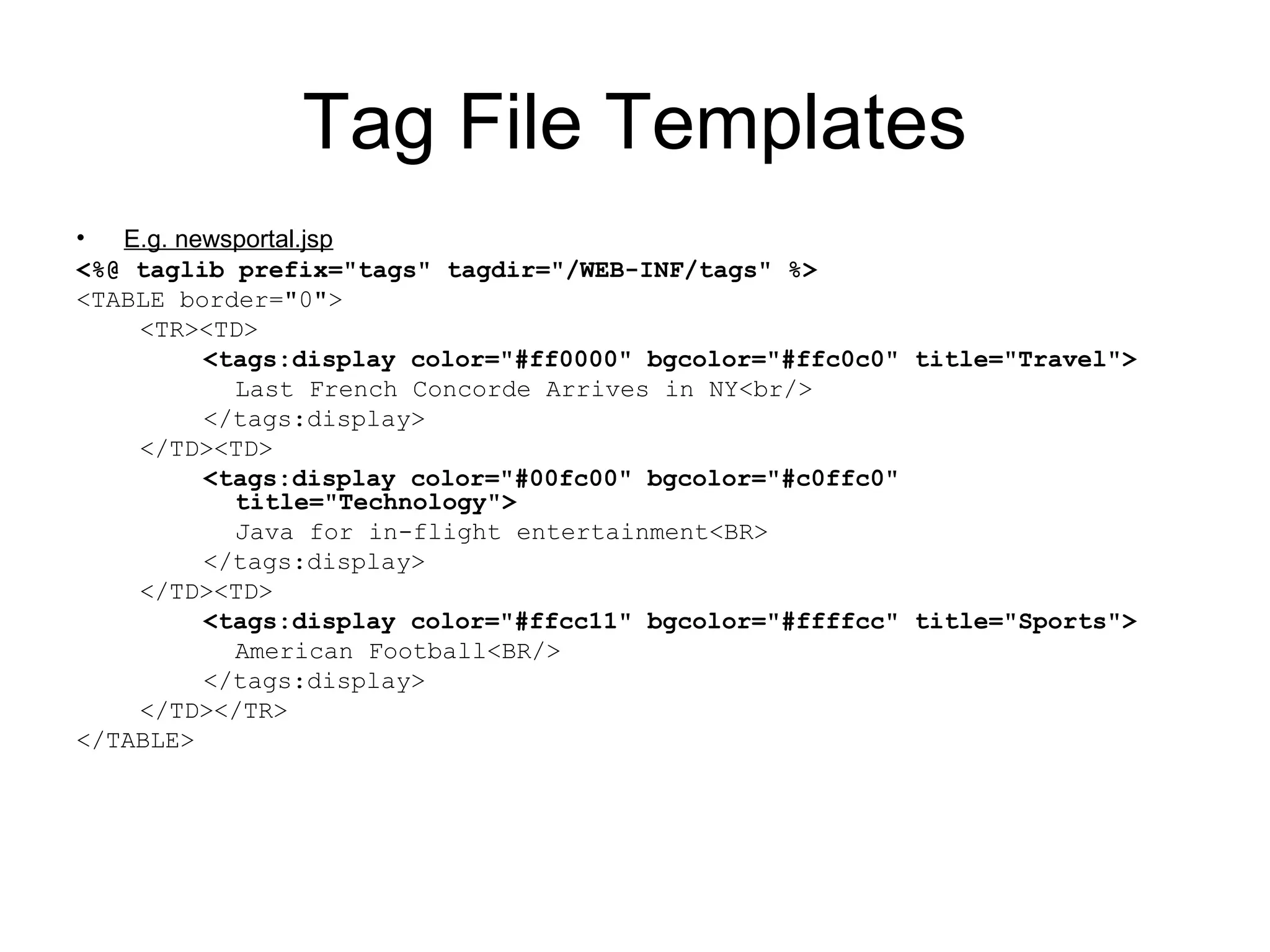

67. Tag File Templates
• E.g. newsportal.jsp
<%@ taglib prefix="tags" tagdir="/WEB-INF/tags" %>
<TABLE border="0">
<TR><TD>
<tags:display color="#ff0000" bgcolor="#ffc0c0" title="Travel">
Last French Concorde Arrives in NY<br/>
</tags:display>
</TD><TD>
<tags:display color="#00fc00" bgcolor="#c0ffc0"
title="Technology">
Java for in-flight entertainment<BR>
</tags:display>
</TD><TD>
<tags:display color="#ffcc11" bgcolor="#ffffcc" title="Sports">
American Football<BR/>
</tags:display>
</TD></TR>
</TABLE>

68. I18N capable formatting tag
library
http://java.sun.com/jstl/fmt

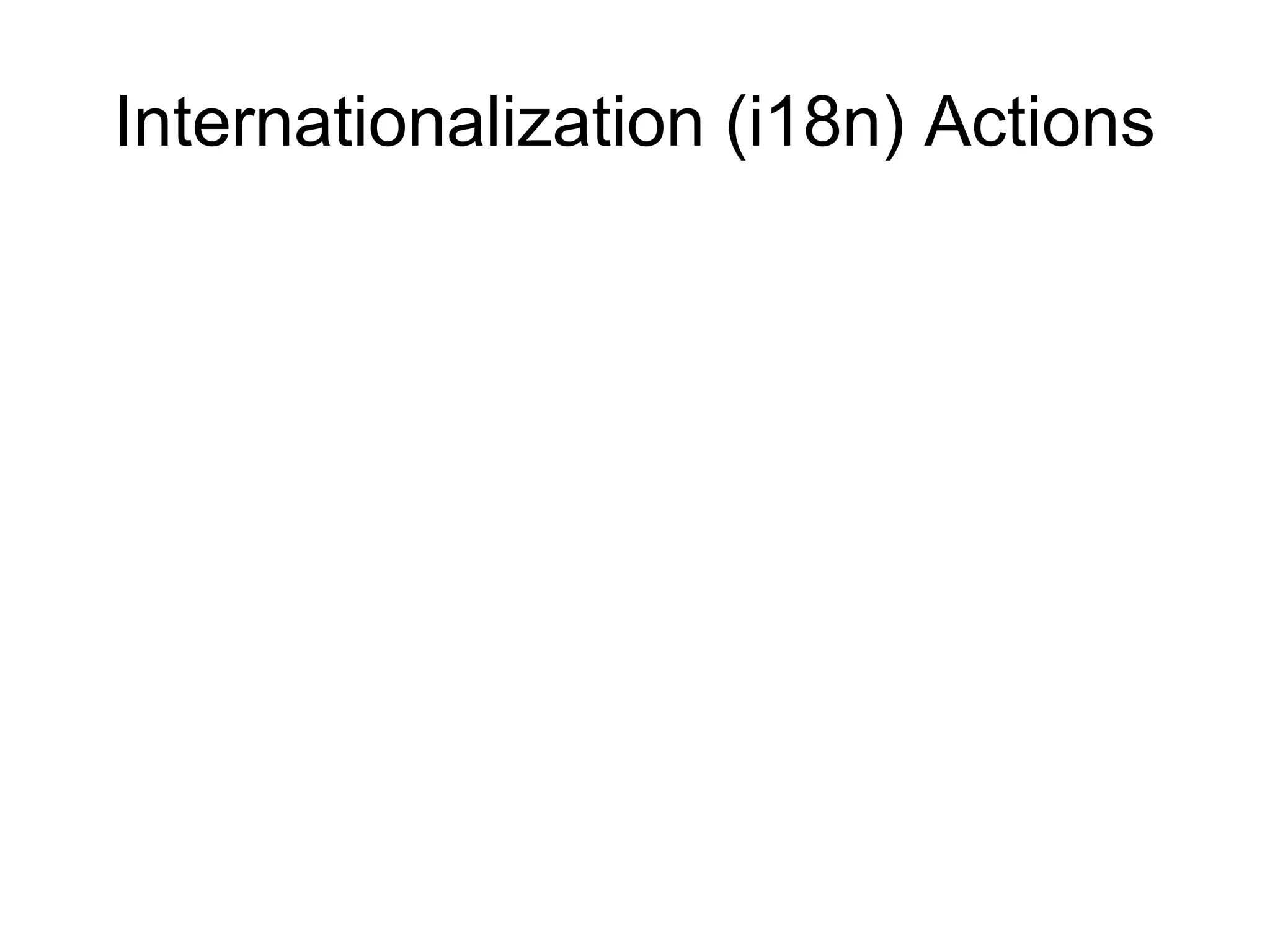

69. Internationalization (i18n) Actions

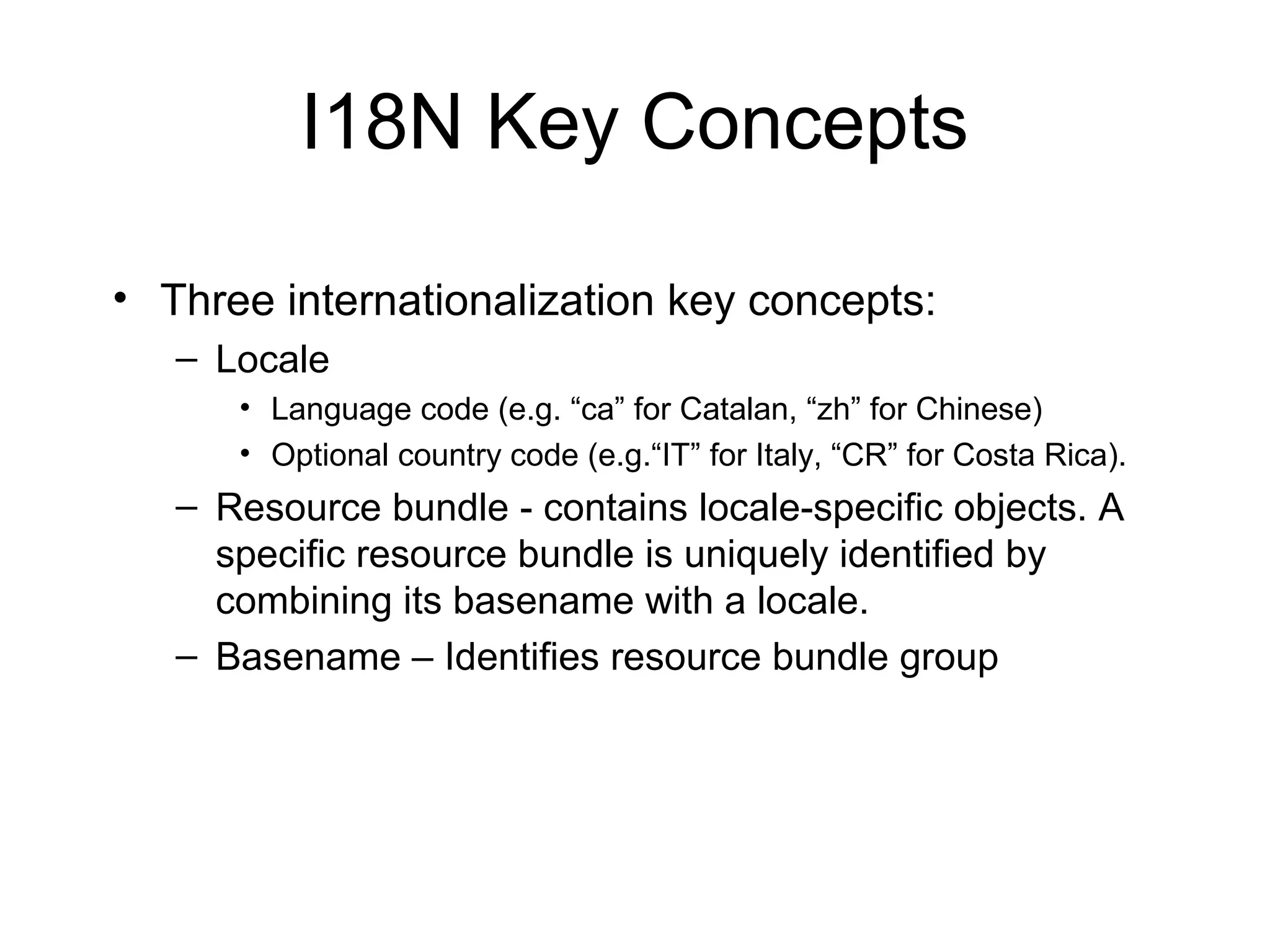

70. I18N Key Concepts
• Three internationalization key concepts:
– Locale
• Language code (e.g. “ca” for Catalan, “zh” for Chinese)
• Optional country code (e.g.“IT” for Italy, “CR” for Costa Rica).
– Resource bundle - contains locale-specific objects. A
specific resource bundle is uniquely identified by
combining its basename with a locale.
– Basename – Identifies resource bundle group

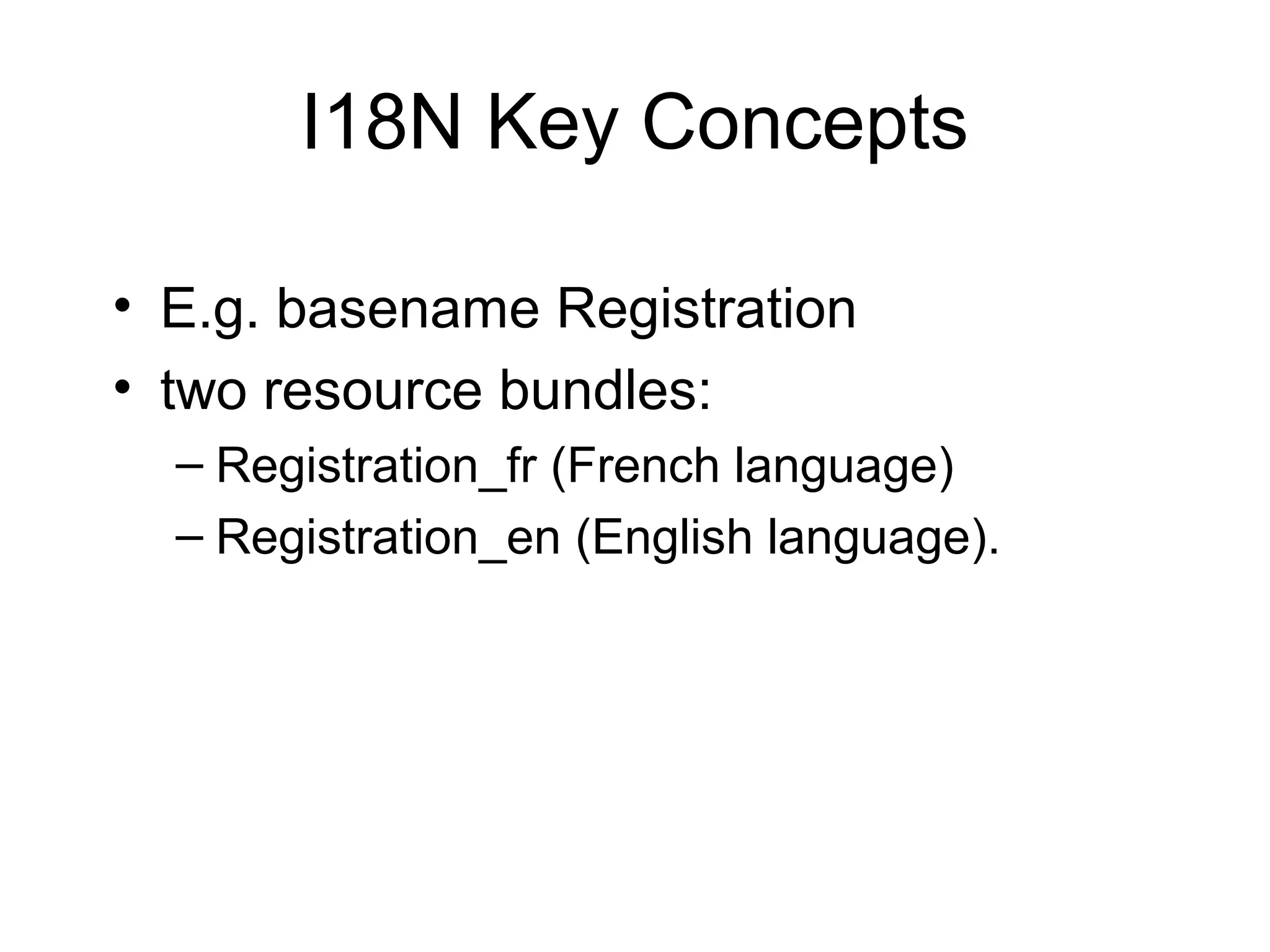

71. I18N Key Concepts
• E.g. basename Registration
• two resource bundles:
– Registration_fr (French language)
– Registration_en (English language).

72. <fmt:message>
• <fmt:message> - I18N a message
– <fmt:param> - Supports message variables.

73. <fmt:message>
<fmt:message key="greeting"/>
------------------------------------------------
---
<fmt:message key="athletesRegistered">
<fmt:param>
<fmt:formatNumber value=”${athletesCount}”/>
</fmt:param>
</fmt:message>

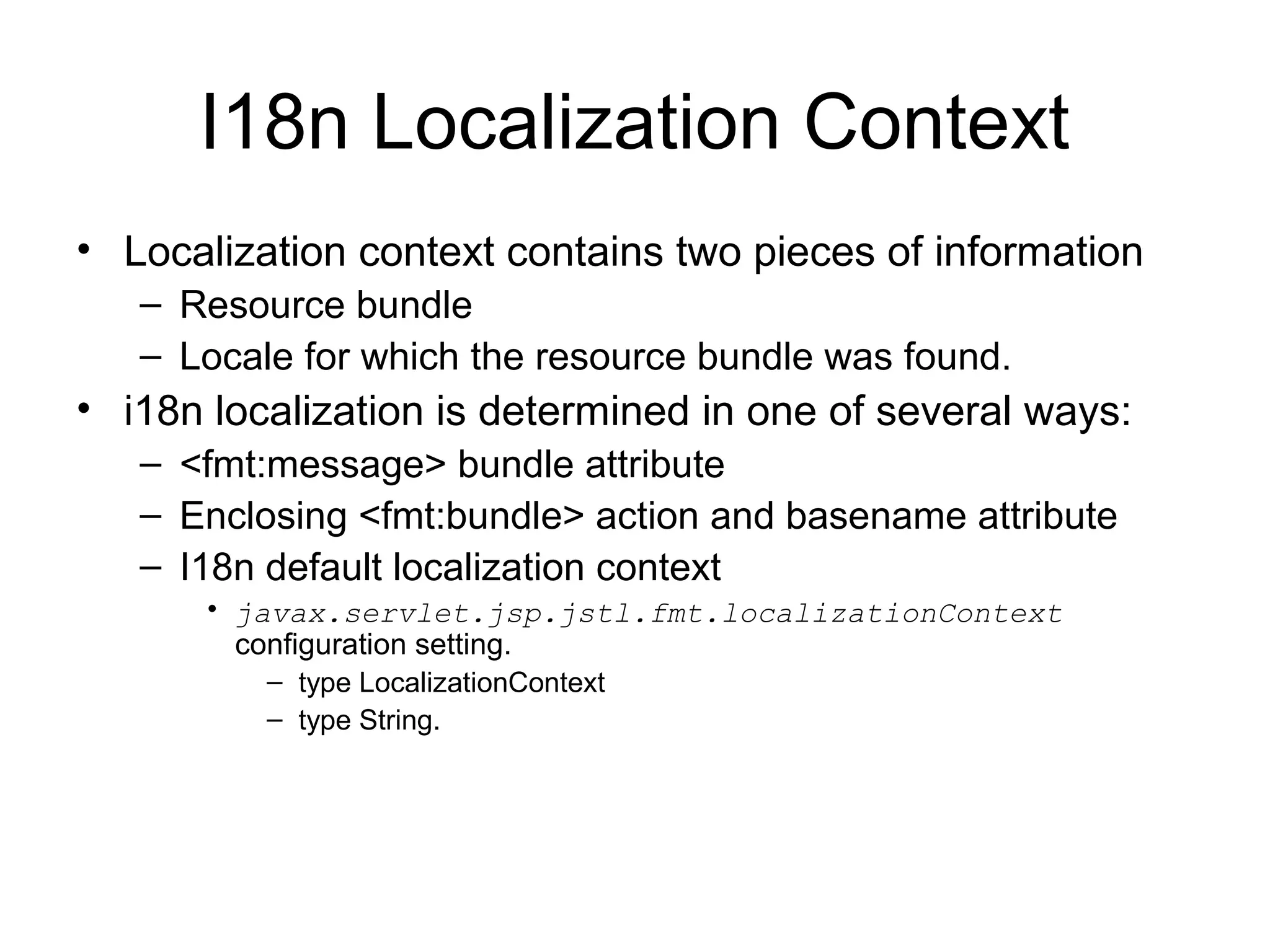

74. I18n Localization Context
• Localization context contains two pieces of information
– Resource bundle
– Locale for which the resource bundle was found.
• i18n localization is determined in one of several ways:
– <fmt:message> bundle attribute
– Enclosing <fmt:bundle> action and basename attribute
– I18n default localization context
• javax.servlet.jsp.jstl.fmt.localizationContext
configuration setting.
– type LocalizationContext
– type String.

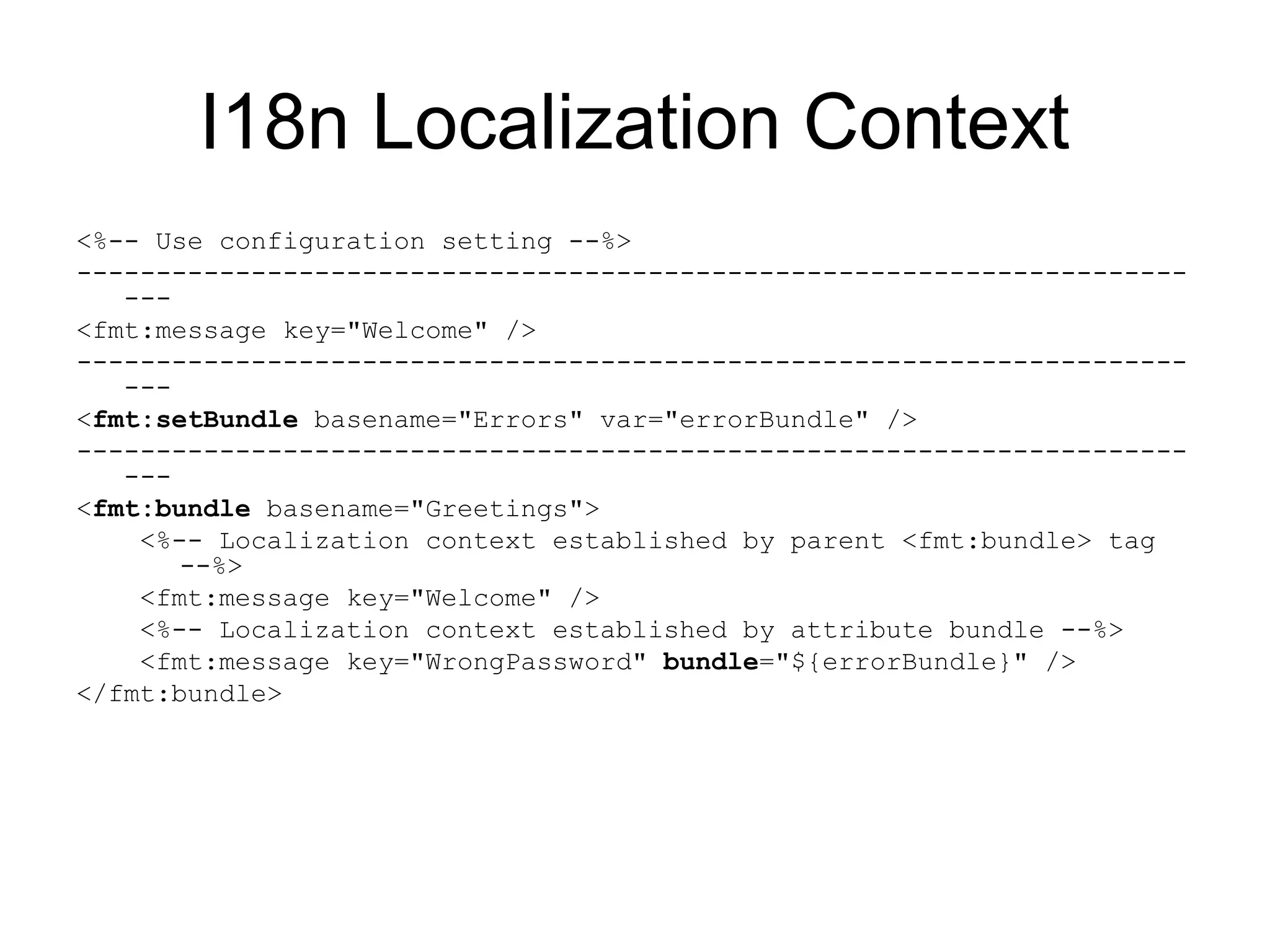

75. I18n Localization Context
<%-- Use configuration setting --%>
----------------------------------------------------------------------
---
<fmt:message key="Welcome" />
----------------------------------------------------------------------
---
<fmt:setBundle basename="Errors" var="errorBundle" />
----------------------------------------------------------------------
---
<fmt:bundle basename="Greetings">
<%-- Localization context established by parent <fmt:bundle> tag
--%>
<fmt:message key="Welcome" />
<%-- Localization context established by attribute bundle --%>
<fmt:message key="WrongPassword" bundle="${errorBundle}" />
</fmt:bundle>

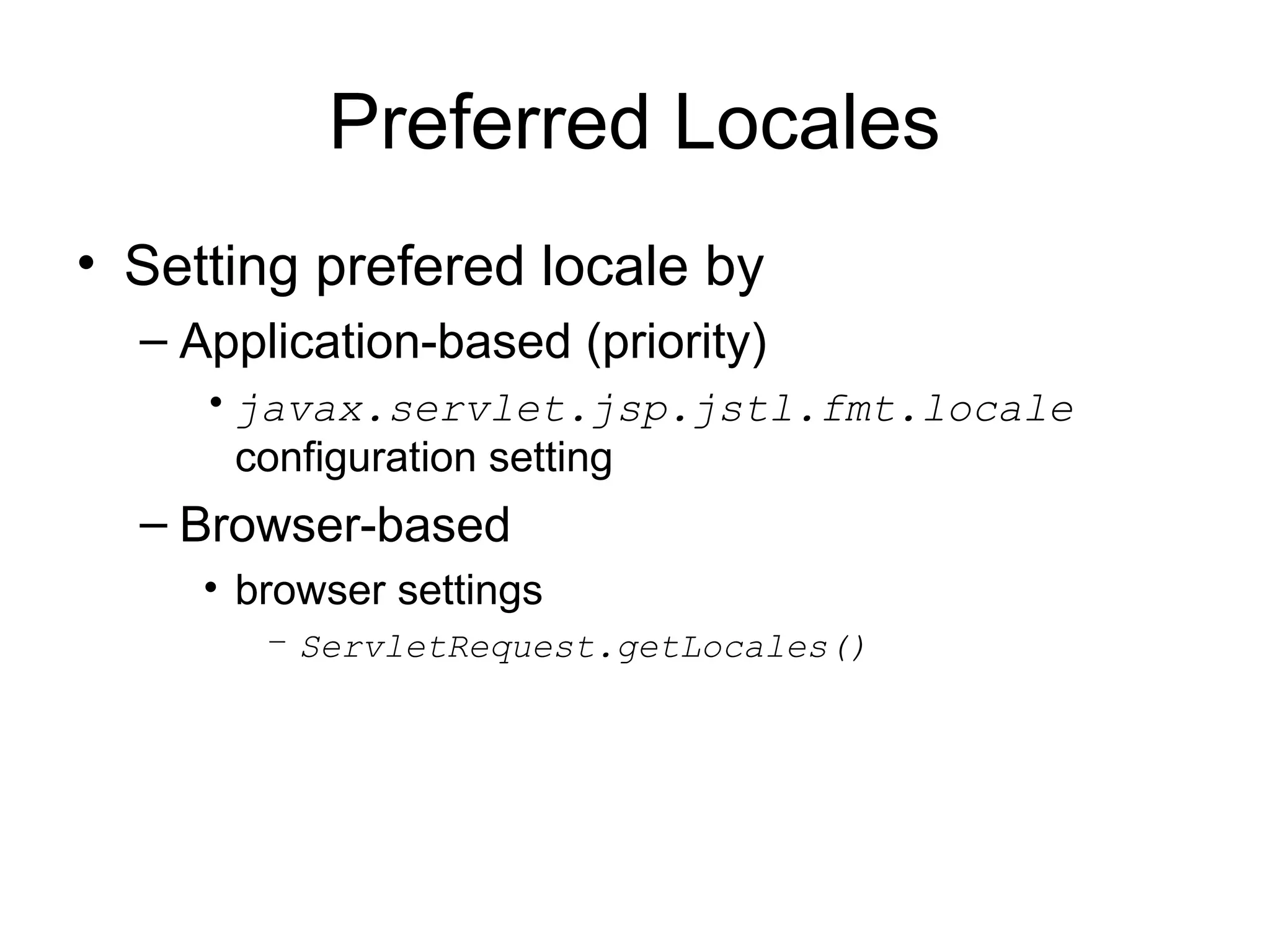

76. Preferred Locales
• Setting prefered locale by
– Application-based (priority)
•javax.servlet.jsp.jstl.fmt.locale
configuration setting
– Browser-based
• browser settings
– ServletRequest.getLocales()

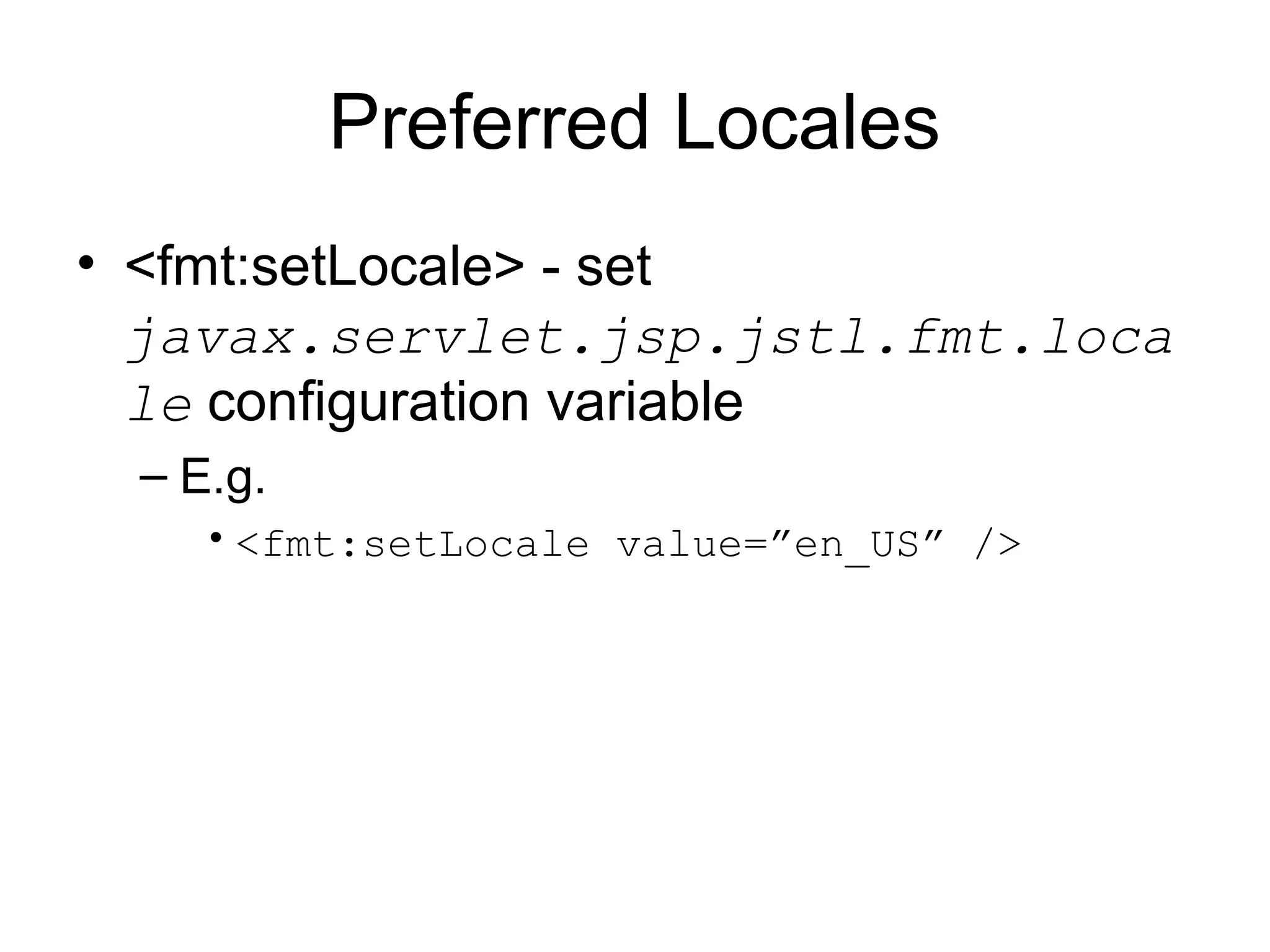

77. Preferred Locales
• <fmt:setLocale> - set
javax.servlet.jsp.jstl.fmt.loca
le configuration variable
– E.g.
•<fmt:setLocale value=”en_US” />

78. Resource Bundle Lookup
• Searched in the following order:
– basename + "_" + language + "_" + country +
"_" + variant
– basename + "_" + language + "_" + country
– basename + "_" + language

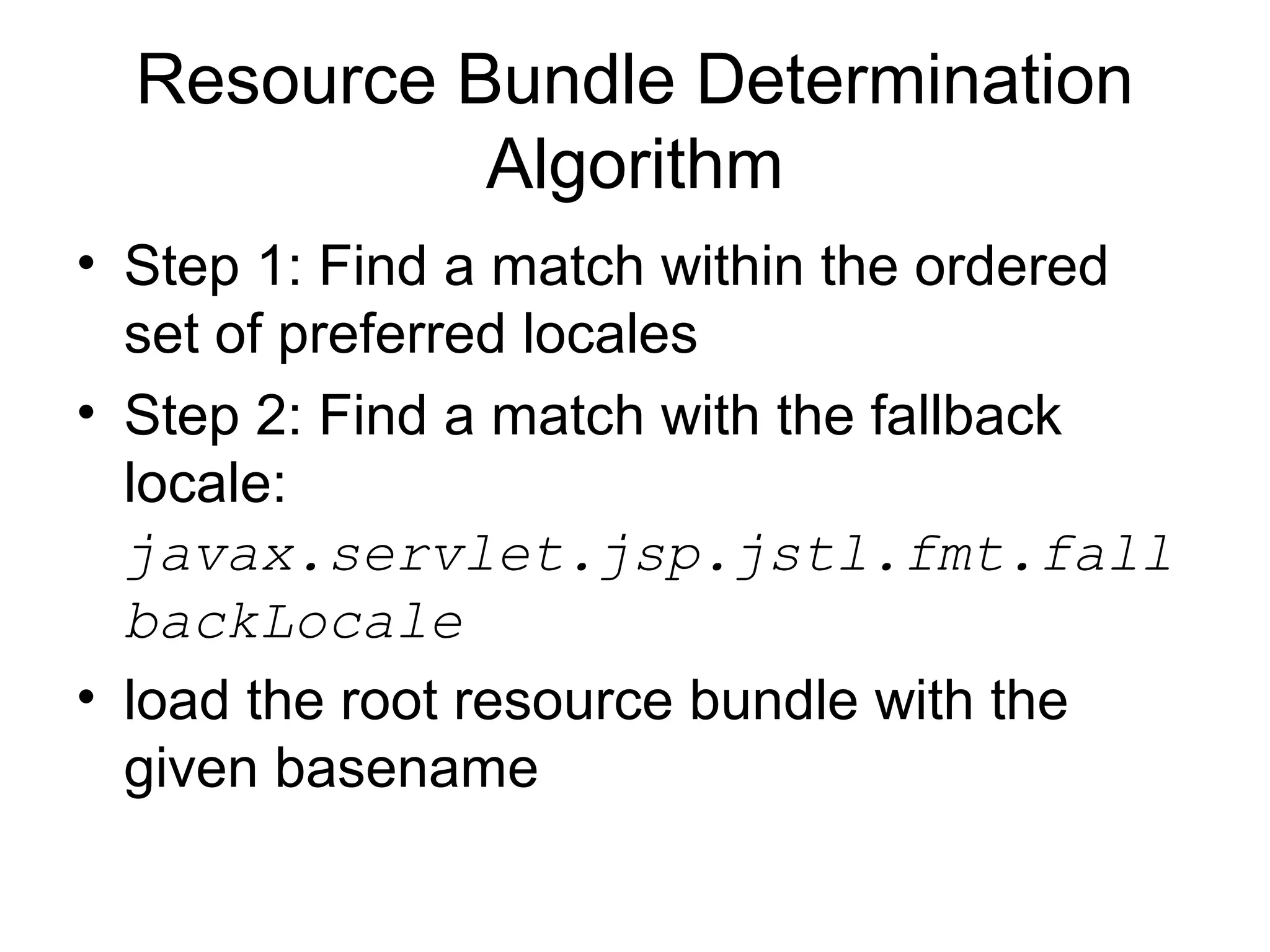

79. Resource Bundle Determination
Algorithm
• Step 1: Find a match within the ordered
set of preferred locales
• Step 2: Find a match with the fallback
locale:
javax.servlet.jsp.jstl.fmt.fall
backLocale
• load the root resource bundle with the
given basename

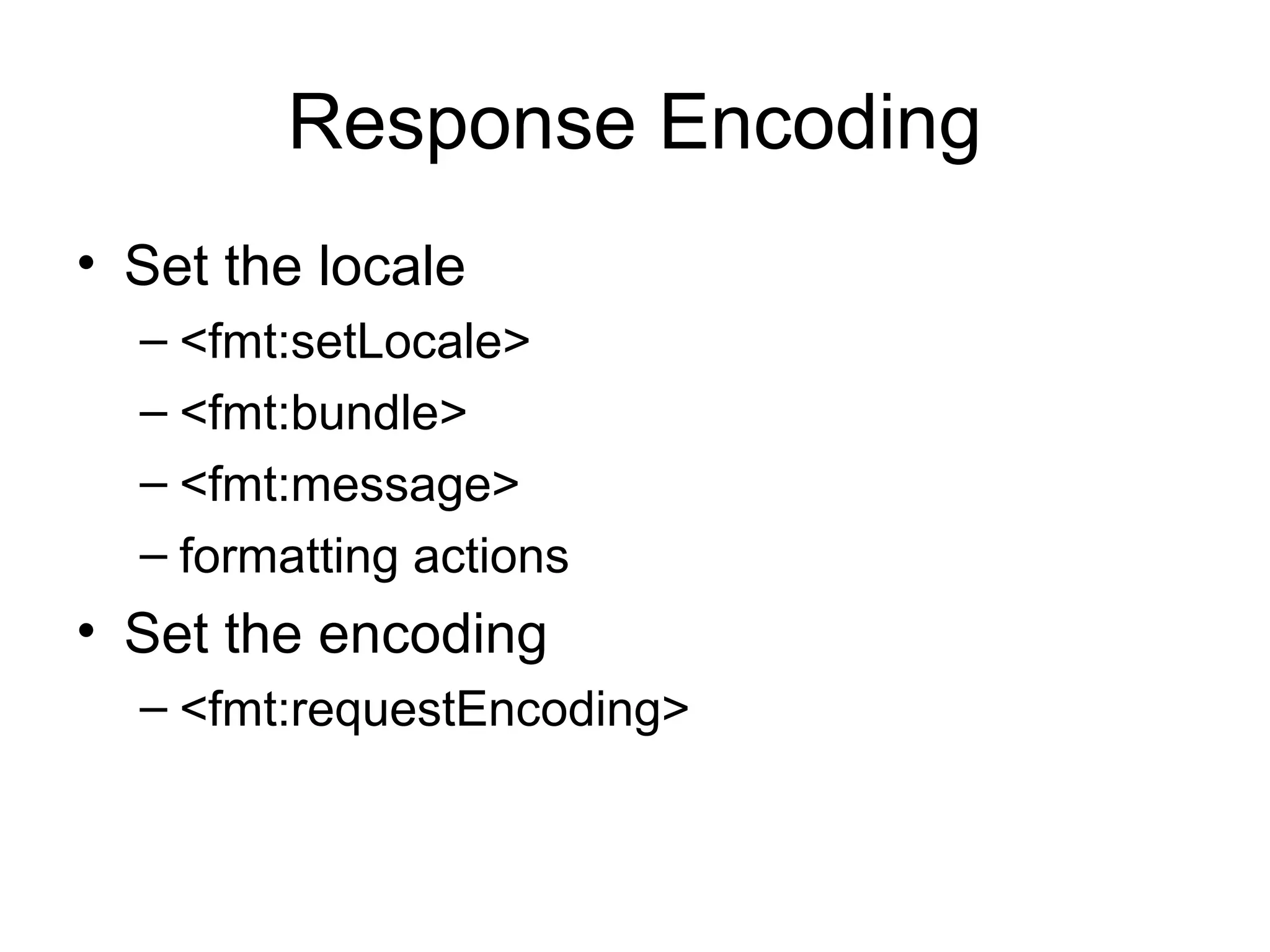

80. Response Encoding
• Set the locale
– <fmt:setLocale>
– <fmt:bundle>
– <fmt:message>
– formatting actions
• Set the encoding
– <fmt:requestEncoding>

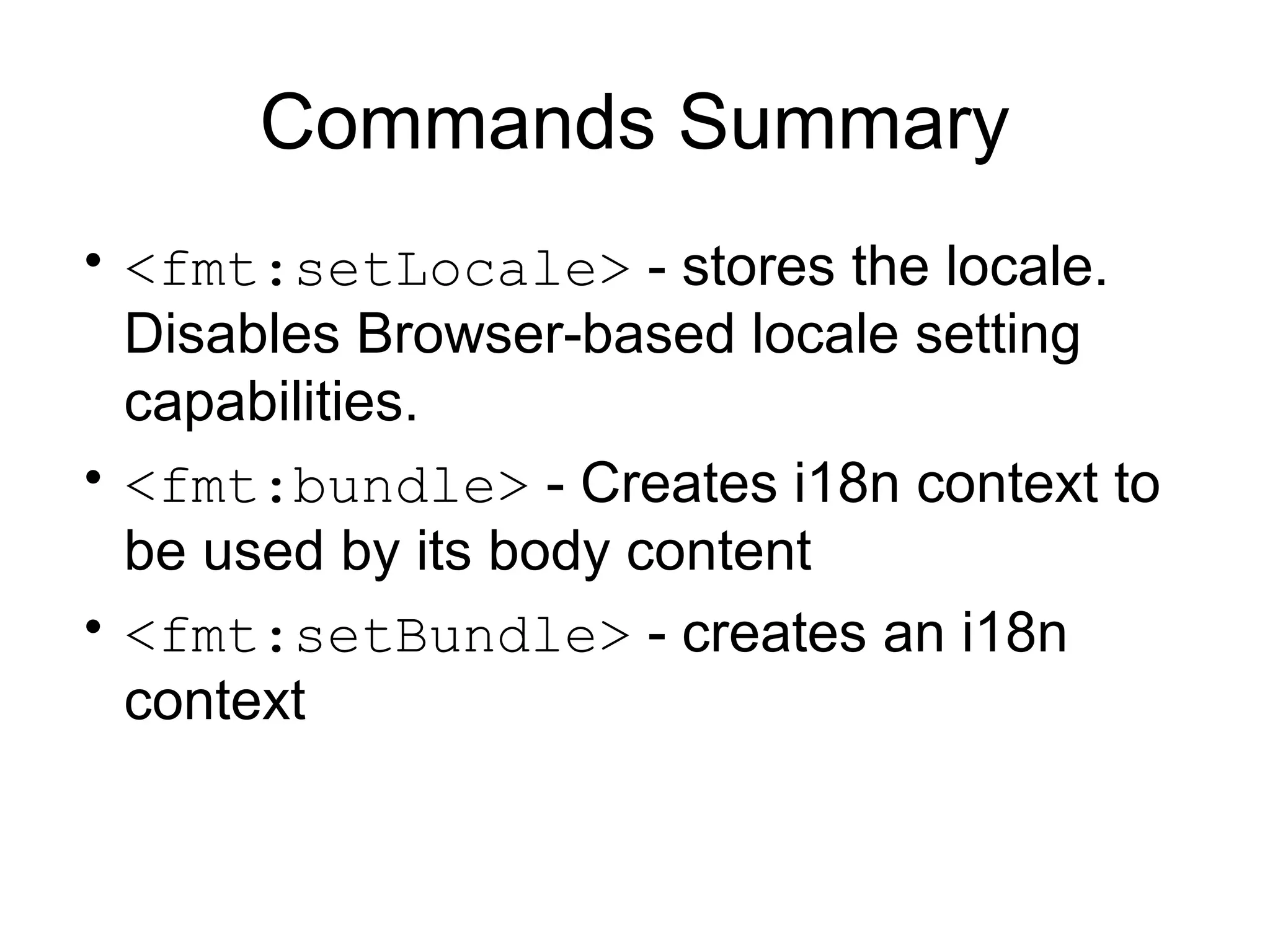

81. Commands Summary
• <fmt:setLocale> - stores the locale.
Disables Browser-based locale setting
capabilities.
• <fmt:bundle> - Creates i18n context to
be used by its body content
• <fmt:setBundle> - creates an i18n
context

82. Commands Summary
• <fmt:message>
• <fmt:param> - param to containing
<fmt:message>
• <fmt:requestEncoding> - character
encoding

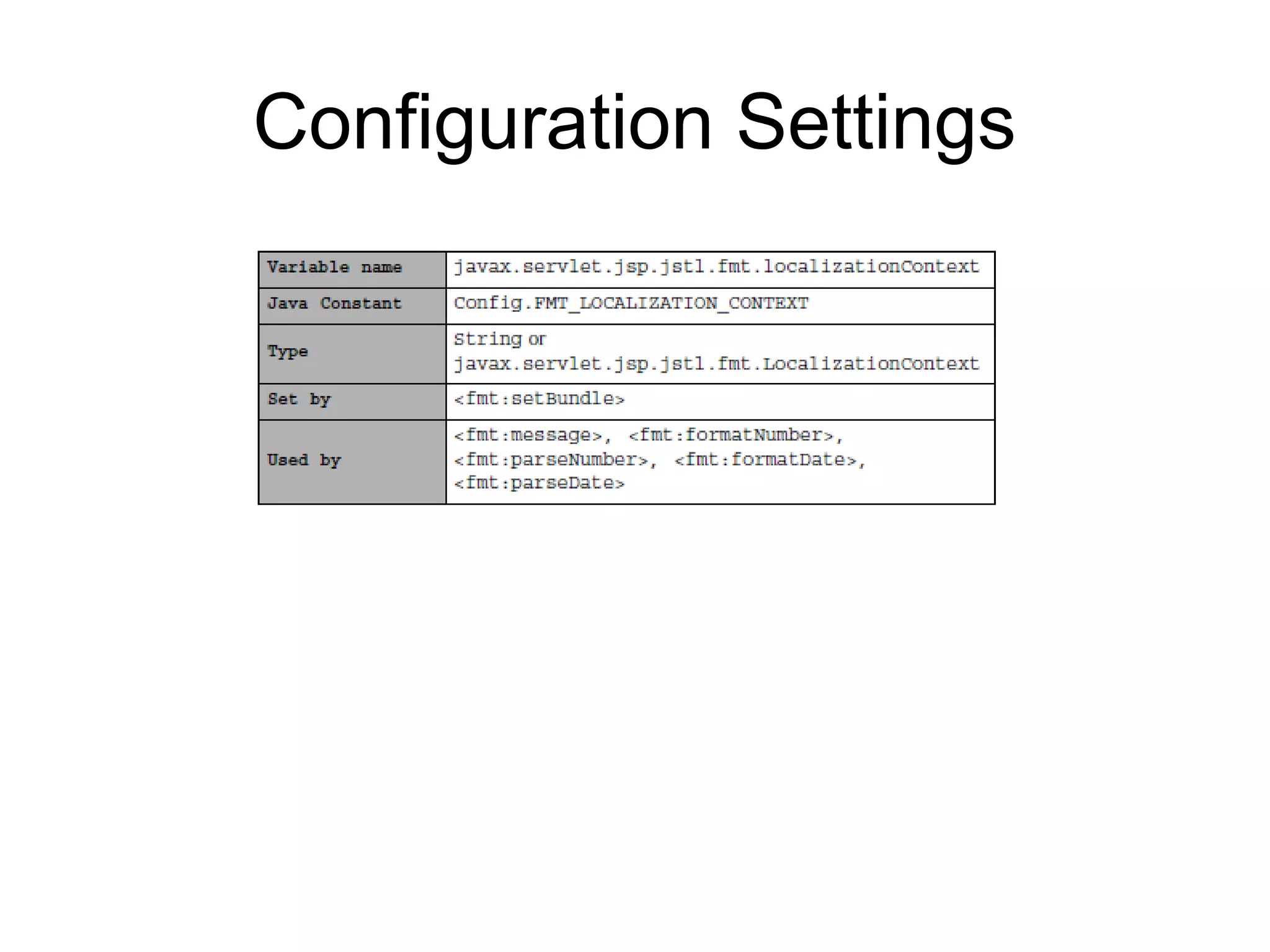

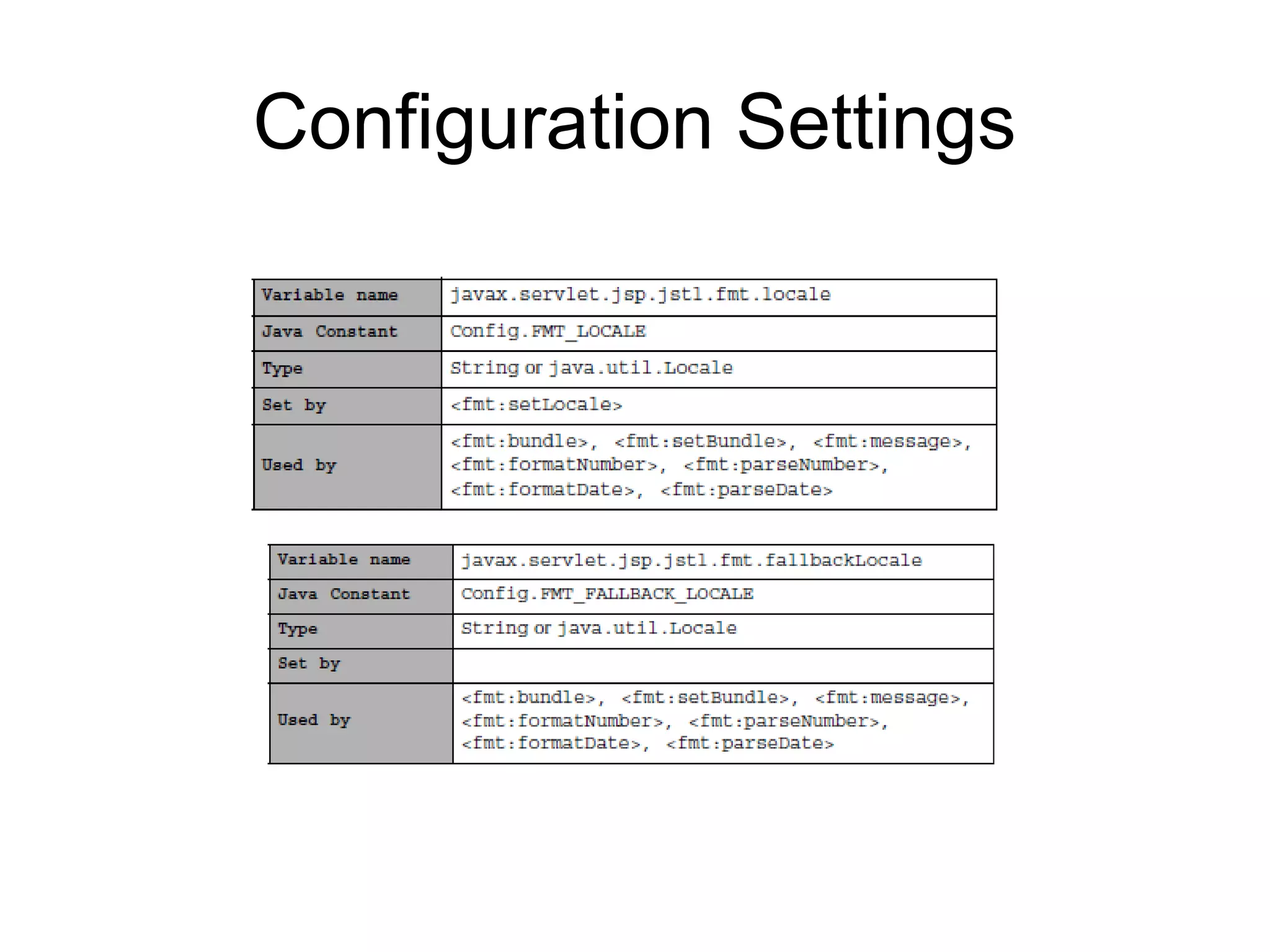

83. Configuration Settings

84. Configuration Settings

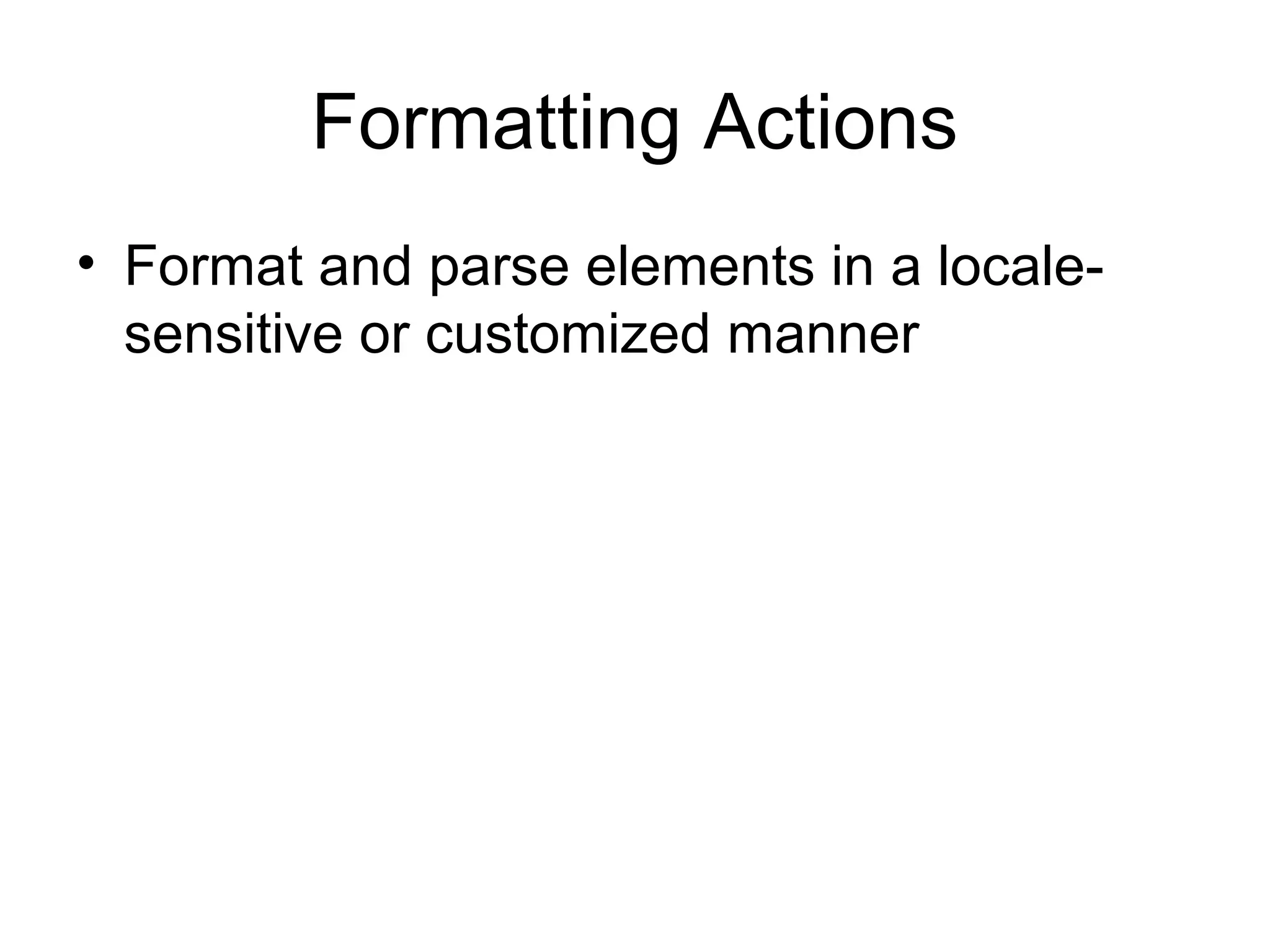

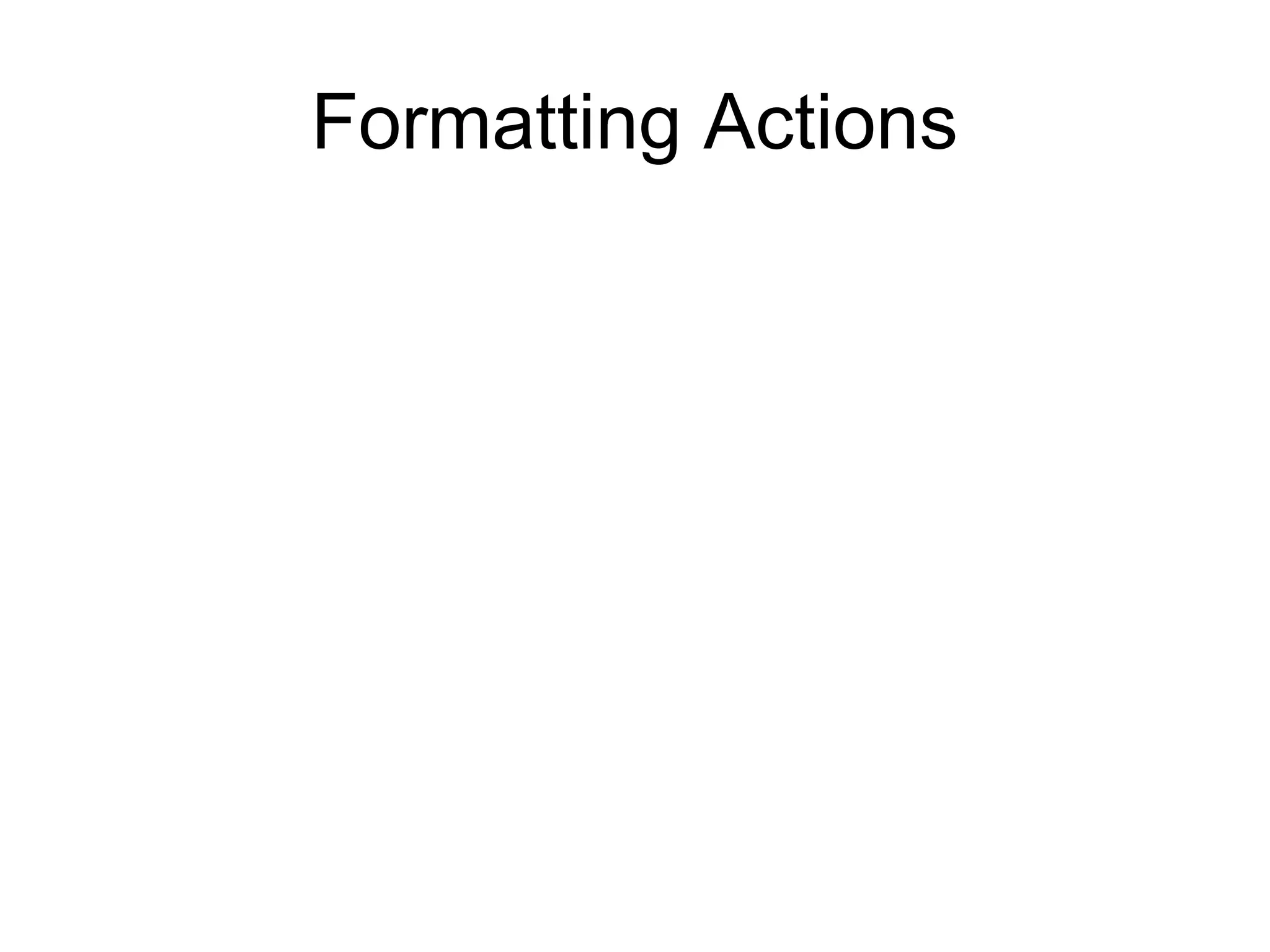

85. Formatting Actions

86. Formatting Actions
• Format and parse elements in a locale-
sensitive or customized manner

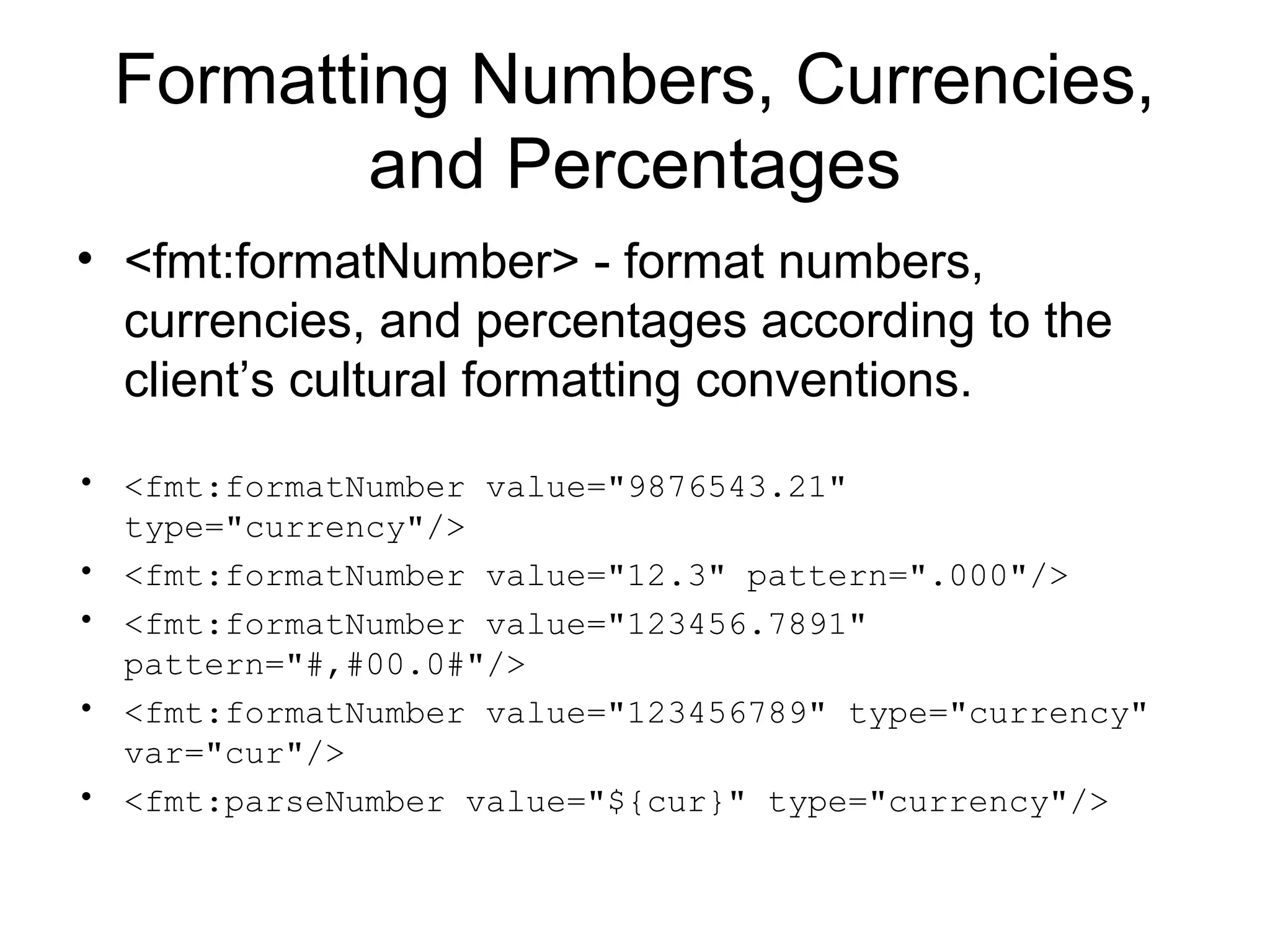

87. Formatting Numbers, Currencies,
and Percentages
• <fmt:formatNumber> - format numbers,
currencies, and percentages according to the
client’s cultural formatting conventions.
• <fmt:formatNumber value="9876543.21"
type="currency"/>
• <fmt:formatNumber value="12.3" pattern=".000"/>
• <fmt:formatNumber value="123456.7891"
pattern="#,#00.0#"/>
• <fmt:formatNumber value="123456789" type="currency"
var="cur"/>
• <fmt:parseNumber value="${cur}" type="currency"/>

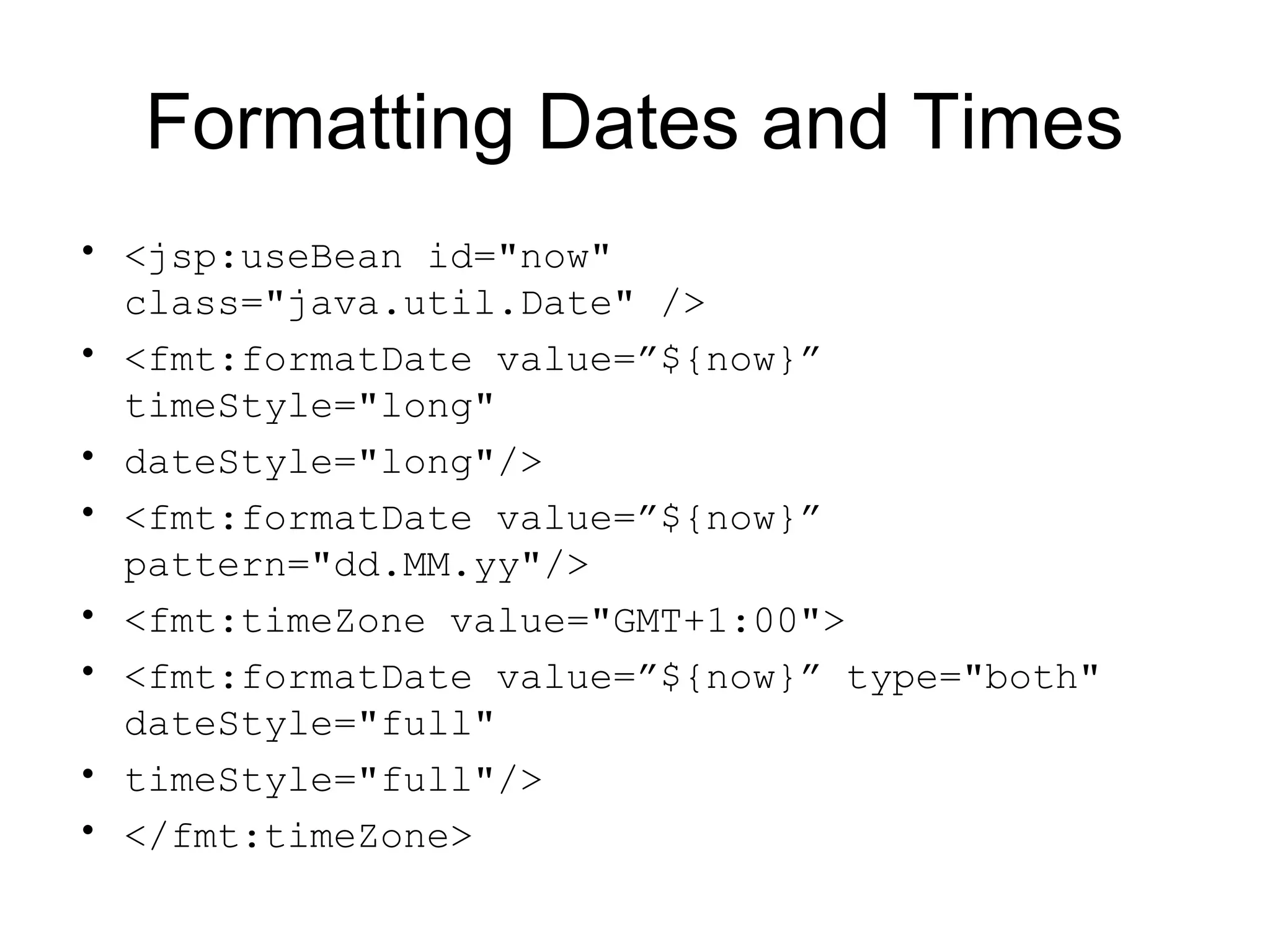

88. Formatting Dates and Times
• <jsp:useBean id="now"
class="java.util.Date" />
• <fmt:formatDate value=”${now}”
timeStyle="long"
• dateStyle="long"/>
• <fmt:formatDate value=”${now}”
pattern="dd.MM.yy"/>
• <fmt:timeZone value="GMT+1:00">
• <fmt:formatDate value=”${now}” type="both"
dateStyle="full"
• timeStyle="full"/>
• </fmt:timeZone>

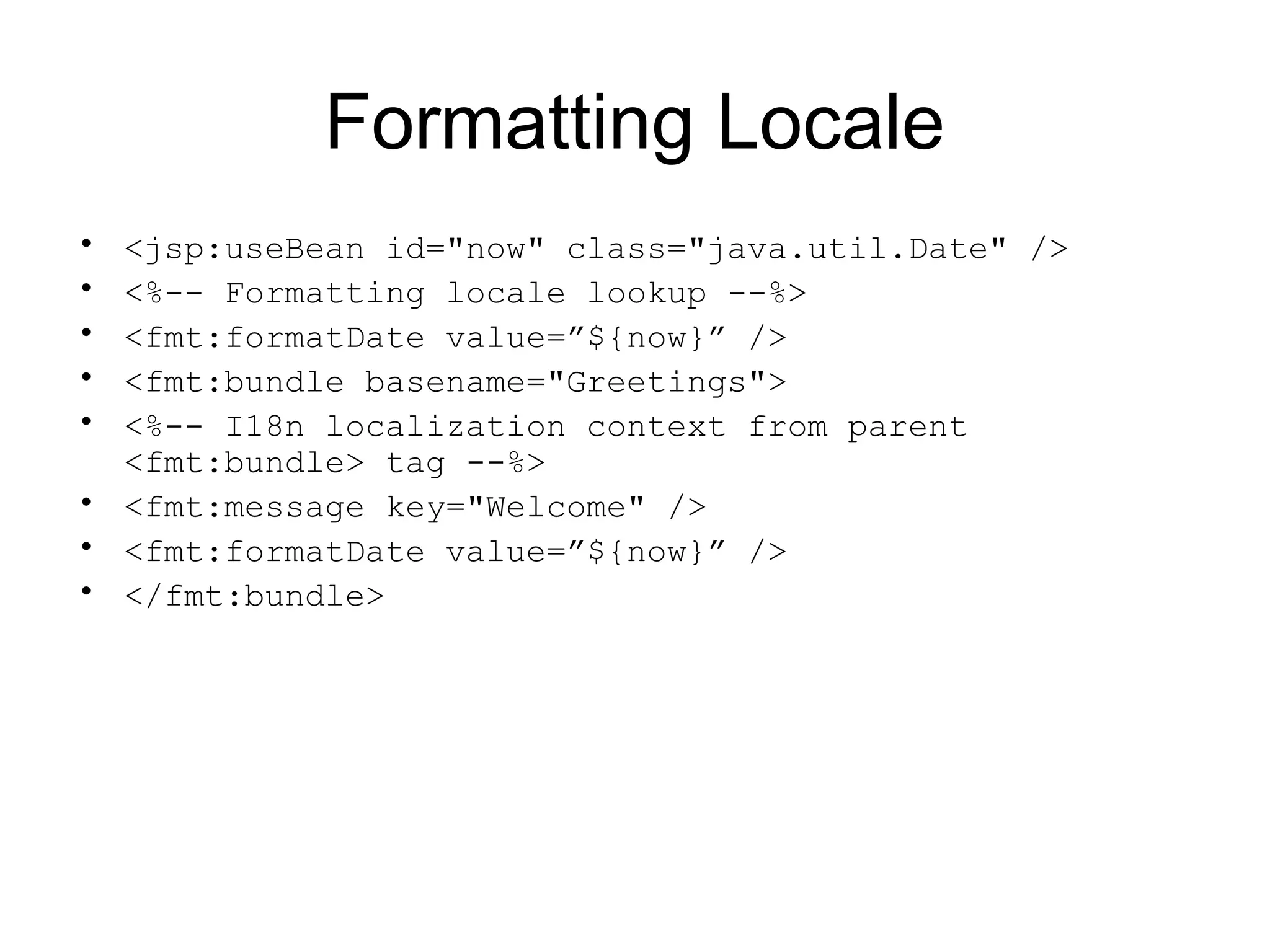

89. Formatting Locale
• <jsp:useBean id="now" class="java.util.Date" />
• <%-- Formatting locale lookup --%>
• <fmt:formatDate value=”${now}” />
• <fmt:bundle basename="Greetings">
• <%-- I18n localization context from parent
<fmt:bundle> tag --%>
• <fmt:message key="Welcome" />
• <fmt:formatDate value=”${now}” />
• </fmt:bundle>

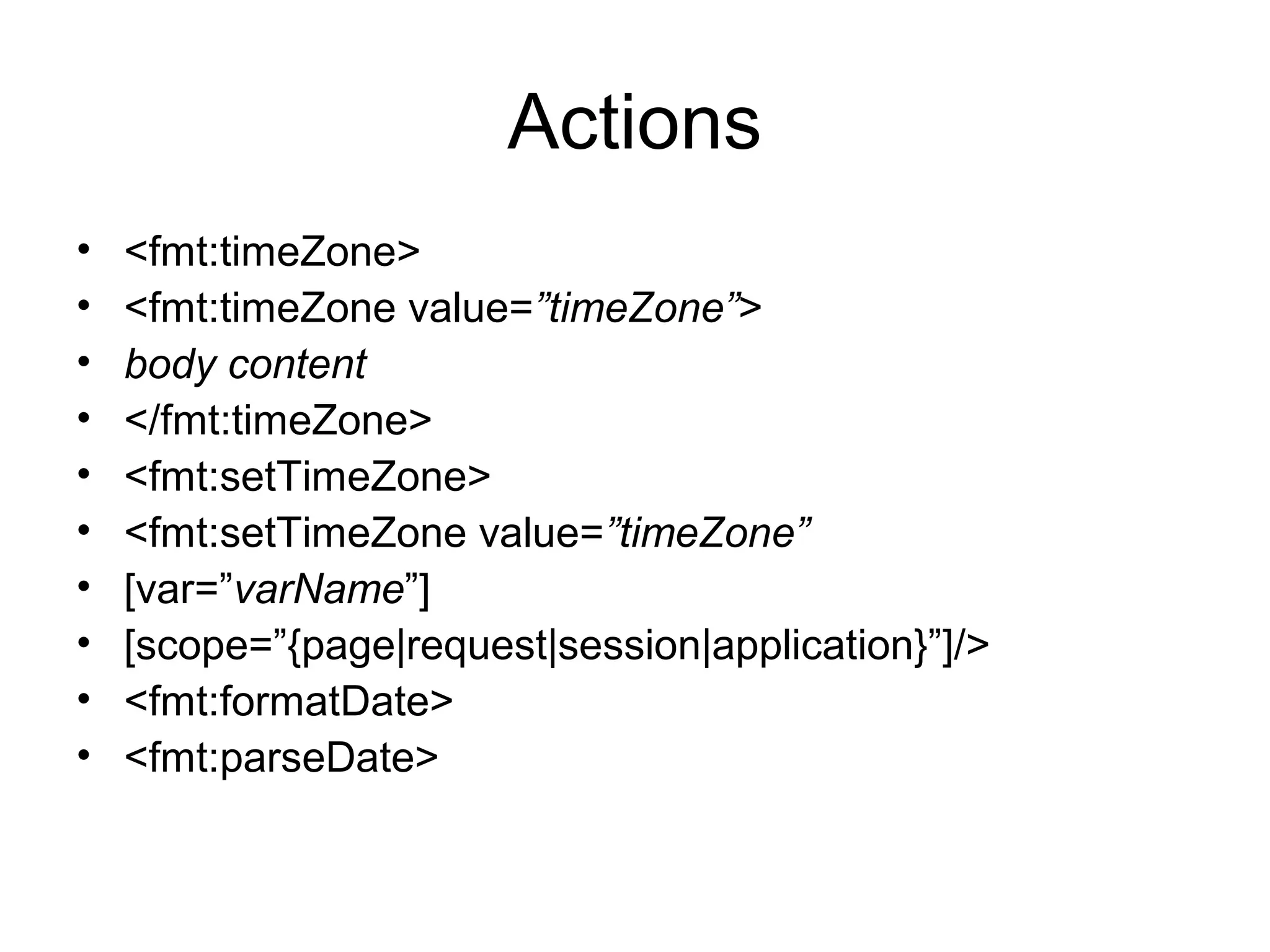

90. Actions
• <fmt:timeZone>
• <fmt:timeZone value=”timeZone”>
• body content
• </fmt:timeZone>
• <fmt:setTimeZone>
• <fmt:setTimeZone value=”timeZone”
• [var=”varName”]
• [scope=”{page|request|session|application}”]/>
• <fmt:formatDate>
• <fmt:parseDate>

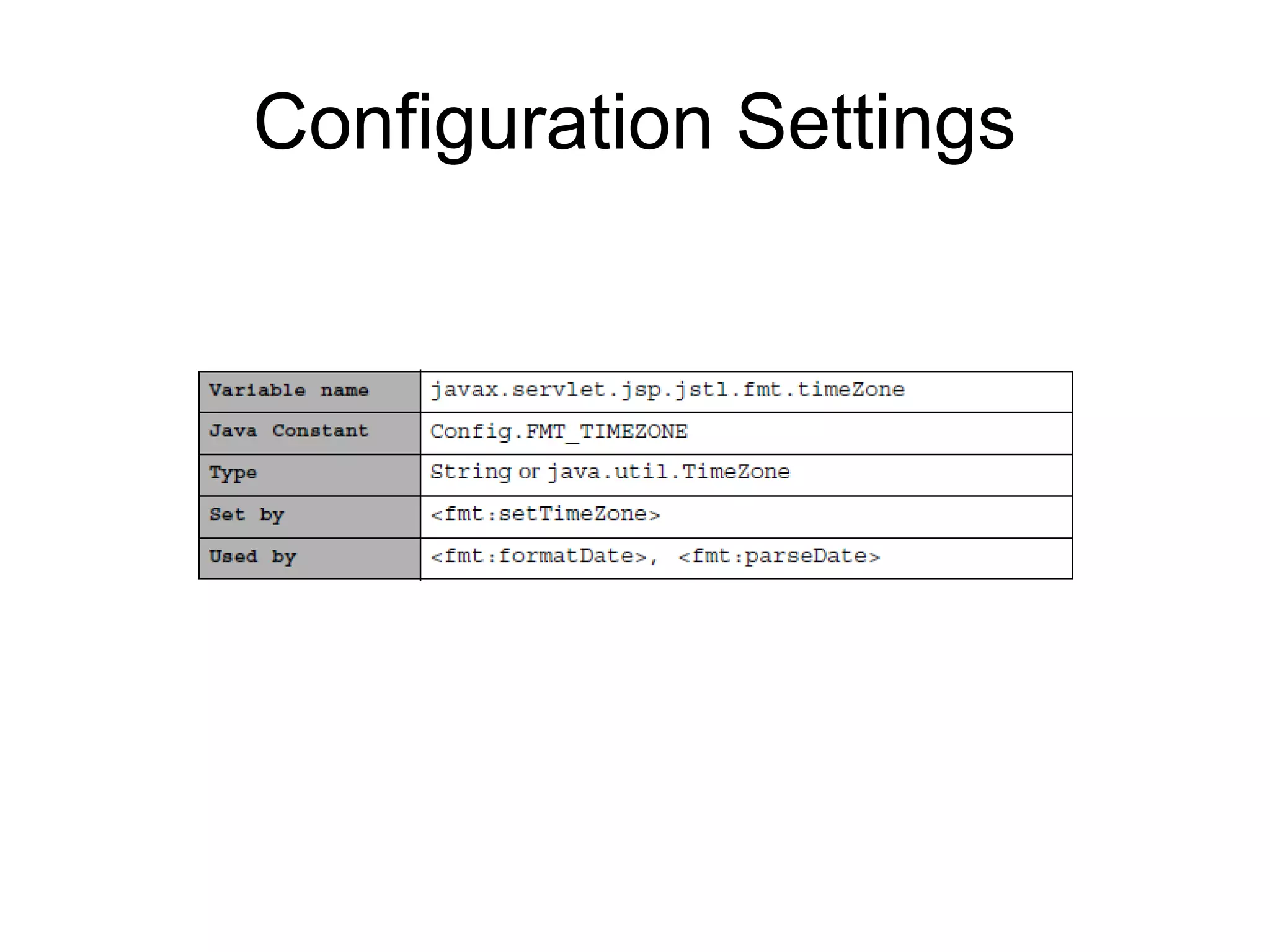

91. Configuration Settings

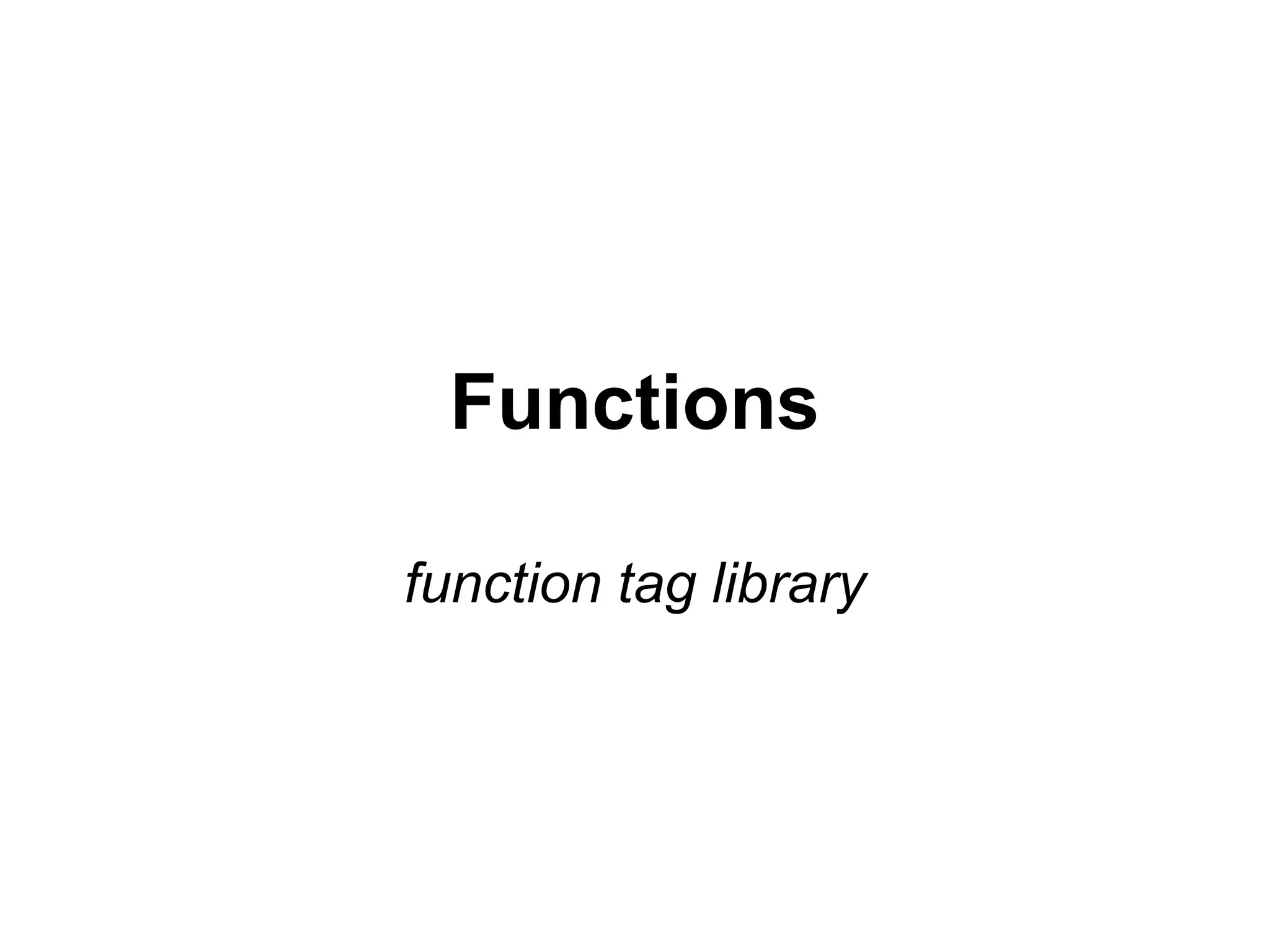

92. Functions
function tag library

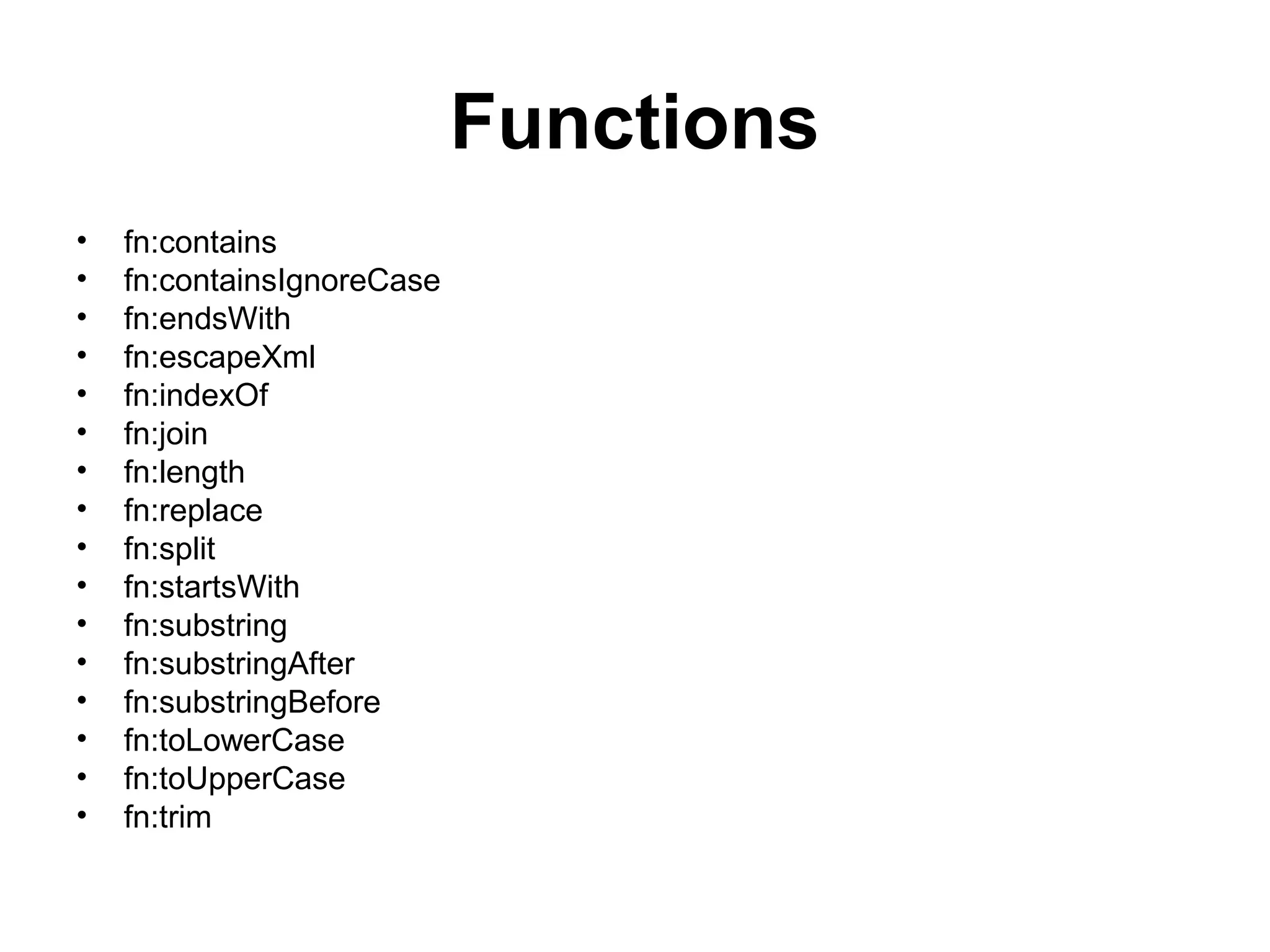

93. Functions
• fn:contains
• fn:containsIgnoreCase
• fn:endsWith
• fn:escapeXml
• fn:indexOf
• fn:join
• fn:length
• fn:replace
• fn:split
• fn:startsWith
• fn:substring
• fn:substringAfter
• fn:substringBefore
• fn:toLowerCase
• fn:toUpperCase
• fn:trim

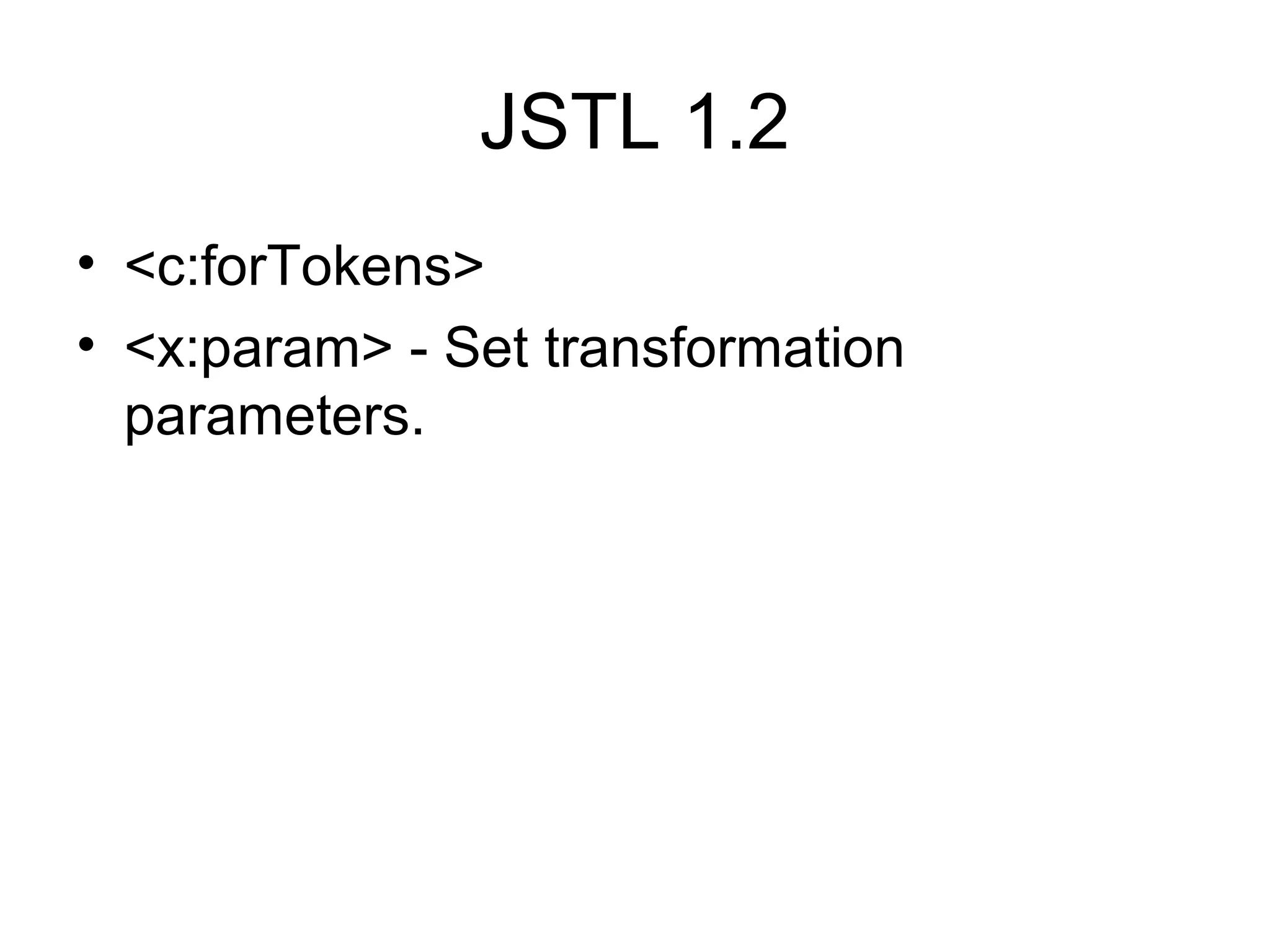

94. JSTL 1.2
• <c:forTokens>
• <x:param> - Set transformation
parameters.

95. Conclusion
• Simpler consistent programming
environment.
• Advanced programmers may prefer
scriptlets.
• JavaBeans are used in conjunction with
JSTL.
• Easier to develop and maintain.

96. For More Information
• Fast Track JSP 1.2
• JavaServer Pages Technology
• JavaServer Pages Specification (JSR 152)
• The Tomcat 5 Servlet/JSP Container
• JSP Developers Forum
• JavaServer Pages Standard Tag Library (JSTL)
• Faster Development with JavaServer Pages
Standard Tag Library (JSTL 1.0)
