The document contains guidelines and bylaws from the Jaipur Development Authority regarding building standards for hotels. It includes the following key points: - A hotel is defined as a building providing accommodation, food, and shelter for 20 or more travelers. - The minimum plot size for a hotel is 500 square meters. The minimum road width must be 18 meters for big cities and 15 meters for small cities. - Setback requirements, ground coverage, maximum building height, parking standards, and other development controls are provided based on the plot size. - Provisions for fire safety, disabled access, ventilation, plinth height, and environment conservation like tree planting and waste disposal are also outlined.

1. HOTEL

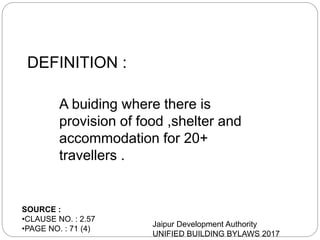

2. DEFINITION :
A buiding where there is
provision of food ,shelter and
accommodation for 20+
travellers .
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
SOURCE :
•CLAUSE NO. : 2.57
•PAGE NO. : 71 (4)

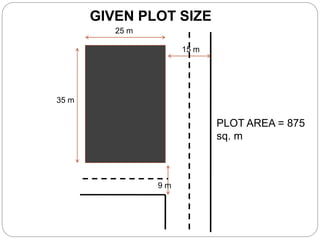

3. 25 m
35 m
15 m
9 m
GIVEN PLOT SIZE
PLOT AREA = 875
sq. m

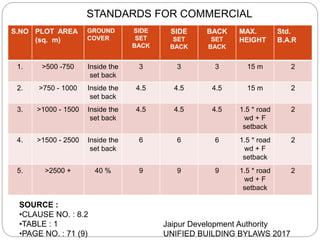

4. S.NO PLOT AREA
(sq. m)
GROUND
COVER
SIDE
SET
BACK
SIDE
SET
BACK
BACK
SET
BACK
MAX.
HEIGHT
Std.
B.A.R
1. >500 -750 Inside the
set back
3 3 3 15 m 2
2. >750 - 1000 Inside the
set back
4.5 4.5 4.5 15 m 2
3. >1000 - 1500 Inside the
set back
4.5 4.5 4.5 1.5 * road
wd + F
setback
2
4. >1500 - 2500 Inside the
set back
6 6 6 1.5 * road
wd + F
setback
2
5. >2500 + 40 % 9 9 9 1.5 * road
wd + F
setback
2
STANDARDS FOR COMMERCIAL
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
SOURCE :
•CLAUSE NO. : 8.2
•TABLE : 1
•PAGE NO. : 71 (9)

5. GUIDELINE FOR HAVING HOTEL
PLOT
Minimum plot area should be 500
sq.m.
Minimum road width
• Big cities - 18 m
• Small cities – 15 m
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
SOURCE :
•CLAUSE NO. : 8.2.2
•POINT NO : A ( VI)
•PAGE NO. : 71 (13)

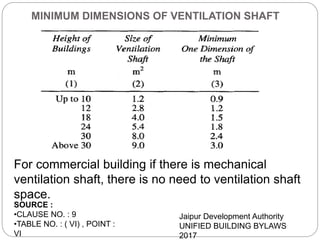

6. MINIMUM DIMENSIONS OF VENTILATION SHAFT
Jaipur Development Authority
UNIFIED BUILDING BYLAWS
2017
SOURCE :
•CLAUSE NO. : 9
•TABLE NO. : ( VI) , POINT :
VI
For commercial building if there is mechanical
ventilation shaft, there is no need to ventilation shaft
space.

7. COMPOUND WALL
In The Case Of A Corner Plot, The Height Of
The Boundary Wall Shall Be Restricted To 0.75
m towards both roads. Rest of height has been
completed by railing.
LIFT , ESCALOTORS , MECHANICAL CAR LIFT
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
SOURCE :
•CLAUSE NO. : 9.3 , 9.5
•POINT : 1
•PAGE NO. : 71 (29)
There sizes is according to Indian std. codes.

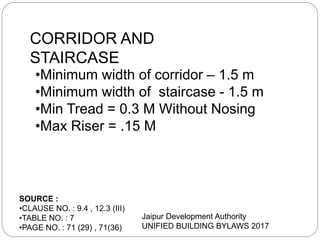

8. CORRIDOR AND
STAIRCASE
•Minimum width of corridor – 1.5 m
•Minimum width of staircase - 1.5 m
•Min Tread = 0.3 M Without Nosing
•Max Riser = .15 M
SOURCE :
•CLAUSE NO. : 9.4 , 12.3 (III)
•TABLE NO. : 7
•PAGE NO. : 71 (29) , 71(36)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017

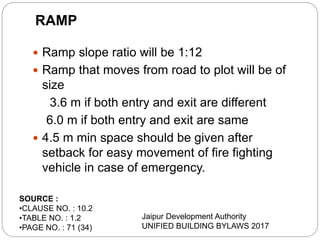

9.  Ramp slope ratio will be 1:12
 Ramp that moves from road to plot will be of
size
3.6 m if both entry and exit are different
6.0 m if both entry and exit are same
 4.5 m min space should be given after
setback for easy movement of fire fighting
vehicle in case of emergency.
RAMP
SOURCE :
•CLAUSE NO. : 10.2
•TABLE NO. : 1.2
•PAGE NO. : 71 (34)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017

10. FRONT SETBACK
ROAD WIDTH FRONT SET BACK
Till 18 m 3m
>18-24 m 4.5 m
>24 – 30 m 6.0 m
30+ m 9.0 m
SOURCE :
•CLAUSE NO. : 8.7
•TABLE NO. : 1
•PAGE NO. : 71 (19)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS
2017
NOTE : this rule is only applicable if the
area of plot size is more than 90 sq.m.

11. If the height of building is more than 15m then
it’s mandatory to give setback accordingly:
•FRONT SETBACK = 6M
•SIDE AND BACK SETACK = 6M or ¼ height
of buiding
( Whichever Is Max. Is
Followed )
SETBACK IF HEIGHT OF BUILDING IS 15+m
2 ROADS PASSES THROUGH THE PLOT
If it is a corner plot having passing through
2 roads , both side will follow the front
setback rule.
{ only if it according to clause 8.7 (i) }
SOURCE :
•CLAUSE NO. : 8.7
•POINT NO. : (iii) ,(vi)
•PAGE NO. : 71 (19) ,71 (20)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS
2017

12. •Architectural element should be placed above
4.5 m height of building in front and side
setback for easy movement of fire fighting
vehicle.
•Ramp for vertical movement should be inside
the setback area .4.5 m should be given for
easy movement of fire fighting vehicle
•Ramp at front should be given after leaving 6m
clear space from boundary wall.
OTHER SETBACK RELATED BYLAWS
SOURCE :
•CLAUSE NO. : 8.7
•POINT NO. : VIII . X
•PAGE NO. : 71 (20)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017

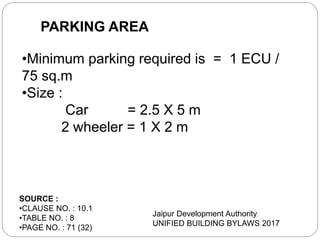

13. PARKING AREA
•Minimum parking required is = 1 ECU /
75 sq.m
•Size :
Car = 2.5 X 5 m
2 wheeler = 1 X 2 m
SOURCE :
•CLAUSE NO. : 10.1
•TABLE NO. : 8
•PAGE NO. : 71 (32)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017

14. HEIGHT OF THE BUILDING
ROAD WIDTH HEIGHT
Till 9 m Gd. F + 1 F ( 8m)
>9 – 12 m Gd. F + 2 F ( 12.5m)
>12 - 18 m Gd. F + 3 F ( 15m)
18+ m 1.5*Rd. wd + front
setback
SOURCE :
•CLAUSE NO. : 8.10
•TABLE NO. : 4 , (v)
•PAGE NO. : 71 (22)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
If it is a corner plot having 2 roads , the
height of building will be according to the
larger road.

15. Porch :
•If min. front setback is 6m then its allowed , and width of
poarch will be 50% of the setback.
• Can give a porch at side setback ,if it has min. 3m setback.
SOURCE :
•CLAUSE NO. : 9.9 , 9.10,9.11
•POINT NO. : 1,
•PAGE NO. : 71 (31)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS
Balcony :
•If min. 4.5 m then , balcony should be 1.2m or 1/3 of the
setback ( whichever is min. should be followed ).
• Can give a porch at side setback ,if it has min. 3m setback.
Projection :
•Width of projection will be 0.6m or 1/3 ( whichever is min.
should be followed ).
•Height will be more than 2.1m.

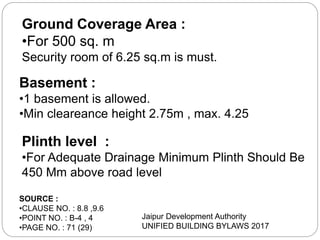

16. Ground Coverage Area :
•For 500 sq. m
Security room of 6.25 sq.m is must.
Basement :
•1 basement is allowed.
•Min cleareance height 2.75m , max. 4.25
SOURCE :
•CLAUSE NO. : 8.8 ,9.6
•POINT NO. : B-4 , 4
•PAGE NO. : 71 (29)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
Plinth level :
•For Adequate Drainage Minimum Plinth Should Be
450 Mm above road level

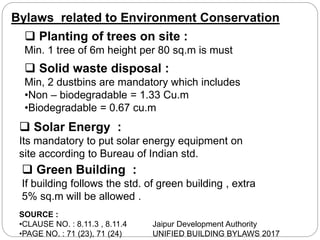

17. Bylaws related to Environment Conservation
 Planting of trees on site :
Min. 1 tree of 6m height per 80 sq.m is must
 Solid waste disposal :
Min, 2 dustbins are mandatory which includes
•Non – biodegradable = 1.33 Cu.m
•Biodegradable = 0.67 cu.m
 Solar Energy :
Its mandatory to put solar energy equipment on
site according to Bureau of Indian std.
SOURCE :
•CLAUSE NO. : 8.11.3 , 8.11.4
•PAGE NO. : 71 (23), 71 (24)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
 Green Building :
If building follows the std. of green building , extra
5% sq.m will be allowed .

18. FIRE EXITS
Must Be Provided When Building Height
Greater Than 15 M.
Max Travel Distance : 30 M
Min Opening Of Exit : 2m
Door Should Not Open Directly To The
Staircase ,At Least 2 M Wide Landing Should Be
Provided.
Mirrors Should Not Be Place At Or Near The
Door To Avoid Confusion.(Clause 4.9)
Indication Board Should Not Be Less Than .5 X
.5 M
SOURCE :
•CLAUSE NO. : 4.7 , 4.9
•POINT NO. : 4
NATIONAL BUILDING CODES 2005

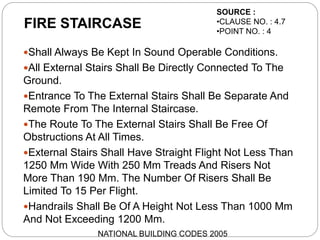

19. FIRE STAIRCASE
Shall Always Be Kept In Sound Operable Conditions.
All External Stairs Shall Be Directly Connected To The
Ground.
Entrance To The External Stairs Shall Be Separate And
Remote From The Internal Staircase.
The Route To The External Stairs Shall Be Free Of
Obstructions At All Times.
External Stairs Shall Have Straight Flight Not Less Than
1250 Mm Wide With 250 Mm Treads And Risers Not
More Than 190 Mm. The Number Of Risers Shall Be
Limited To 15 Per Flight.
Handrails Shall Be Of A Height Not Less Than 1000 Mm
And Not Exceeding 1200 Mm.
SOURCE :
•CLAUSE NO. : 4.7
•POINT NO. : 4
NATIONAL BUILDING CODES 2005

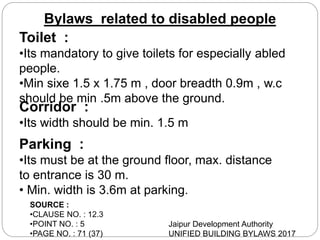

20. Bylaws related to disabled people
Toilet :
•Its mandatory to give toilets for especially abled
people.
•Min sixe 1.5 x 1.75 m , door breadth 0.9m , w.c
should be min .5m above the ground.
Corridor :
•Its width should be min. 1.5 m
Parking :
•Its must be at the ground floor, max. distance
to entrance is 30 m.
• Min. width is 3.6m at parking.
SOURCE :
•CLAUSE NO. : 12.3
•POINT NO. : 5
•PAGE NO. : 71 (37)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017

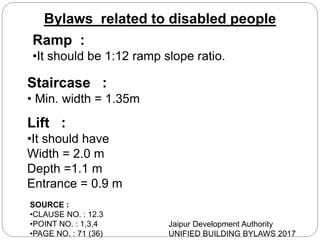

21. Ramp :
•It should be 1:12 ramp slope ratio.
Staircase :
• Min. width = 1.35m
Lift :
•It should have
Width = 2.0 m
Depth =1.1 m
Entrance = 0.9 m
SOURCE :
•CLAUSE NO. : 12.3
•POINT NO. : 1,3,4
•PAGE NO. : 71 (36)
Jaipur Development Authority
UNIFIED BUILDING BYLAWS 2017
Bylaws related to disabled people
