This document provides details about a commercial project located in Jaipur, Rajasthan. It describes the 42 acre trade fair and exhibition center containing two large halls of 10,000 sqm each along with amenities like parking for over 2,000 vehicles, a 5,000 sqm lawn, a convention center that can seat 1,000-1,200 people, and 14 breakout rooms. The project utilized structural steel construction to allow for functional flexibility in the large exhibition halls.

1. Submitted by :
ARCHIT JAIN
MD. SALIM SIDDIQ
JAISHIVI NANDWANA
RAHUL JANGIR
ASIF
CASE STUDY
3yr – 6 sem
POORNIMA UNIVERSITY,Jaipur
Batch : 2015-20

2. LOCATION :- RIICO Industrial Area, Sitapura, Jaipur, Rajasthan
TYPOLOGY :- Commercial
TOTAL AREA :- 42 Acres(169968 sq.m)
CLIMATE :- Hot and Dry
ARCHITECT :- M.A Architectes (AR. SHARAD MAHATIL)
SCS
18 K.M
936K.M
1.5 K.M

3. PARKING
OUTDOOR
EXHIBITION
ENTRY
ENTRY
ENTRY
ENTRY
ENTRY
ENTRY
ENTRY
LAWN
SERVICE ROAD
FOOD
COUR
T

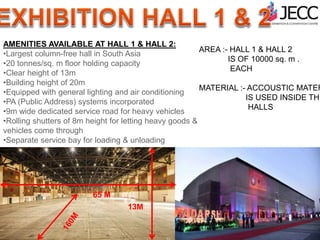

4. AMENITIES AVAILABLE AT HALL 1 & HALL 2:
•Largest column-free hall in South Asia
•20 tonnes/sq. m floor holding capacity
•Clear height of 13m
•Building height of 20m
•Equipped with general lighting and air conditioning
•PA (Public Address) systems incorporated
•9m wide dedicated service road for heavy vehicles
•Rolling shutters of 8m height for letting heavy goods &
vehicles come through
•Separate service bay for loading & unloading

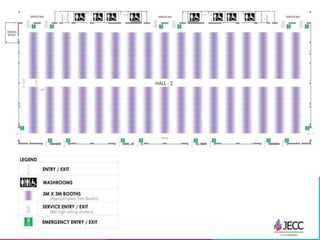

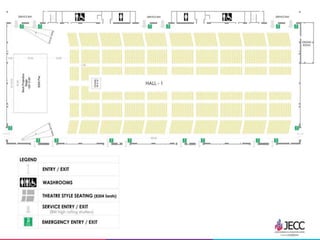

AREA :- HALL 1 & HALL 2
IS OF 10000 sq. m .
EACH
MATERIAL :- ACCOUSTIC MATER
IS USED INSIDE THE
HALLS
65 M
13M

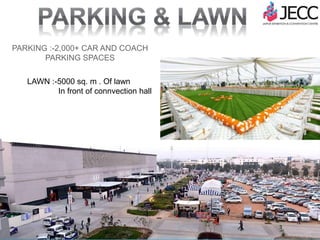

7. PARKING :-2,000+ CAR AND COACH
PARKING SPACES
LAWN :-5000 sq. m . Of lawn
In front of connvection hall

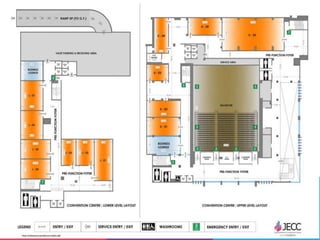

8. AMENITIES AVAILABLE AT THE CONVENTION
CENTRE:
• A ballroom of 1,000-1,200 delegates capacity
• Retractable fitted seating for 740
• 14 Breakout Rooms including VIP Lounge
• 2 Green Rooms
• Permanent registration counters
• 4,000 sq. ft. banquet space
• AV setup
• Interpreter rooms for 6 languages
• Option of dim lighting
• Spacious pre-function foyer

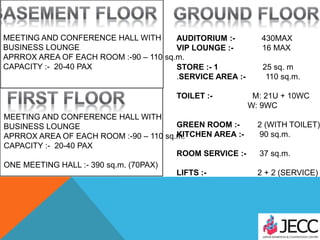

11. AUDITORIUM :- 430MAX
VIP LOUNGE :- 16 MAX
STORE :- 1 25 sq. m
.SERVICE AREA :- 110 sq.m.
TOILET :- M: 21U + 10WC
W: 9WC
GREEN ROOM :- 2 (WITH TOILET)
KITCHEN AREA :- 90 sq.m.
ROOM SERVICE :- 37 sq.m.
LIFTS :- 2 + 2 (SERVICE)
MEETING AND CONFERENCE HALL WITH
BUSINESS LOUNGE
APRROX AREA OF EACH ROOM :-90 – 110 sq.m.
CAPACITY :- 20-40 PAX
MEETING AND CONFERENCE HALL WITH
BUSINESS LOUNGE
APRROX AREA OF EACH ROOM :-90 – 110 sq.m.
CAPACITY :- 20-40 PAX
ONE MEETING HALL :- 390 sq.m. (70PAX)

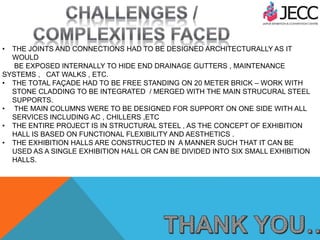

12. • THE JOINTS AND CONNECTIONS HAD TO BE DESIGNED ARCHITECTURALLY AS IT
WOULD
BE EXPOSED INTERNALLY TO HIDE END DRAINAGE GUTTERS , MAINTENANCE
SYSTEMS , CAT WALKS , ETC.
• THE TOTAL FAÇADE HAD TO BE FREE STANDING ON 20 METER BRICK – WORK WITH
STONE CLADDING TO BE INTEGRATED / MERGED WITH THE MAIN STRUCURAL STEEL
SUPPORTS.
• THE MAIN COLUMNS WERE TO BE DESIGNED FOR SUPPORT ON ONE SIDE WITH ALL
SERVICES INCLUDING AC , CHILLERS ,ETC
• THE ENTIRE PROJECT IS IN STRUCTURAL STEEL , AS THE CONCEPT OF EXHIBITION
HALL IS BASED ON FUNCTIONAL FLEXIBILITY AND AESTHETICS .
• THE EXHIBITION HALLS ARE CONSTRUCTED IN A MANNER SUCH THAT IT CAN BE
USED AS A SINGLE EXHIBITION HALL OR CAN BE DIVIDED INTO SIX SMALL EXHIBITION
HALLS.
