1. Jailbreaking iOS
How an iPhone breaks free
Kai Aras - CSM
Stuttgart Media University

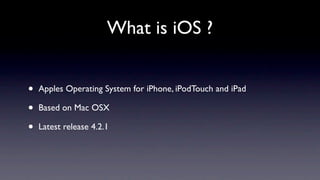

2. What is iOS ?
• Apples Operating System for iPhone, iPodTouch and iPad
• Based on Mac OSX
• Latest release 4.2.1

3. What is a Jailbreak ?

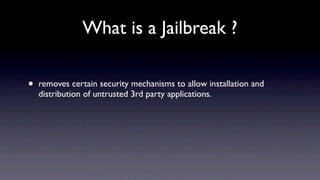

4. What is a Jailbreak ?
• removes certain security mechanisms to allow installation and
distribution of untrusted 3rd party applications.

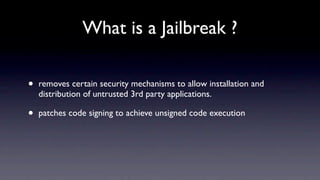

5. What is a Jailbreak ?
• removes certain security mechanisms to allow installation and
distribution of untrusted 3rd party applications.
• patches code signing to achieve unsigned code execution

6. What is a Jailbreak ?
• removes certain security mechanisms to allow installation and
distribution of untrusted 3rd party applications.
• patches code signing to achieve unsigned code execution
• makes you play angry birds for free...

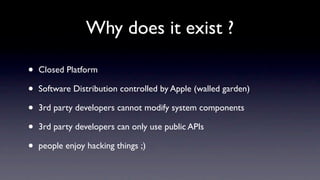

7. Why does it exist ?
• Closed Platform
• Software Distribution controlled by Apple (walled garden)
• 3rd party developers cannot modify system components
• 3rd party developers can only use public APIs
• people enjoy hacking things ;)

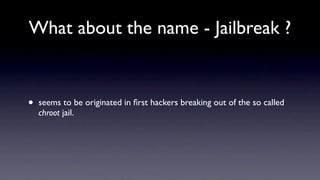

8. What about the name - Jailbreak ?
• seems to be originated in first hackers breaking out of the so called
chroot jail.

9. What can be done with a JB ?

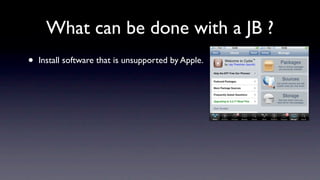

10. What can be done with a JB ?
• Install software that is unsupported by Apple.

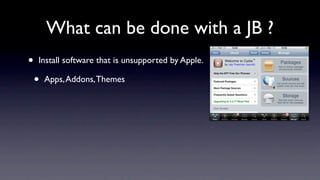

11. What can be done with a JB ?
• Install software that is unsupported by Apple.
• Apps, Addons, Themes

12. What can be done with a JB ?
• Install software that is unsupported by Apple.
• Apps, Addons, Themes
• Activate the Device (unofficial carriers)

13. What can be done with a JB ?
• Install software that is unsupported by Apple.
• Apps, Addons, Themes
• Activate the Device (unofficial carriers)
• Unlock the device.

14. What can be done with a JB ?
• Install software that is unsupported by Apple.
• Apps, Addons, Themes
• Activate the Device (unofficial carriers)
• Unlock the device.
• Do custom development that requires deeper system integration.

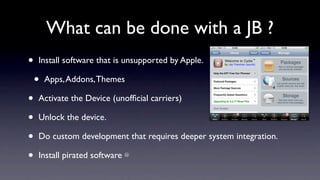

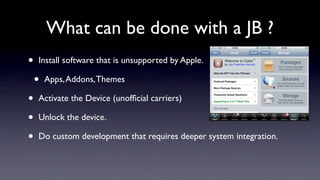

15. What can be done with a JB ?
• Install software that is unsupported by Apple.
• Apps, Addons, Themes
• Activate the Device (unofficial carriers)
• Unlock the device.
• Do custom development that requires deeper system integration.
• Install pirated software ☹

16. A state of the art prison
iOS Hardware and Software Design

17. iOS Hardware Architecture

18. iOS Hardware Architecture
Application Processor

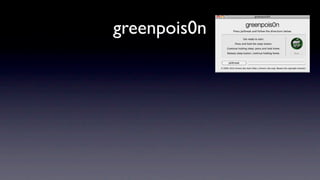

19. iOS Hardware Architecture
Application Processor
iOS
User interaction
Applications
...

20. iOS Hardware Architecture
Application Processor
iOS
User interaction
Applications
...
Baseband Processor

21. iOS Hardware Architecture
Application Processor
iOS
User interaction
Applications
...
Baseband Processor
NucleusOS
Radio communication

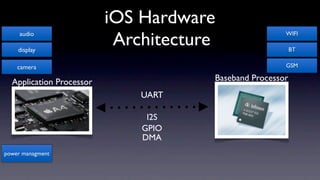

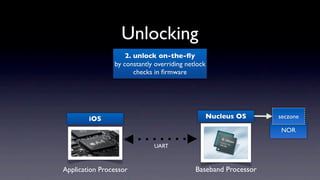

22. iOS Hardware
Architecture
audio WIFI
display BT
camera GSM
Application Processor Baseband Processor
UART
I2S
GPIO
DMA
power managment

23. iOS Hardware
Architecture
audio WIFI
display BT
camera GSM
Application Processor Baseband Processor
UART
I2S
GPIO
DMA
controls
power managment
sim/net-lock !

24. iOS Security Architecture

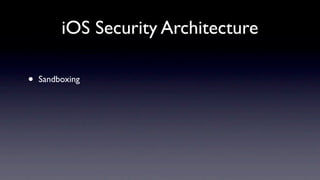

25. iOS Security Architecture
• Sandboxing

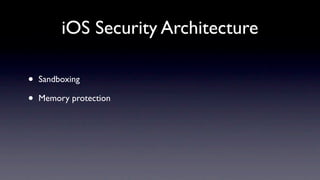

26. iOS Security Architecture
• Sandboxing
• Memory protection

27. iOS Security Architecture
• Sandboxing
• Memory protection
• Code signing

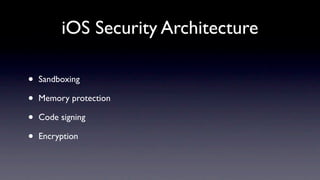

28. iOS Security Architecture
• Sandboxing
• Memory protection
• Code signing
• Encryption

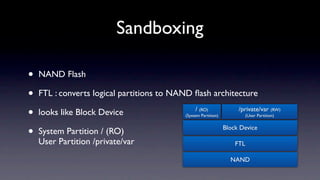

29. Sandboxing
• NAND Flash
• FTL : converts logical partitions to NAND flash architecture
• looks like Block Device / (RO)
(System Partition)
/private/var (RW)
(User Partition)
• System Partition / (RO) Block Device
User Partition /private/var FTL
NAND

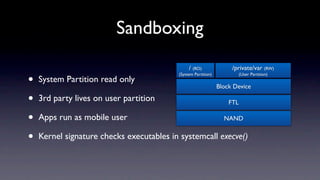

30. Sandboxing
/ (RO) /private/var (RW)
•
(System Partition) (User Partition)
System Partition read only
Block Device
• 3rd party lives on user partition FTL
• Apps run as mobile user NAND
• Kernel signature checks executables in systemcall execve()

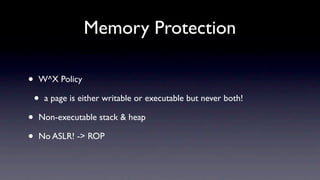

31. Memory Protection
• W^X Policy
• a page is either writable or executable but never both!
• Non-executable stack & heap
• No ASLR! -> ROP

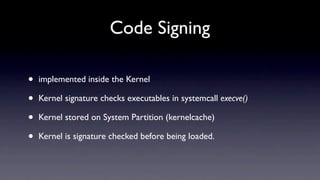

32. Code Signing
• implemented inside the Kernel
• Kernel signature checks executables in systemcall execve()
• Kernel stored on System Partition (kernelcache)
• Kernel is signature checked before being loaded.

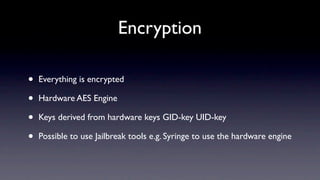

33. Encryption
• Everything is encrypted
• Hardware AES Engine
• Keys derived from hardware keys GID-key UID-key
• Possible to use Jailbreak tools e.g. Syringe to use the hardware engine

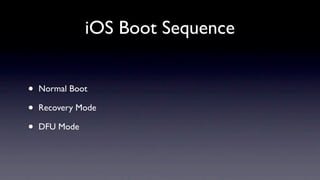

34. iOS Boot Sequence
• Normal Boot
• Recovery Mode
• DFU Mode

35. Normal Boot
LLB
Bootrom (Low Level iBoot Kernel Application
Bootloader)
NOR NOR NAND NAND
signature signature signature signature
check check check check

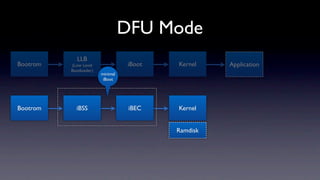

36. DFU Mode
LLB
Bootrom (Low Level iBoot Kernel Application
Bootloader)
minimal
iBoot
Bootrom iBSS iBEC Kernel
Ramdisk

37. Recovery Mode
LLB
Bootrom (Low Level iBoot Kernel
Bootloader)
signature signature Kernel
check check
Ramdisk

38. Attacking the chain of trust
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

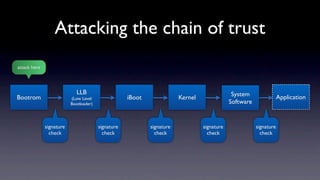

39. Attacking the chain of trust
attack here
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

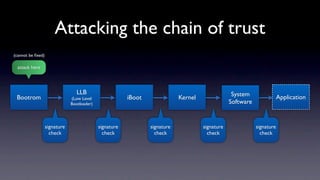

40. Attacking the chain of trust
(cannot be fixed)
attack here
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

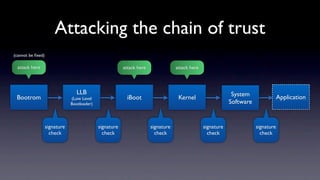

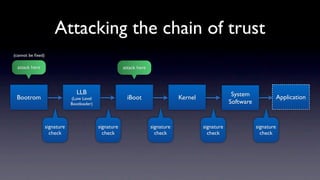

41. Attacking the chain of trust
(cannot be fixed)
attack here attack here
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

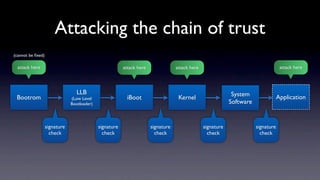

42. Attacking the chain of trust
(cannot be fixed)
attack here attack here attack here
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

43. Attacking the chain of trust
(cannot be fixed)
attack here attack here attack here attack here
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

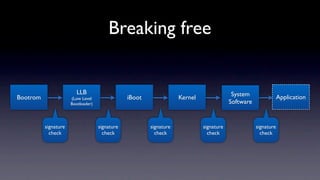

44. Breaking free
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

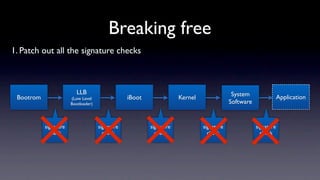

45. Breaking free
1. Patch out all the signature checks
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

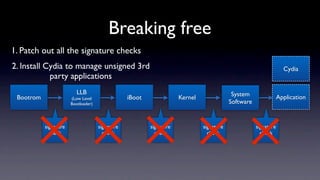

46. Breaking free
1. Patch out all the signature checks
2. Install Cydia to manage unsigned 3rd Cydia
party applications
LLB System
Bootrom (Low Level iBoot Kernel Application
Bootloader) Software
signature signature signature signature signature
check check check check check

47. How it’s done

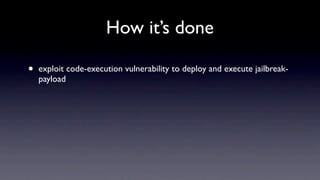

48. How it’s done
• exploit code-execution vulnerability to deploy and execute jailbreak-
payload

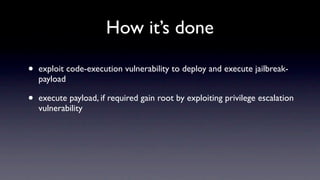

49. How it’s done
• exploit code-execution vulnerability to deploy and execute jailbreak-
payload
• execute payload, if required gain root by exploiting privilege escalation
vulnerability

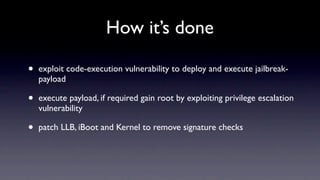

50. How it’s done
• exploit code-execution vulnerability to deploy and execute jailbreak-
payload
• execute payload, if required gain root by exploiting privilege escalation
vulnerability
• patch LLB, iBoot and Kernel to remove signature checks

51. How it’s done
• exploit code-execution vulnerability to deploy and execute jailbreak-
payload
• execute payload, if required gain root by exploiting privilege escalation
vulnerability
• patch LLB, iBoot and Kernel to remove signature checks
• install cydia to allow installation of unsigned 3rd party applications.

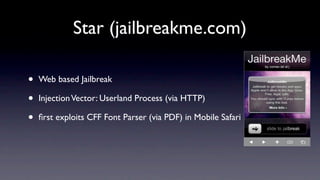

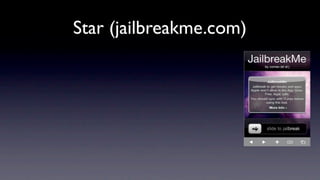

52. Star (jailbreakme.com)

53. Star (jailbreakme.com)
• Web based Jailbreak

54. Star (jailbreakme.com)
• Web based Jailbreak
• Injection Vector: Userland Process (via HTTP)

55. Star (jailbreakme.com)
• Web based Jailbreak
• Injection Vector: Userland Process (via HTTP)
• first exploits CFF Font Parser (via PDF) in Mobile Safari

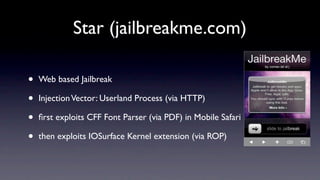

56. Star (jailbreakme.com)
• Web based Jailbreak
• Injection Vector: Userland Process (via HTTP)
• first exploits CFF Font Parser (via PDF) in Mobile Safari
• then exploits IOSurface Kernel extension (via ROP)

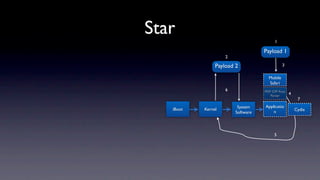

57. Star 1
Payload 1
2
Payload 2 3
Mobile
Safari
6 PDF CFF Font
Parser 4
7
System Applicatio
iBoot Kernel Cydia
Software n
5

58. Star 1
Payload 1
2
1. Payload1: Malformed PDF Payload 2 3
Mobile
Safari
6 PDF CFF Font
Parser 4
7
System Applicatio
iBoot Kernel Cydia
Software n
5

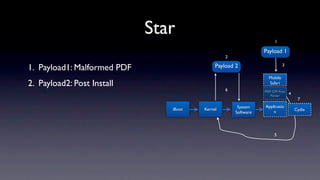

59. Star 1
Payload 1
2
1. Payload1: Malformed PDF Payload 2 3
Mobile
2. Payload2: Post Install Safari
6 PDF CFF Font
Parser 4
7
System Applicatio
iBoot Kernel Cydia
Software n
5

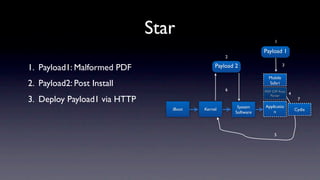

60. Star 1
Payload 1
2
1. Payload1: Malformed PDF Payload 2 3
Mobile
2. Payload2: Post Install Safari
6 PDF CFF Font
Parser 4
3. Deploy Payload1 via HTTP 7
System Applicatio
iBoot Kernel Cydia
Software n
5

61. Star 1
Payload 1
2
1. Payload1: Malformed PDF Payload 2 3
Mobile
2. Payload2: Post Install Safari
6 PDF CFF Font
Parser 4
3. Deploy Payload1 via HTTP 7
System Applicatio
iBoot Kernel Cydia
Software n
4. Exploit Userland Process
5

62. Star 1
Payload 1
2
1. Payload1: Malformed PDF Payload 2 3
Mobile
2. Payload2: Post Install Safari
6 PDF CFF Font
Parser 4
3. Deploy Payload1 via HTTP 7
System Applicatio
iBoot Kernel Cydia
Software n
4. Exploit Userland Process
5. Exploit Kernel to gain root privileges 5

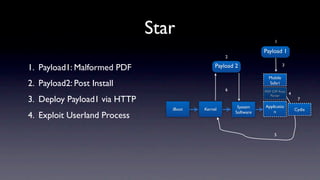

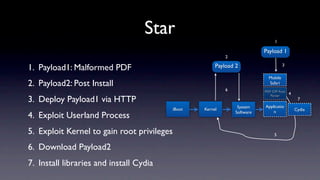

63. Star 1
Payload 1
2
1. Payload1: Malformed PDF Payload 2 3
Mobile
2. Payload2: Post Install Safari
6 PDF CFF Font
Parser 4
3. Deploy Payload1 via HTTP 7
System Applicatio
iBoot Kernel Cydia
Software n
4. Exploit Userland Process
5. Exploit Kernel to gain root privileges 5
6. Download Payload2

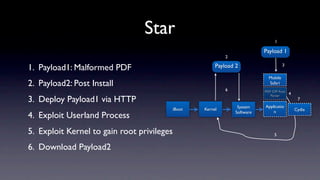

64. Star 1
Payload 1
2
1. Payload1: Malformed PDF Payload 2 3
Mobile
2. Payload2: Post Install Safari
6 PDF CFF Font
Parser 4
3. Deploy Payload1 via HTTP 7
System Applicatio
iBoot Kernel Cydia
Software n
4. Exploit Userland Process
5. Exploit Kernel to gain root privileges 5
6. Download Payload2
7. Install libraries and install Cydia

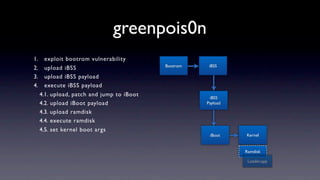

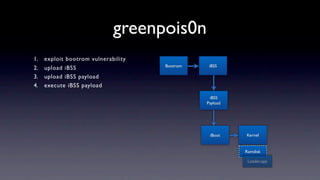

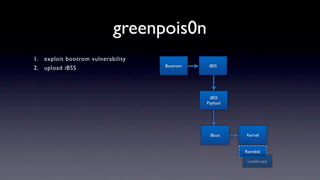

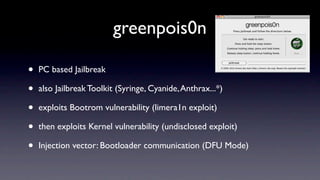

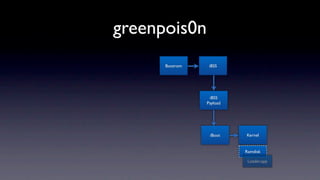

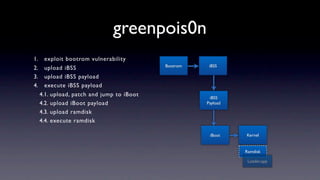

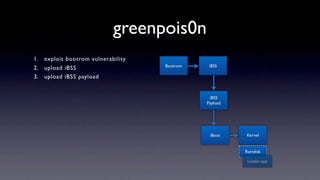

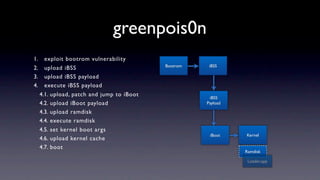

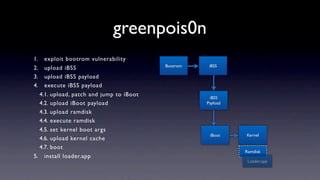

65. greenpois0n

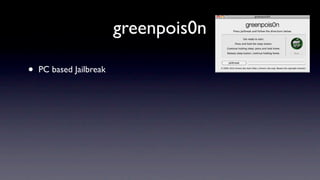

66. greenpois0n
• PC based Jailbreak

67. greenpois0n
• PC based Jailbreak
• also Jailbreak Toolkit (Syringe, Cyanide, Anthrax...*)

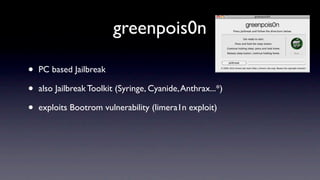

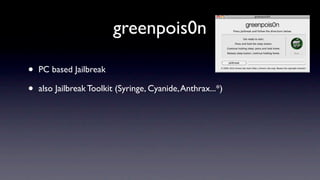

68. greenpois0n
• PC based Jailbreak
• also Jailbreak Toolkit (Syringe, Cyanide, Anthrax...*)
• exploits Bootrom vulnerability (limera1n exploit)

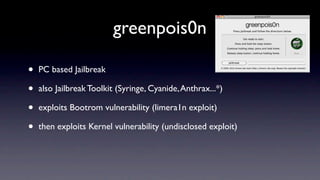

69. greenpois0n
• PC based Jailbreak
• also Jailbreak Toolkit (Syringe, Cyanide, Anthrax...*)
• exploits Bootrom vulnerability (limera1n exploit)
• then exploits Kernel vulnerability (undisclosed exploit)

70. greenpois0n
• PC based Jailbreak
• also Jailbreak Toolkit (Syringe, Cyanide, Anthrax...*)
• exploits Bootrom vulnerability (limera1n exploit)
• then exploits Kernel vulnerability (undisclosed exploit)
• Injection vector: Bootloader communication (DFU Mode)

71. greenpois0n
Bootrom iBSS
iBSS
Payload
iBoot Kernel
Ramdisk
Loader.app

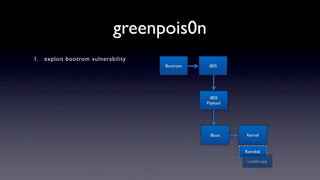

72. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
iBSS
Payload
iBoot Kernel
Ramdisk
Loader.app

73. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
iBSS
Payload
iBoot Kernel
Ramdisk
Loader.app

74. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
iBSS
Payload
iBoot Kernel
Ramdisk
Loader.app

75. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
iBSS
Payload
iBoot Kernel
Ramdisk
Loader.app

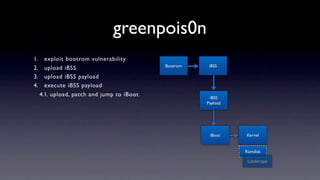

76. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
Payload
iBoot Kernel
Ramdisk
Loader.app

77. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
4.2. upload iBoot payload Payload
iBoot Kernel
Ramdisk
Loader.app

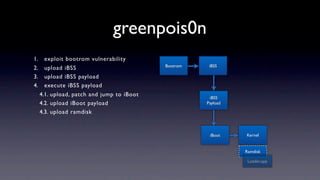

78. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
4.2. upload iBoot payload Payload
4.3. upload ramdisk
iBoot Kernel
Ramdisk
Loader.app

79. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
4.2. upload iBoot payload Payload
4.3. upload ramdisk
4.4. execute ramdisk
iBoot Kernel
Ramdisk
Loader.app

80. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
4.2. upload iBoot payload Payload
4.3. upload ramdisk
4.4. execute ramdisk
4.5. set kernel boot args
iBoot Kernel
Ramdisk
Loader.app

81. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
4.2. upload iBoot payload Payload
4.3. upload ramdisk
4.4. execute ramdisk
4.5. set kernel boot args
iBoot Kernel
4.6. upload kernel cache
Ramdisk
Loader.app

82. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
4.2. upload iBoot payload Payload
4.3. upload ramdisk
4.4. execute ramdisk
4.5. set kernel boot args
iBoot Kernel
4.6. upload kernel cache
4.7. boot
Ramdisk
Loader.app

83. greenpois0n
1. exploit bootrom vulnerability
Bootrom iBSS
2. upload iBSS
3. upload iBSS payload
4. execute iBSS payload
4.1. upload, patch and jump to iBoot iBSS
4.2. upload iBoot payload Payload
4.3. upload ramdisk
4.4. execute ramdisk
4.5. set kernel boot args
iBoot Kernel
4.6. upload kernel cache
4.7. boot
Ramdisk
5. install loader.app
Loader.app

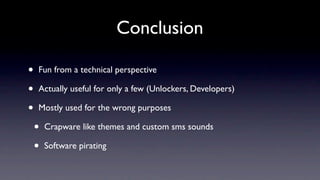

84. Conclusion
• Fun from a technical perspective
• Actually useful for only a few (Unlockers, Developers)
• Mostly used for the wrong purposes
• Crapware like themes and custom sms sounds
• Software pirating

85. more in the final paper...
slides available at
http://blog.010dev.com

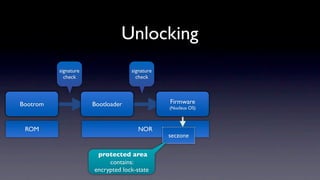

86. Unlocking
signature signature
check check
Bootrom Bootloader Firmware
(Nucleus OS)
ROM NOR
seczone
protected area
contains:
encrypted lock-state

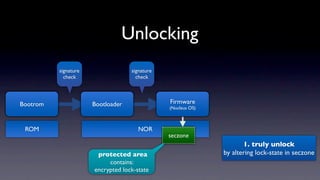

87. Unlocking
signature signature
check check
Bootrom Bootloader Firmware
(Nucleus OS)
ROM NOR
seczone
1. truly unlock
protected area by altering lock-state in seczone
contains:
encrypted lock-state

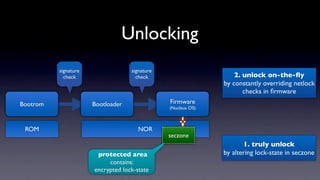

88. Unlocking
signature signature
check check 2. unlock on-the-fly
by constantly overriding netlock
checks in firmware
Bootrom Bootloader Firmware
(Nucleus OS)
ROM NOR
X
seczone
1. truly unlock
protected area by altering lock-state in seczone
contains:
encrypted lock-state

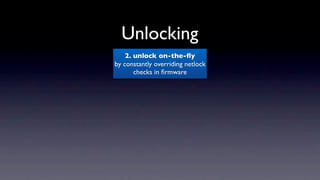

89. Unlocking
2. unlock on-the-fly
by constantly overriding netlock
checks in firmware

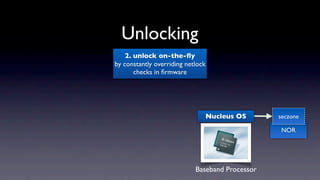

90. Unlocking
2. unlock on-the-fly
by constantly overriding netlock
checks in firmware
Nucleus OS seczone
NOR
Baseband Processor

91. Unlocking
2. unlock on-the-fly
by constantly overriding netlock
checks in firmware
iOS Nucleus OS seczone
NOR
UART
Application Processor Baseband Processor

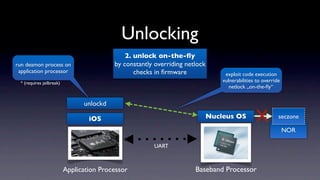

92. Unlocking
2. unlock on-the-fly
run deamon process on by constantly overriding netlock
application processor checks in firmware exploit code execution
* (requires jailbreak) vulnerabilities to override
netlock „on-the-fly“
unlockd
iOS Nucleus OS X seczone
NOR
UART
Application Processor Baseband Processor
