Iw411 migrating content by search from 2010 into 2013 - minified
The document outlines the migration of content management from SharePoint 2010 to SharePoint 2013, focusing on the challenges and solutions involved in rolling up regional news for a fictional multinational legal client. It describes the use of SharePoint search functionalities and enhancements in 2013, including site columns, managed properties, and display templates, while addressing limitations encountered with earlier methods. The document also provides insights into the migration process, emphasizing the need for proper tagging and crawling of content to utilize new features effectively.
More Related Content
Similar to Iw411 migrating content by search from 2010 into 2013 - minified
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Iw411 migrating content by search from 2010 into 2013 - minified
- 1. Migrating Content bySearch from 2010 into 2013 IW411 Paul Hunt
- 2. Paul Hunt,MCITP, MCPD Trinity Expert Systems Ltd www.tesl.com paul.hunt@eurodatasystems.com Twitter:@cimares www.myfatblog.co.uk I do woodturning for a hobby!

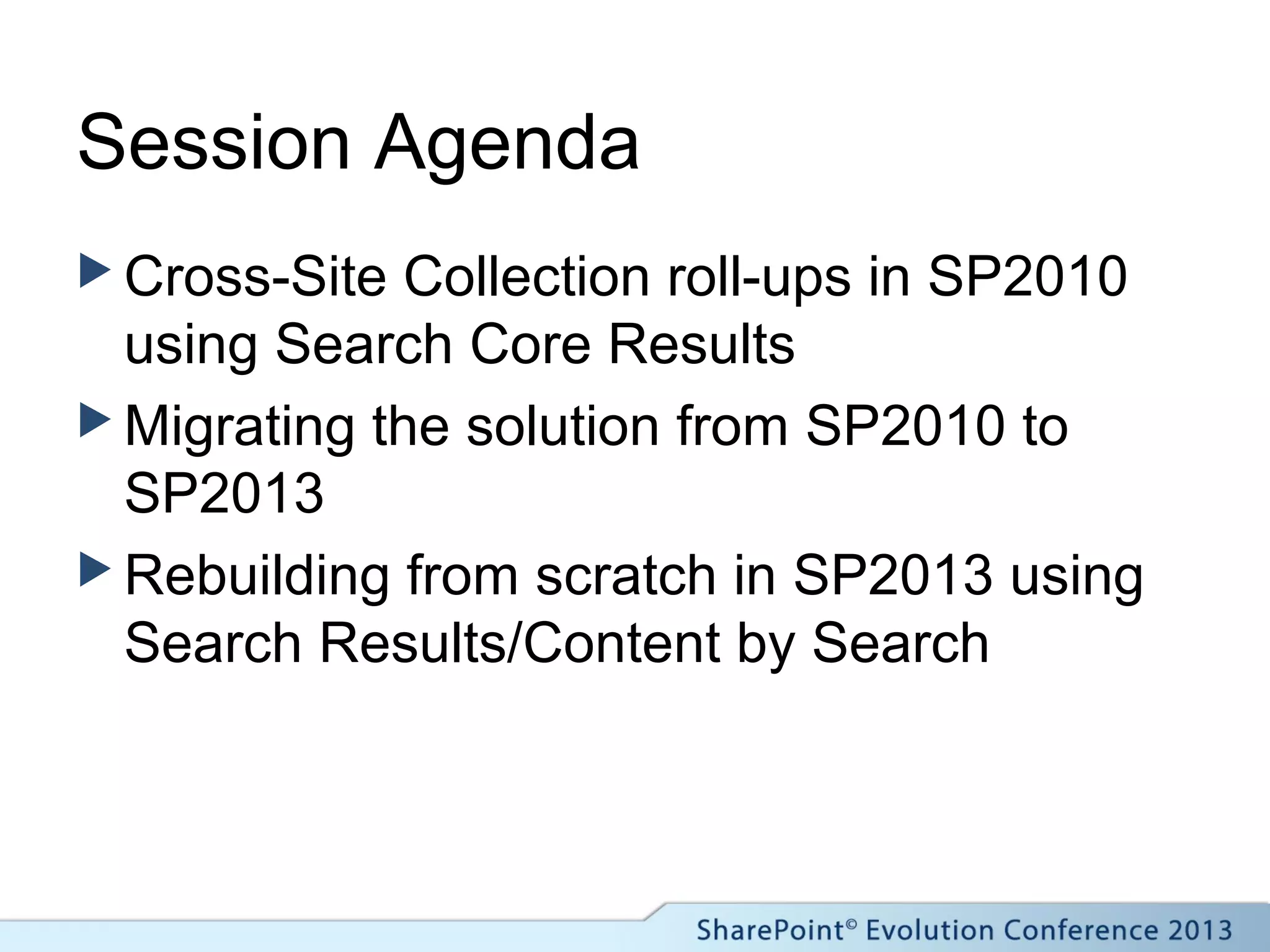

- 3. Session Agenda Cross-SiteCollection roll-ups in SP2010 using Search Core Results Migrating the solution from SP2010 to SP2013 Rebuilding from scratch in SP2013 using Search Results/Content by Search

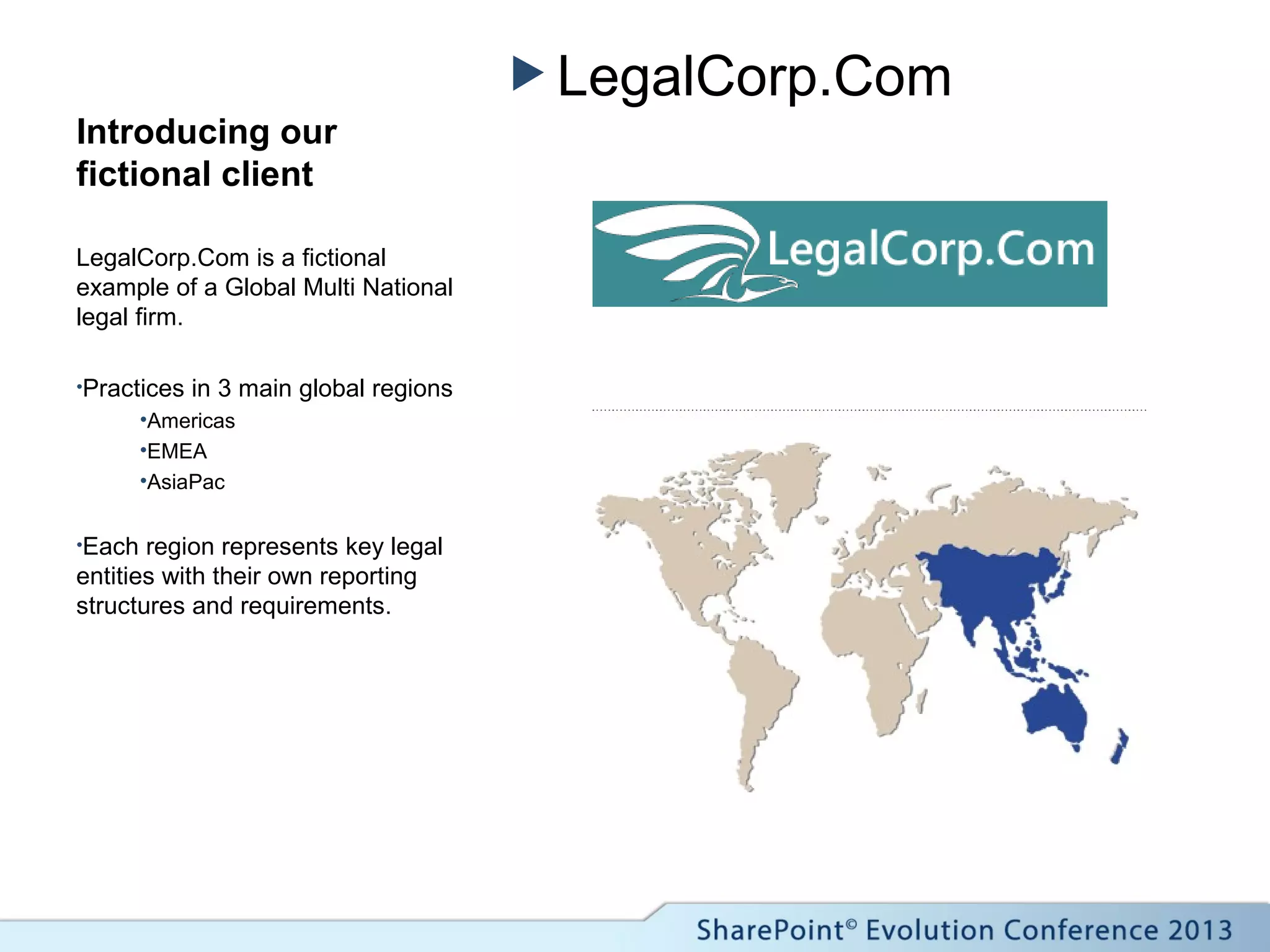

- 4. LegalCorp.Com Introducing our fictionalclient LegalCorp.Com is a fictional example of a Global Multi National legal firm. •Practices in 3 main global regions •Americas •EMEA •AsiaPac •Each region represents key legal entities with their own reporting structures and requirements.
- 5. Global Challenges Thenature of the company meant that the client wanted to use a site collection for each region, with a global site at the top of the Navigation.

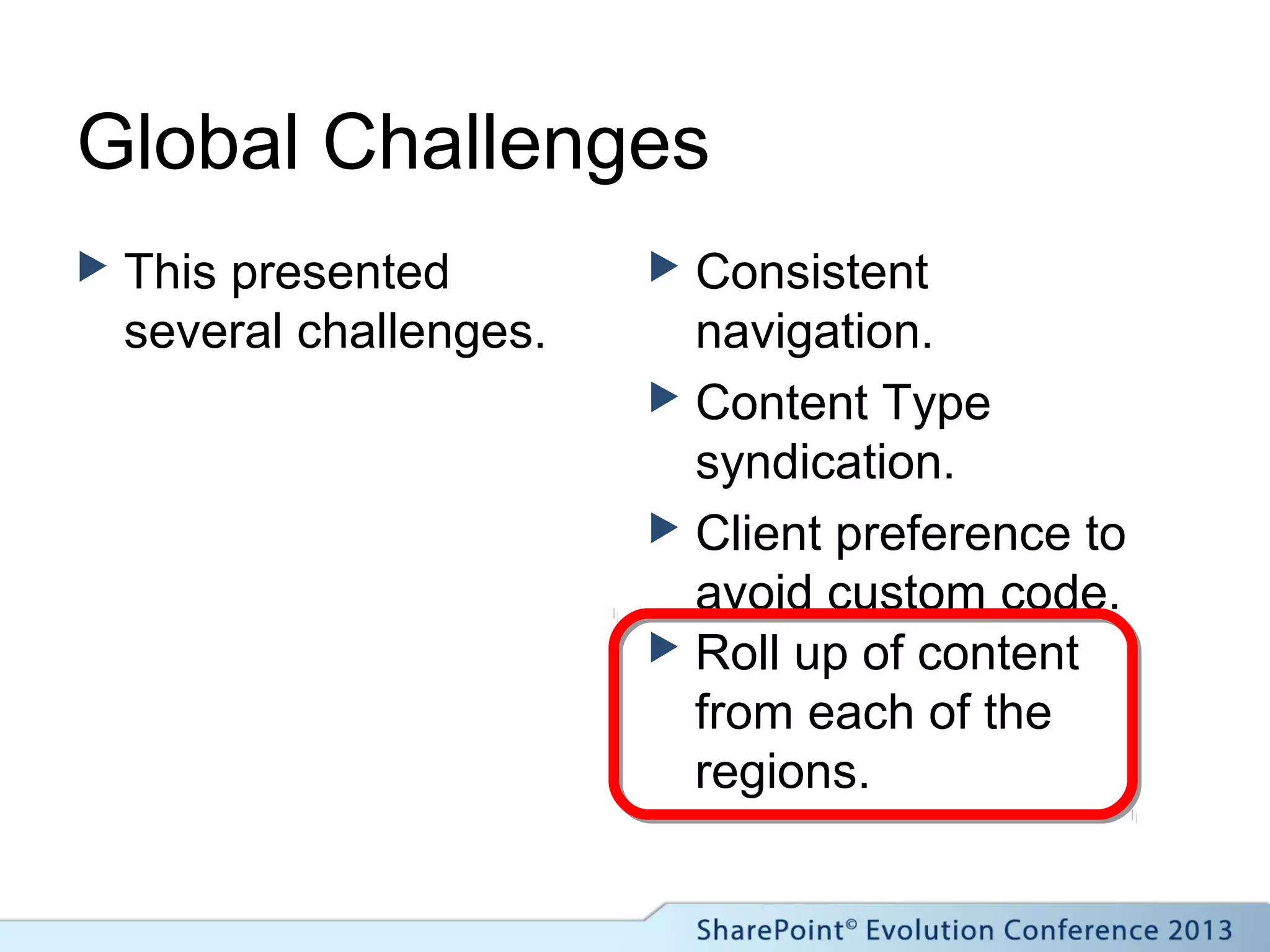

- 6. Global Challenges Thispresented several challenges. Consistent navigation. Content Type syndication. Client preference to avoid custom code. Roll up of content from each of the regions.

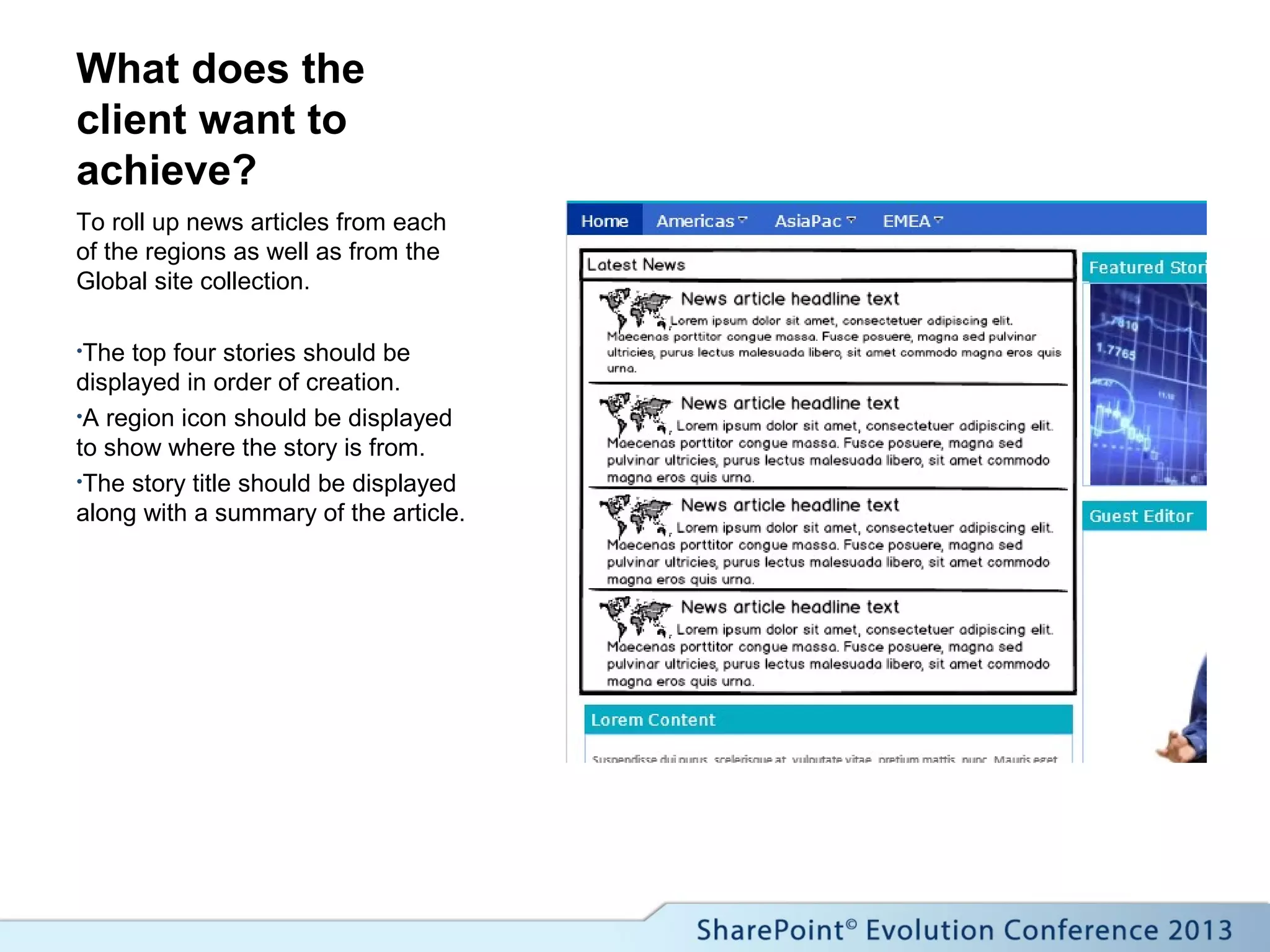

- 7. What does the clientwant to achieve? To roll up news articles from each of the regions as well as from the Global site collection. •The top four stories should be displayed in order of creation. •A region icon should be displayed to show where the story is from. •The story title should be displayed along with a summary of the article.

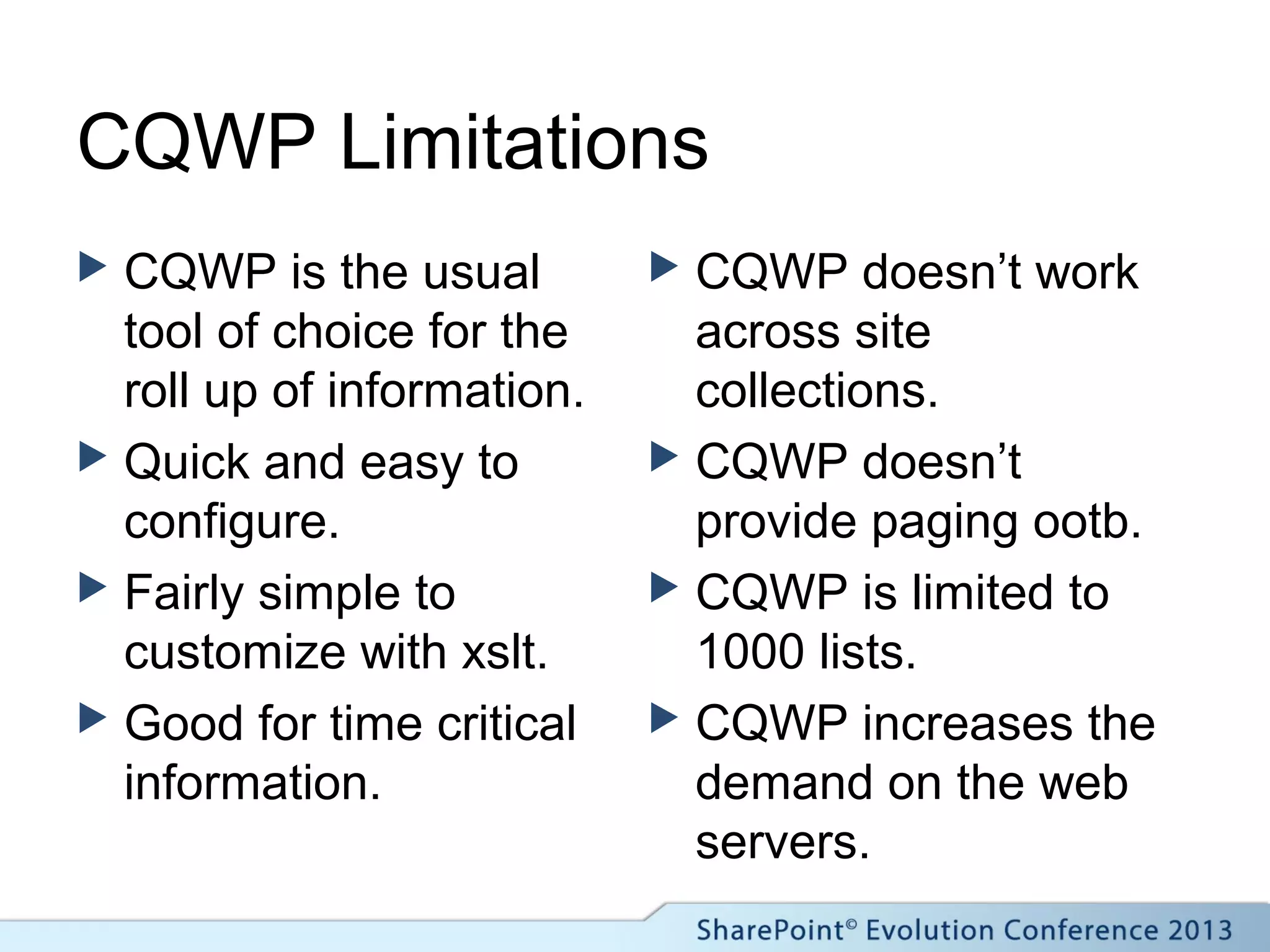

- 8. CQWP Limitations CQWPis the usual tool of choice for the roll up of information. Quick and easy to configure. Fairly simple to customize with xslt. Good for time critical information. CQWP doesn’t work across site collections. CQWP doesn’t provide paging ootb. CQWP is limited to 1000 lists. CQWP increases the demand on the web servers.
- 9.

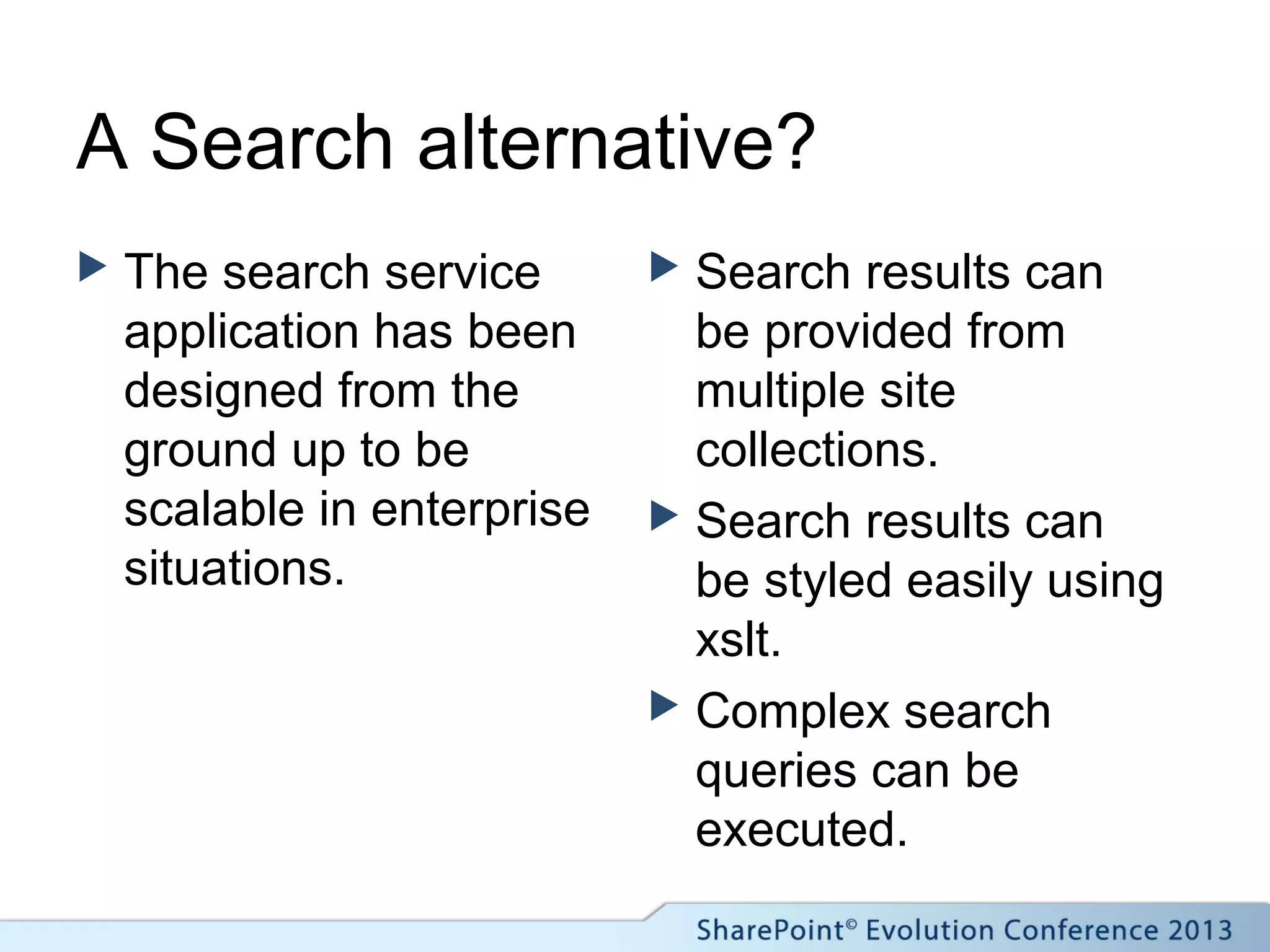

- 10. A Search alternative? The search service application has been designed from the ground up to be scalable in enterprise situations. Search results can be provided from multiple site collections. Search results can be styled easily using xslt. Complex search queries can be executed.
- 11. Our Kryptonite? Resultdata is only as fresh as the crawls. [Me] and [Today] tokens are not available. (SP2010)

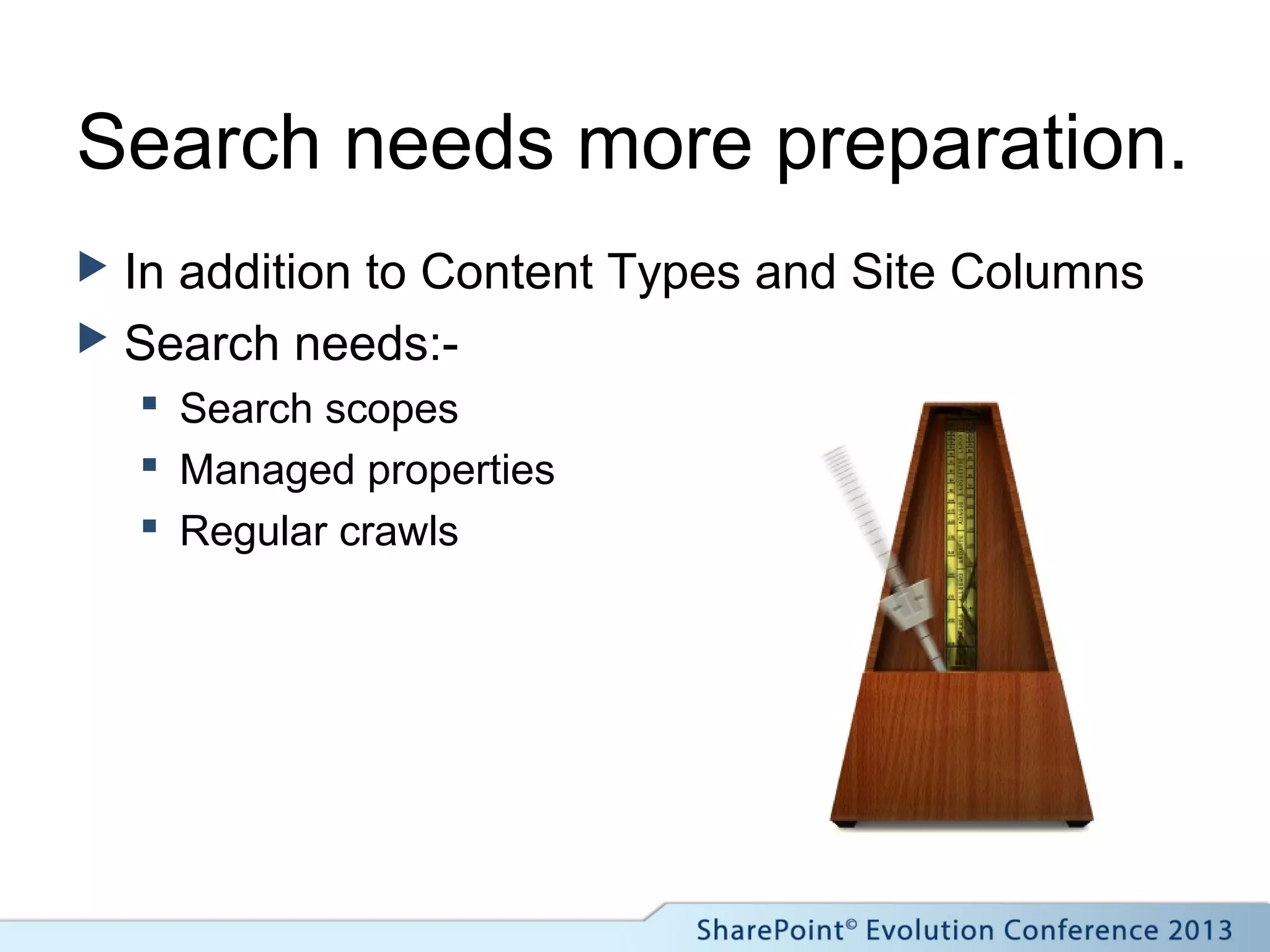

- 12. Search needs morepreparation. In addition to Content Types and Site Columns Search needs:- Search scopes Managed properties Regular crawls

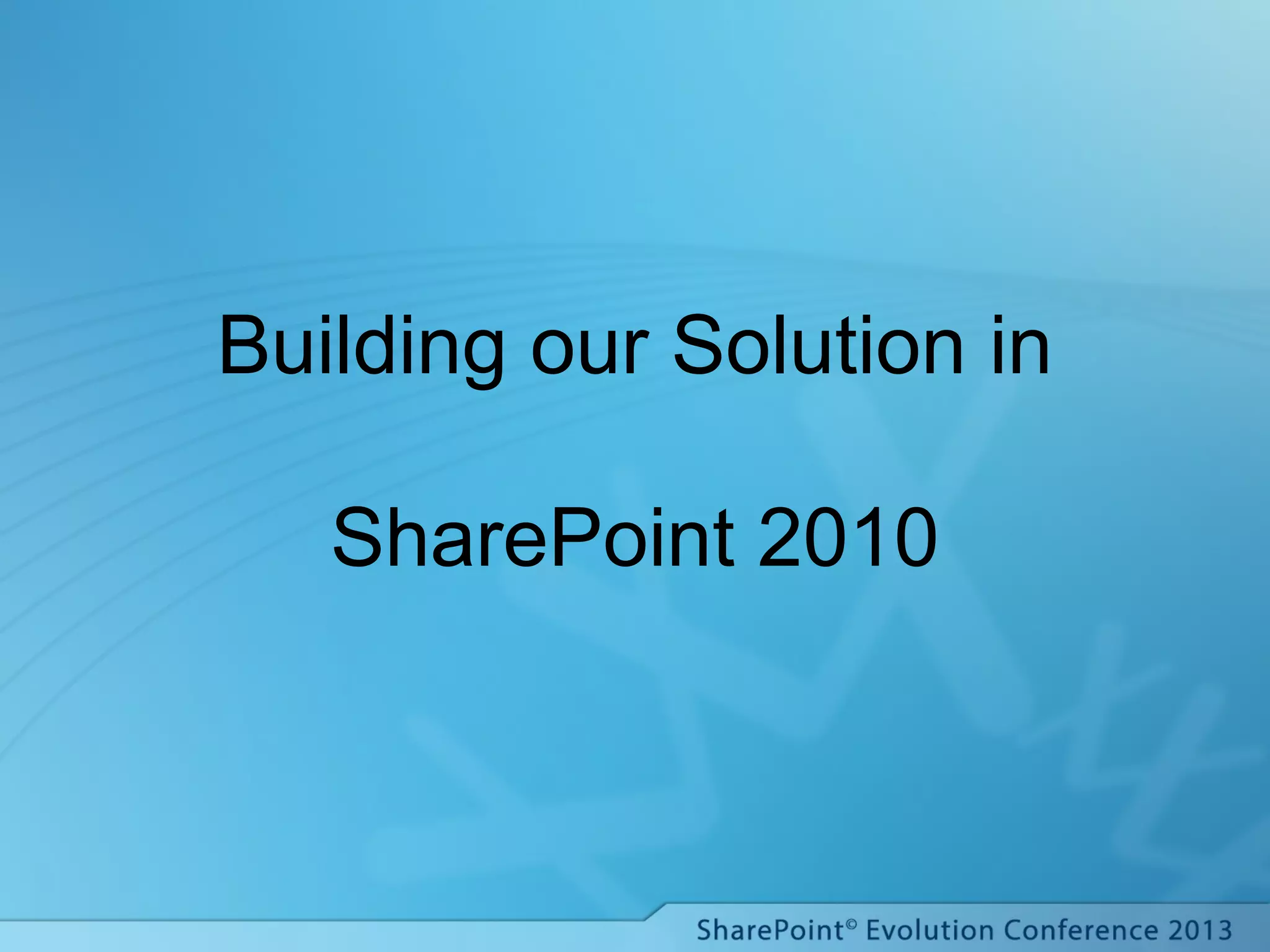

- 13. Building our Solutionin SharePoint 2010
- 14. Building our Solution Site Columns Content Type Page Layout Managed Properties Scope Search Core Results Web Part XSLT

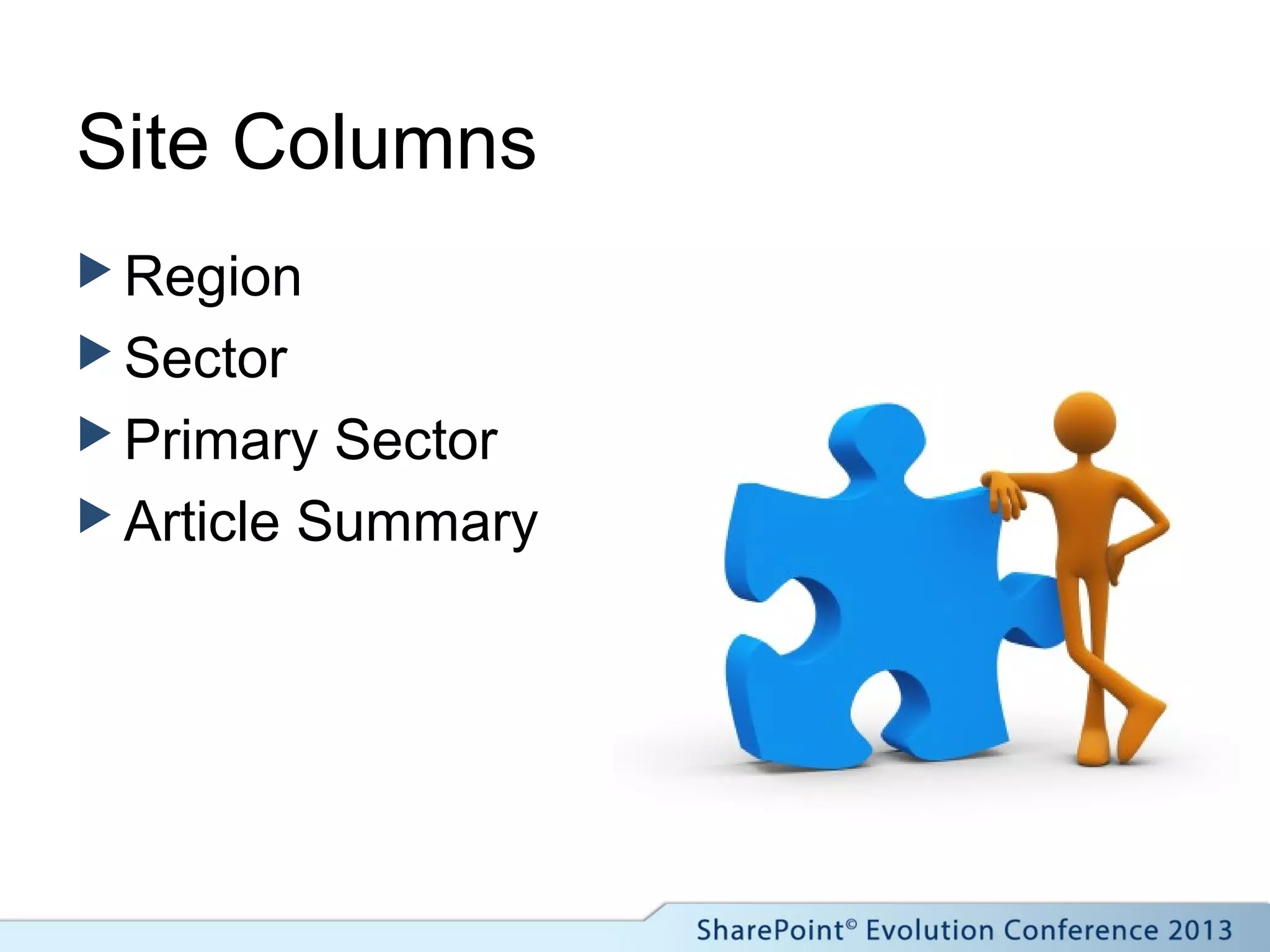

- 15. Site Columns Region Sector Primary Sector Article Summary

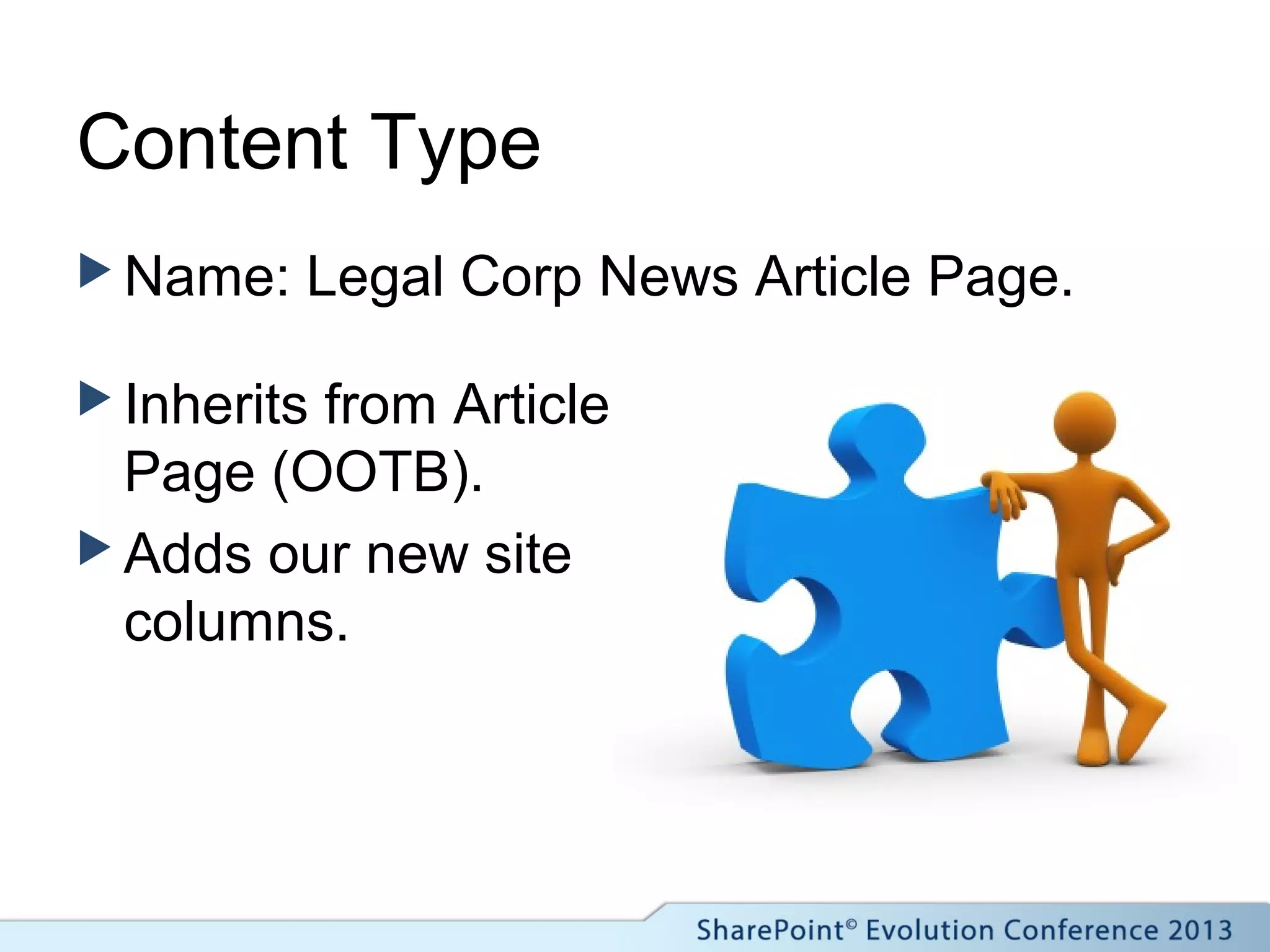

- 16. Content Type Name:Legal Corp News Article Page. Inherits from Article Page (OOTB). Adds our new site columns.
- 17. Content Type -Deployment Manual Configuration Content Type Hub Powershell Solution Package

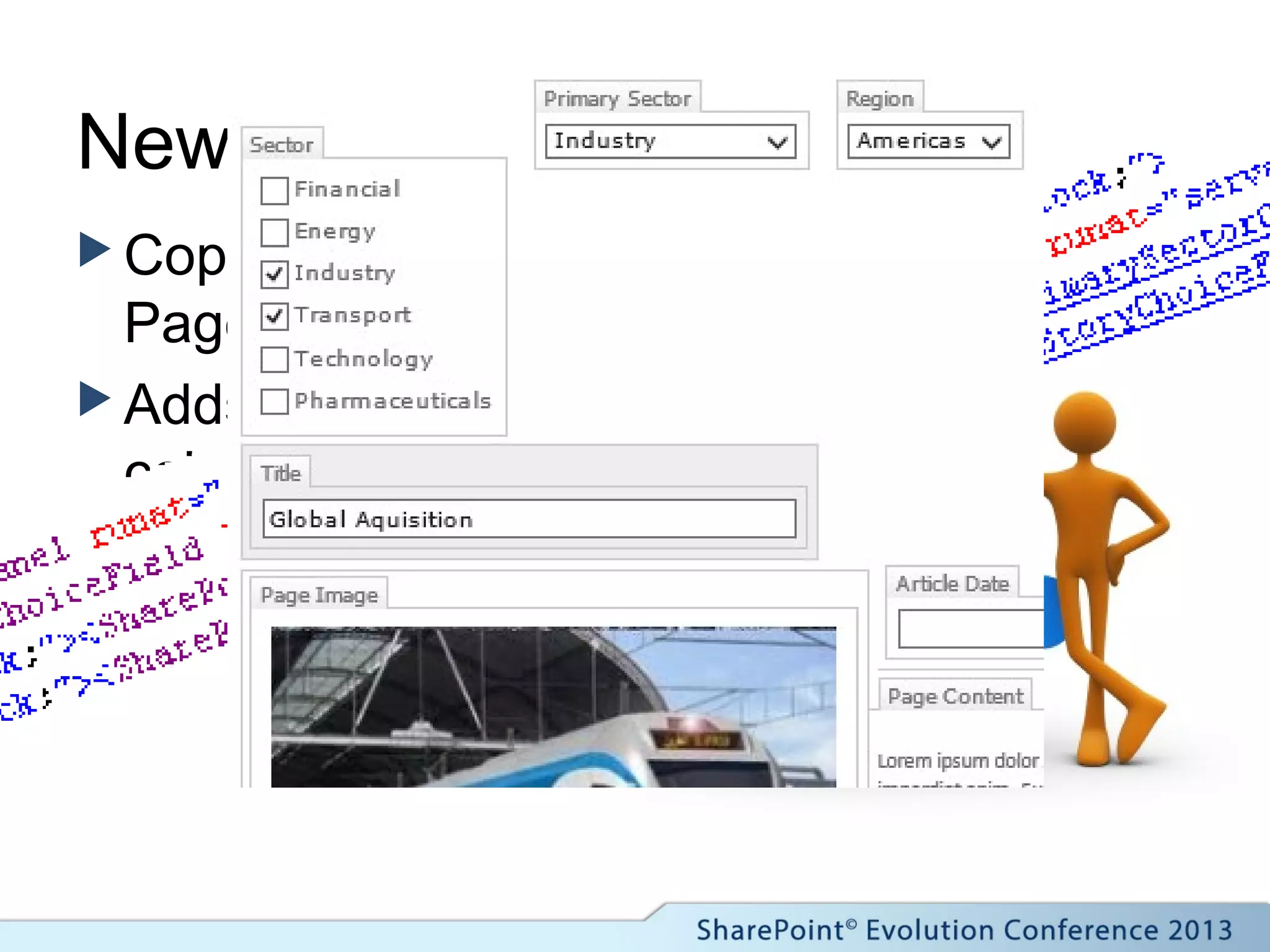

- 18. New Page Layout(s) Copied from Article Page Adds our new site columns into the edit experience.

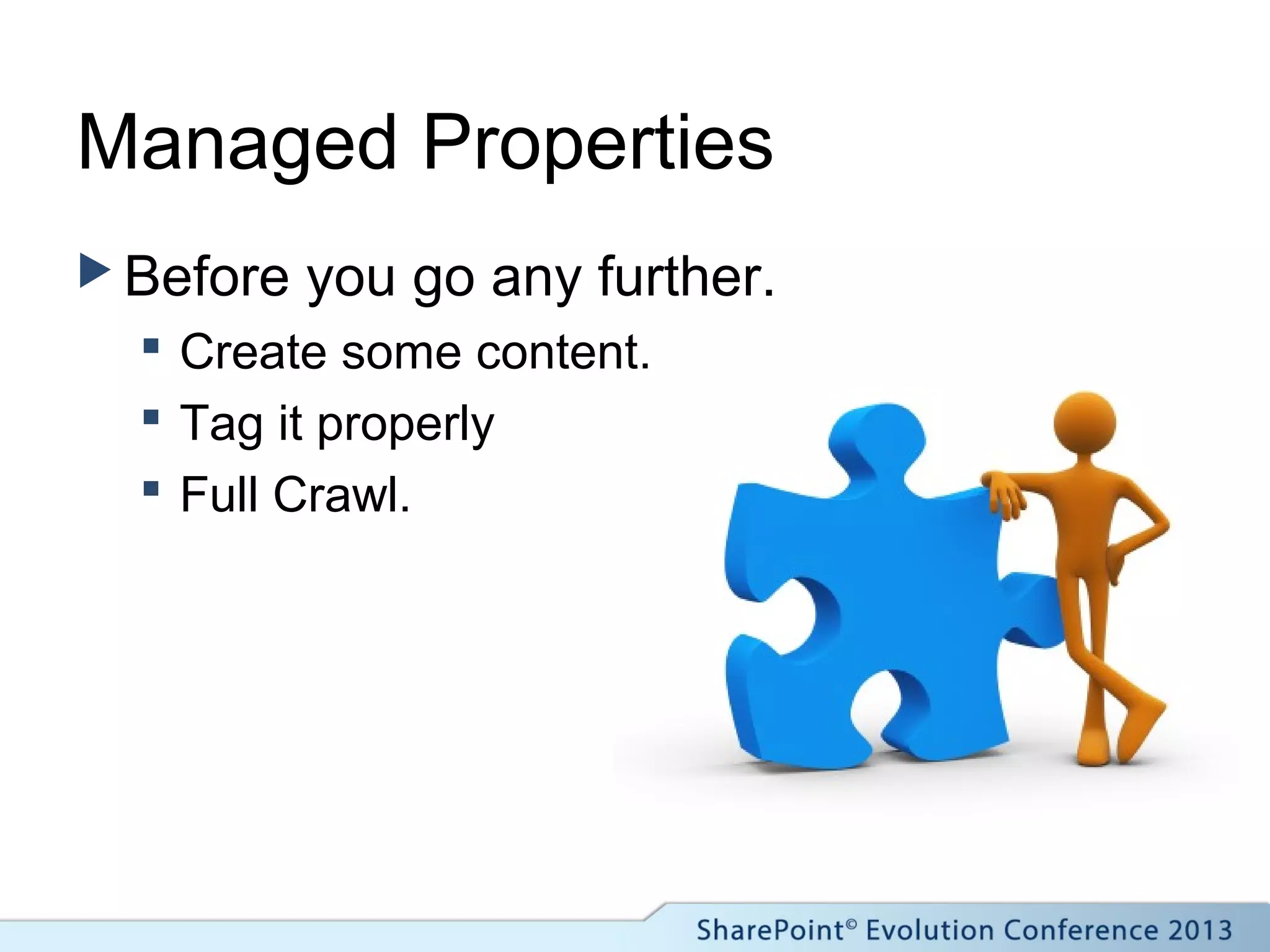

- 19. Managed Properties Beforeyou go any further. Create some content. Tag it properly Full Crawl.
- 20. Managed Properties Crawledproperties are extracted from the index.

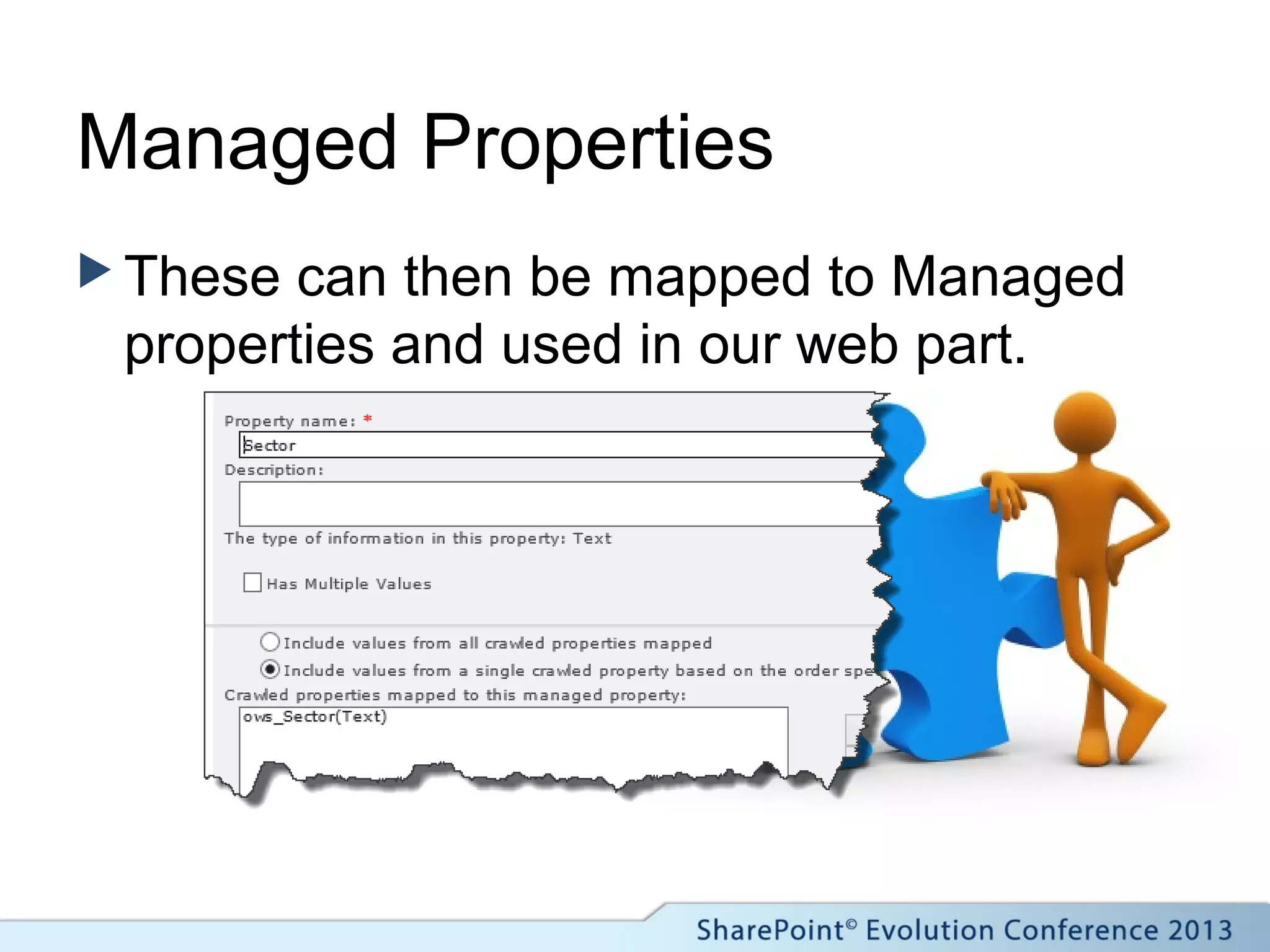

- 21. Managed Properties Thesecan then be mapped to Managed properties and used in our web part.

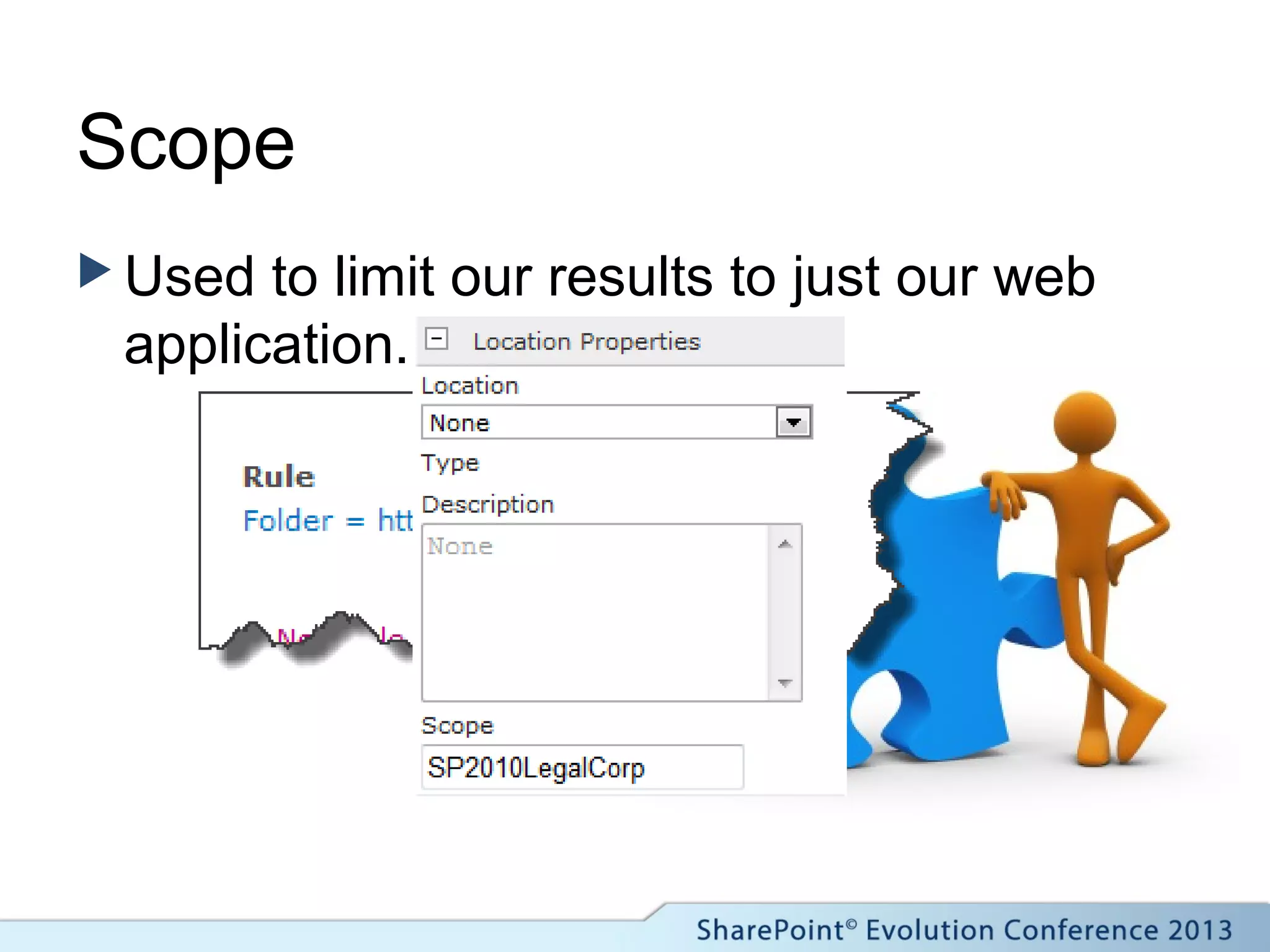

- 22. Scope Used tolimit our results to just our web application.

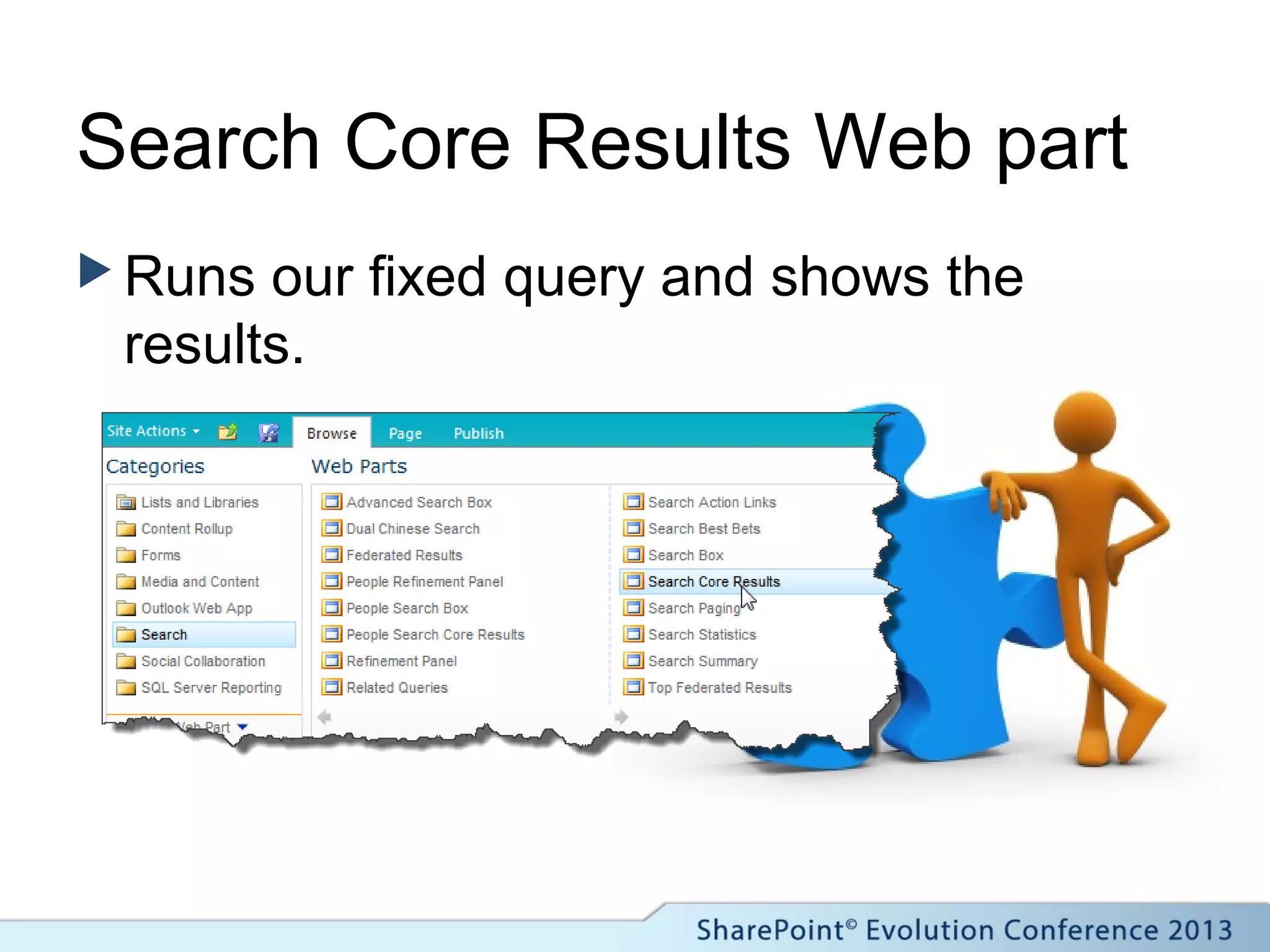

- 23. Search Core ResultsWeb part Runs our fixed query and shows the results.

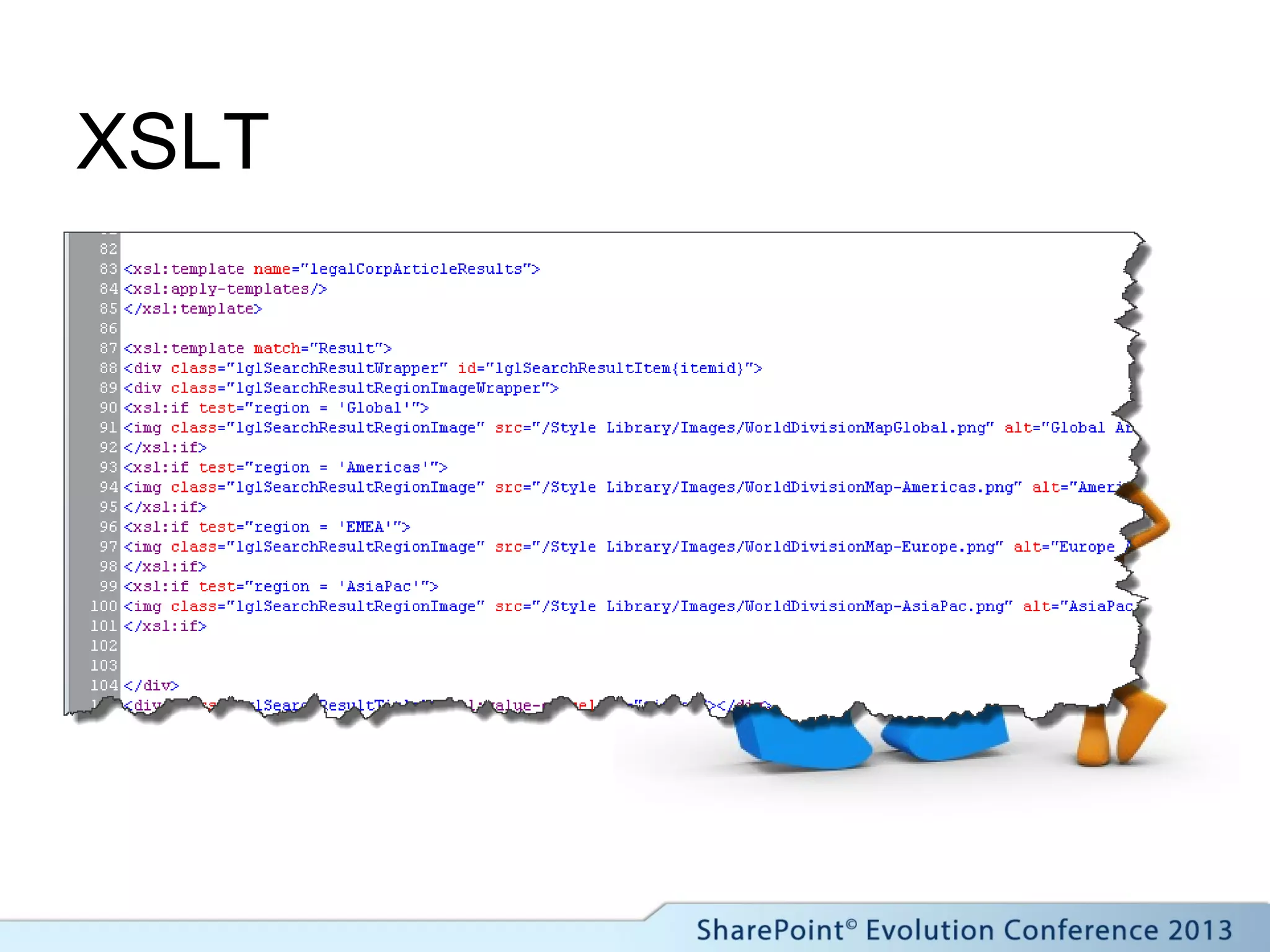

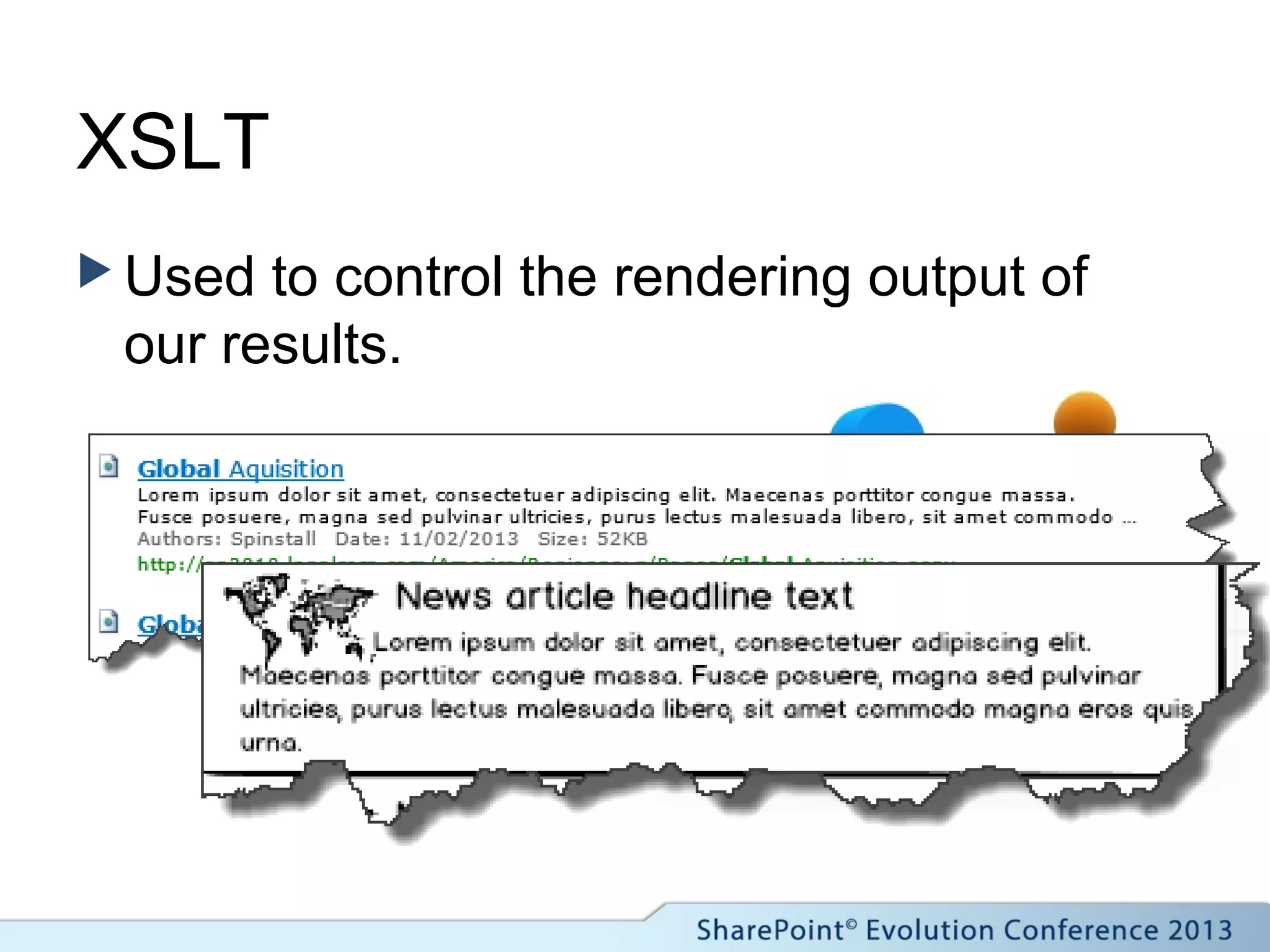

- 24. XSLT Used tocontrol the rendering output of our results.
- 25.

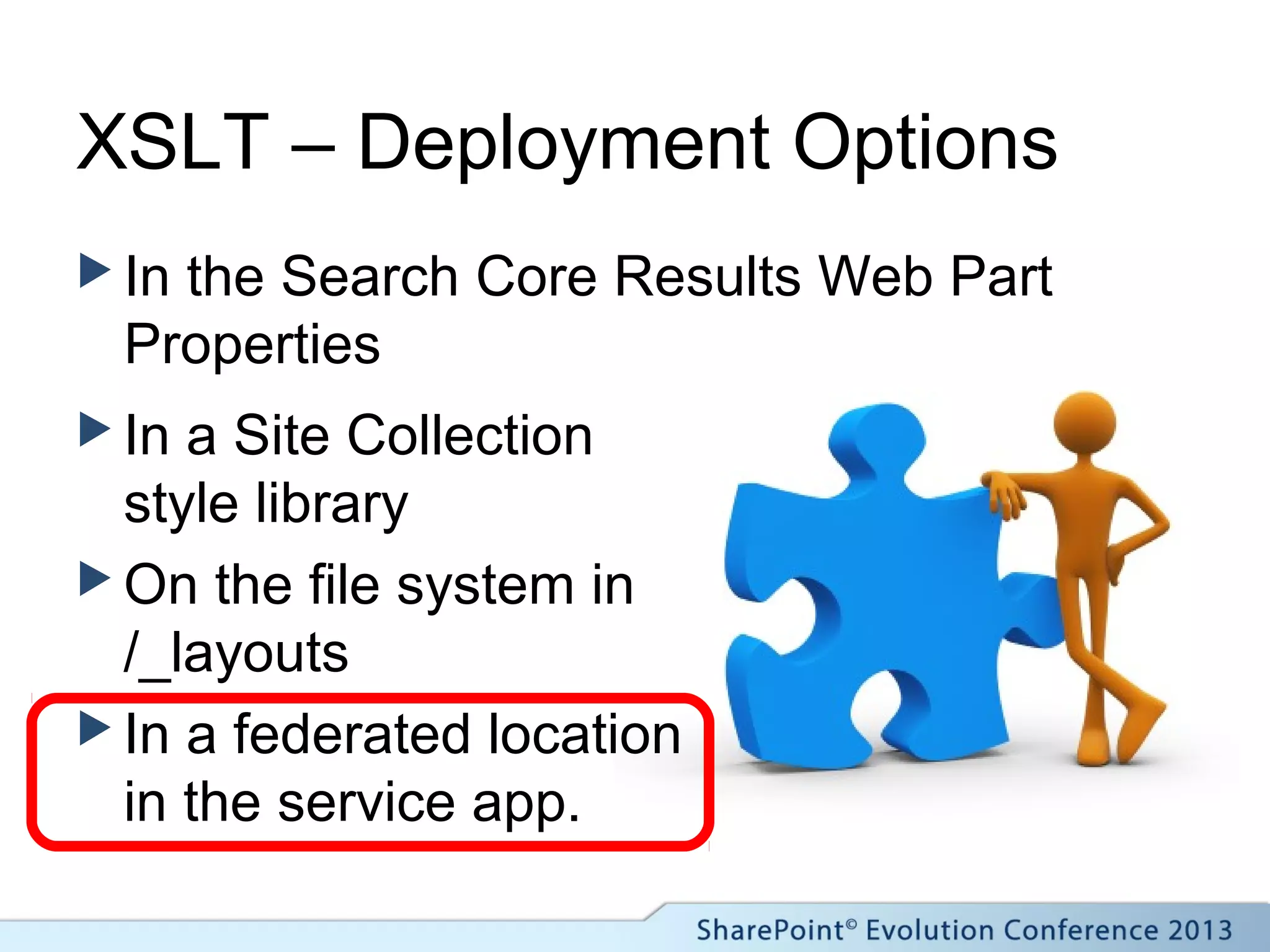

- 26. XSLT – DeploymentOptions In the Search Core Results Web Part Properties In a Site Collection style library On the file system in /_layouts In a federated location in the service app.

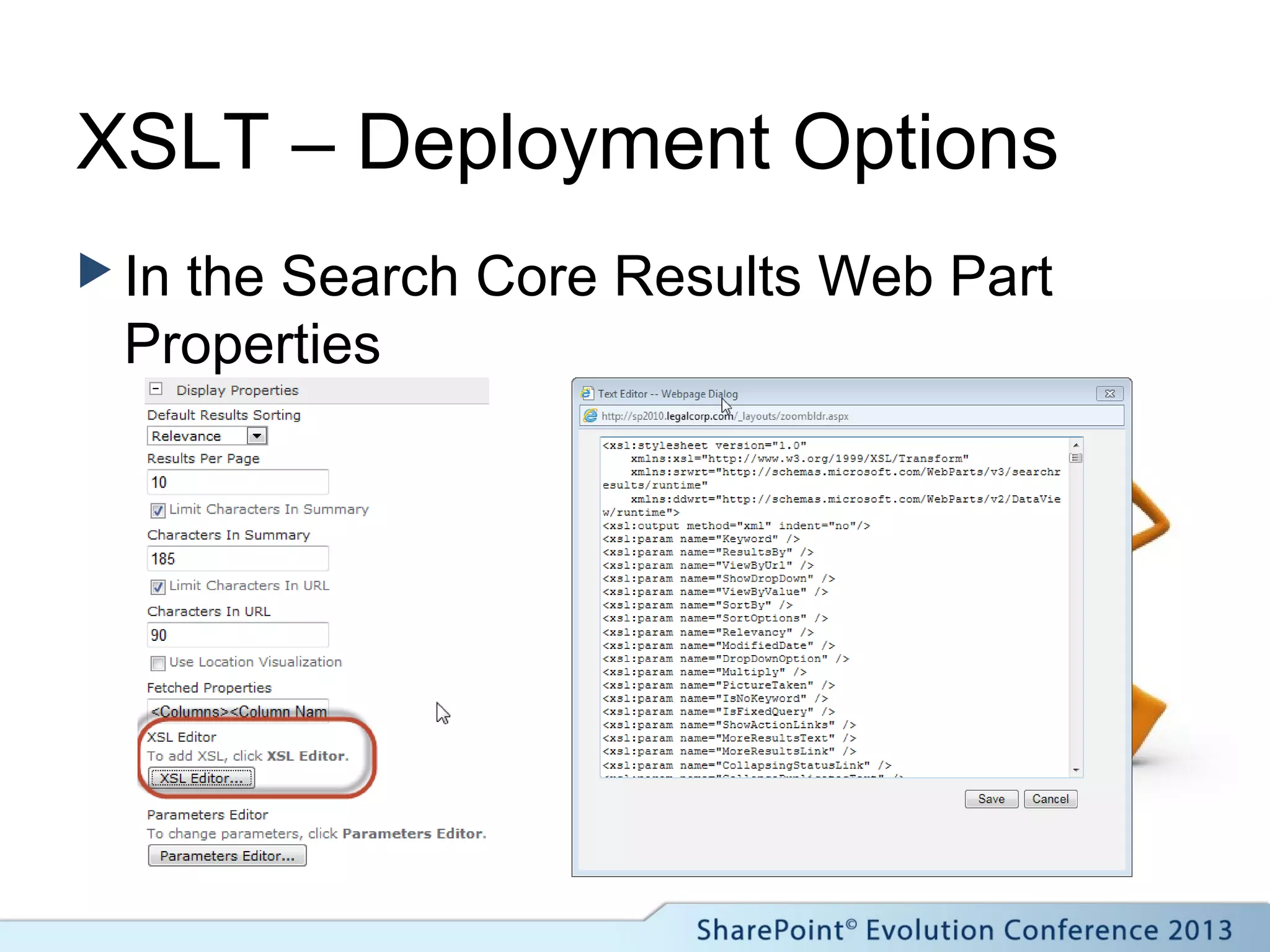

- 27. XSLT – DeploymentOptions In the Search Core Results Web Part Properties

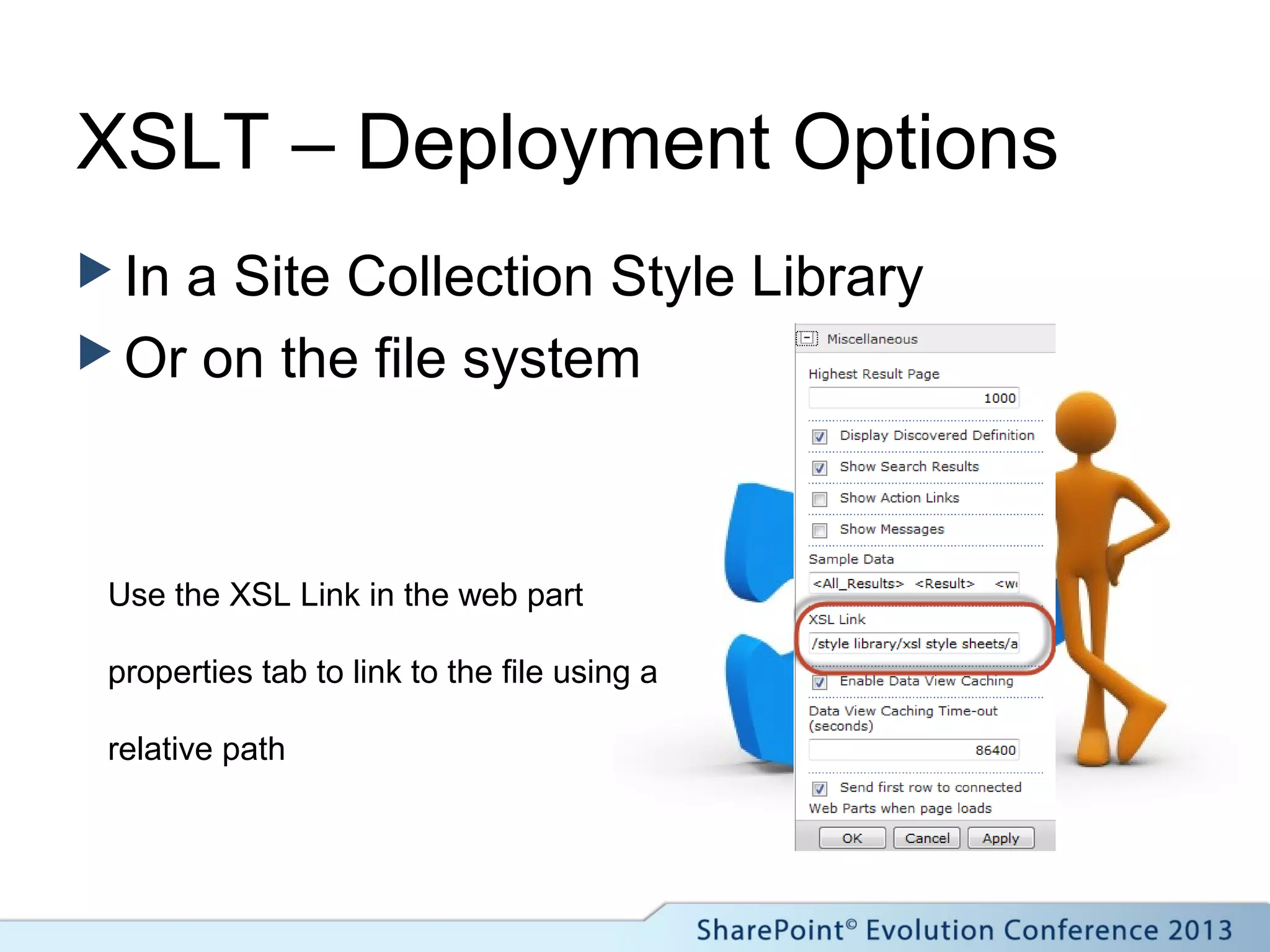

- 28. XSLT – DeploymentOptions In a Site Collection Style Library Or on the file system Use the XSL Link in the web part properties tab to link to the file using a relative path

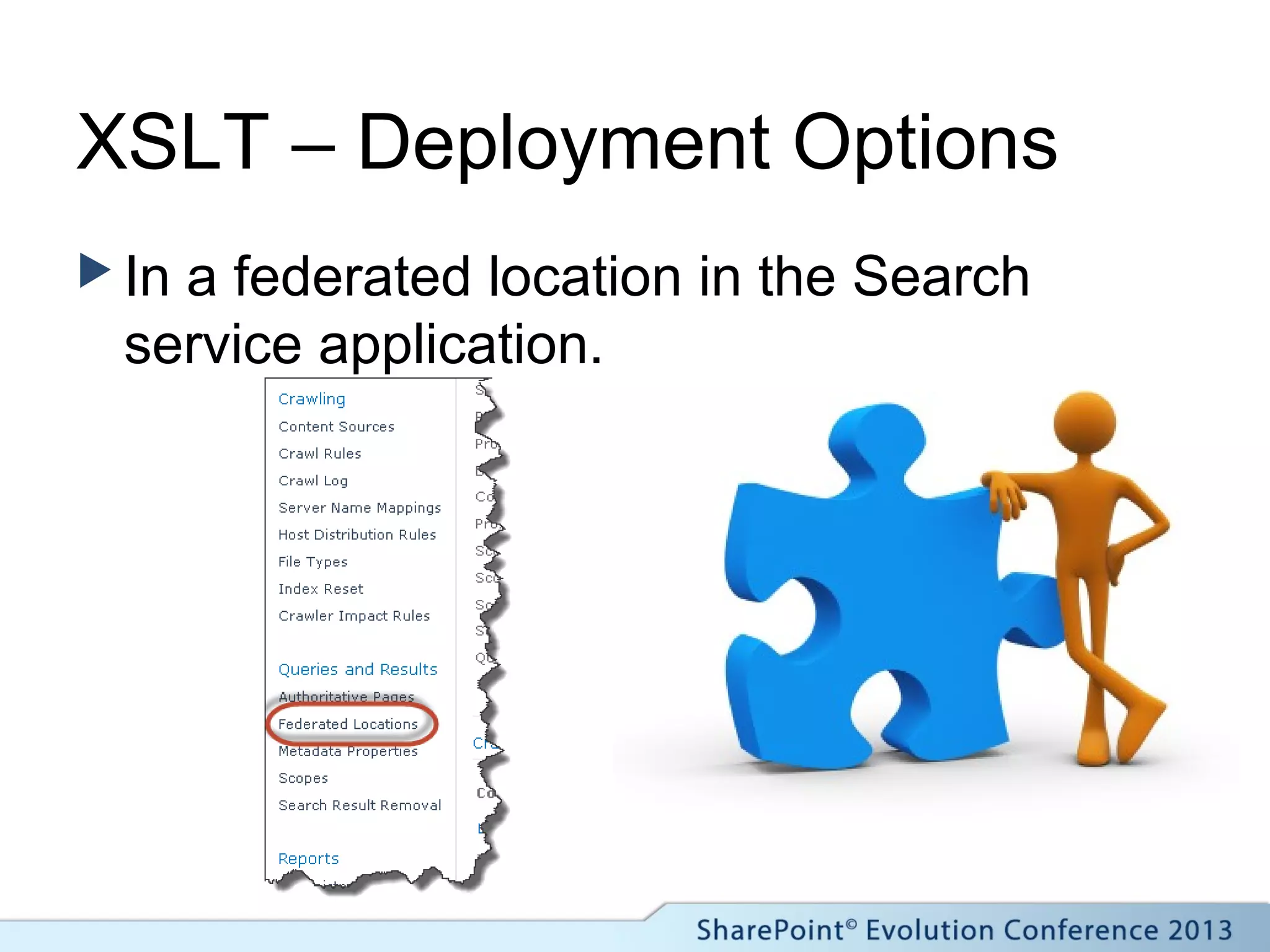

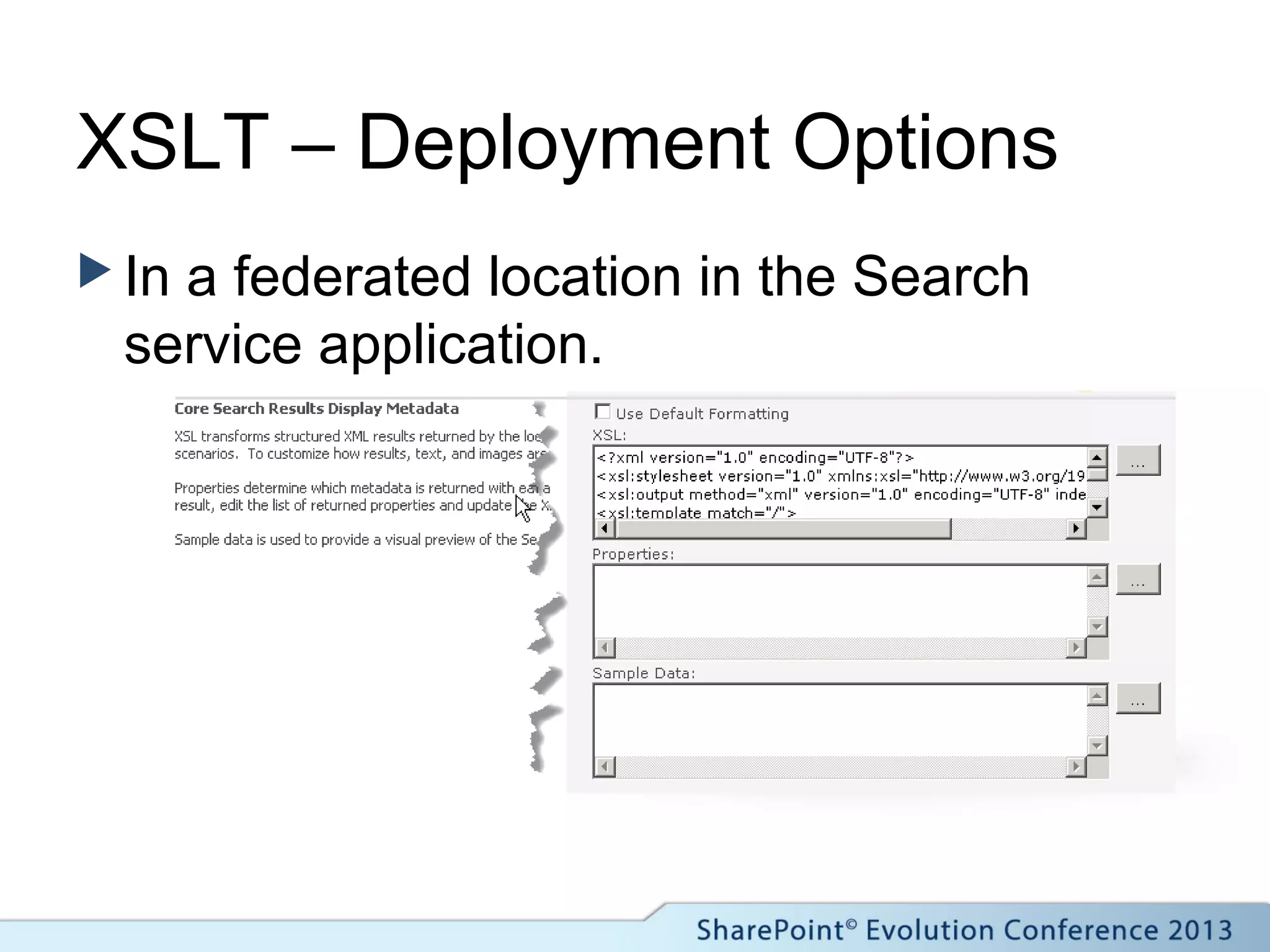

- 29. XSLT – DeploymentOptions In a federated location in the Search service application.
- 30. XSLT – DeploymentOptions In a federated location in the Search service application.

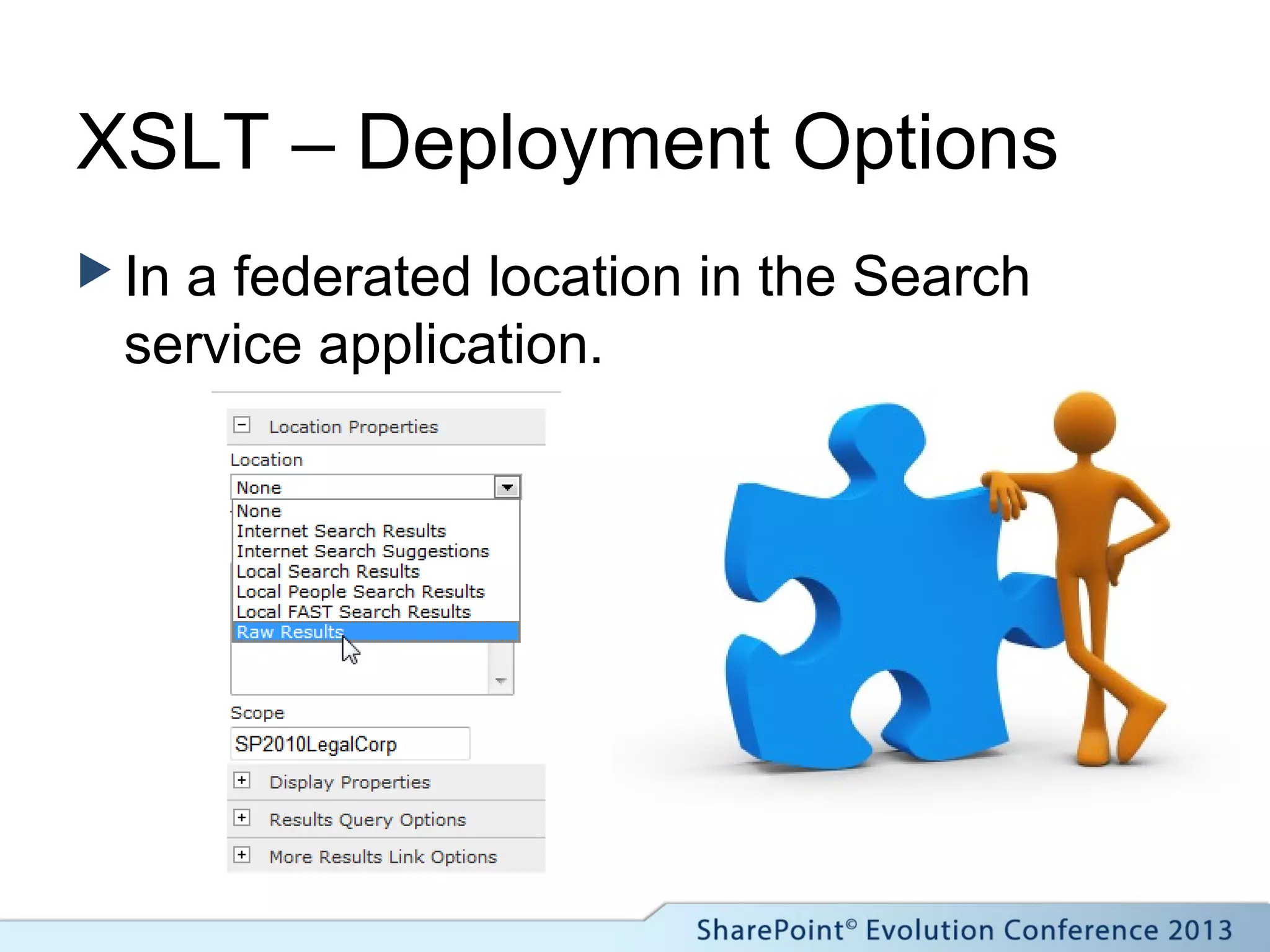

- 31. XSLT – DeploymentOptions In a federated location in the Search service application.

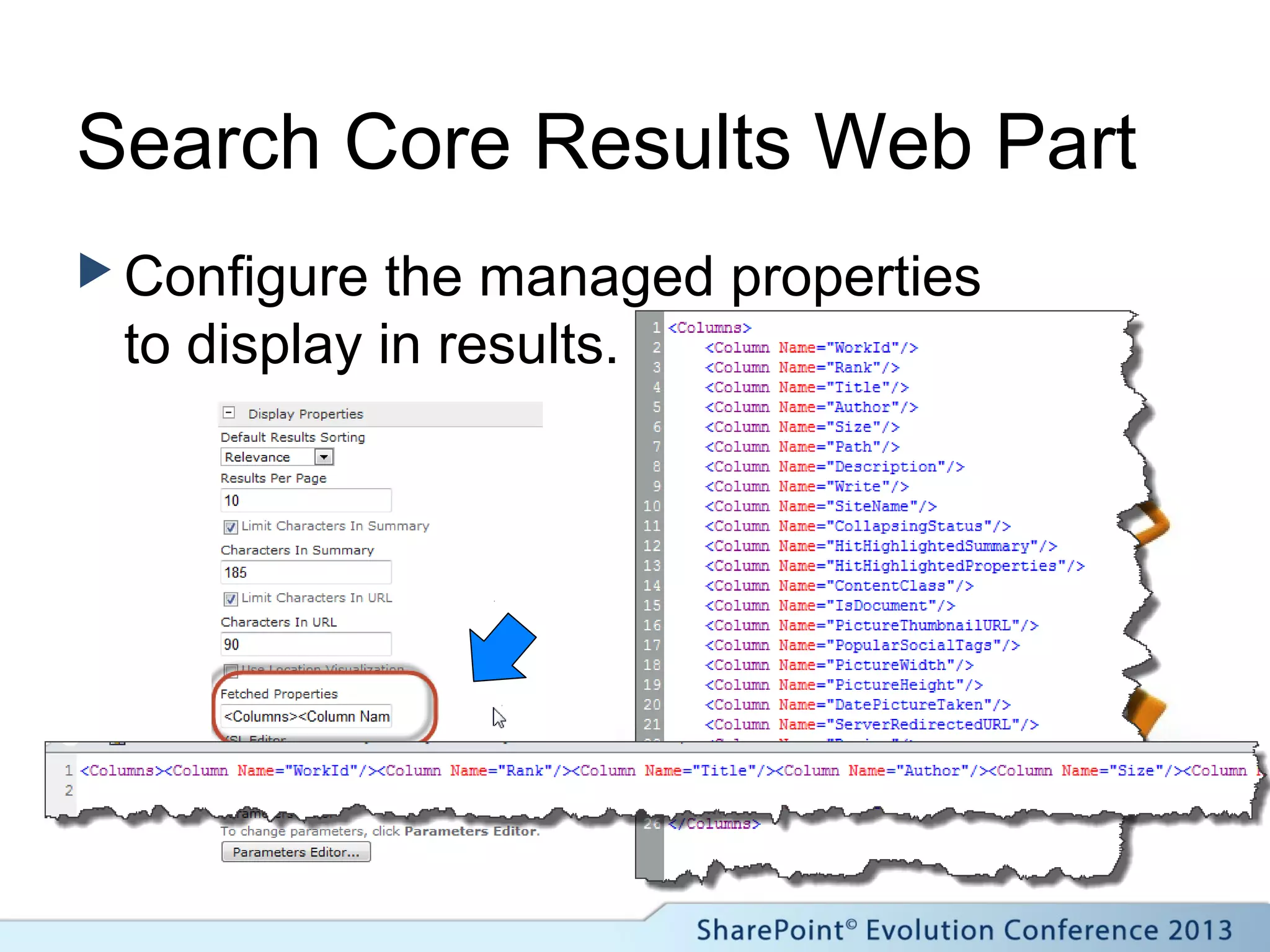

- 32. Search Core ResultsWeb Part Configure the managed properties to display in results.

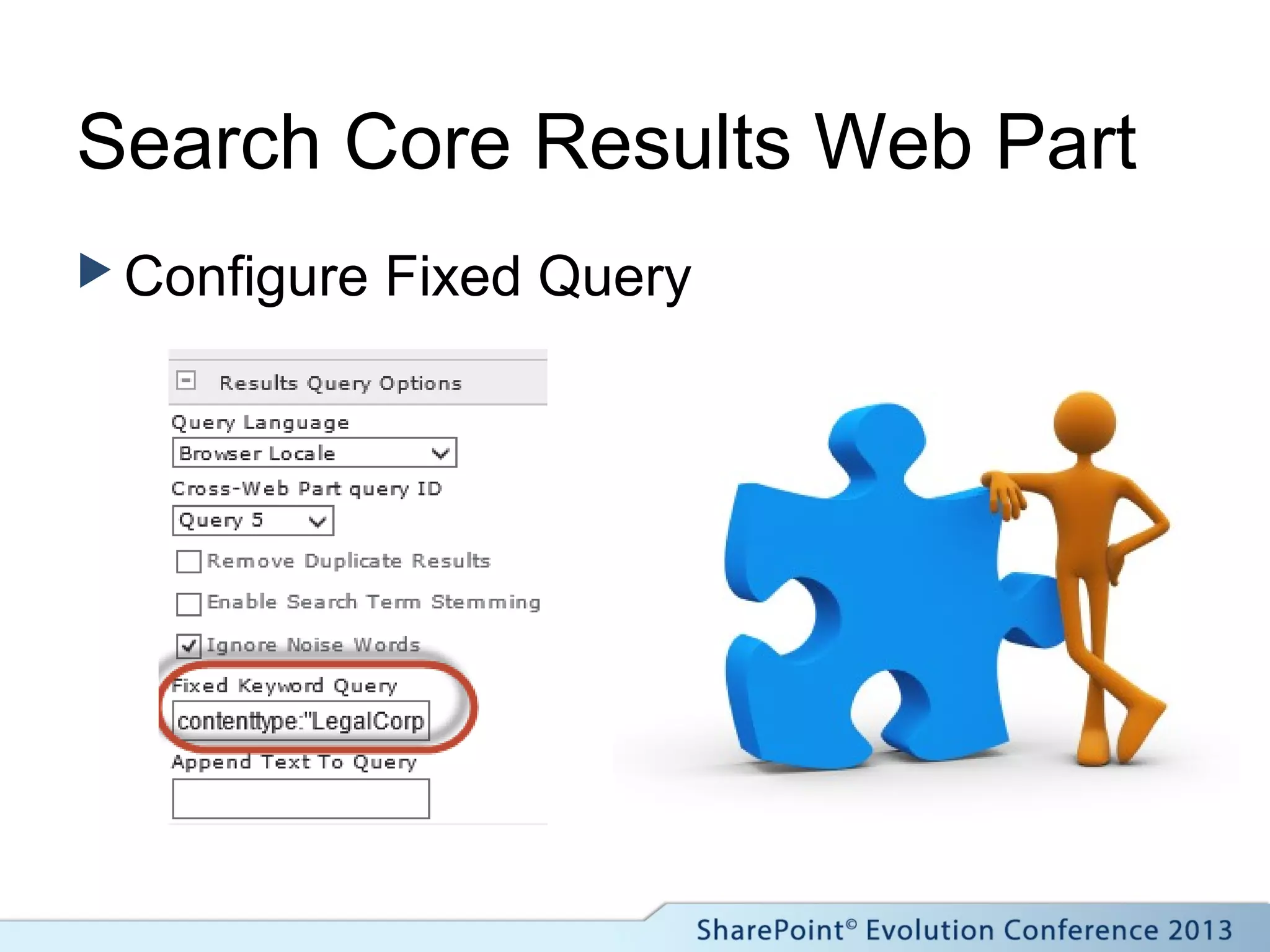

- 33. Search Core ResultsWeb Part Configure Fixed Query

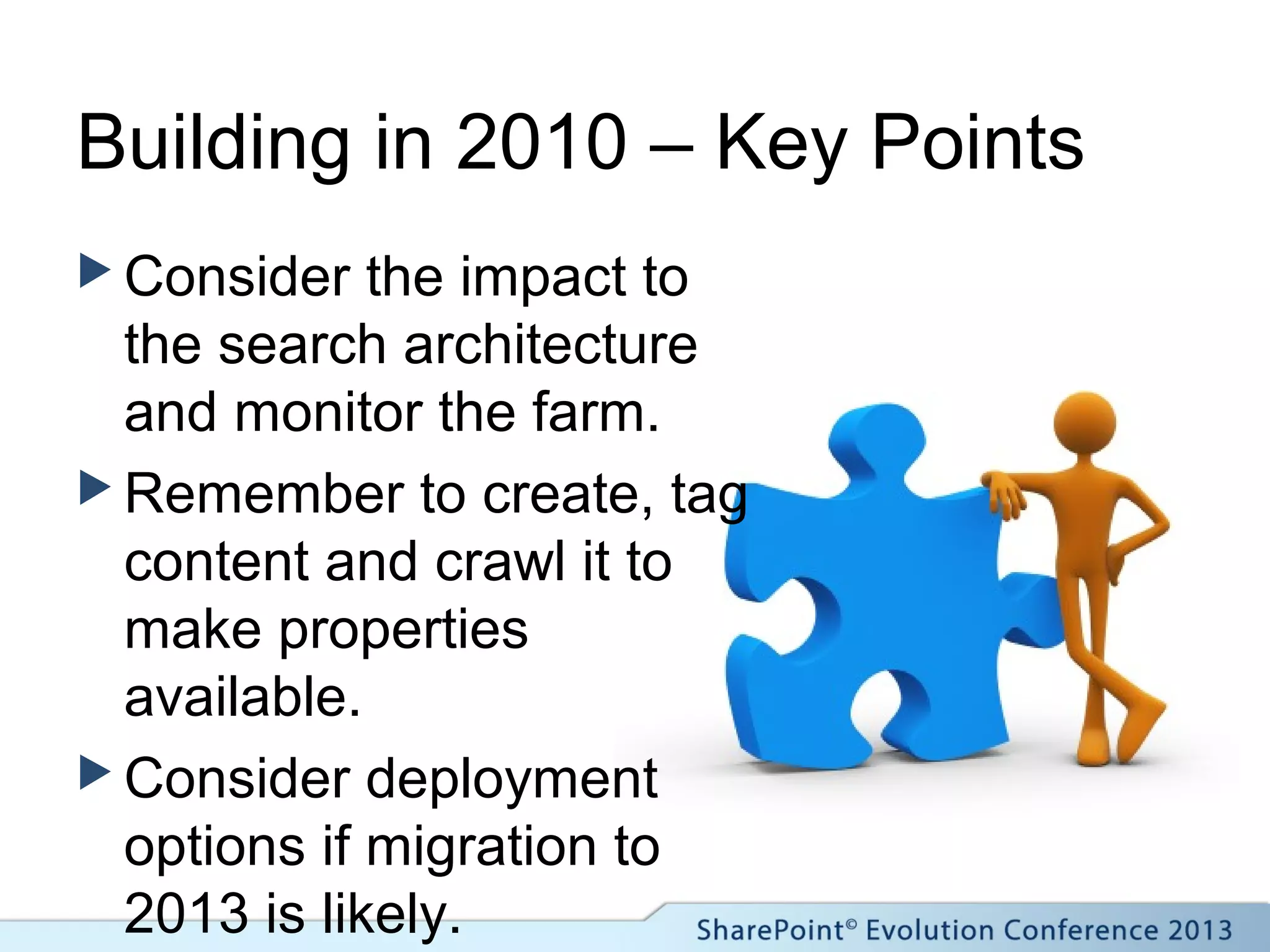

- 34. Building in 2010– Key Points Consider the impact to the search architecture and monitor the farm. Remember to create, tag content and crawl it to make properties available. Consider deployment options if migration to 2013 is likely.
- 35. PUTTING IT TOGETHERIN SHAREPOINT 2010 Demonstrating content roll-up using SharePoint 2010 search.
- 37. Migrating our Solutionfrom SharePoint 2010 to SharePoint 2013

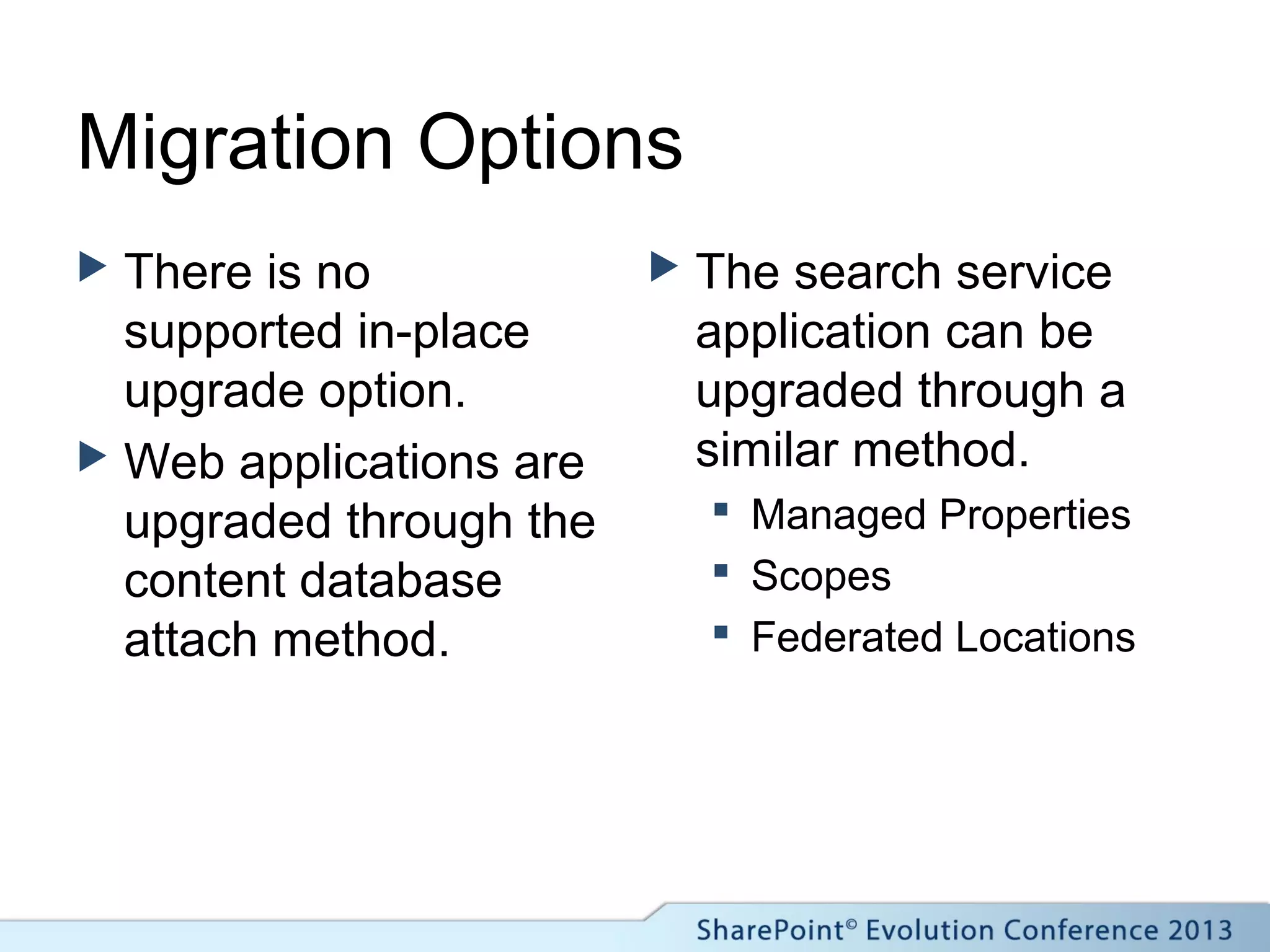

- 38. Migration Options Thereis no supported in-place upgrade option. Web applications are upgraded through the content database attach method. The search service application can be upgraded through a similar method. Managed Properties Scopes Federated Locations

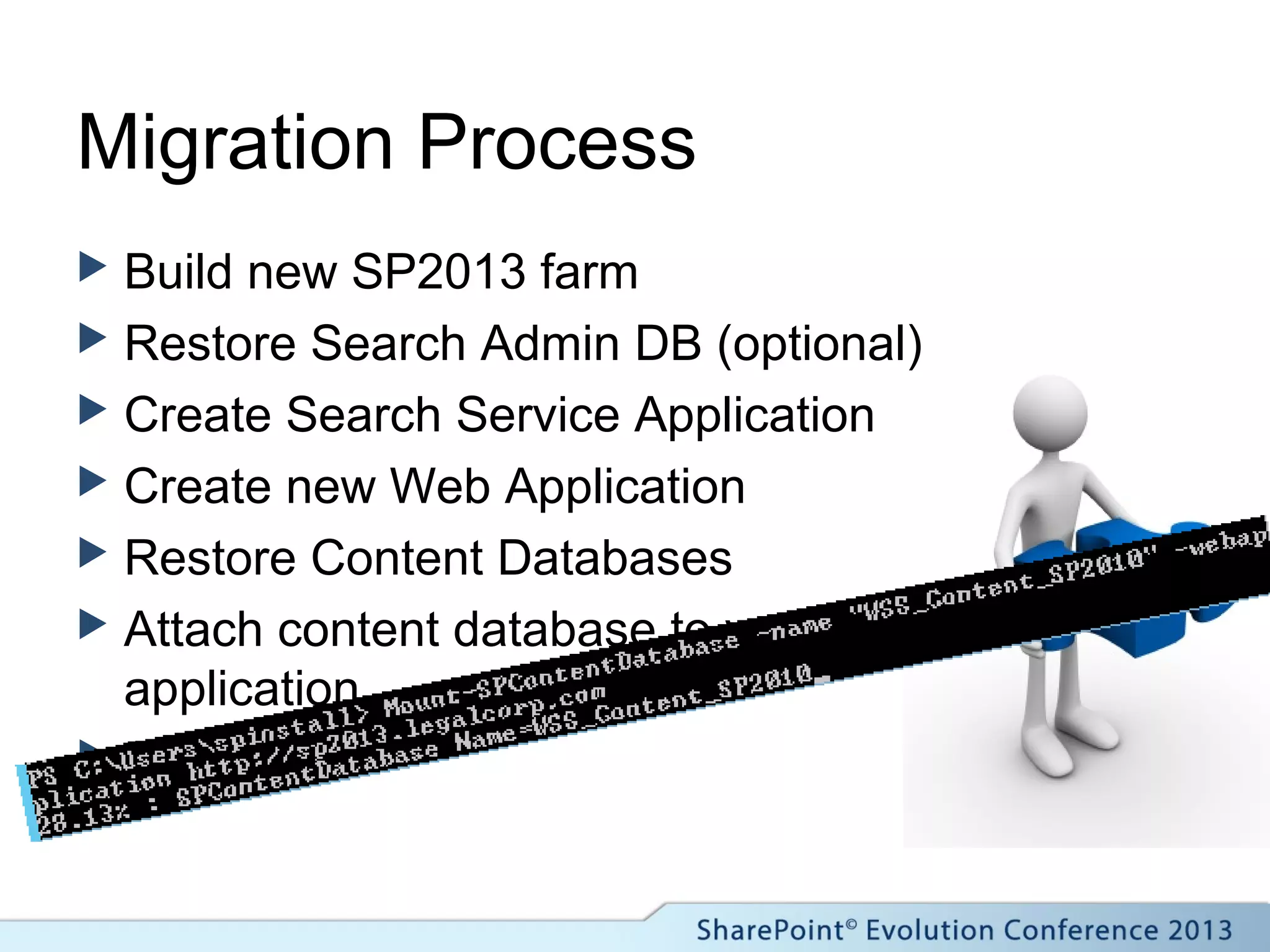

- 39. Migration Process Buildnew SP2013 farm Restore Search Admin DB (optional) Create Search Service Application Create new Web Application Restore Content Databases Attach content database to web application Fix issues!
- 40.
- 41.

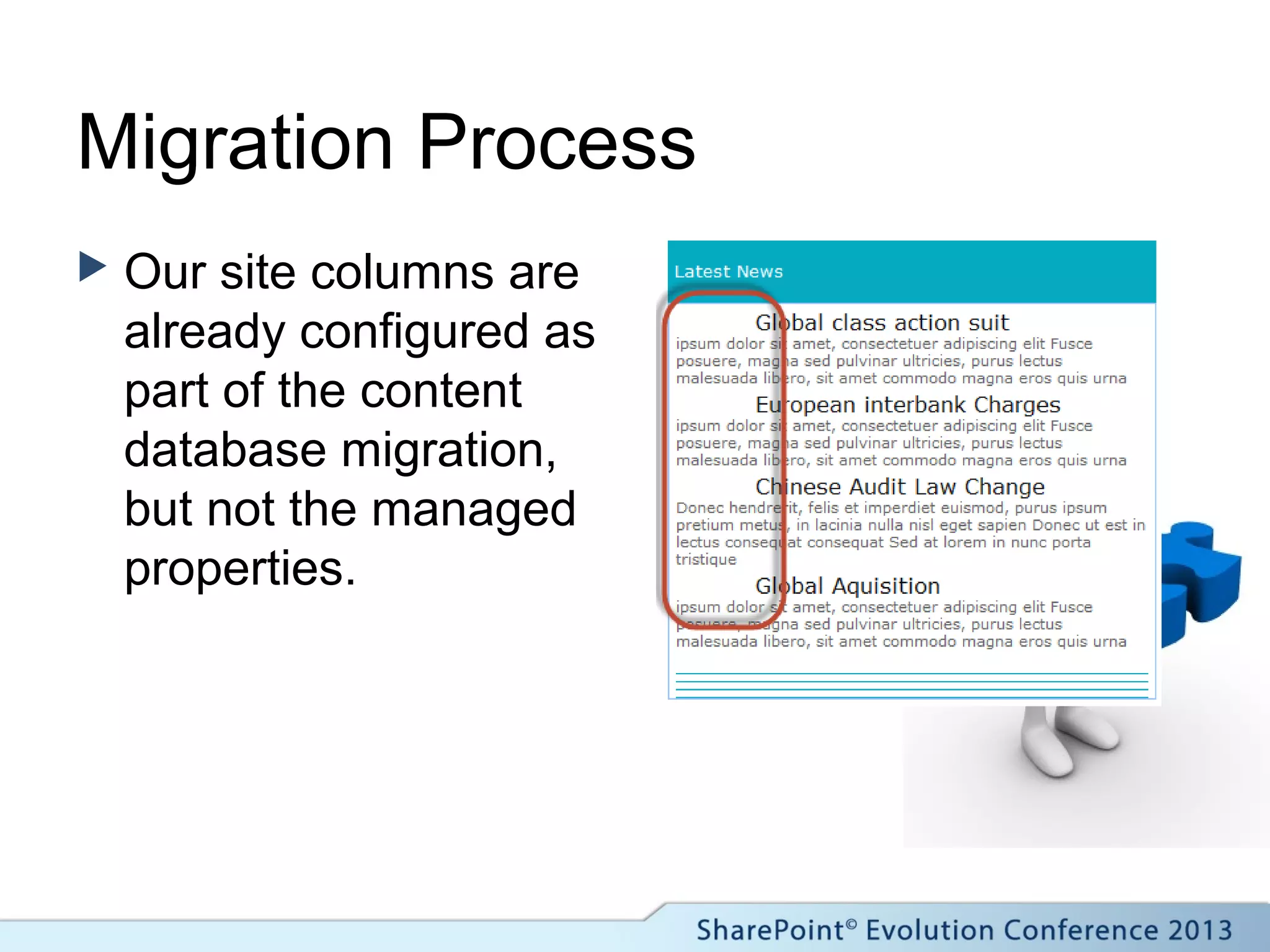

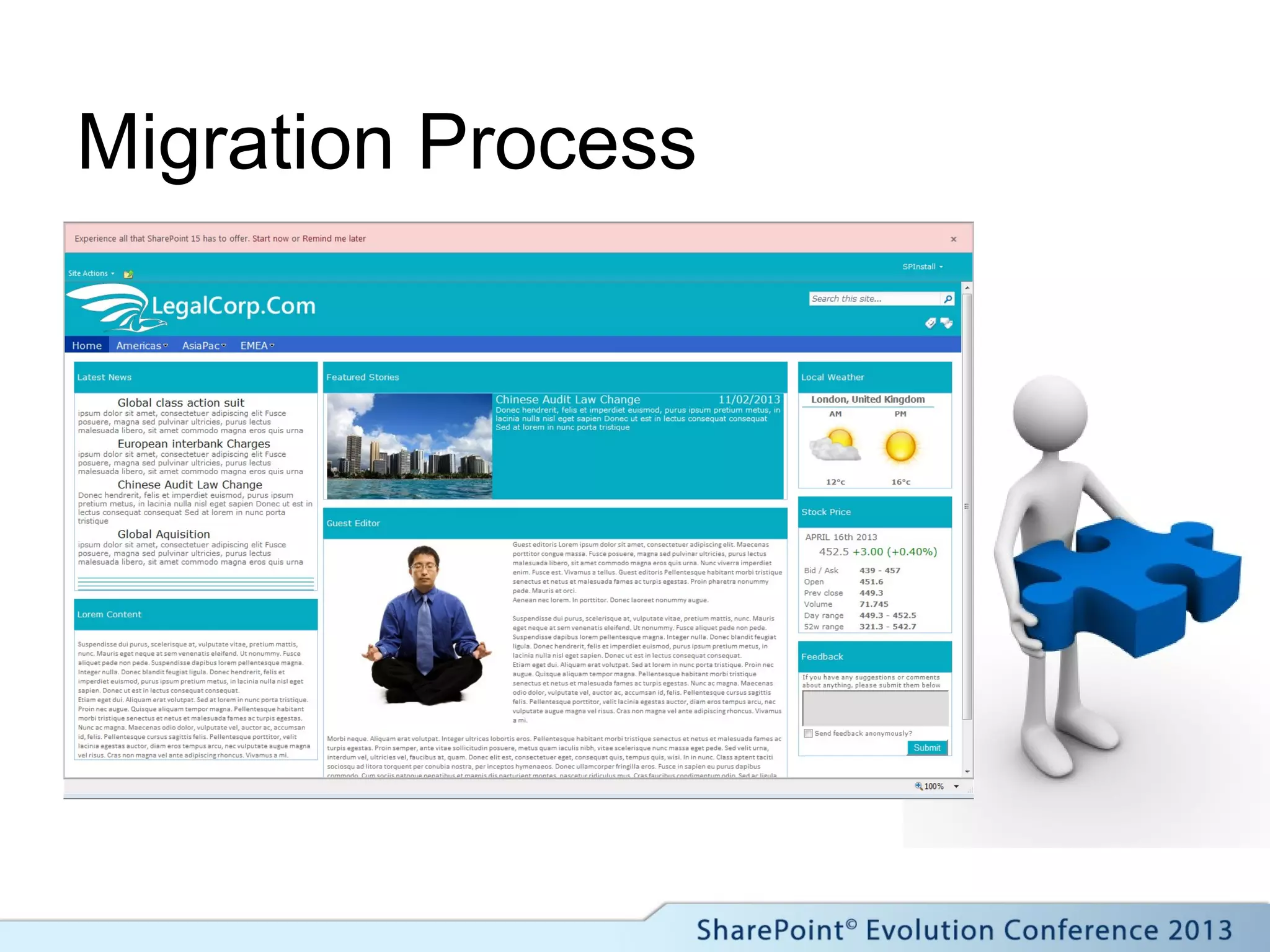

- 42. Migration Process Oursite columns are already configured as part of the content database migration, but not the managed properties.

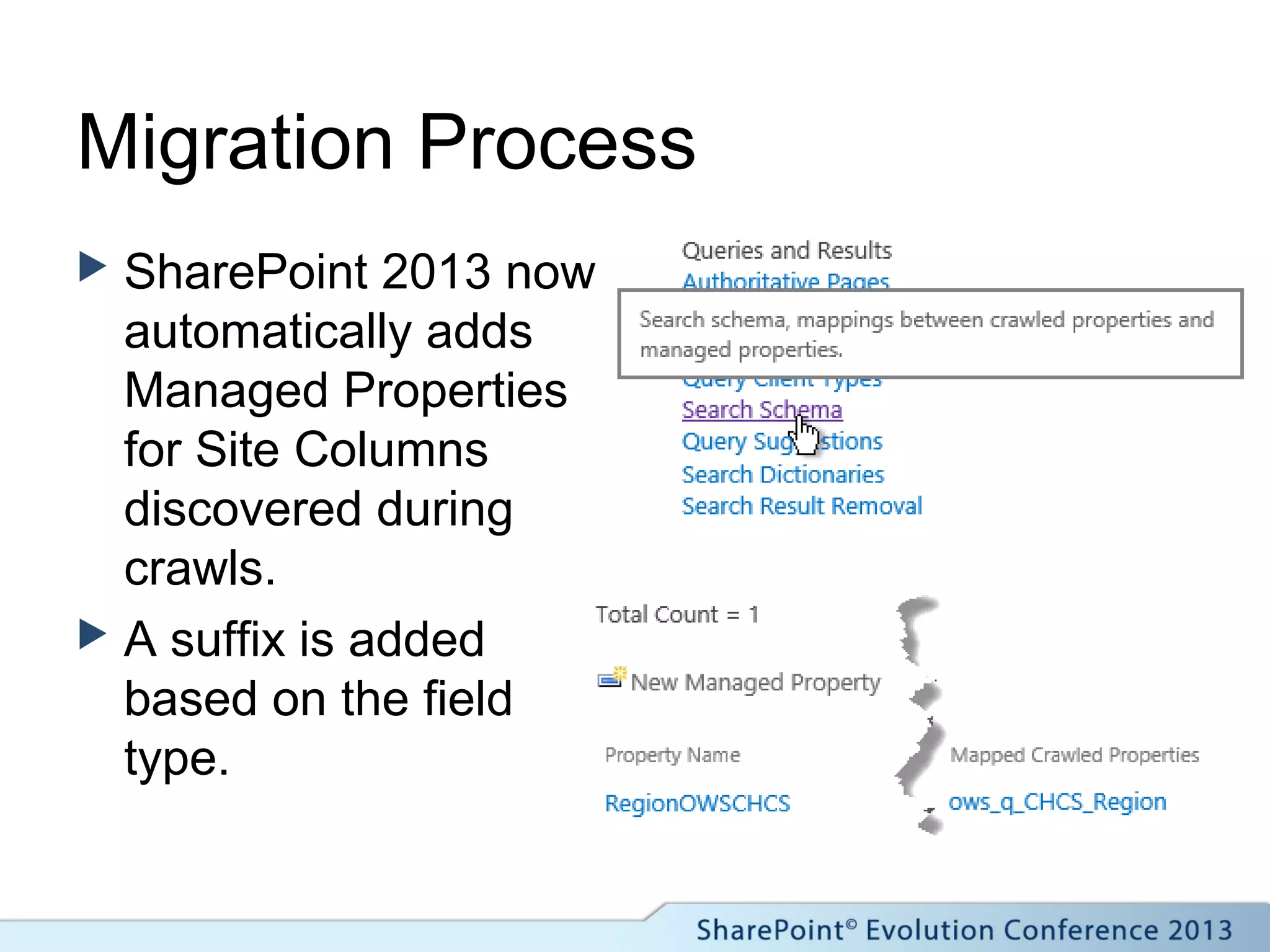

- 43. Migration Process SharePoint2013 now automatically adds Managed Properties for Site Columns discovered during crawls. A suffix is added based on the field type.

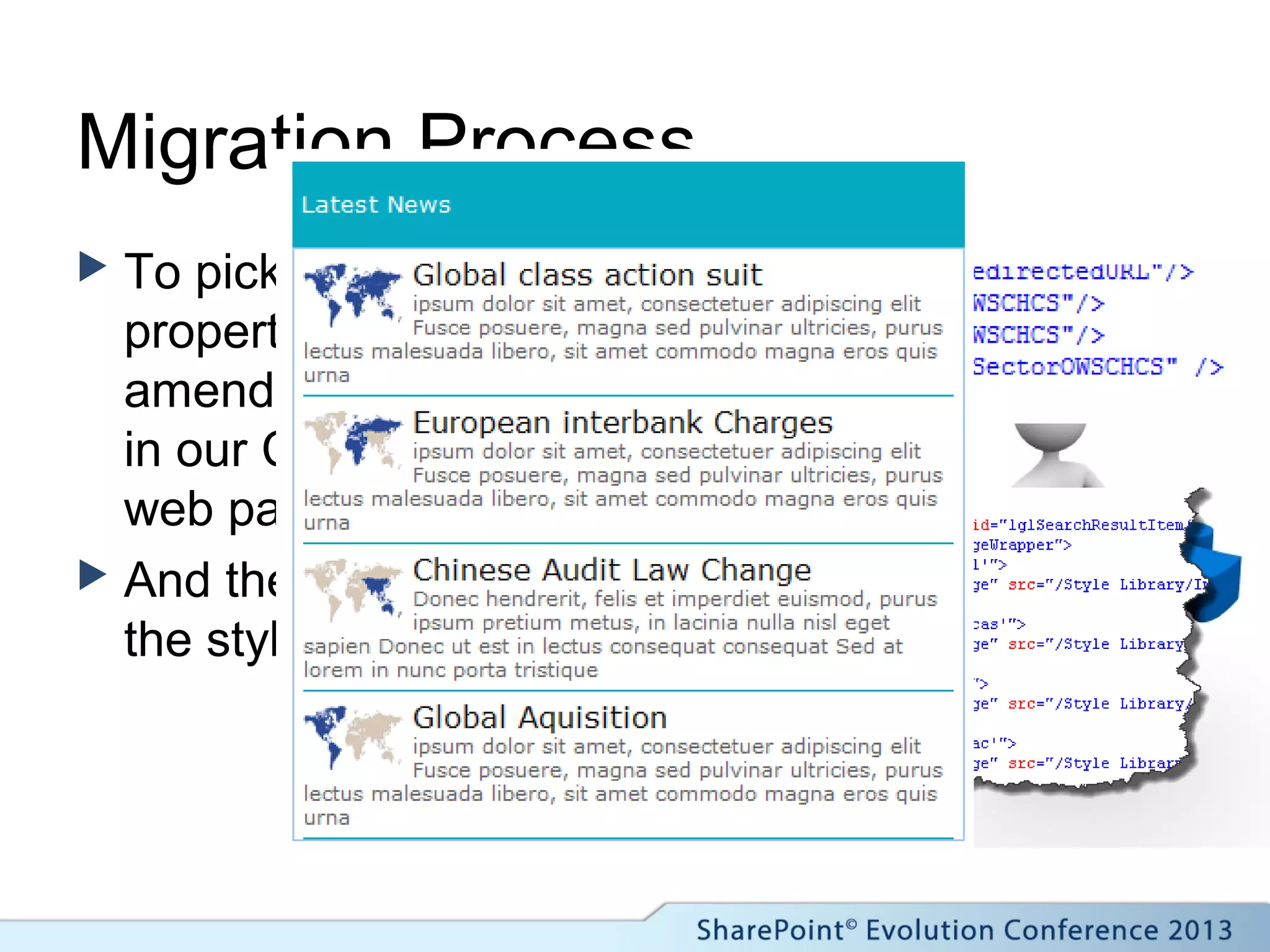

- 44. Migration Process Topick up the new properties, we first amend the columns in our Core Results web part And then the XSLT in the style library.
- 45.

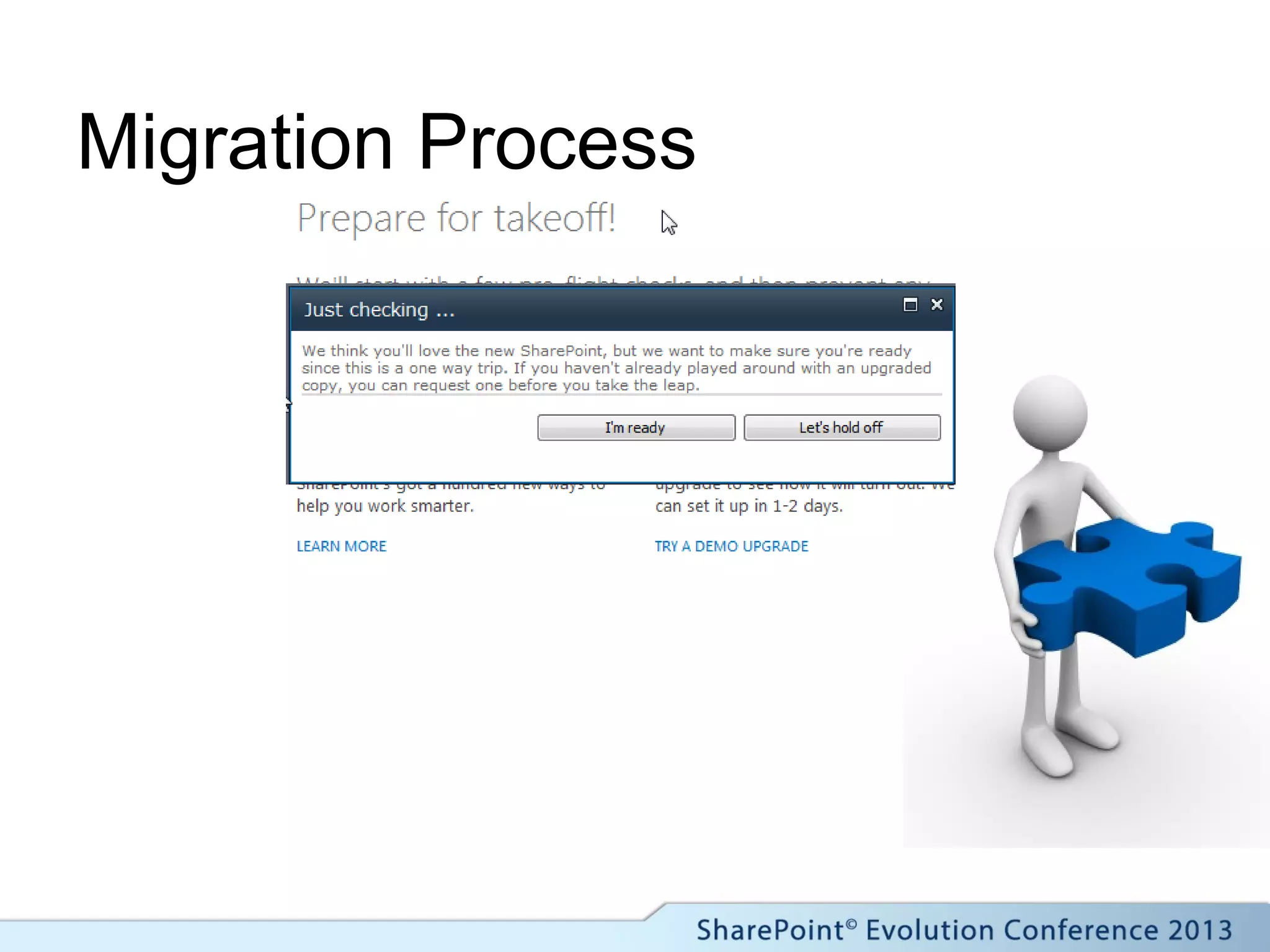

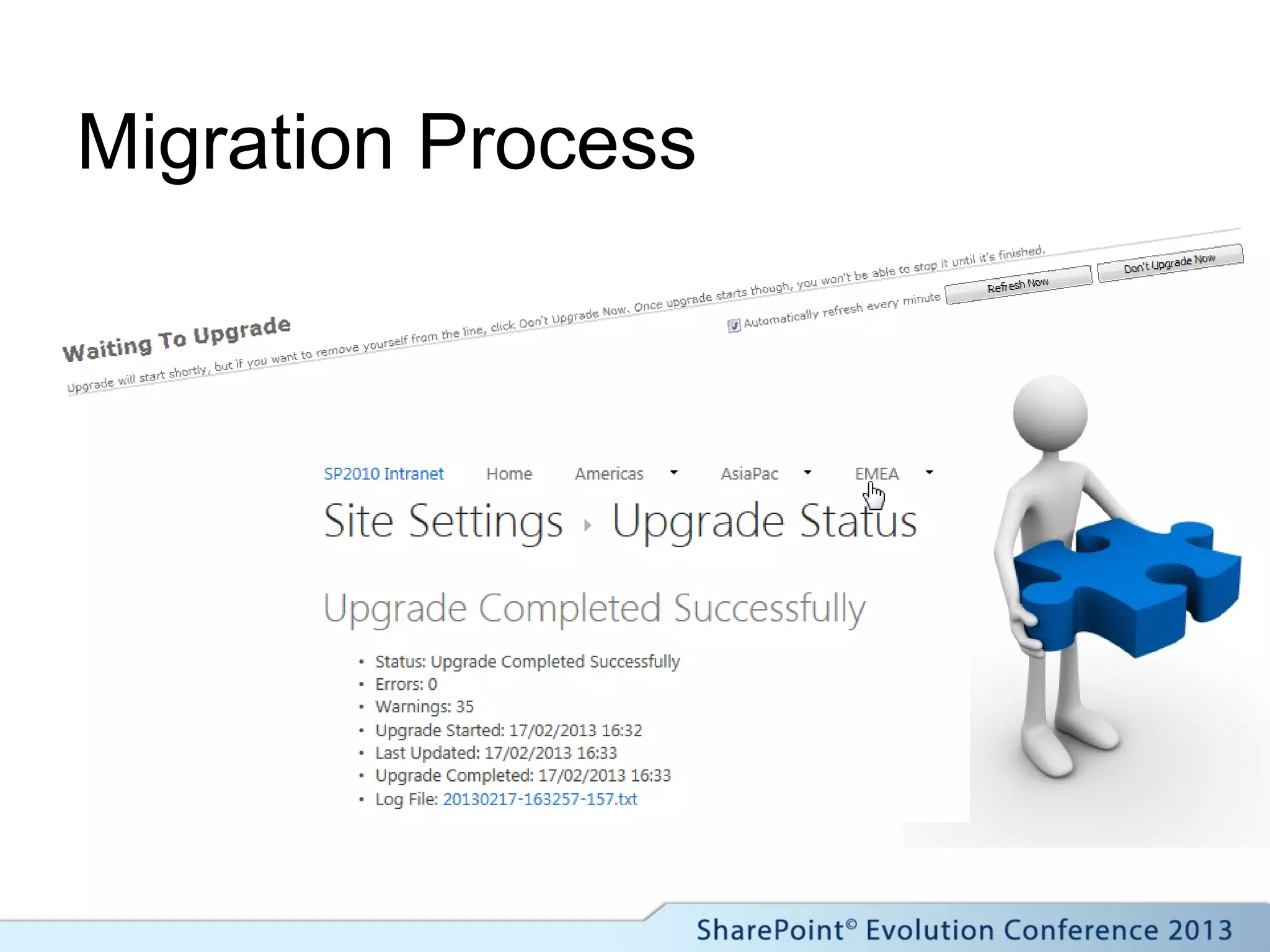

- 46.

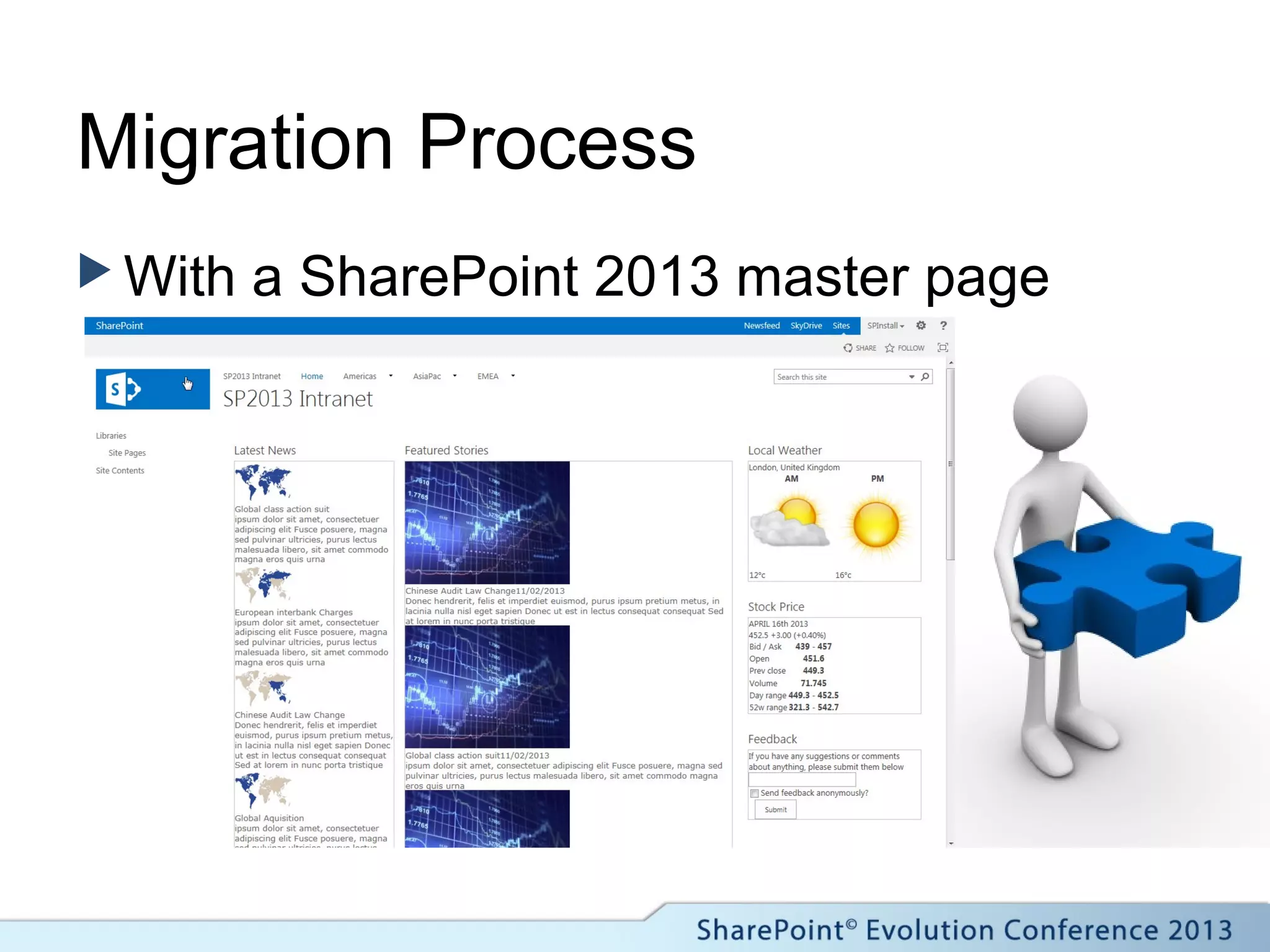

- 47. Migration Process Witha SharePoint 2013 master page

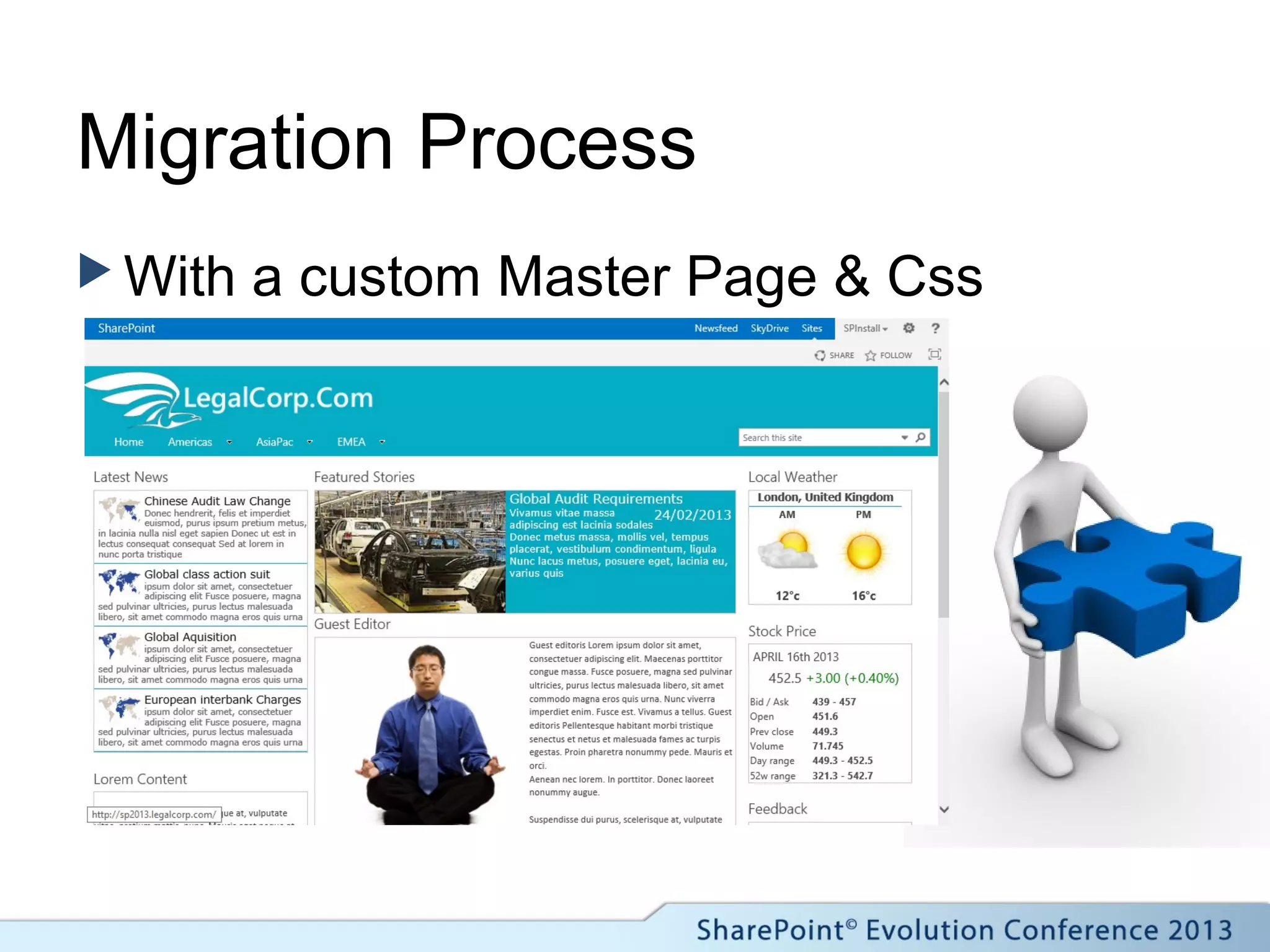

- 48. Migration Process Witha custom Master Page & Css

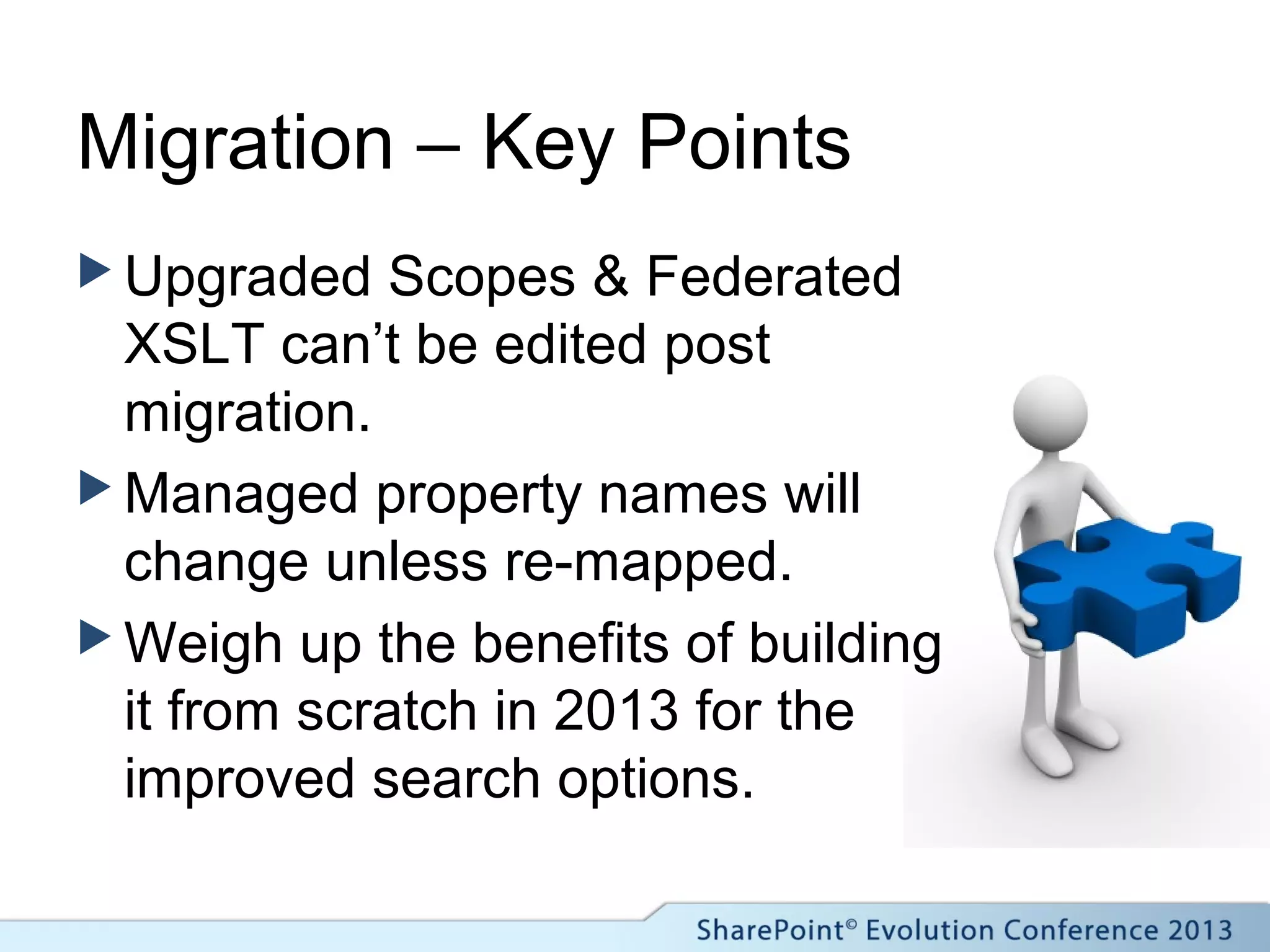

- 49. Migration – KeyPoints Upgraded Scopes & Federated XSLT can’t be edited post migration. Managed property names will change unless re-mapped. Weigh up the benefits of building it from scratch in 2013 for the improved search options.
- 50. Building our solutionfrom scratch in SharePoint 2013

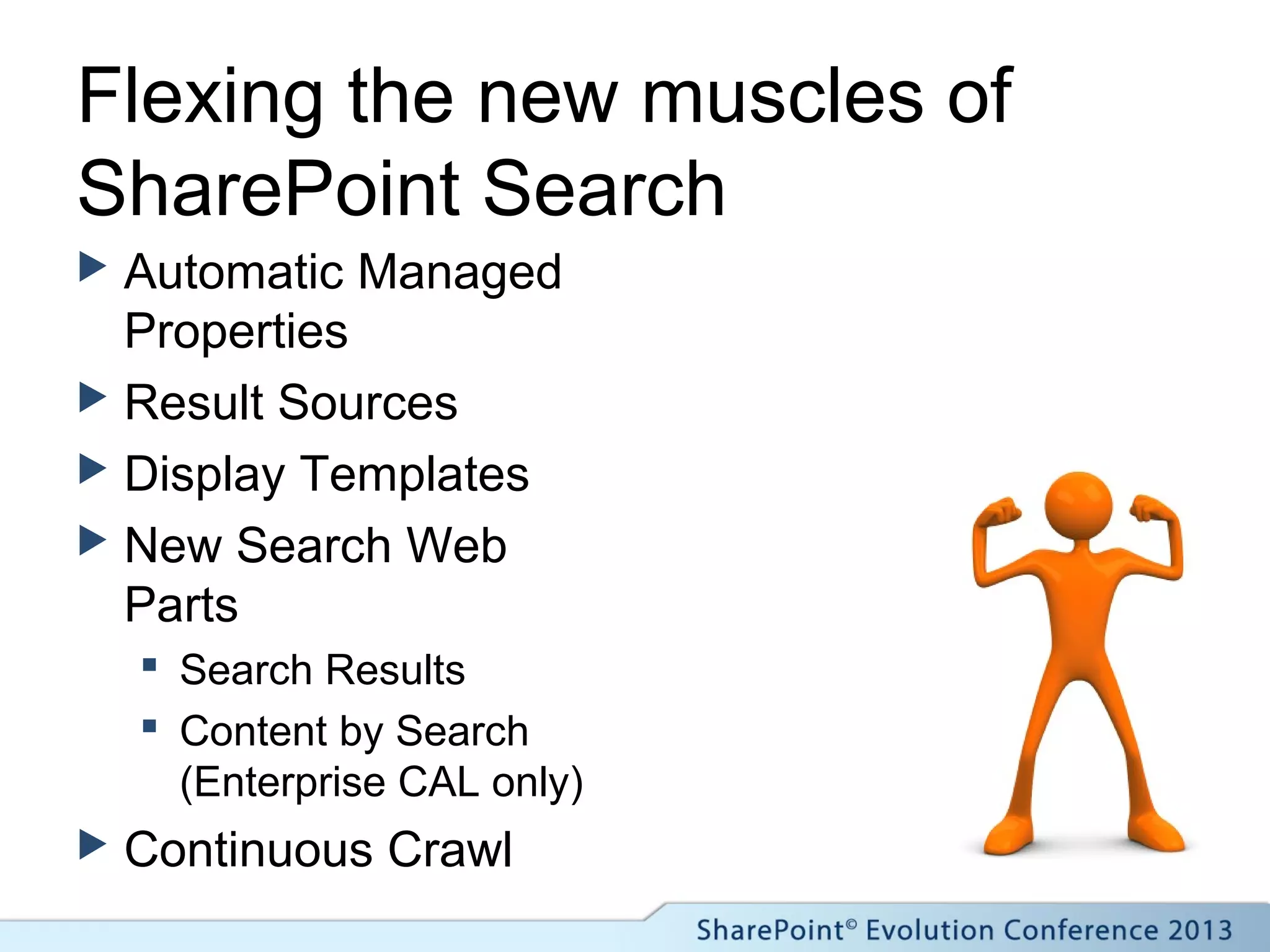

- 51. Flexing the newmuscles of SharePoint Search Automatic Managed Properties Result Sources Display Templates New Search Web Parts Search Results Content by Search (Enterprise CAL only) Continuous Crawl
- 52. Building our solution Site Columns and Content Types Page Layouts Managed Properties Result Sources Display Templates Image Renditions …..

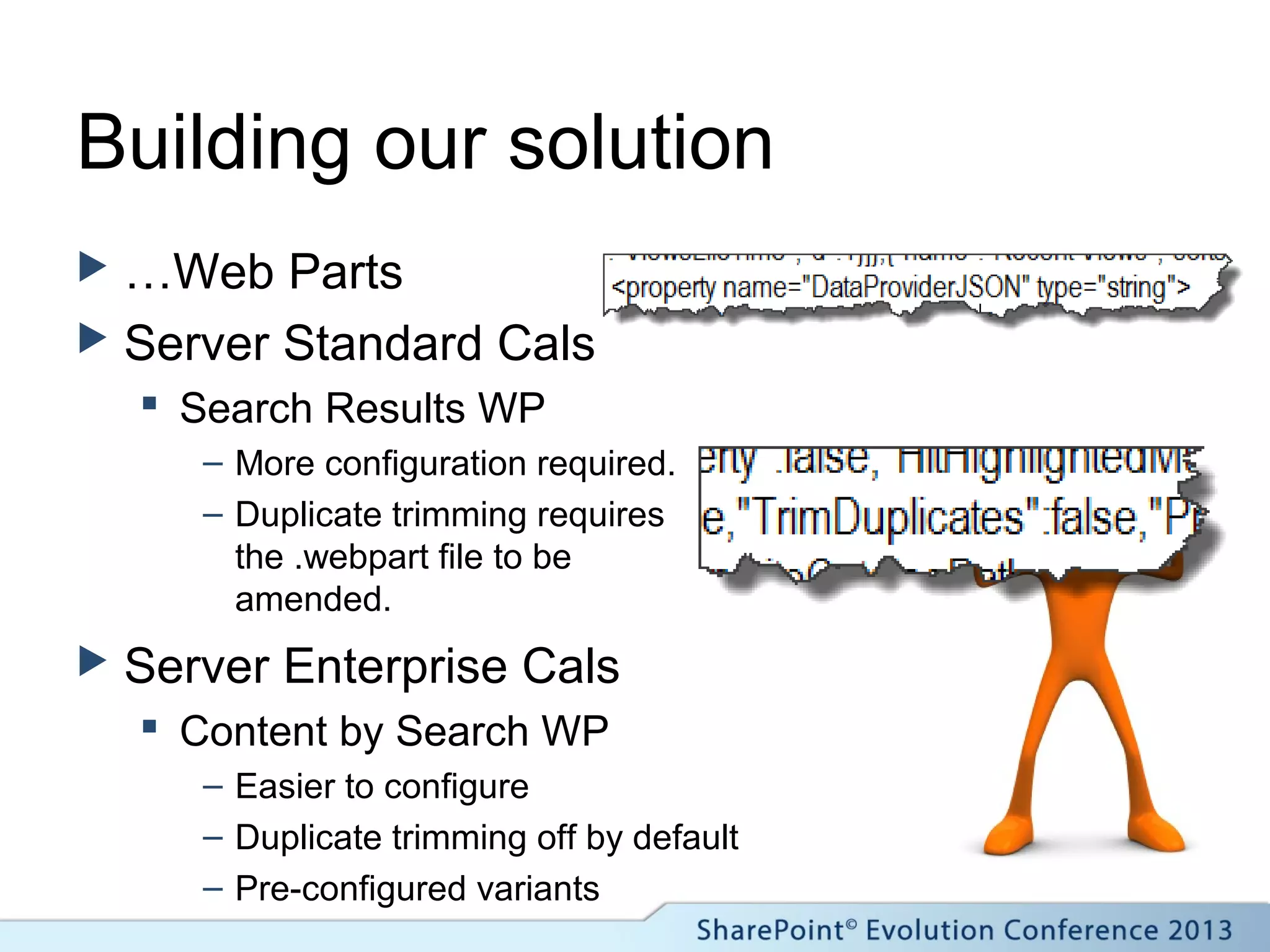

- 53. Building our solution …Web Parts Server Standard Cals Search Results WP – More configuration required. – Duplicate trimming requires the .webpart file to be amended. Server Enterprise Cals Content by Search WP – Easier to configure – Duplicate trimming off by default – Pre-configured variants

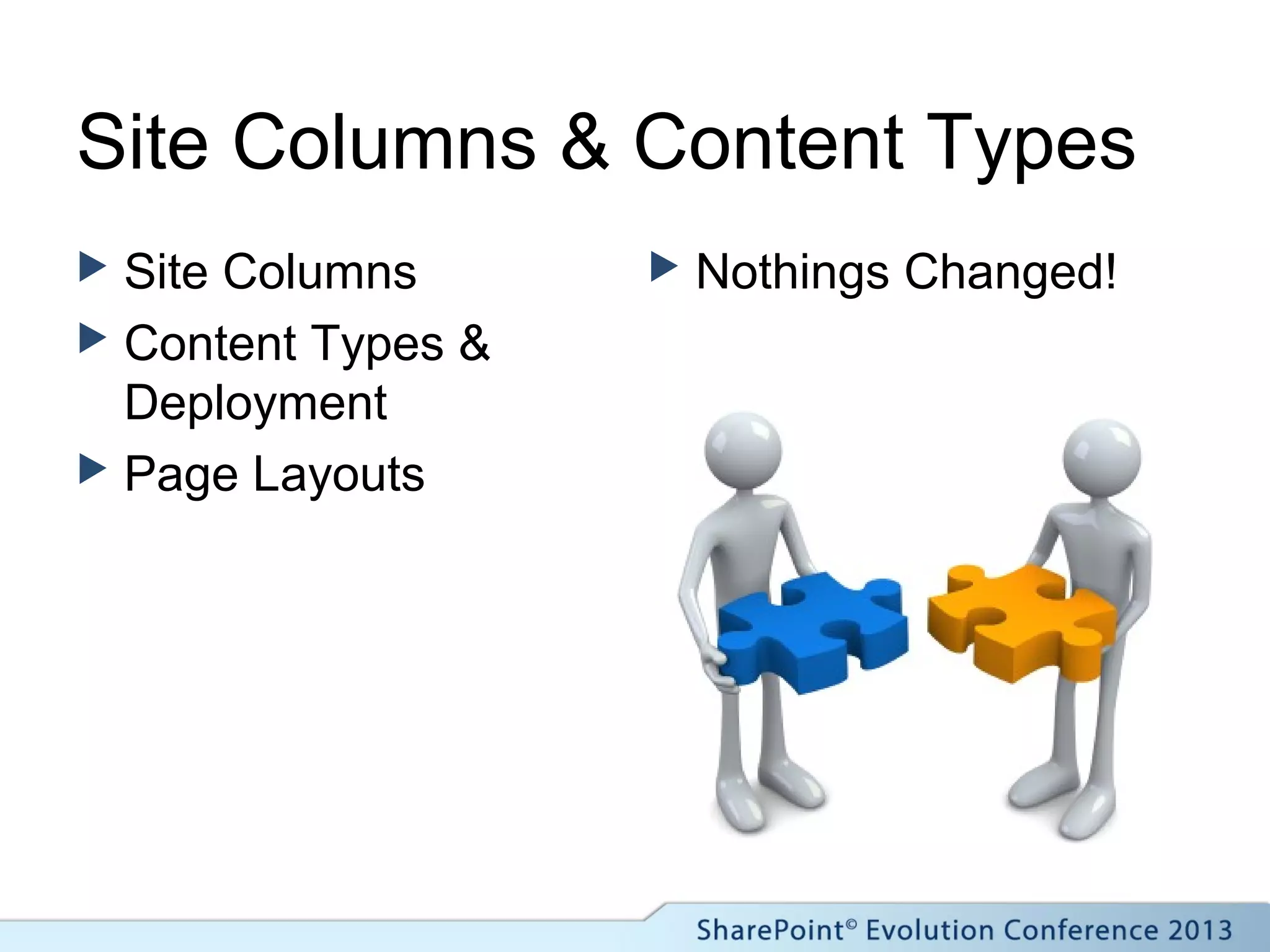

- 54. Site Columns &Content Types Site Columns Content Types & Deployment Page Layouts Nothings Changed!

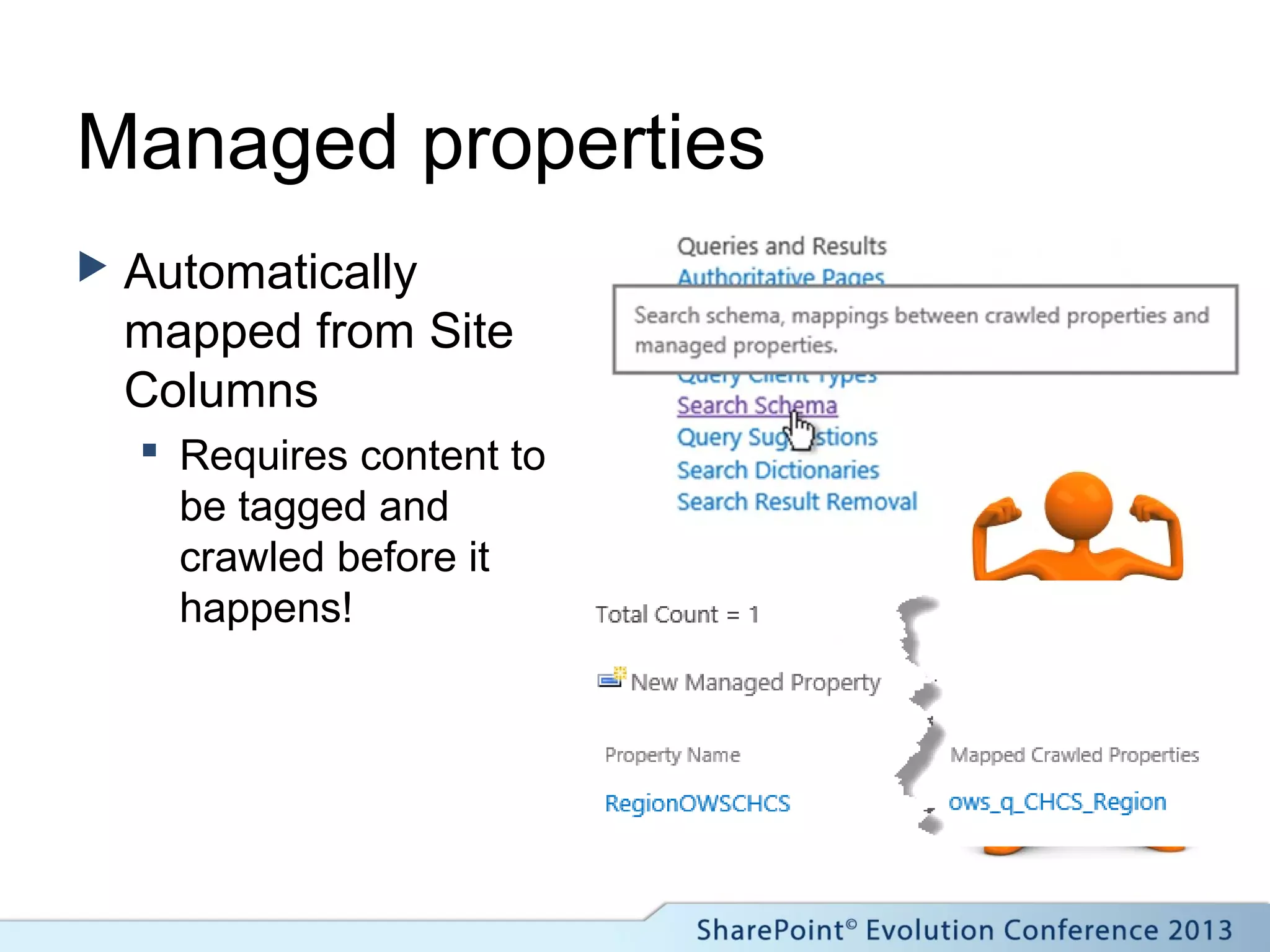

- 55. Managed properties Automatically mappedfrom Site Columns Requires content to be tagged and crawled before it happens!

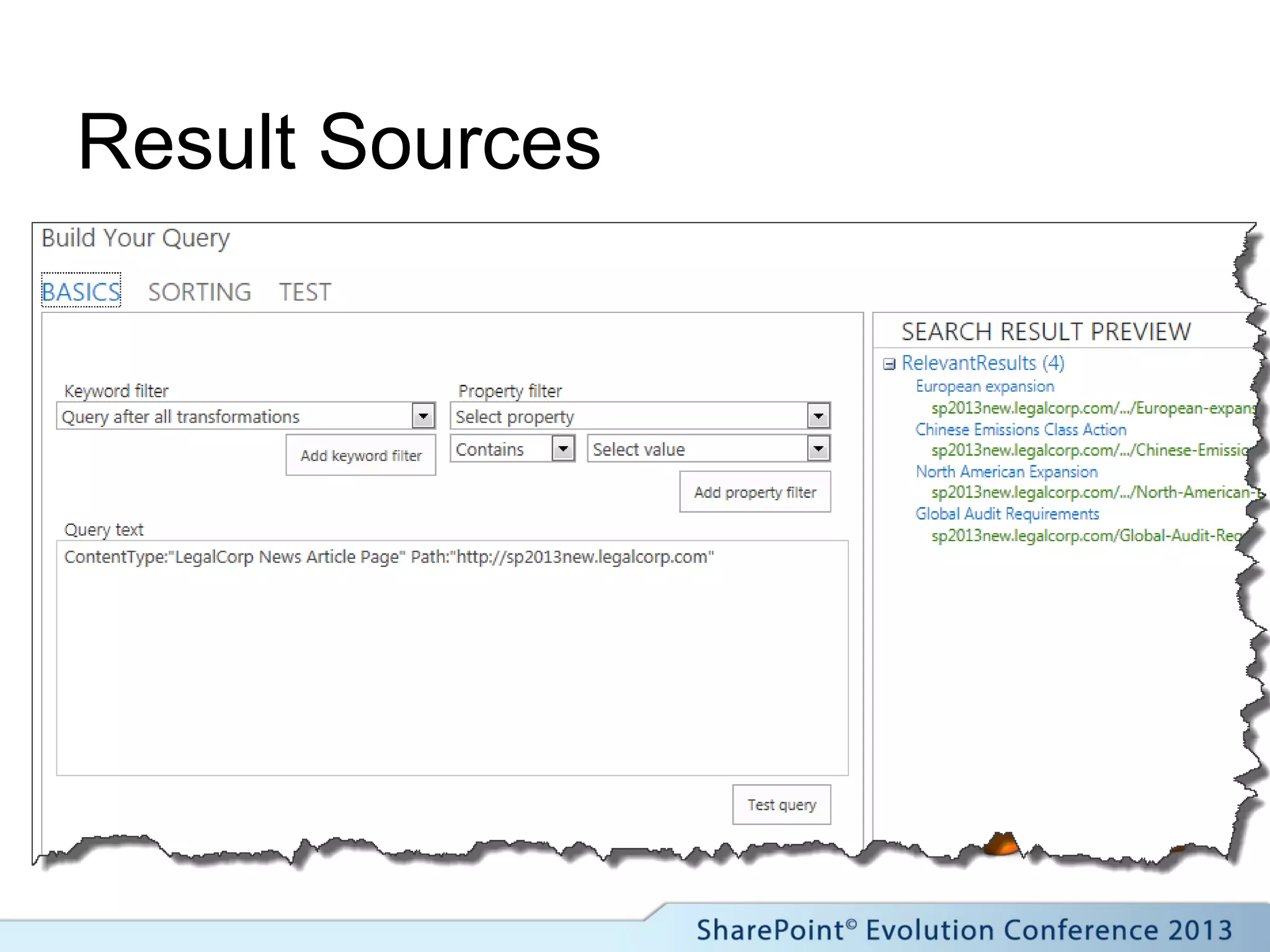

- 56. Result Sources Combines2010 federated search and scopes + extras Defined at Service App, Site collection or Web level. Uses the Query Builder to define the search.

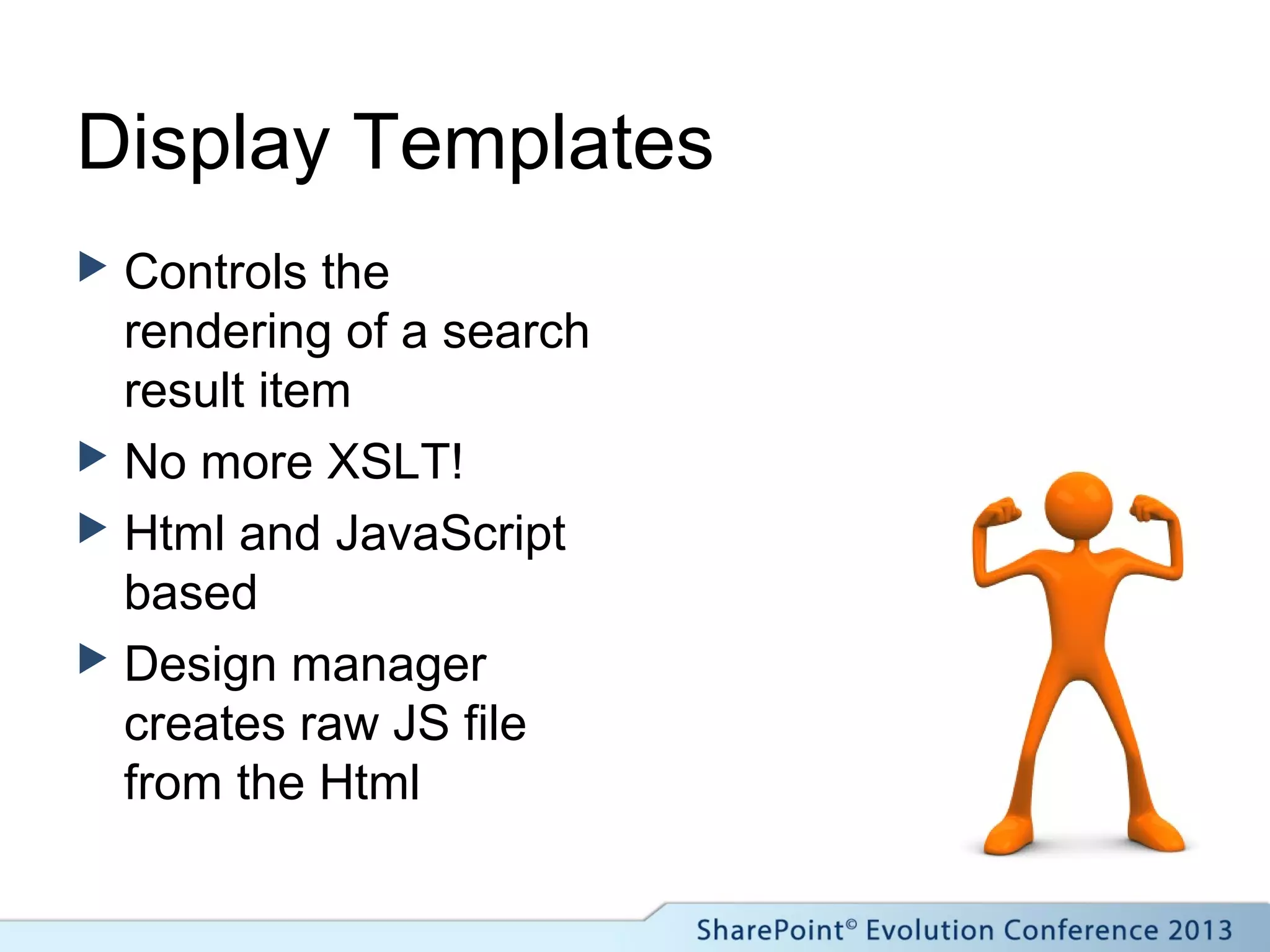

- 57. Display Templates Controlsthe rendering of a search result item No more XSLT! Html and JavaScript based Design manager creates raw JS file from the Html

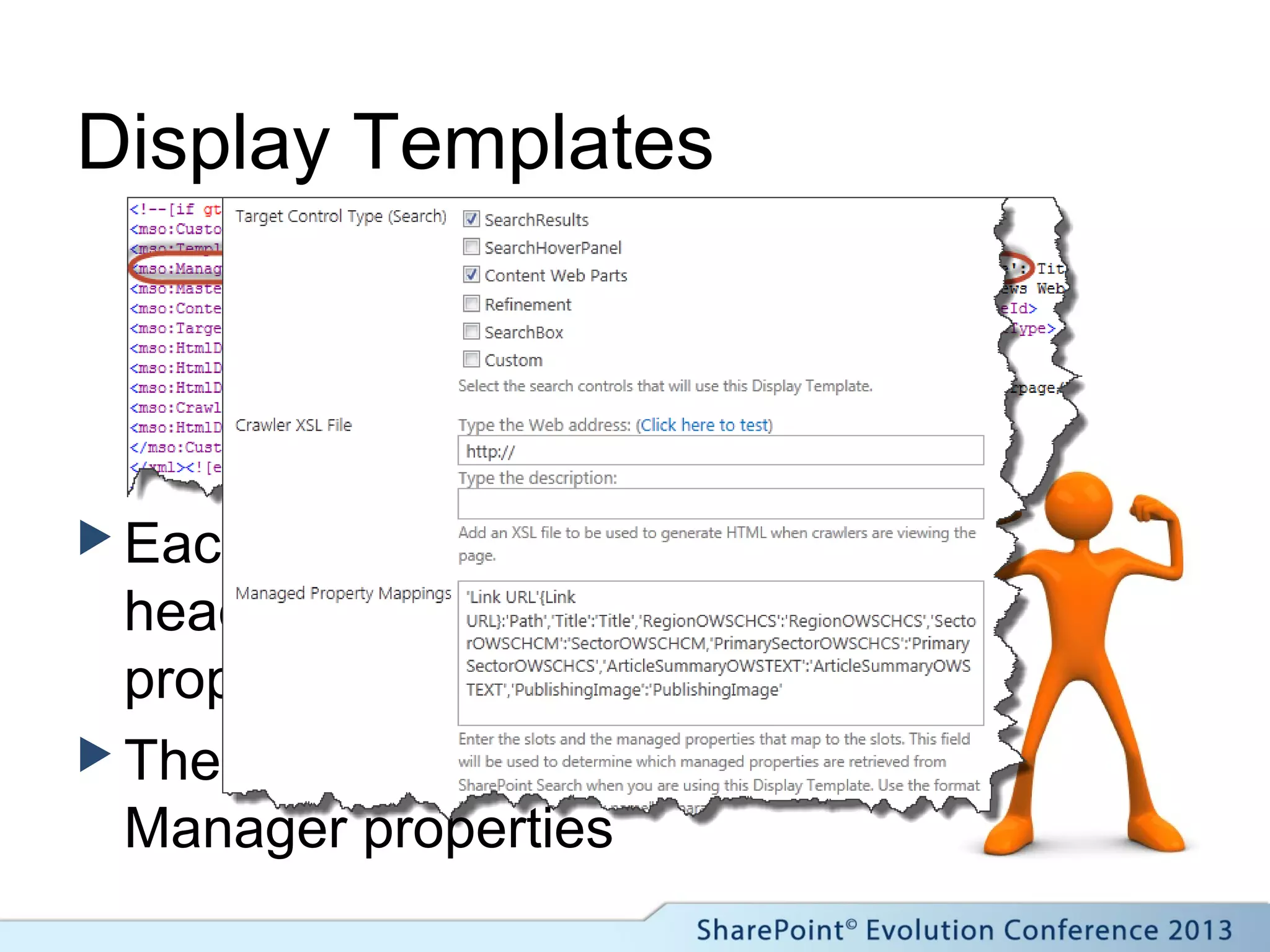

- 58. Display Templates Eachtemplate includes a header block with key properties. These map to the Design Manager properties

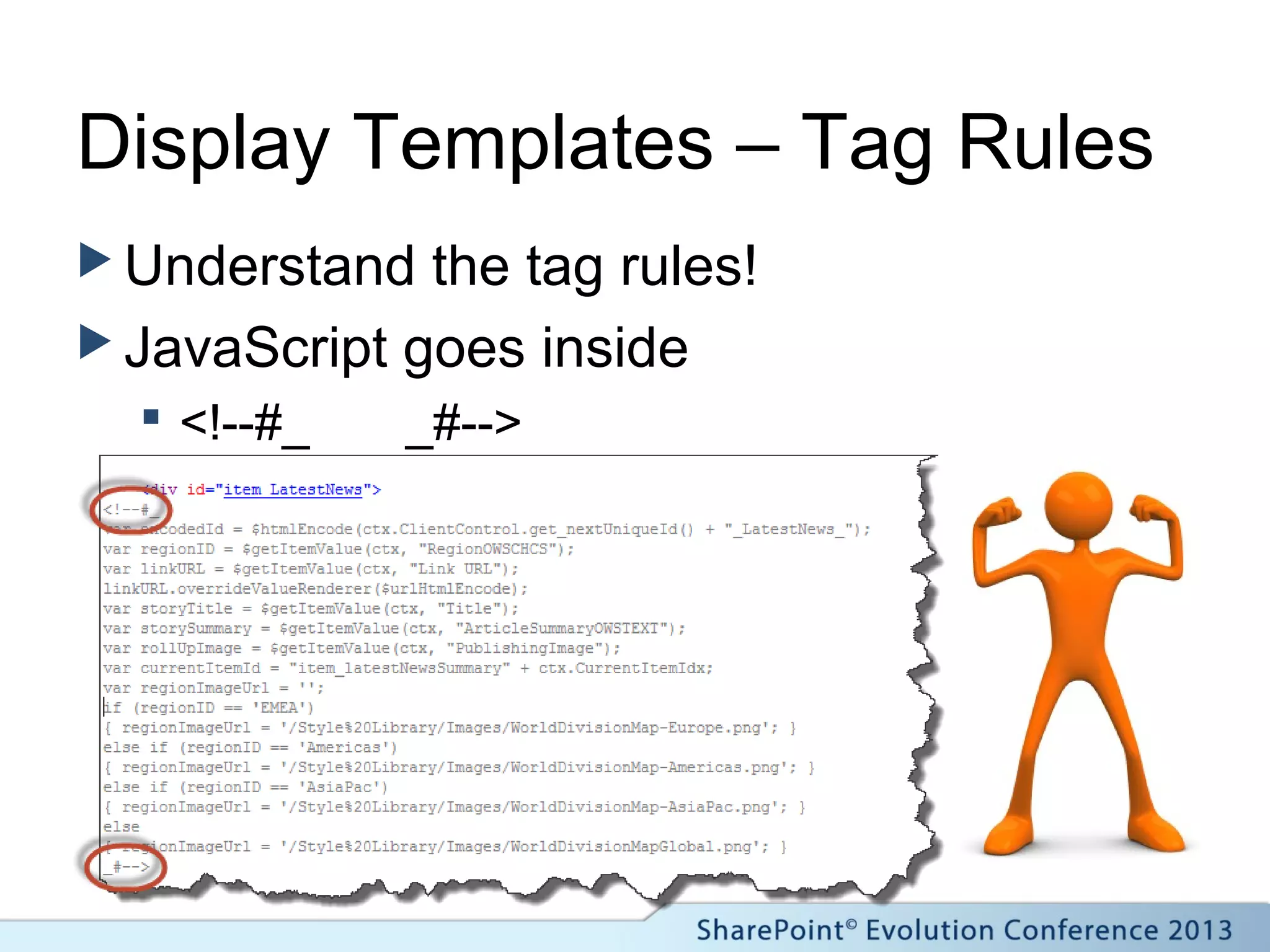

- 59. Display Templates –Tag Rules Understand the tag rules! JavaScript goes inside <!--#_ _#-->

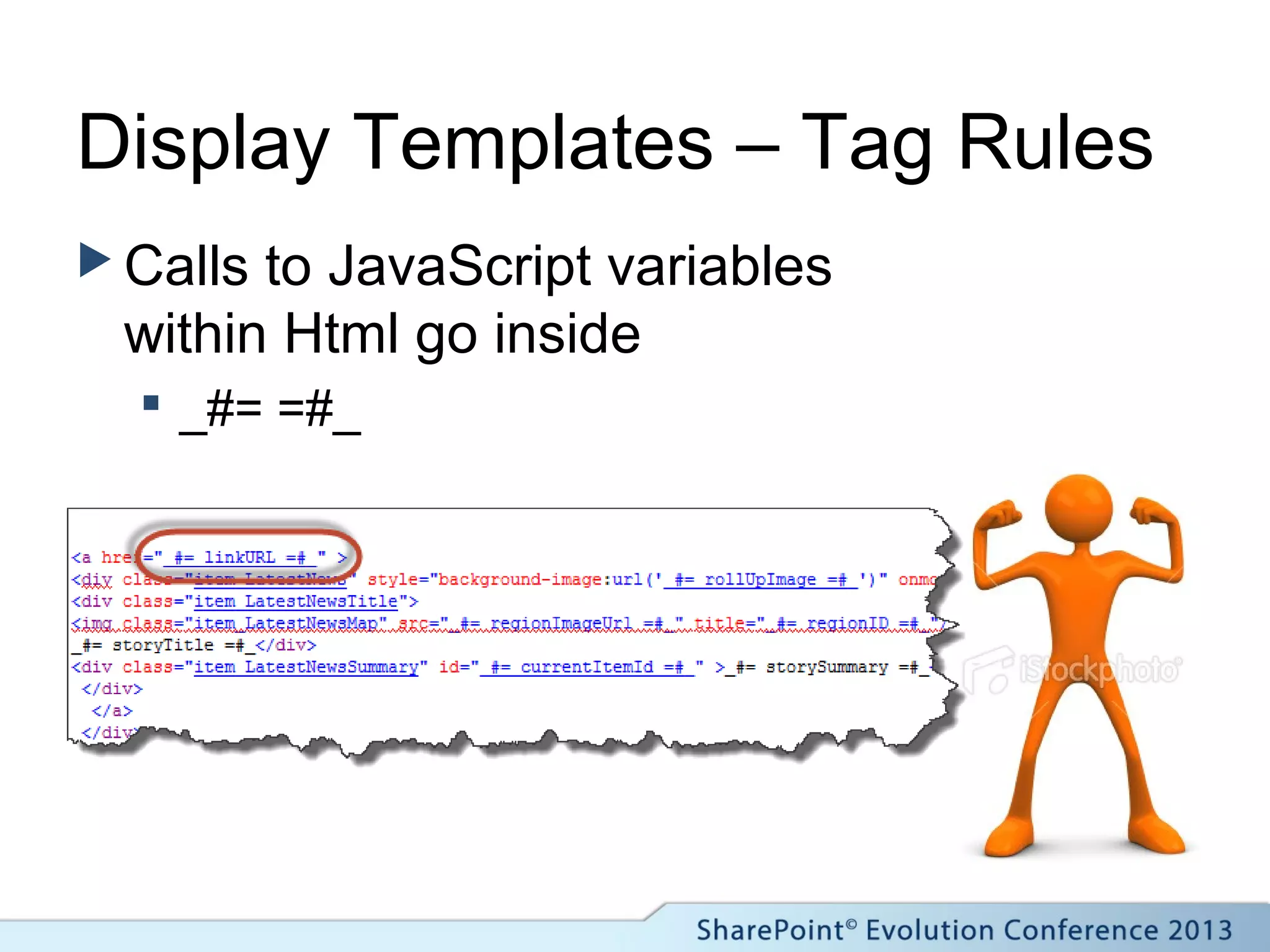

- 60. Display Templates –Tag Rules Calls to JavaScript variables within Html go inside _#= =#_

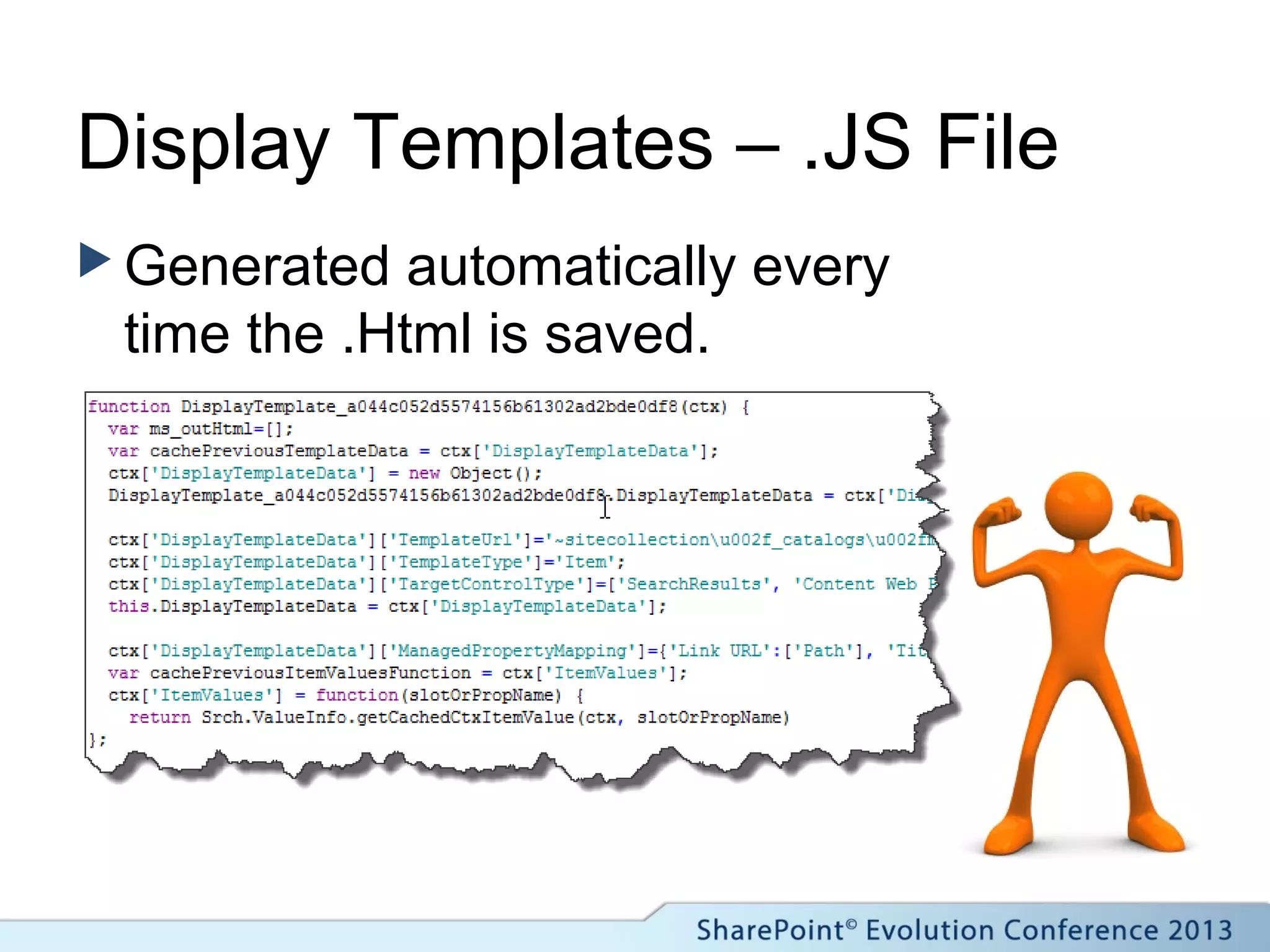

- 61. Display Templates –.JS File Generated automatically every time the .Html is saved.

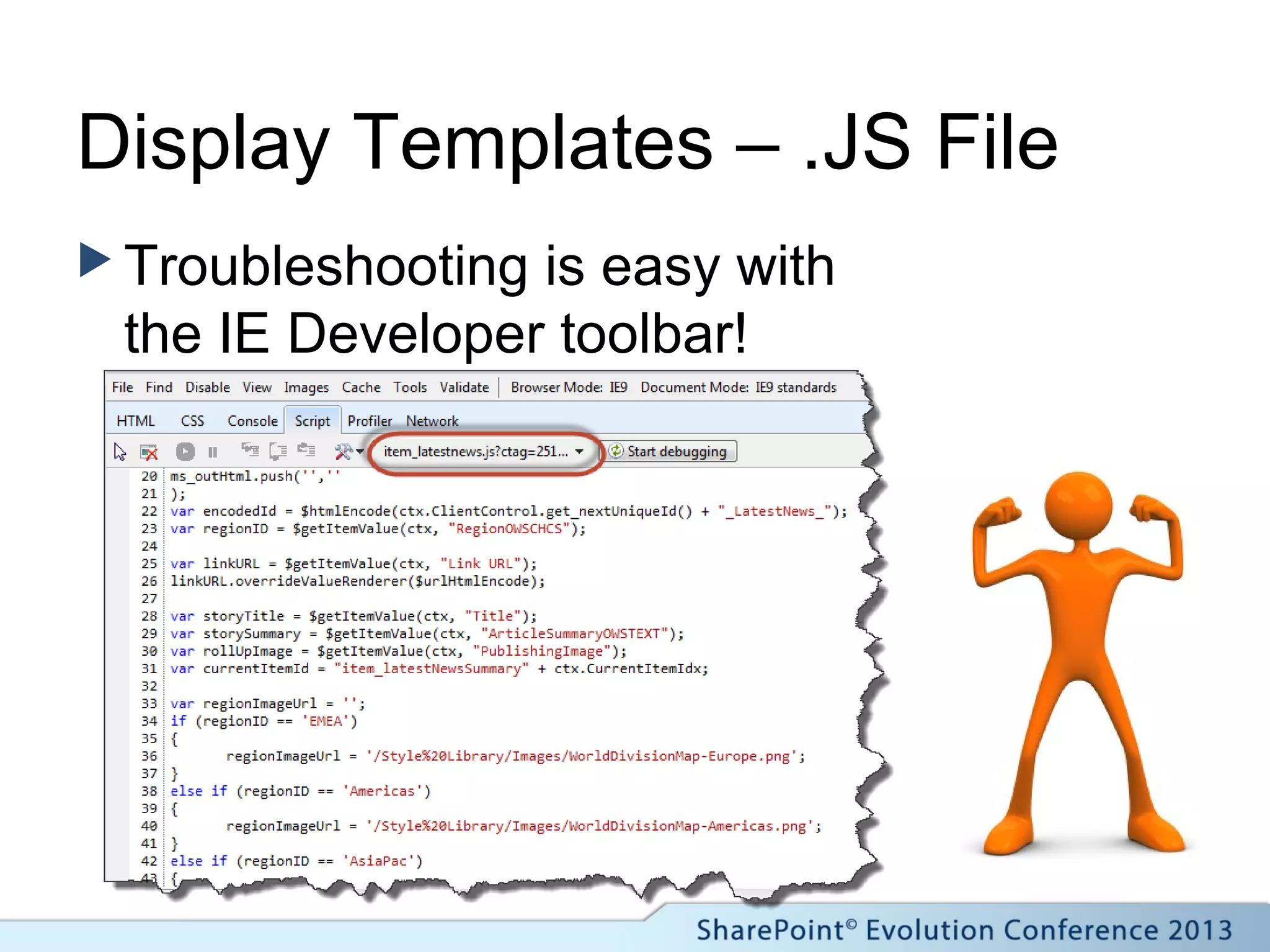

- 62. Display Templates –.JS File Troubleshooting is easy with the IE Developer toolbar!

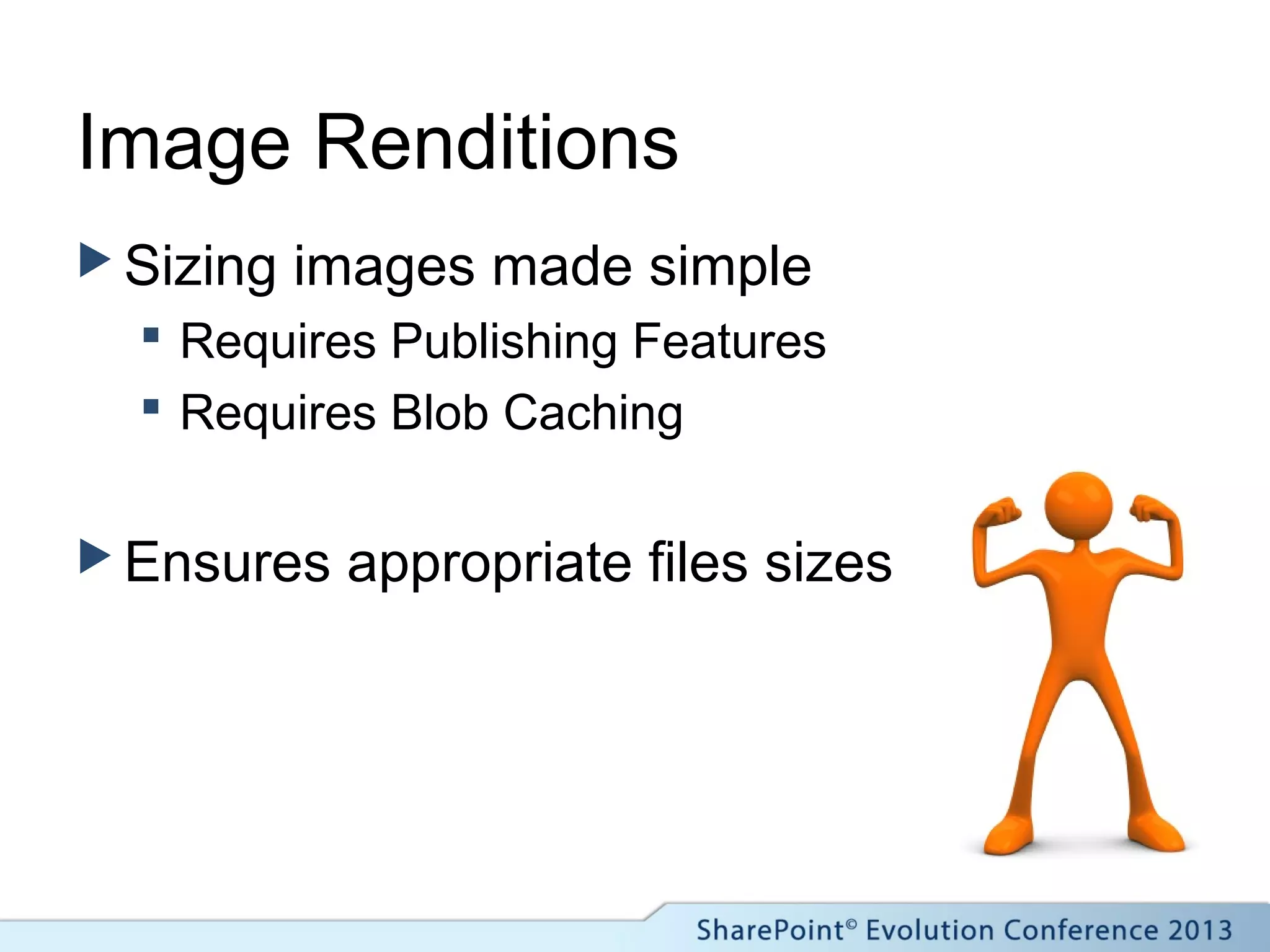

- 63. Image Renditions Sizingimages made simple Requires Publishing Features Requires Blob Caching Ensures appropriate files sizes
- 64.

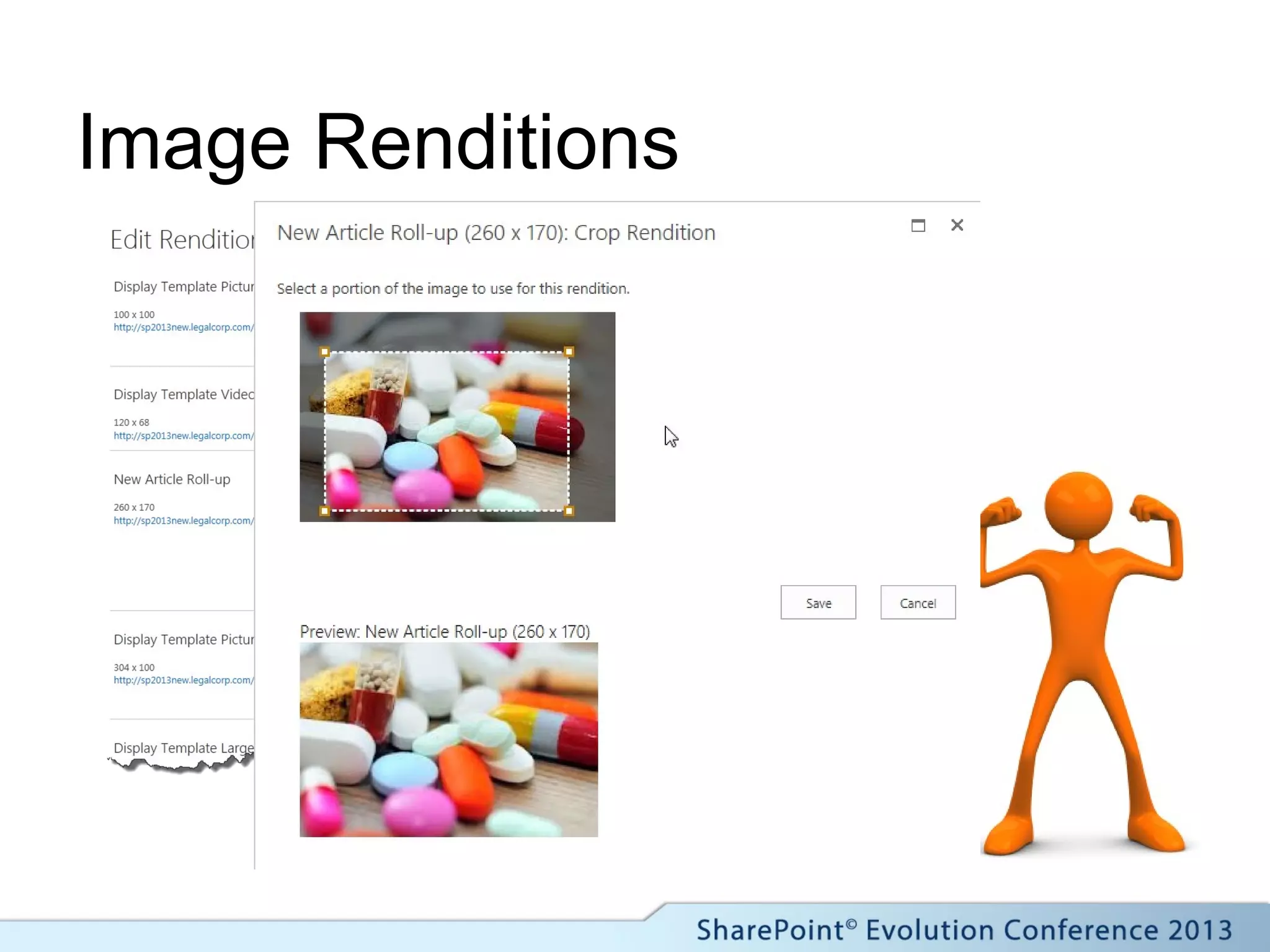

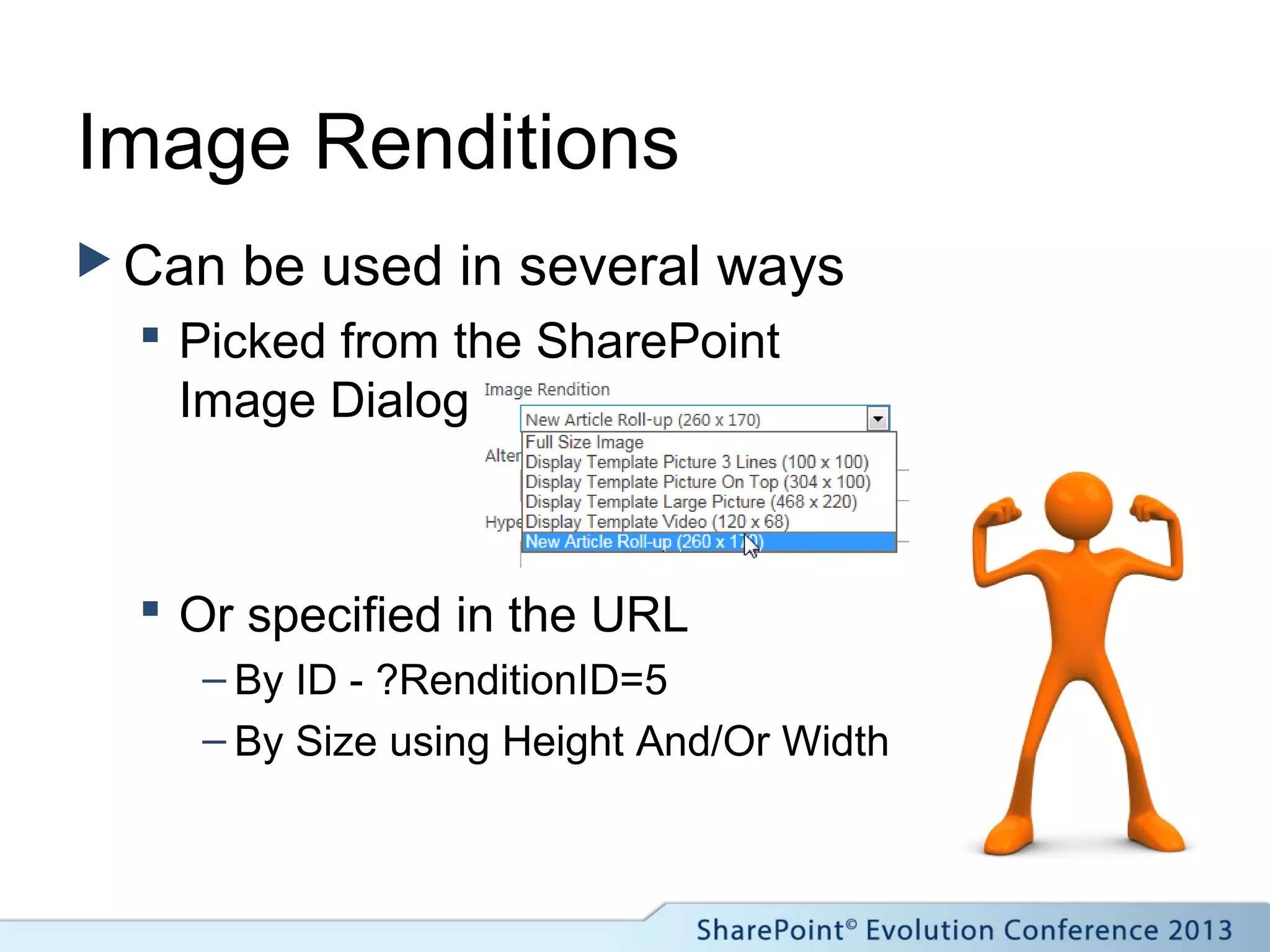

- 65. Image Renditions Canbe used in several ways Picked from the SharePoint Image Dialog Or specified in the URL – By ID - ?RenditionID=5 – By Size using Height And/Or Width

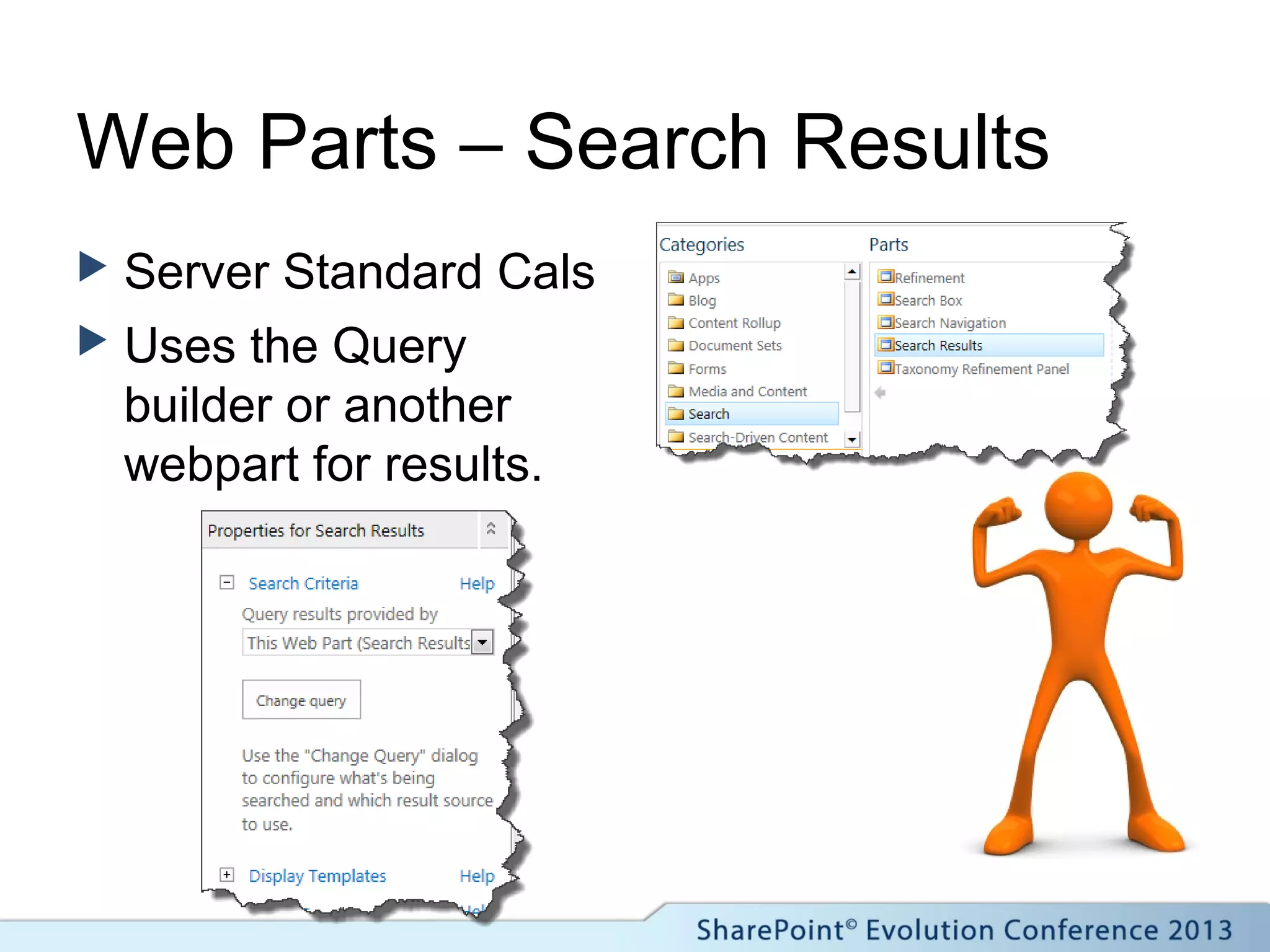

- 66. Web Parts –Search Results Server Standard Cals Uses the Query builder or another webpart for results.

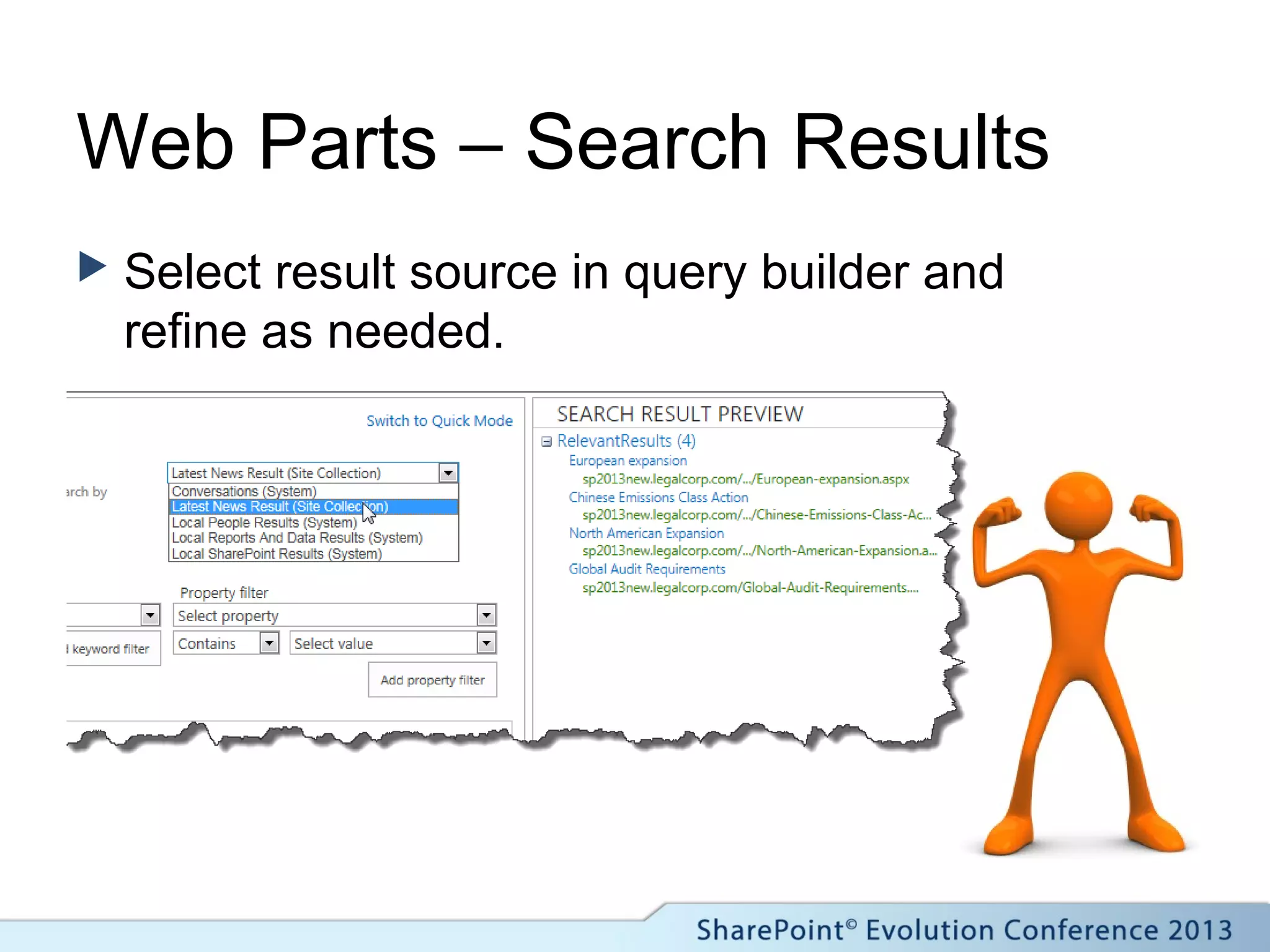

- 67. Web Parts –Search Results Select result source in query builder and refine as needed.

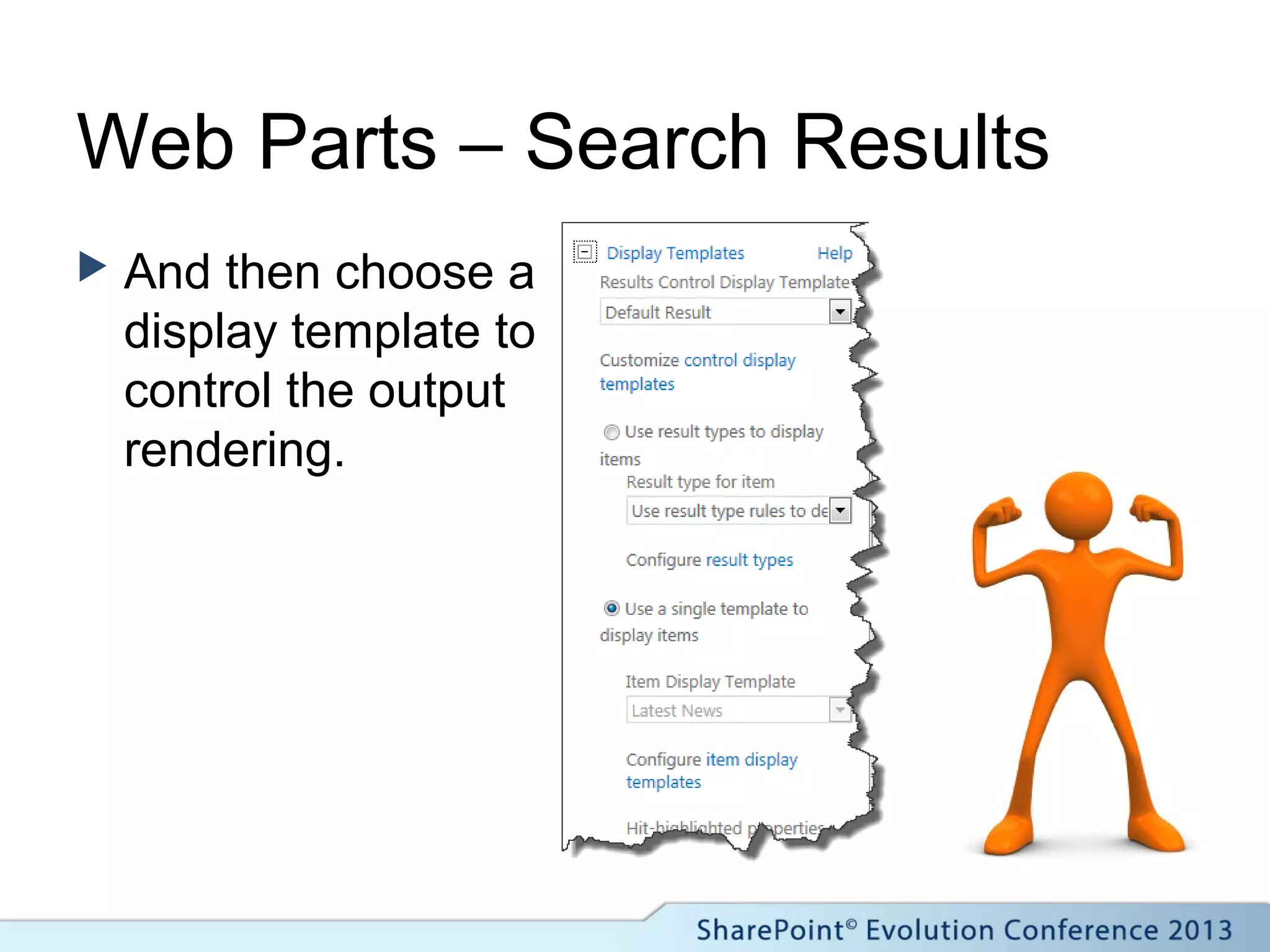

- 68. Web Parts –Search Results And then choose a display template to control the output rendering.

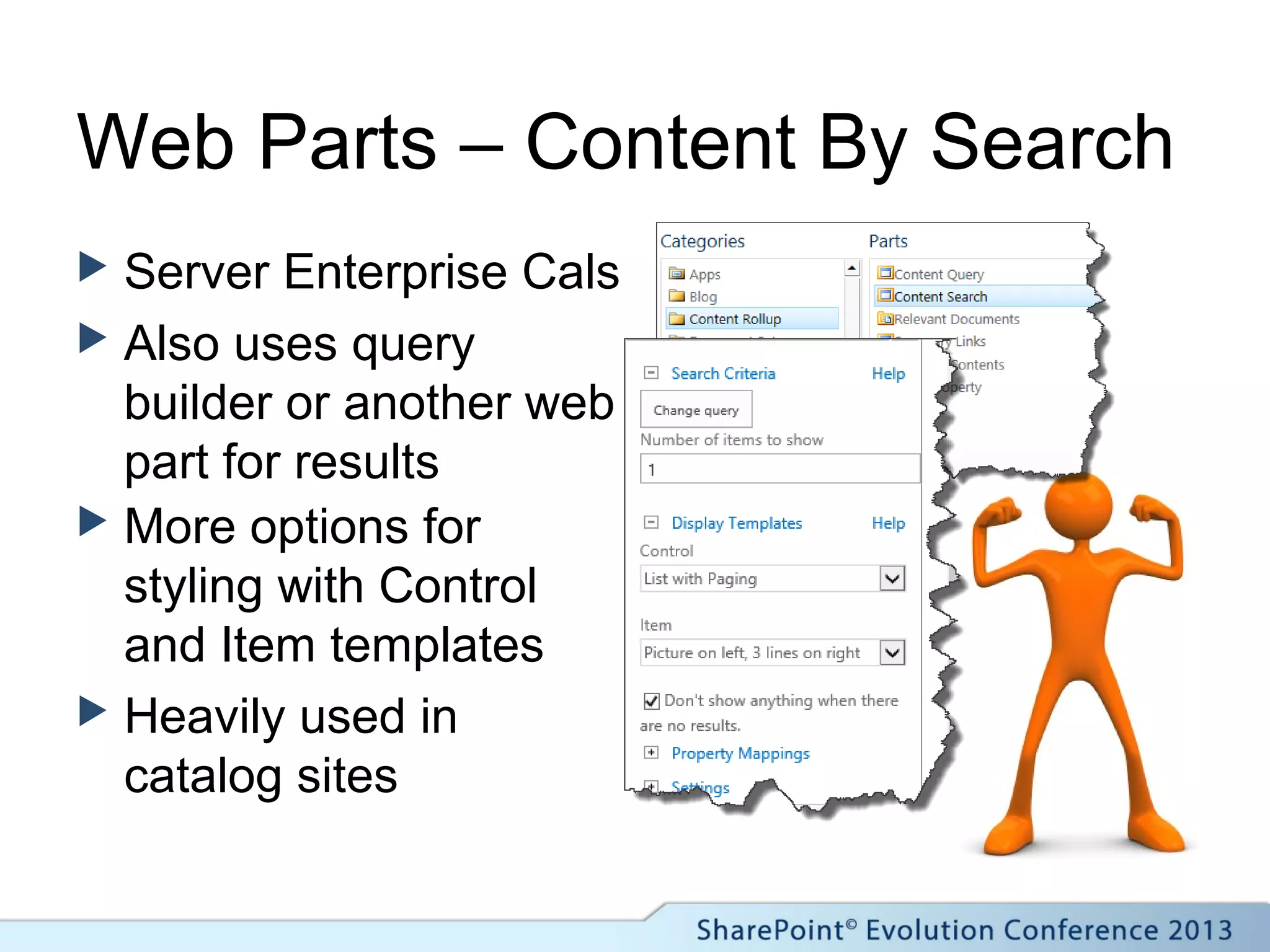

- 69. Web Parts –Content By Search Server Enterprise Cals Also uses query builder or another web part for results More options for styling with Control and Item templates Heavily used in catalog sites

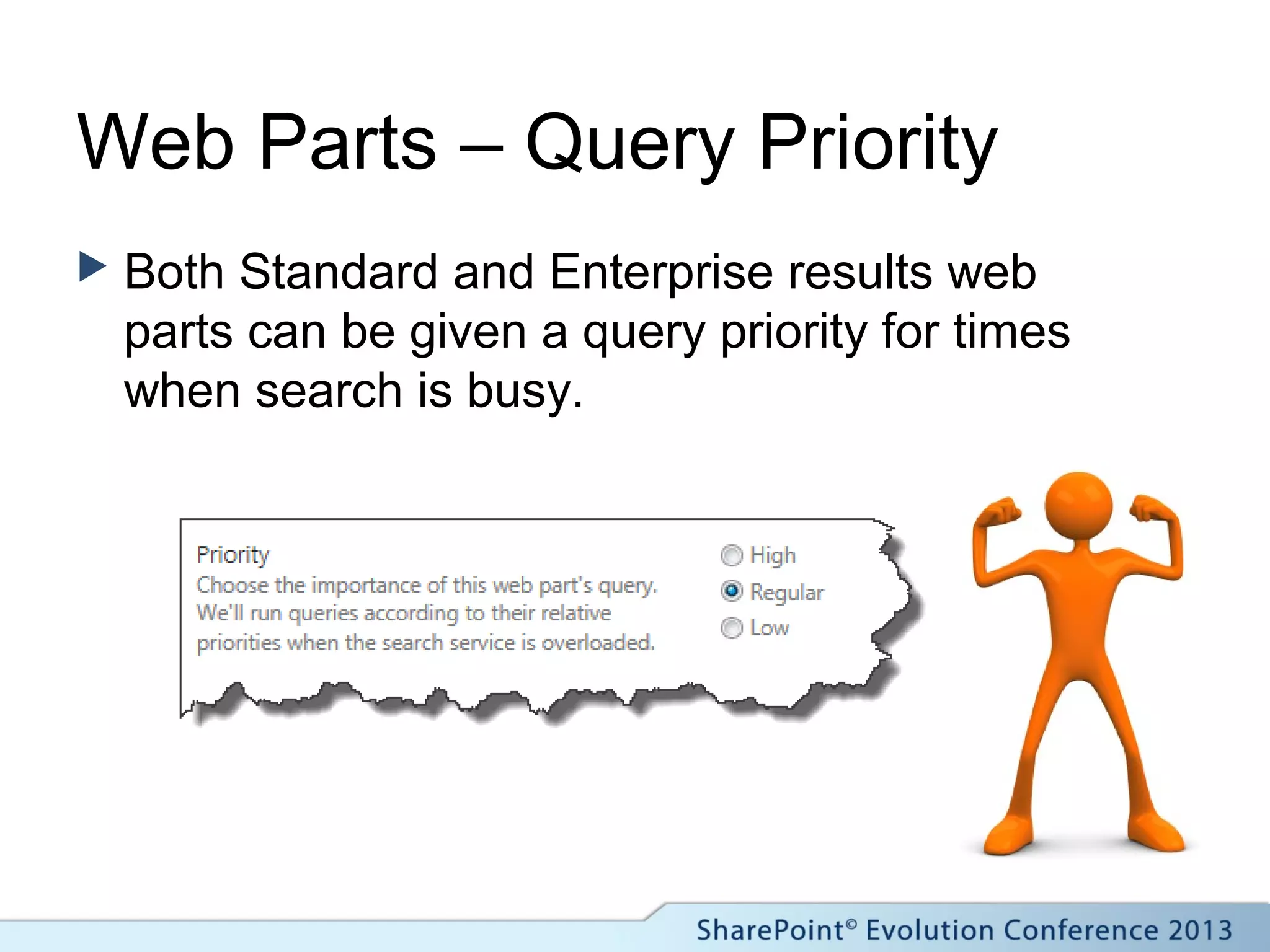

- 70. Web Parts –Query Priority Both Standard and Enterprise results web parts can be given a query priority for times when search is busy.

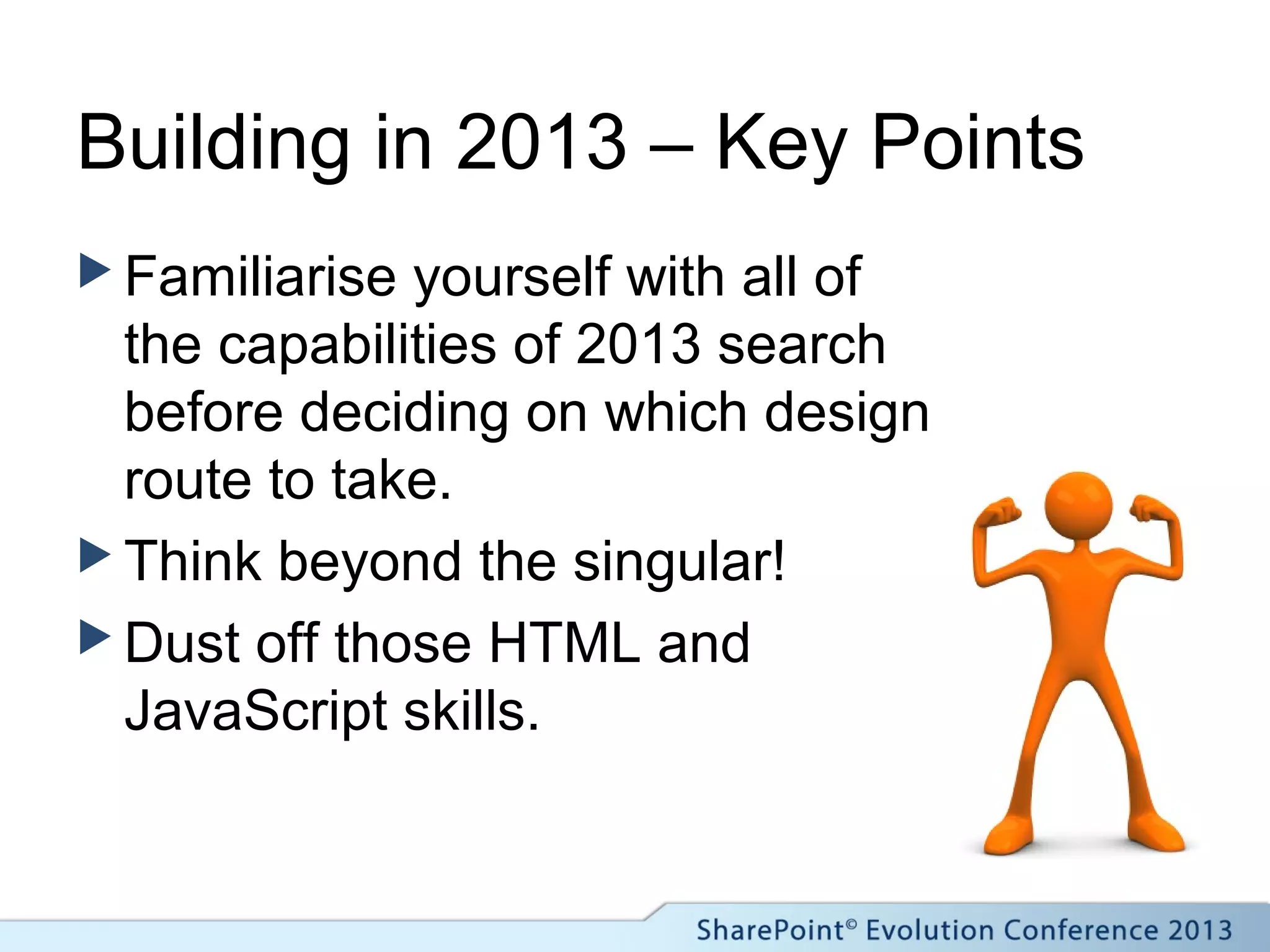

- 71. Building in 2013– Key Points Familiarise yourself with all of the capabilities of 2013 search before deciding on which design route to take. Think beyond the singular! Dust off those HTML and JavaScript skills.

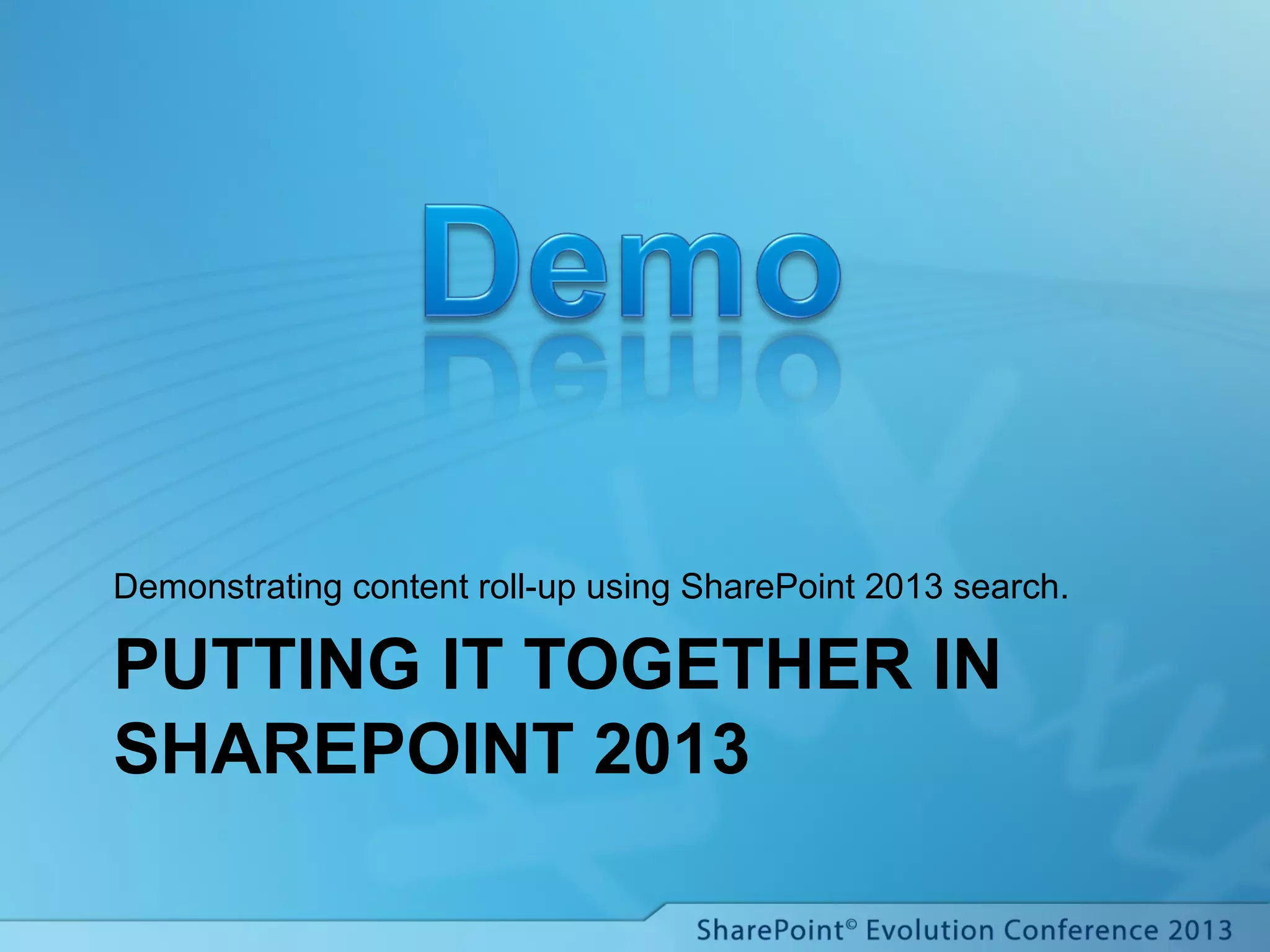

- 72. PUTTING IT TOGETHERIN SHAREPOINT 2013 Demonstrating content roll-up using SharePoint 2013 search.

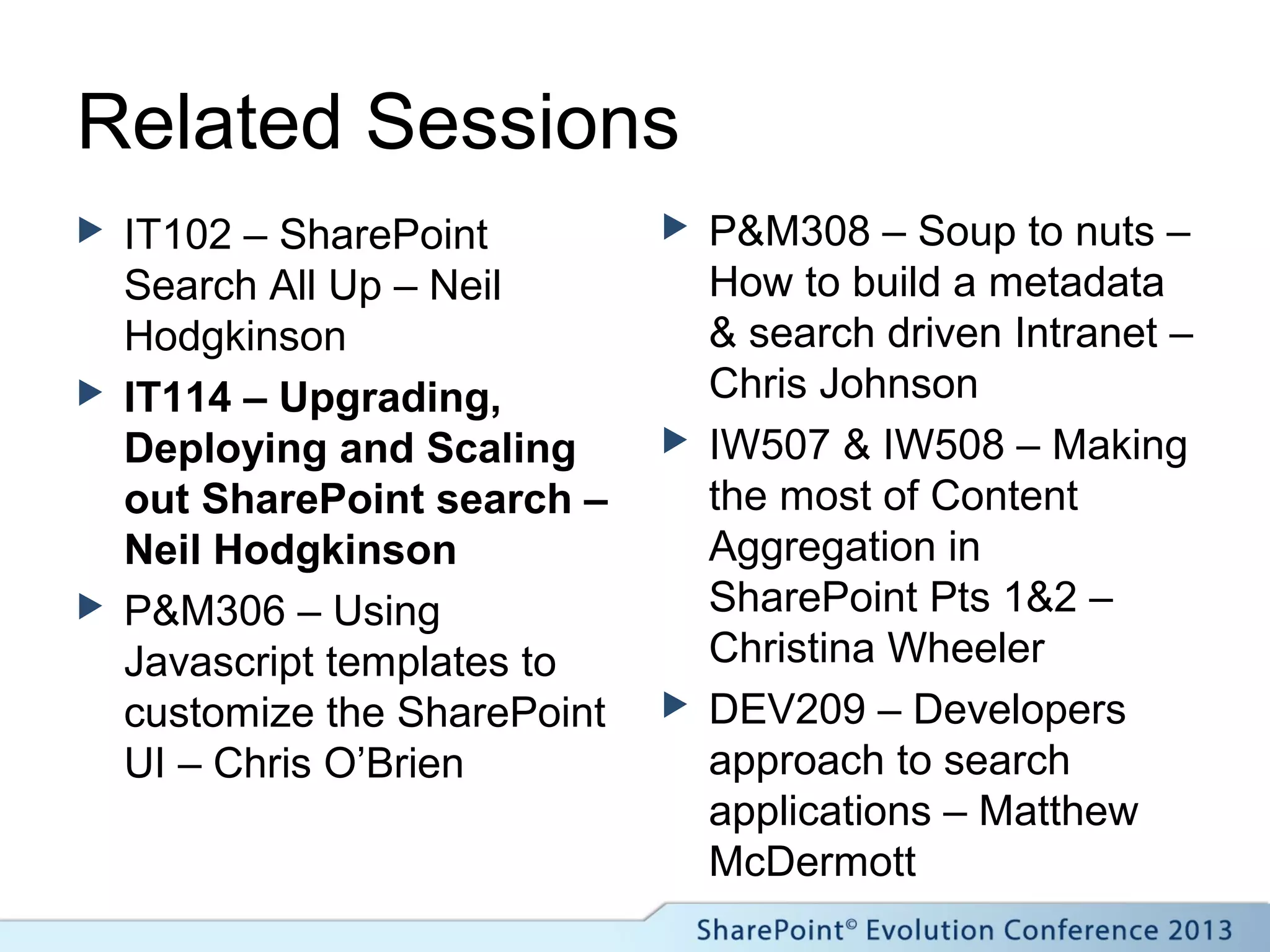

- 74. Related Sessions IT102– SharePoint Search All Up – Neil Hodgkinson IT114 – Upgrading, Deploying and Scaling out SharePoint search – Neil Hodgkinson P&M306 – Using Javascript templates to customize the SharePoint UI – Chris O’Brien P&M308 – Soup to nuts – How to build a metadata & search driven Intranet – Chris Johnson IW507 & IW508 – Making the most of Content Aggregation in SharePoint Pts 1&2 – Christina Wheeler DEV209 – Developers approach to search applications – Matthew McDermott
- 75.
- 76. Thank you forattending! See you at the conference party tonight!
Editor's Notes
- #6 Some of the key requirements was for separation, Site collections create security boundaries, but they also bring additional challenges.
- #7 Of all of the challenges that we’re focussing on today, we shall be looking at what we can do to provide roll-ups across site collections.
- #9 The CQWP (Content By Query Web Part) has some limitations. Queries cannot be run across site collections. Paging is not available out of the box. A little known restriction is from the SPSiteDataQuery limit of 1000 lists. This means that once the CQWP query has touched 1000 lists across the site collection, it will return no results. This means that depending on the configuration of your query, just 100 sub-webs can invalidate your query and the web part will return nothing. (Without any error messages beyond those in the ULS logs.) The CQWP is made scalable through the use of heavy caching, which increases the demand on the WFE. CQWP Does however support the use of [ME] and [TODAY]….
- #11 The search service application has been designed from the ground up to be scalable. As demand rises across the farm, Query servers and index partitions can be added to scale out. Complex searches can be created. Kryptonite! Can’t use the [ME] token or [TODAY] without custom code. (In 2010) Search crawls
- #12 To mitigate this in 2010, we would run incrementals as frequently as we could. In 2013, the constant crawler comes to our aid. For the [Me] and [Today] tokens, we had to result to custom code. Less of an issue in 2013.
- #13 Search scopes to restrict content to what you want to see. Managed properties to display the relevant information. Regular crawls for content freshness. (Content is only as fresh as the last crawl!)
- #19 By adding fields into the page layout, we improve the edit experience and make tagging easy.
- #23 Scopes can be very powerful. In our case, we’re only using it to limit results from a single web application. The name you give it here, will be used to target the scope in the web part later on.
- #26 Some challenges when it comes to troubleshooting. Best approach is to take the raw xml output from search and use a third party tool (Visual Studio, notepad++, SPD) to build the XSLT away from SharePoint.
- #27 Search Core Results Web Part – Local to the instance of the web part, Horrible editing experience. Site Collection Asset Library – Limited to use within the site collection, Benefits from Versioning. Deployed through feature or SPD From the file system – Can be used throughout the site on any site collection. Deployed through feature or manual copy. A federated location – Can be easily re-used by any site/farm consuming the search service application. Issues with migration.
- #31 In the new federated location, we give it a name, leave all of the default location options, and then add the XSLT and properties to the Core Results Display Metadata section.
- #32 We can then picked the newly created federated location in the Location properties tab of the Core Results web part
- #33 For all of our deployment methods, apart from Federated locations, these have to go in the web part properties. For federated locations, they go in the federated location display properties. Both locations use the same horrible interface, Cut and paste into an XML aware editor! You will save hours of frustration! You must however return them to a single string after editing before pasting back in.
- #34 Finally we need to add the fixed query that will fire when the page is loaded. Here’ we’re looking for items of the correct content type that match our news stories. contenttype:”LegalCorp News Article Page” Any keyword query that works in the search box can be used here.

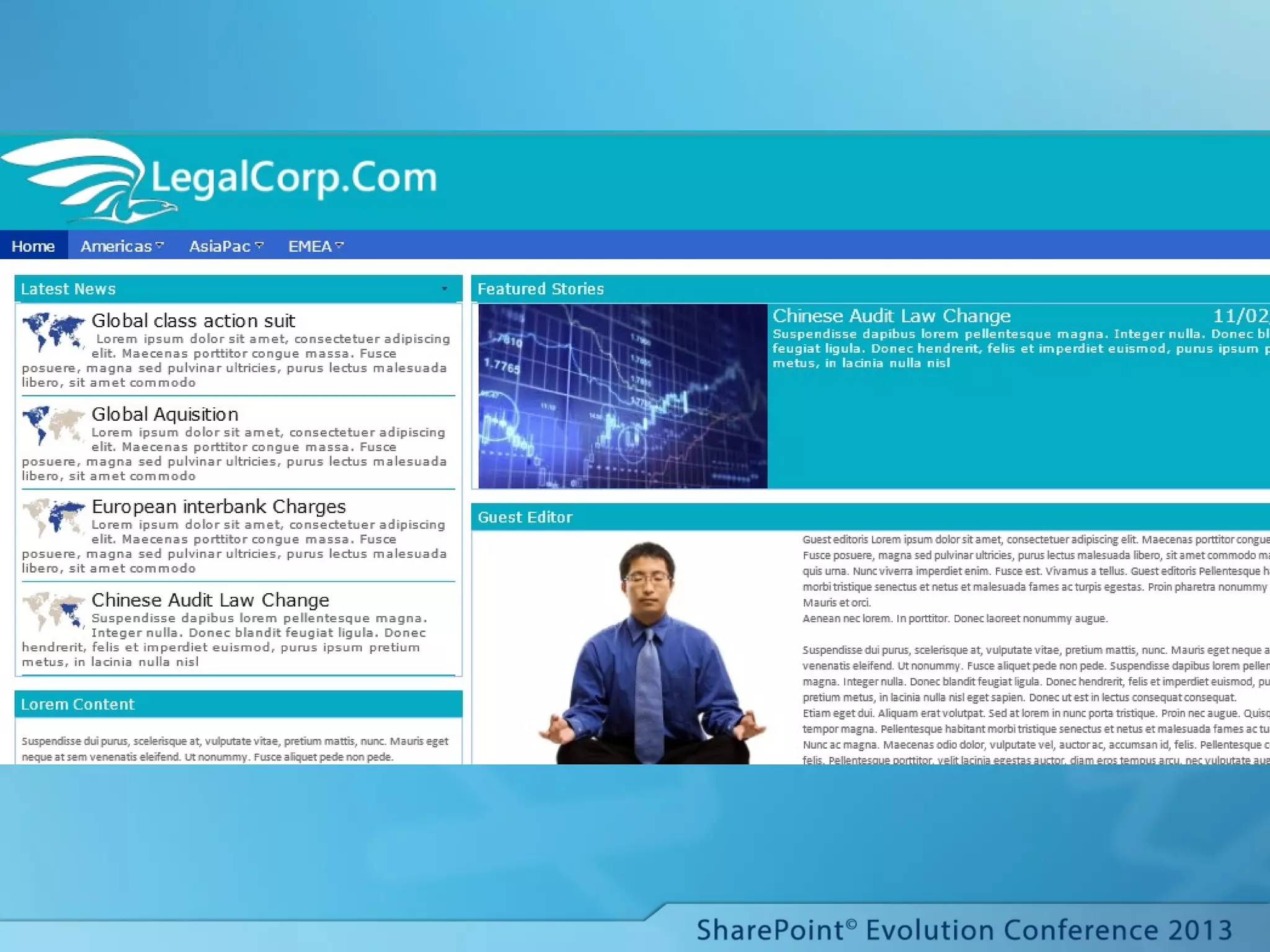

- #37 If it all worked, it looks like this. Note the Featured Sites web part, this is a variation on the same method.
- #39 Upgrading Service Applications to SharePoint 2013 - http://technet.microsoft.com/en-gb/library/jj839719.aspx Upgrade content databases - http://technet.microsoft.com/en-us/library/cc263299.aspx Personally, There has to be a very good reason to migrate search rather than rebuild, in this migration scenario, we won’t be bringing search across. If scopes are migrated, they cannot be edited. Not convinced that Federated locations migrate fully as I experienced issues with the embedded XSLT.

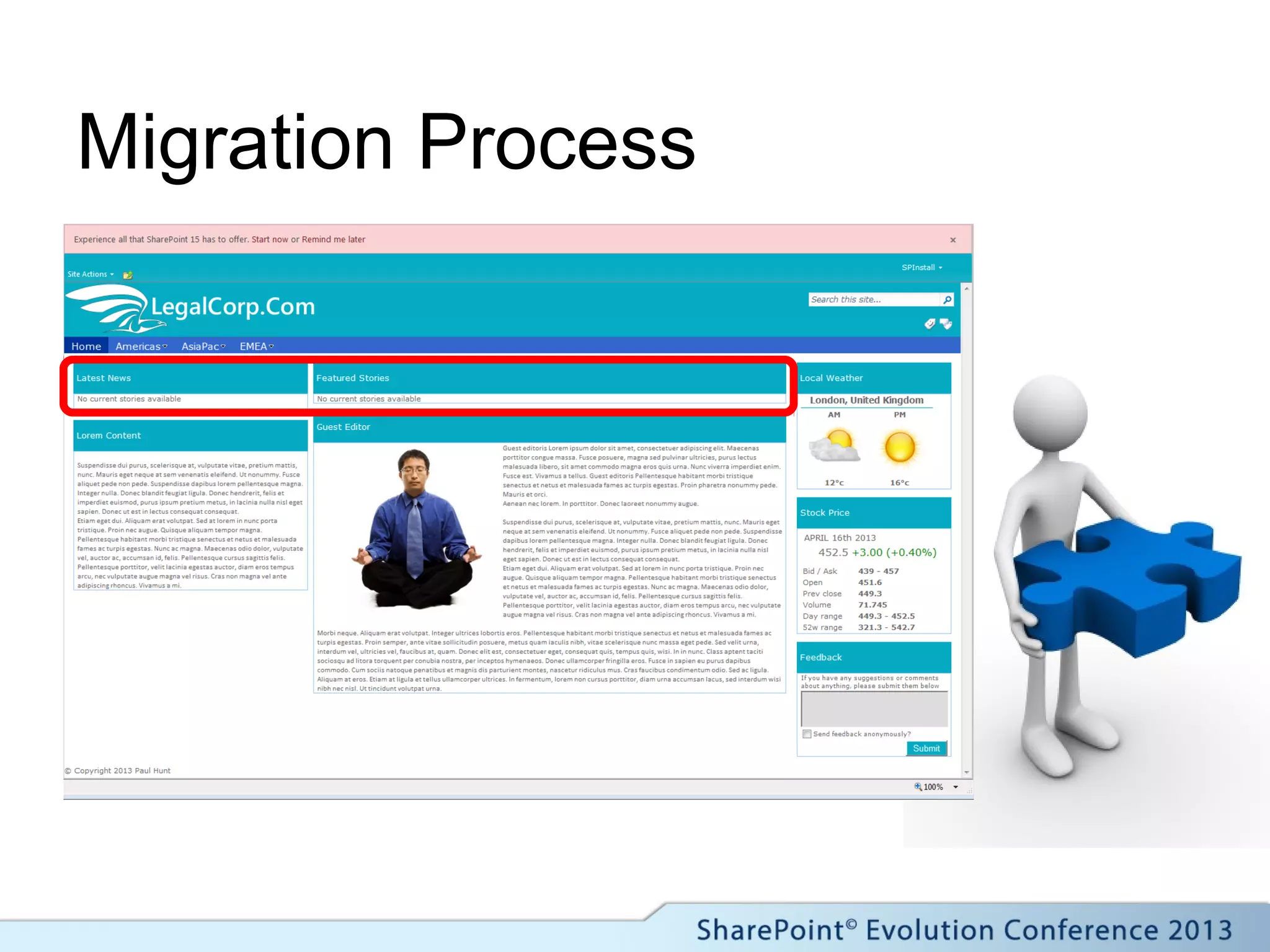

- #40 The upgrade in-place will take a variable amount of time depending on the amount of content.
- #41 After the initial mount process, The basic site is available, but no search results, Requires a crawl to populate the database Styling is also a little weird. Note the prompt for the SharePoint 15 upgrade
- #42 After the crawl, we now have results, but the images are missing.
- #44 Full details of the suffixes are listed here http://technet.microsoft.com/en-gb/library/jj613136.aspx
- #48 With the master page switched, the CSS isn’t working.
- #49 The finished migrated site after a new SP2013 master page and CSS file is created.
- #52 The main changes in SharePoint 2013 that change the way we approach our original build are :- Automatic Managed Properties:- These are mapped for us automatically as we touched on during the migration. Results Sources:- These are scopes on Steroids! Display Templates: HTML and Javascript based templates for rendering result items. New Search Webparts – Search Results or Content by Search (In enterprise) Continuous crawl – search freshness becomes less of a problem than in 2010.
- #53 The basic underlying structure is very similar to the SP2010 version, but now we’re using the full power of SharePoint search and all the new functionality that comes with it.
- #54 Although the Enterprise web part is a little easier to configure, there is nothing that you can do in one that you can’t do in the other.
- #55 As with how our solution worked in SP2010, nothing has changed with regards to Site Columns, Content Types, deployment or page layouts!
- #63 Massive improvement for troubleshooting over XSLT!
- #64 The use of image renditions in your sites can have a massive impact on the ease of deploying images and ensuring that appropriate images sizes are used and transferred over the network.
- #66 If a rendition ID isn’t specified, but a width or height is, then SharePoint will try and match the appropriate rendition. E.g. if you specify Width, SharePoint will match the width and return the relevant image. In the case of multiple renditions with the same width, the first rendition found will be returned.
- #67 Note the entry there about using either the query builder, or another web part. You can use this feature to supply to web parts to the page, from just one query to the search database. For example, in our 2010 site, we had a featured story web part, This could have been our eye catching headline showing the first result, with the summary web-part showing stories 2-5 instead of 1-4
- #72 Think beyond the singular.. Use webparts in concert to create mashups.
