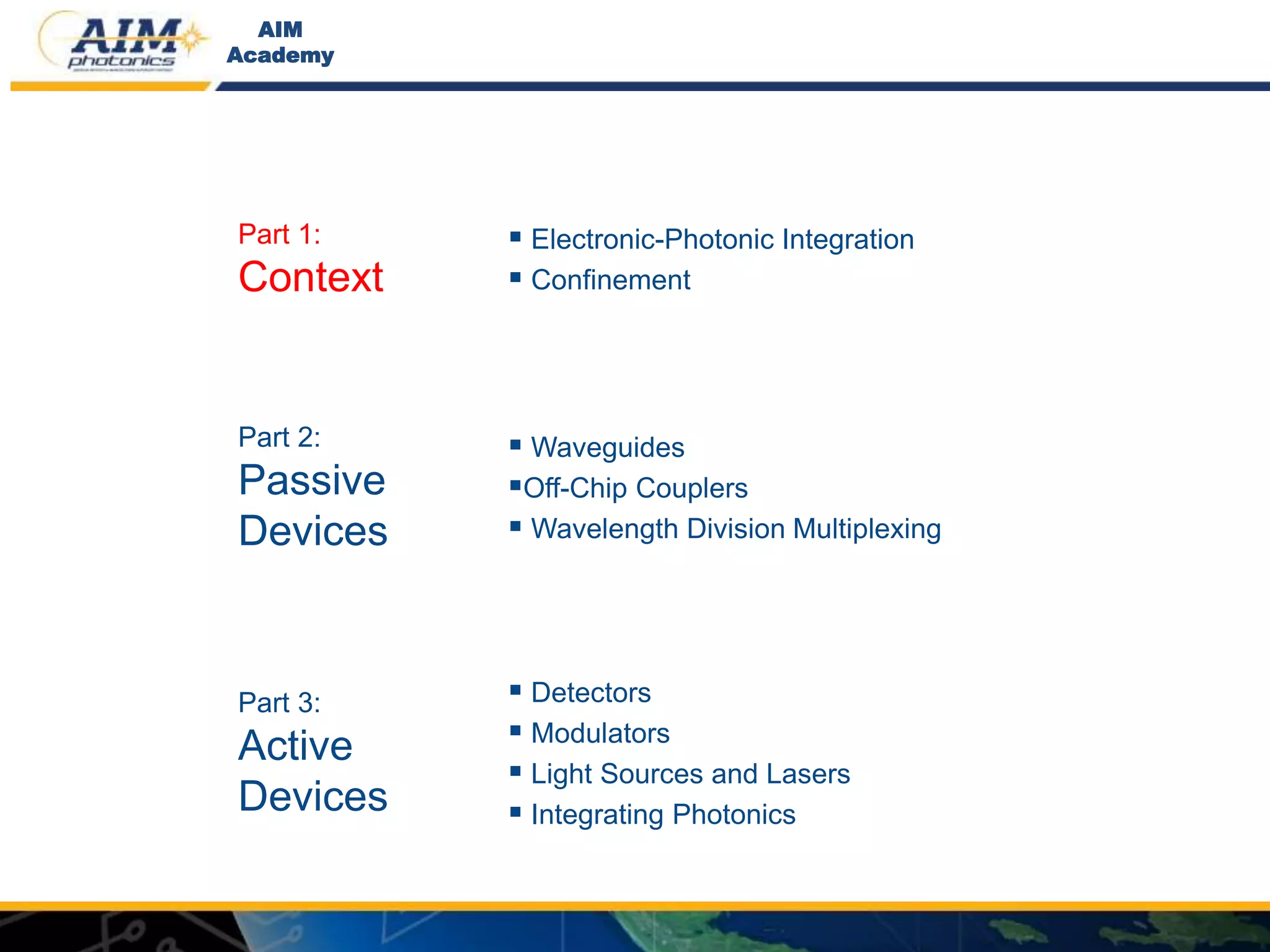

2. AIM
Academy
Part 1:
Context
Electronic-Photonic Integration
Confinement
Part 2:
Passive
Devices
Waveguides
Off-Chip Couplers
Wavelength Division Multiplexing
Part 3:
Active
Devices
Detectors
Modulators
Light Sources and Lasers
Integrating Photonics
3. AIM
Academy
optics: disruptive technology
metal interconnect constraints
materials platform
device challenges
R. Kirchain and L.C. Kimerling, “A roadmap for nanophotonics,” Nature Photonics v.1, p.303 (2007).
Electronic-Photonic Integration:
Optical Interconnects
10
-2
10
0
10
2
10
4
10
6
10
8
1010
10
12
10
14
1880 1900 1920 1940 1960 1980 2000 2020 2040
RelativeInformationCapacity(bit/s)
Year
Telephone lines first constructed
Carrier Telephonyfirstused 12 voice
channels on one wire pair
Earlycoaxial cable links
Advanced
coaxial and
microwave systems
Communication
Satellites
Single channel
(ETDM)
Multi-channel
(WDM)
OPTICAL
FIBER
SYSTEMS
4. AIM
Academy
10
-2
10
0
10
2
10
4
10
6
10
8
1010
10
12
10
14
1880 1900 1920 1940 1960 1980 2000 2020 2040
RelativeInformationCapacity(bit/s)
Year
Telephone lines first constructed
Carrier Telephonyfirstused 12 voice
channels on one wire pair
Earlycoaxial cable links
Advanced
coaxial and
microwave systems
Communication
Satellites
Single channel
(ETDM)
Multi-channel
(WDM)
OPTICAL
FIBER
SYSTEMS
Photonics: Optical Fiber/Interconnects
Distance Bandwidth product > 10 Tb/s mm
Historical transition from Electronic to Photonic Interconnects: 10 Mb/s•km
RC delay + Shrinking Dimensions
decreased chip speed
Communication Technology
R. Kirchain and L.C. Kimerling, “A roadmap for nanophotonics,” Nature Phot. v.1, p.303 (2007)
5. AIM
Academy The Future of Multicore
Parallelism replaced
clock frequency scaling
Resulting Challenges…
Programming
Power
Interconnect Performance
MIT RAW Intel 50core Knights CornerIBM Blue Gene/Q Tilera TILE64
Number of cores doubles
every 18 months
6. AIM
Academy
Tiles can directly communicate with any other tile
Tiles contain one or more cores
Broadcasts require just one send
No complicated routing on network required
Tile resources only used when performing communication (unlike mesh
approach)
Multi-tile processor
Optical
network layer
A. Agarwal, L.C. Kimerling, J. Michel, MIT, M. Watts, Sandia NL
ATAC: All-to-All Communication
game-changing architectural paradigm
7. AIM
Academy
Tiles can directly communicate with any other tile
Tiles contain one or more cores
Broadcasts require just one send
No complicated routing on network required
Tile resources only used when performing communication (unlike mesh
approach)
ATAC: All-to-All Communication
game-changing architectural paradigm
11. AIM
Academy Index Confinement: The 1D Basics
Confinement: Total Internal Reflection
Light confinement to high refractive index core:
standing wave in x-, y-direction
Surrounded by lower refractive index cladding:
evanescent (exponential decay) wave in x-, y-
direction
Helmholtz Equation
t
2
n2
k0
2
2
Total Internal Reflection
12. AIM
Academy
Geometry
Strip: high confinement
Dense integration
Ridge/rib: low confinement
Fiber optic compatibility
Multimode vs Single-Mode
multimode less lossy in straight waveguides
single-mode less lossy in turns/splits
– robust for interferometric designs
ncl < neff < nco
1/ncl
1/nco
multimode
single-mode
Helmholtz Equation
m n2k0 cosm
Radiation Modes
Forbidden
Region
Index Confinement: The 1D Basics
13. AIM
Academy Index Confinement
2D Mode Size: influence of aspect ratio and undercladding
Waveguide dimensions should be optimized for best confinement
Dimensions should be restricted to single-mode cutoff
Single mode waveguide has unique aspect ratio for optimal confinement
Higher n waveguide requires smaller undercladding
Si strip waveguide, oxide clad (n2=3.5, n1=1.446), 250nm height
TE Polarization – E field contours
14. AIM
Academy Resonant Confinement
Standing/Traveling Wave Resonator
Standing wave: Fabry Perot cavity, microcavity
dmm/2neff, m=1,2,3,…
dielectric waveguide: deff > d
Bragg reflector: high resolution lithography
d
E(z d,t) Aei0 z
teid
t (Aei0 z
teid
)reid
reid
t (Aei0 z
teid
)reid
reid
reid
reid
t ... eit
Aei(0 zt)
eid
(1 r)2
1 x
, x r2
ei2d
T
E(z d,t)
E(z,t)
2
eid
(1 r)2
1 r2
ei2d
2
m
L
m
, m 1,2,3,K
(L 2d,2r)
m
c
m
m
c
L
FSR m m1
c
L
15. AIM
Academy
Traveling wave: (micro-) ring resonator
2r=mm/neff, m=1,2,3,…
horizontal coupling: >UV lithography
vertical coupling: CMP
Q m m
1
vg
;
m
m
;
m
m
Finesse: F
FSR
m
loss ext
1
vg
Standing: ext
1
2d
ln
1
R
m
L
m
, m 1,2,3,K
(L 2d,2r)
m
c
m
m
c
L
FSR m m1
c
L
FSR m1 m
2
L
Free Spectral Range:
Quality Factor:
Resonant Confinement
Standing/Traveling Wave Resonator
16. AIM
Academy
Anti-resonant Confinement
Short-range interference effect
Different from photonic crystal low dielectric state
ws=100 nm air slot inside Si waveguide
Confinement influence quasi-TE mode
Index discontinuity in E(nco/nslot)2~12
Contains ~40% quasi-TE mode power
Hs nn
V. R. Almeida, Q. Xu, C. A. Barrios, and M. Lipson, Guiding and confining light in void
nanostructure, Opt. Lett., vol.29, 1209-1211, 2004
Slot Waveguides
Boundary Condition Discontinuity in E-field
Q. Xu, V.R. Almeida, R.R. Panepucci and M. Lipson,“Experimental demonstration of guiding and
confiningLight in nanometer-size low-refractive-index material,” Optics Letters, v.29(14), pp. 1626-
1628 (2004).
17. AIM
Academy The Index Contrast Scale
Very Low Index
Contrast
n=0.001-0.01
VLIC HIC VHIC UHIC
High Index
Contrast
n=0.05-0.1
Very High
Index Contrast
n=0.1-0.5
Ultra High Index
Contrast
n>0.5
catt.okstate.edu/critt
www.nhkspg.co.jp
www.corning.com
www.verifiber.com
LIC
Low Index
Contrast
n=0.01-0.05
www.teemphotonics.com
Silicon
Silica
www.mit.edu
IBM, Intel, Kotura, etc.
www.infinera.com
www.wias-berlin.de/
TriPleX
www.xiophotonics.com
SOI
18. AIM
Academy
Part 1:
Context
Electronic-Photonic Integration
Confinement
Part 2:
Passive
Devices
Waveguides
Off-Chip Couplers
Wavelength Division Multiplexing
Part 3:
Active
Devices
Detectors
Modulators
Light Sources and Lasers
Integrating Photonics
19. AIM
Academy CMOS Fabrication
CMOS Logic Platform
− Technology node
− Silicon substrate (bulk, SOI)
− Oxide gate, SiO2
− Salicide contacts, CoSi2
− Planarization
− Interconnect levels
− Vdd – Voltage drain-drain
3 Areas of Interest
- Substrate
- FEOL to PMD
- BEOL – Metallization
Integration Priorities
- FET Performance
- Thermal cycling-proper sequencing
- Cross Contamination
- Process complexity IMD: Inter-Metal Dielectric
PMD: Pre-Metal Dielectric
FEOL: Front-End-Of-Line
BEOL: Back-End-Of-Line
*Salicide spike anneal 1050°C
• PMD – SiO2, Planarized
1.0mm
1.1mm
CMOS FET & Interconnect for 0.18 mm node
• Silicon Substrate p-type
• Gate, S/D junctions
• Metal – AlCu, Local
interconnect levels 1-4
• IMD – SiO2, Planarized
• Contacts – W studs
• Vias – W studs
900
<550
<450
750*
• Salicide, Ti, Co
21. AIM
Academy Waveguide Materials
Core Si Si-rich
Si3N4
Si3N4 SiON
n 3.5 2.2 2.0 2.0-
1.445
n 2.055 0.755 0.555 0.555-0
Dielectric waveguides
Core:
Si: SOI, amorphous (a-Si)
Si-rich Si3N4 / Si3N4: PECVD, LPCVD
SiON: PECVD
Cladding:
Undercladding: wet thermal SiO2
Overcladding: PECVD SiO2
Geometry
Strip
h=0.2-1.0 mm (SOI, thin film)
w=0.5-2.0 mm (UV-sub-UV lithography)
Ridge/rib
h ~ 1 mm, trench=0.5-0.8 mm
w= 1.0-5.0 mm
waveguide core refractive indices
SiO2 cladding is assumed in all cases.
Index difference: n2-0.01
22. AIM
Academy Waveguide Loss
S side roughness + top roughness + bulk + substrate
Si Substrate
Substrate Leakage – f (n, h, w, tunderclad)
Absorption – f ( bulk, n, h,w)
Roughness Scattering – f (n, h, w, , Lc)
Surface loss
Sidewall loss
Design > isolation design rules
Material & process method
CMP
Etch & Post etch treatments
Sidewall scattering often dominates: TM mode lowest loss
bulk=core+(1-)cladding
: power confinement factor
: roughness Amplitude
Lc: roughness correlation length
D. K. Sparacin, “Process and Design Techniques for Low Loss Integrated Silicon Photonics,” MIT Ph.D. Thesis (2006).
23. AIM
Academy Metrology
Fabry-Pérot Method
work with fewer samples: spectral scan
FSR: peak spacing; loss/length: peak/valley ratio
a priori knowledge of insertion loss: reflectivity calc deviates for n
need accurate measure of waveguide length
d
E(z d,t) Aei0 z
teid
t (Aei0 z
teid
)reid
reid
t (Aei0 z
teid
)reid
reid
reid
reid
t ... eit
Aei(0 zt)
eid
(1 r)2
1 x
, x r2
ei2d
T
E(z d,t)
E(z,t)
2
eid
(1 r)2
1 r2
ei2d
2
Input
Output
~1.7 mm mode
field diameter
S.J. Spector et al., Proc. (2004).
D. K. Sparacin, “Process and Design Techniques for Low Loss Integrated Silicon Photonics,” MIT Ph.D. Thesis (2006).
S. Spector et al., Optical Amplifiers and Their Applications/Integrated Photonics Research, Technical Digest, IThE5 (OSA, 2004).
imagimagreal i ;
24. AIM
Academy Si SOI Waveguides
h=220 nm
w=445 nm
Y.A. Vlasov and S.J. McNab, “Losses in single-mode silicon-on-insulator strip waveguides and
Bends,” Optics Express, v.12(8), pp. 1622-1631(2004).
TE
TE 0.3 dB/cm
H. Rong, A. Liu, R. Jones, O. Cohen, D. Hak, R. Nicolaescu, A. Fang and M. Paniccia,
“An all-silicon Raman laser,” Nature, v.433(7023),pp.292-294 (2005)
1.5 mm SOI
w=1.5 mm
depth=0.7 mm
Ridge SOI waveguide
— w=1 mm
— w=5 mm
TE=3.6 ± 0.1 dB/cm
Si SOI: “photonic wire”
25. AIM
Academy
TE=0.32 0.05 dB/cm
S. Spector, M. W. Geis, D. Lennon, R. C. Williamson, and T. M. Lyszczarz, " Hybrid multi-mode/single-mode waveguides for low loss," in
Optical Amplifiers and Their Applications/Integrated Photonics Research, Technical Digest (CD) (Optical Society of America, 2004), paper IThE5.
Mode-Engineered SOI Waveguides
Couple light to first-order mode
Multimode straight waveguide segments
power remains confined to first-order mode
minimal (TE) overlap with sidewalls
Turns: adiabatic taper to single-mode waveguide
27. AIM
Academy
Sample Resonance
wavelength (nm)
Extinction ratio
(dB)
-3 dB bandwidth
(pm)
Q factor Loss
(dB/cm)
1 1558.146 12.3 69.4 22452 12.0 ± 1.8
2 1559.587 5.4 25.8 60449 6.5 ± 0.9
3 1560.319 6.9 11.0 141847 2.7 ± 0.4
a-Si Waveguide, SiN clad
R. Sun, K. McComber, J. Cheng, D. K. Sparacin, M. Beals, J. Michel and L. C. Kimerling, “Transparent amorphous silicon channel waveguides
with silicon nitride intercladding layer,” Appl. Phys. Lett. v.94(14), p.141108 (2009)
TE-polarization, ring resonator measurements
28. AIM
Academy Slot Waveguides
Low index slot regions: potential host matrix for optically active dopants (Er,
nanocrystals)
Access to effective index/group index values intermediate to Si3N4 Si waveguides
R. Sun, P. Dong, N. Feng, C.Y. Hong, J. Michel, M. Lipson, L.C. Kimerling, “Horizontal single and multiple slot waveguides: optical transmission at =1550 nm,” Opt. Exp. v.15(26), p.17967 (2007).
Expt Theory
74.6 pm/K 76.8 pm/K
65.4 pm/K 64.6 pm/K
Single Slot
Triple Slot
Si: 102.7 pm/K
dTd /
30. AIM
Academy Adiabatic Taper
Waveguide taper length >> wavelength
In-plane taper: linear, parabolic, exponential,
Gaussian, hyperbolic
Good Design: 80% power (TE) remains in
source mode
Novel studies: rectangular taper
TM mode more stable than TE
E.Marcatili, “Dielectric tapers with curved axes and no loss,” IEEE J.Quantum Electron., QE 21, 307-314 (1985).
G. Jin, S. Shi, A. Sharkawy and D.W. Prather, “Polarization effects in tapered dielectric
waveguides,” Opt. Express, v.11(16), pp.1931-1941 (2003).
31. AIM
Academy Inverted Taper Coupler
CMOS process flow and fabrication
100 modal area reduction
10 coupling efficiency
V.R. Almeida, R.R. Panepucci and M. Lipson, “Nanotaper for compact mode conversion,”
Optics Lett., v.28(15), pp.1302-1304 (2003).
K.K. Lee, L.C. Kimerling, et al., “Mode transformer for miniaturized optical circuits,” Opt.
Lett. v.8(5), pp.498-500 (2005).
T. Tsuchizawa, H. Morita et al., “Microphotonics Devices Based on
Silicon Microfabrication Technology,” IEEE J. Select. Topics Quant. Elect., v.11(1),
pp.232-240 (2005).
32. AIM
Academy Grating Couplers
Diffract incident light into waveguide
1D Photonic Crystal (on SOI)
Couple out-of-plane incident light
into modes propagating away from
in-plane stopband reflector
Stopband location controlled by etch
depth
Performance
TE: 1 dB insertion loss
35 nm 3dB-bandwidth
Source: http://silicon-photonics.ief.u-psud.fr
C. Li, H. Zhang, M. Yu, G. Q. Lo, Opt. Express 21, 7868-7874 (2013)
33. AIM
Academy 2D Grating Coupler
2D Photonic Crystal in SOI
Fiber TE/TM mode couple into different ridge
waveguides
TM fiber mode transformed into TE
waveguide mode
Built-in Polarization Diversity
D. Taillaert, H. Chong, P.I. Borel, L.H. Frandsen, R.M. De La Rue and R. Baets, “A Compact Two-Dimensional
Grating Coupler Used as a Polarization Splitter,” IEEE Phot. Tech. Lett., v.15(9), pp.1249-1251 (2003).
35. AIM
Academy
Passive Photonics:
Wavelength Division Multiplexing
Dense WDM function
Si-compatible, compact footprint
Microrings, racetracks, slot rings
Higher-order filters, embedded rings
T. Barwicz et al., Optics Express v.12(7), (2004).
36. AIM
Academy
Lithography: 248nm
Q ~ 2000, FSR~16 nm
1st-Order Ring & Racetrack Microring Filters
1x4 WDM (silicon nitride Rings)
1515 1520 1525 1530 1535 1540 1545
Wavelength (nm)
Power--samescale(au)
Port1
Port2
Port3
Port4
Thru
Q~500
6 mm
6 mmIn
Drop
Silicon
Thru-port 1 2 3 4
Thru-port
D. R. Lim, B. E. Little , K. K. Lee, M. Morse, H. H. Fujimoto, H. A. Haus, and L. C. Kimerling, “Micron-sized channel dropping filters
using silicon waveguide devices,” Proc. SPIE, 3847, pp.65-71 (1999).
Si3N4Si
,...2,1
20
m
r
n
m
eff
1520 1540 1560
2mm Ring
FSR=48.6nm; Q=1050
DropPortPower(ArbUnits)
Wavelength (nm)
3 mm Ring
FSR=21nm; Q=3000
5 mm ring
FSR=18nm Q=3875
37. AIM
Academy
M.A. Popović, H.I. Smith et al., “Multistage high-order microring-resonator add-drop filters,” Opt. Lett., vol. 31,
no. 17, pp. 2571-2573, September 2006.
M.A. Popović, H.I. Smith et al., “High-index-contrast, wide-FSR microring-resonator filter design and realization
with frequency-shift compensation,” in Optical Fiber Communication Conference (OFC/NFOEC) Technical
Digest (Optical Society of America, Washington, DC, March 6-11, 2005), paper OFK1, vol. 5, pp. 213-215.
>2nd Order Rings: Resonance Frequency
Central ring: different
coupling coefficient
different resonant frequency
Compensated ring design
(wider waveguide) ensures
common resonance
frequency
flatband response
e-beam lithography
B.E. Little et al., IEEE Photon. Technol. Lett. 16, 2263 (Oct 2004)
38. AIM
Academy WDM Resonator Comparison
Resonator
Type
Quality
Factor
Bandwidth FSR
(L=50 –
100 μm)
Insertion Loss
1st Order Ring 104 - 105
(easy to achieve
high Q)
~103 – 102
GHz
(WDM)
6000 – 3000
GHz
<0.5 dB for gap
< 100 nm
Higher Order
Ring
102 - 103
(high Q
challenging)
~103 – 10
GHz flatband
(DWDM)
6000 – 3000
GHz
>1 dB for gap
< 100 nm
Racetrack 102 - 104 ~103 – 102
GHz
(WDM)
6000 – 3000
GHz
<1 dB for gap
< 100 nm
39. AIM
Academy
Part 1:
Context
Electronic-Photonic Integration
Confinement
Part 2:
Passive
Devices
Waveguides
Off-Chip Couplers
Wavelength Division Multiplexing
Part 3:
Active
Devices
Photodetectors
Modulators
Light Sources and Lasers
Integrating Photonics
40. AIM
Academy
Active Photonics:
Photodetectors
Broadband, highly efficiency IR detector
Bandwidth considerations
Adaption to size of optical mode
Low voltage operation
Si processing, integrated into CMOS process flow
Integration with ICs
G. Dehlinger et al., IEEE Phot. Tech. Lett.,v.16(11), (2004).
Active Photonics: Photodetectors
41. AIM
Academy
Photodetector Basics - Absorption
1.55 1.242.07 0.62
λ (μm)
Physics of Semiconductor Devices, by S.M. Sze and K.K. Ng (Wiley-Interscience, 3rd edition, 2006)
Photodetector Basics - Absorption
43. AIM
Academy
H.C. Luan, D.R. Lim, K.K. Lee, K.M. Chen, J.G. Sandland, K. Wada and L.C.
Kimerling,
APL, v.75(19), pp.2909-2911 (1999).
L. Colace, G. Masini, G. Assanto, H.C. Luan, K. Wada and L.C. Kimerling,
APL, v.76(10), pp.1231-1233 (2000).
J. Liu, J. Michel, W. Giziewicz, D. Pan, K. Wada, D. D. Cannon, S.
Jongthammanurak, D. T. Danielson, L. C. Kimerling, J. Chen, F. O. Ilday, F. X.
Kartner, and J. Yasaitis, Appl. Phys. Lett. 87, 103501 (2005).
Ge-on-Si Photodetector
2-step UHV-CVD + cyclic thermal annealing
780-900C anneal
10 TDD: 2.3107 cm-2 2.3106 cm-2
increases hole mobility
Ge-on-Si Photodetector
44. AIM
Academy
Waveguide-integrated
Photodetector
Waveguide - Photodetector Integration
Performance Gain
10
2
10
3
10
4
0
10
20
30
40
50
60
70
80
(Bandwidth)x(Quantumefficiency)(GHz)
Detector Size (mm2
)
d=0.5μm
5mm20mm
Q.E: 90%
Discrete, free-space
Photodetectors
RC time limitTransit time
limit
RC time limit
d=2.0μm
J. Michel, J. F. Liu, L.C. Kimerling, , Nat. Photonics 4, 527 (2010)
Waveguide - Photodetector Integration
46. AIM
Academy
Monolithic germanium/silicon avalanche photodiodes
Y. Kang, H.-D. Liu, M. Morse, M. J. Paniccia, M. Zadka, S. Litski, G. Sarid,
A. Pauchard, Y.-H. Kuo, H.-W. Chen, W. S. Zaoui, J. E. Bowers,
A. Beling, D. C. McIntosh, X. Zheng, J. C. Campbell, Nat. Photonics 3, 59 (2009)
Measured 3-dB bandwidth versus gain of 30-mm-diameter germanium/silicon APDs at a
wavelength of 1,300 nm. The coloured symbols are measured bandwidths from four
devices. The blue line is the calculated bandwidth assuming carrier transit time and RC
time constant are the limiting factors for the device bandwidth. The black line is a
calculated result considering the avalanche build-up effect13 with keff ¼ 0.08. The
corresponding gain–bandwidth product is 340 GHz, which fits the measured values. BW,
bandwidth.
47. AIM
Academy
Active Photonics:
Modulators
Compact, integrated, Si-compatible
Low power consumption
J. Liu, S. Jongthammanurak, D. Pan, J. Michel and L.C. Kimerling
Silicon Microphotonics
Sandia Si ring
Active Photonics: Modulators
48. AIM
Academy
Modulator Principles
Physical Principles
Thermo-optical Effect
Change the refractive index of Si by heating.
Plasma Dispersion Effect
Change the refractive index of Si by carrier injection in a diode structure or carrier accumulation in a MOS structure.
Electric Field Effect
- Franz-Keldysh Effect in Bulk GeSi
Change the absorption or refractive index of GeSi by electric field.
- Quantum Confined Stark Effect in Ge/GeSi Quantum Wells
Change the absorption or refractive index of Ge Q-wells by electric field.
Basic Device Structures
Mach-Zehnder Interferometers
Interferes two beams of light with different phases. Phase shift achieved by changing the refractive index.
Ring Modulators
Change the resonance frequency of a ring by varying its refractive index, thereby controlling the coupling of light
from an adjacent waveguide.
Electro-absorption Modulators
Light passes through an active material whose absorption can be changed by varying the applied electric field
Plasmonic Modulators
Modulator Principles
49. AIM
Academy
Mach Zehnder Modulator
Phase delay in lower arm
causes interference
Large device size due to
small effect
Length 0.5-3mm
Mach Zehnder Modulator
50. AIM
Academy
MOS-Enhanced Mach Zehnder Modulator
FET design: rapid injection and extraction of
free carriers
Phase delay due to n from plasma
dispersion
Large device size due to small effect: MZ-arm
length 1-3mm
> 15 dB Mod. Depth @ 3 V
Up to 30Gbps
A. Liu, L. Liao, D. Rubin, H. Nguyen, B. Ciftcioglu, Y. Chetrit, N.
Izhaky, and M. Paniccia, Optics Express 16, 660 (2007)
MOS-Enhanced Mach Zehnder Modulator
51. AIM
Academy
Microring Modulators
1.5 Gbit/s using RZ pattern
Power consumption of >50fJ/bit
Less than 0.3V and µA current needed for
complete modulation in DC
In AC, 3.3Vpp and 1mA current were used
Expected theoretical bandwidth limit
>10Gb/s
Diameter = 12μm
Width = 450nm
Gap = 200nm
M. Lipson, “Switching light on a silicon chip,” Opt. Mat., v.27, pp.731-739 (2005).
Q. Xu, B. Schmidt, S. Pradhan and M. Lipson, “Micrometre-scale silicon electro-
optic modulator,” Nature, v.435, pp.325-327 (2005).
P. Dong et al., “Low Vpp, ultralow-energy, compact, high-speed silicon electro-
optic modulator”, Optics Express, Vol 17 No 25 (2009)
Microring Modulators
52. AIM
Academy
Low Power Si Ring Modulators
W.A. Zortman, M. R. Watts, D. C. Trotter, R. W. Young and A. L. Lentine, “Low-Power High-Speed Silicon Microdisk Modulators,“ OSA / CLEO/QELS 2010 CThJ4
Low Power Si Ring Modulators
53. AIM
Academy
Plasmonic Modulators
Plasmonic mode concentrates optical field within
nm thin film
Optical absorption of thin film can be tuned by
carrier injection
Length of 3
Power consumption of <50fJ/bit expected
Expected theoretical bandwidth limit >300Gb/s
V.J. Sorger, N.D. Lanzillotti-Kimura,R.-M. Ma, X. Zhang” Ultra-compact silicon nanophotonic modulator with
broadband response.” Nanophotonics 1, 17-22 (2012).
Plasmonic Modulators
54. AIM
Academy
Electro Absorption Modulator
Quantum Confined Stark Effect
Weak EO effect in Si
mm-scale MZ modulator, Q ring resonator
Stark Effect: l100-400 mm, V1 V, Q=0
Observe QCSE: Ge/SiGe type I confinement and strong direct
gap absorption
comparable to III-Vs (t<ps, mod. rate >50GHz)
Exciton peak 80 meV above Ge Ec
- 36 meV strain shift
- 56 meV quantum confinement
Clear shift of exciton peak with 5 V: /6 @ =1.46 mm
Y.-H. Kuo, Y.K. Lee, Y. Ge, S. Ren, J.E. Roth, T.I. Kamins, D.A.B. Miller and J.S. Harris, "Strong quantum-confined Stark effect in germanium quantum-well structures on silicon,"
Nature, v.437, pp.1334-1336 (2005).
Electro Absorption Modulator
55. AIM
Academy
Electro Absorption Modulator
Franz-Keldysh Effect in GeSi
Linear electro-optic effect
n(E), (E)
Ge-on-Si: comparable to InP
Strong F-K effect
strain reduces separation between Eg
and Eg
L
F-K regime in low absorption background
Expected mod. depth: 10dB @ >30GHz
Experimental mod. depth: 10dB
Experimental bandwidth: 1.2 GHz
Ultra low power consumption: 25 pJ/bit
J.F. Liu, M. Beals, A. Pomerene, S. Bernardis, R. Sun, J. Cheng, L. C. Kimerling, and J. Michel, ”Waveguide-
integrated, ultra-low energy GeSi electro-absorption modulators,” Nature Photonics 2, 433 (June 2008)
Electro Absorption Modulator
56. AIM
Academy
Si ridge waveguide – low loss
strain reduces separation
between Eg
and Eg
L
F-K regime in low
absorption background
Mod. depth: 4-7.5dB @ >30GHz
Max. experimental mod.
depth: 7.5dB
Low power consumption: 100
fJ/bit
N.-N. Feng et al., ” 30GHz Ge electro-absorption modulator integrated with 3μm silicon-on-insulator
waveguide,” Optics Express 72, 7062 (April 2011)
Electro Absorption Modulator
Franz-Keldysh Effect in GeSi
Electro Absorption Modulator
58. AIM
Academy
Active Photonics:
Light Sources and Lasers
IR light source: SOI waveguides
Laser: DWDM, sub-mm structures interferometric structures
III-V monolithic integration
Si hybrid laser
Ge laser
Frequency comb based light sources
K. Vahala et al., APL, v.84(7), (2004).
J. Bowers et al., IEEE Phot. Tech. Lett., v.18(10), (2006).
57
Active Photonics:
Light Sources and Lasers
59. AIM
Academy
Monolithic Integration of III-V laser on SiGe/Si
Long RT CW-lifetime GaAs laser: 4 hrs
pre-growth CMP of SiGe graded layer
TDD=2x106 cm-2
λ=858 nm, d=0.4, Jth=269 A/cm2
InGaAs laser
λ=890 nm, d=0.26, Jth=700 A/cm2
M.E. Groenert, E.A. Fitzgerald et al., “Monolithic integration of room-temperature cw GaAs/AlGaAs
lasers on Si substrates via relaxed graded GeSi buffer layers,” J. Appl. Phys., v.93(1), pp.362-367
(2003).
M.E. Groenert, E.A. Fitzgerald et al., “Improved room-temperature
continuous wave GaAs/AlGaAs and InGaAs/GaAs/AlGaAs lasers fabricated on Si substrates
via relaxed graded GexSi1-x buffer layers,” J. Vac. Sci. Tech. B, v.21(3), pp.1064-1069 (2003).
misfit
dislocation
Monolithic Integration
60. AIM
Academy
Si waveguide bonded to AlGaInAs QWs
SOI ridge waveguide, SiO2/Ta2O5 facet mirror
Overlap: Si=0.6-9, QWs=0.01-0.06
Hybrid integration: zero alignment tolerance
Bonding: low T oxygen plasma-assisted wafer bonding
T=250 °C tolerate Thermal Expansion Mismatch
<5 nm reactive oxide layer
Endures dicing, facet polishing
CW lasing (=1568 nm)
Optical Pumping
Pth=23 mW, Pmax=4.5 mW
Electrical Injection
Ithres=65 mA, Pmax=1.8 mW, eff=0.13
H. Park, J.E. Bowers et al, Opt. Exp., v.13(23),pp.9460-9464 (2005).
A.W. Fang, J.E. Bowers et all., IEEE Phot. Tech. Lett., v. 18(10), pp.1143-1145 (2006).
A.W. Fang, J.E. Bowers et al., Opt. Exp., v.14(20), pp.9203-9210 (2006).
A.W. Fang, J.E. Bowers et al., Matls. Today, v.10(7-8), pp.28-35 (2007).
Hybrid Integration of III-V laser on SiGe/Si
Hybrid Integration
61. AIM
Academy
Germanium Laser
Ge-on-Si for Si integration
High n-doping required
Demonstrated lasing from 1520 to 1700 nm
with electrical pumping
Demonstrated 8mW laser peak power at
1620nm
J.F. Liu, X. Sun, R. Camacho-Aguilera, L. C. Kimerling, J. Michel, “A Ge-on-Si laser
operating at room temperature” Optics Lett. 35 (2010)
R. E. Camacho-Aguilera, Y. Cai, N. Patel, J. T. Bessette, M. Romagnoli, L.C. Kimerling, and
J. Michel, “An electrically pumped Germanium laser”, Opt. Exp. 20, 11316 (2012)
L-I curve at 300K
Germanium Laser
62. AIM
Academy
QW and QD Lasers on Silicon
GaAs directly grown on Si
InGaAs QW with n and p
contact
Current emission wavelength
between 800nm and 1100nm
Electroluminescence
demonstrated
Optically pumped lasing
reported
L. C. Chuang et al., “InGaAs QW Nanopillar Light Emitting Diodes
Monolithically Grown on a Si Substrate,“ OSA/CLEO/QELS 2010 CMFF6
InGaAs Nanopillar QW Laser InAs QD Laser
Alan Y. Liu et al., “High performance continuous wave 1.3 mm quantum
dot lasers on silicon“ APPLIED PHYSICS LETTERS 104, 041104 (2014)
QW and QD Lasers on Silicon
64. AIM
Academy
Near IR Comb Generation
using SiN
Nanophotonic Optical Parametric Oscillator
• SiN
• CMOS-compatible material
• n~2, on-chip, high confinement
waveguides
• Very low propagation losses (0.1 dB/cm)
• Broad transparency window
• n2 ~ 2x10-19 (cm2/W), γ ~ 1 W-1m-1
• Source with many independent
wavelengths in the C-band
• Suitable for use in Si network-on-chip
• Flexible pump wavelength: visible to IR
J. S. Levy, A. Gondarenko, et al., “CMOS-compatible multiple-wavelength oscillator for
on-chip optical interconnects,” Nature Photonics., v.4(1), pp. 37-40 (2010).
Near IR Comb Generation using SiN
65. AIM
Academy Book Recommendation
Handbook of Silicon Photonics
CRC Press
Series in Optics and Optoelectronics
Published: April 26, 2013 by Taylor &
Francis
Editor(s): Laurent Vivien, Lorenzo Pavesi
