Oracle Fusion Applications uses Oracle Business Intelligence platform for reporting and analytics. There are three main types of reports: operational reports for statutory requirements, analytics for interactive data visualizations, and dashboards that combine different reporting components. The document then outlines the steps to create a sample report in Oracle Business Intelligence Publisher (BIP), including defining a data model, creating a report layout using the wizard or manually, and running the report online or scheduling as a job. It also discusses various report layout properties that can be configured.

1. 1
Introduction to Oracle Fusion BIP
Reporting
By- Gurpreet Singh

2. 2

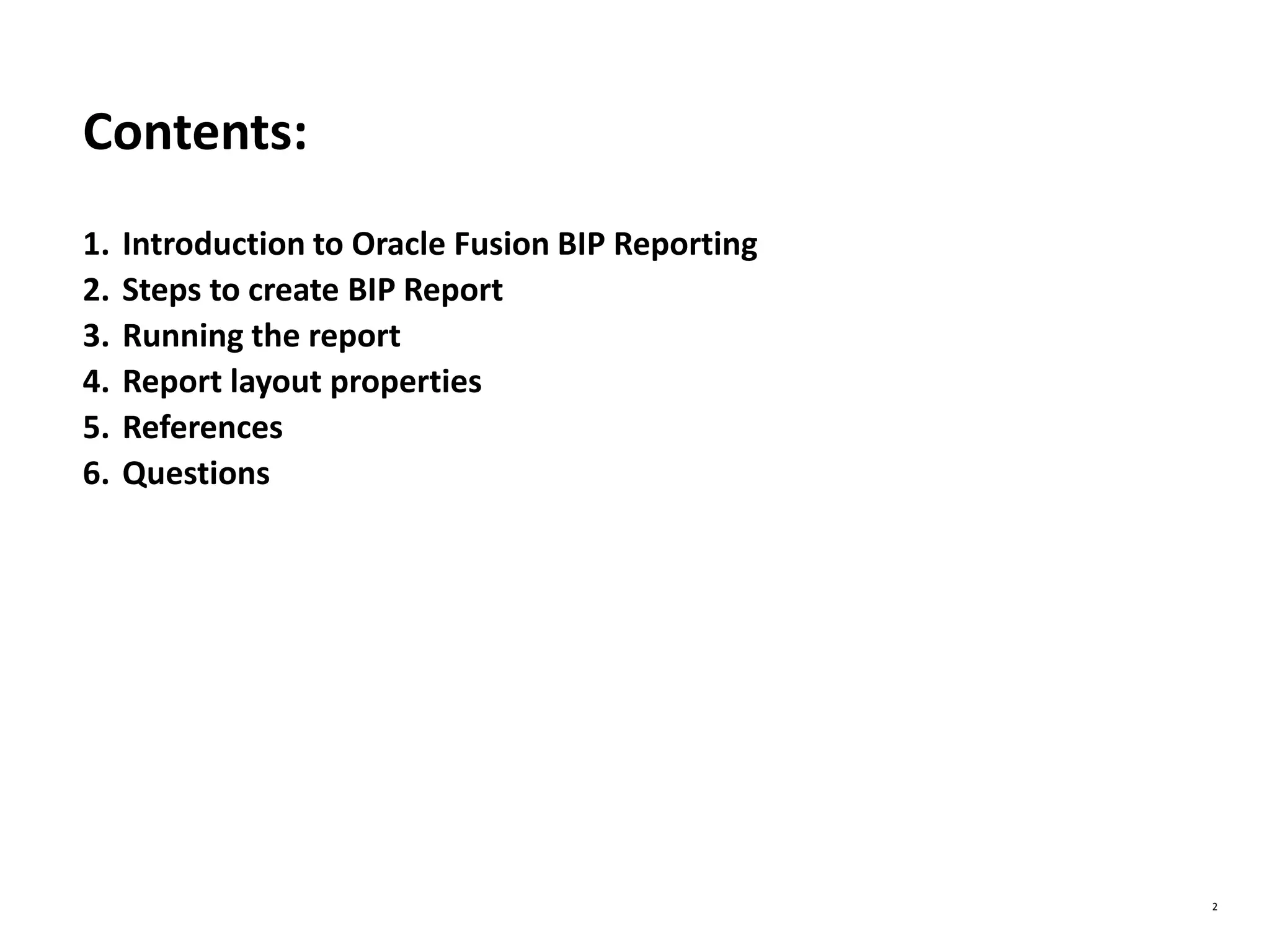

Contents:
1. Introduction to Oracle Fusion BIP Reporting
2. Steps to create BIP Report
3. Running the report
4. Report layout properties
5. References
6. Questions

3. 3
Introduction
Oracle Fusion Applications uses the Oracle Business Intelligence platform to provide reports and
analytics. Following are the types of reports.
Operational reports are static reports that meet operational and statutory reporting
requirements. Operational reporting includes the generation of high-volume
business documents such as payroll and invoices. Often generated to record past
activity, usually in tabular format
Analytics (analysis or analytical reports) are visualizations (such as charts and tables)
of a specific set of data. An analysis can be embedded into an application page, or
included as a component of a dashboard. Analyses are generally interactive and
provide ad hoc analysis capabilities to enable the user to customize the presentation
of the data in real time
Dashboards are a collection of reporting components grouped
together to deliver a coherent view of related data. A single dashboard
could be comprised of analyses, reports, and prompts

4. 4
Report Components

5. 5
BI Roles
Business Intelligence roles apply to both Oracle Business Intelligence Publisher (Oracle BI
Publisher) and Oracle Fusion Transactional Business Intelligence. They grant access to Business
Intelligence functionality, such as the ability to run or author reports. Users need one or more of
these roles in addition to the roles that grant access to reports, subject areas, Business
Intelligence catalog folders, and Oracle Fusion data. Business Intelligence roles are defined as
application roles in Oracle Entitlements Server.

6. 6
Steps to create BIP Reports

7. 7
Steps in brief
Create new Data Model
Add new Data Set (SQL Query)
Run the Query and save the sample data
Save the Data Model
Create the Layout
Save the report

8. 8
Steps
• Login to Oracle Fusion Cloud Instance
• Click on Navigator
• Go to Tools → Reports and Analytics

9. 9
Steps
• On Reports and Analytics screen, click on Browse Catalog

10. 10
Steps
• Oracle Transactional Business Intelligence screen will appear

11. 11
Steps
• Click on New → Data Model

12. 12
Steps
• Click on add New Data Set and select SQL Query

13. 13
Steps
• Enter the Name of Data Set- Test Query
• Select the Data Source- ApplicationDB_FSCM
• Type of SQL- Standard SQL
• SQL Query- SELECT * FROM PER_ROLES_DN_VL

14. 14
Steps
• Group G_1 will be created automatically and all the XML Tags will be listed here

15. 15
Steps
• Use Structure tab to change XML Tag Names, Value if Null, Display Names

16. 16
Steps
• In Data tab, click View button and it will display the sample data. You can also choose Table
view and can increase the count of rows to be displayed.
• Click on Save As Sample Data

17. 17
Steps
• Click on Save button and enter the Data Model Name and Description

18. 18
Creating Layout
Report Layout
Using Wizard Method
Generating layout
using Data Model
automatically
By Uploading the RTF
File

19. 19
Using Wizard Method
• Click on Create Report button and click Next button

20. 20
Using Wizard Method
• Choose the Page Options, Layout and click Next button

21. 21
Using Wizard Method
• Drag and drop the fields to include in the report and click Next button

22. 22
Using Wizard Method
• We can delete the columns also by hovering over the header and clicking Delete icon.

23. 23
Using Wizard Method
• Once done click on Finish button.

24. 24
Using Wizard Method
• Report will be displayed.

25. 25
Alternative Method
• Go to Catalog and Click New → Report
• Choose Data Model and select Use Report Editor and click Finish

26. 26
Alternative Method
• Save the Report by providing the Report Name and Description.

27. 27
Alternative Method
• Click on Generate button to generate the layout automatically

28. 28
Alternative Method
• New Template layout will be displayed. Click on View Report to view the report.

29. 29
Alternative Method
• Report will be displayed

30. 30
Running the Reports

31. 31
Creating Layout
Running the Report
Running the reports
Online
Running the reports
from Catalog
By Creating the ESS
Job

32. 32
Running the reports Online
• Go to Catalog and click on Open Link.

33. 33
Running the reports Online
• Report will be displayed.

34. 34
Running the Report from Catalog
• Go to Catalog and click on More and select Schedule

35. 35
Running the Report from Catalog
• Schedule Report Job screen will appear

36. 36
Running the Report from Catalog
• Enter the Report Job Name and click OK and Job will be submitted

37. 37
Running the Report from Catalog
• Go to Catalog and click on More and select History

38. 38
Running the Report from Catalog
• On Report Job History Screen, Job will be listed and status should be Success. Click on Report
Job Name

39. 39
Running the Report from Catalog
• Click on Output Name

40. 40
Running the Report from Catalog
• Report will be displayed

41. 41
Running the Report by Creating ESS Job
• Reports can be also be registered as Enterprise Scheduler Service (ESS) Jobs.
• Oracle Enterprise Scheduler provides the ability to run different job types, including: Java,
PL/SQL, and binary scripts, distributed across the nodes in an Oracle WebLogic Server cluster.
Oracle Enterprise Scheduler runs these jobs securely, with high availability and scalability,
with load balancing and provides monitoring and management through Fusion Middleware
Control.

42. 42
Report Layout Properties

43. 43
Report Layout Properties
• Open the report and click on Properties Button

44. 44
Report Layout Properties
• General Properties

45. 45
Report Layout Properties
• Disabling Run Report Online. Open link hidden in Catalog and also View Report button will
not run the report

46. 46
Report Layout Properties
• Disabling Show Controls

47. 47
Report Layout Properties
• After disabling “Allow Sharing Report Links”, after running the report Share Report Link gets
disabled

48. 48
Report Layout Properties
• Caching Properties

49. 49
Report Layout Properties
• Formatting Properties

50. 50
Report Layout Properties
• Font Mapping Properties

51. 51
Report Layout Properties
• Currency Format Properties used to define Currency Format Masks
• For example to display 70,20,550.70 use the format mask:
➢ 99G99G999D99
• Then use the below in RTF file:
