The document is an educational outline for a course on Digital System Design using Verilog HDL at Matrusri Engineering College. It covers fundamental concepts such as hardware description languages, digital circuit design methodologies, and Verilog syntax, including modules, data types, and simulation processes. Students will learn to design digital systems, apply Boolean algebra, and implement hierarchical modeling of circuits using Verilog HDL.

1. MATRUSRI ENGINEERING COLLEGE
DEPARTMENT OF ELECTRONICS AND COMMUNICATION
ENGINEERING
SUBJECT NAME: DIGITAL SYSTEM DESIGN WITH VERILOG HDL
FACULTY NAME: Mrs. B. Indira Priyadarshini
MATRUSRI
ENGINEERING COLLEGE

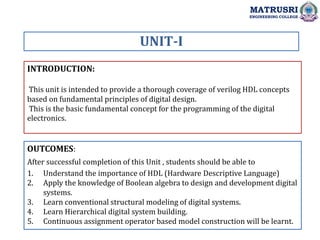

2. INTRODUCTION:
This unit is intended to provide a thorough coverage of verilog HDL concepts
based on fundamental principles of digital design.
This is the basic fundamental concept for the programming of the digital
electronics.
UNIT-I
OUTCOMES:
After successful completion of this Unit , students should be able to
1. Understand the importance of HDL (Hardware Descriptive Language)
2. Apply the knowledge of Boolean algebra to design and development digital
systems.
3. Learn conventional structural modeling of digital systems.
4. Learn Hierarchical digital system building.
5. Continuous assignment operator based model construction will be learnt.
MATRUSRI
ENGINEERING COLLEGE

3. CONTENTS:
Overview of Digital Design with Verilog HDL
Evolution of computer aided digital circuit design
Emergence of HDLs
Typical design flow
OUTCOMES:
Students will be able to know about introduction of Hardware descriptive
languages.
MODULE-I: Introduction to HDLs
MATRUSRI
ENGINEERING COLLEGE

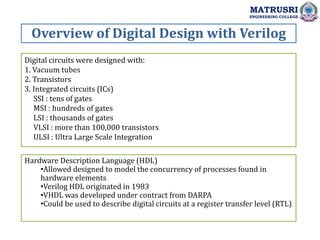

4. Digital circuits were designed with:
1. Vacuum tubes
2. Transistors
3. Integrated circuits (ICs)
SSI : tens of gates
MSI : hundreds of gates
LSI : thousands of gates
VLSI : more than 100,000 transistors
ULSI : Ultra Large Scale Integration
Hardware Description Language (HDL)
•Allowed designed to model the concurrency of processes found in
hardware elements
•Verilog HDL originated in 1983
•VHDL was developed under contract from DARPA
•Could be used to describe digital circuits at a register transfer level (RTL)
Overview of Digital Design with Verilog
MATRUSRI
ENGINEERING COLLEGE

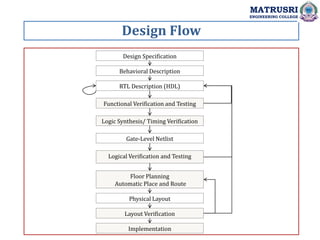

5. Design Flow
MATRUSRI
ENGINEERING COLLEGE
Design Specification
Behavioral Description
RTL Description (HDL)
Functional Verification and Testing
Logic Synthesis/ Timing Verification
Gate-Level Netlist
Logical Verification and Testing
Floor Planning
Automatic Place and Route
Physical Layout
Layout Verification
Implementation

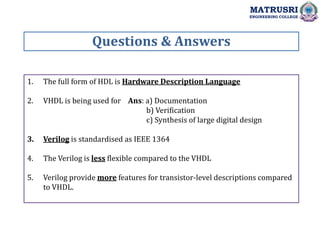

6. 1. The full form of HDL is Hardware Description Language
2. VHDL is being used for Ans: a) Documentation
b) Verification
c) Synthesis of large digital design
3. Verilog is standardised as IEEE 1364
4. The Verilog is less flexible compared to the VHDL
5. Verilog provide more features for transistor-level descriptions compared
to VHDL.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

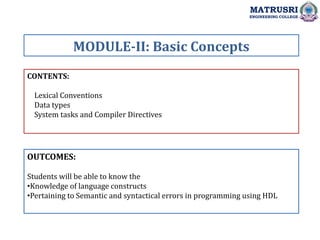

7. CONTENTS:
Lexical Conventions
Data types
System tasks and Compiler Directives
OUTCOMES:
Students will be able to know the
•Knowledge of language constructs
•Pertaining to Semantic and syntactical errors in programming using HDL
MODULE-II: Basic Concepts
MATRUSRI
ENGINEERING COLLEGE

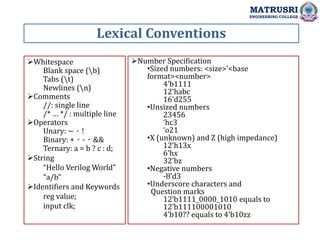

8. Lexical Conventions
MATRUSRI
ENGINEERING COLLEGE
Whitespace
Blank space (b)
Tabs (t)
Newlines (n)
Comments
//: single line
/* … */ : multiple line
Operators
Unary: ~、!
Binary: +、-、&&
Ternary: a = b ? c : d;
String
“Hello Verilog World”
“a/b”
Identifiers and Keywords
reg value;
input clk;
Number Specification
•Sized numbers: <size>’<base
format><number>
4’b1111
12’habc
16’d255
•Unsized numbers
23456
‘hc3
‘o21
•X (unknown) and Z (high impedance)
12’h13x
6’hx
32’bz
•Negative numbers
-8’d3
•Underscore characters and
Question marks
12’b1111_0000_1010 equals to
12’b111100001010
4’b10?? equals to 4’b10zz

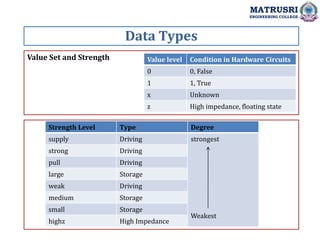

9. Data Types
MATRUSRI
ENGINEERING COLLEGE
Value Set and Strength Value level Condition in Hardware Circuits
0 0, False
1 1, True
x Unknown
z High impedance, floating state
Strength Level Type Degree
supply Driving strongest
Weakest
strong Driving
pull Driving
large Storage
weak Driving
medium Storage
small Storage
highz High Impedance

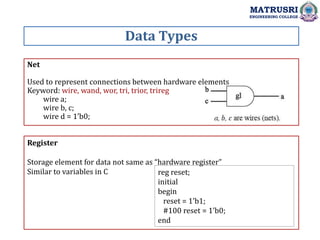

10. Data Types
MATRUSRI
ENGINEERING COLLEGE
Net
Used to represent connections between hardware elements
Keyword: wire, wand, wor, tri, trior, trireg
wire a;
wire b, c;
wire d = 1’b0;
Register
Storage element for data not same as “hardware register”
Similar to variables in C reg reset;
initial
begin
reset = 1’b1;
#100 reset = 1’b0;
end

11. Data Types
MATRUSRI
ENGINEERING COLLEGE
Vectors
•wire and register can be defined as “vector” form format
[high#:low#] or [low#:high#]
•Subset of vector: Partial bits of vector
•Fixed width subset: [<starting_bit>+:width] or [<starting_bit>-:width]
wire a;
wire [7:0] bus;
wire [31:0] busA, busB, busC;
reg clock;
reg [0:40] virtual_addr;
bus A[7]
bus[2:0]
virtual_addr[0:1]
reg [255:0] data1; reg [0:255] data2;
reg [7:0] byte;
byte = data1[31-:8]; // data1[31:24]
byte = data1[24+:8]; // data1[31:24]
byte = data2[31-:8]; // data2[24:31]
byte = data2[24+:8]; // data2[24:31]
for (j=0; j<=31; j=j+1) // [7:0], [15:8]…[255:248]
byte = data[(j*8)+:8];
data1[(byteNum*8)+:8] = 8’b0;

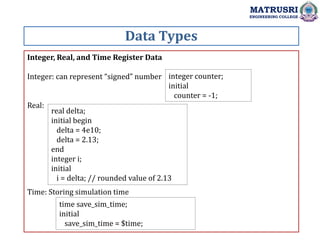

12. Data Types
MATRUSRI
ENGINEERING COLLEGE
Integer, Real, and Time Register Data
Integer: can represent “signed” number
Real:
Time: Storing simulation time
integer counter;
initial
counter = -1;
real delta;
initial begin
delta = 4e10;
delta = 2.13;
end
integer i;
initial
i = delta; // rounded value of 2.13
time save_sim_time;
initial
save_sim_time = $time;

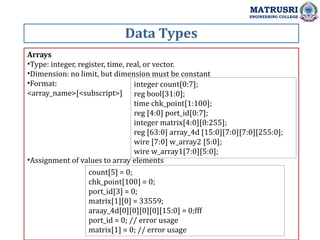

13. Data Types
MATRUSRI
ENGINEERING COLLEGE
Arrays
•Type: integer, register, time, real, or vector.
•Dimension: no limit, but dimension must be constant
•Format:
<array_name>[<subscript>]
•Assignment of values to array elements
integer count[0:7];
reg bool[31:0];
time chk_point[1:100];
reg [4:0] port_id[0:7];
integer matrix[4:0][0:255];
reg [63:0] array_4d [15:0][7:0][7:0][255:0];
wire [7:0] w_array2 [5:0];
wire w_array1[7:0][5:0];
count[5] = 0;
chk_point[100] = 0;
port_id[3] = 0;
matrix[1][0] = 33559;
araay_4d[0][0][0][0][15:0] = 0;fff
port_id = 0; // error usage
matrix[1] = 0; // error usage

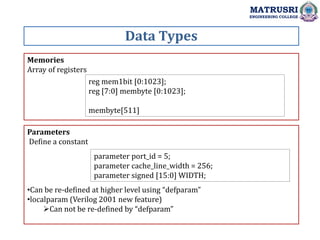

14. Data Types
MATRUSRI
ENGINEERING COLLEGE
Memories
Array of registers
reg mem1bit [0:1023];
reg [7:0] membyte [0:1023];
membyte[511]
Parameters
Define a constant
•Can be re-defined at higher level using “defparam”
•localparam (Verilog 2001 new feature)
Can not be re-defined by “defparam”
parameter port_id = 5;
parameter cache_line_width = 256;
parameter signed [15:0] WIDTH;

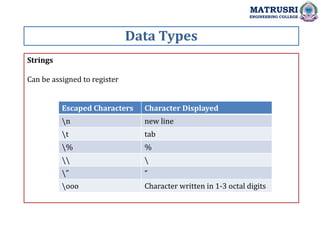

15. Data Types
MATRUSRI
ENGINEERING COLLEGE
Strings
Can be assigned to register
Escaped Characters Character Displayed
n new line
t tab
% %
” “
ooo Character written in 1-3 octal digits

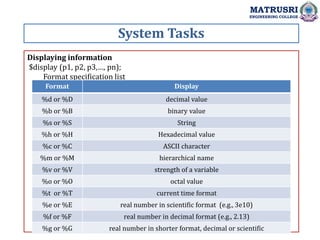

16. System Tasks
MATRUSRI
ENGINEERING COLLEGE
Displaying information
$display (p1, p2, p3,…, pn);
Format specification list
Format Display
%d or %D decimal value
%b or %B binary value
%s or %S String
%h or %H Hexadecimal value
%c or %C ASCII character
%m or %M hierarchical name
%v or %V strength of a variable
%o or %O octal value
%t or %T current time format
%e or %E real number in scientific format (e.g., 3e10)
%f or %F real number in decimal format (e.g., 2.13)
%g or %G real number in shorter format, decimal or scientific

17. System Tasks
MATRUSRI
ENGINEERING COLLEGE
Displaying information
//Include the string to be displayed within quotes
$display (“Hello World”);
//to display current simulation time
$display($time);
//to display 41-bit virtual address at current time
reg [0:40] virtual_addr;
$display(“At time %d, the virtual address is %h”,$time, virtual_addr);
/*Special Characters*/
//to display special characters, multiline and %sign
$display(“This is a n multiline string with a %% sign”);
//output
This is a
multiline string with a % sign

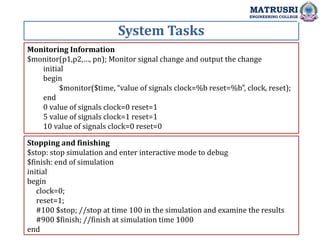

18. System Tasks
MATRUSRI
ENGINEERING COLLEGE
Monitoring Information
$monitor(p1,p2,…, pn); Monitor signal change and output the change
initial
begin
$monitor($time, “value of signals clock=%b reset=%b”, clock, reset);
end
0 value of signals clock=0 reset=1
5 value of signals clock=1 reset=1
10 value of signals clock=0 reset=0
Stopping and finishing
$stop: stop simulation and enter interactive mode to debug
$finish: end of simulation
initial
begin
clock=0;
reset=1;
#100 $stop; //stop at time 100 in the simulation and examine the results
#900 $finish; //finish at simulation time 1000
end

19. Compiler Directives
MATRUSRI
ENGINEERING COLLEGE
`define: Define text macro, like #define in C
`include: Include the context of another file, like #include in C
 //define a text macro that defines the word size
`define WORD_SIZE 32
 /*define an alias such that $stop is substituted whenever `S appears*/
`define S $stop;
 /*define a frequently used text string which can then be used as 32-bit
register `WORD_REG reg32; */
`define WORD_REG reg [31:0];
 /*include the header file header.v which contains declarations in the main
verilog file design.v*/
`include header.v
…
<verilog code in file design.v>
…

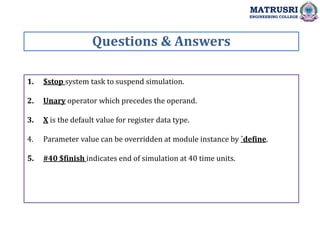

20. 1. $stop system task to suspend simulation.
2. Unary operator which precedes the operand.
3. X is the default value for register data type.
4. Parameter value can be overridden at module instance by `define.
5. #40 $finish indicates end of simulation at 40 time units.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

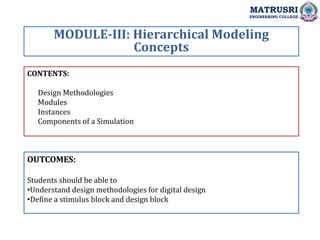

21. CONTENTS:
Design Methodologies
Modules
Instances
Components of a Simulation
OUTCOMES:
Students should be able to
•Understand design methodologies for digital design
•Define a stimulus block and design block
MODULE-III: Hierarchical Modeling
Concepts
MATRUSRI
ENGINEERING COLLEGE

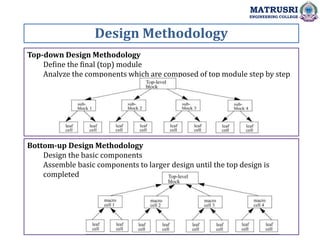

22. Top-down Design Methodology
Define the final (top) module
Analyze the components which are composed of top module step by step
Design Methodology
MATRUSRI
ENGINEERING COLLEGE
Bottom-up Design Methodology
Design the basic components
Assemble basic components to larger design until the top design is
completed

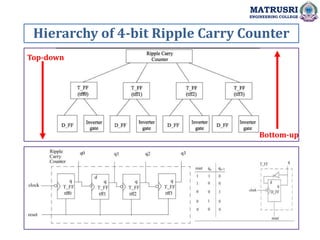

23. Hierarchy of 4-bit Ripple Carry Counter
MATRUSRI
ENGINEERING COLLEGE
Top-down
Bottom-up

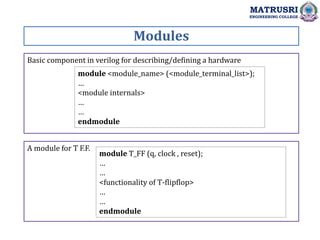

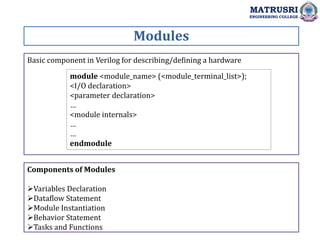

24. Basic component in verilog for describing/defining a hardware
Modules
MATRUSRI
ENGINEERING COLLEGE
module <module_name> (<module_terminal_list>);
…
<module internals>
…
…
endmodule
A module for T F.F.
module T_FF (q, clock , reset);
…
…
<functionality of T-flipflop>
…
…
endmodule

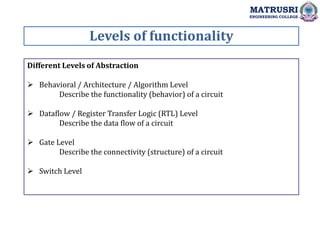

25. Levels of functionality
MATRUSRI
ENGINEERING COLLEGE
Different Levels of Abstraction
 Behavioral / Architecture / Algorithm Level
Describe the functionality (behavior) of a circuit
 Dataflow / Register Transfer Logic (RTL) Level
Describe the data flow of a circuit
 Gate Level
Describe the connectivity (structure) of a circuit
 Switch Level

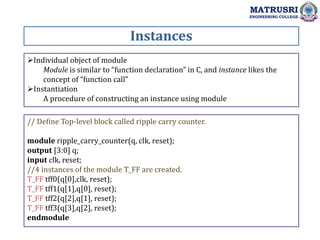

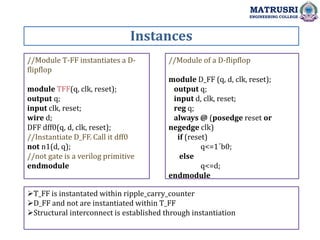

26. Instances
MATRUSRI
ENGINEERING COLLEGE
Individual object of module
Module is similar to “function declaration” in C, and instance likes the
concept of “function call”
Instantiation
A procedure of constructing an instance using module
// Define Top-level block called ripple carry counter.
module ripple_carry_counter(q, clk, reset);
output [3:0] q;
input clk, reset;
//4 instances of the module T_FF are created.
T_FF tff0(q[0],clk, reset);
T_FF tff1(q[1],q[0], reset);
T_FF tff2(q[2],q[1], reset);
T_FF tff3(q[3],q[2], reset);
endmodule

27. Instances
MATRUSRI
ENGINEERING COLLEGE
//Module T-FF instantiates a D-
flipflop
module TFF(q, clk, reset);
output q;
input clk, reset;
wire d;
DFF dff0(q, d, clk, reset);
//Instantiate D_FF. Call it dff0
not n1(d, q);
//not gate is a verilog primitive
endmodule
//Module of a D-flipflop
module D_FF (q, d, clk, reset);
output q;
input d, clk, reset;
reg q;
always @ (posedge reset or
negedge clk)
if (reset)
q<=1´b0;
else
q<=d;
endmodule
T_FF is instantated within ripple_carry_counter
D_FF and not are instantiated within T_FF
Structural interconnect is established through instantiation

28. Components of a Simulation
MATRUSRI
ENGINEERING COLLEGE
Design Under Test (DUT) － Design Block
Test bench － Stimulus Block
Stimulus generation
Output checking
Stimulus Block – I
Instantiate a design under test (dut)
(Design Block)
Ripple Carry Counter
clk reset
(Stimulus Block)
q
Stimulus Block – II
Additional top module instantiating
stimulus and design block
Stimulus
Block
d_clk
d_reset
c_q
Design
Block
clk
reset
q
Top-level Block

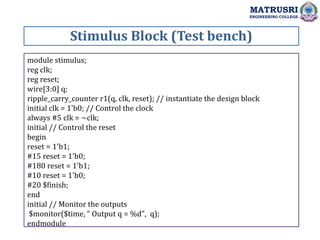

29. Stimulus Block (Test bench)
MATRUSRI
ENGINEERING COLLEGE
module stimulus;
reg clk;
reg reset;
wire[3:0] q;
ripple_carry_counter r1(q, clk, reset); // instantiate the design block
initial clk = 1'b0; // Control the clock
always #5 clk = ~clk;
initial // Control the reset
begin
reset = 1'b1;
#15 reset = 1'b0;
#180 reset = 1'b1;
#10 reset = 1'b0;
#20 $finish;
end
initial // Monitor the outputs
$monitor($time, " Output q = %d", q);
endmodule

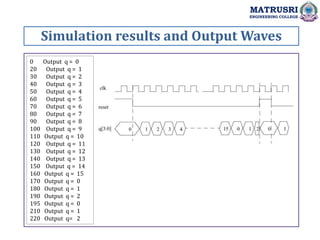

30. Simulation results and Output Waves
MATRUSRI
ENGINEERING COLLEGE
0 Output q = 0
20 Output q = 1
30 Output q = 2
40 Output q = 3
50 Output q = 4
60 Output q = 5
70 Output q = 6
80 Output q = 7
90 Output q = 8
100 Output q = 9
110 Output q = 10
120 Output q = 11
130 Output q = 12
140 Output q = 13
150 Output q = 14
160 Output q = 15
170 Output q = 0
180 Output q = 1
190 Output q = 2
195 Output q = 0
210 Output q = 1
220 Output q= 2

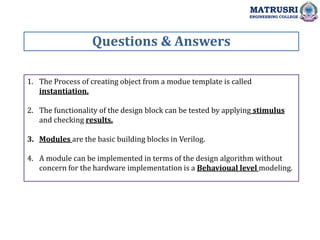

31. 1. The Process of creating object from a modue template is called
instantiation.
2. The functionality of the design block can be tested by applying stimulus
and checking results.
3. Modules are the basic building blocks in Verilog.
4. A module can be implemented in terms of the design algorithm without
concern for the hardware implementation is a Behavioual level modeling.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

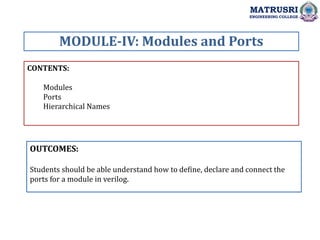

32. CONTENTS:
Modules
Ports
Hierarchical Names
OUTCOMES:
Students should be able understand how to define, declare and connect the
ports for a module in verilog.
MODULE-IV: Modules and Ports
MATRUSRI
ENGINEERING COLLEGE

33. Modules
MATRUSRI
ENGINEERING COLLEGE
Basic component in Verilog for describing/defining a hardware
module <module_name> (<module_terminal_list>);
<I/O declaration>
<parameter declaration>
…
<module internals>
…
…
endmodule
Components of Modules
Variables Declaration
Dataflow Statement
Module Instantiation
Behavior Statement
Tasks and Functions

34. Components of Modules
MATRUSRI
ENGINEERING COLLEGE
Module Name,
Port List, Port Declarations (is ports present)
Parameters (optional)
Declarations of wires,
regs and other variables
Data flow statements
(assign)
Instantiation of lower
level modules
always and intial blocks
All behavioral statements
Tasks and Functions
endmodule statement

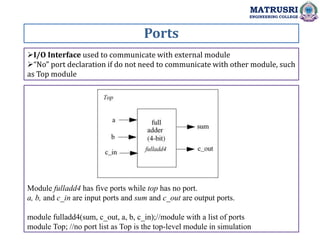

35. Ports
MATRUSRI
ENGINEERING COLLEGE
I/O Interface used to communicate with external module
“No” port declaration if do not need to communicate with other module, such
as Top module
Module fulladd4 has five ports while top has no port.
a, b, and c_in are input ports and sum and c_out are output ports.
module fulladd4(sum, c_out, a, b, c_in);//module with a list of ports
module Top; //no port list as Top is the top-level module in simulation

36. Port Declaration
MATRUSRI
ENGINEERING COLLEGE
Three types
input
output
inout
Verilog Keyword Type of Port
input Input port
output Output port
inout Bidirectional port
Port Declaration
module FA4(sum, c_out, a, b, c_in);
//begin port declarations
output [3:0] sum;
output c_cout;
input [3:0] a, b;
input c_in;
//end port declarations section
<module internals>
…
endmodule
ANSI C Port Declaration
module FA4(output reg [3:0] sum,
output reg c_cout, input [3:0] a, b, input
c_in);
//wire by default
…
<module internals>
…
endmodule

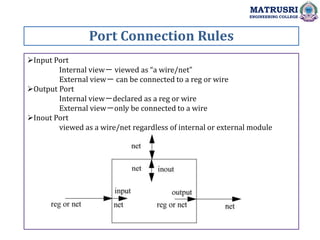

37. Port Connection Rules
MATRUSRI
ENGINEERING COLLEGE
Input Port
Internal view－ viewed as “a wire/net”
External view－ can be connected to a reg or wire
Output Port
Internal view－declared as a reg or wire
External view－only be connected to a wire
Inout Port
viewed as a wire/net regardless of internal or external module

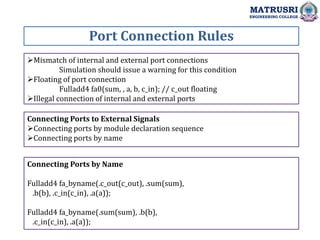

38. Port Connection Rules
MATRUSRI
ENGINEERING COLLEGE
Mismatch of internal and external port connections
Simulation should issue a warning for this condition
Floating of port connection
Fulladd4 fa0(sum, , a, b, c_in); // c_out floating
Illegal connection of internal and external ports
Connecting Ports to External Signals
Connecting ports by module declaration sequence
Connecting ports by name
Connecting Ports by Name
Fulladd4 fa_byname(.c_out(c_out), .sum(sum),
.b(b), .c_in(c_in), .a(a));
Fulladd4 fa_byname(.sum(sum), .b(b),
.c_in(c_in), .a(a));

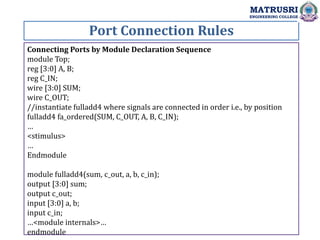

39. Port Connection Rules
MATRUSRI
ENGINEERING COLLEGE
Connecting Ports by Module Declaration Sequence
module Top;
reg [3:0] A, B;
reg C_IN;
wire [3:0] SUM;
wire C_OUT;
//instantiate fulladd4 where signals are connected in order i.e., by position
fulladd4 fa_ordered(SUM, C_OUT, A, B, C_IN);
…
<stimulus>
…
Endmodule
module fulladd4(sum, c_out, a, b, c_in);
output [3:0] sum;
output c_out;
input [3:0] a, b;
input c_in;
…<module internals>…
endmodule

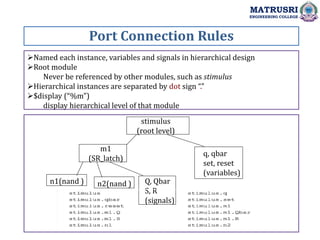

40. Port Connection Rules
MATRUSRI
ENGINEERING COLLEGE
Named each instance, variables and signals in hierarchical design
Root module
Never be referenced by other modules, such as stimulus
Hierarchical instances are separated by dot sign “.”
$display (“%m”)
display hierarchical level of that module
stimulus
(root level)
m1
(SR_latch)
q, qbar
set, reset
(variables)
Q, Qbar
S, R
(signals)
n1(nand ) n2(nand )

41. 1. Ports provides he interface by which a module can communicate with its
environment.
2. Inout ports must always be of the type net.
3. Connection between signals specified in the module instantiation and the
ports in module definition is done by ordered list or by name.
4. Hierarchical name allows to denote every identifier with a unique name.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

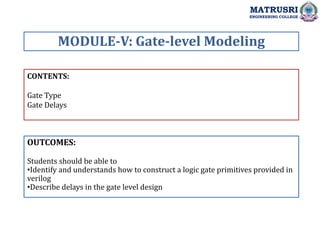

42. CONTENTS:
Gate Type
Gate Delays
OUTCOMES:
Students should be able to
•Identify and understands how to construct a logic gate primitives provided in
verilog
•Describe delays in the gate level design
MODULE-V: Gate-level Modeling
MATRUSRI
ENGINEERING COLLEGE

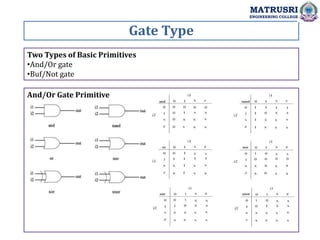

43. Gate Type
MATRUSRI
ENGINEERING COLLEGE
And/Or Gate Primitive
Two Types of Basic Primitives
•And/Or gate
•Buf/Not gate

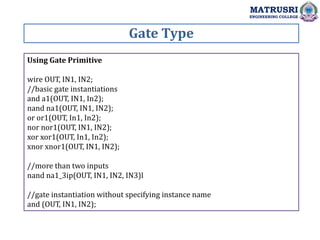

44. Gate Type
MATRUSRI
ENGINEERING COLLEGE
Using Gate Primitive
wire OUT, IN1, IN2;
//basic gate instantiations
and a1(OUT, IN1, In2);
nand na1(OUT, IN1, IN2);
or or1(OUT, In1, In2);
nor nor1(OUT, IN1, IN2);
xor xor1(OUT, In1, In2);
xnor xnor1(OUT, IN1, IN2);
//more than two inputs
nand na1_3ip(OUT, IN1, IN2, IN3)l
//gate instantiation without specifying instance name
and (OUT, IN1, IN2);

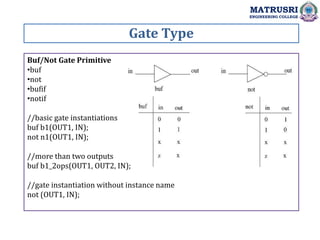

45. Gate Type
MATRUSRI
ENGINEERING COLLEGE
Buf/Not Gate Primitive
•buf
•not
•bufif
•notif
//basic gate instantiations
buf b1(OUT1, IN);
not n1(OUT1, IN);
//more than two outputs
buf b1_2ops(OUT1, OUT2, IN);
//gate instantiation without instance name
not (OUT1, IN);

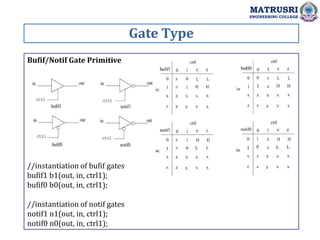

46. Gate Type
MATRUSRI
ENGINEERING COLLEGE
Bufif/Notif Gate Primitive
//instantiation of bufif gates
bufif1 b1(out, in, ctrl1);
bufif0 b0(out, in, ctrl1);
//instantiation of notif gates
notif1 n1(out, in, ctrl1);
notif0 n0(out, in, ctrl1);

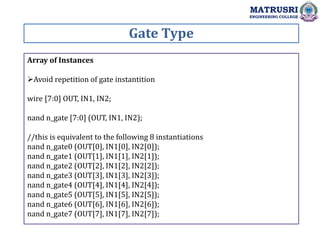

47. Gate Type
MATRUSRI
ENGINEERING COLLEGE
Array of Instances
Avoid repetition of gate instantition
wire [7:0] OUT, IN1, IN2;
nand n_gate [7:0] (OUT, IN1, IN2);
//this is equivalent to the following 8 instantiations
nand n_gate0 (OUT[0], IN1[0], IN2[0]);
nand n_gate1 (OUT[1], IN1[1], IN2[1]);
nand n_gate2 (OUT[2], IN1[2], IN2[2]);
nand n_gate3 (OUT[3], IN1[3], IN2[3]);
nand n_gate4 (OUT[4], IN1[4], IN2[4]);
nand n_gate5 (OUT[5], IN1[5], IN2[5]);
nand n_gate6 (OUT[6], IN1[6], IN2[6]);
nand n_gate7 (OUT[7], IN1[7], IN2[7]);

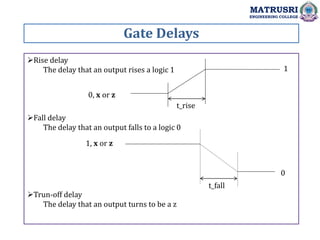

48. Gate Delays
MATRUSRI
ENGINEERING COLLEGE
Rise delay
The delay that an output rises a logic 1
Fall delay
The delay that an output falls to a logic 0
Trun-off delay
The delay that an output turns to be a z
t_rise
0, x or z
1
t_fall
1, x or z
0

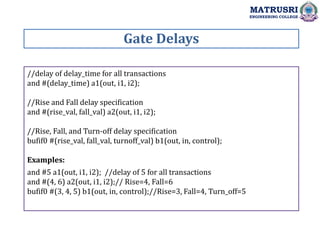

49. Gate Delays
MATRUSRI
ENGINEERING COLLEGE
//delay of delay_time for all transactions
and #(delay_time) a1(out, i1, i2);
//Rise and Fall delay specification
and #(rise_val, fall_val) a2(out, i1, i2);
//Rise, Fall, and Turn-off delay specification
bufif0 #(rise_val, fall_val, turnoff_val) b1(out, in, control);
Examples:
and #5 a1(out, i1, i2); //delay of 5 for all transactions
and #(4, 6) a2(out, i1, i2);// Rise=4, Fall=6
bufif0 #(3, 4, 5) b1(out, in, control);//Rise=3, Fall=4, Turn_off=5

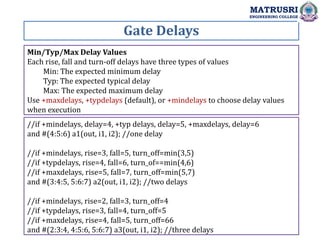

50. Gate Delays
MATRUSRI
ENGINEERING COLLEGE
Min/Typ/Max Delay Values
Each rise, fall and turn-off delays have three types of values
Min: The expected minimum delay
Typ: The expected typical delay
Max: The expected maximum delay
Use +maxdelays, +typdelays (default), or +mindelays to choose delay values
when execution
//if +mindelays, delay=4, +typ delays, delay=5, +maxdelays, delay=6
and #(4:5:6) a1(out, i1, i2); //one delay
//if +mindelays, rise=3, fall=5, turn_off=min(3,5)
//if +typdelays, rise=4, fall=6, turn_of==min(4,6)
//if +maxdelays, rise=5, fall=7, turn_off=min(5,7)
and #(3:4:5, 5:6:7) a2(out, i1, i2); //two delays
//if +mindelays, rise=2, fall=3, turn_off=4
//if +typdelays, rise=3, fall=4, turn_off=5
//if +maxdelays, rise=4, fall=5, turn_off=66
and #(2:3:4, 4:5:6, 5:6:7) a3(out, i1, i2); //three delays

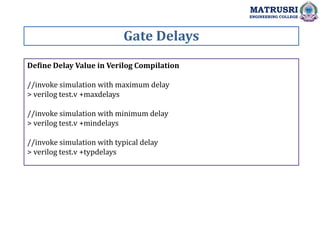

51. Gate Delays
MATRUSRI
ENGINEERING COLLEGE
Define Delay Value in Verilog Compilation
//invoke simulation with maximum delay
> verilog test.v +maxdelays
//invoke simulation with minimum delay
> verilog test.v +mindelays
//invoke simulation with typical delay
> verilog test.v +typdelays

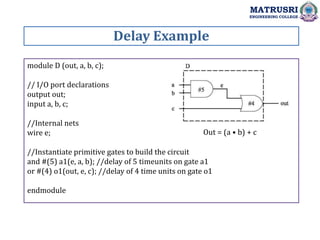

52. Delay Example
MATRUSRI
ENGINEERING COLLEGE
module D (out, a, b, c);
// I/O port declarations
output out;
input a, b, c;
//Internal nets
wire e;
//Instantiate primitive gates to build the circuit
and #(5) a1(e, a, b); //delay of 5 timeunits on gate a1
or #(4) o1(out, e, c); //delay of 4 time units on gate o1
endmodule
Out = (a • b) + c

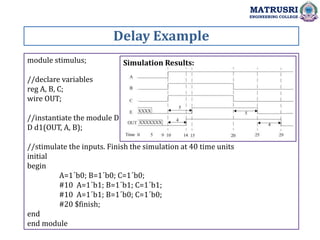

53. Delay Example
MATRUSRI
ENGINEERING COLLEGE
module stimulus;
//declare variables
reg A, B, C;
wire OUT;
//instantiate the module D
D d1(OUT, A, B);
//stimulate the inputs. Finish the simulation at 40 time units
initial
begin
A=1´b0; B=1´b0; C=1´b0;
#10 A=1´b1; B=1´b1; C=1´b1;
#10 A=1´b1; B=1´b0; C=1´b0;
#20 $finish;
end
end module
Simulation Results:

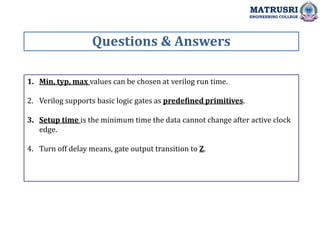

54. 1. Min, typ, max values can be chosen at verilog run time.
2. Verilog supports basic logic gates as predefined primitives.
3. Setup time is the minimum time the data cannot change after active clock
edge.
4. Turn off delay means, gate output transition to Z.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

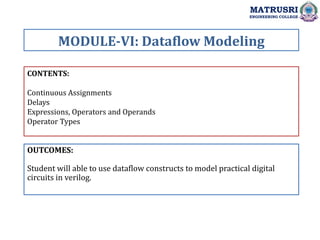

55. CONTENTS:
Continuous Assignments
Delays
Expressions, Operators and Operands
Operator Types
OUTCOMES:
Student will able to use dataflow constructs to model practical digital
circuits in verilog.
MODULE-VI: Dataflow Modeling
MATRUSRI
ENGINEERING COLLEGE

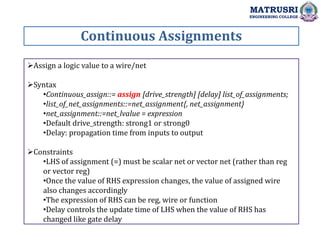

56. Continuous Assignments
MATRUSRI
ENGINEERING COLLEGE
Assign a logic value to a wire/net
Syntax
•Continuous_assign::= assign [drive_strength] [delay] list_of_assignments;
•list_of_net_assignments::=net_assignment{, net_assignment}
•net_assignment::=net_lvalue = expression
•Default drive_strength: strong1 or strong0
•Delay: propagation time from inputs to output
Constraints
•LHS of assignment (=) must be scalar net or vector net (rather than reg
or vector reg)
•Once the value of RHS expression changes, the value of assigned wire
also changes accordingly
•The expression of RHS can be reg, wire or function
•Delay controls the update time of LHS when the value of RHS has
changed like gate delay

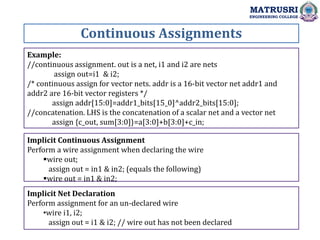

57. Continuous Assignments
MATRUSRI
ENGINEERING COLLEGE
Example:
//continuous assignment. out is a net, i1 and i2 are nets
assign out=i1 & i2;
/* continuous assign for vector nets. addr is a 16-bit vector net addr1 and
addr2 are 16-bit vector registers */
assign addr[15:0]=addr1_bits[15_0]^addr2_bits[15:0];
//concatenation. LHS is the concatenation of a scalar net and a vector net
assign {c_out, sum[3:0]}=a[3:0]+b[3:0]+c_in;
Implicit Continuous Assignment
Perform a wire assignment when declaring the wire
wire out;
assign out = in1 & in2; (equals the following)
wire out = in1 & in2;
Implicit Net Declaration
Perform assignment for an un-declared wire
•wire i1, i2;
assign out = i1 & i2; // wire out has not been declared

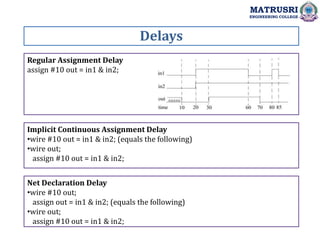

58. Delays
MATRUSRI
ENGINEERING COLLEGE
Regular Assignment Delay
assign #10 out = in1 & in2;
Implicit Continuous Assignment Delay
•wire #10 out = in1 & in2; (equals the following)
•wire out;
assign #10 out = in1 & in2;
Net Declaration Delay
•wire #10 out;
assign out = in1 & in2; (equals the following)
•wire out;
assign #10 out = in1 & in2;

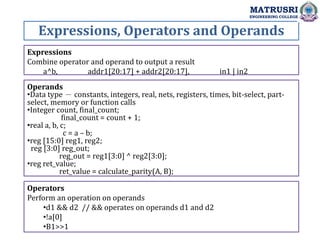

59. Expressions, Operators and Operands
MATRUSRI
ENGINEERING COLLEGE
Expressions
Combine operator and operand to output a result
a^b, addr1[20:17] + addr2[20:17], in1 | in2
Operands
•Data type － constants, integers, real, nets, registers, times, bit-select, part-
select, memory or function calls
•Integer count, final_count;
final_count = count + 1;
•real a, b, c;
c = a – b;
•reg [15:0] reg1, reg2;
reg [3:0] reg_out;
reg_out = reg1[3:0] ^ reg2[3:0];
•reg ret_value;
ret_value = calculate_parity(A, B);
Operators
Perform an operation on operands
•d1 && d2 // && operates on operands d1 and d2
•!a[0]
•B1>>1

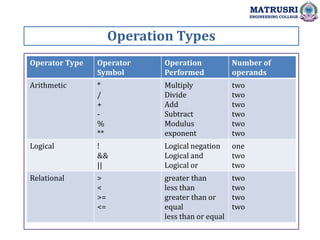

60. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Operator Type Operator
Symbol
Operation
Performed
Number of
operands
Arithmetic *
/
+
-
%
**
Multiply
Divide
Add
Subtract
Modulus
exponent
two
two
two
two
two
two
Logical !
&&
||
Logical negation
Logical and
Logical or
one
two
two
Relational >
<
>=
<=
greater than
less than
greater than or
equal
less than or equal
two
two
two
two

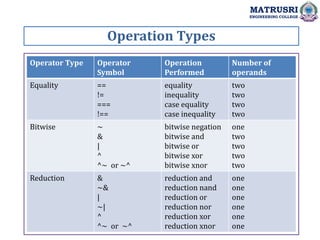

61. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Operator Type Operator
Symbol
Operation
Performed
Number of
operands
Equality ==
!=
===
!==
equality
inequality
case equality
case inequality
two
two
two
two
Bitwise ~
&
|
^
^~ or ~^
bitwise negation
bitwise and
bitwise or
bitwise xor
bitwise xnor
one
two
two
two
two
Reduction &
~&
|
~|
^
^~ or ~^
reduction and
reduction nand
reduction or
reduction nor
reduction xor
reduction xnor
one
one
one
one
one
one

62. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Operator Type Operator
Symbol
Operation
Performed
Number of
operands
Shift >>
<<
>>>
<<<
right shift
left shift
arithmetic right
shift
arithmetic left
shift
two
two
two
two
Concatenation
Replication
{ }
{ { } }
concatenation
Replication
any number
any number
Conditional ? : conditional three

63. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Arithmetic Operators
Binary Operator (+, -, *, /, **, %)
•in1 = 4’b101x; in2 = 4’b1010;
sum = in1 + in2; // 4’bx
•13 % 3
• 16 % 4
• -7 % 2
• 7 % -2
Unary Operator (+, -)
•-4
•+5
Logical Operators
&&(logic-and), ||(logic-or), !(logic-not)
A = 3; B = 0;
A && B
A || B
!A
!B
A = 2’0x; B = 2’b10;
A && B
( a == 2) && (b == 3)
Relational Operators (>, <, <=, >=)
A = 4, B = 3, X = 4’b1010, Y = 4’b1101, Z = 4’b1xxx
A <= B
A > B
Y >= X
Y < Z

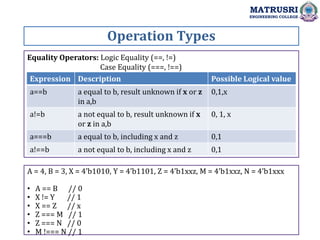

64. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Equality Operators: Logic Equality (==, !=)
Case Equality (===, !==)
Expression Description Possible Logical value
a==b a equal to b, result unknown if x or z
in a,b
0,1,x
a!=b a not equal to b, result unknown if x
or z in a,b
0, 1, x
a===b a equal to b, including x and z 0,1
a!==b a not equal to b, including x and z 0,1
A = 4, B = 3, X = 4’b1010, Y = 4’b1101, Z = 4’b1xxz, M = 4’b1xxz, N = 4’b1xxx
• A == B // 0
• X != Y // 1
• X == Z // x
• Z === M // 1
• Z === N // 0
• M !=== N // 1

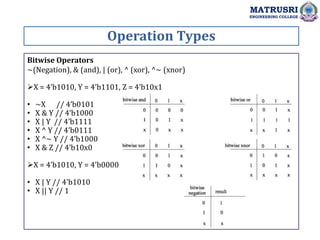

65. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Bitwise Operators
~(Negation), & (and), | (or), ^ (xor), ^~ (xnor)
X = 4’b1010, Y = 4’b1101, Z = 4’b10x1
• ~X // 4’b0101
• X & Y // 4’b1000
• X | Y // 4’b1111
• X ^ Y // 4’b0111
• X ^~ Y // 4’b1000
• X & Z // 4’b10x0
X = 4’b1010, Y = 4’b0000
• X | Y // 4’b1010
• X || Y // 1

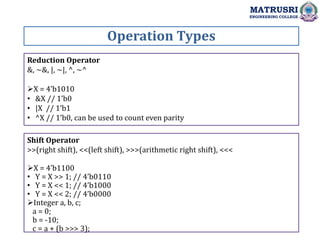

66. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Reduction Operator
&, ~&, |, ~|, ^, ~^
X = 4’b1010
• &X // 1’b0
• |X // 1’b1
• ^X // 1’b0, can be used to count even parity
Shift Operator
>>(right shift), <<(left shift), >>>(arithmetic right shift), <<<
X = 4’b1100
• Y = X >> 1; // 4’b0110
• Y = X << 1; // 4’b1000
• Y = X << 2; // 4’b0000
Integer a, b, c;
a = 0;
b = -10;
c = a + (b >>> 3);

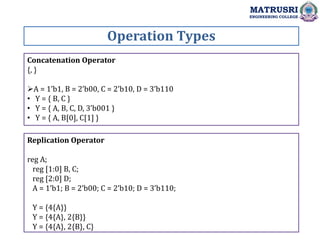

67. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Concatenation Operator
{, }
A = 1’b1, B = 2’b00, C = 2’b10, D = 3’b110
• Y = { B, C }
• Y = { A, B, C, D, 3’b001 }
• Y = { A, B[0], C[1] }
Replication Operator
reg A;
reg [1:0] B, C;
reg [2:0] D;
A = 1’b1; B = 2’b00; C = 2’b10; D = 3’b110;
Y = {4{A}}
Y = {4{A}, 2{B}}
Y = {4{A}, 2{B}, C}

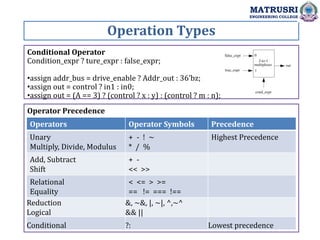

68. Operation Types
MATRUSRI
ENGINEERING COLLEGE
Operator Precedence
Operators Operator Symbols Precedence
Unary
Multiply, Divide, Modulus
+ - ! ~
* / %
Highest Precedence
Add, Subtract
Shift
+ -
<< >>
Relational
Equality
< <= > >=
== != === !==
Reduction
Logical
&, ~&, |, ~|, ^,~^
&& ||
Conditional ?: Lowest precedence
Conditional Operator
Condition_expr ? ture_expr : false_expr;
•assign addr_bus = drive_enable ? Addr_out : 36’bz;
•assign out = control ? in1 : in0;
•assign out = (A == 3) ? (control ? x : y) : (control ? m : n);

69. 1. The left hand side of procedural continuous assignment can be Register or
concatenation of registers.
2. The "shift right" (>>) operator inserts zeros on the left end of its argument.
3. The two types of "or" operators are "logical" and "bitwise“.
4. The expression of RHS can be reg, wire or function.
5. a === b, including x and z
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

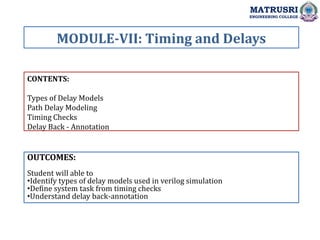

70. CONTENTS:
Types of Delay Models
Path Delay Modeling
Timing Checks
Delay Back - Annotation
OUTCOMES:
Student will able to
•Identify types of delay models used in verilog simulation
•Define system task from timing checks
•Understand delay back-annotation
MODULE-VII: Timing and Delays
MATRUSRI
ENGINEERING COLLEGE

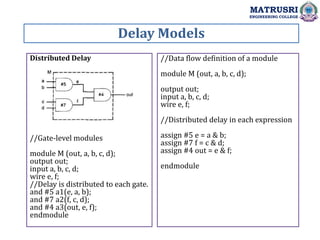

71. Delay Models
MATRUSRI
ENGINEERING COLLEGE
Distributed Delay
//Gate-level modules
module M (out, a, b, c, d);
output out;
input a, b, c, d;
wire e, f;
//Delay is distributed to each gate.
and #5 a1(e, a, b);
and #7 a2(f, c, d);
and #4 a3(out, e, f);
endmodule
//Data flow definition of a module
module M (out, a, b, c, d);
output out;
input a, b, c, d;
wire e, f;
//Distributed delay in each expression
assign #5 e = a & b;
assign #7 f = c & d;
assign #4 out = e & f;
endmodule

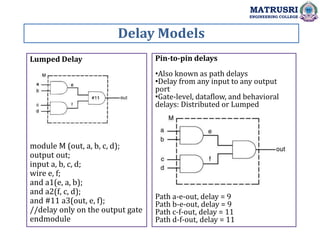

72. Delay Models
MATRUSRI
ENGINEERING COLLEGE
Lumped Delay
module M (out, a, b, c, d);
output out;
input a, b, c, d;
wire e, f;
and a1(e, a, b);
and a2(f, c, d);
and #11 a3(out, e, f);
//delay only on the output gate
endmodule
Pin-to-pin delays
•Also known as path delays
•Delay from any input to any output
port
•Gate-level, dataflow, and behavioral
delays: Distributed or Lumped
Path a-e-out, delay = 9
Path b-e-out, delay = 9
Path c-f-out, delay = 11
Path d-f-out, delay = 11

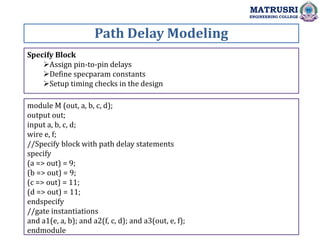

73. Specify Block
Assign pin-to-pin delays
Define specparam constants
Setup timing checks in the design
Path Delay Modeling
MATRUSRI
ENGINEERING COLLEGE
module M (out, a, b, c, d);
output out;
input a, b, c, d;
wire e, f;
//Specify block with path delay statements
specify
(a => out) = 9;
(b => out) = 9;
(c => out) = 11;
(d => out) = 11;
endspecify
//gate instantiations
and a1(e, a, b); and a2(f, c, d); and a3(out, e, f);
endmodule

74. Parallel connection
Syntax:
specify
(<src_field> => <dest_field>) = <delay>;
endspecify
<src_field> and <dest_field> are vectors of equal length
•Unequal lengths, compile-time error
Path Delay Modeling
MATRUSRI
ENGINEERING COLLEGE
//bit-to-bit connection. both a and out are single-bit
(a => out) = 9;
//vector connection. both a and out are 4-bit vectors a[3:0], out[3:0]
(a => out) = 9;
(or)
(a[0] => out[0]) = 9;
(a[1] => out[1]) = 9;
(a[2] => out[2]) = 9;
(a[3] => out[3]) = 9;
//illegal connection. a[4:0] is a 5-bit vector, out[3:0] is 4-bit.
//Mismatch between bit width of source and destination fields
(a => out) = 9; //bit width does not match.

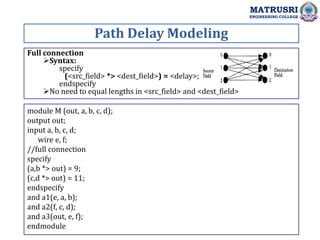

75. Full connection
Syntax:
specify
(<src_field> *> <dest_field>) = <delay>;
endspecify
No need to equal lengths in <src_field> and <dest_field>
Path Delay Modeling
MATRUSRI
ENGINEERING COLLEGE
module M (out, a, b, c, d);
output out;
input a, b, c, d;
wire e, f;
//full connection
specify
(a,b *> out) = 9;
(c,d *> out) = 11;
endspecify
and a1(e, a, b);
and a2(f, c, d);
and a3(out, e, f);
endmodule

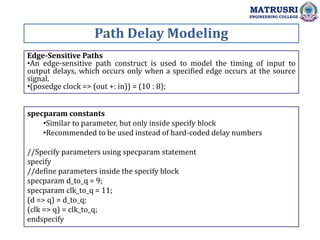

76. Edge-Sensitive Paths
•An edge-sensitive path construct is used to model the timing of input to
output delays, which occurs only when a specified edge occurs at the source
signal.
•(posedge clock => (out +: in)) = (10 : 8);
Path Delay Modeling
MATRUSRI
ENGINEERING COLLEGE
specparam constants
•Similar to parameter, but only inside specify block
•Recommended to be used instead of hard-coded delay numbers
//Specify parameters using specparam statement
specify
//define parameters inside the specify block
specparam d_to_q = 9;
specparam clk_to_q = 11;
(d => q) = d_to_q;
(clk => q) = clk_to_q;
endspecify

77. Path Delay Modeling
MATRUSRI
ENGINEERING COLLEGE

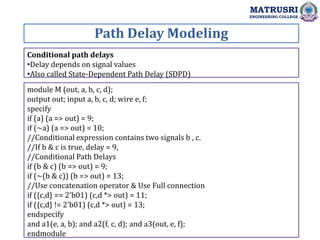

Conditional path delays
•Delay depends on signal values
•Also called State-Dependent Path Delay (SDPD)
module M (out, a, b, c, d);
output out; input a, b, c, d; wire e, f;
specify
if (a) (a => out) = 9;
if (~a) (a => out) = 10;
//Conditional expression contains two signals b , c.
//If b & c is true, delay = 9,
//Conditional Path Delays
if (b & c) (b => out) = 9;
if (~(b & c)) (b => out) = 13;
//Use concatenation operator & Use Full connection
if ({c,d} == 2'b01) (c,d *> out) = 11;
if ({c,d} != 2'b01) (c,d *> out) = 13;
endspecify
and a1(e, a, b); and a2(f, c, d); and a3(out, e, f);
endmodule

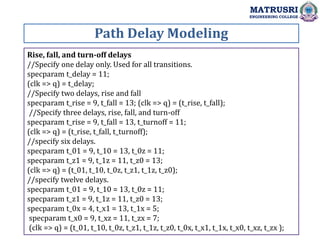

78. Path Delay Modeling
MATRUSRI
ENGINEERING COLLEGE
Rise, fall, and turn-off delays
//Specify one delay only. Used for all transitions.
specparam t_delay = 11;
(clk => q) = t_delay;
//Specify two delays, rise and fall
specparam t_rise = 9, t_fall = 13; (clk => q) = (t_rise, t_fall);
//Specify three delays, rise, fall, and turn-off
specparam t_rise = 9, t_fall = 13, t_turnoff = 11;
(clk => q) = (t_rise, t_fall, t_turnoff);
//specify six delays.
specparam t_01 = 9, t_10 = 13, t_0z = 11;
specparam t_z1 = 9, t_1z = 11, t_z0 = 13;
(clk => q) = (t_01, t_10, t_0z, t_z1, t_1z, t_z0);
//specify twelve delays.
specparam t_01 = 9, t_10 = 13, t_0z = 11;
specparam t_z1 = 9, t_1z = 11, t_z0 = 13;
specparam t_0x = 4, t_x1 = 13, t_1x = 5;
specparam t_x0 = 9, t_xz = 11, t_zx = 7;
(clk => q) = (t_01, t_10, t_0z, t_z1, t_1z, t_z0, t_0x, t_x1, t_1x, t_x0, t_xz, t_zx );

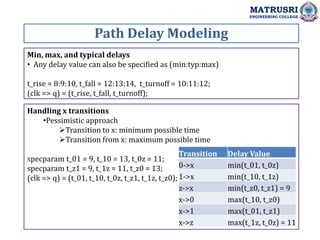

79. Path Delay Modeling
MATRUSRI
ENGINEERING COLLEGE
Min, max, and typical delays
• Any delay value can also be specified as (min:typ:max)
t_rise = 8:9:10, t_fall = 12:13:14, t_turnoff = 10:11:12;
(clk => q) = (t_rise, t_fall, t_turnoff);
Handling x transitions
•Pessimistic approach
Transition to x: minimum possible time
Transition from x: maximum possible time
specparam t_01 = 9, t_10 = 13, t_0z = 11;
specparam t_z1 = 9, t_1z = 11, t_z0 = 13;
(clk => q) = (t_01, t_10, t_0z, t_z1, t_1z, t_z0);
Transition Delay Value
0->x min(t_01, t_0z)
1->x min(t_10, t_1z)
z->x min(t_z0, t_z1) = 9
x->0 max(t_10, t_z0)
x->1 max(t_01, t_z1)
x->z max(t_1z, t_0z) = 11

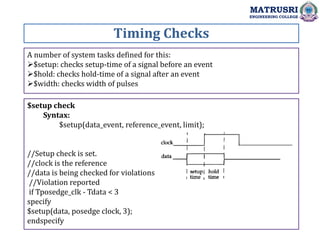

80. Timing Checks
MATRUSRI
ENGINEERING COLLEGE
A number of system tasks defined for this:
$setup: checks setup-time of a signal before an event
$hold: checks hold-time of a signal after an event
$width: checks width of pulses
$setup check
Syntax:
$setup(data_event, reference_event, limit);
//Setup check is set.
//clock is the reference
//data is being checked for violations
//Violation reported
if Tposedge_clk - Tdata < 3
specify
$setup(data, posedge clock, 3);
endspecify

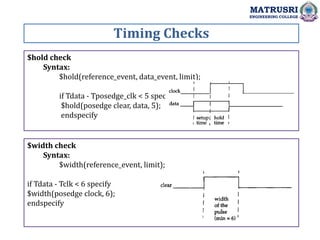

81. Timing Checks
MATRUSRI
ENGINEERING COLLEGE
$hold check
Syntax:
$hold(reference_event, data_event, limit);
if Tdata - Tposedge_clk < 5 specify
$hold(posedge clear, data, 5);
endspecify
$width check
Syntax:
$width(reference_event, limit);
if Tdata - Tclk < 6 specify
$width(posedge clock, 6);
endspecify

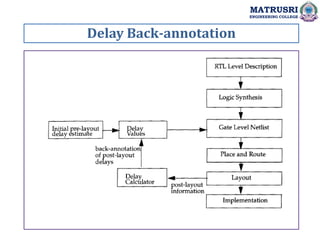

82. Delay Back-annotation
MATRUSRI
ENGINEERING COLLEGE

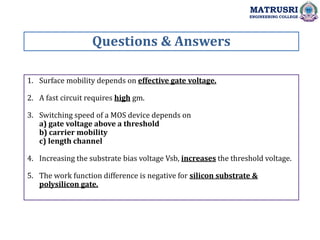

83. 1. Surface mobility depends on effective gate voltage.
2. A fast circuit requires high gm.
3. Switching speed of a MOS device depends on
a) gate voltage above a threshold
b) carrier mobility
c) length channel
4. Increasing the substrate bias voltage Vsb, increases the threshold voltage.
5. The work function difference is negative for silicon substrate &
polysilicon gate.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

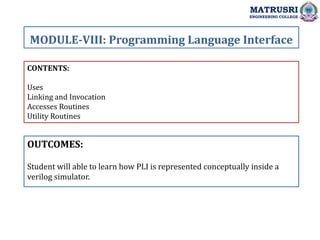

84. CONTENTS:
Uses
Linking and Invocation
Accesses Routines
Utility Routines
OUTCOMES:
Student will able to learn how PLI is represented conceptually inside a
verilog simulator.
MODULE-VIII: Programming Language Interface
MATRUSRI
ENGINEERING COLLEGE

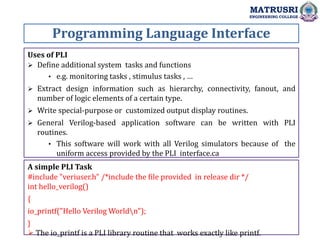

85. Programming Language Interface
MATRUSRI
ENGINEERING COLLEGE
Uses of PLI
 Define additional system tasks and functions
• e.g. monitoring tasks , stimulus tasks , …
 Extract design information such as hierarchy, connectivity, fanout, and
number of logic elements of a certain type.
 Write special-purpose or customized output display routines.
 General Verilog-based application software can be written with PLI
routines.
• This software will work with all Verilog simulators because of the
uniform access provided by the PLI interface.ca
A simple PLI Task
#include "veriuser.h" /*include the file provided in release dir */
int hello_verilog()
{
io_printf("Hello Verilog Worldn");
}
 The io_printf is a PLI library routine that works exactly like printf.

86. Programming Language Interface
MATRUSRI
ENGINEERING COLLEGE

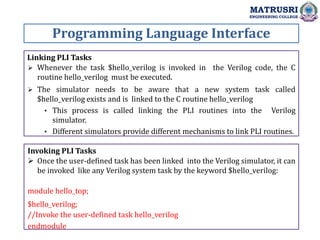

Linking PLI Tasks
 Whenever the task $hello_verilog is invoked in the Verilog code, the C
routine hello_verilog must be executed.
 The simulator needs to be aware that a new system task called
$hello_verilog exists and is linked to the C routine hello_verilog
• This process is called linking the PLI routines into the Verilog
simulator.
• Different simulators provide different mechanisms to link PLI routines.
Invoking PLI Tasks
 Once the user-defined task has been linked into the Verilog simulator, it can
be invoked like any Verilog system task by the keyword $hello_verilog:
module hello_top;
$hello_verilog;
//Invoke the user-defined task hello_verilog
endmodule

87. Programming Language Interface
MATRUSRI
ENGINEERING COLLEGE
Access Routines
 Access routines can read information about objects in the design.
 Objects can be one of the following types:
oModule instances, module ports, module pin-to-pin paths, intermodule paths,
Top-level modules, Primitive instances, primitive terminals, Nets, registers,
parameters, specparams, Integer, time, and real variables, Timing checks,
Named events
Mechanics of access routines
 Access routines always start with the prefix acc_.
 A user-defined C routine that uses access routines must first initialize the
environment by calling the routine acc_initialize().
 When exiting, the user-defined C routine must call acc_close().
 #include "acc_user.h"
 Access routines use the concept of a handle to access an object.
• Handles are predefined data types that point to specific objects in the
design.
• handle top_handle;

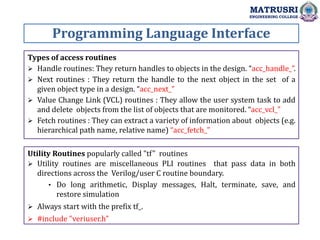

88. Programming Language Interface
MATRUSRI
ENGINEERING COLLEGE
Types of access routines
 Handle routines: They return handles to objects in the design. “acc_handle_”.
 Next routines : They return the handle to the next object in the set of a
given object type in a design. “acc_next_”
 Value Change Link (VCL) routines : They allow the user system task to add
and delete objects from the list of objects that are monitored. “acc_vcl_”
 Fetch routines : They can extract a variety of information about objects (e.g.
hierarchical path name, relative name) “acc_fetch_”
Utility Routines popularly called "tf" routines
 Utility routines are miscellaneous PLI routines that pass data in both
directions across the Verilog/user C routine boundary.
• Do long arithmetic, Display messages, Halt, terminate, save, and
restore simulation
 Always start with the prefix tf_.
 #include "veriuser.h"

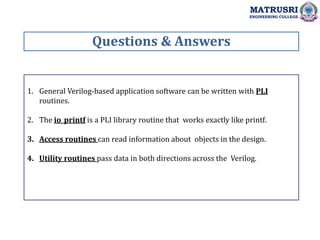

89. 1. General Verilog-based application software can be written with PLI
routines.
2. The io_printf is a PLI library routine that works exactly like printf.
3. Access routines can read information about objects in the design.
4. Utility routines pass data in both directions across the Verilog.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

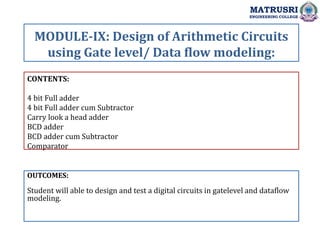

90. CONTENTS:
4 bit Full adder
4 bit Full adder cum Subtractor
Carry look a head adder
BCD adder
BCD adder cum Subtractor

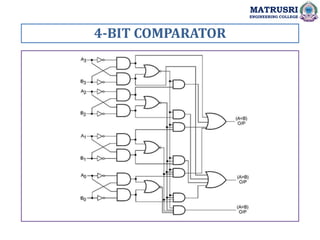

Comparator
OUTCOMES:
Student will able to design and test a digital circuits in gatelevel and dataflow
modeling.
MODULE-IX: Design of Arithmetic Circuits
using Gate level/ Data flow modeling:
MATRUSRI
ENGINEERING COLLEGE

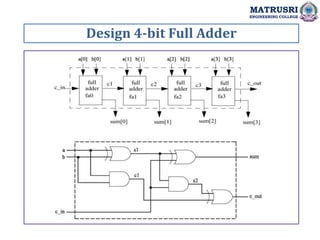

91. Design 4-bit Full Adder
MATRUSRI
ENGINEERING COLLEGE

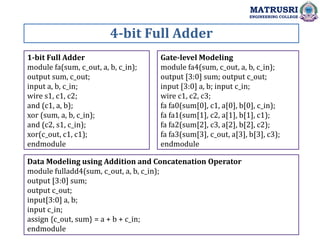

92. 4-bit Full Adder
MATRUSRI
ENGINEERING COLLEGE
1-bit Full Adder
module fa(sum, c_out, a, b, c_in);
output sum, c_out;
input a, b, c_in;
wire s1, c1, c2;
and (c1, a, b);
xor (sum, a, b, c_in);
and (c2, s1, c_in);
xor(c_out, c1, c1);
endmodule
Gate-level Modeling
module fa4(sum, c_out, a, b, c_in);
output [3:0] sum; output c_out;
input [3:0] a, b; input c_in;
wire c1, c2, c3;
fa fa0(sum[0], c1, a[0], b[0], c_in);
fa fa1(sum[1], c2, a[1], b[1], c1);
fa fa2(sum[2], c3, a[2], b[2], c2);
fa fa3(sum[3], c_out, a[3], b[3], c3);
endmodule
Data Modeling using Addition and Concatenation Operator
module fulladd4(sum, c_out, a, b, c_in);
output [3:0] sum;
output c_out;
input[3:0] a, b;
input c_in;
assign {c_out, sum} = a + b + c_in;
endmodule

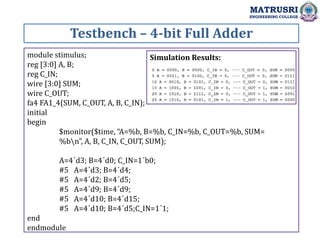

93. Testbench – 4-bit Full Adder
MATRUSRI
ENGINEERING COLLEGE
module stimulus;
reg [3:0] A, B;
reg C_IN;
wire [3:0] SUM;
wire C_OUT;
fa4 FA1_4(SUM, C_OUT, A, B, C_IN);
initial
begin
$monitor($time, “A=%b, B=%b, C_IN=%b, C_OUT=%b, SUM=
%bn”, A, B, C_IN, C_OUT, SUM);
A=4´d3; B=4´d0; C_IN=1´b0;
#5 A=4´d3; B=4´d4;
#5 A=4´d2; B=4´d5;
#5 A=4´d9; B=4´d9;
#5 A=4´d10; B=4´d15;
#5 A=4´d10; B=4´d5;C_IN=1´1;
end
endmodule
Simulation Results:

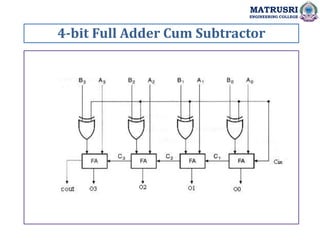

94. 4-bit Full Adder Cum Subtractor
MATRUSRI
ENGINEERING COLLEGE

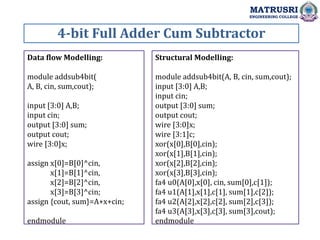

95. 4-bit Full Adder Cum Subtractor
MATRUSRI
ENGINEERING COLLEGE
Data flow Modelling:
module addsub4bit(
A, B, cin, sum,cout);
input [3:0] A,B;
input cin;
output [3:0] sum;
output cout;
wire [3:0]x;
assign x[0]=B[0]^cin,
x[1]=B[1]^cin,
x[2]=B[2]^cin,
x[3]=B[3]^cin;
assign {cout, sum}=A+x+cin;
endmodule
Structural Modelling:
module addsub4bit(A, B, cin, sum,cout);
input [3:0] A,B;
input cin;
output [3:0] sum;
output cout;
wire [3:0]x;
wire [3:1]c;
xor(x[0],B[0],cin);
xor(x[1],B[1],cin);
xor(x[2],B[2],cin);
xor(x[3],B[3],cin);
fa4 u0(A[0],x[0], cin, sum[0],c[1]);
fa4 u1(A[1],x[1],c[1], sum[1],c[2]);
fa4 u2(A[2],x[2],c[2], sum[2],c[3]);
fa4 u3(A[3],x[3],c[3], sum[3],cout);
endmodule

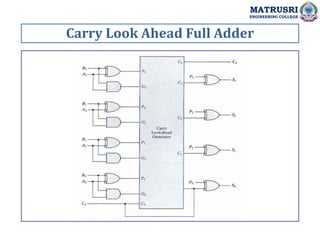

96. Carry Look Ahead Full Adder
MATRUSRI
ENGINEERING COLLEGE

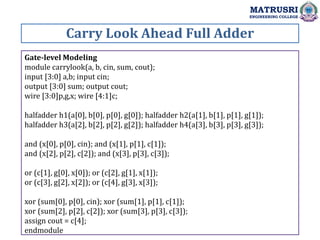

97. Carry Look Ahead Full Adder
MATRUSRI
ENGINEERING COLLEGE
Gate-level Modeling
module carrylook(a, b, cin, sum, cout);
input [3:0] a,b; input cin;
output [3:0] sum; output cout;
wire [3:0]p,g,x; wire [4:1]c;
halfadder h1(a[0], b[0], p[0], g[0]); halfadder h2(a[1], b[1], p[1], g[1]);
halfadder h3(a[2], b[2], p[2], g[2]); halfadder h4(a[3], b[3], p[3], g[3]);
and (x[0], p[0], cin); and (x[1], p[1], c[1]);
and (x[2], p[2], c[2]); and (x[3], p[3], c[3]);
or (c[1], g[0], x[0]); or (c[2], g[1], x[1]);
or (c[3], g[2], x[2]); or (c[4], g[3], x[3]);
xor (sum[0], p[0], cin); xor (sum[1], p[1], c[1]);
xor (sum[2], p[2], c[2]); xor (sum[3], p[3], c[3]);
assign cout = c[4];
endmodule

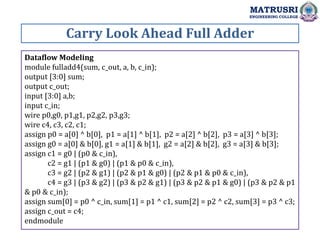

98. Carry Look Ahead Full Adder
MATRUSRI
ENGINEERING COLLEGE
Dataflow Modeling
module fulladd4(sum, c_out, a, b, c_in);
output [3:0] sum;
output c_out;
input [3:0] a,b;
input c_in;
wire p0,g0, p1,g1, p2,g2, p3,g3;
wire c4, c3, c2, c1;
assign p0 = a[0] ^ b[0], p1 = a[1] ^ b[1], p2 = a[2] ^ b[2], p3 = a[3] ^ b[3];
assign g0 = a[0] & b[0], g1 = a[1] & b[1], g2 = a[2] & b[2], g3 = a[3] & b[3];
assign c1 = g0 | (p0 & c_in),
c2 = g1 | (p1 & g0) | (p1 & p0 & c_in),
c3 = g2 | (p2 & g1) | (p2 & p1 & g0) | (p2 & p1 & p0 & c_in),
c4 = g3 | (p3 & g2) | (p3 & p2 & g1) | (p3 & p2 & p1 & g0) | (p3 & p2 & p1
& p0 & c_in);
assign sum[0] = p0 ^ c_in, sum[1] = p1 ^ c1, sum[2] = p2 ^ c2, sum[3] = p3 ^ c3;
assign c_out = c4;
endmodule

99. BCD Adder
MATRUSRI
ENGINEERING COLLEGE

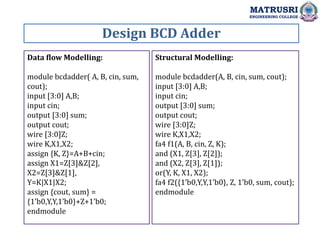

100. Design BCD Adder
MATRUSRI
ENGINEERING COLLEGE
Data flow Modelling:
module bcdadder( A, B, cin, sum,
cout);
input [3:0] A,B;
input cin;
output [3:0] sum;
output cout;
wire [3:0]Z;
wire K,X1,X2;
assign {K, Z}=A+B+cin;
assign X1=Z[3]&Z[2],
X2=Z[3]&Z[1],
Y=K|X1|X2;
assign {cout, sum} =
{1’b0,Y,Y,1’b0}+Z+1’b0;
endmodule
Structural Modelling:
module bcdadder(A, B, cin, sum, cout);
input [3:0] A,B;
input cin;
output [3:0] sum;
output cout;
wire [3:0]Z;
wire K,X1,X2;
fa4 f1(A, B, cin, Z, K);
and (X1, Z[3], Z[2]);
and (X2, Z[3], Z[1]);
or(Y, K, X1, X2);
fa4 f2({1’b0,Y,Y,1’b0}, Z, 1’b0, sum, cout);
endmodule

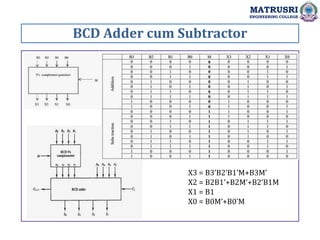

101. BCD Adder cum Subtractor
MATRUSRI
ENGINEERING COLLEGE
X3 = B3’B2’B1’M+B3M’
X2 = B2B1’+B2M’+B2’B1M
X1 = B1
X0 = B0M’+B0’M

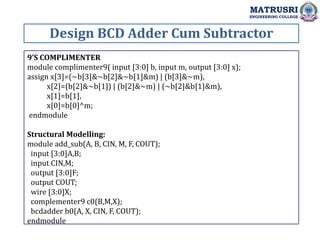

102. Design BCD Adder Cum Subtractor
MATRUSRI
ENGINEERING COLLEGE
9’S COMPLIMENTER
module complimenter9( input [3:0] b, input m, output [3:0] x);
assign x[3]=(~b[3]&~b[2]&~b[1]&m) | (b[3]&~m),
x[2]=(b[2]&~b[1]) | (b[2]&~m) | (~b[2]&b[1]&m),
x[1]=b[1],
x[0]=b[0]^m;
endmodule
Structural Modelling:
module add_sub(A, B, CIN, M, F, COUT);
input [3:0]A,B;
input CIN,M;
output [3:0]F;
output COUT;
wire [3:0]X;
complementer9 c0(B,M,X);
bcdadder b0(A, X, CIN, F, COUT);
endmodule

103. 4-BIT COMPARATOR
MATRUSRI
ENGINEERING COLLEGE

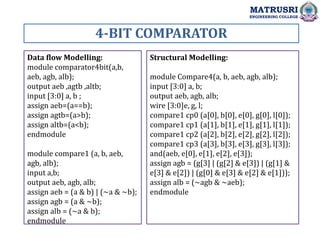

104. 4-BIT COMPARATOR
MATRUSRI
ENGINEERING COLLEGE
Data flow Modelling:
module comparator4bit(a,b,
aeb, agb, alb);
output aeb ,agtb ,altb;
input [3:0] a, b ;
assign aeb=(a==b);
assign agtb=(a>b);
assign altb=(a<b);
endmodule
module compare1 (a, b, aeb,
agb, alb);
input a,b;
output aeb, agb, alb;
assign aeb = (a & b) | (~a & ~b);
assign agb = (a & ~b);
assign alb = (~a & b);
endmodule
Structural Modelling:
module Compare4(a, b, aeb, agb, alb);
input [3:0] a, b;
output aeb, agb, alb;
wire [3:0]e, g, l;
compare1 cp0 (a[0], b[0], e[0], g[0], l[0]);
compare1 cp1 (a[1], b[1], e[1], g[1], l[1]);
compare1 cp2 (a[2], b[2], e[2], g[2], l[2]);
compare1 cp3 (a[3], b[3], e[3], g[3], l[3]);
and(aeb, e[0], e[1], e[2], e[3]);
assign agb = (g[3] | (g[2] & e[3]) | (g[1] &
e[3] & e[2]) | (g[0] & e[3] & e[2] & e[1]));
assign alb = (~agb & ~aeb);
endmodule

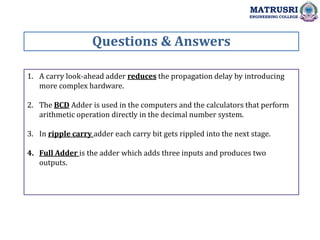

105. 1. A carry look-ahead adder reduces the propagation delay by introducing
more complex hardware.
2. The BCD Adder is used in the computers and the calculators that perform
arithmetic operation directly in the decimal number system.
3. In ripple carry adder each carry bit gets rippled into the next stage.
4. Full Adder is the adder which adds three inputs and produces two
outputs.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

106. CONTENTS:
Functional verification
Simulation types
Design of stimulus block
OUTCOMES:
Student will able to verify the functionality of the digital circuits.
MODULE-X: Verification
MATRUSRI
ENGINEERING COLLEGE

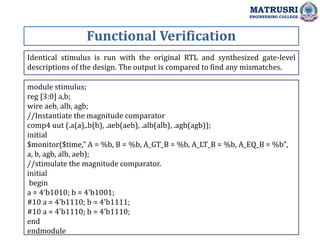

107. Functional Verification
MATRUSRI
ENGINEERING COLLEGE
Identical stimulus is run with the original RTL and synthesized gate-level
descriptions of the design. The output is compared to find any mismatches.
module stimulus;
reg [3:0] a,b;
wire aeb, alb, agb;
//Instantiate the magnitude comparator
comp4 uut (.a(a),.b(b), .aeb(aeb), .alb(alb), .agb(agb));
initial
$monitor($time," A = %b, B = %b, A_GT_B = %b, A_LT_B = %b, A_EQ_B = %b",
a, b, agb, alb, aeb);
//stimulate the magnitude comparator.
initial
begin
a = 4'b1010; b = 4'b1001;
#10 a = 4'b1110; b = 4'b1111;
#10 a = 4'b1110; b = 4'b1110;
end
endmodule

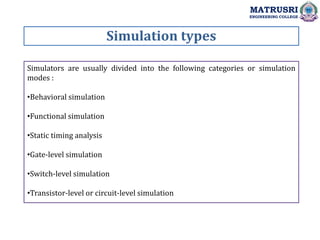

108. Simulation types
MATRUSRI
ENGINEERING COLLEGE
Simulators are usually divided into the following categories or simulation
modes :
•Behavioral simulation
•Functional simulation
•Static timing analysis
•Gate-level simulation
•Switch-level simulation
•Transistor-level or circuit-level simulation

109. Design of stimulus block
MATRUSRI
ENGINEERING COLLEGE
Test bench － Stimulus Block
Stimulus generation
Output checking
Stimulus Block – I
Instantiate a design under test (dut)
(Design Block)
Ripple Carry Counter
clk reset
(Stimulus Block)
q
Stimulus Block – II
Additional top module instantiating
stimulus and design block
Stimulus
Block
d_clk
d_reset
c_q
Design
Block
clk
reset
q
Top-level Block

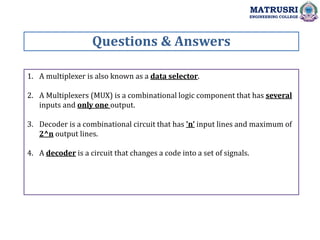

110. 1. A multiplexer is also known as a data selector.
2. A Multiplexers (MUX) is a combinational logic component that has several
inputs and only one output.
3. Decoder is a combinational circuit that has 'n' input lines and maximum of
2^n output lines.
4. A decoder is a circuit that changes a code into a set of signals.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

111. CONTENTS:
4 to 1 Multiplexer
2 X 4 Decoder
OUTCOMES:
Student will able to design and test a digital circuits in gatelevel
and dataflow modeling.
MODULE-XI: Additional Topic
MATRUSRI
ENGINEERING COLLEGE

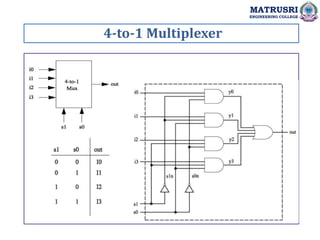

112. 4-to-1 Multiplexer
MATRUSRI
ENGINEERING COLLEGE

113. Gate-level Modeling – 4-to-1 Mux
MATRUSRI
ENGINEERING COLLEGE
//module 4-to-1 multiplexer
module mux4_to_1(out, i0, i1, i2, i3, s1, s0);
//port declarations
output out;
input i0, i1, i2, i3, s1, s0;
//internal wire declarations
wire s1n, s0n;
wire y0, y1, y2, y3;
//Gate instantiations
not (s1n, s0);
not s0n, s0); //not gate instantiations
and (y0, i0, s1n, s0n);
and (y1, i1, s1n, s0);
and (y2, i2, s1, s0n); //3-input and gate instantiations
and (y3, i3, s1, s0);
or (out, y0, y1, y2, y3); //4-input or gate instantiation
end module

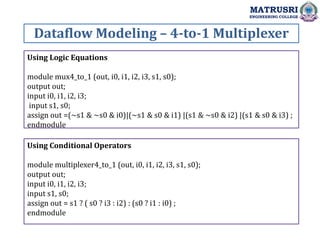

114. Dataflow Modeling – 4-to-1 Multiplexer
MATRUSRI
ENGINEERING COLLEGE
Using Logic Equations
module mux4_to_1 (out, i0, i1, i2, i3, s1, s0);
output out;
input i0, i1, i2, i3;
input s1, s0;
assign out =(~s1 & ~s0 & i0)|(~s1 & s0 & i1) |(s1 & ~s0 & i2) |(s1 & s0 & i3) ;
endmodule
Using Conditional Operators
module multiplexer4_to_1 (out, i0, i1, i2, i3, s1, s0);
output out;
input i0, i1, i2, i3;
input s1, s0;
assign out = s1 ? ( s0 ? i3 : i2) : (s0 ? i1 : i0) ;
endmodule

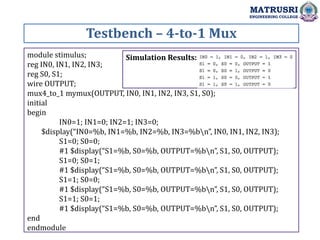

115. Testbench – 4-to-1 Mux
MATRUSRI
ENGINEERING COLLEGE
module stimulus;
reg IN0, IN1, IN2, IN3;
reg S0, S1;
wire OUTPUT;
mux4_to_1 mymux(OUTPUT, IN0, IN1, IN2, IN3, S1, S0);
initial
begin
IN0=1; IN1=0; IN2=1; IN3=0;
$display(“IN0=%b, IN1=%b, IN2=%b, IN3=%bn”, IN0, IN1, IN2, IN3);
S1=0; S0=0;
#1 $display(“S1=%b, S0=%b, OUTPUT=%bn”, S1, S0, OUTPUT);
S1=0; S0=1;
#1 $display(“S1=%b, S0=%b, OUTPUT=%bn”, S1, S0, OUTPUT);
S1=1; S0=0;
#1 $display(“S1=%b, S0=%b, OUTPUT=%bn”, S1, S0, OUTPUT);
S1=1; S0=1;
#1 $display(“S1=%b, S0=%b, OUTPUT=%bn”, S1, S0, OUTPUT);
end
endmodule
Simulation Results:

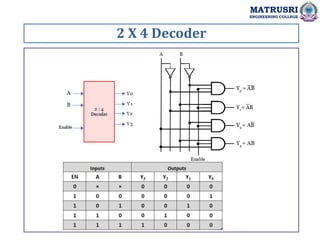

116. 2 X 4 Decoder
MATRUSRI
ENGINEERING COLLEGE

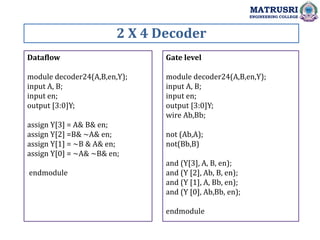

117. 2 X 4 Decoder
MATRUSRI
ENGINEERING COLLEGE
Dataflow
module decoder24(A,B,en,Y);
input A, B;
input en;
output [3:0]Y;
assign Y[3] = A& B& en;
assign Y[2] =B& ~A& en;
assign Y[1] = ~B & A& en;
assign Y[0] = ~A& ~B& en;
endmodule
Gate level
module decoder24(A,B,en,Y);
input A, B;
input en;
output [3:0]Y;
wire Ab,Bb;
not (Ab,A);
not(Bb,B)
and (Y[3], A, B, en);
and (Y [2], Ab, B, en);
and (Y [1], A, Bb, en);
and (Y [0], Ab,Bb, en);
endmodule

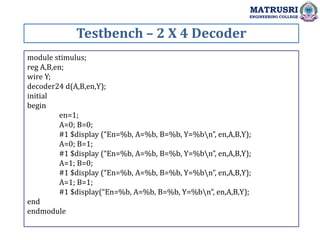

118. Testbench – 2 X 4 Decoder
MATRUSRI
ENGINEERING COLLEGE
module stimulus;
reg A,B,en;
wire Y;
decoder24 d(A,B,en,Y);
initial
begin
en=1;
A=0; B=0;
#1 $display (“En=%b, A=%b, B=%b, Y=%bn”, en,A,B,Y);
A=0; B=1;
#1 $display (“En=%b, A=%b, B=%b, Y=%bn”, en,A,B,Y);
A=1; B=0;
#1 $display (“En=%b, A=%b, B=%b, Y=%bn”, en,A,B,Y);
A=1; B=1;
#1 $display(“En=%b, A=%b, B=%b, Y=%bn”, en,A,B,Y);
end
endmodule

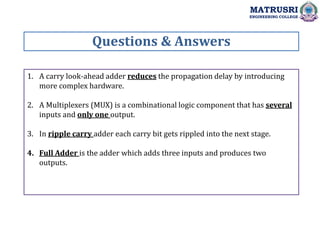

119. 1. A carry look-ahead adder reduces the propagation delay by introducing
more complex hardware.
2. A Multiplexers (MUX) is a combinational logic component that has several
inputs and only one output.
3. In ripple carry adder each carry bit gets rippled into the next stage.
4. Full Adder is the adder which adds three inputs and produces two
outputs.
Questions & Answers
MATRUSRI
ENGINEERING COLLEGE

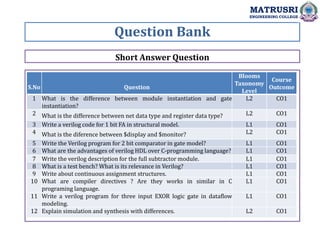

120. Question Bank
MATRUSRI
ENGINEERING COLLEGE
Short Answer Question
S.No Question
Blooms
Taxonomy
Level
Course
Outcome
1 What is the difference between module instantiation and gate
instantiation?
L2 CO1
2 What is the difference between net data type and register data type? L2 CO1
3 Write a verilog code for 1 bit FA in structural model. L1 CO1
4 What is the diference between $display and $monitor? L2 CO1
5 Write the Verilog program for 2 bit comparator in gate model? L1 CO1
6 What are the advantages of verilog HDL over C-programming language? L1 CO1
7 Write the verilog description for the full subtractor module. L1 CO1
8 What is a test bench? What is its relevance in Verilog? L1 CO1
9 Write about continuous assignment structures. L1 CO1
10 What are compiler directives ? Are they works in similar in C
programing language.
L1 CO1
11 Write a verilog program for three input EXOR logic gate in dataflow
modeling.
L1 CO1
12 Explain simulation and synthesis with differences. L2 CO1

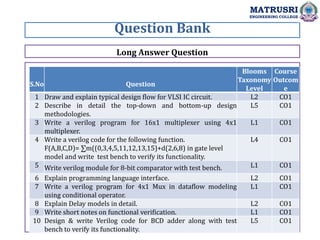

121. Question Bank
MATRUSRI
ENGINEERING COLLEGE
Long Answer Question
S.No Question
Blooms
Taxonomy
Level
Course
Outcom
e
1 Draw and explain typical design flow for VLSI IC circuit. L2 CO1
2 Describe in detail the top-down and bottom-up design
methodologies.
L5 CO1
3 Write a verilog program for 16x1 multiplexer using 4x1
multiplexer.
L1 CO1
4 Write a verilog code for the following function.
F(A,B,C,D)= ∑m((0,3,4,5,11,12,13,15)+d(2,6,8) in gate level
model and write test bench to verify its functionality.
L4 CO1
5 Write verilog module for 8-bit comparator with test bench. L1 CO1
6 Explain programming language interface. L2 CO1
7 Write a verilog program for 4x1 Mux in dataflow modeling
using conditional operator.
L1 CO1
8 Explain Delay models in detail. L2 CO1
9 Write short notes on functional verification. L1 CO1
10 Design & write Verilog code for BCD adder along with test
bench to verify its functionality.
L5 CO1

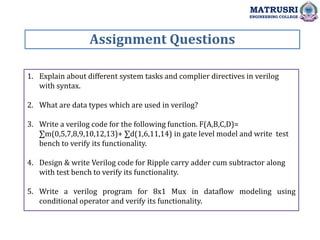

122. Assignment Questions
MATRUSRI
ENGINEERING COLLEGE
1. Explain about different system tasks and complier directives in verilog
with syntax.
2. What are data types which are used in verilog?
3. Write a verilog code for the following function. F(A,B,C,D)=
∑m(0,5,7,8,9,10,12,13)+ ∑d(1,6,11,14) in gate level model and write test
bench to verify its functionality.
4. Design & write Verilog code for Ripple carry adder cum subtractor along
with test bench to verify its functionality.
5. Write a verilog program for 8x1 Mux in dataflow modeling using
conditional operator and verify its functionality.
