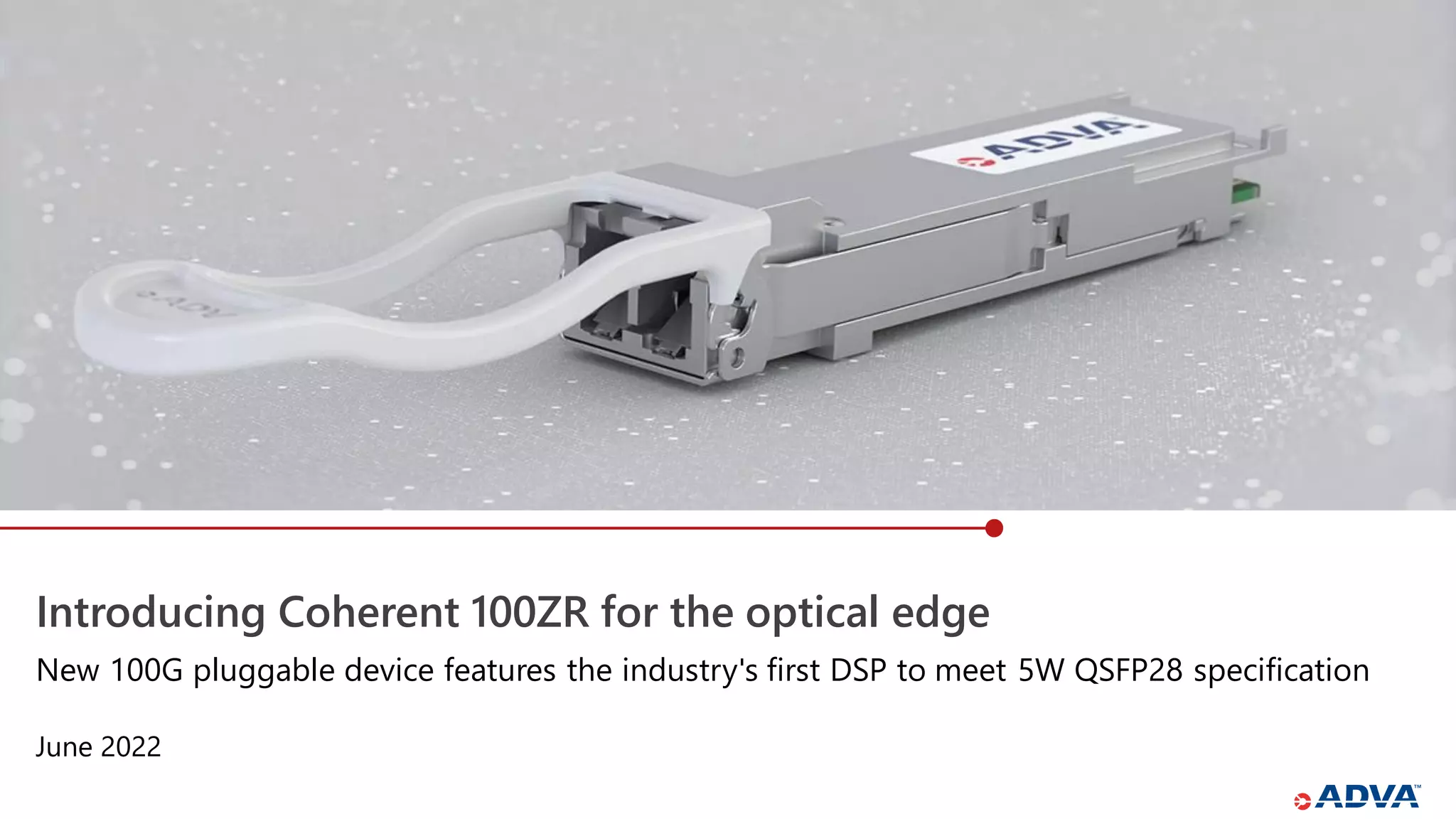

ADVA introduces the coherent 100ZR, a 100G pluggable transceiver designed to meet the strict demands of optical edge aggregation with a 5W QSFP28 specification. This innovative device features automatic wavelength tuning, operates across commercial temperature ranges, and simplifies the upgrade to 100Gbit/s coherent technology for service providers. It is built to efficiently integrate into existing applications, enhancing bandwidth capacity while reducing power consumption.

1. Introducing Coherent 100ZR for the optical edge
June 2022
New 100G pluggable device features the industry's first DSP to meet 5W QSFP28 specification

2. © 2022 ADVA. All rights reserved.
2

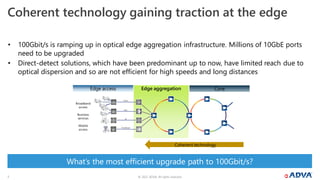

Coherent technology gaining traction at the edge
• 100Gbit/s is ramping up in optical edge aggregation infrastructure. Millions of 10GbE ports
need to be upgraded
• Direct-detect solutions, which have been predominant up to now, have limited reach due to
optical dispersion and so are not efficient for high speeds and long distances
What’s the most efficient upgrade path to 100Gbit/s?
Broadband
access
Mobile
access
Business
services
HFC
Fronthaul
CCAP
IP
FTTH
RPD
ODN
RU
Core
Edge access Edge aggregation
Coherent technology

3. © 2022 ADVA. All rights reserved.
3

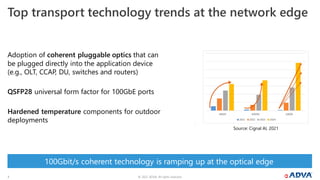

Top transport technology trends at the network edge
Adoption of coherent pluggable optics that can
be plugged directly into the application device
(e.g., OLT, CCAP, DU, switches and routers)
QSFP28 universal form factor for 100GbE ports
Hardened temperature components for outdoor
deployments
Source: Cignal AI, 2021
100Gbit/s coherent technology is ramping up at the optical edge

4. © 2022 ADVA. All rights reserved.
4

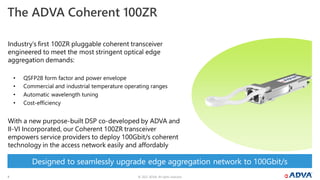

The ADVA Coherent 100ZR
Industry’s first 100ZR pluggable coherent transceiver
engineered to meet the most stringent optical edge
aggregation demands:
• QSFP28 form factor and power envelope
• Commercial and industrial temperature operating ranges
• Automatic wavelength tuning
• Cost-efficiency
With a new purpose-built DSP co-developed by ADVA and
II-VI Incorporated, our Coherent 100ZR transceiver
empowers service providers to deploy 100Gbit/s coherent
technology in the access network easily and affordably
Designed to seamlessly upgrade edge aggregation network to 100Gbit/s

5. © 2022 ADVA. All rights reserved.
5

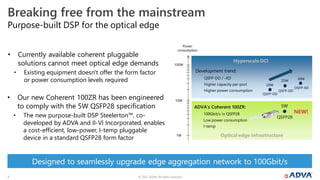

Breaking free from the mainstream
Purpose-built DSP for the optical edge
• Currently available coherent pluggable
solutions cannot meet optical edge demands
• Existing equipment doesn't offer the form factor
or power consumption levels required
Designed to seamlessly upgrade edge aggregation network to 100Gbit/s
100W
10W
1W
25W
20W
Power
consumption
Optical edge infrastructure
Hyperscale DCI
OSFP-XD
QSFP-DD
QSFP-DD
30W
5W
QSFP28
QSFP-DD / -XD
Higher capacity per port
Higher power consumption
100Gbit/s in QSFP28
Low power consumption
I-temp
ADVA’s Coherent 100ZR:
Development trend:
NEW!
• Our new Coherent 100ZR has been engineered
to comply with the 5W QSFP28 specification
• The new purpose-built DSP Steelerton™, co-
developed by ADVA and II-VI Incorporated, enables
a cost-efficient, low-power, I-temp pluggable
device in a standard QSFP28 form factor

6. © 2022 ADVA. All rights reserved.
6

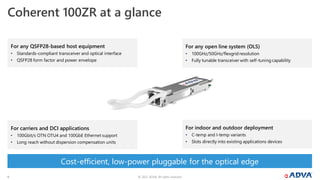

Coherent 100ZR at a glance
For any open line system (OLS)
• 100GHz/50GHz/flexgrid resolution
• Fully tunable transceiver with self-tuning capability
For indoor and outdoor deployment
• C-temp and I-temp variants
• Slots directly into existing applications devices
For carriers and DCI applications
• 100Gbit/s OTN OTU4 and 100GbE Ethernet support
• Long reach without dispersion compensation units
Cost-efficient, low-power pluggable for the optical edge
For any QSFP28-based host equipment
• Standards-compliant transceiver and optical interface
• QSFP28 form factor and power envelope

7. © 2022 ADVA. All rights reserved.
7

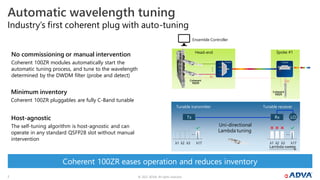

Automatic wavelength tuning
Host-agnostic
The self-tuning algorithm is host-agnostic and can
operate in any standard QSFP28 slot without manual
intervention
No commissioning or manual intervention
Coherent 100ZR modules automatically start the
automatic tuning process, and tune to the wavelength
determined by the DWDM filter (probe and detect)
...
Head-end
FOADM
Spoke #1
Coherent
100ZR
Coherent
100ZR
Minimum inventory
Coherent 100ZR pluggables are fully C-Band tunable
FOADM
λn
λn
Ensemble Controller
Tunable receiver
…
λ1 λ17
λ2 λ3
Tunable transmitter
…
λ1 λ17
λ2 λ3
Rx
Tx LO
Lambda sweep
Uni-directional
Lambda tuning
Coherent 100ZR eases operation and reduces inventory
Industry’s first coherent plug with auto-tuning

8. © 2022 ADVA. All rights reserved.
8

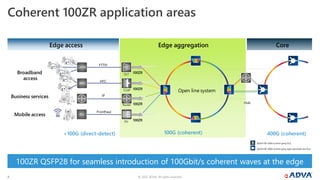

Coherent 100ZR application areas
ADVA FSP 3000 or third-party open terminals and OLS
ADVA FSP 3000 or third-party OLS
Broadband
access
<100G (direct-detect) 400G (coherent)
Mobile access
100G (coherent)
Edge aggregation
Edge access Core
Open line system
Hub
Business services
CCAP
100ZR
Fronthaul
DU
RU
100ZR
HFC
RPD
100ZR
FTTH
ODN
OLT
100ZR
IP
Router
100ZR QSFP28 for seamless introduction of 100Gbit/s coherent waves at the edge
