1. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
400G Product Guide

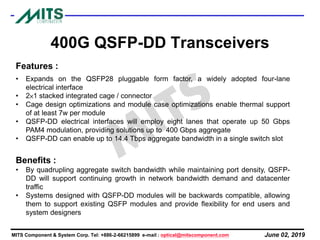

2. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
400G QSFP-DD Transceivers
Features :
• Expands on the QSFP28 pluggable form factor, a widely adopted four-lane
electrical interface
• 2×1 stacked integrated cage / connector
• Cage design optimizations and module case optimizations enable thermal support
of at least 7w per module
• QSFP-DD electrical interfaces will employ eight lanes that operate up 50 Gbps
PAM4 modulation, providing solutions up to 400 Gbps aggregate
• QSFP-DD can enable up to 14.4 Tbps aggregate bandwidth in a single switch slot
Benefits :
• By quadrupling aggregate switch bandwidth while maintaining port density, QSFP-
DD will support continuing growth in network bandwidth demand and datacenter
traffic
• Systems designed with QSFP-DD modules will be backwards compatible, allowing
them to support existing QSFP modules and provide flexibility for end users and
system designers

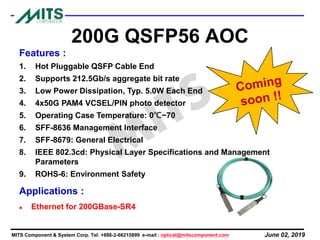

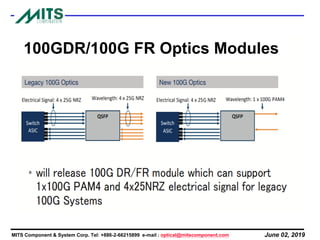

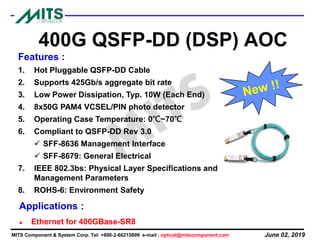

9. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
400G QSFP-DD DAC
Features :
1. Hot Pluggable QSFP-DD MSA Compliant
Cable
2. Up to 400Gb/s data rate (8 x 50Gb/s)
3. SFF-8636 Compliant Management
Interface (I2C)
4. Good signal integrity, low insertion loss
and low crosstalk
5. Operating Case Temperature: 0℃~70℃
6. Single 3.3V supply voltage
7. Copper Link Length : 0.5m, 1m, 1.5m, 2m,
2.5m

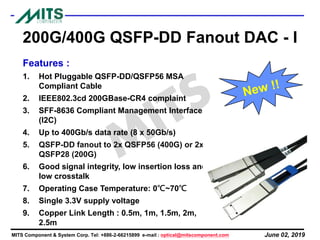

10. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
200G/400G QSFP-DD Fanout DAC - I
Features :
1. Hot Pluggable QSFP-DD/QSFP56 MSA
Compliant Cable
2. IEEE802.3cd 200GBase-CR4 complaint
3. SFF-8636 Compliant Management Interface
(I2C)
4. Up to 400Gb/s data rate (8 x 50Gb/s)
5. QSFP-DD fanout to 2x QSFP56 (400G) or 2x
QSFP28 (200G)
6. Good signal integrity, low insertion loss and
low crosstalk
7. Operating Case Temperature: 0℃~70℃
8. Single 3.3V supply voltage
9. Copper Link Length : 0.5m, 1m, 1.5m, 2m,
2.5m
11. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com

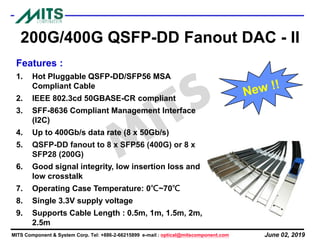

200G/400G QSFP-DD Fanout DAC - II
Features :
1. Hot Pluggable QSFP-DD/SFP56 MSA
Compliant Cable
2. IEEE 802.3cd 50GBASE-CR compliant
3. SFF-8636 Compliant Management Interface
(I2C)
4. Up to 400Gb/s data rate (8 x 50Gb/s)
5. QSFP-DD fanout to 8 x SFP56 (400G) or 8 x
SFP28 (200G)
6. Good signal integrity, low insertion loss and
low crosstalk
7. Operating Case Temperature: 0℃~70℃
8. Single 3.3V supply voltage
9. Supports Cable Length : 0.5m, 1m, 1.5m, 2m,
2.5m

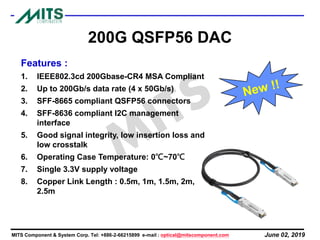

12. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
200G QSFP56 DAC
Features :
1. IEEE802.3cd 200Gbase-CR4 MSA Compliant
2. Up to 200Gb/s data rate (4 x 50Gb/s)
3. SFF-8665 compliant QSFP56 connectors
4. SFF-8636 compliant I2C management
interface
5. Good signal integrity, low insertion loss and
low crosstalk
6. Operating Case Temperature: 0℃~70℃
7. Single 3.3V supply voltage
8. Copper Link Length : 0.5m, 1m, 1.5m, 2m,
2.5m

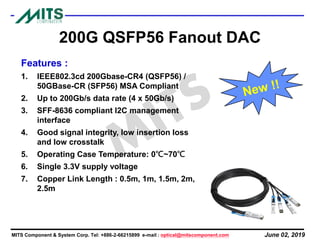

13. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
200G QSFP56 Fanout DAC
Features :
1. IEEE802.3cd 200Gbase-CR4 (QSFP56) /
50GBase-CR (SFP56) MSA Compliant
2. Up to 200Gb/s data rate (4 x 50Gb/s)
3. SFF-8636 compliant I2C management
interface
4. Good signal integrity, low insertion loss
and low crosstalk
5. Operating Case Temperature: 0℃~70℃
6. Single 3.3V supply voltage
7. Copper Link Length : 0.5m, 1m, 1.5m, 2m,
2.5m
14. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
50G SFP56 DAC
Features :
1. IEEE802.3cd 50Gbase-CR MSA Compliant
2. Up to 50Gb/s data rate
3. SFF-8432 compliant I2C management
interface
4. Good signal integrity, low insertion loss and
low crosstalk
5. Operating Case Temperature: 0℃~70℃
6. Single 3.3V supply voltage
7. Copper Link Length : 0.5m, 1m, 1.5m, 2m,
2.5m

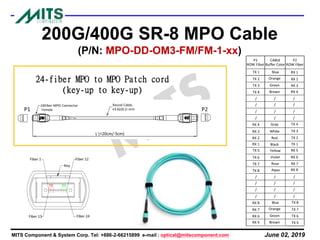

15. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
24-fiber MPO to MPO Patch cord
(key-up to key-up)
200G/400G SR-8 MPO Cable
(P/N: MPO-DD-OM3-FM/FM-1-xx)
16. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
16-fiber MPO to MPO Patch cord
(key-up to key-up)
200G/400G SR-8 MPO Cable
(P/N: MPT-16-OM3-FM/FM-1-xx)

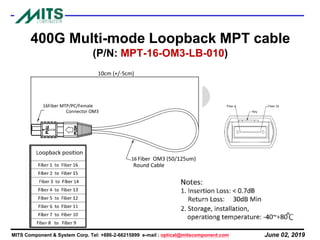

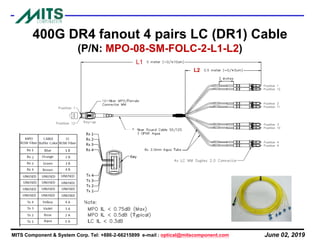

18. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
400G Multi-mode Loopback MPT cable
(P/N: MPT-16-OM3-LB-010)

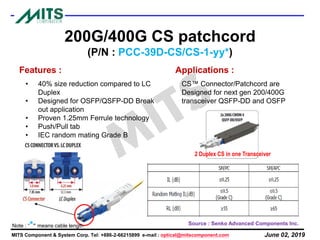

19. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
200G/400G CS patchcord
(P/N : PCC-39D-CS/CS-1-yy*)
Features :
• 40% size reduction compared to LC
Duplex
• Designed for OSFP/QSFP-DD Break
out application
• Proven 1.25mm Ferrule technology
• Push/Pull tab
• IEC random mating Grade B
Applications :
CS™ Connector/Patchcord are
Designed for next gen 200/400G
transceiver QSFP-DD and OSFP
Source : Senko Advanced Components Inc.
2 Duplex CS in one Transceiver
Note : “*” means cable length

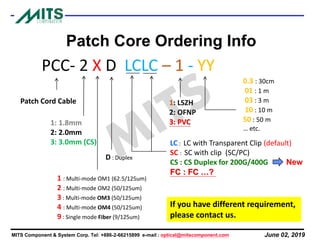

20. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
PCC- 2 X D LCLC – 1 - YY
1: 1.8mm
2: 2.0mm
3: 3.0mm (CS)
1 : Multi-mode OM1 (62.5/125um)
2 : Multi-mode OM2 (50/125um)
3 : Multi-mode OM3 (50/125um)
4 : Multi-mode OM4 (50/125um)
9 : Single mode Fiber (9/125um)
D : Duplex
LC : LC with Transparent Clip (default)
SC : SC with clip (SC/PC)
CS : CS Duplex for 200G/400G
FC : FC …?
Patch Cord Cable
0.3 : 30cm
01 : 1 m
03 : 3 m
10 : 10 m
50 : 50 m
… etc.
If you have different requirement,
please contact us.
1: LSZH
2: OFNP
3: PVC
Patch Core Ordering Info
New
21. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
QSFP-DD Loopback Module – ML4062
Features
• Hot Pluggable module
• Thermal resistor
• Cutoff temperature preventing module
overheating
• Cable assemblies for power & I2C Control
• Custom memory maps
Features
• Supports 8x50G electrical interface
• QSFP-DD MSA Form Factor
• Microcontroller programmed to maintain user
specified PD or constant temperature
• 2 Thermistors on PCBA
• 4 independent power heathers, with 0.1W
resolution, up to 14W
• Temperature Monitor and alarms warning
• Superior SI performance
• MSA Compatible Configuration and EEPROM
• Supports 50G Analog Coherent
• Loops back TX to RX on all 8 ports I2C Interface
• Programmable MSA memory pages
• I2C control from edge connectors and from rear
pin header
• 2 status LED Indicator
• Insertions counter
Applications
• 8x50G Electrical module testing and
characterization
• QSFP-DD Port compliant testing
Type 1
Type 2
1. ML4062-S w/ Ext I2C connector
2. ML4062-SLB w/o external I2C
3. ML4062-TL1 (type 1) for thermal only
4. ML4062-TL2 (type 2) for thermal only
22. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
400G ZR+ (20W) Thermal Load & Loopback
ML-4062_TL2a Series (QSFP-DD type 2)
23. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com

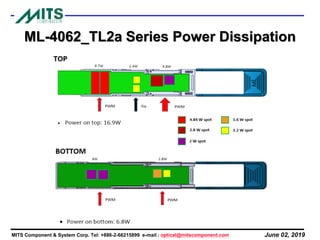

ML-4062_TL2a Series Power Dissipation
24. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
QSFP-DD Module Compliance Board–
ML4062-MCB
Features :
• Supports 8x50G interfaces
• I2C master driven from both on board
microcontroller or external pin headers
• 40 GHz Bo-Jiang 2.92mm K Connectors
• Current Sense
• Matched differential trace length
• All 8 channels comes with matching trace length
• High performance signal integrity traces from K
connectors to QSFP-DD host connector.
• On-board LEDs display MSA output alarm states
• On-board buttons/jumpers for MSA input control
signals
• User friendly GUI for I2C R/W commands and
loading custom MSA memory maps
• Four corner testing capability
• USB interface
Applications
• Module Test
25. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
This Breakout module can be used for testing and characterizing 8x50G line cards
and host interfaces.

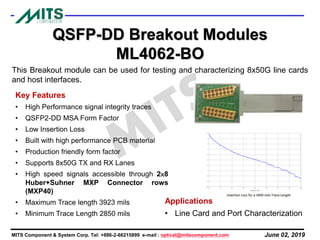

QSFP-DD Breakout Modules
ML4062-BO
Key Features
• High Performance signal integrity traces
• QSFP2-DD MSA Form Factor
• Low Insertion Loss
• Built with high performance PCB material
• Production friendly form factor
• Supports 8x50G TX and RX Lanes
• High speed signals accessible through 2×8
Huber+Suhner MXP Connector rows
(MXP40)
• Maximum Trace length 3923 mils
• Minimum Trace Length 2850 mils
Applications
• Line Card and Port Characterization
26. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com

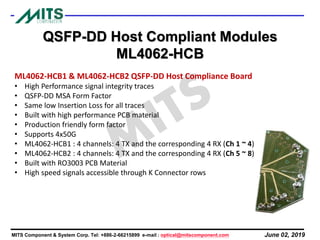

QSFP-DD Host Compliant Modules
ML4062-HCB
ML4062-HCB1 & ML4062-HCB2 QSFP-DD Host Compliance Board
• High Performance signal integrity traces
• QSFP-DD MSA Form Factor
• Same low Insertion Loss for all traces
• Built with high performance PCB material
• Production friendly form factor
• Supports 4x50G
• ML4062-HCB1 : 4 channels: 4 TX and the corresponding 4 RX (Ch 1 ~ 4)
• ML4062-HCB2 : 4 channels: 4 TX and the corresponding 4 RX (Ch 5 ~ 8)
• Built with RO3003 PCB Material
• High speed signals accessible through K Connector rows
27. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com

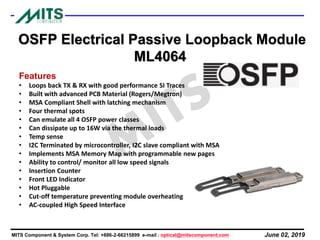

OSFP Electrical Passive Loopback Module
ML4064
Features
• Loops back TX & RX with good performance SI Traces
• Built with advanced PCB Material (Rogers/Megtron)
• MSA Compliant Shell with latching mechanism
• Four thermal spots
• Can emulate all 4 OSFP power classes
• Can dissipate up to 16W via the thermal loads
• Temp sense
• I2C Terminated by microcontroller, I2C slave compliant with MSA
• Implements MSA Memory Map with programmable new pages
• Ability to control/ monitor all low speed signals
• Insertion Counter
• Front LED Indicator
• Hot Pluggable
• Cut-off temperature preventing module overheating
• AC-coupled High Speed Interface
28. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
OSFP Host Compliant Modules
ML4064-HCB
ML4064-HCB OSFP Host Compliance Board
• High Performance signal integrity traces
• OSFP MSA Form Factor
• Same low Insertion Loss for all traces
• Built with high performance PCB material
• Supports 8x50G
• Built with RO3003 PCB Material
• High speed signals accessible through K-Connectors
• 8 channels: 8 TX and the corresponding 8 RX
• Matched trace length 5972.48 mils
29. June 02, 2019MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com

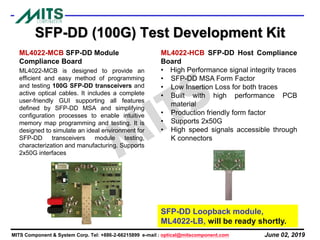

SFP-DD (100G) Test Development Kit
ML4022-MCB SFP-DD Module
Compliance Board
ML4022-MCB is designed to provide an
efficient and easy method of programming
and testing 100G SFP-DD transceivers and
active optical cables. It includes a complete
user-friendly GUI supporting all features
defined by SFP-DD MSA and simplifying
configuration processes to enable intuitive
memory map programming and testing. It is
designed to simulate an ideal environment for
SFP-DD transceivers module testing,
characterization and manufacturing. Supports
2x50G interfaces
ML4022-HCB SFP-DD Host Compliance
Board
• High Performance signal integrity traces
• SFP-DD MSA Form Factor
• Low Insertion Loss for both traces
• Built with high performance PCB
material
• Production friendly form factor
• Supports 2x50G
• High speed signals accessible through
K connectors
SFP-DD Loopback module,
ML4022-LB, will be ready shortly.
