1. The 400G transition
NGON, Nice
June 2018

2. © 2018 ADVA Optical Networking. All rights reserved.22

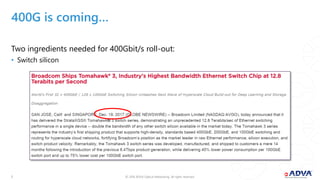

400G is coming…
Two ingredients needed for 400Gbit/s roll-out:
• Switch silicon

3. © 2018 ADVA Optical Networking. All rights reserved.33

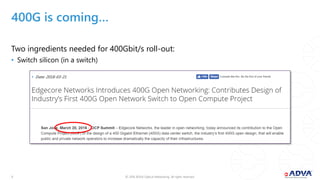

400G is coming…
Two ingredients needed for 400Gbit/s roll-out:
• Switch silicon (in a switch)

4. © 2018 ADVA Optical Networking. All rights reserved.44
Two ingredients needed for 400Gbit/s roll-out:
• Switch silicon (in a switch)
400G is coming…
Edge-Core: AS9716-32X

5. © 2018 ADVA Optical Networking. All rights reserved.55

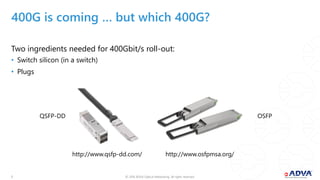

400G is coming … but which 400G?
Two ingredients needed for 400Gbit/s roll-out:
• Switch silicon (in a switch)
• Plugs
QSFP-DD OSFP
http://www.qsfp-dd.com/ http://www.osfpmsa.org/

6. © 2018 ADVA Optical Networking. All rights reserved.66
COMPARISON OF QSFP-DD AND OSFP FORM FACTORS
Attribute QSFP-DD OSFP Comments
Physical size for
component
placement
(one side)
Approx. 723mm2 Approx. 1642mm2
Smaller QSFP-DD is good for higher
density switch/transport boxes
Larger OSFP is good for module
manufacturers
Power dissipation
Typically 12W
>14W is allowed
Up to 15W
QSFP-DD has been shown to work
with 15W power dissipation in
certain applications
Heat sinking
Implementation open
to module supplier
Specified by MSA
QSFP-DD offers more flexible heat
sinking options
Electrical interface 8x 50Gbit/s, PAM4 8x 50Gbit/s, PAM4
Backward
compatibility
Directly compatible
with QSFP & QSFP28
plugs
Offers adaptor for
compatibility to
QSFP28 plug
Recent
demonstrations
AOC, SR8, DR4, FR4,
FR8, LR8
AOC, SR4, 2xFR4, LR8 At OFC 2018

7. © 2018 ADVA Optical Networking. All rights reserved.77

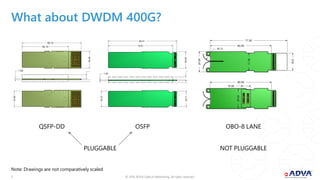

What about DWDM 400G?
QSFP-DD OSFP OBO-8 LANE
Note: Drawings are not comparatively scaled
PLUGGABLE NOT PLUGGABLE

8. © 2018 ADVA Optical Networking. All rights reserved.88

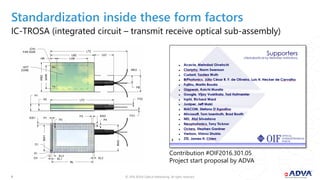

Standardization inside these form factors
IC-TROSA (integrated circuit – transmit receive optical sub-assembly)
Contribution #OIF2016.301.05
Project start proposal by ADVA

9. © 2018 ADVA Optical Networking. All rights reserved.99

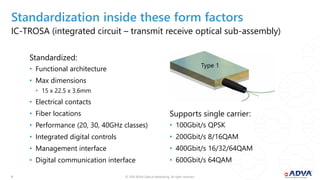

Standardization inside these form factors
IC-TROSA (integrated circuit – transmit receive optical sub-assembly)
Standardized:
• Functional architecture
• Max dimensions
• 15 x 22.5 x 3.6mm
• Electrical contacts
• Fiber locations
• Performance (20, 30, 40GHz classes)
• Integrated digital controls
• Management interface
• Digital communication interface
Supports single carrier:
• 100Gbit/s QPSK
• 200Gbit/s 8/16QAM
• 400Gbit/s 16/32/64QAM
• 600Gbit/s 64QAM
Type 1

10. © 2018 ADVA Optical Networking. All rights reserved.1010

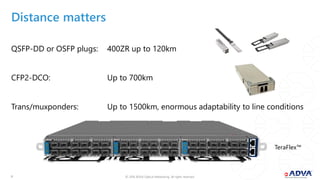

Distance matters

11. © 2018 ADVA Optical Networking. All rights reserved.1111
Distance matters
QSFP-DD or OSFP plugs: 400ZR up to 120km
CFP2-DCO: Up to 700km
Trans/muxponders: Up to 1500km, enormous adaptability to line conditions
TeraFlex™

12. © 2018 ADVA Optical Networking. All rights reserved.1212
And when?
2018: Technology testing
2019: Initial deployments
2020: Ramping up

13. © 2018 ADVA Optical Networking. All rights reserved.1313

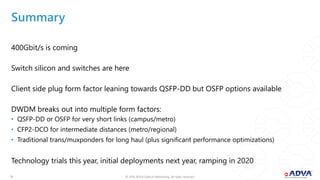

Summary
400Gbit/s is coming
Switch silicon and switches are here
Client side plug form factor leaning towards QSFP-DD but OSFP options available
DWDM breaks out into multiple form factors:
• QSFP-DD or OSFP for very short links (campus/metro)
• CFP2-DCO for intermediate distances (metro/regional)
• Traditional trans/muxponders for long haul (plus significant performance optimizations)
Technology trials this year, initial deployments next year, ramping in 2020
