The document discusses the increasing demand for data center interconnects due to forecasted growth in data traffic, emphasizing the role of photonic integrated circuits (PICs) in providing cost-effective, high-speed connections. It outlines the architecture of data centers and highlights the need for standardized optical modules to enhance efficiency and performance in interconnections. The conclusion reflects the potential of silicon photonics and integration of electronics with photonics for future data center applications.

1. Annika Dochhan
24 September, 2019
Photonic integrated circuits for data center
interconnects

2. © 2019 ADVA Optical Networking. All rights reserved.22

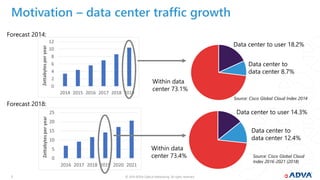

Motivation – data center traffic growth
Forecast 2014:
Within data
center 73.1%
Data center to user 18.2%
Data center to
data center 8.7%
Source: Cisco Global Cloud Index 2014
Forecast 2018:
Within data
center 73.4%
Data center to user 14.3%
Data center to
data center 12.4%
Source: Cisco Global Cloud
Index 2016-2021 (2018)

3. © 2019 ADVA Optical Networking. All rights reserved.33

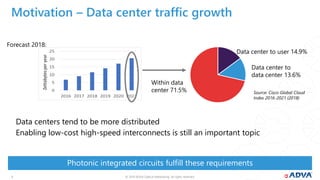

Motivation – Data center traffic growth
Forecast 2018:
Within data
center 71.5%
Data center to user 14.9%
Data center to
data center 13.6%
Source: Cisco Global Cloud
Index 2016-2021 (2018)
Data centers tend to be more distributed
Enabling low-cost high-speed interconnects is still an important topic
Photonic integrated circuits fulfill these requirements

4. © 2019 ADVA Optical Networking. All rights reserved.44
Overview
Data center architecture
Photonic integrated circuits
Optical modules
1
2
3

5. 5 © 2019 ADVA Optical Networking. All rights reserved. Confidential.
Data center architecture

6. © 2019 ADVA Optical Networking. All rights reserved.66
Data center architecture
Tier 0 switches service a rack
Tier 1 switches service a ”row“
(of racks)
Tier 2 switches service a
“colocation“
Tier 3 switches service a data
center
• Interface to long-haul
network
• Also interface to metro
network
Tier 0 Tier 0 Tier 0
…
Tier 1 Tier 1 Tier 1…
Tier 2 Tier 2 Tier 2…
Tier 3
Tier 3
…
Tier 1
Tier 2
Tier 3
Long-haul: 1000s of km
Metro:<80km
Copper cables
Active optical cables
≤2km optics
≤2km optics
Coherent optics
IM/DD optics

7. © 2019 ADVA Optical Networking. All rights reserved.77

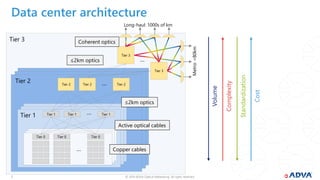

Data center architecture
Tier 0 Tier 0 Tier 0
…
Tier 1 Tier 1 Tier 1…
Tier 2 Tier 2 Tier 2…
Tier 3
Tier 3
…
Tier 1
Tier 2
Tier 3
Long-haul: 1000s of km
Metro:<80km
Copper cables
Active optical cables
≤2km optics
≤2km optics
Coherent optics
Complexity
Volume
Standardization
Cost

8. 8 © 2019 ADVA Optical Networking. All rights reserved. Confidential.
Photonic integrated circuits

9. © 2019 ADVA Optical Networking. All rights reserved.99

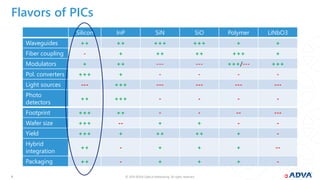

Flavors of PICs
Silicon InP SiN SiO Polymer LiNbO3
Waveguides ++ ++ +++ +++ + +
Fiber coupling - + ++ ++ +++ +
Modulators + ++ --- --- +++/--- +++
Pol. converters +++ + - - - -
Light sources --- +++ --- --- --- ---
detectors
++ +++ - - - -
Footprint +++ ++ - - -- ---
Wafer size +++ -- + + - -
Yield +++ + ++ ++ + -
Hybrid
integration
++ - + + + --
Packaging ++ - + + + -

10. © 2019 ADVA Optical Networking. All rights reserved.1010

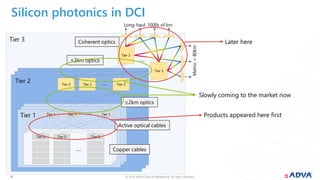

Silicon photonics in DCI
Tier 0 Tier 0 Tier 0
…
Tier 1 Tier 1 Tier 1…
Tier 2 Tier 2 Tier 2…
Tier 3
Tier 3
…
Tier 1
Tier 2
Tier 3
Long-haul: 1000s of km
Metro:<80km
Copper cables
Active optical cables
≤2km optics
≤2km optics
Coherent optics
Products appeared here first
Later here
Slowly coming to the market now

11. © 2019 ADVA Optical Networking. All rights reserved.1111

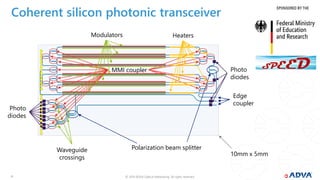

Coherent silicon photonic transceiver
Polarization beam splitter
MMI coupler
Edge
coupler
diodes
diodes
Modulators Heaters
Waveguide
crossings
10mm x 5mm

12. © 2019 ADVA Optical Networking. All rights reserved.1212

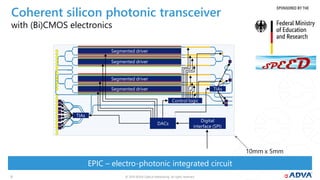

with (Bi)CMOS electronics
EPIC – electro-photonic integrated circuit
Coherent silicon photonic transceiver
Segmented driver
Segmented driver
Segmented driver
Segmented driver
TIAs
TIAs
DACs
Digital
interface (SPI)
Control logic
10mm x 5mm

13. © 2019 ADVA Optical Networking. All rights reserved.1313

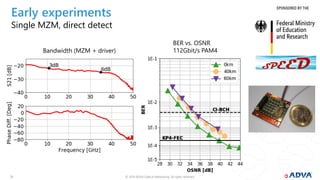

Early experiments
Single MZM, direct detect
BER vs. OSNR
112Gbit/s PAM4Bandwidth (MZM + driver)

14. © 2019 ADVA Optical Networking. All rights reserved.1414

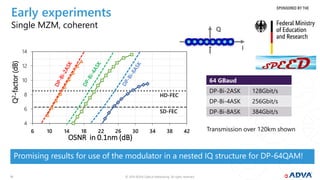

Early experiments
Single MZM, coherent
4
6
8
10
12
14
6 10 14 18 22 26 30 34 38 42
Q2-factor(dB)
OSNR in 0.1nm (dB)
HD-FEC
SD-FEC
64 GBaud
DP-Bi-2ASK 128Gbit/s
DP-Bi-4ASK 256Gbit/s
DP-Bi-8ASK 384Gbit/s
Promising results for use of the modulator in a nested IQ structure for DP-64QAM!
I
Q
Transmission over 120km shown

15. © 2019 ADVA Optical Networking. All rights reserved.1515

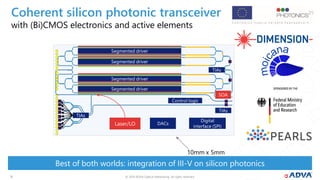

with (Bi)CMOS electronics and active elements
Best of both worlds: integration of III-V on silicon photonics
Coherent silicon photonic transceiver
Segmented driver
Segmented driver
Segmented driver
Segmented driver
TIAs
TIAs
DACs
Digital
interface (SPI)
Control logic
10mm x 5mm
Laser/LO
SOA
TIAs

16. 16 © 2019 ADVA Optical Networking. All rights reserved. Confidential.
Optical modules

17. © 2019 ADVA Optical Networking. All rights reserved.1717
Higher bandwidth, lower power consumption, lower footprint.
Optical interfaces

18. © 2019 ADVA Optical Networking. All rights reserved.1818
Integrated coherent transmitter-receiver optical sub-assembly
• Coherent optical engine that enables
small form-factor pluggables
• QSFP-DD, OSFP, COBO, etc.
• Brings down cost through standard
assembly processes
• SMT, pick & place, …
• But active optical alignment
• High RF performance through short
traces
• BGA mount
Enabling interchangable short-reach IM/DD and long-reach coherent modules
IC-TROSA

19. © 2019 ADVA Optical Networking. All rights reserved.1919

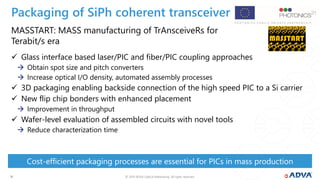

MASSTART: MASS manufacturing of TrAnsceiveRs for
Terabit/s era
 Glass interface based laser/PIC and fiber/PIC coupling approaches
 Obtain spot size and pitch converters
 Increase optical I/O density, automated assembly processes
 3D packaging enabling backside connection of the high speed PIC to a Si carrier
 New flip chip bonders with enhanced placement
 Improvement in throughput
 Wafer-level evaluation of assembled circuits with novel tools
 Reduce characterization time
Cost-efficient packaging processes are essential for PICs in mass production
Packaging of SiPh coherent transceiver

20. © 2019 ADVA Optical Networking. All rights reserved.2020

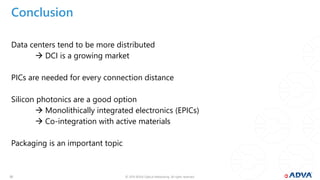

Conclusion
Data centers tend to be more distributed
 DCI is a growing market
PICs are needed for every connection distance
Silicon photonics are a good option
 Monolithically integrated electronics (EPICs)
 Co-integration with active materials
Packaging is an important topic
