400G/800G High Speed Networking product guide

Oct. 01, 2022
旭捷電子高速
網路產品概要
100G/200G/400G/800G/3.2T CPO
Ultra High-Speed
Networking
Product
Guide

Oct. 03, 2022
MITS Component & System Corp. Tel: +886-2-66215899 e-mail : optical@mitscomponent.com
Scaling of the switch capacity

Oct. 03, 2022
400G/800G/3.2T Optical Engine & CPO
Moving Optics Inside

Oct. 03, 2022
Co-Packaged Optics (CPO) Products
3.2T Optical Engine with MPO-16 for 51.2T Switch application
Fiber
Connector
Fibers
per
Connector
Connecto
rs per
1RU
Fibers
per 1
RU
Reference Standard
MPO-16 16 80 1280
TIA-604-18(13)
IEC 61754-7-4 (14)
We Offer Photonic MCMs for High-Speed Applications (50 GBdand Beyond)
• Flip-Chip Bonded Si Photonic TX/RX, Modulator Driver, TIA, and DSP on a Single LTCC Substrate
• High-Performance, Affordable, Small-Form Factor
• BGA Pads Can Be Easily Soldered to PCBs

Oct. 03, 2022
Understanding the Form Factors

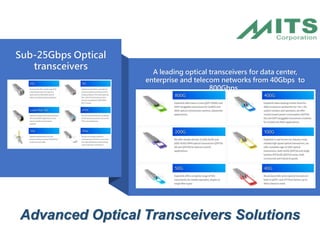

Advanced Optical Transceivers Solutions
A leading optical transceivers for data center,
enterprise and telecom networks from 40Gbps to
800Gbps.
Sub-25Gbps Optical
transceivers

Apr. 28, 2022
4-Lambda NRZ moves to 1-Lambda PAM4
Let your existing 4x25G QSFP28 system seamless upgrade to
connect to the 100G single Lambda PAM4 System
Seamless
Upgrade
100G
(No need to upgrade your 100G QSFP28 System, but transceivers)

Apr. 28, 2022
100G Single λ Transceivers (Part I)
(1x100G single lambda)
Part No. Description Data Rate Wavelength Distance Connector Temp.
EOLQ-131HG-O-5H-X QSFP28 DR 1×100G 1311nm 500m LC C
EOLQ-131HG-O-02-X QSFP28 FR 1×100G 1311nm 2km LC C
EOLQ-131HG-O-10-X QSFP28 LR 1×100G 1311nm 10km LC C
EOLQ-131HG-O-5H-XI QSFP28 DR 1x100G 1311nm 500m LC I
EOLQ-131HG-O-02-XI QSFP28 FR 1x100G 1311nm 2km LC I
EOLQ-131HG-O-10-XI QSFP28 LR 1x100G 1311nm 10km LC I
QSFP28 Transceivers
EOLQ-BI161HG-10-AD6 BIDI QSFP28 100G LR 1x100Gbps 1271nm/1331nm 10km LC С
EOLQ-BI161HG-10-DA6 BIDI QSFP28 100G LR 1x100Gbps 1331nm/1271nm 10km LC С
EOLQ-BI161HG-40-YZ6 BIDI QSFP28 100G ER 1x100Gbps 1304.58nm/1309.14nm 40km LC С
EOLQ-BI161HG-40-ZY6 BIDI QSFP28 100G ER 1x100Gbps 1309.14nm/1304.58nm 40km LC С
BiDi QSFP28 Transceivers
EOLSD-131HG-O-5H-36 SFP56-DD DR 1×100G 1311nm 500m LC C
EOLSD-131HG-O-02-36 SFP56-DD FR 1×100G 1311nm 2km LC C
EOLSD-131HG-O-10-36 SFP56-DD LR 1×100G 1311nm 10km LC C
SFP56-DD Transceivers

100G/200G/400G/800G
Direct Attached Cable (DAC) Solution

Product
Max
Length
Aggregated Data-Rate &
Standard Compliance
DSFP56 - DSFP56 Active Copper Cable 3m-10m 2x50G PAM4, IEE 802.3cd
QSFP56 - 2XDSFP56 Active Copper Cable 3m-10m 4x50G PAM IEEE 802.3cd
QSFP56 - QSFP56 Active Copper Cable 3m-10m 4x50G PAM4, IEEE 802.3cd
QSFP-DD - QSFP-DD Active Copper Cable 3m-7m 8x50G PAM4, IEE 802.3cd
QSFP-DD56 - 2x QSFP56 Active Copper Cable 3m-7m 8x50G PAM4, IEEE 802.3cd
QSFP28 - QSFP28 Active Copper Cable 5m-10m 4x25G NRZ, IEEE 802.3bj
SFP28 - SFP28 Active Copper Cable 5m-10m 25G NRZ, IEEE 802.3bj
QSFP28 - 4XSFP28 Active Copper Cable 5m-10m 4x25G NRZ, IEEE 802.3bj
25G/50G/100G/200G/400G
Active Copper Cables (ACC) Solution

• 800G QSFP-DD AOC Cable
• 400G QSFP-DD AOC Cable
• 200G QSFP56 AOC Cable
• 100G QSFP28/DSFP AOC Cable
• 100G QSFP28 (4x25G) fanout Cable
• 25G/56G SFP28/SFP56 AOC cable
• 40G/56G QSFP+ AOC Cable
• 40G QSFP+ (4x10G) fanout Cable
• 10G SFP+ AOC cable

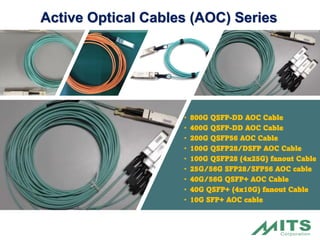

Active Optical Cables (AOC) Series

Oct. 03, 2022
MPO Cables Solution
• MPO/MTP Cable products (optional for MTP type)
➢ MPO Cables :
◆ MPO 08 cables (4x10G/4x25G/4x56G/4x100G) with SM or MM fibers.
◆ MPO/MTP 16 Cables (8x 50G) MM fiber
◆ MPO 24 cables for 100G CXP/SR-10 & 200G/400G SR-8 mm fiber
➢ MPO Break-out Series
◆ 1 : 4 (8f to 4x 2f) -- QSFP+/QSFP28/QSFP56/QSFP-DD/OSFP to 4 pairs
LC with SM or MM Duplex cables (4 x SFP+/SFP28/SFP56/DR1/FR1 )
◆ 1 : 2 (16f to 2x 8f) – QSFP-DD/OSFP (400G/200G) to 2 x
QSFP56/QSFP28
◆ 1 : 10 (24f to 12x 2f) -- 100G SR-10 to 10 pairs LC Duplex cables (10 x
SFP+ )
◆ 1: 3 (24f to 3x 8f) -- 120G CXP to 3 QSFP+ cables
➢ Loopback MPO cable
◆ MPO-08 -- QSFP/QSFP28/QSFP56/QSFP-DD/OSFP SM & MM
Loopback cable
◆ MPO-16 -- QSFP-DD/OSFP (MTP-16) MM Loopback cable
◆ MPO-24 -- 120G CXP/100G SR-10/QSFP-DD Loopback Cable
⚫ MPO Adaptor
MPO OM4
MPO OM3
MPO OM3
Fanout 4xLC
MPO SM
Fanout 6xLC

Oct. 03, 2022
• SR10/DR8/FR8/LR8
– MMF ribbon
– 24 fibers: 10 active/dir or 16 fibers: 8
active/dir
– Flat MPO/MTP connector
• SR4 (MMF) & DR4/FR4 (SMF)
– MMF ribbon
– 12 fibers: 4 active/dir
– Flat or Angled MPO/MTP connector
• SR8/DR8/FR8/LR8
– MMF ribbon
– 16 fibers: 8 active/dir
– Flat MPO/MTP connector
MPO/MTP Connector types Fiber Optical Cable types
MPO 1x12 MPO 1x16
MPO 2x12
FC LC SC ST
ST <--> LC

Oct. 03, 2022
Fiber Optical Cable – Patch Cord

Oct. 03, 2022
* New releases
Comprehensive Interconnects
(Global Leader in Interconnect Solutions)
◼ OSFP XD in 2023

Active Loopback (ALB)
800G: New port Test Challenges
• DSP based loopback module
• Multiple DSP vendors supported
• Ideal for:
• High loss port validation
• Host module link training (FFE tap
calibration)
• High loss ports require retiming to
recover link
• Active loopbacks enable retiming and
equalization of host port signal
• PRBS Generator and Detector Supported
(BER Test)
• Validate port performance with an active
device (improved performance over
passive)
Small device, but powerful features to trigger your RD design & also the production line use.

Passive Loopback Modules Guide

Oct. 03, 2022

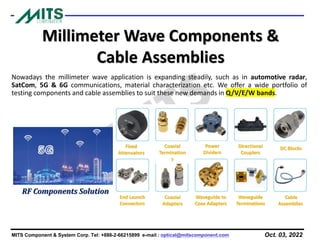

Millimeter Wave Components &
Cable Assemblies
Nowadays the millimeter wave application is expanding steadily, such as in automotive radar,
SatCom, 5G & 6G communications, material characterization etc. We offer a wide portfolio of
testing components and cable assemblies to suit these new demands in Q/V/E/W bands.
Cable
Assemblies
Fixed
Attenuators
End Launch
Connectors
Coaxial
Termination
s
Coaxial
Adapters
Power
Dividers
Waveguide to
Coax Adapters
Directional
Couplers
Waveguide
Terminations
DC Blocks
RF Components Solution

Oct. 03, 2022
• 26.5, 40, 50, 67 GHz bandwidth
• Single phase-stable cables, or phase matched cable
pairs
• Phase-matched cable groups (4, 8, 16, 32) also
available
• Minimal attenuation and signal distortion
• Test instrumentation connection to DUT evaluation
boards
• Connecting test fixtures to instruments
• SMA (3.5), 2.92, 2.4, or 1.85 mm available
• Maximum intrapair skew of 1ps

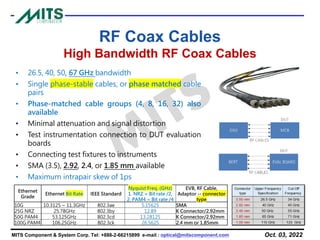

RF Coax Cables
High Bandwidth RF Coax Cables
Ethernet
Grade
Ethernet Bit Rate IEEE Standard
Nyquist Freq. (GHz)
1. NRZ = Bit rate /2,
2. PAM4 = Bit rate /4
EVB, RF Cable,
Adaptor -- connector
type
10G 10.3125 ~ 11.3GHz 802.3ae 5.15625 SMA
25G NRZ 25.78GHz 802.3by 12.89 K Connector/2.92mm
50G PAM4 53.125GHz 802.3cd 13.28125 K Connector/2.92mm
100G PAM4 106.25GHz 802.3ck 26.5625 2.4 mm or 1.85mm

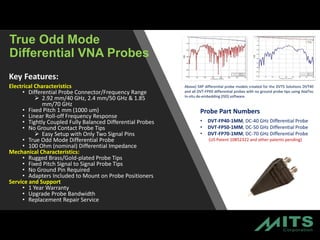

True Odd Mode
Differential VNA Probes
Key Features:
Electrical Characteristics
• Differential Probe Connector/Frequency Range
➢ 2.92 mm/40 GHz, 2.4 mm/50 GHz & 1.85
mm/70 GHz
• Fixed Pitch 1 mm (1000 um)
• Linear Roll-off Frequency Response
• Tightly Coupled Fully Balanced Differential Probes
• No Ground Contact Probe Tips
➢ Easy Setup with Only Two Signal Pins
• True Odd Mode Differential Probe
• 100 Ohm (nominal) Differential Impedance
Mechanical Characteristics:
• Rugged Brass/Gold-plated Probe Tips
• Fixed Pitch Signal to Signal Probe Tips
• No Ground Pin Required
• Adapters Included to Mount on Probe Positioners
Service and Support
• 1 Year Warranty
• Upgrade Probe Bandwidth
• Replacement Repair Service
Probe Part Numbers
• DVT-FP40-1MM, DC-40 GHz Differential Probe
(US Patent 10852322 and other patents pending)

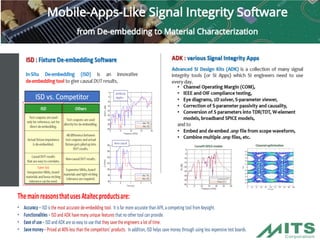

如有進一步的產品需求, 歡迎與我們聯繫 !!
MITS Component & System Corp.
Tel : +886-2-66215899
E-mail : optical@mitscomponent.com
Website : https://tw.mitscomponent.com/products.php
