The document discusses 100G aggregation solutions for network edges. It describes two products from ADVA Optical Networking that provide 100G aggregation: the FSP 150-XG480 for service demarcation and traffic aggregation in networks, and the FSP 150-Z4806 optimized for interconnecting regional data centers and fanout of 10G services. These 100G aggregation solutions enable bandwidth growth and offer opportunities for business expansion.

1. Application-optimized 100G demarcation and
aggregation
November 28, 2018

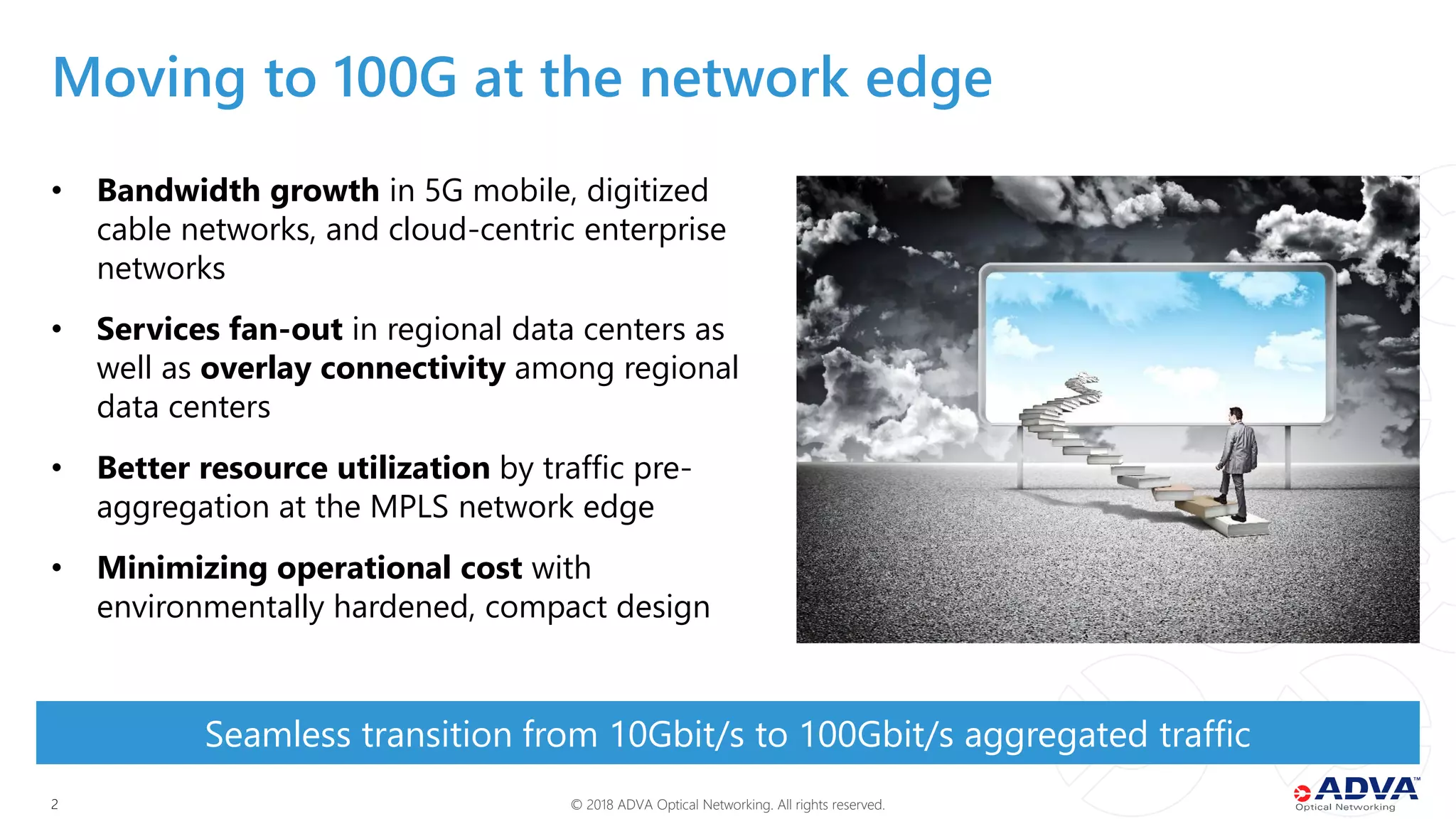

2. © 2018 ADVA Optical Networking. All rights reserved.22
• Bandwidth growth in 5G mobile, digitized
cable networks, and cloud-centric enterprise
networks
• Services fan-out in regional data centers as
well as overlay connectivity among regional
data centers
• Better resource utilization by traffic pre-
aggregation at the MPLS network edge
• Minimizing operational cost with
environmentally hardened, compact design
Seamless transition from 10Gbit/s to 100Gbit/s aggregated traffic
Moving to 100G at the network edge

3. © 2018 ADVA Optical Networking. All rights reserved.33
Converged fixed and mobile packet networks
Digitized cable metro networks
Demarcation at multi-tenant sites
Wholesale service delivery
Essential 100G aggregation use cases
Edge data center overlay connectivity
Aggregating business and CORD services at the
data center
Multi-cloud connectivity at exchange points
Regional data centerCommunication service provider
Metro networks
Colo/cloud
exchange
IP/MPLS
core
Wholesale
Broadband
backhaul
L2 service
L2 service
Business
access
Timing-aware
mobile backhaul

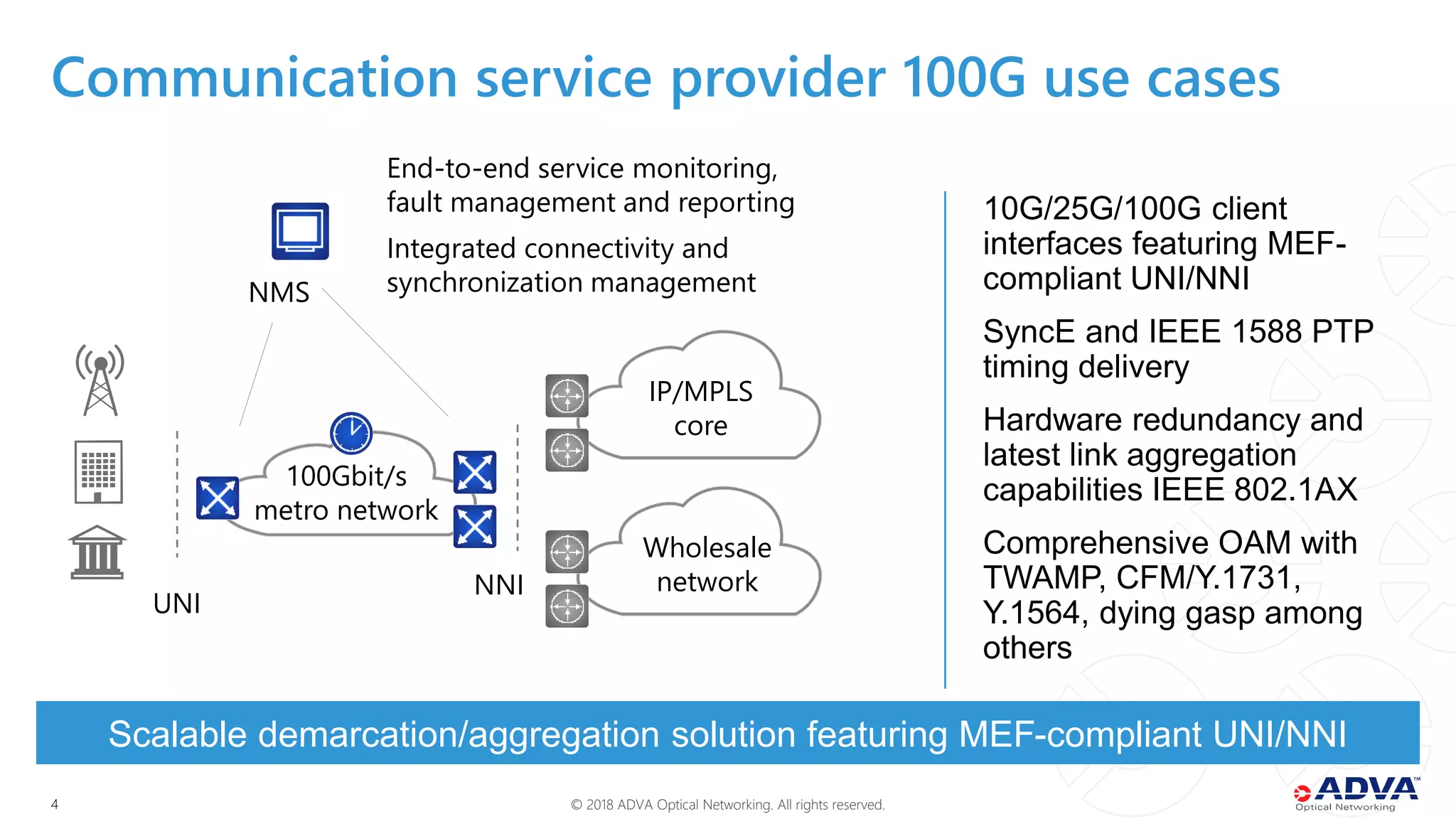

4. © 2018 ADVA Optical Networking. All rights reserved.44
10G/25G/100G client
interfaces featuring MEF-
compliant UNI/NNI
SyncE and IEEE 1588 PTP
timing delivery
Hardware redundancy and
latest link aggregation
capabilities IEEE 802.1AX
Comprehensive OAM with
TWAMP, CFM/Y.1731,
Y.1564, dying gasp among
others
Scalable demarcation/aggregation solution featuring MEF-compliant UNI/NNI
Communication service provider 100G use cases
IP/MPLS
core
100Gbit/s
metro network
UNI
NNI
End-to-end service monitoring,
fault management and reporting
Integrated connectivity and
synchronization management
Wholesale
network
NMS

5. © 2018 ADVA Optical Networking. All rights reserved.55

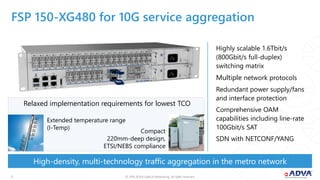

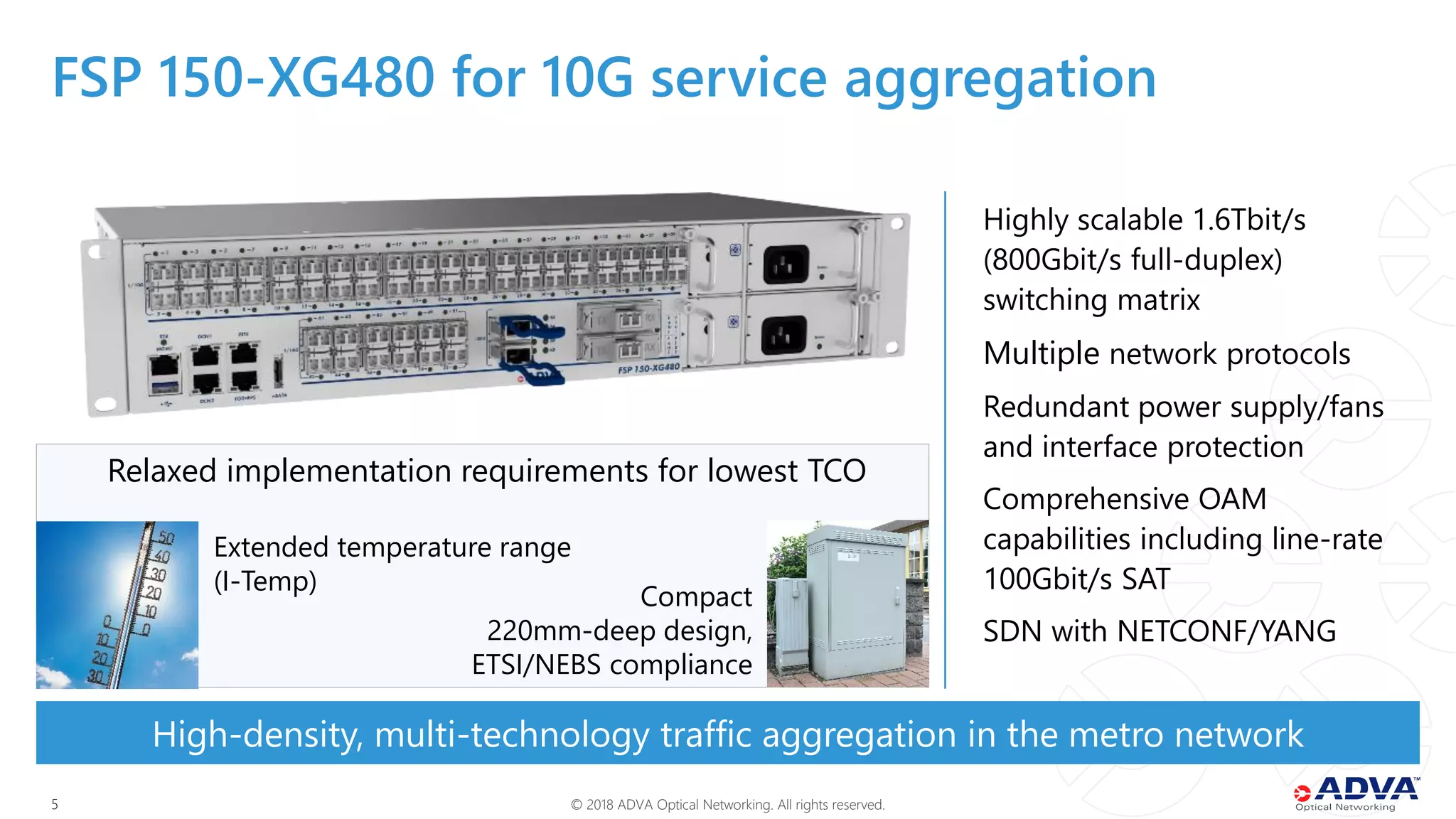

Highly scalable 1.6Tbit/s
(800Gbit/s full-duplex)
switching matrix
Multiple network protocols
Redundant power supply/fans
and interface protection
Comprehensive OAM
capabilities including line-rate
100Gbit/s SAT
SDN with NETCONF/YANG
High-density, multi-technology traffic aggregation in the metro network
FSP 150-XG480 for 10G service aggregation
Extended temperature range
(I-Temp)
Compact
220mm-deep design,
ETSI/NEBS compliance
Relaxed implementation requirements for lowest TCO

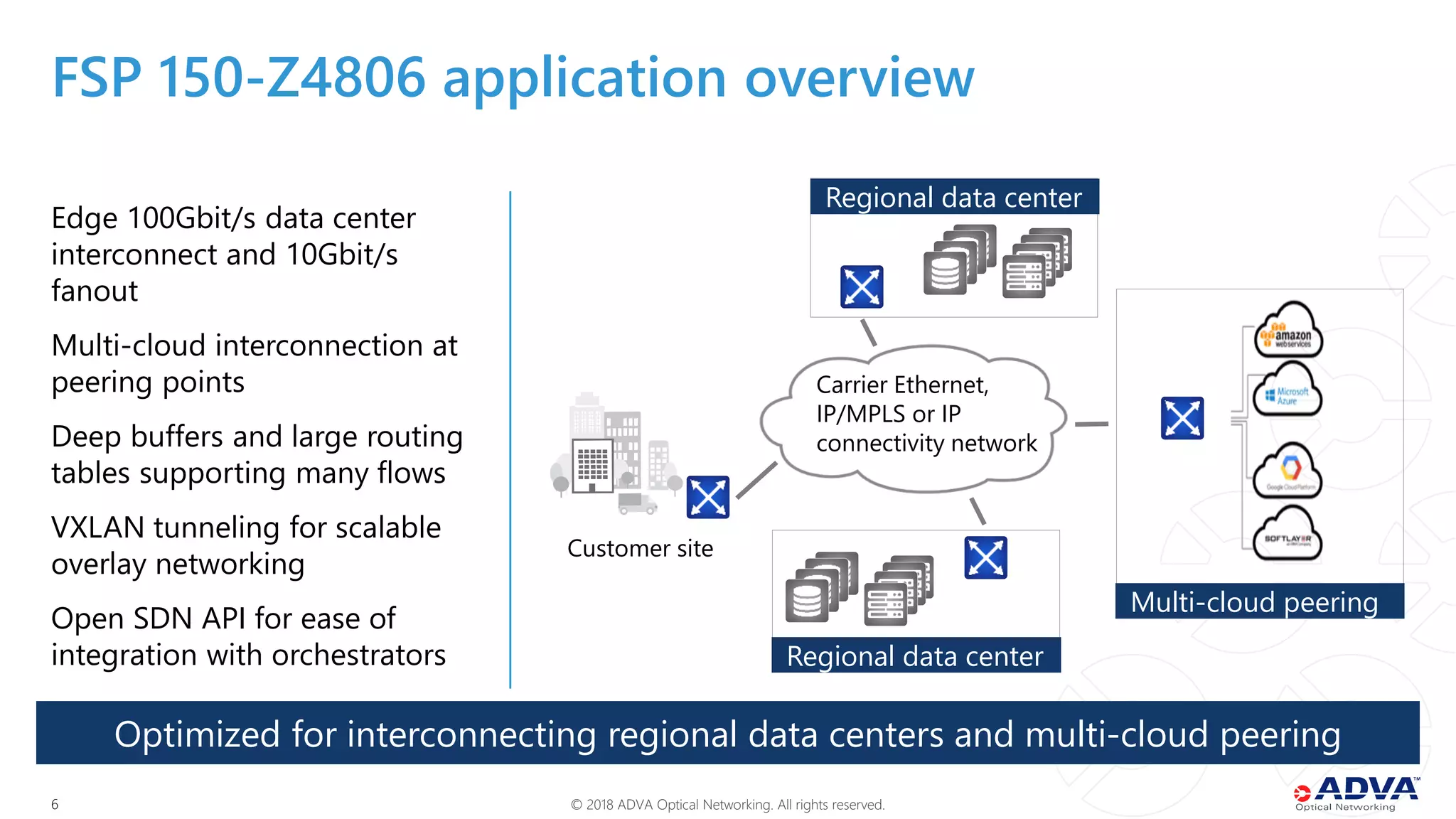

6. © 2018 ADVA Optical Networking. All rights reserved.66
Edge 100Gbit/s data center
interconnect and 10Gbit/s
fanout
Multi-cloud interconnection at
peering points
Deep buffers and large routing
tables supporting many flows
VXLAN tunneling for scalable
overlay networking
Open SDN API for ease of
integration with orchestrators
Optimized for interconnecting regional data centers and multi-cloud peering
FSP 150-Z4806 application overview
Customer site
Regional data center
Regional data center
Multi-cloud peering
Carrier Ethernet,
IP/MPLS or IP
connectivity network

7. © 2018 ADVA Optical Networking. All rights reserved.77

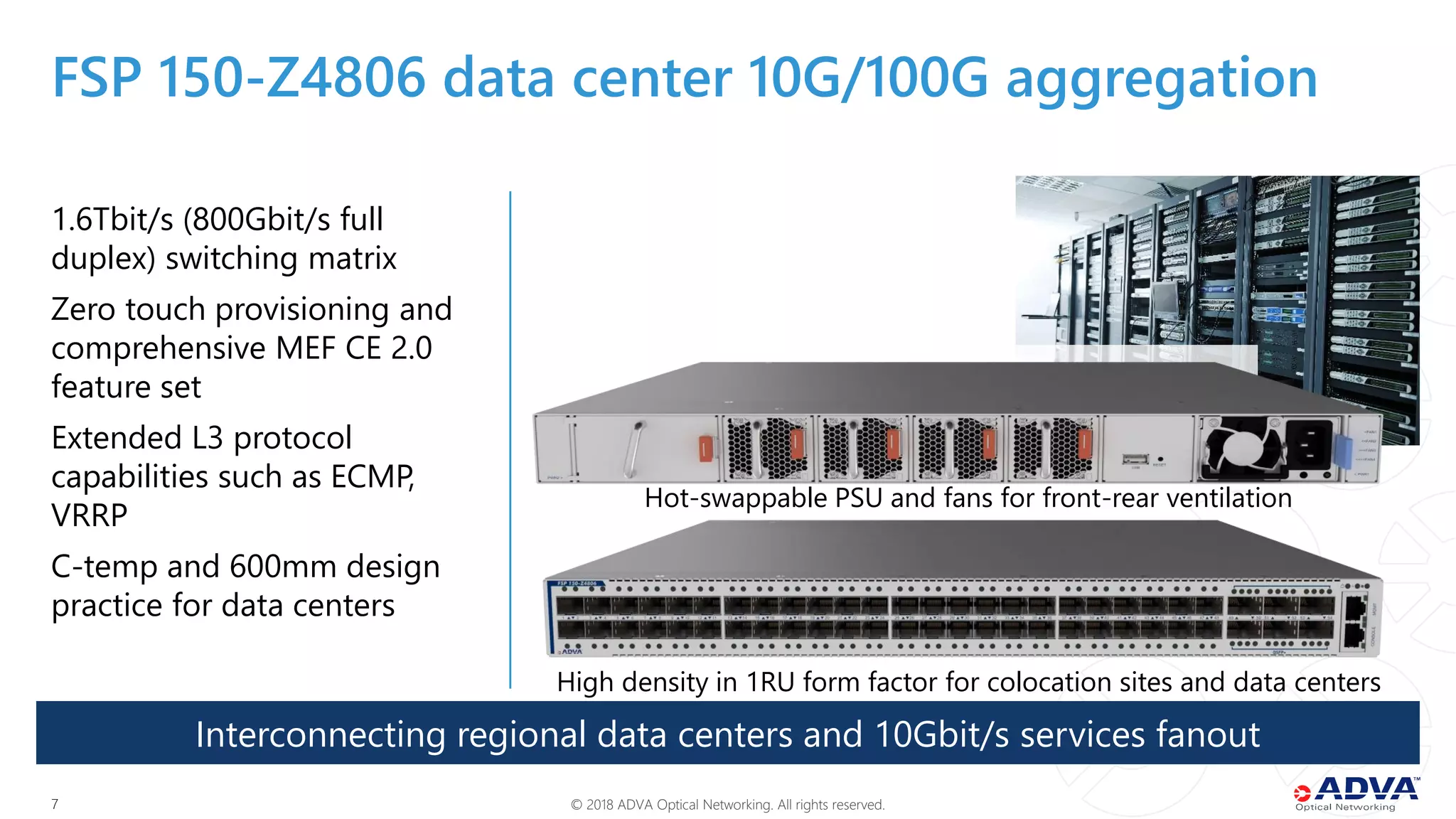

1.6Tbit/s (800Gbit/s full
duplex) switching matrix
Zero touch provisioning and
comprehensive MEF CE 2.0
feature set
Extended L3 protocol
capabilities such as ECMP,
VRRP
C-temp and 600mm design
practice for data centers
Interconnecting regional data centers and 10Gbit/s services fanout
FSP 150-Z4806 data center 10G/100G aggregation
High density in 1RU form factor for colocation sites and data centers
Hot-swappable PSU and fans for front-rear ventilation

8. © 2018 ADVA Optical Networking. All rights reserved.88

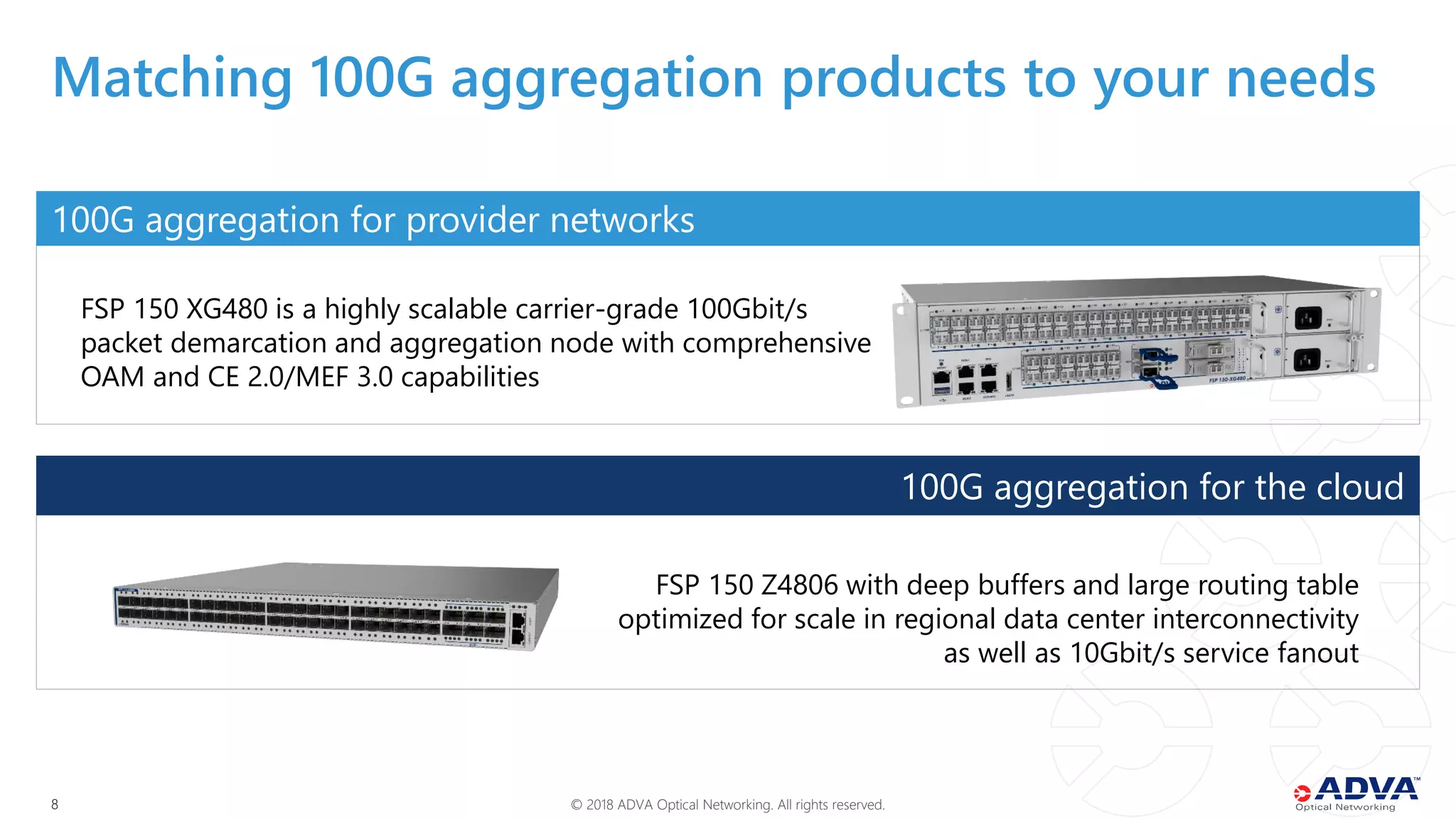

100G aggregation for provider networks
100G aggregation for the cloud
Matching 100G aggregation products to your needs
FSP 150 XG480 is a highly scalable carrier-grade 100Gbit/s
packet demarcation and aggregation node with comprehensive
OAM and CE 2.0/MEF 3.0 capabilities
FSP 150 Z4806 with deep buffers and large routing table
optimized for scale in regional data center interconnectivity
as well as 10Gbit/s service fanout

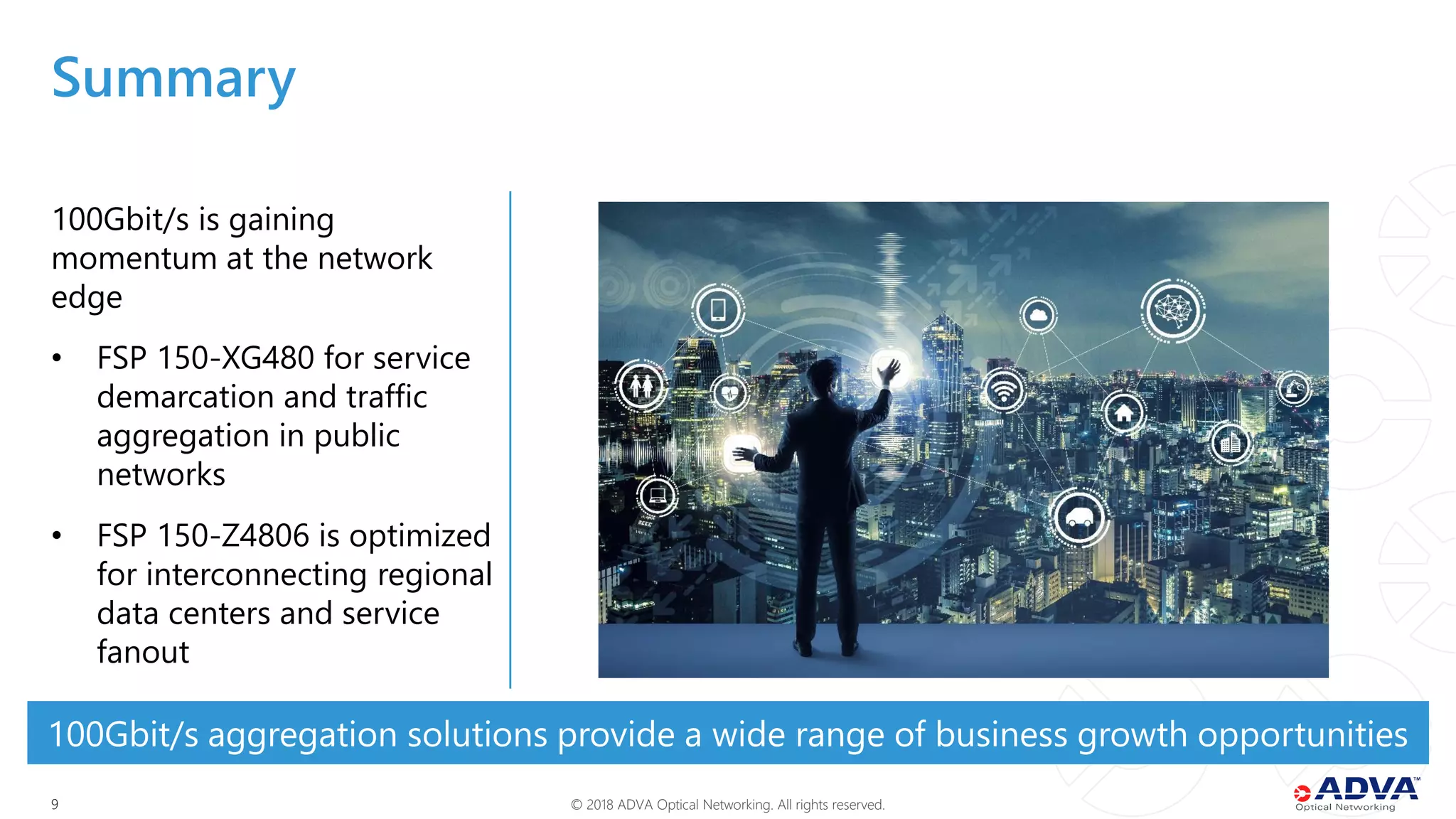

9. © 2018 ADVA Optical Networking. All rights reserved.99
100Gbit/s is gaining
momentum at the network
edge
• FSP 150-XG480 for service
demarcation and traffic
aggregation in public
networks
• FSP 150-Z4806 is optimized
for interconnecting regional
data centers and service
fanout
100Gbit/s aggregation solutions provide a wide range of business growth opportunities
Summary
