The document introduces the FSP 150-XG118PRO, a multi-layer demarcation device designed for edge computing in 5G and IoT environments. It emphasizes the growing demand for bandwidth due to applications like video traffic and massive sensor networks, while detailing features such as low-latency processing, virtual network functions, and automated service activation. The device is built for robust performance with environmentally hardened design and supports a range of new 5G services and applications.

1. Introducing the FSP 150-XG118Pro
September 2019
Edge computing in 5G and IoT

2. © 2019 ADVA Optical Networking. All rights reserved.22

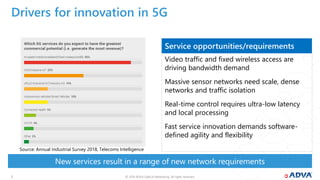

Video traffic and fixed wireless access are
driving bandwidth demand
Massive sensor networks need scale, dense
networks and traffic isolation
Real-time control requires ultra-low latency
and local processing
Fast service innovation demands software-
defined agility and flexibility
Service opportunities/requirements
New services result in a range of new network requirements
Drivers for innovation in 5G
Source: Annual Industrial Survey 2018, Telecoms Intelligence

3. © 2019 ADVA Optical Networking. All rights reserved.33

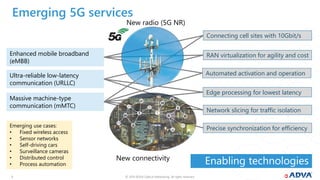

New connectivity
New radio (5G NR)
Enabling technologies
Enhanced mobile broadband
(eMBB)
Massive machine-type
communication (mMTC)
Ultra-reliable low-latency
communication (URLLC)
Emerging use cases:
• Fixed wireless access
• Sensor networks
• Self-driving cars
• Surveillance cameras
• Distributed control
• Process automation
RAN virtualization for agility and cost
Automated activation and operation
Edge processing for lowest latency
Connecting cell sites with 10Gbit/s
Network slicing for traffic isolation
Precise synchronization for efficiency
Emerging 5G services

4. © 2019 ADVA Optical Networking. All rights reserved.44
Seamless growth with environmentally hardened, compact 10G and 100G devices
Growing bandwidth in the backhaul network
Yesterday
1Gbit/s
10Gbit/s
aggregation
Towards tomorrow
25Gbit/s
100Gbit/s
aggregation
10Gbit/s
10Gbit/s
moves
to edge New 100Gbit/s
aggregation
5G NR with 10Gbit/s and 25Gbit/s network
interfaces
Densification creates bandwidth bottlenecks in
RAN aggregation network
Network 10Gbit/s 100Gbit/s
Clients 1/10Gbit/s 1/10/25Gbit/s
Timing Hardware Hardware
Environment I-temp I-temp
FSP 150 XG118Pro FSP 150-XG480
new

5. © 2019 ADVA Optical Networking. All rights reserved.55

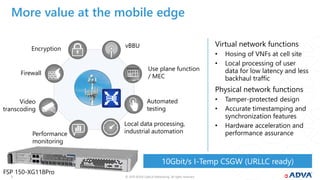

Virtual network functions
• Hosing of VNFs at cell site
• Local processing of user
data for low latency and less
backhaul traffic
Physical network functions
• Tamper-protected design
• Accurate timestamping and
synchronization features
• Hardware acceleration and
performance assurance
10Gbit/s I-Temp CSGW (URLLC ready)
More value at the mobile edge
Automated
testing
Local data processing,
industrial automationPerformance
monitoring
Video
transcoding
Firewall
Encryption vBBU
Use plane function
/ MEC
FSP 150-XG118Pro

6. © 2019 ADVA Optical Networking. All rights reserved.66

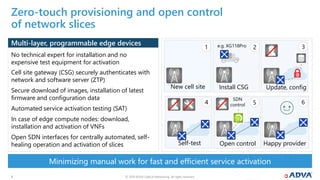

No technical expert for installation and no
expensive test equipment for activation
Cell site gateway (CSG) securely authenticates with
network and software server (ZTP)
Secure download of images, installation of latest
firmware and configuration data
Automated service activation testing (SAT)
In case of edge compute nodes: download,
installation and activation of VNFs
Open SDN interfaces for centrally automated, self-
healing operation and activation of slices
Multi-layer, programmable edge devices
Minimizing manual work for fast and efficient service activation
Zero-touch provisioning and open control
of network slices
New cell site Update, config
Happy provider
Install CSG
Self-test Open control
SDN
control
1 2 3
4 65
e.g. XG118Pro

7. © 2019 ADVA Optical Networking. All rights reserved.77
Open support for a wide
range of VNFs
Smooth migration from L2/L3
demarcation to NFV
HW-based synchronization
for accurate phase and
frequency distribution
Advanced security functions
Industrial temperature range
for deployment in street
cabinets
Intelligent multi-layer demarcation and NFV hosting
Cost-optimized edge VNF hosting with X.86 server blade
FSP 150-XG118Pro
Ensemble Orchestrator
Evolved
packet core
Base station Backhaul
VNF
FSP 150 ProVMe
PNF
Firewall eNB Connector Sync NID Encryption
Cell site virtualization
Robust vCPE hosting
WAN
optimizer Firewall Router
Metro
network
FSP 150 ProVMe Data center

8. © 2019 ADVA Optical Networking. All rights reserved.88
Multi-layer 10Gbit/s
demarcation
Pluggable server for in-
service compute upgrade
Zero-touch provisioning
SyncE, PTP and clock I/O
I-Temp (-40°C to +65°C)
Independent server
monitoring and control
Ensemble solution suite for
control and orchestration
10Gbit/s programmable cell site gateway with edge compute
10G cell site gateway with edge compute
FSP 150-XG118Pro (SH)
Ensemble
Orchestrator
vEPC Internet
applications
FSP 150
XG118Pro
FSP 150
XG480
Open, standard API
Ensemble
Controller
FSP 150-
XG118Pro (SH)

9. © 2019 ADVA Optical Networking. All rights reserved.99

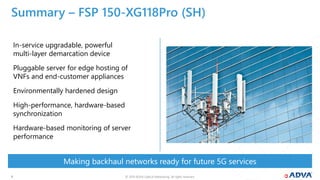

Making backhaul networks ready for future 5G services
Summary – FSP 150-XG118Pro (SH)
In-service upgradable, powerful
multi-layer demarcation device
Pluggable server for edge hosting of
VNFs and end-customer appliances
Environmentally hardened design
High-performance, hardware-based
synchronization
Hardware-based monitoring of server
performance
