ADVA introduces accesswave25tm, a 25G DWDM solution designed for cost-efficient upgrades from 10G networks, enabling up to 40km reach. This technology supports seamless integration with existing infrastructure and offers features like auto-tuning and remote diagnostics to simplify operations. It is suitable for various applications, including mobile and broadband access, ensuring a future-proof network with higher capacity.

1. Introducing ADVA AccessWave25™
September 2022
25G DWDM extended-reach connectivity from any device with an SFP28 port

2. © 2022 ADVA. All rights reserved.
2
25G demand is increasing day by day
• Operators are evolving their access networks and migrating to 25Gbit/s line rates
between access and aggregation nodes to future-proof their networks and reduce
cost per bit
• Furthermore, limited fiber resources are driving the demand for DWDM-based
solutions and therefore for colored optical transceivers
• Operators need to find a solution that enables a smooth and cost-efficient upgrade
to 25Gbit/s DWDM with minimal operational complexity and maximum reuse of
existing 10Gbit/s-based infrastructure
Boost capacity with cost-efficient 25Gbit/s DWDM pluggable optical transceivers

3. © 2022 ADVA. All rights reserved.
3

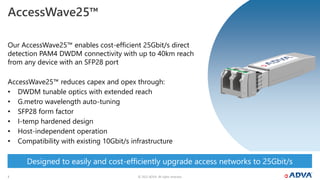

AccessWave25™
Our AccessWave25™ enables cost-efficient 25Gbit/s direct
detection PAM4 DWDM connectivity with up to 40km reach
from any device with an SFP28 port
AccessWave25™ reduces capex and opex through:
• DWDM tunable optics with extended reach
• G.metro wavelength auto-tuning
• SFP28 form factor
• I-temp hardened design
• Host-independent operation
• Compatibility with existing 10Gbit/s infrastructure
Designed to easily and cost-efficiently upgrade access networks to 25Gbit/s

4. © 2022 ADVA. All rights reserved.
4
AccessWave25™ – applications in your network
DWDM
multiplexer
Nx 25Gbit/s
PAM4 DWDM
…
Mobile
access
Broadband
access
Business
services
RPD
RU
DWDM
multiplexer
25Gbit/s
wavelengths
100Gbit/s
wavelengths
…
Headend
CCAP/DU/
router/ …
…
Edge access Edge aggregation
DWDM
multiplexer
Nx 100Gbit/s
coherent DWDM
25Gbit/s DWDM links with up to 40km reach from any device with an SFP28 port

5. © 2022 ADVA. All rights reserved.
5
Visibility of remote plugs
Monitoring of physical parameters such as
power levels, temperature, voltage, etc. as
well as inventory information
Independent of remote host equipment
G.metro auto-tuning and communication channel
…
λ1 λn
λ2
AccessWave25™ plugs automatically
find and tune to the correct
wavelength within seconds
(fully C-band tunable)
...
No commissioning and
minimum inventory
Web GUI or ADVA
Ensemble Controller
Wavelength auto-tuning and remote diagnostics simplify operations
AccessWave25™ in
ADVA device AccessWave25™ in
third-party device
(e.g., router)

6. © 2022 ADVA. All rights reserved.
6
Patent-pending innovation
• With scaling rules equivalent to 10Gbit/s technology, AccessWave25™ can be used
over existing 10Gbit/s-based network infrastructure and is host-agnostic in any
SFP28 port. No need to tear out equipment to upgrade your network
• The ADVA turnkey FSP 3000 solution for passive optical access offers the highest
performance at minimum cost
• The combination of C-band operation and 25Gbit/s bandwidth typically limits the
maximum reach to a few kilometers (dispersion limited)
• With patent-pending technology innovation, the ADVA AcessWave25™ enables
25Gbit/s DWDM links with up to 40km reach without dispersion compensation or
optical amplification (G.652 fiber)
Seamless
upgrade of 10G
infrastructure
Up to 40km
reach
ADVA’s innovation enables 25Gbit/s DWDM interfaces with superior performance

7. © 2022 ADVA. All rights reserved.
7

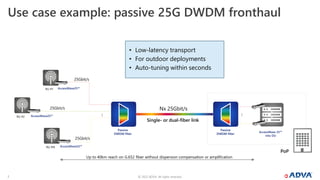

Use case example: passive 25G DWDM fronthaul
RU #1
…
AccessWave25™
Passive
DWDM filter
Single- or dual-fiber link
PoP
Passive
DWDM filter
…
AccessWave 25™
into DU
RU #2
RU #N
AccessWave25™
AccessWave25™
Nx 25Gbit/s
25Gbit/s
25Gbit/s
25Gbit/s
Up to 40km reach on G.652 fiber without dispersion compensation or amplification
• Low-latency transport
• For outdoor deployments
• Auto-tuning within seconds

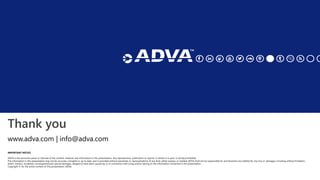

8. Thank you
