1. INTERNAL ROOT
RESORPTIONAND ITS
CLINICAL MANAGEMENT
Dr BASIL JOSE

2. Root resorption (RR) is either a physiologic or a pathological
condition that is associated with tooth structure loss caused by
clastic cells.The process of resorption in permanent dentition is
usually pathological and may occur after various injuries, including
mechanical, chemical, or thermal injury.Root resorption can be
classified into either internal or external according to the damaged
protective layer. If pathologic resorption is untreated it will result in
the premature loss of the teeth.
I N T R O D U C T I O N

3. INTERNAL ROOT
RESORPTION
Definition:
• Internal resorption is an unusual form of tooth resorption that begins
centrally within the tooth, apparently initiated in most cases by a peculiar
inflammation of the pulp. (Ingle)
Internal resorption is an idiopathic, slow or fast progressive resorptive
process, occurring in the dentin of the pulp chamber or root canals of
teeth.(Grossman)
• Internal surface
resorption
• Internal infection related
root resorption
• Internal replacement
resorption

4. ETIOLOGICA L FA CTORS

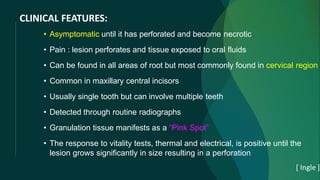

5. CLINICAL FEATURES:
• Asymptomatic until it has perforated and become necrotic
• Pain : lesion perforates and tissue exposed to oral fluids
• Can be found in all areas of root but most commonly found in cervical region
• Common in maxillary central incisors
• Usually single tooth but can involve multiple teeth
• Detected through routine radiographs
• Granulation tissue manifests as a “Pink Spot”
• The response to vitality tests, thermal and electrical, is positive until the
lesion grows significantly in size resulting in a perforation
[ Ingle ]

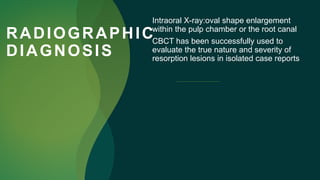

6. RADIOGRAPHIC
DIAGNOSIS
Intraoral X-ray:oval shape enlargement
within the pulp chamber or the root canal
CBCT has been successfully used to
evaluate the true nature and severity of
resorption lesions in isolated case reports

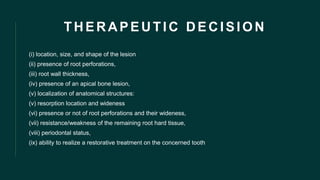

7. THERAPEUTIC DECISION
(i) location, size, and shape of the lesion
(ii) presence of root perforations,
(iii) root wall thickness,
(iv) presence of an apical bone lesion,
(v) localization of anatomical structures:
(v) resorption location and wideness
(vi) presence or not of root perforations and their wideness,
(vii) resistance/weakness of the remaining root hard tissue,
(viii) periodontal status,
(ix) ability to realize a restorative treatment on the concerned tooth

8. C O N S E R VAT I V E D E N TA L T R E AT M E N T S
O F R E S O R B E D T E E T H
• Root canal treatment remains the treatment of choice
• access cavity preparation must be as conservative as possible
• A great emphasis must be placed on the chemical dissolution of the vital and necrotic pulp tissue with
sodium hypochlorite.
• The use of ultrasonic devices activates and facilitates the penetration of the irrigation solution of
hypochlorite to all the areas of the root canal system .
• The nontraumatic plastic tips of EndoActivator are particularly indicated to achieve a complete
chemomechanical debridement
• calcium hydroxide as an interappointment dressing maximizes the effect of disinfection procedures
• Thermoplastic guttapercha techniques seem to give the best results when the canal walls are respected

9. S U R G I C A L T R E AT M E N T O F I N T E R N A L
R O O T R E S O R P T I O N
o Following local anesthesia a mucoperiosteal flap is raised.
o The cortical bone plate is removed to provide access to the root area.
o The softtissue lesion is curetted and the intraradicular dentin cavity is prepared with the aid of an operative
microscope, cleaned, and dried.
o The filling materials (like
o MTA or Biodentine) are placed and smoothed on its external surface.

10. INTERNAL SURFACE
RESORPTION
Etiology:
Found in areas where revascularisation occurs
• Fracture lines of root.
• Apical part of root canal of luxated teeth undergoing
revascularisation
Pathogenesis:
• Osteoclastic activity is part of the process along with formationof
granulation tissue.
[ Ingle ]

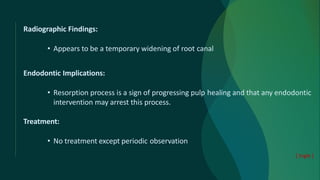

11. Radiographic Findings:
• Appears to be a temporary widening of root canal
Endodontic Implications:
• Resorption process is a sign of progressing pulp healing and that any endodontic
intervention may arrest this process.
Treatment:
• No treatment except periodic observation
[ Ingle ]

12. TRANSIENT APICAL INTERNAL
RESORPTION
• Another form of trauma induced non-infective root resorption identified by Andreasen
in 1986.
• Resorption follow luxation injuries
• Recognized by a confined periapical radiolucency which resolves within a few months.
• There may be associated colour change due to intra-pulpal haemorrhage.
• This resolve spontaneously if revascularisation to the coronal pulp chamber occurs.
Heithersay GS. Management of tooth resorption. Australian Dental Journal. 2007 Mar;52:S105-21.

13. • In the longer term, (transient process), the internally resorbed apex will close
uneventfully.
Radiograph taken 1 year after the original
trauma shows resolution of the apical
internal resorption and no other signs of
periradicular pathosis
Radiograph taken 1 month after the
luxation injury shows evidence of
transient apical internal resorption
Heithersay GS. Management of tooth resorption. Australian Dental Journal. 2007 Mar;52:S105-21.

14. •It involves a progressive loss of intraradicular dentin without
adjunctive deposition of hard tissue adjacent to the resorptive sites.
•The coronal pulp is usually necrotic, whereas the apical pulp must
remain vital.
2. INTERNAL INFECTION RELATED ROOT
RESORPTION
Nilsson, E., Bonte, E., Bayet, F., & Lasfargues, J.-J. (2013). Management of Internal
Root Resorption on Permanent Teeth. International Journal of Dentistry, 2013, 1–7.

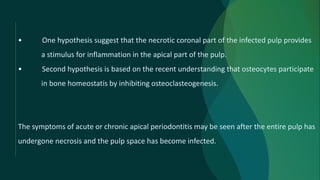

15. • One hypothesis suggest that the necrotic coronal part of the infected pulp provides
a stimulus for inflammation in the apical part of the pulp.
• Second hypothesis is based on the recent understanding that osteocytes participate
in bone homeostatis by inhibiting osteoclasteogenesis.
The symptoms of acute or chronic apical periodontitis may be seen after the entire pulp has
undergone necrosis and the pulp space has become infected.

16. •Apical
•Intraradicular
Internal
inflammatory
resorption may be
classified according
to location :
Apical :
• Study showed that 74.7 % of teeth
with periapical lesions had varying
degrees of apical internal resorption.
Heithersay GS. Management of tooth resorption. Australian Dental Journal. 2007 Mar;52:S105-21.
Intraradicular :
• Internal resorption fully contained as round
or oval shaped radiolucencies within an
intact root

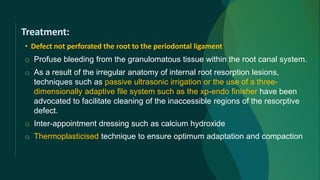

17. Treatment:
• Defect not perforated the root to the periodontal ligament
o Profuse bleeding from the granulomatous tissue within the root canal system.
o As a result of the irregular anatomy of internal root resorption lesions,
techniques such as passive ultrasonic irrigation or the use of a three-
dimensionally adaptive file system such as the xp-endo finisher have been
advocated to facilitate cleaning of the inaccessible regions of the resorptive
defect.
o Inter-appointment dressing such as calcium hydroxide
o Thermoplasticised technique to ensure optimum adaptation and compaction

18. • Defect perforated the root below bone level :
• A hard tissue barrier can be produced with long-term calcium hydroxide
treatment, after which obturation is carried out.
• Root canal filling is best performed with a bioceramic material such as
mineral trioxide aggregate (mta) or biodentine
• Defect perforates coronal to the epithelial attachment or if an extremely
large perforation is present :
• A surgical approach is required to seal the perforation.

19. Treatment :
Apical
• Extend instrumentation only to the position of the resorption.
• With the removal of micro-organisms followed
by root canal filling, hard tissue repair will
occur in the resorbed apical region.
• Treatment to the position of the resorption help in achieving
biological
repair of the resorbed apex.

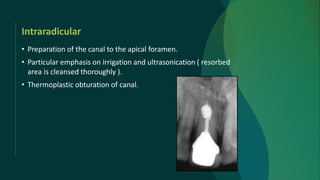

20. Intraradicular
• Preparation of the canal to the apical foramen.
• Particular emphasis on irrigation and ultrasonication ( resorbed
area is cleansed thoroughly ).
• Thermoplastic obturation of canal.

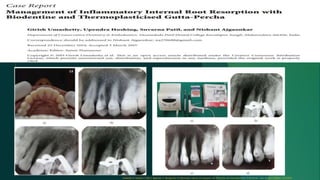

21. Umashetty G, Hoshing U, Patil S, Ajgaonkar N. Management of inflammatory internal root resorption with Biodentine and thermoplasticised Gutta-Percha. Case reports in dentistry. 2015;2015.

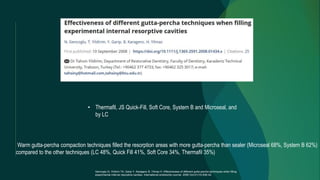

22. • Thermafil, JS Quick-Fill, Soft Core, System B and Microseal, and
by LC
Warm gutta-percha compaction techniques filled the resorption areas with more gutta-percha than sealer (Microseal 68%, System B 62%)
compared to the other techniques (LC 48%, Quick Fill 41%, Soft Core 34%, Thermafil 35%)
Gencoglu N, Yildirim TA, Garip Y, Karagenc B, Yilmaz H. Effectiveness of different gutta‐percha techniques when filling
experimental internal resorptive cavities. International endodontic journal. 2008 Oct;41(10):836-42.

23. 3. INTERNAL REPLACEMENT
RESORPTION
Etiology:
• The damage to pulp tissue is usually related to trauma.
• When damaged pulp tissue replaced as a part of healing process – tissue metaplasia
occurs – formation of bone tissue in pulp canal.
• Damaged pulp tissue – replaced with an ingrowth of new tissue, includes bone derived
cells.

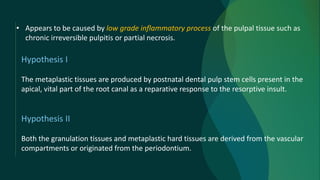

24. Hypothesis I
The metaplastic tissues are produced by postnatal dental pulp stem cells present in the
apical, vital part of the root canal as a reparative response to the resorptive insult.
Hypothesis II
Both the granulation tissues and metaplastic hard tissues are derived from the vascular
compartments or originated from the periodontium.
• Appears to be caused by low grade inflammatory process of the pulpal tissue such as
chronic irreversible pulpitis or partial necrosis.

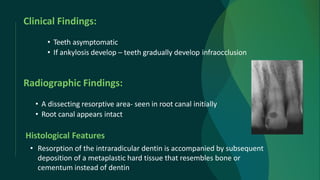

25. Clinical Findings:
• Teeth asymptomatic
• If ankylosis develop – teeth gradually develop infraocclusion
Radiographic Findings:
• A dissecting resorptive area- seen in root canal initially
• Root canal appears intact
• Resorption of the intraradicular dentin is accompanied by subsequent
deposition of a metaplastic hard tissue that resembles bone or
cementum instead of dentin.
Histological Features

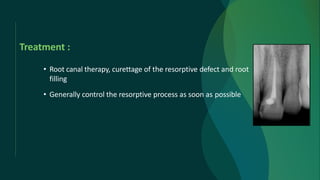

26. Treatment :
• Root canal therapy, curettage of the resorptive defect and root
filling
• Generally control the resorptive process as soon as possible

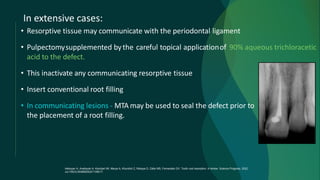

27. In extensive cases:
• Resorptive tissue may communicate with the periodontal ligament
• Pulpectomysupplemented bythe careful topical applicationof 90% aqueous trichloracetic
acid to the defect.
• This inactivate any communicating resorptive tissue
• Insert conventional root filling
• In communicating lesions - MTA may be used to seal the defect prior to
the placement of a root filling.
Heboyan A, Avetisyan A, Karobari MI, Marya A, Khurshid Z, Rokaya D, Zafar MS, Fernandes GV. Tooth root resorption: A review. Science Progress. 2022
Jul;105(3):00368504221109217.

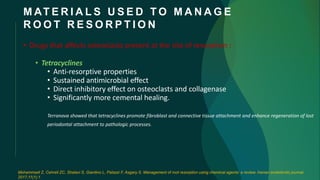

28. M AT E R I A L S U S E D T O M A N A G E
R O O T R E S O R P T I O N
• Drugs that affects osteoclasts present at the site of resorption :
• Tetracyclines
• Anti-resorptive properties
• Sustained antimicrobial effect
• Direct inhibitory effect on osteoclasts and collagenase
• Significantly more cemental healing.
Terranova showed that tetracyclines promote fibroblast and connective tissue attachment and enhance regeneration of lost
periodontal attachment to pathologic processes.
Mohammadi Z, Cehreli ZC, Shalavi S, Giardino L, Palazzi F, Asgary S. Management of root resorption using chemical agents: a review. Iranian endodontic journal.
2017;11(1):1.

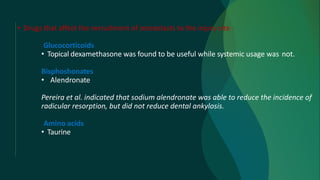

29. • Drugs that affect the recruitment of osteoclasts to the injury site :
Glucocorticoids
• Topical dexamethasone was found to be useful while systemic usage was not.
Bisphoshonates
• Alendronate
Pereira et al. indicated that sodium alendronate was able to reduce the incidence of
radicular resorption, but did not reduce dental ankylosis.
Amino acids
• Taurine

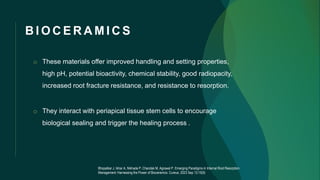

30. B I O C E R A M I C S
o These materials offer improved handling and setting properties,
high pH, potential bioactivity, chemical stability, good radiopacity,
increased root fracture resistance, and resistance to resorption.
o They interact with periapical tissue stem cells to encourage
biological sealing and trigger the healing process .
Bhopatkar J, Ikhar A, Nikhade P, Chandak M, Agrawal P. Emerging Paradigms in Internal Root Resorption
Management: Harnessing the Power of Bioceramics. Cureus. 2023 Sep 13;15(9)

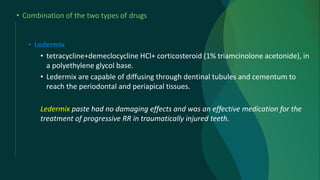

31. • Combination of the two types of drugs
• Ledermix
• tetracycline+demeclocycline HCl+ corticosteroid (1% triamcinolone acetonide), in
a polyethylene glycol base.
• Ledermix are capable of diffusing through dentinal tubules and cementum to
reach the periodontal and periapical tissues.
Ledermix paste had no damaging effects and was an effective medication for the
treatment of progressive RR in traumatically injured teeth.

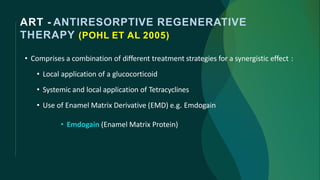

32. ART - ANTIRESORPTIVE REGENERATIVE
THERAPY (POHL ET AL 2005)
• Comprises a combination of different treatment strategies for a synergistic effect :
• Local application of a glucocorticoid
• Systemic and local application of Tetracyclines
• Use of Enamel Matrix Derivative (EMD) e.g. Emdogain
• Emdogain (Enamel Matrix Protein)

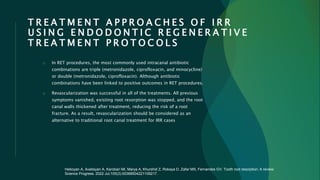

33. T R E A T M E N T A P P R O A C H E S O F I R R
U S I N G E N D O D O N T I C R E G E N E R A T I V E
T R E A T M E N T P R O T O C O L S
o In RET procedures, the most commonly used intracanal antibiotic
combinations are triple (metronidazole, ciprofloxacin, and minocycline)
or double (metronidazole, ciprofloxacin). Although antibiotic
combinations have been linked to positive outcomes in RET procedures.
o Revascularization was successful in all of the treatments. All previous
symptoms vanished, existing root resorption was stopped, and the root
canal walls thickened after treatment, reducing the risk of a root
fracture. As a result, revascularization should be considered as an
alternative to traditional root canal treatment for IRR cases
Heboyan A, Avetisyan A, Karobari MI, Marya A, Khurshid Z, Rokaya D, Zafar MS, Fernandes GV. Tooth root resorption: A review.
Science Progress. 2022 Jul;105(3):00368504221109217.

34. Nageh, M., Ibrahim, L. A., AbuNaeem, F. M., & Salam, E. (2021). Management of internal inflammatory root
resorption using injectable platelet-rich fibrin revascularization technique: a clinical study with cone-beam
computed tomography evaluation

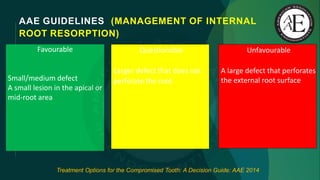

35. Favourable
Small/medium defect
A small lesion in the apical or
mid-root area
AAE GUIDELINES (MANAGEMENT OF INTERNAL
ROOT RESORPTION)
Unfavourable
A large defect that perforates
the external root surface
Questionable
Larger defect that does not
perforate the root
Treatment Options for the Compromised Tooth: A Decision Guide: AAE 2014

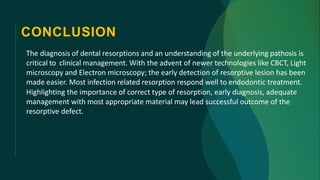

36. CONCLUSION
The diagnosis of dental resorptions and an understanding of the underlying pathosis is
critical to clinical management. With the advent of newer technologies like CBCT, Light
microscopy and Electron microscopy; the early detection of resorptive lesion has been
made easier. Most infection related resorption respond well to endodontic treatment.
Highlighting the importance of correct type of resorption, early diagnosis, adequate
management with most appropriate material may lead successful outcome of the
resorptive defect.

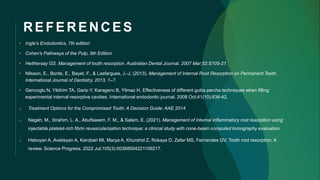

37. REFERENCES
• Ingle’s Endodontics, 7th edition
• Cohen's Pathways of the Pulp, 9th Edition
• Heithersay GS. Management of tooth resorption. Australian Dental Journal. 2007 Mar;52:S105-21.
• Nilsson, E., Bonte, E., Bayet, F., & Lasfargues, J.-J. (2013). Management of Internal Root Resorption on Permanent Teeth.
International Journal of Dentistry, 2013, 1–7.
• Gencoglu N, Yildirim TA, Garip Y, Karagenc B, Yilmaz H. Effectiveness of different gutta‐percha techniques when filling
experimental internal resorptive cavities. International endodontic journal. 2008 Oct;41(10):836-42.
o Treatment Options for the Compromised Tooth: A Decision Guide: AAE 2014
o Nageh, M., Ibrahim, L. A., AbuNaeem, F. M., & Salam, E. (2021). Management of internal inflammatory root resorption using
injectable platelet-rich fibrin revascularization technique: a clinical study with cone-beam computed tomography evaluation
o Heboyan A, Avetisyan A, Karobari MI, Marya A, Khurshid Z, Rokaya D, Zafar MS, Fernandes GV. Tooth root resorption: A
review. Science Progress. 2022 Jul;105(3):00368504221109217.
