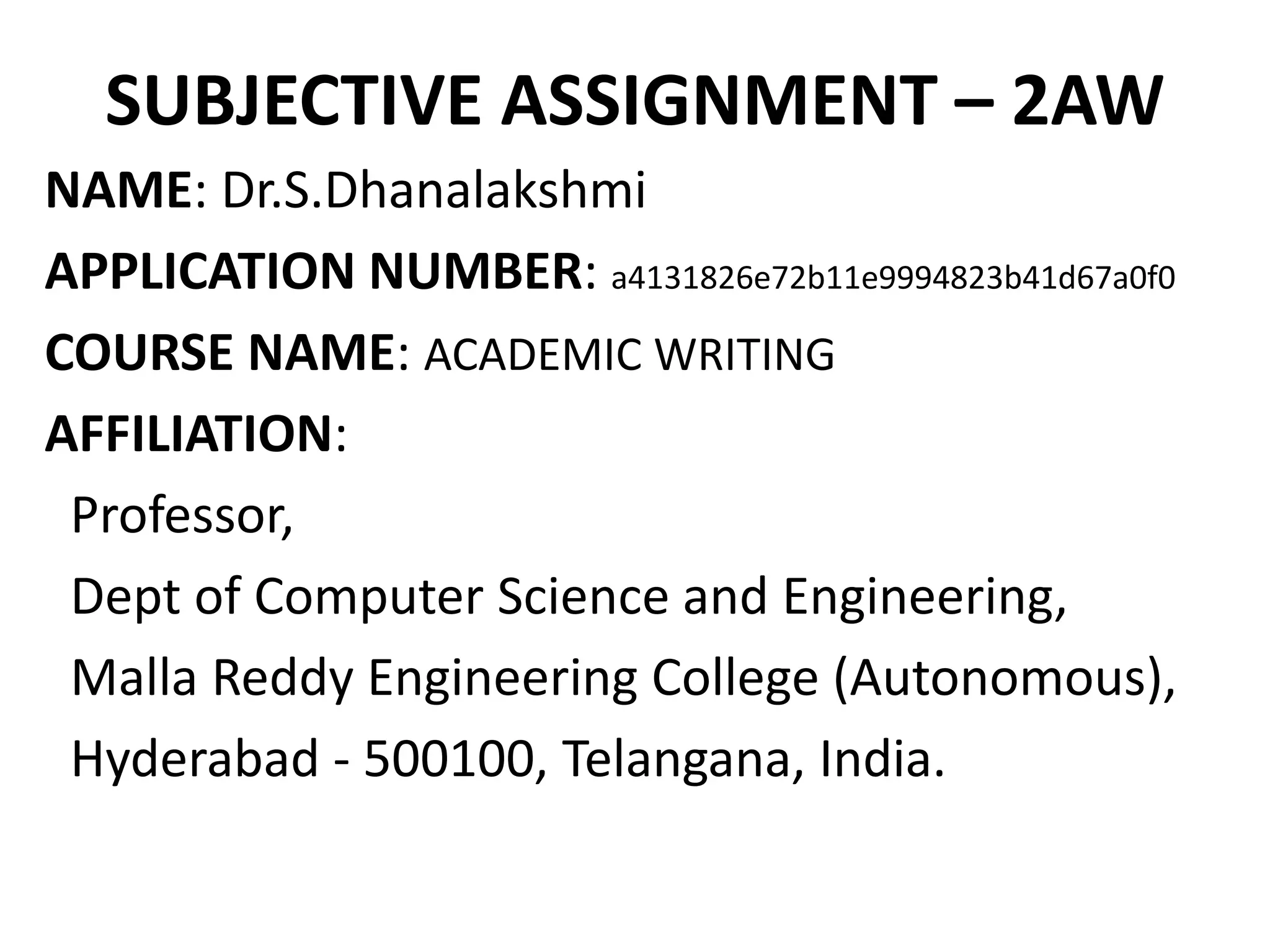

1. SUBJECTIVE ASSIGNMENT – 2AW
NAME: Dr.S.Dhanalakshmi
APPLICATION NUMBER: a4131826e72b11e9994823b41d67a0f0
COURSE NAME: ACADEMIC WRITING
AFFILIATION:
Professor,
Dept of Computer Science and Engineering,
Malla Reddy Engineering College (Autonomous),
Hyderabad - 500100, Telangana, India.

2. Subject Name: Compiler Design
Branch & Sem : III B.Tech (CSE) & I Sem
Topic : Intermediate Code Generation
(Compiler Design subject contains 5 modules, this
topic belongs to 3rd module)

3. Intermediate Code Generation
• Intermediate code is the interface between front end and back
end in a compiler source language are confined to the front end
and the details of target machines to the back end
• An intermediate code form of source program is an internal
form of a program created by the compiler while translating the
program created by the compiler from a high –level language to
assembly code(or)object code(machine code).
Parser
Static
Checker
Intermediate
Code Generator
Code
Generator
Front end Back end

4. Types of Intermediate
representations
3 Types of Intermediate Representations
1) Syntax tree
2) Postfix notation
3) Three address code (3AC)

5. 1. SYNTAX TREE
• The parse tree itself is a useful intermediate-language representation for a
source program, especially in optimizing compilers where the
intermediate code needs to extensively restructure.
• A parse tree, however, often contains redundant information which can be
eliminated, Thus producing a more economical representation of the
source Program. One such variant of a parse tree is what is called an
(abstract) syntax tree, a tree in which each leaf represents an operand and
each interior node an operator.
Ex: a:= b*-c + b*-c

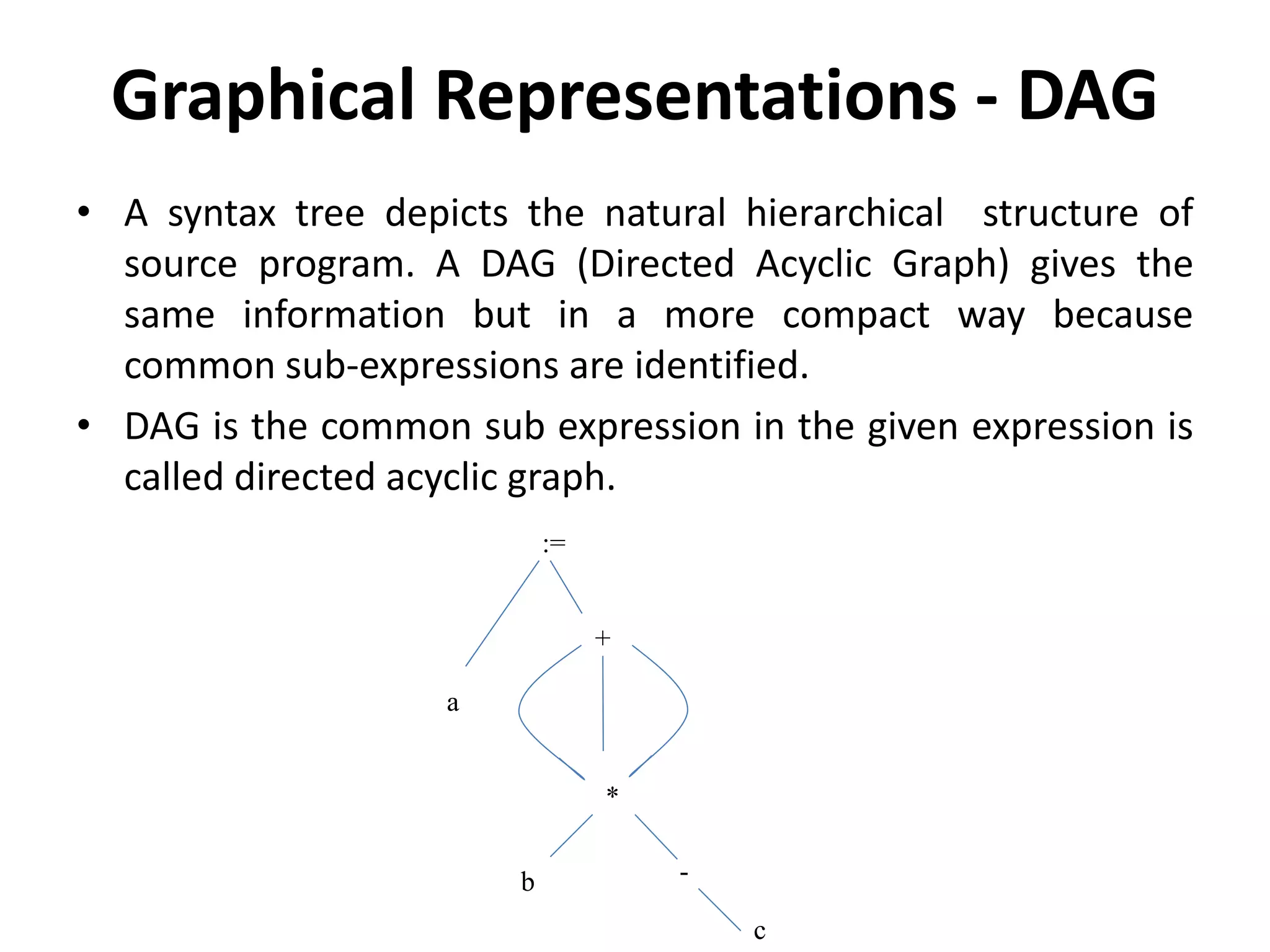

6. Graphical Representations - DAG
• A syntax tree depicts the natural hierarchical structure of
source program. A DAG (Directed Acyclic Graph) gives the
same information but in a more compact way because
common sub-expressions are identified.
• DAG is the common sub expression in the given expression is
called directed acyclic graph.
:=
+
-b
c
*
a

7. 2. Postfix Notation
• Postfix notation is a linearized representation of a
syntax tree; it is a list of the nodes of the in which a
node appears immediately after its children.
The postfix notation for the syntax tree in the fig is
• a:= b c uminus + b c uminus * + assign

8. +
+ *
*
-
b c
a
d
• Example:
1) p1=Leaf(id, entry-a)
2) P2=Leaf(id, entry-a)=p1
3) p3=Leaf(id, entry-b)
4) p4=Leaf(id, entry-c)
5) p5=Node(‘-’,p3,p4)
6) p6=Node(‘*’,p1,p5)
7) p7=Node(‘+’,p1,p6)
8) p8=Leaf(id,entry-b)=p3
9) p9=Leaf(id,entry-c)=p4
10) p10=Node(‘-’,p3,p4)=p5
11) p11=Leaf(id,entry-d)
12) p12=Node(‘*’,p5,p11)
13) p13=Node(‘+’,p7,p12)

9. 3.Three address code (3AC)
• In a three address code there is at most one
operator at the right side of an instruction
Example a:= b *- c + b* - c
t1 = – c
t2 = b * t1
t3 = – c
t4 = b * t3
t5 = t2 + t4
a:= t5

10. Three address codes
Implementations
• Quadruples
– Has four fields: op, arg1, arg2 and result
• Triples
– Temporaries are not used and instead references
to instructions are made
• Indirect triples
– In addition to triples we use a list of pointers to
triples

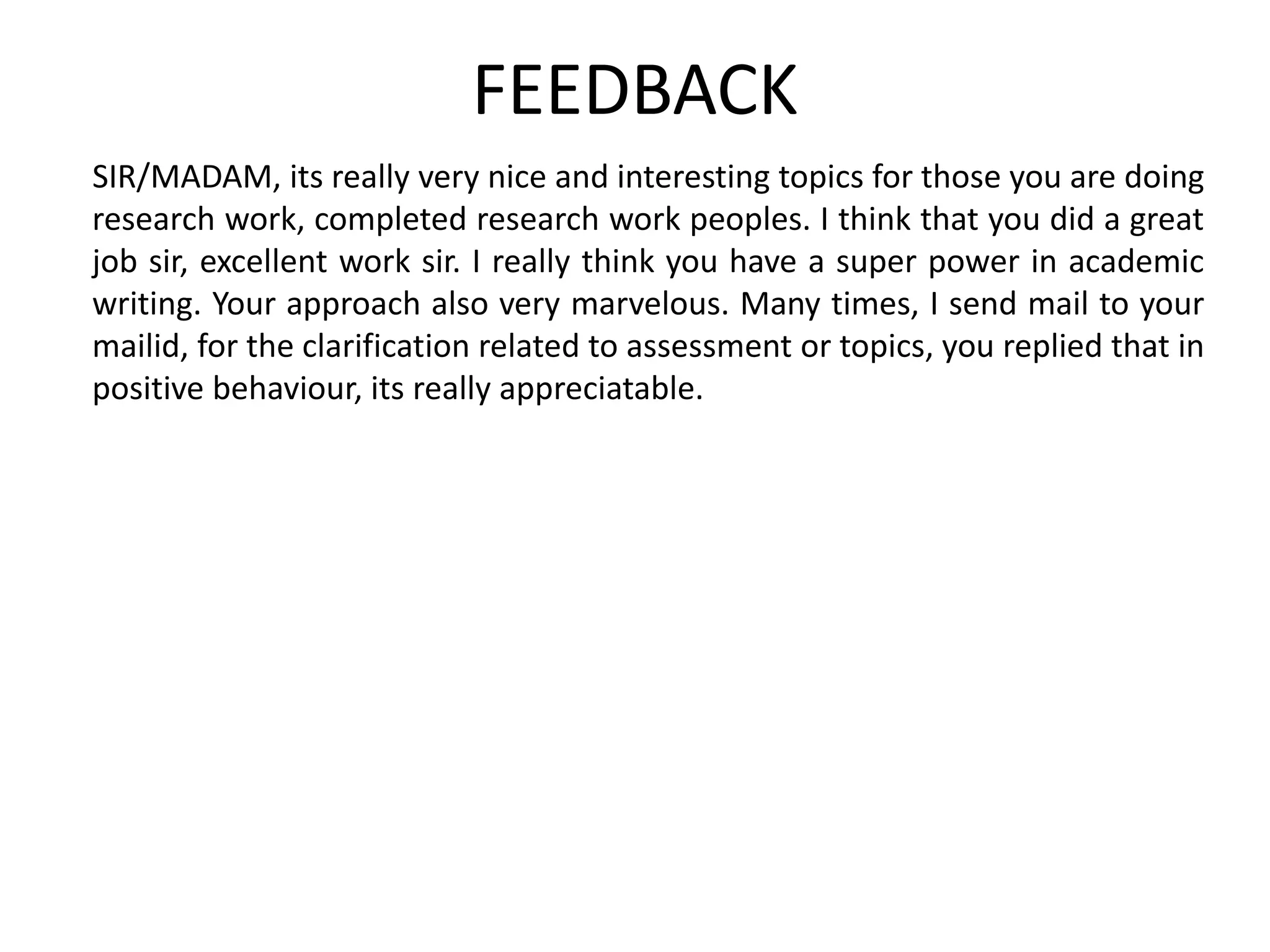

13. FEEDBACK
